STAs communicate with each directly outside the context of a BSS. More...

#include "ocb-wifi-mac.h"

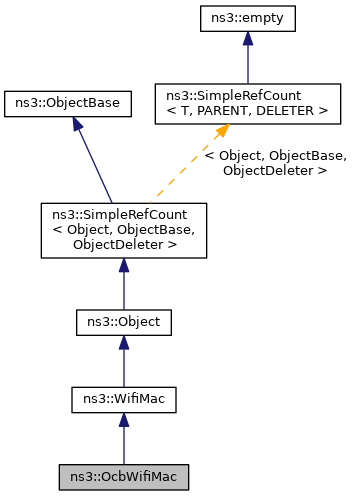

Inheritance diagram for ns3::OcbWifiMac:

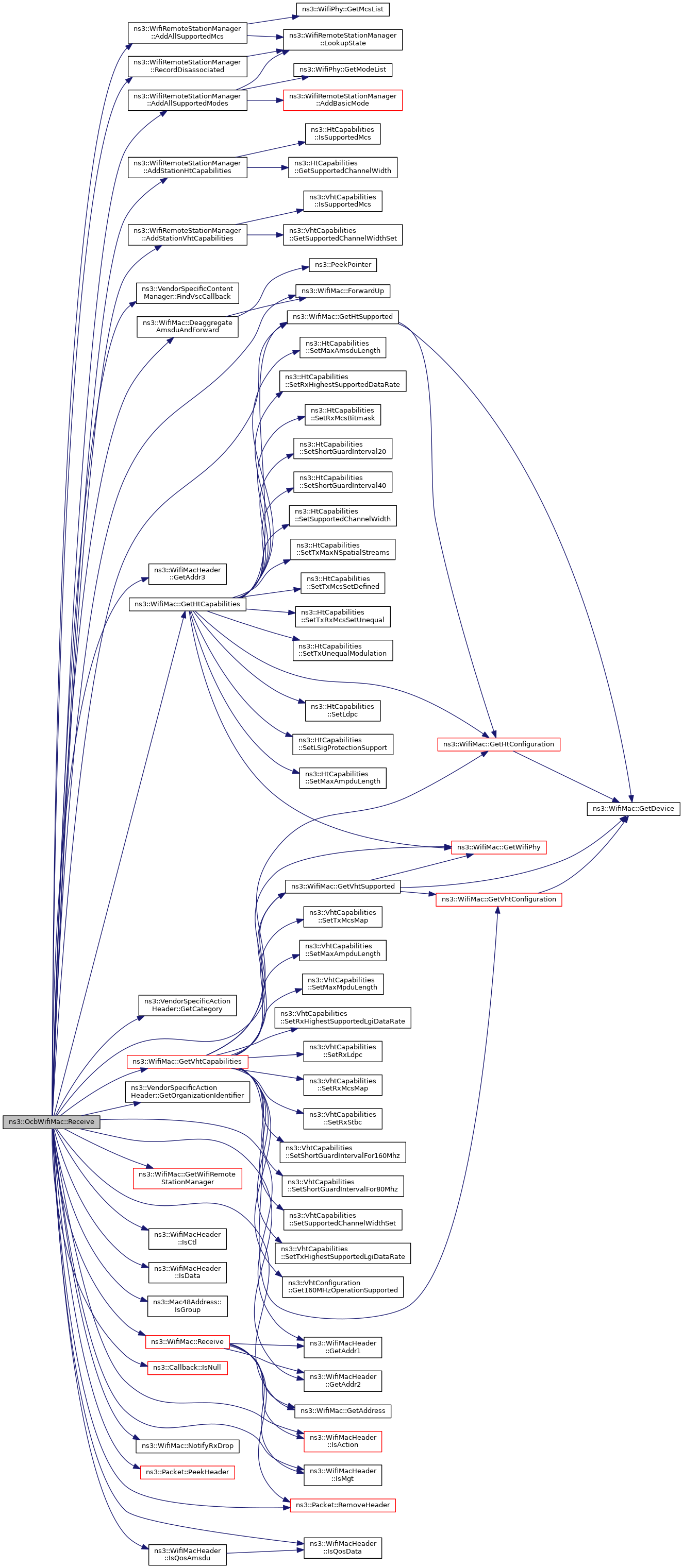

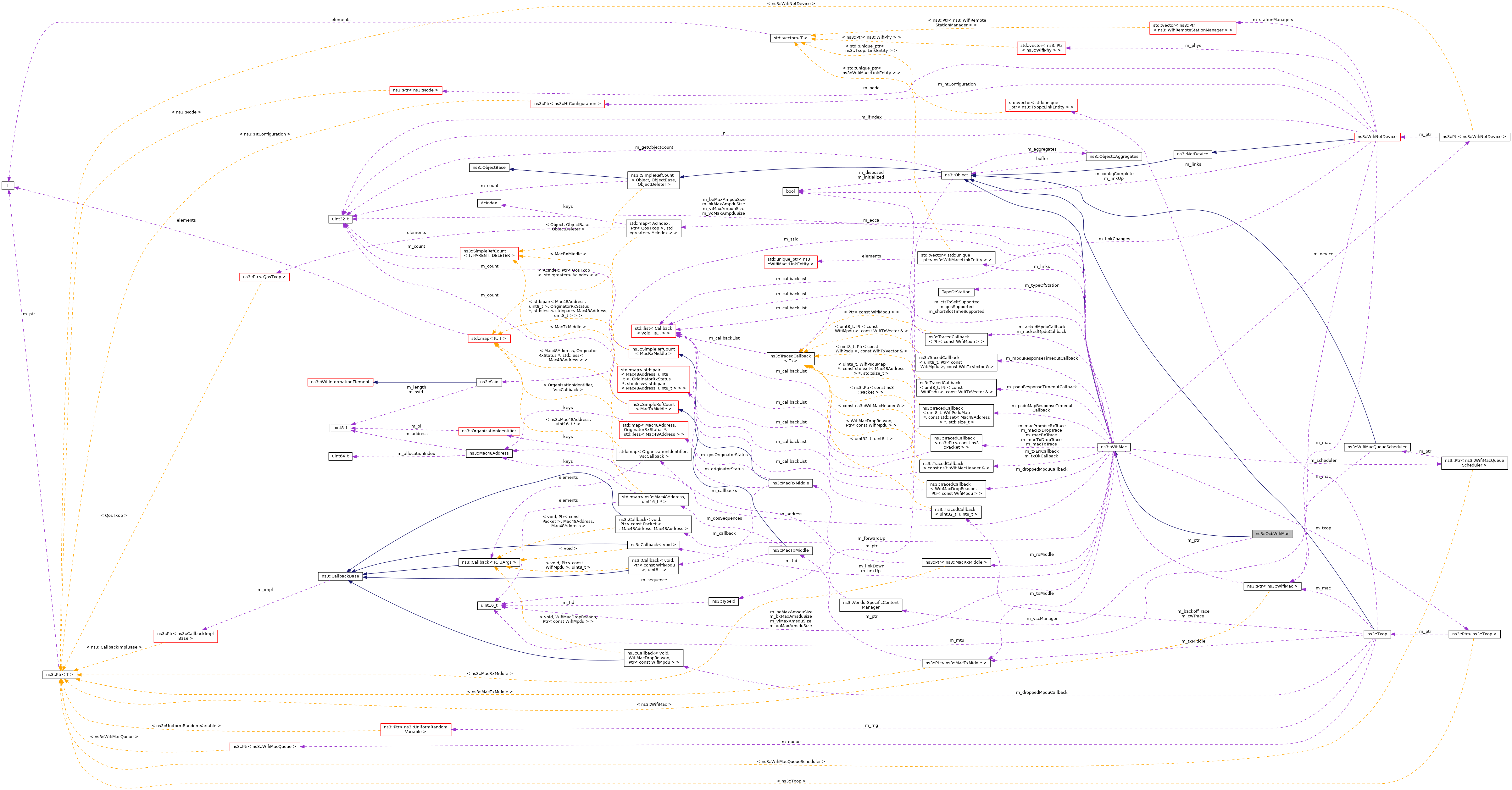

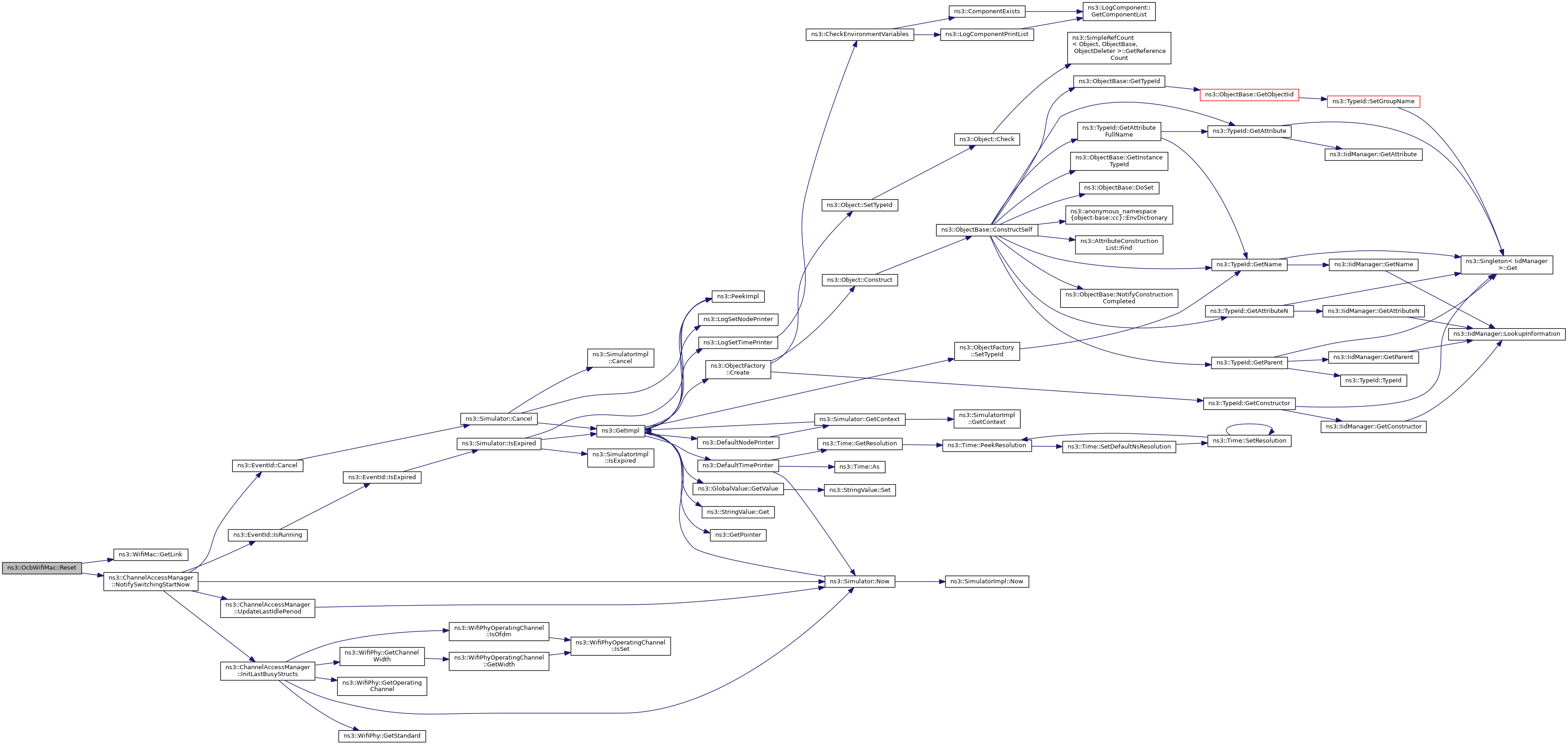

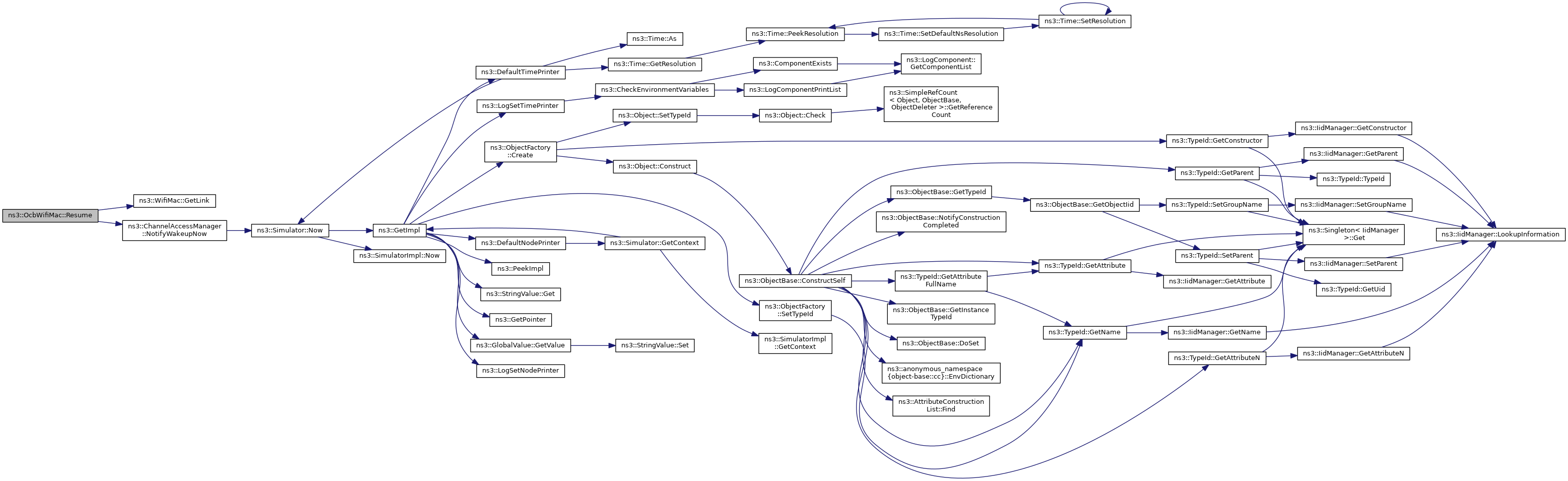

Collaboration diagram for ns3::OcbWifiMac:

Public Member Functions
	OcbWifiMac ()

	~OcbWifiMac () override

void	AddReceiveVscCallback (OrganizationIdentifier oi, VscCallback cb)

void	CancleTx (enum AcIndex ac)

bool	CanForwardPacketsTo (Mac48Address to) const override
	Return true if packets can be forwarded to the given destination, false otherwise. More...

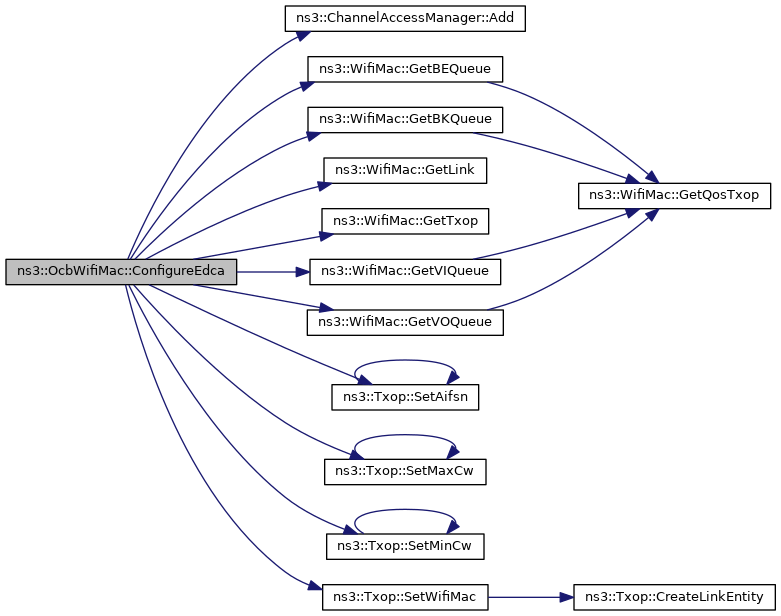

void	ConfigureEdca (uint32_t cwmin, uint32_t cwmax, uint32_t aifsn, enum AcIndex ac)

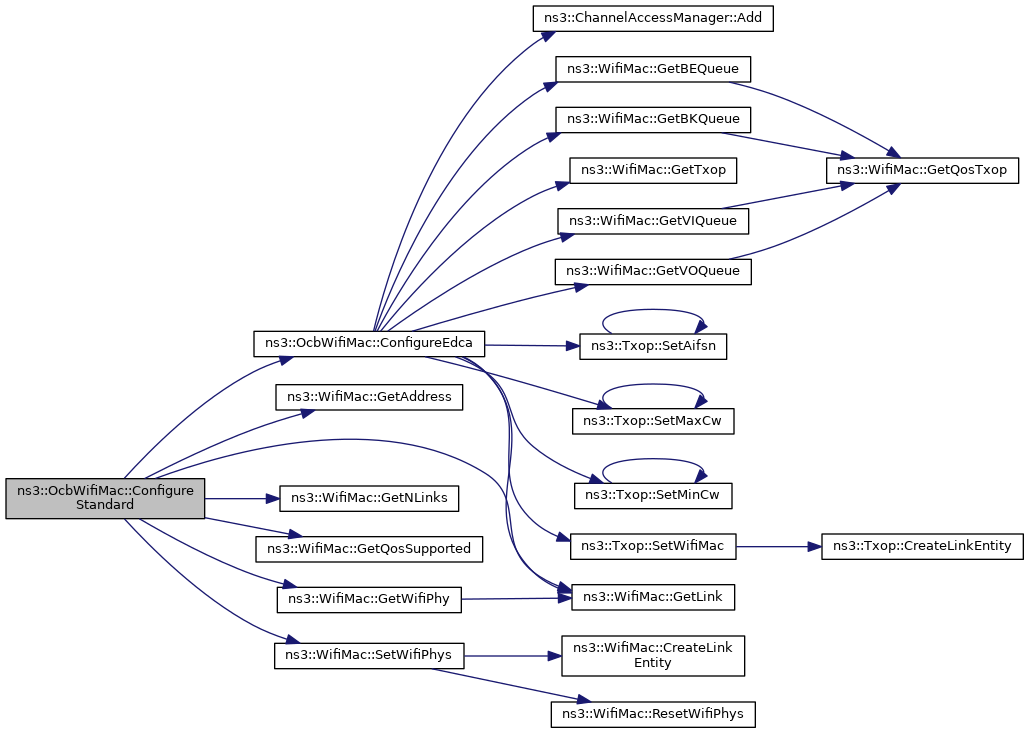

void	ConfigureStandard (enum WifiStandard standard) override

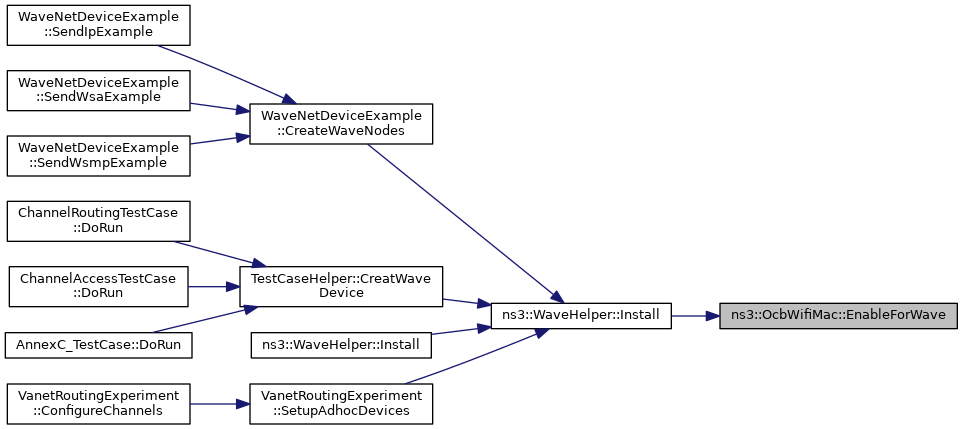

void	EnableForWave (Ptr< WaveNetDevice > device)

void	Enqueue (Ptr< Packet > packet, Mac48Address to) override

virtual Mac48Address	GetBssid (uint8_t) const
	This method shall not be used in WAVE environment and here it will overloaded to log warn message. More...

virtual Ssid	GetSsid () const

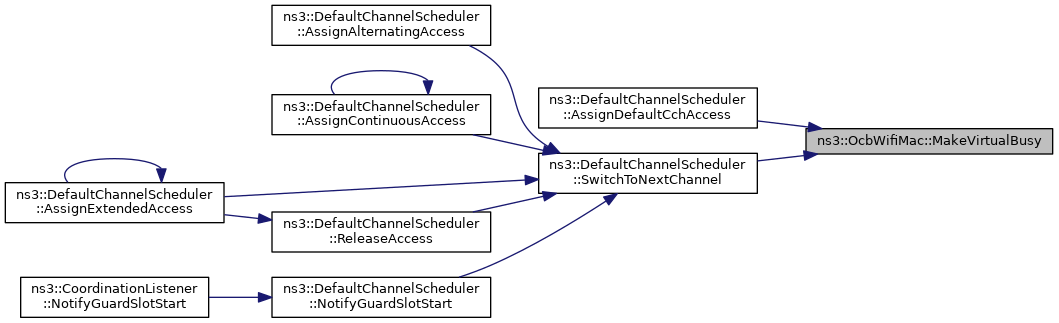

void	MakeVirtualBusy (Time duration)

void	RemoveReceiveVscCallback (OrganizationIdentifier oi)

void	Reset ()
	To support MAC extension for multiple channel operation, Reset current MAC entity and flush its internal queues. More...

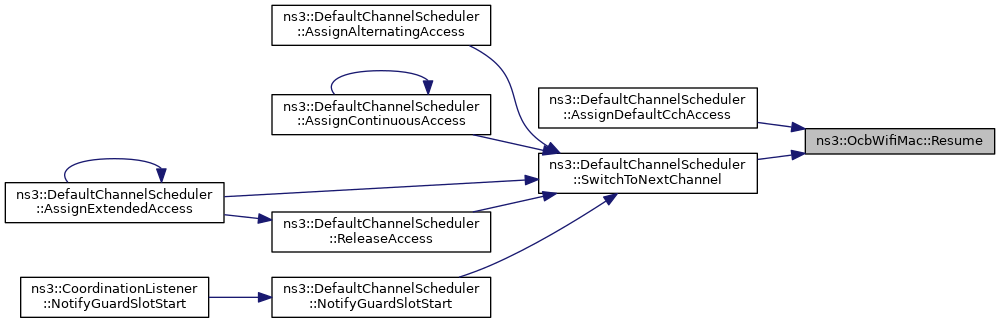

void	Resume ()
	To support MAC extension for multiple channel operation, Resume the activity of suspended MAC entity. More...

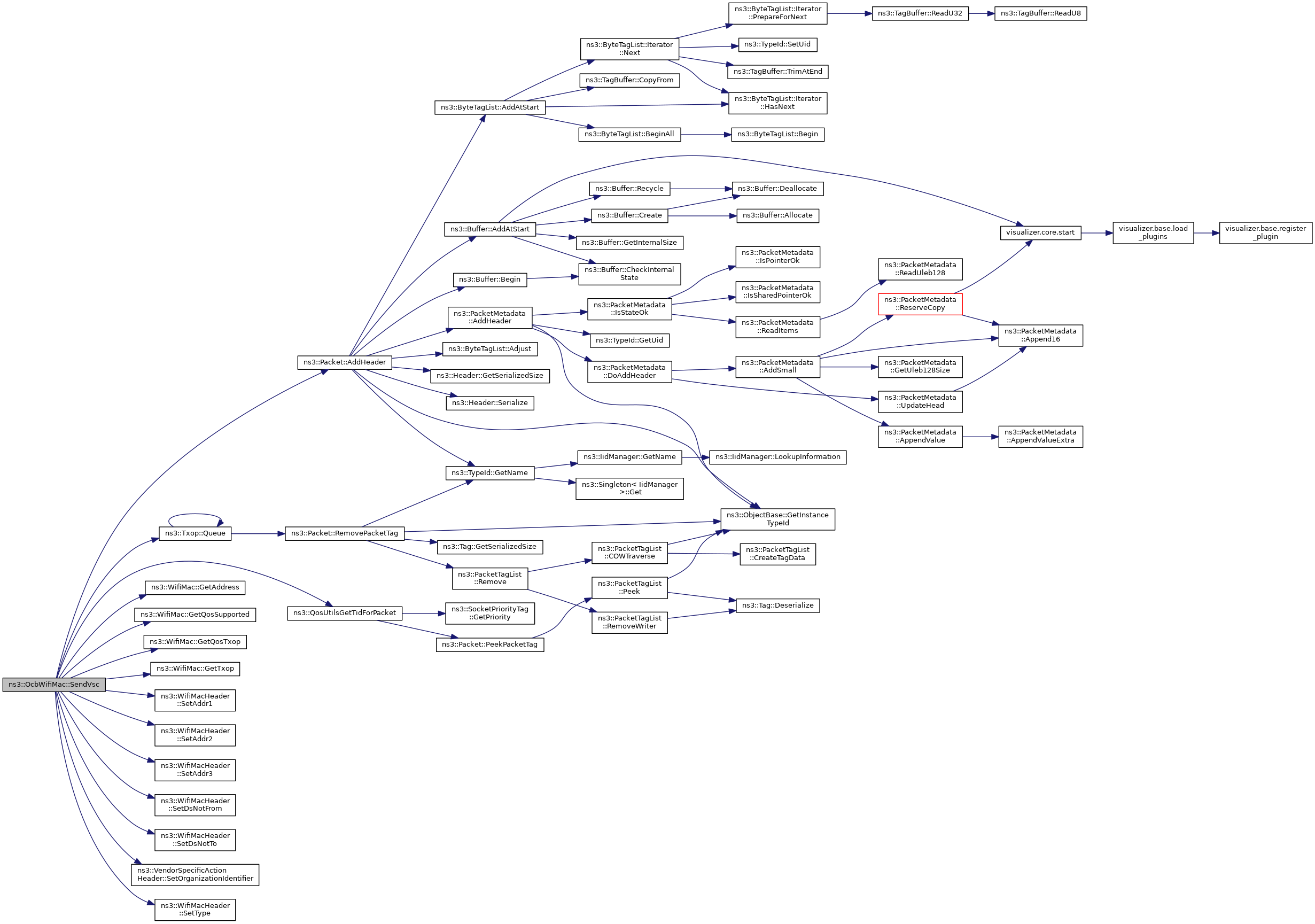

void	SendVsc (Ptr< Packet > vsc, Mac48Address peer, OrganizationIdentifier oi)

virtual void	SetBssid (Mac48Address bssid)

virtual void	SetLinkDownCallback (Callback< void > linkDown)

void	SetLinkUpCallback (Callback< void > linkUp) override
	SetLinkUpCallback and SetLinkDownCallback will be overloaded In OCB mode, stations can send packets directly whenever they want so the link is always up and never down even during channel switch. More...

virtual void	SetSsid (Ssid ssid)

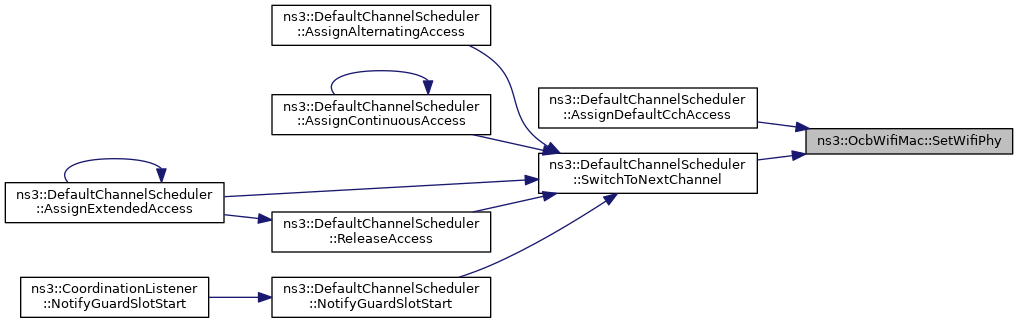

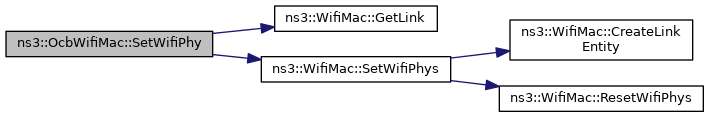

void	SetWifiPhy (Ptr< WifiPhy > phy)
	Set the PHY. More...

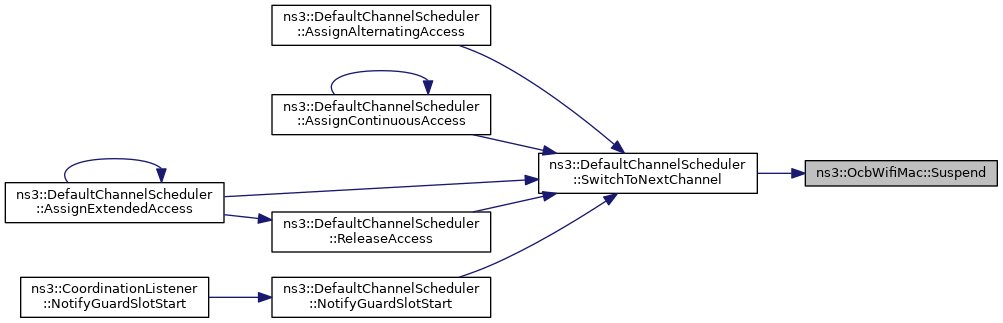

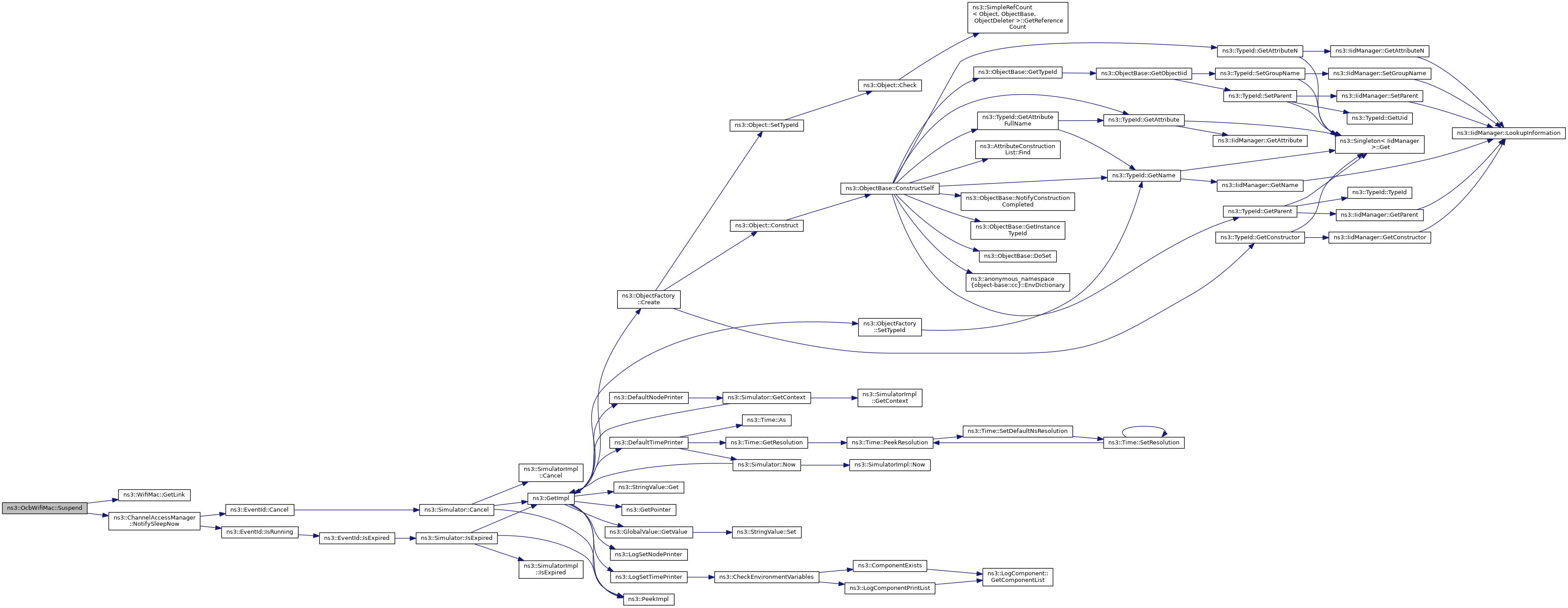

void	Suspend ()
	To support MAC extension for multiple channel operation, Suspend the activity in current MAC entity. More...

Public Member Functions inherited from ns3::WifiMac
	WifiMac ()

	WifiMac (const WifiMac &)=delete

	~WifiMac () override

virtual bool	CanForwardPacketsTo (Mac48Address to) const =0
	Return true if packets can be forwarded to the given destination, false otherwise. More...

virtual void	ConfigureStandard (WifiStandard standard)

virtual void	Enqueue (Ptr< Packet > packet, Mac48Address to)=0

virtual void	Enqueue (Ptr< Packet > packet, Mac48Address to, Mac48Address from)

Mac48Address	GetAddress () const

Mac48Address	GetBssid (uint8_t linkId) const

Ptr< ChannelAccessManager >	GetChannelAccessManager (uint8_t linkId=SINGLE_LINK_OP_ID) const
	Get the Channel Access Manager associated with the given link. More...

Ptr< WifiNetDevice >	GetDevice () const
	Return the device this PHY is associated with. More...

bool	GetDsssSupported (uint8_t linkId) const
	Return whether the device supports DSSS on the given link. More...

EhtCapabilities	GetEhtCapabilities (uint8_t linkId) const
	Return the EHT capabilities of the device for the given link. More...

Ptr< EhtConfiguration >	GetEhtConfiguration () const

bool	GetEhtSupported () const
	Return whether the device supports EHT. More...

bool	GetErpSupported (uint8_t linkId) const
	Return whether the device supports ERP on the given link. More...

ExtendedCapabilities	GetExtendedCapabilities () const
	Return the extended capabilities of the device. More...

Ptr< FrameExchangeManager >	GetFrameExchangeManager (uint8_t linkId=SINGLE_LINK_OP_ID) const
	Get the Frame Exchange Manager associated with the given link. More...

HeCapabilities	GetHeCapabilities (uint8_t linkId) const
	Return the HE capabilities of the device for the given link. More...

Ptr< HeConfiguration >	GetHeConfiguration () const

bool	GetHeSupported () const
	Return whether the device supports HE. More...

HtCapabilities	GetHtCapabilities (uint8_t linkId) const
	Return the HT capabilities of the device for the given link. More...

Ptr< HtConfiguration >	GetHtConfiguration () const

bool	GetHtSupported () const
	Return whether the device supports HT. More...

virtual std::optional< uint8_t >	GetLinkIdByAddress (const Mac48Address &address) const
	Get the ID of the link having the given MAC address, if any. More...

Ptr< WifiMacQueueScheduler >	GetMacQueueScheduler () const
	Get the wifi MAC queue scheduler. More...

uint32_t	GetMaxAmpduSize (AcIndex ac) const
	Return the maximum A-MPDU size of the given Access Category. More...

uint16_t	GetMaxAmsduSize (AcIndex ac) const
	Return the maximum A-MSDU size of the given Access Category. More...

uint8_t	GetNLinks () const
	Get the number of links (can be greater than 1 for 11be devices only). More...

bool	GetQosSupported () const
	Return whether the device supports QoS. More...

Ptr< QosTxop >	GetQosTxop (AcIndex ac) const
	Accessor for a specified EDCA object. More...

Ptr< QosTxop >	GetQosTxop (uint8_t tid) const
	Accessor for a specified EDCA object. More...

Ssid	GetSsid () const

Ptr< Txop >	GetTxop () const
	Accessor for the Txop object. More...

virtual Ptr< WifiMacQueue >	GetTxopQueue (AcIndex ac) const
	Get the wifi MAC queue of the (Qos)Txop associated with the given AC, if such (Qos)Txop is installed, or a null pointer, otherwise. More...

TypeOfStation	GetTypeOfStation () const
	Return the type of station. More...

VhtCapabilities	GetVhtCapabilities (uint8_t linkId) const
	Return the VHT capabilities of the device for the given link. More...

Ptr< VhtConfiguration >	GetVhtConfiguration () const

bool	GetVhtSupported (uint8_t linkId) const
	Return whether the device supports VHT on the given link. More...

Ptr< WifiPhy >	GetWifiPhy (uint8_t linkId=SINGLE_LINK_OP_ID) const

Ptr< WifiRemoteStationManager >	GetWifiRemoteStationManager (uint8_t linkId=0) const

virtual void	NotifyChannelSwitching (uint8_t linkId)
	Notify that channel on the given link has been switched. More...

void	NotifyPromiscRx (Ptr< const Packet > packet)

void	NotifyRx (Ptr< const Packet > packet)

void	NotifyRxDrop (Ptr< const Packet > packet)

void	NotifyTx (Ptr< const Packet > packet)

void	NotifyTxDrop (Ptr< const Packet > packet)

WifiMac &	operator= (const WifiMac &)=delete

void	ResetWifiPhys ()
	Remove currently attached WifiPhy objects from this MAC. More...

virtual void	SetAddress (Mac48Address address)

void	SetBssid (Mac48Address bssid, uint8_t linkId)

void	SetCtsToSelfSupported (bool enable)
	Enable or disable CTS-to-self feature. More...

void	SetDevice (const Ptr< WifiNetDevice > device)
	Sets the device this PHY is associated with. More...

void	SetForwardUpCallback (ForwardUpCallback upCallback)

void	SetLinkDownCallback (Callback< void > linkDown)

virtual void	SetLinkUpCallback (Callback< void > linkUp)

virtual void	SetMacQueueScheduler (Ptr< WifiMacQueueScheduler > scheduler)
	Set the wifi MAC queue scheduler. More...

void	SetPromisc ()
	Sets the interface in promiscuous mode. More...

void	SetSsid (Ssid ssid)

void	SetTypeOfStation (TypeOfStation type)
	This method is invoked by a subclass to specify what type of station it is implementing. More...

virtual void	SetWifiPhys (const std::vector< Ptr< WifiPhy > > &phys)

void	SetWifiRemoteStationManager (Ptr< WifiRemoteStationManager > stationManager)

void	SetWifiRemoteStationManagers (const std::vector< Ptr< WifiRemoteStationManager > > &stationManagers)

virtual bool	SupportsSendFrom () const

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

virtual TypeId	GetInstanceTypeId () const =0
	Get the most derived TypeId for this Object. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::WifiMac
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Protected Member Functions
void	DoDispose () override
	Destructor implementation. More...

Protected Member Functions inherited from ns3::WifiMac
virtual void	ConfigureContentionWindow (uint32_t cwMin, uint32_t cwMax)

virtual void	DeaggregateAmsduAndForward (Ptr< const WifiMpdu > mpdu)
	This method can be called to de-aggregate an A-MSDU and forward the constituent packets up the stack. More...

void	DoDispose () override
	Destructor implementation. More...

void	DoInitialize () override
	Initialize() implementation. More...

void	ForwardUp (Ptr< const Packet > packet, Mac48Address from, Mac48Address to)
	Forward the packet up to the device. More...

Ptr< QosTxop >	GetBEQueue () const
	Accessor for the AC_BE channel access function. More...

Ptr< QosTxop >	GetBKQueue () const
	Accessor for the AC_BK channel access function. More...

LinkEntity &	GetLink (uint8_t linkId) const
	Get a reference to the link associated with the given ID. More...

bool	GetShortSlotTimeSupported () const

Ptr< QosTxop >	GetVIQueue () const
	Accessor for the AC_VI channel access function. More...

Ptr< QosTxop >	GetVOQueue () const
	Accessor for the AC_VO channel access function. More...

virtual void	Receive (Ptr< const WifiMpdu > mpdu, uint8_t linkId)
	This method acts as the MacRxMiddle receive callback and is invoked to notify us that a frame has been received on the given link. More...

void	SetQosSupported (bool enable)
	Enable or disable QoS support for the device. More...

void	SetShortSlotTimeSupported (bool enable)
	Enable or disable short slot time feature. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose ()
	Destructor implementation. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Private Member Functions
std::optional< uint8_t >	GetLinkIdByAddress (const Mac48Address &address) const override
	Get the ID of the link having the given MAC address, if any. More...

void	Receive (Ptr< const WifiMpdu > mpdu, uint8_t linkId) override
	This method acts as the MacRxMiddle receive callback and is invoked to notify us that a frame has been received on the given link. More...

Private Attributes
VendorSpecificContentManager	m_vscManager
	VSC manager. More...

Additional Inherited Members
Public Types inherited from ns3::WifiMac
typedef Callback< void, Ptr< const Packet >, Mac48Address, Mac48Address >	ForwardUpCallback
	This type defines the callback of a higher layer that a WifiMac(-derived) object invokes to pass a packet up the stack. More...

Protected Attributes inherited from ns3::WifiMac
Callback< void >	m_linkDown
	Callback when a link is down. More...

Callback< void >	m_linkUp
	Callback when a link is up. More...

Ptr< MacRxMiddle >	m_rxMiddle
	RX middle (defragmentation etc.) More...

Ptr< WifiMacQueueScheduler >	m_scheduler
	wifi MAC queue scheduler More...

Ptr< MacTxMiddle >	m_txMiddle
	TX middle (aggregation etc.) More...

Ptr< Txop >	m_txop
	TXOP used for transmission of frames to non-QoS peers. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

STAs communicate with each directly outside the context of a BSS.

In OCB mac mode,synchronization, association, dis-association and authentication of normal wifi are not used for wireless access in vehicular environments.

Although Timing Advertisement frame is a specific management frame defined in 802.11p. It is mainly used by IEEE Std 1609.4 for channel switch synchronization. However in simulation nodes are supposed to have GPS synchronization ability, so we will not implement this feature.

Config Paths

ns3::OcbWifiMac is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::OcbWifiMac"
"/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/MacEntities/[i]"

No Attributes are defined for this type.

Attributes defined in parent class ns3::WifiMac

Ssid: The ssid we want to belong to.
- Set with class: SsidValue
- Underlying type: Ssid
- Initial value: default
- Flags: constructwriteread
QosSupported: This Boolean attribute is set to enable 802.11e/WMM-style QoS support at this STA.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: constructread
CtsToSelfSupported: Use CTS to Self when using a rate that is not in the basic rate set.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: constructwrite
ShortSlotTimeSupported: Whether or not short slot time is supported (only used by ERP APs or STAs).
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: constructwriteread
Txop: The Txop object.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::Txop>
- Flags: read
VO_Txop: Queue that manages packets belonging to AC_VO access class.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::QosTxop>
- Flags: read
VI_Txop: Queue that manages packets belonging to AC_VI access class.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::QosTxop>
- Flags: read
BE_Txop: Queue that manages packets belonging to AC_BE access class.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::QosTxop>
- Flags: read
BK_Txop: Queue that manages packets belonging to AC_BK access class.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::QosTxop>
- Flags: read
VO_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_VO access class (capped to 7935 for HT PPDUs and 11398 for VHT/HE/EHT PPDUs). Value 0 means A-MSDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:11398
- Initial value: 0
- Flags: constructwriteread
VI_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_VI access class (capped to 7935 for HT PPDUs and 11398 for VHT/HE/EHT PPDUs). Value 0 means A-MSDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:11398
- Initial value: 0
- Flags: constructwriteread
BE_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_BE access class (capped to 7935 for HT PPDUs and 11398 for VHT/HE/EHT PPDUs). Value 0 means A-MSDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:11398
- Initial value: 0
- Flags: constructwriteread
BK_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_BK access class (capped to 7935 for HT PPDUs and 11398 for VHT/HE/EHT PPDUs). Value 0 means A-MSDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:11398
- Initial value: 0
- Flags: constructwriteread
VO_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_VO access class (capped to 65535 for HT PPDUs, 1048575 for VHT PPDUs, 6500631 for HE PPDUs and 15523200 for EHT PPDUs). Value 0 means A-MPDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:15523200
- Initial value: 0
- Flags: constructwriteread
VI_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_VI access class (capped to 65535 for HT PPDUs, 1048575 for VHT PPDUs, 6500631 for HE PPDUs and 15523200 for EHT PPDUs). Value 0 means A-MPDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:15523200
- Initial value: 65535
- Flags: constructwriteread
BE_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_BE access class (capped to 65535 for HT PPDUs, 1048575 for VHT PPDUs, 6500631 for HE PPDUs and 15523200 for EHT PPDUs). Value 0 means A-MPDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:15523200
- Initial value: 65535
- Flags: constructwriteread
BK_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_BK access class (capped to 65535 for HT PPDUs, 1048575 for VHT PPDUs, 6500631 for HE PPDUs and 15523200 for EHT PPDUs). Value 0 means A-MPDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:15523200
- Initial value: 0
- Flags: constructwriteread
VO_BlockAckThreshold: If number of packets in VO queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:64
- Initial value: 0
- Flags: constructwrite
VI_BlockAckThreshold: If number of packets in VI queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:64
- Initial value: 0
- Flags: constructwrite
BE_BlockAckThreshold: If number of packets in BE queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:64
- Initial value: 0
- Flags: constructwrite
BK_BlockAckThreshold: If number of packets in BK queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:64
- Initial value: 0
- Flags: constructwrite
VO_BlockAckInactivityTimeout: Represents max time (blocks of 1024 microseconds) allowed for block ackinactivity for AC_VO. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: constructwrite
VI_BlockAckInactivityTimeout: Represents max time (blocks of 1024 microseconds) allowed for block ackinactivity for AC_VI. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: constructwrite
BE_BlockAckInactivityTimeout: Represents max time (blocks of 1024 microseconds) allowed for block ackinactivity for AC_BE. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: constructwrite
BK_BlockAckInactivityTimeout: Represents max time (blocks of 1024 microseconds) allowed for block ackinactivity for AC_BK. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: constructwrite

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::WifiMac

MacTx: A packet has been received from higher layers and is being processed in preparation for queueing for transmission.
Callback signature: ns3::Packet::TracedCallback
MacTxDrop: A packet has been dropped in the MAC layer before being queued for transmission. This trace source is fired, e.g., when an AP's MAC receives from the upper layer a packet destined to a station that is not associated with the AP or a STA's MAC receives a packet from the upper layer while it is not associated with any AP.
Callback signature: ns3::Packet::TracedCallback
MacPromiscRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a promiscuous trace.
Callback signature: ns3::Packet::TracedCallback
MacRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a non-promiscuous trace.
Callback signature: ns3::Packet::TracedCallback
MacRxDrop: A packet has been dropped in the MAC layer after it has been passed up from the physical layer.
Callback signature: ns3::Packet::TracedCallback
TxOkHeader: The header of successfully transmitted packet.
Callback signature: ns3::WifiMacHeader::TracedCallback
TxErrHeader: The header of unsuccessfully transmitted packet.
Callback signature: ns3::WifiMacHeader::TracedCallback
AckedMpdu: An MPDU that was successfully acknowledged, via either a Normal Ack or a Block Ack.
Callback signature: ns3::WifiMpdu::TracedCallback
NAckedMpdu: An MPDU that was negatively acknowledged via a Block Ack.
Callback signature: ns3::WifiMpdu::TracedCallback
DroppedMpdu: An MPDU that was dropped for the given reason (see WifiMacDropReason).
Callback signature: ns3::WifiMac::DroppedMpduCallback
MpduResponseTimeout: An MPDU whose response was not received before the timeout, along with an identifier of the type of timeout (see WifiTxTimer::Reason) and the TXVECTOR used to transmit the MPDU. This trace source is fired when a CTS is missing after an RTS or a Normal Ack is missing after an MPDU or after a DL MU PPDU acknowledged in SU format.
Callback signature: ns3::WifiMac::MpduResponseTimeoutCallback
PsduResponseTimeout: A PSDU whose response was not received before the timeout, along with an identifier of the type of timeout (see WifiTxTimer::Reason) and the TXVECTOR used to transmit the PSDU. This trace source is fired when a BlockAck is missing after an A-MPDU, a BlockAckReq (possibly in the context of the acknowledgment of a DL MU PPDU in SU format) or a TB PPDU (in the latter case the missing BlockAck is a Multi-STA BlockAck).
Callback signature: ns3::WifiMac::PsduResponseTimeoutCallback
PsduMapResponseTimeout: A PSDU map for which not all the responses were received before the timeout, along with an identifier of the type of timeout (see WifiTxTimer::Reason), the set of MAC addresses of the stations that did not respond and the total number of stations that had to respond. This trace source is fired when not all the addressed stations responded to an MU-BAR Trigger frame (either sent as a SU frame or aggregated to PSDUs in the DL MU PPDU), a Basic Trigger Frame or a BSRP Trigger Frame.
Callback signature: ns3::WifiMac::PsduMapResponseTimeoutCallback

Size of this type is 520 bytes (on a 64-bit architecture).

Definition at line 50 of file ocb-wifi-mac.h.

Constructor & Destructor Documentation

◆ OcbWifiMac()

ns3::OcbWifiMac::OcbWifiMac ( )

Definition at line 57 of file ocb-wifi-mac.cc.

References NS_LOG_FUNCTION, ns3::OCB, and ns3::WifiMac::SetTypeOfStation().

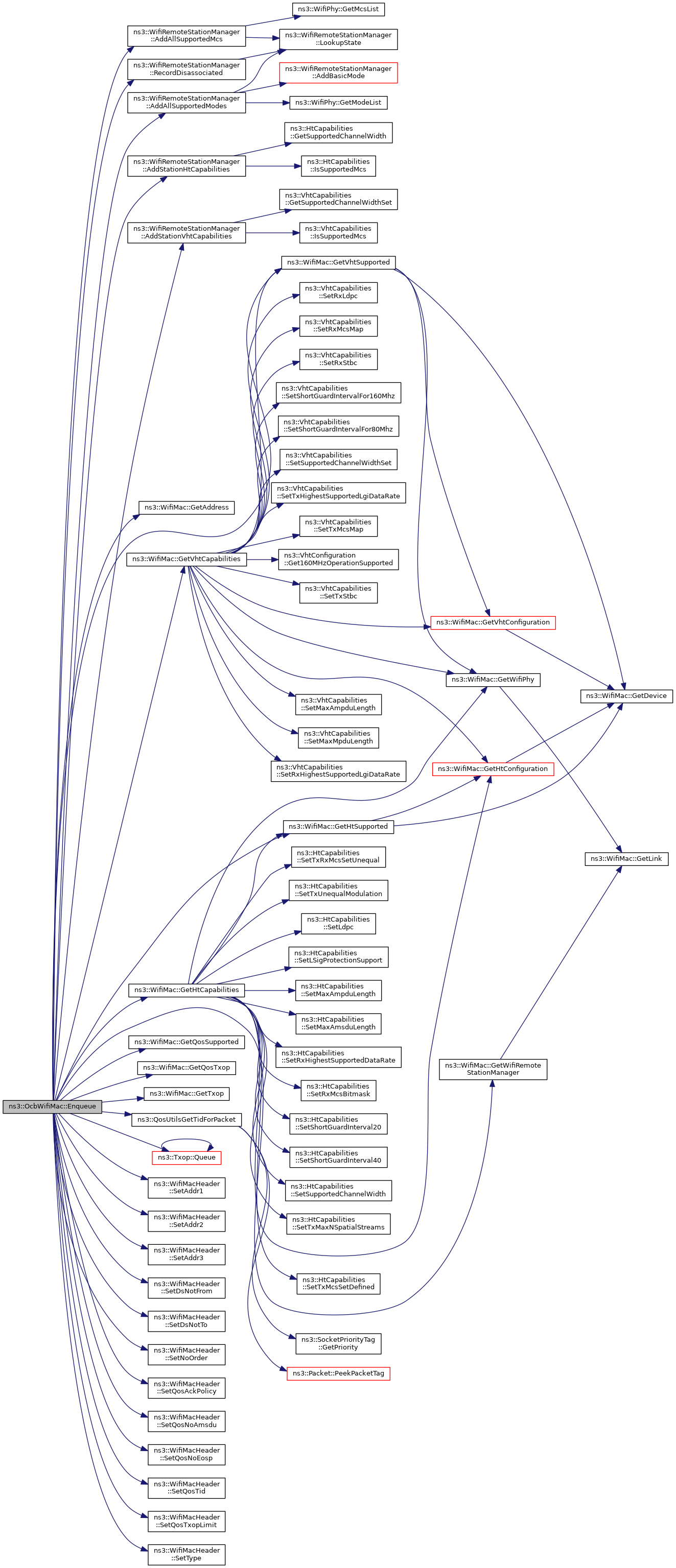

Here is the call graph for this function:

◆ ~OcbWifiMac()

ns3::OcbWifiMac::~OcbWifiMac ( )

override

Definition at line 64 of file ocb-wifi-mac.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ AddReceiveVscCallback()

void ns3::OcbWifiMac::AddReceiveVscCallback	(	OrganizationIdentifier	oi,
		VscCallback	cb
	)

Parameters

oi	Organization Identifier
cb	callback to invoke whenever a vender specific action frame has been received and must be forwarded to the higher layers. every node shall register first if it wants to receive specific vendor specific content.

Definition at line 97 of file ocb-wifi-mac.cc.

References m_vscManager, NS_LOG_FUNCTION, and ns3::VendorSpecificContentManager::RegisterVscCallback().

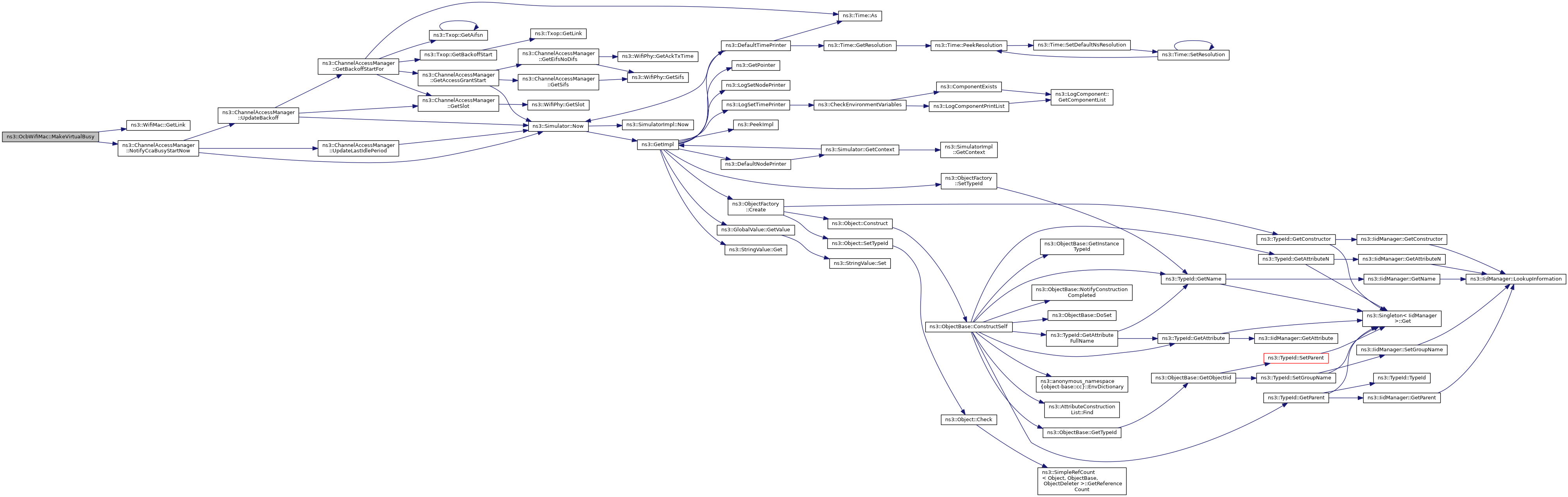

Here is the call graph for this function:

◆ CancleTx()

void ns3::OcbWifiMac::CancleTx ( enum AcIndex ac )

Parameters

ac	the specified access category

To support MAC extension for multiple channel operation, Cancel transmit operation for internal queue associated with a specified Access Category.

Definition at line 491 of file ocb-wifi-mac.cc.

References ns3::WifiMac::GetQosTxop(), ns3::Txop::GetWifiMacQueue(), NS_ASSERT, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ CanForwardPacketsTo()

bool ns3::OcbWifiMac::CanForwardPacketsTo ( Mac48Address to ) const

overridevirtual

Return true if packets can be forwarded to the given destination, false otherwise.

Parameters

to	the address to which the packet should be sent

Returns: whether packets can be forwarded to the given destination

Implements ns3::WifiMac.

Definition at line 158 of file ocb-wifi-mac.cc.

◆ ConfigureEdca()

void ns3::OcbWifiMac::ConfigureEdca	(	uint32_t	cwmin,
		uint32_t	cwmax,
		uint32_t	aifsn,
		enum AcIndex	ac
	)

Parameters

cwmin	the min contention window
cwmax	the max contention window
aifsn	the arbitration inter-frame space
ac	the access category index

configure EDCA queue parameters

Definition at line 345 of file ocb-wifi-mac.cc.

References ns3::AC_BE, ns3::AC_BE_NQOS, ns3::AC_BEACON, ns3::AC_BK, ns3::AC_UNDEF, ns3::AC_VI, ns3::AC_VO, ns3::ChannelAccessManager::Add(), ns3::WifiMac::LinkEntity::channelAccessManager, ns3::WifiMac::GetBEQueue(), ns3::WifiMac::GetBKQueue(), ns3::WifiMac::GetLink(), ns3::WifiMac::GetTxop(), ns3::WifiMac::GetVIQueue(), ns3::WifiMac::GetVOQueue(), NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::Txop::SetAifsn(), ns3::Txop::SetMaxCw(), ns3::Txop::SetMinCw(), ns3::Txop::SetWifiMac(), and ns3::SINGLE_LINK_OP_ID.

Referenced by ConfigureStandard().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ConfigureStandard()

void ns3::OcbWifiMac::ConfigureStandard ( enum WifiStandard standard )

overridevirtual

Parameters

standard the wifi standard to be configured

This method completes the configuration process for a requested PHY standard by creating the Frame Exchange Manager and the Channel Access Manager and configuring the PHY dependent parameters. This method can only be called after a configured PHY has been set.

Reimplemented from ns3::WifiMac.

Definition at line 416 of file ocb-wifi-mac.cc.

References ns3::AC_BE, ns3::AC_BE_NQOS, ns3::AC_BK, ns3::AC_VI, ns3::AC_VO, ConfigureEdca(), ns3::WifiMac::GetAddress(), ns3::WifiMac::GetLink(), ns3::WifiMac::GetNLinks(), ns3::WifiMac::GetQosSupported(), ns3::WifiMac::GetWifiPhy(), ns3::WifiMac::m_rxMiddle, ns3::WifiMac::m_txMiddle, NS_ASSERT, NS_LOG_FUNCTION, third::phy, ns3::WifiMac::SetWifiPhys(), ns3::SINGLE_LINK_OP_ID, and ns3::WIFI_STANDARD_80211p.

Here is the call graph for this function:

◆ DoDispose()

void ns3::OcbWifiMac::DoDispose ( )

overrideprotectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 525 of file ocb-wifi-mac.cc.

References ns3::WifiMac::DoDispose(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ EnableForWave()

void ns3::OcbWifiMac::EnableForWave ( Ptr< WaveNetDevice > device )

Parameters

device make current MAC entity associated with WaveNetDevice

To support MAC extension for multiple channel operation, WaveMacLow object will be used to replace original MacLow object.

Definition at line 510 of file ocb-wifi-mac.cc.

References ns3::WifiMac::GetLink(), NS_LOG_FUNCTION, and ns3::SINGLE_LINK_OP_ID.

Referenced by ns3::WaveHelper::Install().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Enqueue()

void ns3::OcbWifiMac::Enqueue	(	Ptr< Packet >	packet,
		Mac48Address	to
	)

overridevirtual

Parameters

packet	the packet to send.
to	the address to which the packet should be sent.

The packet should be enqueued in a tx queue, and should be dequeued as soon as the channel access function determines that access is granted to this MAC.

Implements ns3::WifiMac.

Definition at line 164 of file ocb-wifi-mac.cc.

Here is the call graph for this function:

◆ GetBssid()

Mac48Address ns3::OcbWifiMac::GetBssid ( uint8_t ) const

virtual

This method shall not be used in WAVE environment and here it will overloaded to log warn message.

Returns: An invalid BSSID.

Definition at line 131 of file ocb-wifi-mac.cc.

References NS_LOG_WARN, and ns3::WILDCARD_BSSID.

◆ GetLinkIdByAddress()

std::optional< uint8_t > ns3::OcbWifiMac::GetLinkIdByAddress ( const Mac48Address & address ) const

overrideprivatevirtual

Get the ID of the link having the given MAC address, if any.

Parameters

address the given MAC address

Returns: the ID of the link having the given MAC address, if any

Reimplemented from ns3::WifiMac.

Definition at line 519 of file ocb-wifi-mac.cc.

◆ GetSsid()

Ssid ns3::OcbWifiMac::GetSsid ( ) const

virtual

Returns: the ssid which this MAC layer is going to try to stay in.

This method shall not be used in WAVE environment and here it will overloaded to log warn message

Definition at line 117 of file ocb-wifi-mac.cc.

References ns3::WifiMac::GetSsid(), and NS_LOG_WARN.

Here is the call graph for this function:

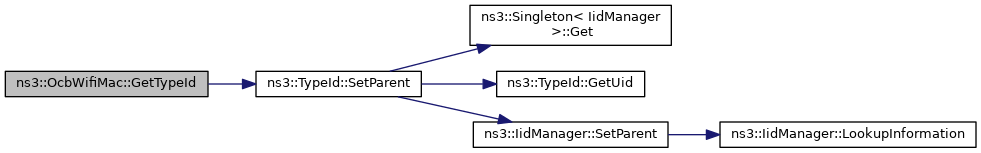

◆ GetTypeId()

TypeId ns3::OcbWifiMac::GetTypeId ( )

static

Get the type ID.

Returns: the object TypeId

Definition at line 48 of file ocb-wifi-mac.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ MakeVirtualBusy()

void ns3::OcbWifiMac::MakeVirtualBusy ( Time duration )

Parameters

duration the virtual busy time for MAC entity

To support MAC extension for multiple channel operation, Notify MAC entity busy for some time to prevent transmission

Definition at line 483 of file ocb-wifi-mac.cc.

References ns3::WifiMac::LinkEntity::channelAccessManager, ns3::WifiMac::GetLink(), ns3::ChannelAccessManager::NotifyCcaBusyStartNow(), NS_LOG_FUNCTION, ns3::SINGLE_LINK_OP_ID, and ns3::WIFI_CHANLIST_PRIMARY.

Referenced by ns3::DefaultChannelScheduler::AssignDefaultCchAccess(), and ns3::DefaultChannelScheduler::SwitchToNextChannel().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Receive()

void ns3::OcbWifiMac::Receive	(	Ptr< const WifiMpdu >	mpdu,
		uint8_t	linkId
	)

overrideprivatevirtual

This method acts as the MacRxMiddle receive callback and is invoked to notify us that a frame has been received on the given link.

The implementation is intended to capture logic that is going to be common to all (or most) derived classes. Specifically, handling of Block Ack management frames is dealt with here.

This method will need, however, to be overridden by derived classes so that they can perform their data handling before invoking the base version.

The given link may be undefined in some cases (e.g., in case of QoS Data frames received in the context of a Block Ack agreement – because the BlockAckManager does not have to record the link each buffered MPDU has been received on); in such a cases, the value of linkId should be WIFI_LINKID_UNDEFINED.

Parameters

mpdu	the MPDU that has been received.
linkId	the ID of the given link

Reimplemented from ns3::WifiMac.

Definition at line 251 of file ocb-wifi-mac.cc.

Here is the call graph for this function:

◆ RemoveReceiveVscCallback()

void ns3::OcbWifiMac::RemoveReceiveVscCallback ( OrganizationIdentifier oi )

Parameters

oi	Organization Identifier

Definition at line 104 of file ocb-wifi-mac.cc.

References ns3::VendorSpecificContentManager::DeregisterVscCallback(), m_vscManager, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ Reset()

void ns3::OcbWifiMac::Reset ( )

To support MAC extension for multiple channel operation, Reset current MAC entity and flush its internal queues.

Definition at line 501 of file ocb-wifi-mac.cc.

References ns3::WifiMac::LinkEntity::channelAccessManager, ns3::WifiMac::LinkEntity::feManager, ns3::WifiMac::GetLink(), ns3::ChannelAccessManager::NotifySwitchingStartNow(), NS_LOG_FUNCTION, and ns3::SINGLE_LINK_OP_ID.

Here is the call graph for this function:

◆ Resume()

void ns3::OcbWifiMac::Resume ( )

To support MAC extension for multiple channel operation, Resume the activity of suspended MAC entity.

Definition at line 475 of file ocb-wifi-mac.cc.

References ns3::WifiMac::LinkEntity::channelAccessManager, ns3::WifiMac::GetLink(), ns3::ChannelAccessManager::NotifyWakeupNow(), NS_LOG_FUNCTION, and ns3::SINGLE_LINK_OP_ID.

Referenced by ns3::DefaultChannelScheduler::AssignDefaultCchAccess(), and ns3::DefaultChannelScheduler::SwitchToNextChannel().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendVsc()

void ns3::OcbWifiMac::SendVsc	(	Ptr< Packet >	vsc,
		Mac48Address	peer,
		OrganizationIdentifier	oi
	)

Parameters

vsc	management packet to send.
peer	the address to which the packet should be sent.
oi	Organization Identifier field see 7.3.1.31 Organization Identifier field and 10.3.29 Vendor-specific action

management information can be transmitted over vender specific action frame. This will be mainly called by IEEE Std 1609.4 to send WSA from IEEE Std 1609.3

Definition at line 70 of file ocb-wifi-mac.cc.

References ns3::Packet::AddHeader(), ns3::WifiMac::GetAddress(), ns3::WifiMac::GetQosSupported(), ns3::WifiMac::GetQosTxop(), ns3::WifiMac::GetTxop(), NS_LOG_FUNCTION, ns3::QosUtilsGetTidForPacket(), ns3::Txop::Queue(), ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetAddr3(), ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsNotTo(), ns3::VendorSpecificActionHeader::SetOrganizationIdentifier(), ns3::WifiMacHeader::SetType(), ns3::WIFI_MAC_MGT_ACTION, and ns3::WILDCARD_BSSID.

Here is the call graph for this function:

◆ SetBssid()

void ns3::OcbWifiMac::SetBssid ( Mac48Address bssid )

virtual

Parameters

bssid the BSSID of the network that this device belongs to. This method shall not be used in WAVE environment and here it will overloaded to log warn message

Definition at line 125 of file ocb-wifi-mac.cc.

References NS_LOG_WARN.

◆ SetLinkDownCallback()

void ns3::OcbWifiMac::SetLinkDownCallback ( Callback< void > linkDown )

virtual

Parameters

linkDown the callback to invoke when the link becomes down.

Definition at line 150 of file ocb-wifi-mac.cc.

References NS_LOG_FUNCTION, NS_LOG_WARN, and ns3::WifiMac::SetLinkDownCallback().

Here is the call graph for this function:

◆ SetLinkUpCallback()

void ns3::OcbWifiMac::SetLinkUpCallback ( Callback< void > linkUp )

overridevirtual

SetLinkUpCallback and SetLinkDownCallback will be overloaded In OCB mode, stations can send packets directly whenever they want so the link is always up and never down even during channel switch.

Parameters

linkUp the callback to invoke when the link becomes up.

Reimplemented from ns3::WifiMac.

Definition at line 138 of file ocb-wifi-mac.cc.

References NS_LOG_FUNCTION, and ns3::WifiMac::SetLinkUpCallback().

Here is the call graph for this function:

◆ SetSsid()

void ns3::OcbWifiMac::SetSsid ( Ssid ssid )

virtual

Parameters

ssid	the current ssid of this MAC layer.

This method shall not be used in WAVE environment and here it will overloaded to log warn message

Definition at line 111 of file ocb-wifi-mac.cc.

References NS_LOG_WARN.

◆ SetWifiPhy()

void ns3::OcbWifiMac::SetWifiPhy ( Ptr< WifiPhy > phy )

Set the PHY.

Parameters

phy	the PHY object

Definition at line 398 of file ocb-wifi-mac.cc.

References ns3::WifiMac::GetLink(), NS_ABORT_MSG_IF, NS_LOG_FUNCTION, third::phy, ns3::WifiMac::SetWifiPhys(), and ns3::SINGLE_LINK_OP_ID.

Referenced by ns3::DefaultChannelScheduler::AssignDefaultCchAccess(), and ns3::DefaultChannelScheduler::SwitchToNextChannel().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Suspend()

void ns3::OcbWifiMac::Suspend ( )

To support MAC extension for multiple channel operation, Suspend the activity in current MAC entity.

Definition at line 467 of file ocb-wifi-mac.cc.

References ns3::WifiMac::LinkEntity::channelAccessManager, ns3::WifiMac::LinkEntity::feManager, ns3::WifiMac::GetLink(), ns3::ChannelAccessManager::NotifySleepNow(), NS_LOG_FUNCTION, and ns3::SINGLE_LINK_OP_ID.

Referenced by ns3::DefaultChannelScheduler::SwitchToNextChannel().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_vscManager

VendorSpecificContentManager ns3::OcbWifiMac::m_vscManager

private

VSC manager.

Definition at line 195 of file ocb-wifi-mac.h.

Referenced by AddReceiveVscCallback(), Receive(), and RemoveReceiveVscCallback().

The documentation for this class was generated from the following files:

src/wave/model/ocb-wifi-mac.h
src/wave/model/ocb-wifi-mac.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

Attributes defined in parent class ns3::WifiMac

TraceSources defined in parent class ns3::WifiMac

Constructor & Destructor Documentation

◆ OcbWifiMac()

◆ ~OcbWifiMac()

Member Function Documentation

◆ AddReceiveVscCallback()

◆ CancleTx()

◆ CanForwardPacketsTo()

◆ ConfigureEdca()

◆ ConfigureStandard()

◆ DoDispose()

◆ EnableForWave()

◆ Enqueue()

◆ GetBssid()

◆ GetLinkIdByAddress()

◆ GetSsid()

◆ GetTypeId()

◆ MakeVirtualBusy()

◆ Receive()

◆ RemoveReceiveVscCallback()

◆ Reset()

◆ Resume()

◆ SendVsc()

◆ SetBssid()

◆ SetLinkDownCallback()

◆ SetLinkUpCallback()

◆ SetSsid()

◆ SetWifiPhy()

◆ Suspend()

Member Data Documentation

◆ m_vscManager
