helps to create wifi 802.11p objects of WifiNetDevice class More...

#include "wifi-80211p-helper.h"

Inheritance diagram for ns3::Wifi80211pHelper:

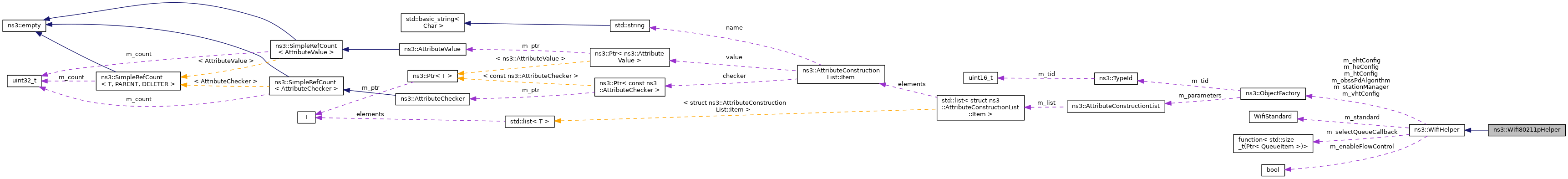

Collaboration diagram for ns3::Wifi80211pHelper:

Public Member Functions
	Wifi80211pHelper ()

	~Wifi80211pHelper () override

NetDeviceContainer	Install (const WifiPhyHelper &phy, const WifiMacHelper &macHelper, NodeContainer c) const override

void	SetStandard (enum WifiStandard standard) override

Public Member Functions inherited from ns3::WifiHelper
	WifiHelper ()
	Create a Wifi helper in an empty state: all its parameters must be set before calling ns3::WifiHelper::Install. More...

virtual	~WifiHelper ()

int64_t	AssignStreams (NetDeviceContainer c, int64_t stream)
	Assign a fixed random variable stream number to the random variables used by the PHY and MAC aspects of the Wifi models. More...

template<typename... Args>
void	ConfigEhtOptions (Args &&... args)
	Helper function used to configure the EHT options listed as attributes of the EhtConfiguration class. More...

template<typename... Args>
void	ConfigHeOptions (Args &&... args)
	Helper function used to configure the HE options listed as attributes of the HeConfiguration class. More...

template<typename... Args>
void	ConfigHtOptions (Args &&... args)
	Helper function used to configure the HT options listed as attributes of the HtConfiguration class. More...

template<typename... Args>
void	ConfigVhtOptions (Args &&... args)
	Helper function used to configure the VHT options listed as attributes of the VhtConfiguration class. More...

void	DisableFlowControl ()
	Disable flow control only if you know what you are doing. More...

virtual NetDeviceContainer	Install (const WifiPhyHelper &phy, const WifiMacHelper &mac, NodeContainer c) const

virtual NetDeviceContainer	Install (const WifiPhyHelper &phy, const WifiMacHelper &mac, NodeContainer::Iterator first, NodeContainer::Iterator last) const

virtual NetDeviceContainer	Install (const WifiPhyHelper &phy, const WifiMacHelper &mac, Ptr< Node > node) const

virtual NetDeviceContainer	Install (const WifiPhyHelper &phy, const WifiMacHelper &mac, std::string nodeName) const

template<typename... Args>
void	SetObssPdAlgorithm (std::string type, Args &&... args)
	Helper function used to set the OBSS-PD algorithm. More...

template<typename... Args>
void	SetRemoteStationManager (std::string type, Args &&... args)
	Helper function used to set the station manager. More...

void	SetSelectQueueCallback (SelectQueueCallback f)

virtual void	SetStandard (WifiStandard standard)

Static Public Member Functions
static Wifi80211pHelper	Default ()

static void	EnableLogComponents ()
	Helper to enable all WifiNetDevice log components with one statement. More...

Static Public Member Functions inherited from ns3::WifiHelper
static void	EnableLogComponents ()
	Helper to enable all WifiNetDevice log components with one statement. More...

Additional Inherited Members
Public Types inherited from ns3::WifiHelper
typedef std::function< std::size_t(Ptr< QueueItem >)>	SelectQueueCallback
	Callback invoked to determine the MAC queue selected for a given packet. More...

Protected Attributes inherited from ns3::WifiHelper
ObjectFactory	m_ehtConfig
	EHT configuration. More...

bool	m_enableFlowControl
	whether to enable flow control More...

ObjectFactory	m_heConfig
	HE configuration. More...

ObjectFactory	m_htConfig
	HT configuration. More...

ObjectFactory	m_obssPdAlgorithm
	OBSS_PD algorithm. More...

SelectQueueCallback	m_selectQueueCallback
	select queue callback More...

WifiStandard	m_standard
	wifi standard More...

ObjectFactory	m_stationManager
	station manager More...

ObjectFactory	m_vhtConfig
	VHT configuration. More...

Detailed Description

helps to create wifi 802.11p objects of WifiNetDevice class

This class can help to create a large set of similar wifi 802.11p objects and to configure a large set of their attributes during creation.

Definition at line 40 of file wifi-80211p-helper.h.

Constructor & Destructor Documentation

◆ Wifi80211pHelper()

ns3::Wifi80211pHelper::Wifi80211pHelper ( )

Definition at line 35 of file wifi-80211p-helper.cc.

◆ ~Wifi80211pHelper()

ns3::Wifi80211pHelper::~Wifi80211pHelper ( )

override

Definition at line 39 of file wifi-80211p-helper.cc.

Member Function Documentation

◆ Default()

Wifi80211pHelper ns3::Wifi80211pHelper::Default ( )

static

Returns: a new Wifi80211pHelper in a default state

The default state is defined as being an OcbWifiMac MAC layer with constant rate OfdmRate6MbpsBW10MHz and both objects using their default attribute values.

Definition at line 44 of file wifi-80211p-helper.cc.

References ns3::WifiHelper::SetRemoteStationManager(), SetStandard(), and ns3::WIFI_STANDARD_80211p.

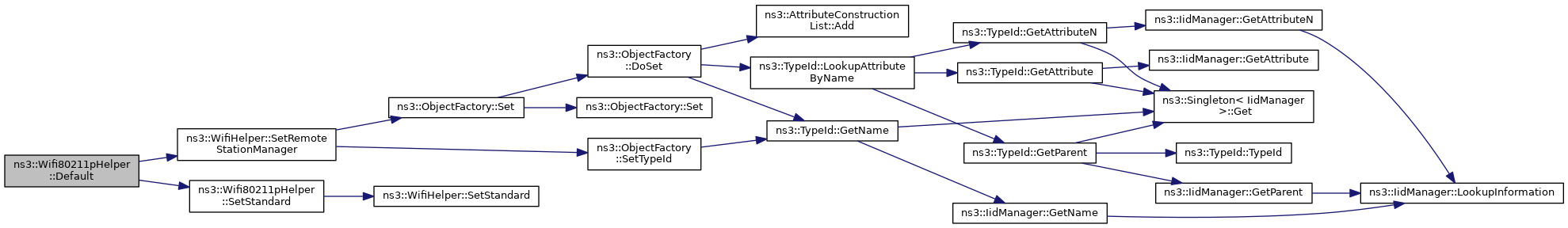

Here is the call graph for this function:
