Test MAC Active Scan PAN descriptor reception and check some of its values. More...

Inheritance diagram for TestActiveScanPanDescriptors:

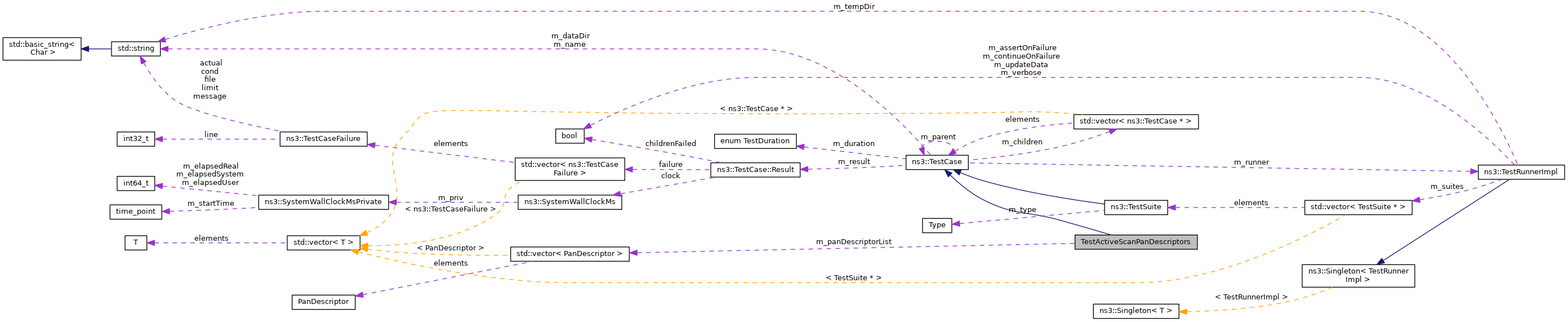

Collaboration diagram for TestActiveScanPanDescriptors:

Public Member Functions
	TestActiveScanPanDescriptors ()

	~TestActiveScanPanDescriptors () override

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor. More...

std::string	GetName () const

TestCase &	operator= (const TestCase &)=delete

Private Member Functions
void	DoRun () override
	Implementation to actually run this TestCase. More...

void	ScanConfirm (MlmeScanConfirmParams params)
	Function called in response to a MAC scan request. More...

Private Attributes
std::vector< PanDescriptor >	m_panDescriptorList
	The list of PAN descriptors accumulated during the scan. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCsse. More...

bool	IsStatusFailure () const
	Check if any tests failed. More...

bool	IsStatusSuccess () const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure () const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure () const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Test MAC Active Scan PAN descriptor reception and check some of its values.

Definition at line 298 of file lr-wpan-mac-test.cc.

Constructor & Destructor Documentation

◆ TestActiveScanPanDescriptors()

TestActiveScanPanDescriptors::TestActiveScanPanDescriptors ( )

Definition at line 318 of file lr-wpan-mac-test.cc.

◆ ~TestActiveScanPanDescriptors()

TestActiveScanPanDescriptors::~TestActiveScanPanDescriptors ( )

override

Definition at line 323 of file lr-wpan-mac-test.cc.

Member Function Documentation

◆ DoRun()

void TestActiveScanPanDescriptors::DoRun ( )

overrideprivatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 337 of file lr-wpan-mac-test.cc.

References ns3::Node::AddDevice(), third::channel, ns3::LrWpanNetDevice::GetMac(), ns3::LrWpanNetDevice::GetPhy(), ns3::MlmeStartRequestParams::m_bcnOrd, ns3::MlmeScanRequestParams::m_chPage, ns3::MlmeStartRequestParams::m_logCh, ns3::MlmeStartRequestParams::m_panCoor, m_panDescriptorList, ns3::MlmeStartRequestParams::m_PanId, ns3::MlmeScanRequestParams::m_scanChannels, ns3::MlmeScanRequestParams::m_scanDuration, ns3::MlmeScanRequestParams::m_scanType, ns3::MlmeStartRequestParams::m_sfrmOrd, ns3::MakeCallback(), ns3::MLMESCAN_ACTIVE, NS_LOG_DEBUG, NS_TEST_ASSERT_MSG_GT, NS_TEST_ASSERT_MSG_LT, NS_TEST_EXPECT_MSG_EQ, ScanConfirm(), ns3::Seconds(), ns3::LrWpanNetDevice::SetAddress(), and ns3::LrWpanNetDevice::SetChannel().

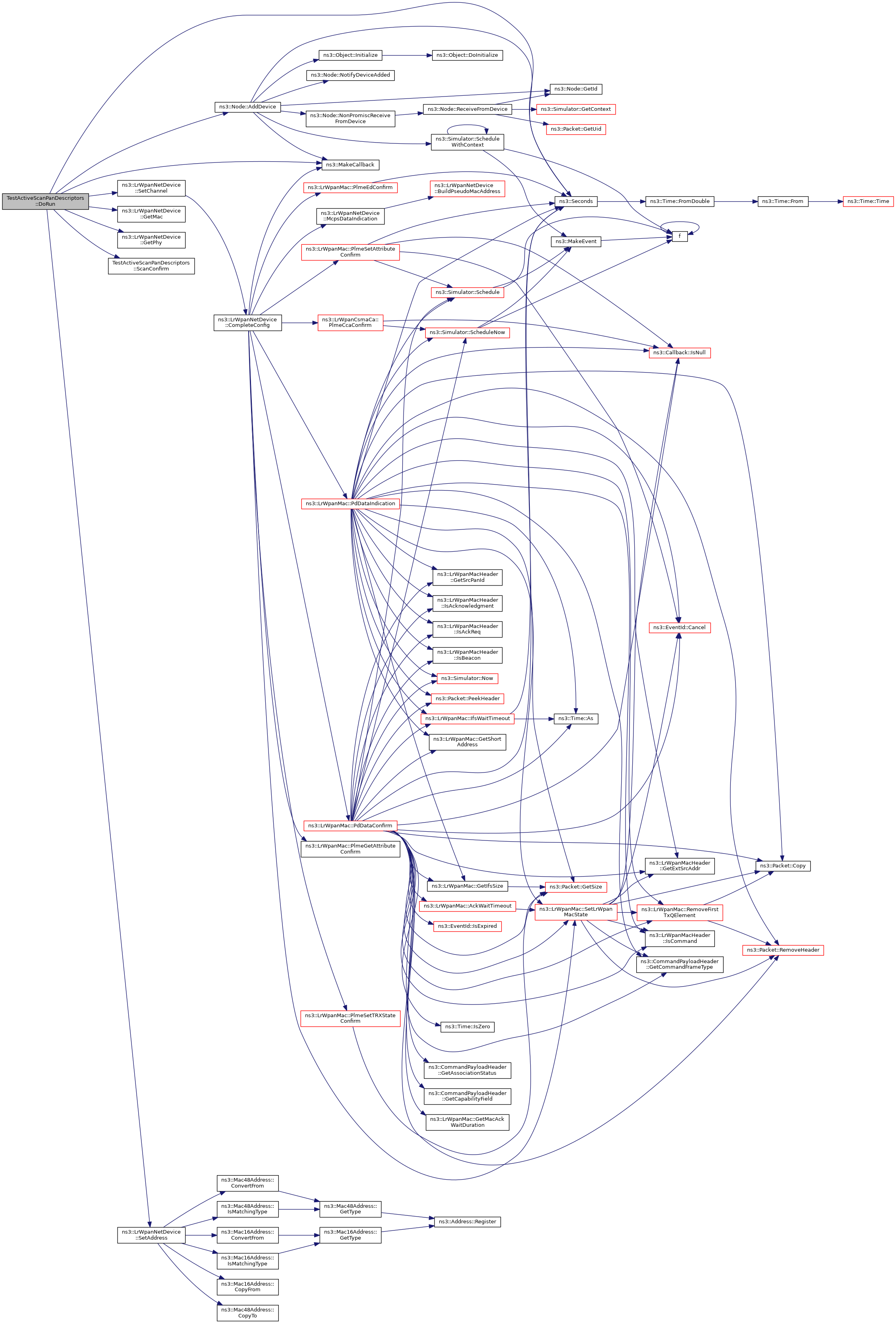

Here is the call graph for this function:

◆ ScanConfirm()

void TestActiveScanPanDescriptors::ScanConfirm ( MlmeScanConfirmParams params )

private

Function called in response to a MAC scan request.

Parameters

params MLME scan confirm parameters

Definition at line 328 of file lr-wpan-mac-test.cc.

References ns3::MlmeScanConfirmParams::m_panDescList, m_panDescriptorList, ns3::MlmeScanConfirmParams::m_status, and ns3::MLMESCAN_SUCCESS.

Referenced by DoRun().

Here is the caller graph for this function:

Member Data Documentation

◆ m_panDescriptorList

std::vector<PanDescriptor> TestActiveScanPanDescriptors::m_panDescriptorList

private

The list of PAN descriptors accumulated during the scan.

Definition at line 315 of file lr-wpan-mac-test.cc.

Referenced by DoRun(), and ScanConfirm().

The documentation for this class was generated from the following file:

src/lr-wpan/test/lr-wpan-mac-test.cc
