Heap memory management. More...

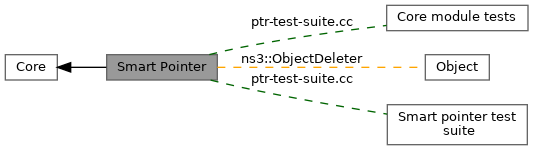

Collaboration diagram for Smart Pointer:

Files
file	default-deleter.h
	ns3::DefaultDeleter declaration and template implementation, for reference-counted smart pointers.

file	ptr-test-suite.cc
	Smart pointer test suite.

file	ptr.h
	ns3::Ptr smart pointer declaration and implementation.

file	simple-ref-count.h
	ns3::SimpleRefCount declaration and template implementation.

Classes
struct	ns3::DefaultDeleter< T >
	A template used to delete objects by the ns3::SimpleRefCount templates when the last reference to an object they manage disappears. More...

class	ns3::Empty
	Empty class, used as a default parent class for SimpleRefCount. More...

struct	std::hash< ns3::Ptr< T > >
	Hashing functor taking a `Ptr` and returning a `std::size_t`. More...

struct	ns3::ObjectDeleter
	Standard Object deleter, used by SimpleRefCount to delete an Object when the reference count drops to zero. More...

class	ns3::Ptr< T >
	Smart pointer class similar to `boost::intrusive_ptr`. More...

class	ns3::SimpleRefCount< T, PARENT, DELETER >
	A template-based reference counting class. More...

Functions
template<typename T , typename... Ts>
Ptr< T >	ns3::Create (Ts &&... args)
	Create class instances by constructors with varying numbers of arguments and return them by Ptr.

template<typename T1 , typename T2 >
std::enable_if< std::is_same< T2, std::nullptr_t >::value, bool >::type	ns3::operator!= (const Ptr< T1 > &lhs, T2 rhs)
	Specialization for comparison to `nullptr`.

template<typename T >
std::ostream &	ns3::operator<< (std::ostream &os, const Ptr< T > &p)
	Output streamer.

template<typename T1 , typename T2 >
std::enable_if< std::is_same< T2, std::nullptr_t >::value, bool >::type	ns3::operator== (const Ptr< T1 > &lhs, T2 rhs)
	Specialization for comparison to `nullptr`.

template<typename T1 , typename T2 >
bool	ns3::operator== (const Ptr< T1 > &lhs, T2 const *rhs)
	Equality operator.

template<typename T1 , typename T2 >
bool	ns3::operator== (T1 const *lhs, Ptr< T2 > &rhs)
	Equality operator.

template<typename T1 , typename T2 >
bool	ns3::operator== (const Ptr< T1 > &lhs, const Ptr< T2 > &rhs)
	Equality operator.

template<typename T1 , typename T2 >
bool	ns3::operator!= (const Ptr< T1 > &lhs, T2 const *rhs)
	Inequality operator.

template<typename T1 , typename T2 >
bool	ns3::operator!= (T1 const *lhs, Ptr< T2 > &rhs)
	Inequality operator.

template<typename T1 , typename T2 >
bool	ns3::operator!= (const Ptr< T1 > &lhs, const Ptr< T2 > &rhs)
	Inequality operator.

template<typename T >
bool	ns3::operator< (const Ptr< T > &lhs, const Ptr< T > &rhs)
	Comparison operator applied to the underlying pointers.

template<typename T >
bool	ns3::operator< (const Ptr< T > &lhs, const Ptr< const T > &rhs)
	Comparison operator applied to the underlying pointers.

template<typename T >
bool	ns3::operator< (const Ptr< const T > &lhs, const Ptr< T > &rhs)
	Comparison operator applied to the underlying pointers.

template<typename T >
bool	ns3::operator<= (const Ptr< T > &lhs, const Ptr< T > &rhs)
	Comparison operator applied to the underlying pointers.

template<typename T >
bool	ns3::operator> (const Ptr< T > &lhs, const Ptr< T > &rhs)
	Comparison operator applied to the underlying pointers.

template<typename T >
bool	ns3::operator>= (const Ptr< T > &lhs, const Ptr< T > &rhs)
	Comparison operator applied to the underlying pointers.

Detailed Description

Heap memory management.

See ns3::Ptr for implementation details.

See main-ptr.cc for example usage.

Function Documentation

◆ Create()

template<typename T , typename... Ts>

Ptr< T > ns3::Create ( Ts &&... args )

Create class instances by constructors with varying numbers of arguments and return them by Ptr.

This template work for any class T derived from ns3::SimpleRefCount

See also: CreateObject for methods to create derivatives of ns3::Object

Template Parameters

T	[explicit] The type of class object to create.
Ts	[deduced] Types of the constructor arguments.

Parameters

[in] args Constructor arguments.

Returns: A Ptr to the newly created T.

Definition at line 481 of file ptr.h.

Referenced by ns3::Callback< R, UArgs >::Callback(), ns3::Callback< R, UArgs >::BindImpl(), ns3::TupleValue< Args >::Copy(), ns3::internal::TupleChecker< Args >::Create(), ns3::internal::MakeDoubleChecker(), ns3::internal::MakeIntegerChecker(), ns3::MakeSimpleAttributeChecker(), ns3::MakeTimeChecker(), ns3::internal::TupleHelper< Args >::MakeTupleChecker(), ns3::internal::TupleHelper< std::tuple< Args... > >::MakeTupleChecker(), and ns3::internal::MakeUintegerChecker().

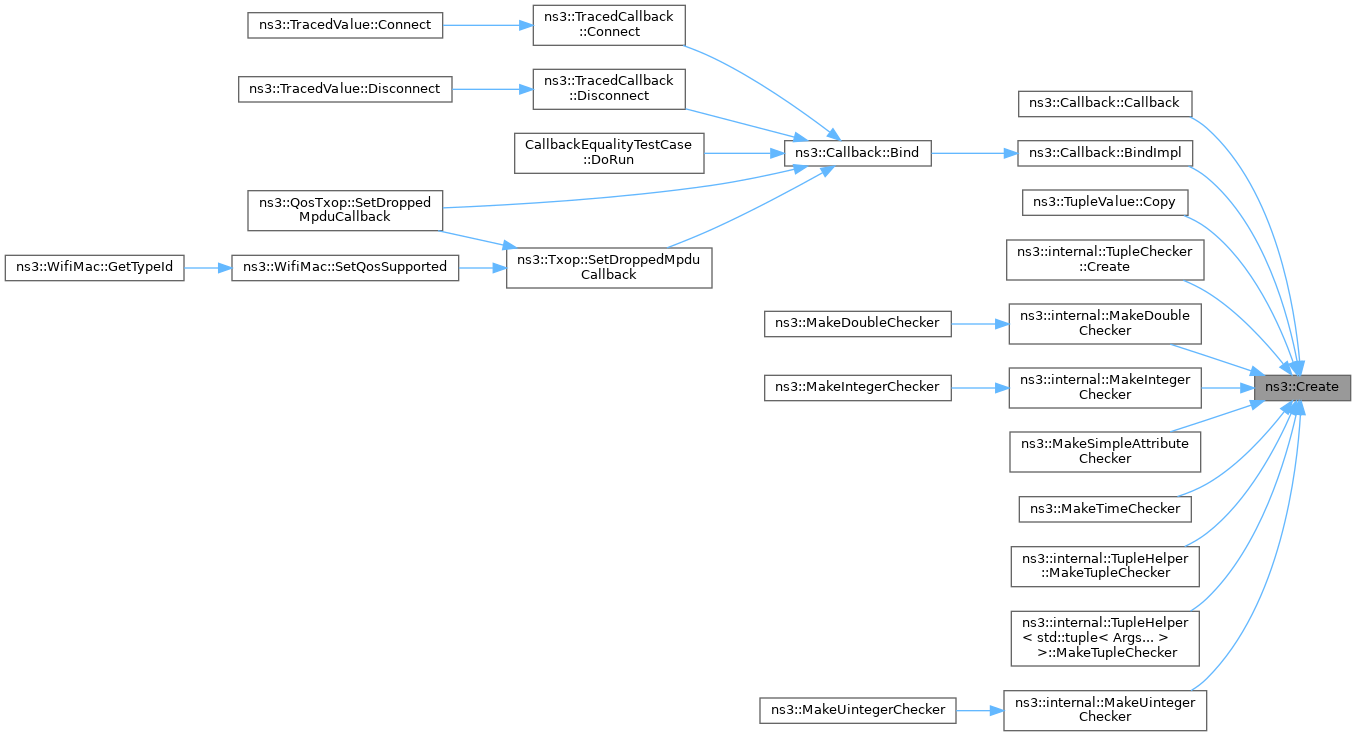

Here is the caller graph for this function:

◆ operator!=() [1/4]

template<typename T1 , typename T2 >

bool ns3::operator!=	(	const Ptr< T1 > &	lhs,
		const Ptr< T2 > &	rhs
	)

Inequality operator.

This enables code such as

Ptr<...> p = ...;
Ptr<...> q = ...;
if (p != q) ...

Note that either p or q could also be ordinary pointers to the underlying object.

Template Parameters

T1	[deduced] Type of the object on the lhs.
T2	[deduced] Type of the object on the rhs.

Parameters

[in]	lhs	The left operand.
[in]	rhs	The right operand.

Returns: true if the operands point to the same underlying object.

Definition at line 546 of file ptr.h.

References ns3::PeekPointer().

Here is the call graph for this function:

◆ operator!=() [2/4]

template<typename T1 , typename T2 >

bool ns3::operator!=	(	const Ptr< T1 > &	lhs,
		T2 const *	rhs
	)

Inequality operator.

This enables code such as

Ptr<...> p = ...;
Ptr<...> q = ...;
if (p != q) ...

Note that either p or q could also be ordinary pointers to the underlying object.

Template Parameters

T1	[deduced] Type of the object on the lhs.
T2	[deduced] Type of the object on the rhs.

Parameters

[in]	lhs	The left operand.
[in]	rhs	The right operand.

Returns: true if the operands point to the same underlying object.

Definition at line 525 of file ptr.h.

References ns3::PeekPointer().

Here is the call graph for this function:

◆ operator!=() [3/4]

template<typename T1 , typename T2 >

std::enable_if< std::is_same< T2, std::nullptr_t >::value, bool >::type ns3::operator!=	(	const Ptr< T1 > &	lhs,
		T2	rhs
	)

Specialization for comparison to nullptr.

Equality operator.

This enables code such as

Ptr<...> p = ...;
Ptr<...> q = ...;
if (p == q) ...

Note that either p or q could also be ordinary pointers to the underlying object.

Template Parameters

T1	[deduced] Type of the object on the lhs.
T2	[deduced] Type of the object on the rhs.

Parameters

[in]	lhs	The left operand.
[in]	rhs	The right operand.

Returns: true if the operands point to the same underlying object.

Definition at line 560 of file ptr.h.

References ns3::PeekPointer().

Here is the call graph for this function:

◆ operator!=() [4/4]

template<typename T1 , typename T2 >

bool ns3::operator!=	(	T1 const *	lhs,
		Ptr< T2 > &	rhs
	)

Inequality operator.

This enables code such as

Ptr<...> p = ...;
Ptr<...> q = ...;
if (p != q) ...

Note that either p or q could also be ordinary pointers to the underlying object.

Template Parameters

T1	[deduced] Type of the object on the lhs.
T2	[deduced] Type of the object on the rhs.

Parameters

[in]	lhs	The left operand.
[in]	rhs	The right operand.

Returns: true if the operands point to the same underlying object.

Definition at line 532 of file ptr.h.

References ns3::PeekPointer().

Here is the call graph for this function:

◆ operator<() [1/3]

template<typename T >

bool ns3::operator<	(	const Ptr< const T > &	lhs,
		const Ptr< T > &	rhs
	)

Comparison operator applied to the underlying pointers.

Template Parameters

T	[deduced] The type of the operands.

Parameters

[in]	lhs	The left operand.
[in]	rhs	The right operand.

Returns: The comparison on the underlying pointers.

Definition at line 580 of file ptr.h.

◆ operator<() [2/3]

template<typename T >

bool ns3::operator<	(	const Ptr< T > &	lhs,
		const Ptr< const T > &	rhs
	)

Comparison operator applied to the underlying pointers.

Template Parameters

T	[deduced] The type of the operands.

Parameters

[in]	lhs	The left operand.
[in]	rhs	The right operand.

Returns: The comparison on the underlying pointers.

Definition at line 573 of file ptr.h.

◆ operator<() [3/3]

template<typename T >

bool ns3::operator<	(	const Ptr< T > &	lhs,
		const Ptr< T > &	rhs
	)

Comparison operator applied to the underlying pointers.

Template Parameters

T	[deduced] The type of the operands.

Parameters

[in]	lhs	The left operand.
[in]	rhs	The right operand.

Returns: The comparison on the underlying pointers.

Definition at line 566 of file ptr.h.

◆ operator<<()

template<typename T >

std::ostream & ns3::operator<<	(	std::ostream &	os,
		const Ptr< T > &	p
	)

Output streamer.

Template Parameters

T	[deduced] The type of the underlying Object.

Parameters

[in,out]	os	The output stream.
[in]	p	The Ptr.

Returns: The stream.

Definition at line 502 of file ptr.h.

References ns3::PeekPointer().

Here is the call graph for this function:

◆ operator<=()

template<typename T >

bool ns3::operator<=	(	const Ptr< T > &	lhs,
		const Ptr< T > &	rhs
	)

Comparison operator applied to the underlying pointers.

Template Parameters

T	[deduced] The type of the operands.

Parameters

[in]	lhs	The left operand.
[in]	rhs	The right operand.

Returns: The comparison on the underlying pointers.

Definition at line 587 of file ptr.h.

◆ operator==() [1/4]

template<typename T1 , typename T2 >

bool ns3::operator==	(	const Ptr< T1 > &	lhs,
		const Ptr< T2 > &	rhs
	)

Equality operator.

This enables code such as

Ptr<...> p = ...;
Ptr<...> q = ...;
if (p == q) ...

Note that either p or q could also be ordinary pointers to the underlying object.

Template Parameters

T1	[deduced] Type of the object on the lhs.
T2	[deduced] Type of the object on the rhs.

Parameters

[in]	lhs	The left operand.
[in]	rhs	The right operand.

Returns: true if the operands point to the same underlying object.

Definition at line 539 of file ptr.h.

References ns3::PeekPointer().

Here is the call graph for this function:

◆ operator==() [2/4]

template<typename T1 , typename T2 >

bool ns3::operator==	(	const Ptr< T1 > &	lhs,
		T2 const *	rhs
	)

Equality operator.

This enables code such as

Ptr<...> p = ...;
Ptr<...> q = ...;
if (p == q) ...

Note that either p or q could also be ordinary pointers to the underlying object.

Template Parameters

T1	[deduced] Type of the object on the lhs.
T2	[deduced] Type of the object on the rhs.

Parameters

[in]	lhs	The left operand.
[in]	rhs	The right operand.

Returns: true if the operands point to the same underlying object.

Definition at line 511 of file ptr.h.

References ns3::PeekPointer().

Here is the call graph for this function:

◆ operator==() [3/4]

template<typename T1 , typename T2 >

std::enable_if< std::is_same< T2, std::nullptr_t >::value, bool >::type ns3::operator==	(	const Ptr< T1 > &	lhs,
		T2	rhs
	)

Specialization for comparison to nullptr.

Equality operator.

This enables code such as

Ptr<...> p = ...;
Ptr<...> q = ...;
if (p == q) ...

Note that either p or q could also be ordinary pointers to the underlying object.

Template Parameters

T1	[deduced] Type of the object on the lhs.
T2	[deduced] Type of the object on the rhs.

Parameters

[in]	lhs	The left operand.
[in]	rhs	The right operand.

Returns: true if the operands point to the same underlying object.

Definition at line 553 of file ptr.h.

References ns3::PeekPointer().

Here is the call graph for this function:

◆ operator==() [4/4]

template<typename T1 , typename T2 >

bool ns3::operator==	(	T1 const *	lhs,
		Ptr< T2 > &	rhs
	)

Equality operator.

This enables code such as

Ptr<...> p = ...;
Ptr<...> q = ...;
if (p == q) ...

Note that either p or q could also be ordinary pointers to the underlying object.

Template Parameters

T1	[deduced] Type of the object on the lhs.
T2	[deduced] Type of the object on the rhs.

Parameters

[in]	lhs	The left operand.
[in]	rhs	The right operand.

Returns: true if the operands point to the same underlying object.

Definition at line 518 of file ptr.h.

References ns3::PeekPointer().

Here is the call graph for this function:

◆ operator>()

template<typename T >

bool ns3::operator>	(	const Ptr< T > &	lhs,
		const Ptr< T > &	rhs
	)

Comparison operator applied to the underlying pointers.

Template Parameters

T	[deduced] The type of the operands.

Parameters

[in]	lhs	The left operand.
[in]	rhs	The right operand.

Returns: The comparison on the underlying pointers.

Definition at line 595 of file ptr.h.

◆ operator>=()

template<typename T >

bool ns3::operator>=	(	const Ptr< T > &	lhs,
		const Ptr< T > &	rhs
	)

Comparison operator applied to the underlying pointers.

Template Parameters

T	[deduced] The type of the operands.

Parameters

[in]	lhs	The left operand.
[in]	rhs	The right operand.

Returns: The comparison on the underlying pointers.

Definition at line 602 of file ptr.h.

Files

Classes

Functions

Detailed Description

Function Documentation

◆ Create()

◆ operator!=() [1/4]

◆ operator!=() [2/4]

◆ operator!=() [3/4]

◆ operator!=() [4/4]

◆ operator<() [1/3]

◆ operator<() [2/3]

◆ operator<() [3/3]

◆ operator<<()

◆ operator<=()

◆ operator==() [1/4]

◆ operator==() [2/4]

◆ operator==() [3/4]

◆ operator==() [4/4]

◆ operator>()

◆ operator>=()
