LenaPfFfMacSchedulerTestCase2 Class Reference

Lena PfFf Mac Scheduler Test Case 2. More...

#include "lte-test-pf-ff-mac-scheduler.h"

+ Inheritance diagram for LenaPfFfMacSchedulerTestCase2:

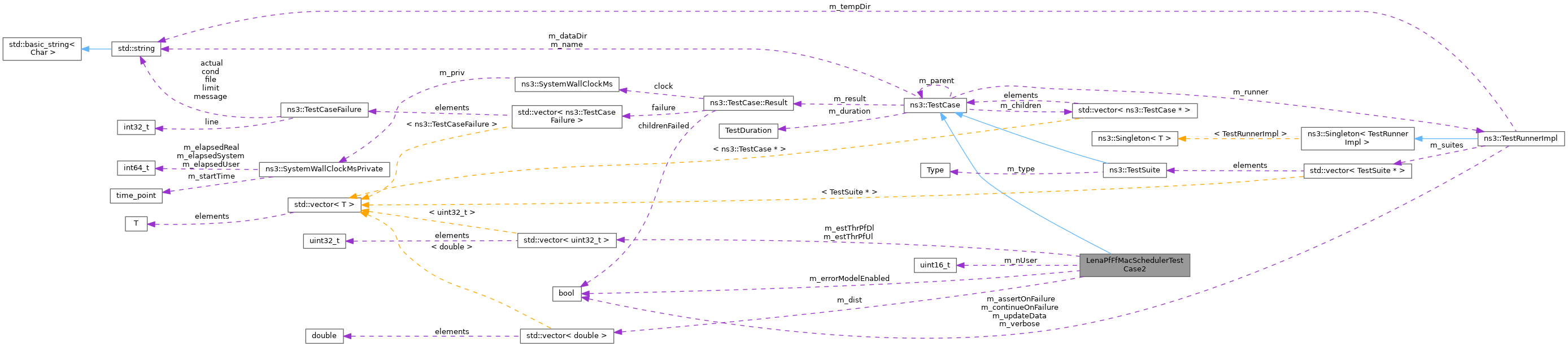

+ Collaboration diagram for LenaPfFfMacSchedulerTestCase2:

Public Member Functions

 LenaPfFfMacSchedulerTestCase2 (std::vector< double > dist, std::vector< uint32_t > estThrPfDl, std::vector< uint32_t > estThrPfUl, bool errorModelEnabled)
 Constructor.

 ~LenaPfFfMacSchedulerTestCase2 () override

- Public Member Functions inherited from ns3::TestCase
 TestCase (const TestCase &)=delete

virtual ~TestCase ()
 Destructor.

std::string GetName () const

TestCaseoperator= (const TestCase &)=delete


Private Member Functions

void DoRun () override
 Implementation to actually run this TestCase.


Static Private Member Functions

static std::string BuildNameString (uint16_t nUser, std::vector< double > dist)
 Builds the test name string based on provided parameter values.


Private Attributes

std::vector< doublem_dist
 the distance between nodes

bool m_errorModelEnabled
 indicates whether the error model is enabled

std::vector< uint32_tm_estThrPfDl
 the estimated DL throughput

std::vector< uint32_tm_estThrPfUl
 the estimated UL throughput

uint16_t m_nUser
 number of UE nodes


Additional Inherited Members

- Public Types inherited from ns3::TestCase
enum  TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
 How long the test takes to execute. More...

- Protected Member Functions inherited from ns3::TestCase
 TestCase (std::string name)
 Constructor.

void AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
 Add an individual child TestCase to this test suite.

TestCaseGetParent () const
 Get the parent of this TestCase.

bool IsStatusFailure () const
 Check if any tests failed.

bool IsStatusSuccess () const
 Check if all tests passed.

void SetDataDir (std::string directory)
 Set the data directory where reference trace files can be found.

void ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
 Log the failure of this TestCase.

bool MustAssertOnFailure () const
 Check if this run should assert on failure.

bool MustContinueOnFailure () const
 Check if this run should continue on failure.

std::string CreateDataDirFilename (std::string filename)
 Construct the full path to a file in the data directory.

std::string CreateTempDirFilename (std::string filename)
 Construct the full path to a file in a temporary directory.


Detailed Description

Lena PfFf Mac Scheduler Test Case 2.

Definition at line 80 of file lte-test-pf-ff-mac-scheduler.h.

Constructor & Destructor Documentation

◆ LenaPfFfMacSchedulerTestCase2()

LenaPfFfMacSchedulerTestCase2::LenaPfFfMacSchedulerTestCase2 ( std::vector< double dist,
std::vector< uint32_t estThrPfDl,
std::vector< uint32_t estThrPfUl,
bool  errorModelEnabled
)

Constructor.

Parameters
distthe distance between nodes
estThrPfDlthe estimated DL throughput PF
estThrPfUlthe estimated UL throughput PF
errorModelEnabledif true the error model is enabled

Definition at line 410 of file lte-test-pf-ff-mac-scheduler.cc.

◆ ~LenaPfFfMacSchedulerTestCase2()

LenaPfFfMacSchedulerTestCase2::~LenaPfFfMacSchedulerTestCase2 ( )
override

Definition at line 423 of file lte-test-pf-ff-mac-scheduler.cc.

Member Function Documentation

◆ BuildNameString()

std::string LenaPfFfMacSchedulerTestCase2::BuildNameString ( uint16_t  nUser,
std::vector< double dist
)
staticprivate

Builds the test name string based on provided parameter values.

Parameters
nUserthe number of UE nodes
distthe distance between nodes
Returns
the name string

Definition at line 398 of file lte-test-pf-ff-mac-scheduler.cc.

◆ DoRun()

void LenaPfFfMacSchedulerTestCase2::DoRun ( )
overrideprivatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Initialize Simulation Scenario: 1 eNB and m_nUser UEs

Check that the assignment is done in a "proportional fair" manner among users with different SINRs: the bandwidth should be distributed according to the ratio of the estimated throughput per TTI of each user.

Check that the assignment in uplink is done in a round robin manner.

Implements ns3::TestCase.

Definition at line 428 of file lte-test-pf-ff-mac-scheduler.cc.

References ns3::NodeContainer::Create(), ns3::TestCase::CreateTempDirFilename(), ns3::Simulator::Destroy(), ns3::EpsBearer::GBR_CONV_VOICE, ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::Object::GetObject(), m_dist, m_errorModelEnabled, m_estThrPfDl, m_estThrPfUl, m_nUser, NS_LOG_FUNCTION, NS_LOG_INFO, NS_TEST_ASSERT_MSG_EQ_TOL, ns3::Simulator::Run(), ns3::Seconds(), ns3::Config::SetDefault(), ns3::FfMacScheduler::SRS_UL_CQI, and ns3::Simulator::Stop().

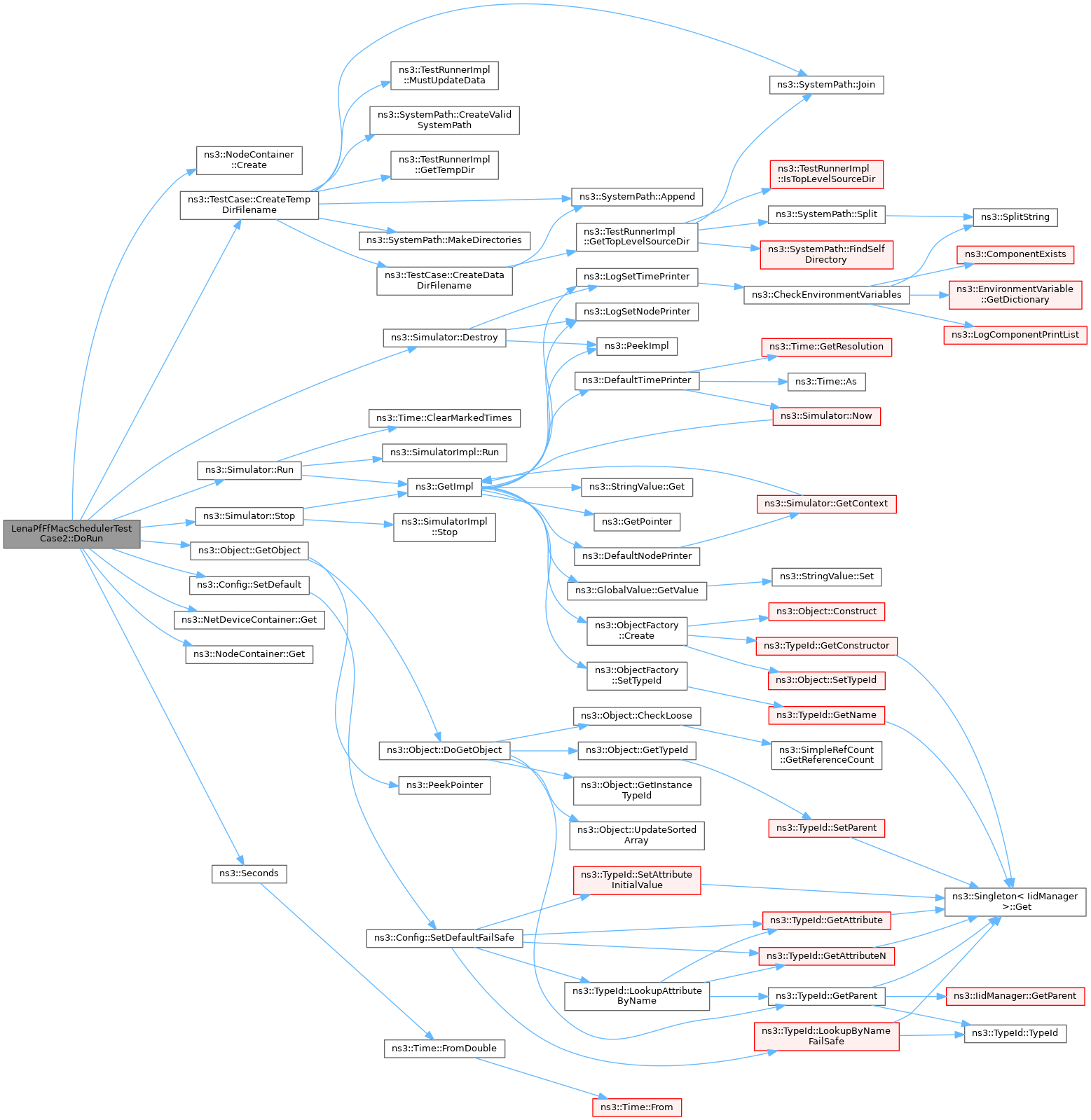

+ Here is the call graph for this function:

Member Data Documentation

◆ m_dist

std::vector<double> LenaPfFfMacSchedulerTestCase2::m_dist
private

the distance between nodes

Definition at line 107 of file lte-test-pf-ff-mac-scheduler.h.

Referenced by DoRun().

◆ m_errorModelEnabled

bool LenaPfFfMacSchedulerTestCase2::m_errorModelEnabled
private

indicates whether the error model is enabled

Definition at line 110 of file lte-test-pf-ff-mac-scheduler.h.

Referenced by DoRun().

◆ m_estThrPfDl

std::vector<uint32_t> LenaPfFfMacSchedulerTestCase2::m_estThrPfDl
private

the estimated DL throughput

Definition at line 108 of file lte-test-pf-ff-mac-scheduler.h.

Referenced by DoRun().

◆ m_estThrPfUl

std::vector<uint32_t> LenaPfFfMacSchedulerTestCase2::m_estThrPfUl
private

the estimated UL throughput

Definition at line 109 of file lte-test-pf-ff-mac-scheduler.h.

Referenced by DoRun().

◆ m_nUser

uint16_t LenaPfFfMacSchedulerTestCase2::m_nUser
private

number of UE nodes

Definition at line 106 of file lte-test-pf-ff-mac-scheduler.h.

Referenced by DoRun().


The documentation for this class was generated from the following files:
