Models the transmission of RRC messages from the UE to the eNB in an ideal fashion, without errors and without consuming any radio resources. More...
#include "lte-rrc-protocol-ideal.h"
Public Member Functions | |
LteEnbRrcProtocolIdeal () | |
~LteEnbRrcProtocolIdeal () override | |
void | DoDispose () override |
Destructor implementation. | |
LteEnbRrcSapUser * | GetLteEnbRrcSapUser () |
Get LTE ENB RRC SAP user function. | |
LteUeRrcSapProvider * | GetUeRrcSapProvider (uint16_t rnti) |
Get LTE UE RRC SAP provider function. | |
void | SetCellId (uint16_t cellId) |
Set the cell ID function. | |
void | SetLteEnbRrcSapProvider (LteEnbRrcSapProvider *p) |
Set LTE ENB RRC SAP provider function. | |
void | SetUeRrcSapProvider (uint16_t rnti, LteUeRrcSapProvider *p) |
Set UE RRC SAP provider function. | |
![]() | |
Object () | |
Constructor. | |
~Object () override | |
Destructor. | |
void | AggregateObject (Ptr< Object > other) |
Aggregate two Objects together. | |
void | Dispose () |
Dispose of this Object. | |
AggregateIterator | GetAggregateIterator () const |
Get an iterator to the Objects aggregated to this one. | |
TypeId | GetInstanceTypeId () const override |
Get the most derived TypeId for this Object. | |
template<typename T > | |
Ptr< T > | GetObject () const |
Get a pointer to the requested aggregated Object. | |
template<> | |
Ptr< Object > | GetObject () const |
Specialization of () for objects of type ns3::Object. | |
template<typename T > | |
Ptr< T > | GetObject (TypeId tid) const |
Get a pointer to the requested aggregated Object by TypeId. | |
template<> | |
Ptr< Object > | GetObject (TypeId tid) const |
Specialization of (TypeId tid) for objects of type ns3::Object. | |
void | Initialize () |
Invoke DoInitialize on all Objects aggregated to this one. | |
bool | IsInitialized () const |
Check if the object has been initialized. | |
![]() | |
SimpleRefCount () | |
Default constructor. | |
SimpleRefCount (const SimpleRefCount &o) | |
Copy constructor. | |
uint32_t | GetReferenceCount () const |
Get the reference count of the object. | |
SimpleRefCount & | operator= (const SimpleRefCount &o) |
Assignment operator. | |
void | Ref () const |
Increment the reference count. | |
void | Unref () const |
Decrement the reference count. | |
![]() | |
virtual | ~ObjectBase () |
Virtual destructor. | |
void | GetAttribute (std::string name, AttributeValue &value) const |
Get the value of an attribute, raising fatal errors if unsuccessful. | |
bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
Get the value of an attribute without raising errors. | |
virtual TypeId | GetInstanceTypeId () const =0 |
Get the most derived TypeId for this Object. | |
void | SetAttribute (std::string name, const AttributeValue &value) |
Set a single attribute, raising fatal errors if unsuccessful. | |
bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
Set a single attribute without raising errors. | |
bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
Connect a TraceSource to a Callback with a context. | |
bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
Connect a TraceSource to a Callback without a context. | |
bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected with a context. | |
bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected without a context. | |
Static Public Member Functions | |
static TypeId | GetTypeId () |
Get the type ID. | |
![]() | |
static TypeId | GetTypeId () |
Register this type. | |
![]() | |
static TypeId | GetTypeId () |
Get the type ID. | |
Private Member Functions | |
LteRrcSap::RrcConnectionReconfiguration | DoDecodeHandoverCommand (Ptr< Packet > p) |
Decode handover command function. | |
LteRrcSap::HandoverPreparationInfo | DoDecodeHandoverPreparationInformation (Ptr< Packet > p) |
Encode handover preparation information function. | |
Ptr< Packet > | DoEncodeHandoverCommand (LteRrcSap::RrcConnectionReconfiguration msg) |
Encode handover command function. | |
Ptr< Packet > | DoEncodeHandoverPreparationInformation (LteRrcSap::HandoverPreparationInfo msg) |
Encode handover preparation information function. | |
void | DoRemoveUe (uint16_t rnti) |
Remove UE function. | |
void | DoSendRrcConnectionReconfiguration (uint16_t rnti, LteRrcSap::RrcConnectionReconfiguration msg) |
Send RRC connection reconfiguration function. | |
void | DoSendRrcConnectionReestablishment (uint16_t rnti, LteRrcSap::RrcConnectionReestablishment msg) |
Send RRC connection reestablishment function. | |
void | DoSendRrcConnectionReestablishmentReject (uint16_t rnti, LteRrcSap::RrcConnectionReestablishmentReject msg) |
Send RRC connection reestablishment reject function. | |
void | DoSendRrcConnectionReject (uint16_t rnti, LteRrcSap::RrcConnectionReject msg) |
Send RRC connection reject function. | |
void | DoSendRrcConnectionRelease (uint16_t rnti, LteRrcSap::RrcConnectionRelease msg) |
Send RRC connection release function. | |
void | DoSendRrcConnectionSetup (uint16_t rnti, LteRrcSap::RrcConnectionSetup msg) |
Send RRC connection setup function. | |
void | DoSendSystemInformation (uint16_t cellId, LteRrcSap::SystemInformation msg) |
Send system information function. | |
void | DoSetupUe (uint16_t rnti, LteEnbRrcSapUser::SetupUeParameters params) |
Setup UE function. | |
void | SendSystemInformation (LteRrcSap::SystemInformation msg) |
Send system information function. | |
Private Attributes | |
uint16_t | m_cellId |
the cell ID | |
LteEnbRrcSapProvider * | m_enbRrcSapProvider |
the ENB RRC SAP provider | |
std::map< uint16_t, LteUeRrcSapProvider * > | m_enbRrcSapProviderMap |
the LTE UE RRC SAP provider | |
LteEnbRrcSapUser * | m_enbRrcSapUser |
the ENB RRC SAP user | |
uint16_t | m_rnti |
the RNTI | |
Friends | |
class | MemberLteEnbRrcSapUser< LteEnbRrcProtocolIdeal > |
allow MemberLteEnbRrcSapUser<LteEnbRrcProtocolIdeal> class friend access | |
Additional Inherited Members | |
![]() | |
Object (const Object &o) | |
Copy an Object. | |
virtual void | DoDispose () |
Destructor implementation. | |
virtual void | DoInitialize () |
Initialize() implementation. | |
virtual void | NotifyNewAggregate () |
Notify all Objects aggregated to this one of a new Object being aggregated. | |
![]() | |
void | ConstructSelf (const AttributeConstructionList &attributes) |
Complete construction of ObjectBase; invoked by derived classes. | |
virtual void | NotifyConstructionCompleted () |
Notifier called once the ObjectBase is fully constructed. | |
![]() | |
static TypeId | GetObjectIid () |
Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. | |
Models the transmission of RRC messages from the UE to the eNB in an ideal fashion, without errors and without consuming any radio resources.
Introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 96 bytes (on a 64-bit architecture).
Definition at line 159 of file lte-rrc-protocol-ideal.h.
ns3::LteEnbRrcProtocolIdeal::LteEnbRrcProtocolIdeal | ( | ) |
Definition at line 241 of file lte-rrc-protocol-ideal.cc.
References m_enbRrcSapUser, MemberLteEnbRrcSapUser< LteEnbRrcProtocolIdeal >, and NS_LOG_FUNCTION.
|
override |
Definition at line 248 of file lte-rrc-protocol-ideal.cc.
References NS_LOG_FUNCTION.
|
private |
Decode handover command function.
p | the packet |
Definition at line 696 of file lte-rrc-protocol-ideal.cc.
References ns3::g_handoverCommandMsgMap, ns3::IdealHandoverCommandHeader::GetMsgId(), NS_ASSERT_MSG, and NS_LOG_INFO.
|
private |
Encode handover preparation information function.
p | the packet |
Definition at line 573 of file lte-rrc-protocol-ideal.cc.
References ns3::g_handoverPreparationInfoMsgMap, ns3::IdealHandoverPreparationInfoHeader::GetMsgId(), NS_ASSERT_MSG, and NS_LOG_INFO.
|
overridevirtual |
Destructor implementation.
This method is called by Dispose() or by the Object's destructor, whichever comes first.
Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.
It is safe to call GetObject() from within this method.
Reimplemented from ns3::Object.
Definition at line 254 of file lte-rrc-protocol-ideal.cc.
References m_enbRrcSapUser, and NS_LOG_FUNCTION.
|
private |
Encode handover command function.
msg | LteRrcSap::RrcConnectionReconfiguration |
Definition at line 680 of file lte-rrc-protocol-ideal.cc.
References ns3::g_handoverCommandMsgIdCounter, ns3::g_handoverCommandMsgMap, NS_ASSERT_MSG, NS_LOG_INFO, and ns3::IdealHandoverCommandHeader::SetMsgId().
|
private |
Encode handover preparation information function.
msg | LteRrcSap::HandoverPreparationInfo |
Definition at line 555 of file lte-rrc-protocol-ideal.cc.
References ns3::g_handoverPreparationInfoMsgIdCounter, ns3::g_handoverPreparationInfoMsgMap, NS_ASSERT_MSG, NS_LOG_INFO, and ns3::IdealHandoverPreparationInfoHeader::SetMsgId().
|
private |
Remove UE function.
rnti | the RNTI |
Definition at line 350 of file lte-rrc-protocol-ideal.cc.
References m_enbRrcSapProviderMap, and NS_LOG_FUNCTION.
|
private |
Send RRC connection reconfiguration function.
rnti | the RNTI |
msg | LteRrcSap::RrcConnectionReconfiguration |
Definition at line 398 of file lte-rrc-protocol-ideal.cc.
References GetUeRrcSapProvider(), ns3::LteUeRrcSapProvider::RecvRrcConnectionReconfiguration(), ns3::RRC_IDEAL_MSG_DELAY, and ns3::Simulator::Schedule().
|
private |
Send RRC connection reestablishment function.
rnti | the RNTI |
msg | LteRrcSap::RrcConnectionReestablishment |
Definition at line 409 of file lte-rrc-protocol-ideal.cc.
References GetUeRrcSapProvider(), ns3::LteUeRrcSapProvider::RecvRrcConnectionReestablishment(), ns3::RRC_IDEAL_MSG_DELAY, and ns3::Simulator::Schedule().
|
private |
Send RRC connection reestablishment reject function.
rnti | the RNTI |
msg | LteRrcSap::RrcConnectionReestablishmentReject |
Definition at line 420 of file lte-rrc-protocol-ideal.cc.
References GetUeRrcSapProvider(), ns3::LteUeRrcSapProvider::RecvRrcConnectionReestablishmentReject(), ns3::RRC_IDEAL_MSG_DELAY, and ns3::Simulator::Schedule().
|
private |
Send RRC connection reject function.
rnti | the RNTI |
msg | LteRrcSap::RrcConnectionReject |
Definition at line 441 of file lte-rrc-protocol-ideal.cc.
References GetUeRrcSapProvider(), ns3::LteUeRrcSapProvider::RecvRrcConnectionReject(), ns3::RRC_IDEAL_MSG_DELAY, and ns3::Simulator::Schedule().
|
private |
Send RRC connection release function.
rnti | the RNTI |
msg | LteRrcSap::RrcConnectionRelease |
Definition at line 431 of file lte-rrc-protocol-ideal.cc.
References GetUeRrcSapProvider(), ns3::LteUeRrcSapProvider::RecvRrcConnectionRelease(), ns3::RRC_IDEAL_MSG_DELAY, and ns3::Simulator::Schedule().
|
private |
Send RRC connection setup function.
rnti | the RNTI |
msg | LteRrcSap::RrcConnectionSetup |
Definition at line 389 of file lte-rrc-protocol-ideal.cc.
References GetUeRrcSapProvider(), ns3::LteUeRrcSapProvider::RecvRrcConnectionSetup(), ns3::RRC_IDEAL_MSG_DELAY, and ns3::Simulator::Schedule().
|
private |
Send system information function.
cellId | cell ID |
msg | LteRrcSap::SystemInformation |
Definition at line 357 of file lte-rrc-protocol-ideal.cc.
References ns3::NodeList::Begin(), ns3::NodeList::End(), NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::LteUeRrcSapProvider::RecvSystemInformation(), ns3::RRC_IDEAL_MSG_DELAY, and ns3::Simulator::Schedule().
|
private |
Setup UE function.
rnti | the RNTI |
params | LteEnbRrcSapUser::SetupUeParameters |
Definition at line 310 of file lte-rrc-protocol-ideal.cc.
References m_enbRrcSapProviderMap, and NS_LOG_FUNCTION.
LteEnbRrcSapUser * ns3::LteEnbRrcProtocolIdeal::GetLteEnbRrcSapUser | ( | ) |
Get LTE ENB RRC SAP user function.
Definition at line 277 of file lte-rrc-protocol-ideal.cc.
References m_enbRrcSapUser.
|

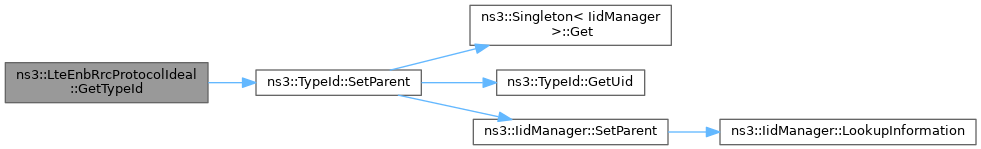

static |
Get the type ID.
Definition at line 261 of file lte-rrc-protocol-ideal.cc.
References ns3::TypeId::SetParent().
LteUeRrcSapProvider * ns3::LteEnbRrcProtocolIdeal::GetUeRrcSapProvider | ( | uint16_t | rnti | ) |
Get LTE UE RRC SAP provider function.
rnti | the RNTI |
Definition at line 289 of file lte-rrc-protocol-ideal.cc.
References m_enbRrcSapProviderMap, and NS_ASSERT_MSG.

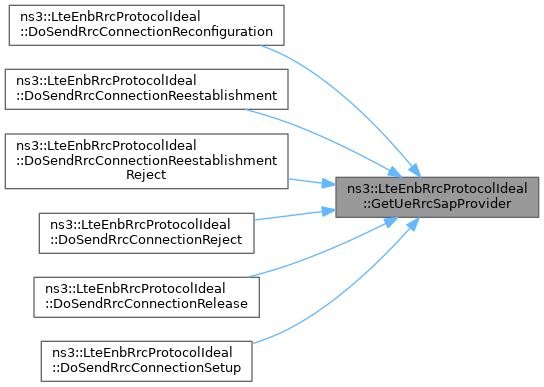

Referenced by DoSendRrcConnectionReconfiguration(), DoSendRrcConnectionReestablishment(), DoSendRrcConnectionReestablishmentReject(), DoSendRrcConnectionReject(), DoSendRrcConnectionRelease(), and DoSendRrcConnectionSetup().
|
private |
Send system information function.
msg | LteRrcSap::SystemInformation |
void ns3::LteEnbRrcProtocolIdeal::SetCellId | ( | uint16_t | cellId | ) |
Set the cell ID function.
cellId | the cell ID |
Definition at line 283 of file lte-rrc-protocol-ideal.cc.
References m_cellId.
void ns3::LteEnbRrcProtocolIdeal::SetLteEnbRrcSapProvider | ( | LteEnbRrcSapProvider * | p | ) |
Set LTE ENB RRC SAP provider function.
p | the LTE ENB RRC SAP provider |
Definition at line 271 of file lte-rrc-protocol-ideal.cc.
References m_enbRrcSapProvider.
void ns3::LteEnbRrcProtocolIdeal::SetUeRrcSapProvider | ( | uint16_t | rnti, |
LteUeRrcSapProvider * | p | ||
) |
Set UE RRC SAP provider function.
rnti | the RNTI |
p | the UE RRC SAP provider |
Definition at line 298 of file lte-rrc-protocol-ideal.cc.
References m_enbRrcSapProviderMap.
|
friend |
allow MemberLteEnbRrcSapUser<LteEnbRrcProtocolIdeal> class friend access
Definition at line 150 of file lte-rrc-protocol-ideal.h.
Referenced by LteEnbRrcProtocolIdeal().
|
private |
|
private |
the ENB RRC SAP provider
Definition at line 316 of file lte-rrc-protocol-ideal.h.
Referenced by SetLteEnbRrcSapProvider().
|
private |
the LTE UE RRC SAP provider
Definition at line 319 of file lte-rrc-protocol-ideal.h.
Referenced by DoRemoveUe(), DoSetupUe(), GetUeRrcSapProvider(), and SetUeRrcSapProvider().
|
private |
the ENB RRC SAP user
Definition at line 317 of file lte-rrc-protocol-ideal.h.
Referenced by LteEnbRrcProtocolIdeal(), DoDispose(), and GetLteEnbRrcSapUser().
|
private |
the RNTI
Definition at line 314 of file lte-rrc-protocol-ideal.h.
