ns3::Uinteger16Probe Class Reference

This class is designed to probe an underlying ns3 TraceSource exporting an uint16_t. More...

#include "uinteger-16-probe.h"

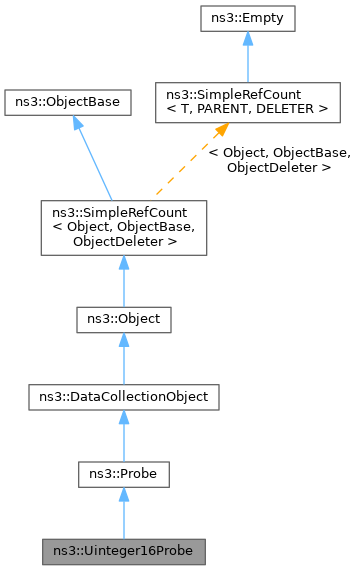

+ Inheritance diagram for ns3::Uinteger16Probe:

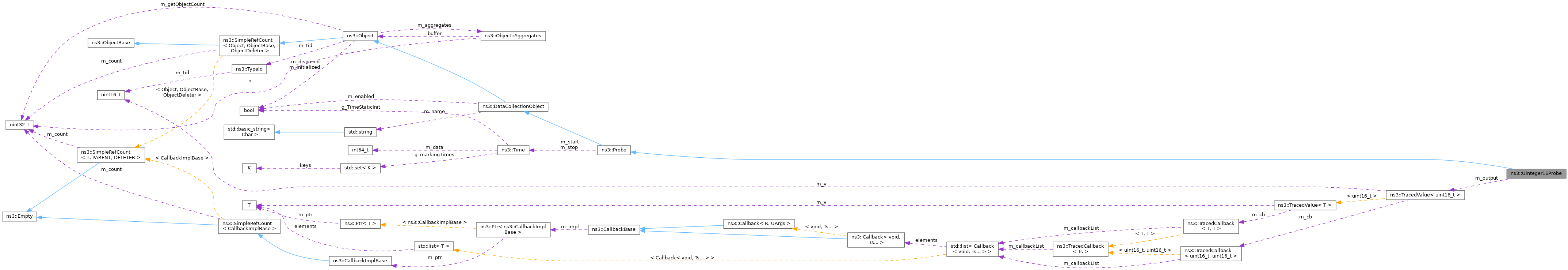

+ Collaboration diagram for ns3::Uinteger16Probe:

Public Member Functions

 Uinteger16Probe ()

 ~Uinteger16Probe () override

bool ConnectByObject (std::string traceSource, Ptr< Object > obj) override
 connect to a trace source attribute provided by a given object

void ConnectByPath (std::string path) override
 connect to a trace source provided by a config path

uint16_t GetValue () const

void SetValue (uint16_t value)

- Public Member Functions inherited from ns3::Probe
 Probe ()

 ~Probe () override

virtual bool ConnectByObject (std::string traceSource, Ptr< Object > obj)=0
 connect to a trace source attribute provided by a given object

virtual void ConnectByPath (std::string path)=0
 connect to a trace source provided by a config path

bool IsEnabled () const override

- Public Member Functions inherited from ns3::DataCollectionObject
 DataCollectionObject ()

 ~DataCollectionObject () override

void Disable ()
 Unset the status of an individual object.

void Enable ()
 Set the status of an individual object.

std::string GetName () const
 Get the object's name.

virtual bool IsEnabled () const
 Check the status of an individual object.

void SetName (std::string name)
 Set the object's name.

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor.

 ~Object () override
 Destructor.

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together.

void Dispose ()
 Dispose of this Object.

AggregateIterator GetAggregateIterator () const
 Get an iterator to the Objects aggregated to this one.

TypeId GetInstanceTypeId () const override
 Get the most derived TypeId for this Object.

template<typename T >
Ptr< T > GetObject () const
 Get a pointer to the requested aggregated Object.

template<>
Ptr< ObjectGetObject () const
 Specialization of () for objects of type ns3::Object.

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId.

template<>
Ptr< ObjectGetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object.

void Initialize ()
 Invoke DoInitialize on all Objects aggregated to this one.

bool IsInitialized () const
 Check if the object has been initialized.

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor.

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor.

uint32_t GetReferenceCount () const
 Get the reference count of the object.

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator.

void Ref () const
 Increment the reference count.

void Unref () const
 Decrement the reference count.

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor.

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful.

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising errors.

virtual TypeId GetInstanceTypeId () const =0
 Get the most derived TypeId for this Object.

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful.

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors.

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context.

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context.

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context.

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context.


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type ID.

static void SetValueByPath (std::string path, uint16_t value)
 Set a probe value by its name in the Config system.

- Static Public Member Functions inherited from ns3::Probe
static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::DataCollectionObject
static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId ()
 Register this type.

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId ()
 Get the type ID.


Private Member Functions

void TraceSink (uint16_t oldData, uint16_t newData)
 Method to connect to an underlying ns3::TraceSource of type uint16_t.


Private Attributes

TracedValue< uint16_t > m_output
 Output trace source.


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object.

virtual void DoDispose ()
 Destructor implementation.

virtual void DoInitialize ()
 Initialize() implementation.

virtual void NotifyNewAggregate ()
 Notify all Objects aggregated to this one of a new Object being aggregated.

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes.

virtual void NotifyConstructionCompleted ()
 Notifier called once the ObjectBase is fully constructed.

- Protected Attributes inherited from ns3::Probe
Time m_start
 Time when logging starts.

Time m_stop
 Time when logging stops.

- Protected Attributes inherited from ns3::DataCollectionObject
bool m_enabled
 Object's activation state.

std::string m_name
 Name of the object within the data collection framework.


Detailed Description

This class is designed to probe an underlying ns3 TraceSource exporting an uint16_t.

Introspection did not find any typical Config paths.

This probe exports a trace source "Output" of type uint16_t. The Output trace source emits a value when either the trace source emits a new value, or when SetValue () is called.

The current value of the probe can be polled with the GetValue () method.


No Attributes are defined for this type.

Attributes defined in parent class ns3::Probe

  • Start: Time data collection starts
    • Set with class: ns3::TimeValue
    • Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
    • Initial value: +0ns
    • Flags: constructwriteread
  • Stop: Time when data collection stops. The special time value of 0 disables this attribute
    • Set with class: ns3::TimeValue
    • Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
    • Initial value: +0ns
    • Flags: constructwriteread

Attributes defined in parent class ns3::DataCollectionObject

  • Enabled: Object's enabled status
    • Set with class: ns3::BooleanValue
    • Underlying type: bool
    • Initial value: true
    • Flags: constructwriteread
  • Name: Object's name
    • Set with class: ns3::StringValue
    • Underlying type: std::string
    • Initial value: unnamed
    • Flags: constructwriteread

TraceSources

Size of this type is 80 bytes (on a 64-bit architecture).

Definition at line 43 of file uinteger-16-probe.h.

Constructor & Destructor Documentation

◆ Uinteger16Probe()

ns3::Uinteger16Probe::Uinteger16Probe ( )

Definition at line 51 of file uinteger-16-probe.cc.

References m_output, and NS_LOG_FUNCTION.

◆ ~Uinteger16Probe()

ns3::Uinteger16Probe::~Uinteger16Probe ( )
override

Definition at line 57 of file uinteger-16-probe.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ ConnectByObject()

bool ns3::Uinteger16Probe::ConnectByObject ( std::string  traceSource,
Ptr< Object obj
)
overridevirtual

connect to a trace source attribute provided by a given object

Parameters
traceSourcethe name of the attribute TraceSource to connect to
objns3::Object to connect to
Returns
true if the trace source was successfully connected

Implements ns3::Probe.

Definition at line 86 of file uinteger-16-probe.cc.

References ns3::Names::FindPath(), ns3::MakeCallback(), NS_LOG_DEBUG, NS_LOG_FUNCTION, and TraceSink().

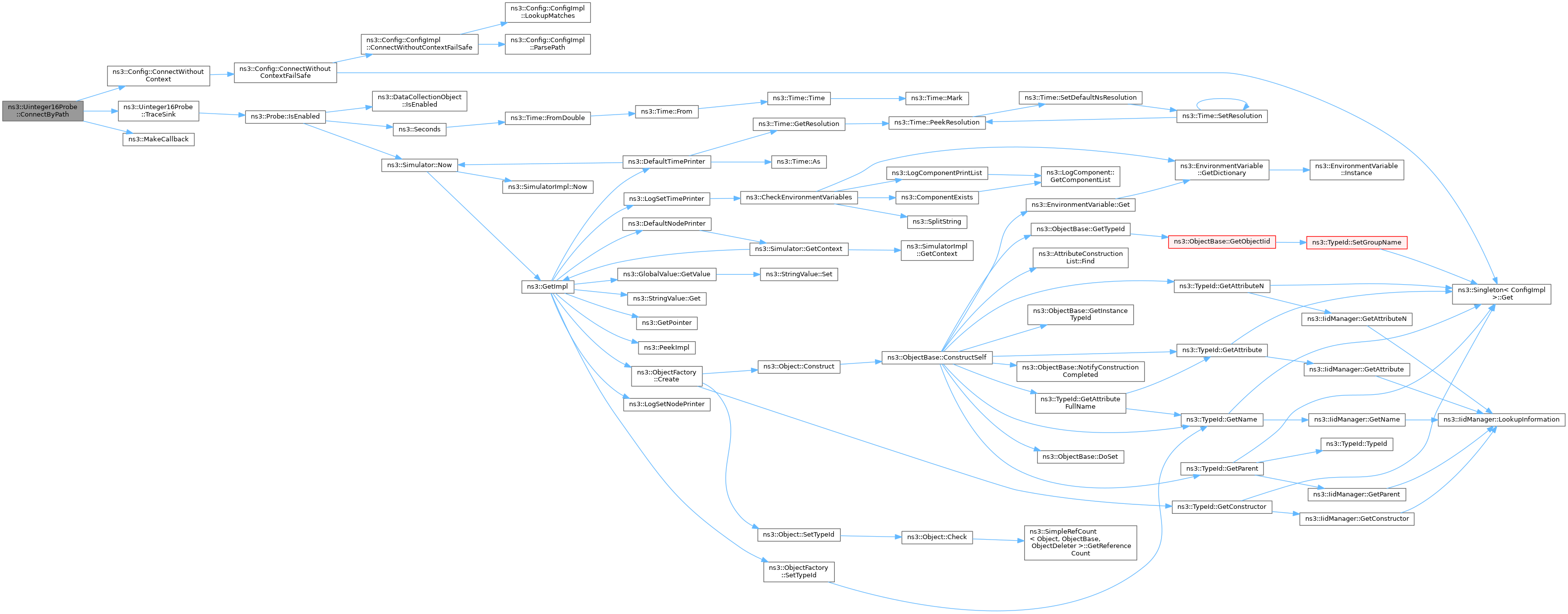

+ Here is the call graph for this function:

◆ ConnectByPath()

void ns3::Uinteger16Probe::ConnectByPath ( std::string  path)
overridevirtual

connect to a trace source provided by a config path

Parameters
pathConfig path to bind to

Note, if an invalid path is provided, the probe will not be connected to anything.

Implements ns3::Probe.

Definition at line 97 of file uinteger-16-probe.cc.

References ns3::Config::ConnectWithoutContext(), ns3::MakeCallback(), NS_LOG_DEBUG, NS_LOG_FUNCTION, and TraceSink().

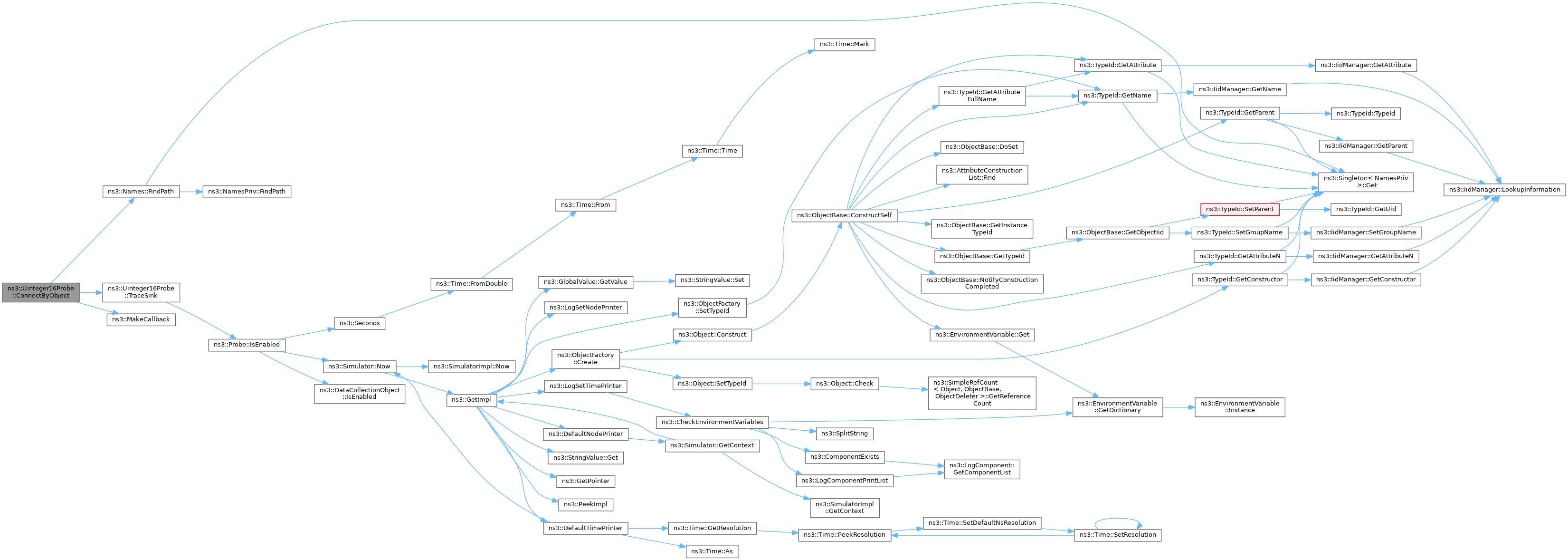

+ Here is the call graph for this function:

◆ GetTypeId()

TypeId ns3::Uinteger16Probe::GetTypeId ( )
static

Get the type ID.

Returns
the object TypeId

Definition at line 38 of file uinteger-16-probe.cc.

References m_output, ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

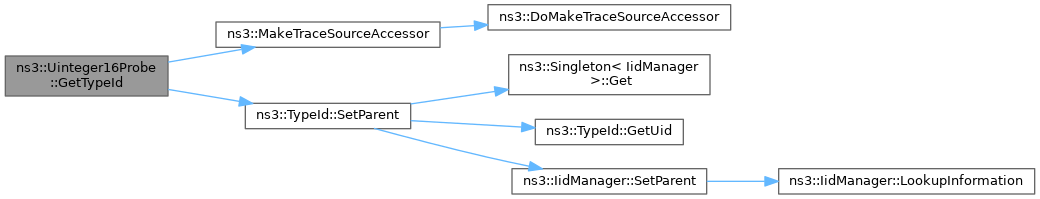

+ Here is the call graph for this function:

◆ GetValue()

uint16_t ns3::Uinteger16Probe::GetValue ( ) const
Returns
the most recent value

Definition at line 63 of file uinteger-16-probe.cc.

References m_output, and NS_LOG_FUNCTION.

◆ SetValue()

void ns3::Uinteger16Probe::SetValue ( uint16_t  value)
Parameters
valueset the traced uint16_t to a new value

Definition at line 70 of file uinteger-16-probe.cc.

References m_output, and NS_LOG_FUNCTION.

◆ SetValueByPath()

void ns3::Uinteger16Probe::SetValueByPath ( std::string  path,
uint16_t  value
)
static

Set a probe value by its name in the Config system.

Parameters
pathConfig path to access the probe
valueset the traced uint16_t to a new value

Definition at line 77 of file uinteger-16-probe.cc.

References NS_ASSERT_MSG, and NS_LOG_FUNCTION.

◆ TraceSink()

void ns3::Uinteger16Probe::TraceSink ( uint16_t  oldData,
uint16_t  newData
)
private

Method to connect to an underlying ns3::TraceSource of type uint16_t.

Parameters
oldDataprevious value of the uint16_t
newDatanew value of the uint16_t

Definition at line 105 of file uinteger-16-probe.cc.

References ns3::Probe::IsEnabled(), m_output, and NS_LOG_FUNCTION.

Referenced by ConnectByObject(), and ConnectByPath().

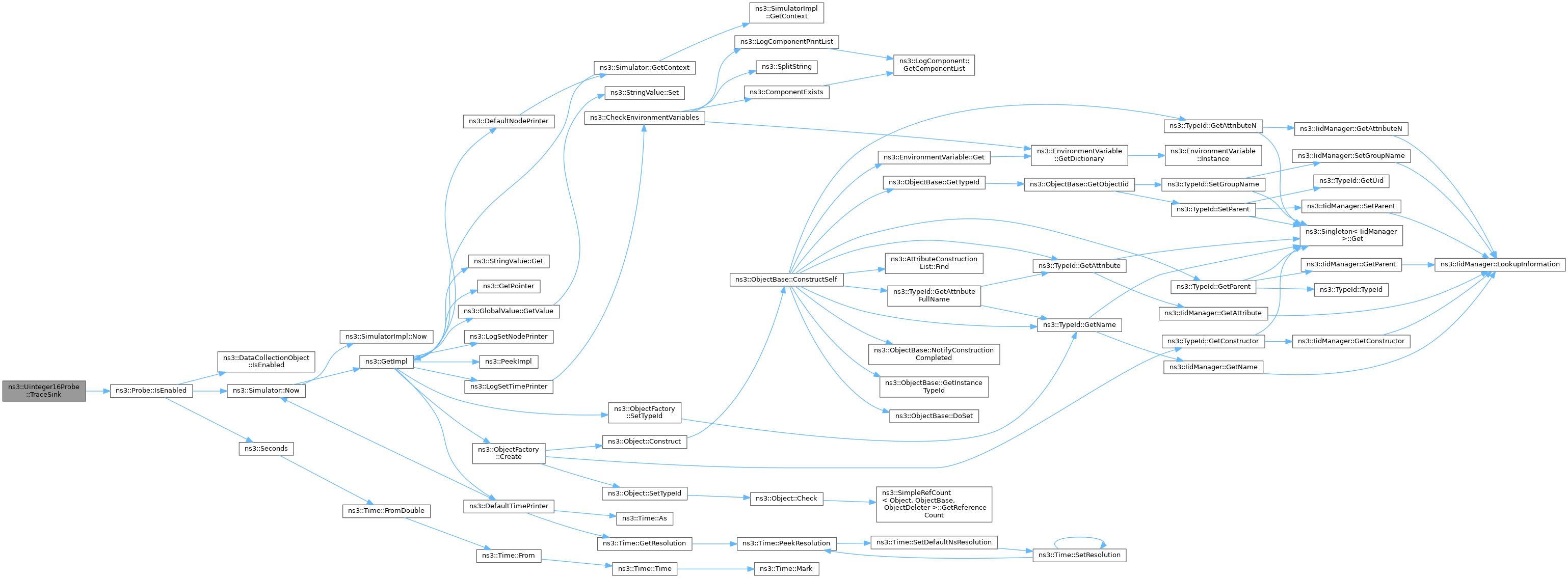

+ Here is the call graph for this function:

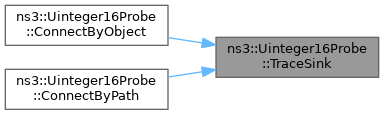

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_output

TracedValue<uint16_t> ns3::Uinteger16Probe::m_output
private

Output trace source.

Definition at line 100 of file uinteger-16-probe.h.

Referenced by Uinteger16Probe(), GetTypeId(), GetValue(), SetValue(), and TraceSink().


The documentation for this class was generated from the following files:
