Callbacks

Wrap functions, objects, and arguments into self contained callbacks. More...

Collaboration diagram for Callbacks:

Modules
	Callback Implementation
	Callback implementation classes.

Files
file	callback.cc
	ns3::CallbackValue implementation.
file	callback.h
	Declaration of the various callback functions.

Classes
class	ns3::Callback< R, UArgs >
	Callback template class. More...

Functions
template<typename R , typename... Args>
Callback< R, Args... >	ns3::MakeCallback (R(*fnPtr)(Args...))
template<typename R , typename... Args>
Callback< R, Args... >	ns3::MakeNullCallback ()

Detailed Description

Wrap functions, objects, and arguments into self contained callbacks.

Wrapped callbacks are at the heart of scheduling events in the simulator.

Function Documentation

MakeCallback()

template<typename R , typename... Args>

Callback< R, Args... > ns3::MakeCallback

(

R(*)(Args...)

fnPtr

)

Template Parameters

R	[deduced] Return type of the callback function..
Args	[deduced] Type list of any arguments to the member function.

Parameters

[in]

fnPtr

Function pointer

Returns

A wrapper Callback

Build Callbacks for functions which take varying numbers of arguments and potentially returning a value.

Definition at line 728 of file callback.h.

MakeNullCallback()

template<typename R , typename... Args>

Callback< R, Args... > ns3::MakeNullCallback

(

)

Template Parameters

R	[deduced] Return type of the callback function..
Args	[deduced] Type list of any arguments to the member function.

Returns

A wrapper Callback

Build null Callbacks which take no arguments, for varying number of template arguments, and potentially returning a value.

Definition at line 745 of file callback.h.

Referenced by ns3::ThreeGppHttpServerTxBuffer::CloseAllSockets(), ns3::ThreeGppHttpServerTxBuffer::CloseSocket(), ns3::LrWpanPhy::DoDispose(), ns3::NoBackhaulEpcHelper::DoDispose(), ns3::EpcPgwApplication::DoDispose(), ns3::EpcSgwApplication::DoDispose(), DualStackTestCase::DoRun(), TcpEndPointBug2211Test::DoRun(), ns3::TcpGeneralTest::DoRun(), TcpSynConnectionFailedTest::DoRun(), ns3::DhcpClient::LinkStateHandler(), ns3::ThreeGppHttpClient::NormalCloseCallback(), ns3::ThreeGppHttpServerTxBuffer::RemoveSocket(), ns3::FrameExchangeManager::ResetPhy(), TcpTestCase::SetupDefaultSim(), TcpTestCase::SetupDefaultSim6(), ns3::PacketSink::StartApplication(), ns3::UdpClient::StartApplication(), ns3::UdpTraceClient::StartApplication(), EpsBearerTagUdpClient::StartApplication(), ns3::PacketSocketClient::StartApplication(), Receiver::StopApplication(), ns3::PacketSink::StopApplication(), ns3::ThreeGppHttpClient::StopApplication(), ns3::ThreeGppHttpServer::StopApplication(), ns3::UdpEchoClient::StopApplication(), ns3::UdpEchoServer::StopApplication(), ns3::UdpServer::StopApplication(), ns3::DhcpClient::StopApplication(), ns3::DhcpServer::StopApplication(), ns3::Radvd::StopApplication(), and ns3::PacketSocketServer::StopApplication().

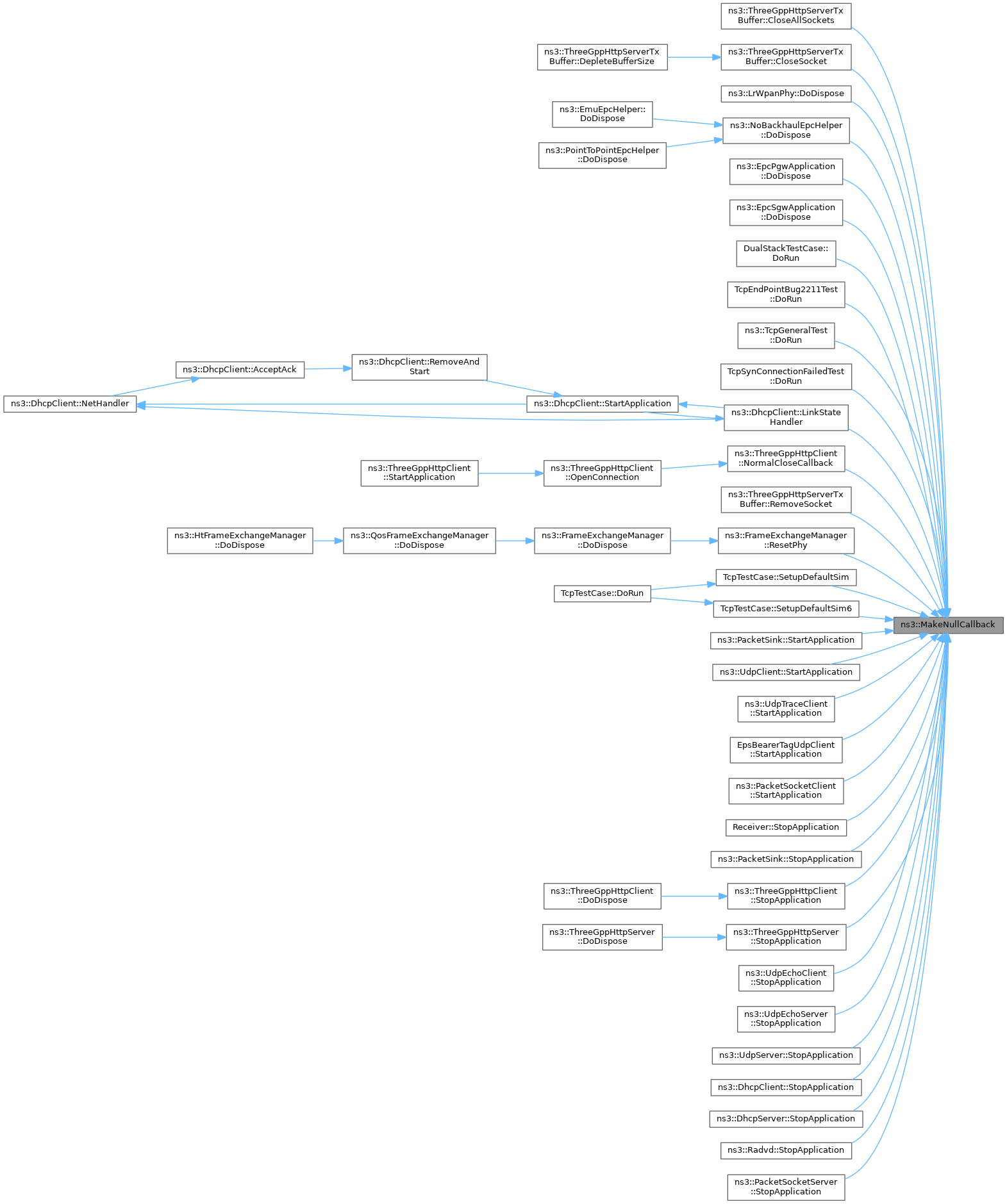

Here is the caller graph for this function:
