ns3::LrWpanHelper Class Reference

helps to manage and create IEEE 802.15.4 NetDevice objects More...

#include "lr-wpan-helper.h"

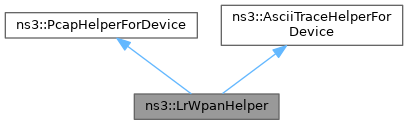

+ Inheritance diagram for ns3::LrWpanHelper:
+ Collaboration diagram for ns3::LrWpanHelper:

Public Member Functions

 LrWpanHelper ()
 Create a LrWpan helper in an empty state.

 LrWpanHelper (bool useMultiModelSpectrumChannel)
 Create a LrWpan helper in an empty state with either a SingleModelSpectrumChannel or a MultiModelSpectrumChannel.

 LrWpanHelper (const LrWpanHelper &)=delete

 ~LrWpanHelper () override

void AddMobility (Ptr< LrWpanPhy > phy, Ptr< MobilityModel > m)
 Add mobility model to a physical device.

int64_t AssignStreams (NetDeviceContainer c, int64_t stream)
 Assign a fixed random variable stream number to the random variables used by this model.

void CreateAssociatedPan (NetDeviceContainer c, uint16_t panId)
 Creates an PAN with associated nodes and assigned addresses(16 and 64) from the nodes in the node container.

void EnableLogComponents ()
 Helper to enable all LrWpan log components with one statement.

Ptr< SpectrumChannelGetChannel ()
 Get the channel associated to this helper.

NetDeviceContainer Install (NodeContainer c)
 Install a LrWpanNetDevice and the associated structures (e.g., channel) in the nodes.

LrWpanHelperoperator= (const LrWpanHelper &)=delete

void SetChannel (Ptr< SpectrumChannel > channel)
 Set the channel associated to this helper.

void SetChannel (std::string channelName)
 Set the channel associated to this helper.

void SetExtendedAddresses (NetDeviceContainer c)
 Set the extended 64 bit addresses (EUI-64) for a group of LrWpanNetDevices.

- Public Member Functions inherited from ns3::PcapHelperForDevice
 PcapHelperForDevice ()
 Construct a PcapHelperForDevice.

virtual ~PcapHelperForDevice ()
 Destroy a PcapHelperForDevice.

void EnablePcap (std::string prefix, NetDeviceContainer d, bool promiscuous=false)
 Enable pcap output on each device in the container which is of the appropriate type.

void EnablePcap (std::string prefix, NodeContainer n, bool promiscuous=false)
 Enable pcap output on each device (which is of the appropriate type) in the nodes provided in the container.

void EnablePcap (std::string prefix, Ptr< NetDevice > nd, bool promiscuous=false, bool explicitFilename=false)
 Enable pcap output the indicated net device.

void EnablePcap (std::string prefix, std::string ndName, bool promiscuous=false, bool explicitFilename=false)
 Enable pcap output the indicated net device using a device previously named using the ns-3 object name service.

void EnablePcap (std::string prefix, uint32_t nodeid, uint32_t deviceid, bool promiscuous=false)
 Enable pcap output on the device specified by a global node-id (of a previously created node) and associated device-id.

void EnablePcapAll (std::string prefix, bool promiscuous=false)
 Enable pcap output on each device (which is of the appropriate type) in the set of all nodes created in the simulation.

virtual void EnablePcapInternal (std::string prefix, Ptr< NetDevice > nd, bool promiscuous, bool explicitFilename)=0
 Enable pcap output the indicated net device.

- Public Member Functions inherited from ns3::AsciiTraceHelperForDevice
 AsciiTraceHelperForDevice ()
 Construct an AsciiTraceHelperForDevice.

virtual ~AsciiTraceHelperForDevice ()
 Destroy an AsciiTraceHelperForDevice.

void EnableAscii (Ptr< OutputStreamWrapper > stream, NetDeviceContainer d)
 Enable ascii trace output on each device in the container which is of the appropriate type.

void EnableAscii (Ptr< OutputStreamWrapper > stream, NodeContainer n)
 Enable ascii trace output on each device (which is of the appropriate type) in the nodes provided in the container.

void EnableAscii (Ptr< OutputStreamWrapper > stream, Ptr< NetDevice > nd)
 Enable ascii trace output on the indicated net device.

void EnableAscii (Ptr< OutputStreamWrapper > stream, std::string ndName)
 Enable ascii trace output the indicated net device using a device previously named using the ns-3 object name service.

void EnableAscii (Ptr< OutputStreamWrapper > stream, uint32_t nodeid, uint32_t deviceid)
 Enable ascii trace output on the device specified by a global node-id (of a previously created node) and associated device-id.

void EnableAscii (std::string prefix, NetDeviceContainer d)
 Enable ascii trace output on each device in the container which is of the appropriate type.

void EnableAscii (std::string prefix, NodeContainer n)
 Enable ascii trace output on each device (which is of the appropriate type) in the nodes provided in the container.

void EnableAscii (std::string prefix, Ptr< NetDevice > nd, bool explicitFilename=false)
 Enable ascii trace output on the indicated net device.

void EnableAscii (std::string prefix, std::string ndName, bool explicitFilename=false)
 Enable ascii trace output the indicated net device using a device previously named using the ns-3 object name service.

void EnableAscii (std::string prefix, uint32_t nodeid, uint32_t deviceid, bool explicitFilename)
 Enable ascii trace output on the device specified by a global node-id (of a previously created node) and associated device-id.

void EnableAsciiAll (Ptr< OutputStreamWrapper > stream)
 Enable ascii trace output on each device (which is of the appropriate type) in the set of all nodes created in the simulation.

void EnableAsciiAll (std::string prefix)
 Enable ascii trace output on each device (which is of the appropriate type) in the set of all nodes created in the simulation.

virtual void EnableAsciiInternal (Ptr< OutputStreamWrapper > stream, std::string prefix, Ptr< NetDevice > nd, bool explicitFilename)=0
 Enable ascii trace output on the indicated net device.


Static Public Member Functions

static std::string LrWpanMacStatePrinter (LrWpanMacState e)
 Transform the LrWpanMacState enumeration into a printable string.

static std::string LrWpanPhyEnumerationPrinter (LrWpanPhyEnumeration e)
 Transform the LrWpanPhyEnumeration enumeration into a printable string.


Private Member Functions

void EnableAsciiInternal (Ptr< OutputStreamWrapper > stream, std::string prefix, Ptr< NetDevice > nd, bool explicitFilename) override
 Enable ascii trace output on the indicated net device.

void EnablePcapInternal (std::string prefix, Ptr< NetDevice > nd, bool promiscuous, bool explicitFilename) override
 Enable pcap output on the indicated net device.


Private Attributes

Ptr< SpectrumChannelm_channel
 channel to be used for the devices


Detailed Description

helps to manage and create IEEE 802.15.4 NetDevice objects

This class can help to create IEEE 802.15.4 NetDevice objects and to configure their attributes during creation. It also contains additional helper functions used by client code.

Only one channel is created, and all devices attached to it. If multiple channels are needed, multiple helper objects must be used, or else the channel object must be replaced.

Definition at line 49 of file lr-wpan-helper.h.

Constructor & Destructor Documentation

◆ LrWpanHelper() [1/3]

ns3::LrWpanHelper::LrWpanHelper ( )

Create a LrWpan helper in an empty state.

By default, a SingleModelSpectrumChannel is created, with a LogDistancePropagationLossModel and a ConstantSpeedPropagationDelayModel.

To change the channel type, loss model, or delay model, the Get/Set Channel methods may be used.

Definition at line 65 of file lr-wpan-helper.cc.

References m_channel.

◆ LrWpanHelper() [2/3]

ns3::LrWpanHelper::LrWpanHelper ( bool  useMultiModelSpectrumChannel)

Create a LrWpan helper in an empty state with either a SingleModelSpectrumChannel or a MultiModelSpectrumChannel.

Parameters
useMultiModelSpectrumChanneluse a MultiModelSpectrumChannel if true, a SingleModelSpectrumChannel otherwise

A LogDistancePropagationLossModel and a ConstantSpeedPropagationDelayModel are added to the channel.

Definition at line 78 of file lr-wpan-helper.cc.

References m_channel.

◆ ~LrWpanHelper()

ns3::LrWpanHelper::~LrWpanHelper ( )
override

Definition at line 97 of file lr-wpan-helper.cc.

References m_channel.

◆ LrWpanHelper() [3/3]

ns3::LrWpanHelper::LrWpanHelper ( const LrWpanHelper )
delete

Member Function Documentation

◆ AddMobility()

void ns3::LrWpanHelper::AddMobility ( Ptr< LrWpanPhy phy,
Ptr< MobilityModel m
)

Add mobility model to a physical device.

Parameters
phythe physical device
mthe mobility model

Definition at line 173 of file lr-wpan-helper.cc.

◆ AssignStreams()

int64_t ns3::LrWpanHelper::AssignStreams ( NetDeviceContainer  c,
int64_t  stream
)

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams that have been assigned. The Install() method should have previously been called by the user.

Parameters
cNetDeviceContainer of the set of net devices for which the CsmaNetDevice should be modified to use a fixed stream
streamfirst stream index to use
Returns
the number of stream indices assigned by this helper

Definition at line 217 of file lr-wpan-helper.cc.

References ns3::NetDeviceContainer::Begin(), and ns3::NetDeviceContainer::End().

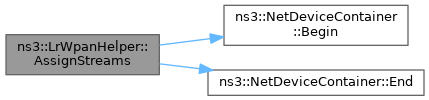

+ Here is the call graph for this function:

◆ CreateAssociatedPan()

void ns3::LrWpanHelper::CreateAssociatedPan ( NetDeviceContainer  c,
uint16_t  panId
)

Creates an PAN with associated nodes and assigned addresses(16 and 64) from the nodes in the node container.

The first node in the container becomes the PAN coordinator.

Parameters
ca The node container with the nodes that will form the PAN.
panIdThe PAN identifier.

Definition at line 234 of file lr-wpan-helper.cc.

References ns3::NetDeviceContainer::Begin(), ns3::Mac16Address::CopyFrom(), ns3::Mac64Address::CopyFrom(), ns3::NetDeviceContainer::End(), and NS_ABORT_MSG.

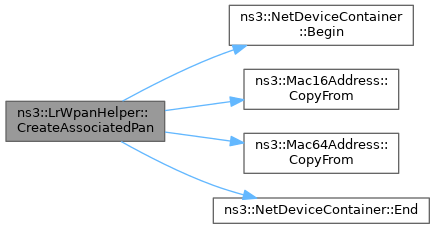

+ Here is the call graph for this function:

◆ EnableAsciiInternal()

void ns3::LrWpanHelper::EnableAsciiInternal ( Ptr< OutputStreamWrapper stream,
std::string  prefix,
Ptr< NetDevice nd,
bool  explicitFilename
)
overrideprivatevirtual

Enable ascii trace output on the indicated net device.

NetDevice-specific implementation mechanism for hooking the trace and writing to the trace file.

Parameters
streamThe output stream object to use when logging ascii traces.
prefixFilename prefix to use for ascii trace files.
ndNet device for which you want to enable tracing.
explicitFilenameTreat the prefix as an explicit filename if true

Implements ns3::AsciiTraceHelperForDevice.

Definition at line 377 of file lr-wpan-helper.cc.

References ns3::AsciiLrWpanMacTransmitSinkWithContext(), ns3::AsciiLrWpanMacTransmitSinkWithoutContext(), ns3::AsciiTraceHelper::CreateFileStream(), ns3::AsciiTraceHelper::DefaultDequeueSinkWithContext(), ns3::AsciiTraceHelper::DefaultDropSinkWithContext(), ns3::AsciiTraceHelper::DefaultEnqueueSinkWithContext(), ns3::AsciiTraceHelper::DefaultReceiveSinkWithContext(), ns3::Packet::EnablePrinting(), ns3::AsciiTraceHelper::GetFilenameFromDevice(), ns3::AsciiTraceHelper::HookDefaultDequeueSinkWithoutContext(), ns3::AsciiTraceHelper::HookDefaultDropSinkWithoutContext(), ns3::AsciiTraceHelper::HookDefaultEnqueueSinkWithoutContext(), ns3::AsciiTraceHelper::HookDefaultReceiveSinkWithoutContext(), ns3::MakeBoundCallback(), and NS_LOG_INFO.

+ Here is the call graph for this function:

◆ EnableLogComponents()

void ns3::LrWpanHelper::EnableLogComponents ( )

Helper to enable all LrWpan log components with one statement.

Definition at line 104 of file lr-wpan-helper.cc.

References ns3::LOG_LEVEL_ALL, ns3::LOG_PREFIX_FUNC, ns3::LOG_PREFIX_TIME, ns3::LogComponentEnable(), and ns3::LogComponentEnableAll().

+ Here is the call graph for this function:

◆ EnablePcapInternal()

void ns3::LrWpanHelper::EnablePcapInternal ( std::string  prefix,
Ptr< NetDevice nd,
bool  promiscuous,
bool  explicitFilename
)
overrideprivatevirtual

Enable pcap output on the indicated net device.

NetDevice-specific implementation mechanism for hooking the trace and writing to the trace file.

Parameters
prefixFilename prefix to use for pcap files.
ndNet device for which you want to enable tracing.
promiscuousIf true capture all possible packets available at the device.
explicitFilenameTreat the prefix as an explicit filename if true

Implements ns3::PcapHelperForDevice.

Definition at line 325 of file lr-wpan-helper.cc.

References ns3::PcapHelper::CreateFile(), ns3::PcapHelper::DLT_IEEE802_15_4, ns3::PcapHelper::GetFilenameFromDevice(), ns3::MakeBoundCallback(), NS_LOG_FUNCTION, NS_LOG_INFO, and ns3::PcapSniffLrWpan().

+ Here is the call graph for this function:

◆ GetChannel()

Ptr< SpectrumChannel > ns3::LrWpanHelper::GetChannel ( )

Get the channel associated to this helper.

Returns
the channel

Definition at line 198 of file lr-wpan-helper.cc.

References m_channel.

◆ Install()

NetDeviceContainer ns3::LrWpanHelper::Install ( NodeContainer  c)

Install a LrWpanNetDevice and the associated structures (e.g., channel) in the nodes.

Parameters
ca set of nodes
Returns
A container holding the added net devices.

Definition at line 179 of file lr-wpan-helper.cc.

References ns3::NodeContainer::Begin(), ns3::NodeContainer::End(), and m_channel.

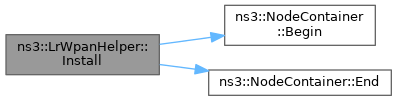

+ Here is the call graph for this function:

◆ LrWpanMacStatePrinter()

std::string ns3::LrWpanHelper::LrWpanMacStatePrinter ( LrWpanMacState  e)
static

Transform the LrWpanMacState enumeration into a printable string.

Parameters
ethe LrWpanMacState
Returns
a string

Definition at line 155 of file lr-wpan-helper.cc.

References ns3::CHANNEL_ACCESS_FAILURE, ns3::CHANNEL_IDLE, ns3::MAC_IDLE, and ns3::SET_PHY_TX_ON.

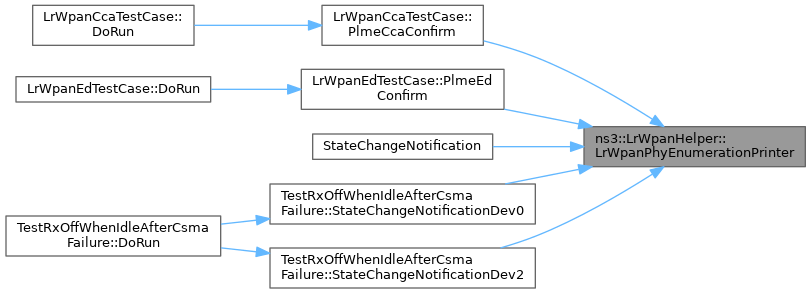

◆ LrWpanPhyEnumerationPrinter()

◆ operator=()

LrWpanHelper & ns3::LrWpanHelper::operator= ( const LrWpanHelper )
delete

◆ SetChannel() [1/2]

void ns3::LrWpanHelper::SetChannel ( Ptr< SpectrumChannel channel)

Set the channel associated to this helper.

Parameters
channelthe channel

Definition at line 204 of file lr-wpan-helper.cc.

References m_channel.

◆ SetChannel() [2/2]

void ns3::LrWpanHelper::SetChannel ( std::string  channelName)

Set the channel associated to this helper.

Parameters
channelNamethe channel name

Definition at line 210 of file lr-wpan-helper.cc.

References m_channel.

◆ SetExtendedAddresses()

void ns3::LrWpanHelper::SetExtendedAddresses ( NetDeviceContainer  c)

Set the extended 64 bit addresses (EUI-64) for a group of LrWpanNetDevices.

Parameters
cThe NetDevice container.

Definition at line 281 of file lr-wpan-helper.cc.

References ns3::NetDeviceContainer::Begin(), ns3::Mac64Address::CopyFrom(), and ns3::NetDeviceContainer::End().

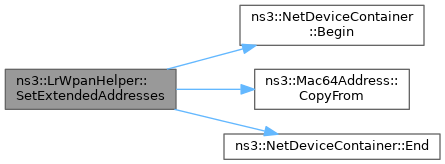

+ Here is the call graph for this function:

Member Data Documentation

◆ m_channel

Ptr<SpectrumChannel> ns3::LrWpanHelper::m_channel
private

channel to be used for the devices

Definition at line 196 of file lr-wpan-helper.h.

Referenced by LrWpanHelper(), ~LrWpanHelper(), GetChannel(), Install(), and SetChannel().


The documentation for this class was generated from the following files:
