ns3::Channel Class Referenceabstract

Abstract Channel Base Class. More...

#include "channel.h"

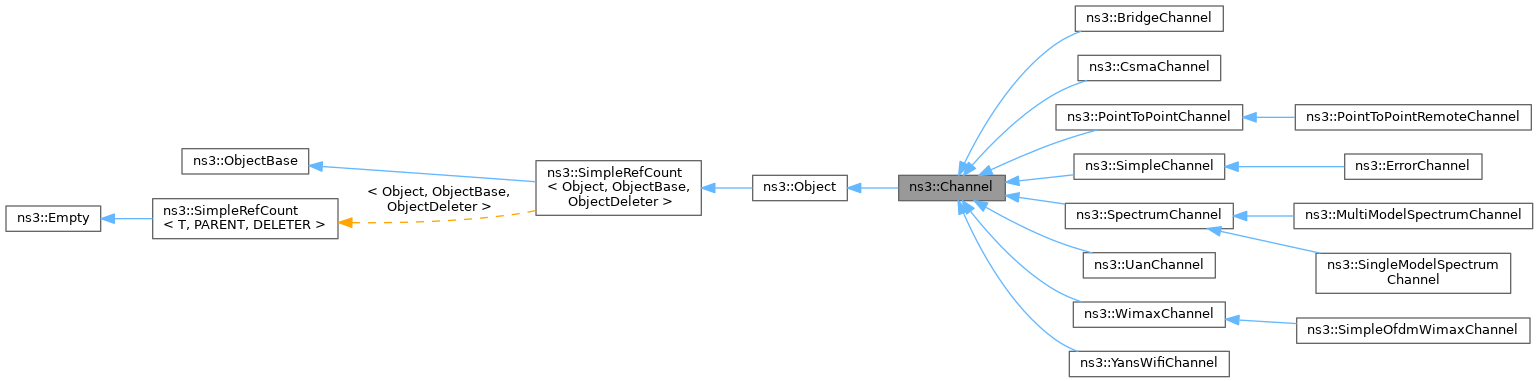

+ Inheritance diagram for ns3::Channel:

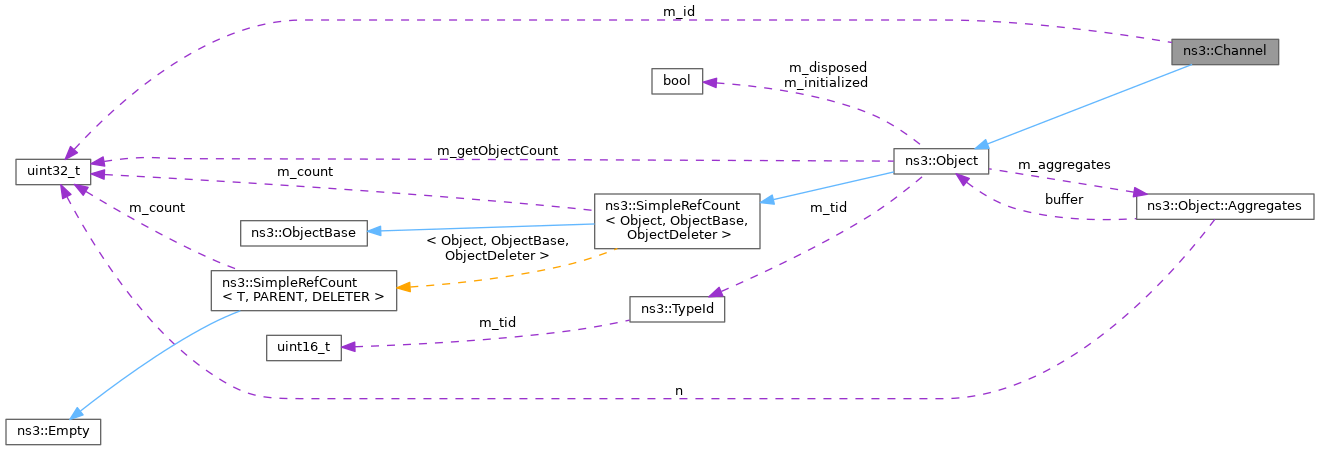

+ Collaboration diagram for ns3::Channel:

Public Member Functions

 Channel ()

 ~Channel () override

virtual Ptr< NetDeviceGetDevice (std::size_t i) const =0

uint32_t GetId () const

virtual std::size_t GetNDevices () const =0

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor.

 ~Object () override
 Destructor.

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together.

void Dispose ()
 Dispose of this Object.

AggregateIterator GetAggregateIterator () const
 Get an iterator to the Objects aggregated to this one.

TypeId GetInstanceTypeId () const override
 Get the most derived TypeId for this Object.

template<typename T >
Ptr< T > GetObject () const
 Get a pointer to the requested aggregated Object.

template<>
Ptr< ObjectGetObject () const
 Specialization of () for objects of type ns3::Object.

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId.

template<>
Ptr< ObjectGetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object.

void Initialize ()
 Invoke DoInitialize on all Objects aggregated to this one.

bool IsInitialized () const
 Check if the object has been initialized.

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor.

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor.

uint32_t GetReferenceCount () const
 Get the reference count of the object.

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator.

void Ref () const
 Increment the reference count.

void Unref () const
 Decrement the reference count.

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor.

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful.

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising errors.

virtual TypeId GetInstanceTypeId () const =0
 Get the most derived TypeId for this Object.

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful.

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors.

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context.

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context.

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context.

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context.


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId ()
 Register this type.

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId ()
 Get the type ID.


Private Attributes

uint32_t m_id
 Channel id for this channel.


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object.

virtual void DoDispose ()
 Destructor implementation.

virtual void DoInitialize ()
 Initialize() implementation.

virtual void NotifyNewAggregate ()
 Notify all Objects aggregated to this one of a new Object being aggregated.

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes.

virtual void NotifyConstructionCompleted ()
 Notifier called once the ObjectBase is fully constructed.


Detailed Description

Abstract Channel Base Class.

A channel is a logical path over which information flows. The path can be as simple as a short piece of wire, or as complicated as space-time.

Subclasses must use Simulator::ScheduleWithContext to correctly update event contexts when scheduling an event from one node to another one.

Config Paths

ns3::Channel is accessible through the following paths with Config::Set and Config::Connect:

  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/Channel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phys/[i]/Channel"
  • "/ChannelList/[i]"

Attributes

  • Id: The id (unique integer) of this Channel.

No TraceSources are defined for this type.
Size of this type is 32 bytes (on a 64-bit architecture).

Definition at line 44 of file channel.h.

Constructor & Destructor Documentation

◆ Channel()

ns3::Channel::Channel ( )

Definition at line 48 of file channel.cc.

References ns3::ChannelList::Add(), m_id, and NS_LOG_FUNCTION.

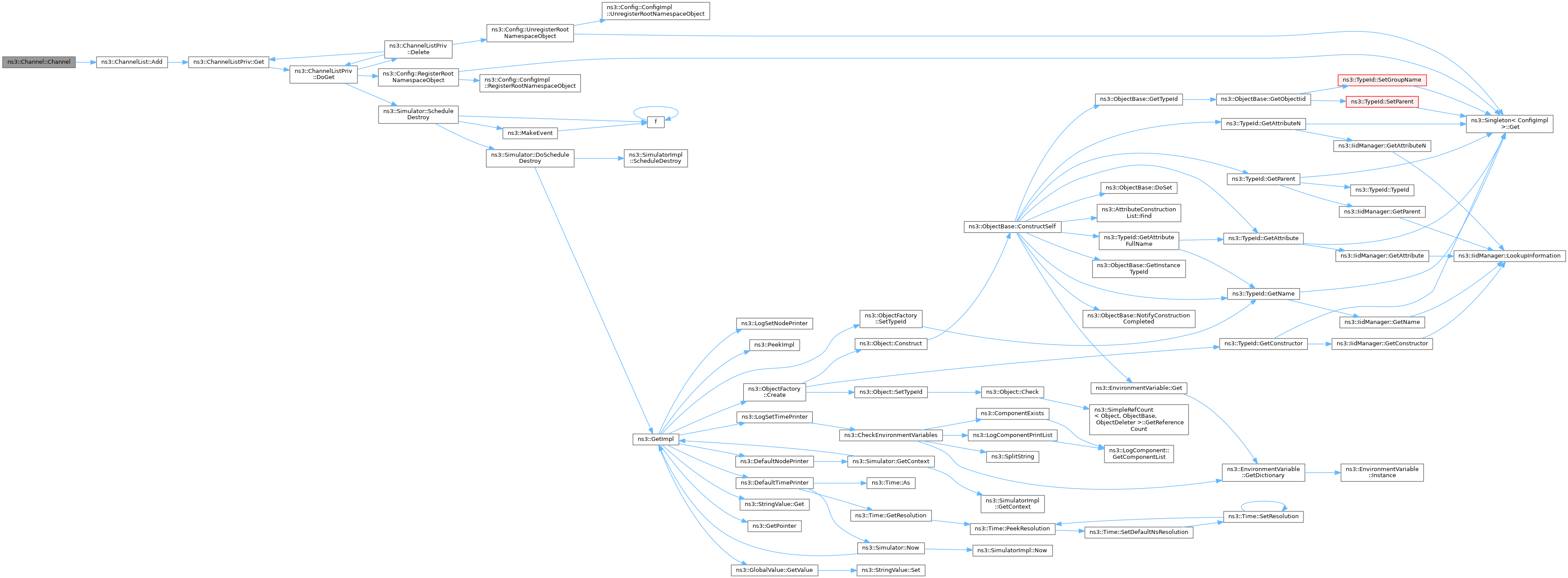

+ Here is the call graph for this function:

◆ ~Channel()

ns3::Channel::~Channel ( )
override

Definition at line 55 of file channel.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ GetDevice()

virtual Ptr< NetDevice > ns3::Channel::GetDevice ( std::size_t  i) const
pure virtual
Parameters
iindex of NetDevice to retrieve
Returns
one of the NetDevices connected to this channel.

This method must be implemented by subclasses.

Implemented in ns3::BridgeChannel, ns3::CsmaChannel, ns3::ErrorChannel, ns3::SimpleChannel, ns3::PointToPointChannel, ns3::MultiModelSpectrumChannel, ns3::SingleModelSpectrumChannel, ns3::UanChannel, ns3::YansWifiChannel, and ns3::WimaxChannel.

◆ GetId()

uint32_t ns3::Channel::GetId ( ) const
Returns
the unique id of this channel

This unique id happens to be also the index of the Channel into the ChannelList.

Definition at line 61 of file channel.cc.

References m_id, and NS_LOG_FUNCTION.

◆ GetNDevices()

virtual std::size_t ns3::Channel::GetNDevices ( ) const
pure virtual

◆ GetTypeId()

TypeId ns3::Channel::GetTypeId ( )
static

Get the type ID.

Returns
the object TypeId

Definition at line 34 of file channel.cc.

References ns3::TypeId::ATTR_GET, m_id, ns3::MakeUintegerAccessor(), and ns3::TypeId::SetParent().

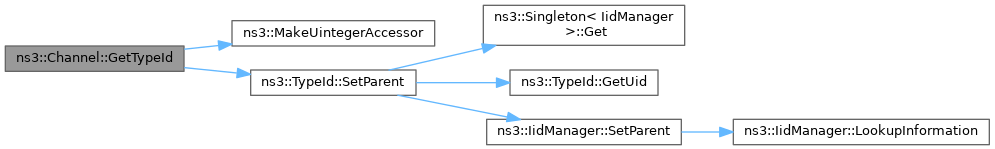

+ Here is the call graph for this function:

Member Data Documentation

◆ m_id

uint32_t ns3::Channel::m_id
private

Channel id for this channel.

Definition at line 79 of file channel.h.

Referenced by Channel(), GetId(), and GetTypeId().


The documentation for this class was generated from the following files:
