ns3::ErrorChannel Class Reference

A Error channel, introducing deterministic delays on even/odd packets. More...

#include "error-channel.h"

+ Inheritance diagram for ns3::ErrorChannel:

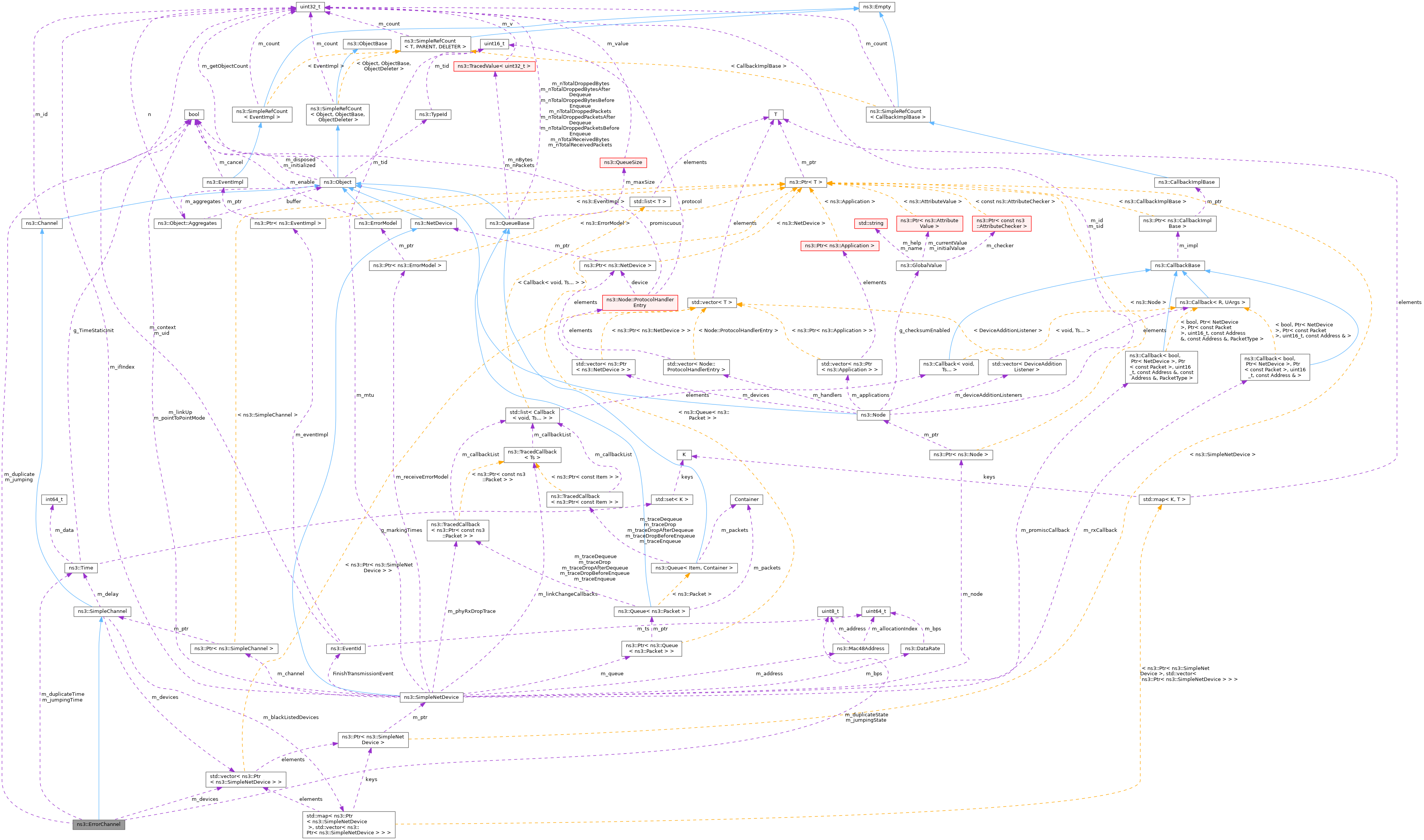

+ Collaboration diagram for ns3::ErrorChannel:

Public Member Functions

 ErrorChannel ()

void Add (Ptr< SimpleNetDevice > device) override
 Attached a net device to the channel.

Ptr< NetDeviceGetDevice (std::size_t i) const override

std::size_t GetNDevices () const override

void Send (Ptr< Packet > p, uint16_t protocol, Mac48Address to, Mac48Address from, Ptr< SimpleNetDevice > sender) override
 A packet is sent by a net device.

void SetDuplicateMode (bool mode)
 Set if the odd packets are duplicated (even ones are not duplicated ever)

void SetDuplicateTime (Time delay)
 Set the delay for the odd duplicate packets (even ones are not duplicated)

void SetJumpingMode (bool mode)
 Set if the odd packets are delayed (even ones are not delayed ever)

void SetJumpingTime (Time delay)
 Set the delay for the odd packets (even ones are not delayed)

- Public Member Functions inherited from ns3::SimpleChannel
 SimpleChannel ()

virtual void Add (Ptr< SimpleNetDevice > device)
 Attached a net device to the channel.

virtual void BlackList (Ptr< SimpleNetDevice > from, Ptr< SimpleNetDevice > to)
 Blocks the communications from a NetDevice to another NetDevice.

Ptr< NetDeviceGetDevice (std::size_t i) const override

std::size_t GetNDevices () const override

virtual void Send (Ptr< Packet > p, uint16_t protocol, Mac48Address to, Mac48Address from, Ptr< SimpleNetDevice > sender)
 A packet is sent by a net device.

virtual void UnBlackList (Ptr< SimpleNetDevice > from, Ptr< SimpleNetDevice > to)
 Un-Blocks the communications from a NetDevice to another NetDevice.

- Public Member Functions inherited from ns3::Channel
 Channel ()

 ~Channel () override

virtual Ptr< NetDeviceGetDevice (std::size_t i) const =0

uint32_t GetId () const

virtual std::size_t GetNDevices () const =0

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor.

 ~Object () override
 Destructor.

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together.

void Dispose ()
 Dispose of this Object.

AggregateIterator GetAggregateIterator () const
 Get an iterator to the Objects aggregated to this one.

TypeId GetInstanceTypeId () const override
 Get the most derived TypeId for this Object.

template<typename T >
Ptr< T > GetObject () const
 Get a pointer to the requested aggregated Object.

template<>
Ptr< ObjectGetObject () const
 Specialization of () for objects of type ns3::Object.

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId.

template<>
Ptr< ObjectGetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object.

void Initialize ()
 Invoke DoInitialize on all Objects aggregated to this one.

bool IsInitialized () const
 Check if the object has been initialized.

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor.

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor.

uint32_t GetReferenceCount () const
 Get the reference count of the object.

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator.

void Ref () const
 Increment the reference count.

void Unref () const
 Decrement the reference count.

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor.

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful.

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising errors.

virtual TypeId GetInstanceTypeId () const =0
 Get the most derived TypeId for this Object.

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful.

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors.

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context.

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context.

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context.

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context.


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::SimpleChannel
static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::Channel
static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId ()
 Register this type.

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId ()
 Get the type ID.


Private Attributes

std::vector< Ptr< SimpleNetDevice > > m_devices
 devices connected by the channel

bool m_duplicate
 Flag for Duplicate mode.

uint8_t m_duplicateState
 Counter for even/odd packets in Duplicate mode.

Time m_duplicateTime
 Duplicate time in Duplicate mode.

bool m_jumping
 Flag for Jumping mode.

uint8_t m_jumpingState
 Counter for even/odd packets in Jumping mode.

Time m_jumpingTime
 Delay time in Jumping mode.


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object.

virtual void DoDispose ()
 Destructor implementation.

virtual void DoInitialize ()
 Initialize() implementation.

virtual void NotifyNewAggregate ()
 Notify all Objects aggregated to this one of a new Object being aggregated.

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes.

virtual void NotifyConstructionCompleted ()
 Notifier called once the ObjectBase is fully constructed.


Detailed Description

A Error channel, introducing deterministic delays on even/odd packets.

Used for testing

Config Paths

ns3::ErrorChannel is accessible through the following paths with Config::Set and Config::Connect:

  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::ErrorChannel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::SimpleChannel/$ns3::ErrorChannel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/Channel/$ns3::ErrorChannel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/Channel/$ns3::SimpleChannel/$ns3::ErrorChannel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phys/[i]/Channel/$ns3::ErrorChannel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phys/[i]/Channel/$ns3::SimpleChannel/$ns3::ErrorChannel"
  • "/ChannelList/[i]/$ns3::ErrorChannel"
  • "/ChannelList/[i]/$ns3::SimpleChannel/$ns3::ErrorChannel"

No Attributes are defined for this type.

Attributes defined in parent class ns3::SimpleChannel

  • Delay: Transmission delay through the channel
    • Set with class: ns3::TimeValue
    • Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
    • Initial value: +0ns
    • Flags: constructwriteread

Attributes defined in parent class ns3::Channel

  • Id: The id (unique integer) of this Channel.

No TraceSources are defined for this type.
Size of this type is 168 bytes (on a 64-bit architecture).

Definition at line 40 of file error-channel.h.

Constructor & Destructor Documentation

◆ ErrorChannel()

ns3::ErrorChannel::ErrorChannel ( )

Definition at line 45 of file error-channel.cc.

References m_duplicate, m_duplicateState, m_duplicateTime, m_jumping, m_jumpingState, m_jumpingTime, and ns3::Seconds().

+ Here is the call graph for this function:

Member Function Documentation

◆ Add()

void ns3::ErrorChannel::Add ( Ptr< SimpleNetDevice device)
overridevirtual

Attached a net device to the channel.

Parameters
devicethe device to attach to the channel

Reimplemented from ns3::SimpleChannel.

Definition at line 173 of file error-channel.cc.

References m_devices.

◆ GetDevice()

Ptr< NetDevice > ns3::ErrorChannel::GetDevice ( std::size_t  i) const
overridevirtual
Parameters
iindex of NetDevice to retrieve
Returns
one of the NetDevices connected to this channel.

This method must be implemented by subclasses.

Implements ns3::Channel.

Definition at line 185 of file error-channel.cc.

References m_devices.

◆ GetNDevices()

std::size_t ns3::ErrorChannel::GetNDevices ( ) const
overridevirtual
Returns
the number of NetDevices connected to this Channel.

This method must be implemented by subclasses.

Implements ns3::Channel.

Definition at line 179 of file error-channel.cc.

References m_devices.

◆ GetTypeId()

TypeId ns3::ErrorChannel::GetTypeId ( )
static

Get the type ID.

Returns
the object TypeId

Definition at line 36 of file error-channel.cc.

References ns3::TypeId::SetParent().

+ Here is the call graph for this function:

◆ Send()

void ns3::ErrorChannel::Send ( Ptr< Packet p,
uint16_t  protocol,
Mac48Address  to,
Mac48Address  from,
Ptr< SimpleNetDevice sender
)
overridevirtual

A packet is sent by a net device.

A receive event will be scheduled for all net device connected to the channel other than the net device who sent the packet

Parameters
ppacket to be sent
protocolprotocol number
toaddress to send packet to
fromaddress the packet is coming from
sendernetdevice who sent the packet

Reimplemented from ns3::SimpleChannel.

Definition at line 82 of file error-channel.cc.

References m_devices, m_duplicate, m_duplicateState, m_duplicateTime, m_jumping, m_jumpingState, m_jumpingTime, NS_LOG_FUNCTION, ns3::SimpleNetDevice::Receive(), ns3::Simulator::ScheduleWithContext(), and ns3::Seconds().

+ Here is the call graph for this function:

◆ SetDuplicateMode()

void ns3::ErrorChannel::SetDuplicateMode ( bool  mode)

Set if the odd packets are duplicated (even ones are not duplicated ever)

Parameters
modetrue if the odd packets should be duplicated.

Definition at line 75 of file error-channel.cc.

References m_duplicate, and m_duplicateState.

◆ SetDuplicateTime()

void ns3::ErrorChannel::SetDuplicateTime ( Time  delay)

Set the delay for the odd duplicate packets (even ones are not duplicated)

Parameters
delayDelay for the odd packets.

Definition at line 69 of file error-channel.cc.

References m_duplicateTime.

◆ SetJumpingMode()

void ns3::ErrorChannel::SetJumpingMode ( bool  mode)

Set if the odd packets are delayed (even ones are not delayed ever)

Parameters
modetrue if the odd packets should be delayed.

Definition at line 62 of file error-channel.cc.

References m_jumping, and m_jumpingState.

◆ SetJumpingTime()

void ns3::ErrorChannel::SetJumpingTime ( Time  delay)

Set the delay for the odd packets (even ones are not delayed)

Parameters
delayDelay for the odd packets.

Definition at line 56 of file error-channel.cc.

References m_jumpingTime.

Member Data Documentation

◆ m_devices

std::vector<Ptr<SimpleNetDevice> > ns3::ErrorChannel::m_devices
private

devices connected by the channel

Definition at line 88 of file error-channel.h.

Referenced by Add(), GetDevice(), GetNDevices(), and Send().

◆ m_duplicate

bool ns3::ErrorChannel::m_duplicate
private

Flag for Duplicate mode.

Definition at line 93 of file error-channel.h.

Referenced by ErrorChannel(), Send(), and SetDuplicateMode().

◆ m_duplicateState

uint8_t ns3::ErrorChannel::m_duplicateState
private

Counter for even/odd packets in Duplicate mode.

Definition at line 94 of file error-channel.h.

Referenced by ErrorChannel(), Send(), and SetDuplicateMode().

◆ m_duplicateTime

Time ns3::ErrorChannel::m_duplicateTime
private

Duplicate time in Duplicate mode.

Definition at line 92 of file error-channel.h.

Referenced by ErrorChannel(), Send(), and SetDuplicateTime().

◆ m_jumping

bool ns3::ErrorChannel::m_jumping
private

Flag for Jumping mode.

Definition at line 91 of file error-channel.h.

Referenced by ErrorChannel(), Send(), and SetJumpingMode().

◆ m_jumpingState

uint8_t ns3::ErrorChannel::m_jumpingState
private

Counter for even/odd packets in Jumping mode.

Definition at line 90 of file error-channel.h.

Referenced by ErrorChannel(), Send(), and SetJumpingMode().

◆ m_jumpingTime

Time ns3::ErrorChannel::m_jumpingTime
private

Delay time in Jumping mode.

Definition at line 89 of file error-channel.h.

Referenced by ErrorChannel(), Send(), and SetJumpingTime().


The documentation for this class was generated from the following files:
