HE PHY used for testing MU-RTS/CTS. More...

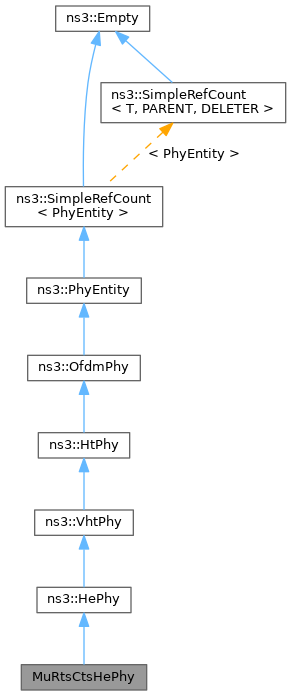

Inheritance diagram for MuRtsCtsHePhy:

Collaboration diagram for MuRtsCtsHePhy:

Public Member Functions
	MuRtsCtsHePhy ()

	~MuRtsCtsHePhy () override

void	SetMuRtsTxVector (const WifiTxVector &muRtsTxVector)
	Set the TXVECTOR of the previously transmitted MU-RTS.

void	SetPreviousTxPpduUid (uint64_t uid)
	Set the previous TX PPDU UID counter.

Public Member Functions inherited from ns3::HePhy
	HePhy (bool buildModeList=true)
	Constructor for HE PHY.

	~HePhy () override
	Destructor for HE PHY.

Ptr< WifiPpdu >	BuildPpdu (const WifiConstPsduMap &psdus, const WifiTxVector &txVector, Time ppduDuration) override
	Build amendment-specific PPDU.

virtual Time	CalculateNonOfdmaDurationForHeMu (const WifiTxVector &txVector) const

virtual Time	CalculateNonOfdmaDurationForHeTb (const WifiTxVector &txVector) const

Time	CalculateTxDuration (WifiConstPsduMap psduMap, const WifiTxVector &txVector, WifiPhyBand band) const override

void	CancelAllEvents () override
	Cancel and clear all running events.

bool	CanStartRx (Ptr< const WifiPpdu > ppdu, uint16_t txChannelWidth) const override
	Determine whether the PHY shall issue a PHY-RXSTART.indication primitive in response to a given PPDU.

Ptr< const WifiPsdu >	GetAddressedPsduInPpdu (Ptr< const WifiPpdu > ppdu) const override
	Get the PSDU addressed to that PHY in a PPDU (useful for MU PPDU).

uint8_t	GetBssColor () const

double	GetCcaThreshold (const Ptr< const WifiPpdu > ppdu, WifiChannelListType channelType) const override
	Return the CCA threshold in dBm for a given channel type.

uint16_t	GetCenterFrequencyForNonOfdmaPart (const WifiTxVector &txVector, uint16_t staId) const
	Get the center frequency of the non-OFDMA part of the current TxVector for the given STA-ID.

uint64_t	GetCurrentHeTbPpduUid () const

Time	GetLSigDuration (WifiPreamble preamble) const override

uint16_t	GetMeasurementChannelWidth (const Ptr< const WifiPpdu > ppdu) const override
	Return the channel width used to measure the RSSI.

WifiSpectrumBandInfo	GetNonOfdmaBand (const WifiTxVector &txVector, uint16_t staId) const
	Get the band used to transmit the non-OFDMA part of an HE TB PPDU.

uint16_t	GetNonOfdmaWidth (HeRu::RuSpec ru) const
	Get the width in MHz of the non-OFDMA portion of an HE TB PPDU.

const PpduFormats &	GetPpduFormats () const override
	Return the PPDU formats of the PHY.

WifiSpectrumBandInfo	GetRuBandForRx (const WifiTxVector &txVector, uint16_t staId) const
	Get the band in the RX spectrum associated with the RU used by the PSDU transmitted to/by a given STA in a DL MU PPDU/HE TB PPDU.

WifiSpectrumBandInfo	GetRuBandForTx (const WifiTxVector &txVector, uint16_t staId) const
	Get the band in the TX spectrum associated with the RU used by the PSDU transmitted to/by a given STA in a DL MU PPDU/HE TB PPDU.

Ptr< const WifiPpdu >	GetRxPpduFromTxPpdu (Ptr< const WifiPpdu > ppdu) override
	The WifiPpdu from the TX PHY is received by each RX PHY attached to the same channel.

Time	GetSigADuration (WifiPreamble preamble) const override

WifiMode	GetSigAMode () const override

Time	GetSigBDuration (const WifiTxVector &txVector) const override

WifiMode	GetSigBMode (const WifiTxVector &txVector) const override

WifiMode	GetSigMode (WifiPpduField field, const WifiTxVector &txVector) const override
	Get the WifiMode for the SIG field specified by the PPDU field.

uint16_t	GetStaId (const Ptr< const WifiPpdu > ppdu) const override
	Return the STA ID that has been assigned to the station this PHY belongs to.

Time	GetTrainingDuration (const WifiTxVector &txVector, uint8_t nDataLtf, uint8_t nExtensionLtf=0) const override

void	NotifyCcaBusy (const Ptr< const WifiPpdu > ppdu, Time duration, WifiChannelListType channelType) override
	Notify PHY state helper to switch to CCA busy state,.

void	NotifyEndOfHeSigA (HeSigAParameters params)
	Fire a EndOfHeSigA callback (if connected) once HE-SIG-A field has been received.

void	SetEndOfHeSigACallback (EndOfHeSigACallback callback)
	Set a callback for a end of HE-SIG-A.

void	SetObssPdAlgorithm (const Ptr< ObssPdAlgorithm > algorithm)
	Sets the OBSS-PD algorithm.

void	SetTrigVector (const WifiTxVector &trigVector, Time validity)
	Set the TRIGVECTOR and the associated expiration time.

void	StartReceivePreamble (Ptr< const WifiPpdu > ppdu, RxPowerWattPerChannelBand &rxPowersW, Time rxDuration) override
	Start receiving the PHY preamble of a PPDU (i.e.

void	StartTx (Ptr< const WifiPpdu > ppdu) override
	This function is called by SpectrumWifiPhy to send the PPDU while performing amendment-specific actions.

void	SwitchMaybeToCcaBusy (const Ptr< const WifiPpdu > ppdu) override
	Check if PHY state should move to CCA busy state based on current state of interference tracker.

Public Member Functions inherited from ns3::VhtPhy
	VhtPhy (bool buildModeList=true)
	Constructor for VHT PHY.

	~VhtPhy () override
	Destructor for VHT PHY.

Ptr< WifiPpdu >	BuildPpdu (const WifiConstPsduMap &psdus, const WifiTxVector &txVector, Time ppduDuration) override
	Build amendment-specific PPDU.

double	GetCcaThreshold (const Ptr< const WifiPpdu > ppdu, WifiChannelListType channelType) const override
	Return the CCA threshold in dBm for a given channel type.

Time	GetDuration (WifiPpduField field, const WifiTxVector &txVector) const override
	Get the duration of the PPDU field (or group of fields) used by this entity for the given transmission parameters.

Time	GetLSigDuration (WifiPreamble preamble) const override

const PpduFormats &	GetPpduFormats () const override
	Return the PPDU formats of the PHY.

virtual Time	GetSigADuration (WifiPreamble preamble) const

virtual WifiMode	GetSigAMode () const

virtual Time	GetSigBDuration (const WifiTxVector &txVector) const

virtual WifiMode	GetSigBMode (const WifiTxVector &txVector) const

WifiMode	GetSigMode (WifiPpduField field, const WifiTxVector &txVector) const override
	Get the WifiMode for the SIG field specified by the PPDU field.

Time	GetTrainingDuration (const WifiTxVector &txVector, uint8_t nDataLtf, uint8_t nExtensionLtf=0) const override

Public Member Functions inherited from ns3::HtPhy
	HtPhy (uint8_t maxNss=1, bool buildModeList=true)
	Constructor for HT PHY.

	~HtPhy () override
	Destructor for HT PHY.

Ptr< WifiPpdu >	BuildPpdu (const WifiConstPsduMap &psdus, const WifiTxVector &txVector, Time ppduDuration) override
	Build amendment-specific PPDU.

uint8_t	GetBssMembershipSelector () const

Time	GetDuration (WifiPpduField field, const WifiTxVector &txVector) const override
	Get the duration of the PPDU field (or group of fields) used by this entity for the given transmission parameters.

virtual Time	GetHtSigDuration () const

virtual WifiMode	GetHtSigMode () const

virtual Time	GetLSigDuration (WifiPreamble preamble) const

uint8_t	GetMaxSupportedMcsIndexPerSs () const
	Set the maximum supported MCS index per spatial stream.

WifiMode	GetMcs (uint8_t index) const override
	Get the WifiMode corresponding to the given MCS index.

Time	GetPayloadDuration (uint32_t size, const WifiTxVector &txVector, WifiPhyBand band, MpduType mpdutype, bool incFlag, uint32_t &totalAmpduSize, double &totalAmpduNumSymbols, uint16_t staId) const override

const PpduFormats &	GetPpduFormats () const override
	Return the PPDU formats of the PHY.

WifiMode	GetSigMode (WifiPpduField field, const WifiTxVector &txVector) const override
	Get the WifiMode for the SIG field specified by the PPDU field.

virtual Time	GetTrainingDuration (const WifiTxVector &txVector, uint8_t nDataLtf, uint8_t nExtensionLtf=0) const

bool	HandlesMcsModes () const override
	Check if the WifiModes handled by this PHY are MCSs.

bool	IsMcsSupported (uint8_t index) const override
	Check if the WifiMode corresponding to the given MCS index is supported.

void	SetMaxSupportedMcsIndexPerSs (uint8_t maxIndex)
	Set the maximum supported MCS index per spatial stream.

void	SetMaxSupportedNss (uint8_t maxNss)
	Configure the maximum number of spatial streams supported by this HT PHY.

Public Member Functions inherited from ns3::OfdmPhy
	OfdmPhy (OfdmPhyVariant variant=OFDM_PHY_DEFAULT, bool buildModeList=true)
	Constructor for OFDM PHY.

	~OfdmPhy () override
	Destructor for OFDM PHY.

Ptr< WifiPpdu >	BuildPpdu (const WifiConstPsduMap &psdus, const WifiTxVector &txVector, Time ppduDuration) override
	Build amendment-specific PPDU.

double	GetCcaThreshold (const Ptr< const WifiPpdu > ppdu, WifiChannelListType channelType) const override
	Return the CCA threshold in dBm for a given channel type.

Time	GetDuration (WifiPpduField field, const WifiTxVector &txVector) const override
	Get the duration of the PPDU field (or group of fields) used by this entity for the given transmission parameters.

Time	GetPayloadDuration (uint32_t size, const WifiTxVector &txVector, WifiPhyBand band, MpduType mpdutype, bool incFlag, uint32_t &totalAmpduSize, double &totalAmpduNumSymbols, uint16_t staId) const override

const PpduFormats &	GetPpduFormats () const override
	Return the PPDU formats of the PHY.

WifiMode	GetSigMode (WifiPpduField field, const WifiTxVector &txVector) const override
	Get the WifiMode for the SIG field specified by the PPDU field.

Public Member Functions inherited from ns3::PhyEntity
virtual	~PhyEntity ()
	Destructor for PHY entity.

std::list< WifiMode >::const_iterator	begin () const
	Return a const iterator to the first WifiMode.

virtual Ptr< WifiPpdu >	BuildPpdu (const WifiConstPsduMap &psdus, const WifiTxVector &txVector, Time ppduDuration)
	Build amendment-specific PPDU.

Time	CalculatePhyPreambleAndHeaderDuration (const WifiTxVector &txVector) const

virtual Time	CalculateTxDuration (WifiConstPsduMap psduMap, const WifiTxVector &txVector, WifiPhyBand band) const

virtual void	CancelAllEvents ()
	Cancel and clear all running events.

void	CancelRunningEndPreambleDetectionEvents (bool clear=false)
	Cancel and eventually clear all end preamble detection events.

virtual bool	CanStartRx (Ptr< const WifiPpdu > ppdu, uint16_t txChannelWidth) const
	Determine whether the PHY shall issue a PHY-RXSTART.indication primitive in response to a given PPDU.

std::list< WifiMode >::const_iterator	end () const
	Return a const iterator to past-the-last WifiMode.

void	EndReceiveField (WifiPpduField field, Ptr< Event > event)
	End receiving a given field.

void	EndReceivePayload (Ptr< Event > event)
	The last symbol of the PPDU has arrived.

virtual Ptr< const WifiPsdu >	GetAddressedPsduInPpdu (Ptr< const WifiPpdu > ppdu) const
	Get the PSDU addressed to that PHY in a PPDU (useful for MU PPDU).

virtual double	GetCcaThreshold (const Ptr< const WifiPpdu > ppdu, WifiChannelListType channelType) const
	Return the CCA threshold in dBm for a given channel type.

virtual Time	GetDuration (WifiPpduField field, const WifiTxVector &txVector) const
	Get the duration of the PPDU field (or group of fields) used by this entity for the given transmission parameters.

Time	GetDurationUpToField (WifiPpduField field, const WifiTxVector &txVector) const
	Get the duration of the PPDU up to (but excluding) the given field.

virtual Time	GetMaxDelayPpduSameUid (const WifiTxVector &txVector)
	Obtain the maximum time between two PPDUs with the same UID to consider they are identical and their power can be added construtively.

virtual uint32_t	GetMaxPsduSize () const =0
	Get the maximum PSDU size in bytes.

virtual WifiMode	GetMcs (uint8_t index) const
	Get the WifiMode corresponding to the given MCS index.

WifiPpduField	GetNextField (WifiPpduField currentField, WifiPreamble preamble) const
	Return the field following the provided one.

virtual uint8_t	GetNumModes () const

virtual Time	GetPayloadDuration (uint32_t size, const WifiTxVector &txVector, WifiPhyBand band, MpduType mpdutype, bool incFlag, uint32_t &totalAmpduSize, double &totalAmpduNumSymbols, uint16_t staId) const =0

PhyHeaderSections	GetPhyHeaderSections (const WifiTxVector &txVector, Time ppduStart) const
	Return a map of PHY header chunk information per PPDU field.

Time	GetRemainingDurationAfterField (Ptr< const WifiPpdu > ppdu, WifiPpduField field) const
	Get the remaining duration of the PPDU after the end of the given field.

virtual Ptr< const WifiPpdu >	GetRxPpduFromTxPpdu (Ptr< const WifiPpdu > ppdu)
	The WifiPpdu from the TX PHY is received by each RX PHY attached to the same channel.

virtual WifiMode	GetSigMode (WifiPpduField field, const WifiTxVector &txVector) const
	Get the WifiMode for the SIG field specified by the PPDU field.

virtual uint16_t	GetStaId (const Ptr< const WifiPpdu > ppdu) const
	Return the STA ID that has been assigned to the station this PHY belongs to.

virtual WifiConstPsduMap	GetWifiConstPsduMap (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector) const
	Get a WifiConstPsduMap from a PSDU and the TXVECTOR to use to send the PSDU.

virtual bool	HandlesMcsModes () const
	Check if the WifiModes handled by this PHY are MCSs.

virtual bool	IsMcsSupported (uint8_t index) const
	Check if the WifiMode corresponding to the given MCS index is supported.

virtual bool	IsModeSupported (WifiMode mode) const
	Check if the WifiMode is supported.

bool	NoEndPreambleDetectionEvents () const

virtual void	NotifyCcaBusy (const Ptr< const WifiPpdu > ppdu, Time duration, WifiChannelListType channelType)
	Notify PHY state helper to switch to CCA busy state,.

virtual uint64_t	ObtainNextUid (const WifiTxVector &txVector)
	Obtain the next UID for the PPDU to transmit.

void	ResetReceive (Ptr< Event > event)
	Reset PHY at the end of the PPDU under reception after it has failed the PHY header.

void	SetOwner (Ptr< WifiPhy > wifiPhy)
	Set the WifiPhy owning this PHY entity.

void	StartReceiveField (WifiPpduField field, Ptr< Event > event)
	Start receiving a given field.

virtual void	StartReceivePreamble (Ptr< const WifiPpdu > ppdu, RxPowerWattPerChannelBand &rxPowersW, Time rxDuration)
	Start receiving the PHY preamble of a PPDU (i.e.

virtual void	StartTx (Ptr< const WifiPpdu > ppdu)
	This function is called by SpectrumWifiPhy to send the PPDU while performing amendment-specific actions.

virtual void	SwitchMaybeToCcaBusy (const Ptr< const WifiPpdu > ppdu)
	Check if PHY state should move to CCA busy state based on current state of interference tracker.

void	Transmit (Time txDuration, Ptr< const WifiPpdu > ppdu, double txPowerDbm, Ptr< SpectrumValue > txPowerSpectrum, const std::string &type)
	This function prepares most of the WifiSpectrumSignalParameters parameters and invokes SpectrumWifiPhy's Transmit method.

Public Member Functions inherited from ns3::SimpleRefCount< PhyEntity >
	SimpleRefCount ()
	Default constructor.

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor.

uint32_t	GetReferenceCount () const
	Get the reference count of the object.

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator.

void	Ref () const
	Increment the reference count.

void	Unref () const
	Decrement the reference count.

Additional Inherited Members
Public Types inherited from ns3::HePhy
typedef Callback< void, HeSigAParameters >	EndOfHeSigACallback
	Callback upon end of HE-SIG-A.

using	RuBands = std::map< WifiSpectrumBandInfo, HeRu::RuSpec >
	Map a spectrum band associated with an RU to the RU specification.

Public Types inherited from ns3::PhyEntity
typedef std::pair< std::pair< Time, Time >, WifiMode >	PhyHeaderChunkInfo
	A pair containing information on the PHY header chunk, namely the start and stop times of the chunk and the WifiMode used.

typedef std::map< WifiPpduField, PhyHeaderChunkInfo >	PhyHeaderSections
	A map of PhyHeaderChunkInfo elements per PPDU field.

enum	PhyRxFailureAction { DROP = 0 , ABORT , IGNORE }
	Action to perform in case of RX failure. More...

Static Public Member Functions inherited from ns3::HePhy
static WifiSpectrumBandIndices	ConvertHeRuSubcarriers (uint16_t bandWidth, uint16_t guardBandwidth, uint32_t subcarrierSpacing, HeRu::SubcarrierRange subcarrierRange, uint8_t bandIndex=0)

static std::pair< uint16_t, Time >	ConvertHeTbPpduDurationToLSigLength (Time ppduDuration, const WifiTxVector &txVector, WifiPhyBand band)
	Compute the L-SIG length value corresponding to the given HE TB PPDU duration.

static Time	ConvertLSigLengthToHeTbPpduDuration (uint16_t length, const WifiTxVector &txVector, WifiPhyBand band)

static WifiMode	CreateHeMcs (uint8_t index)
	Create and return the HE MCS corresponding to the provided index.

static WifiCodeRate	GetCodeRate (uint8_t mcsValue)
	Return the coding rate corresponding to the supplied HE MCS index.

static uint16_t	GetConstellationSize (uint8_t mcsValue)
	Return the constellation size corresponding to the supplied HE MCS index.

static uint64_t	GetDataRate (uint8_t mcsValue, uint16_t channelWidth, uint16_t guardInterval, uint8_t nss)
	Return the data rate corresponding to the supplied HE MCS index, channel width, guard interval, and number of spatial streams.

static uint64_t	GetDataRateFromTxVector (const WifiTxVector &txVector, uint16_t staId=SU_STA_ID)
	Return the data rate corresponding to the supplied TXVECTOR for the STA-ID.

static WifiMode	GetHeMcs (uint8_t index)
	Return the HE MCS corresponding to the provided index.

static WifiMode	GetHeMcs0 ()
	Return MCS 0 from HE MCS values.

static WifiMode	GetHeMcs1 ()
	Return MCS 1 from HE MCS values.

static WifiMode	GetHeMcs10 ()
	Return MCS 10 from HE MCS values.

static WifiMode	GetHeMcs11 ()
	Return MCS 11 from HE MCS values.

static WifiMode	GetHeMcs2 ()
	Return MCS 2 from HE MCS values.

static WifiMode	GetHeMcs3 ()
	Return MCS 3 from HE MCS values.

static WifiMode	GetHeMcs4 ()
	Return MCS 4 from HE MCS values.

static WifiMode	GetHeMcs5 ()
	Return MCS 5 from HE MCS values.

static WifiMode	GetHeMcs6 ()
	Return MCS 6 from HE MCS values.

static WifiMode	GetHeMcs7 ()
	Return MCS 7 from HE MCS values.

static WifiMode	GetHeMcs8 ()
	Return MCS 8 from HE MCS values.

static WifiMode	GetHeMcs9 ()
	Return MCS 9 from HE MCS values.

static uint64_t	GetNonHtReferenceRate (uint8_t mcsValue)
	Calculate the rate in bps of the non-HT Reference Rate corresponding to the supplied HE MCS index.

static uint64_t	GetPhyRate (uint8_t mcsValue, uint16_t channelWidth, uint16_t guardInterval, uint8_t nss)
	Return the PHY rate corresponding to the supplied HE MCS index, channel width, guard interval, and number of spatial stream.

static uint64_t	GetPhyRateFromTxVector (const WifiTxVector &txVector, uint16_t staId=SU_STA_ID)
	Return the PHY rate corresponding to the supplied TXVECTOR for the STA-ID.

static RuBands	GetRuBands (Ptr< const WifiPhy > phy, uint16_t channelWidth, uint16_t guardBandwidth)
	Static function to compute the RU bands that belong to a given channel width.

static void	InitializeModes ()
	Initialize all HE modes.

static bool	IsAllowed (const WifiTxVector &txVector)
	Check whether the combination in TXVECTOR is allowed.

Static Public Member Functions inherited from ns3::VhtPhy
static WifiCodeRate	GetCodeRate (uint8_t mcsValue)
	Return the coding rate corresponding to the supplied VHT MCS index.

static uint16_t	GetConstellationSize (uint8_t mcsValue)
	Return the constellation size corresponding to the supplied VHT MCS index.

static uint64_t	GetDataRate (uint8_t mcsValue, uint16_t channelWidth, uint16_t guardInterval, uint8_t nss)
	Return the data rate corresponding to the supplied VHT MCS index, channel width, guard interval, and number of spatial streams.

static uint64_t	GetDataRateFromTxVector (const WifiTxVector &txVector, uint16_t staId)
	Return the data rate corresponding to the supplied TXVECTOR.

static uint64_t	GetNonHtReferenceRate (uint8_t mcsValue)
	Calculate the rate in bps of the non-HT Reference Rate corresponding to the supplied VHT MCS index.

static uint64_t	GetPhyRate (uint8_t mcsValue, uint16_t channelWidth, uint16_t guardInterval, uint8_t nss)
	Return the PHY rate corresponding to the supplied VHT MCS index, channel width, guard interval, and number of spatial stream.

static uint64_t	GetPhyRateFromTxVector (const WifiTxVector &txVector, uint16_t staId)
	Return the PHY rate corresponding to the supplied TXVECTOR.

static WifiMode	GetVhtMcs (uint8_t index)
	Return the VHT MCS corresponding to the provided index.

static WifiMode	GetVhtMcs0 ()
	Return MCS 0 from VHT MCS values.

static WifiMode	GetVhtMcs1 ()
	Return MCS 1 from VHT MCS values.

static WifiMode	GetVhtMcs2 ()
	Return MCS 2 from VHT MCS values.

static WifiMode	GetVhtMcs3 ()
	Return MCS 3 from VHT MCS values.

static WifiMode	GetVhtMcs4 ()
	Return MCS 4 from VHT MCS values.

static WifiMode	GetVhtMcs5 ()
	Return MCS 5 from VHT MCS values.

static WifiMode	GetVhtMcs6 ()
	Return MCS 6 from VHT MCS values.

static WifiMode	GetVhtMcs7 ()
	Return MCS 7 from VHT MCS values.

static WifiMode	GetVhtMcs8 ()
	Return MCS 8 from VHT MCS values.

static WifiMode	GetVhtMcs9 ()
	Return MCS 9 from VHT MCS values.

static void	InitializeModes ()
	Initialize all VHT modes.

static bool	IsAllowed (const WifiTxVector &txVector)
	Check whether the combination in TXVECTOR is allowed.

static bool	IsCombinationAllowed (uint8_t mcsValue, uint16_t channelWidth, uint8_t nss)
	Check whether the combination of <MCS, channel width, NSS> is allowed.

Static Public Member Functions inherited from ns3::HtPhy
static WifiCodeRate	GetCodeRate (uint8_t mcsValue)
	Return the coding rate corresponding to the supplied HT MCS index between 0 and 7, since HT MCS index > 8 is used for higher NSS.

static uint16_t	GetConstellationSize (uint8_t mcsValue)
	Return the constellation size corresponding to the supplied HT MCS index between 0 and 7, since HT MCS index > 8 is used for higher NSS.

static uint64_t	GetDataRate (uint8_t mcsValue, uint16_t channelWidth, uint16_t guardInterval, uint8_t nss)
	Return the data rate corresponding to the supplied HT MCS index, channel width, guard interval, and number of spatial streams.

static uint64_t	GetDataRateFromTxVector (const WifiTxVector &txVector, uint16_t staId)
	Return the data rate corresponding to the supplied TXVECTOR.

static WifiCodeRate	GetHtCodeRate (uint8_t mcsValue)
	Return the coding rate corresponding to the supplied HT MCS index.

static uint16_t	GetHtConstellationSize (uint8_t mcsValue)
	Return the constellation size corresponding to the supplied HT MCS index.

static WifiMode	GetHtMcs (uint8_t index)
	Return the HT MCS corresponding to the provided index.

static WifiMode	GetHtMcs0 ()
	Return MCS 0 from HT MCS values.

static WifiMode	GetHtMcs1 ()
	Return MCS 1 from HT MCS values.

static WifiMode	GetHtMcs10 ()
	Return MCS 10 from HT MCS values.

static WifiMode	GetHtMcs11 ()
	Return MCS 11 from HT MCS values.

static WifiMode	GetHtMcs12 ()
	Return MCS 12 from HT MCS values.

static WifiMode	GetHtMcs13 ()
	Return MCS 13 from HT MCS values.

static WifiMode	GetHtMcs14 ()
	Return MCS 14 from HT MCS values.

static WifiMode	GetHtMcs15 ()
	Return MCS 15 from HT MCS values.

static WifiMode	GetHtMcs16 ()
	Return MCS 16 from HT MCS values.

static WifiMode	GetHtMcs17 ()
	Return MCS 17 from HT MCS values.

static WifiMode	GetHtMcs18 ()
	Return MCS 18 from HT MCS values.

static WifiMode	GetHtMcs19 ()
	Return MCS 19 from HT MCS values.

static WifiMode	GetHtMcs2 ()
	Return MCS 2 from HT MCS values.

static WifiMode	GetHtMcs20 ()
	Return MCS 20 from HT MCS values.

static WifiMode	GetHtMcs21 ()
	Return MCS 21 from HT MCS values.

static WifiMode	GetHtMcs22 ()
	Return MCS 22 from HT MCS values.

static WifiMode	GetHtMcs23 ()
	Return MCS 23 from HT MCS values.

static WifiMode	GetHtMcs24 ()
	Return MCS 24 from HT MCS values.

static WifiMode	GetHtMcs25 ()
	Return MCS 25 from HT MCS values.

static WifiMode	GetHtMcs26 ()
	Return MCS 26 from HT MCS values.

static WifiMode	GetHtMcs27 ()
	Return MCS 27 from HT MCS values.

static WifiMode	GetHtMcs28 ()
	Return MCS 28 from HT MCS values.

static WifiMode	GetHtMcs29 ()
	Return MCS 29 from HT MCS values.

static WifiMode	GetHtMcs3 ()
	Return MCS 3 from HT MCS values.

static WifiMode	GetHtMcs30 ()
	Return MCS 30 from HT MCS values.

static WifiMode	GetHtMcs31 ()
	Return MCS 31 from HT MCS values.

static WifiMode	GetHtMcs4 ()
	Return MCS 4 from HT MCS values.

static WifiMode	GetHtMcs5 ()
	Return MCS 5 from HT MCS values.

static WifiMode	GetHtMcs6 ()
	Return MCS 6 from HT MCS values.

static WifiMode	GetHtMcs7 ()
	Return MCS 7 from HT MCS values.

static WifiMode	GetHtMcs8 ()
	Return MCS 8 from HT MCS values.

static WifiMode	GetHtMcs9 ()
	Return MCS 9 from HT MCS values.

static WifiMode	GetLSigMode ()

static uint64_t	GetNonHtReferenceRate (uint8_t mcsValue)
	Calculate the rate in bps of the non-HT Reference Rate corresponding to the supplied HT MCS index.

static uint64_t	GetPhyRate (uint8_t mcsValue, uint16_t channelWidth, uint16_t guardInterval, uint8_t nss)
	Return the PHY rate corresponding to the supplied HT MCS index, channel width, guard interval, and number of spatial stream.

static uint64_t	GetPhyRateFromTxVector (const WifiTxVector &txVector, uint16_t staId)
	Return the PHY rate corresponding to the supplied TXVECTOR.

static void	InitializeModes ()
	Initialize all HT modes.

static bool	IsAllowed (const WifiTxVector &txVector)
	Check whether the combination in TXVECTOR is allowed.

Static Public Member Functions inherited from ns3::OfdmPhy
static WifiCodeRate	GetCodeRate (const std::string &name)
	Return the WifiCodeRate from the OFDM mode's unique name using ModulationLookupTable.

static uint16_t	GetConstellationSize (const std::string &name)
	Return the constellation size from the OFDM mode's unique name using ModulationLookupTable.

static uint64_t	GetDataRate (const std::string &name, uint16_t channelWidth)
	Return the data rate from the OFDM mode's unique name and the supplied parameters.

static uint64_t	GetDataRateFromTxVector (const WifiTxVector &txVector, uint16_t staId)
	Return the data rate corresponding to the supplied TXVECTOR.

static WifiMode	GetOfdmRate (uint64_t rate, uint16_t bw=20)
	Return a WifiMode for OFDM corresponding to the provided rate and the channel bandwidth (20, 10, or 5 MHz).

static WifiMode	GetOfdmRate12Mbps ()
	Return a WifiMode for OFDM at 12Mbps.

static WifiMode	GetOfdmRate12MbpsBW10MHz ()
	Return a WifiMode for OFDM at 12 Mbps with 10 MHz channel spacing.

static WifiMode	GetOfdmRate12MbpsBW5MHz ()
	Return a WifiMode for OFDM at 12 Mbps with 5 MHz channel spacing.

static WifiMode	GetOfdmRate13_5MbpsBW5MHz ()
	Return a WifiMode for OFDM at 13.5 Mbps with 5 MHz channel spacing.

static WifiMode	GetOfdmRate18Mbps ()
	Return a WifiMode for OFDM at 18 Mbps.

static WifiMode	GetOfdmRate18MbpsBW10MHz ()
	Return a WifiMode for OFDM at 18 Mbps with 10 MHz channel spacing.

static WifiMode	GetOfdmRate1_5MbpsBW5MHz ()
	Return a WifiMode for OFDM at 1.5 Mbps with 5 MHz channel spacing.

static WifiMode	GetOfdmRate24Mbps ()
	Return a WifiMode for OFDM at 24 Mbps.

static WifiMode	GetOfdmRate24MbpsBW10MHz ()
	Return a WifiMode for OFDM at 24 Mbps with 10 MHz channel spacing.

static WifiMode	GetOfdmRate27MbpsBW10MHz ()
	Return a WifiMode for OFDM at 27 Mbps with 10 MHz channel spacing.

static WifiMode	GetOfdmRate2_25MbpsBW5MHz ()
	Return a WifiMode for OFDM at 2.25 Mbps with 5 MHz channel spacing.

static WifiMode	GetOfdmRate36Mbps ()
	Return a WifiMode for OFDM at 36 Mbps.

static WifiMode	GetOfdmRate3MbpsBW10MHz ()
	Return a WifiMode for OFDM at 3 Mbps with 10 MHz channel spacing.

static WifiMode	GetOfdmRate3MbpsBW5MHz ()
	Return a WifiMode for OFDM at 3 Mbps with 5 MHz channel spacing.

static WifiMode	GetOfdmRate48Mbps ()
	Return a WifiMode for OFDM at 48 Mbps.

static WifiMode	GetOfdmRate4_5MbpsBW10MHz ()
	Return a WifiMode for OFDM at 4.5 Mbps with 10 MHz channel spacing.

static WifiMode	GetOfdmRate4_5MbpsBW5MHz ()
	Return a WifiMode for OFDM at 4.5 Mbps with 5 MHz channel spacing.

static WifiMode	GetOfdmRate54Mbps ()
	Return a WifiMode for OFDM at 54 Mbps.

static WifiMode	GetOfdmRate6Mbps ()
	Return a WifiMode for OFDM at 6 Mbps.

static WifiMode	GetOfdmRate6MbpsBW10MHz ()
	Return a WifiMode for OFDM at 6 Mbps with 10 MHz channel spacing.

static WifiMode	GetOfdmRate6MbpsBW5MHz ()
	Return a WifiMode for OFDM at 6 Mbps with 5 MHz channel spacing.

static WifiMode	GetOfdmRate9Mbps ()
	Return a WifiMode for OFDM at 9 Mbps.

static WifiMode	GetOfdmRate9MbpsBW10MHz ()
	Return a WifiMode for OFDM at 9 Mbps with 10 MHz channel spacing.

static WifiMode	GetOfdmRate9MbpsBW5MHz ()
	Return a WifiMode for OFDM at 9 Mbps with 5 MHz channel spacing.

static uint64_t	GetPhyRate (const std::string &name, uint16_t channelWidth)
	Return the PHY rate from the OFDM mode's unique name and the supplied parameters.

static uint64_t	GetPhyRateFromTxVector (const WifiTxVector &txVector, uint16_t staId)
	Return the PHY rate corresponding to the supplied TXVECTOR.

static void	InitializeModes ()
	Initialize all OFDM modes (for all variants).

static bool	IsAllowed (const WifiTxVector &txVector)
	Check whether the combination in TXVECTOR is allowed.

Protected Types inherited from ns3::PhyEntity
using	CcaIndication = std::optional< std::pair< Time, WifiChannelListType > >
	CCA end time and its corresponding channel list type (can be std::nullopt if IDLE)

typedef std::pair< WifiCodeRate, uint16_t >	CodeRateConstellationSizePair
	A pair to hold modulation information: code rate and constellation size.

typedef std::map< std::string, CodeRateConstellationSizePair >	ModulationLookupTable
	A modulation lookup table using unique name of modulation as key.

typedef std::map< WifiPreamble, std::vector< WifiPpduField > >	PpduFormats
	A map of PPDU field elements per preamble type.

typedef std::pair< uint64_t, uint16_t >	UidStaIdPair
	A pair of a UID and STA_ID.

Protected Member Functions inherited from ns3::HePhy
void	DoAbortCurrentReception (WifiPhyRxfailureReason reason) override
	Perform amendment-specific actions before aborting the current reception.

void	DoEndReceivePayload (Ptr< const WifiPpdu > ppdu) override
	Perform amendment-specific actions at the end of the reception of the payload.

Ptr< Event >	DoGetEvent (Ptr< const WifiPpdu > ppdu, RxPowerWattPerChannelBand &rxPowersW) override
	Get the event corresponding to the incoming PPDU.

void	DoResetReceive (Ptr< Event > event) override
	Perform amendment-specific actions before resetting PHY at the end of the PPDU under reception after it has failed the PHY header.

Time	DoStartReceivePayload (Ptr< Event > event) override
	Start receiving the PSDU (i.e.

std::pair< uint16_t, WifiSpectrumBandInfo >	GetChannelWidthAndBand (const WifiTxVector &txVector, uint16_t staId) const override
	Get the channel width and band to use (will be overloaded by child classes).

Time	GetMaxDelayPpduSameUid (const WifiTxVector &txVector) override
	Obtain the maximum time between two PPDUs with the same UID to consider they are identical and their power can be added construtively.

uint32_t	GetMaxPsduSize () const override
	Get the maximum PSDU size in bytes.

virtual uint32_t	GetSigBSize (const WifiTxVector &txVector) const

Ptr< SpectrumValue >	GetTxPowerSpectralDensity (double txPowerW, Ptr< const WifiPpdu > ppdu) const override

WifiConstPsduMap	GetWifiConstPsduMap (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector) const override
	Get a WifiConstPsduMap from a PSDU and the TXVECTOR to use to send the PSDU.

bool	IsConfigSupported (Ptr< const WifiPpdu > ppdu) const override
	Checks if the signaled configuration (excluding bandwidth) is supported by the PHY.

uint64_t	ObtainNextUid (const WifiTxVector &txVector) override
	Obtain the next UID for the PPDU to transmit.

PhyFieldRxStatus	ProcessSig (Ptr< Event > event, PhyFieldRxStatus status, WifiPpduField field) override
	Process SIG-A or SIG-B, perform amendment-specific actions, and provide an updated status of the reception.

virtual PhyFieldRxStatus	ProcessSigA (Ptr< Event > event, PhyFieldRxStatus status)
	Process SIG-A, perform amendment-specific actions, and provide an updated status of the reception.

virtual PhyFieldRxStatus	ProcessSigB (Ptr< Event > event, PhyFieldRxStatus status)
	Process SIG-B, perform amendment-specific actions, and provide an updated status of the reception.

void	RxPayloadFailed (Ptr< const WifiPsdu > psdu, double snr, const WifiTxVector &txVector) override
	Perform amendment-specific actions when the payload is unsuccessfuly received.

void	RxPayloadSucceeded (Ptr< const WifiPsdu > psdu, RxSignalInfo rxSignalInfo, const WifiTxVector &txVector, uint16_t staId, const std::vector< bool > &statusPerMpdu) override
	Perform amendment-specific actions when the payload is successfully received.

void	StartReceiveOfdmaPayload (Ptr< Event > event)
	Start receiving the PSDU (i.e.

Protected Member Functions inherited from ns3::VhtPhy
PhyFieldRxStatus	DoEndReceiveField (WifiPpduField field, Ptr< Event > event) override
	End receiving a given field, perform amendment-specific actions, and provide the status of the reception.

PhyFieldRxStatus	EndReceiveSig (Ptr< Event > event, WifiPpduField field)
	End receiving the SIG-A or SIG-B, perform VHT-specific actions, and provide the status of the reception.

CcaIndication	GetCcaIndication (const Ptr< const WifiPpdu > ppdu) override
	Get CCA end time and its corresponding channel list type when a new signal has been received by the PHY.

virtual WifiPhyRxfailureReason	GetFailureReason (WifiPpduField field) const
	Get the failure reason corresponding to the unsuccessful processing of a given PPDU field.

Time	GetHtSigDuration () const override

WifiMode	GetHtSigMode () const override

uint32_t	GetMaxPsduSize () const override
	Get the maximum PSDU size in bytes.

uint8_t	GetNumberBccEncoders (const WifiTxVector &txVector) const override

bool	IsAllConfigSupported (WifiPpduField field, Ptr< const WifiPpdu > ppdu) const override
	Checks if the signaled configuration (including bandwidth) is supported by the PHY.

virtual PhyFieldRxStatus	ProcessSig (Ptr< Event > event, PhyFieldRxStatus status, WifiPpduField field)
	Process SIG-A or SIG-B, perform amendment-specific actions, and provide an updated status of the reception.

Protected Member Functions inherited from ns3::HtPhy
virtual void	BuildModeList ()
	Build mode list.

PhyFieldRxStatus	DoEndReceiveField (WifiPpduField field, Ptr< Event > event) override
	End receiving a given field, perform amendment-specific actions, and provide the status of the reception.

CcaIndication	GetCcaIndication (const Ptr< const WifiPpdu > ppdu) override
	Get CCA end time and its corresponding channel list type when a new signal has been received by the PHY.

uint32_t	GetMaxPsduSize () const override
	Get the maximum PSDU size in bytes.

virtual uint8_t	GetNumberBccEncoders (const WifiTxVector &txVector) const

virtual Time	GetSymbolDuration (const WifiTxVector &txVector) const

Ptr< SpectrumValue >	GetTxPowerSpectralDensity (double txPowerW, Ptr< const WifiPpdu > ppdu) const override

bool	IsAllConfigSupported (WifiPpduField field, Ptr< const WifiPpdu > ppdu) const override
	Checks if the signaled configuration (including bandwidth) is supported by the PHY.

bool	IsConfigSupported (Ptr< const WifiPpdu > ppdu) const override
	Checks if the signaled configuration (excluding bandwidth) is supported by the PHY.

Protected Member Functions inherited from ns3::OfdmPhy
PhyFieldRxStatus	DoEndReceiveField (WifiPpduField field, Ptr< Event > event) override
	End receiving a given field, perform amendment-specific actions, and provide the status of the reception.

PhyFieldRxStatus	EndReceiveHeader (Ptr< Event > event)
	End receiving the header, perform OFDM-specific actions, and provide the status of the reception.

virtual Time	GetHeaderDuration (const WifiTxVector &txVector) const

virtual WifiMode	GetHeaderMode (const WifiTxVector &txVector) const

uint32_t	GetMaxPsduSize () const override
	Get the maximum PSDU size in bytes.

uint16_t	GetMeasurementChannelWidth (const Ptr< const WifiPpdu > ppdu) const override
	Return the channel width used to measure the RSSI.

uint8_t	GetNumberServiceBits () const

virtual Time	GetPreambleDuration (const WifiTxVector &txVector) const

Time	GetSignalExtension (WifiPhyBand band) const

Ptr< SpectrumValue >	GetTxPowerSpectralDensity (double txPowerW, Ptr< const WifiPpdu > ppdu) const override

virtual bool	IsAllConfigSupported (WifiPpduField field, Ptr< const WifiPpdu > ppdu) const
	Checks if the signaled configuration (including bandwidth) is supported by the PHY.

virtual bool	IsChannelWidthSupported (Ptr< const WifiPpdu > ppdu) const
	Checks if the PPDU's bandwidth is supported by the PHY.

Protected Member Functions inherited from ns3::PhyEntity
void	AbortCurrentReception (WifiPhyRxfailureReason reason)
	Abort the current reception.

void	AddPreambleEvent (Ptr< Event > event)
	Add an entry to the map of current preamble events (stored in WifiPhy).

Ptr< Event >	CreateInterferenceEvent (Ptr< const WifiPpdu > ppdu, Time duration, RxPowerWattPerChannelBand &rxPower, bool isStartOfdmaRxing=false)
	Create an event using WifiPhy's InterferenceHelper class.

virtual void	DoAbortCurrentReception (WifiPhyRxfailureReason reason)
	Perform amendment-specific actions before aborting the current reception.

virtual PhyFieldRxStatus	DoEndReceiveField (WifiPpduField field, Ptr< Event > event)
	End receiving a given field, perform amendment-specific actions, and provide the status of the reception.

virtual void	DoEndReceivePayload (Ptr< const WifiPpdu > ppdu)
	Perform amendment-specific actions at the end of the reception of the payload.

virtual PhyFieldRxStatus	DoEndReceivePreamble (Ptr< Event > event)
	End receiving the preamble, perform amendment-specific actions, and provide the status of the reception.

virtual Ptr< Event >	DoGetEvent (Ptr< const WifiPpdu > ppdu, RxPowerWattPerChannelBand &rxPowersW)
	Get the event corresponding to the incoming PPDU.

virtual void	DoResetReceive (Ptr< Event > event)
	Perform amendment-specific actions before resetting PHY at the end of the PPDU under reception after it has failed the PHY header.

virtual bool	DoStartReceiveField (WifiPpduField field, Ptr< Event > event)
	Start receiving a given field, perform amendment-specific actions, and signify if it is supported.

virtual Time	DoStartReceivePayload (Ptr< Event > event)
	Start receiving the PSDU (i.e.

void	DropPreambleEvent (Ptr< const WifiPpdu > ppdu, WifiPhyRxfailureReason reason, Time endRx)
	Drop the PPDU and the corresponding preamble detection event, but keep CCA busy state after the completion of the currently processed event.

void	EndOfMpdu (Ptr< Event > event, Ptr< const WifiPsdu > psdu, size_t mpduIndex, Time relativeStart, Time mpduDuration)
	The last symbol of an MPDU in an A-MPDU has arrived.

void	EndPreambleDetectionPeriod (Ptr< Event > event)
	End the preamble detection period.

void	ErasePreambleEvent (Ptr< const WifiPpdu > ppdu, Time rxDuration)
	Erase the event corresponding to the PPDU from the list of preamble events, but consider it as noise after the completion of the current event.

virtual CcaIndication	GetCcaIndication (const Ptr< const WifiPpdu > ppdu)
	Get CCA end time and its corresponding channel list type when a new signal has been received by the PHY.

uint16_t	GetCenterFrequencyForChannelWidth (const WifiTxVector &txVector) const
	Get the center frequency of the channel corresponding the current TxVector rather than that of the supported channel width.

virtual std::pair< uint16_t, WifiSpectrumBandInfo >	GetChannelWidthAndBand (const WifiTxVector &txVector, uint16_t staId) const
	Get the channel width and band to use (will be overloaded by child classes).

Ptr< const Event >	GetCurrentEvent () const
	Get the pointer to the current event (stored in WifiPhy).

const std::map< std::pair< uint64_t, WifiPreamble >, Ptr< Event > > &	GetCurrentPreambleEvents () const
	Get the map of current preamble events (stored in WifiPhy).

Time	GetDelayUntilCcaEnd (double thresholdDbm, const WifiSpectrumBandInfo &band)
	Return the delay until CCA busy is ended for a given sensitivity threshold (in dBm) and a given band.

uint16_t	GetGuardBandwidth (uint16_t currentChannelWidth) const

virtual uint16_t	GetMeasurementChannelWidth (const Ptr< const WifiPpdu > ppdu) const =0
	Return the channel width used to measure the RSSI.

SnrPer	GetPhyHeaderSnrPer (WifiPpduField field, Ptr< Event > event) const
	Obtain the SNR and PER of the PPDU field from the WifiPhy's InterferenceHelper class.

virtual const PpduFormats &	GetPpduFormats () const =0
	Return the PPDU formats of the PHY.

WifiSpectrumBandInfo	GetPrimaryBand (uint16_t bandWidth) const
	If the operating channel width is a multiple of 20 MHz, return the info corresponding to the primary channel of the given bandwidth (which must be a multiple of 20 MHz and not exceed the operating channel width).

double	GetRandomValue () const
	Obtain a random value from the WifiPhy's generator.

std::pair< bool, SignalNoiseDbm >	GetReceptionStatus (Ptr< const WifiPsdu > psdu, Ptr< Event > event, uint16_t staId, Time relativeMpduStart, Time mpduDuration)
	Get the reception status for the provided MPDU and notify.

virtual uint16_t	GetRxChannelWidth (const WifiTxVector &txVector) const
	Return the channel width used in the reception spectrum model.

double	GetRxPowerWForPpdu (Ptr< Event > event) const
	Obtain the received power (W) for a given band.

WifiSpectrumBandInfo	GetSecondaryBand (uint16_t bandWidth) const
	If the channel bonding is used, return the info corresponding to the secondary channel of the given bandwidth (which must be a multiple of 20 MHz and not exceed the operating channel width).

std::tuple< double, double, double >	GetTxMaskRejectionParams () const

virtual Ptr< SpectrumValue >	GetTxPowerSpectralDensity (double txPowerW, Ptr< const WifiPpdu > ppdu) const =0

virtual bool	IsConfigSupported (Ptr< const WifiPpdu > ppdu) const
	Checks if the signaled configuration (excluding bandwidth) is supported by the PHY.

void	NotifyInterferenceRxEndAndClear (bool reset)
	Notify WifiPhy's InterferenceHelper of the end of the reception, clear maps and end of MPDU event, and eventually reset WifiPhy.

void	NotifyPayloadBegin (const WifiTxVector &txVector, const Time &payloadDuration)
	Fire the trace indicating that the PHY is starting to receive the payload of a PPDU.

virtual void	RxPayloadFailed (Ptr< const WifiPsdu > psdu, double snr, const WifiTxVector &txVector)
	Perform amendment-specific actions when the payload is unsuccessfuly received.

virtual void	RxPayloadSucceeded (Ptr< const WifiPsdu > psdu, RxSignalInfo rxSignalInfo, const WifiTxVector &txVector, uint16_t staId, const std::vector< bool > &statusPerMpdu)
	Perform amendment-specific actions when the payload is successfully received.

void	ScheduleEndOfMpdus (Ptr< Event > event)
	Schedule end of MPDUs events.

void	StartPreambleDetectionPeriod (Ptr< Event > event)
	Start the preamble detection period.

void	StartReceivePayload (Ptr< Event > event)
	Start receiving the PSDU (i.e.

void	UpdateInterferenceEvent (Ptr< Event > event, const RxPowerWattPerChannelBand &rxPower)
	Update an event in WifiPhy's InterferenceHelper class.

Static Protected Member Functions inherited from ns3::HePhy
static uint64_t	CalculateNonHtReferenceRate (WifiCodeRate codeRate, uint16_t constellationSize)
	Return the rate (in bps) of the non-HT Reference Rate which corresponds to the supplied code rate and constellation size.

static Time	GetSymbolDuration (Time guardInterval)

static uint16_t	GetUsableSubcarriers (uint16_t channelWidth)

Static Protected Member Functions inherited from ns3::VhtPhy
static uint64_t	CalculateNonHtReferenceRate (WifiCodeRate codeRate, uint16_t constellationSize)
	Return the rate (in bps) of the non-HT Reference Rate which corresponds to the supplied code rate and constellation size.

static uint16_t	GetUsableSubcarriers (uint16_t channelWidth)

Static Protected Member Functions inherited from ns3::HtPhy
static uint64_t	CalculateDataRate (Time symbolDuration, uint16_t usableSubCarriers, uint16_t numberOfBitsPerSubcarrier, double codingRate, uint8_t nss)
	Calculates data rate from the supplied parameters.

static uint64_t	CalculateNonHtReferenceRate (WifiCodeRate codeRate, uint16_t constellationSize)
	Return the rate (in bps) of the non-HT Reference Rate which corresponds to the supplied code rate and constellation size.

static uint64_t	CalculatePhyRate (WifiCodeRate codeRate, uint64_t dataRate)
	Return the PHY rate corresponding to the supplied code rate and data rate.

static double	GetCodeRatio (WifiCodeRate codeRate)
	Convert WifiCodeRate to a ratio, e.g., code ratio of WIFI_CODE_RATE_1_2 is 0.5.

static Time	GetSymbolDuration (Time guardInterval)

static Time	GetSymbolDuration (uint16_t channelWidth)

static uint16_t	GetUsableSubcarriers (uint16_t channelWidth)

Static Protected Member Functions inherited from ns3::OfdmPhy
static uint64_t	CalculateDataRate (Time symbolDuration, uint16_t usableSubCarriers, uint16_t numberOfBitsPerSubcarrier, double codingRate)
	Calculates data rate from the supplied parameters.

static uint64_t	CalculateDataRate (WifiCodeRate codeRate, uint16_t constellationSize, uint16_t channelWidth)
	Calculates data rate from the supplied parameters.

static uint64_t	CalculatePhyRate (WifiCodeRate codeRate, uint64_t dataRate)
	Calculate the PHY rate in bps from code rate and data rate.

static double	GetCodeRatio (WifiCodeRate codeRate)
	Convert WifiCodeRate to a ratio, e.g., code ratio of WIFI_CODE_RATE_1_2 is 0.5.

static Time	GetSymbolDuration (uint16_t channelWidth)

static uint16_t	GetUsableSubcarriers ()

Protected Attributes inherited from ns3::HePhy
std::map< uint16_t, EventId >	m_beginOfdmaPayloadRxEvents
	the beginning of the OFDMA payload reception events (indexed by STA-ID)

uint64_t	m_currentMuPpduUid
	UID of the HE MU or HE TB PPDU being received.

std::optional< WifiTxVector >	m_currentTxVector
	If the STA is an AP STA, this holds the TXVECTOR of the PPDU that has been sent.

EndOfHeSigACallback	m_endOfHeSigACallback
	end of HE-SIG-A callback

uint64_t	m_previouslyTxPpduUid
	UID of the previously sent PPDU, used by AP to recognize response HE TB PPDUs.

std::optional< WifiTxVector >	m_trigVector
	the TRIGVECTOR

std::optional< Time >	m_trigVectorExpirationTime
	expiration time of the TRIGVECTOR

Protected Attributes inherited from ns3::HtPhy
uint8_t	m_bssMembershipSelector
	the BSS membership selector

uint8_t	m_maxMcsIndexPerSs
	the maximum MCS index per spatial stream as defined by the standard

uint8_t	m_maxSupportedMcsIndexPerSs
	the maximum supported MCS index per spatial stream

Protected Attributes inherited from ns3::PhyEntity
std::vector< EventId >	m_endOfMpduEvents
	the end of MPDU events (only used for A-MPDUs)

std::vector< EventId >	m_endPreambleDetectionEvents
	the end of preamble detection events

std::vector< EventId >	m_endRxPayloadEvents
	the end of receive events (only one unless UL MU reception)

std::list< WifiMode >	m_modeList
	the list of supported modes

std::map< UidStaIdPair, SignalNoiseDbm >	m_signalNoiseMap
	Map of the latest signal power and noise power in dBm (noise power includes the noise figure)

Ptr< WifiPhyStateHelper >	m_state
	Pointer to WifiPhyStateHelper of the WifiPhy (to make it reachable for child classes)

std::map< UidStaIdPair, std::vector< bool > >	m_statusPerMpduMap
	Map of the current reception status per MPDU that is filled in as long as MPDUs are being processed by the PHY in case of an A-MPDU.

Ptr< WifiPhy >	m_wifiPhy
	Pointer to the owning WifiPhy.

Static Protected Attributes inherited from ns3::PhyEntity
static uint64_t	m_globalPpduUid = 0
	Global counter of the PPDU UID.
