ns3::WifiPhy Class Referenceabstract

802.11 PHY layer model More...

#include "wifi-phy.h"

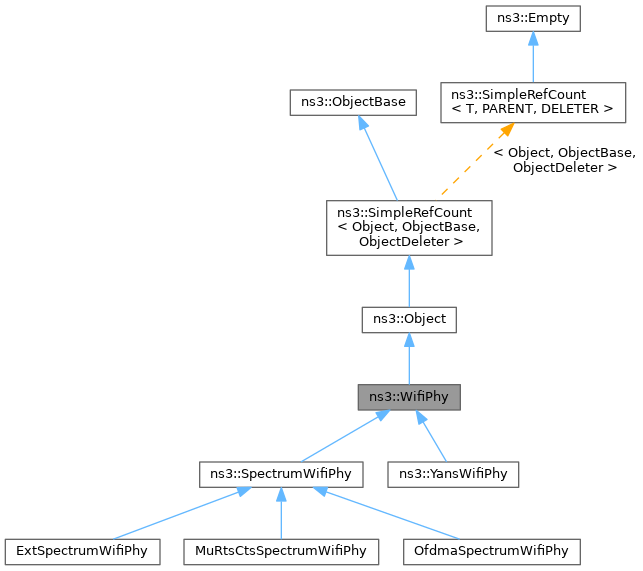

+ Inheritance diagram for ns3::WifiPhy:
+ Collaboration diagram for ns3::WifiPhy:

Public Types

using ChannelTuple = std::tuple< uint8_t, uint16_t, int, uint8_t >
 Tuple identifying an operating channel.

typedef void(* MonitorSnifferRxCallback) (Ptr< const Packet > packet, uint16_t channelFreqMhz, WifiTxVector txVector, MpduInfo aMpdu, SignalNoiseDbm signalNoise, uint16_t staId)
 TracedCallback signature for monitor mode receive events.

typedef void(* MonitorSnifferTxCallback) (const Ptr< const Packet > packet, uint16_t channelFreqMhz, WifiTxVector txVector, MpduInfo aMpdu, uint16_t staId)
 TracedCallback signature for monitor mode transmit events.

typedef void(* PhyRxBeginTracedCallback) (Ptr< const Packet > packet, RxPowerWattPerChannelBand rxPowersW)
 TracedCallback signature for PhyRxBegin trace source.

typedef void(* PhyRxPayloadBeginTracedCallback) (WifiTxVector txVector, Time psduDuration)
 TracedCallback signature for start of PSDU reception events.

typedef void(* PhyTxBeginTracedCallback) (Ptr< const Packet > packet, double txPowerW)
 TracedCallback signature for Phy transmit events.

typedef void(* PsduTxBeginCallback) (WifiConstPsduMap psduMap, WifiTxVector txVector, double txPowerW)
 TracedCallback signature for PSDU transmit events.


Public Member Functions

 WifiPhy ()

 ~WifiPhy () override

virtual int64_t AssignStreams (int64_t stream)
 Assign a fixed random variable stream number to the random variables used by this model.

double CalculateSnr (const WifiTxVector &txVector, double ber) const

virtual void ConfigureStandard (WifiStandard standard)
 Configure the PHY-level parameters for different Wi-Fi standard.

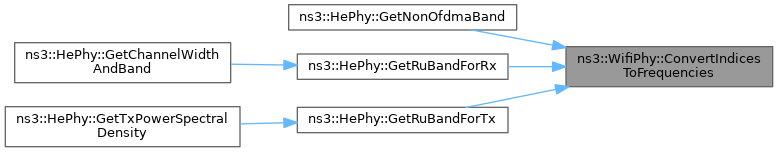

virtual WifiSpectrumBandFrequencies ConvertIndicesToFrequencies (const WifiSpectrumBandIndices &indices) const =0
 This is a helper function to convert start and stop indices to start and stop frequencies.

void EndReceiveInterBss ()
 For HE receptions only, check and possibly modify the transmit power restriction state at the end of PPDU reception.

Time GetAckTxTime () const
 Return the estimated Ack TX time for this PHY.

virtual WifiSpectrumBandInfo GetBand (uint16_t bandWidth, uint8_t bandIndex=0)=0
 Get the info of a given band.

Time GetBlockAckTxTime () const
 Return the estimated BlockAck TX time for this PHY.

std::list< uint8_t > GetBssMembershipSelectorList () const
 The WifiPhy::BssMembershipSelector() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMembershipSelectorSet, and which is stored inside HT PHY (and above) instances.

double GetCcaEdThreshold () const
 Return the CCA energy detection threshold (dBm).

double GetCcaSensitivityThreshold () const
 Return the CCA sensitivity threshold (dBm).

virtual Ptr< ChannelGetChannel () const =0
 Return the Channel this WifiPhy is connected to.

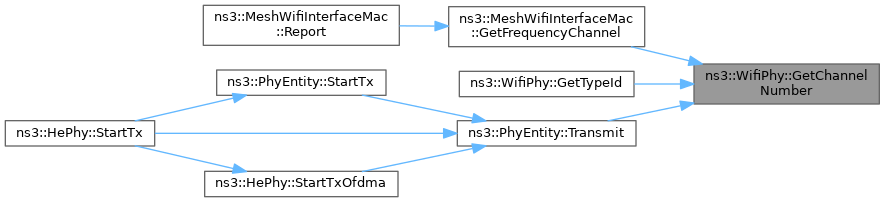

uint8_t GetChannelNumber () const
 Return current channel number.

Time GetChannelSwitchDelay () const

uint16_t GetChannelWidth () const

virtual FrequencyRange GetCurrentFrequencyRange () const =0
 Get the frequency range of the current RF interface.

WifiMode GetDefaultMode () const
 Get the default WifiMode supported by the PHY.

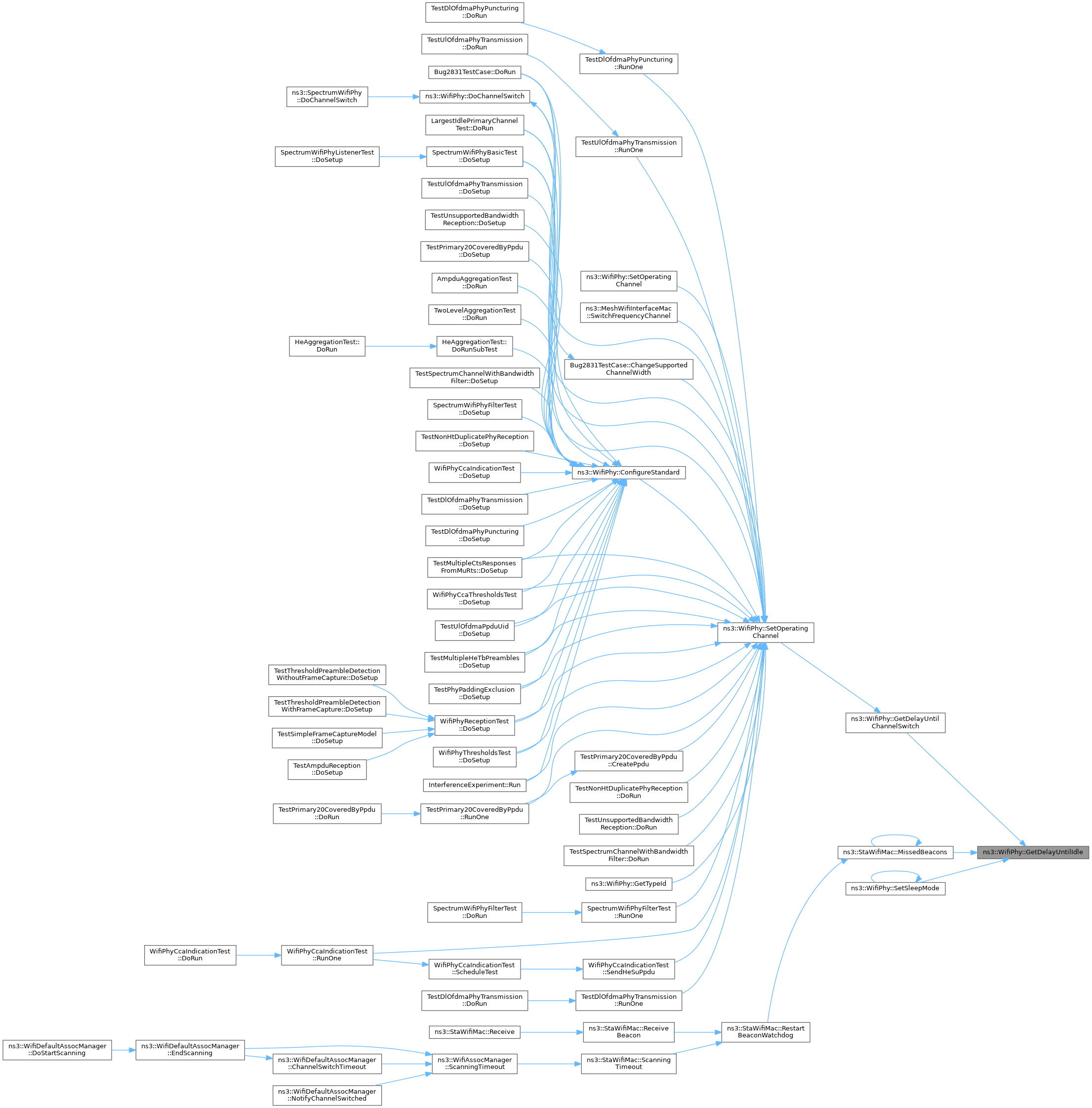

Time GetDelayUntilIdle ()

Ptr< WifiNetDeviceGetDevice () const
 Return the device this PHY is associated with.

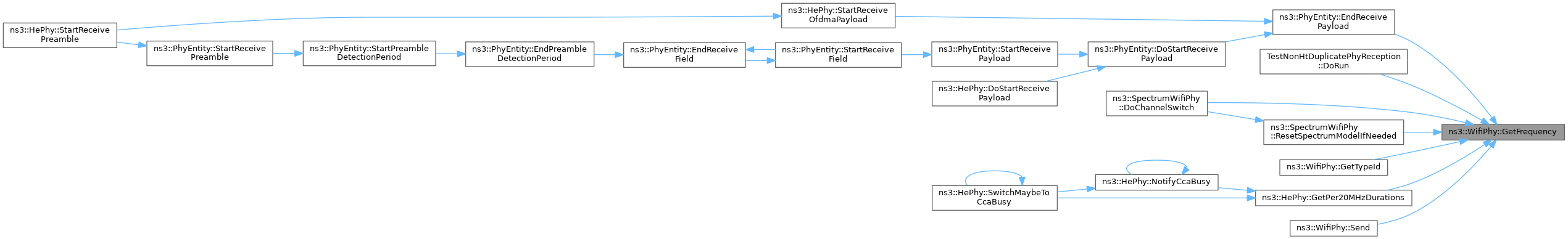

uint16_t GetFrequency () const

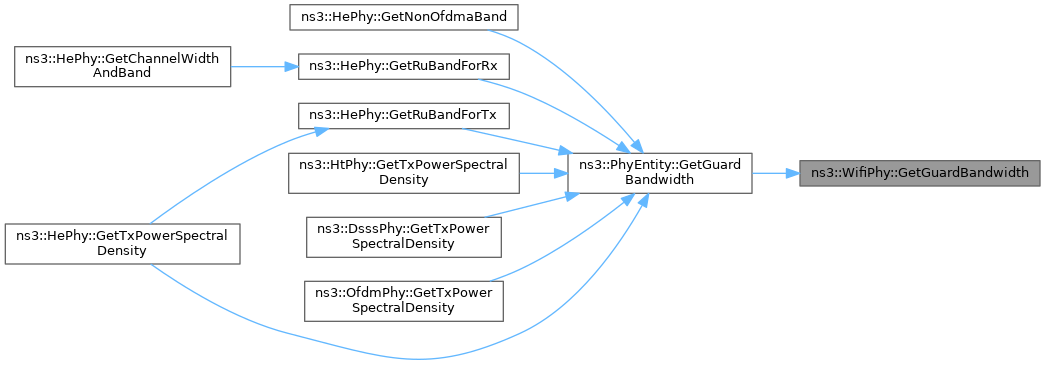

virtual uint16_t GetGuardBandwidth (uint16_t currentChannelWidth) const =0

Time GetLastRxEndTime () const
 Return the end time of the last received packet.

Time GetLastRxStartTime () const
 Return the start time of the last received packet.

Ptr< PhyEntityGetLatestPhyEntity () const
 Get the latest PHY entity supported by this PHY instance.

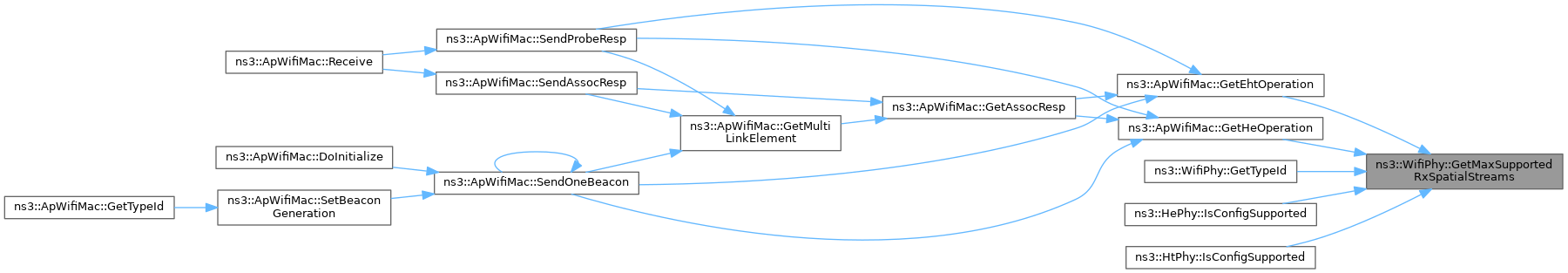

uint8_t GetMaxSupportedRxSpatialStreams () const

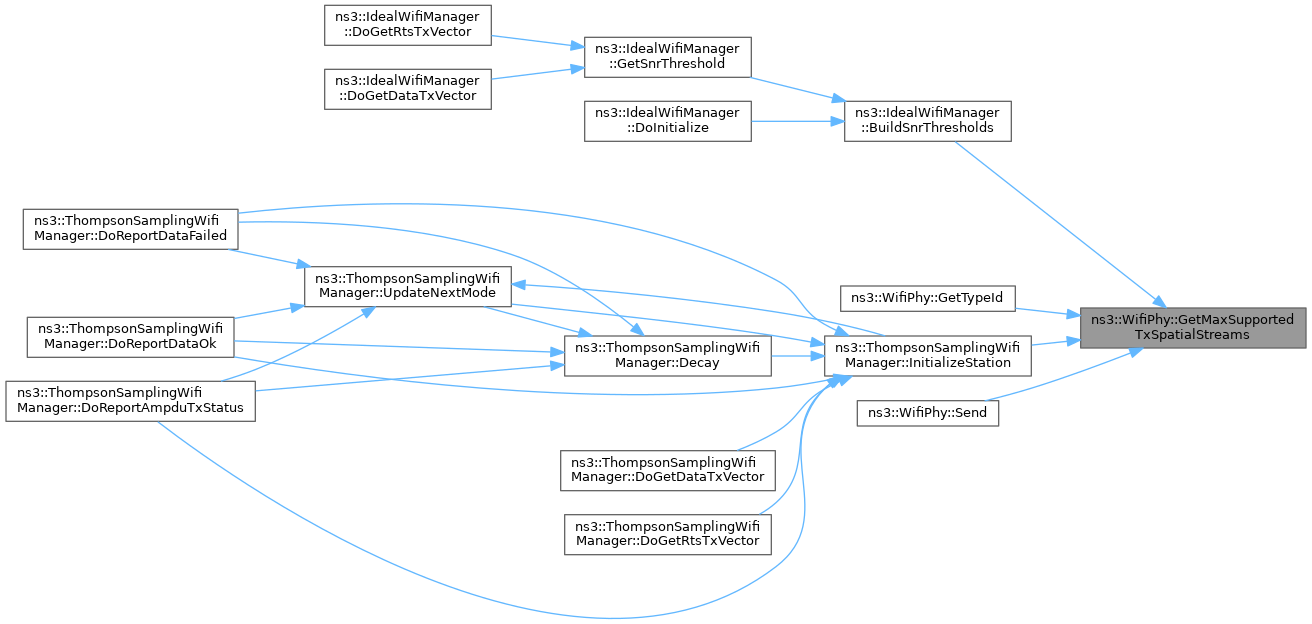

uint8_t GetMaxSupportedTxSpatialStreams () const

WifiMode GetMcs (WifiModulationClass modulation, uint8_t mcs) const
 Get the WifiMode object corresponding to the given MCS of the given modulation class.

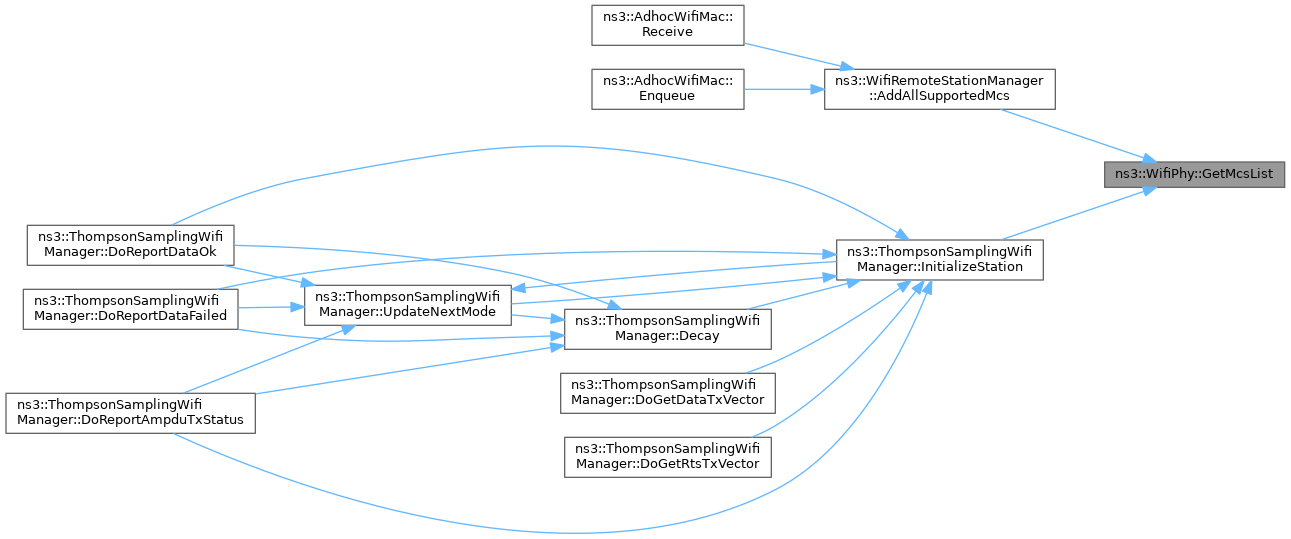

std::list< WifiModeGetMcsList () const
 The WifiPhy::GetMcsList() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception MCS indices that this WifiPhy(-derived class) can support - a set of MCS indices which is stored by each HT PHY (and above).

std::list< WifiModeGetMcsList (WifiModulationClass modulation) const
 Get the list of supported MCSs for the given modulation class (i.e.

Ptr< MobilityModelGetMobility () const
 Return the mobility model this PHY is associated with.

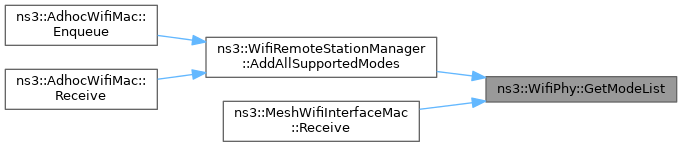

std::list< WifiModeGetModeList () const
 The WifiPhy::GetModeList() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception (non-MCS) modes that this WifiPhy(-derived class) can support - a set of modes which is stored by each non-HT PHY.

std::list< WifiModeGetModeList (WifiModulationClass modulation) const
 Get the list of supported (non-MCS) modes for the given modulation class (i.e.

uint16_t GetNMcs () const

uint8_t GetNTxPower () const
 Return the number of available transmission power levels.

uint8_t GetNumberOfAntennas () const

const WifiPhyOperatingChannelGetOperatingChannel () const
 Get a const reference to the operating channel.

WifiPhyBand GetPhyBand () const
 Get the configured Wi-Fi band.

Ptr< PhyEntityGetPhyEntity (WifiModulationClass modulation) const
 Get the supported PHY entity corresponding to the modulation class.

Ptr< PhyEntityGetPhyEntity (WifiStandard standard) const
 Get the supported PHY entity corresponding to the wifi standard.

Ptr< PhyEntityGetPhyEntityForPpdu (const Ptr< const WifiPpdu > ppdu) const
 Get the supported PHY entity to use for a received PPDU.

Time GetPifs () const
 Return the PCF Interframe Space (PIFS) for this PHY.

double GetPowerDbm (uint8_t power) const
 Get the power of the given power level in dBm.

uint64_t GetPreviouslyRxPpduUid () const

uint8_t GetPrimary20Index () const

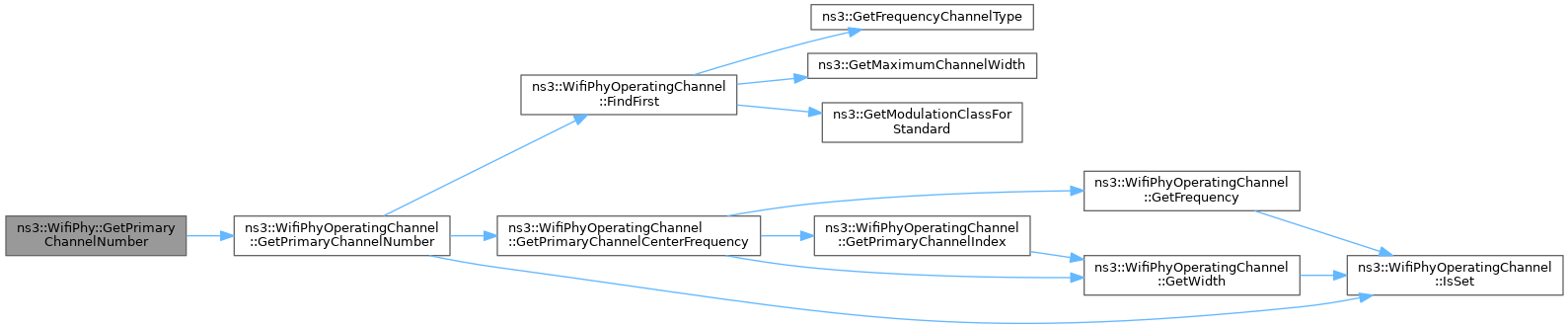

uint8_t GetPrimaryChannelNumber (uint16_t primaryChannelWidth) const
 Get channel number of the primary channel.

double GetRxGain () const
 Return the reception gain (dB).

double GetRxSensitivity () const
 Return the receive sensitivity threshold (dBm).

bool GetShortPhyPreambleSupported () const
 Return whether short PHY preamble is supported.

Time GetSifs () const
 Return the Short Interframe Space (SIFS) for this PHY.

Time GetSlot () const
 Return the slot duration for this PHY.

WifiStandard GetStandard () const
 Get the configured Wi-Fi standard.

Ptr< WifiPhyStateHelperGetState () const
 Return the WifiPhyStateHelper of this PHY.

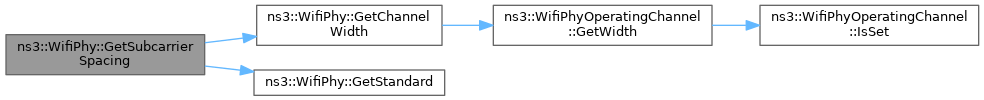

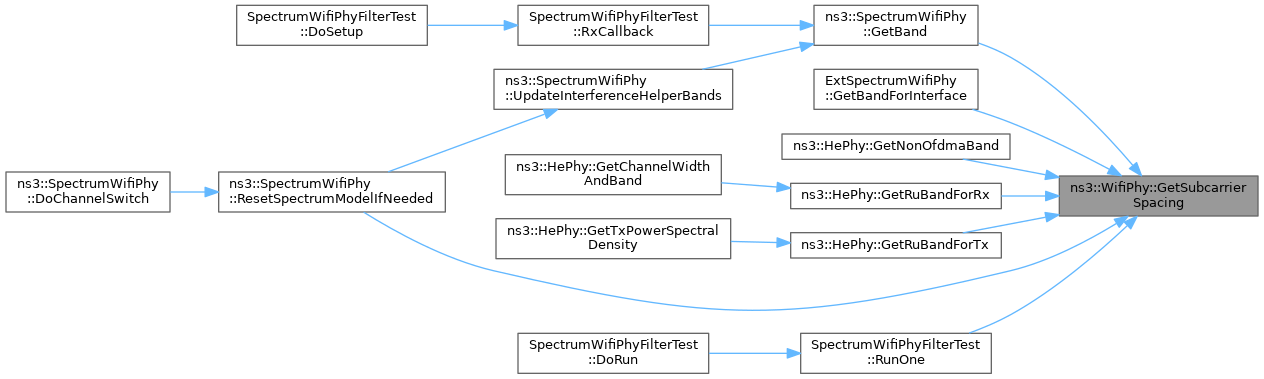

uint32_t GetSubcarrierSpacing () const

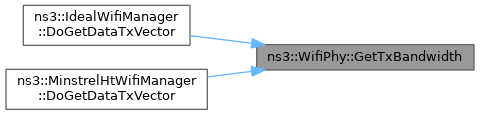

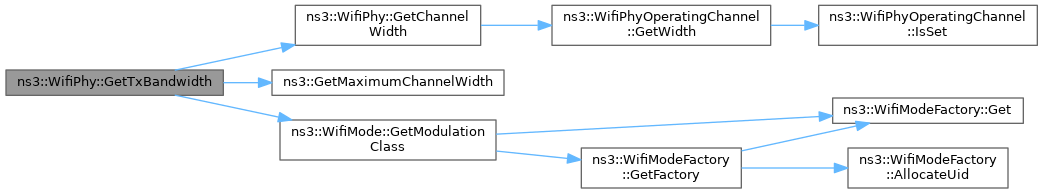

uint16_t GetTxBandwidth (WifiMode mode, uint16_t maxAllowedBandWidth=std::numeric_limits< uint16_t >::max()) const
 Get the bandwidth for a transmission occurring on the current operating channel and using the given WifiMode, subject to the constraint that the TX bandwidth cannot exceed the given maximum allowed value.

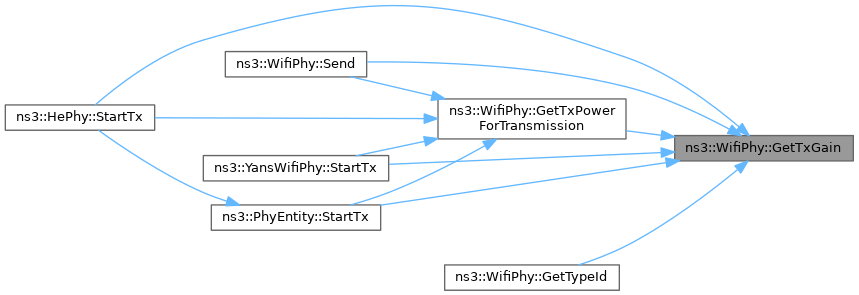

double GetTxGain () const
 Return the transmission gain (dB).

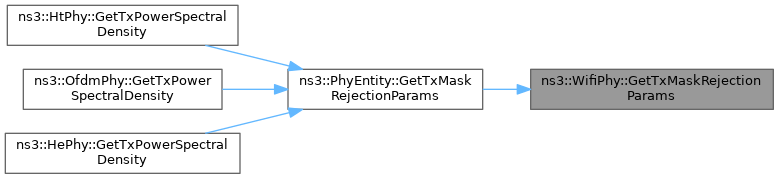

virtual std::tuple< double, double, doubleGetTxMaskRejectionParams () const =0

double GetTxPowerEnd () const
 Return the maximum available transmission power level (dBm).

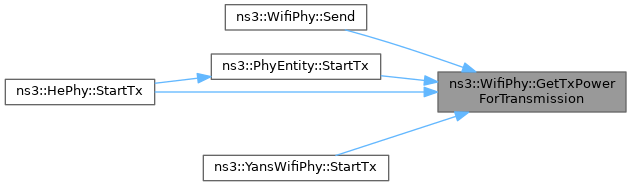

double GetTxPowerForTransmission (Ptr< const WifiPpdu > ppdu) const
 Compute the transmit power for the next transmission.

double GetTxPowerStart () const
 Return the minimum available transmission power level (dBm).

bool HasFixedPhyBand () const

bool IsMcsSupported (WifiModulationClass modulation, uint8_t mcs) const
 Check if the given MCS of the given modulation class is supported by the PHY.

bool IsModeSupported (WifiMode mode) const
 Check if the given WifiMode is supported by the PHY.

bool IsStateCcaBusy () const

bool IsStateIdle () const

bool IsStateOff () const

bool IsStateRx () const

bool IsStateSleep () const

bool IsStateSwitching () const

bool IsStateTx () const

void NotifyChannelAccessRequested ()
 Notify the PHY that an access to the channel was requested.

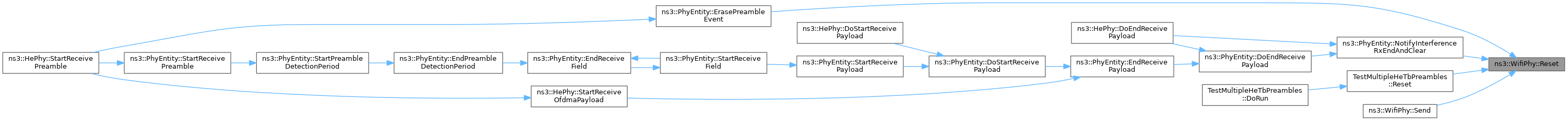

void NotifyMonitorSniffRx (Ptr< const WifiPsdu > psdu, uint16_t channelFreqMhz, WifiTxVector txVector, SignalNoiseDbm signalNoise, std::vector< bool > statusPerMpdu, uint16_t staId=SU_STA_ID)
 Public method used to fire a MonitorSniffer trace for a wifi PSDU being received.

void NotifyMonitorSniffTx (Ptr< const WifiPsdu > psdu, uint16_t channelFreqMhz, WifiTxVector txVector, uint16_t staId=SU_STA_ID)
 Public method used to fire a MonitorSniffer trace for a wifi PSDU being transmitted.

void NotifyRxBegin (Ptr< const WifiPsdu > psdu, const RxPowerWattPerChannelBand &rxPowersW)
 Public method used to fire a PhyRxBegin trace.

void NotifyRxDrop (Ptr< const WifiPsdu > psdu, WifiPhyRxfailureReason reason)
 Public method used to fire a PhyRxDrop trace.

void NotifyRxEnd (Ptr< const WifiPsdu > psdu)
 Public method used to fire a PhyRxEnd trace.

void NotifyTxBegin (WifiConstPsduMap psdus, double txPowerW)
 Public method used to fire a PhyTxBegin trace.

void NotifyTxDrop (Ptr< const WifiPsdu > psdu)
 Public method used to fire a PhyTxDrop trace.

void NotifyTxEnd (WifiConstPsduMap psdus)
 Public method used to fire a PhyTxEnd trace.

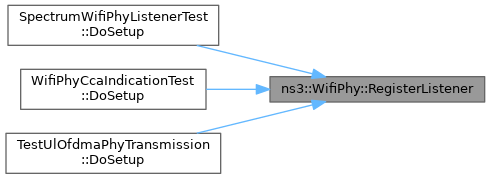

void RegisterListener (WifiPhyListener *listener)

void ResetCca (bool powerRestricted, double txPowerMaxSiso=0, double txPowerMaxMimo=0)
 Reset PHY to IDLE, with some potential TX power restrictions for the next transmission.

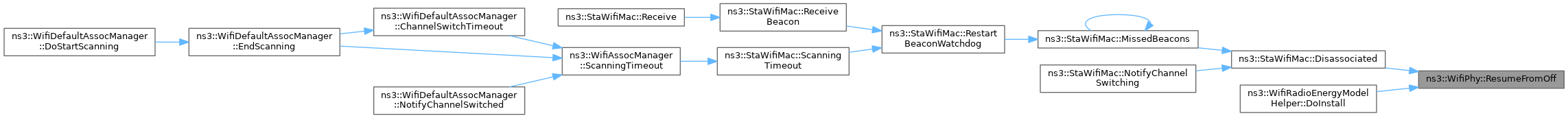

void ResumeFromOff ()
 Resume from off mode.

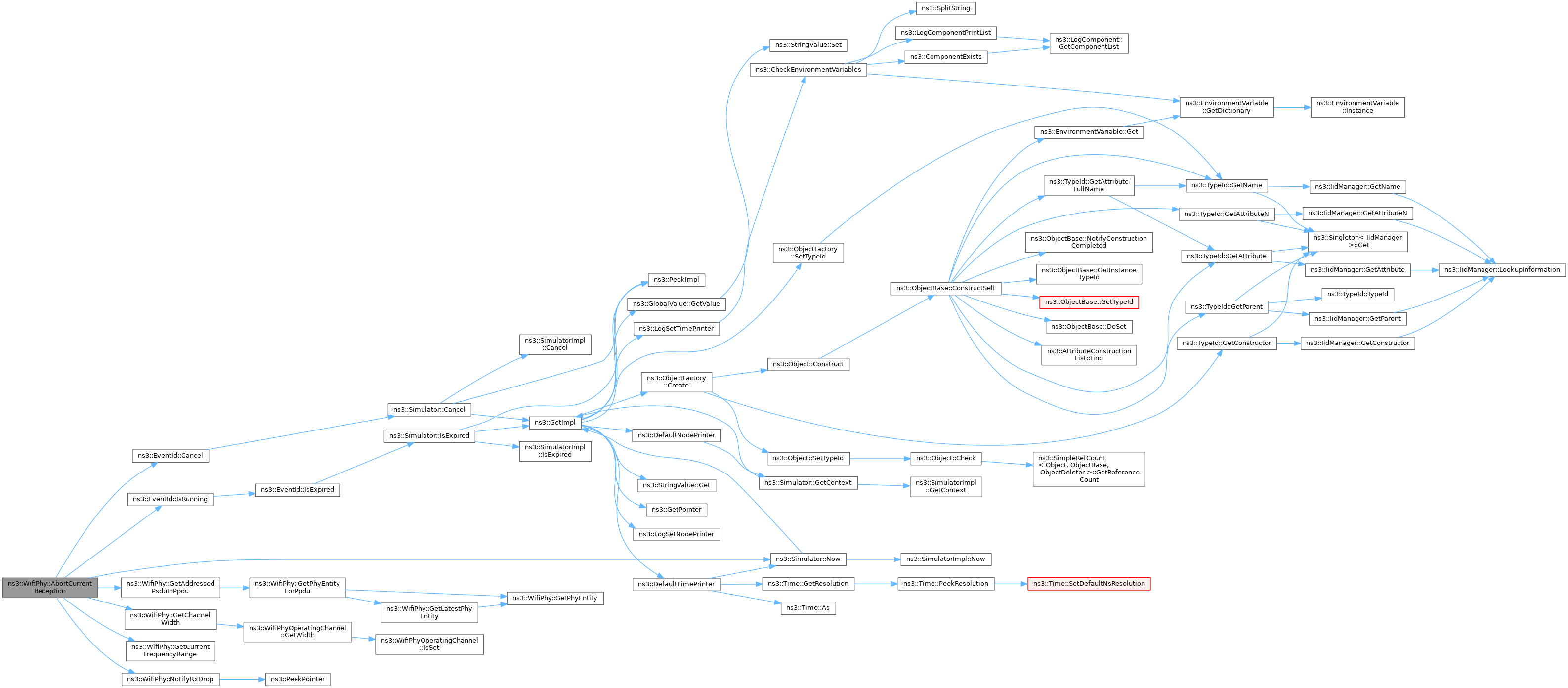

void ResumeFromSleep ()
 Resume from sleep mode.

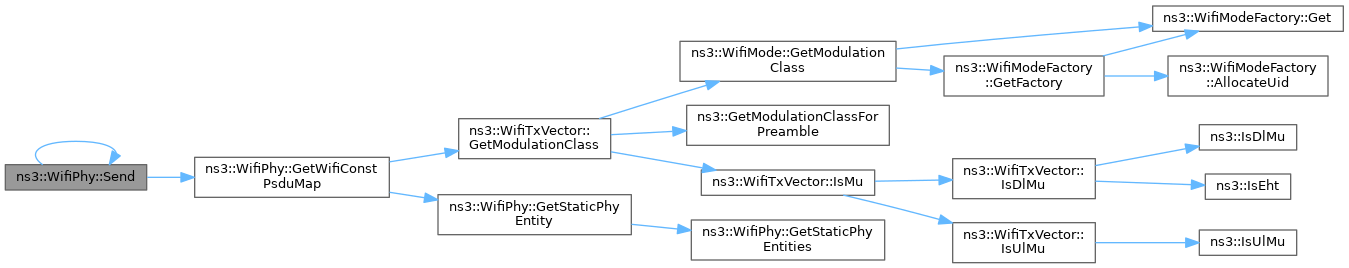

void Send (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector)
 This function is a wrapper for the Send variant that accepts a WifiConstPsduMap as first argument.

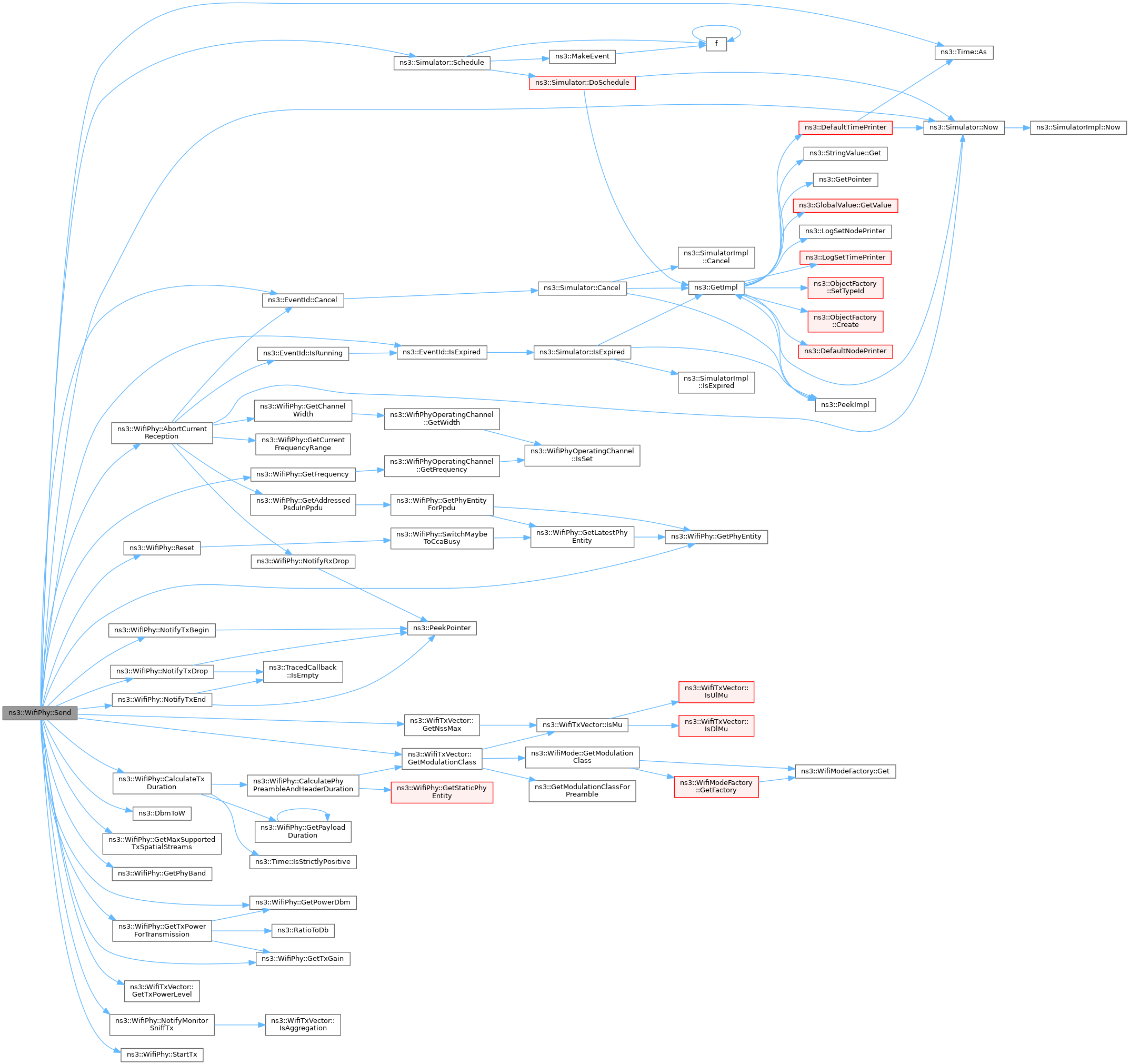

void Send (WifiConstPsduMap psdus, const WifiTxVector &txVector)

void SetCapabilitiesChangedCallback (Callback< void > callback)

void SetCcaEdThreshold (double threshold)
 Sets the CCA energy detection threshold (dBm).

void SetCcaSensitivityThreshold (double threshold)
 Sets the CCA sensitivity threshold (dBm).

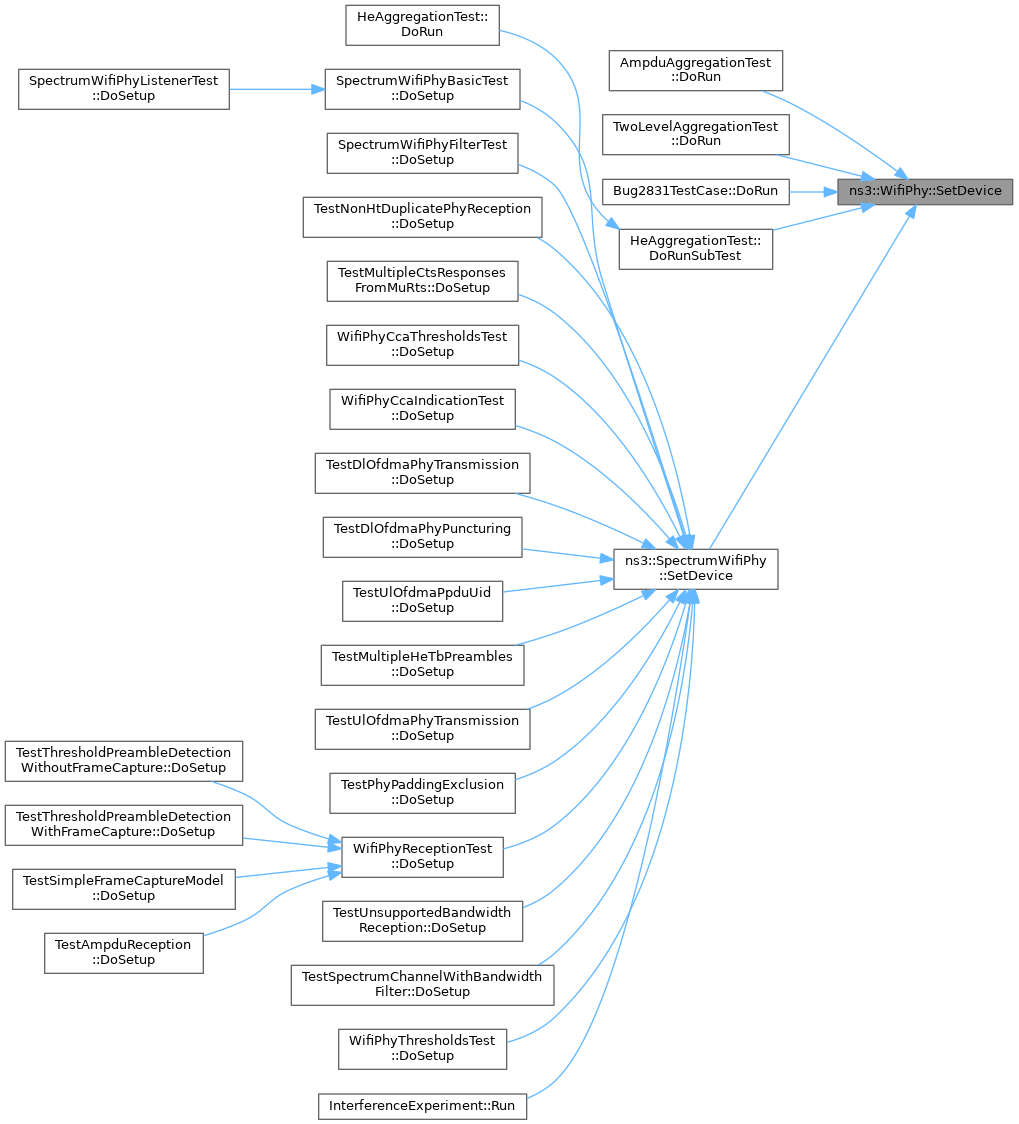

virtual void SetDevice (const Ptr< WifiNetDevice > device)
 Sets the device this PHY is associated with.

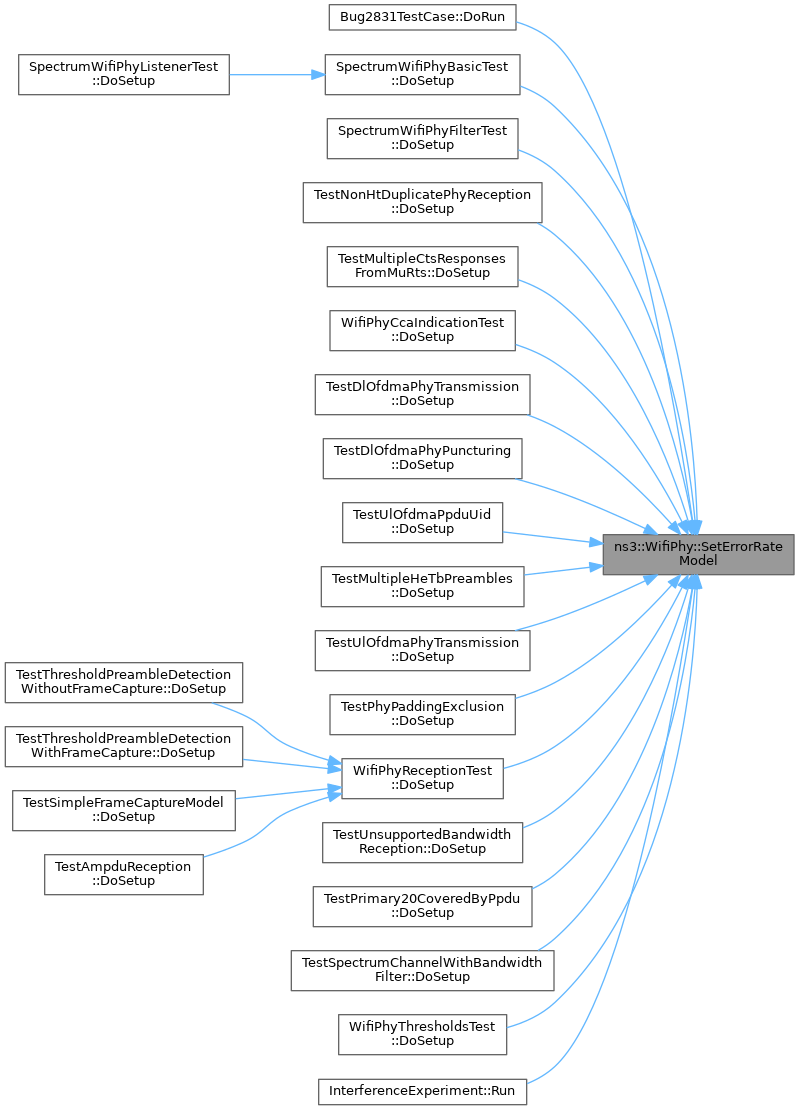

void SetErrorRateModel (const Ptr< ErrorRateModel > model)
 Sets the error rate model.

void SetFixedPhyBand (bool enable)
 Configure whether it is prohibited to change PHY band after initialization.

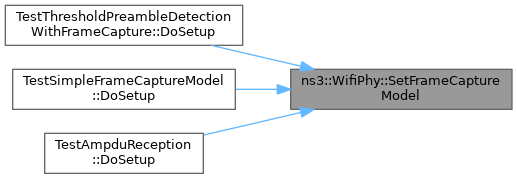

void SetFrameCaptureModel (const Ptr< FrameCaptureModel > frameCaptureModel)
 Sets the frame capture model.

virtual void SetInterferenceHelper (const Ptr< InterferenceHelper > helper)
 Sets the interference helper.

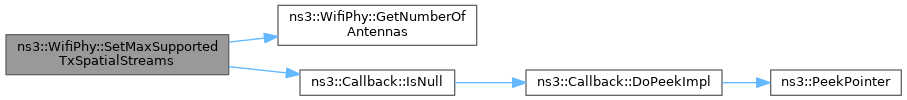

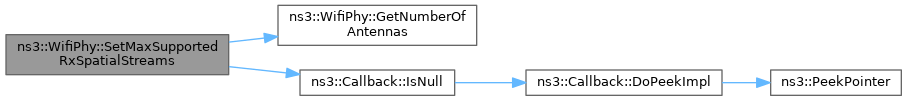

void SetMaxSupportedRxSpatialStreams (uint8_t streams)

void SetMaxSupportedTxSpatialStreams (uint8_t streams)

void SetMobility (const Ptr< MobilityModel > mobility)
 assign a mobility model to this device

void SetNTxPower (uint8_t n)
 Sets the number of transmission power levels available between the minimum level and the maximum level.

void SetNumberOfAntennas (uint8_t antennas)

void SetOffMode ()
 Put in off mode.

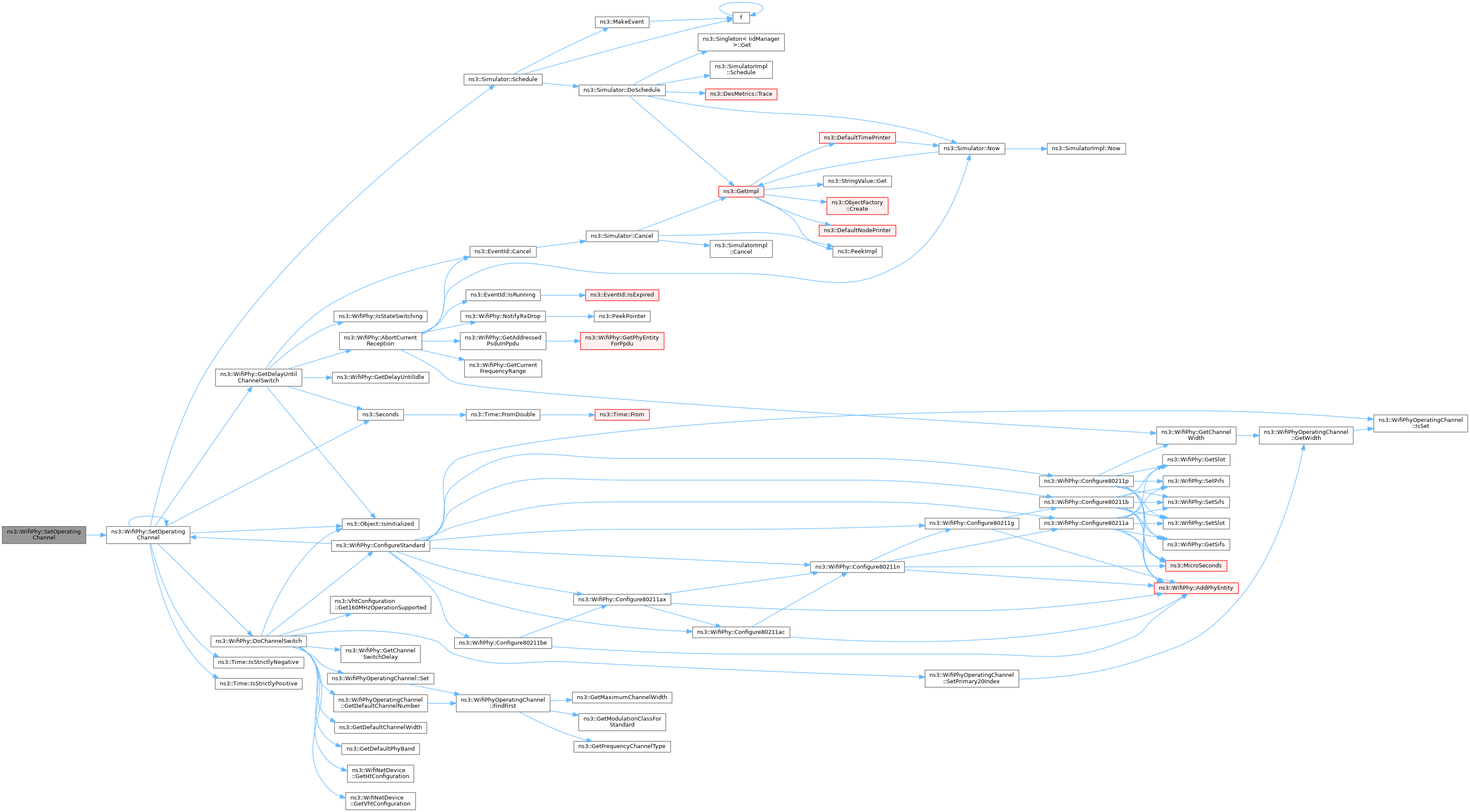

void SetOperatingChannel (const ChannelTuple &channelTuple)
 If the standard for this object has not been set yet, store the given channel settings.

void SetOperatingChannel (const WifiPhyOperatingChannel &channel)
 If the standard for this object has not been set yet, store the channel settings corresponding to the given operating channel.

void SetPifs (Time pifs)
 Set the PCF Interframe Space (PIFS) for this PHY.

void SetPostReceptionErrorModel (const Ptr< ErrorModel > em)
 Attach a receive ErrorModel to the WifiPhy.

void SetPreambleDetectionModel (const Ptr< PreambleDetectionModel > preambleDetectionModel)
 Sets the preamble detection model.

void SetReceiveErrorCallback (RxErrorCallback callback)

void SetReceiveOkCallback (RxOkCallback callback)

void SetRxGain (double gain)
 Sets the reception gain (dB).

void SetRxNoiseFigure (double noiseFigureDb)
 Sets the RX loss (dB) in the Signal-to-Noise-Ratio due to non-idealities in the receiver.

void SetRxSensitivity (double threshold)
 Sets the receive sensitivity threshold (dBm).

void SetShortPhyPreambleSupported (bool preamble)
 Enable or disable short PHY preamble.

void SetSifs (Time sifs)
 Set the Short Interframe Space (SIFS) for this PHY.

void SetSleepMode ()
 Put in sleep mode.

void SetSlot (Time slot)
 Set the slot duration for this PHY.

void SetTxGain (double gain)
 Sets the transmission gain (dB).

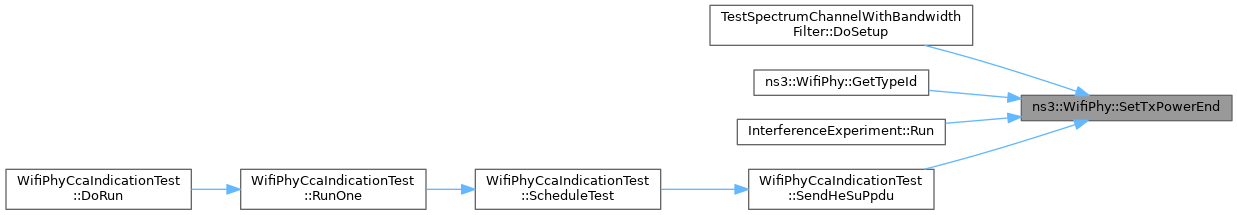

void SetTxPowerEnd (double end)
 Sets the maximum available transmission power level (dBm).

void SetTxPowerStart (double start)
 Sets the minimum available transmission power level (dBm).

void SetWifiRadioEnergyModel (const Ptr< WifiRadioEnergyModel > wifiRadioEnergyModel)
 Sets the wifi radio energy model.

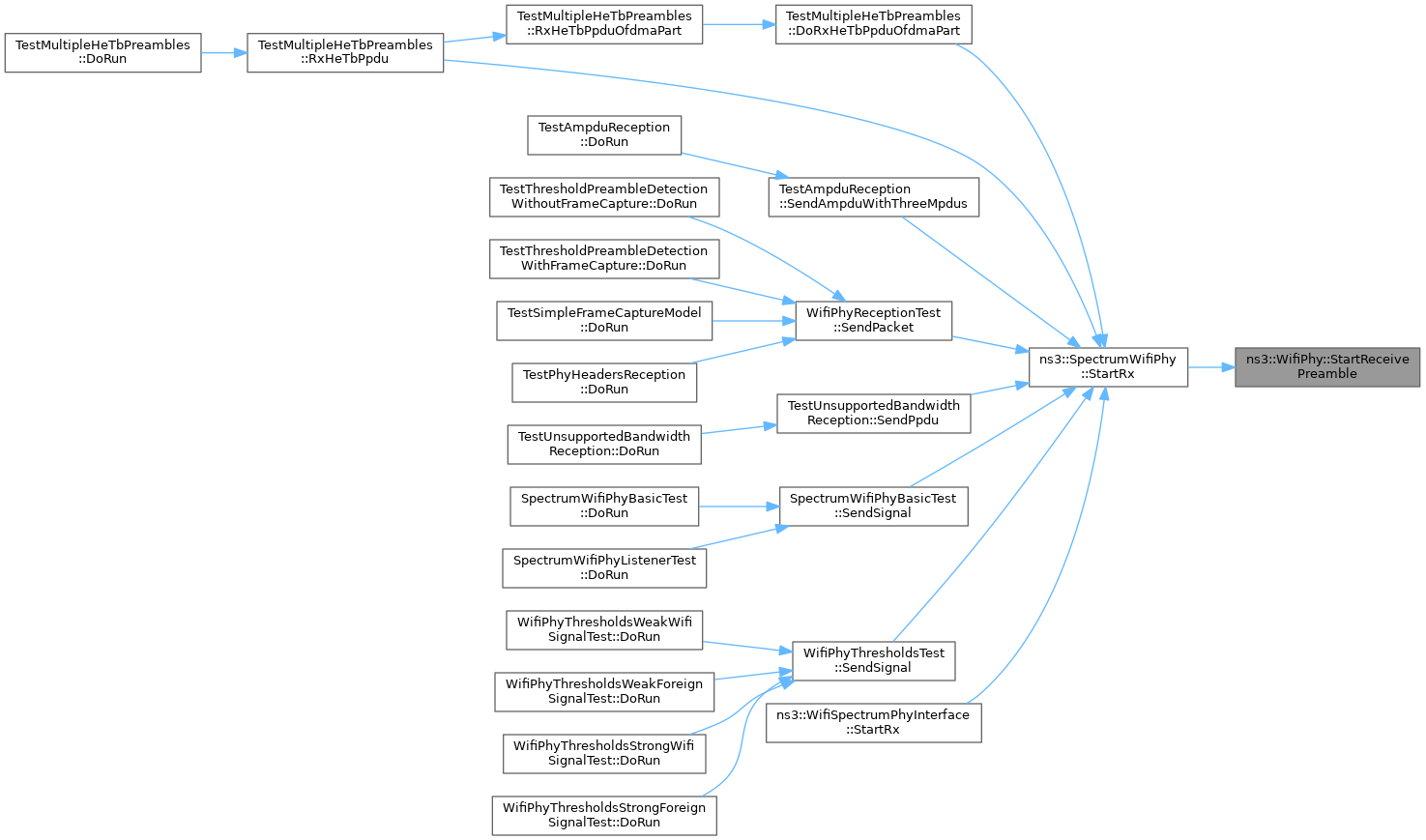

void StartReceivePreamble (Ptr< const WifiPpdu > ppdu, RxPowerWattPerChannelBand &rxPowersW, Time rxDuration)
 Start receiving the PHY preamble of a PPDU (i.e.

virtual void StartTx (Ptr< const WifiPpdu > ppdu)=0

void UnregisterListener (WifiPhyListener *listener)

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor.

 ~Object () override
 Destructor.

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together.

void Dispose ()
 Dispose of this Object.

AggregateIterator GetAggregateIterator () const
 Get an iterator to the Objects aggregated to this one.

TypeId GetInstanceTypeId () const override
 Get the most derived TypeId for this Object.

template<typename T >
Ptr< T > GetObject () const
 Get a pointer to the requested aggregated Object.

template<>
Ptr< ObjectGetObject () const
 Specialization of () for objects of type ns3::Object.

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId.

template<>
Ptr< ObjectGetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object.

void Initialize ()
 Invoke DoInitialize on all Objects aggregated to this one.

bool IsInitialized () const
 Check if the object has been initialized.

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor.

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor.

uint32_t GetReferenceCount () const
 Get the reference count of the object.

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator.

void Ref () const
 Increment the reference count.

void Unref () const
 Decrement the reference count.

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor.

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful.

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising errors.

virtual TypeId GetInstanceTypeId () const =0
 Get the most derived TypeId for this Object.

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful.

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors.

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context.

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context.

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context.

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context.


Static Public Member Functions

static void AddStaticPhyEntity (WifiModulationClass modulation, Ptr< PhyEntity > phyEntity)
 Add the PHY entity to the map of implemented PHY entities for the given modulation class.

static Time CalculatePhyPreambleAndHeaderDuration (const WifiTxVector &txVector)

static Time CalculateTxDuration (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector, WifiPhyBand band)
 This function is a wrapper for the CalculateTxDuration variant that accepts a WifiConstPsduMap as first argument.

static Time CalculateTxDuration (uint32_t size, const WifiTxVector &txVector, WifiPhyBand band, uint16_t staId=SU_STA_ID)

static Time CalculateTxDuration (WifiConstPsduMap psduMap, const WifiTxVector &txVector, WifiPhyBand band)

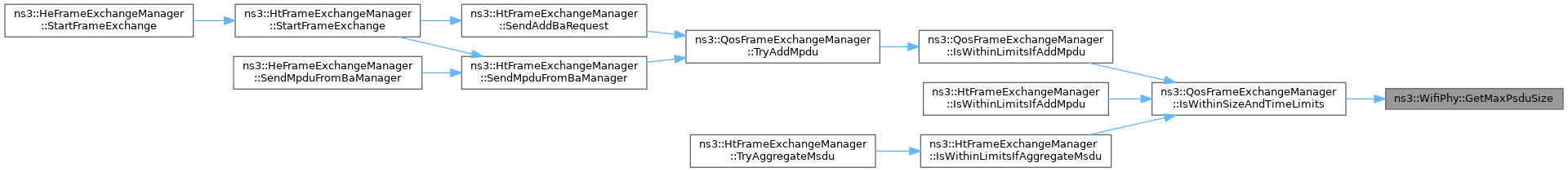

static uint32_t GetMaxPsduSize (WifiModulationClass modulation)
 Get the maximum PSDU size in bytes for the given modulation class.

static Time GetPayloadDuration (uint32_t size, const WifiTxVector &txVector, WifiPhyBand band, MpduType mpdutype, bool incFlag, uint32_t &totalAmpduSize, double &totalAmpduNumSymbols, uint16_t staId)

static Time GetPayloadDuration (uint32_t size, const WifiTxVector &txVector, WifiPhyBand band, MpduType mpdutype=NORMAL_MPDU, uint16_t staId=SU_STA_ID)

static Time GetPreambleDetectionDuration ()

static Time GetStartOfPacketDuration (const WifiTxVector &txVector)

static const Ptr< const PhyEntityGetStaticPhyEntity (WifiModulationClass modulation)
 Get the implemented PHY entity corresponding to the modulation class.

static TypeId GetTypeId ()
 Get the type ID.

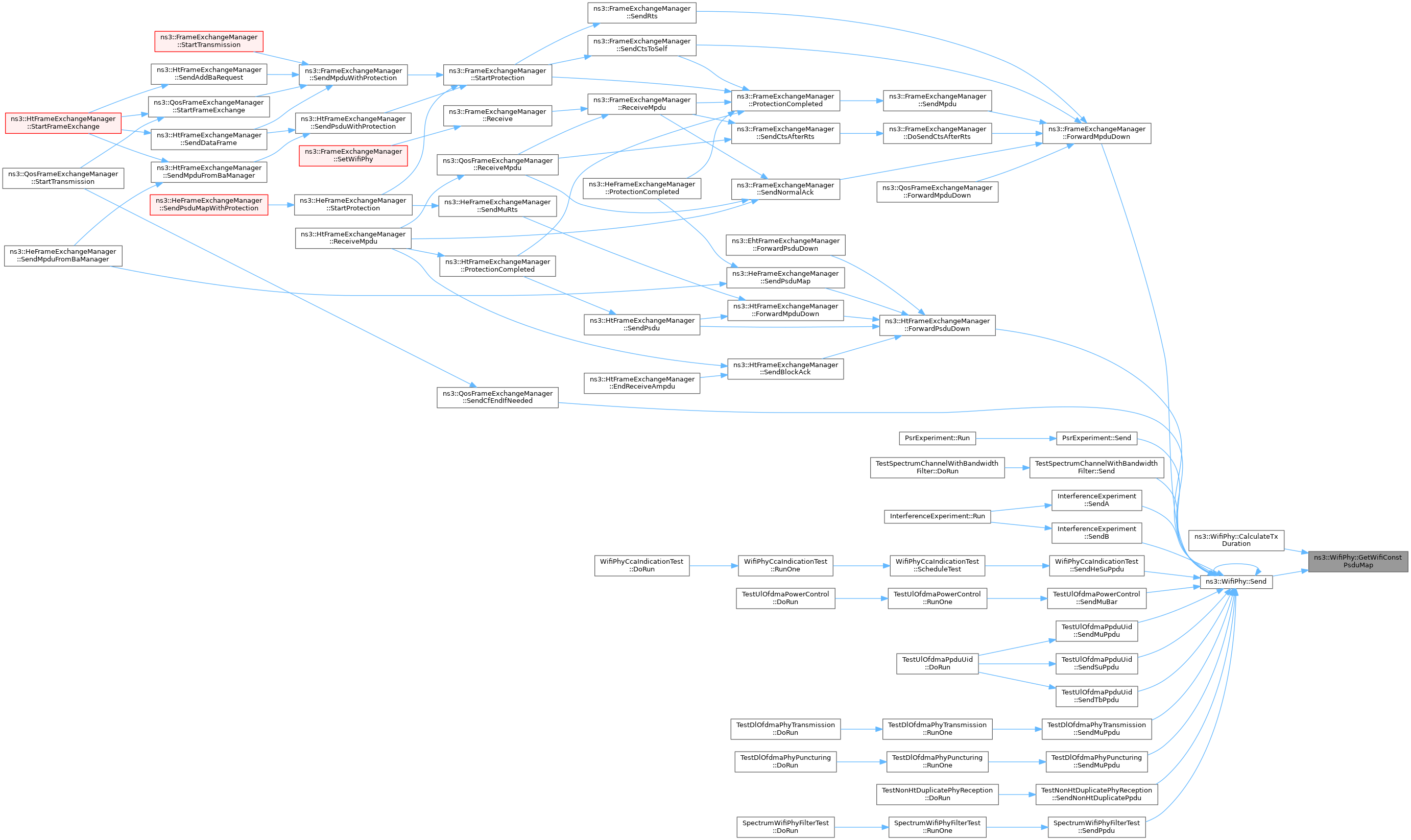

static WifiConstPsduMap GetWifiConstPsduMap (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector)
 Get a WifiConstPsduMap from a PSDU and the TXVECTOR to use to send the PSDU.

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId ()
 Register this type.

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId ()
 Get the type ID.


Protected Member Functions

void AddPhyEntity (WifiModulationClass modulation, Ptr< PhyEntity > phyEntity)
 Add the PHY entity to the map of supported PHY entities for the given modulation class for the WifiPhy instance.

virtual void DoChannelSwitch ()
 Actually switch channel based on the stored channel settings.

void DoDispose () override
 Destructor implementation.

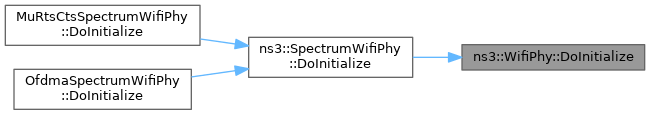

void DoInitialize () override
 Initialize() implementation.

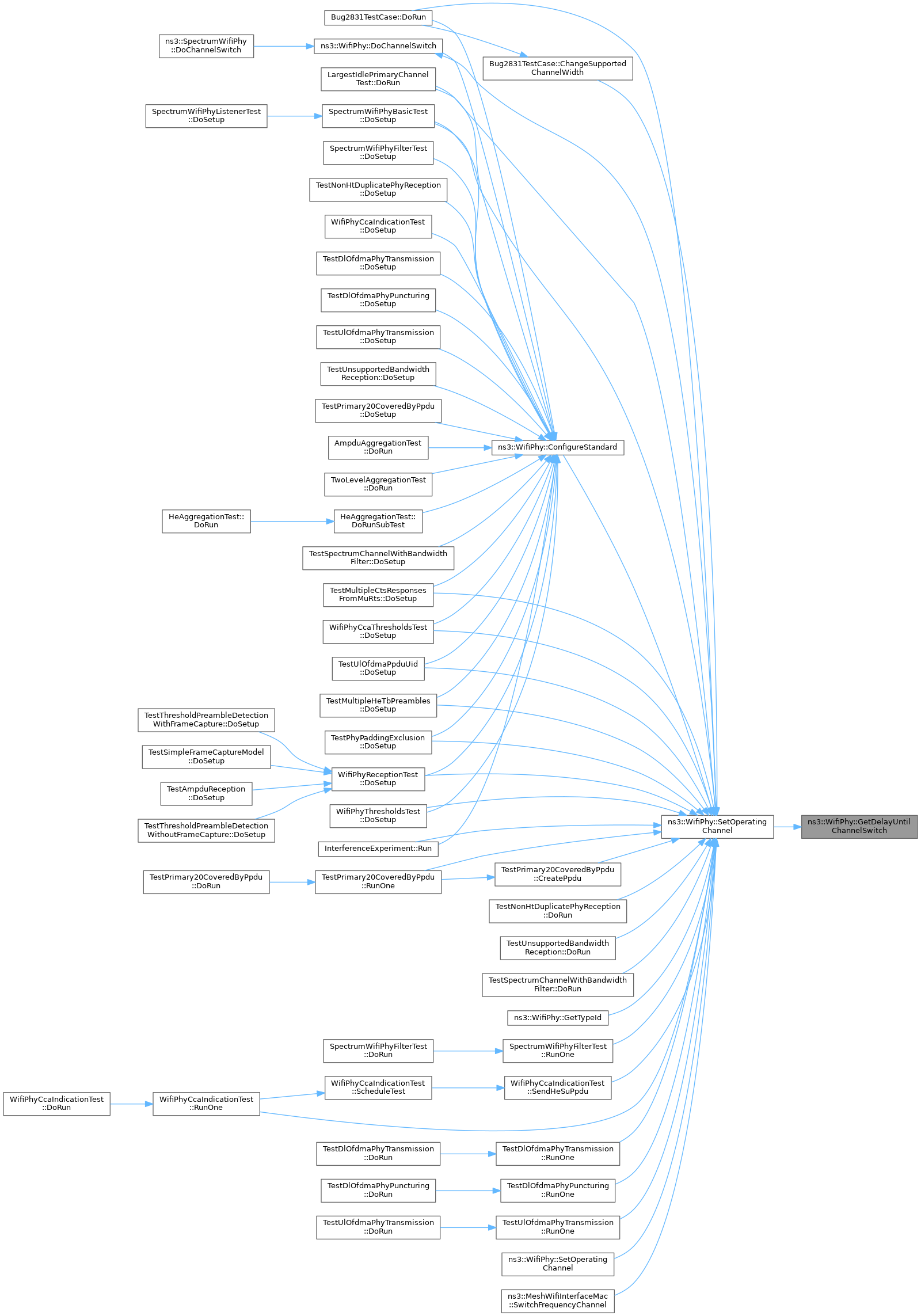

Time GetDelayUntilChannelSwitch ()
 Perform any actions necessary when user changes operating channel after initialization.

void NotifyCcaBusy (const Ptr< const WifiPpdu > ppdu, Time duration)
 Notify PHY state helper to switch to CCA busy state,.

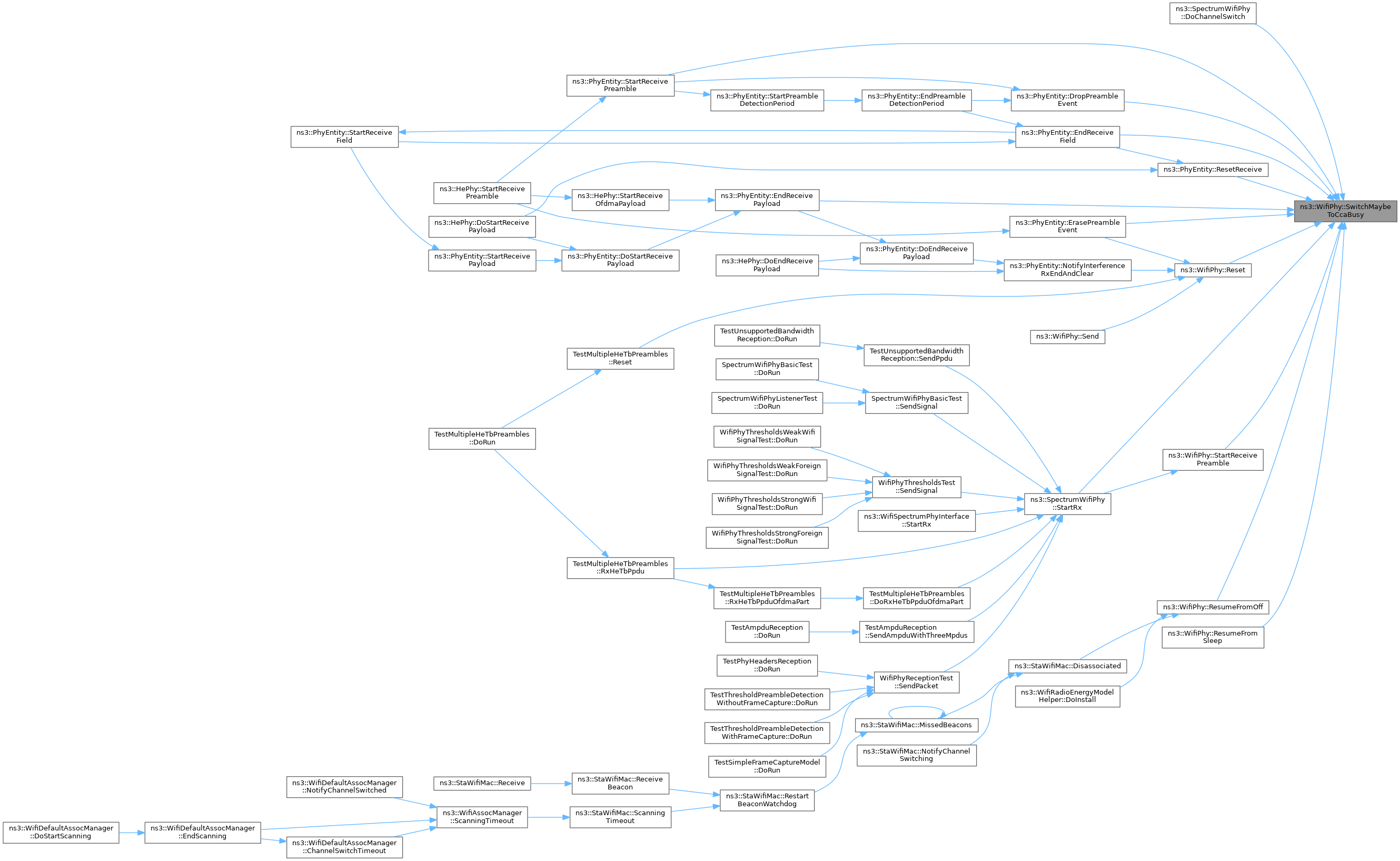

void Reset ()
 Reset data upon end of TX or RX.

void SwitchMaybeToCcaBusy (const Ptr< const WifiPpdu > ppdu)
 Check if PHY state should move to CCA busy state based on current state of interference tracker.

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object.

virtual void DoDispose ()
 Destructor implementation.

virtual void DoInitialize ()
 Initialize() implementation.

virtual void NotifyNewAggregate ()
 Notify all Objects aggregated to this one of a new Object being aggregated.

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes.

virtual void NotifyConstructionCompleted ()
 Notifier called once the ObjectBase is fully constructed.


Protected Attributes

Ptr< Eventm_currentEvent
 Hold the current event.

std::map< std::pair< uint64_t, WifiPreamble >, Ptr< Event > > m_currentPreambleEvents
 store event associated to a PPDU (that has a unique ID and preamble combination) whose preamble is being received

EventId m_endPhyRxEvent
 the end of PHY receive event

EventId m_endTxEvent
 the end of transmit event

Ptr< InterferenceHelperm_interference
 Pointer to a helper responsible for interference computations.

std::map< WifiModulationClass, Ptr< PhyEntity > > m_phyEntities
 This map holds the supported PHY entities.

uint64_t m_previouslyRxPpduUid
 UID of the previously received PPDU, reset to UINT64_MAX upon transmission.

Ptr< UniformRandomVariablem_random
 Provides uniform random variables.

uint32_t m_rxMpduReferenceNumber
 A-MPDU reference number to identify all received subframes belonging to the same received A-MPDU.

Ptr< WifiPhyStateHelperm_state
 Pointer to WifiPhyStateHelper.

uint32_t m_txMpduReferenceNumber
 A-MPDU reference number to identify all transmitted subframes belonging to the same received A-MPDU.


Private Member Functions

void AbortCurrentReception (WifiPhyRxfailureReason reason)
 Due to newly arrived signal, the current reception cannot be continued and has to be aborted.

void Configure80211a ()
 Configure WifiPhy with appropriate channel frequency and supported rates for 802.11a standard.

void Configure80211ac ()
 Configure WifiPhy with appropriate channel frequency and supported rates for 802.11ac standard.

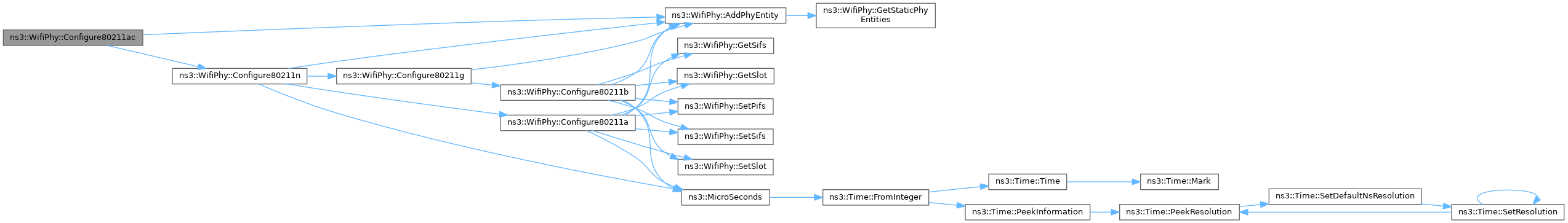

void Configure80211ax ()
 Configure WifiPhy with appropriate channel frequency and supported rates for 802.11ax standard.

void Configure80211b ()
 Configure WifiPhy with appropriate channel frequency and supported rates for 802.11b standard.

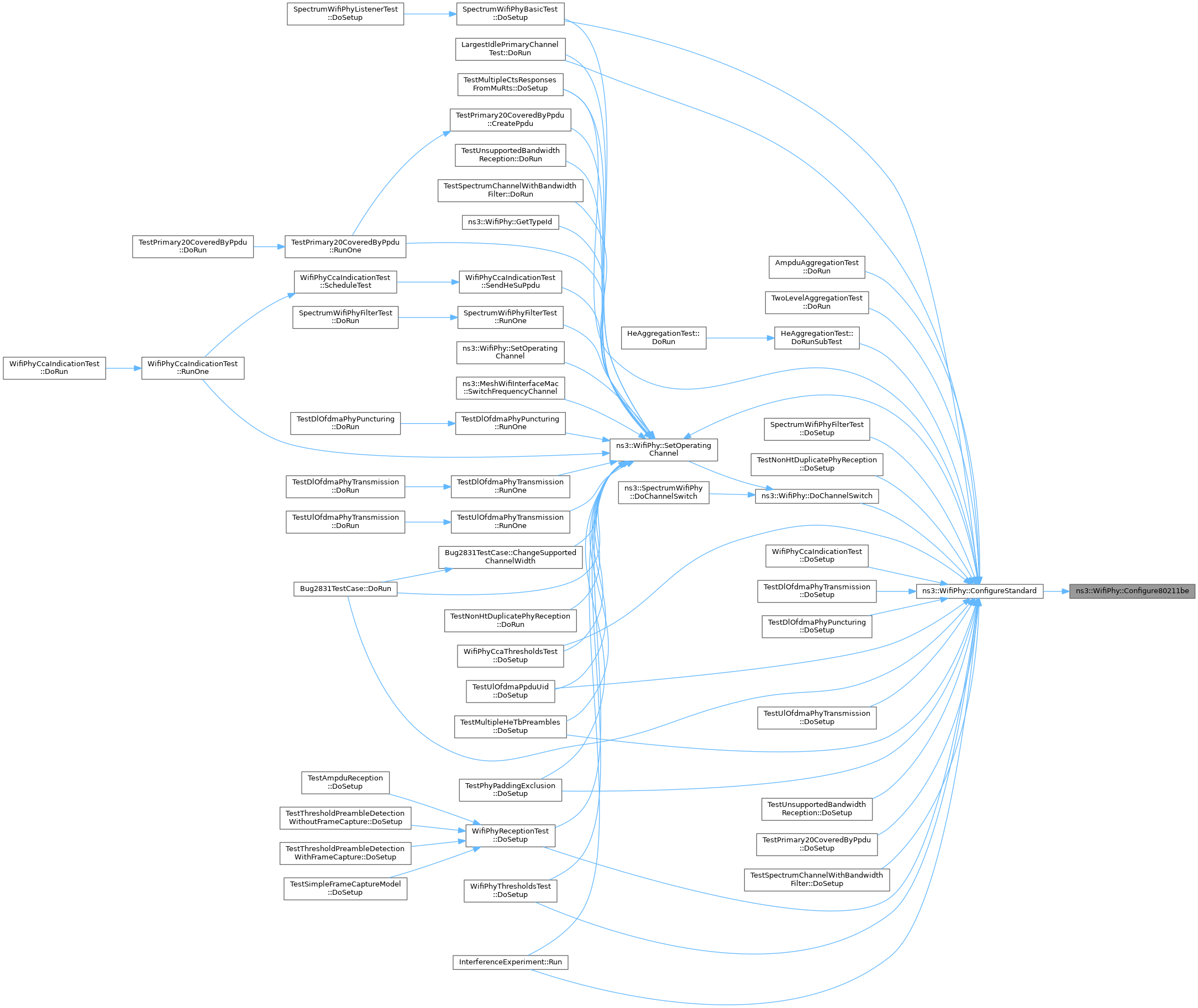

void Configure80211be ()
 Configure WifiPhy with appropriate channel frequency and supported rates for 802.11be standard.

void Configure80211g ()
 Configure WifiPhy with appropriate channel frequency and supported rates for 802.11g standard.

void Configure80211n ()
 Configure WifiPhy with appropriate channel frequency and supported rates for 802.11n standard.

void Configure80211p ()
 Configure WifiPhy with appropriate channel frequency and supported rates for 802.11p standard.

void ConfigureHtDeviceMcsSet ()
 Configure the device MCS set with the appropriate HtMcs modes for the number of available transmit spatial streams.

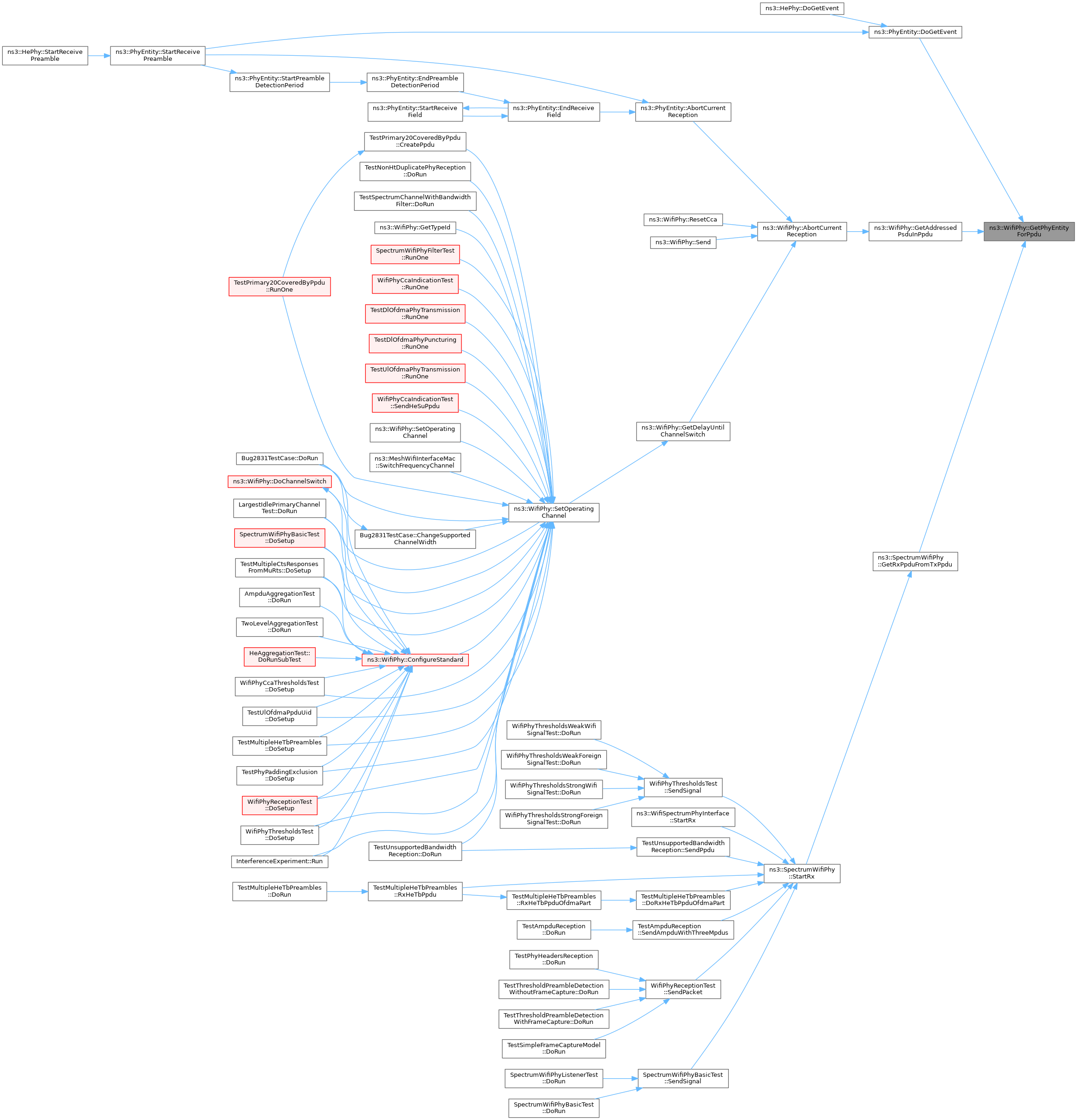

Ptr< const WifiPsduGetAddressedPsduInPpdu (Ptr< const WifiPpdu > ppdu) const
 Get the PSDU addressed to that PHY in a PPDU (useful for MU PPDU).

void PushMcs (WifiMode mode)
 Add the given MCS to the device MCS set.

void RebuildMcsMap ()
 Rebuild the mapping of MCS values to indices in the device MCS set.


Static Private Member Functions

static std::map< WifiModulationClass, Ptr< PhyEntity > > & GetStaticPhyEntities ()


Private Attributes

Time m_ackTxTime
 estimated Ack TX time

WifiPhyBand m_band
 WifiPhyBand.

Time m_blockAckTxTime
 estimated BlockAck TX time

Callback< void > m_capabilitiesChangedCallback
 Callback when PHY capabilities changed.

double m_ccaEdThresholdW
 Clear channel assessment (CCA) energy detection (ED) threshold in watts.

double m_ccaSensitivityThresholdW
 Clear channel assessment (CCA) modulation and coding rate sensitivity threshold in watts.

bool m_channelAccessRequested
 Flag if channels access has been requested (used for OBSS_PD SR)

ChannelTuple m_channelSettings
 Store operating channel settings until initialization.

Time m_channelSwitchDelay
 Time required to switch between channel.

Ptr< WifiNetDevicem_device
 Pointer to the device.

bool m_fixedPhyBand
 True to prohibit changing PHY band after initialization.

Ptr< FrameCaptureModelm_frameCaptureModel
 Frame capture model.

Ptr< MobilityModelm_mobility
 Pointer to the mobility model.

double m_noiseFigureDb
 The noise figure in dB.

uint8_t m_nTxPower
 Number of available transmission power levels.

uint8_t m_numberOfAntennas
 Number of transmitters.

WifiPhyOperatingChannel m_operatingChannel
 Operating channel.

TracedCallback< Ptr< const Packet >, uint16_t, WifiTxVector, MpduInfo, SignalNoiseDbm, uint16_t > m_phyMonitorSniffRxTrace
 A trace source that emulates a Wi-Fi device in monitor mode sniffing a packet being received.

TracedCallback< Ptr< const Packet >, uint16_t, WifiTxVector, MpduInfo, uint16_t > m_phyMonitorSniffTxTrace
 A trace source that emulates a Wi-Fi device in monitor mode sniffing a packet being transmitted.

TracedCallback< Ptr< const Packet >, RxPowerWattPerChannelBandm_phyRxBeginTrace
 The trace source fired when a packet begins the reception process from the medium.

TracedCallback< Ptr< const Packet >, WifiPhyRxfailureReasonm_phyRxDropTrace
 The trace source fired when the PHY layer drops a packet it has received.

TracedCallback< Ptr< const Packet > > m_phyRxEndTrace
 The trace source fired when a packet ends the reception process from the medium.

TracedCallback< WifiTxVector, Timem_phyRxPayloadBeginTrace
 The trace source fired when the reception of the PHY payload (PSDU) begins.

TracedCallback< Ptr< const Packet >, doublem_phyTxBeginTrace
 The trace source fired when a packet begins the transmission process on the medium.

TracedCallback< Ptr< const Packet > > m_phyTxDropTrace
 The trace source fired when the PHY layer drops a packet as it tries to transmit it.

TracedCallback< Ptr< const Packet > > m_phyTxEndTrace
 The trace source fired when a packet ends the transmission process on the medium.

TracedCallback< WifiConstPsduMap, WifiTxVector, doublem_phyTxPsduBeginTrace
 The trace source fired when a PSDU map begins the transmission process on the medium.

Time m_pifs
 PCF Interframe Space (PIFS) duration.

Ptr< ErrorModelm_postReceptionErrorModel
 Error model for receive packet events.

double m_powerDensityLimit
 the power density limit (dBm/MHz)

bool m_powerRestricted
 Flag whether transmit power is restricted by OBSS PD SR.

Ptr< PreambleDetectionModelm_preambleDetectionModel
 Preamble detection model.

double m_rxGainDb
 Reception gain (dB)

double m_rxSensitivityW
 Receive sensitivity threshold in watts.

uint8_t m_rxSpatialStreams
 Number of supported RX spatial streams.

bool m_shortPreamble
 Flag if short PHY preamble is supported.

Time m_sifs
 Short Interframe Space (SIFS) duration.

Time m_slot
 Slot duration.

WifiStandard m_standard
 WifiStandard.

Time m_timeLastPreambleDetected
 Record the time the last preamble was detected.

double m_txGainDb
 Transmission gain (dB)

double m_txPowerBaseDbm
 Minimum transmission power (dBm)

double m_txPowerEndDbm
 Maximum transmission power (dBm)

double m_txPowerMaxMimo
 MIMO maximum transmit power due to OBSS PD SR power restriction (dBm)

double m_txPowerMaxSiso
 SISO maximum transmit power due to OBSS PD SR power restriction (dBm)

uint8_t m_txSpatialStreams
 Number of supported TX spatial streams.

Ptr< WifiRadioEnergyModelm_wifiRadioEnergyModel
 Wifi radio energy model.


Friends

class PhyEntity


Additional Inherited Members

Detailed Description

802.11 PHY layer model

Config Paths

ns3::WifiPhy is accessible through the following paths with Config::Set and Config::Connect:

  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phys/[i]"

Attributes

  • Antennas: The number of antennas on the device.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint8_t 1:8
    • Initial value: 1
    • Flags: constructwriteread
  • CcaEdThreshold: The energy of all received signals should be higher than this threshold (dBm) in the primary channel to allow the PHY layer to declare CCA BUSY state.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: -62
    • Flags: constructwriteread
  • CcaSensitivity: The energy of a received wifi signal should be higher than this threshold (dBm) in the primary channel to allow the PHY layer to declare CCA BUSY state.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: -82
    • Flags: constructwriteread
  • Channel: The channel attached to this PHY
  • ChannelNumber: The channel number of the current operating channel.
  • ChannelSettings: Tuple {channel number, channel width (MHz), PHY band, primary20 index} describing the settings of the operating channel. The primary20 index is the index of the primary 20 MHz channel within the operating channel (0 indicates the 20 MHz subchannel with the lowest center frequency) and is only valid if the width of the operating channel is a multiple of 20 MHz. If the standard for this object has not been set yet, the value of this attribute is saved and will be used to set the operating channel when the standard is configured. If the PHY band is left unspecified, the default band for the configured standard is used. If the channel width and the channel number are both 0, the default channel width for the configured standard and band are used. If the channel number is 0, the default channel number for the configured standard, band and channel width is used.Note that the channel width can be left unspecified (0) if the channel number uniquely identify a frequency channel for the given standard and band.
    • Set with class: ns3::TupleValue
    • Initial value: {0, 0, BAND_UNSPECIFIED, 0}
    • Flags: constructwrite
  • ChannelSwitchDelay: Delay between two short frames transmitted on different frequencies.
    • Set with class: ns3::TimeValue
    • Underlying type: Time +0ns:+9.22337e+18ns
    • Initial value: +250000ns
    • Flags: constructwriteread
  • ChannelWidth: The width in MHz of the current operating channel (5, 10, 20, 22, 40, 80 or 160).
  • FixedPhyBand: If set to true, changing PHY band is prohibited after initialization.
    • Set with class: ns3::BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: constructwriteread
  • FrameCaptureModel: Ptr to an object that implements the frame capture model
  • Frequency: The center frequency (MHz) of the current operating channel.
  • InterferenceHelper: Ptr to an object that implements the interference helper
  • MaxSupportedRxSpatialStreams: The maximum number of supported RX spatial streams.This parameter is only valuable for 802.11n/ac/ax STAs and APs.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint8_t 1:8
    • Initial value: 1
    • Flags: constructwriteread
  • MaxSupportedTxSpatialStreams: The maximum number of supported TX spatial streams.This parameter is only valuable for 802.11n/ac/ax STAs and APs.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint8_t 1:8
    • Initial value: 1
    • Flags: constructwriteread
  • Pifs: The duration of the PCF Interframe Space. NOTE that the default value is overwritten by the value defined by the standard; if you want to set this attribute, you have to do it after that the PHY object is initialized.
    • Set with class: ns3::TimeValue
    • Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
    • Initial value: +0ns
    • Flags: constructwriteread
  • PostReceptionErrorModel: An optional packet error model can be added to the receive packet process after any propagation-based (SNR-based) error models have been applied. Typically this is used to force specific packet drops, for testing purposes.
  • PowerDensityLimit: The mean equivalent isotropically radiated power densitylimit (in dBm/MHz) set by regulators.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 100
    • Flags: constructwriteread
  • PreambleDetectionModel: Ptr to an object that implements the preamble detection model
  • Primary20MHzIndex: The index of the primary 20 MHz channel within the current operating channel (0 indicates the 20 MHz subchannel with the lowest center frequency).
  • RxGain: Reception gain (dB).
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0
    • Flags: constructwriteread
  • RxNoiseFigure: Loss (dB) in the Signal-to-Noise-Ratio due to non-idealities in the receiver. According to Wikipedia (http://en.wikipedia.org/wiki/Noise_figure), this is "the difference in decibels (dB) between the noise output of the actual receiver to the noise output of an ideal receiver with the same overall gain and bandwidth when the receivers are connected to sources at the standard noise temperature T0 (usually 290 K)".
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 7
    • Flags: constructwrite
  • RxSensitivity: The energy of a received signal should be higher than this threshold (dBm) for the PHY to detect the signal. This threshold refers to a width of 20 MHz and will be scaled to match the width of the received signal.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: -101
    • Flags: constructwriteread
  • ShortPlcpPreambleSupported: Whether or not short PHY preamble is supported.This parameter is only valuable for 802.11b STAs and APs.Note: 802.11g APs and STAs always support short PHY preamble.
    • Set with class: ns3::BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: constructwriteread
  • Sifs: The duration of the Short Interframe Space. NOTE that the default value is overwritten by the value defined by the standard; if you want to set this attribute, you have to do it after that the PHY object is initialized.
    • Set with class: ns3::TimeValue
    • Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
    • Initial value: +0ns
    • Flags: constructwriteread
  • Slot: The duration of a slot. NOTE that the default value is overwritten by the value defined by the standard; if you want to set this attribute, you have to do it after that the PHY object is initialized.
    • Set with class: ns3::TimeValue
    • Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
    • Initial value: +0ns
    • Flags: constructwriteread
  • State: The state of the PHY layer.
  • TxGain: Transmission gain (dB).
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0
    • Flags: constructwriteread
  • TxPowerEnd: Maximum available transmission level (dBm).
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 16.0206
    • Flags: constructwriteread
  • TxPowerLevels: Number of transmission power levels available between TxPowerStart and TxPowerEnd included.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint8_t 0:255
    • Initial value: 1
    • Flags: constructwriteread
  • TxPowerStart: Minimum available transmission level (dBm).
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 16.0206
    • Flags: constructwriteread

TraceSources

  • MonitorSnifferRx: Trace source simulating a wifi device in monitor mode sniffing all received frames
    Callback signature: ns3::WifiPhy::MonitorSnifferRxTracedCallback
  • MonitorSnifferTx: Trace source simulating the capability of a wifi device in monitor mode to sniff all frames being transmitted
    Callback signature: ns3::WifiPhy::MonitorSnifferTxTracedCallback
  • PhyRxBegin: Trace source indicating a packet has begun being received from the channel medium by the device
    Callback signature: ns3::WifiPhy::PhyRxBeginTracedCallback
  • PhyRxDrop: Trace source indicating a packet has been dropped by the device during reception
    Callback signature: ns3::Packet::TracedCallback
  • PhyRxEnd: Trace source indicating a packet has been completely received from the channel medium by the device
    Callback signature: ns3::Packet::TracedCallback
  • PhyRxPayloadBegin: Trace source indicating the reception of the payload of a PPDU has begun
    Callback signature: ns3::WifiPhy::PhyRxPayloadBeginTracedCallback
  • PhyTxBegin: Trace source indicating a packet has begun transmitting over the channel medium
    Callback signature: ns3::WifiPhy::PhyTxBeginTracedCallback
  • PhyTxDrop: Trace source indicating a packet has been dropped by the device during transmission
    Callback signature: ns3::Packet::TracedCallback
  • PhyTxEnd: Trace source indicating a packet has been completely transmitted over the channel.
    Callback signature: ns3::Packet::TracedCallback
  • PhyTxPsduBegin: Trace source indicating a PSDU has begun transmitting over the channel medium
    Callback signature: ns3::WifiPhy::PsduTxBeginCallback

Size of this type is 664 bytes (on a 64-bit architecture).

Definition at line 52 of file wifi-phy.h.

Member Typedef Documentation

◆ ChannelTuple

using ns3::WifiPhy::ChannelTuple = std::tuple<uint8_t , uint16_t , int , uint8_t >

Tuple identifying an operating channel.

Definition at line 868 of file wifi-phy.h.

◆ MonitorSnifferRxCallback

typedef void(* ns3::WifiPhy::MonitorSnifferRxCallback) (Ptr< const Packet > packet, uint16_t channelFreqMhz, WifiTxVector txVector, MpduInfo aMpdu, SignalNoiseDbm signalNoise, uint16_t staId)

TracedCallback signature for monitor mode receive events.

Parameters
packetthe packet being received
channelFreqMhzthe frequency in MHz at which the packet is received. Note that in real devices this is normally the frequency to which the receiver is tuned, and this can be different than the frequency at which the packet was originally transmitted. This is because it is possible to have the receiver tuned on a given channel and still to be able to receive packets on a nearby channel.
txVectorthe TXVECTOR that holds RX parameters
aMpduthe type of the packet (0 is not A-MPDU, 1 is a MPDU that is part of an A-MPDU and 2 is the last MPDU in an A-MPDU) and the A-MPDU reference number (must be a different value for each A-MPDU but the same for each subframe within one A-MPDU)
signalNoisesignal power and noise power in dBm
staIdthe STA-ID
Todo:
WifiTxVector should be passed by const reference because of its size.

Definition at line 634 of file wifi-phy.h.

◆ MonitorSnifferTxCallback

typedef void(* ns3::WifiPhy::MonitorSnifferTxCallback) (const Ptr< const Packet > packet, uint16_t channelFreqMhz, WifiTxVector txVector, MpduInfo aMpdu, uint16_t staId)

TracedCallback signature for monitor mode transmit events.

Parameters
packetthe packet being transmitted
channelFreqMhzthe frequency in MHz at which the packet is transmitted.
txVectorthe TXVECTOR that holds TX parameters
aMpduthe type of the packet (0 is not A-MPDU, 1 is a MPDU that is part of an A-MPDU and 2 is the last MPDU in an A-MPDU) and the A-MPDU reference number (must be a different value for each A-MPDU but the same for each subframe within one A-MPDU)
staIdthe STA-ID
Todo:
WifiTxVector should be passed by const reference because of its size.

Definition at line 673 of file wifi-phy.h.

◆ PhyRxBeginTracedCallback

typedef void(* ns3::WifiPhy::PhyRxBeginTracedCallback) (Ptr< const Packet > packet, RxPowerWattPerChannelBand rxPowersW)

TracedCallback signature for PhyRxBegin trace source.

Parameters
packetthe packet being received
rxPowersWthe receive power per channel band in Watts

Definition at line 704 of file wifi-phy.h.

◆ PhyRxPayloadBeginTracedCallback

typedef void(* ns3::WifiPhy::PhyRxPayloadBeginTracedCallback) (WifiTxVector txVector, Time psduDuration)

TracedCallback signature for start of PSDU reception events.

Parameters
txVectorthe TXVECTOR decoded from the PHY header
psduDurationthe duration of the PSDU

Definition at line 713 of file wifi-phy.h.

◆ PhyTxBeginTracedCallback

typedef void(* ns3::WifiPhy::PhyTxBeginTracedCallback) (Ptr< const Packet > packet, double txPowerW)

TracedCallback signature for Phy transmit events.

Parameters
packetthe packet being transmitted
txPowerWthe transmit power in Watts

Definition at line 685 of file wifi-phy.h.

◆ PsduTxBeginCallback

typedef void(* ns3::WifiPhy::PsduTxBeginCallback) (WifiConstPsduMap psduMap, WifiTxVector txVector, double txPowerW)

TracedCallback signature for PSDU transmit events.

Parameters
psduMapthe PSDU map being transmitted
txVectorthe TXVECTOR holding the TX parameters
txPowerWthe transmit power in Watts

Definition at line 694 of file wifi-phy.h.

Constructor & Destructor Documentation

◆ WifiPhy()

ns3::WifiPhy::WifiPhy ( )

Definition at line 344 of file wifi-phy.cc.

References m_random, m_state, and NS_LOG_FUNCTION.

◆ ~WifiPhy()

ns3::WifiPhy::~WifiPhy ( )
override

Definition at line 370 of file wifi-phy.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ AbortCurrentReception()

void ns3::WifiPhy::AbortCurrentReception ( WifiPhyRxfailureReason  reason)
private

Due to newly arrived signal, the current reception cannot be continued and has to be aborted.

Parameters
reasonthe reason the reception is aborted

Definition at line 2077 of file wifi-phy.cc.

References ns3::EventId::Cancel(), GetAddressedPsduInPpdu(), GetChannelWidth(), GetCurrentFrequencyRange(), ns3::EventId::IsRunning(), m_currentEvent, m_currentPreambleEvents, m_endPhyRxEvent, m_interference, m_phyEntities, m_state, NotifyRxDrop(), ns3::Simulator::Now(), NS_LOG_FUNCTION, and ns3::OBSS_PD_CCA_RESET.

Referenced by ns3::PhyEntity::AbortCurrentReception(), GetDelayUntilChannelSwitch(), ResetCca(), and Send().

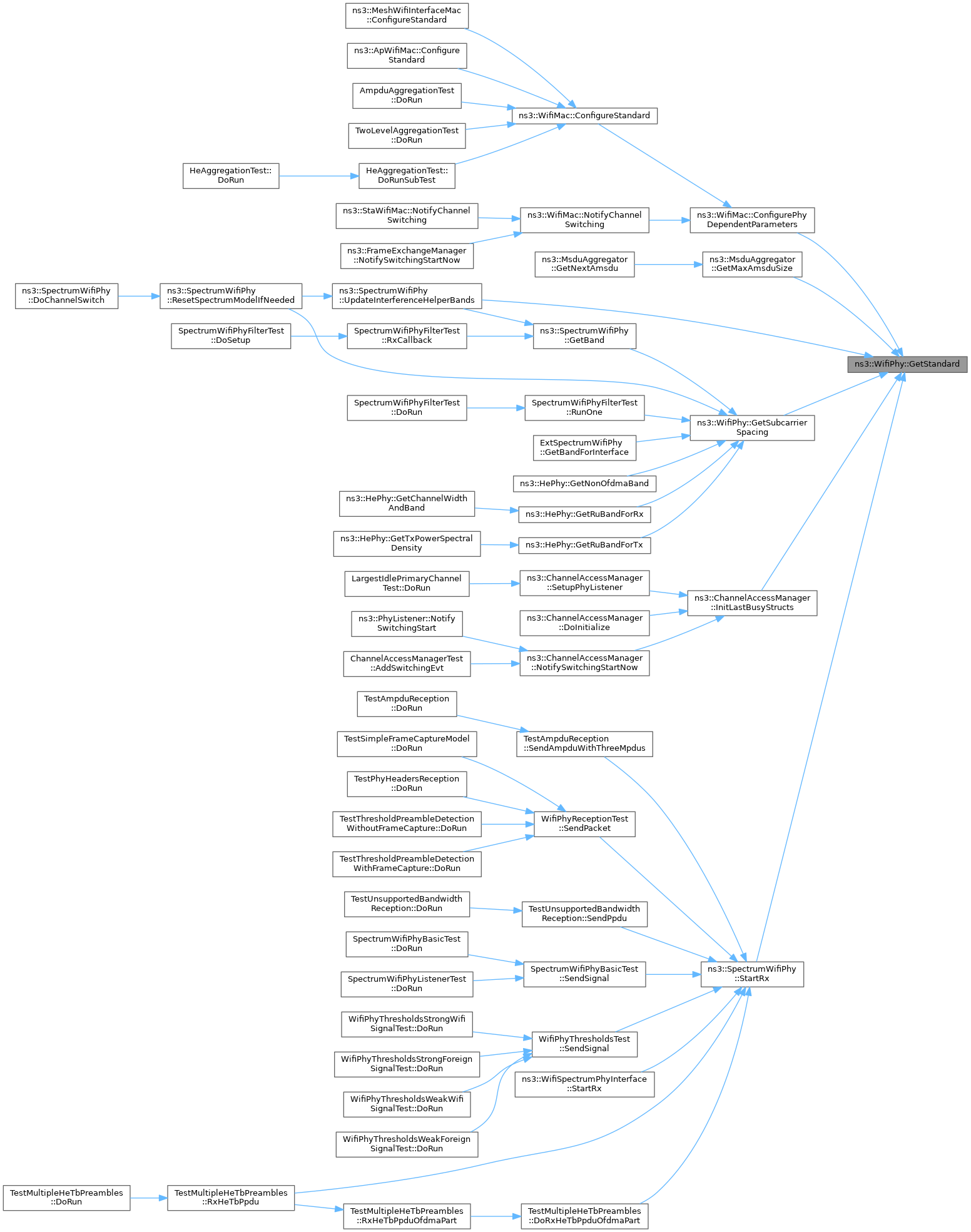

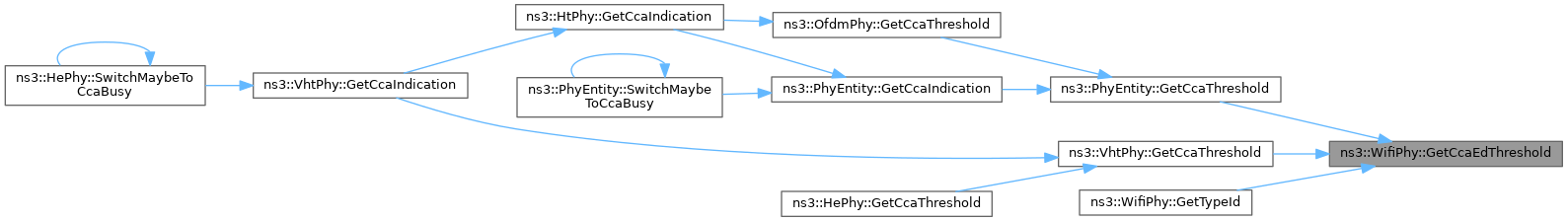

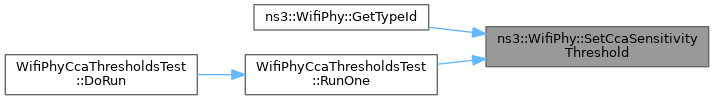

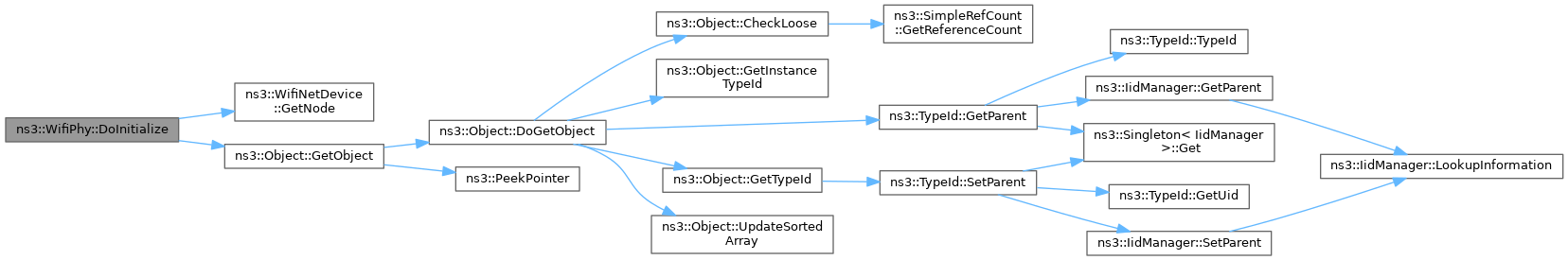

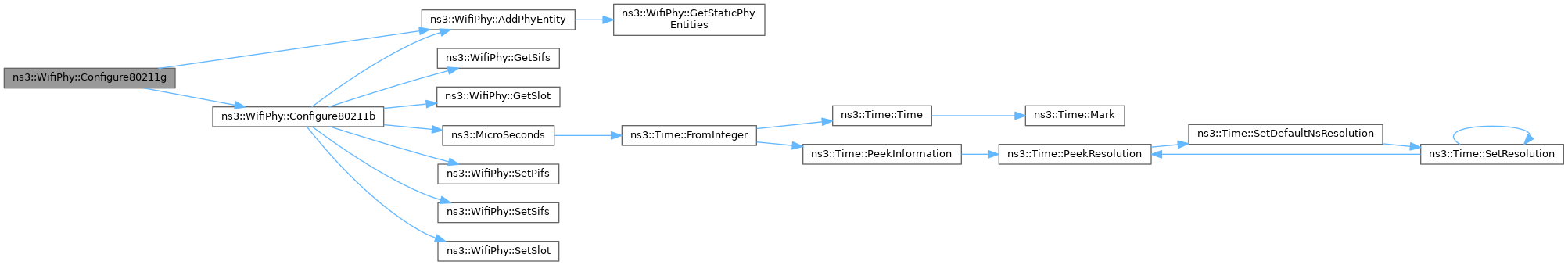

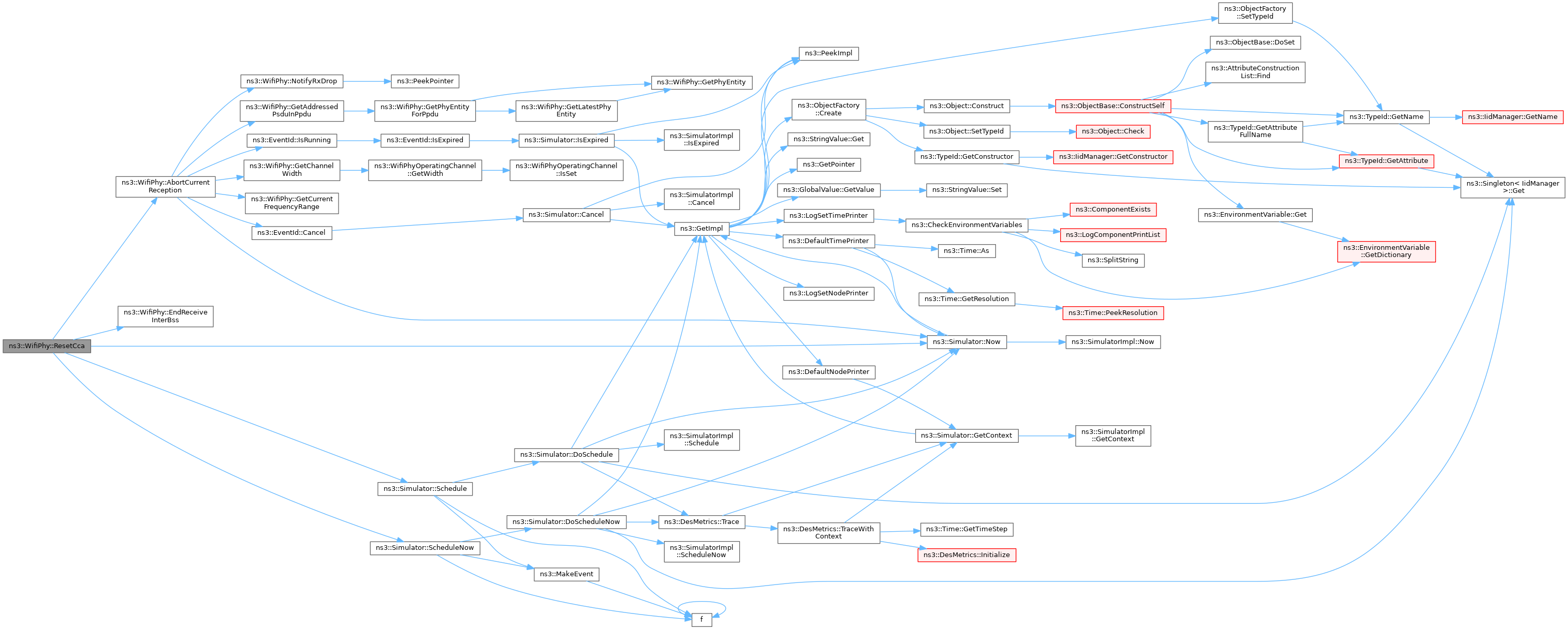

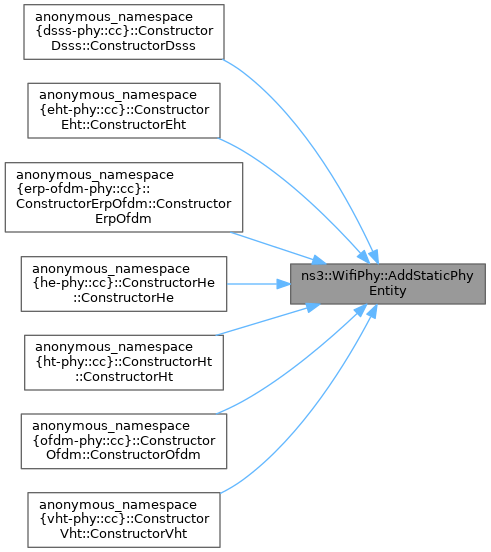

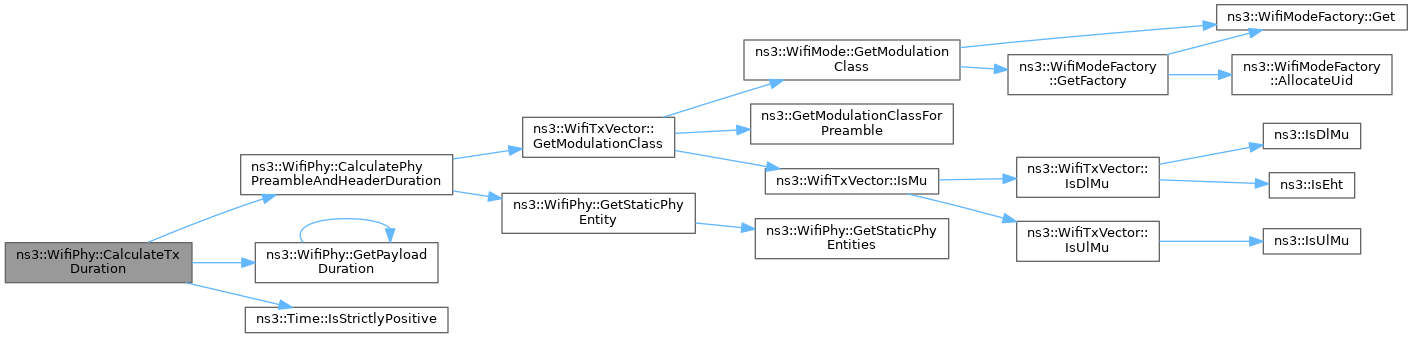

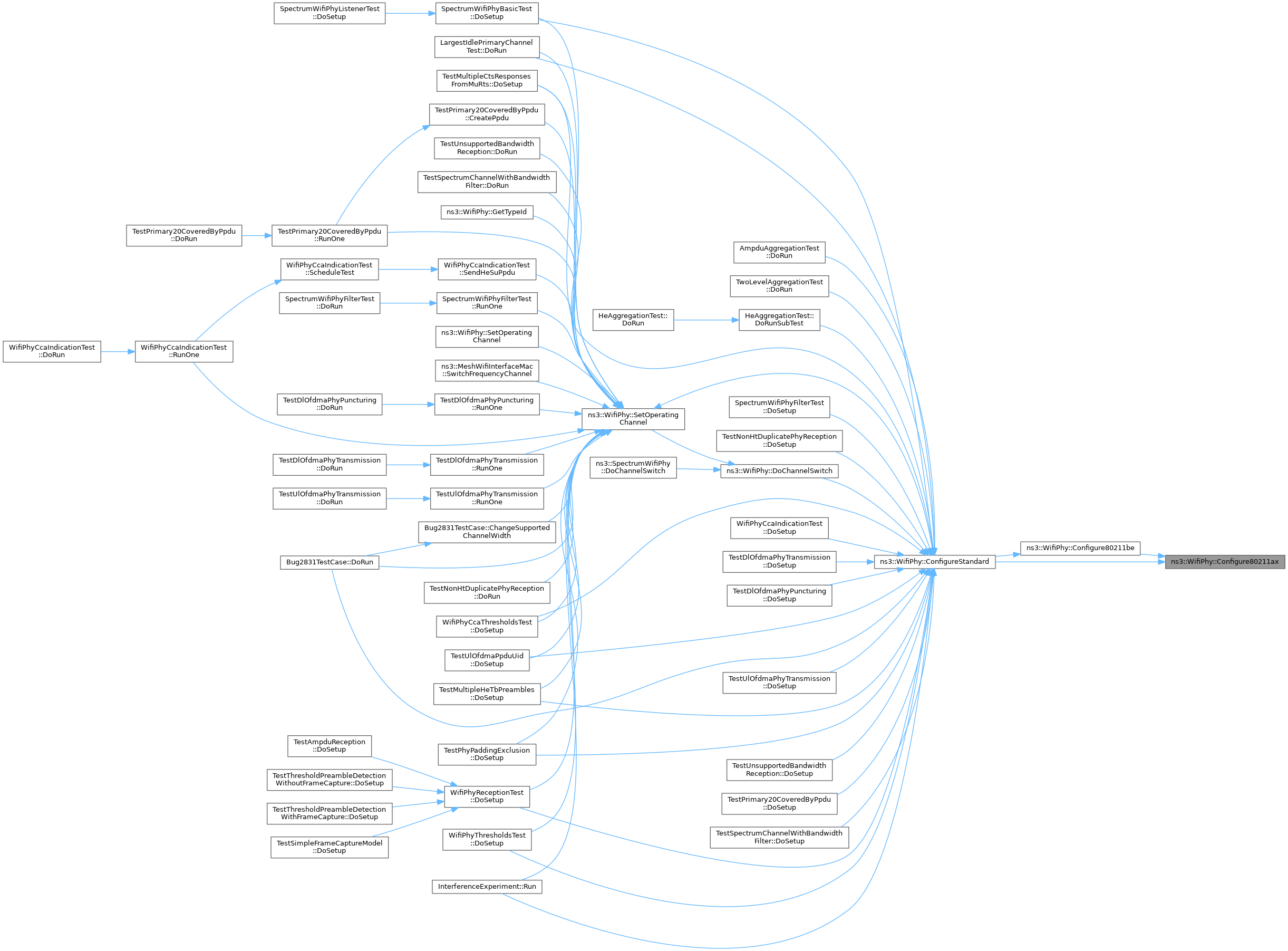

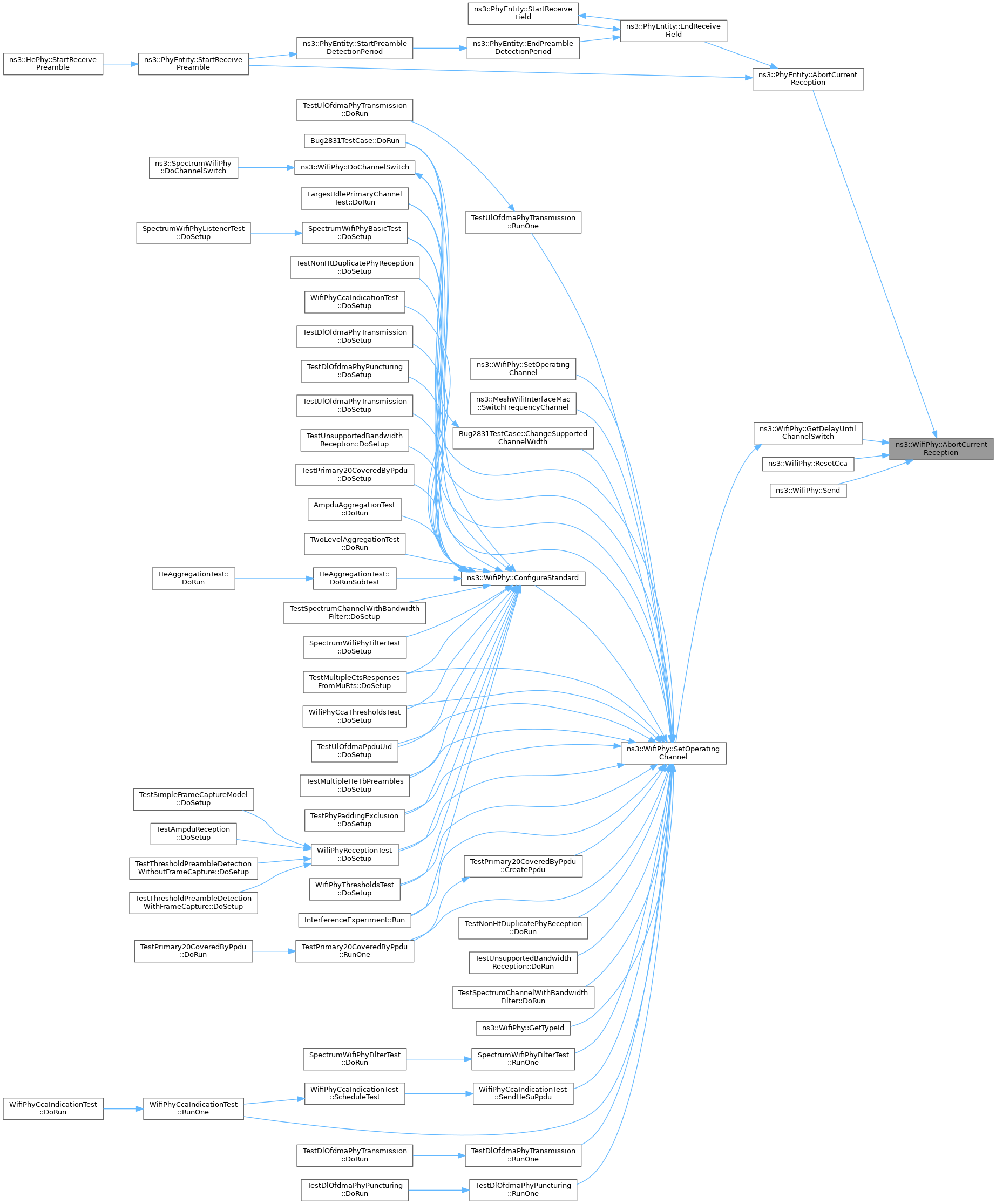

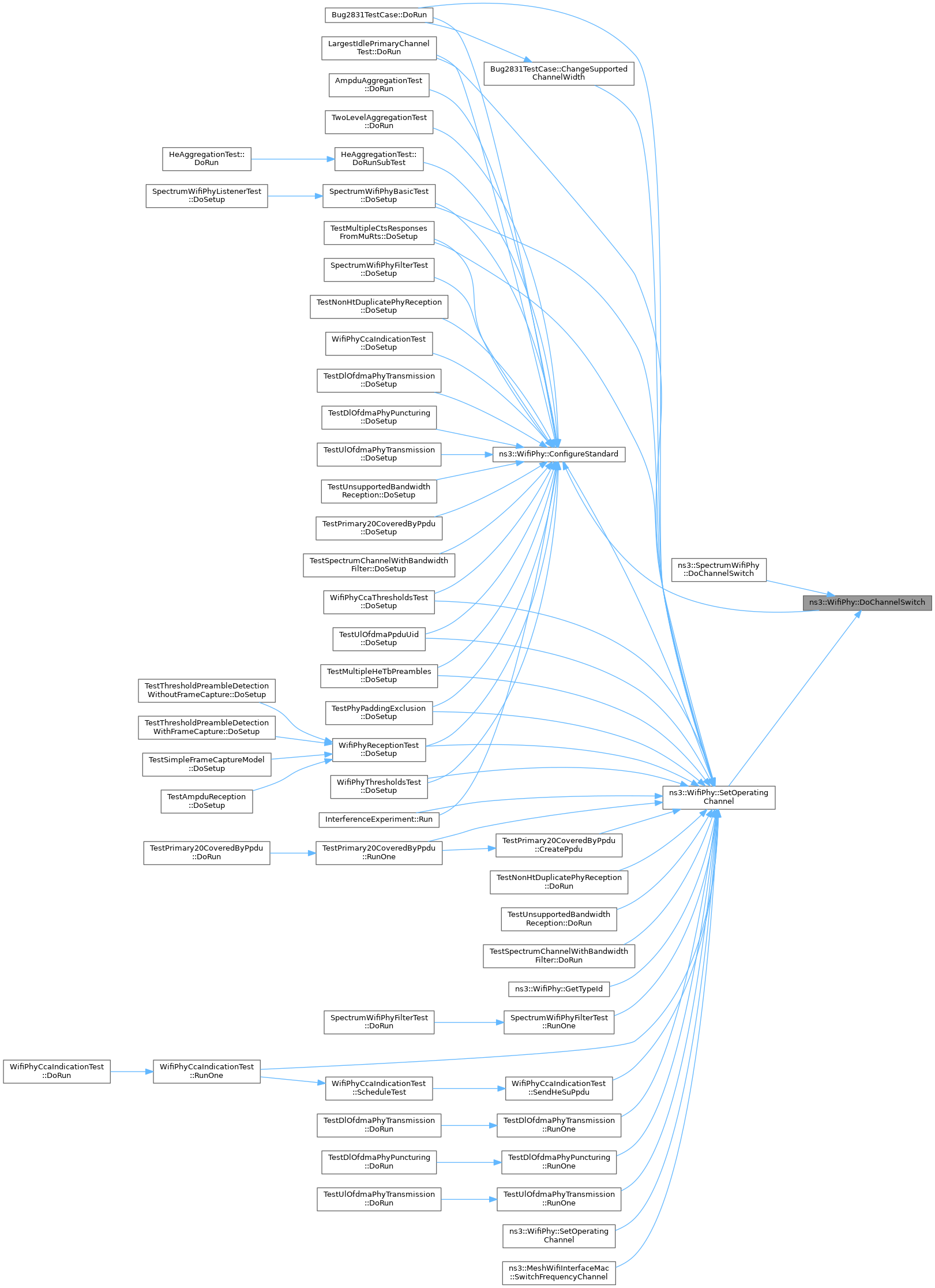

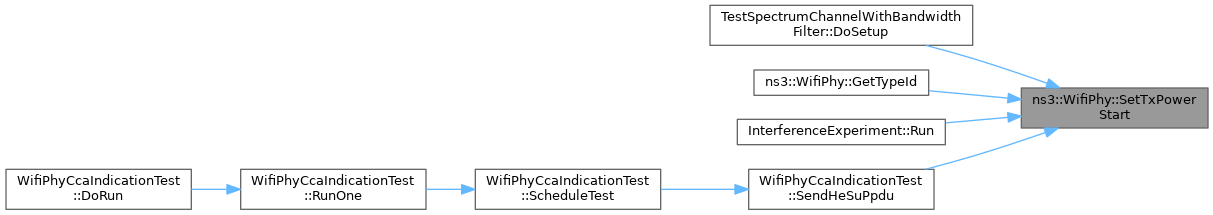

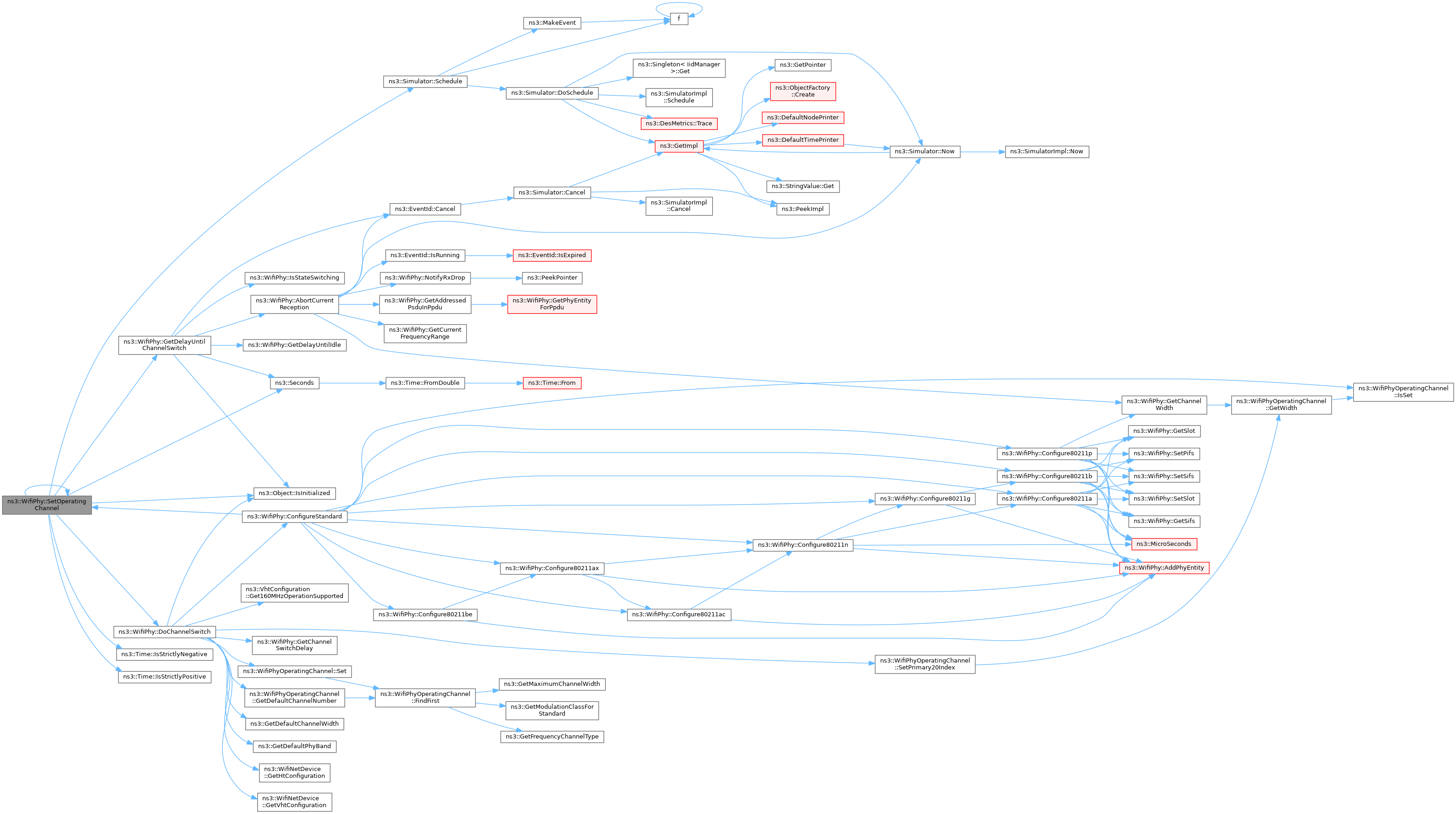

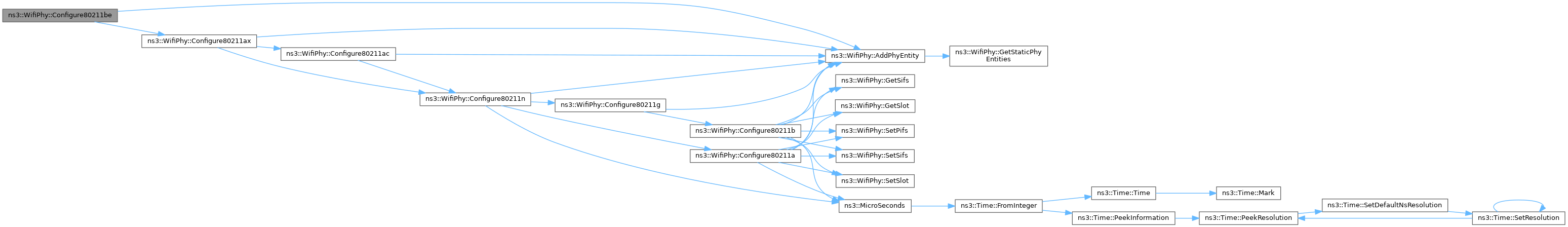

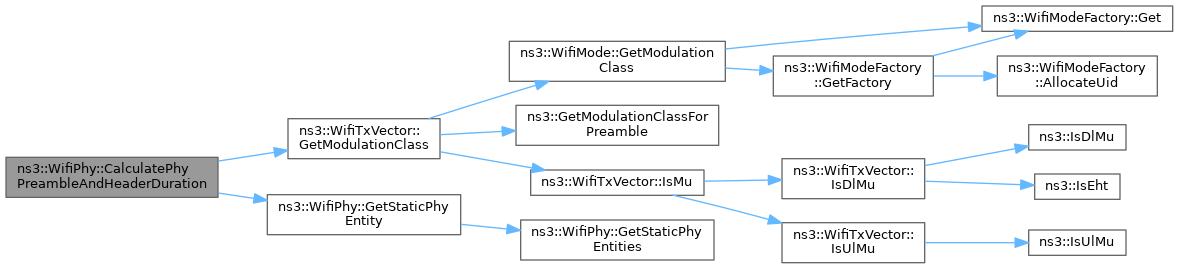

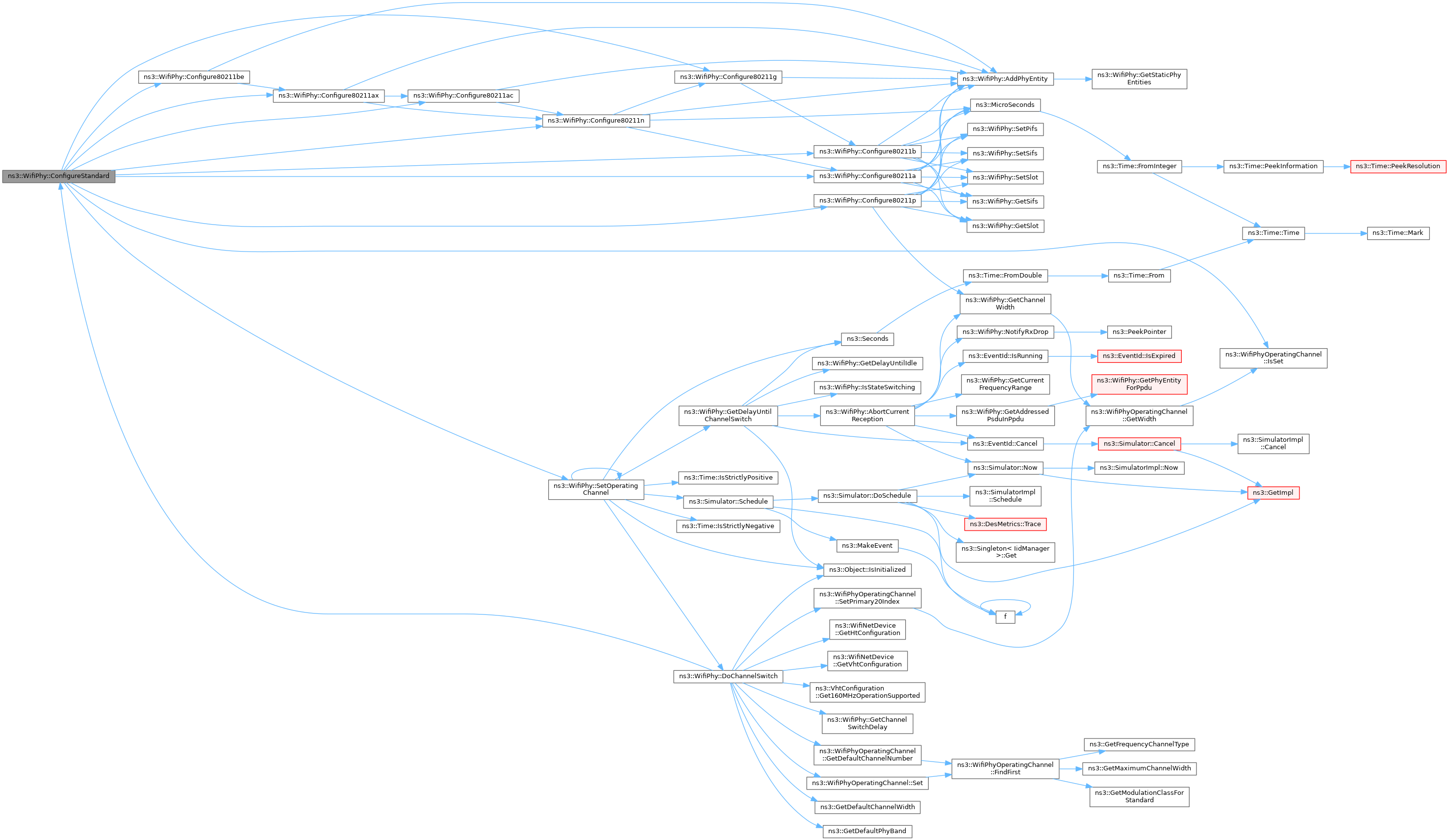

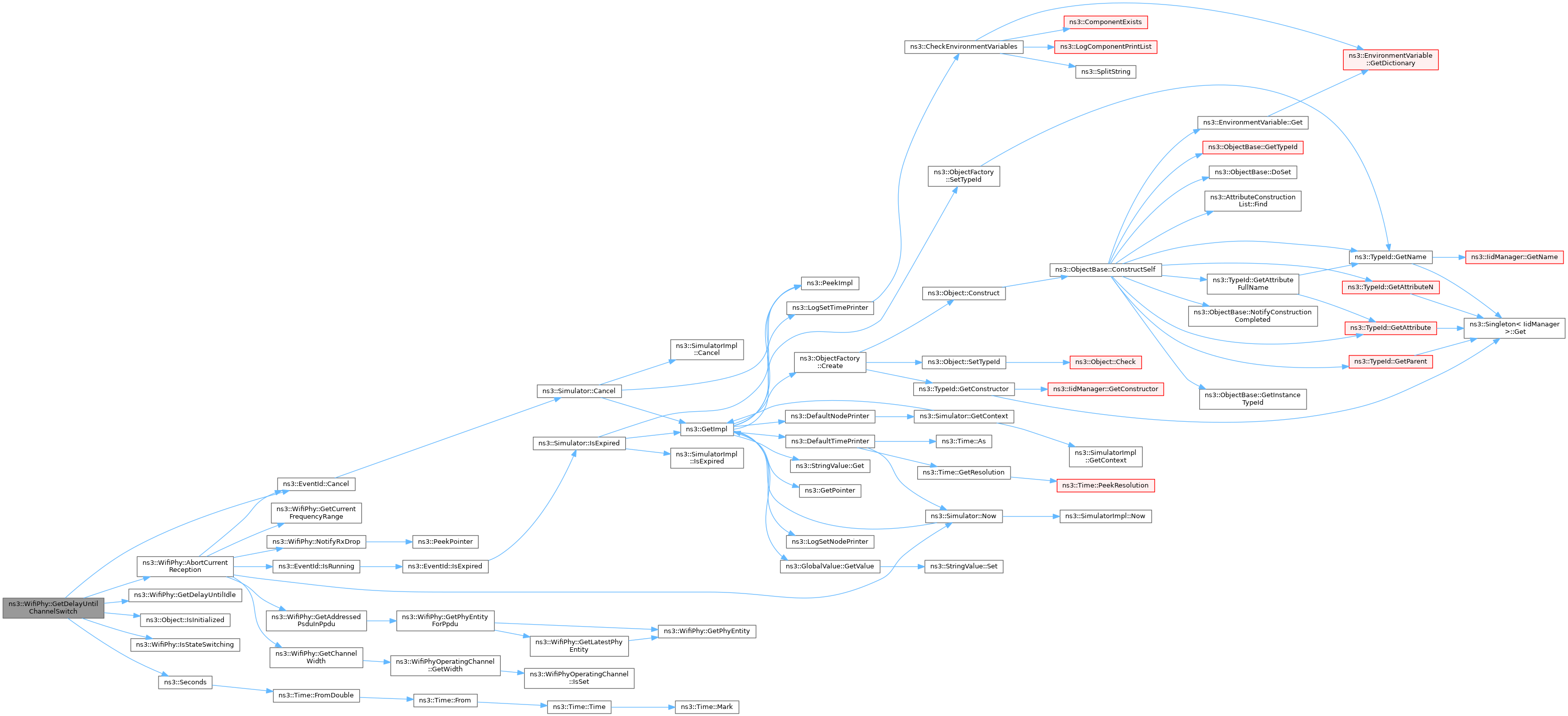

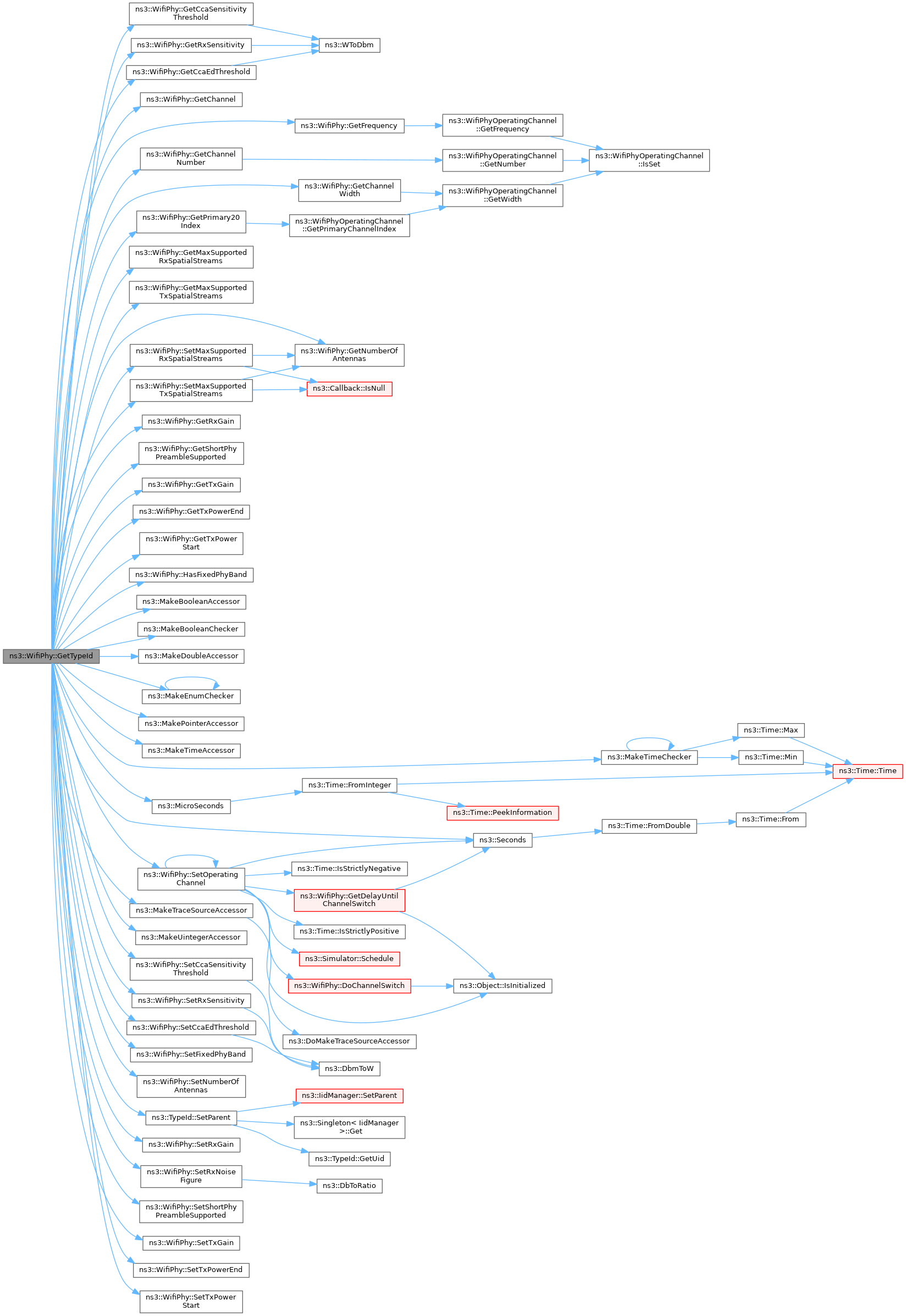

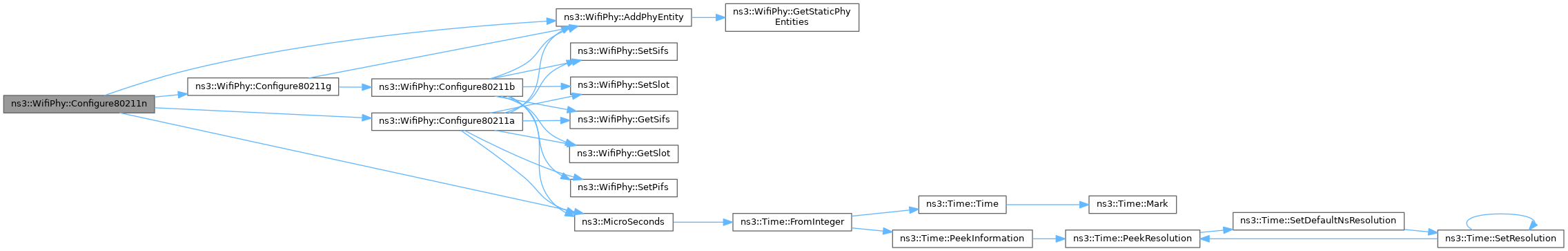

+ Here is the call graph for this function:

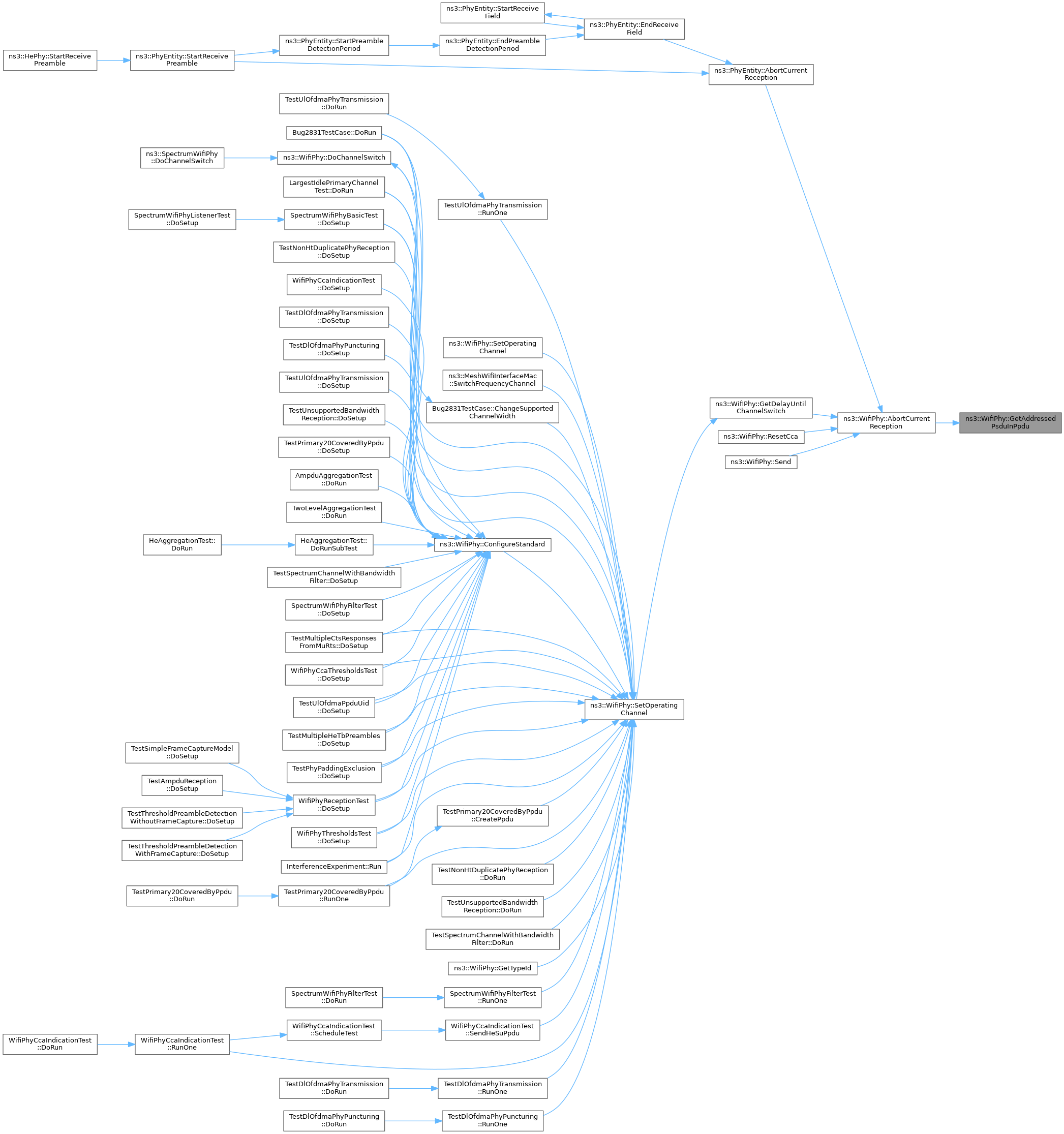

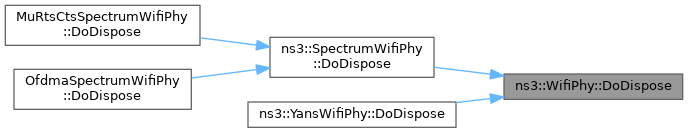

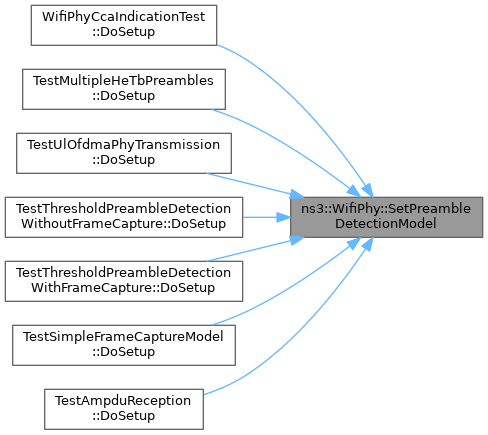

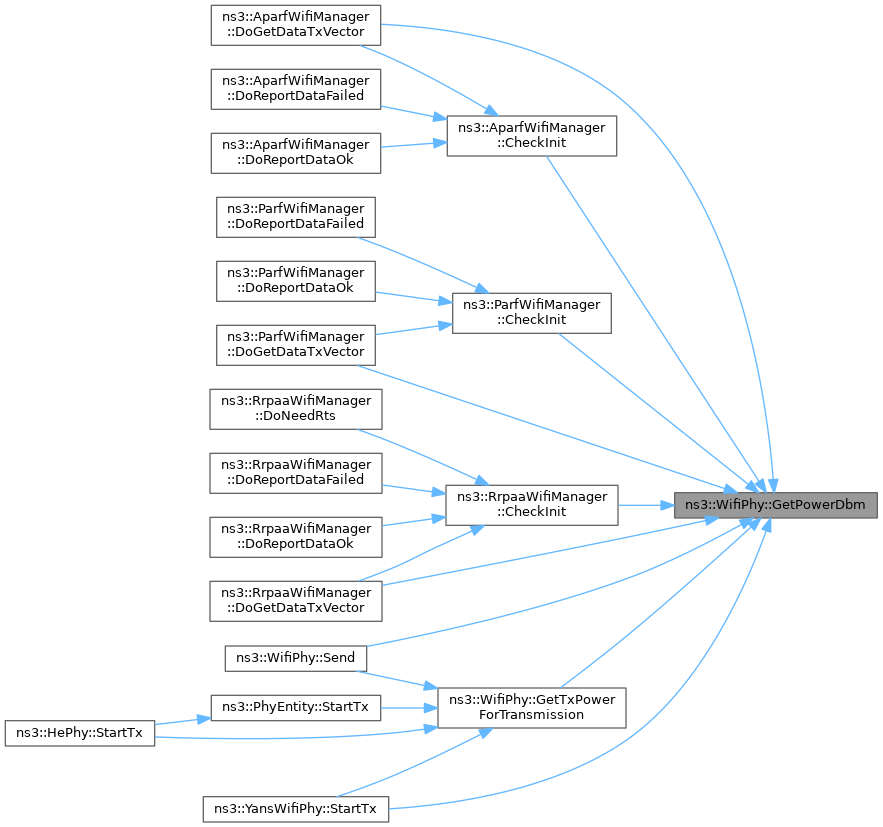

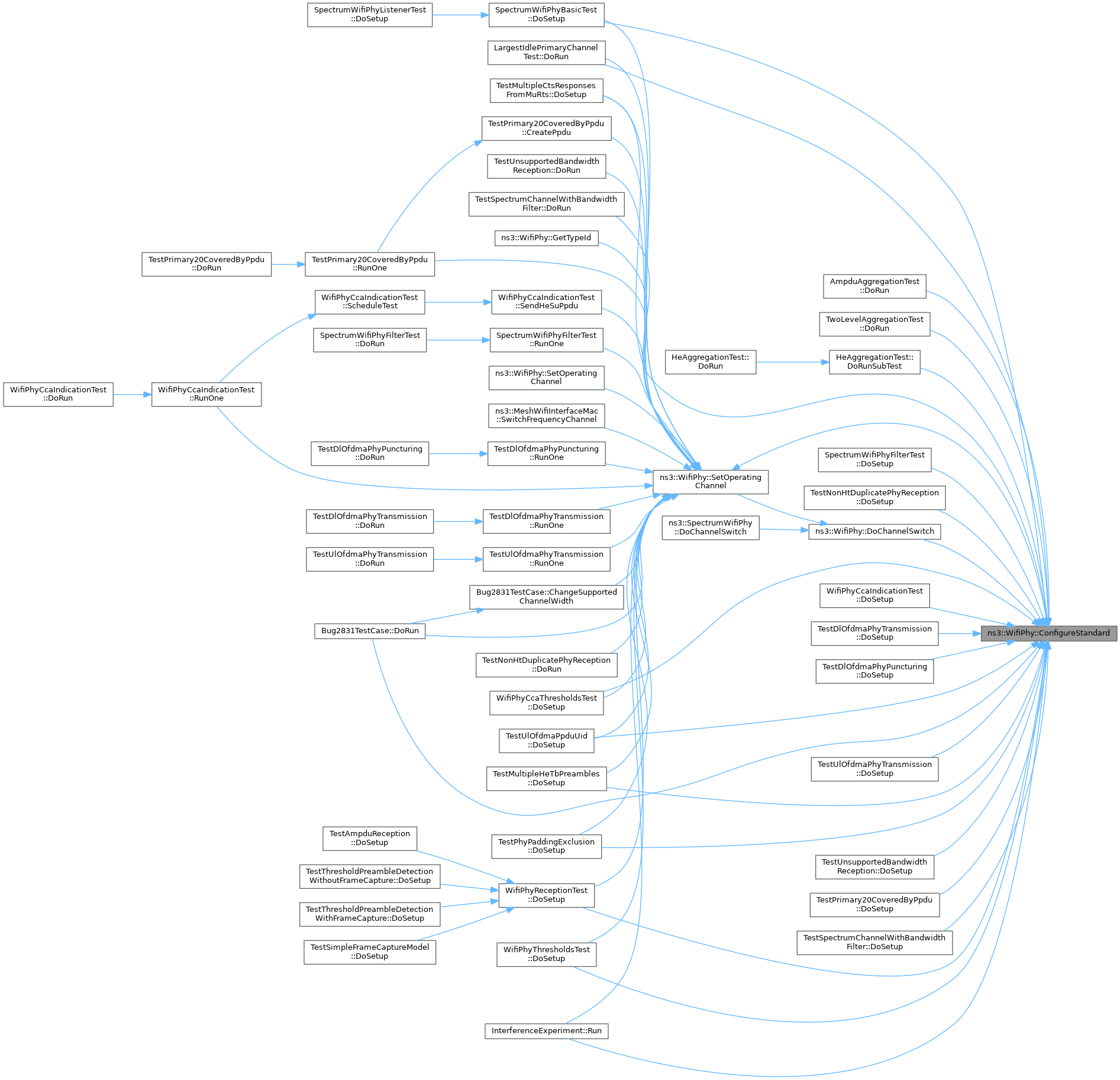

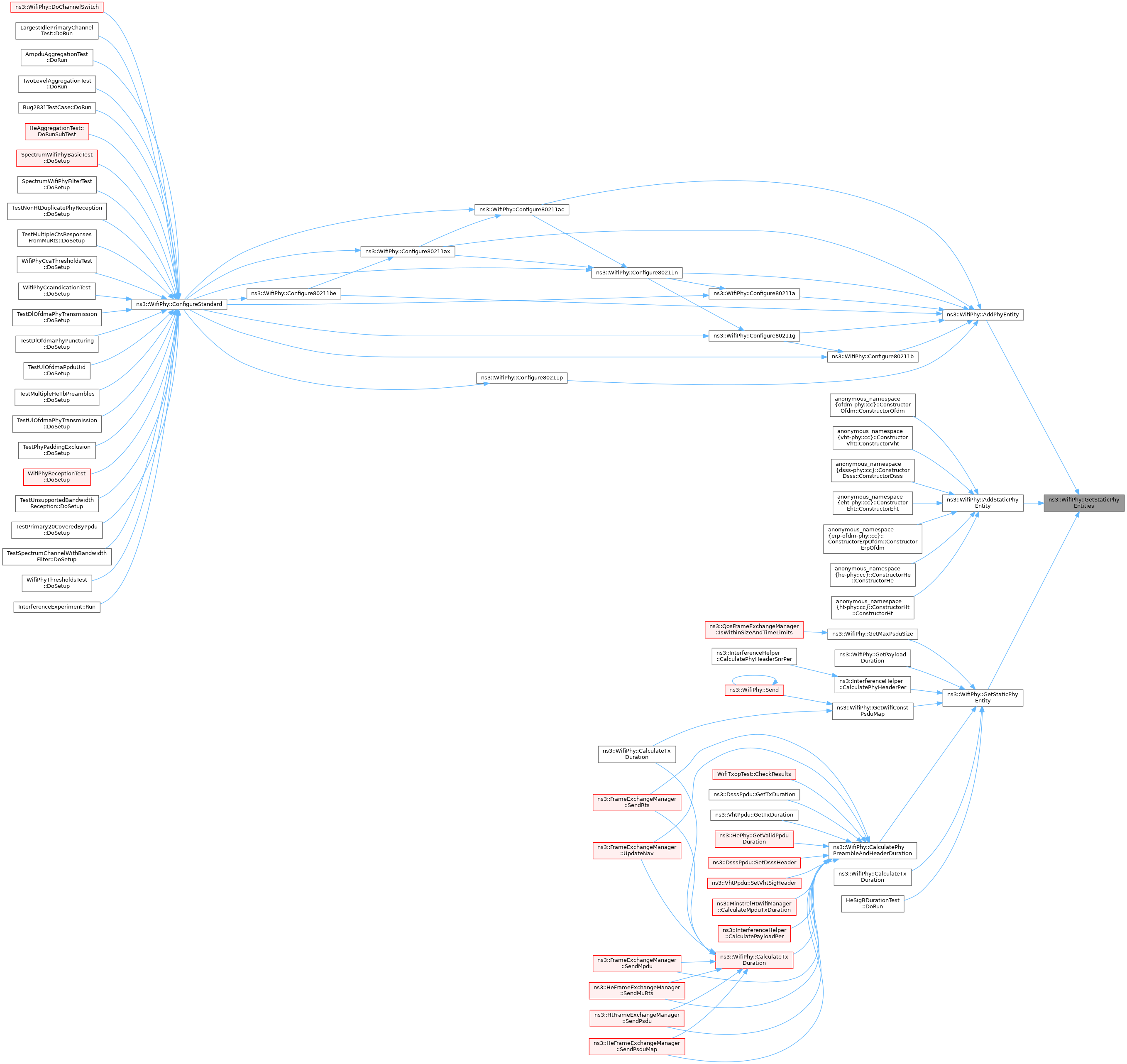

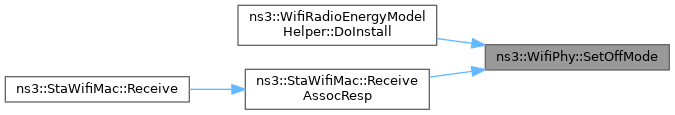

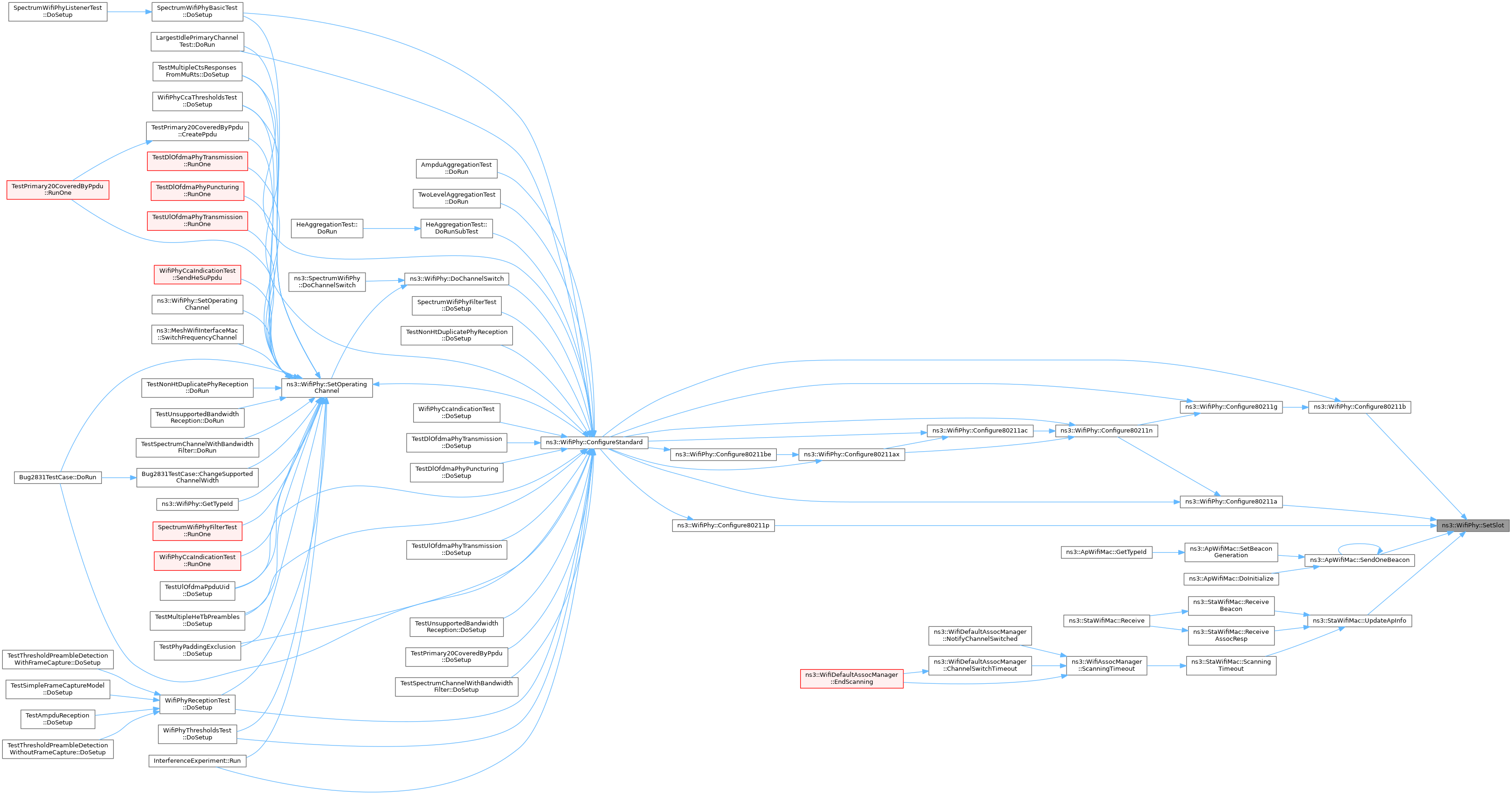

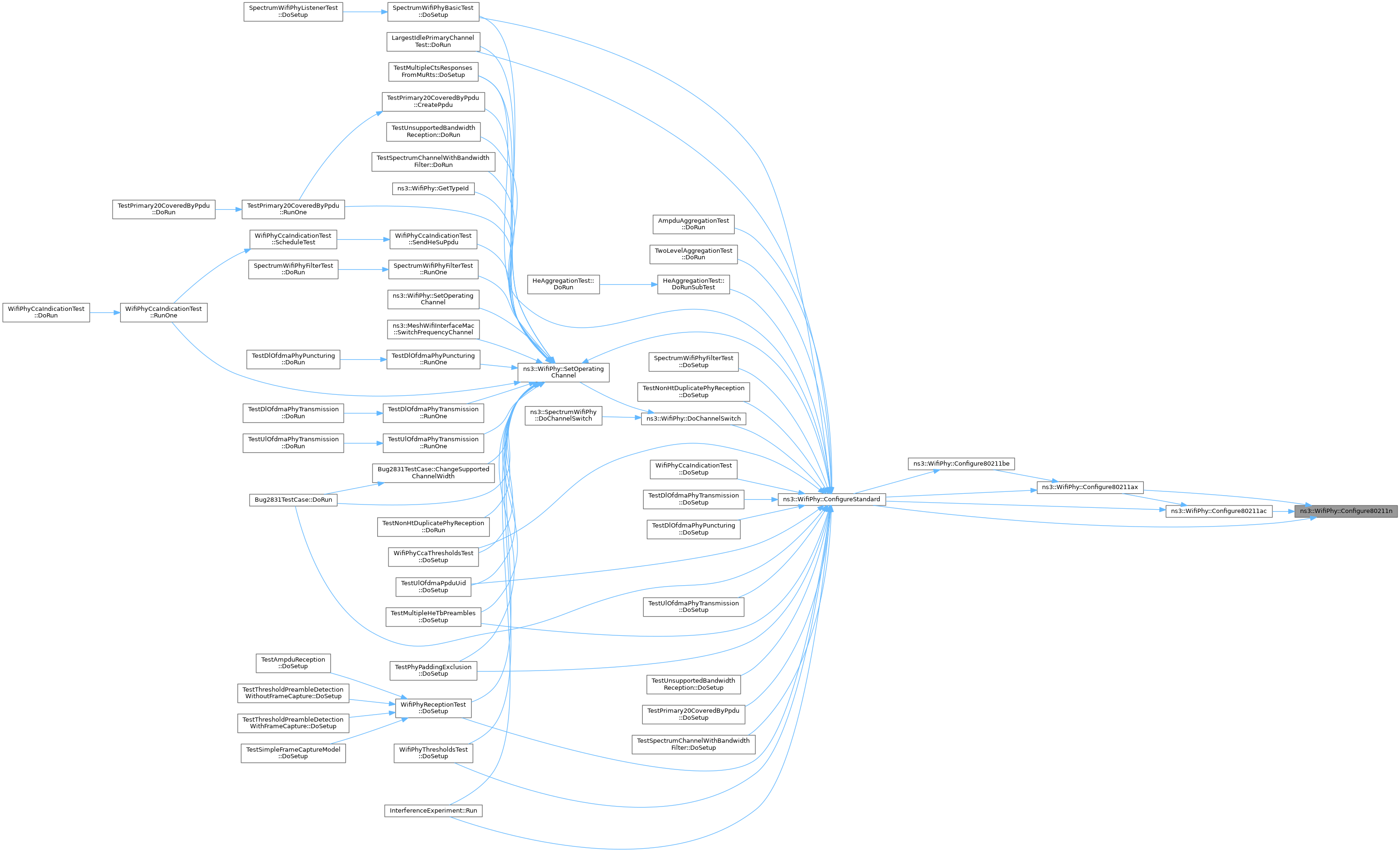

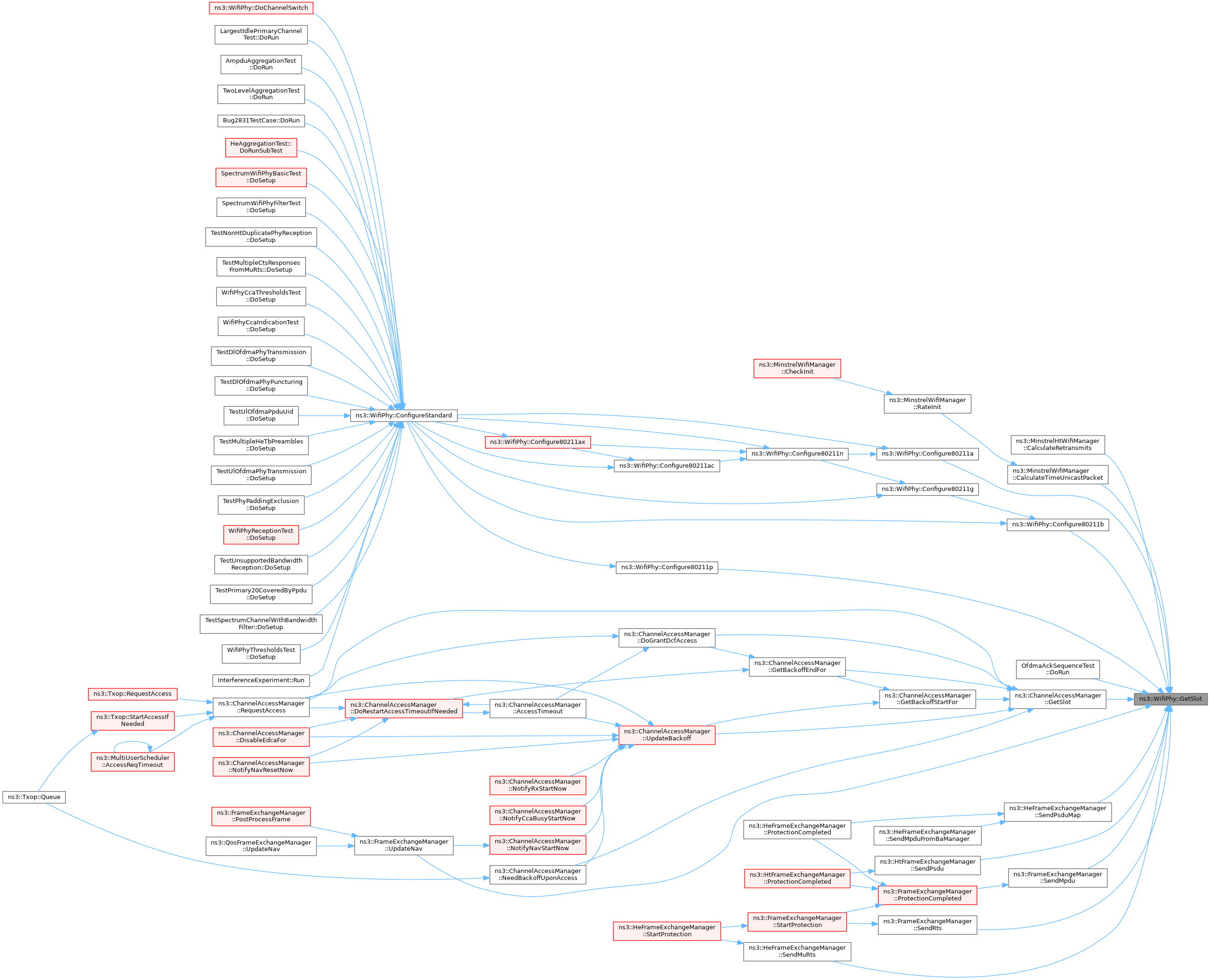

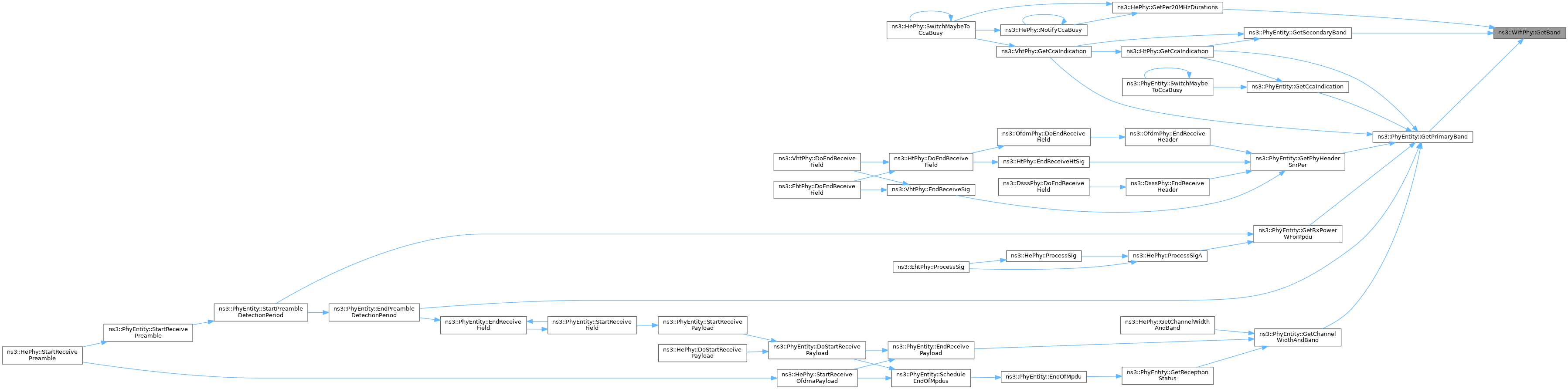

+ Here is the caller graph for this function:

◆ AddPhyEntity()

void ns3::WifiPhy::AddPhyEntity ( WifiModulationClass  modulation,
Ptr< PhyEntity phyEntity
)
protected

Add the PHY entity to the map of supported PHY entities for the given modulation class for the WifiPhy instance.

This is a wrapper method used to check that the PHY entity is in the static map of implemented PHY entities (

See also
GetStaticPhyEntities). In addition, child classes can add their own PHY entities.
Parameters
modulationthe modulation class
phyEntitythe PHY entity

Definition at line 764 of file wifi-phy.cc.

References GetStaticPhyEntities(), m_phyEntities, NS_ABORT_MSG_IF, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by Configure80211a(), Configure80211ac(), Configure80211ax(), Configure80211b(), Configure80211be(), Configure80211g(), Configure80211n(), and Configure80211p().

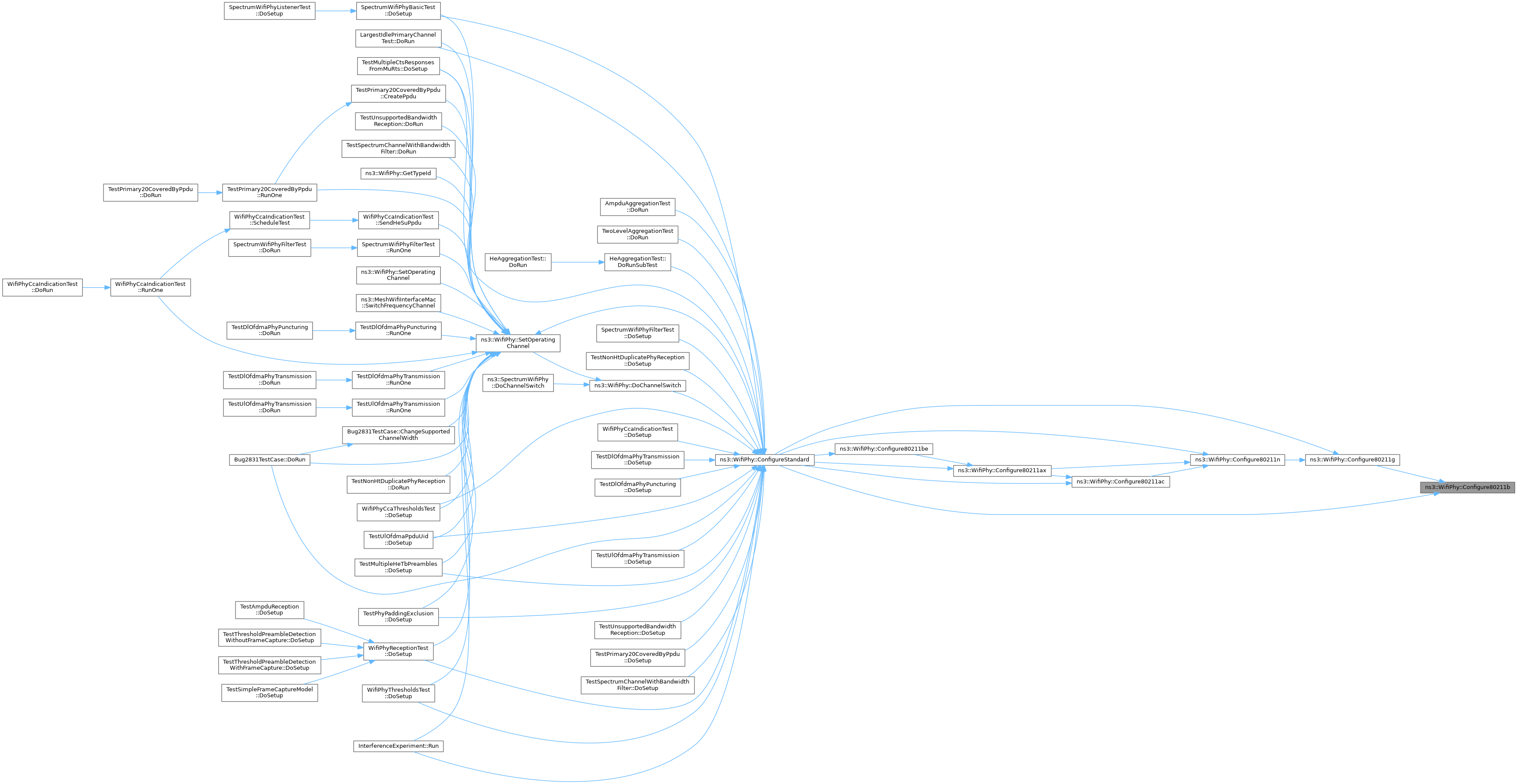

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ AddStaticPhyEntity()

void ns3::WifiPhy::AddStaticPhyEntity ( WifiModulationClass  modulation,
Ptr< PhyEntity phyEntity
)
static

Add the PHY entity to the map of implemented PHY entities for the given modulation class.

Through this method, child classes can add their own PHY entities in a static manner.

Parameters
modulationthe modulation class
phyEntitythe PHY entity

Definition at line 754 of file wifi-phy.cc.

References GetStaticPhyEntities(), NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by anonymous_namespace{dsss-phy.cc}::ConstructorDsss::ConstructorDsss(), anonymous_namespace{eht-phy.cc}::ConstructorEht::ConstructorEht(), anonymous_namespace{erp-ofdm-phy.cc}::ConstructorErpOfdm::ConstructorErpOfdm(), anonymous_namespace{he-phy.cc}::ConstructorHe::ConstructorHe(), anonymous_namespace{ht-phy.cc}::ConstructorHt::ConstructorHt(), anonymous_namespace{ofdm-phy.cc}::ConstructorOfdm::ConstructorOfdm(), and anonymous_namespace{vht-phy.cc}::ConstructorVht::ConstructorVht().

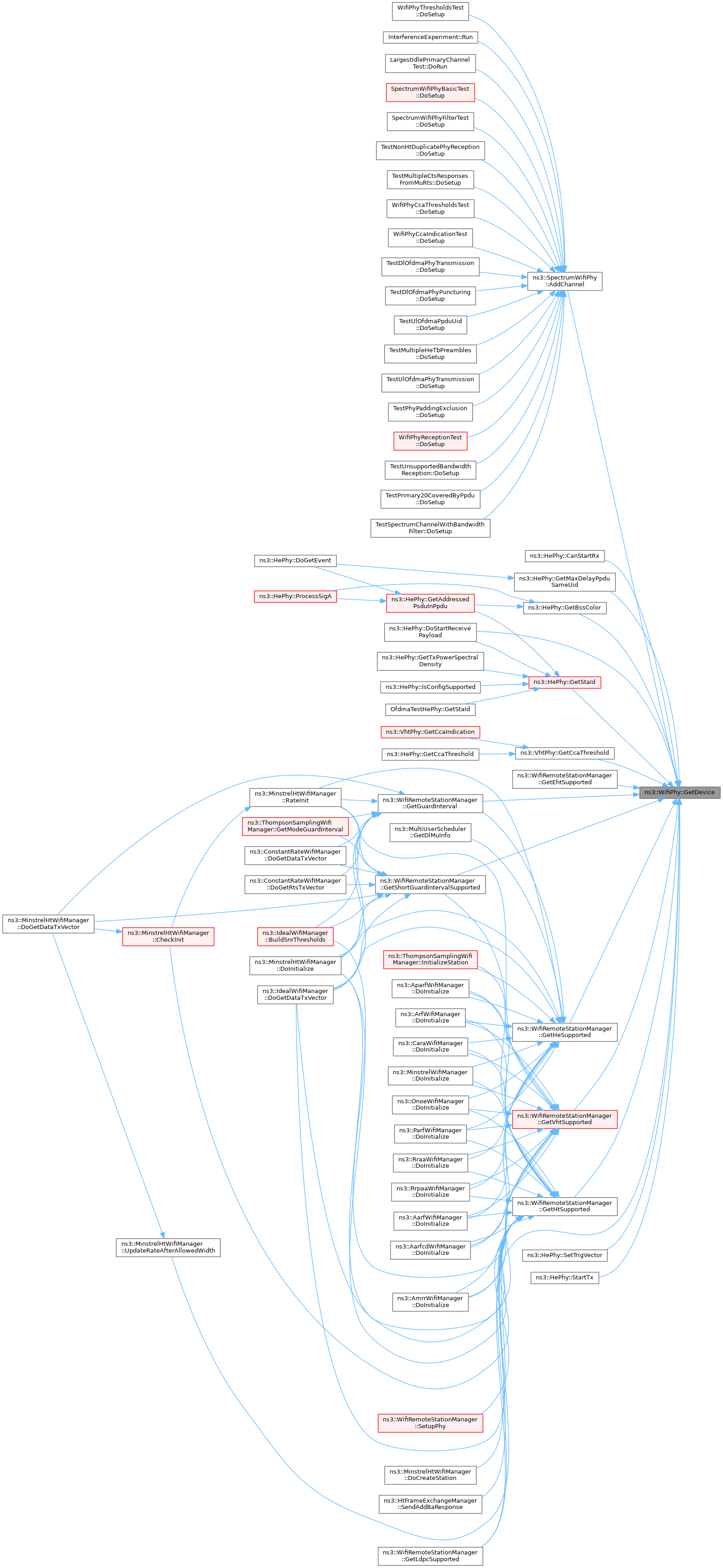

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

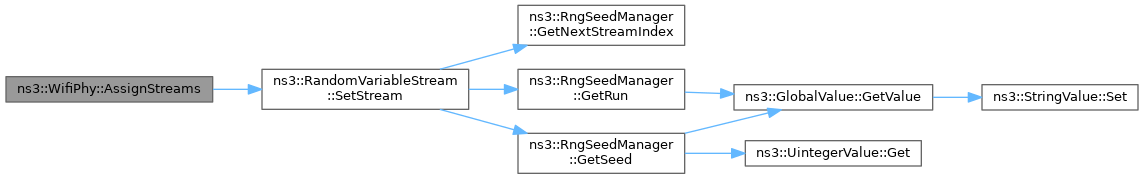

◆ AssignStreams()

int64_t ns3::WifiPhy::AssignStreams ( int64_t  stream)
virtual

◆ CalculatePhyPreambleAndHeaderDuration()

Time ns3::WifiPhy::CalculatePhyPreambleAndHeaderDuration ( const WifiTxVector txVector)
static

◆ CalculateSnr()

double ns3::WifiPhy::CalculateSnr ( const WifiTxVector txVector,
double  ber
) const
Parameters
txVectorthe transmission vector
berthe probability of bit error rate
Returns
the minimum SNR which is required to achieve the requested BER for the specified transmission vector. (W/W)

Definition at line 698 of file wifi-phy.cc.

References m_interference.

◆ CalculateTxDuration() [1/3]

Time ns3::WifiPhy::CalculateTxDuration ( Ptr< const WifiPsdu psdu,
const WifiTxVector txVector,
WifiPhyBand  band
)
static

This function is a wrapper for the CalculateTxDuration variant that accepts a WifiConstPsduMap as first argument.

This function inserts the given PSDU in a WifiConstPsduMap along with a STA-ID value that is determined based on whether the given PSDU has to be transmitted as a DL or UL frame, thus allowing to properly calculate the TX duration in case the PSDU has to be transmitted as an UL frame.

Parameters
psduthe PSDU to transmit
txVectorthe TXVECTOR used for the transmission of the PSDU
bandthe frequency band
Returns
the total amount of time this PHY will stay busy for the transmission of the PPDU

Definition at line 1508 of file wifi-phy.cc.

References CalculateTxDuration(), and GetWifiConstPsduMap().

+ Here is the call graph for this function:

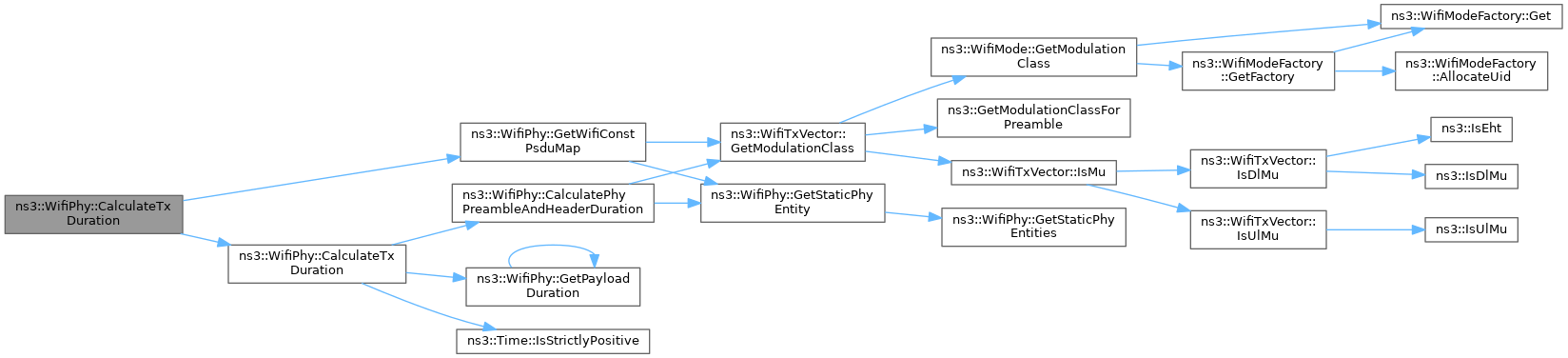

◆ CalculateTxDuration() [2/3]

Time ns3::WifiPhy::CalculateTxDuration ( uint32_t  size,
const WifiTxVector txVector,
WifiPhyBand  band,
uint16_t  staId = SU_STA_ID
)
static
Parameters
sizethe number of bytes in the packet to send
txVectorthe TXVECTOR used for the transmission of this packet
bandthe frequency band being used
staIdthe STA-ID of the recipient (only used for MU)
Returns
the total amount of time this PHY will stay busy for the transmission of these bytes.

Definition at line 1496 of file wifi-phy.cc.

References CalculatePhyPreambleAndHeaderDuration(), GetPayloadDuration(), ns3::Time::IsStrictlyPositive(), ns3::NORMAL_MPDU, and NS_ASSERT.

Referenced by ns3::FrameExchangeManager::CalculateAcknowledgmentTime(), ns3::HtFrameExchangeManager::CalculateAcknowledgmentTime(), ns3::FrameExchangeManager::CalculateProtectionTime(), CalculateTxDuration(), ns3::PhyEntity::CalculateTxDuration(), ns3::HePhy::CalculateTxDuration(), TxDurationTest::CalculateTxDurationUsingList(), EmlsrDlTxopTest::CheckBlockAck(), MultiLinkTxTest::CheckBlockAck(), MultiLinkMuTxTest::CheckBlockAck(), EmlNotificationExchangeTest::CheckEmlNotification(), EmlsrDlTxopTest::CheckEmlNotificationFrame(), EmlsrDlTxopTest::CheckInitialControlFrame(), EmlsrDlTxopTest::CheckQosFrames(), EmlsrDlTxopTest::CheckResults(), TestPrimary20CoveredByPpdu::CreatePpdu(), ns3::FrameExchangeManager::DoSendCtsAfterRts(), WifiPrimaryChannelsTest::DoSendHeTbPpdu(), WifiPrimaryChannelsTest::DoSetup(), ns3::EhtFrameExchangeManager::ForwardPsduDown(), ns3::EhtFrameExchangeManager::ForwardPsduMapDown(), ns3::QosFrameExchangeManager::GetCtsToSelfDurationId(), ns3::FrameExchangeManager::GetFrameDurationId(), ns3::QosFrameExchangeManager::GetFrameDurationId(), ns3::HeFrameExchangeManager::GetMuRtsDurationId(), ns3::FrameExchangeManager::GetRtsDurationId(), ns3::QosFrameExchangeManager::GetRtsDurationId(), ns3::HtPpdu::GetTxDuration(), ns3::OfdmPpdu::GetTxDuration(), ns3::FrameExchangeManager::GetTxDuration(), SpectrumWifiPhyBasicTest::MakeSignal(), WifiPhyThresholdsTest::MakeWifiSignal(), ns3::ApWifiMac::ReceiveEmlNotification(), TestMultipleHeTbPreambles::RxHeTbPpdu(), TestMultiUserScheduler::SelectTxFormat(), Send(), TestAmpduReception::SendAmpduWithThreeMpdus(), ns3::HtFrameExchangeManager::SendBlockAck(), ns3::QosFrameExchangeManager::SendCfEndIfNeeded(), ns3::FrameExchangeManager::SendCtsToSelf(), ns3::FrameExchangeManager::SendMpdu(), TestUlOfdmaPowerControl::SendMuBar(), ns3::HeFrameExchangeManager::SendMuRts(), TestNonHtDuplicatePhyReception::SendNonHtDuplicatePpdu(), ns3::FrameExchangeManager::SendNormalAck(), WifiPhyReceptionTest::SendPacket(), SpectrumWifiPhyMultipleInterfacesTest::SendPpdu(), TestUnsupportedBandwidthReception::SendPpdu(), ns3::HtFrameExchangeManager::SendPsdu(), ns3::HeFrameExchangeManager::SendPsduMap(), ns3::FrameExchangeManager::SendRts(), TestUlOfdmaPpduUid::SendTbPpdu(), ns3::StaWifiMac::SetPmModeAfterAssociation(), OfdmaAckSequenceTest::Transmit(), WifiTxopTest::Transmit(), WifiUseAvailBwTest::Transmit(), EmlsrOperationsTestBase::Transmit(), MultiLinkMuTxTest::Transmit(), WifiChannelSwitchingTest::Transmit(), ns3::RrMultiUserScheduler::TrySendingBasicTf(), ns3::RrMultiUserScheduler::TrySendingBsrpTf(), and ns3::FrameExchangeManager::UpdateNav().

+ Here is the call graph for this function:

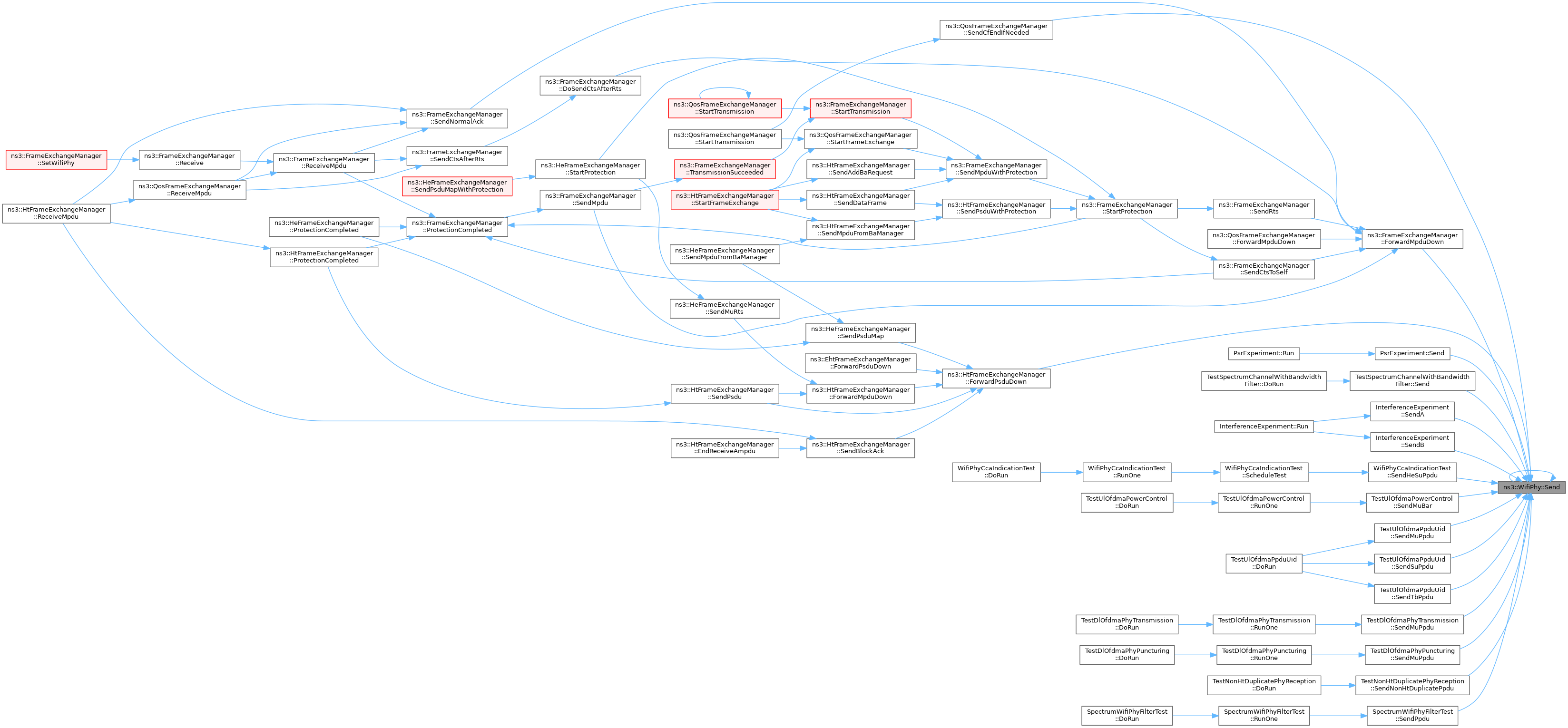

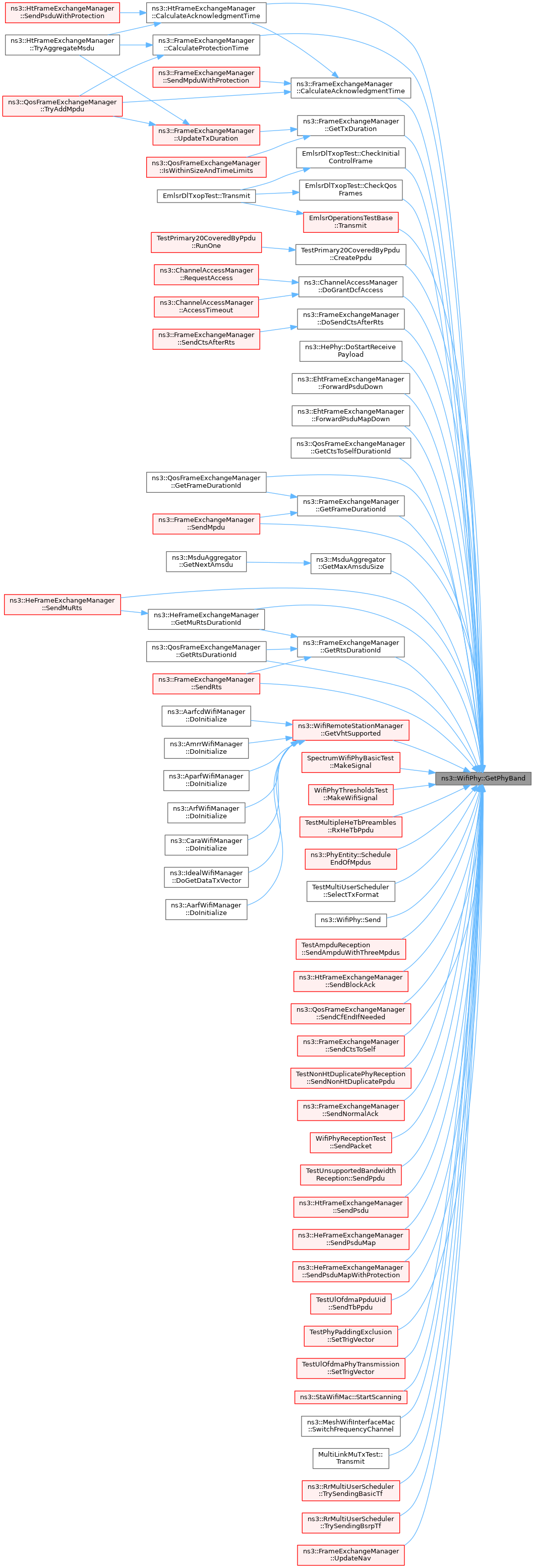

+ Here is the caller graph for this function:

◆ CalculateTxDuration() [3/3]

Time ns3::WifiPhy::CalculateTxDuration ( WifiConstPsduMap  psduMap,
const WifiTxVector txVector,
WifiPhyBand  band
)
static
Parameters
psduMapthe PSDU(s) to transmit indexed by STA-ID
txVectorthe TXVECTOR used for the transmission of the PPDU
bandthe frequency band being used
Returns
the total amount of time this PHY will stay busy for the transmission of the PPDU

Definition at line 1516 of file wifi-phy.cc.

References ns3::WifiTxVector::GetModulationClass(), and GetStaticPhyEntity().

+ Here is the call graph for this function:

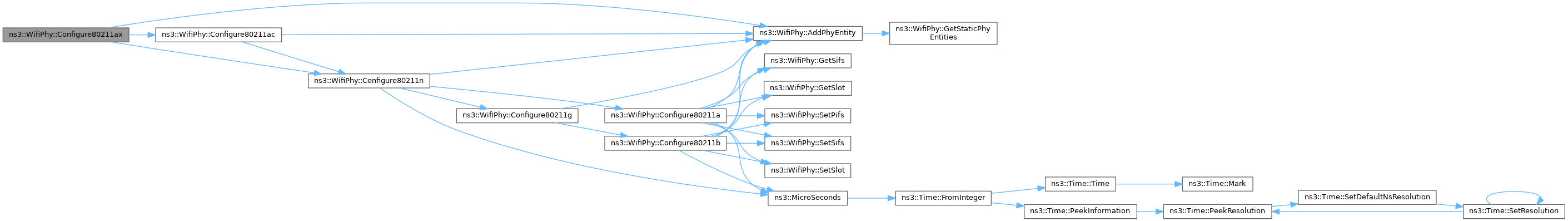

◆ Configure80211a()

void ns3::WifiPhy::Configure80211a ( )
private

Configure WifiPhy with appropriate channel frequency and supported rates for 802.11a standard.

Definition at line 825 of file wifi-phy.cc.

References AddPhyEntity(), GetSifs(), GetSlot(), m_ackTxTime, ns3::MicroSeconds(), NS_LOG_FUNCTION, SetPifs(), SetSifs(), SetSlot(), and ns3::WIFI_MOD_CLASS_OFDM.

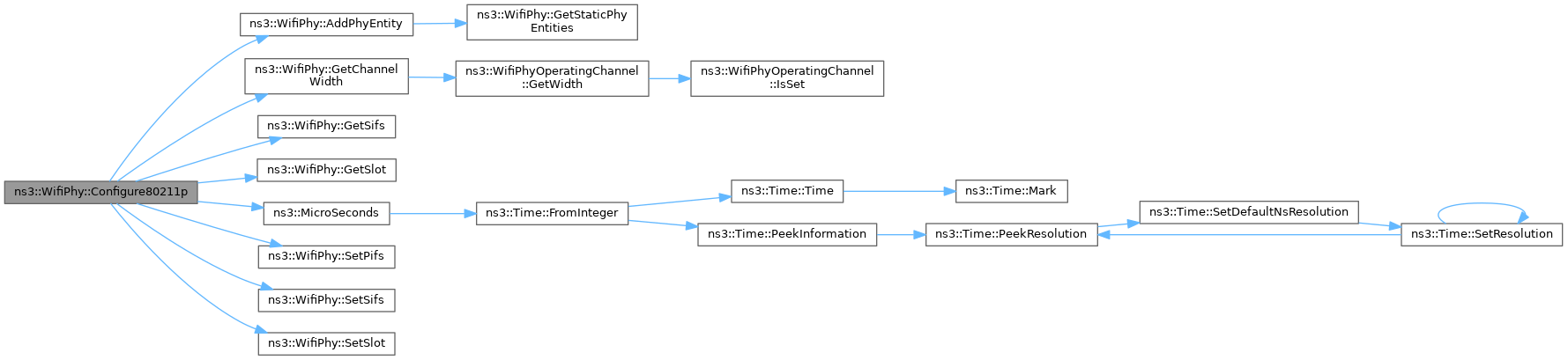

Referenced by Configure80211n(), and ConfigureStandard().

+ Here is the call graph for this function:

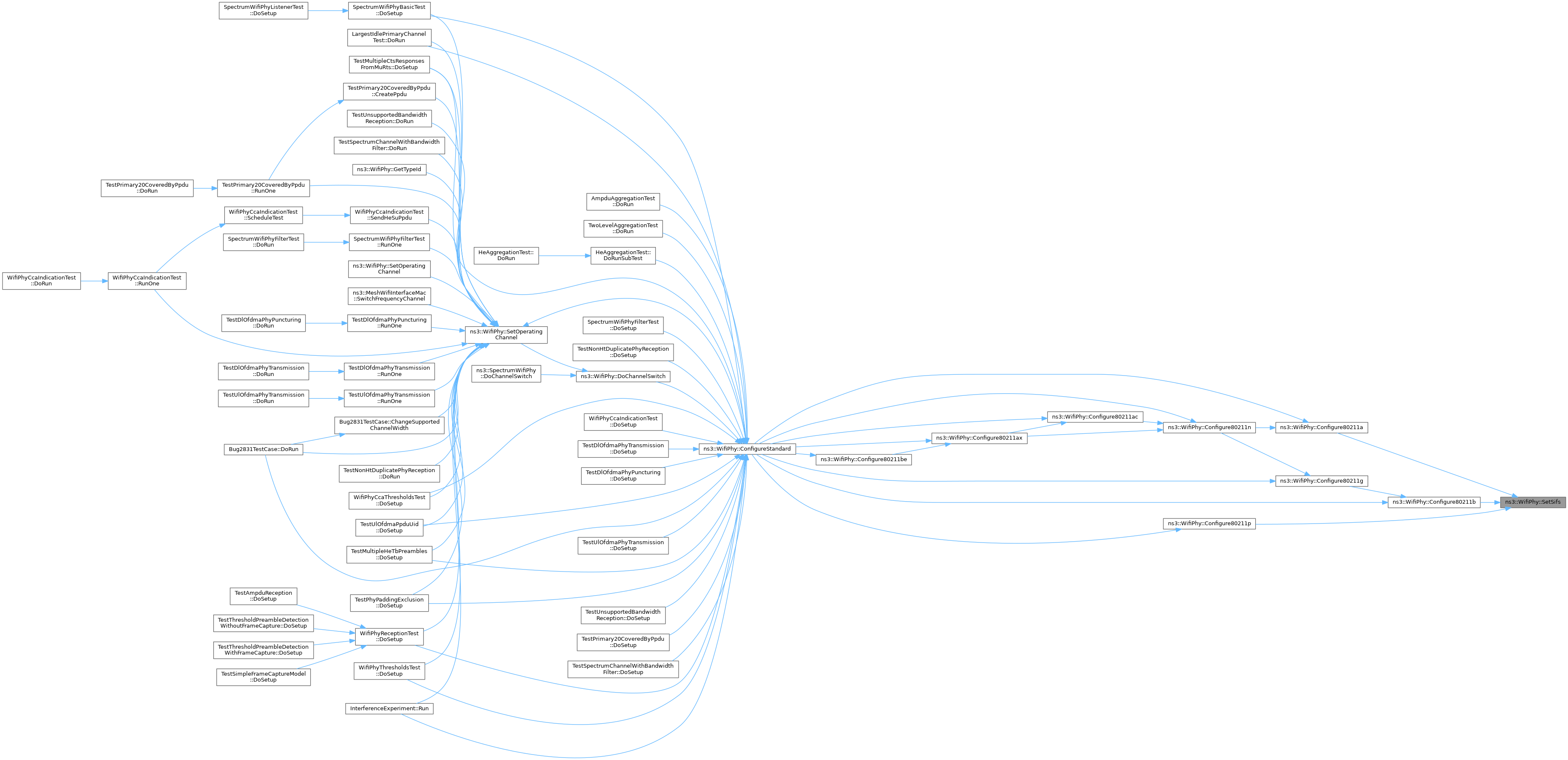

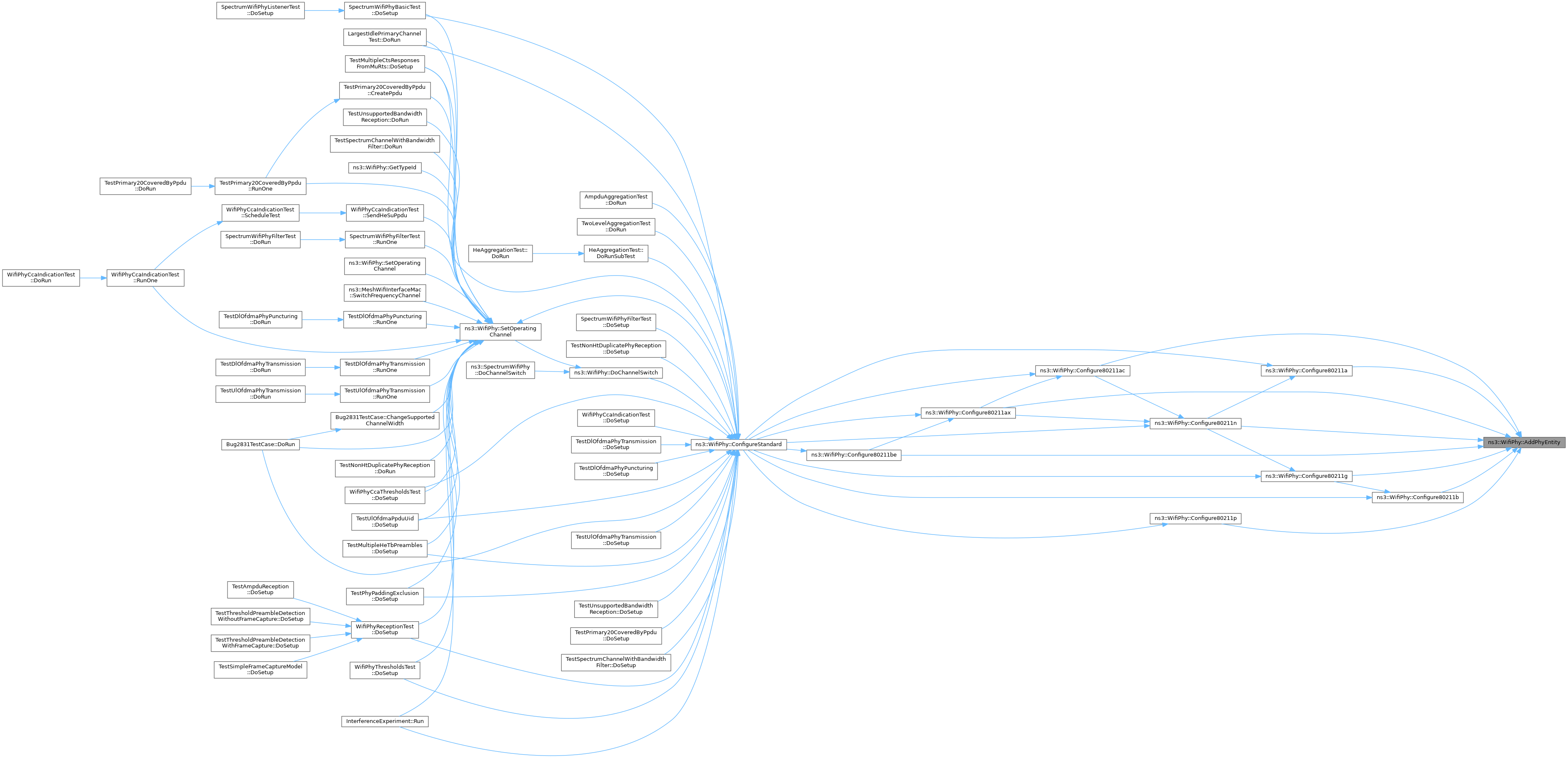

+ Here is the caller graph for this function:

◆ Configure80211ac()

void ns3::WifiPhy::Configure80211ac ( )
private

Configure WifiPhy with appropriate channel frequency and supported rates for 802.11ac standard.

Definition at line 919 of file wifi-phy.cc.

References AddPhyEntity(), Configure80211n(), NS_LOG_FUNCTION, and ns3::WIFI_MOD_CLASS_VHT.

Referenced by Configure80211ax(), and ConfigureStandard().

+ Here is the call graph for this function:

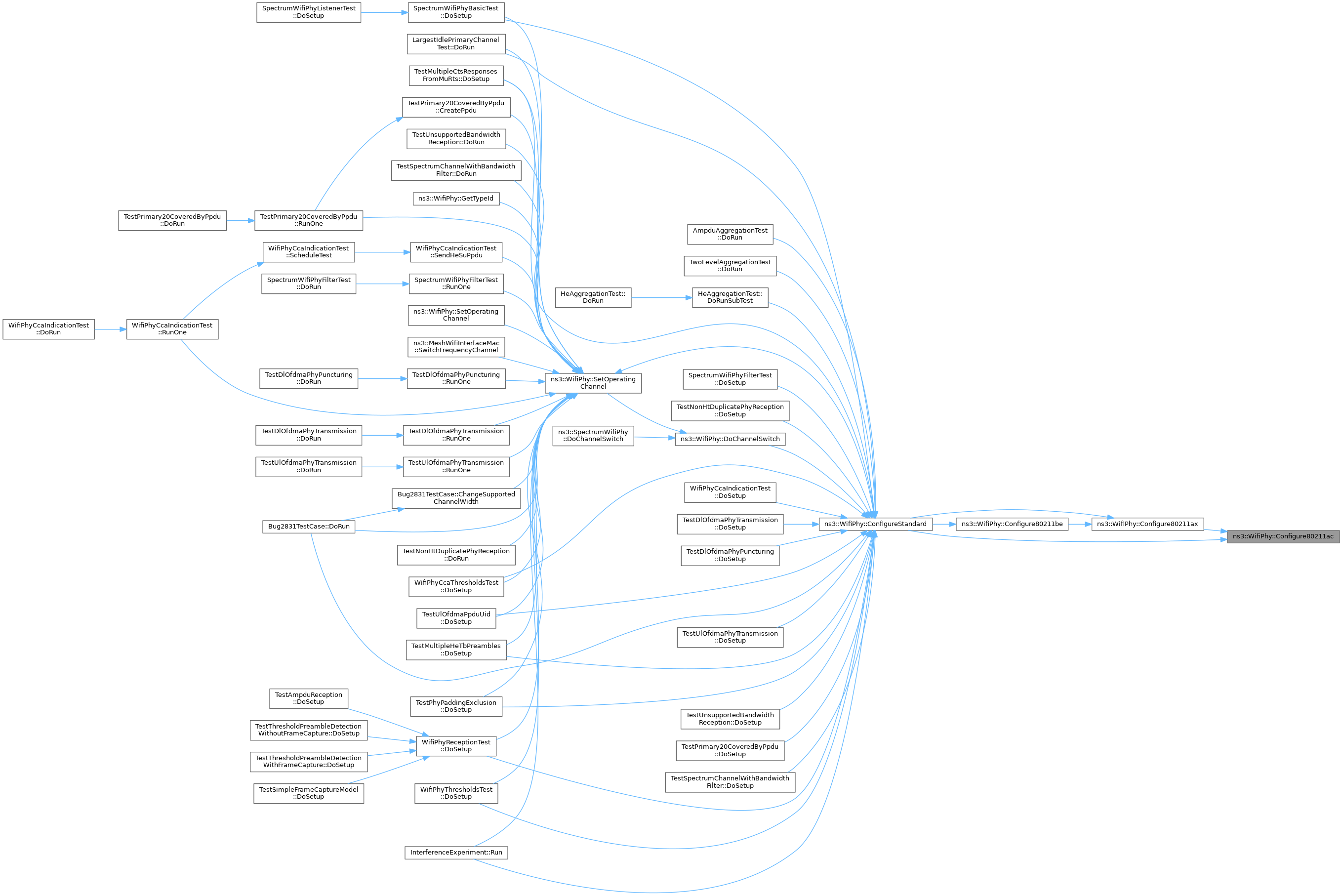

+ Here is the caller graph for this function:

◆ Configure80211ax()

void ns3::WifiPhy::Configure80211ax ( )
private

Configure WifiPhy with appropriate channel frequency and supported rates for 802.11ax standard.

Definition at line 927 of file wifi-phy.cc.

References AddPhyEntity(), Configure80211ac(), Configure80211n(), m_band, NS_LOG_FUNCTION, ns3::WIFI_MOD_CLASS_HE, and ns3::WIFI_PHY_BAND_2_4GHZ.

Referenced by Configure80211be(), and ConfigureStandard().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Configure80211b()

void ns3::WifiPhy::Configure80211b ( )
private

Configure WifiPhy with appropriate channel frequency and supported rates for 802.11b standard.

Definition at line 840 of file wifi-phy.cc.

References AddPhyEntity(), GetSifs(), GetSlot(), m_ackTxTime, ns3::MicroSeconds(), NS_LOG_FUNCTION, SetPifs(), SetSifs(), SetSlot(), ns3::WIFI_MOD_CLASS_DSSS, and ns3::WIFI_MOD_CLASS_HR_DSSS.

Referenced by Configure80211g(), and ConfigureStandard().

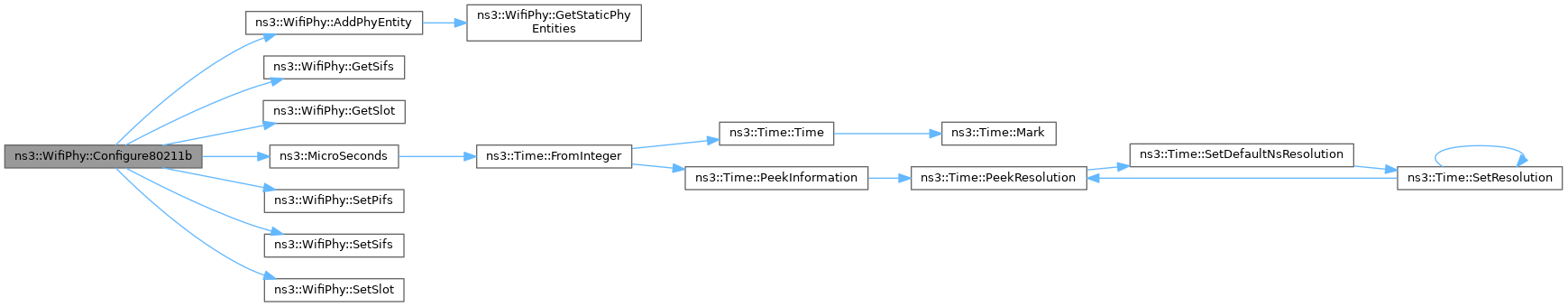

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Configure80211be()

void ns3::WifiPhy::Configure80211be ( )
private

Configure WifiPhy with appropriate channel frequency and supported rates for 802.11be standard.

Definition at line 942 of file wifi-phy.cc.

References AddPhyEntity(), Configure80211ax(), NS_LOG_FUNCTION, and ns3::WIFI_MOD_CLASS_EHT.

Referenced by ConfigureStandard().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Configure80211g()

void ns3::WifiPhy::Configure80211g ( )
private

Configure WifiPhy with appropriate channel frequency and supported rates for 802.11g standard.

Definition at line 857 of file wifi-phy.cc.

References AddPhyEntity(), Configure80211b(), NS_LOG_FUNCTION, and ns3::WIFI_MOD_CLASS_ERP_OFDM.

Referenced by Configure80211n(), and ConfigureStandard().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Configure80211n()

void ns3::WifiPhy::Configure80211n ( )
private

Configure WifiPhy with appropriate channel frequency and supported rates for 802.11n standard.

Definition at line 900 of file wifi-phy.cc.

References AddPhyEntity(), Configure80211a(), Configure80211g(), m_band, m_blockAckTxTime, m_txSpatialStreams, ns3::MicroSeconds(), NS_LOG_FUNCTION, ns3::WIFI_MOD_CLASS_HT, and ns3::WIFI_PHY_BAND_2_4GHZ.

Referenced by Configure80211ac(), Configure80211ax(), and ConfigureStandard().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Configure80211p()

void ns3::WifiPhy::Configure80211p ( )
private

Configure WifiPhy with appropriate channel frequency and supported rates for 802.11p standard.

Definition at line 870 of file wifi-phy.cc.

References AddPhyEntity(), GetChannelWidth(), GetSifs(), GetSlot(), m_ackTxTime, ns3::MicroSeconds(), NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::OFDM_PHY_10_MHZ, ns3::OFDM_PHY_5_MHZ, SetPifs(), SetSifs(), SetSlot(), and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ConfigureStandard().

+ Here is the call graph for this function:

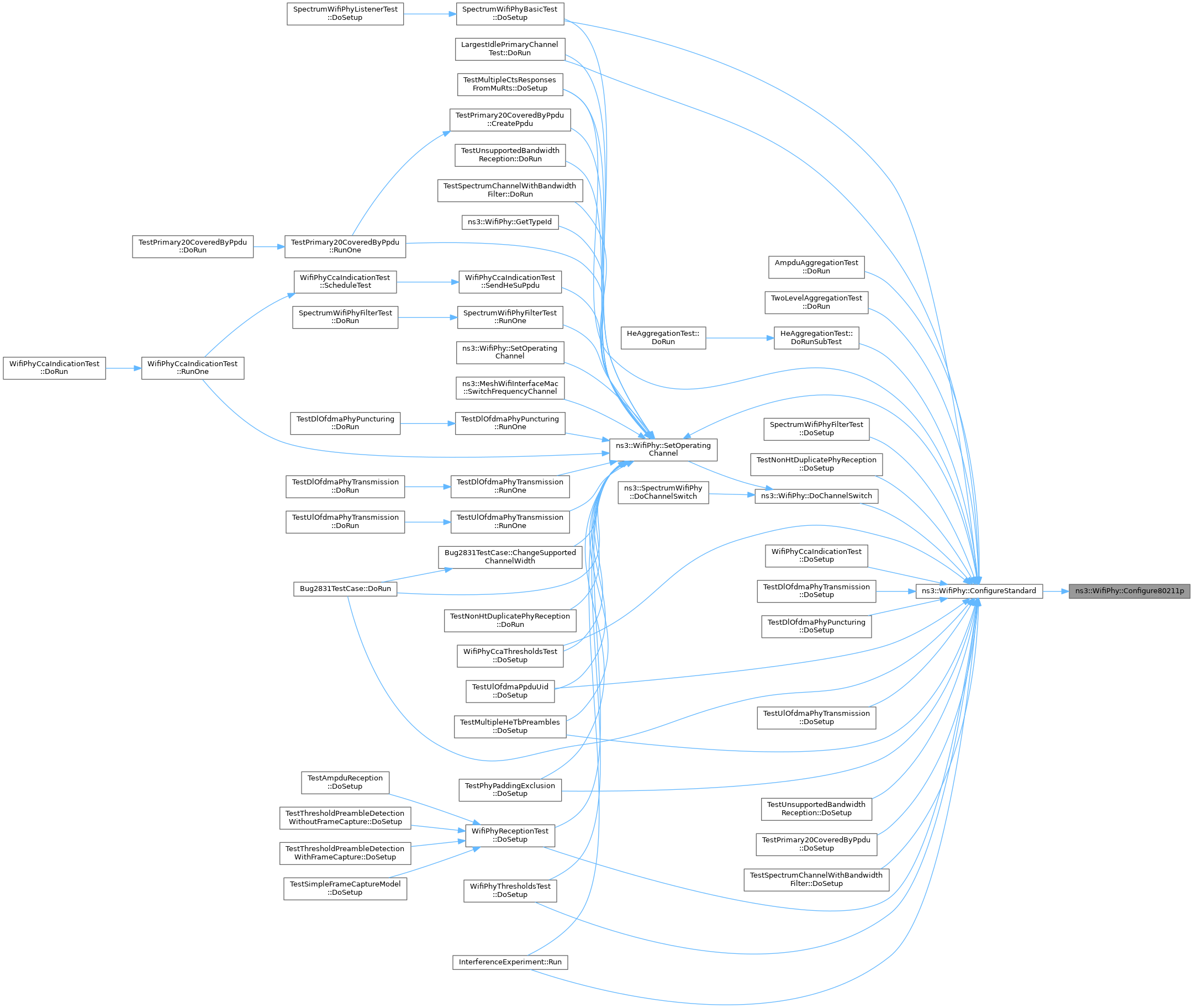

+ Here is the caller graph for this function:

◆ ConfigureHtDeviceMcsSet()

void ns3::WifiPhy::ConfigureHtDeviceMcsSet ( )
private

Configure the device MCS set with the appropriate HtMcs modes for the number of available transmit spatial streams.

◆ ConfigureStandard()

void ns3::WifiPhy::ConfigureStandard ( WifiStandard  standard)
virtual

Configure the PHY-level parameters for different Wi-Fi standard.

Note that, in case a Spectrum PHY is used, this method must be called after adding a spectrum channel covering the operating channel bandwidth.

Parameters
standardthe Wi-Fi standard

Definition at line 950 of file wifi-phy.cc.

References Configure80211a(), Configure80211ac(), Configure80211ax(), Configure80211b(), Configure80211be(), Configure80211g(), Configure80211n(), Configure80211p(), ns3::WifiPhyOperatingChannel::IsSet(), m_channelSettings, m_operatingChannel, m_phyEntities, m_standard, NS_ABORT_MSG_IF, NS_ASSERT_MSG, NS_LOG_DEBUG, NS_LOG_FUNCTION, SetOperatingChannel(), ns3::WIFI_STANDARD_80211a, ns3::WIFI_STANDARD_80211ac, ns3::WIFI_STANDARD_80211ax, ns3::WIFI_STANDARD_80211b, ns3::WIFI_STANDARD_80211be, ns3::WIFI_STANDARD_80211g, ns3::WIFI_STANDARD_80211n, ns3::WIFI_STANDARD_80211p, and ns3::WIFI_STANDARD_UNSPECIFIED.

Referenced by DoChannelSwitch(), LargestIdlePrimaryChannelTest::DoRun(), AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), Bug2831TestCase::DoRun(), HeAggregationTest::DoRunSubTest(), SpectrumWifiPhyBasicTest::DoSetup(), SpectrumWifiPhyFilterTest::DoSetup(), TestNonHtDuplicatePhyReception::DoSetup(), TestMultipleCtsResponsesFromMuRts::DoSetup(), WifiPhyCcaThresholdsTest::DoSetup(), WifiPhyCcaIndicationTest::DoSetup(), TestDlOfdmaPhyTransmission::DoSetup(), TestDlOfdmaPhyPuncturing::DoSetup(), TestUlOfdmaPpduUid::DoSetup(), TestMultipleHeTbPreambles::DoSetup(), TestUlOfdmaPhyTransmission::DoSetup(), TestPhyPaddingExclusion::DoSetup(), WifiPhyReceptionTest::DoSetup(), TestUnsupportedBandwidthReception::DoSetup(), TestPrimary20CoveredByPpdu::DoSetup(), TestSpectrumChannelWithBandwidthFilter::DoSetup(), WifiPhyThresholdsTest::DoSetup(), and InterferenceExperiment::Run().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ ConvertIndicesToFrequencies()

virtual WifiSpectrumBandFrequencies ns3::WifiPhy::ConvertIndicesToFrequencies ( const WifiSpectrumBandIndices indices) const
pure virtual

This is a helper function to convert start and stop indices to start and stop frequencies.

Parameters
indicesthe start/stop indices to convert
Returns
the converted frequencies

Implemented in ns3::SpectrumWifiPhy, and ns3::YansWifiPhy.

Referenced by ns3::HePhy::GetNonOfdmaBand(), ns3::HePhy::GetRuBandForRx(), and ns3::HePhy::GetRuBandForTx().

+ Here is the caller graph for this function:

◆ DoChannelSwitch()

◆ DoDispose()

void ns3::WifiPhy::DoDispose ( )
overrideprotectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Reimplemented in ns3::YansWifiPhy, MuRtsCtsSpectrumWifiPhy, and OfdmaSpectrumWifiPhy.

Definition at line 401 of file wifi-phy.cc.

References ns3::EventId::Cancel(), m_currentEvent, m_currentPreambleEvents, m_device, m_endPhyRxEvent, m_endTxEvent, m_frameCaptureModel, m_interference, m_mobility, m_phyEntities, m_postReceptionErrorModel, m_preambleDetectionModel, m_random, m_state, m_wifiRadioEnergyModel, and NS_LOG_FUNCTION.

Referenced by ns3::SpectrumWifiPhy::DoDispose(), and ns3::YansWifiPhy::DoDispose().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ DoInitialize()

void ns3::WifiPhy::DoInitialize ( )
overrideprotectedvirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Reimplemented in MuRtsCtsSpectrumWifiPhy, and OfdmaSpectrumWifiPhy.

Definition at line 376 of file wifi-phy.cc.

References ns3::WifiNetDevice::GetNode(), ns3::Object::GetObject(), m_device, m_mobility, NS_ABORT_MSG_UNLESS, NS_LOG_FUNCTION, and NS_LOG_WARN.

Referenced by ns3::SpectrumWifiPhy::DoInitialize().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ EndReceiveInterBss()

void ns3::WifiPhy::EndReceiveInterBss ( )

For HE receptions only, check and possibly modify the transmit power restriction state at the end of PPDU reception.

Definition at line 1855 of file wifi-phy.cc.

References m_channelAccessRequested, m_powerRestricted, and NS_LOG_FUNCTION.

Referenced by ResetCca().

+ Here is the caller graph for this function:

◆ GetAckTxTime()

Time ns3::WifiPhy::GetAckTxTime ( ) const

Return the estimated Ack TX time for this PHY.

Returns
the estimated Ack TX time

Definition at line 813 of file wifi-phy.cc.

References m_ackTxTime.

Referenced by ns3::MinstrelWifiManager::CalculateTimeUnicastPacket(), and ns3::ChannelAccessManager::GetEifsNoDifs().

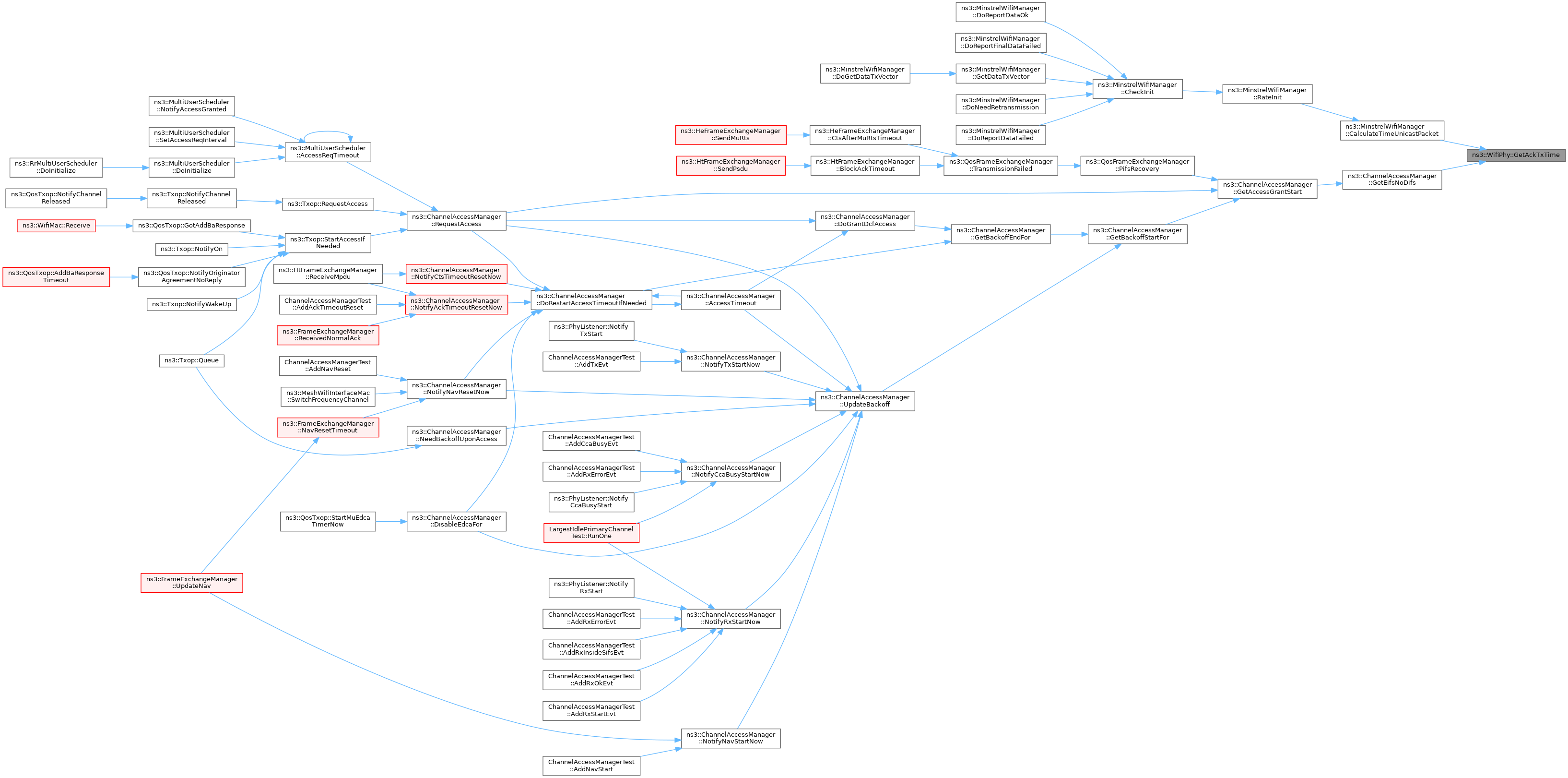

+ Here is the caller graph for this function:

◆ GetAddressedPsduInPpdu()

Ptr< const WifiPsdu > ns3::WifiPhy::GetAddressedPsduInPpdu ( Ptr< const WifiPpdu ppdu) const
private

Get the PSDU addressed to that PHY in a PPDU (useful for MU PPDU).

Parameters
ppduthe PPDU to extract the PSDU from
Returns
the PSDU addressed to that PHY

Definition at line 2173 of file wifi-phy.cc.

References GetPhyEntityForPpdu().

Referenced by AbortCurrentReception().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetBand()

virtual WifiSpectrumBandInfo ns3::WifiPhy::GetBand ( uint16_t  bandWidth,
uint8_t  bandIndex = 0
)
pure virtual

Get the info of a given band.

Parameters
bandWidththe width of the band to be returned (MHz)
bandIndexthe index of the band to be returned
Returns
the info that defines the band

Implemented in ns3::SpectrumWifiPhy, and ns3::YansWifiPhy.

Referenced by ns3::HePhy::GetPer20MHzDurations(), ns3::PhyEntity::GetPrimaryBand(), and ns3::PhyEntity::GetSecondaryBand().

+ Here is the caller graph for this function:

◆ GetBlockAckTxTime()

Time ns3::WifiPhy::GetBlockAckTxTime ( ) const

Return the estimated BlockAck TX time for this PHY.

Returns
the estimated BlockAck TX time

Definition at line 819 of file wifi-phy.cc.

References m_blockAckTxTime.

Referenced by ns3::MinstrelHtWifiManager::CalculateRetransmits().

+ Here is the caller graph for this function:

◆ GetBssMembershipSelectorList()

std::list< uint8_t > ns3::WifiPhy::GetBssMembershipSelectorList ( ) const

The WifiPhy::BssMembershipSelector() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMembershipSelectorSet, and which is stored inside HT PHY (and above) instances.

Returns
the list of BSS membership selectors.

Definition at line 1317 of file wifi-phy.cc.

References list, and m_phyEntities.

◆ GetCcaEdThreshold()

double ns3::WifiPhy::GetCcaEdThreshold ( ) const

Return the CCA energy detection threshold (dBm).

Returns
the CCA energy detection threshold in dBm

Definition at line 501 of file wifi-phy.cc.

References m_ccaEdThresholdW, and ns3::WToDbm().

Referenced by ns3::PhyEntity::GetCcaThreshold(), ns3::VhtPhy::GetCcaThreshold(), and GetTypeId().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetCcaSensitivityThreshold()

double ns3::WifiPhy::GetCcaSensitivityThreshold ( ) const

Return the CCA sensitivity threshold (dBm).

Returns
the CCA sensitivity threshold in dBm

Definition at line 514 of file wifi-phy.cc.

References m_ccaSensitivityThresholdW, and ns3::WToDbm().

Referenced by ns3::PhyEntity::GetCcaThreshold(), ns3::OfdmPhy::GetCcaThreshold(), ns3::VhtPhy::GetCcaThreshold(), and GetTypeId().

+ Here is the call graph for this function:

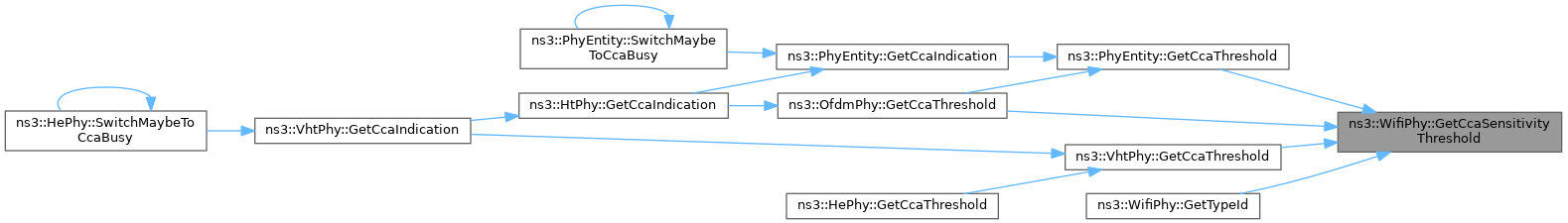

+ Here is the caller graph for this function:

◆ GetChannel()

virtual Ptr< Channel > ns3::WifiPhy::GetChannel ( ) const
pure virtual

Return the Channel this WifiPhy is connected to.

Returns
the Channel this WifiPhy is connected to

Implemented in ns3::SpectrumWifiPhy, and ns3::YansWifiPhy.

Referenced by ns3::WifiNetDevice::GetChannel(), and GetTypeId().

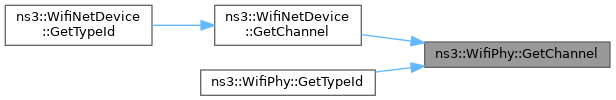

+ Here is the caller graph for this function:

◆ GetChannelNumber()

uint8_t ns3::WifiPhy::GetChannelNumber ( ) const

Return current channel number.

Returns
the current channel number

Definition at line 1029 of file wifi-phy.cc.

References ns3::WifiPhyOperatingChannel::GetNumber(), and m_operatingChannel.

Referenced by ns3::MeshWifiInterfaceMac::GetFrequencyChannel(), GetTypeId(), and ns3::PhyEntity::Transmit().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetChannelSwitchDelay()

Time ns3::WifiPhy::GetChannelSwitchDelay ( ) const
Returns
the required time for channel switch operation of this WifiPhy

Definition at line 692 of file wifi-phy.cc.

References m_channelSwitchDelay.

Referenced by DoChannelSwitch().

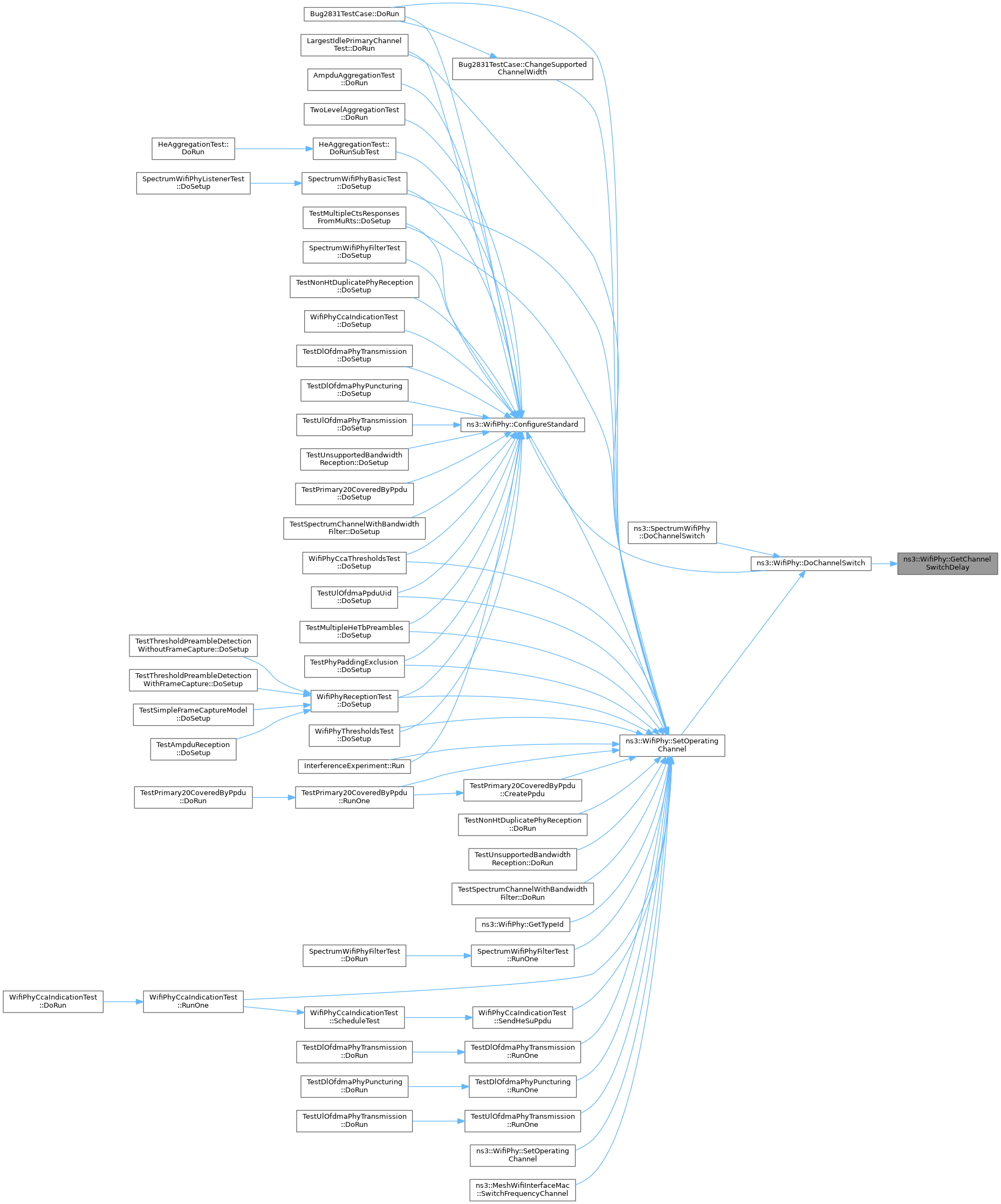

+ Here is the caller graph for this function:

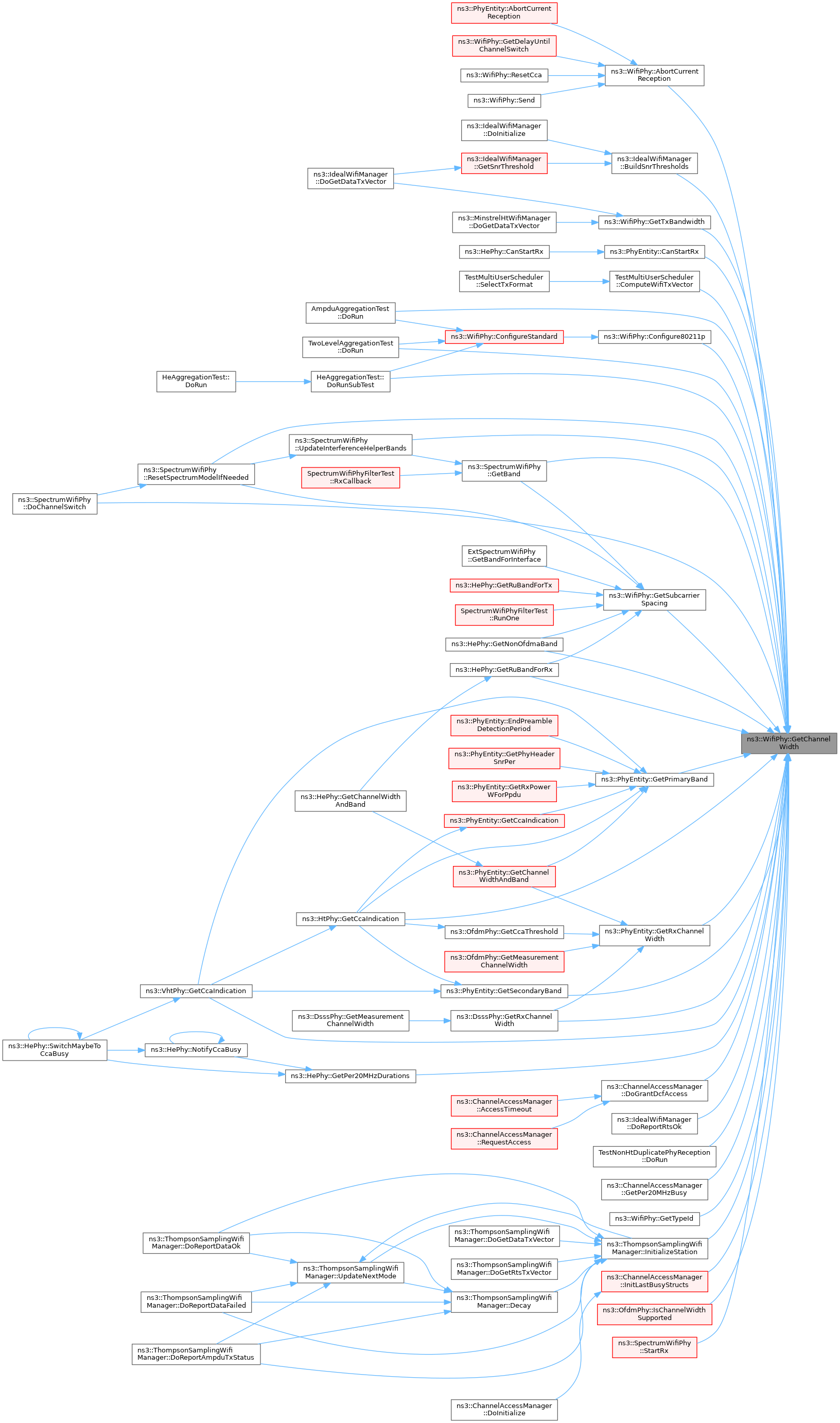

◆ GetChannelWidth()

◆ GetCurrentFrequencyRange()

virtual FrequencyRange ns3::WifiPhy::GetCurrentFrequencyRange ( ) const
pure virtual

Get the frequency range of the current RF interface.

Returns
the frequency range of the current RF interface

Implemented in ns3::SpectrumWifiPhy, and ns3::YansWifiPhy.

Referenced by AbortCurrentReception(), ns3::PhyEntity::EndPreambleDetectionPeriod(), ns3::PhyEntity::NotifyInterferenceRxEndAndClear(), and ns3::PhyEntity::ResetReceive().

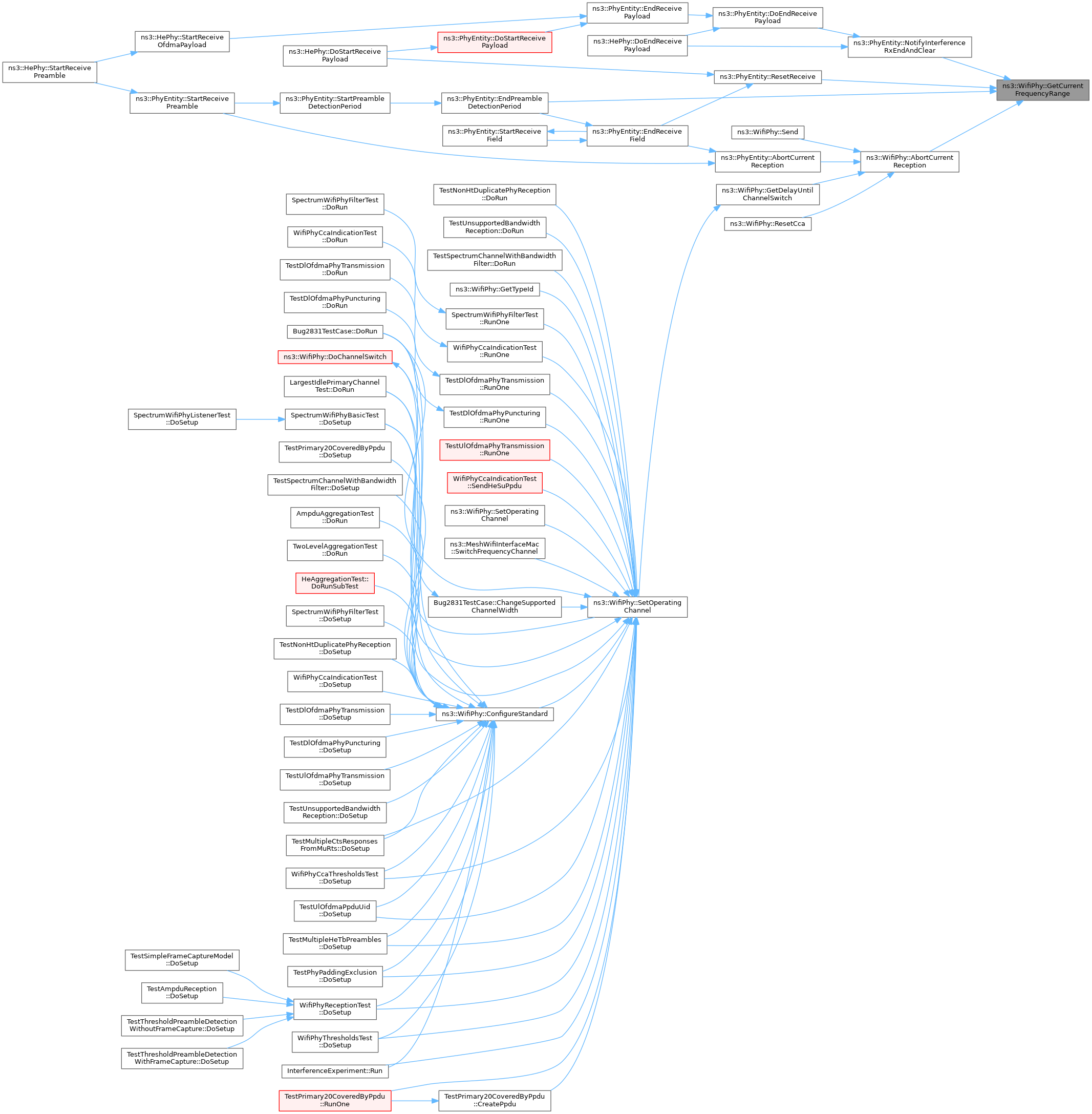

+ Here is the caller graph for this function:

◆ GetDefaultMode()

WifiMode ns3::WifiPhy::GetDefaultMode ( ) const

Get the default WifiMode supported by the PHY.

This is the first mode to be added (i.e. the lowest one over all supported PHY entities).

Returns
the default WifiMode

Definition at line 1885 of file wifi-phy.cc.

References m_phyEntities, and NS_ASSERT_MSG.

◆ GetDelayUntilChannelSwitch()

Time ns3::WifiPhy::GetDelayUntilChannelSwitch ( )
protected

Perform any actions necessary when user changes operating channel after initialization.

Returns
zero if the PHY can immediately switch channel, a positive value indicating the amount of time to wait until the channel switch can be performed or a negative value indicating that channel switch is currently not possible (i.e., the radio is in sleep mode)

Definition at line 1122 of file wifi-phy.cc.

References AbortCurrentReception(), ns3::EventId::Cancel(), ns3::CHANNEL_SWITCHING, GetDelayUntilIdle(), ns3::Object::IsInitialized(), IsStateSwitching(), m_channelAccessRequested, m_currentEvent, m_currentPreambleEvents, m_endPhyRxEvent, m_phyEntities, m_powerRestricted, m_state, NS_ASSERT, NS_LOG_DEBUG, and ns3::Seconds().

Referenced by SetOperatingChannel().

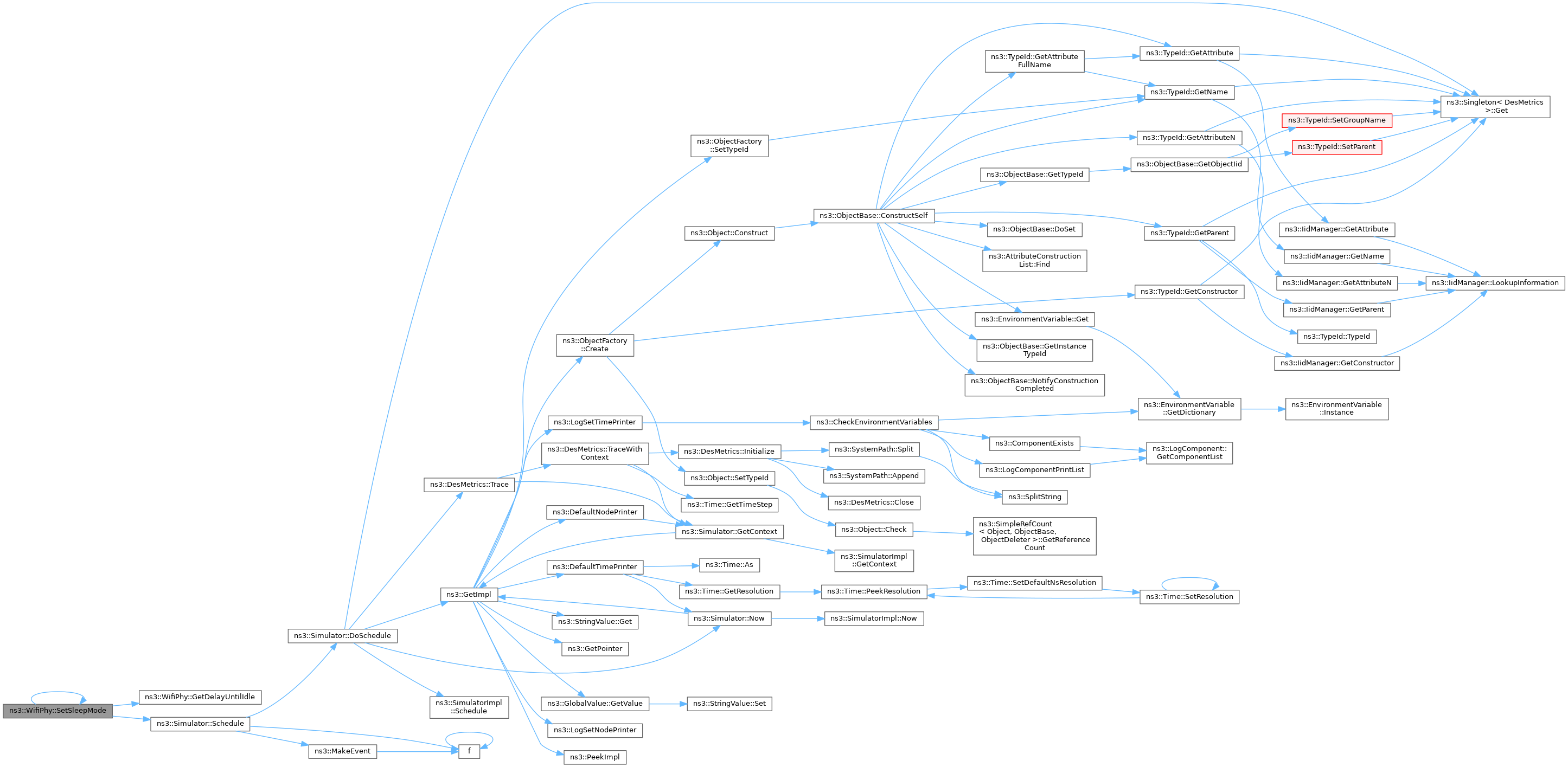

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetDelayUntilIdle()

Time ns3::WifiPhy::GetDelayUntilIdle ( )
Returns
the predicted delay until this PHY can become WifiPhy::IDLE.

The PHY will never become WifiPhy::IDLE before the delay returned by this method but it could become really idle later.

Definition at line 2045 of file wifi-phy.cc.

References m_state.

Referenced by GetDelayUntilChannelSwitch(), ns3::StaWifiMac::MissedBeacons(), and SetSleepMode().

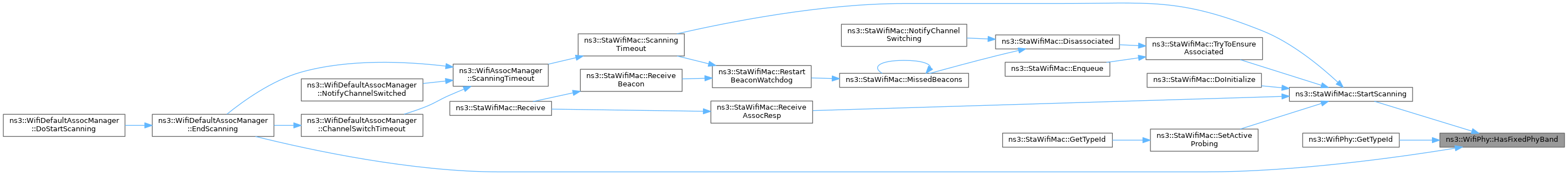

+ Here is the caller graph for this function:

◆ GetDevice()

◆ GetFrequency()

uint16_t ns3::WifiPhy::GetFrequency ( ) const
Returns
the operating center frequency (MHz)

Definition at line 1023 of file wifi-phy.cc.

References ns3::WifiPhyOperatingChannel::GetFrequency(), and m_operatingChannel.

Referenced by ns3::SpectrumWifiPhy::DoChannelSwitch(), TestNonHtDuplicatePhyReception::DoRun(), ns3::PhyEntity::EndReceivePayload(), ns3::HePhy::GetPer20MHzDurations(), GetTypeId(), ns3::SpectrumWifiPhy::ResetSpectrumModelIfNeeded(), and Send().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetGuardBandwidth()

virtual uint16_t ns3::WifiPhy::GetGuardBandwidth ( uint16_t  currentChannelWidth) const
pure virtual
Parameters
currentChannelWidthchannel width of the current transmission (MHz)
Returns
the width of the guard band (MHz)

Note: in order to properly model out of band transmissions for OFDM, the guard band has been configured so as to expand the modeled spectrum up to the outermost referenced point in "Transmit spectrum mask" sections' PSDs of each PHY specification of 802.11-2016 standard. It thus ultimately corresponds to the current channel bandwidth (which can be different from devices max channel width).

This method is only relevant for SpectrumWifiPhy.

Implemented in ns3::SpectrumWifiPhy, and ns3::YansWifiPhy.

Referenced by ns3::PhyEntity::GetGuardBandwidth().

+ Here is the caller graph for this function:

◆ GetLastRxEndTime()

Time ns3::WifiPhy::GetLastRxEndTime ( ) const

Return the end time of the last received packet.

Returns
the end time of the last received packet

Definition at line 2057 of file wifi-phy.cc.

References m_state.

Referenced by ns3::PhyEntity::DoEndReceivePayload(), and ns3::HePhy::DoEndReceivePayload().

+ Here is the caller graph for this function:

◆ GetLastRxStartTime()

Time ns3::WifiPhy::GetLastRxStartTime ( ) const

Return the start time of the last received packet.

Returns
the start time of the last received packet

Definition at line 2051 of file wifi-phy.cc.

References m_state.

◆ GetLatestPhyEntity()

Ptr< PhyEntity > ns3::WifiPhy::GetLatestPhyEntity ( ) const

Get the latest PHY entity supported by this PHY instance.

Returns
the latest PHY entity supported by this PHY instance

Definition at line 728 of file wifi-phy.cc.

References GetPhyEntity(), and m_standard.

Referenced by ns3::ErpOfdmPhy::BuildPpdu(), ns3::OfdmPhy::BuildPpdu(), ns3::SpectrumWifiPhy::CanStartRx(), OfdmaSpectrumWifiPhy::GetHePhy(), GetPhyEntityForPpdu(), NotifyCcaBusy(), TestMultipleHeTbPreambles::RxHeTbPpdu(), TestPhyPaddingExclusion::SetTrigVector(), TestUlOfdmaPhyTransmission::SetTrigVector(), and SwitchMaybeToCcaBusy().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetMaxPsduSize()

uint32_t ns3::WifiPhy::GetMaxPsduSize ( WifiModulationClass  modulation)
static

Get the maximum PSDU size in bytes for the given modulation class.

Parameters
modulationthe modulation class
Returns
the maximum PSDU size in bytes for the given modulation class

Definition at line 1525 of file wifi-phy.cc.

References GetStaticPhyEntity().

Referenced by ns3::QosFrameExchangeManager::IsWithinSizeAndTimeLimits().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetMaxSupportedRxSpatialStreams()

uint8_t ns3::WifiPhy::GetMaxSupportedRxSpatialStreams ( ) const
Returns
the maximum number of supported RX spatial streams

Definition at line 1311 of file wifi-phy.cc.

References m_rxSpatialStreams.

Referenced by ns3::ApWifiMac::GetEhtOperation(), ns3::ApWifiMac::GetHeOperation(), GetTypeId(), ns3::HePhy::IsConfigSupported(), and ns3::HtPhy::IsConfigSupported().

+ Here is the caller graph for this function:

◆ GetMaxSupportedTxSpatialStreams()

uint8_t ns3::WifiPhy::GetMaxSupportedTxSpatialStreams ( ) const
Returns
the maximum number of supported TX spatial streams

Definition at line 1293 of file wifi-phy.cc.

References m_txSpatialStreams.

Referenced by ns3::IdealWifiManager::BuildSnrThresholds(), GetTypeId(), ns3::ThompsonSamplingWifiManager::InitializeStation(), and Send().

+ Here is the caller graph for this function:

◆ GetMcs()

WifiMode ns3::WifiPhy::GetMcs ( WifiModulationClass  modulation,
uint8_t  mcs
) const

Get the WifiMode object corresponding to the given MCS of the given modulation class.

Parameters
modulationthe modulation class
mcsthe MCS value
Returns
the WifiMode object corresponding to the given MCS of the given modulation class

Definition at line 1996 of file wifi-phy.cc.

References IsMcsSupported(), m_phyEntities, and NS_ASSERT_MSG.

+ Here is the call graph for this function:

◆ GetMcsList() [1/2]

std::list< WifiMode > ns3::WifiPhy::GetMcsList ( ) const

The WifiPhy::GetMcsList() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception MCS indices that this WifiPhy(-derived class) can support - a set of MCS indices which is stored by each HT PHY (and above).

Returns
the list of supported MCSs.

Definition at line 1961 of file wifi-phy.cc.

References list, and m_phyEntities.

Referenced by ns3::WifiRemoteStationManager::AddAllSupportedMcs(), and ns3::ThompsonSamplingWifiManager::InitializeStation().

+ Here is the caller graph for this function:

◆ GetMcsList() [2/2]

std::list< WifiMode > ns3::WifiPhy::GetMcsList ( WifiModulationClass  modulation) const

Get the list of supported MCSs for the given modulation class (i.e.

corresponding to a given PHY entity).

Parameters
modulationthe modulation class
Returns
the list of supported MCSs for the given modulation class.
See also
GetMcsList ()

Definition at line 1978 of file wifi-phy.cc.

References list, and m_phyEntities.

◆ GetMobility()

Ptr< MobilityModel > ns3::WifiPhy::GetMobility ( ) const

Return the mobility model this PHY is associated with.

This method will return either the mobility model that has been explicitly set by a call to YansWifiPhy::SetMobility(), or else will return the mobility model (if any) that has been aggregated to the node.

Returns
the mobility model this PHY is associated with

Definition at line 627 of file wifi-phy.cc.

References m_mobility.

Referenced by ns3::WifiSpectrumPhyInterface::GetMobility().

+ Here is the caller graph for this function:

◆ GetModeList() [1/2]

std::list< WifiMode > ns3::WifiPhy::GetModeList ( ) const

The WifiPhy::GetModeList() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception (non-MCS) modes that this WifiPhy(-derived class) can support - a set of modes which is stored by each non-HT PHY.

It is important to note that this list is a superset (not necessarily proper) of the OperationalRateSet (which is logically, if not actually, a property of the associated WifiRemoteStationManager), which itself is a superset (again, not necessarily proper) of the BSSBasicRateSet.

Returns
the list of supported (non-MCS) modes.

Definition at line 1912 of file wifi-phy.cc.

References list, and m_phyEntities.

Referenced by ns3::WifiRemoteStationManager::AddAllSupportedModes(), and ns3::MeshWifiInterfaceMac::Receive().

+ Here is the caller graph for this function:

◆ GetModeList() [2/2]

std::list< WifiMode > ns3::WifiPhy::GetModeList ( WifiModulationClass  modulation) const

Get the list of supported (non-MCS) modes for the given modulation class (i.e.

corresponding to a given PHY entity).

Parameters
modulationthe modulation class
Returns
the list of supported (non-MCS) modes for the given modulation class.
See also
GetModeList ()

Definition at line 1929 of file wifi-phy.cc.

References list, and m_phyEntities.

◆ GetNMcs()

uint16_t ns3::WifiPhy::GetNMcs ( ) const
Returns
the number of supported MCSs.
See also
GetMcsList ()

Definition at line 1947 of file wifi-phy.cc.

References m_phyEntities.

◆ GetNTxPower()

uint8_t ns3::WifiPhy::GetNTxPower ( ) const

Return the number of available transmission power levels.

Returns
the number of available transmission power levels

Definition at line 564 of file wifi-phy.cc.

References m_nTxPower.

◆ GetNumberOfAntennas()

uint8_t ns3::WifiPhy::GetNumberOfAntennas ( ) const
Returns
the number of antennas on this device

Definition at line 1261 of file wifi-phy.cc.

References m_numberOfAntennas.

Referenced by GetTypeId(), SetMaxSupportedRxSpatialStreams(), and SetMaxSupportedTxSpatialStreams().

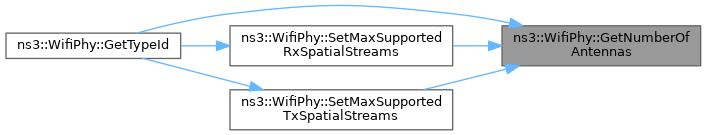

+ Here is the caller graph for this function:

◆ GetOperatingChannel()

const WifiPhyOperatingChannel & ns3::WifiPhy::GetOperatingChannel ( ) const

Get a const reference to the operating channel.

Returns
a const reference to the operating channel

Definition at line 1017 of file wifi-phy.cc.

References m_operatingChannel.

Referenced by ns3::PhyEntity::BuildPpdu(), ns3::EhtPhy::BuildPpdu(), ns3::HePhy::BuildPpdu(), ns3::HtPhy::BuildPpdu(), ns3::DsssPhy::BuildPpdu(), ns3::ErpOfdmPhy::BuildPpdu(), ns3::OfdmPhy::BuildPpdu(), ns3::VhtPhy::BuildPpdu(), ns3::PhyEntity::CanStartRx(), MultiLinkSetupTest::CheckMlSetup(), TestPrimary20CoveredByPpdu::CreatePpdu(), ns3::SpectrumWifiPhy::DoChannelSwitch(), ns3::ChannelAccessManager::DoGrantDcfAccess(), TestNonHtDuplicatePhyReception::DoRun(), ns3::WifiDefaultAssocManager::EndScanning(), ns3::HtPhy::GetCcaIndication(), ns3::VhtPhy::GetCcaIndication(), ns3::PhyEntity::GetCenterFrequencyForChannelWidth(), ns3::HePhy::GetCenterFrequencyForNonOfdmaPart(), ns3::HePhy::GetNonOfdmaBand(), ns3::HePhy::GetPer20MHzDurations(), ns3::ApWifiMac::GetReducedNeighborReport(), ns3::HePhy::GetRuBandForRx(), ns3::HePhy::GetRuBandForTx(), ns3::HePhy::GetSigBSize(), ns3::EhtPhy::GetSigBSize(), ns3::HePhy::GetTxPowerSpectralDensity(), ns3::ChannelAccessManager::InitLastBusyStructs(), WifiPhyCcaThresholdsTest::RunOne(), TestPrimary20CoveredByPpdu::RunOne(), TestMultipleHeTbPreambles::RxHeTbPpdu(), TestAmpduReception::SendAmpduWithThreeMpdus(), WifiPhyReceptionTest::SendPacket(), TestUnsupportedBandwidthReception::SendPpdu(), SpectrumWifiPhyBasicTest::SendSignal(), and WifiPhyThresholdsTest::SendSignal().

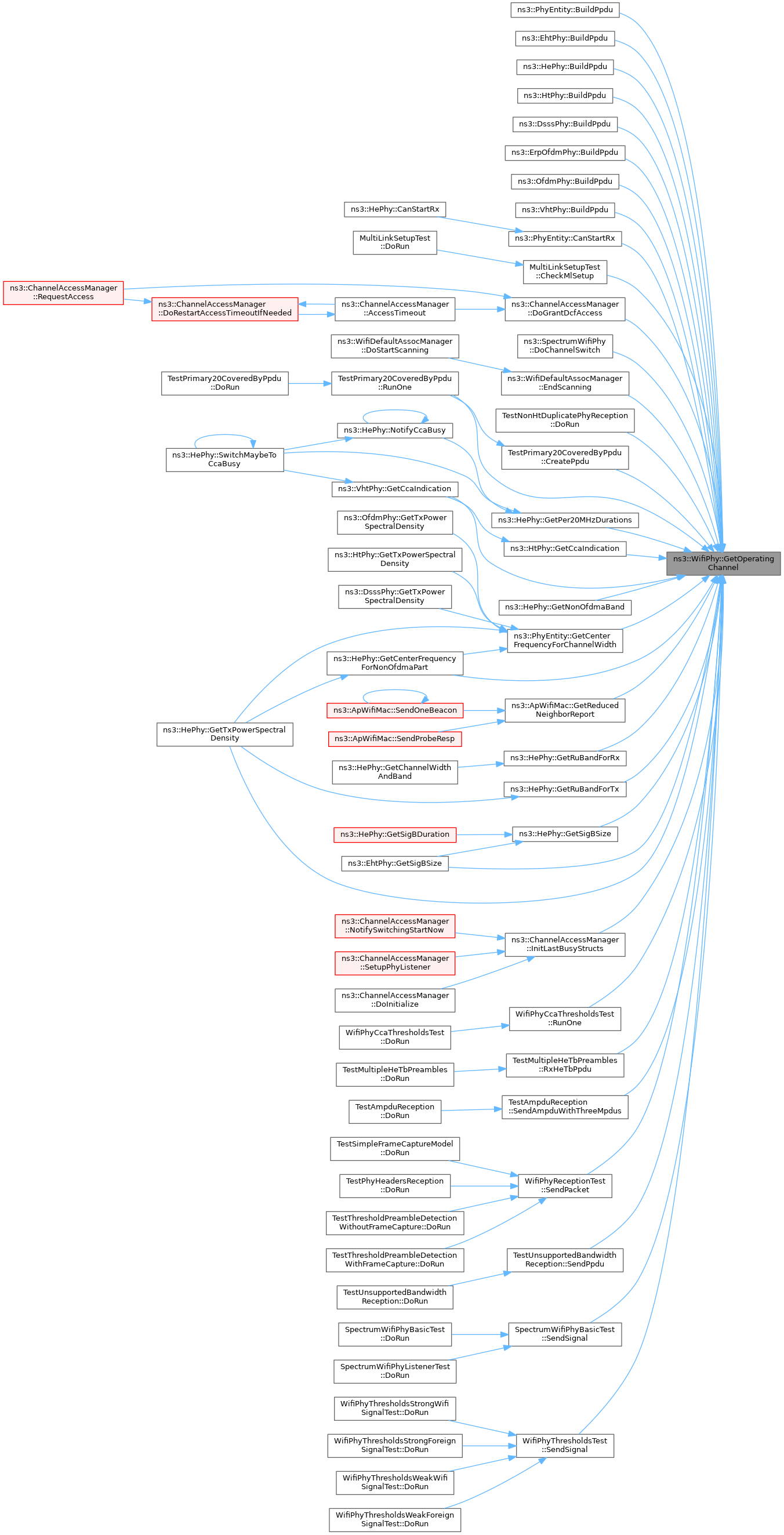

+ Here is the caller graph for this function:

◆ GetPayloadDuration() [1/2]

Time ns3::WifiPhy::GetPayloadDuration ( uint32_t  size,
const WifiTxVector txVector,
WifiPhyBand  band,
MpduType  mpdutype,
bool  incFlag,
uint32_t totalAmpduSize,
double totalAmpduNumSymbols,
uint16_t  staId
)
static
Parameters
sizethe number of bytes in the packet to send
txVectorthe TXVECTOR used for the transmission of this packet
bandthe frequency band
mpdutypethe type of the MPDU as defined in WifiPhy::MpduType.
incFlagthis flag is used to indicate that the variables need to be update or not This function is called a couple of times for the same packet so variables should not be increased each time.
totalAmpduSizethe total size of the previously transmitted MPDUs for the concerned A-MPDU. If incFlag is set, this parameter will be updated.
totalAmpduNumSymbolsthe number of symbols previously transmitted for the MPDUs in the concerned A-MPDU, used for the computation of the number of symbols needed for the last MPDU. If incFlag is set, this parameter will be updated.
staIdthe STA-ID of the PSDU (only used for MU PPDUs)
Returns
the duration of the PSDU

Definition at line 1468 of file wifi-phy.cc.

References ns3::WifiTxVector::GetModulationClass(), and GetStaticPhyEntity().

+ Here is the call graph for this function:

◆ GetPayloadDuration() [2/2]

Time ns3::WifiPhy::GetPayloadDuration ( uint32_t  size,
const WifiTxVector txVector,
WifiPhyBand  band,
MpduType  mpdutype = NORMAL_MPDU,
uint16_t  staId = SU_STA_ID
)
static
Parameters
sizethe number of bytes in the packet to send
txVectorthe TXVECTOR used for the transmission of this packet
bandthe frequency band
mpdutypethe type of the MPDU as defined in WifiPhy::MpduType.
staIdthe STA-ID of the PSDU (only used for MU PPDUs)
Returns
the duration of the PSDU

Definition at line 1449 of file wifi-phy.cc.

References GetPayloadDuration().

Referenced by ns3::MinstrelHtWifiManager::CalculateMpduTxDuration(), CalculateTxDuration(), GetPayloadDuration(), and ns3::PhyEntity::ScheduleEndOfMpdus().

+ Here is the call graph for this function:

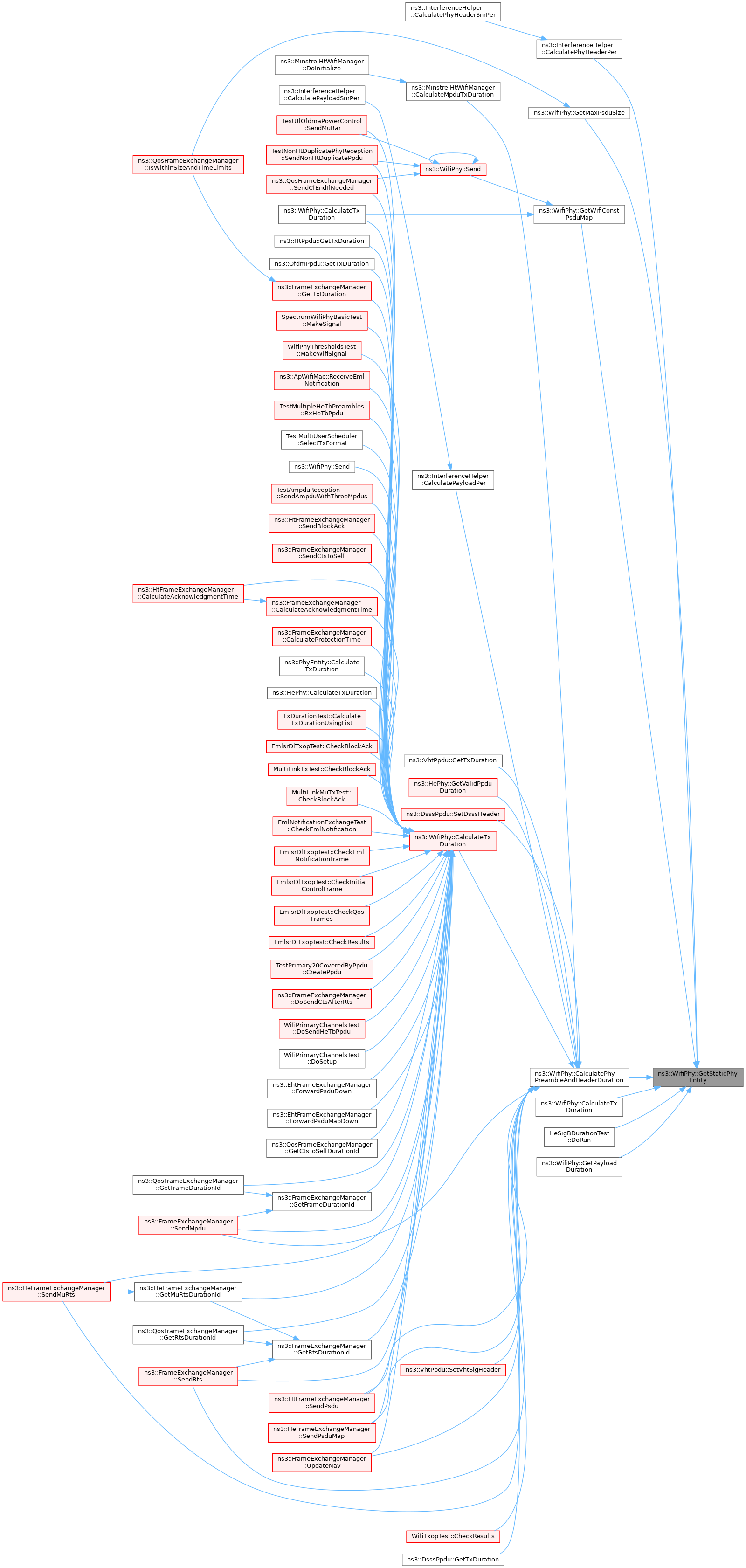

+ Here is the caller graph for this function:

◆ GetPhyBand()

WifiPhyBand ns3::WifiPhy::GetPhyBand ( ) const

Get the configured Wi-Fi band.

Returns
the Wi-Fi band that has been configured

Definition at line 1005 of file wifi-phy.cc.

References m_band.

Referenced by ns3::FrameExchangeManager::CalculateAcknowledgmentTime(), ns3::HtFrameExchangeManager::CalculateAcknowledgmentTime(), ns3::FrameExchangeManager::CalculateProtectionTime(), EmlsrDlTxopTest::CheckInitialControlFrame(), EmlsrDlTxopTest::CheckQosFrames(), TestPrimary20CoveredByPpdu::CreatePpdu(), ns3::ChannelAccessManager::DoGrantDcfAccess(), ns3::FrameExchangeManager::DoSendCtsAfterRts(), ns3::HePhy::DoStartReceivePayload(), ns3::EhtFrameExchangeManager::ForwardPsduDown(), ns3::EhtFrameExchangeManager::ForwardPsduMapDown(), ns3::QosFrameExchangeManager::GetCtsToSelfDurationId(), ns3::FrameExchangeManager::GetFrameDurationId(), ns3::QosFrameExchangeManager::GetFrameDurationId(), ns3::MsduAggregator::GetMaxAmsduSize(), ns3::HeFrameExchangeManager::GetMuRtsDurationId(), ns3::FrameExchangeManager::GetRtsDurationId(), ns3::QosFrameExchangeManager::GetRtsDurationId(), ns3::FrameExchangeManager::GetTxDuration(), ns3::WifiRemoteStationManager::GetVhtSupported(), SpectrumWifiPhyBasicTest::MakeSignal(), WifiPhyThresholdsTest::MakeWifiSignal(), TestMultipleHeTbPreambles::RxHeTbPpdu(), ns3::PhyEntity::ScheduleEndOfMpdus(), TestMultiUserScheduler::SelectTxFormat(), Send(), TestAmpduReception::SendAmpduWithThreeMpdus(), ns3::HtFrameExchangeManager::SendBlockAck(), ns3::QosFrameExchangeManager::SendCfEndIfNeeded(), ns3::FrameExchangeManager::SendCtsToSelf(), ns3::FrameExchangeManager::SendMpdu(), ns3::HeFrameExchangeManager::SendMuRts(), TestNonHtDuplicatePhyReception::SendNonHtDuplicatePpdu(), ns3::FrameExchangeManager::SendNormalAck(), WifiPhyReceptionTest::SendPacket(), TestUnsupportedBandwidthReception::SendPpdu(), ns3::HtFrameExchangeManager::SendPsdu(), ns3::HeFrameExchangeManager::SendPsduMap(), ns3::HeFrameExchangeManager::SendPsduMapWithProtection(), ns3::FrameExchangeManager::SendRts(), TestUlOfdmaPpduUid::SendTbPpdu(), TestPhyPaddingExclusion::SetTrigVector(), TestUlOfdmaPhyTransmission::SetTrigVector(), ns3::StaWifiMac::StartScanning(), ns3::MeshWifiInterfaceMac::SwitchFrequencyChannel(), EmlsrOperationsTestBase::Transmit(), MultiLinkMuTxTest::Transmit(), ns3::RrMultiUserScheduler::TrySendingBasicTf(), ns3::RrMultiUserScheduler::TrySendingBsrpTf(), and ns3::FrameExchangeManager::UpdateNav().

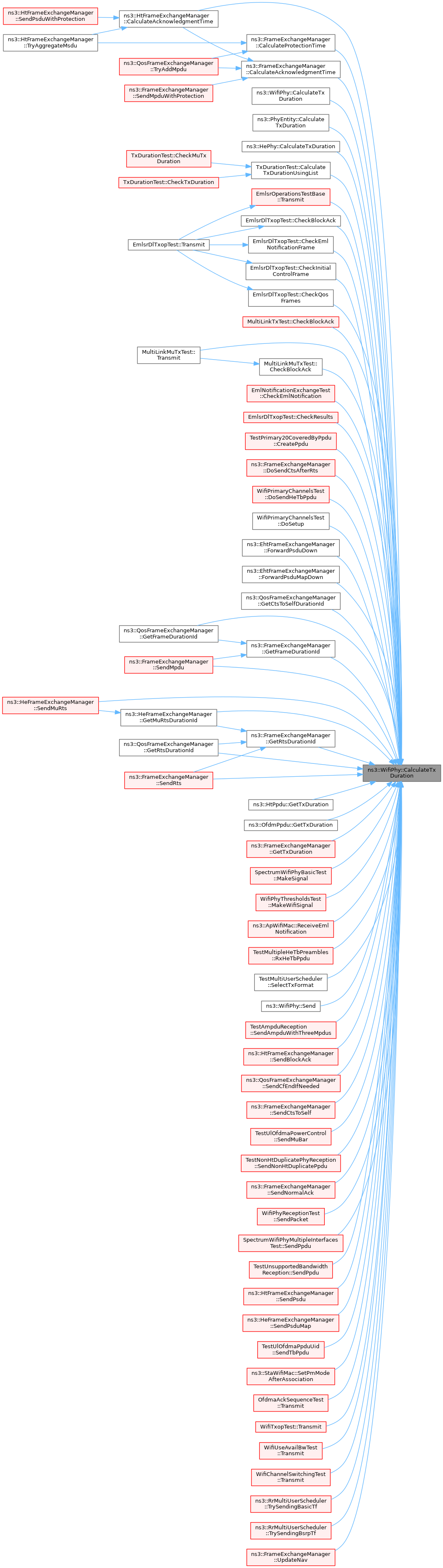

+ Here is the caller graph for this function:

◆ GetPhyEntity() [1/2]

Ptr< PhyEntity > ns3::WifiPhy::GetPhyEntity ( WifiModulationClass  modulation) const

Get the supported PHY entity corresponding to the modulation class.

Parameters
modulationthe modulation class
Returns
the pointer to the supported PHY entity

Definition at line 713 of file wifi-phy.cc.

References m_phyEntities, and NS_ABORT_MSG_IF.

Referenced by ns3::EhtFrameExchangeManager::ForwardPsduDown(), GetLatestPhyEntity(), GetPhyEntity(), GetPhyEntityForPpdu(), WifiPhyCcaThresholdsTest::RunOne(), TestPrimary20CoveredByPpdu::RunOne(), Send(), ns3::HeFrameExchangeManager::SendPsduMap(), TestUlOfdmaPpduUid::SendTbPpdu(), and ns3::SpectrumWifiPhy::StartTx().

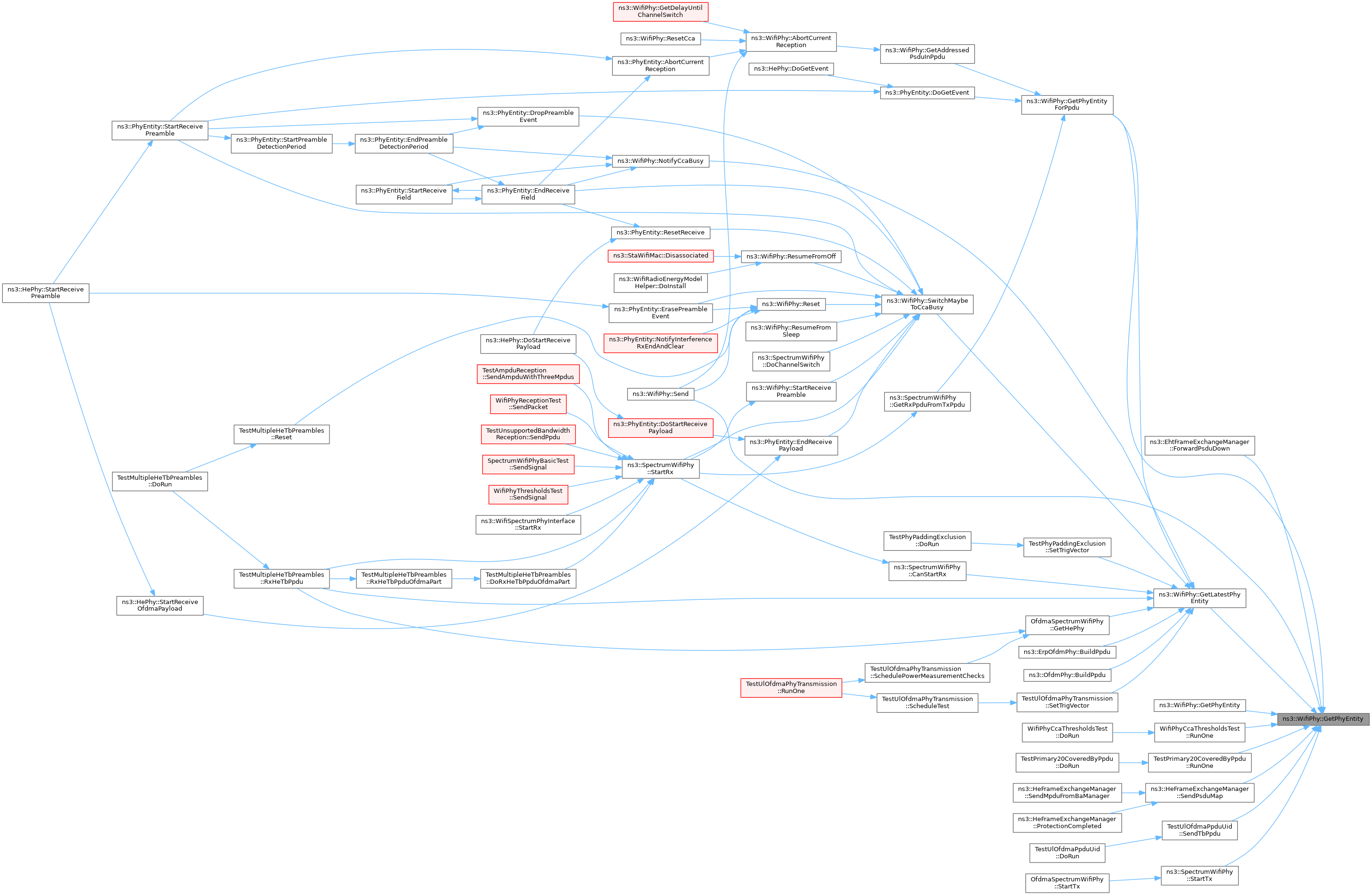

+ Here is the caller graph for this function:

◆ GetPhyEntity() [2/2]

Ptr< PhyEntity > ns3::WifiPhy::GetPhyEntity ( WifiStandard  standard) const

Get the supported PHY entity corresponding to the wifi standard.

Parameters
standardthe wifi standard
Returns
the pointer to the supported PHY entity

Definition at line 722 of file wifi-phy.cc.

References ns3::GetModulationClassForStandard(), and GetPhyEntity().

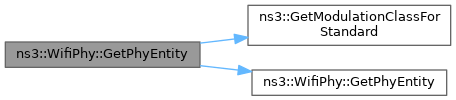

+ Here is the call graph for this function:

◆ GetPhyEntityForPpdu()

Ptr< PhyEntity > ns3::WifiPhy::GetPhyEntityForPpdu ( const Ptr< const WifiPpdu ppdu) const

Get the supported PHY entity to use for a received PPDU.

This typically returns the entity corresponding to the modulation class used to transmit the PPDU. If the modulation class used to transmit the PPDU is not supported by the PHY, the latest PHY entity corresponding to the configured standard is returned. If the modulation used to transmit the PPDU is non-HT (duplicate), the latest PHY entity corresponding to the configured standard is also returned.

Parameters
ppduthe received PPDU
Returns
the pointer to the supported PHY entity

Definition at line 734 of file wifi-phy.cc.

References GetLatestPhyEntity(), GetPhyEntity(), m_phyEntities, NS_ABORT_IF, and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::PhyEntity::DoGetEvent(), GetAddressedPsduInPpdu(), and ns3::SpectrumWifiPhy::GetRxPpduFromTxPpdu().

+ Here is the call graph for this function:

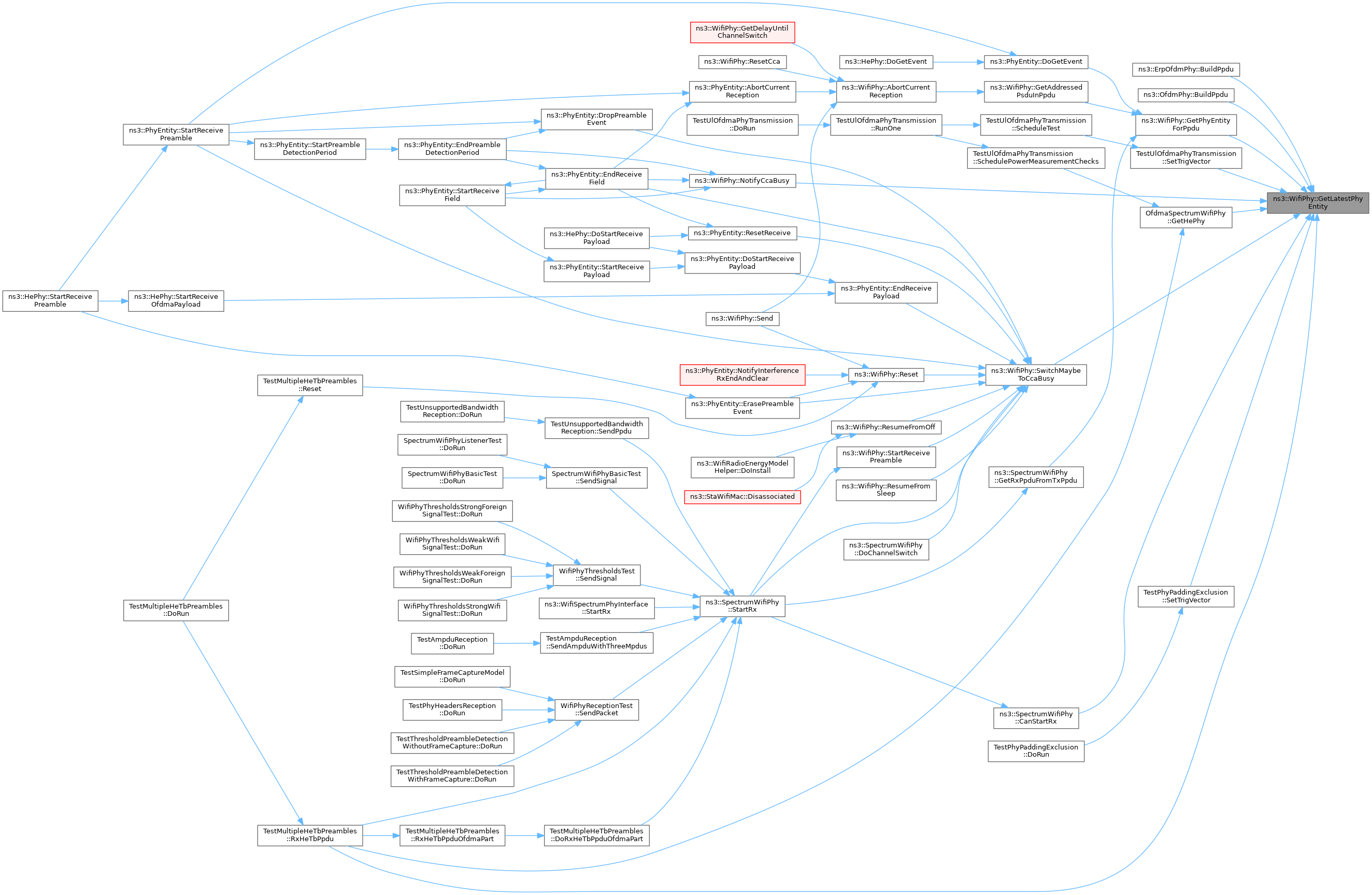

+ Here is the caller graph for this function:

◆ GetPifs()

Time ns3::WifiPhy::GetPifs ( ) const

Return the PCF Interframe Space (PIFS) for this PHY.

Returns
the PIFS duration

Definition at line 807 of file wifi-phy.cc.

References m_pifs.

Referenced by ns3::ChannelAccessManager::DoGrantDcfAccess(), ns3::QosFrameExchangeManager::PifsRecovery(), and ns3::QosFrameExchangeManager::TransmissionFailed().

+ Here is the caller graph for this function:

◆ GetPowerDbm()

double ns3::WifiPhy::GetPowerDbm ( uint8_t  power) const

Get the power of the given power level in dBm.

In SpectrumWifiPhy implementation, the power levels are equally spaced (in dBm).

Parameters
powerthe power level
Returns
the transmission power in dBm at the given power level

Definition at line 673 of file wifi-phy.cc.

References m_nTxPower, m_txPowerBaseDbm, m_txPowerEndDbm, NS_ASSERT, and NS_ASSERT_MSG.

Referenced by ns3::AparfWifiManager::CheckInit(), ns3::ParfWifiManager::CheckInit(), ns3::RrpaaWifiManager::CheckInit(), ns3::AparfWifiManager::DoGetDataTxVector(), ns3::ParfWifiManager::DoGetDataTxVector(), ns3::RrpaaWifiManager::DoGetDataTxVector(), GetTxPowerForTransmission(), Send(), and ns3::YansWifiPhy::StartTx().

+ Here is the caller graph for this function:

◆ GetPreambleDetectionDuration()

Time ns3::WifiPhy::GetPreambleDetectionDuration ( )
static
Returns
the preamble detection duration, which is the time correlation needs to detect the start of an incoming frame.

Definition at line 1437 of file wifi-phy.cc.

References ns3::MicroSeconds().

Referenced by ns3::PhyEntity::EndPreambleDetectionPeriod(), TestUlOfdmaPhyTransmission::SchedulePowerMeasurementChecks(), and ns3::PhyEntity::StartPreambleDetectionPeriod().

+ Here is the call graph for this function:

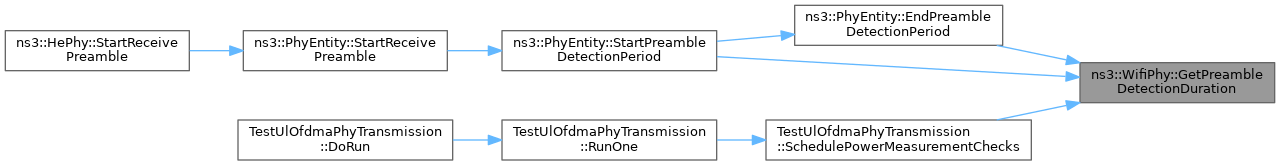

+ Here is the caller graph for this function:

◆ GetPreviouslyRxPpduUid()

uint64_t ns3::WifiPhy::GetPreviouslyRxPpduUid ( ) const
Returns
the UID of the previously received PPDU (reset to UINT64_MAX upon transmission)

Definition at line 1814 of file wifi-phy.cc.

References m_previouslyRxPpduUid.

Referenced by ns3::HePhy::ObtainNextUid().

+ Here is the caller graph for this function:

◆ GetPrimary20Index()

uint8_t ns3::WifiPhy::GetPrimary20Index ( ) const
Returns
the index of the primary 20 MHz channel

Definition at line 1041 of file wifi-phy.cc.

References ns3::WifiPhyOperatingChannel::GetPrimaryChannelIndex(), and m_operatingChannel.

Referenced by GetTypeId().
