hold a list of per-remote-station state. More...

#include "wifi-remote-station-manager.h"

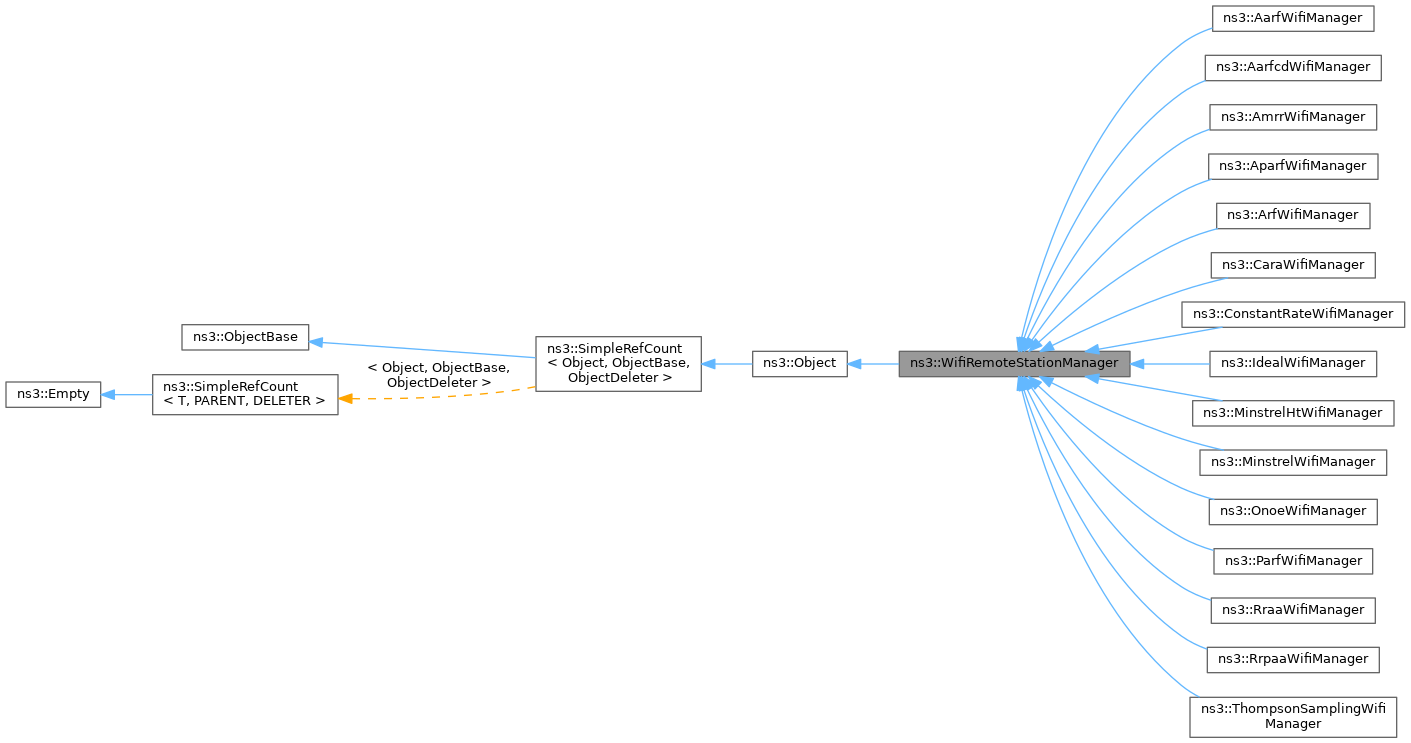

Inheritance diagram for ns3::WifiRemoteStationManager:

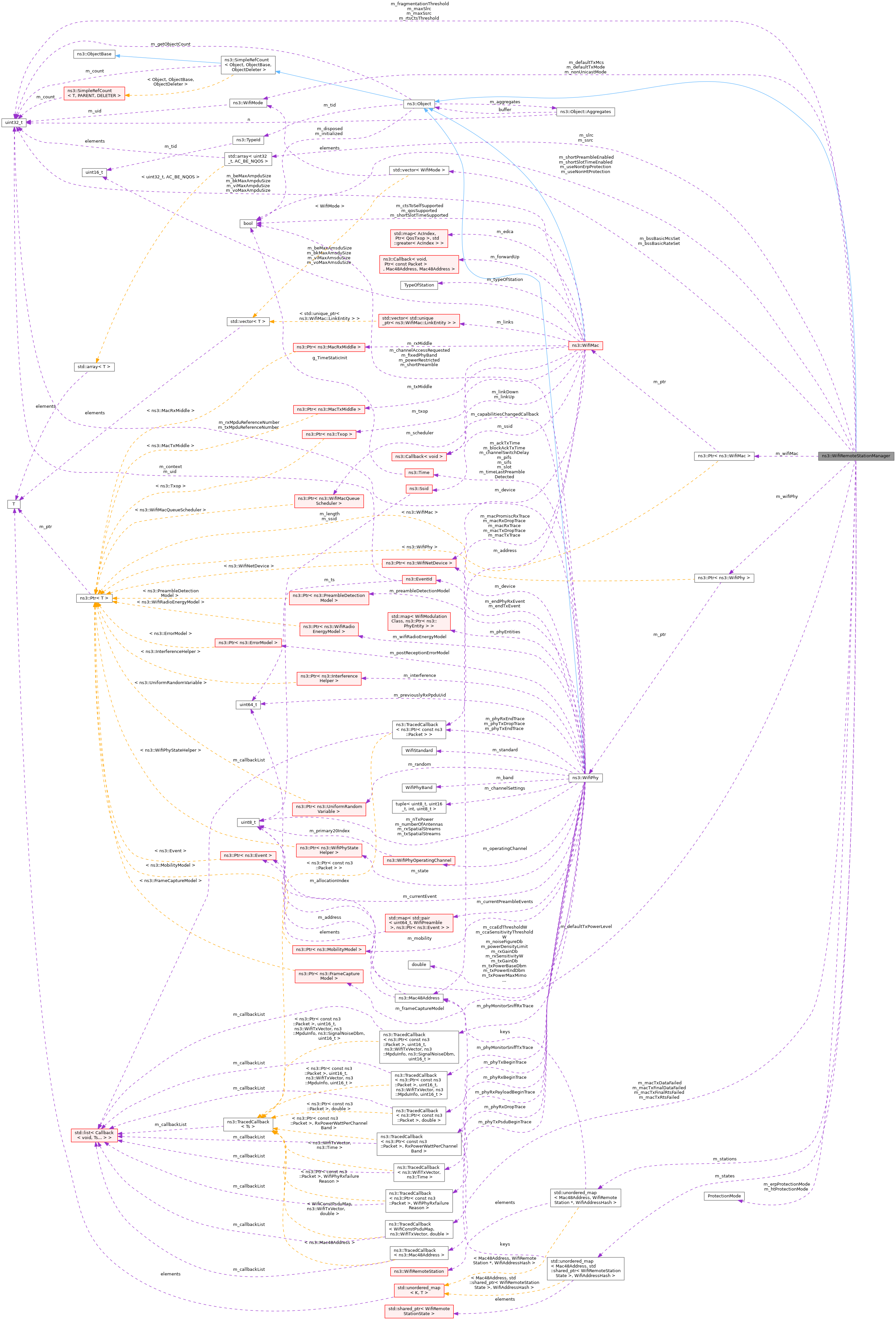

Collaboration diagram for ns3::WifiRemoteStationManager:

Public Types
typedef void(*	PowerChangeTracedCallback) (double oldPower, double newPower, Mac48Address remoteAddress)
	TracedCallback signature for power change events.

enum	ProtectionMode { RTS_CTS , CTS_TO_SELF }
	ProtectionMode enumeration. More...

typedef void(*	RateChangeTracedCallback) (DataRate oldRate, DataRate newRate, Mac48Address remoteAddress)
	TracedCallback signature for rate change events.

using	Stations = std::unordered_map< Mac48Address, WifiRemoteStation *, WifiAddressHash >
	A map of WifiRemoteStations with Mac48Address as key.

using	StationStates = std::unordered_map< Mac48Address, std::shared_ptr< WifiRemoteStationState >, WifiAddressHash >
	A map of WifiRemoteStationStates with Mac48Address as key.

Public Member Functions
	WifiRemoteStationManager ()

	~WifiRemoteStationManager () override

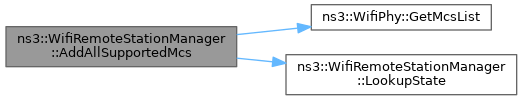

void	AddAllSupportedMcs (Mac48Address address)
	Invoked in a STA or AP to store all of the MCS supported by a destination which is also supported locally.

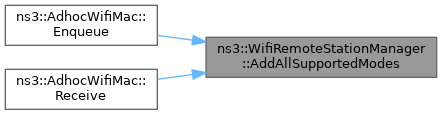

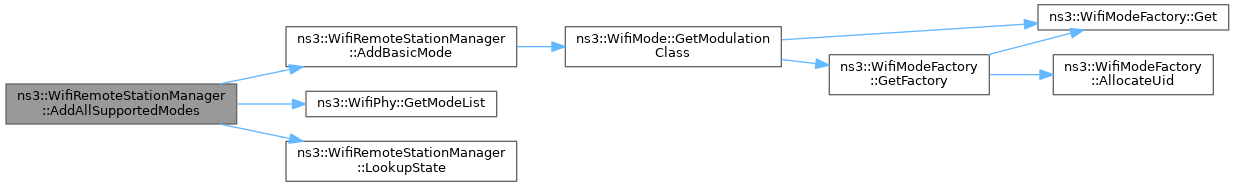

void	AddAllSupportedModes (Mac48Address address)
	Invoked in a STA or AP to store all of the modes supported by a destination which is also supported locally.

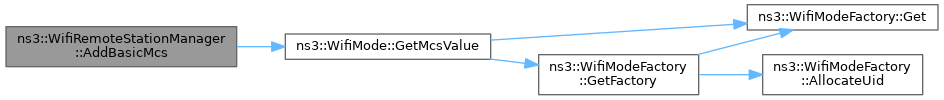

void	AddBasicMcs (WifiMode mcs)
	Add a given Modulation and Coding Scheme (MCS) index to the set of basic MCS.

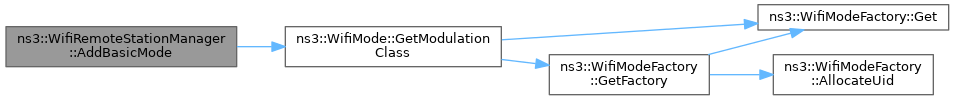

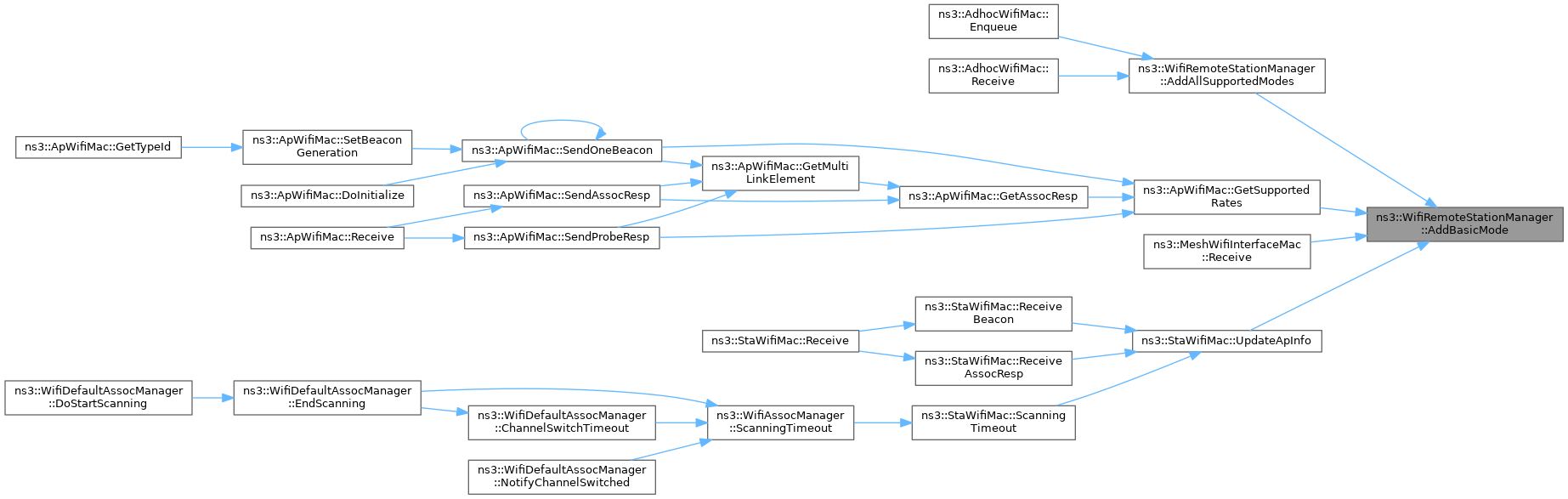

void	AddBasicMode (WifiMode mode)
	Invoked in a STA upon association to store the set of rates which belong to the BSSBasicRateSet of the associated AP and which are supported locally.

void	AddStationEhtCapabilities (Mac48Address from, EhtCapabilities ehtCapabilities)
	Records EHT capabilities of the remote station.

void	AddStationEmlCapabilities (Mac48Address from, const std::shared_ptr< CommonInfoBasicMle::EmlCapabilities > &emlCapabilities)
	Records EML capabilities of the remote station.

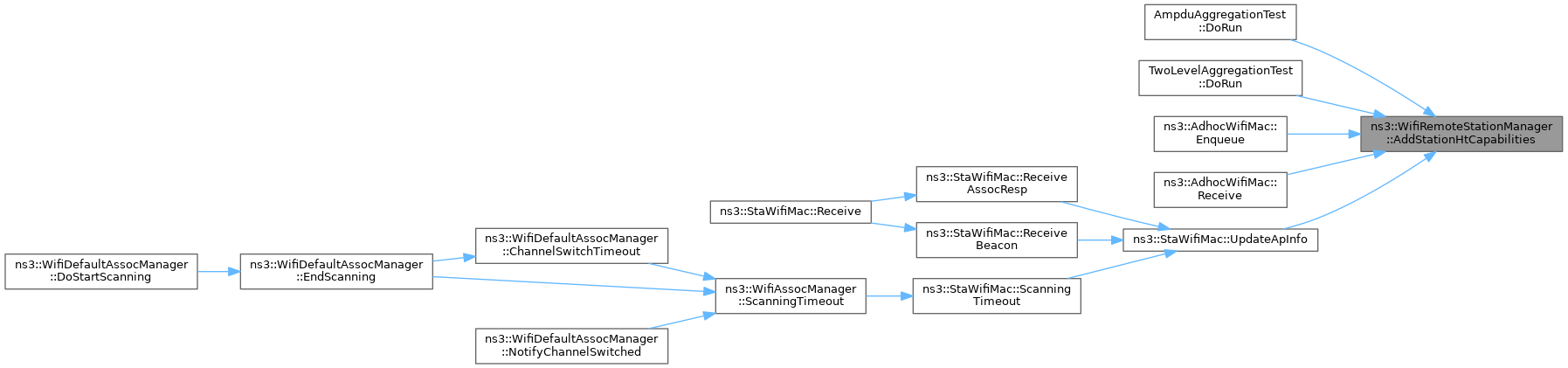

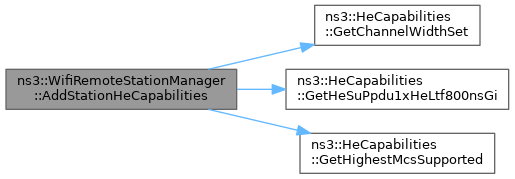

void	AddStationHeCapabilities (Mac48Address from, HeCapabilities heCapabilities)
	Records HE capabilities of the remote station.

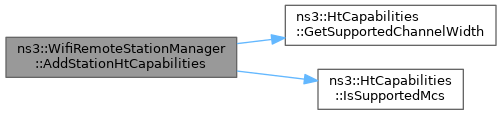

void	AddStationHtCapabilities (Mac48Address from, HtCapabilities htCapabilities)
	Records HT capabilities of the remote station.

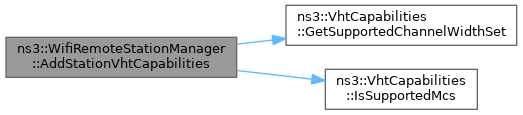

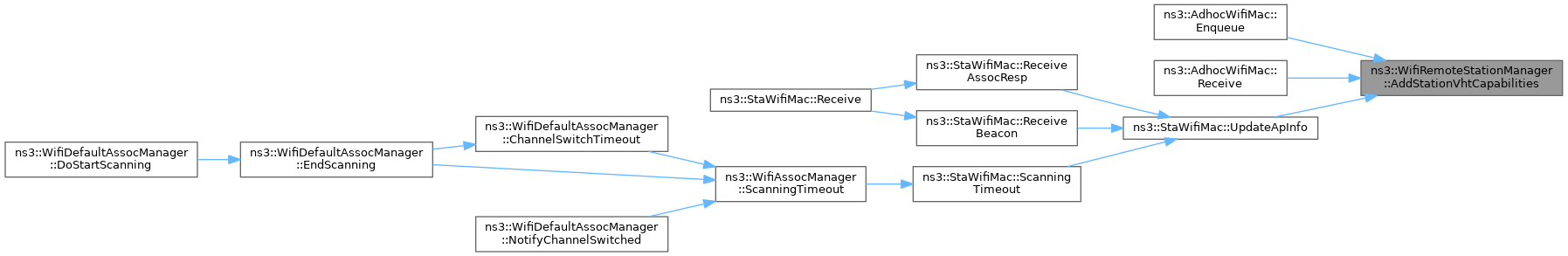

void	AddStationVhtCapabilities (Mac48Address from, VhtCapabilities vhtCapabilities)
	Records VHT capabilities of the remote station.

void	AddSupportedErpSlotTime (Mac48Address address, bool isShortSlotTimeSupported)
	Record whether the short ERP slot time is supported by the station.

void	AddSupportedMcs (Mac48Address address, WifiMode mcs)
	Record the MCS index supported by the station.

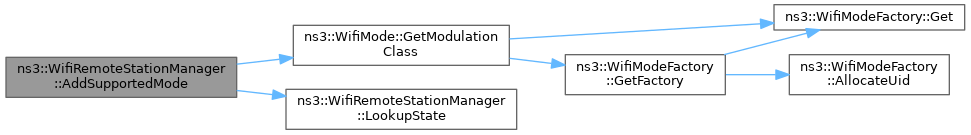

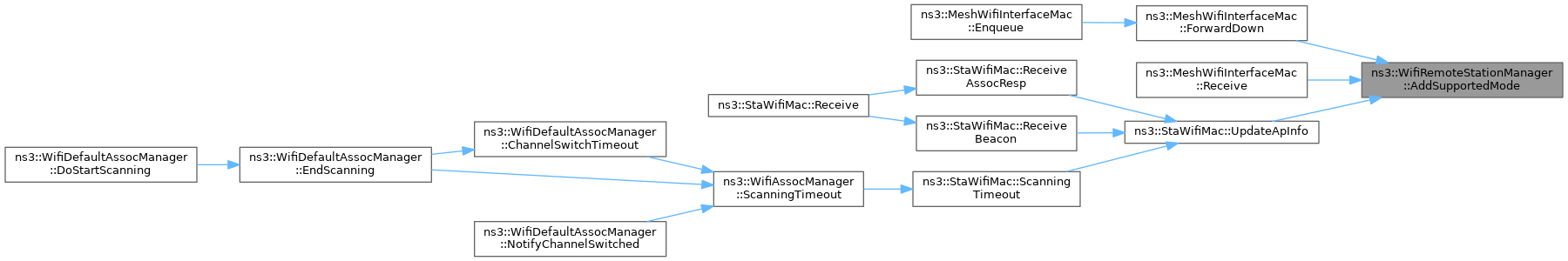

void	AddSupportedMode (Mac48Address address, WifiMode mode)
	Invoked in a STA or AP to store the set of modes supported by a destination which is also supported locally.

void	AddSupportedPhyPreamble (Mac48Address address, bool isShortPreambleSupported)
	Record whether the short PHY preamble is supported by the station.

void	AdjustTxVectorForIcf (WifiTxVector &txVector) const
	Adjust the TXVECTOR for an initial Control frame to ensure that the modulation class is non-HT and the rate is 6 Mbps, 12 Mbps or 24 Mbps.

virtual int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model.

WifiTxVector	GetAckTxVector (Mac48Address to, const WifiTxVector &dataTxVector) const
	Return a TXVECTOR for the Ack frame given the destination and the mode of the Data used by the sender.

std::optional< Mac48Address >	GetAffiliatedStaAddress (const Mac48Address &mldAddress) const
	Get the address of the remote station operating on this link and affiliated with the MLD having the given MAC address, if any.

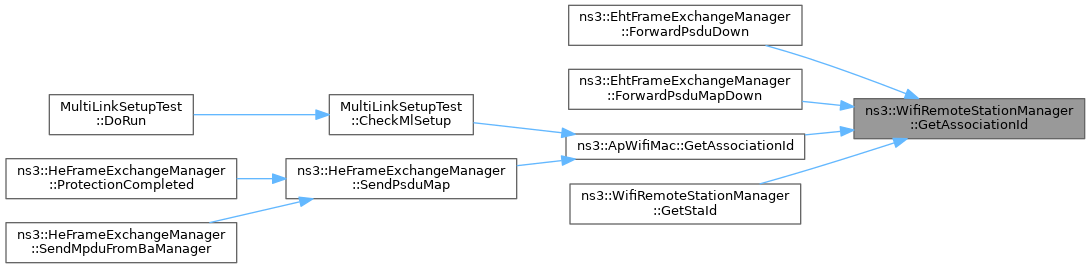

uint16_t	GetAssociationId (Mac48Address remoteAddress) const
	Get the AID of a remote station.

WifiMode	GetBasicMcs (uint8_t i) const
	Return the MCS at the given list index.

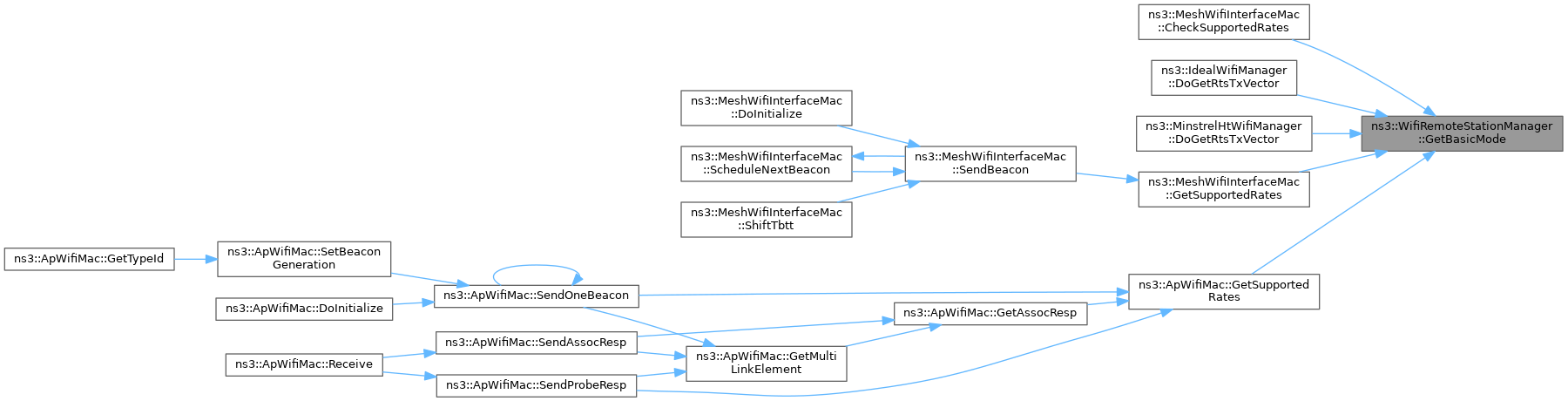

WifiMode	GetBasicMode (uint8_t i) const
	Return a basic mode from the set of basic modes.

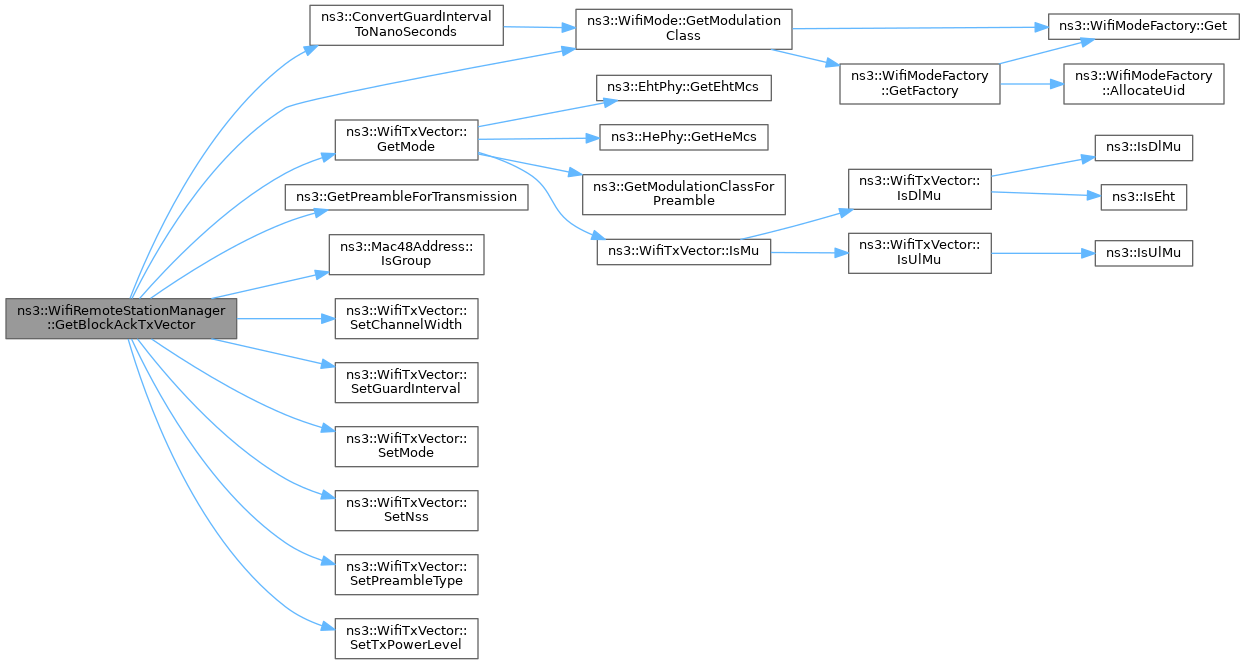

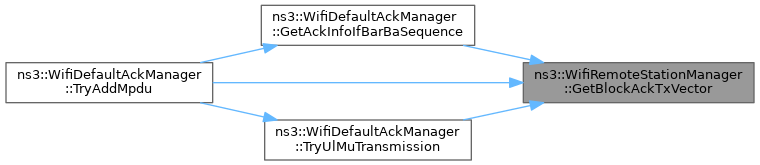

WifiTxVector	GetBlockAckTxVector (Mac48Address to, const WifiTxVector &dataTxVector) const
	Return a TXVECTOR for the BlockAck frame given the destination and the mode of the Data used by the sender.

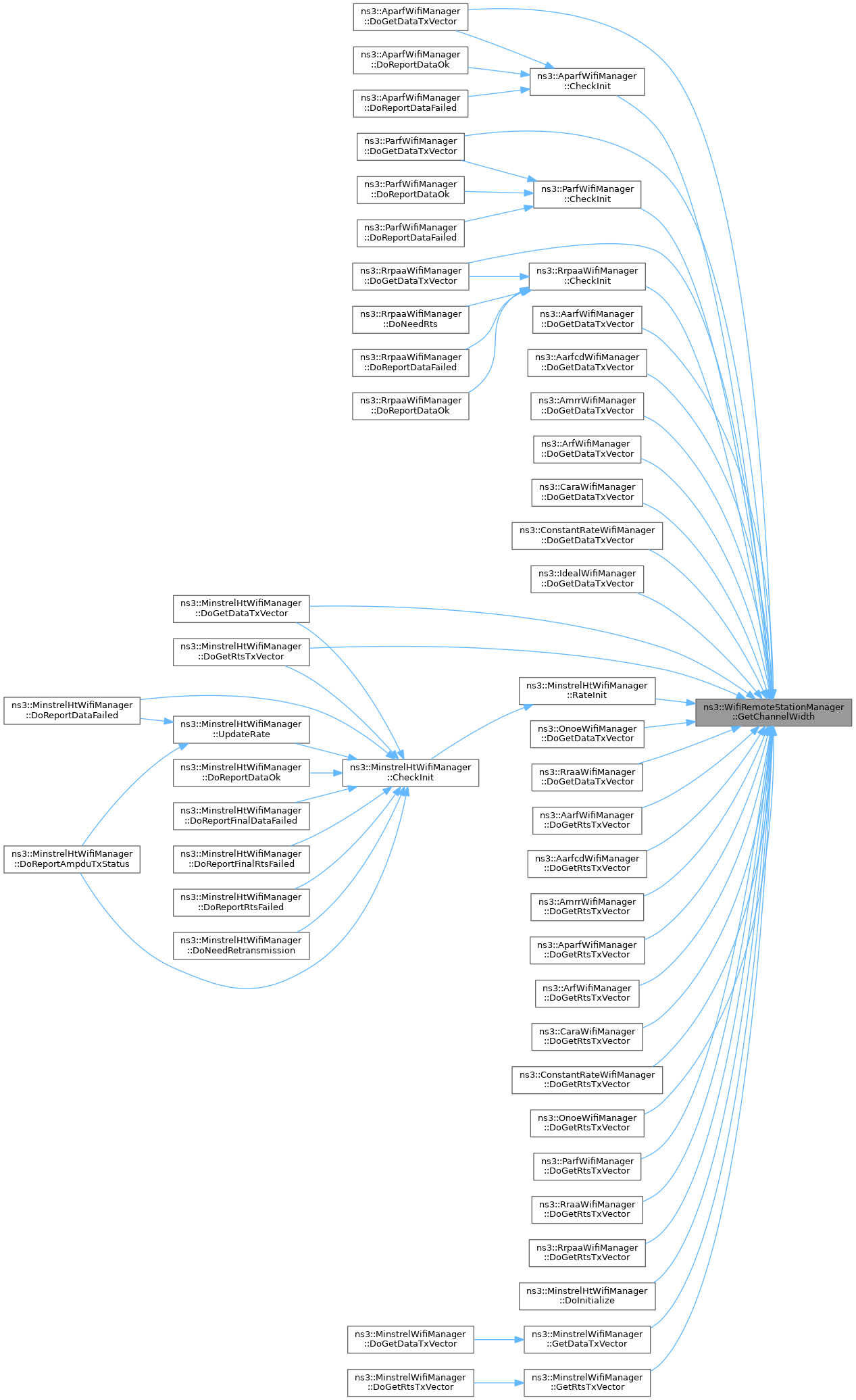

uint16_t	GetChannelWidthSupported (Mac48Address address) const
	Return the channel width supported by the station.

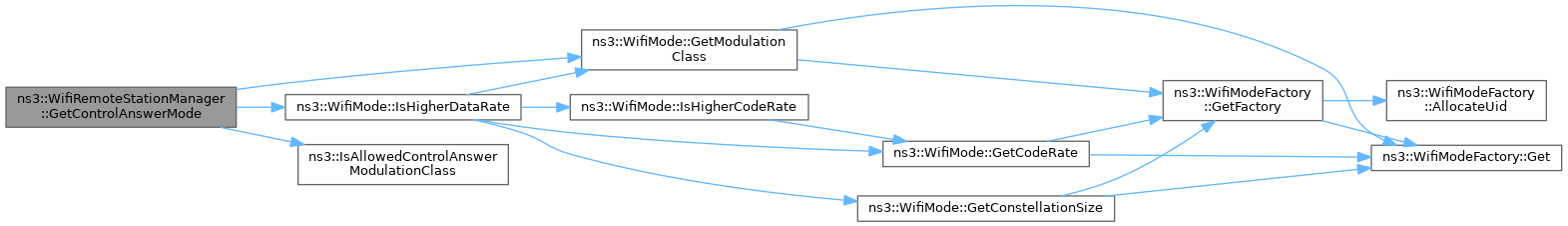

WifiMode	GetControlAnswerMode (WifiMode reqMode) const
	Get control answer mode function.

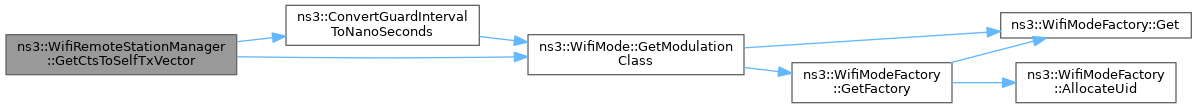

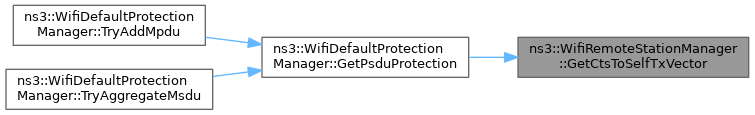

WifiTxVector	GetCtsToSelfTxVector ()
	Since CTS-to-self parameters are not dependent on the station, it is implemented in wifi remote station manager.

WifiTxVector	GetCtsTxVector (Mac48Address to, WifiMode rtsTxMode) const
	Return a TXVECTOR for the CTS frame given the destination and the mode of the RTS used by the sender.

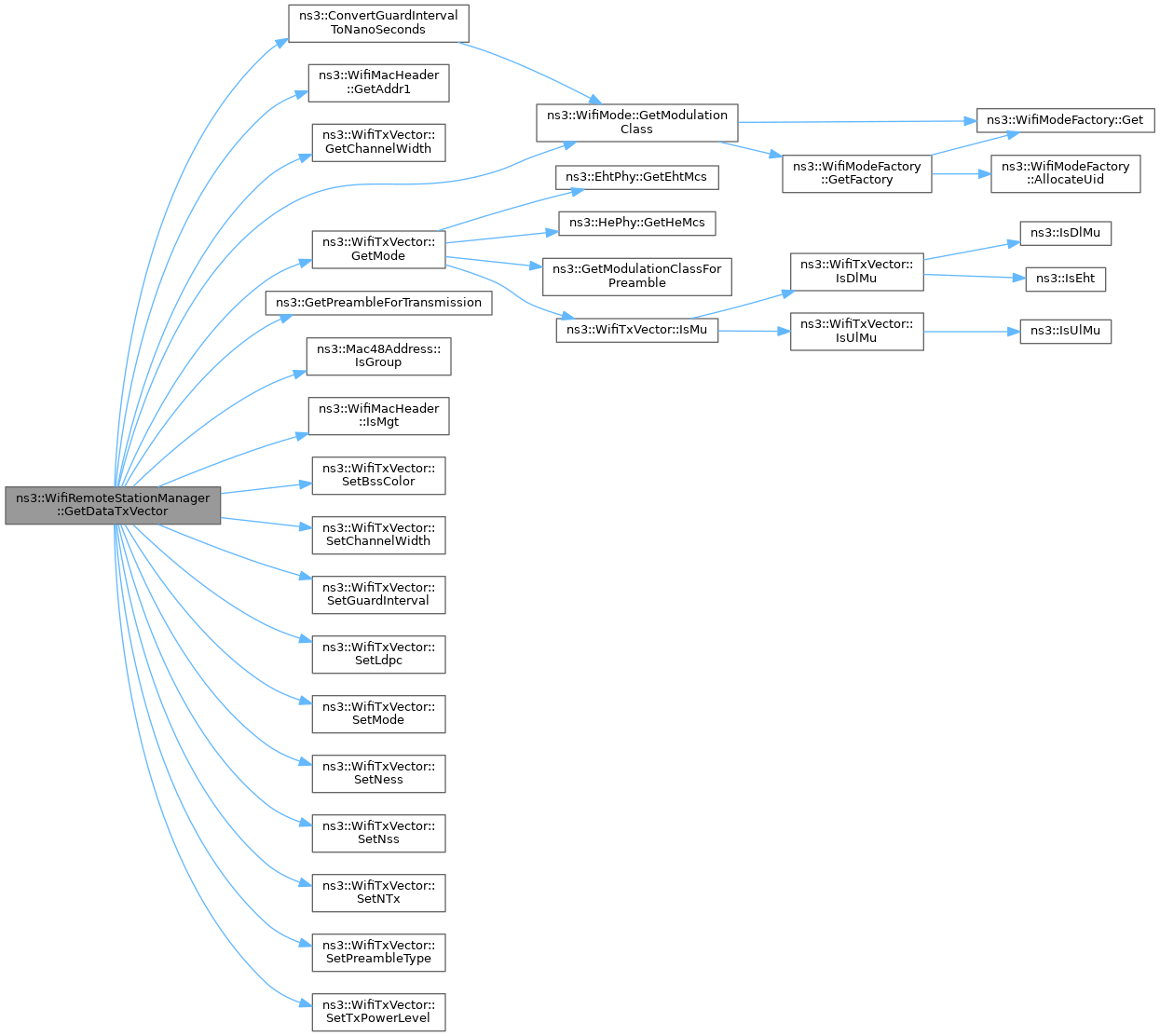

WifiTxVector	GetDataTxVector (const WifiMacHeader &header, uint16_t allowedWidth)

WifiMode	GetDefaultMcs () const
	Return the default Modulation and Coding Scheme (MCS) index.

WifiMode	GetDefaultMode () const
	Return the default transmission mode.

WifiMode	GetDefaultModeForSta (const WifiRemoteStation *st) const
	Return the default MCS to use to transmit frames to the given station.

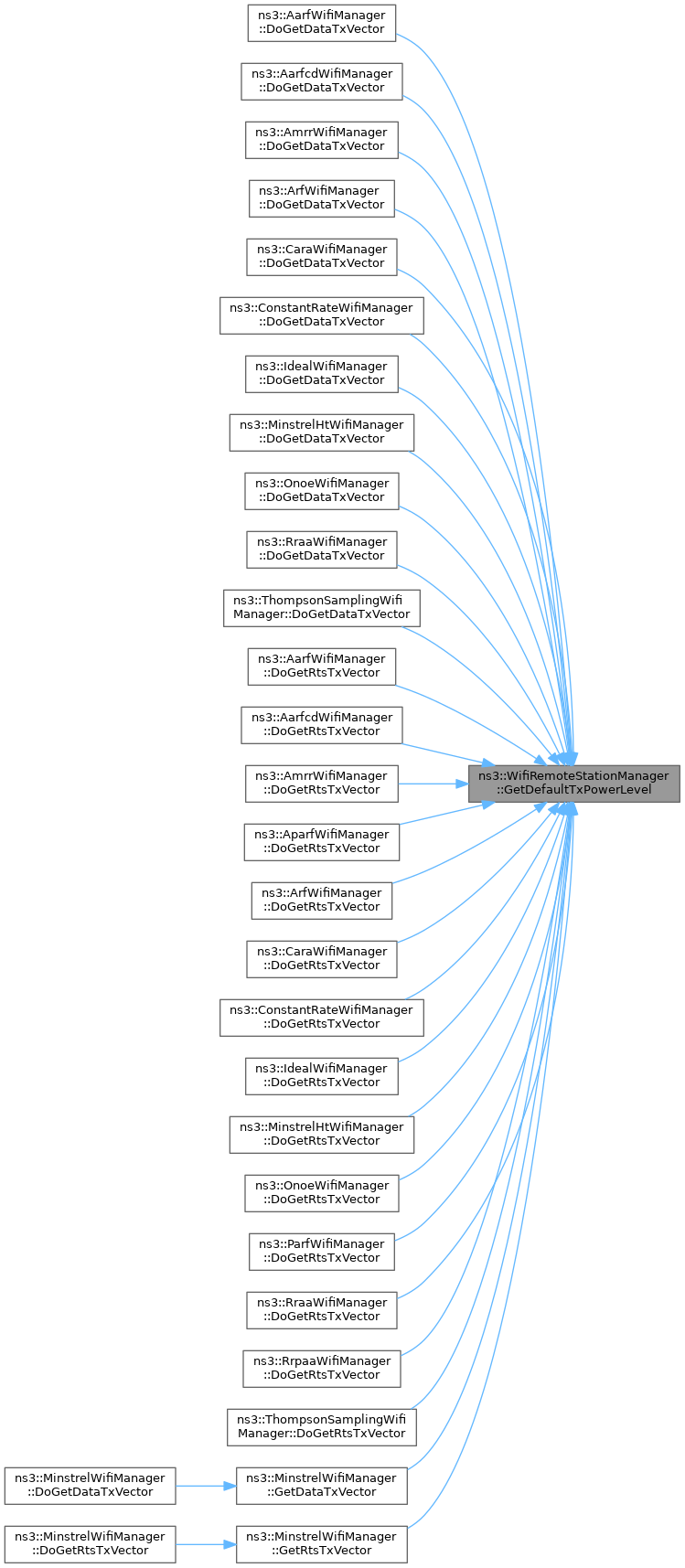

uint8_t	GetDefaultTxPowerLevel () const

bool	GetDsssSupported (const Mac48Address &address) const
	Return whether the station supports DSSS or not.

bool	GetEhtSupported () const
	Return whether the device has EHT capability support enabled.

bool	GetEhtSupported (Mac48Address address) const
	Return whether the station supports EHT or not.

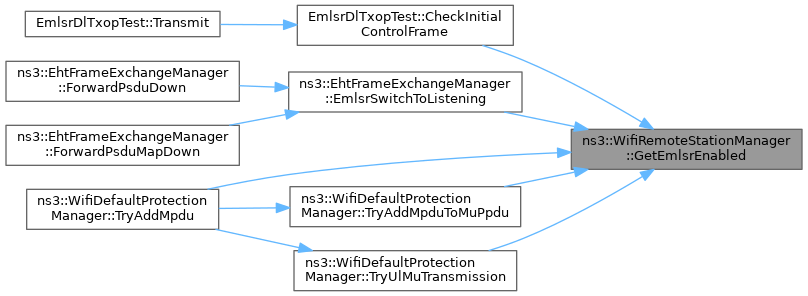

bool	GetEmlsrEnabled (const Mac48Address &address) const

bool	GetEmlsrSupported (const Mac48Address &address) const

bool	GetErpOfdmSupported (const Mac48Address &address) const
	Return whether the station supports ERP OFDM or not.

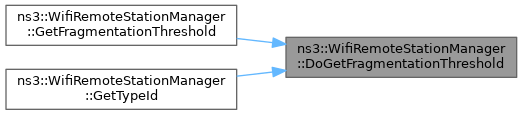

uint32_t	GetFragmentationThreshold () const
	Return the fragmentation threshold.

uint32_t	GetFragmentOffset (Ptr< const WifiMpdu > mpdu, uint32_t fragmentNumber)

uint32_t	GetFragmentSize (Ptr< const WifiMpdu > mpdu, uint32_t fragmentNumber)

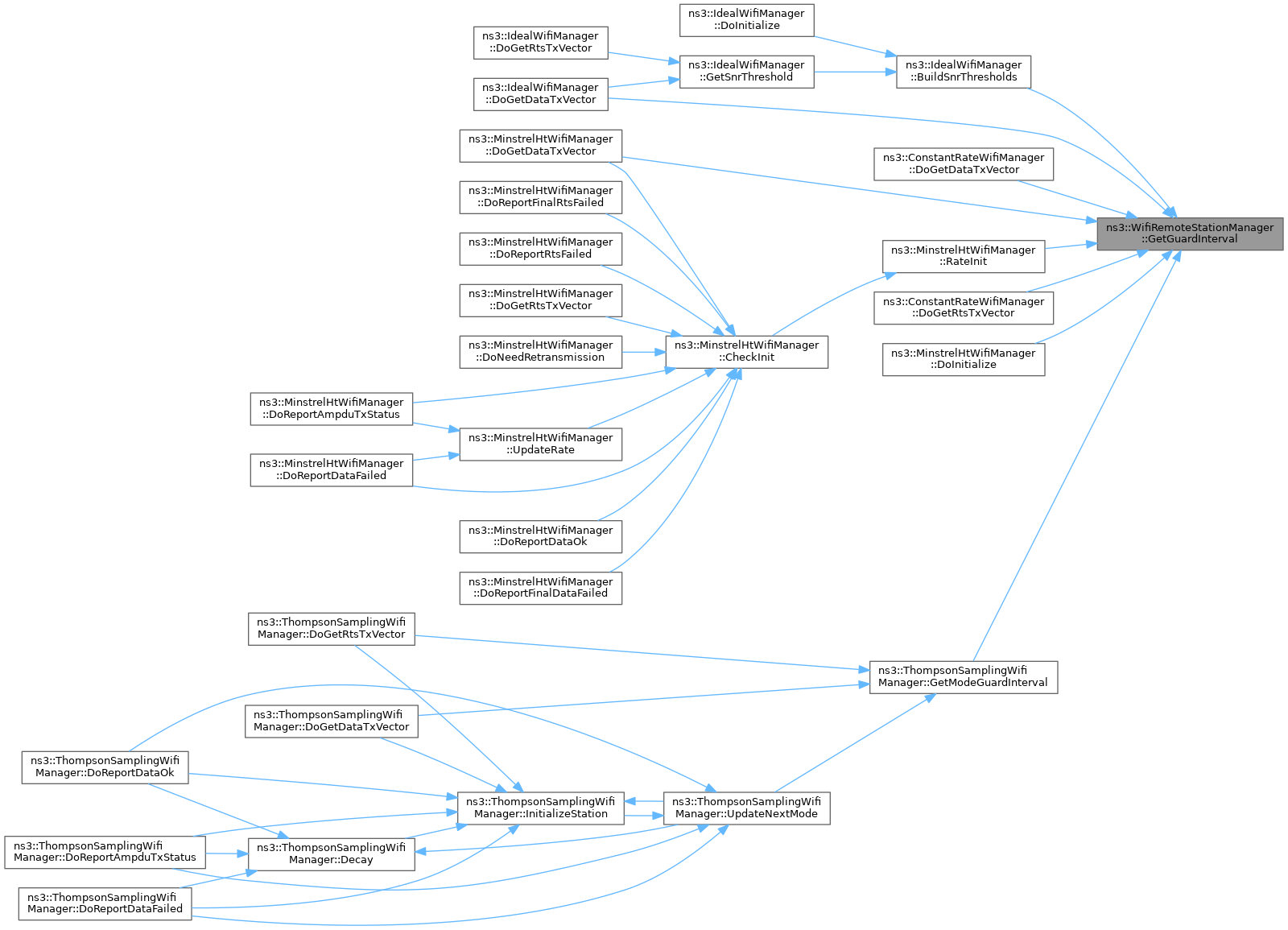

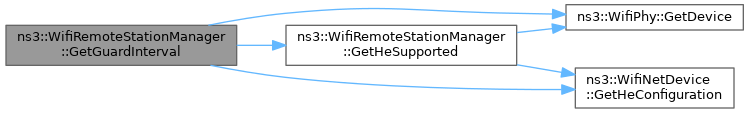

uint16_t	GetGuardInterval () const
	Return the supported HE guard interval duration (in nanoseconds).

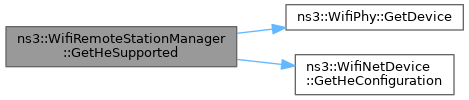

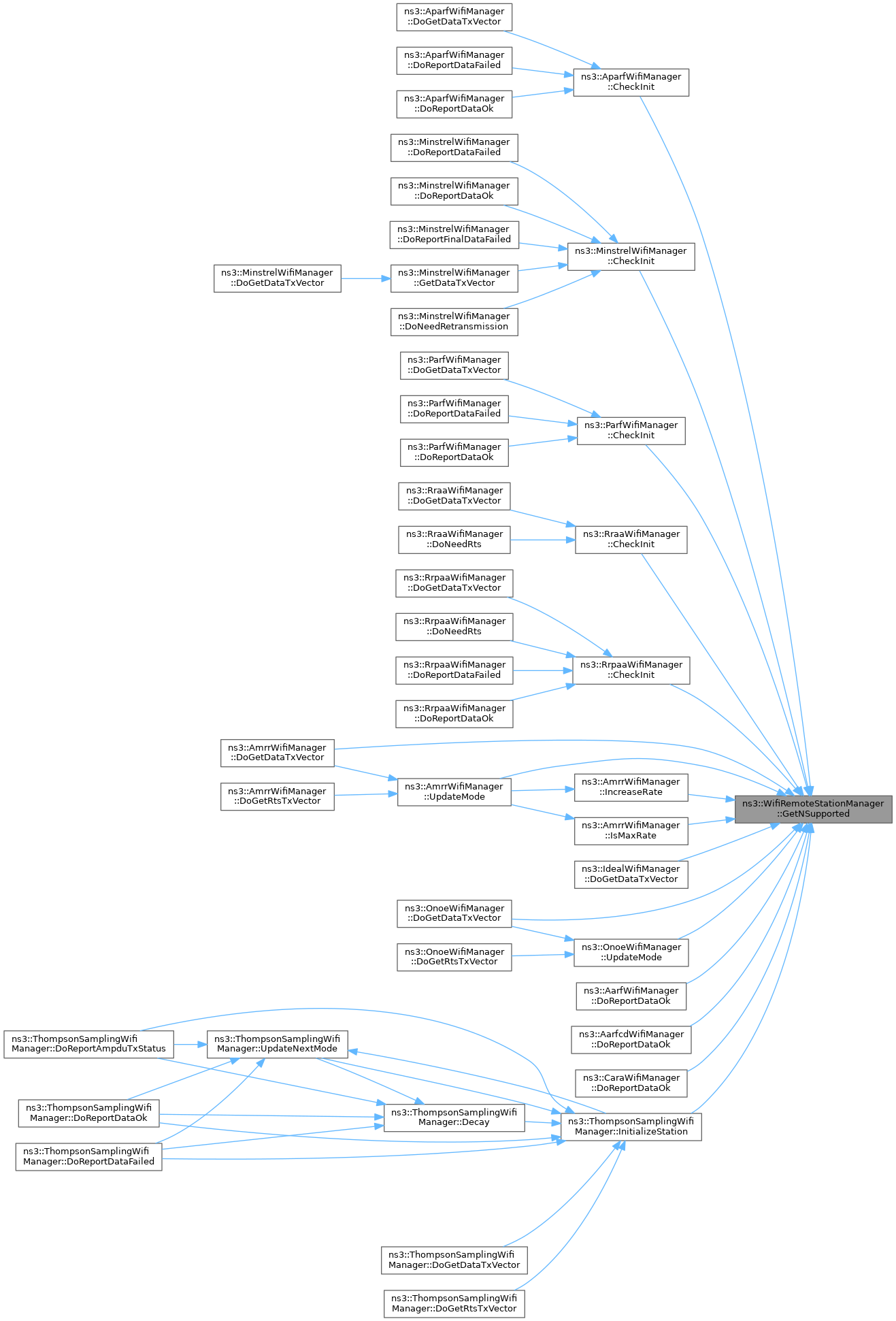

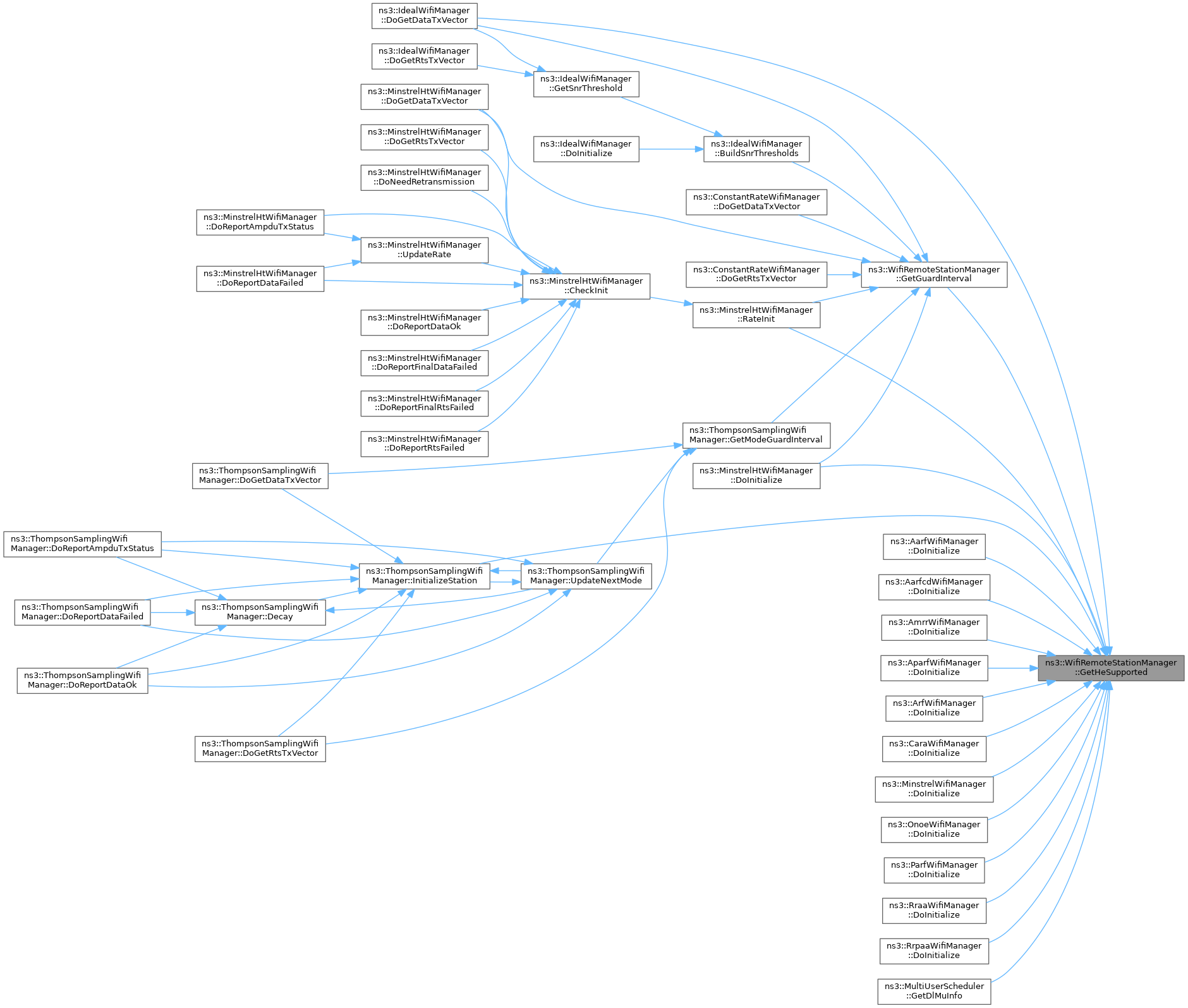

bool	GetHeSupported () const
	Return whether the device has HE capability support enabled.

bool	GetHeSupported (Mac48Address address) const
	Return whether the station supports HE or not.

bool	GetHtSupported () const
	Return whether the device has HT capability support enabled.

bool	GetHtSupported (Mac48Address address) const
	Return whether the station supports HT or not.

WifiRemoteStationInfo	GetInfo (Mac48Address address)

bool	GetLdpcSupported () const
	Return whether the device has LDPC support enabled.

bool	GetLdpcSupported (Mac48Address address) const
	Return whether the station supports LDPC or not.

Ptr< WifiMac >	GetMac () const
	Return the WifiMac.

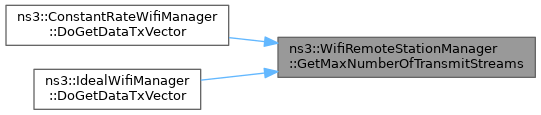

uint8_t	GetMaxNumberOfTransmitStreams () const

std::optional< Mac48Address >	GetMldAddress (const Mac48Address &address) const
	Get the address of the MLD the given station is affiliated with, if any.

std::optional< double >	GetMostRecentRssi (Mac48Address address) const

uint8_t	GetNBasicMcs () const
	Return the number of basic MCS index.

uint8_t	GetNBasicModes () const
	Return the number of basic modes we support.

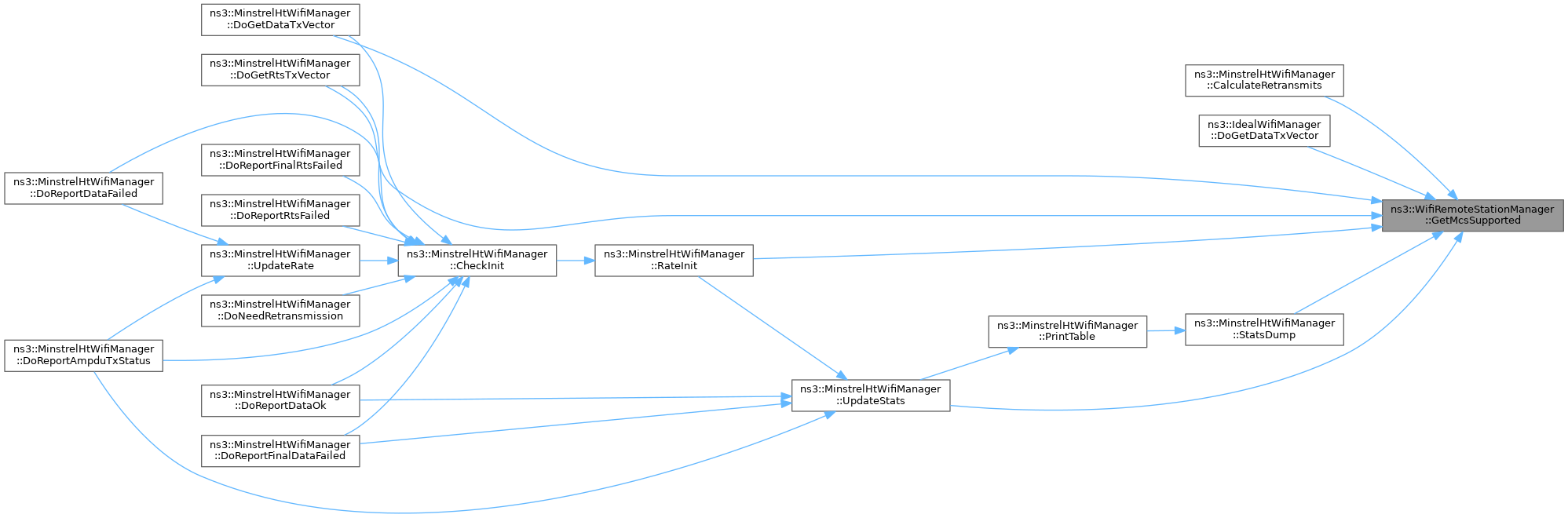

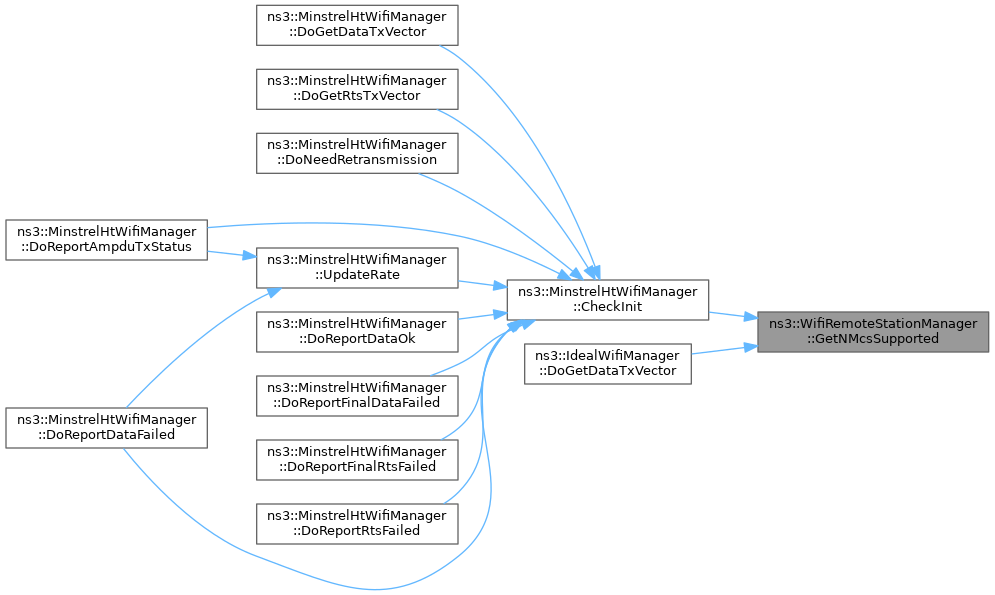

uint8_t	GetNMcsSupported (Mac48Address address) const
	Return the number of MCS supported by the station.

uint32_t	GetNNonErpBasicModes () const
	Return the number of non-ERP basic modes we support.

WifiMode	GetNonErpBasicMode (uint8_t i) const
	Return a basic mode from the set of basic modes that is not an ERP mode.

WifiMode	GetNonUnicastMode () const
	Return a mode for non-unicast packets.

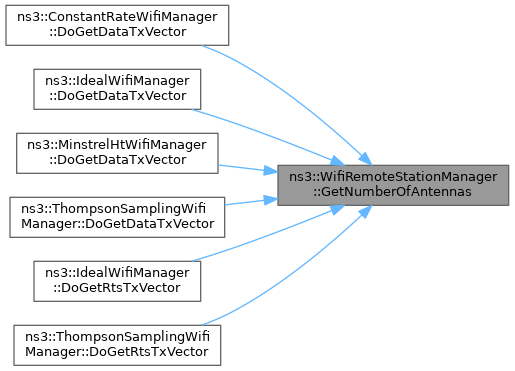

uint8_t	GetNumberOfAntennas () const

uint8_t	GetNumberOfSupportedStreams (Mac48Address address) const
	Return the number of spatial streams supported by the station.

bool	GetOfdmSupported (const Mac48Address &address) const
	Return whether the station supports OFDM or not.

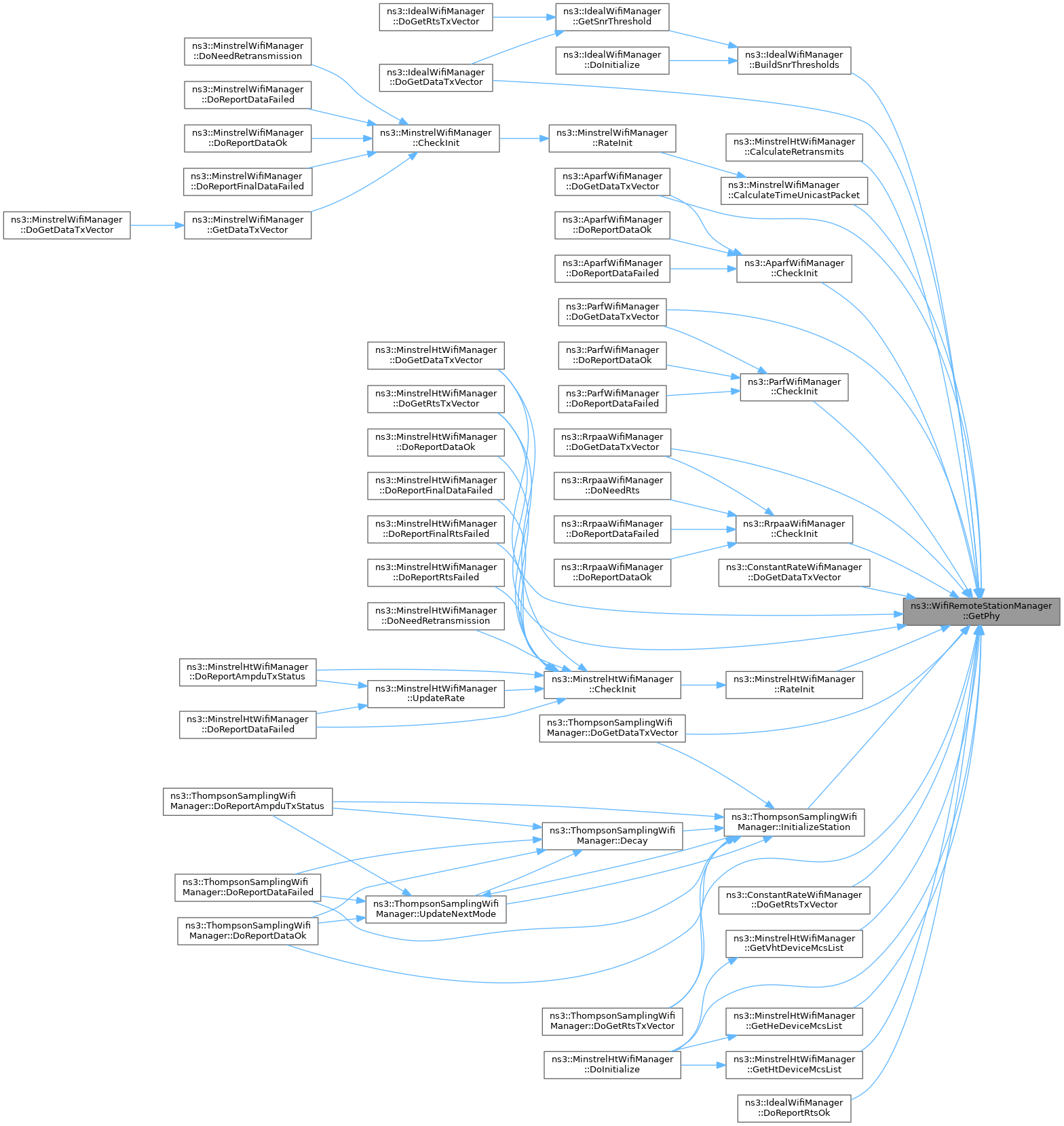

Ptr< WifiPhy >	GetPhy () const
	Return the WifiPhy.

bool	GetQosSupported (Mac48Address address) const
	Return whether the given station is QoS capable.

WifiTxVector	GetRtsTxVector (Mac48Address address)

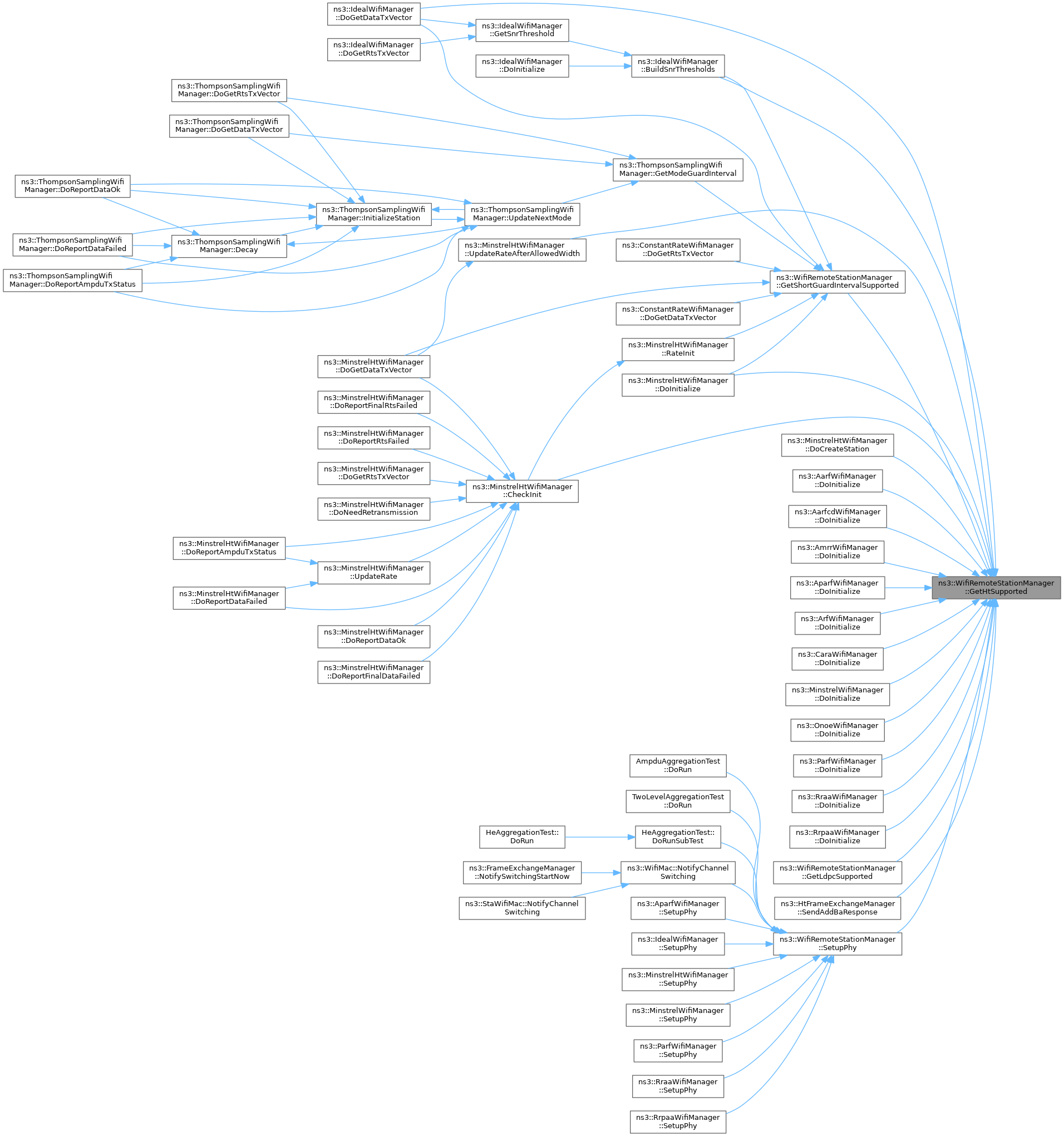

bool	GetShortGuardIntervalSupported () const
	Return whether the device has SGI support enabled.

bool	GetShortGuardIntervalSupported (Mac48Address address) const
	Return whether the station supports HT/VHT short guard interval.

bool	GetShortPreambleEnabled () const
	Return whether the device uses short PHY preambles.

bool	GetShortPreambleSupported (Mac48Address address) const
	Return whether the station supports short PHY preamble or not.

bool	GetShortSlotTimeEnabled () const
	Return whether the device uses short slot time.

bool	GetShortSlotTimeSupported (Mac48Address address) const
	Return whether the station supports short ERP slot time or not.

Ptr< const EhtCapabilities >	GetStationEhtCapabilities (Mac48Address from)
	Return the EHT capabilities sent by the remote station.

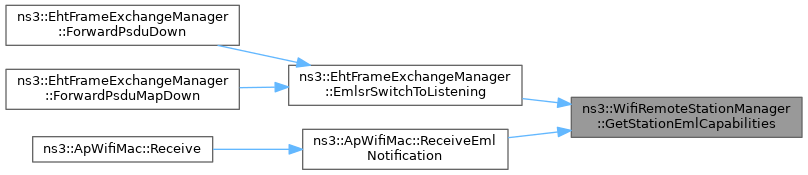

std::shared_ptr< CommonInfoBasicMle::EmlCapabilities >	GetStationEmlCapabilities (const Mac48Address &from)

Ptr< const HeCapabilities >	GetStationHeCapabilities (Mac48Address from)
	Return the HE capabilities sent by the remote station.

Ptr< const HtCapabilities >	GetStationHtCapabilities (Mac48Address from)
	Return the HT capabilities sent by the remote station.

Ptr< const VhtCapabilities >	GetStationVhtCapabilities (Mac48Address from)
	Return the VHT capabilities sent by the remote station.

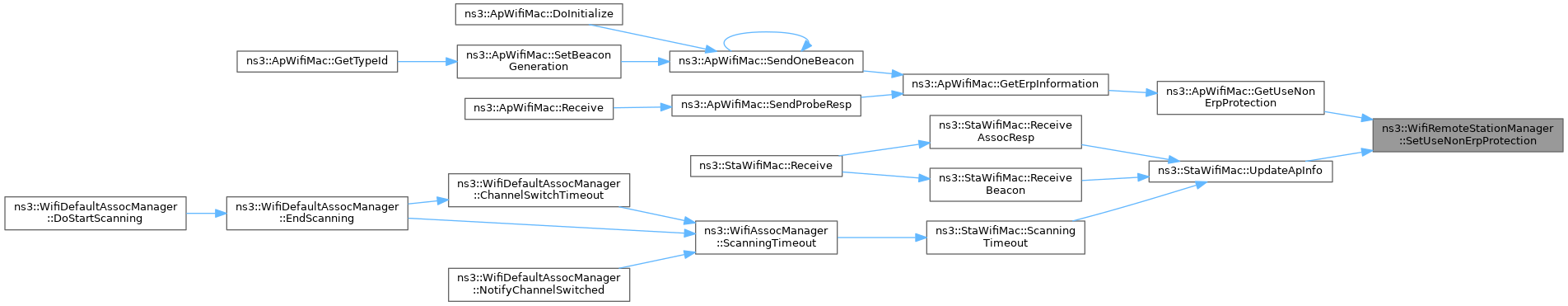

bool	GetUseNonErpProtection () const
	Return whether the device supports protection of non-ERP stations.

bool	GetUseNonHtProtection () const
	Return whether the device supports protection of non-HT stations.

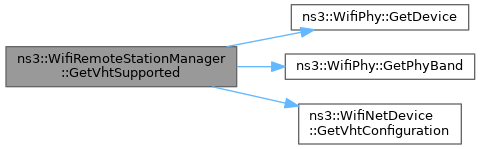

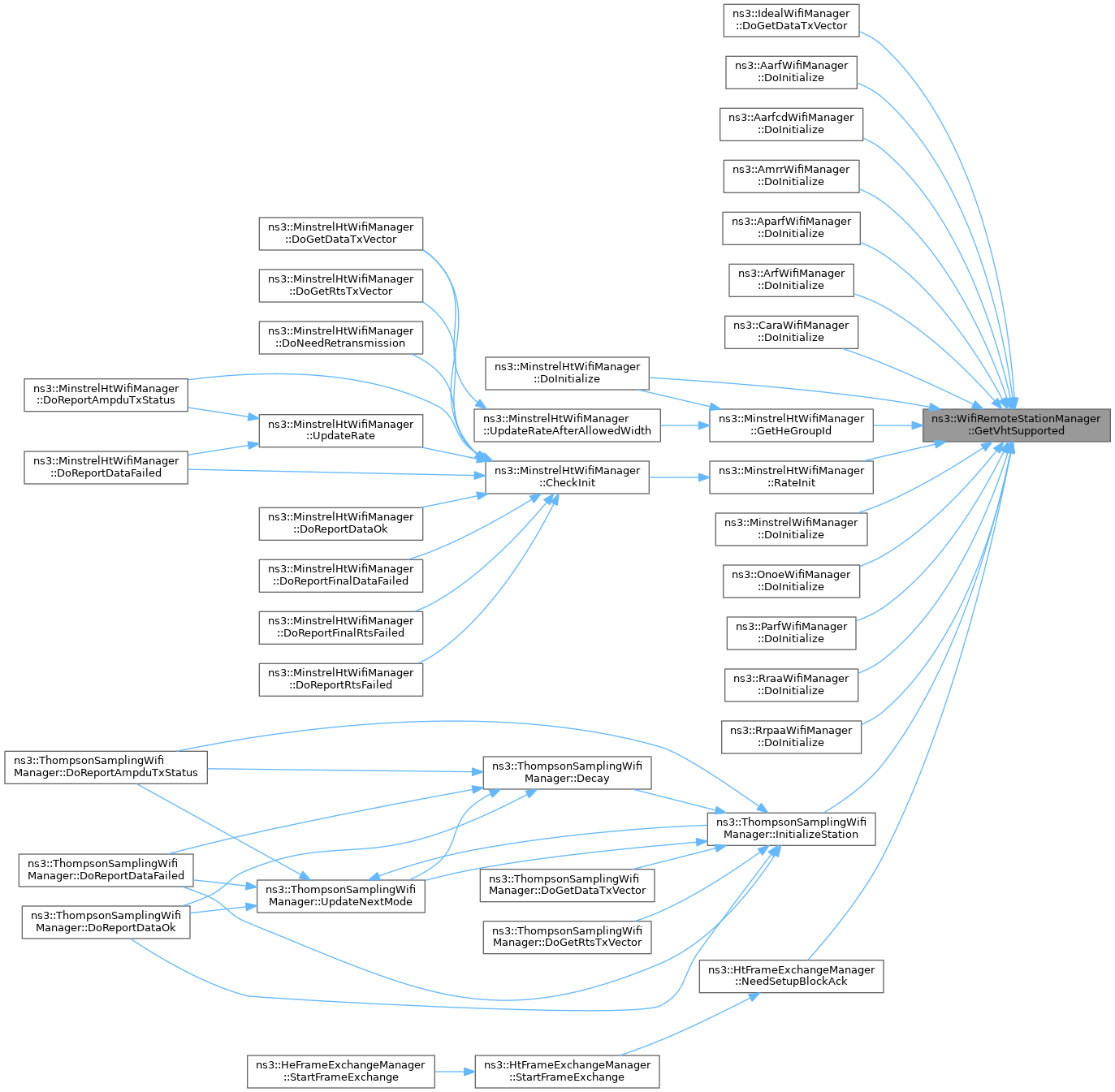

bool	GetVhtSupported () const
	Return whether the device has VHT capability support enabled.

bool	GetVhtSupported (Mac48Address address) const
	Return whether the station supports VHT or not.

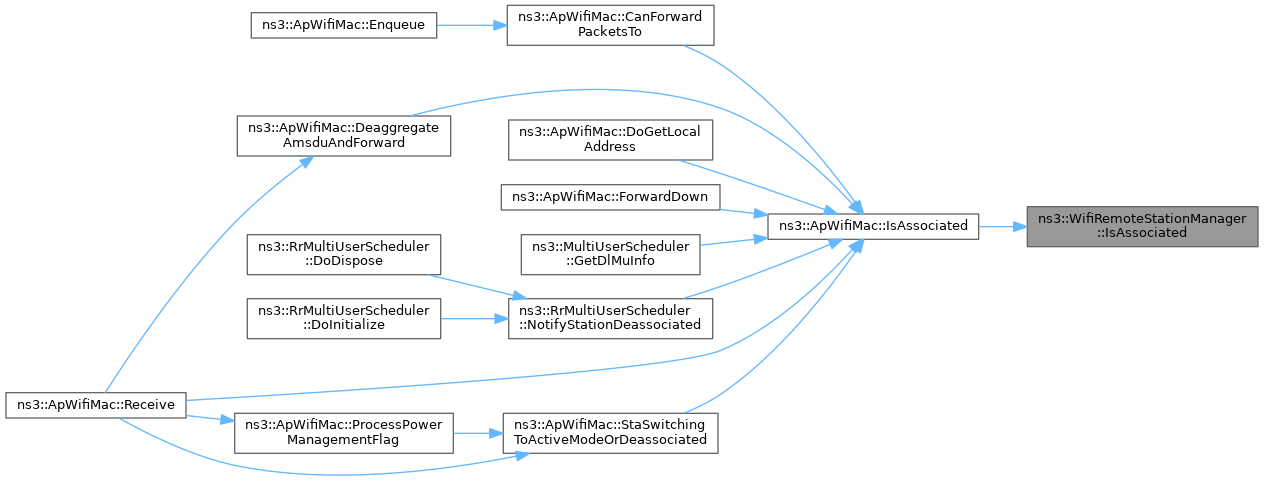

bool	IsAssociated (Mac48Address address) const
	Return whether the station associated.

bool	IsAssocRefused (Mac48Address address) const
	Return whether we refused an association request from the given station.

bool	IsBrandNew (Mac48Address address) const
	Return whether the station state is brand new.

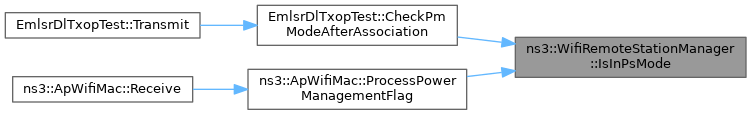

bool	IsInPsMode (const Mac48Address &address) const
	Return whether the STA is currently in Power Save mode.

bool	IsLastFragment (Ptr< const WifiMpdu > mpdu, uint32_t fragmentNumber)

bool	IsWaitAssocTxOk (Mac48Address address) const
	Return whether we are waiting for an ACK for the association response we sent.

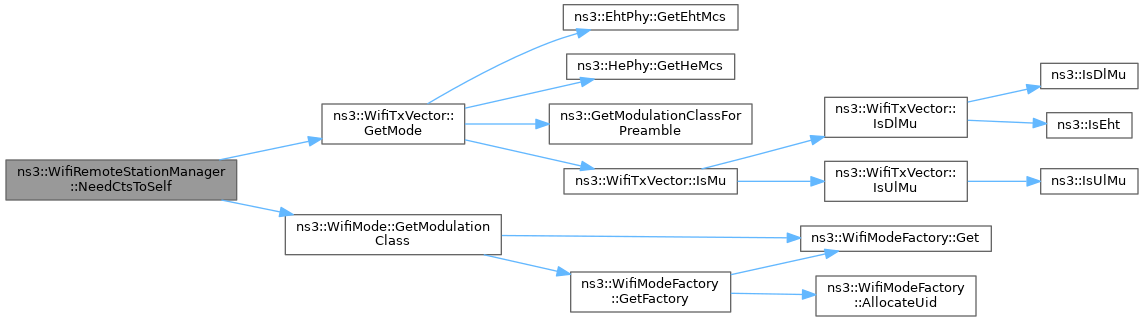

bool	NeedCtsToSelf (WifiTxVector txVector)
	Return if we need to do CTS-to-self before sending a DATA.

bool	NeedFragmentation (Ptr< const WifiMpdu > mpdu)

bool	NeedRetransmission (Ptr< const WifiMpdu > mpdu)

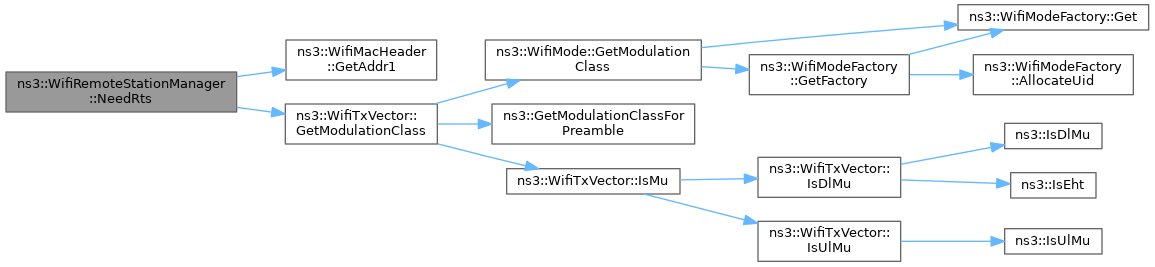

bool	NeedRts (const WifiMacHeader &header, uint32_t size)

void	RecordAssocRefused (Mac48Address address)
	Records that association request was refused.

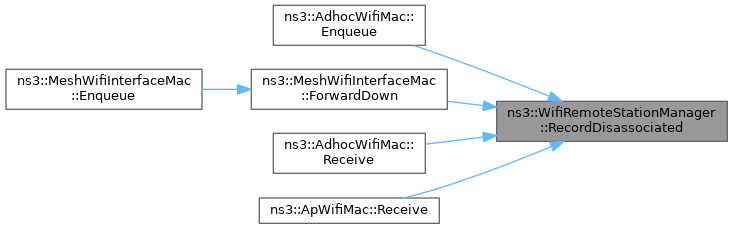

void	RecordDisassociated (Mac48Address address)
	Records that the STA was disassociated.

void	RecordGotAssocTxFailed (Mac48Address address)
	Records that we missed an ACK for the association response we sent.

void	RecordGotAssocTxOk (Mac48Address address)
	Records that we got an ACK for the association response we sent.

void	RecordWaitAssocTxOk (Mac48Address address)
	Records that we are waiting for an ACK for the association response we sent.

void	RemoveAllSupportedMcs (Mac48Address address)
	Invoked in a STA or AP to delete all of the supported MCS by a destination.

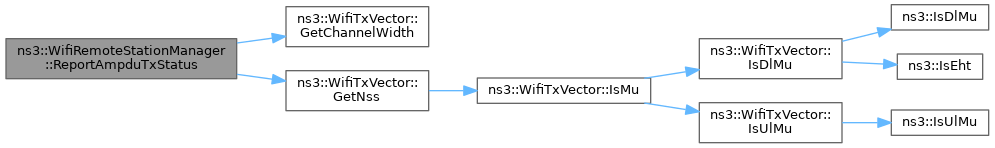

void	ReportAmpduTxStatus (Mac48Address address, uint16_t nSuccessfulMpdus, uint16_t nFailedMpdus, double rxSnr, double dataSnr, WifiTxVector dataTxVector)
	Typically called per A-MPDU, either when a Block ACK was successfully received or when a BlockAckTimeout has elapsed.

void	ReportDataFailed (Ptr< const WifiMpdu > mpdu)
	Should be invoked whenever the AckTimeout associated to a transmission attempt expires.

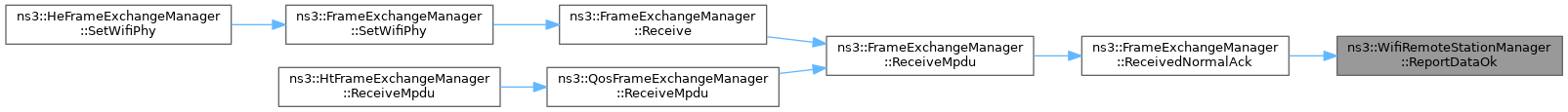

void	ReportDataOk (Ptr< const WifiMpdu > mpdu, double ackSnr, WifiMode ackMode, double dataSnr, WifiTxVector dataTxVector)
	Should be invoked whenever we receive the ACK associated to a data packet we just sent.

void	ReportFinalDataFailed (Ptr< const WifiMpdu > mpdu)
	Should be invoked after calling ReportDataFailed if NeedRetransmission returns false.

void	ReportFinalRtsFailed (const WifiMacHeader &header)
	Should be invoked after calling ReportRtsFailed if NeedRetransmission returns false.

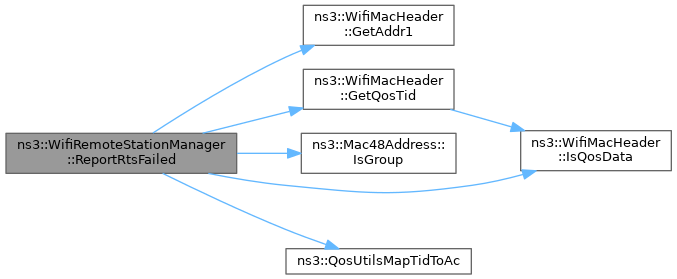

void	ReportRtsFailed (const WifiMacHeader &header)
	Should be invoked whenever the RtsTimeout associated to a transmission attempt expires.

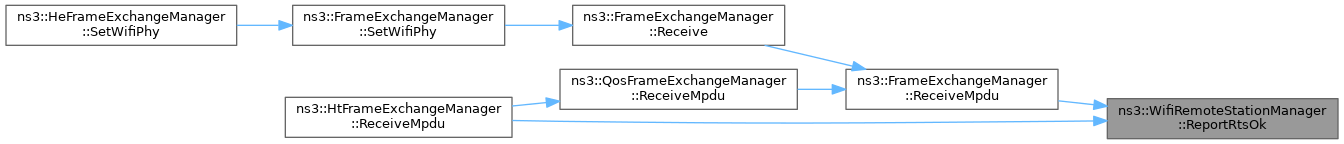

void	ReportRtsOk (const WifiMacHeader &header, double ctsSnr, WifiMode ctsMode, double rtsSnr)
	Should be invoked whenever we receive the CTS associated to an RTS we just sent.

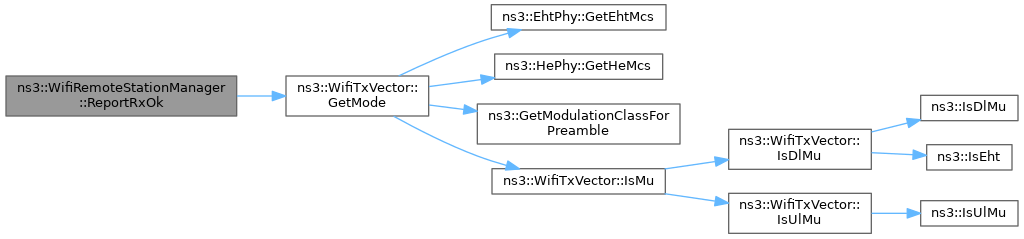

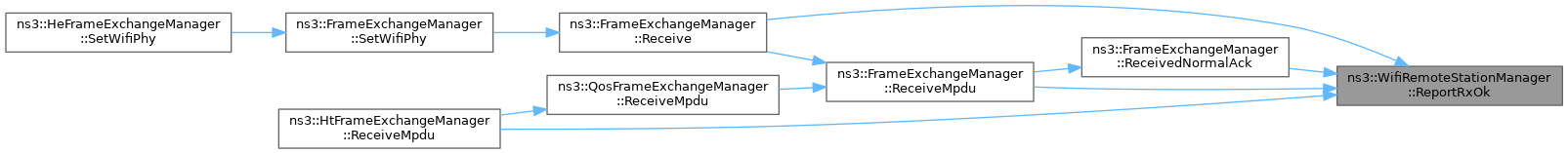

void	ReportRxOk (Mac48Address address, RxSignalInfo rxSignalInfo, WifiTxVector txVector)

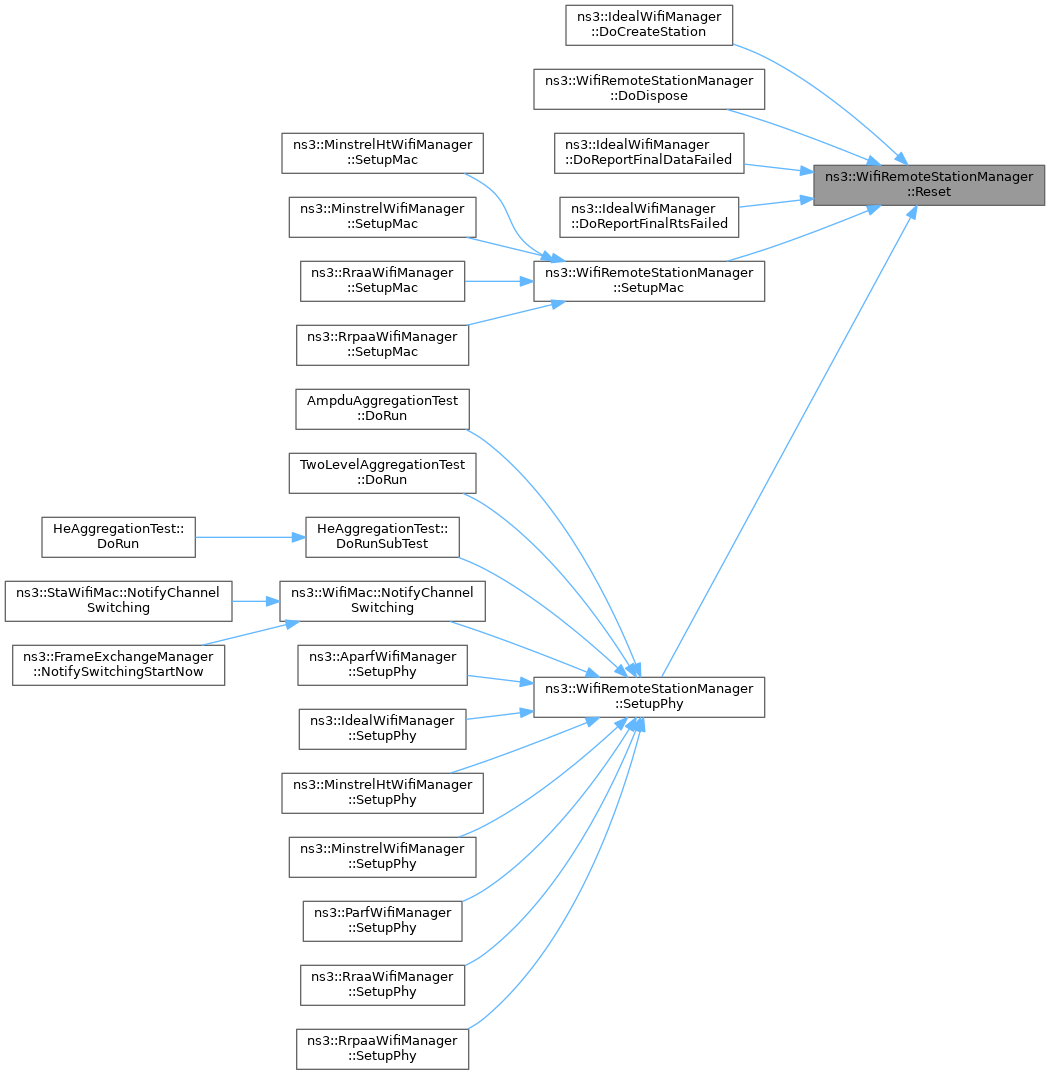

void	Reset ()
	Reset the station, invoked in a STA upon dis-association or in an AP upon reboot.

void	SetAssociationId (Mac48Address remoteAddress, uint16_t aid)
	Record the AID of a remote station.

void	SetDefaultTxPowerLevel (uint8_t txPower)
	Set the default transmission power level.

void	SetEmlsrEnabled (const Mac48Address &from, bool emlsrEnabled)

void	SetFragmentationThreshold (uint32_t threshold)
	Sets a fragmentation threshold.

void	SetMaxSlrc (uint32_t maxSlrc)
	Sets the maximum STA long retry count (SLRC).

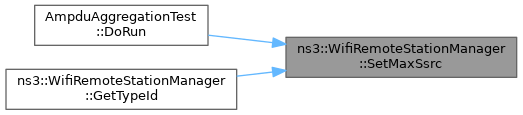

void	SetMaxSsrc (uint32_t maxSsrc)
	Sets the maximum STA short retry count (SSRC).

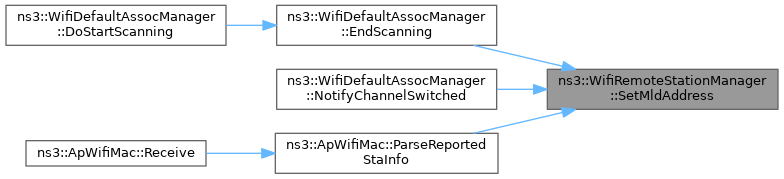

void	SetMldAddress (const Mac48Address &address, const Mac48Address &mldAddress)
	Set the address of the MLD the given station is affiliated with.

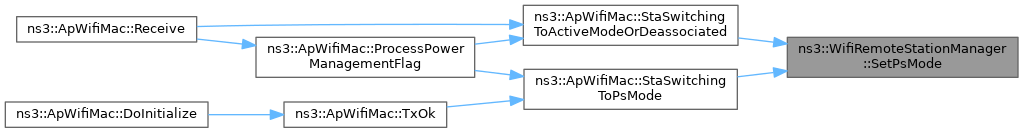

void	SetPsMode (const Mac48Address &address, bool isInPsMode)
	Register whether the STA is in Power Save mode or not.

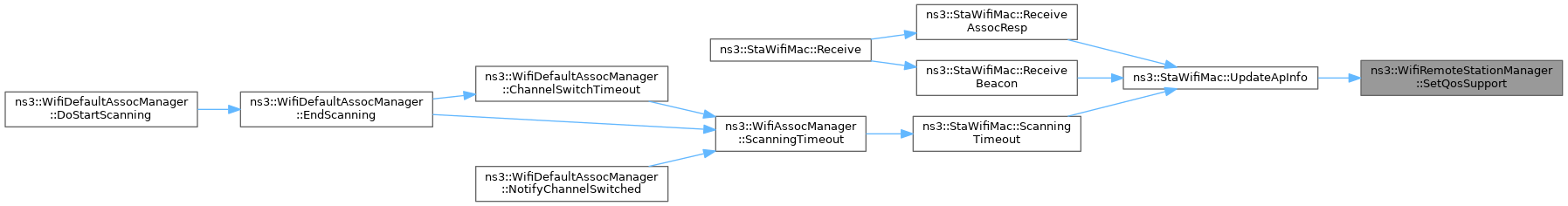

void	SetQosSupport (Mac48Address from, bool qosSupported)
	Records QoS support of the remote station.

void	SetRtsCtsThreshold (uint32_t threshold)
	Sets the RTS threshold.

void	SetShortPreambleEnabled (bool enable)
	Enable or disable short PHY preambles.

void	SetShortSlotTimeEnabled (bool enable)
	Enable or disable short slot time.

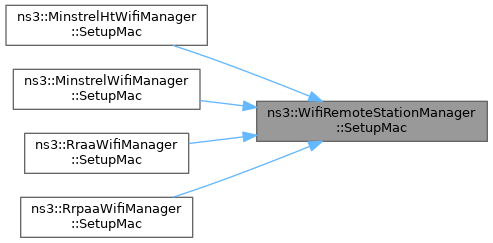

virtual void	SetupMac (const Ptr< WifiMac > mac)
	Set up MAC associated with this device since it is the object that knows the full set of timing parameters (e.g.

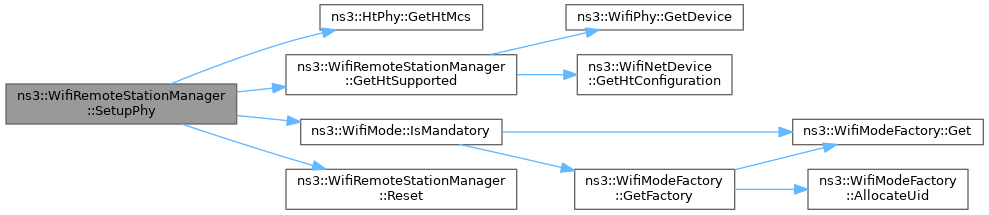

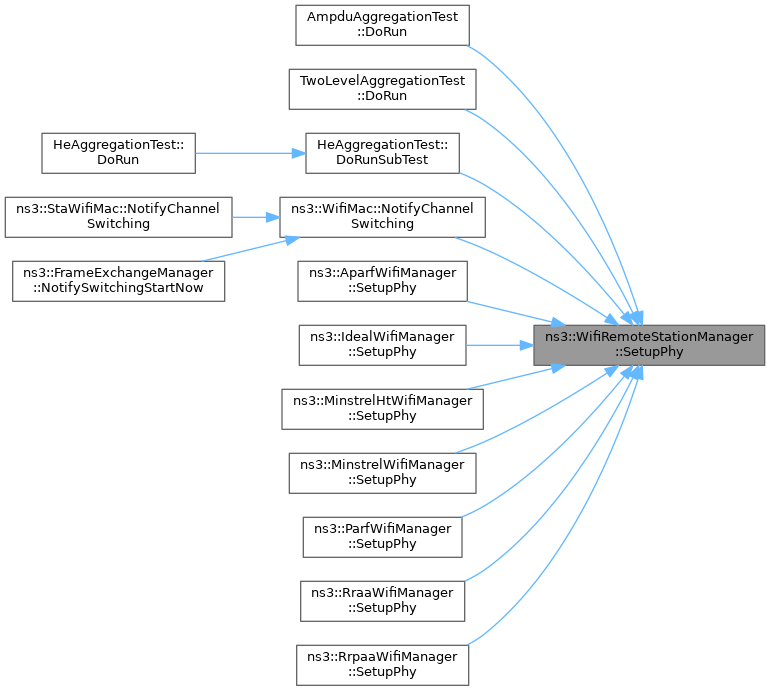

virtual void	SetupPhy (const Ptr< WifiPhy > phy)
	Set up PHY associated with this device since it is the object that knows the full set of transmit rates that are supported.

void	SetUseNonErpProtection (bool enable)
	Enable or disable protection for non-ERP stations.

void	SetUseNonHtProtection (bool enable)
	Enable or disable protection for non-HT stations.

bool	UseLdpcForDestination (Mac48Address dest) const

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor.

	~Object () override
	Destructor.

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together.

void	Dispose ()
	Dispose of this Object.

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one.

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object.

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object.

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object.

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId.

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object.

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one.

bool	IsInitialized () const
	Check if the object has been initialized.

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor.

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor.

uint32_t	GetReferenceCount () const
	Get the reference count of the object.

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator.

void	Ref () const
	Increment the reference count.

void	Unref () const
	Decrement the reference count.

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor.

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful.

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors.

virtual TypeId	GetInstanceTypeId () const =0
	Get the most derived TypeId for this Object.

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful.

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors.

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context.

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context.

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context.

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context.

Static Public Member Functions

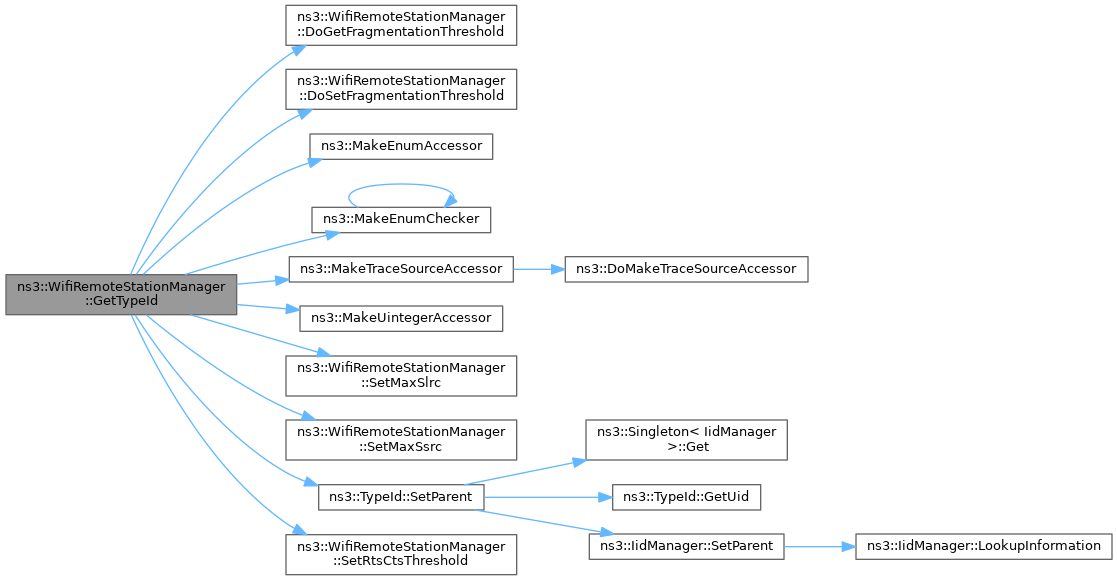

static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type.

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID.

Protected Member Functions
void	DoDispose () override
	Destructor implementation.

Mac48Address	GetAddress (const WifiRemoteStation *station) const
	Return the address of the station.

bool	GetAggregation (const WifiRemoteStation *station) const
	Return whether the given station supports A-MPDU.

uint16_t	GetChannelWidth (const WifiRemoteStation *station) const
	Return the channel width supported by the station.

bool	GetEhtSupported (const WifiRemoteStation *station) const
	Return whether the given station is EHT capable.

bool	GetEmlsrEnabled (const WifiRemoteStation *station) const

bool	GetEmlsrSupported (const WifiRemoteStation *station) const

uint16_t	GetGuardInterval (const WifiRemoteStation *station) const
	Return the HE guard interval duration supported by the station.

bool	GetHeSupported (const WifiRemoteStation *station) const
	Return whether the given station is HE capable.

bool	GetHtSupported (const WifiRemoteStation *station) const
	Return whether the given station is HT capable.

WifiMode	GetMcsSupported (const WifiRemoteStation *station, uint8_t i) const
	Return the WifiMode supported by the specified station at the specified index.

uint8_t	GetNess (const WifiRemoteStation *station) const

uint8_t	GetNMcsSupported (const WifiRemoteStation *station) const
	Return the number of MCS supported by the given station.

uint32_t	GetNNonErpSupported (const WifiRemoteStation *station) const
	Return the number of non-ERP modes supported by the given station.

WifiMode	GetNonErpSupported (const WifiRemoteStation *station, uint8_t i) const
	Return whether non-ERP mode associated with the specified station at the specified index.

uint8_t	GetNSupported (const WifiRemoteStation *station) const
	Return the number of modes supported by the given station.

uint8_t	GetNumberOfSupportedStreams (const WifiRemoteStation *station) const
	Return the number of supported streams the station has.

bool	GetQosSupported (const WifiRemoteStation *station) const
	Return whether the given station is QoS capable.

bool	GetShortGuardIntervalSupported (const WifiRemoteStation *station) const
	Return whether the given station supports HT/VHT short guard interval.

WifiMode	GetSupported (const WifiRemoteStation *station, uint8_t i) const
	Return whether mode associated with the specified station at the specified index.

bool	GetVhtSupported (const WifiRemoteStation *station) const
	Return whether the given station is VHT capable.

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object.

virtual void	DoDispose ()
	Destructor implementation.

virtual void	DoInitialize ()
	Initialize() implementation.

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated.

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes.

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed.

Private Member Functions
virtual WifiRemoteStation *	DoCreateStation () const =0

virtual WifiTxVector	DoGetDataTxVector (WifiRemoteStation *station, uint16_t allowedWidth)=0

uint32_t	DoGetFragmentationThreshold () const
	Return the current fragmentation threshold.

virtual WifiTxVector	DoGetRtsTxVector (WifiRemoteStation *station)=0

virtual bool	DoNeedFragmentation (WifiRemoteStation *station, Ptr< const Packet > packet, bool normally)

virtual bool	DoNeedRetransmission (WifiRemoteStation *station, Ptr< const Packet > packet, bool normally)

virtual bool	DoNeedRts (WifiRemoteStation *station, uint32_t size, bool normally)

virtual void	DoReportAmpduTxStatus (WifiRemoteStation *station, uint16_t nSuccessfulMpdus, uint16_t nFailedMpdus, double rxSnr, double dataSnr, uint16_t dataChannelWidth, uint8_t dataNss)
	Typically called per A-MPDU, either when a Block ACK was successfully received or when a BlockAckTimeout has elapsed.

virtual void	DoReportDataFailed (WifiRemoteStation *station)=0
	This method is a pure virtual method that must be implemented by the sub-class.

virtual void	DoReportDataOk (WifiRemoteStation *station, double ackSnr, WifiMode ackMode, double dataSnr, uint16_t dataChannelWidth, uint8_t dataNss)=0
	This method is a pure virtual method that must be implemented by the sub-class.

virtual void	DoReportFinalDataFailed (WifiRemoteStation *station)=0
	This method is a pure virtual method that must be implemented by the sub-class.

virtual void	DoReportFinalRtsFailed (WifiRemoteStation *station)=0
	This method is a pure virtual method that must be implemented by the sub-class.

virtual void	DoReportRtsFailed (WifiRemoteStation *station)=0
	This method is a pure virtual method that must be implemented by the sub-class.

virtual void	DoReportRtsOk (WifiRemoteStation *station, double ctsSnr, WifiMode ctsMode, double rtsSnr)=0
	This method is a pure virtual method that must be implemented by the sub-class.

virtual void	DoReportRxOk (WifiRemoteStation *station, double rxSnr, WifiMode txMode)=0
	This method is a pure virtual method that must be implemented by the sub-class.

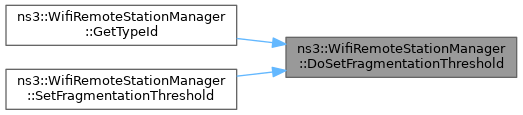

void	DoSetFragmentationThreshold (uint32_t threshold)
	Actually sets the fragmentation threshold, it also checks the validity of the given threshold.

uint32_t	GetNFragments (Ptr< const WifiMpdu > mpdu)
	Return the number of fragments needed for the given packet.

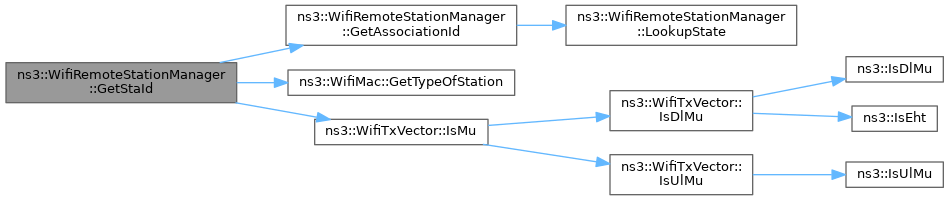

uint16_t	GetStaId (Mac48Address address, const WifiTxVector &txVector) const
	If the given TXVECTOR is used for a MU transmission, return the STAID of the station with the given address if we are an AP or our own STAID if we are a STA associated with some AP.

WifiRemoteStation *	Lookup (Mac48Address address) const
	Return the station associated with the given address.

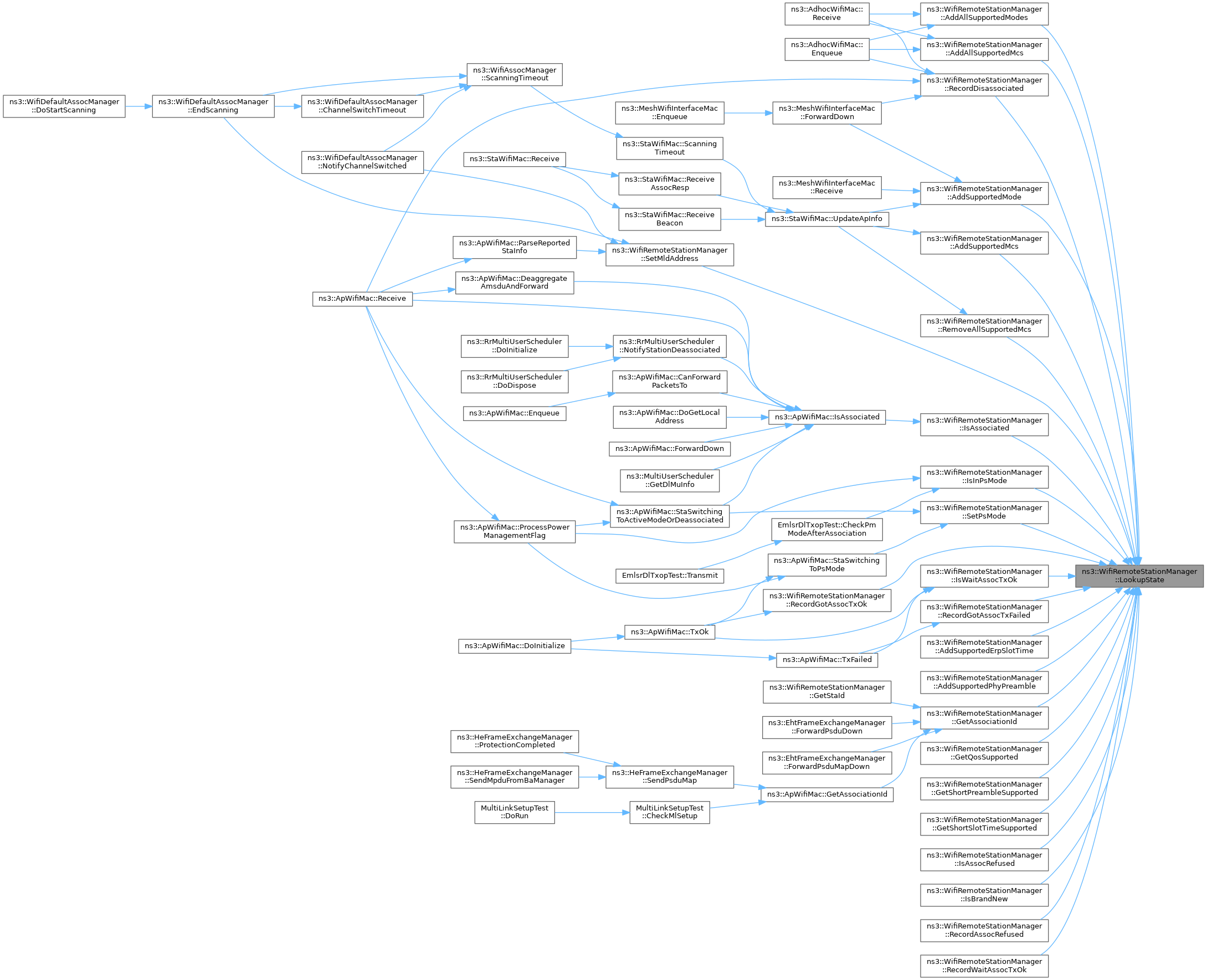

std::shared_ptr< WifiRemoteStationState >	LookupState (Mac48Address address) const
	Return the state of the station associated with the given address.

Private Attributes
WifiModeList	m_bssBasicMcsSet
	basic MCS set

WifiModeList	m_bssBasicRateSet
	This member is the list of WifiMode objects that comprise the BSSBasicRateSet parameter.

WifiMode	m_defaultTxMcs
	The default transmission modulation-coding scheme (MCS)

WifiMode	m_defaultTxMode
	The default transmission mode.

uint8_t	m_defaultTxPowerLevel
	Default transmission power level.

ProtectionMode	m_erpProtectionMode
	Protection mode for ERP stations when non-ERP stations are detected.

uint32_t	m_fragmentationThreshold
	Current threshold for fragmentation.

ProtectionMode	m_htProtectionMode
	Protection mode for HT stations when non-HT stations are detected.

TracedCallback< Mac48Address >	m_macTxDataFailed
	The trace source fired when the transmission of a single data packet has failed.

TracedCallback< Mac48Address >	m_macTxFinalDataFailed
	The trace source fired when the transmission of a data packet has exceeded the maximum number of attempts.

TracedCallback< Mac48Address >	m_macTxFinalRtsFailed
	The trace source fired when the transmission of a RTS has exceeded the maximum number of attempts.

TracedCallback< Mac48Address >	m_macTxRtsFailed
	The trace source fired when the transmission of a single RTS has failed.

uint32_t	m_maxSlrc
	Maximum STA long retry count (SLRC)

uint32_t	m_maxSsrc
	Maximum STA short retry count (SSRC)

WifiMode	m_nonUnicastMode
	Transmission mode for non-unicast Data frames.

uint32_t	m_rtsCtsThreshold
	Threshold for RTS/CTS.

bool	m_shortPreambleEnabled
	flag if short PHY preamble is enabled

bool	m_shortSlotTimeEnabled
	flag if short slot time is enabled

std::array< uint32_t, AC_BE_NQOS >	m_slrc
	long retry count per AC

std::array< uint32_t, AC_BE_NQOS >	m_ssrc
	short retry count per AC

StationStates	m_states
	States of known stations.

Stations	m_stations
	Information for each known stations.

bool	m_useNonErpProtection
	flag if protection for non-ERP stations against ERP transmissions is enabled

bool	m_useNonHtProtection
	flag if protection for non-HT stations against HT transmissions is enabled

Ptr< WifiMac >	m_wifiMac
	This is a pointer to the WifiMac associated with this WifiRemoteStationManager that is set on call to WifiRemoteStationManager::SetupMac().

Ptr< WifiPhy >	m_wifiPhy
	This is a pointer to the WifiPhy associated with this WifiRemoteStationManager that is set on call to WifiRemoteStationManager::SetupPhy().

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly.

Detailed Description

hold a list of per-remote-station state.

See also: ns3::WifiRemoteStation.

Config Paths

ns3::WifiRemoteStationManager is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/RemoteStationManager"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/RemoteStationManagers/[i]"

Attributes

DefaultTxPowerLevel: Default power level to be used for transmissions. This is the power level that is used by all those WifiManagers that do not implement TX power control.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Initial value: 0
- Flags: constructwriteread
ErpProtectionMode: Protection mode used when non-ERP STAs are connected to an ERP AP: Rts-Cts or Cts-To-Self
- Set with class: ns3::EnumValue
- Underlying type: Rts-Cts|Cts-To-Self
- Initial value: Cts-To-Self
- Flags: constructwriteread
FragmentationThreshold: If the size of the PSDU is bigger than this value, we fragment it such that the size of the fragments are equal or smaller. This value does not apply when it is carried in an A-MPDU. This value will not have any effect on some rate control algorithms.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 65535
- Flags: constructwriteread
HtProtectionMode: Protection mode used when non-HT STAs are connected to a HT AP: Rts-Cts or Cts-To-Self
- Set with class: ns3::EnumValue
- Underlying type: Rts-Cts|Cts-To-Self
- Initial value: Cts-To-Self
- Flags: constructwriteread
MaxSlrc: The maximum number of retransmission attempts for any packet with size > RtsCtsThreshold. This value will not have any effect on some rate control algorithms.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 4
- Flags: constructwrite
MaxSsrc: The maximum number of retransmission attempts for any packet with size <= RtsCtsThreshold. This value will not have any effect on some rate control algorithms.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 7
- Flags: constructwrite
NonUnicastMode: Wifi mode used for non-unicast transmissions.
- Set with class: ns3::WifiModeValue
- Underlying type: WifiMode
- Initial value: Invalid-WifiMode
- Flags: constructwriteread
RtsCtsThreshold: If the size of the PSDU is bigger than this value, we use an RTS/CTS handshake before sending the data frame.This value will not have any effect on some rate control algorithms.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 65535
- Flags: constructwrite

TraceSources

MacTxDataFailed: The transmission of a data packet by the MAC layer has failed
Callback signature: ns3::Mac48Address::TracedCallback
MacTxFinalDataFailed: The transmission of a data packet has exceeded the maximum number of attempts
Callback signature: ns3::Mac48Address::TracedCallback
MacTxFinalRtsFailed: The transmission of a RTS has exceeded the maximum number of attempts
Callback signature: ns3::Mac48Address::TracedCallback
MacTxRtsFailed: The transmission of a RTS by the MAC layer has failed
Callback signature: ns3::Mac48Address::TracedCallback

Size of this type is 352 bytes (on a 64-bit architecture).

Definition at line 138 of file wifi-remote-station-manager.h.

Member Typedef Documentation

◆ PowerChangeTracedCallback

typedef void(* ns3::WifiRemoteStationManager::PowerChangeTracedCallback) (double oldPower, double newPower, Mac48Address remoteAddress)

TracedCallback signature for power change events.

Parameters

[in]	oldPower	The previous power (in dBm).
[in]	newPower	The new power (in dBm).
[in]	address	The remote station MAC address.

Definition at line 1065 of file wifi-remote-station-manager.h.

◆ RateChangeTracedCallback

typedef void(* ns3::WifiRemoteStationManager::RateChangeTracedCallback) (DataRate oldRate, DataRate newRate, Mac48Address remoteAddress)

TracedCallback signature for rate change events.

Parameters

[in]	oldRate	The previous data rate.
[in]	newRate	The new data rate.
[in]	address	The remote station MAC address.

Definition at line 1076 of file wifi-remote-station-manager.h.

◆ Stations

using ns3::WifiRemoteStationManager::Stations = std::unordered_map<Mac48Address, WifiRemoteStation*, WifiAddressHash>

A map of WifiRemoteStations with Mac48Address as key.

Definition at line 160 of file wifi-remote-station-manager.h.

◆ StationStates

using ns3::WifiRemoteStationManager::StationStates = std::unordered_map<Mac48Address, std::shared_ptr<WifiRemoteStationState>, WifiAddressHash>

A map of WifiRemoteStationStates with Mac48Address as key.

Definition at line 164 of file wifi-remote-station-manager.h.

Member Enumeration Documentation

◆ ProtectionMode

enum ns3::WifiRemoteStationManager::ProtectionMode

ProtectionMode enumeration.

Enumerator
RTS_CTS
CTS_TO_SELF

Definition at line 151 of file wifi-remote-station-manager.h.

Constructor & Destructor Documentation

◆ WifiRemoteStationManager()

ns3::WifiRemoteStationManager::WifiRemoteStationManager ( )

Definition at line 138 of file wifi-remote-station-manager.cc.

References NS_LOG_FUNCTION.

◆ ~WifiRemoteStationManager()

ns3::WifiRemoteStationManager::~WifiRemoteStationManager ( )

override

Definition at line 147 of file wifi-remote-station-manager.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ AddAllSupportedMcs()

void ns3::WifiRemoteStationManager::AddAllSupportedMcs ( Mac48Address address )

Invoked in a STA or AP to store all of the MCS supported by a destination which is also supported locally.

Parameters

address the address of the station being recorded

Definition at line 388 of file wifi-remote-station-manager.cc.

References ns3::WifiPhy::GetMcsList(), LookupState(), m_wifiPhy, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::AdhocWifiMac::Enqueue(), and ns3::AdhocWifiMac::Receive().

Here is the call graph for this function:

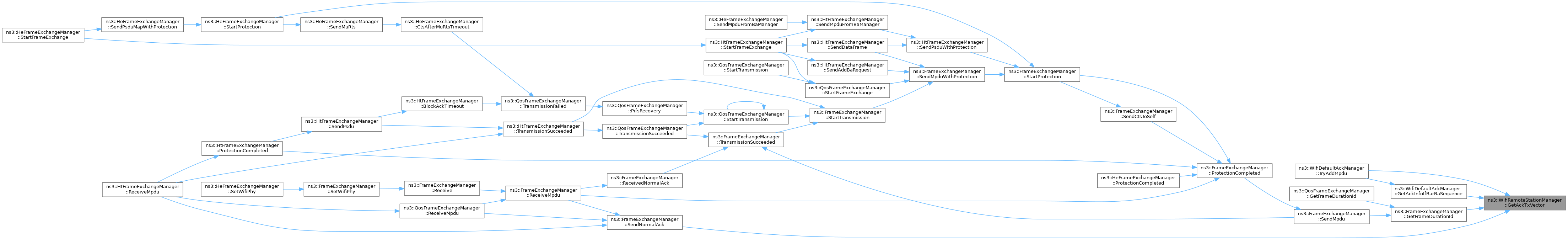

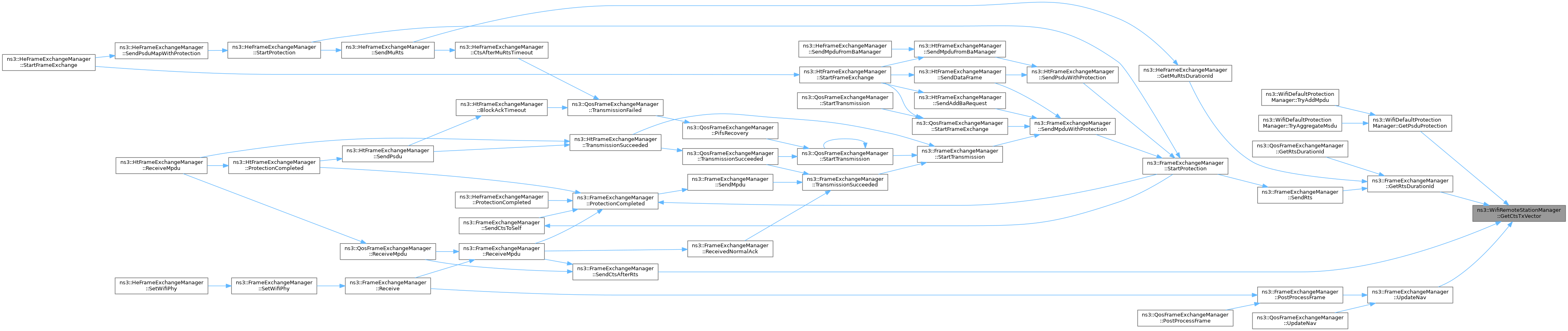

Here is the caller graph for this function:

◆ AddAllSupportedModes()

void ns3::WifiRemoteStationManager::AddAllSupportedModes ( Mac48Address address )

Invoked in a STA or AP to store all of the modes supported by a destination which is also supported locally.

The set of supported modes includes the BSSBasicRateSet.

Parameters

address the address of the station being recorded

Definition at line 371 of file wifi-remote-station-manager.cc.

References AddBasicMode(), ns3::WifiPhy::GetModeList(), LookupState(), m_wifiPhy, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::AdhocWifiMac::Enqueue(), and ns3::AdhocWifiMac::Receive().

Here is the call graph for this function:

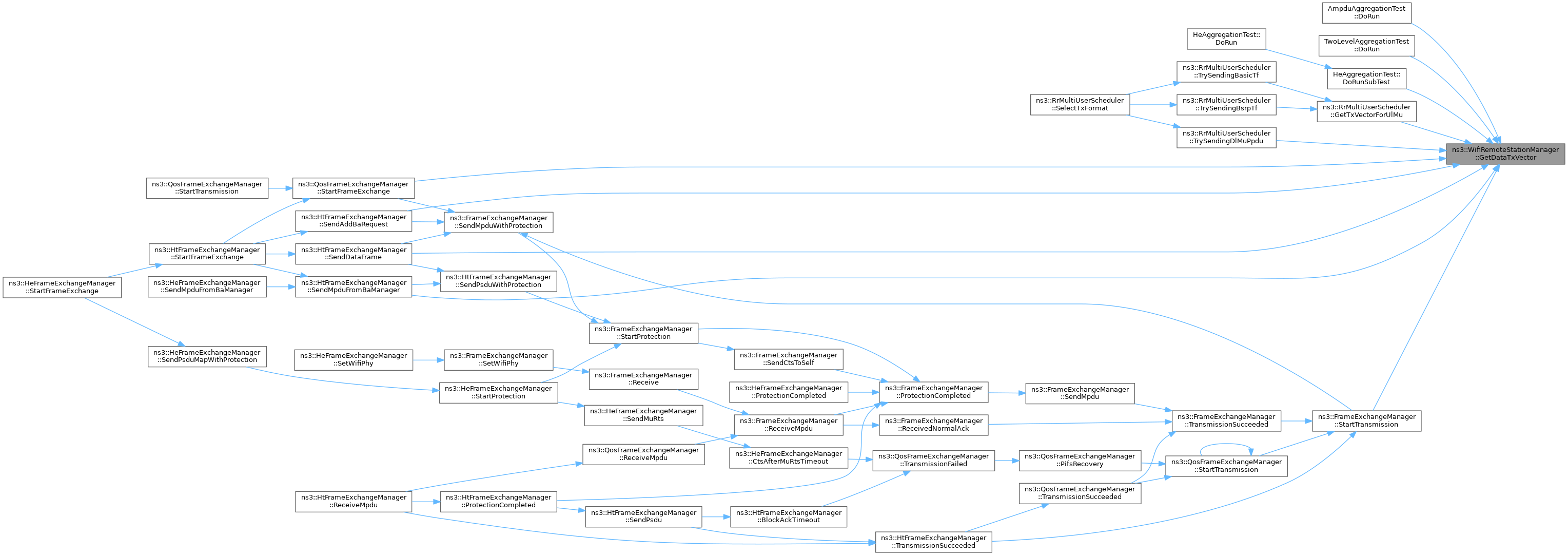

Here is the caller graph for this function:

◆ AddBasicMcs()

void ns3::WifiRemoteStationManager::AddBasicMcs ( WifiMode mcs )

Add a given Modulation and Coding Scheme (MCS) index to the set of basic MCS.

Parameters

mcs	the WifiMode to be added to the basic MCS set

Definition at line 1788 of file wifi-remote-station-manager.cc.

References ns3::WifiMode::GetMcsValue(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ AddBasicMode()

void ns3::WifiRemoteStationManager::AddBasicMode ( WifiMode mode )

Invoked in a STA upon association to store the set of rates which belong to the BSSBasicRateSet of the associated AP and which are supported locally.

Invoked in an AP to configure the BSSBasicRateSet.

Parameters

mode	the WifiMode to be added to the basic mode set

Definition at line 1717 of file wifi-remote-station-manager.cc.

References ns3::WifiMode::GetModulationClass(), NS_FATAL_ERROR, NS_LOG_FUNCTION, and ns3::WIFI_MOD_CLASS_HT.

Referenced by AddAllSupportedModes(), ns3::ApWifiMac::GetSupportedRates(), ns3::MeshWifiInterfaceMac::Receive(), and ns3::StaWifiMac::UpdateApInfo().

Here is the call graph for this function:

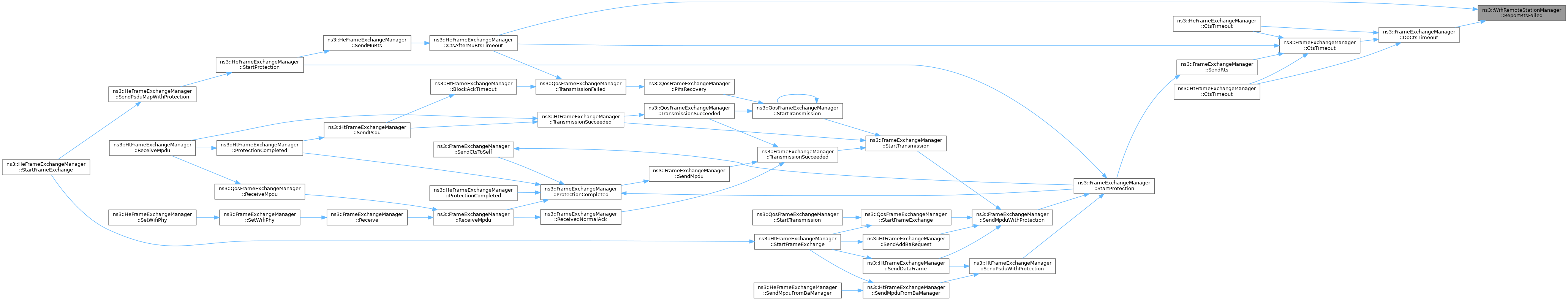

Here is the caller graph for this function:

◆ AddStationEhtCapabilities()

void ns3::WifiRemoteStationManager::AddStationEhtCapabilities	(	Mac48Address	from,
		EhtCapabilities	ehtCapabilities
	)

Records EHT capabilities of the remote station.

Parameters

from	the address of the station being recorded
ehtCapabilities	the EHT capabilities of the station

Definition at line 1581 of file wifi-remote-station-manager.cc.

References ns3::EhtCapabilities::GetHighestSupportedRxMcs(), NS_LOG_FUNCTION, and ns3::WIFI_MOD_CLASS_EHT.

Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::AdhocWifiMac::Receive(), and ns3::StaWifiMac::UpdateApInfo().

Here is the call graph for this function:

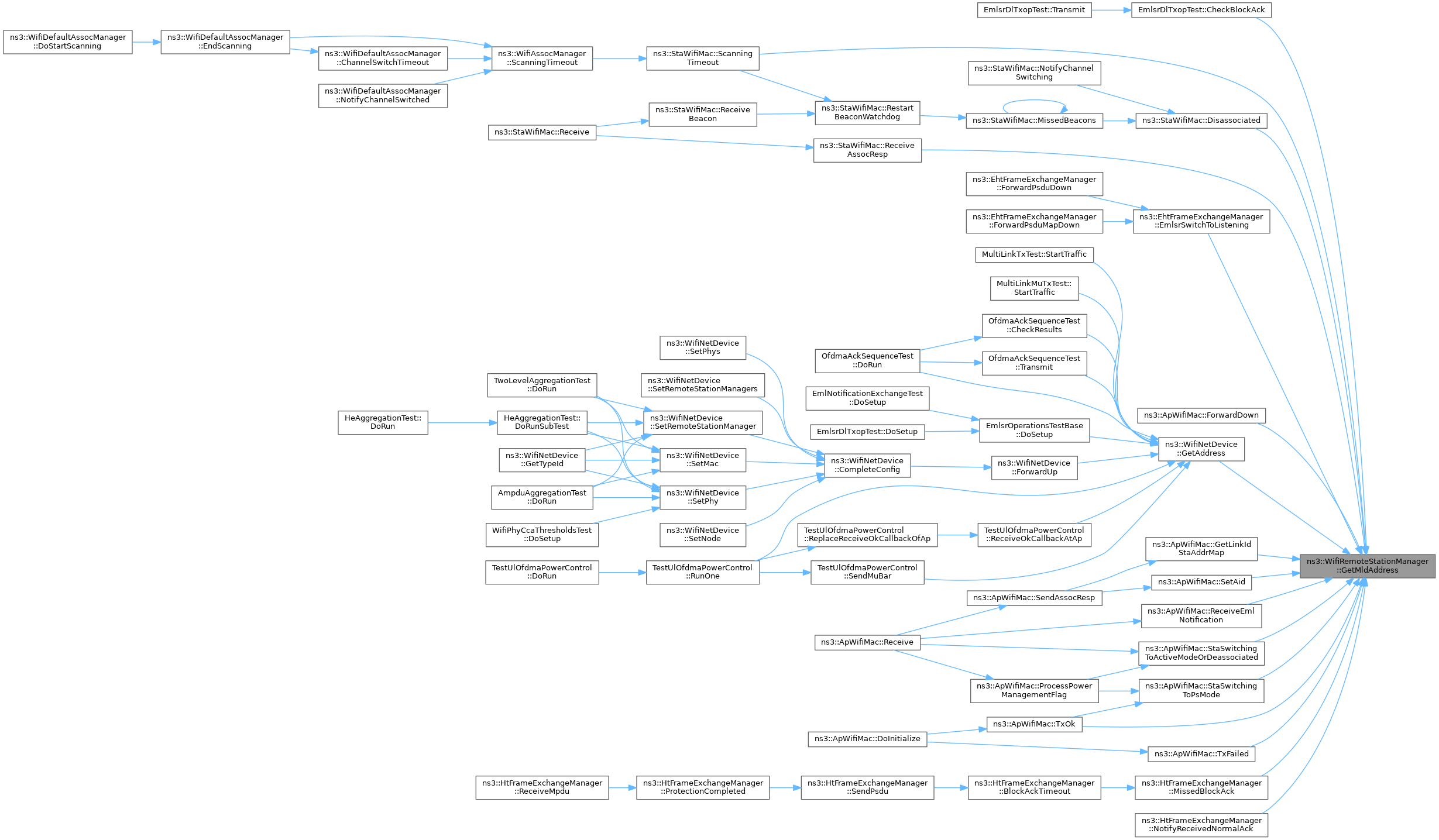

Here is the caller graph for this function:

◆ AddStationEmlCapabilities()

void ns3::WifiRemoteStationManager::AddStationEmlCapabilities	(	Mac48Address	from,
		const std::shared_ptr< CommonInfoBasicMle::EmlCapabilities > &	emlCapabilities
	)

Records EML capabilities of the remote station.

Parameters

from	the address of the station being recorded
emlCapabilities	the EML capabilities of the station

Definition at line 1603 of file wifi-remote-station-manager.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ApWifiMac::ParseReportedStaInfo().

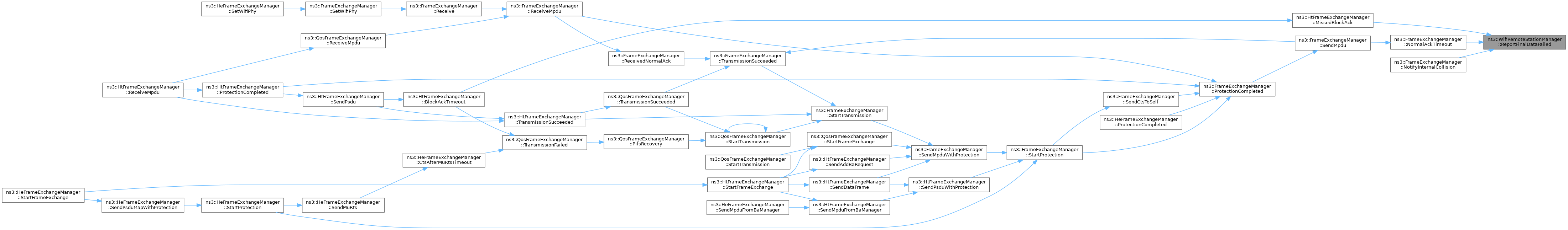

Here is the caller graph for this function:

◆ AddStationHeCapabilities()

void ns3::WifiRemoteStationManager::AddStationHeCapabilities	(	Mac48Address	from,
		HeCapabilities	heCapabilities
	)

Records HE capabilities of the remote station.

Parameters

from	the address of the station being recorded
heCapabilities	the HE capabilities of the station

Definition at line 1531 of file wifi-remote-station-manager.cc.

References ns3::HeCapabilities::GetChannelWidthSet(), ns3::HeCapabilities::GetHeSuPpdu1xHeLtf800nsGi(), ns3::HeCapabilities::GetHighestMcsSupported(), NS_LOG_FUNCTION, ns3::WIFI_MOD_CLASS_HE, ns3::WIFI_PHY_BAND_2_4GHZ, ns3::WIFI_PHY_BAND_5GHZ, and ns3::WIFI_PHY_BAND_6GHZ.

Referenced by HeAggregationTest::DoRunSubTest(), ns3::AdhocWifiMac::Enqueue(), ns3::AdhocWifiMac::Receive(), and ns3::StaWifiMac::UpdateApInfo().

Here is the call graph for this function:

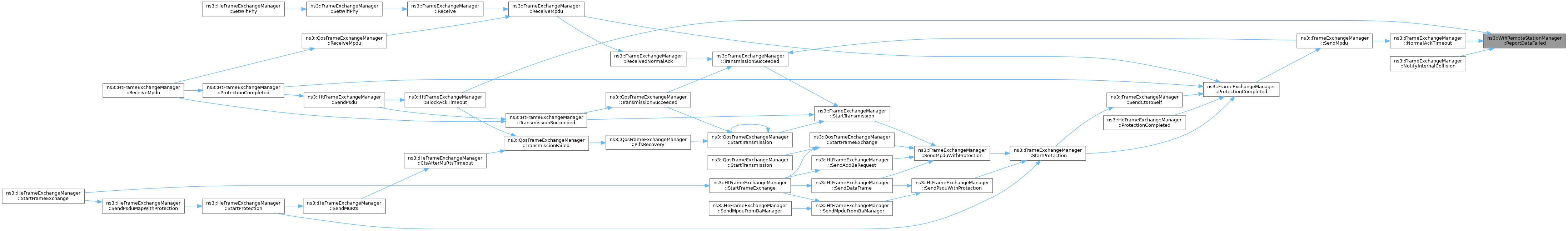

Here is the caller graph for this function:

◆ AddStationHtCapabilities()

void ns3::WifiRemoteStationManager::AddStationHtCapabilities	(	Mac48Address	from,
		HtCapabilities	htCapabilities
	)

Records HT capabilities of the remote station.

Parameters

from	the address of the station being recorded
htCapabilities	the HT capabilities of the station

Definition at line 1478 of file wifi-remote-station-manager.cc.

References ns3::HtCapabilities::GetSupportedChannelWidth(), ns3::HtCapabilities::IsSupportedMcs(), NS_LOG_FUNCTION, and ns3::WIFI_MOD_CLASS_HT.

Referenced by AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), ns3::AdhocWifiMac::Enqueue(), ns3::AdhocWifiMac::Receive(), and ns3::StaWifiMac::UpdateApInfo().

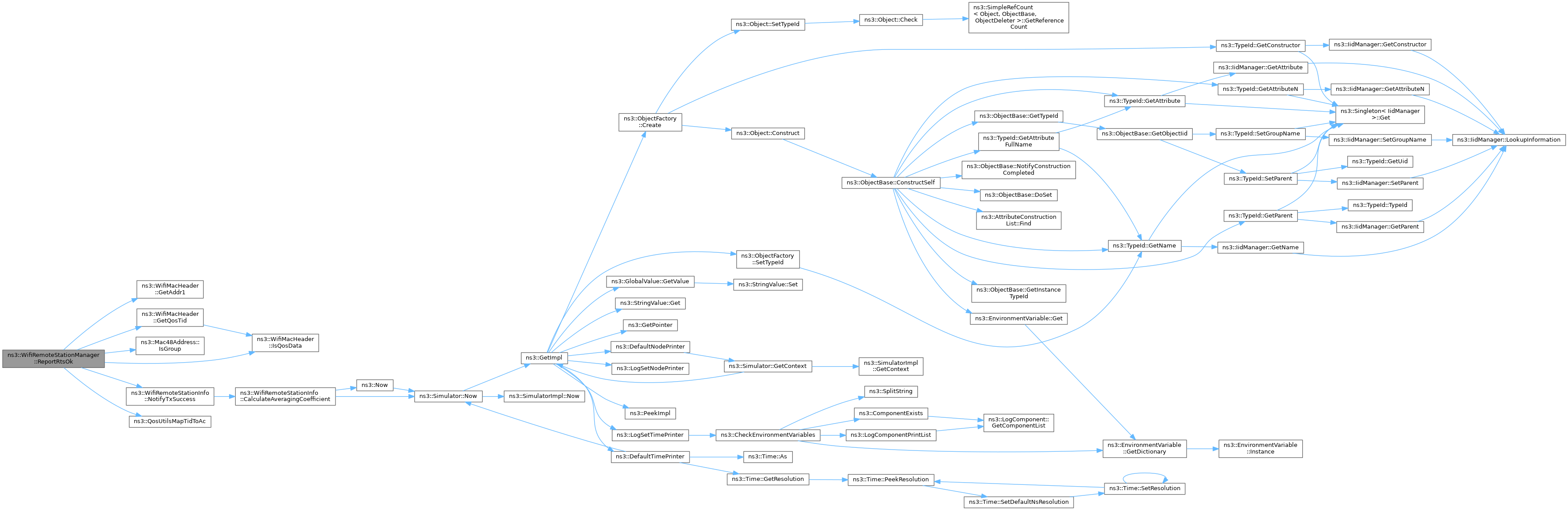

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AddStationVhtCapabilities()

void ns3::WifiRemoteStationManager::AddStationVhtCapabilities	(	Mac48Address	from,
		VhtCapabilities	vhtCapabilities
	)

Records VHT capabilities of the remote station.

Parameters

from	the address of the station being recorded
vhtCapabilities	the VHT capabilities of the station

Definition at line 1503 of file wifi-remote-station-manager.cc.

References ns3::VhtCapabilities::GetSupportedChannelWidthSet(), ns3::VhtCapabilities::IsSupportedMcs(), NS_LOG_FUNCTION, and ns3::WIFI_MOD_CLASS_VHT.

Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::AdhocWifiMac::Receive(), and ns3::StaWifiMac::UpdateApInfo().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AddSupportedErpSlotTime()

void ns3::WifiRemoteStationManager::AddSupportedErpSlotTime	(	Mac48Address	address,
		bool	isShortSlotTimeSupported
	)

Record whether the short ERP slot time is supported by the station.

Parameters

address	the address of the station
isShortSlotTimeSupported	whether or not short ERP slot time is supported by the station

Definition at line 333 of file wifi-remote-station-manager.cc.

References LookupState(), NS_ASSERT, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ AddSupportedMcs()

void ns3::WifiRemoteStationManager::AddSupportedMcs	(	Mac48Address	address,
		WifiMode	mcs
	)

Record the MCS index supported by the station.

Parameters

address	the address of the station
mcs	the WifiMode supported by the station

Definition at line 409 of file wifi-remote-station-manager.cc.

References LookupState(), NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::StaWifiMac::UpdateApInfo().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AddSupportedMode()

void ns3::WifiRemoteStationManager::AddSupportedMode	(	Mac48Address	address,
		WifiMode	mode
	)

Invoked in a STA or AP to store the set of modes supported by a destination which is also supported locally.

The set of supported modes includes the BSSBasicRateSet.

Parameters

address	the address of the station being recorded
mode	the WifiMode supports by the station

Definition at line 342 of file wifi-remote-station-manager.cc.

References ns3::WifiMode::GetModulationClass(), LookupState(), NS_ASSERT, NS_LOG_FUNCTION, ns3::WIFI_MOD_CLASS_DSSS, ns3::WIFI_MOD_CLASS_ERP_OFDM, ns3::WIFI_MOD_CLASS_HR_DSSS, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::MeshWifiInterfaceMac::ForwardDown(), ns3::MeshWifiInterfaceMac::Receive(), and ns3::StaWifiMac::UpdateApInfo().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AddSupportedPhyPreamble()

void ns3::WifiRemoteStationManager::AddSupportedPhyPreamble	(	Mac48Address	address,
		bool	isShortPreambleSupported
	)

Record whether the short PHY preamble is supported by the station.

Parameters

address	the address of the station
isShortPreambleSupported	whether or not short PHY preamble is supported by the station

Definition at line 324 of file wifi-remote-station-manager.cc.

References LookupState(), NS_ASSERT, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ AdjustTxVectorForIcf()

void ns3::WifiRemoteStationManager::AdjustTxVectorForIcf ( WifiTxVector & txVector ) const

Adjust the TXVECTOR for an initial Control frame to ensure that the modulation class is non-HT and the rate is 6 Mbps, 12 Mbps or 24 Mbps.

Parameters

txVector the TXVECTOR to adjust

Definition at line 751 of file wifi-remote-station-manager.cc.

References ns3::WifiMode::GetDataRate(), ns3::WifiTxVector::GetMode(), NS_LOG_FUNCTION, ns3::WifiTxVector::SetMode(), ns3::WifiTxVector::SetPreambleType(), ns3::WIFI_MOD_CLASS_HT, ns3::WIFI_PHY_BAND_2_4GHZ, and ns3::WIFI_PREAMBLE_LONG.

Referenced by ns3::WifiDefaultProtectionManager::TryAddMpduToMuPpdu(), and ns3::WifiDefaultProtectionManager::TryUlMuTransmission().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AssignStreams()

int64_t ns3::WifiRemoteStationManager::AssignStreams ( int64_t stream )

virtual

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Reimplemented in ns3::MinstrelHtWifiManager, ns3::MinstrelWifiManager, ns3::RrpaaWifiManager, and ns3::ThompsonSamplingWifiManager.

Definition at line 189 of file wifi-remote-station-manager.cc.

References NS_LOG_FUNCTION.

◆ DoCreateStation()

virtual WifiRemoteStation * ns3::WifiRemoteStationManager::DoCreateStation ( ) const

privatepure virtual

Returns: a new station data structure

Implemented in ns3::AarfWifiManager, ns3::AarfcdWifiManager, ns3::AmrrWifiManager, ns3::AparfWifiManager, ns3::ArfWifiManager, ns3::CaraWifiManager, ns3::ConstantRateWifiManager, ns3::IdealWifiManager, ns3::MinstrelHtWifiManager, ns3::MinstrelWifiManager, ns3::OnoeWifiManager, ns3::ParfWifiManager, ns3::RraaWifiManager, ns3::RrpaaWifiManager, and ns3::ThompsonSamplingWifiManager.

◆ DoDispose()

void ns3::WifiRemoteStationManager::DoDispose ( )

overrideprotectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 153 of file wifi-remote-station-manager.cc.

References NS_LOG_FUNCTION, and Reset().

Here is the call graph for this function:

◆ DoGetDataTxVector()

virtual WifiTxVector ns3::WifiRemoteStationManager::DoGetDataTxVector	(	WifiRemoteStation *	station,
		uint16_t	allowedWidth
	)

privatepure virtual

Parameters

station	the station that we need to communicate
allowedWidth	the allowed width in MHz to send a packet to the station

Returns: the TXVECTOR to use to send a packet to the station

Note: This method is called before sending a unicast packet or a fragment of a unicast packet to decide which transmission mode to use.

Implemented in ns3::AarfWifiManager, ns3::AarfcdWifiManager, ns3::AmrrWifiManager, ns3::AparfWifiManager, ns3::ArfWifiManager, ns3::CaraWifiManager, ns3::ConstantRateWifiManager, ns3::IdealWifiManager, ns3::MinstrelHtWifiManager, ns3::MinstrelWifiManager, ns3::OnoeWifiManager, ns3::ParfWifiManager, ns3::RraaWifiManager, ns3::RrpaaWifiManager, and ns3::ThompsonSamplingWifiManager.

◆ DoGetFragmentationThreshold()

uint32_t ns3::WifiRemoteStationManager::DoGetFragmentationThreshold ( ) const

private

Return the current fragmentation threshold.

Returns: the fragmentation threshold

Definition at line 1298 of file wifi-remote-station-manager.cc.

Referenced by GetFragmentationThreshold(), and GetTypeId().

Here is the caller graph for this function:

◆ DoGetRtsTxVector()

virtual WifiTxVector ns3::WifiRemoteStationManager::DoGetRtsTxVector ( WifiRemoteStation * station )

privatepure virtual

Parameters

station the station that we need to communicate

Returns: the transmission mode to use to send an RTS to the station

Note: This method is called before sending an RTS to a station to decide which transmission mode to use for the RTS.

Implemented in ns3::AarfWifiManager, ns3::AarfcdWifiManager, ns3::AmrrWifiManager, ns3::AparfWifiManager, ns3::ArfWifiManager, ns3::CaraWifiManager, ns3::ConstantRateWifiManager, ns3::IdealWifiManager, ns3::MinstrelHtWifiManager, ns3::MinstrelWifiManager, ns3::OnoeWifiManager, ns3::ParfWifiManager, ns3::RraaWifiManager, ns3::RrpaaWifiManager, and ns3::ThompsonSamplingWifiManager.

◆ DoNeedFragmentation()

bool ns3::WifiRemoteStationManager::DoNeedFragmentation	(	WifiRemoteStation *	station,
		Ptr< const Packet >	packet,
		bool	normally
	)

privatevirtual

Parameters

station	the station that we need to communicate
packet	the packet to send
normally	indicates whether the normal 802.11 data fragmentation mechanism would request that the data packet is fragmented or not.

Returns: true if this packet should be fragmented, false otherwise.

Note: This method is called before sending a unicast packet.

Definition at line 1849 of file wifi-remote-station-manager.cc.

◆ DoNeedRetransmission()

bool ns3::WifiRemoteStationManager::DoNeedRetransmission	(	WifiRemoteStation *	station,
		Ptr< const Packet >	packet,
		bool	normally
	)

privatevirtual

Parameters

station	the station that we need to communicate
packet	the packet to send
normally	indicates whether the normal 802.11 data retransmission mechanism would request that the data is retransmitted or not.

Returns: true if we want to resend a packet after a failed transmission attempt, false otherwise.

Note: This method is called after any unicast packet transmission (control, management, or data) has been attempted and has failed.

Reimplemented in ns3::MinstrelHtWifiManager, and ns3::MinstrelWifiManager.

Definition at line 1841 of file wifi-remote-station-manager.cc.

◆ DoNeedRts()

bool ns3::WifiRemoteStationManager::DoNeedRts	(	WifiRemoteStation *	station,
		uint32_t	size,
		bool	normally
	)

privatevirtual

Parameters

station	the station that we need to communicate
size	the size of the frame to send in bytes
normally	indicates whether the normal 802.11 RTS enable mechanism would request that the RTS is sent or not.

Returns: true if we want to use an RTS/CTS handshake for this frame before sending it, false otherwise.

Note: This method is called before a unicast packet is sent on the medium.

Reimplemented in ns3::RraaWifiManager, ns3::RrpaaWifiManager, ns3::AarfcdWifiManager, and ns3::CaraWifiManager.

Definition at line 1835 of file wifi-remote-station-manager.cc.

◆ DoReportAmpduTxStatus()

void ns3::WifiRemoteStationManager::DoReportAmpduTxStatus	(	WifiRemoteStation *	station,
		uint16_t	nSuccessfulMpdus,
		uint16_t	nFailedMpdus,
		double	rxSnr,
		double	dataSnr,
		uint16_t	dataChannelWidth,
		uint8_t	dataNss
	)

privatevirtual

Typically called per A-MPDU, either when a Block ACK was successfully received or when a BlockAckTimeout has elapsed.

This method is a virtual method that must be implemented by the sub-class intended to handle A-MPDUs. This allows different types of WifiRemoteStationManager to respond differently.

Parameters

station	the station that sent the DATA to us
nSuccessfulMpdus	number of successfully transmitted MPDUs. A value of 0 means that the Block ACK was missed.
nFailedMpdus	number of unsuccessfuly transmitted MPDUs.
rxSnr	received SNR of the block ack frame itself
dataSnr	data SNR reported by remote station
dataChannelWidth	the channel width (in MHz) of the A-MPDU we sent
dataNss	the number of spatial streams used to send the A-MPDU

Reimplemented in ns3::IdealWifiManager, ns3::MinstrelHtWifiManager, and ns3::ThompsonSamplingWifiManager.

Definition at line 1857 of file wifi-remote-station-manager.cc.

References NS_LOG_DEBUG.

◆ DoReportDataFailed()

virtual void ns3::WifiRemoteStationManager::DoReportDataFailed ( WifiRemoteStation * station )

privatepure virtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters

station the station that we failed to send DATA

Implemented in ns3::AarfWifiManager, ns3::AarfcdWifiManager, ns3::AmrrWifiManager, ns3::AparfWifiManager, ns3::ArfWifiManager, ns3::CaraWifiManager, ns3::ConstantRateWifiManager, ns3::IdealWifiManager, ns3::MinstrelHtWifiManager, ns3::MinstrelWifiManager, ns3::OnoeWifiManager, ns3::ParfWifiManager, ns3::RraaWifiManager, ns3::RrpaaWifiManager, and ns3::ThompsonSamplingWifiManager.

◆ DoReportDataOk()

virtual void ns3::WifiRemoteStationManager::DoReportDataOk	(	WifiRemoteStation *	station,
		double	ackSnr,
		WifiMode	ackMode,
		double	dataSnr,
		uint16_t	dataChannelWidth,
		uint8_t	dataNss
	)

privatepure virtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters

station	the station that we successfully sent RTS
ackSnr	the SNR of the ACK we received
ackMode	the WifiMode the receiver used to send the ACK
dataSnr	the SNR of the DATA we sent
dataChannelWidth	the channel width (in MHz) of the DATA we sent
dataNss	the number of spatial streams used to send the DATA

Implemented in ns3::AarfWifiManager, ns3::AarfcdWifiManager, ns3::AmrrWifiManager, ns3::AparfWifiManager, ns3::ArfWifiManager, ns3::CaraWifiManager, ns3::ConstantRateWifiManager, ns3::IdealWifiManager, ns3::MinstrelHtWifiManager, ns3::MinstrelWifiManager, ns3::OnoeWifiManager, ns3::ParfWifiManager, ns3::RraaWifiManager, ns3::RrpaaWifiManager, and ns3::ThompsonSamplingWifiManager.

◆ DoReportFinalDataFailed()

virtual void ns3::WifiRemoteStationManager::DoReportFinalDataFailed ( WifiRemoteStation * station )

privatepure virtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters

station the station that we failed to send DATA

Implemented in ns3::AarfWifiManager, ns3::AarfcdWifiManager, ns3::AmrrWifiManager, ns3::AparfWifiManager, ns3::ArfWifiManager, ns3::CaraWifiManager, ns3::ConstantRateWifiManager, ns3::IdealWifiManager, ns3::MinstrelHtWifiManager, ns3::MinstrelWifiManager, ns3::OnoeWifiManager, ns3::ParfWifiManager, ns3::RraaWifiManager, ns3::RrpaaWifiManager, and ns3::ThompsonSamplingWifiManager.

◆ DoReportFinalRtsFailed()

virtual void ns3::WifiRemoteStationManager::DoReportFinalRtsFailed ( WifiRemoteStation * station )

privatepure virtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters

station the station that we failed to send RTS

Implemented in ns3::AarfWifiManager, ns3::AarfcdWifiManager, ns3::AmrrWifiManager, ns3::AparfWifiManager, ns3::ArfWifiManager, ns3::CaraWifiManager, ns3::ConstantRateWifiManager, ns3::IdealWifiManager, ns3::MinstrelHtWifiManager, ns3::MinstrelWifiManager, ns3::OnoeWifiManager, ns3::ParfWifiManager, ns3::RraaWifiManager, ns3::RrpaaWifiManager, and ns3::ThompsonSamplingWifiManager.

◆ DoReportRtsFailed()

virtual void ns3::WifiRemoteStationManager::DoReportRtsFailed ( WifiRemoteStation * station )

privatepure virtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters

station the station that we failed to send RTS

Implemented in ns3::AarfWifiManager, ns3::AarfcdWifiManager, ns3::AmrrWifiManager, ns3::AparfWifiManager, ns3::ArfWifiManager, ns3::CaraWifiManager, ns3::ConstantRateWifiManager, ns3::IdealWifiManager, ns3::MinstrelHtWifiManager, ns3::MinstrelWifiManager, ns3::OnoeWifiManager, ns3::ParfWifiManager, ns3::RraaWifiManager, ns3::RrpaaWifiManager, and ns3::ThompsonSamplingWifiManager.

◆ DoReportRtsOk()

virtual void ns3::WifiRemoteStationManager::DoReportRtsOk	(	WifiRemoteStation *	station,
		double	ctsSnr,
		WifiMode	ctsMode,
		double	rtsSnr
	)

privatepure virtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters

station	the station that we successfully sent RTS
ctsSnr	the SNR of the CTS we received
ctsMode	the WifiMode the receiver used to send the CTS
rtsSnr	the SNR of the RTS we sent

Implemented in ns3::AarfWifiManager, ns3::AarfcdWifiManager, ns3::AmrrWifiManager, ns3::AparfWifiManager, ns3::ArfWifiManager, ns3::CaraWifiManager, ns3::ConstantRateWifiManager, ns3::IdealWifiManager, ns3::MinstrelHtWifiManager, ns3::MinstrelWifiManager, ns3::OnoeWifiManager, ns3::ParfWifiManager, ns3::RraaWifiManager, ns3::RrpaaWifiManager, and ns3::ThompsonSamplingWifiManager.

◆ DoReportRxOk()

virtual void ns3::WifiRemoteStationManager::DoReportRxOk	(	WifiRemoteStation *	station,
		double	rxSnr,
		WifiMode	txMode
	)

privatepure virtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters

station	the station that sent the DATA to us
rxSnr	the SNR of the DATA we received
txMode	the WifiMode the sender used to send the DATA

Implemented in ns3::AarfWifiManager, ns3::AarfcdWifiManager, ns3::AmrrWifiManager, ns3::AparfWifiManager, ns3::ArfWifiManager, ns3::CaraWifiManager, ns3::ConstantRateWifiManager, ns3::IdealWifiManager, ns3::MinstrelHtWifiManager, ns3::MinstrelWifiManager, ns3::OnoeWifiManager, ns3::ParfWifiManager, ns3::RraaWifiManager, ns3::RrpaaWifiManager, and ns3::ThompsonSamplingWifiManager.

◆ DoSetFragmentationThreshold()

void ns3::WifiRemoteStationManager::DoSetFragmentationThreshold ( uint32_t threshold )

private

Actually sets the fragmentation threshold, it also checks the validity of the given threshold.

Parameters

threshold the fragmentation threshold

Definition at line 1267 of file wifi-remote-station-manager.cc.

References NS_LOG_FUNCTION, and NS_LOG_WARN.

Referenced by GetTypeId(), and SetFragmentationThreshold().

Here is the caller graph for this function:

◆ GetAckTxVector()

WifiTxVector ns3::WifiRemoteStationManager::GetAckTxVector	(	Mac48Address	to,
		const WifiTxVector &	dataTxVector
	)		const

Return a TXVECTOR for the Ack frame given the destination and the mode of the Data used by the sender.

Parameters

to	the MAC address of the Ack receiver
dataTxVector	the TXVECTOR of the Data used by the sender

Returns: TXVECTOR for the Ack

Definition at line 784 of file wifi-remote-station-manager.cc.

References ns3::ConvertGuardIntervalToNanoSeconds(), ns3::WifiTxVector::GetMode(), ns3::WifiMode::GetModulationClass(), ns3::GetPreambleForTransmission(), ns3::Mac48Address::IsGroup(), NS_ASSERT, ns3::WifiTxVector::SetChannelWidth(), ns3::WifiTxVector::SetGuardInterval(), ns3::WifiTxVector::SetMode(), ns3::WifiTxVector::SetNss(), ns3::WifiTxVector::SetPreambleType(), and ns3::WifiTxVector::SetTxPowerLevel().

Referenced by ns3::WifiDefaultAckManager::GetAckInfoIfBarBaSequence(), ns3::FrameExchangeManager::GetFrameDurationId(), ns3::FrameExchangeManager::SendNormalAck(), and ns3::WifiDefaultAckManager::TryAddMpdu().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetAddress()

Mac48Address ns3::WifiRemoteStationManager::GetAddress ( const WifiRemoteStation * station ) const

protected

Return the address of the station.

Parameters

station the station being queried

Returns: the address of the station

Definition at line 1913 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_address, and ns3::WifiRemoteStation::m_state.

◆ GetAffiliatedStaAddress()

std::optional< Mac48Address > ns3::WifiRemoteStationManager::GetAffiliatedStaAddress ( const Mac48Address & mldAddress ) const

Get the address of the remote station operating on this link and affiliated with the MLD having the given MAC address, if any.

Parameters

mldAddress the MLD MAC address

Returns: the address of the remote station operating on this link and affiliated with the MLD, if any

Definition at line 586 of file wifi-remote-station-manager.cc.

References NS_ASSERT.

Referenced by ns3::EhtFrameExchangeManager::CreateAliasIfNeeded(), ns3::HtFrameExchangeManager::GetBar(), ns3::ApWifiMac::GetLinkIdStaAddrMap(), ns3::StaWifiMac::ScanningTimeout(), and ns3::HtFrameExchangeManager::SendAddBaRequest().

Here is the caller graph for this function:

◆ GetAggregation()

bool ns3::WifiRemoteStationManager::GetAggregation ( const WifiRemoteStation * station ) const

protected

Return whether the given station supports A-MPDU.

Parameters

station the station being queried

Returns: true if the station supports MPDU aggregation, false otherwise

Definition at line 1943 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_aggregation, and ns3::WifiRemoteStation::m_state.

Here is the caller graph for this function:

◆ GetAssociationId()

uint16_t ns3::WifiRemoteStationManager::GetAssociationId ( Mac48Address remoteAddress ) const

Get the AID of a remote station.

Should only be called by APs.

Parameters

remoteAddress the MAC address of the remote station

Returns: the Association ID if the station is associated, SU_STA_ID otherwise

Definition at line 518 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::GOT_ASSOC_TX_OK, LookupState(), and ns3::SU_STA_ID.

Referenced by ns3::EhtFrameExchangeManager::ForwardPsduDown(), ns3::EhtFrameExchangeManager::ForwardPsduMapDown(), ns3::ApWifiMac::GetAssociationId(), and GetStaId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetBasicMcs()

WifiMode ns3::WifiRemoteStationManager::GetBasicMcs ( uint8_t i ) const

Return the MCS at the given list index.

Parameters

i	the position in the list

Returns: the basic MCS at the given list index

Definition at line 1808 of file wifi-remote-station-manager.cc.

References NS_ASSERT.

◆ GetBasicMode()

WifiMode ns3::WifiRemoteStationManager::GetBasicMode ( uint8_t i ) const

Return a basic mode from the set of basic modes.

Parameters

i	index of the basic mode in the basic mode set

Returns: the basic mode at the given index

Definition at line 1741 of file wifi-remote-station-manager.cc.

References NS_ASSERT.

Referenced by ns3::MeshWifiInterfaceMac::CheckSupportedRates(), ns3::IdealWifiManager::DoGetRtsTxVector(), ns3::MinstrelHtWifiManager::DoGetRtsTxVector(), ns3::MeshWifiInterfaceMac::GetSupportedRates(), and ns3::ApWifiMac::GetSupportedRates().

Here is the caller graph for this function:

◆ GetBlockAckTxVector()

WifiTxVector ns3::WifiRemoteStationManager::GetBlockAckTxVector	(	Mac48Address	to,
		const WifiTxVector &	dataTxVector
	)		const

Return a TXVECTOR for the BlockAck frame given the destination and the mode of the Data used by the sender.

Parameters

to	the MAC address of the BlockAck receiver
dataTxVector	the TXVECTOR of the Data used by the sender

Returns: TXVECTOR for the BlockAck

Definition at line 802 of file wifi-remote-station-manager.cc.

References ns3::ConvertGuardIntervalToNanoSeconds(), ns3::WifiTxVector::GetMode(), ns3::WifiMode::GetModulationClass(), ns3::GetPreambleForTransmission(), ns3::Mac48Address::IsGroup(), NS_ASSERT, ns3::WifiTxVector::SetChannelWidth(), ns3::WifiTxVector::SetGuardInterval(), ns3::WifiTxVector::SetMode(), ns3::WifiTxVector::SetNss(), ns3::WifiTxVector::SetPreambleType(), and ns3::WifiTxVector::SetTxPowerLevel().

Referenced by ns3::WifiDefaultAckManager::GetAckInfoIfBarBaSequence(), ns3::WifiDefaultAckManager::TryAddMpdu(), and ns3::WifiDefaultAckManager::TryUlMuTransmission().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetChannelWidth()

uint16_t ns3::WifiRemoteStationManager::GetChannelWidth ( const WifiRemoteStation * station ) const

protected

Return the channel width supported by the station.

Parameters

station the station being queried

Returns: the channel width (in MHz) supported by the station

Definition at line 1919 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_channelWidth, and ns3::WifiRemoteStation::m_state.

Here is the caller graph for this function:

◆ GetChannelWidthSupported()

uint16_t ns3::WifiRemoteStationManager::GetChannelWidthSupported ( Mac48Address address ) const

Return the channel width supported by the station.

Parameters

address the address of the station

Returns: the channel width supported by the station

Definition at line 2051 of file wifi-remote-station-manager.cc.

◆ GetControlAnswerMode()

WifiMode ns3::WifiRemoteStationManager::GetControlAnswerMode ( WifiMode reqMode ) const

Get control answer mode function.

Parameters

reqMode request mode

Returns: control answer mode

The standard has relatively unambiguous rules for selecting a control response rate (the below is quoted from IEEE 802.11-2012, Section 9.7):

To allow the transmitting STA to calculate the contents of the Duration/ID field, a STA responding to a received frame shall transmit its Control Response frame (either CTS or Ack), other than the BlockAck control frame, at the highest rate in the BSSBasicRateSet parameter that is less than or equal to the rate of the immediately previous frame in the frame exchange sequence (as defined in Annex G) and that is of the same modulation class (see Section 9.7.8) as the received frame...

If no suitable basic rate was found, we search the mandatory rates. The standard (IEEE 802.11-2007, Section 9.6) says:

...If no rate contained in the BSSBasicRateSet parameter meets these conditions, then the control frame sent in response to a received frame shall be transmitted at the highest mandatory rate of the PHY that is less than or equal to the rate of the received frame, and that is of the same modulation class as the received frame. In addition, the Control Response frame shall be sent using the same PHY options as the received frame, unless they conflict with the requirement to use the BSSBasicRateSet parameter.

Todo:: Note that we're ignoring the last sentence for now, because there is not yet any manipulation here of PHY options.

If we still haven't found a suitable rate for the response then someone has messed up the simulation configuration. This probably means that the WifiPhyStandard is not set correctly, or that a rate that is not supported by the PHY has been explicitly requested.

Either way, it is serious - we can either disobey the standard or fail, and I have chosen to do the latter...

Definition at line 821 of file wifi-remote-station-manager.cc.

References ns3::WifiMode::GetModulationClass(), ns3::IsAllowedControlAnswerModulationClass(), ns3::WifiMode::IsHigherDataRate(), NS_FATAL_ERROR, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ GetCtsToSelfTxVector()

WifiTxVector ns3::WifiRemoteStationManager::GetCtsToSelfTxVector ( )

Since CTS-to-self parameters are not dependent on the station, it is implemented in wifi remote station manager.

Returns: the transmission mode to use to send the CTS-to-self prior to the transmission of the data packet itself.

Definition at line 674 of file wifi-remote-station-manager.cc.

References ns3::ConvertGuardIntervalToNanoSeconds(), ns3::WifiMode::GetModulationClass(), ns3::WIFI_MOD_CLASS_EHT, ns3::WIFI_MOD_CLASS_HE, ns3::WIFI_MOD_CLASS_HT, ns3::WIFI_MOD_CLASS_VHT, ns3::WIFI_PREAMBLE_EHT_MU, ns3::WIFI_PREAMBLE_HE_SU, ns3::WIFI_PREAMBLE_HT_MF, ns3::WIFI_PREAMBLE_LONG, and ns3::WIFI_PREAMBLE_VHT_SU.

Referenced by ns3::WifiDefaultProtectionManager::GetPsduProtection().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetCtsTxVector()

WifiTxVector ns3::WifiRemoteStationManager::GetCtsTxVector	(	Mac48Address	to,
		WifiMode	rtsTxMode
	)		const

Return a TXVECTOR for the CTS frame given the destination and the mode of the RTS used by the sender.

Parameters

to	the MAC address of the CTS receiver
rtsTxMode	the mode of the RTS used by the sender

Returns: TXVECTOR for the CTS

Definition at line 733 of file wifi-remote-station-manager.cc.

References ns3::ConvertGuardIntervalToNanoSeconds(), ns3::WifiMode::GetModulationClass(), ns3::GetPreambleForTransmission(), ns3::Mac48Address::IsGroup(), NS_ASSERT, ns3::WifiTxVector::SetChannelWidth(), ns3::WifiTxVector::SetGuardInterval(), ns3::WifiTxVector::SetMode(), ns3::WifiTxVector::SetNss(), ns3::WifiTxVector::SetPreambleType(), and ns3::WifiTxVector::SetTxPowerLevel().

Referenced by ns3::WifiDefaultProtectionManager::GetPsduProtection(), ns3::FrameExchangeManager::GetRtsDurationId(), ns3::FrameExchangeManager::SendCtsAfterRts(), and ns3::FrameExchangeManager::UpdateNav().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetDataTxVector()

WifiTxVector ns3::WifiRemoteStationManager::GetDataTxVector	(	const WifiMacHeader &	header,
		uint16_t	allowedWidth
	)

Parameters

header	MAC header
allowedWidth	the allowed width in MHz to send this packet

Returns: the TXVECTOR to use to send this packet

Definition at line 601 of file wifi-remote-station-manager.cc.

Referenced by AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), HeAggregationTest::DoRunSubTest(), ns3::RrMultiUserScheduler::GetTxVectorForUlMu(), ns3::HtFrameExchangeManager::SendAddBaRequest(), ns3::HtFrameExchangeManager::SendDataFrame(), ns3::HtFrameExchangeManager::SendMpduFromBaManager(), ns3::QosFrameExchangeManager::StartFrameExchange(), ns3::FrameExchangeManager::StartTransmission(), and ns3::RrMultiUserScheduler::TrySendingDlMuPpdu().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetDefaultMcs()

WifiMode ns3::WifiRemoteStationManager::GetDefaultMcs ( ) const

Return the default Modulation and Coding Scheme (MCS) index.

Returns: the default WifiMode

Definition at line 1670 of file wifi-remote-station-manager.cc.

◆ GetDefaultMode()

WifiMode ns3::WifiRemoteStationManager::GetDefaultMode ( ) const

Return the default transmission mode.

Returns: WifiMode the default transmission mode

Definition at line 1664 of file wifi-remote-station-manager.cc.

Referenced by ns3::IdealWifiManager::DoGetRtsTxVector(), and ns3::IdealWifiManager::Reset().

Here is the caller graph for this function:

◆ GetDefaultModeForSta()

WifiMode ns3::WifiRemoteStationManager::GetDefaultModeForSta ( const WifiRemoteStation * st ) const

Return the default MCS to use to transmit frames to the given station.

Parameters

st	the given station

Returns: the default MCS to use to transmit frames to the given station

Definition at line 1676 of file wifi-remote-station-manager.cc.

References NS_LOG_FUNCTION, ns3::WIFI_MOD_CLASS_HE, ns3::WIFI_MOD_CLASS_HT, and ns3::WIFI_MOD_CLASS_VHT.

Referenced by ns3::IdealWifiManager::DoGetDataTxVector().

Here is the caller graph for this function:

◆ GetDefaultTxPowerLevel()

uint8_t ns3::WifiRemoteStationManager::GetDefaultTxPowerLevel ( ) const

Returns: the default transmission power

Definition at line 1376 of file wifi-remote-station-manager.cc.

Here is the caller graph for this function:

◆ GetDsssSupported()

bool ns3::WifiRemoteStationManager::GetDsssSupported ( const Mac48Address & address ) const

Return whether the station supports DSSS or not.

Parameters

address the address of the station

Returns: true if DSSS is supported by the station, false otherwise

Definition at line 2087 of file wifi-remote-station-manager.cc.

◆ GetEhtSupported() [1/3]

bool ns3::WifiRemoteStationManager::GetEhtSupported ( ) const

Return whether the device has EHT capability support enabled.

Returns: true if EHT capability support is enabled, false otherwise

Definition at line 269 of file wifi-remote-station-manager.cc.

References ns3::WifiPhy::GetDevice(), ns3::WifiNetDevice::GetEhtConfiguration(), and m_wifiPhy.

Here is the call graph for this function:

◆ GetEhtSupported() [2/3]

bool ns3::WifiRemoteStationManager::GetEhtSupported ( const WifiRemoteStation * station ) const

protected

Return whether the given station is EHT capable.

Parameters

station the station being queried

Returns: true if the station has EHT capabilities, false otherwise

Definition at line 2009 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_ehtCapabilities, and ns3::WifiRemoteStation::m_state.

◆ GetEhtSupported() [3/3]

bool ns3::WifiRemoteStationManager::GetEhtSupported ( Mac48Address address ) const

Return whether the station supports EHT or not.

Parameters

address the address of the station

Returns: true if EHT is supported by the station, false otherwise

Definition at line 2123 of file wifi-remote-station-manager.cc.

◆ GetEmlsrEnabled() [1/2]

bool ns3::WifiRemoteStationManager::GetEmlsrEnabled ( const Mac48Address & address ) const

Parameters

address the (MLD or link) address of the non-AP MLD

Returns: whether EMLSR mode is enabled for the non-AP MLD on this link

Definition at line 2136 of file wifi-remote-station-manager.cc.

Referenced by EmlsrDlTxopTest::CheckInitialControlFrame(), ns3::EhtFrameExchangeManager::EmlsrSwitchToListening(), ns3::WifiDefaultProtectionManager::TryAddMpdu(), ns3::WifiDefaultProtectionManager::TryAddMpduToMuPpdu(), and ns3::WifiDefaultProtectionManager::TryUlMuTransmission().

Here is the caller graph for this function:

◆ GetEmlsrEnabled() [2/2]

bool ns3::WifiRemoteStationManager::GetEmlsrEnabled ( const WifiRemoteStation * station ) const

protected

Parameters

station the station of a non-AP MLD

Returns: whether EMLSR mode is enabled for the non-AP MLD on this link

Definition at line 2022 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_emlsrEnabled, and ns3::WifiRemoteStation::m_state.

◆ GetEmlsrSupported() [1/2]

bool ns3::WifiRemoteStationManager::GetEmlsrSupported ( const Mac48Address & address ) const

Parameters

address the (MLD or link) address of the non-AP MLD

Returns: whether the non-AP MLD supports EMLSR

Definition at line 2129 of file wifi-remote-station-manager.cc.

◆ GetEmlsrSupported() [2/2]

bool ns3::WifiRemoteStationManager::GetEmlsrSupported ( const WifiRemoteStation * station ) const

protected

Parameters

station the station of a non-AP MLD

Returns: whether the non-AP MLD supports EMLSR

Definition at line 2015 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_emlCapabilities, and ns3::WifiRemoteStation::m_state.

◆ GetErpOfdmSupported()

bool ns3::WifiRemoteStationManager::GetErpOfdmSupported ( const Mac48Address & address ) const

Return whether the station supports ERP OFDM or not.

Parameters

address the address of the station

Returns: true if ERP OFDM is supported by the station, false otherwise

Definition at line 2093 of file wifi-remote-station-manager.cc.

◆ GetFragmentationThreshold()

uint32_t ns3::WifiRemoteStationManager::GetFragmentationThreshold ( ) const

Return the fragmentation threshold.

Returns: the fragmentation threshold

Definition at line 318 of file wifi-remote-station-manager.cc.

References DoGetFragmentationThreshold().

Here is the call graph for this function:

◆ GetFragmentOffset()

uint32_t ns3::WifiRemoteStationManager::GetFragmentOffset	(	Ptr< const WifiMpdu >	mpdu,
		uint32_t	fragmentNumber
	)

Parameters

mpdu	the packet to send
fragmentNumber	the fragment index of the next fragment to send (starts at zero).

Returns: the offset within the original packet where this fragment starts.

Definition at line 1354 of file wifi-remote-station-manager.cc.

References NS_ASSERT, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

◆ GetFragmentSize()

uint32_t ns3::WifiRemoteStationManager::GetFragmentSize	(	Ptr< const WifiMpdu >	mpdu,
		uint32_t	fragmentNumber
	)

Parameters

mpdu	the MPDU to send
fragmentNumber	the fragment index of the next fragment to send (starts at zero).

Returns: the size of the corresponding fragment.

Definition at line 1323 of file wifi-remote-station-manager.cc.

References NS_ASSERT, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

◆ GetGuardInterval() [1/2]

uint16_t ns3::WifiRemoteStationManager::GetGuardInterval ( ) const

Return the supported HE guard interval duration (in nanoseconds).

Returns: the supported HE guard interval duration (in nanoseconds)

Definition at line 304 of file wifi-remote-station-manager.cc.

References ns3::WifiPhy::GetDevice(), ns3::WifiNetDevice::GetHeConfiguration(), GetHeSupported(), m_wifiPhy, and NS_ASSERT.

Referenced by ns3::IdealWifiManager::BuildSnrThresholds(), ns3::ConstantRateWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::MinstrelHtWifiManager::DoGetDataTxVector(), ns3::ConstantRateWifiManager::DoGetRtsTxVector(), ns3::MinstrelHtWifiManager::DoInitialize(), ns3::ThompsonSamplingWifiManager::GetModeGuardInterval(), and ns3::MinstrelHtWifiManager::RateInit().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetGuardInterval() [2/2]

uint16_t ns3::WifiRemoteStationManager::GetGuardInterval ( const WifiRemoteStation * station ) const

protected

Return the HE guard interval duration supported by the station.

Parameters

station the station being queried

Returns: the HE guard interval duration (in nanoseconds) supported by the station

Definition at line 1937 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_guardInterval, and ns3::WifiRemoteStation::m_state.

◆ GetHeSupported() [1/3]

bool ns3::WifiRemoteStationManager::GetHeSupported ( ) const

Return whether the device has HE capability support enabled.

Returns: true if HE capability support is enabled, false otherwise

Definition at line 263 of file wifi-remote-station-manager.cc.

References ns3::WifiPhy::GetDevice(), ns3::WifiNetDevice::GetHeConfiguration(), and m_wifiPhy.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetHeSupported() [2/3]

bool ns3::WifiRemoteStationManager::GetHeSupported ( const WifiRemoteStation * station ) const

protected

Return whether the given station is HE capable.

Parameters

station the station being queried

Returns: true if the station has HE capabilities, false otherwise

Definition at line 2003 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_heCapabilities, and ns3::WifiRemoteStation::m_state.

◆ GetHeSupported() [3/3]

bool ns3::WifiRemoteStationManager::GetHeSupported ( Mac48Address address ) const

Return whether the station supports HE or not.

Parameters

address the address of the station

Returns: true if HE is supported by the station, false otherwise

Definition at line 2117 of file wifi-remote-station-manager.cc.

◆ GetHtSupported() [1/3]

bool ns3::WifiRemoteStationManager::GetHtSupported ( ) const

Return whether the device has HT capability support enabled.

Returns: true if HT capability support is enabled, false otherwise

Definition at line 250 of file wifi-remote-station-manager.cc.

References ns3::WifiPhy::GetDevice(), ns3::WifiNetDevice::GetHtConfiguration(), and m_wifiPhy.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetHtSupported() [2/3]

bool ns3::WifiRemoteStationManager::GetHtSupported ( const WifiRemoteStation * station ) const

protected

Return whether the given station is HT capable.

Parameters

station the station being queried

Returns: true if the station has HT capabilities, false otherwise

Definition at line 1991 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_htCapabilities, and ns3::WifiRemoteStation::m_state.

◆ GetHtSupported() [3/3]

bool ns3::WifiRemoteStationManager::GetHtSupported ( Mac48Address address ) const

Return whether the station supports HT or not.

Parameters

address the address of the station

Returns: true if HT is supported by the station, false otherwise

Definition at line 2105 of file wifi-remote-station-manager.cc.

◆ GetInfo()

WifiRemoteStationInfo ns3::WifiRemoteStationManager::GetInfo ( Mac48Address address )

Parameters

address of the remote station

Returns: information regarding the remote station associated with the given address

Definition at line 1382 of file wifi-remote-station-manager.cc.

◆ GetLdpcSupported() [1/2]

bool ns3::WifiRemoteStationManager::GetLdpcSupported ( ) const

Return whether the device has LDPC support enabled.

Returns: true if LDPC support is enabled, false otherwise

Definition at line 275 of file wifi-remote-station-manager.cc.

References ns3::WifiPhy::GetDevice(), ns3::WifiNetDevice::GetHtConfiguration(), GetHtSupported(), m_wifiPhy, and NS_ASSERT.

Here is the call graph for this function:

◆ GetLdpcSupported() [2/2]

bool ns3::WifiRemoteStationManager::GetLdpcSupported ( Mac48Address address ) const

Return whether the station supports LDPC or not.

Parameters

address the address of the station

Returns: true if LDPC is supported by the station, false otherwise

Definition at line 1642 of file wifi-remote-station-manager.cc.

◆ GetMac()

Ptr< WifiMac > ns3::WifiRemoteStationManager::GetMac ( ) const

Return the WifiMac.

Returns: a pointer to the WifiMac

Definition at line 1973 of file wifi-remote-station-manager.cc.

◆ GetMaxNumberOfTransmitStreams()

uint8_t ns3::WifiRemoteStationManager::GetMaxNumberOfTransmitStreams ( ) const

Returns: the maximum number of spatial streams supported by the PHY layer

Definition at line 2158 of file wifi-remote-station-manager.cc.

Referenced by ns3::ConstantRateWifiManager::DoGetDataTxVector(), and ns3::IdealWifiManager::DoGetDataTxVector().

Here is the caller graph for this function:

◆ GetMcsSupported()

WifiMode ns3::WifiRemoteStationManager::GetMcsSupported	(	const WifiRemoteStation *	station,
		uint8_t	i
	)		const

protected

Return the WifiMode supported by the specified station at the specified index.

Parameters

station	the station being queried
i	the index

Returns: the WifiMode at the given index of the specified station

Definition at line 1876 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_operationalMcsSet, ns3::WifiRemoteStation::m_state, and NS_ASSERT.

Referenced by ns3::MinstrelHtWifiManager::CalculateRetransmits(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::MinstrelHtWifiManager::DoGetDataTxVector(), ns3::MinstrelHtWifiManager::DoGetRtsTxVector(), ns3::MinstrelHtWifiManager::RateInit(), ns3::MinstrelHtWifiManager::StatsDump(), and ns3::MinstrelHtWifiManager::UpdateStats().

Here is the caller graph for this function:

◆ GetMldAddress()

std::optional< Mac48Address > ns3::WifiRemoteStationManager::GetMldAddress ( const Mac48Address & address ) const

Get the address of the MLD the given station is affiliated with, if any.

Note that an MLD address is only present if an ML discovery/setup was performed with the given station (which requires both this station and the given station to be MLDs).

Parameters

address the MAC address of the remote station

Returns: the address of the MLD the given station is affiliated with, if any

Definition at line 580 of file wifi-remote-station-manager.cc.

Referenced by EmlsrDlTxopTest::CheckBlockAck(), ns3::StaWifiMac::Disassociated(), ns3::EhtFrameExchangeManager::EmlsrSwitchToListening(), ns3::ApWifiMac::ForwardDown(), ns3::WifiNetDevice::GetAddress(), ns3::ApWifiMac::GetLinkIdStaAddrMap(), ns3::HtFrameExchangeManager::MissedBlockAck(), ns3::HtFrameExchangeManager::NotifyReceivedNormalAck(), ns3::StaWifiMac::ReceiveAssocResp(), ns3::ApWifiMac::ReceiveEmlNotification(), ns3::StaWifiMac::ScanningTimeout(), ns3::ApWifiMac::SetAid(), ns3::ApWifiMac::StaSwitchingToActiveModeOrDeassociated(), ns3::ApWifiMac::StaSwitchingToPsMode(), ns3::ApWifiMac::TxFailed(), and ns3::ApWifiMac::TxOk().

Here is the caller graph for this function:

◆ GetMostRecentRssi()

std::optional< double > ns3::WifiRemoteStationManager::GetMostRecentRssi ( Mac48Address address ) const

Parameters

address of the remote station

Returns: the RSSI (in dBm) of the most recent packet received from the remote station (irrespective of TID)

This method is typically used when the device needs to estimate the target UL RSSI info to put in the Trigger frame to send to the remote station.

Definition at line 1388 of file wifi-remote-station-manager.cc.

◆ GetNBasicMcs()

uint8_t ns3::WifiRemoteStationManager::GetNBasicMcs ( ) const

Return the number of basic MCS index.

Returns: the number of basic MCS index

Definition at line 1802 of file wifi-remote-station-manager.cc.

◆ GetNBasicModes()

uint8_t ns3::WifiRemoteStationManager::GetNBasicModes ( ) const

Return the number of basic modes we support.

Returns: the number of basic modes we support

Definition at line 1735 of file wifi-remote-station-manager.cc.

Referenced by ns3::MeshWifiInterfaceMac::CheckSupportedRates(), ns3::IdealWifiManager::DoGetRtsTxVector(), ns3::MinstrelHtWifiManager::DoGetRtsTxVector(), ns3::MeshWifiInterfaceMac::GetSupportedRates(), and ns3::ApWifiMac::GetSupportedRates().

Here is the caller graph for this function:

◆ GetNess()

uint8_t ns3::WifiRemoteStationManager::GetNess ( const WifiRemoteStation * station ) const

protected

Returns: the number of Ness the station has.

Parameters

station the station being queried

Returns: the number of Ness the station has

Definition at line 1961 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_ness, and ns3::WifiRemoteStation::m_state.

Referenced by ns3::MinstrelHtWifiManager::DoGetDataTxVector().

Here is the caller graph for this function:

◆ GetNFragments()

uint32_t ns3::WifiRemoteStationManager::GetNFragments ( Ptr< const WifiMpdu > mpdu )

private

Return the number of fragments needed for the given packet.

Parameters

mpdu	the packet to be fragmented

Returns: the number of fragments needed

Definition at line 1304 of file wifi-remote-station-manager.cc.

References NS_LOG_DEBUG, and NS_LOG_FUNCTION.

◆ GetNMcsSupported() [1/2]

uint8_t ns3::WifiRemoteStationManager::GetNMcsSupported ( const WifiRemoteStation * station ) const

protected

Return the number of MCS supported by the given station.

Parameters

station the station being queried

Returns: the number of MCS supported by the given station

Definition at line 2028 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_operationalMcsSet, and ns3::WifiRemoteStation::m_state.

◆ GetNMcsSupported() [2/2]

uint8_t ns3::WifiRemoteStationManager::GetNMcsSupported ( Mac48Address address ) const

Return the number of MCS supported by the station.

Parameters

address the address of the station

Returns: the number of MCS supported by the station

Definition at line 2081 of file wifi-remote-station-manager.cc.

Referenced by ns3::MinstrelHtWifiManager::CheckInit(), and ns3::IdealWifiManager::DoGetDataTxVector().

Here is the caller graph for this function:

◆ GetNNonErpBasicModes()

uint32_t ns3::WifiRemoteStationManager::GetNNonErpBasicModes ( ) const

Return the number of non-ERP basic modes we support.

Returns: the number of basic modes we support

Definition at line 1748 of file wifi-remote-station-manager.cc.

References ns3::WIFI_MOD_CLASS_ERP_OFDM.

◆ GetNNonErpSupported()

uint32_t ns3::WifiRemoteStationManager::GetNNonErpSupported ( const WifiRemoteStation * station ) const

protected

Return the number of non-ERP modes supported by the given station.

Parameters

station the station being queried

Returns: the number of non-ERP modes supported by the given station

Definition at line 2034 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_operationalRateSet, ns3::WifiRemoteStation::m_state, and ns3::WIFI_MOD_CLASS_ERP_OFDM.

◆ GetNonErpBasicMode()

WifiMode ns3::WifiRemoteStationManager::GetNonErpBasicMode ( uint8_t i ) const

Return a basic mode from the set of basic modes that is not an ERP mode.

Parameters

i	index of the basic mode in the basic mode set

Returns: the basic mode at the given index

Definition at line 1763 of file wifi-remote-station-manager.cc.

References NS_ASSERT, and ns3::WIFI_MOD_CLASS_ERP_OFDM.

◆ GetNonErpSupported()

WifiMode ns3::WifiRemoteStationManager::GetNonErpSupported	(	const WifiRemoteStation *	station,
		uint8_t	i
	)		const

protected

Return whether non-ERP mode associated with the specified station at the specified index.

Parameters

station	the station being queried
i	the index

Returns: WifiMode at the given index of the specified station

Definition at line 1883 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_operationalRateSet, ns3::WifiRemoteStation::m_state, NS_ASSERT, and ns3::WIFI_MOD_CLASS_ERP_OFDM.

Referenced by ns3::AarfWifiManager::DoGetRtsTxVector(), ns3::AarfcdWifiManager::DoGetRtsTxVector(), ns3::AmrrWifiManager::DoGetRtsTxVector(), ns3::AparfWifiManager::DoGetRtsTxVector(), ns3::ArfWifiManager::DoGetRtsTxVector(), ns3::CaraWifiManager::DoGetRtsTxVector(), ns3::OnoeWifiManager::DoGetRtsTxVector(), ns3::ParfWifiManager::DoGetRtsTxVector(), ns3::RraaWifiManager::DoGetRtsTxVector(), ns3::RrpaaWifiManager::DoGetRtsTxVector(), and ns3::MinstrelWifiManager::GetRtsTxVector().

Here is the caller graph for this function:

◆ GetNonUnicastMode()

WifiMode ns3::WifiRemoteStationManager::GetNonUnicastMode ( ) const

Return a mode for non-unicast packets.

Returns: WifiMode for non-unicast packets

Definition at line 1815 of file wifi-remote-station-manager.cc.

◆ GetNSupported()

uint8_t ns3::WifiRemoteStationManager::GetNSupported ( const WifiRemoteStation * station ) const

protected

Return the number of modes supported by the given station.

Parameters

station the station being queried

Returns: the number of modes supported by the given station

Definition at line 1979 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_operationalRateSet, and ns3::WifiRemoteStation::m_state.

Referenced by ns3::AparfWifiManager::CheckInit(), ns3::MinstrelWifiManager::CheckInit(), ns3::ParfWifiManager::CheckInit(), ns3::RraaWifiManager::CheckInit(), ns3::RrpaaWifiManager::CheckInit(), ns3::AmrrWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::OnoeWifiManager::DoGetDataTxVector(), ns3::AarfWifiManager::DoReportDataOk(), ns3::AarfcdWifiManager::DoReportDataOk(), ns3::CaraWifiManager::DoReportDataOk(), ns3::AmrrWifiManager::IncreaseRate(), ns3::ThompsonSamplingWifiManager::InitializeStation(), ns3::AmrrWifiManager::IsMaxRate(), ns3::AmrrWifiManager::UpdateMode(), and ns3::OnoeWifiManager::UpdateMode().

Here is the caller graph for this function:

◆ GetNumberOfAntennas()

uint8_t ns3::WifiRemoteStationManager::GetNumberOfAntennas ( ) const

Returns: the number of antennas supported by the PHY layer

Definition at line 2152 of file wifi-remote-station-manager.cc.

Referenced by ns3::ConstantRateWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::MinstrelHtWifiManager::DoGetDataTxVector(), ns3::ThompsonSamplingWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetRtsTxVector(), and ns3::ThompsonSamplingWifiManager::DoGetRtsTxVector().

Here is the caller graph for this function:

◆ GetNumberOfSupportedStreams() [1/2]

uint8_t ns3::WifiRemoteStationManager::GetNumberOfSupportedStreams ( const WifiRemoteStation * station ) const

protected

Return the number of supported streams the station has.

Parameters

station the station being queried

Returns: the number of supported streams the station has

Definition at line 1949 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_htCapabilities, and ns3::WifiRemoteStation::m_state.

◆ GetNumberOfSupportedStreams() [2/2]

uint8_t ns3::WifiRemoteStationManager::GetNumberOfSupportedStreams ( Mac48Address address ) const

Return the number of spatial streams supported by the station.

Parameters

address the address of the station

Returns: the number of spatial streams supported by the station

Definition at line 2069 of file wifi-remote-station-manager.cc.

Referenced by ns3::ConstantRateWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::MinstrelHtWifiManager::DoGetDataTxVector(), and ns3::MinstrelHtWifiManager::RateInit().

Here is the caller graph for this function:

◆ GetOfdmSupported()

bool ns3::WifiRemoteStationManager::GetOfdmSupported ( const Mac48Address & address ) const

Return whether the station supports OFDM or not.

Parameters

address the address of the station

Returns: true if OFDM is supported by the station, false otherwise

Definition at line 2099 of file wifi-remote-station-manager.cc.

◆ GetPhy()

Ptr< WifiPhy > ns3::WifiRemoteStationManager::GetPhy ( ) const

Return the WifiPhy.

Returns: a pointer to the WifiPhy

Definition at line 1967 of file wifi-remote-station-manager.cc.

Here is the caller graph for this function:

◆ GetQosSupported() [1/2]

bool ns3::WifiRemoteStationManager::GetQosSupported ( const WifiRemoteStation * station ) const

protected

Return whether the given station is QoS capable.

Parameters

station the station being queried

Returns: true if the station has QoS capabilities, false otherwise

Definition at line 1985 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_qosSupported, and ns3::WifiRemoteStation::m_state.

◆ GetQosSupported() [2/2]

bool ns3::WifiRemoteStationManager::GetQosSupported ( Mac48Address address ) const

Return whether the given station is QoS capable.

Parameters

address the address of the station

Returns: true if the station has QoS capabilities, false otherwise

Definition at line 437 of file wifi-remote-station-manager.cc.

References LookupState().

Here is the call graph for this function:

◆ GetRtsTxVector()

WifiTxVector ns3::WifiRemoteStationManager::GetRtsTxVector ( Mac48Address address )

Parameters

address remote address

Returns: the TXVECTOR to use to send the RTS prior to the transmission of the data packet itself.

Definition at line 711 of file wifi-remote-station-manager.cc.

References ns3::ConvertGuardIntervalToNanoSeconds(), ns3::WifiMode::GetModulationClass(), ns3::GetPreambleForTransmission(), NS_LOG_FUNCTION, ns3::WifiTxVector::SetChannelWidth(), ns3::WifiTxVector::SetGuardInterval(), ns3::WifiTxVector::SetMode(), ns3::WifiTxVector::SetNess(), ns3::WifiTxVector::SetNss(), ns3::WifiTxVector::SetNTx(), ns3::WifiTxVector::SetPreambleType(), and ns3::WifiTxVector::SetTxPowerLevel().

Referenced by ns3::WifiDefaultAckManager::GetAckInfoIfTfMuBar(), ns3::WifiDefaultProtectionManager::GetPsduProtection(), TestMultiUserScheduler::SelectTxFormat(), ns3::QosFrameExchangeManager::SendCfEndIfNeeded(), ns3::WifiDefaultProtectionManager::TryAddMpduToMuPpdu(), ns3::RrMultiUserScheduler::TrySendingBasicTf(), ns3::RrMultiUserScheduler::TrySendingBsrpTf(), and ns3::WifiDefaultProtectionManager::TryUlMuTransmission().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetShortGuardIntervalSupported() [1/3]

bool ns3::WifiRemoteStationManager::GetShortGuardIntervalSupported ( ) const

Return whether the device has SGI support enabled.

Returns: true if SGI support is enabled, false otherwise

Definition at line 288 of file wifi-remote-station-manager.cc.

References ns3::WifiPhy::GetDevice(), ns3::WifiNetDevice::GetHtConfiguration(), GetHtSupported(), m_wifiPhy, and NS_ASSERT.

Referenced by ns3::IdealWifiManager::BuildSnrThresholds(), ns3::ConstantRateWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::MinstrelHtWifiManager::DoGetDataTxVector(), ns3::ConstantRateWifiManager::DoGetRtsTxVector(), ns3::MinstrelHtWifiManager::DoInitialize(), ns3::ThompsonSamplingWifiManager::GetModeGuardInterval(), and ns3::MinstrelHtWifiManager::RateInit().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetShortGuardIntervalSupported() [2/3]

bool ns3::WifiRemoteStationManager::GetShortGuardIntervalSupported ( const WifiRemoteStation * station ) const

protected

Return whether the given station supports HT/VHT short guard interval.

Parameters

station the station being queried

Returns: true if the station supports HT/VHT short guard interval, false otherwise

Definition at line 1925 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_htCapabilities, and ns3::WifiRemoteStation::m_state.

◆ GetShortGuardIntervalSupported() [3/3]

bool ns3::WifiRemoteStationManager::GetShortGuardIntervalSupported ( Mac48Address address ) const

Return whether the station supports HT/VHT short guard interval.

Parameters

address the address of the station

Returns: true if the station supports HT/VHT short guard interval, false otherwise

Definition at line 2057 of file wifi-remote-station-manager.cc.

◆ GetShortPreambleEnabled()

bool ns3::WifiRemoteStationManager::GetShortPreambleEnabled ( ) const

Return whether the device uses short PHY preambles.

Returns: true if short PHY preambles are enabled, false otherwise

Definition at line 244 of file wifi-remote-station-manager.cc.

References m_shortPreambleEnabled.

Here is the caller graph for this function:

◆ GetShortPreambleSupported()

bool ns3::WifiRemoteStationManager::GetShortPreambleSupported ( Mac48Address address ) const

Return whether the station supports short PHY preamble or not.

Parameters

address the address of the station

Returns: true if short PHY preamble is supported by the station, false otherwise

Definition at line 425 of file wifi-remote-station-manager.cc.

References LookupState().

Here is the call graph for this function:

◆ GetShortSlotTimeEnabled()

bool ns3::WifiRemoteStationManager::GetShortSlotTimeEnabled ( ) const

Return whether the device uses short slot time.

Returns: true if short slot time is enabled, false otherwise

Definition at line 238 of file wifi-remote-station-manager.cc.

References m_shortSlotTimeEnabled.

◆ GetShortSlotTimeSupported()

bool ns3::WifiRemoteStationManager::GetShortSlotTimeSupported ( Mac48Address address ) const

Return whether the station supports short ERP slot time or not.

Parameters

address the address of the station

Returns: true if short ERP slot time is supported by the station, false otherwise

Definition at line 431 of file wifi-remote-station-manager.cc.

References LookupState().

Here is the call graph for this function:

◆ GetStaId()

uint16_t ns3::WifiRemoteStationManager::GetStaId	(	Mac48Address	address,
		const WifiTxVector &	txVector
	)		const

private

If the given TXVECTOR is used for a MU transmission, return the STAID of the station with the given address if we are an AP or our own STAID if we are a STA associated with some AP.

Otherwise, return SU_STA_ID.

Parameters

address	the address of the station
txVector	the TXVECTOR used for a MU transmission

Returns: the STA-ID of the station

Definition at line 530 of file wifi-remote-station-manager.cc.

References ns3::AP, GetAssociationId(), ns3::WifiMac::GetTypeOfStation(), ns3::WifiTxVector::IsMu(), m_wifiMac, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::STA, and ns3::SU_STA_ID.

Here is the call graph for this function:

◆ GetStationEhtCapabilities()

Ptr< const EhtCapabilities > ns3::WifiRemoteStationManager::GetStationEhtCapabilities ( Mac48Address from )

Return the EHT capabilities sent by the remote station.

Parameters

from	the address of the remote station

Returns: the EHT capabilities sent by the remote station

Definition at line 1630 of file wifi-remote-station-manager.cc.

◆ GetStationEmlCapabilities()

std::shared_ptr< CommonInfoBasicMle::EmlCapabilities > ns3::WifiRemoteStationManager::GetStationEmlCapabilities ( const Mac48Address & from )

Parameters

from	the (MLD or link) address of the remote non-AP MLD

Returns: the EML Capabilities advertised by the remote non-AP MLD

Definition at line 1636 of file wifi-remote-station-manager.cc.

Referenced by ns3::EhtFrameExchangeManager::EmlsrSwitchToListening(), and ns3::ApWifiMac::ReceiveEmlNotification().

Here is the caller graph for this function:

◆ GetStationHeCapabilities()

Ptr< const HeCapabilities > ns3::WifiRemoteStationManager::GetStationHeCapabilities ( Mac48Address from )

Return the HE capabilities sent by the remote station.

Parameters

from	the address of the remote station

Returns: the HE capabilities sent by the remote station

Definition at line 1624 of file wifi-remote-station-manager.cc.

◆ GetStationHtCapabilities()

Ptr< const HtCapabilities > ns3::WifiRemoteStationManager::GetStationHtCapabilities ( Mac48Address from )

Return the HT capabilities sent by the remote station.

Parameters

from	the address of the remote station

Returns: the HT capabilities sent by the remote station

Definition at line 1612 of file wifi-remote-station-manager.cc.

◆ GetStationVhtCapabilities()

Ptr< const VhtCapabilities > ns3::WifiRemoteStationManager::GetStationVhtCapabilities ( Mac48Address from )

Return the VHT capabilities sent by the remote station.

Parameters

from	the address of the remote station

Returns: the VHT capabilities sent by the remote station

Definition at line 1618 of file wifi-remote-station-manager.cc.

◆ GetSupported()

WifiMode ns3::WifiRemoteStationManager::GetSupported	(	const WifiRemoteStation *	station,
		uint8_t	i
	)		const

protected

Return whether mode associated with the specified station at the specified index.

Parameters

station	the station being queried
i	the index

Returns: WifiMode at the given index of the specified station

Definition at line 1869 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_operationalRateSet, ns3::WifiRemoteStation::m_state, and NS_ASSERT.

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::WifiRemoteStationManager::GetTypeId ( )

static

Get the type ID.

Returns: the object TypeId

Definition at line 50 of file wifi-remote-station-manager.cc.

References CTS_TO_SELF, DoGetFragmentationThreshold(), DoSetFragmentationThreshold(), m_defaultTxPowerLevel, m_erpProtectionMode, m_htProtectionMode, m_macTxDataFailed, m_macTxFinalDataFailed, m_macTxFinalRtsFailed, m_macTxRtsFailed, m_nonUnicastMode, ns3::MakeEnumAccessor(), ns3::MakeEnumChecker(), ns3::MakeTraceSourceAccessor(), ns3::MakeUintegerAccessor(), RTS_CTS, SetMaxSlrc(), SetMaxSsrc(), ns3::TypeId::SetParent(), and SetRtsCtsThreshold().

Here is the call graph for this function:

◆ GetUseNonErpProtection()

bool ns3::WifiRemoteStationManager::GetUseNonErpProtection ( ) const

Return whether the device supports protection of non-ERP stations.

Returns: true if protection for non-ERP stations is enabled, false otherwise

Definition at line 1208 of file wifi-remote-station-manager.cc.

Referenced by ns3::AarfWifiManager::DoGetRtsTxVector(), ns3::AarfcdWifiManager::DoGetRtsTxVector(), ns3::AmrrWifiManager::DoGetRtsTxVector(), ns3::AparfWifiManager::DoGetRtsTxVector(), ns3::ArfWifiManager::DoGetRtsTxVector(), ns3::CaraWifiManager::DoGetRtsTxVector(), ns3::OnoeWifiManager::DoGetRtsTxVector(), ns3::ParfWifiManager::DoGetRtsTxVector(), ns3::RraaWifiManager::DoGetRtsTxVector(), ns3::RrpaaWifiManager::DoGetRtsTxVector(), and ns3::MinstrelWifiManager::GetRtsTxVector().

Here is the caller graph for this function:

◆ GetUseNonHtProtection()

bool ns3::WifiRemoteStationManager::GetUseNonHtProtection ( ) const

Return whether the device supports protection of non-HT stations.

Returns: true if protection for non-HT stations is enabled, false otherwise

Definition at line 1221 of file wifi-remote-station-manager.cc.

◆ GetVhtSupported() [1/3]

bool ns3::WifiRemoteStationManager::GetVhtSupported ( ) const

Return whether the device has VHT capability support enabled.

Returns: true if VHT capability support is enabled, false otherwise

Definition at line 256 of file wifi-remote-station-manager.cc.

References ns3::WifiPhy::GetDevice(), ns3::WifiPhy::GetPhyBand(), ns3::WifiNetDevice::GetVhtConfiguration(), m_wifiPhy, and ns3::WIFI_PHY_BAND_2_4GHZ.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetVhtSupported() [2/3]

bool ns3::WifiRemoteStationManager::GetVhtSupported ( const WifiRemoteStation * station ) const

protected

Return whether the given station is VHT capable.

Parameters

station the station being queried

Returns: true if the station has VHT capabilities, false otherwise

Definition at line 1997 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStation::m_state, and ns3::WifiRemoteStationState::m_vhtCapabilities.

◆ GetVhtSupported() [3/3]

bool ns3::WifiRemoteStationManager::GetVhtSupported ( Mac48Address address ) const

Return whether the station supports VHT or not.

Parameters

address the address of the station

Returns: true if VHT is supported by the station, false otherwise

Definition at line 2111 of file wifi-remote-station-manager.cc.

◆ IsAssociated()

bool ns3::WifiRemoteStationManager::IsAssociated ( Mac48Address address ) const

Return whether the station associated.

Parameters

address the address of the station

Returns: true if the station is associated, false otherwise

Definition at line 453 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::GOT_ASSOC_TX_OK, and LookupState().

Referenced by ns3::ApWifiMac::IsAssociated().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsAssocRefused()

bool ns3::WifiRemoteStationManager::IsAssocRefused ( Mac48Address address ) const

Return whether we refused an association request from the given station.

Parameters

address the address of the station

Returns: true if we refused an association request, false otherwise

Definition at line 501 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::ASSOC_REFUSED, and LookupState().

Here is the call graph for this function:

◆ IsBrandNew()

bool ns3::WifiRemoteStationManager::IsBrandNew ( Mac48Address address ) const

Return whether the station state is brand new.

Parameters

address the address of the station

Returns: true if the state of the station is brand new, false otherwise

Definition at line 443 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::BRAND_NEW, and LookupState().

Here is the call graph for this function:

◆ IsInPsMode()

bool ns3::WifiRemoteStationManager::IsInPsMode ( const Mac48Address & address ) const

Return whether the STA is currently in Power Save mode.

Parameters

address the address of the station

Returns: true if the station is in Power Save mode, false otherwise

Definition at line 557 of file wifi-remote-station-manager.cc.

References LookupState().

Referenced by EmlsrDlTxopTest::CheckPmModeAfterAssociation(), and ns3::ApWifiMac::ProcessPowerManagementFlag().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsLastFragment()

bool ns3::WifiRemoteStationManager::IsLastFragment	(	Ptr< const WifiMpdu >	mpdu,
		uint32_t	fragmentNumber
	)

Parameters

mpdu	the packet to send
fragmentNumber	the fragment index of the next fragment to send (starts at zero).

Returns: true if this is the last fragment, false otherwise.

Definition at line 1366 of file wifi-remote-station-manager.cc.

References NS_ASSERT, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

◆ IsWaitAssocTxOk()

bool ns3::WifiRemoteStationManager::IsWaitAssocTxOk ( Mac48Address address ) const

Return whether we are waiting for an ACK for the association response we sent.

Parameters

address the address of the station

Returns: true if the station is associated, false otherwise

Definition at line 463 of file wifi-remote-station-manager.cc.

References LookupState(), and ns3::WifiRemoteStationState::WAIT_ASSOC_TX_OK.

Referenced by ns3::ApWifiMac::TxFailed(), and ns3::ApWifiMac::TxOk().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Lookup()

WifiRemoteStation * ns3::WifiRemoteStationManager::Lookup ( Mac48Address address ) const

private

Return the station associated with the given address.

Parameters

address the address of the station

Returns: WifiRemoteStation corresponding to the address

Definition at line 1439 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStation::m_rssiAndUpdateTimePair, ns3::WifiRemoteStation::m_state, NS_LOG_FUNCTION, and ns3::Seconds().

Here is the call graph for this function:

◆ LookupState()

std::shared_ptr< WifiRemoteStationState > ns3::WifiRemoteStationManager::LookupState ( Mac48Address address ) const

private

Return the state of the station associated with the given address.

Parameters

address the address of the station

Returns: WifiRemoteStationState corresponding to the address

Definition at line 1401 of file wifi-remote-station-manager.cc.

References NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by AddAllSupportedMcs(), AddAllSupportedModes(), AddSupportedErpSlotTime(), AddSupportedMcs(), AddSupportedMode(), AddSupportedPhyPreamble(), GetAssociationId(), GetQosSupported(), GetShortPreambleSupported(), GetShortSlotTimeSupported(), IsAssociated(), IsAssocRefused(), IsBrandNew(), IsInPsMode(), IsWaitAssocTxOk(), RecordAssocRefused(), RecordDisassociated(), RecordGotAssocTxFailed(), RecordGotAssocTxOk(), RecordWaitAssocTxOk(), RemoveAllSupportedMcs(), SetMldAddress(), and SetPsMode().

Here is the caller graph for this function:

◆ NeedCtsToSelf()

bool ns3::WifiRemoteStationManager::NeedCtsToSelf ( WifiTxVector txVector )

Return if we need to do CTS-to-self before sending a DATA.

Parameters

txVector the TXVECTOR of the packet to be sent

Returns: true if CTS-to-self is needed, false otherwise

Definition at line 1143 of file wifi-remote-station-manager.cc.

References ns3::WifiTxVector::GetMode(), ns3::WifiMode::GetModulationClass(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WIFI_MOD_CLASS_EHT, ns3::WIFI_MOD_CLASS_ERP_OFDM, ns3::WIFI_MOD_CLASS_HE, ns3::WIFI_MOD_CLASS_HT, and ns3::WIFI_MOD_CLASS_VHT.

Here is the call graph for this function:

◆ NeedFragmentation()

bool ns3::WifiRemoteStationManager::NeedFragmentation ( Ptr< const WifiMpdu > mpdu )

Parameters

mpdu	the MPDU to send

Returns: true if this packet should be fragmented, false otherwise.

Definition at line 1253 of file wifi-remote-station-manager.cc.

References NS_LOG_DEBUG, and NS_LOG_FUNCTION.

◆ NeedRetransmission()

bool ns3::WifiRemoteStationManager::NeedRetransmission ( Ptr< const WifiMpdu > mpdu )

Parameters

mpdu	the MPDU to send

Returns: true if we want to resend a packet after a failed transmission attempt, false otherwise.

Definition at line 1227 of file wifi-remote-station-manager.cc.

References NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::QosUtilsMapTidToAc().

Here is the call graph for this function:

◆ NeedRts()

bool ns3::WifiRemoteStationManager::NeedRts	(	const WifiMacHeader &	header,
		uint32_t	size
	)

Parameters

header	MAC header
size	the size of the frame to send in bytes

Returns: true if we want to use an RTS/CTS handshake for this frame before sending it, false otherwise.

Definition at line 1111 of file wifi-remote-station-manager.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiTxVector::GetModulationClass(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WIFI_MOD_CLASS_EHT, ns3::WIFI_MOD_CLASS_ERP_OFDM, ns3::WIFI_MOD_CLASS_HE, ns3::WIFI_MOD_CLASS_HT, and ns3::WIFI_MOD_CLASS_VHT.

Here is the call graph for this function:

◆ RecordAssocRefused()

void ns3::WifiRemoteStationManager::RecordAssocRefused ( Mac48Address address )

Records that association request was refused.

Parameters

address the address of the station

Definition at line 511 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::ASSOC_REFUSED, LookupState(), and NS_ASSERT.

Here is the call graph for this function:

◆ RecordDisassociated()

void ns3::WifiRemoteStationManager::RecordDisassociated ( Mac48Address address )

Records that the STA was disassociated.

Parameters

address the address of the station

Definition at line 494 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::DISASSOC, LookupState(), and NS_ASSERT.

Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::MeshWifiInterfaceMac::ForwardDown(), ns3::AdhocWifiMac::Receive(), and ns3::ApWifiMac::Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RecordGotAssocTxFailed()

void ns3::WifiRemoteStationManager::RecordGotAssocTxFailed ( Mac48Address address )

Records that we missed an ACK for the association response we sent.

Parameters

address the address of the station

Definition at line 487 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::DISASSOC, LookupState(), and NS_ASSERT.

Referenced by ns3::ApWifiMac::TxFailed().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RecordGotAssocTxOk()

void ns3::WifiRemoteStationManager::RecordGotAssocTxOk ( Mac48Address address )

Records that we got an ACK for the association response we sent.

Parameters

address the address of the station

Definition at line 480 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::GOT_ASSOC_TX_OK, LookupState(), and NS_ASSERT.

Referenced by ns3::ApWifiMac::TxOk().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RecordWaitAssocTxOk()

void ns3::WifiRemoteStationManager::RecordWaitAssocTxOk ( Mac48Address address )

Records that we are waiting for an ACK for the association response we sent.

Parameters

address the address of the station

Definition at line 473 of file wifi-remote-station-manager.cc.

References LookupState(), NS_ASSERT, and ns3::WifiRemoteStationState::WAIT_ASSOC_TX_OK.

Here is the call graph for this function:

◆ RemoveAllSupportedMcs()

void ns3::WifiRemoteStationManager::RemoveAllSupportedMcs ( Mac48Address address )

Invoked in a STA or AP to delete all of the supported MCS by a destination.

Parameters

address the address of the station being recorded

Definition at line 401 of file wifi-remote-station-manager.cc.

References LookupState(), NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::StaWifiMac::UpdateApInfo().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReportAmpduTxStatus()

void ns3::WifiRemoteStationManager::ReportAmpduTxStatus	(	Mac48Address	address,
		uint16_t	nSuccessfulMpdus,
		uint16_t	nFailedMpdus,
		double	rxSnr,
		double	dataSnr,
		WifiTxVector	dataTxVector
	)

Typically called per A-MPDU, either when a Block ACK was successfully received or when a BlockAckTimeout has elapsed.

Parameters

address	the address of the receiver
nSuccessfulMpdus	number of successfully transmitted MPDUs A value of 0 means that the Block ACK was missed.
nFailedMpdus	number of unsuccessfuly transmitted MPDUs
rxSnr	received SNR of the block ack frame itself
dataSnr	data SNR reported by remote station
dataTxVector	the TXVECTOR of the MPDUs we sent

Definition at line 1087 of file wifi-remote-station-manager.cc.

References ns3::WifiTxVector::GetChannelWidth(), ns3::WifiTxVector::GetNss(), NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::HtFrameExchangeManager::MissedBlockAck(), and ns3::HtFrameExchangeManager::ReceiveMpdu().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReportDataFailed()

void ns3::WifiRemoteStationManager::ReportDataFailed ( Ptr< const WifiMpdu > mpdu )

Should be invoked whenever the AckTimeout associated to a transmission attempt expires.

Parameters

mpdu	the MPDU whose transmission failed

Definition at line 971 of file wifi-remote-station-manager.cc.

References NS_ASSERT, NS_LOG_FUNCTION, and ns3::QosUtilsMapTidToAc().

Referenced by ns3::HtFrameExchangeManager::BlockAckTimeout(), ns3::FrameExchangeManager::NormalAckTimeout(), and ns3::FrameExchangeManager::NotifyInternalCollision().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReportDataOk()

void ns3::WifiRemoteStationManager::ReportDataOk	(	Ptr< const WifiMpdu >	mpdu,
		double	ackSnr,
		WifiMode	ackMode,
		double	dataSnr,
		WifiTxVector	dataTxVector
	)

Should be invoked whenever we receive the ACK associated to a data packet we just sent.

Parameters

mpdu	the MPDU
ackSnr	the SNR of the ACK we received
ackMode	the WifiMode the receiver used to send the ACK
dataSnr	the SNR of the DATA we sent
dataTxVector	the TXVECTOR of the DATA we sent

Definition at line 1006 of file wifi-remote-station-manager.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiTxVector::GetChannelWidth(), ns3::WifiTxVector::GetNss(), ns3::WifiMacHeader::GetQosTid(), ns3::Mac48Address::IsGroup(), ns3::WifiMacHeader::IsQosData(), ns3::WifiRemoteStationState::m_info, ns3::WifiRemoteStation::m_state, ns3::WifiRemoteStationInfo::NotifyTxSuccess(), NS_ASSERT, NS_LOG_FUNCTION, and ns3::QosUtilsMapTidToAc().

Referenced by ns3::FrameExchangeManager::ReceivedNormalAck().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReportFinalDataFailed()

void ns3::WifiRemoteStationManager::ReportFinalDataFailed ( Ptr< const WifiMpdu > mpdu )

Should be invoked after calling ReportDataFailed if NeedRetransmission returns false.

Parameters

mpdu	the MPDU which was discarded

Definition at line 1050 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_info, ns3::WifiRemoteStation::m_state, ns3::WifiRemoteStationInfo::NotifyTxFailed(), NS_ASSERT, NS_LOG_FUNCTION, and ns3::QosUtilsMapTidToAc().

Referenced by ns3::HtFrameExchangeManager::MissedBlockAck(), ns3::FrameExchangeManager::NormalAckTimeout(), and ns3::FrameExchangeManager::NotifyInternalCollision().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReportFinalRtsFailed()

void ns3::WifiRemoteStationManager::ReportFinalRtsFailed ( const WifiMacHeader & header )

Should be invoked after calling ReportRtsFailed if NeedRetransmission returns false.

Parameters

header MAC header of the DATA packet

Definition at line 1037 of file wifi-remote-station-manager.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetQosTid(), ns3::Mac48Address::IsGroup(), ns3::WifiMacHeader::IsQosData(), ns3::WifiRemoteStationState::m_info, ns3::WifiRemoteStation::m_state, ns3::WifiRemoteStationInfo::NotifyTxFailed(), NS_ASSERT, NS_LOG_FUNCTION, and ns3::QosUtilsMapTidToAc().

Referenced by ns3::HeFrameExchangeManager::CtsAfterMuRtsTimeout(), and ns3::FrameExchangeManager::DoCtsTimeout().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReportRtsFailed()

void ns3::WifiRemoteStationManager::ReportRtsFailed ( const WifiMacHeader & header )

Should be invoked whenever the RtsTimeout associated to a transmission attempt expires.

Parameters

header MAC header of the DATA packet

Definition at line 960 of file wifi-remote-station-manager.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetQosTid(), ns3::Mac48Address::IsGroup(), ns3::WifiMacHeader::IsQosData(), NS_ASSERT, NS_LOG_FUNCTION, and ns3::QosUtilsMapTidToAc().

Referenced by ns3::HeFrameExchangeManager::CtsAfterMuRtsTimeout(), and ns3::FrameExchangeManager::DoCtsTimeout().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReportRtsOk()

void ns3::WifiRemoteStationManager::ReportRtsOk	(	const WifiMacHeader &	header,
		double	ctsSnr,
		WifiMode	ctsMode,
		double	rtsSnr
	)

Should be invoked whenever we receive the CTS associated to an RTS we just sent.

Note that we also get the SNR of the RTS we sent since the receiver put a SnrTag in the CTS.

Parameters

header	MAC header of the DATA packet
ctsSnr	the SNR of the CTS we received
ctsMode	the WifiMode the receiver used to send the CTS
rtsSnr	the SNR of the RTS we sent

Definition at line 991 of file wifi-remote-station-manager.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetQosTid(), ns3::Mac48Address::IsGroup(), ns3::WifiMacHeader::IsQosData(), ns3::WifiRemoteStationState::m_info, ns3::WifiRemoteStation::m_state, ns3::WifiRemoteStationInfo::NotifyTxSuccess(), NS_ASSERT, NS_LOG_FUNCTION, and ns3::QosUtilsMapTidToAc().

Referenced by ns3::FrameExchangeManager::ReceiveMpdu(), and ns3::HtFrameExchangeManager::ReceiveMpdu().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReportRxOk()

void ns3::WifiRemoteStationManager::ReportRxOk	(	Mac48Address	address,
		RxSignalInfo	rxSignalInfo,
		WifiTxVector	txVector
	)

Parameters

address	remote address
rxSignalInfo	the info on the received signal (

See also: RxSignalInfo)

Parameters

txVector the TXVECTOR used for the packet received

Should be invoked whenever a packet is successfully received.

Definition at line 1072 of file wifi-remote-station-manager.cc.

References ns3::WifiTxVector::GetMode(), ns3::WifiRemoteStation::m_rssiAndUpdateTimePair, NS_LOG_FUNCTION, ns3::RxSignalInfo::rssi, and ns3::RxSignalInfo::snr.

Referenced by ns3::FrameExchangeManager::Receive(), ns3::FrameExchangeManager::ReceivedNormalAck(), ns3::FrameExchangeManager::Receive

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

Attributes

TraceSources

Member Typedef Documentation

◆ PowerChangeTracedCallback

◆ RateChangeTracedCallback

◆ Stations

◆ StationStates

Member Enumeration Documentation

◆ ProtectionMode

Constructor & Destructor Documentation

◆ WifiRemoteStationManager()

◆ ~WifiRemoteStationManager()

Member Function Documentation

◆ AddAllSupportedMcs()

◆ AddAllSupportedModes()

◆ AddBasicMcs()

◆ AddBasicMode()

◆ AddStationEhtCapabilities()

◆ AddStationEmlCapabilities()

◆ AddStationHeCapabilities()

◆ AddStationHtCapabilities()

◆ AddStationVhtCapabilities()

◆ AddSupportedErpSlotTime()

◆ AddSupportedMcs()

◆ AddSupportedMode()

◆ AddSupportedPhyPreamble()

◆ AdjustTxVectorForIcf()

◆ AssignStreams()

◆ DoCreateStation()

◆ DoDispose()

◆ DoGetDataTxVector()

◆ DoGetFragmentationThreshold()

◆ DoGetRtsTxVector()

◆ DoNeedFragmentation()

◆ DoNeedRetransmission()

◆ DoNeedRts()

◆ DoReportAmpduTxStatus()

◆ DoReportDataFailed()

◆ DoReportDataOk()

◆ DoReportFinalDataFailed()

◆ DoReportFinalRtsFailed()

◆ DoReportRtsFailed()

◆ DoReportRtsOk()

◆ DoReportRxOk()

◆ DoSetFragmentationThreshold()

◆ GetAckTxVector()

◆ GetAddress()

◆ GetAffiliatedStaAddress()

◆ GetAggregation()

◆ GetAssociationId()

◆ GetBasicMcs()

◆ GetBasicMode()

◆ GetBlockAckTxVector()

◆ GetChannelWidth()

◆ GetChannelWidthSupported()

◆ GetControlAnswerMode()

◆ GetCtsToSelfTxVector()

◆ GetCtsTxVector()

◆ GetDataTxVector()

◆ GetDefaultMcs()

◆ GetDefaultMode()

◆ GetDefaultModeForSta()

◆ GetDefaultTxPowerLevel()

◆ GetDsssSupported()

◆ GetEhtSupported() [1/3]

◆ GetEhtSupported() [2/3]

◆ GetEhtSupported() [3/3]

◆ GetEmlsrEnabled() [1/2]

◆ GetEmlsrEnabled() [2/2]

◆ GetEmlsrSupported() [1/2]

◆ GetEmlsrSupported() [2/2]
