ns3::WifiRemoteStationState Struct Reference

A struct that holds information about each remote station. More...

#include "wifi-remote-station-manager.h"

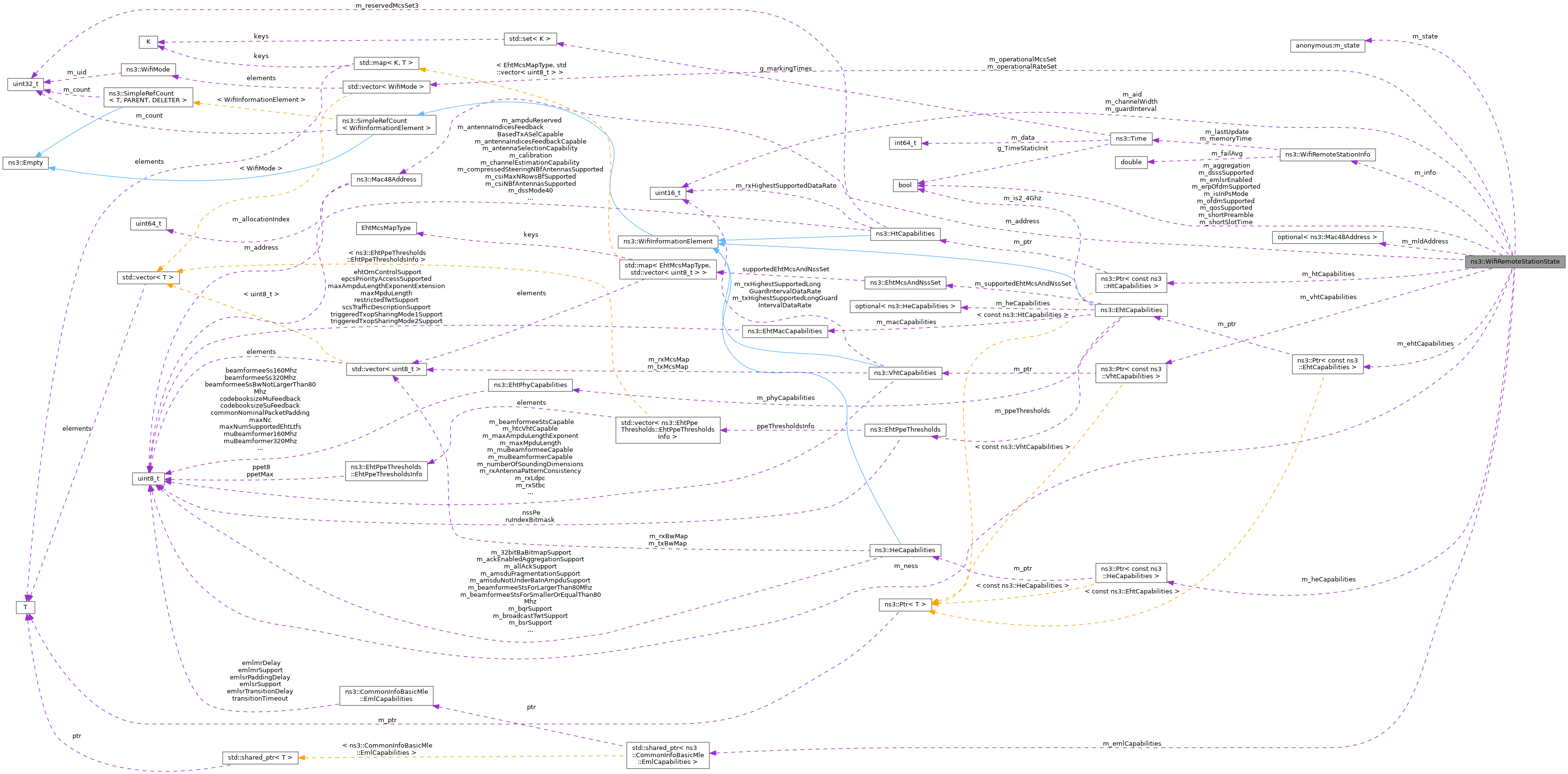

+ Collaboration diagram for ns3::WifiRemoteStationState:

Public Types

enum  {
  BRAND_NEW , DISASSOC , WAIT_ASSOC_TX_OK , GOT_ASSOC_TX_OK ,
  ASSOC_REFUSED
}
 State of the station. More...


Public Attributes

Mac48Address m_address
 Mac48Address of the remote station.

bool m_aggregation
 Flag if MPDU aggregation is used by the remote station.

uint16_t m_aid
 AID of the remote station (unused if this object is installed on a non-AP station)

uint16_t m_channelWidth
 Channel width (in MHz) supported by the remote station.

bool m_dsssSupported
 Flag if DSSS is supported by the remote station.

Ptr< const EhtCapabilities > m_ehtCapabilities
 remote station EHT capabilities

std::shared_ptr< CommonInfoBasicMle::EmlCapabilities > m_emlCapabilities
 remote station EML capabilities

bool m_emlsrEnabled
 whether EMLSR mode is enabled on this link

bool m_erpOfdmSupported
 Flag if ERP OFDM is supported by the remote station.

uint16_t m_guardInterval
 HE Guard interval duration (in nanoseconds) supported by the remote station.

Ptr< const HeCapabilities > m_heCapabilities
 remote station HE capabilities

Ptr< const HtCapabilities > m_htCapabilities
 remote station HT capabilities

WifiRemoteStationInfo m_info
 remote station info

bool m_isInPsMode
 Flag if the STA is currently in PS mode.

std::optional< Mac48Address > m_mldAddress
 MLD MAC address if the remote station is affiliated with an MLD.

uint8_t m_ness
 Number of extended spatial streams of the remote station.

bool m_ofdmSupported
 Flag if OFDM is supported by the remote station.

WifiModeList m_operationalMcsSet
 operational MCS set

WifiModeList m_operationalRateSet
 This member is the list of WifiMode objects that comprise the OperationalRateSet parameter for this remote station.

bool m_qosSupported
 Flag if QoS is supported by the station.

bool m_shortPreamble
 Flag if short PHY preamble is supported by the remote station.

bool m_shortSlotTime
 Flag if short ERP slot time is supported by the remote station.

enum ns3::WifiRemoteStationState:: { ... }  m_state
 State of the station.

Ptr< const VhtCapabilities > m_vhtCapabilities
 remote station VHT capabilities


Detailed Description

A struct that holds information about each remote station.

Definition at line 79 of file wifi-remote-station-manager.h.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

State of the station.

Enumerator
BRAND_NEW
DISASSOC
WAIT_ASSOC_TX_OK
GOT_ASSOC_TX_OK
ASSOC_REFUSED

Definition at line 84 of file wifi-remote-station-manager.h.

Member Data Documentation

◆ m_address

Mac48Address ns3::WifiRemoteStationState::m_address

Mac48Address of the remote station.

Definition at line 104 of file wifi-remote-station-manager.h.

Referenced by ns3::AparfWifiManager::CheckInit(), ns3::ParfWifiManager::CheckInit(), ns3::RrpaaWifiManager::CheckInit(), ns3::AparfWifiManager::DoGetDataTxVector(), ns3::ParfWifiManager::DoGetDataTxVector(), ns3::RrpaaWifiManager::DoGetDataTxVector(), ns3::WifiRemoteStationManager::GetAddress(), ns3::MinstrelHtWifiManager::PrintTable(), and ns3::MinstrelWifiManager::PrintTable().

◆ m_aggregation

bool ns3::WifiRemoteStationState::m_aggregation

Flag if MPDU aggregation is used by the remote station.

Definition at line 125 of file wifi-remote-station-manager.h.

Referenced by ns3::WifiRemoteStationManager::GetAggregation().

◆ m_aid

uint16_t ns3::WifiRemoteStationState::m_aid

AID of the remote station (unused if this object is installed on a non-AP station)

Definition at line 105 of file wifi-remote-station-manager.h.

◆ m_channelWidth

uint16_t ns3::WifiRemoteStationState::m_channelWidth

Channel width (in MHz) supported by the remote station.

Definition at line 121 of file wifi-remote-station-manager.h.

Referenced by ns3::WifiRemoteStationManager::GetChannelWidth().

◆ m_dsssSupported

bool ns3::WifiRemoteStationState::m_dsssSupported

Flag if DSSS is supported by the remote station.

Definition at line 110 of file wifi-remote-station-manager.h.

◆ m_ehtCapabilities

Ptr<const EhtCapabilities> ns3::WifiRemoteStationState::m_ehtCapabilities

remote station EHT capabilities

Definition at line 116 of file wifi-remote-station-manager.h.

Referenced by ns3::WifiRemoteStationManager::GetEhtSupported().

◆ m_emlCapabilities

std::shared_ptr<CommonInfoBasicMle::EmlCapabilities> ns3::WifiRemoteStationState::m_emlCapabilities

remote station EML capabilities

Definition at line 118 of file wifi-remote-station-manager.h.

Referenced by ns3::WifiRemoteStationManager::GetEmlsrSupported().

◆ m_emlsrEnabled

bool ns3::WifiRemoteStationState::m_emlsrEnabled

whether EMLSR mode is enabled on this link

Definition at line 119 of file wifi-remote-station-manager.h.

Referenced by ns3::WifiRemoteStationManager::GetEmlsrEnabled().

◆ m_erpOfdmSupported

bool ns3::WifiRemoteStationState::m_erpOfdmSupported

Flag if ERP OFDM is supported by the remote station.

Definition at line 111 of file wifi-remote-station-manager.h.

◆ m_guardInterval

uint16_t ns3::WifiRemoteStationState::m_guardInterval

HE Guard interval duration (in nanoseconds) supported by the remote station.

Definition at line 122 of file wifi-remote-station-manager.h.

Referenced by ns3::WifiRemoteStationManager::GetGuardInterval().

◆ m_heCapabilities

Ptr<const HeCapabilities> ns3::WifiRemoteStationState::m_heCapabilities

remote station HE capabilities

Definition at line 115 of file wifi-remote-station-manager.h.

Referenced by ns3::WifiRemoteStationManager::GetHeSupported().

◆ m_htCapabilities

Ptr<const HtCapabilities> ns3::WifiRemoteStationState::m_htCapabilities

remote station HT capabilities

Definition at line 113 of file wifi-remote-station-manager.h.

Referenced by ns3::WifiRemoteStationManager::GetHtSupported(), ns3::WifiRemoteStationManager::GetNumberOfSupportedStreams(), and ns3::WifiRemoteStationManager::GetShortGuardIntervalSupported().

◆ m_info

WifiRemoteStationInfo ns3::WifiRemoteStationState::m_info

remote station info

Definition at line 109 of file wifi-remote-station-manager.h.

Referenced by ns3::WifiRemoteStationManager::ReportDataOk(), ns3::WifiRemoteStationManager::ReportFinalDataFailed(), ns3::WifiRemoteStationManager::ReportFinalRtsFailed(), and ns3::WifiRemoteStationManager::ReportRtsOk().

◆ m_isInPsMode

bool ns3::WifiRemoteStationState::m_isInPsMode

Flag if the STA is currently in PS mode.

Definition at line 129 of file wifi-remote-station-manager.h.

◆ m_mldAddress

std::optional<Mac48Address> ns3::WifiRemoteStationState::m_mldAddress

MLD MAC address if the remote station is affiliated with an MLD.

Definition at line 107 of file wifi-remote-station-manager.h.

◆ m_ness

uint8_t ns3::WifiRemoteStationState::m_ness

Number of extended spatial streams of the remote station.

Definition at line 124 of file wifi-remote-station-manager.h.

Referenced by ns3::WifiRemoteStationManager::GetNess().

◆ m_ofdmSupported

bool ns3::WifiRemoteStationState::m_ofdmSupported

Flag if OFDM is supported by the remote station.

Definition at line 112 of file wifi-remote-station-manager.h.

◆ m_operationalMcsSet

WifiModeList ns3::WifiRemoteStationState::m_operationalMcsSet

operational MCS set

Definition at line 103 of file wifi-remote-station-manager.h.

Referenced by ns3::WifiRemoteStationManager::GetMcsSupported(), and ns3::WifiRemoteStationManager::GetNMcsSupported().

◆ m_operationalRateSet

WifiModeList ns3::WifiRemoteStationState::m_operationalRateSet

This member is the list of WifiMode objects that comprise the OperationalRateSet parameter for this remote station.

This list is constructed through calls to WifiRemoteStationManager::AddSupportedMode(), and an API that allows external access to it is available through WifiRemoteStationManager::GetNSupported() and WifiRemoteStationManager::GetSupported(). operational rate set

Definition at line 102 of file wifi-remote-station-manager.h.

Referenced by ns3::AparfWifiManager::DoReportDataOk(), ns3::ArfWifiManager::DoReportDataOk(), ns3::ParfWifiManager::DoReportDataOk(), ns3::WifiRemoteStationManager::GetNNonErpSupported(), ns3::WifiRemoteStationManager::GetNonErpSupported(), ns3::WifiRemoteStationManager::GetNSupported(), and ns3::WifiRemoteStationManager::GetSupported().

◆ m_qosSupported

bool ns3::WifiRemoteStationState::m_qosSupported

Flag if QoS is supported by the station.

Definition at line 128 of file wifi-remote-station-manager.h.

Referenced by ns3::WifiRemoteStationManager::GetQosSupported().

◆ m_shortPreamble

bool ns3::WifiRemoteStationState::m_shortPreamble

Flag if short PHY preamble is supported by the remote station.

Definition at line 126 of file wifi-remote-station-manager.h.

◆ m_shortSlotTime

bool ns3::WifiRemoteStationState::m_shortSlotTime

Flag if short ERP slot time is supported by the remote station.

Definition at line 127 of file wifi-remote-station-manager.h.

◆

enum { ... } ns3::WifiRemoteStationState::m_state

State of the station.

◆ m_vhtCapabilities

Ptr<const VhtCapabilities> ns3::WifiRemoteStationState::m_vhtCapabilities

remote station VHT capabilities

Definition at line 114 of file wifi-remote-station-manager.h.

Referenced by ns3::WifiRemoteStationManager::GetVhtSupported().

The documentation for this struct was generated from the following file:
