ns3::HtCapabilities Class Reference

The HT Capabilities Information Element. More...

#include "ht-capabilities.h"

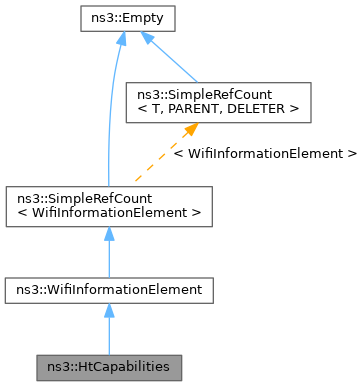

+ Inheritance diagram for ns3::HtCapabilities:
+ Collaboration diagram for ns3::HtCapabilities:

Public Member Functions

 HtCapabilities ()

WifiInformationElementId ElementId () const override
 Get the wifi information element ID.

uint8_t GetAmpduParameters () const
 Return the A-MPDU Parameters field in the HT Capabilities information element.

uint8_t GetAntennaSelectionCapabilities () const
 Return the Antenna Selection (ASEL) Capabilities field in the HT Capabilities information element.

uint16_t GetExtendedHtCapabilities () const
 Return the Extended HT Capabilities field in the HT Capabilities information element.

uint16_t GetHtCapabilitiesInfo () const
 Return the HT Capabilities Info field in the HT Capabilities information element.

uint8_t GetLdpc () const
 Return LDPC.

uint32_t GetMaxAmpduLength () const
 Return the maximum A-MPDU length.

uint16_t GetMaxAmsduLength () const
 Return the maximum A-MSDU length.

uint8_t GetRxHighestSupportedAntennas () const
 Return the receive highest supported antennas.

uint8_t GetShortGuardInterval20 () const
 Return the short guard interval 20 value.

uint8_t GetSupportedChannelWidth () const
 Return the supported channel width.

uint64_t GetSupportedMcsSet1 () const
 Return the first 64 bytes of the Supported MCS Set field in the HT Capabilities information element.

uint64_t GetSupportedMcsSet2 () const
 Return the last 64 bytes of the Supported MCS Set field in the HT Capabilities information element.

uint32_t GetTxBfCapabilities () const
 Return the Transmit Beamforming (TxBF) Capabilities field in the HT Capabilities information element.

bool IsSupportedMcs (uint8_t mcs) const
 Return the is MCS supported flag.

void SetAmpduParameters (uint8_t ctrl)
 Set the A-MPDU Parameters field in the HT Capabilities information element.

void SetAntennaSelectionCapabilities (uint8_t ctrl)
 Set the the Antenna Selection (ASEL) Capabilities field in the HT Capabilities information element.

void SetExtendedHtCapabilities (uint16_t ctrl)
 Set the Extended HT Capabilities field in the HT Capabilities information element.

void SetHtCapabilitiesInfo (uint16_t ctrl)
 Set the HT Capabilities Info field in the HT Capabilities information element.

void SetLdpc (uint8_t ldpc)
 Set the LDPC field.

void SetLSigProtectionSupport (uint8_t lSigProtection)
 Set the LSIG protection support.

void SetMaxAmpduLength (uint32_t maxAmpduLength)
 Set the maximum AMPDU length.

void SetMaxAmsduLength (uint16_t maxAmsduLength)
 Set the maximum AMSDU length.

void SetRxHighestSupportedDataRate (uint16_t maxSupportedRate)
 Set the receive highest supported data rate.

void SetRxMcsBitmask (uint8_t index)
 Set the receive MCS bitmask.

void SetShortGuardInterval20 (uint8_t shortGuardInterval)
 Set the short guard interval 20 field.

void SetShortGuardInterval40 (uint8_t shortGuardInterval)
 Set the short guard interval 40 field.

void SetSupportedChannelWidth (uint8_t supportedChannelWidth)
 Set the supported channel width field.

void SetSupportedMcsSet (uint64_t ctrl1, uint64_t ctrl2)
 Set the Supported MCS Set field in the HT Capabilities information element.

void SetTxBfCapabilities (uint32_t ctrl)
 Set the Transmit Beamforming (TxBF) Capabilities field in the HT Capabilities information element.

void SetTxMaxNSpatialStreams (uint8_t maxTxSpatialStreams)
 Set the transmit maximum N spatial streams.

void SetTxMcsSetDefined (uint8_t txMcsSetDefined)
 Set the transmit MCS set defined.

void SetTxRxMcsSetUnequal (uint8_t txRxMcsSetUnequal)
 Set the transmit / receive MCS set unequal.

void SetTxUnequalModulation (uint8_t txUnequalModulation)
 Set the transmit unequal modulation.

- Public Member Functions inherited from ns3::WifiInformationElement
virtual ~WifiInformationElement ()

Buffer::Iterator Deserialize (Buffer::Iterator i)
 Deserialize entire IE (which may possibly be fragmented into multiple elements), which must be present.

Buffer::Iterator DeserializeIfPresent (Buffer::Iterator i)
 Deserialize entire IE (which may possibly be fragmented into multiple elements) if it is present.

virtual WifiInformationElementId ElementId () const =0
 Get the wifi information element ID.

virtual WifiInformationElementId ElementIdExt () const
 Get the wifi information element ID extension.

uint16_t GetSerializedSize () const
 Get the size of the serialized IE including Element ID and length fields (for every element this IE is possibly fragmented into).

virtual bool operator== (const WifiInformationElement &a) const
 Compare two IEs for equality by ID & Length, and then through memcmp of serialised version.

virtual void Print (std::ostream &os) const
 Generate human-readable form of IE.

Buffer::Iterator Serialize (Buffer::Iterator i) const
 Serialize entire IE including Element ID and length fields.

- Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
 SimpleRefCount ()
 Default constructor.

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor.

uint32_t GetReferenceCount () const
 Get the reference count of the object.

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator.

void Ref () const
 Increment the reference count.

void Unref () const
 Decrement the reference count.


Private Member Functions

uint16_t DeserializeInformationField (Buffer::Iterator start, uint16_t length) override
 Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)

uint16_t GetInformationFieldSize () const override
 Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets.

void Print (std::ostream &os) const override
 Generate human-readable form of IE.

void SerializeInformationField (Buffer::Iterator start) const override
 Serialize information (i.e., the body of the IE, not including the Element ID and length octets)


Private Attributes

uint8_t m_ampduReserved
 A-MPDU reserved.

uint8_t m_antennaIndicesFeedbackBasedTxASelCapable
 antenna indices feedback based transmit antenna selection capable

uint8_t m_antennaIndicesFeedbackCapable
 antenna indices feedback capable

uint8_t m_antennaSelectionCapability
 antenna selection capability

uint8_t m_calibration
 calibration

uint8_t m_channelEstimationCapability
 channel estimation capability

uint8_t m_compressedSteeringNBfAntennasSupported
 compressed steering NBF antenna supported

uint8_t m_csiMaxNRowsBfSupported
 CSI maximum number rows BF supported.

uint8_t m_csiNBfAntennasSupported
 CSI NBF antenna supported.

uint8_t m_dssMode40
 DSS mode 40.

uint8_t m_explicitCompressedBfFeedbackCapable
 explicit compressed BF feedback capable

uint8_t m_explicitCompressedSteeringCapable
 explicit compressed steering capable

uint8_t m_explicitCsiFeedbackBasedTxASelCapable
 explicit CSI feedback based transmit antenna selection capable

uint8_t m_explicitCsiFeedbackCapable
 explicit CSI feedback capable

uint8_t m_explicitCsiTxBfCapable
 explicit CSI transmit BF capable

uint8_t m_explicitNoncompressedBfFeedbackCapable
 explicit non compressed BF feedback capable

uint8_t m_explicitNoncompressedSteeringCapable
 explicit non compressed steering capable

uint8_t m_explicitTxBfCsiFeedback
 explicit transmit BF CSI feedback

uint8_t m_fortyMhzIntolerant
 40 MHz intolerant

uint8_t m_greenField
 Greenfield.

uint8_t m_htcSupport
 HTC support.

uint8_t m_htDelayedBlockAck
 HT delayed block ack.

uint8_t m_implicitRxBfCapable
 implicit receive BF capable

uint8_t m_implicitTxBfCapable
 implicit transmit BF capable

uint8_t m_ldpc
 LDPC.

uint8_t m_lsigProtectionSupport
 L-SIG protection support.

uint8_t m_maxAmpduLengthExponent
 maximum A-MPDU length

uint8_t m_maxAmsduLength
 maximum A-MSDU length

uint8_t m_mcsFeedback
 MCS feedback.

uint8_t m_minimalGrouping
 minimal grouping

uint8_t m_minMpduStartSpace
 minimum MPDU start space

uint8_t m_noncompressedSteeringNBfAntennasSupported
 non compressed steering NBF antenna supported

uint8_t m_pco
 PCO.

uint8_t m_pcoTransitionTime
 PCO transition time.

uint8_t m_psmpSupport
 PSMP support.

uint8_t m_reservedASel
 reserved ASEL

uint8_t m_reservedExtendedCapabilities
 reserved extended capabilities

uint8_t m_reservedExtendedCapabilities2
 reserver extended capabilities 2

uint8_t m_reservedMcsSet1
 reserved MCS set 1

uint8_t m_reservedMcsSet2
 reserved MCS set 2

uint32_t m_reservedMcsSet3
 reserved MCS set 3

uint8_t m_reservedTxBf
 reserved transmit BF

uint8_t m_reverseDirectionResponder
 reverse direction responder

uint8_t m_rxASelCapable
 receive antenna selection capable

uint16_t m_rxHighestSupportedDataRate
 receive highest supported data rate

uint8_t m_rxMcsBitmask [MAX_SUPPORTED_MCS]
 receive MCS bitmask

uint8_t m_rxNdpCapable
 receive NDP capable

uint8_t m_rxStaggeredSoundingCapable
 receive staggered sounding capable

uint8_t m_rxStbc
 receive STBC

uint8_t m_shortGuardInterval20
 short guard interval 20 MHz

uint8_t m_shortGuardInterval40
 short guard interval 40 MHz

uint8_t m_smPowerSave
 SM power save.

uint8_t m_supportedChannelWidth
 supported channel width

uint8_t m_txMaxNSpatialStreams
 transmit maximum number spatial streams

uint8_t m_txMcsSetDefined
 transmit MCS set defined

uint8_t m_txNdpCapable
 transmit NDP capable

uint8_t m_txRxMcsSetUnequal
 transmit / receive MCS set unequal

uint8_t m_txSoundingPpdusCapable
 sounding PPDUS capable

uint8_t m_txStaggeredSoundingCapable
 transmit staggered sounding capable

uint8_t m_txStbc
 transmit STBC

uint8_t m_txUnequalModulation
 transmit unequal modulation


Detailed Description

The HT Capabilities Information Element.

This class knows how to serialise and deserialise the HT Capabilities Information Element

Definition at line 41 of file ht-capabilities.h.

Constructor & Destructor Documentation

◆ HtCapabilities()

ns3::HtCapabilities::HtCapabilities ( )

Definition at line 26 of file ht-capabilities.cc.

References m_rxMcsBitmask, and MAX_SUPPORTED_MCS.

Member Function Documentation

◆ DeserializeInformationField()

uint16_t ns3::HtCapabilities::DeserializeInformationField ( Buffer::Iterator  start,
uint16_t  length
)
overrideprivatevirtual

Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters
startan iterator which points to where the information should be written.
lengththe expected number of bytes to read
Returns
the number of bytes read

Implements ns3::WifiInformationElement.

Definition at line 497 of file ht-capabilities.cc.

References ns3::Buffer::Iterator::ReadLsbtohU16(), ns3::Buffer::Iterator::ReadLsbtohU64(), ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU32(), ns3::Buffer::Iterator::ReadU8(), SetAmpduParameters(), SetAntennaSelectionCapabilities(), SetExtendedHtCapabilities(), SetHtCapabilitiesInfo(), SetSupportedMcsSet(), and SetTxBfCapabilities().

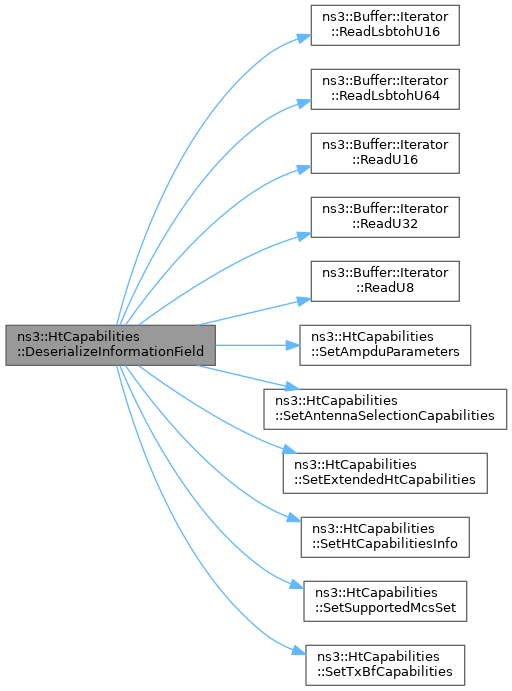

+ Here is the call graph for this function:

◆ ElementId()

WifiInformationElementId ns3::HtCapabilities::ElementId ( ) const
overridevirtual

Get the wifi information element ID.

Returns
the wifi information element ID

Implements ns3::WifiInformationElement.

Definition at line 95 of file ht-capabilities.cc.

References IE_HT_CAPABILITIES.

◆ GetAmpduParameters()

uint8_t ns3::HtCapabilities::GetAmpduParameters ( ) const

Return the A-MPDU Parameters field in the HT Capabilities information element.

Returns
the A-MPDU Parameters field in the HT Capabilities information element

Definition at line 312 of file ht-capabilities.cc.

References m_ampduReserved, m_maxAmpduLengthExponent, and m_minMpduStartSpace.

Referenced by SerializeInformationField().

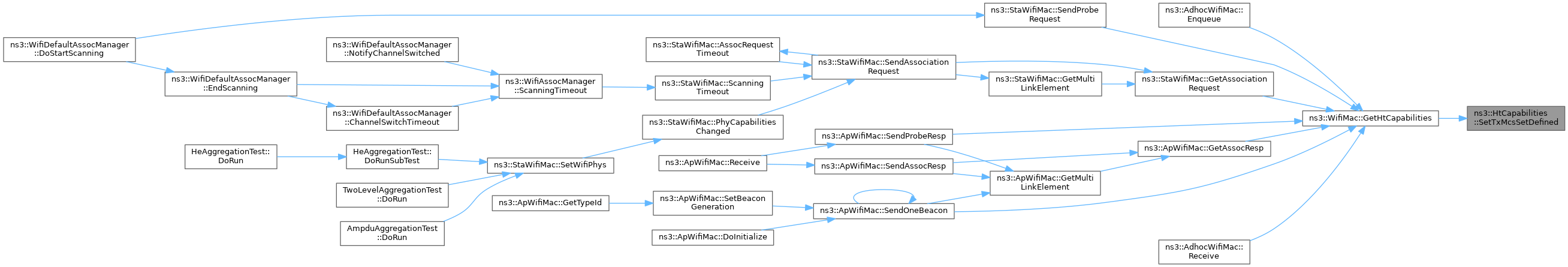

+ Here is the caller graph for this function:

◆ GetAntennaSelectionCapabilities()

uint8_t ns3::HtCapabilities::GetAntennaSelectionCapabilities ( ) const

Return the Antenna Selection (ASEL) Capabilities field in the HT Capabilities information element.

Returns
the Antenna Selection (ASEL) Capabilities field in the HT Capabilities information element

Definition at line 456 of file ht-capabilities.cc.

References m_antennaIndicesFeedbackBasedTxASelCapable, m_antennaIndicesFeedbackCapable, m_antennaSelectionCapability, m_explicitCsiFeedbackBasedTxASelCapable, m_explicitCsiFeedbackCapable, m_reservedASel, m_rxASelCapable, and m_txSoundingPpdusCapable.

Referenced by SerializeInformationField().

+ Here is the caller graph for this function:

◆ GetExtendedHtCapabilities()

uint16_t ns3::HtCapabilities::GetExtendedHtCapabilities ( ) const

Return the Extended HT Capabilities field in the HT Capabilities information element.

Returns
the Extended HT Capabilities field in the HT Capabilities information element

Definition at line 378 of file ht-capabilities.cc.

References m_htcSupport, m_mcsFeedback, m_pco, m_pcoTransitionTime, m_reservedExtendedCapabilities, m_reservedExtendedCapabilities2, and m_reverseDirectionResponder.

Referenced by SerializeInformationField().

+ Here is the caller graph for this function:

◆ GetHtCapabilitiesInfo()

uint16_t ns3::HtCapabilities::GetHtCapabilitiesInfo ( ) const

Return the HT Capabilities Info field in the HT Capabilities information element.

Returns
the HT Capabilities Info field in the HT Capabilities information element

Definition at line 264 of file ht-capabilities.cc.

References m_dssMode40, m_fortyMhzIntolerant, m_greenField, m_htDelayedBlockAck, m_ldpc, m_lsigProtectionSupport, m_maxAmsduLength, m_psmpSupport, m_rxStbc, m_shortGuardInterval20, m_shortGuardInterval40, m_smPowerSave, m_supportedChannelWidth, and m_txStbc.

Referenced by SerializeInformationField().

+ Here is the caller graph for this function:

◆ GetInformationFieldSize()

uint16_t ns3::HtCapabilities::GetInformationFieldSize ( ) const
overrideprivatevirtual

Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets.

This is the value that will appear in the second octet of the entire IE - the length field - if the IE is not fragmented)

Returns
the length of serialized information

Implements ns3::WifiInformationElement.

Definition at line 258 of file ht-capabilities.cc.

◆ GetLdpc()

uint8_t ns3::HtCapabilities::GetLdpc ( ) const

Return LDPC.

Returns
the LDPC value

Definition at line 200 of file ht-capabilities.cc.

References m_ldpc.

Referenced by Print().

+ Here is the caller graph for this function:

◆ GetMaxAmpduLength()

uint32_t ns3::HtCapabilities::GetMaxAmpduLength ( ) const

Return the maximum A-MPDU length.

Returns
the maximum A-MPDU length

Definition at line 228 of file ht-capabilities.cc.

References m_maxAmpduLengthExponent.

◆ GetMaxAmsduLength()

uint16_t ns3::HtCapabilities::GetMaxAmsduLength ( ) const

Return the maximum A-MSDU length.

Returns
the maximum A-MSDU length

Definition at line 218 of file ht-capabilities.cc.

References m_maxAmsduLength.

◆ GetRxHighestSupportedAntennas()

uint8_t ns3::HtCapabilities::GetRxHighestSupportedAntennas ( ) const

Return the receive highest supported antennas.

Returns
the receive highest supported antennas

Definition at line 240 of file ht-capabilities.cc.

References IsSupportedMcs().

+ Here is the call graph for this function:

◆ GetShortGuardInterval20()

uint8_t ns3::HtCapabilities::GetShortGuardInterval20 ( ) const

Return the short guard interval 20 value.

Returns
the short guard interval 20 value

Definition at line 212 of file ht-capabilities.cc.

References m_shortGuardInterval20.

Referenced by Print().

+ Here is the caller graph for this function:

◆ GetSupportedChannelWidth()

uint8_t ns3::HtCapabilities::GetSupportedChannelWidth ( ) const

Return the supported channel width.

Returns
the supported channel width

Definition at line 206 of file ht-capabilities.cc.

References m_supportedChannelWidth.

Referenced by ns3::WifiRemoteStationManager::AddStationHtCapabilities(), and Print().

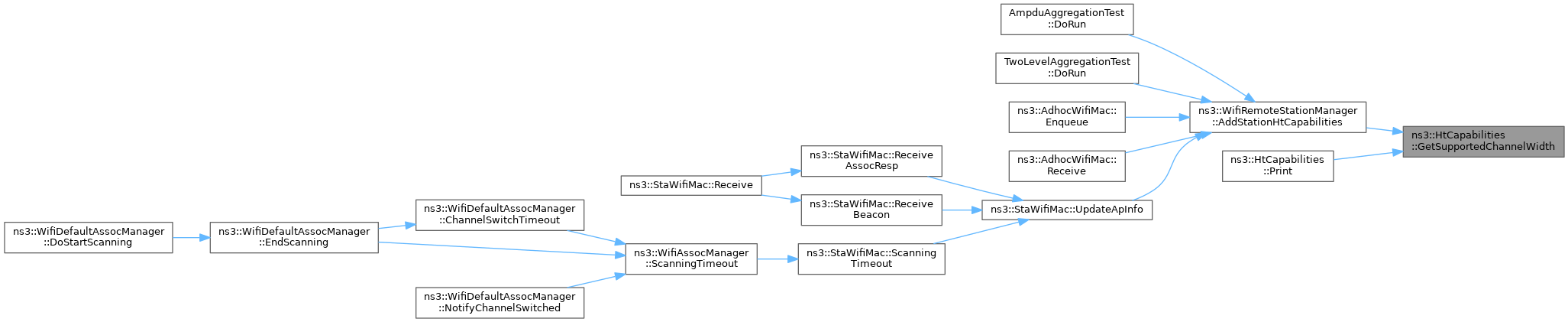

+ Here is the caller graph for this function:

◆ GetSupportedMcsSet1()

uint64_t ns3::HtCapabilities::GetSupportedMcsSet1 ( ) const

Return the first 64 bytes of the Supported MCS Set field in the HT Capabilities information element.

Returns
the first 64 bytes of the Supported MCS Set field in the HT Capabilities information element

Definition at line 346 of file ht-capabilities.cc.

References m_rxMcsBitmask.

Referenced by SerializeInformationField().

+ Here is the caller graph for this function:

◆ GetSupportedMcsSet2()

uint64_t ns3::HtCapabilities::GetSupportedMcsSet2 ( ) const

Return the last 64 bytes of the Supported MCS Set field in the HT Capabilities information element.

Returns
the last 64 bytes of the Supported MCS Set field in the HT Capabilities information element

Definition at line 358 of file ht-capabilities.cc.

References m_reservedMcsSet1, m_reservedMcsSet2, m_reservedMcsSet3, m_rxHighestSupportedDataRate, m_rxMcsBitmask, m_txMaxNSpatialStreams, m_txMcsSetDefined, m_txRxMcsSetUnequal, and m_txUnequalModulation.

Referenced by SerializeInformationField().

+ Here is the caller graph for this function:

◆ GetTxBfCapabilities()

uint32_t ns3::HtCapabilities::GetTxBfCapabilities ( ) const

◆ IsSupportedMcs()

bool ns3::HtCapabilities::IsSupportedMcs ( uint8_t  mcs) const

Return the is MCS supported flag.

Parameters
mcsis MCS supported flag
Returns
true if successful

Definition at line 234 of file ht-capabilities.cc.

References m_rxMcsBitmask.

Referenced by ns3::WifiRemoteStationManager::AddStationHtCapabilities(), GetRxHighestSupportedAntennas(), and Print().

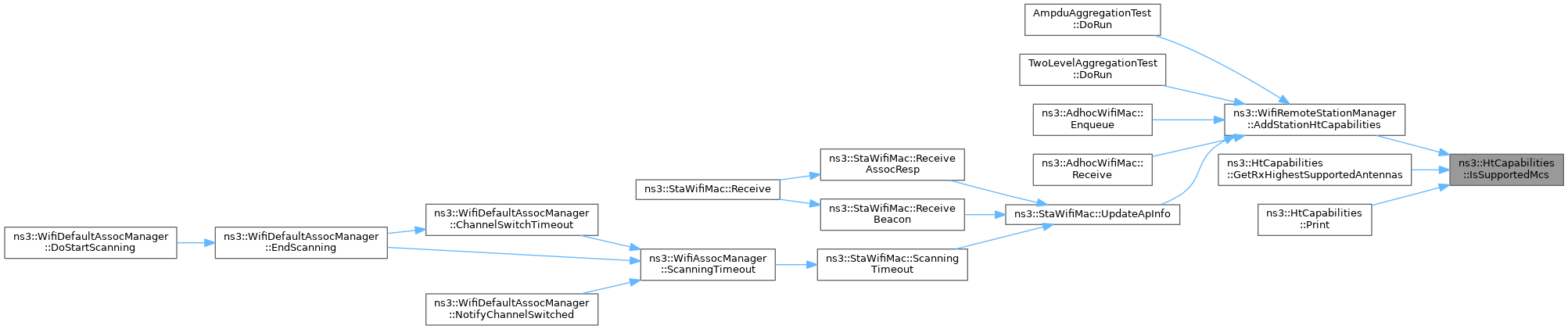

+ Here is the caller graph for this function:

◆ Print()

void ns3::HtCapabilities::Print ( std::ostream &  os) const
overrideprivatevirtual

Generate human-readable form of IE.

Parameters
osoutput stream

Reimplemented from ns3::WifiInformationElement.

Definition at line 101 of file ht-capabilities.cc.

References GetLdpc(), GetShortGuardInterval20(), GetSupportedChannelWidth(), IsSupportedMcs(), and MAX_SUPPORTED_MCS.

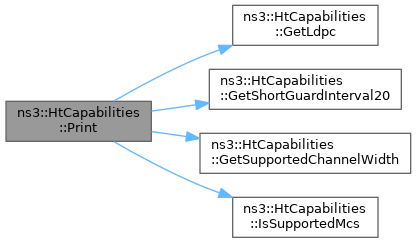

+ Here is the call graph for this function:

◆ SerializeInformationField()

void ns3::HtCapabilities::SerializeInformationField ( Buffer::Iterator  start) const
overrideprivatevirtual

Serialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters
startan iterator which points to where the information should be written.

Implements ns3::WifiInformationElement.

Definition at line 484 of file ht-capabilities.cc.

References GetAmpduParameters(), GetAntennaSelectionCapabilities(), GetExtendedHtCapabilities(), GetHtCapabilitiesInfo(), GetSupportedMcsSet1(), GetSupportedMcsSet2(), and GetTxBfCapabilities().

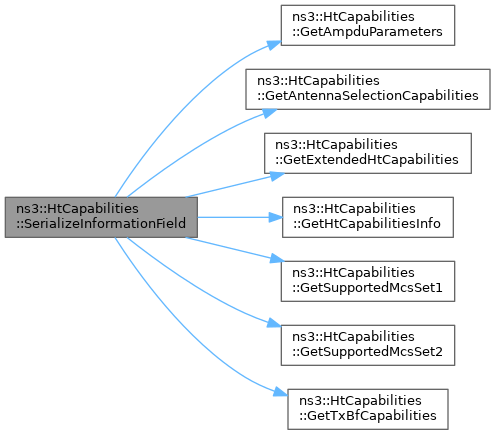

+ Here is the call graph for this function:

◆ SetAmpduParameters()

void ns3::HtCapabilities::SetAmpduParameters ( uint8_t  ctrl)

Set the A-MPDU Parameters field in the HT Capabilities information element.

Parameters
ctrlthe A-MPDU Parameters field in the HT Capabilities information element

Definition at line 304 of file ht-capabilities.cc.

References m_ampduReserved, m_maxAmpduLengthExponent, and m_minMpduStartSpace.

Referenced by DeserializeInformationField().

+ Here is the caller graph for this function:

◆ SetAntennaSelectionCapabilities()

void ns3::HtCapabilities::SetAntennaSelectionCapabilities ( uint8_t  ctrl)

Set the the Antenna Selection (ASEL) Capabilities field in the HT Capabilities information element.

Parameters
ctrlthe Antenna Selection (ASEL) Capabilities field in the HT Capabilities information element

Definition at line 471 of file ht-capabilities.cc.

References m_antennaIndicesFeedbackBasedTxASelCapable, m_antennaIndicesFeedbackCapable, m_antennaSelectionCapability, m_explicitCsiFeedbackBasedTxASelCapable, m_explicitCsiFeedbackCapable, m_reservedASel, m_rxASelCapable, and m_txSoundingPpdusCapable.

Referenced by DeserializeInformationField().

+ Here is the caller graph for this function:

◆ SetExtendedHtCapabilities()

void ns3::HtCapabilities::SetExtendedHtCapabilities ( uint16_t  ctrl)

Set the Extended HT Capabilities field in the HT Capabilities information element.

Parameters
ctrlthe Extended HT Capabilities field in the HT Capabilities information element

Definition at line 392 of file ht-capabilities.cc.

References m_htcSupport, m_mcsFeedback, m_pco, m_pcoTransitionTime, m_reservedExtendedCapabilities, m_reservedExtendedCapabilities2, and m_reverseDirectionResponder.

Referenced by DeserializeInformationField().

+ Here is the caller graph for this function:

◆ SetHtCapabilitiesInfo()

void ns3::HtCapabilities::SetHtCapabilitiesInfo ( uint16_t  ctrl)

Set the HT Capabilities Info field in the HT Capabilities information element.

Parameters
ctrlthe HT Capabilities Info field in the HT Capabilities information element

Definition at line 285 of file ht-capabilities.cc.

References m_dssMode40, m_fortyMhzIntolerant, m_greenField, m_htDelayedBlockAck, m_ldpc, m_lsigProtectionSupport, m_maxAmsduLength, m_psmpSupport, m_rxStbc, m_shortGuardInterval20, m_shortGuardInterval40, m_smPowerSave, m_supportedChannelWidth, and m_txStbc.

Referenced by DeserializeInformationField().

+ Here is the caller graph for this function:

◆ SetLdpc()

void ns3::HtCapabilities::SetLdpc ( uint8_t  ldpc)

Set the LDPC field.

Parameters
ldpcthe LDPC field

Definition at line 112 of file ht-capabilities.cc.

References m_ldpc.

Referenced by ns3::WifiMac::GetHtCapabilities().

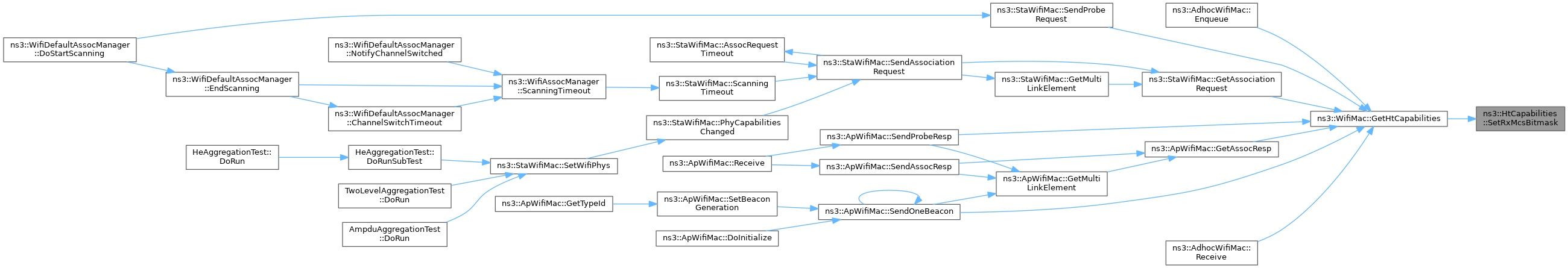

+ Here is the caller graph for this function:

◆ SetLSigProtectionSupport()

void ns3::HtCapabilities::SetLSigProtectionSupport ( uint8_t  lSigProtection)

Set the LSIG protection support.

Parameters
lSigProtectionthe LSIG protection support field

Definition at line 144 of file ht-capabilities.cc.

References m_lsigProtectionSupport.

Referenced by ns3::WifiMac::GetHtCapabilities().

+ Here is the caller graph for this function:

◆ SetMaxAmpduLength()

void ns3::HtCapabilities::SetMaxAmpduLength ( uint32_t  maxAmpduLength)

Set the maximum AMPDU length.

Parameters
maxAmpduLength2^(13 + x) - 1, x in the range 0 to 3

Definition at line 150 of file ht-capabilities.cc.

References m_maxAmpduLengthExponent, and NS_ABORT_MSG.

Referenced by AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), and ns3::WifiMac::GetHtCapabilities().

+ Here is the caller graph for this function:

◆ SetMaxAmsduLength()

void ns3::HtCapabilities::SetMaxAmsduLength ( uint16_t  maxAmsduLength)

Set the maximum AMSDU length.

Parameters
maxAmsduLengthEither 3839 or 7935

Definition at line 136 of file ht-capabilities.cc.

References m_maxAmsduLength, and NS_ABORT_MSG_IF.

Referenced by TwoLevelAggregationTest::DoRun(), and ns3::WifiMac::GetHtCapabilities().

+ Here is the caller graph for this function:

◆ SetRxHighestSupportedDataRate()

void ns3::HtCapabilities::SetRxHighestSupportedDataRate ( uint16_t  maxSupportedRate)

Set the receive highest supported data rate.

Parameters
maxSupportedRatethe maximum supported data rate

Definition at line 170 of file ht-capabilities.cc.

References m_rxHighestSupportedDataRate.

Referenced by ns3::WifiMac::GetHtCapabilities().

+ Here is the caller graph for this function:

◆ SetRxMcsBitmask()

void ns3::HtCapabilities::SetRxMcsBitmask ( uint8_t  index)

Set the receive MCS bitmask.

Parameters
indexthe index of the receive MCS

Definition at line 164 of file ht-capabilities.cc.

References m_rxMcsBitmask.

Referenced by ns3::WifiMac::GetHtCapabilities().

+ Here is the caller graph for this function:

◆ SetShortGuardInterval20()

void ns3::HtCapabilities::SetShortGuardInterval20 ( uint8_t  shortGuardInterval)

Set the short guard interval 20 field.

Parameters
shortGuardIntervalthe short guard interval

Definition at line 124 of file ht-capabilities.cc.

References m_shortGuardInterval20.

Referenced by ns3::WifiMac::GetHtCapabilities().

+ Here is the caller graph for this function:

◆ SetShortGuardInterval40()

void ns3::HtCapabilities::SetShortGuardInterval40 ( uint8_t  shortGuardInterval)

Set the short guard interval 40 field.

Parameters
shortGuardIntervalthe short guard interval

Definition at line 130 of file ht-capabilities.cc.

References m_shortGuardInterval40.

Referenced by ns3::WifiMac::GetHtCapabilities().

+ Here is the caller graph for this function:

◆ SetSupportedChannelWidth()

void ns3::HtCapabilities::SetSupportedChannelWidth ( uint8_t  supportedChannelWidth)

Set the supported channel width field.

Parameters
supportedChannelWidththe supported channel width field

Definition at line 118 of file ht-capabilities.cc.

References m_supportedChannelWidth.

Referenced by ns3::WifiMac::GetHtCapabilities().

+ Here is the caller graph for this function:

◆ SetSupportedMcsSet()

void ns3::HtCapabilities::SetSupportedMcsSet ( uint64_t  ctrl1,
uint64_t  ctrl2
)

Set the Supported MCS Set field in the HT Capabilities information element.

Parameters
ctrl1the first 64 bytes of the Supported MCS Set field in the HT Capabilities information element
ctrl2the last 64 bytes of the Supported MCS Set field in the HT Capabilities information element

Definition at line 322 of file ht-capabilities.cc.

References m_reservedMcsSet1, m_reservedMcsSet2, m_reservedMcsSet3, m_rxHighestSupportedDataRate, m_rxMcsBitmask, m_txMaxNSpatialStreams, m_txMcsSetDefined, m_txRxMcsSetUnequal, and m_txUnequalModulation.

Referenced by DeserializeInformationField().

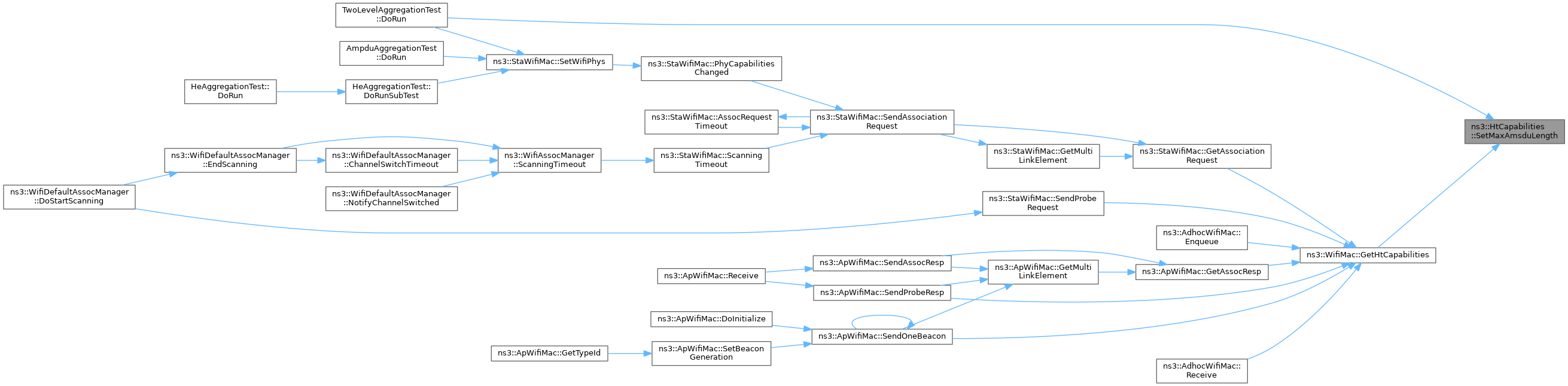

+ Here is the caller graph for this function:

◆ SetTxBfCapabilities()

void ns3::HtCapabilities::SetTxBfCapabilities ( uint32_t  ctrl)

◆ SetTxMaxNSpatialStreams()

void ns3::HtCapabilities::SetTxMaxNSpatialStreams ( uint8_t  maxTxSpatialStreams)

Set the transmit maximum N spatial streams.

Parameters
maxTxSpatialStreamsthe maximum number of TX SSs

Definition at line 188 of file ht-capabilities.cc.

References m_txMaxNSpatialStreams.

Referenced by ns3::WifiMac::GetHtCapabilities().

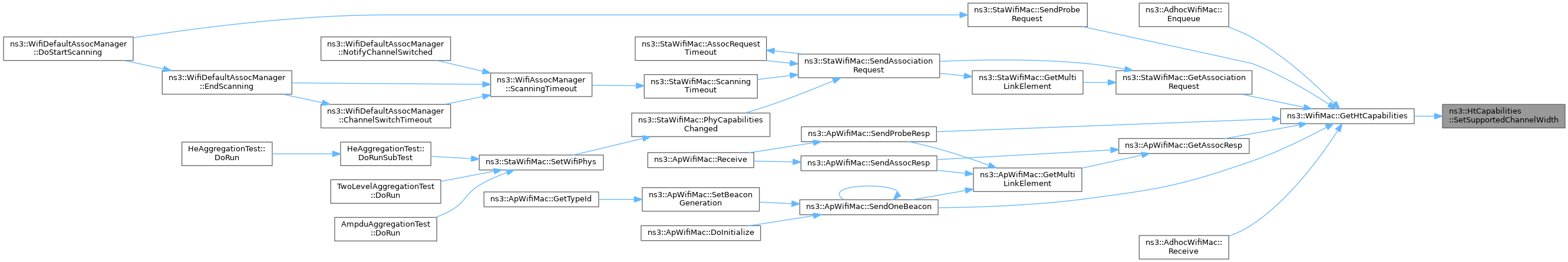

+ Here is the caller graph for this function:

◆ SetTxMcsSetDefined()

void ns3::HtCapabilities::SetTxMcsSetDefined ( uint8_t  txMcsSetDefined)

Set the transmit MCS set defined.

Parameters
txMcsSetDefinedthe TX MCS set defined

Definition at line 176 of file ht-capabilities.cc.

References m_txMcsSetDefined.

Referenced by ns3::WifiMac::GetHtCapabilities().

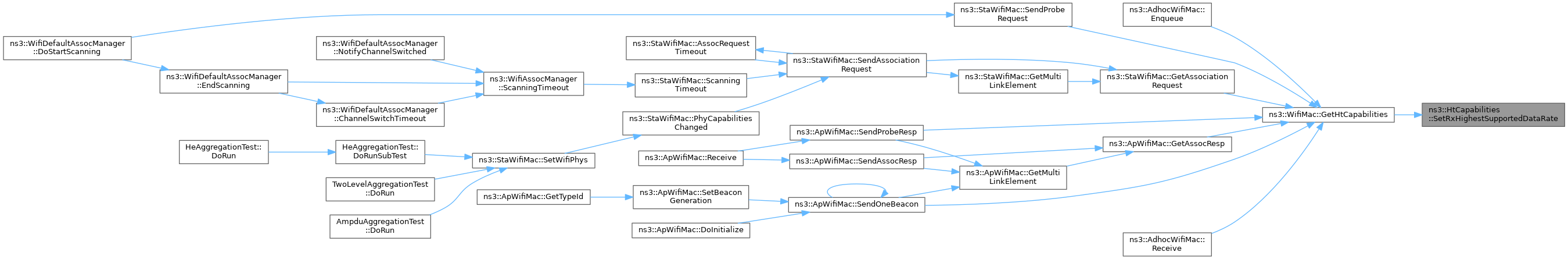

+ Here is the caller graph for this function:

◆ SetTxRxMcsSetUnequal()

void ns3::HtCapabilities::SetTxRxMcsSetUnequal ( uint8_t  txRxMcsSetUnequal)

Set the transmit / receive MCS set unequal.

Parameters
txRxMcsSetUnequalthe TX/RX MCS set unequal field

Definition at line 182 of file ht-capabilities.cc.

References m_txRxMcsSetUnequal.

Referenced by ns3::WifiMac::GetHtCapabilities().

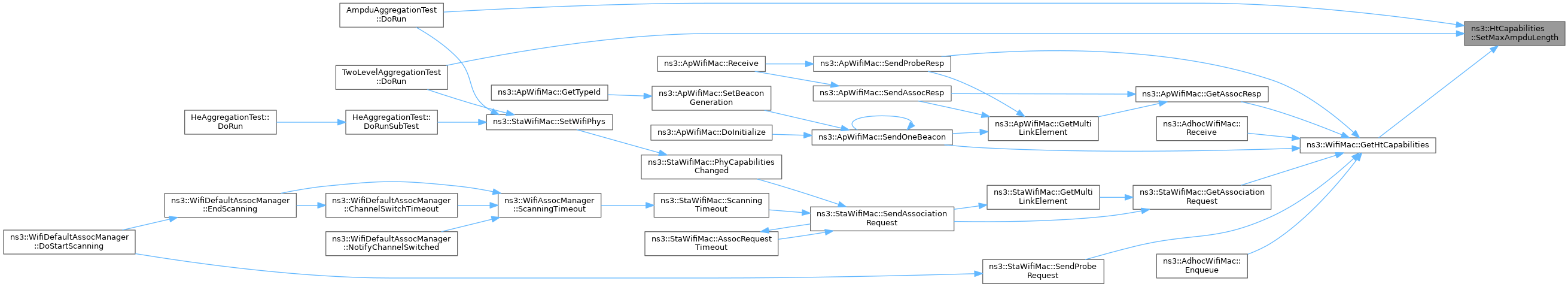

+ Here is the caller graph for this function:

◆ SetTxUnequalModulation()

void ns3::HtCapabilities::SetTxUnequalModulation ( uint8_t  txUnequalModulation)

Set the transmit unequal modulation.

Parameters
txUnequalModulationthe TX unequal modulation field

Definition at line 194 of file ht-capabilities.cc.

References m_txUnequalModulation.

Referenced by ns3::WifiMac::GetHtCapabilities().

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_ampduReserved

uint8_t ns3::HtCapabilities::m_ampduReserved
private

A-MPDU reserved.

Definition at line 295 of file ht-capabilities.h.

Referenced by GetAmpduParameters(), and SetAmpduParameters().

◆ m_antennaIndicesFeedbackBasedTxASelCapable

uint8_t ns3::HtCapabilities::m_antennaIndicesFeedbackBasedTxASelCapable
private

antenna indices feedback based transmit antenna selection capable

Definition at line 345 of file ht-capabilities.h.

Referenced by GetAntennaSelectionCapabilities(), and SetAntennaSelectionCapabilities().

◆ m_antennaIndicesFeedbackCapable

uint8_t ns3::HtCapabilities::m_antennaIndicesFeedbackCapable
private

antenna indices feedback capable

Definition at line 348 of file ht-capabilities.h.

Referenced by GetAntennaSelectionCapabilities(), and SetAntennaSelectionCapabilities().

◆ m_antennaSelectionCapability

uint8_t ns3::HtCapabilities::m_antennaSelectionCapability
private

antenna selection capability

Definition at line 342 of file ht-capabilities.h.

Referenced by GetAntennaSelectionCapabilities(), and SetAntennaSelectionCapabilities().

◆ m_calibration

uint8_t ns3::HtCapabilities::m_calibration
private

calibration

Definition at line 324 of file ht-capabilities.h.

Referenced by GetTxBfCapabilities(), and SetTxBfCapabilities().

◆ m_channelEstimationCapability

uint8_t ns3::HtCapabilities::m_channelEstimationCapability
private

channel estimation capability

Definition at line 338 of file ht-capabilities.h.

Referenced by GetTxBfCapabilities(), and SetTxBfCapabilities().

◆ m_compressedSteeringNBfAntennasSupported

uint8_t ns3::HtCapabilities::m_compressedSteeringNBfAntennasSupported
private

compressed steering NBF antenna supported

Definition at line 336 of file ht-capabilities.h.

Referenced by GetTxBfCapabilities(), and SetTxBfCapabilities().

◆ m_csiMaxNRowsBfSupported

uint8_t ns3::HtCapabilities::m_csiMaxNRowsBfSupported
private

CSI maximum number rows BF supported.

Definition at line 337 of file ht-capabilities.h.

Referenced by GetTxBfCapabilities(), and SetTxBfCapabilities().

◆ m_csiNBfAntennasSupported

uint8_t ns3::HtCapabilities::m_csiNBfAntennasSupported
private

CSI NBF antenna supported.

Definition at line 333 of file ht-capabilities.h.

Referenced by GetTxBfCapabilities(), and SetTxBfCapabilities().

◆ m_dssMode40

uint8_t ns3::HtCapabilities::m_dssMode40
private

DSS mode 40.

Definition at line 287 of file ht-capabilities.h.

Referenced by GetHtCapabilitiesInfo(), and SetHtCapabilitiesInfo().

◆ m_explicitCompressedBfFeedbackCapable

uint8_t ns3::HtCapabilities::m_explicitCompressedBfFeedbackCapable
private

explicit compressed BF feedback capable

Definition at line 331 of file ht-capabilities.h.

Referenced by GetTxBfCapabilities(), and SetTxBfCapabilities().

◆ m_explicitCompressedSteeringCapable

uint8_t ns3::HtCapabilities::m_explicitCompressedSteeringCapable
private

explicit compressed steering capable

Definition at line 327 of file ht-capabilities.h.

Referenced by GetTxBfCapabilities(), and SetTxBfCapabilities().

◆ m_explicitCsiFeedbackBasedTxASelCapable

uint8_t ns3::HtCapabilities::m_explicitCsiFeedbackBasedTxASelCapable
private

explicit CSI feedback based transmit antenna selection capable

Definition at line 343 of file ht-capabilities.h.

Referenced by GetAntennaSelectionCapabilities(), and SetAntennaSelectionCapabilities().

◆ m_explicitCsiFeedbackCapable

uint8_t ns3::HtCapabilities::m_explicitCsiFeedbackCapable
private

explicit CSI feedback capable

Definition at line 347 of file ht-capabilities.h.

Referenced by GetAntennaSelectionCapabilities(), and SetAntennaSelectionCapabilities().

◆ m_explicitCsiTxBfCapable

uint8_t ns3::HtCapabilities::m_explicitCsiTxBfCapable
private

explicit CSI transmit BF capable

Definition at line 325 of file ht-capabilities.h.

Referenced by GetTxBfCapabilities(), and SetTxBfCapabilities().

◆ m_explicitNoncompressedBfFeedbackCapable

uint8_t ns3::HtCapabilities::m_explicitNoncompressedBfFeedbackCapable
private

explicit non compressed BF feedback capable

Definition at line 330 of file ht-capabilities.h.

Referenced by GetTxBfCapabilities(), and SetTxBfCapabilities().

◆ m_explicitNoncompressedSteeringCapable

uint8_t ns3::HtCapabilities::m_explicitNoncompressedSteeringCapable
private

explicit non compressed steering capable

Definition at line 326 of file ht-capabilities.h.

Referenced by GetTxBfCapabilities(), and SetTxBfCapabilities().

◆ m_explicitTxBfCsiFeedback

uint8_t ns3::HtCapabilities::m_explicitTxBfCsiFeedback
private

explicit transmit BF CSI feedback

Definition at line 328 of file ht-capabilities.h.

Referenced by GetTxBfCapabilities(), and SetTxBfCapabilities().

◆ m_fortyMhzIntolerant

uint8_t ns3::HtCapabilities::m_fortyMhzIntolerant
private

40 MHz intolerant

Definition at line 289 of file ht-capabilities.h.

Referenced by GetHtCapabilitiesInfo(), and SetHtCapabilitiesInfo().

◆ m_greenField

uint8_t ns3::HtCapabilities::m_greenField
private

Greenfield.

Definition at line 280 of file ht-capabilities.h.

Referenced by GetHtCapabilitiesInfo(), and SetHtCapabilitiesInfo().

◆ m_htcSupport

uint8_t ns3::HtCapabilities::m_htcSupport
private

HTC support.

Definition at line 313 of file ht-capabilities.h.

Referenced by GetExtendedHtCapabilities(), and SetExtendedHtCapabilities().

◆ m_htDelayedBlockAck

uint8_t ns3::HtCapabilities::m_htDelayedBlockAck
private

HT delayed block ack.

Definition at line 285 of file ht-capabilities.h.

Referenced by GetHtCapabilitiesInfo(), and SetHtCapabilitiesInfo().

◆ m_implicitRxBfCapable

uint8_t ns3::HtCapabilities::m_implicitRxBfCapable
private

implicit receive BF capable

Definition at line 318 of file ht-capabilities.h.

Referenced by GetTxBfCapabilities(), and SetTxBfCapabilities().

◆ m_implicitTxBfCapable

uint8_t ns3::HtCapabilities::m_implicitTxBfCapable
private

implicit transmit BF capable

Definition at line 323 of file ht-capabilities.h.

Referenced by GetTxBfCapabilities(), and SetTxBfCapabilities().

◆ m_ldpc

uint8_t ns3::HtCapabilities::m_ldpc
private

LDPC.

Definition at line 277 of file ht-capabilities.h.

Referenced by GetHtCapabilitiesInfo(), GetLdpc(), SetHtCapabilitiesInfo(), and SetLdpc().

◆ m_lsigProtectionSupport

uint8_t ns3::HtCapabilities::m_lsigProtectionSupport
private

L-SIG protection support.

Definition at line 290 of file ht-capabilities.h.

Referenced by GetHtCapabilitiesInfo(), SetHtCapabilitiesInfo(), and SetLSigProtectionSupport().

◆ m_maxAmpduLengthExponent

uint8_t ns3::HtCapabilities::m_maxAmpduLengthExponent
private

maximum A-MPDU length

Definition at line 293 of file ht-capabilities.h.

Referenced by GetAmpduParameters(), GetMaxAmpduLength(), SetAmpduParameters(), and SetMaxAmpduLength().

◆ m_maxAmsduLength

uint8_t ns3::HtCapabilities::m_maxAmsduLength
private

maximum A-MSDU length

Definition at line 286 of file ht-capabilities.h.

Referenced by GetHtCapabilitiesInfo(), GetMaxAmsduLength(), SetHtCapabilitiesInfo(), and SetMaxAmsduLength().

◆ m_mcsFeedback

uint8_t ns3::HtCapabilities::m_mcsFeedback
private

MCS feedback.

Definition at line 312 of file ht-capabilities.h.

Referenced by GetExtendedHtCapabilities(), and SetExtendedHtCapabilities().

◆ m_minimalGrouping

uint8_t ns3::HtCapabilities::m_minimalGrouping
private

minimal grouping

Definition at line 332 of file ht-capabilities.h.

Referenced by GetTxBfCapabilities(), and SetTxBfCapabilities().

◆ m_minMpduStartSpace

uint8_t ns3::HtCapabilities::m_minMpduStartSpace
private

minimum MPDU start space

Definition at line 294 of file ht-capabilities.h.

Referenced by GetAmpduParameters(), and SetAmpduParameters().

◆ m_noncompressedSteeringNBfAntennasSupported

uint8_t ns3::HtCapabilities::m_noncompressedSteeringNBfAntennasSupported
private

non compressed steering NBF antenna supported

Definition at line 334 of file ht-capabilities.h.

Referenced by GetTxBfCapabilities(), and SetTxBfCapabilities().

◆ m_pco

uint8_t ns3::HtCapabilities::m_pco
private

PCO.

Definition at line 309 of file ht-capabilities.h.

Referenced by GetExtendedHtCapabilities(), and SetExtendedHtCapabilities().

◆ m_pcoTransitionTime

uint8_t ns3::HtCapabilities::m_pcoTransitionTime
private

PCO transition time.

Definition at line 310 of file ht-capabilities.h.

Referenced by GetExtendedHtCapabilities(), and SetExtendedHtCapabilities().

◆ m_psmpSupport

uint8_t ns3::HtCapabilities::m_psmpSupport
private

PSMP support.

Definition at line 288 of file ht-capabilities.h.

Referenced by GetHtCapabilitiesInfo(), and SetHtCapabilitiesInfo().

◆ m_reservedASel

uint8_t ns3::HtCapabilities::m_reservedASel
private

reserved ASEL

Definition at line 351 of file ht-capabilities.h.

Referenced by GetAntennaSelectionCapabilities(), and SetAntennaSelectionCapabilities().

◆ m_reservedExtendedCapabilities

uint8_t ns3::HtCapabilities::m_reservedExtendedCapabilities
private

reserved extended capabilities

Definition at line 311 of file ht-capabilities.h.

Referenced by GetExtendedHtCapabilities(), and SetExtendedHtCapabilities().

◆ m_reservedExtendedCapabilities2

uint8_t ns3::HtCapabilities::m_reservedExtendedCapabilities2
private

reserver extended capabilities 2

Definition at line 315 of file ht-capabilities.h.

Referenced by GetExtendedHtCapabilities(), and SetExtendedHtCapabilities().

◆ m_reservedMcsSet1

uint8_t ns3::HtCapabilities::m_reservedMcsSet1
private

reserved MCS set 1

Definition at line 298 of file ht-capabilities.h.

Referenced by GetSupportedMcsSet2(), and SetSupportedMcsSet().

◆ m_reservedMcsSet2

uint8_t ns3::HtCapabilities::m_reservedMcsSet2
private

reserved MCS set 2

Definition at line 300 of file ht-capabilities.h.

Referenced by GetSupportedMcsSet2(), and SetSupportedMcsSet().

◆ m_reservedMcsSet3

uint32_t ns3::HtCapabilities::m_reservedMcsSet3
private

reserved MCS set 3

Definition at line 305 of file ht-capabilities.h.

Referenced by GetSupportedMcsSet2(), and SetSupportedMcsSet().

◆ m_reservedTxBf

uint8_t ns3::HtCapabilities::m_reservedTxBf
private

reserved transmit BF

Definition at line 339 of file ht-capabilities.h.

Referenced by GetTxBfCapabilities(), and SetTxBfCapabilities().

◆ m_reverseDirectionResponder

uint8_t ns3::HtCapabilities::m_reverseDirectionResponder
private

reverse direction responder

Definition at line 314 of file ht-capabilities.h.

Referenced by GetExtendedHtCapabilities(), and SetExtendedHtCapabilities().

◆ m_rxASelCapable

uint8_t ns3::HtCapabilities::m_rxASelCapable
private

receive antenna selection capable

Definition at line 349 of file ht-capabilities.h.

Referenced by GetAntennaSelectionCapabilities(), and SetAntennaSelectionCapabilities().

◆ m_rxHighestSupportedDataRate

uint16_t ns3::HtCapabilities::m_rxHighestSupportedDataRate
private

receive highest supported data rate

Definition at line 299 of file ht-capabilities.h.

Referenced by GetSupportedMcsSet2(), SetRxHighestSupportedDataRate(), and SetSupportedMcsSet().

◆ m_rxMcsBitmask

uint8_t ns3::HtCapabilities::m_rxMcsBitmask[MAX_SUPPORTED_MCS]
private

◆ m_rxNdpCapable

uint8_t ns3::HtCapabilities::m_rxNdpCapable
private

receive NDP capable

Definition at line 321 of file ht-capabilities.h.

Referenced by GetTxBfCapabilities(), and SetTxBfCapabilities().

◆ m_rxStaggeredSoundingCapable

uint8_t ns3::HtCapabilities::m_rxStaggeredSoundingCapable
private

receive staggered sounding capable

Definition at line 319 of file ht-capabilities.h.

Referenced by GetTxBfCapabilities(), and SetTxBfCapabilities().

◆ m_rxStbc

uint8_t ns3::HtCapabilities::m_rxStbc
private

receive STBC

Definition at line 284 of file ht-capabilities.h.

Referenced by GetHtCapabilitiesInfo(), and SetHtCapabilitiesInfo().

◆ m_shortGuardInterval20

uint8_t ns3::HtCapabilities::m_shortGuardInterval20
private

short guard interval 20 MHz

Definition at line 281 of file ht-capabilities.h.

Referenced by GetHtCapabilitiesInfo(), GetShortGuardInterval20(), SetHtCapabilitiesInfo(), and SetShortGuardInterval20().

◆ m_shortGuardInterval40

uint8_t ns3::HtCapabilities::m_shortGuardInterval40
private

short guard interval 40 MHz

Definition at line 282 of file ht-capabilities.h.

Referenced by GetHtCapabilitiesInfo(), SetHtCapabilitiesInfo(), and SetShortGuardInterval40().

◆ m_smPowerSave

uint8_t ns3::HtCapabilities::m_smPowerSave
private

SM power save.

Definition at line 279 of file ht-capabilities.h.

Referenced by GetHtCapabilitiesInfo(), and SetHtCapabilitiesInfo().

◆ m_supportedChannelWidth

uint8_t ns3::HtCapabilities::m_supportedChannelWidth
private

supported channel width

Definition at line 278 of file ht-capabilities.h.

Referenced by GetHtCapabilitiesInfo(), GetSupportedChannelWidth(), SetHtCapabilitiesInfo(), and SetSupportedChannelWidth().

◆ m_txMaxNSpatialStreams

uint8_t ns3::HtCapabilities::m_txMaxNSpatialStreams
private

transmit maximum number spatial streams

Definition at line 303 of file ht-capabilities.h.

Referenced by GetSupportedMcsSet2(), SetSupportedMcsSet(), and SetTxMaxNSpatialStreams().

◆ m_txMcsSetDefined

uint8_t ns3::HtCapabilities::m_txMcsSetDefined
private

transmit MCS set defined

Definition at line 301 of file ht-capabilities.h.

Referenced by GetSupportedMcsSet2(), SetSupportedMcsSet(), and SetTxMcsSetDefined().

◆ m_txNdpCapable

uint8_t ns3::HtCapabilities::m_txNdpCapable
private

transmit NDP capable

Definition at line 322 of file ht-capabilities.h.

Referenced by GetTxBfCapabilities(), and SetTxBfCapabilities().

◆ m_txRxMcsSetUnequal

uint8_t ns3::HtCapabilities::m_txRxMcsSetUnequal
private

transmit / receive MCS set unequal

Definition at line 302 of file ht-capabilities.h.

Referenced by GetSupportedMcsSet2(), SetSupportedMcsSet(), and SetTxRxMcsSetUnequal().

◆ m_txSoundingPpdusCapable

uint8_t ns3::HtCapabilities::m_txSoundingPpdusCapable
private

sounding PPDUS capable

Definition at line 350 of file ht-capabilities.h.

Referenced by GetAntennaSelectionCapabilities(), and SetAntennaSelectionCapabilities().

◆ m_txStaggeredSoundingCapable

uint8_t ns3::HtCapabilities::m_txStaggeredSoundingCapable
private

transmit staggered sounding capable

Definition at line 320 of file ht-capabilities.h.

Referenced by GetTxBfCapabilities(), and SetTxBfCapabilities().

◆ m_txStbc

uint8_t ns3::HtCapabilities::m_txStbc
private

transmit STBC

Definition at line 283 of file ht-capabilities.h.

Referenced by GetHtCapabilitiesInfo(), and SetHtCapabilitiesInfo().

◆ m_txUnequalModulation

uint8_t ns3::HtCapabilities::m_txUnequalModulation
private

transmit unequal modulation

Definition at line 304 of file ht-capabilities.h.

Referenced by GetSupportedMcsSet2(), SetSupportedMcsSet(), and SetTxUnequalModulation().


The documentation for this class was generated from the following files:
