The uniform distribution Random Number Generator (RNG). More...
#include "random-variable-stream.h"

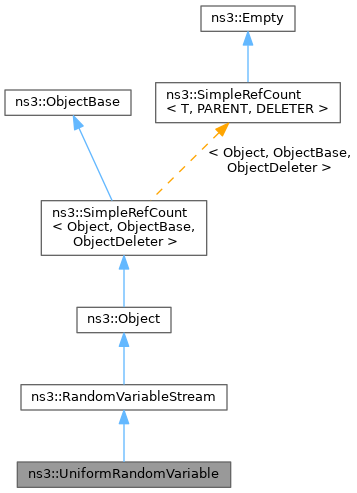

Inheritance diagram for ns3::UniformRandomVariable: Collaboration diagram for ns3::UniformRandomVariable:Public Member Functions | |
| UniformRandomVariable () | |
| Creates a uniform distribution RNG with the default range. | |
| uint32_t | GetInteger () override |
| Get the next random value drawn from the distribution. | |
| uint32_t | GetInteger (uint32_t min, uint32_t max) |
| Get the next random value drawn from the distribution. | |
| double | GetMax () const |
| Get the upper bound on values returned by GetValue(). | |
| double | GetMin () const |
| Get the lower bound on randoms returned by GetValue(). | |
| double | GetValue () override |
| Get the next random value drawn from the distribution. | |
| double | GetValue (double min, double max) |
| Get the next random value drawn from the distribution. | |
| Public Member Functions inherited from ns3::RandomVariableStream | |
| RandomVariableStream () | |
| Default constructor. | |
| RandomVariableStream (const RandomVariableStream &)=delete | |
| ~RandomVariableStream () override | |
| Destructor. | |
| virtual uint32_t | GetInteger () |
| Get the next random value drawn from the distribution. | |
| int64_t | GetStream () const |
| Returns the stream number for the RngStream. | |
| virtual double | GetValue ()=0 |
| Get the next random value drawn from the distribution. | |
| bool | IsAntithetic () const |
| Check if antithetic values will be generated. | |
| RandomVariableStream & | operator= (const RandomVariableStream &)=delete |
| void | SetAntithetic (bool isAntithetic) |
| Specify whether antithetic values should be generated. | |
| void | SetStream (int64_t stream) |
| Specifies the stream number for the RngStream. | |
| Public Member Functions inherited from ns3::Object | |
| Object () | |
| Constructor. | |
| ~Object () override | |
| Destructor. | |
| void | AggregateObject (Ptr< Object > other) |
| Aggregate two Objects together. | |
| void | Dispose () |
| Dispose of this Object. | |
| AggregateIterator | GetAggregateIterator () const |
| Get an iterator to the Objects aggregated to this one. | |
| TypeId | GetInstanceTypeId () const override |
| Get the most derived TypeId for this Object. | |
| template<typename T > | |
| Ptr< T > | GetObject () const |
| Get a pointer to the requested aggregated Object. | |
| template<> | |
| Ptr< Object > | GetObject () const |
| Specialization of () for objects of type ns3::Object. | |
| template<typename T > | |
| Ptr< T > | GetObject (TypeId tid) const |
| Get a pointer to the requested aggregated Object by TypeId. | |
| template<> | |
| Ptr< Object > | GetObject (TypeId tid) const |
| Specialization of (TypeId tid) for objects of type ns3::Object. | |
| void | Initialize () |
| Invoke DoInitialize on all Objects aggregated to this one. | |
| bool | IsInitialized () const |
| Check if the object has been initialized. | |
| Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter > | |
| SimpleRefCount () | |
| Default constructor. | |
| SimpleRefCount (const SimpleRefCount &o) | |
| Copy constructor. | |
| uint32_t | GetReferenceCount () const |
| Get the reference count of the object. | |
| SimpleRefCount & | operator= (const SimpleRefCount &o) |
| Assignment operator. | |
| void | Ref () const |
| Increment the reference count. | |
| void | Unref () const |
| Decrement the reference count. | |
| Public Member Functions inherited from ns3::ObjectBase | |
| virtual | ~ObjectBase () |
| Virtual destructor. | |
| void | GetAttribute (std::string name, AttributeValue &value) const |
| Get the value of an attribute, raising fatal errors if unsuccessful. | |
| bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
| Get the value of an attribute without raising errors. | |
| virtual TypeId | GetInstanceTypeId () const =0 |
| Get the most derived TypeId for this Object. | |
| void | SetAttribute (std::string name, const AttributeValue &value) |
| Set a single attribute, raising fatal errors if unsuccessful. | |
| bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
| Set a single attribute without raising errors. | |
| bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
| Connect a TraceSource to a Callback with a context. | |
| bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
| Connect a TraceSource to a Callback without a context. | |
| bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected with a context. | |
| bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected without a context. | |
Static Public Member Functions | |
| static TypeId | GetTypeId () |
| Register this type. | |
| Static Public Member Functions inherited from ns3::RandomVariableStream | |
| static TypeId | GetTypeId () |
| Register this type. | |
| Static Public Member Functions inherited from ns3::Object | |
| static TypeId | GetTypeId () |
| Register this type. | |
| Static Public Member Functions inherited from ns3::ObjectBase | |
| static TypeId | GetTypeId () |
| Get the type ID. | |
Private Attributes | |
| double | m_max |
| The upper bound on values that can be returned by this RNG stream. | |
| double | m_min |
| The lower bound on values that can be returned by this RNG stream. | |
Additional Inherited Members | |
| Protected Member Functions inherited from ns3::RandomVariableStream | |
| RngStream * | Peek () const |
| Get the pointer to the underlying RngStream. | |
| Protected Member Functions inherited from ns3::Object | |
| Object (const Object &o) | |
| Copy an Object. | |
| virtual void | DoDispose () |
| Destructor implementation. | |
| virtual void | DoInitialize () |
| Initialize() implementation. | |
| virtual void | NotifyNewAggregate () |
| Notify all Objects aggregated to this one of a new Object being aggregated. | |
| Protected Member Functions inherited from ns3::ObjectBase | |
| void | ConstructSelf (const AttributeConstructionList &attributes) |
| Complete construction of ObjectBase; invoked by derived classes. | |
| virtual void | NotifyConstructionCompleted () |
| Notifier called once the ObjectBase is fully constructed. | |
| Related Functions inherited from ns3::ObjectBase | |
| static TypeId | GetObjectIid () |
| Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. | |
The uniform distribution Random Number Generator (RNG).
This class supports the creation of objects that return random numbers from a fixed uniform distribution. It also supports the generation of single random numbers from various uniform distributions.
The output range is
Min, Max) for floating point values, (Max excluded), and Min, Max] (Max included) for integral values.
This distribution has mean
![\[
\mu = \frac{\text{Max} + \text{Min}}{2}
\]](../../form_6_dark.png)
and variance
![\[
\sigma^2 = \frac{\left(\text{Max} - \text{Min}\right)^2}{12}
\]](../../form_7_dark.png)
The uniform RNG value
![\[
x = \text{Min} + u (\text{Max} - \text{Min})
\]](../../form_9_dark.png)
where
Here is an example of how to use this class:
Normally this RNG returns values
Min, Max) (or [Min, Max] for integer values). If an instance of this RNG is configured to return antithetic values, the actual value returned is calculated as follows:
ns3::UniformRandomVariable is accessible through the following paths with Config::Set and Config::Connect:
No TraceSources are defined for this type.
Size of this type is 72 bytes (on a 64-bit architecture).
Definition at line 232 of file random-variable-stream.h.
| ns3::UniformRandomVariable::UniformRandomVariable | ( | ) |
Creates a uniform distribution RNG with the default range.
Definition at line 175 of file random-variable-stream.cc.
References NS_LOG_FUNCTION.
|
overridevirtual |
Get the next random value drawn from the distribution.
Reimplemented from ns3::RandomVariableStream.
Definition at line 223 of file random-variable-stream.cc.
References GetValue(), m_max, m_min, and NS_LOG_FUNCTION.
Here is the call graph for this function:Get the next random value drawn from the distribution.
| [in] | min | Low end of the range (included). |
| [in] | max | High end of the range (excluded). |
Definition at line 208 of file random-variable-stream.cc.
References GetValue(), max, min, NS_ASSERT, and NS_LOG_FUNCTION.
Referenced by ns3::dsr::DsrRouting::CancelPacketTimerNextHop(), ns3::aodv::RoutingProtocol::DoInitialize(), ns3::TrickleTimer::Enable(), ns3::Txop::GenerateBackoff(), ns3::BriteTopologyHelper::GenerateBriteTopology(), ns3::TvSpectrumTransmitterHelper::GenerateRegionalTransmitterIndices(), ns3::ThreeGppUmaPropagationLossModel::GetBpDistance(), ns3::RandomBuildingPositionAllocator::GetNext(), ns3::RandomRoomPositionAllocator::GetNext(), ns3::TvSpectrumTransmitterHelper::GetRandomNumTransmitters(), ns3::MinstrelHtWifiManager::InitSampleTable(), ns3::MinstrelWifiManager::InitSampleTable(), ns3::Ipv4GlobalRouting::LookupGlobal(), ns3::dsr::DsrRouting::PriorityScheduler(), ns3::LteUeMac::RandomlySelectAndSendRaPreamble(), ns3::dsdv::RoutingProtocol::RecvDsdv(), ns3::aodv::RoutingProtocol::RecvRequest(), ns3::dsdv::RoutingProtocol::RouteOutput(), ns3::dsr::DsrRouting::ScheduleInterRequest(), ns3::dsr::DsrRouting::Send(), ns3::aodv::RoutingProtocol::SendHello(), ns3::dsr::DsrRouting::SendPacketFromBuffer(), ns3::dsdv::RoutingProtocol::SendPacketFromQueue(), ns3::dsdv::RoutingProtocol::SendPeriodicUpdate(), ns3::aodv::RoutingProtocol::SendRequest(), ns3::aodv::RoutingProtocol::SendRerrMessage(), ns3::ThreeGppChannelModel::Shuffle(), and ns3::dsdv::RoutingProtocol::Start().

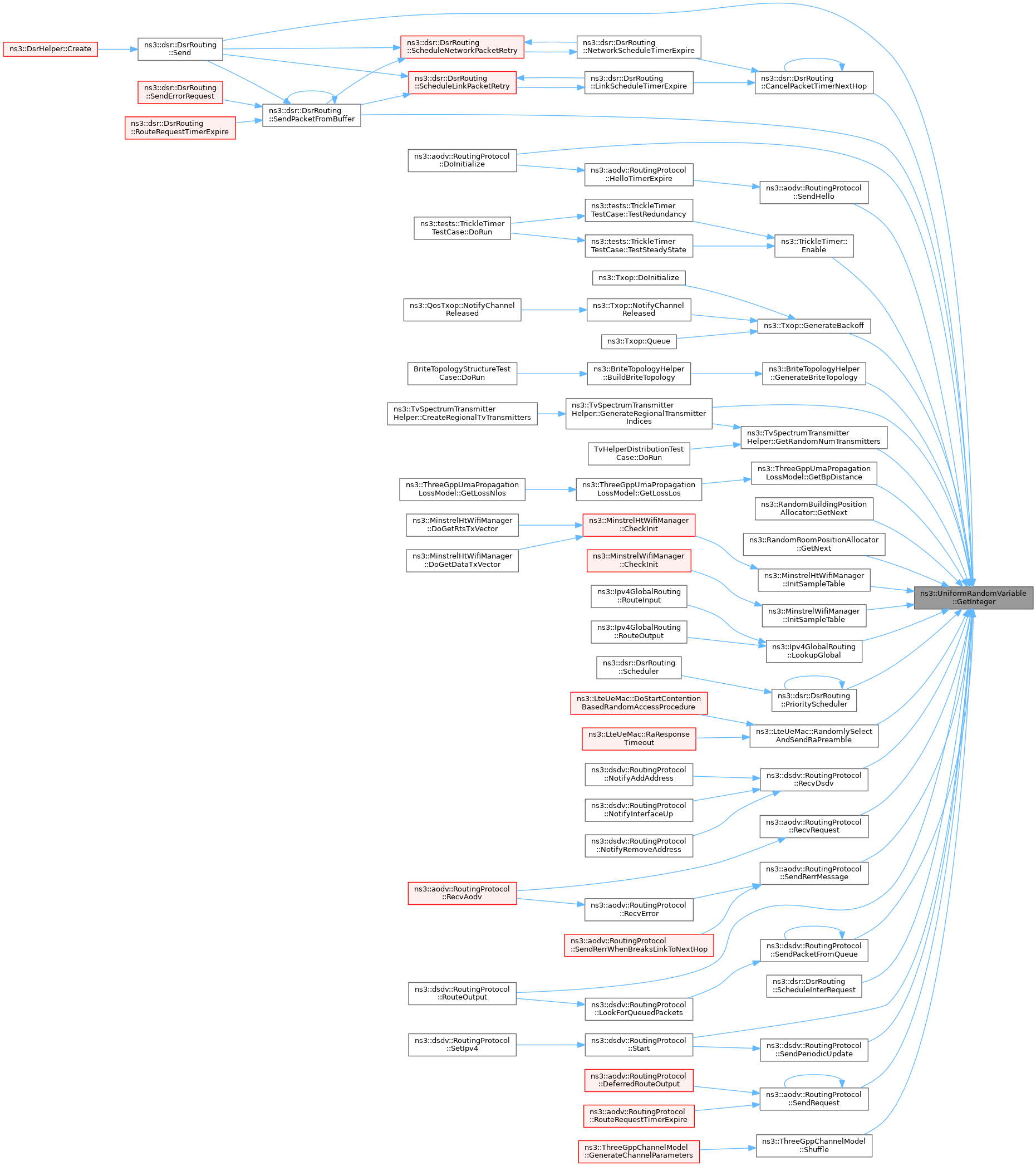

Here is the call graph for this function: Here is the caller graph for this function:| double ns3::UniformRandomVariable::GetMax | ( | ) | const |
Get the upper bound on values returned by GetValue().
Definition at line 189 of file random-variable-stream.cc.
References m_max, and NS_LOG_FUNCTION.
| double ns3::UniformRandomVariable::GetMin | ( | ) | const |
Get the lower bound on randoms returned by GetValue().
Definition at line 182 of file random-variable-stream.cc.
References m_min, and NS_LOG_FUNCTION.
|
static |
Register this type.
Definition at line 155 of file random-variable-stream.cc.
References m_max, m_min, ns3::MakeDoubleAccessor(), and ns3::TypeId::SetParent().

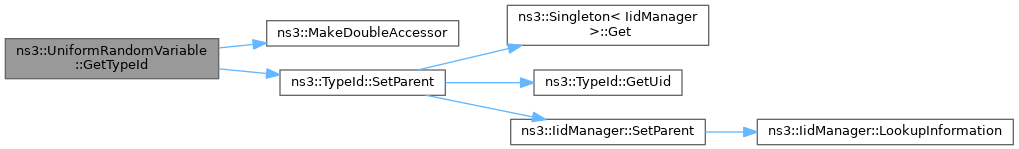

Here is the call graph for this function:
|
overridevirtual |
Get the next random value drawn from the distribution.
Implements ns3::RandomVariableStream.
Definition at line 216 of file random-variable-stream.cc.
References GetValue(), m_max, m_min, and NS_LOG_FUNCTION.
Referenced by GetInteger(), and GetValue().
Here is the call graph for this function: Here is the caller graph for this function:Get the next random value drawn from the distribution.
| [in] | min | Low end of the range (included). |
| [in] | max | High end of the range (excluded). |
Definition at line 196 of file random-variable-stream.cc.
References ns3::RandomVariableStream::IsAntithetic(), max, min, NS_LOG_FUNCTION, ns3::RandomVariableStream::Peek(), and ns3::RngStream::RandU01().
Referenced by ns3::SteadyStateRandomWaypointMobilityModel::BeginWalk(), ns3::ThreeGppChannelModel::CalcAttenuationOfBlockage(), ns3::LrWpanPhy::CheckInterference(), ns3::CobaltQueueDisc::CobaltShouldDrop(), ns3::ThreeGppChannelConditionModel::ComputeChannelCondition(), ns3::ThreeGppChannelConditionModel::ComputeO2i(), FemtocellBlockAllocator::Create(), ns3::SixLowPanNetDevice::DoFragmentation(), ns3::Rip::DoInitialize(), ns3::RipNg::DoInitialize(), ns3::dot11s::HwmpProtocol::DoInitialize(), ns3::MeshWifiInterfaceMac::DoInitialize(), ns3::ApWifiMac::DoInitialize(), ns3::RandomDirection2dMobilityModel::DoInitializePrivate(), ns3::SteadyStateRandomWaypointMobilityModel::DoInitializePrivate(), ns3::PieQueueDisc::DropEarly(), ns3::RedQueueDisc::DropEarly(), ns3::TrickleTimer::Enable(), ns3::LteSpectrumPhy::EndRxData(), ns3::LteSpectrumPhy::EndRxDlCtrl(), ns3::UanMacCw::Enqueue(), ns3::TcpBbr::EnterProbeBW(), ns3::ThreeGppChannelModel::GenerateChannelParameters(), ns3::ThreeGppV2vUrbanPropagationLossModel::GetAdditionalNlosvLoss(), ns3::Backoff::GetBackoffTime(), ns3::ThreeGppUmaPropagationLossModel::GetBpDistance(), ns3::Ipv6ExtensionFragment::GetFragments(), ns3::TwoRaySpectrumPropagationLossModel::GetFtrFastFading(), ns3::ThreeGppHttpVariables::GetMtuSize(), ns3::RandomBuildingPositionAllocator::GetNext(), ns3::RandomRoomPositionAllocator::GetNext(), ns3::SameRoomPositionAllocator::GetNext(), ns3::FixedRoomPositionAllocator::GetNext(), ns3::UniformDiscPositionAllocator::GetNext(), ns3::ThreeGppRmaPropagationLossModel::GetO2iDistance2dIn(), ns3::ThreeGppUmaPropagationLossModel::GetO2iDistance2dIn(), ns3::ThreeGppUmiStreetCanyonPropagationLossModel::GetO2iDistance2dIn(), ns3::PhyEntity::GetRandomValue(), ns3::Radvd::HandleRead(), ns3::TrickleTimer::IntervalExpire(), Tunnel::N3VirtualSend(), ns3::LrWpanCsmaCa::RandomBackoffDelay(), ns3::TrickleTimer::Reset(), ns3::RandomDirection2dMobilityModel::ResetDirectionAndSpeed(), ns3::RrpaaWifiManager::RunBasicAlgorithm(), ns3::UanPhyGen::RxEndEvent(), ns3::dsr::DsrRouting::ScheduleCachedReply(), ns3::Radvd::Send(), ns3::Icmpv6L4Protocol::SendRS(), ns3::Rip::SendTriggeredRouteUpdate(), ns3::RipNg::SendTriggeredRouteUpdate(), ns3::Rip::SendUnsolicitedRouteUpdate(), ns3::RipNg::SendUnsolicitedRouteUpdate(), ns3::dot11s::PeerManagementProtocol::ShiftOwnBeacon(), TcpDropRatioErrorModel::ShouldDrop(), ns3::SteadyStateRandomWaypointMobilityModel::Start(), ns3::SimpleOfdmWimaxPhy::StartReceive(), and ns3::SteadyStateRandomWaypointMobilityModel::SteadyStateBeginWalk().

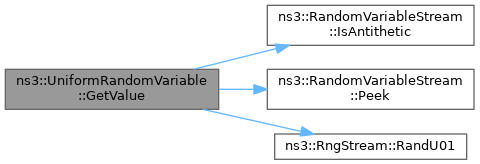

Here is the call graph for this function: Here is the caller graph for this function:
|
private |
The upper bound on values that can be returned by this RNG stream.
Definition at line 290 of file random-variable-stream.h.
Referenced by GetInteger(), GetMax(), GetTypeId(), and GetValue().
|
private |
The lower bound on values that can be returned by this RNG stream.
Definition at line 287 of file random-variable-stream.h.
Referenced by GetInteger(), GetMin(), GetTypeId(), and GetValue().
