Hold together all Wifi-related objects. More...
#include "wifi-net-device.h"
Public Member Functions | |
WifiNetDevice () | |
WifiNetDevice (const WifiNetDevice &o)=delete | |
~WifiNetDevice () override | |
void | AddLinkChangeCallback (Callback< void > callback) override |

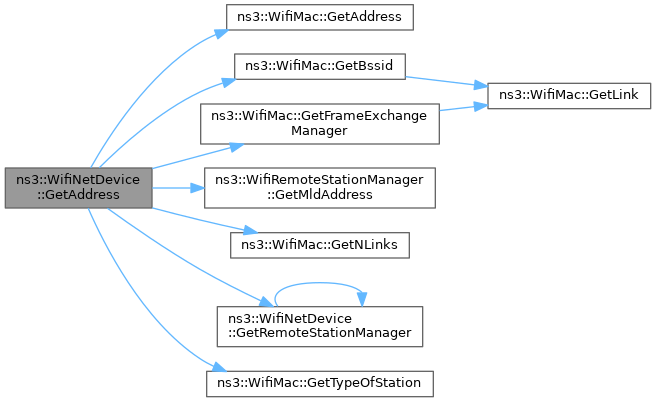

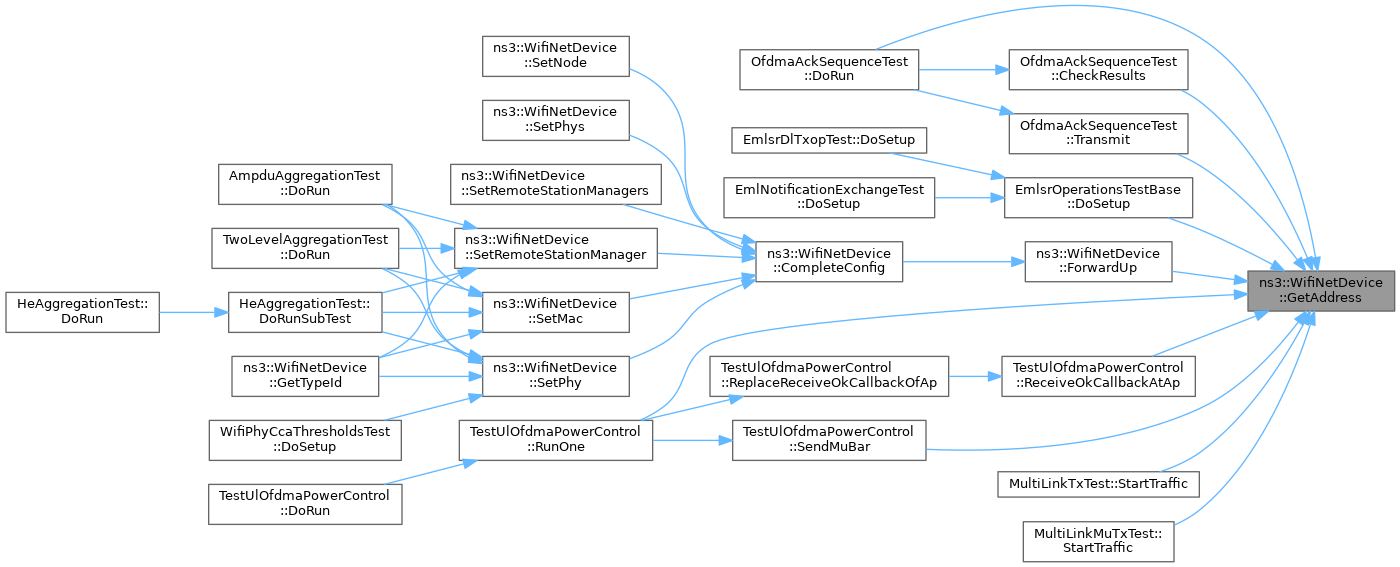

Address | GetAddress () const override |
Address | GetBroadcast () const override |

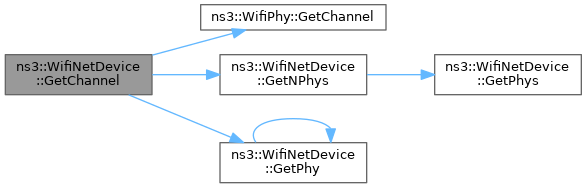

Ptr< Channel > | GetChannel () const override |
Ptr< EhtConfiguration > | GetEhtConfiguration () const |
Ptr< HeConfiguration > | GetHeConfiguration () const |
Ptr< HtConfiguration > | GetHtConfiguration () const |

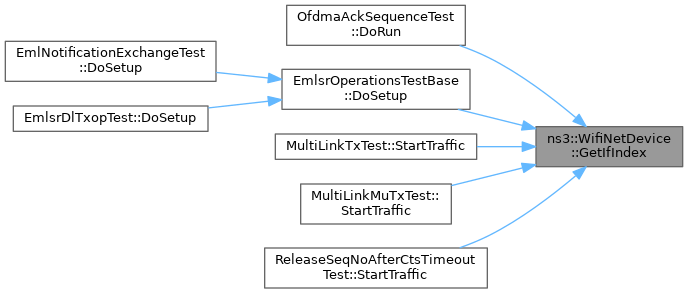

uint32_t | GetIfIndex () const override |

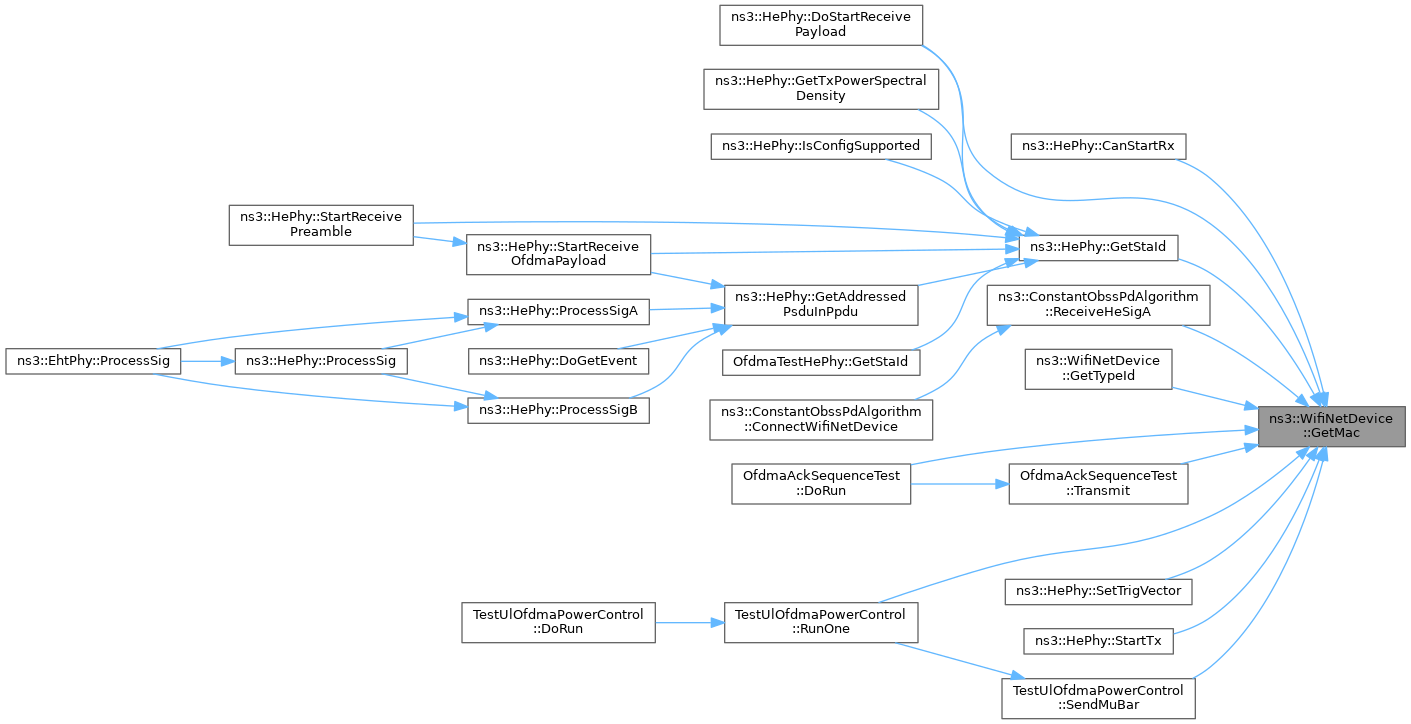

Ptr< WifiMac > | GetMac () const |
uint16_t | GetMtu () const override |

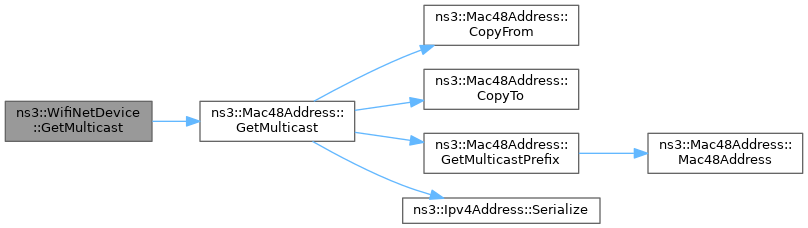

Address | GetMulticast (Ipv4Address multicastGroup) const override |
Make and return a MAC multicast address using the provided multicast group. | |
Address | GetMulticast (Ipv6Address addr) const override |
Get the MAC multicast address corresponding to the IPv6 address provided. | |

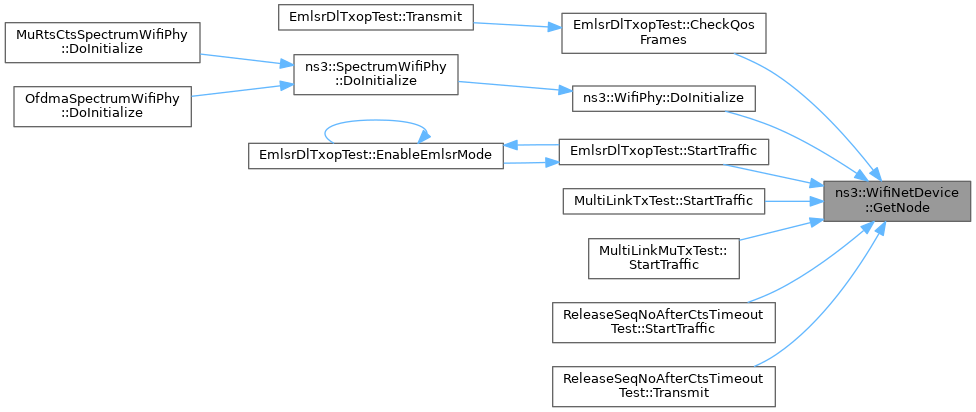

Ptr< Node > | GetNode () const override |
uint8_t | GetNPhys () const |
uint8_t | GetNRemoteStationManagers () const |

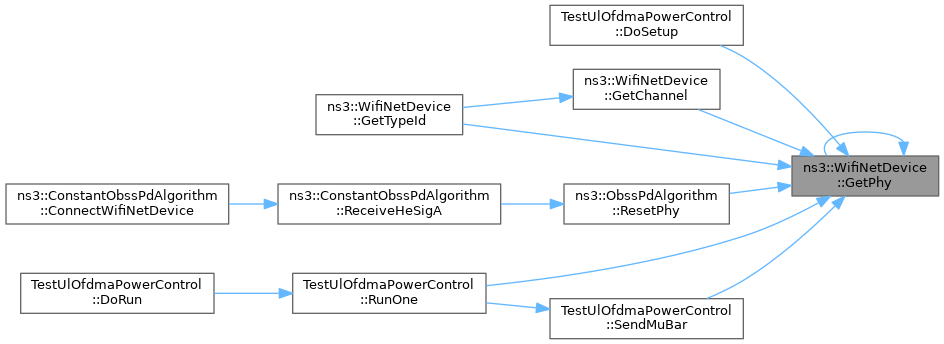

Ptr< WifiPhy > | GetPhy () const |
virtual Ptr< WifiPhy > | GetPhy (uint8_t i) const |

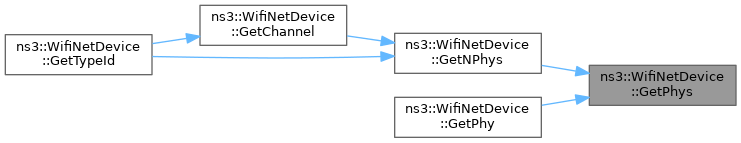

virtual const std::vector< Ptr< WifiPhy > > & | GetPhys () const |

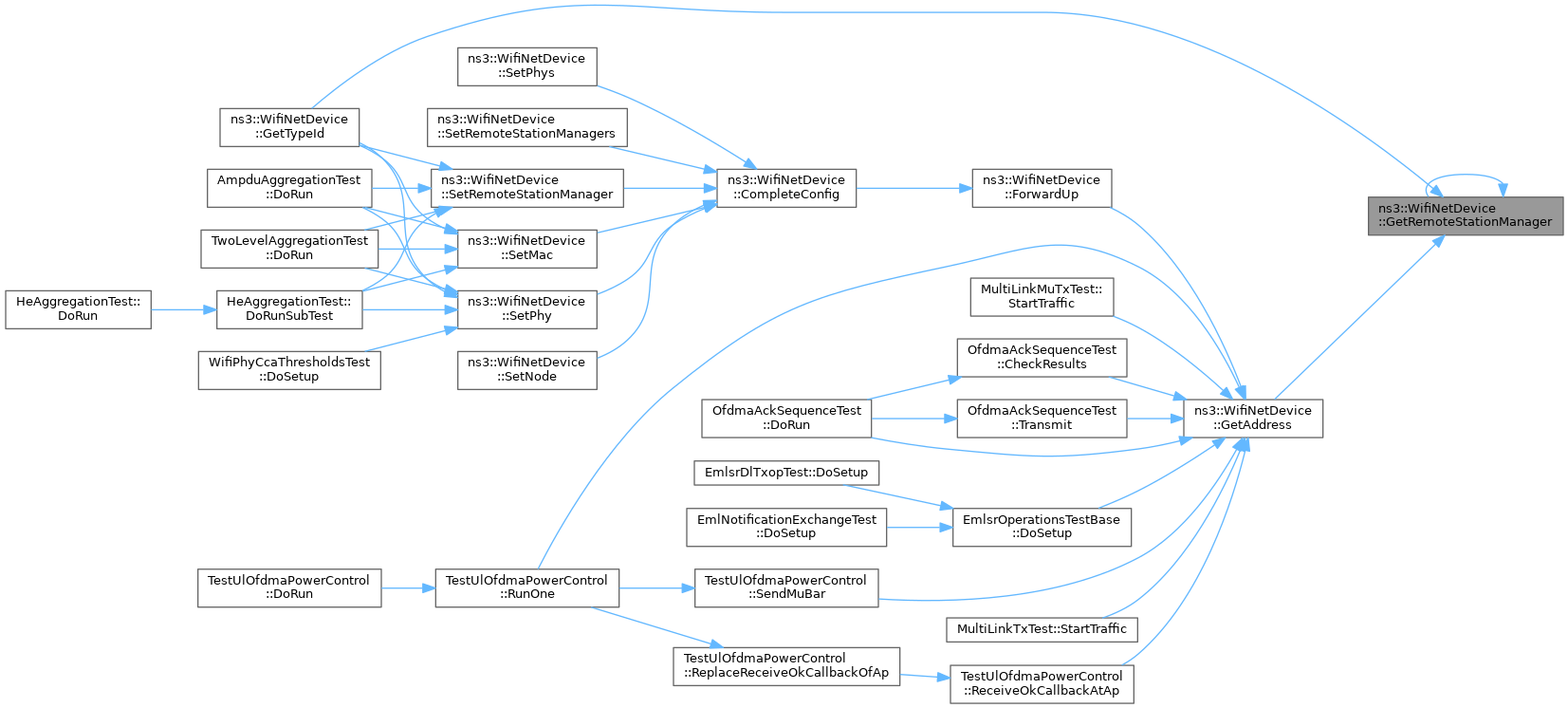

Ptr< WifiRemoteStationManager > | GetRemoteStationManager () const |
Ptr< WifiRemoteStationManager > | GetRemoteStationManager (uint8_t linkId) const |

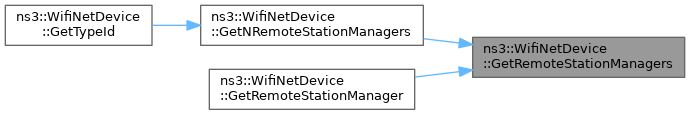

virtual const std::vector< Ptr< WifiRemoteStationManager > > & | GetRemoteStationManagers () const |
WifiStandard | GetStandard () const |
Get the Wifi standard. | |
Ptr< VhtConfiguration > | GetVhtConfiguration () const |
bool | IsBridge () const override |
Return true if the net device is acting as a bridge. | |
bool | IsBroadcast () const override |
bool | IsLinkUp () const override |
bool | IsMulticast () const override |
bool | IsPointToPoint () const override |
Return true if the net device is on a point-to-point link. | |
bool | NeedsArp () const override |
WifiNetDevice & | operator= (const WifiNetDevice &)=delete |
bool | Send (Ptr< Packet > packet, const Address &dest, uint16_t protocolNumber) override |

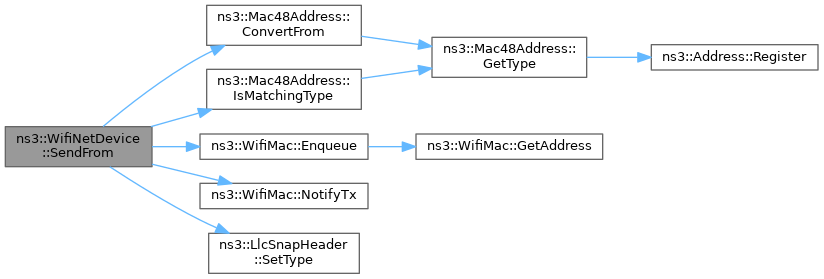

bool | SendFrom (Ptr< Packet > packet, const Address &source, const Address &dest, uint16_t protocolNumber) override |

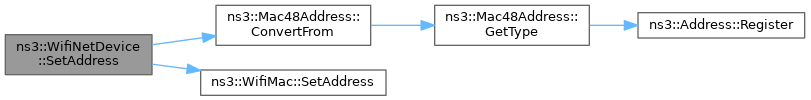

void | SetAddress (Address address) override |
Set the address of this interface. | |
void | SetEhtConfiguration (Ptr< EhtConfiguration > ehtConfiguration) |
void | SetHeConfiguration (Ptr< HeConfiguration > heConfiguration) |

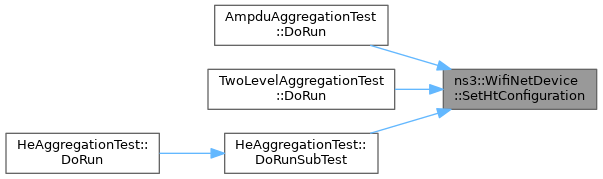

void | SetHtConfiguration (Ptr< HtConfiguration > htConfiguration) |
void | SetIfIndex (const uint32_t index) override |

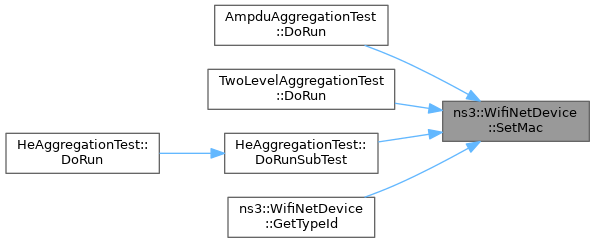

void | SetMac (const Ptr< WifiMac > mac) |
bool | SetMtu (const uint16_t mtu) override |
void | SetNode (const Ptr< Node > node) override |

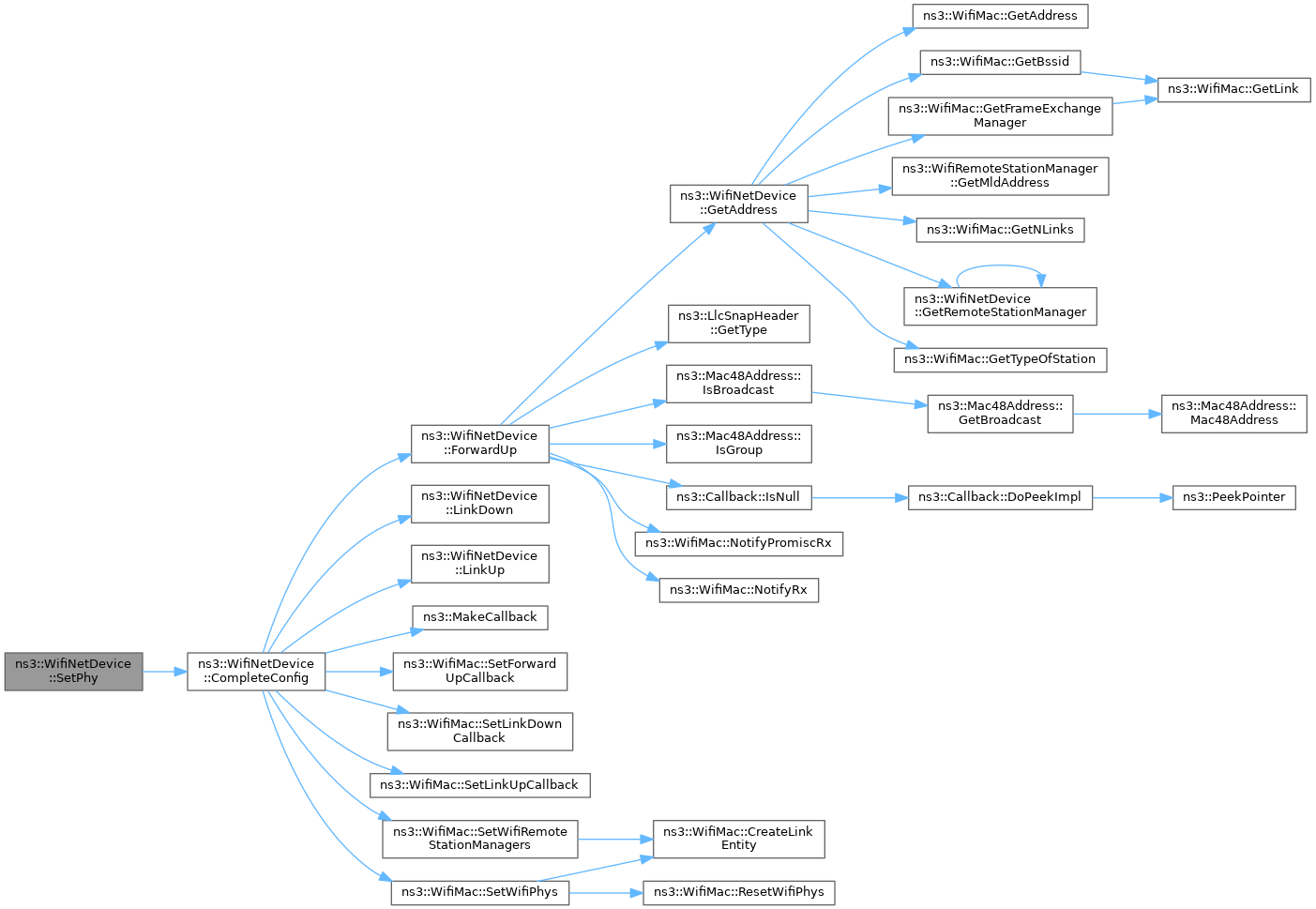

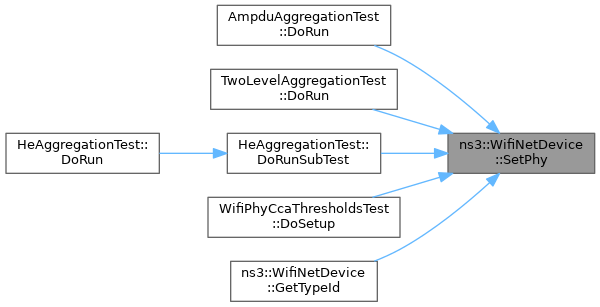

void | SetPhy (const Ptr< WifiPhy > phy) |
void | SetPhys (const std::vector< Ptr< WifiPhy > > &phys) |
void | SetPromiscReceiveCallback (PromiscReceiveCallback cb) override |
void | SetReceiveCallback (NetDevice::ReceiveCallback cb) override |

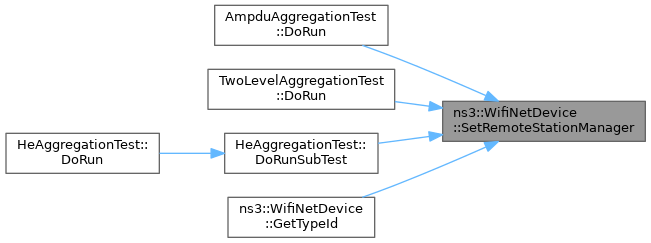

void | SetRemoteStationManager (const Ptr< WifiRemoteStationManager > manager) |

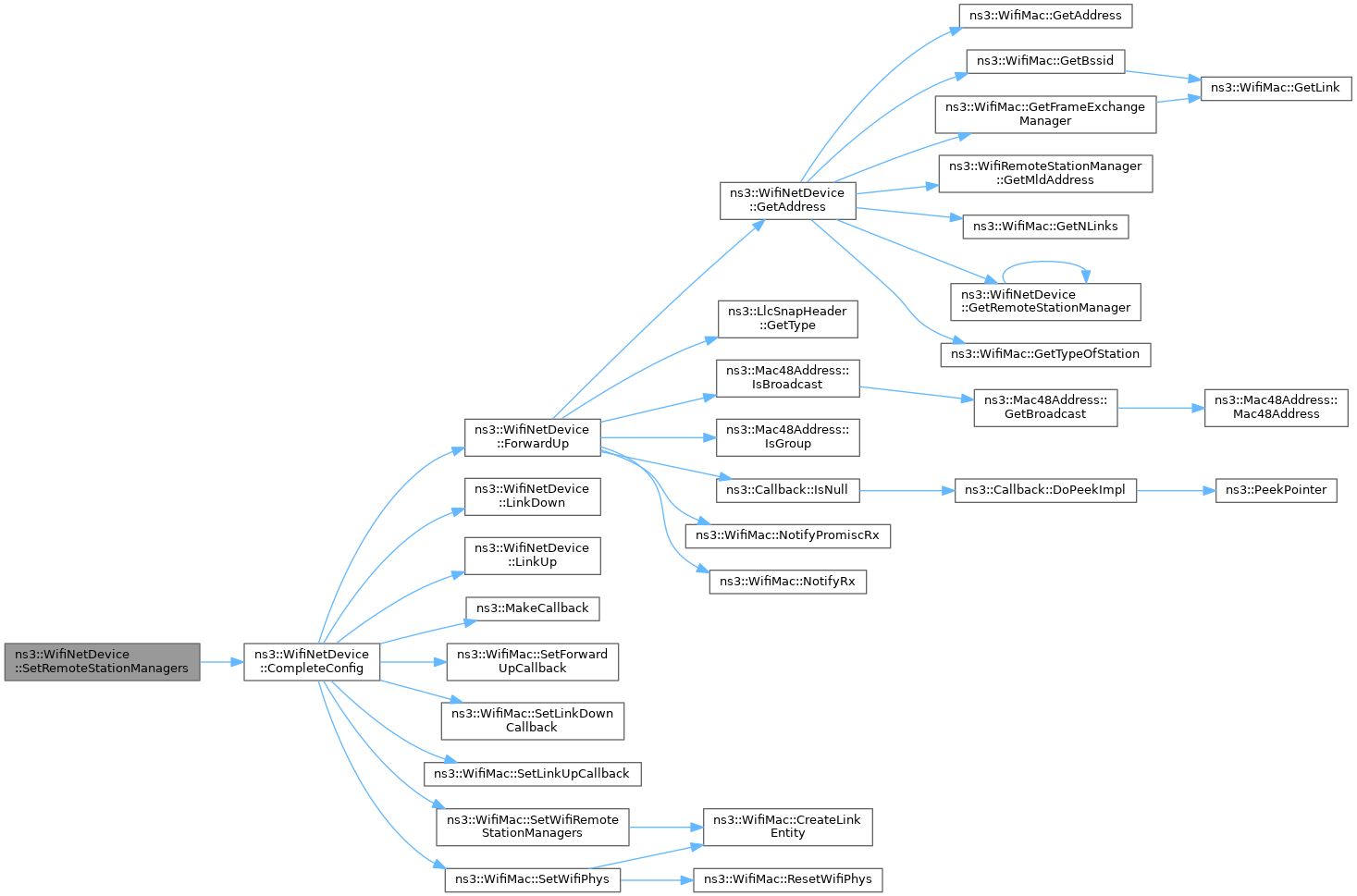

void | SetRemoteStationManagers (const std::vector< Ptr< WifiRemoteStationManager > > &managers) |

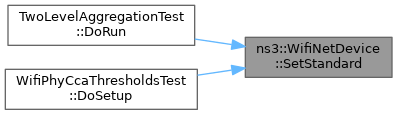

void | SetStandard (WifiStandard standard) |
Set the Wifi standard. | |

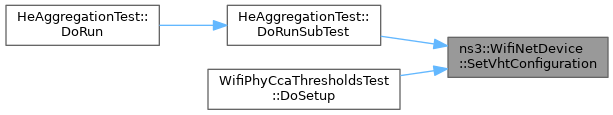

void | SetVhtConfiguration (Ptr< VhtConfiguration > vhtConfiguration) |
bool | SupportsSendFrom () const override |

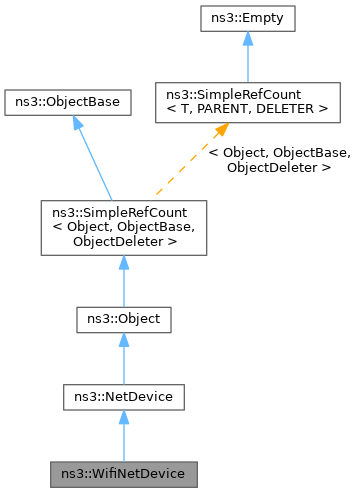

Public Member Functions inherited from ns3::NetDevice | |
~NetDevice () override | |
virtual void | AddLinkChangeCallback (Callback< void > callback)=0 |
virtual Address | GetAddress () const =0 |
virtual Address | GetBroadcast () const =0 |
virtual Ptr< Channel > | GetChannel () const =0 |
virtual uint32_t | GetIfIndex () const =0 |
virtual uint16_t | GetMtu () const =0 |
virtual Address | GetMulticast (Ipv4Address multicastGroup) const =0 |
Make and return a MAC multicast address using the provided multicast group. | |
virtual Address | GetMulticast (Ipv6Address addr) const =0 |
Get the MAC multicast address corresponding to the IPv6 address provided. | |
virtual Ptr< Node > | GetNode () const =0 |
virtual bool | IsBridge () const =0 |
Return true if the net device is acting as a bridge. | |
virtual bool | IsBroadcast () const =0 |
virtual bool | IsLinkUp () const =0 |
virtual bool | IsMulticast () const =0 |
virtual bool | IsPointToPoint () const =0 |
Return true if the net device is on a point-to-point link. | |
virtual bool | NeedsArp () const =0 |
virtual bool | Send (Ptr< Packet > packet, const Address &dest, uint16_t protocolNumber)=0 |
virtual bool | SendFrom (Ptr< Packet > packet, const Address &source, const Address &dest, uint16_t protocolNumber)=0 |
virtual void | SetAddress (Address address)=0 |
Set the address of this interface. | |
virtual void | SetIfIndex (const uint32_t index)=0 |
virtual bool | SetMtu (const uint16_t mtu)=0 |
virtual void | SetNode (Ptr< Node > node)=0 |
virtual void | SetPromiscReceiveCallback (PromiscReceiveCallback cb)=0 |
virtual void | SetReceiveCallback (ReceiveCallback cb)=0 |
virtual bool | SupportsSendFrom () const =0 |
Public Member Functions inherited from ns3::Object | |
Object () | |
Constructor. | |
~Object () override | |
Destructor. | |
void | AggregateObject (Ptr< Object > other) |
Aggregate two Objects together. | |
void | Dispose () |
Dispose of this Object. | |
AggregateIterator | GetAggregateIterator () const |
Get an iterator to the Objects aggregated to this one. | |
TypeId | GetInstanceTypeId () const override |
Get the most derived TypeId for this Object. | |
template<typename T > | |
Ptr< T > | GetObject () const |
Get a pointer to the requested aggregated Object. | |
template<> | |
Ptr< Object > | GetObject () const |
Specialization of () for objects of type ns3::Object. | |
template<typename T > | |
Ptr< T > | GetObject (TypeId tid) const |
Get a pointer to the requested aggregated Object by TypeId. | |
template<> | |
Ptr< Object > | GetObject (TypeId tid) const |
Specialization of (TypeId tid) for objects of type ns3::Object. | |
void | Initialize () |
Invoke DoInitialize on all Objects aggregated to this one. | |
bool | IsInitialized () const |
Check if the object has been initialized. | |
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter > | |
SimpleRefCount () | |
Default constructor. | |
SimpleRefCount (const SimpleRefCount &o) | |
Copy constructor. | |
uint32_t | GetReferenceCount () const |
Get the reference count of the object. | |
SimpleRefCount & | operator= (const SimpleRefCount &o) |
Assignment operator. | |
void | Ref () const |
Increment the reference count. | |
void | Unref () const |
Decrement the reference count. | |
Public Member Functions inherited from ns3::ObjectBase | |
virtual | ~ObjectBase () |
Virtual destructor. | |
void | GetAttribute (std::string name, AttributeValue &value) const |
Get the value of an attribute, raising fatal errors if unsuccessful. | |
bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
Get the value of an attribute without raising errors. | |
virtual TypeId | GetInstanceTypeId () const =0 |
Get the most derived TypeId for this Object. | |
void | SetAttribute (std::string name, const AttributeValue &value) |
Set a single attribute, raising fatal errors if unsuccessful. | |
bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
Set a single attribute without raising errors. | |
bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
Connect a TraceSource to a Callback with a context. | |
bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
Connect a TraceSource to a Callback without a context. | |
bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected with a context. | |
bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected without a context. | |
Static Public Member Functions | |

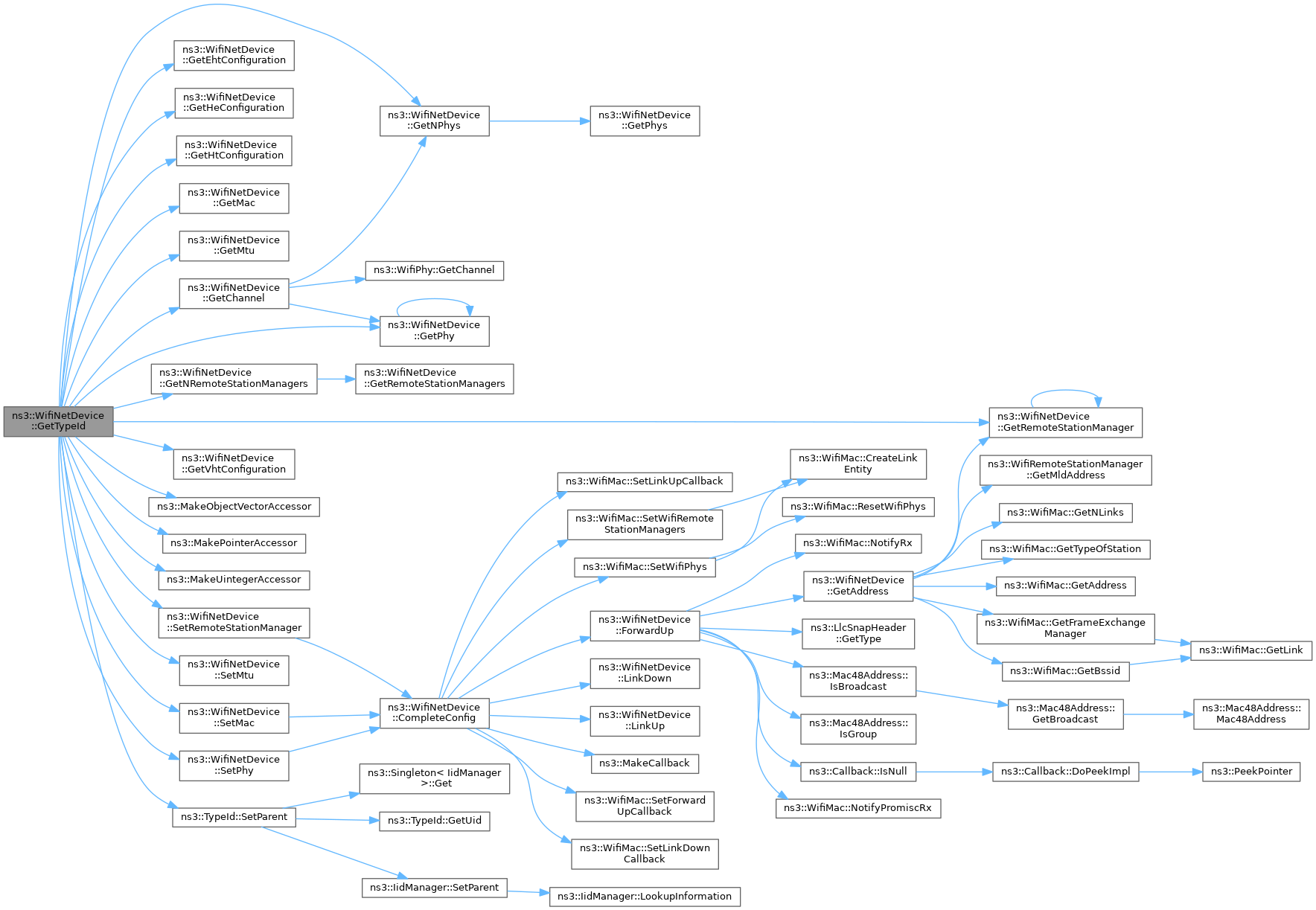

static TypeId | GetTypeId () |
Get the type ID. | |
Static Public Member Functions inherited from ns3::NetDevice | |
static TypeId | GetTypeId () |
Get the type ID. | |
Static Public Member Functions inherited from ns3::Object | |
static TypeId | GetTypeId () |
Register this type. | |
Static Public Member Functions inherited from ns3::ObjectBase | |
static TypeId | GetTypeId () |
Get the type ID. | |
Protected Member Functions | |
void | DoDispose () override |
Destructor implementation. | |
void | DoInitialize () override |
Initialize() implementation. | |

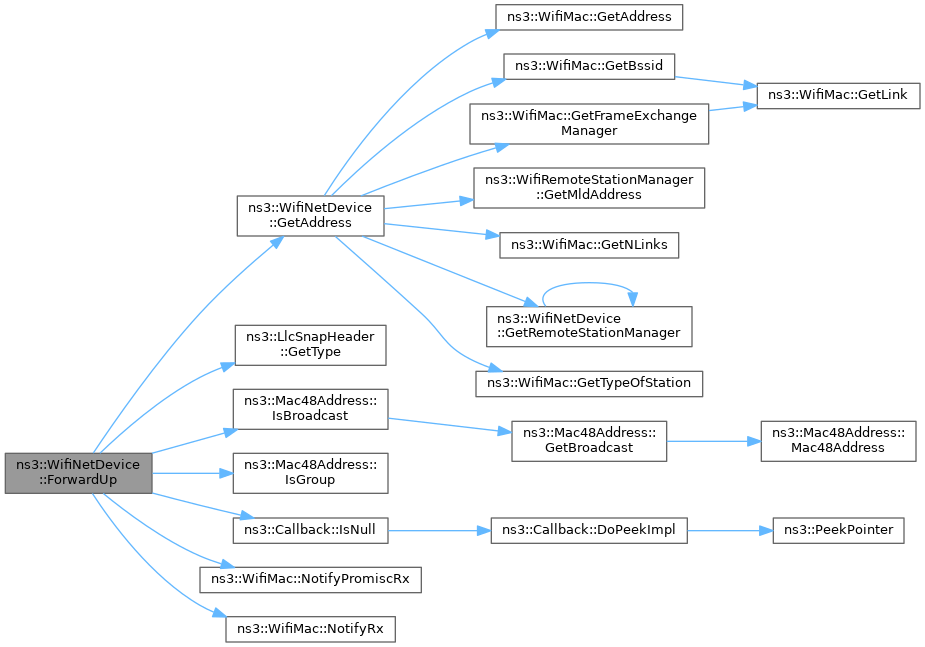

void | ForwardUp (Ptr< const Packet > packet, Mac48Address from, Mac48Address to) |
Receive a packet from the lower layer and pass the packet up the stack. | |
Protected Member Functions inherited from ns3::Object | |
Object (const Object &o) | |
Copy an Object. | |
virtual void | DoDispose () |
Destructor implementation. | |
virtual void | DoInitialize () |
Initialize() implementation. | |
virtual void | NotifyNewAggregate () |
Notify all Objects aggregated to this one of a new Object being aggregated. | |
Protected Member Functions inherited from ns3::ObjectBase | |
void | ConstructSelf (const AttributeConstructionList &attributes) |
Complete construction of ObjectBase; invoked by derived classes. | |
virtual void | NotifyConstructionCompleted () |
Notifier called once the ObjectBase is fully constructed. | |
Private Member Functions | |

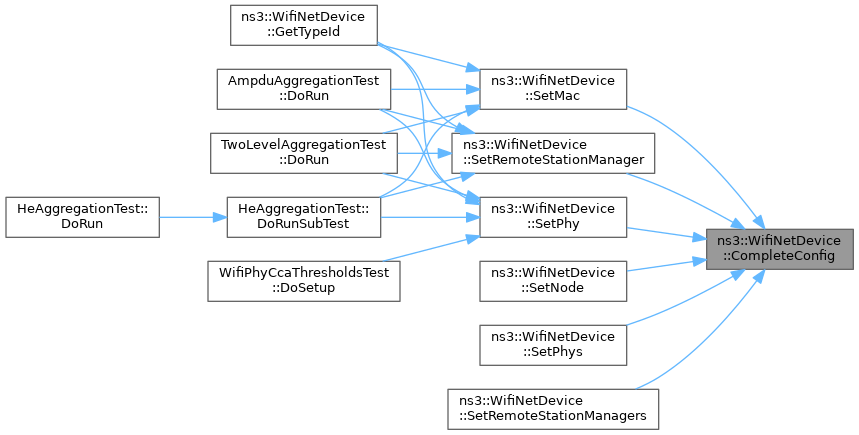

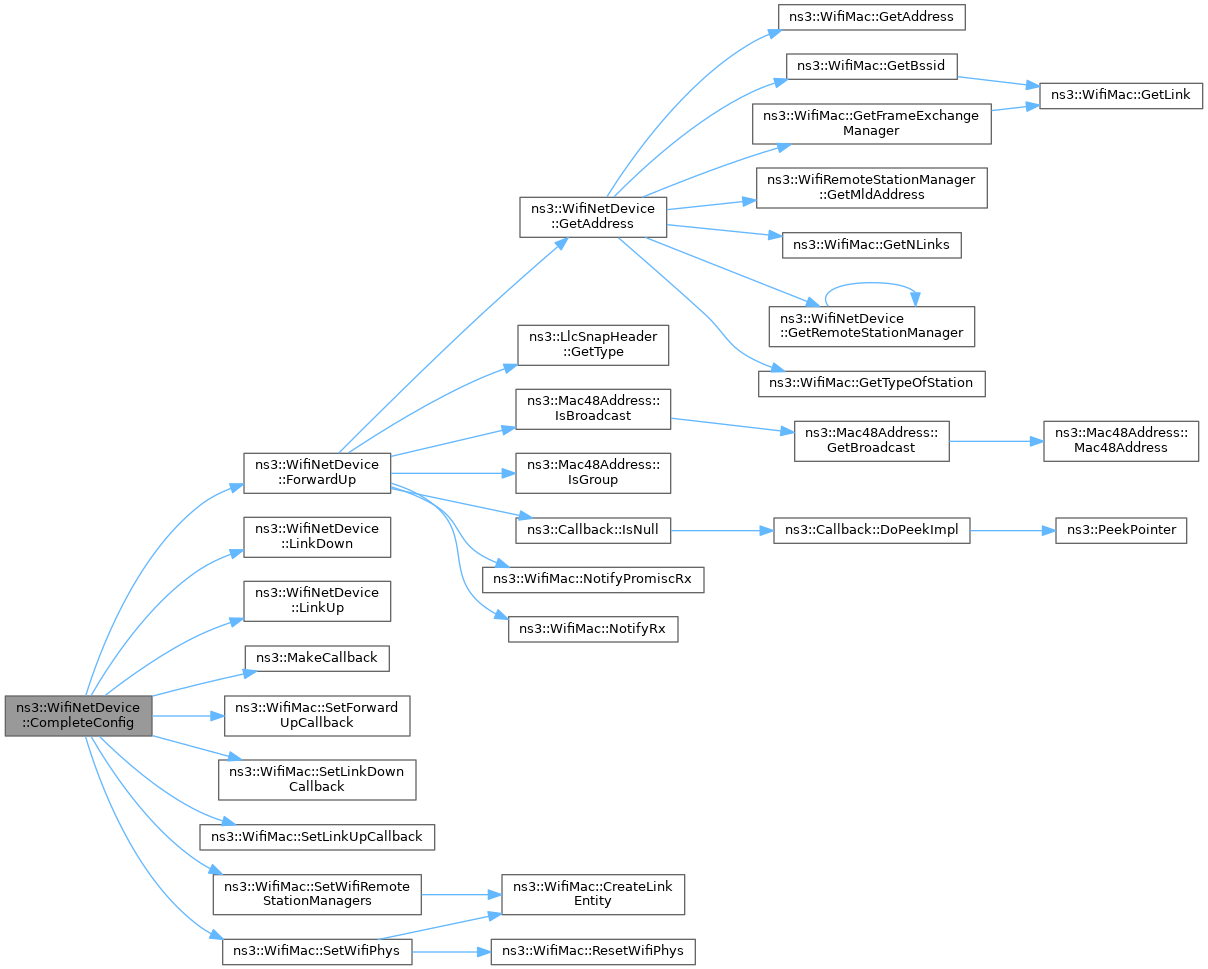

void | CompleteConfig () |
Complete the configuration of this Wi-Fi device by connecting all lower components (e.g. | |

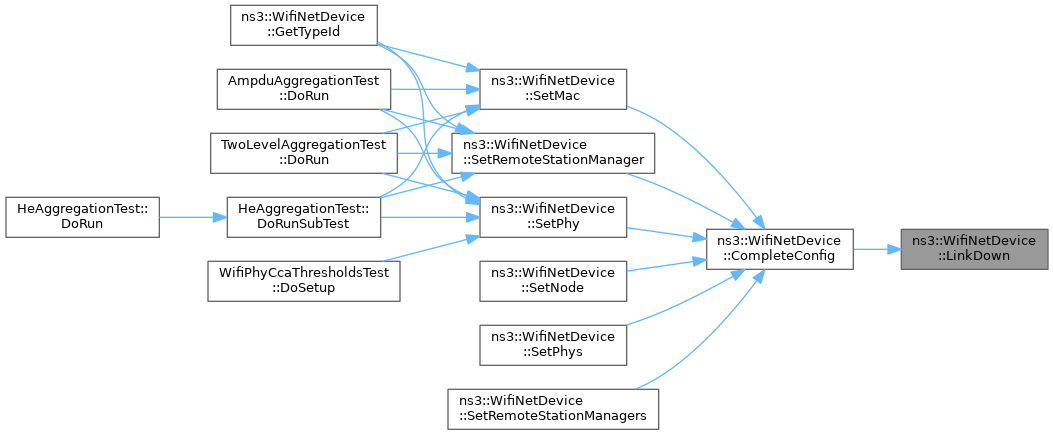

void | LinkDown () |
Set that the link is down (i.e. | |
void | LinkUp () |
Set that the link is up. | |
Private Attributes | |
bool | m_configComplete |
configuration complete | |
Ptr< EhtConfiguration > | m_ehtConfiguration |
the EhtConfiguration | |
NetDevice::ReceiveCallback | m_forwardUp |
forward up callback | |
Ptr< HeConfiguration > | m_heConfiguration |
the HeConfiguration | |
Ptr< HtConfiguration > | m_htConfiguration |
the HtConfiguration | |
uint32_t | m_ifIndex |
IF index. | |
TracedCallback | m_linkChanges |
link change callback | |
bool | m_linkUp |
link up | |
Ptr< WifiMac > | m_mac |
the MAC | |
uint16_t | m_mtu |
MTU. | |
Ptr< Node > | m_node |
the node | |
std::vector< Ptr< WifiPhy > > | m_phys |
the phy objects | |
NetDevice::PromiscReceiveCallback | m_promiscRx |
promiscuous receive callback | |
TracedCallback< Ptr< const Packet >, Mac48Address > | m_rxLogger |
receive trace callback | |
WifiStandard | m_standard |
Wifi standard. | |
std::vector< Ptr< WifiRemoteStationManager > > | m_stationManagers |
the station managers | |
TracedCallback< Ptr< const Packet >, Mac48Address > | m_txLogger |
transmit trace callback | |
Ptr< VhtConfiguration > | m_vhtConfiguration |
the VhtConfiguration | |
Additional Inherited Members | |
Public Types inherited from ns3::NetDevice | |
typedef void(* | LinkChangeTracedCallback) () |
TracedCallback signature for link changed event. | |
enum | PacketType { PACKET_HOST = 1 , NS3_PACKET_HOST = PACKET_HOST , PACKET_BROADCAST , NS3_PACKET_BROADCAST = PACKET_BROADCAST , PACKET_MULTICAST , NS3_PACKET_MULTICAST = PACKET_MULTICAST , PACKET_OTHERHOST , NS3_PACKET_OTHERHOST = PACKET_OTHERHOST } |
Packet types are used as they are in Linux. More... | |
typedef Callback< bool, Ptr< NetDevice >, Ptr< const Packet >, uint16_t, const Address &, const Address &, PacketType > | PromiscReceiveCallback |
typedef Callback< bool, Ptr< NetDevice >, Ptr< const Packet >, uint16_t, const Address & > | ReceiveCallback |
Related Functions inherited from ns3::ObjectBase | |
static TypeId | GetObjectIid () |
Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. | |
Hold together all Wifi-related objects.
This class holds together ns3::Channel, ns3::WifiPhy, ns3::WifiMac, and, ns3::WifiRemoteStationManager.
ns3::WifiNetDevice is accessible through the following paths with Config::Set and Config::Connect:
No TraceSources are defined for this type.
Size of this type is 216 bytes (on a 64-bit architecture).
Definition at line 58 of file wifi-net-device.h.
ns3::WifiNetDevice::WifiNetDevice | ( | ) |
Definition at line 122 of file wifi-net-device.cc.
References NS_LOG_FUNCTION_NOARGS.
|
override |
Definition at line 129 of file wifi-net-device.cc.
References NS_LOG_FUNCTION_NOARGS.
|
delete |
|
overridevirtual |
callback | the callback to invoke |
Add a callback invoked whenever the link status changes to UP. This callback is typically used by the IP/ARP layer to flush the ARP cache and by IPv6 stack to flush NDISC cache whenever the link goes up.
Implements ns3::NetDevice.
Definition at line 430 of file wifi-net-device.cc.
References ns3::TracedCallback< Ts >::ConnectWithoutContext(), and m_linkChanges.
|
private |
Complete the configuration of this Wi-Fi device by connecting all lower components (e.g.
MAC, WifiRemoteStation) together.
Definition at line 212 of file wifi-net-device.cc.
References ForwardUp(), LinkDown(), LinkUp(), m_configComplete, m_mac, m_node, m_phys, m_stationManagers, ns3::MakeCallback(), NS_ABORT_IF, ns3::WifiMac::SetForwardUpCallback(), ns3::WifiMac::SetLinkDownCallback(), ns3::WifiMac::SetLinkUpCallback(), ns3::WifiMac::SetWifiPhys(), and ns3::WifiMac::SetWifiRemoteStationManagers().
Referenced by SetMac(), SetNode(), SetPhy(), SetPhys(), SetRemoteStationManager(), and SetRemoteStationManagers().
|
overrideprotectedvirtual |
Destructor implementation.
This method is called by Dispose() or by the Object's destructor, whichever comes first.
Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.
It is safe to call GetObject() from within this method.
Reimplemented from ns3::Object.
Definition at line 135 of file wifi-net-device.cc.
References ns3::Object::Dispose(), ns3::Object::DoDispose(), m_ehtConfiguration, m_heConfiguration, m_htConfiguration, m_mac, m_node, m_phys, m_stationManagers, m_vhtConfiguration, and NS_LOG_FUNCTION_NOARGS.
|
overrideprotectedvirtual |
Initialize() implementation.
This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.
Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.
Reimplemented from ns3::Object.
Definition at line 186 of file wifi-net-device.cc.
References ns3::Object::DoInitialize(), ns3::Object::Initialize(), m_mac, m_phys, m_stationManagers, and NS_LOG_FUNCTION_NOARGS.
|
protected |
Receive a packet from the lower layer and pass the packet up the stack.
packet | the packet to forward up |
from | the source address |
to | the destination address |
Definition at line 520 of file wifi-net-device.cc.
References GetAddress(), ns3::LlcSnapHeader::GetType(), ns3::Mac48Address::IsBroadcast(), ns3::Mac48Address::IsGroup(), ns3::Callback< R, UArgs >::IsNull(), m_forwardUp, m_mac, m_promiscRx, ns3::WifiMac::NotifyPromiscRx(), ns3::WifiMac::NotifyRx(), NS_LOG_FUNCTION, ns3::NetDevice::PACKET_BROADCAST, ns3::NetDevice::PACKET_HOST, ns3::NetDevice::PACKET_MULTICAST, and ns3::NetDevice::PACKET_OTHERHOST.
Referenced by CompleteConfig().
|
overridevirtual |
Normally, the MAC address that the network device has to advertise to upper layers is the MLD address, if this device is an MLD, or the unique MAC address, otherwise. Advertising the MAC address returned by WifiMac::GetAddress() is therefore the right thing to do in both cases. However, there is an exception: if this device is a non-AP MLD associated with a single link AP (hence, no ML setup was done), we need to advertise the MAC address of the link used to communicate with the AP. In fact, if we advertised the MLD address, the AP could not forward a frame to us because it would not recognize our MLD address as the MAC address of an associated station.
Implements ns3::NetDevice.
Definition at line 377 of file wifi-net-device.cc.
References ns3::WifiMac::GetAddress(), ns3::WifiMac::GetBssid(), ns3::WifiMac::GetFrameExchangeManager(), ns3::WifiRemoteStationManager::GetMldAddress(), ns3::WifiMac::GetNLinks(), GetRemoteStationManager(), ns3::WifiMac::GetTypeOfStation(), m_mac, and ns3::STA.
Referenced by OfdmaAckSequenceTest::CheckResults(), OfdmaAckSequenceTest::DoRun(), EmlsrOperationsTestBase::DoSetup(), ForwardUp(), TestUlOfdmaPowerControl::ReceiveOkCallbackAtAp(), TestUlOfdmaPowerControl::RunOne(), TestUlOfdmaPowerControl::SendMuBar(), MultiLinkTxTest::StartTraffic(), MultiLinkMuTxTest::StartTraffic(), and OfdmaAckSequenceTest::Transmit().
|
overridevirtual |
Calling this method is invalid if IsBroadcast returns not true.
Implements ns3::NetDevice.
Definition at line 442 of file wifi-net-device.cc.
References ns3::Mac48Address::GetBroadcast().
Implements ns3::NetDevice.
Definition at line 357 of file wifi-net-device.cc.
References ns3::WifiPhy::GetChannel(), GetNPhys(), GetPhy(), m_phys, NS_ABORT_MSG, and ns3::SINGLE_LINK_OP_ID.
Referenced by GetTypeId().
Ptr< EhtConfiguration > ns3::WifiNetDevice::GetEhtConfiguration | ( | ) | const |
Definition at line 654 of file wifi-net-device.cc.
References m_ehtConfiguration, m_standard, and ns3::WIFI_STANDARD_80211be.
Referenced by ns3::WifiMac::GetEhtConfiguration(), ns3::WifiRemoteStationManager::GetEhtSupported(), and GetTypeId().
Ptr< HeConfiguration > ns3::WifiNetDevice::GetHeConfiguration | ( | ) | const |
Definition at line 642 of file wifi-net-device.cc.
References m_heConfiguration, m_standard, and ns3::WIFI_STANDARD_80211ax.
Referenced by TestUlOfdmaPowerControl::DoSetup(), ns3::HePhy::GetBssColor(), ns3::WifiRemoteStationManager::GetGuardInterval(), ns3::WifiMac::GetHeConfiguration(), ns3::WifiRemoteStationManager::GetHeSupported(), ns3::HePhy::GetMaxDelayPpduSameUid(), GetTypeId(), ns3::ConstantObssPdAlgorithm::ReceiveHeSigA(), and ns3::ObssPdAlgorithm::ResetPhy().
Ptr< HtConfiguration > ns3::WifiNetDevice::GetHtConfiguration | ( | ) | const |
Definition at line 618 of file wifi-net-device.cc.
References m_htConfiguration, m_standard, and ns3::WIFI_STANDARD_80211n.
Referenced by ns3::WifiPhy::DoChannelSwitch(), ns3::WifiMac::GetHtConfiguration(), ns3::WifiRemoteStationManager::GetHtSupported(), ns3::WifiRemoteStationManager::GetLdpcSupported(), ns3::WifiRemoteStationManager::GetShortGuardIntervalSupported(), and GetTypeId().
|
overridevirtual |
Implements ns3::NetDevice.
Definition at line 351 of file wifi-net-device.cc.
References m_ifIndex.
Referenced by OfdmaAckSequenceTest::DoRun(), EmlsrOperationsTestBase::DoSetup(), MultiLinkTxTest::StartTraffic(), MultiLinkMuTxTest::StartTraffic(), and ReleaseSeqNoAfterCtsTimeoutTest::StartTraffic().
Definition at line 289 of file wifi-net-device.cc.
References m_mac.
Referenced by ns3::HePhy::CanStartRx(), OfdmaAckSequenceTest::DoRun(), ns3::HePhy::DoStartReceivePayload(), ns3::HePhy::GetStaId(), GetTypeId(), ns3::ConstantObssPdAlgorithm::ReceiveHeSigA(), TestUlOfdmaPowerControl::RunOne(), TestUlOfdmaPowerControl::SendMuBar(), ns3::HePhy::SetTrigVector(), ns3::HePhy::StartTx(), and OfdmaAckSequenceTest::Transmit().
|
overridevirtual |
This value is typically used by the IP layer to perform IP fragmentation when needed.
Implements ns3::NetDevice.
Definition at line 418 of file wifi-net-device.cc.
References m_mtu.
Referenced by GetTypeId().
|
overridevirtual |
Make and return a MAC multicast address using the provided multicast group.
RFC 1112 says that an Ipv4 host group address is mapped to an Ethernet multicast address by placing the low-order 23-bits of the IP address into the low-order 23 bits of the Ethernet multicast address 01-00-5E-00-00-00 (hex). Similar RFCs exist for Ipv6 and Eui64 mappings. This method performs the multicast address creation function appropriate to the underlying MAC address of the device. This MAC address is encapsulated in an abstract Address to avoid dependencies on the exact MAC address format.
In the case of net devices that do not support multicast, clients are expected to test NetDevice::IsMulticast and avoid attempting to map multicast packets. Subclasses of NetDevice that do support multicasting are expected to override this method and provide an implementation appropriate to the particular device.
multicastGroup | The IP address for the multicast group destination of the packet. |
Implements ns3::NetDevice.
Definition at line 454 of file wifi-net-device.cc.
References ns3::Mac48Address::GetMulticast().
|
overridevirtual |
Get the MAC multicast address corresponding to the IPv6 address provided.
addr | IPv6 address |
Implements ns3::NetDevice.
Definition at line 460 of file wifi-net-device.cc.
References ns3::Mac48Address::GetMulticast().
When a subclass needs to get access to the underlying node base class to print the nodeid for example, it can invoke this method.
Implements ns3::NetDevice.
Definition at line 495 of file wifi-net-device.cc.
References m_node.
Referenced by EmlsrDlTxopTest::CheckQosFrames(), ns3::WifiPhy::DoInitialize(), EmlsrDlTxopTest::StartTraffic(), MultiLinkTxTest::StartTraffic(), MultiLinkMuTxTest::StartTraffic(), ReleaseSeqNoAfterCtsTimeoutTest::StartTraffic(), and ReleaseSeqNoAfterCtsTimeoutTest::Transmit().
uint8_t ns3::WifiNetDevice::GetNPhys | ( | ) | const |
Definition at line 314 of file wifi-net-device.cc.
References GetPhys().
Referenced by GetChannel(), and GetTypeId().
uint8_t ns3::WifiNetDevice::GetNRemoteStationManagers | ( | ) | const |
Definition at line 339 of file wifi-net-device.cc.
References GetRemoteStationManagers().
Referenced by GetTypeId().
This GetPhy variant is needed to keep using "Phy" in the path names.
Definition at line 295 of file wifi-net-device.cc.
References GetPhy(), and ns3::SINGLE_LINK_OP_ID.
Referenced by TestUlOfdmaPowerControl::DoSetup(), GetChannel(), GetPhy(), GetTypeId(), ns3::ObssPdAlgorithm::ResetPhy(), TestUlOfdmaPowerControl::RunOne(), and TestUlOfdmaPowerControl::SendMuBar().
i | the index (starting at 0) of the PHY object to retrieve |
Definition at line 301 of file wifi-net-device.cc.
References GetPhys(), and NS_ASSERT.
Definition at line 308 of file wifi-net-device.cc.
References m_phys.
Referenced by GetNPhys(), and GetPhy().
Ptr< WifiRemoteStationManager > ns3::WifiNetDevice::GetRemoteStationManager | ( | ) | const |
This GetRemoteStationManager variant is needed to keep using "RemoteStationManager" in the path names.
Definition at line 320 of file wifi-net-device.cc.
References GetRemoteStationManager().
Referenced by GetAddress(), GetRemoteStationManager(), and GetTypeId().
Ptr< WifiRemoteStationManager > ns3::WifiNetDevice::GetRemoteStationManager | ( | uint8_t | linkId | ) | const |
linkId | the ID (starting at 0) of the link of the RemoteStationManager object to retrieve |
Definition at line 326 of file wifi-net-device.cc.
References GetRemoteStationManagers(), and NS_ASSERT.
|
virtual |
Definition at line 333 of file wifi-net-device.cc.
References m_stationManagers.
Referenced by GetNRemoteStationManagers(), and GetRemoteStationManager().
WifiStandard ns3::WifiNetDevice::GetStandard | ( | ) | const |
Get the Wifi standard.
Definition at line 240 of file wifi-net-device.cc.
References m_standard.
|
static |
Get the type ID.
Definition at line 46 of file wifi-net-device.cc.
References ns3::TypeId::DEPRECATED, GetChannel(), GetEhtConfiguration(), GetHeConfiguration(), GetHtConfiguration(), GetMac(), GetMtu(), GetNPhys(), GetNRemoteStationManagers(), GetPhy(), GetRemoteStationManager(), GetVhtConfiguration(), ns3::LLC_SNAP_HEADER_LENGTH, ns3::MakeObjectVectorAccessor(), ns3::MakePointerAccessor(), ns3::MakeUintegerAccessor(), ns3::MAX_MSDU_SIZE, SetMac(), SetMtu(), ns3::TypeId::SetParent(), SetPhy(), and SetRemoteStationManager().
Ptr< VhtConfiguration > ns3::WifiNetDevice::GetVhtConfiguration | ( | ) | const |
Definition at line 630 of file wifi-net-device.cc.
References m_standard, m_vhtConfiguration, and ns3::WIFI_STANDARD_80211ac.
Referenced by ns3::WifiPhy::DoChannelSwitch(), ns3::VhtPhy::GetCcaThreshold(), GetTypeId(), ns3::WifiMac::GetVhtConfiguration(), and ns3::WifiRemoteStationManager::GetVhtSupported().
|
overridevirtual |
Return true if the net device is acting as a bridge.
Implements ns3::NetDevice.
Definition at line 472 of file wifi-net-device.cc.
|
overridevirtual |
Implements ns3::NetDevice.
Definition at line 436 of file wifi-net-device.cc.
|
overridevirtual |
Implements ns3::NetDevice.
Definition at line 424 of file wifi-net-device.cc.
|
overridevirtual |
Implements ns3::NetDevice.
Definition at line 448 of file wifi-net-device.cc.
|
overridevirtual |
Return true if the net device is on a point-to-point link.
Implements ns3::NetDevice.
Definition at line 466 of file wifi-net-device.cc.
|
private |
Set that the link is down (i.e.
STA is not associated).
Definition at line 569 of file wifi-net-device.cc.
References m_linkChanges, and m_linkUp.
Referenced by CompleteConfig().
|
private |
Set that the link is up.
A link is always up in ad-hoc mode. For a STA, a link is up when the STA is associated with an AP.
Definition at line 562 of file wifi-net-device.cc.
References m_linkChanges, and m_linkUp.
Referenced by CompleteConfig().
|
overridevirtual |
Called by higher-layers to check if this NetDevice requires ARP to be used.
Implements ns3::NetDevice.
Definition at line 508 of file wifi-net-device.cc.
|
delete |
|
overridevirtual |
packet | packet sent from above down to Network Device |
dest | mac address of the destination (already resolved) |
protocolNumber | identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received. |
Called from higher layer to send packet into Network Device to the specified destination Address
Implements ns3::NetDevice.
Definition at line 478 of file wifi-net-device.cc.
References ns3::Mac48Address::ConvertFrom(), ns3::WifiMac::Enqueue(), ns3::Mac48Address::IsMatchingType(), m_mac, ns3::WifiMac::NotifyTx(), NS_ASSERT, NS_LOG_FUNCTION, and ns3::LlcSnapHeader::SetType().
Referenced by TestUlOfdmaPowerControl::SetupBa().
|
overridevirtual |
packet | packet sent from above down to Network Device |
source | source mac address (so called "MAC spoofing") |
dest | mac address of the destination (already resolved) |
protocolNumber | identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received. |
Called from higher layer to send packet into Network Device with the specified source and destination Addresses.
Implements ns3::NetDevice.
Definition at line 576 of file wifi-net-device.cc.
References ns3::Mac48Address::ConvertFrom(), ns3::WifiMac::Enqueue(), ns3::Mac48Address::IsMatchingType(), m_mac, ns3::WifiMac::NotifyTx(), NS_ASSERT, NS_LOG_FUNCTION, and ns3::LlcSnapHeader::SetType().
|
overridevirtual |
Set the address of this interface.
address | address to set |
Implements ns3::NetDevice.
Definition at line 371 of file wifi-net-device.cc.
References ns3::Mac48Address::ConvertFrom(), m_mac, and ns3::WifiMac::SetAddress().
void ns3::WifiNetDevice::SetEhtConfiguration | ( | Ptr< EhtConfiguration > | ehtConfiguration | ) |
ehtConfiguration | pointer to EhtConfiguration |
Definition at line 648 of file wifi-net-device.cc.
References m_ehtConfiguration.
void ns3::WifiNetDevice::SetHeConfiguration | ( | Ptr< HeConfiguration > | heConfiguration | ) |
heConfiguration | pointer to HeConfiguration |
Definition at line 636 of file wifi-net-device.cc.
References m_heConfiguration.
Referenced by HeAggregationTest::DoRunSubTest().
void ns3::WifiNetDevice::SetHtConfiguration | ( | Ptr< HtConfiguration > | htConfiguration | ) |
htConfiguration | pointer to HtConfiguration |
Definition at line 612 of file wifi-net-device.cc.
References m_htConfiguration.
Referenced by AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), and HeAggregationTest::DoRunSubTest().
|
overridevirtual |
index | ifIndex of the device |
Implements ns3::NetDevice.
Definition at line 345 of file wifi-net-device.cc.
References m_ifIndex.
mac | the MAC layer to use. |
Definition at line 246 of file wifi-net-device.cc.
References CompleteConfig(), and m_mac.
Referenced by AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), HeAggregationTest::DoRunSubTest(), and GetTypeId().
|
overridevirtual |
mtu | MTU value, in bytes, to set for the device |
Override for default MTU defined on a per-type basis.
Implements ns3::NetDevice.
Definition at line 407 of file wifi-net-device.cc.
References ns3::LLC_SNAP_HEADER_LENGTH, m_mtu, and ns3::MAX_MSDU_SIZE.
Referenced by GetTypeId().
node | the node associated to this netdevice. |
This method is called from ns3::Node::AddDevice.
Implements ns3::NetDevice.
Definition at line 501 of file wifi-net-device.cc.
References CompleteConfig(), and m_node.
phy | the PHY layer to use. |
Definition at line 253 of file wifi-net-device.cc.
References CompleteConfig(), m_linkUp, and m_phys.
Referenced by AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), HeAggregationTest::DoRunSubTest(), WifiPhyCcaThresholdsTest::DoSetup(), and GetTypeId().
phys | the PHY layers to use (for 11be multi-link devices only) |
Definition at line 262 of file wifi-net-device.cc.
References CompleteConfig(), m_ehtConfiguration, m_linkUp, m_phys, and NS_ABORT_MSG_IF.
|
overridevirtual |
cb | callback to invoke whenever a packet has been received in promiscuous mode and must be forwarded to the higher layers. |
Enables netdevice promiscuous mode and sets the callback that will handle promiscuous mode packets. Note, promiscuous mode packets means all packets, including those packets that can be sensed by the netdevice but which are intended to be received by other hosts.
Implements ns3::NetDevice.
Definition at line 599 of file wifi-net-device.cc.
References m_mac, m_promiscRx, and ns3::WifiMac::SetPromisc().
|
overridevirtual |
cb | callback to invoke whenever a packet has been received and must be forwarded to the higher layers. |
Set the callback to be used to notify higher layers when a packet has been received.
Implements ns3::NetDevice.
Definition at line 514 of file wifi-net-device.cc.
References m_forwardUp.
void ns3::WifiNetDevice::SetRemoteStationManager | ( | const Ptr< WifiRemoteStationManager > | manager | ) |
manager | the manager to use. |
Definition at line 272 of file wifi-net-device.cc.
References CompleteConfig(), and m_stationManagers.
Referenced by AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), HeAggregationTest::DoRunSubTest(), and GetTypeId().
void ns3::WifiNetDevice::SetRemoteStationManagers | ( | const std::vector< Ptr< WifiRemoteStationManager > > & | managers | ) |
managers | the managers to use (for 11be multi-link devices only) |
Definition at line 280 of file wifi-net-device.cc.
References CompleteConfig(), m_ehtConfiguration, m_stationManagers, and NS_ABORT_MSG_IF.
void ns3::WifiNetDevice::SetStandard | ( | WifiStandard | standard | ) |
Set the Wifi standard.
standard | the Wifi standard |
Definition at line 233 of file wifi-net-device.cc.
References m_standard, NS_ABORT_MSG_IF, and ns3::WIFI_STANDARD_UNSPECIFIED.
Referenced by TwoLevelAggregationTest::DoRun(), and WifiPhyCcaThresholdsTest::DoSetup().
void ns3::WifiNetDevice::SetVhtConfiguration | ( | Ptr< VhtConfiguration > | vhtConfiguration | ) |
vhtConfiguration | pointer to VhtConfiguration |
Definition at line 624 of file wifi-net-device.cc.
References m_vhtConfiguration.
Referenced by HeAggregationTest::DoRunSubTest(), and WifiPhyCcaThresholdsTest::DoSetup().
|
overridevirtual |
Implements ns3::NetDevice.
Definition at line 606 of file wifi-net-device.cc.
References m_mac, and ns3::WifiMac::SupportsSendFrom().
|
private |
configuration complete
Definition at line 261 of file wifi-net-device.h.
Referenced by CompleteConfig().
|
private |
the EhtConfiguration
Definition at line 249 of file wifi-net-device.h.
Referenced by DoDispose(), GetEhtConfiguration(), SetEhtConfiguration(), SetPhys(), and SetRemoteStationManagers().
|
private |
forward up callback
Definition at line 250 of file wifi-net-device.h.
Referenced by ForwardUp(), and SetReceiveCallback().
|
private |
the HeConfiguration
Definition at line 248 of file wifi-net-device.h.
Referenced by DoDispose(), GetHeConfiguration(), and SetHeConfiguration().
|
private |
the HtConfiguration
Definition at line 246 of file wifi-net-device.h.
Referenced by DoDispose(), GetHtConfiguration(), and SetHtConfiguration().
|
private |
IF index.
Definition at line 257 of file wifi-net-device.h.
Referenced by GetIfIndex(), and SetIfIndex().
|
private |
link change callback
Definition at line 259 of file wifi-net-device.h.
Referenced by AddLinkChangeCallback(), LinkDown(), and LinkUp().
|
private |
link up
Definition at line 258 of file wifi-net-device.h.
Referenced by IsLinkUp(), LinkDown(), LinkUp(), SetPhy(), and SetPhys().
the MAC
Definition at line 244 of file wifi-net-device.h.
Referenced by CompleteConfig(), DoDispose(), DoInitialize(), ForwardUp(), GetAddress(), GetMac(), Send(), SendFrom(), SetAddress(), SetMac(), SetPromiscReceiveCallback(), and SupportsSendFrom().
|
mutableprivate |
the node
Definition at line 242 of file wifi-net-device.h.
Referenced by CompleteConfig(), DoDispose(), GetNode(), and SetNode().
the phy objects
Definition at line 243 of file wifi-net-device.h.
Referenced by CompleteConfig(), DoDispose(), DoInitialize(), GetChannel(), GetPhys(), IsLinkUp(), SetPhy(), and SetPhys().
|
private |
promiscuous receive callback
Definition at line 251 of file wifi-net-device.h.
Referenced by ForwardUp(), and SetPromiscReceiveCallback().
|
private |
receive trace callback
Definition at line 253 of file wifi-net-device.h.
|
private |
Wifi standard.
Definition at line 256 of file wifi-net-device.h.
Referenced by GetEhtConfiguration(), GetHeConfiguration(), GetHtConfiguration(), GetStandard(), GetVhtConfiguration(), and SetStandard().
|
private |
the station managers
Definition at line 245 of file wifi-net-device.h.
Referenced by CompleteConfig(), DoDispose(), DoInitialize(), GetRemoteStationManagers(), SetRemoteStationManager(), and SetRemoteStationManagers().
|
private |
transmit trace callback
Definition at line 254 of file wifi-net-device.h.
|
private |
the VhtConfiguration
Definition at line 247 of file wifi-net-device.h.
Referenced by DoDispose(), GetVhtConfiguration(), and SetVhtConfiguration().
