V2vUrbanProbChCondModelTestCase Class Reference

Test case for the V2V Urban channel condition models using a fully probabilistic model to determine LOS, NLOS and NLOSv states. More...

+ Inheritance diagram for V2vUrbanProbChCondModelTestCase:
+ Collaboration diagram for V2vUrbanProbChCondModelTestCase:

Classes

struct  TestVector
 Struct containing the parameters for each test. More...


Public Member Functions

 V2vUrbanProbChCondModelTestCase ()
 Constructor.

 ~V2vUrbanProbChCondModelTestCase () override
 Destructor.

- Public Member Functions inherited from ns3::TestCase
 TestCase (const TestCase &)=delete

virtual ~TestCase ()
 Destructor.

std::string GetName () const

TestCaseoperator= (const TestCase &)=delete


Private Member Functions

void DoRun () override
 Builds the simulation scenario and perform the tests.

void EvaluateChannelCondition (Ptr< MobilityModel > a, Ptr< MobilityModel > b)
 Evaluates the channel condition between two nodes by calling the method GetChannelCondition on m_condModel.


Private Attributes

Ptr< ProbabilisticV2vUrbanChannelConditionModelm_condModel
 the channel condition model

uint64_t m_numLos {0}
 the number of LOS occurrences

uint64_t m_numNlosv {0}
 the number of NLOSv occurrences

TestVectors< TestVectorm_testVectors
 array containing all the test vectors

double m_tolerance
 tolerance


Additional Inherited Members

- Public Types inherited from ns3::TestCase
enum  TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
 How long the test takes to execute. More...

- Protected Member Functions inherited from ns3::TestCase
 TestCase (std::string name)
 Constructor.

void AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
 Add an individual child TestCase to this test suite.

TestCaseGetParent () const
 Get the parent of this TestCase.

bool IsStatusFailure () const
 Check if any tests failed.

bool IsStatusSuccess () const
 Check if all tests passed.

void SetDataDir (std::string directory)
 Set the data directory where reference trace files can be found.

void ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
 Log the failure of this TestCase.

bool MustAssertOnFailure () const
 Check if this run should assert on failure.

bool MustContinueOnFailure () const
 Check if this run should continue on failure.

std::string CreateDataDirFilename (std::string filename)
 Construct the full path to a file in the data directory.

std::string CreateTempDirFilename (std::string filename)
 Construct the full path to a file in a temporary directory.


Detailed Description

Test case for the V2V Urban channel condition models using a fully probabilistic model to determine LOS, NLOS and NLOSv states.

The test determines the channel condition multiple times, estimates the LOS and NLOSv probabilities and compares them with the values given by M. Boban, X.Gong, and W. Xu, “Modeling the evolution of line-of-sight blockage for V2V channels,” in IEEE 84th Vehicular Technology Conference (VTC-Fall), 2016. Methodology from channel-condition-model- test-suite.cc is used, extended to a system with three states.

Definition at line 49 of file probabilistic-v2v-channel-condition-model-test.cc.

Constructor & Destructor Documentation

◆ V2vUrbanProbChCondModelTestCase()

V2vUrbanProbChCondModelTestCase::V2vUrbanProbChCondModelTestCase ( )

Constructor.

Definition at line 97 of file probabilistic-v2v-channel-condition-model-test.cc.

◆ ~V2vUrbanProbChCondModelTestCase()

V2vUrbanProbChCondModelTestCase::~V2vUrbanProbChCondModelTestCase ( )
override

Destructor.

Definition at line 104 of file probabilistic-v2v-channel-condition-model-test.cc.

Member Function Documentation

◆ DoRun()

◆ EvaluateChannelCondition()

void V2vUrbanProbChCondModelTestCase::EvaluateChannelCondition ( Ptr< MobilityModel a,
Ptr< MobilityModel b
)
private

Evaluates the channel condition between two nodes by calling the method GetChannelCondition on m_condModel.

If the channel condition is LOS it increments m_numLos, if NLOSv it increments m_numNlosv

Parameters
athe mobility model of the first node
bthe mobility model of the second node

Definition at line 109 of file probabilistic-v2v-channel-condition-model-test.cc.

References ns3::ThreeGppChannelConditionModel::GetChannelCondition(), m_condModel, m_numLos, and m_numNlosv.

Referenced by DoRun().

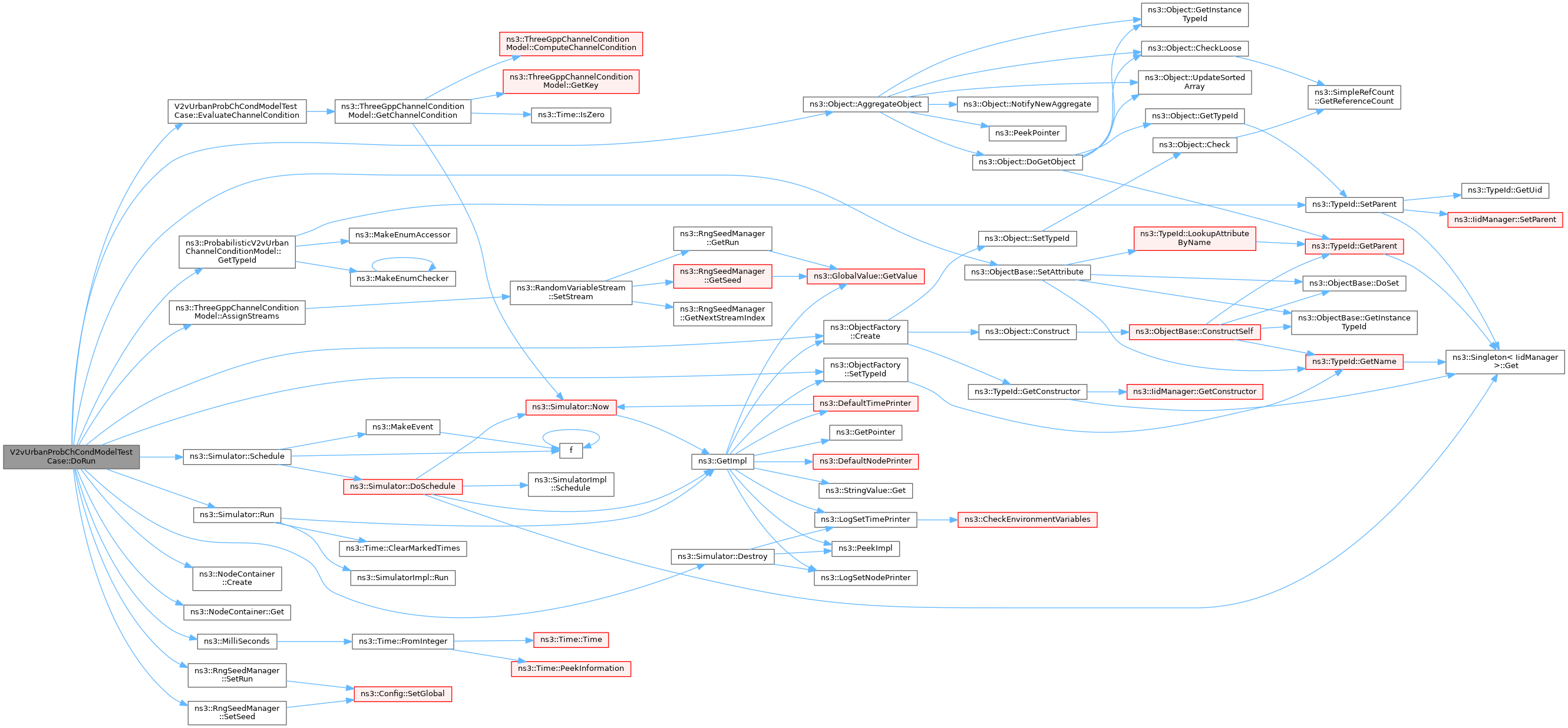

+ Here is the call graph for this function:

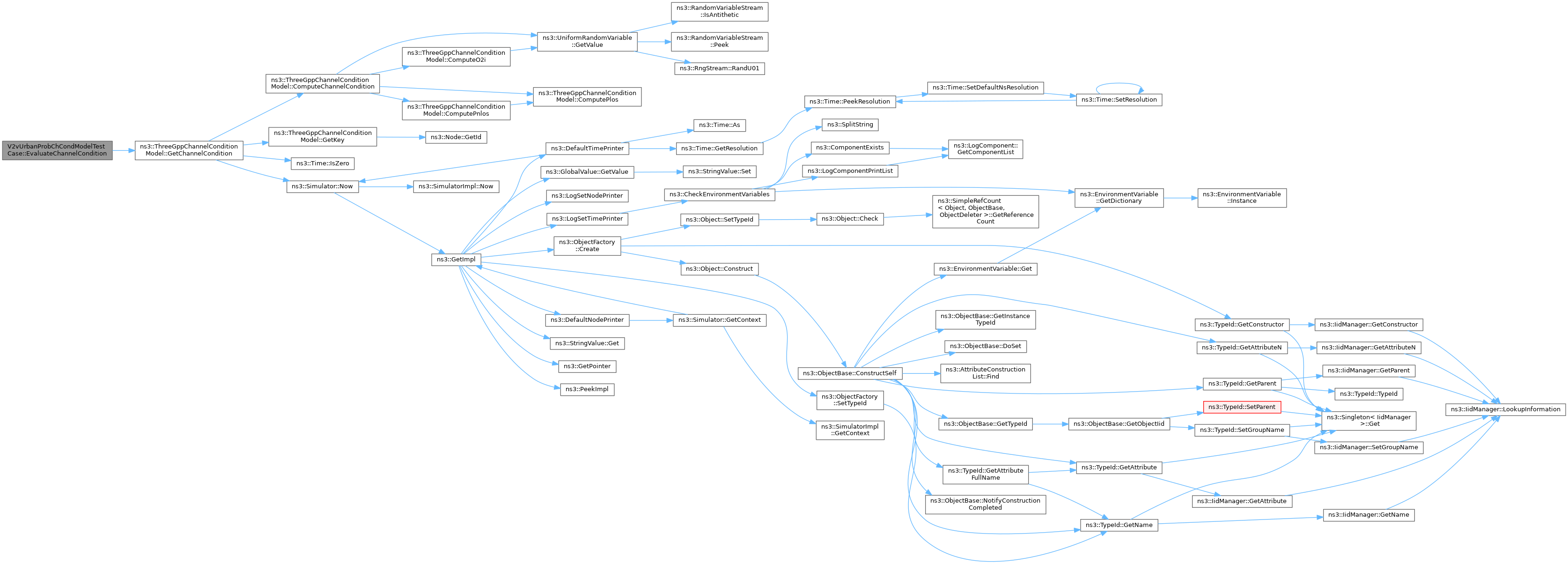

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_condModel

Ptr<ProbabilisticV2vUrbanChannelConditionModel> V2vUrbanProbChCondModelTestCase::m_condModel
private

the channel condition model

Definition at line 91 of file probabilistic-v2v-channel-condition-model-test.cc.

Referenced by DoRun(), and EvaluateChannelCondition().

◆ m_numLos

uint64_t V2vUrbanProbChCondModelTestCase::m_numLos {0}
private

the number of LOS occurrences

Definition at line 92 of file probabilistic-v2v-channel-condition-model-test.cc.

Referenced by DoRun(), and EvaluateChannelCondition().

◆ m_numNlosv

uint64_t V2vUrbanProbChCondModelTestCase::m_numNlosv {0}
private

the number of NLOSv occurrences

Definition at line 93 of file probabilistic-v2v-channel-condition-model-test.cc.

Referenced by DoRun(), and EvaluateChannelCondition().

◆ m_testVectors

TestVectors<TestVector> V2vUrbanProbChCondModelTestCase::m_testVectors
private

array containing all the test vectors

Definition at line 90 of file probabilistic-v2v-channel-condition-model-test.cc.

Referenced by DoRun().

◆ m_tolerance

double V2vUrbanProbChCondModelTestCase::m_tolerance
private

tolerance

Definition at line 94 of file probabilistic-v2v-channel-condition-model-test.cc.

Referenced by DoRun().


The documentation for this class was generated from the following file:
