Computes the channel condition for the V2V Urban scenario. More...

#include "probabilistic-v2v-channel-condition-model.h"

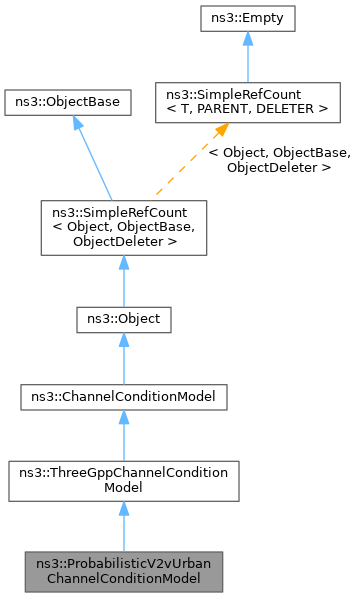

Inheritance diagram for ns3::ProbabilisticV2vUrbanChannelConditionModel:

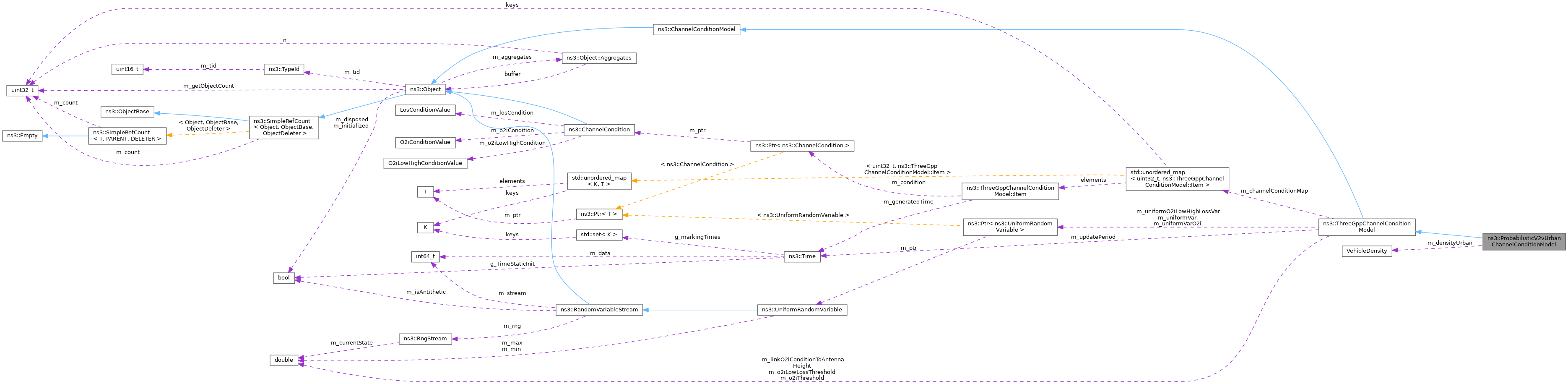

Collaboration diagram for ns3::ProbabilisticV2vUrbanChannelConditionModel:

Public Member Functions
	ProbabilisticV2vUrbanChannelConditionModel ()
	Constructor for the ProbabilisticV2vUrbanChannelConditionModel class.

	~ProbabilisticV2vUrbanChannelConditionModel () override
	Destructor for the ProbabilisticV2vUrbanChannelConditionModel class.

Public Member Functions inherited from ns3::ThreeGppChannelConditionModel
	ThreeGppChannelConditionModel ()
	Constructor for the ThreeGppRmaChannelConditionModel class.

	~ThreeGppChannelConditionModel () override
	Destructor for the ThreeGppRmaChannelConditionModel class.

int64_t	AssignStreams (int64_t stream) override
	If this model uses objects of type RandomVariableStream, set the stream numbers to the integers starting with the offset 'stream'.

Ptr< ChannelCondition >	GetChannelCondition (Ptr< const MobilityModel > a, Ptr< const MobilityModel > b) const override
	Retrieve the condition of the channel between a and b.

Public Member Functions inherited from ns3::ChannelConditionModel
	ChannelConditionModel ()
	Constructor for the ChannelConditionModel class.

	ChannelConditionModel (const ChannelConditionModel &)=delete

	~ChannelConditionModel () override
	Destructor for the ChannelConditionModel class.

virtual int64_t	AssignStreams (int64_t stream)=0
	If this model uses objects of type RandomVariableStream, set the stream numbers to the integers starting with the offset 'stream'.

virtual Ptr< ChannelCondition >	GetChannelCondition (Ptr< const MobilityModel > a, Ptr< const MobilityModel > b) const =0
	Computes the condition of the channel between a and b.

ChannelConditionModel &	operator= (const ChannelConditionModel &)=delete

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor.

	~Object () override
	Destructor.

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together.

void	Dispose ()
	Dispose of this Object.

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one.

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object.

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object.

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object.

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId.

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object.

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one.

bool	IsInitialized () const
	Check if the object has been initialized.

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor.

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor.

uint32_t	GetReferenceCount () const
	Get the reference count of the object.

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator.

void	Ref () const
	Increment the reference count.

void	Unref () const
	Decrement the reference count.

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor.

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful.

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors.

virtual TypeId	GetInstanceTypeId () const =0
	Get the most derived TypeId for this Object.

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful.

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors.

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context.

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context.

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context.

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context.

Static Public Member Functions

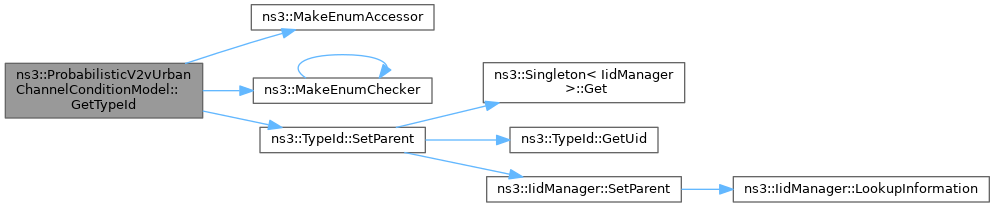

static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::ThreeGppChannelConditionModel
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::ChannelConditionModel
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type.

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID.

Private Member Functions
double	ComputePlos (Ptr< const MobilityModel > a, Ptr< const MobilityModel > b) const override
	Compute the LOS probability.

double	ComputePnlos (Ptr< const MobilityModel > a, Ptr< const MobilityModel > b) const override
	Compute the NLOS probability.

Private Attributes
VehicleDensity	m_densityUrban {VehicleDensity::INVALID}
	vehicle density

Additional Inherited Members
Protected Types inherited from ns3::ThreeGppChannelConditionModel
enum	VehicleDensity { LOW , MEDIUM , HIGH , INVALID }
	Determine the density of vehicles in a V2V scenario. More...

Protected Member Functions inherited from ns3::ThreeGppChannelConditionModel
void	DoDispose () override
	Destructor implementation.

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object.

virtual void	DoDispose ()
	Destructor implementation.

virtual void	DoInitialize ()
	Initialize() implementation.

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated.

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes.

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed.

Static Protected Member Functions inherited from ns3::ThreeGppChannelConditionModel
static double	Calculate2dDistance (const Vector &a, const Vector &b)
	Computes the 2D distance between two 3D vectors.

Protected Attributes inherited from ns3::ThreeGppChannelConditionModel
Ptr< UniformRandomVariable >	m_uniformVar
	uniform random variable

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly.

Detailed Description

Computes the channel condition for the V2V Urban scenario.

Computes the channel condition following the probabilistic model described in M. Boban, X.Gong, and W. Xu, “Modeling the evolution of line-of-sight blockage for V2V channels,” in IEEE 84th Vehicular Technology Conference (VTC-Fall), 2016.

Config Paths

ns3::ProbabilisticV2vUrbanChannelConditionModel is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/ChannelConditionModel/$ns3::ThreeGppChannelConditionModel/$ns3::ProbabilisticV2vUrbanChannelConditionModel"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/ChannelConditionModel/$ns3::ProbabilisticV2vUrbanChannelConditionModel"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/ChannelConditionModel/$ns3::ThreeGppChannelConditionModel/$ns3::ProbabilisticV2vUrbanChannelConditionModel"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/ChannelConditionModel/$ns3::ProbabilisticV2vUrbanChannelConditionModel"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/ChannelConditionModel/$ns3::ThreeGppChannelConditionModel/$ns3::ProbabilisticV2vUrbanChannelConditionModel"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/ChannelConditionModel/$ns3::ProbabilisticV2vUrbanChannelConditionModel"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/ChannelConditionModel/$ns3::ThreeGppChannelConditionModel/$ns3::ProbabilisticV2vUrbanChannelConditionModel"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/ChannelConditionModel/$ns3::ProbabilisticV2vUrbanChannelConditionModel"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phys/[i]/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/ChannelConditionModel/$ns3::ThreeGppChannelConditionModel/$ns3::ProbabilisticV2vUrbanChannelConditionModel"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phys/[i]/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/ChannelConditionModel/$ns3::ProbabilisticV2vUrbanChannelConditionModel"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phys/[i]/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/ChannelConditionModel/$ns3::ThreeGppChannelConditionModel/$ns3::ProbabilisticV2vUrbanChannelConditionModel"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phys/[i]/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/ChannelConditionModel/$ns3::ProbabilisticV2vUrbanChannelConditionModel"
"/NodeList/[i]/DeviceList/[i]/$ns3::LrWpanNetDevice/Channel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/ChannelConditionModel/$ns3::ThreeGppChannelConditionModel/$ns3::ProbabilisticV2vUrbanChannelConditionModel"
"/NodeList/[i]/DeviceList/[i]/$ns3::LrWpanNetDevice/Channel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/ChannelConditionModel/$ns3::ProbabilisticV2vUrbanChannelConditionModel"
"/ChannelList/[i]/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/ChannelConditionModel/$ns3::ThreeGppChannelConditionModel/$ns3::ProbabilisticV2vUrbanChannelConditionModel"
"/ChannelList/[i]/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/ChannelConditionModel/$ns3::ProbabilisticV2vUrbanChannelConditionModel"
"/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/ChannelConditionModel/$ns3::ThreeGppChannelConditionModel/$ns3::ProbabilisticV2vUrbanChannelConditionModel"
"/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/ChannelConditionModel/$ns3::ProbabilisticV2vUrbanChannelConditionModel"

Attributes

Density: Specifies the density of the vehicles in the scenario.It can be set to Low, Medium or High.
- Set with class: ns3::EnumValue
- Underlying type: Low|Medium|High
- Initial value: Low
- Flags: constructwriteread

Attributes defined in parent class ns3::ThreeGppChannelConditionModel

LinkO2iConditionToAntennaHeight: Specifies whether the O2I condition will be determined based on the UE height, i.e. if the UE height is 1.5 then it is O2O, otherwise it is O2I.
- Set with class: ns3::BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: constructwriteread
O2iLowLossThreshold: Specifies what will be the ratio of O2I low - high penetration losses. Default value is 1.0 meaning thatall losses will be low
- Set with class: ns3::DoubleValue
- Underlying type: double 0:1
- Initial value: 1
- Flags: constructwriteread
O2iThreshold: Specifies what will be the ratio of O2I channel conditions. Default value is 0 that corresponds to 0 O2I losses.
- Set with class: ns3::DoubleValue
- Underlying type: double 0:1
- Initial value: 0
- Flags: constructwriteread
UpdatePeriod: Specifies the time period after which the channel condition is recomputed. If set to 0, the channel condition is never updated.
- Set with class: ns3::TimeValue
- Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
- Initial value: +0ns
- Flags: constructwriteread
