ns3::MgtReassocRequestHeader Class Reference

Implement the header for management frames of type reassociation request. More...

#include "mgt-headers.h"

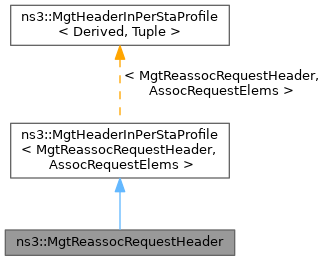

+ Inheritance diagram for ns3::MgtReassocRequestHeader:

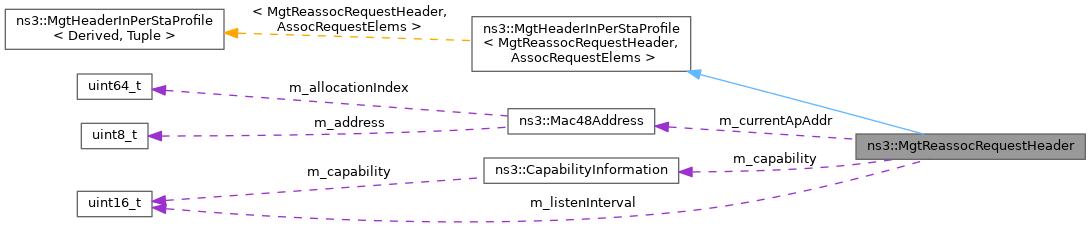

+ Collaboration diagram for ns3::MgtReassocRequestHeader:

Public Member Functions

 ~MgtReassocRequestHeader () override=default

CapabilityInformationCapabilities ()

const CapabilityInformationCapabilities () const

TypeId GetInstanceTypeId () const override
 Get the most derived TypeId for this Object.

uint16_t GetListenInterval () const
 Return the listen interval.

void SetCurrentApAddress (Mac48Address currentApAddr)
 Set the address of the current access point.

void SetListenInterval (uint16_t interval)
 Set the listen interval.


Static Public Member Functions

static TypeId GetTypeId ()
 Register this type.


Protected Member Functions

uint32_t DeserializeFromPerStaProfileImpl (Buffer::Iterator start, uint16_t length, const MgtReassocRequestHeader &frame)
 Deserialize this header from a Per-STA Profile subelement of a Multi-Link Element.

uint32_t DeserializeImpl (Buffer::Iterator start)

uint32_t GetSerializedSizeImpl () const

uint32_t GetSerializedSizeInPerStaProfileImpl (const MgtReassocRequestHeader &frame) const

void PrintImpl (std::ostream &os) const

void SerializeImpl (Buffer::Iterator start) const

void SerializeInPerStaProfileImpl (Buffer::Iterator start, const MgtReassocRequestHeader &frame) const
 Serialize this header into a Per-STA Profile subelement of a Multi-Link Element.


Private Attributes

CapabilityInformation m_capability
 Capability information.

Mac48Address m_currentApAddr
 Address of the current access point.

uint16_t m_listenInterval {0}
 listen interval


Friends

class MgtHeaderInPerStaProfile< MgtReassocRequestHeader, AssocRequestElems >

class WifiMgtHeader< MgtReassocRequestHeader, AssocRequestElems >


Detailed Description

Implement the header for management frames of type reassociation request.

Introspection did not find any typical Config paths.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 1264 bytes (on a 64-bit architecture).

Definition at line 243 of file mgt-headers.h.

Constructor & Destructor Documentation

◆ ~MgtReassocRequestHeader()

ns3::MgtReassocRequestHeader::~MgtReassocRequestHeader ( )
overridedefault

Member Function Documentation

◆ Capabilities() [1/2]

CapabilityInformation & ns3::MgtReassocRequestHeader::Capabilities ( )
Returns
a reference to the Capability information

Definition at line 326 of file mgt-headers.cc.

References m_capability.

◆ Capabilities() [2/2]

const CapabilityInformation & ns3::MgtReassocRequestHeader::Capabilities ( ) const
Returns
a const reference to the Capability information

Definition at line 320 of file mgt-headers.cc.

References m_capability.

◆ DeserializeFromPerStaProfileImpl()

uint32_t ns3::MgtReassocRequestHeader::DeserializeFromPerStaProfileImpl ( Buffer::Iterator  start,
uint16_t  length,
const MgtReassocRequestHeader frame
)
protected

Deserialize this header from a Per-STA Profile subelement of a Multi-Link Element.

Parameters
startan iterator which points to where the header should be read from
lengththe expected number of bytes to read
framethe frame containing the Multi-Link Element
Returns
the number of bytes read

Definition at line 419 of file mgt-headers.cc.

References ns3::CapabilityInformation::Deserialize(), ns3::Buffer::Iterator::GetDistanceFrom(), m_capability, m_currentApAddr, m_listenInterval, and NS_ASSERT_MSG.

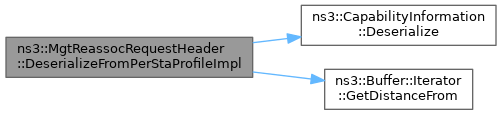

+ Here is the call graph for this function:

◆ DeserializeImpl()

uint32_t ns3::MgtReassocRequestHeader::DeserializeImpl ( Buffer::Iterator  start)
protected

Parameters
startan iterator which points to where the header should read from.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Definition at line 392 of file mgt-headers.cc.

References ns3::CapabilityInformation::Deserialize(), ns3::Buffer::Iterator::GetDistanceFrom(), m_capability, m_currentApAddr, m_listenInterval, ns3::ReadFrom(), and ns3::Buffer::Iterator::ReadLsbtohU16().

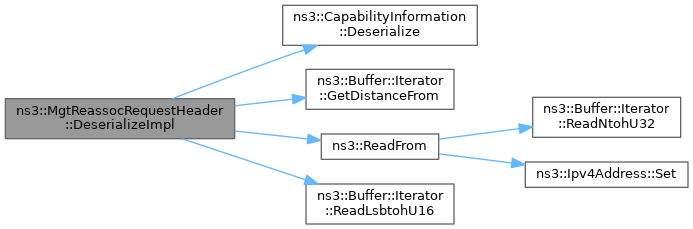

+ Here is the call graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::MgtReassocRequestHeader::GetInstanceTypeId ( ) const
override

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Definition at line 302 of file mgt-headers.cc.

References GetTypeId().

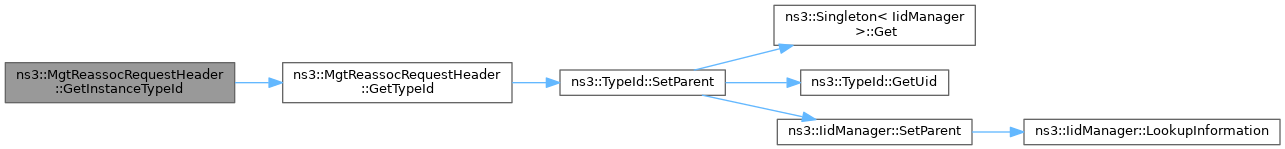

+ Here is the call graph for this function:

◆ GetListenInterval()

uint16_t ns3::MgtReassocRequestHeader::GetListenInterval ( ) const

Return the listen interval.

Returns
the listen interval

Definition at line 308 of file mgt-headers.cc.

References m_listenInterval.

◆ GetSerializedSizeImpl()

uint32_t ns3::MgtReassocRequestHeader::GetSerializedSizeImpl ( ) const
protected

Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Definition at line 338 of file mgt-headers.cc.

References ns3::CapabilityInformation::GetSerializedSize(), and m_capability.

+ Here is the call graph for this function:

◆ GetSerializedSizeInPerStaProfileImpl()

uint32_t ns3::MgtReassocRequestHeader::GetSerializedSizeInPerStaProfileImpl ( const MgtReassocRequestHeader frame) const
protected
Parameters
framethe frame containing the Multi-Link Element
Returns
the number of bytes that are needed to serialize this header into a Per-STA Profile subelement of the Multi-Link Element

Definition at line 351 of file mgt-headers.cc.

References ns3::CapabilityInformation::GetSerializedSize(), GetSerializedSizeInPerStaProfileImpl(), and m_capability.

Referenced by GetSerializedSizeInPerStaProfileImpl().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::MgtReassocRequestHeader::GetTypeId ( )
static

Register this type.

Returns
The TypeId.

Definition at line 292 of file mgt-headers.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ PrintImpl()

void ns3::MgtReassocRequestHeader::PrintImpl ( std::ostream &  os) const
protected

Parameters
osoutput stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Definition at line 363 of file mgt-headers.cc.

References m_currentApAddr.

◆ SerializeImpl()

void ns3::MgtReassocRequestHeader::SerializeImpl ( Buffer::Iterator  start) const
protected

Parameters
startan iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Definition at line 370 of file mgt-headers.cc.

References m_capability, m_currentApAddr, m_listenInterval, ns3::CapabilityInformation::Serialize(), ns3::Buffer::Iterator::WriteHtolsbU16(), and ns3::WriteTo().

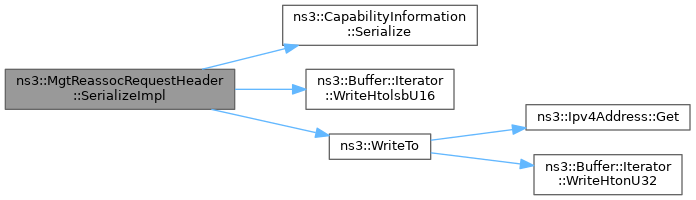

+ Here is the call graph for this function:

◆ SerializeInPerStaProfileImpl()

void ns3::MgtReassocRequestHeader::SerializeInPerStaProfileImpl ( Buffer::Iterator  start,
const MgtReassocRequestHeader frame
) const
protected

Serialize this header into a Per-STA Profile subelement of a Multi-Link Element.

Parameters
startan iterator which points to where the header should be written
framethe frame containing the Multi-Link Element

Definition at line 382 of file mgt-headers.cc.

References m_capability, ns3::CapabilityInformation::Serialize(), and SerializeInPerStaProfileImpl().

Referenced by SerializeInPerStaProfileImpl().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ SetCurrentApAddress()

void ns3::MgtReassocRequestHeader::SetCurrentApAddress ( Mac48Address  currentApAddr)

Set the address of the current access point.

Parameters
currentApAddraddress of the current access point

Definition at line 332 of file mgt-headers.cc.

References m_currentApAddr.

Referenced by ns3::StaWifiMac::GetAssociationRequest().

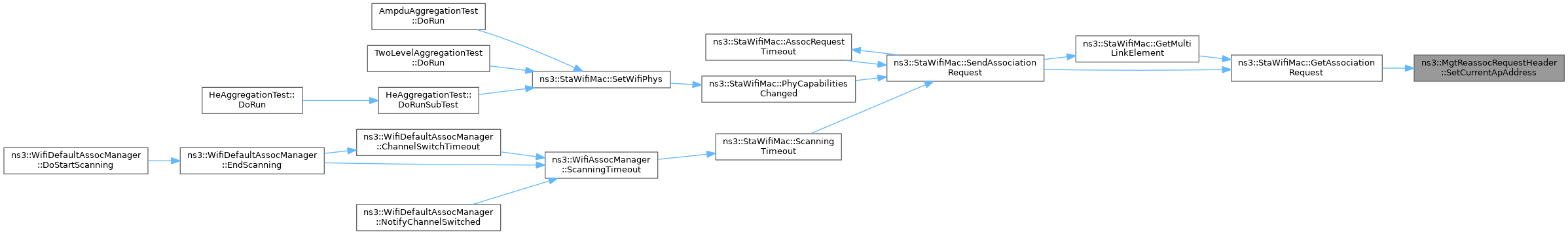

+ Here is the caller graph for this function:

◆ SetListenInterval()

void ns3::MgtReassocRequestHeader::SetListenInterval ( uint16_t  interval)

Set the listen interval.

Parameters
intervalthe listen interval

Definition at line 314 of file mgt-headers.cc.

References m_listenInterval.

Friends And Related Function Documentation

◆ MgtHeaderInPerStaProfile< MgtReassocRequestHeader, AssocRequestElems >

Definition at line 236 of file mgt-headers.h.

◆ WifiMgtHeader< MgtReassocRequestHeader, AssocRequestElems >

Definition at line 236 of file mgt-headers.h.

Member Data Documentation

◆ m_capability

CapabilityInformation ns3::MgtReassocRequestHeader::m_capability
private

◆ m_currentApAddr

Mac48Address ns3::MgtReassocRequestHeader::m_currentApAddr
private

Address of the current access point.

Definition at line 327 of file mgt-headers.h.

Referenced by DeserializeFromPerStaProfileImpl(), DeserializeImpl(), PrintImpl(), SerializeImpl(), and SetCurrentApAddress().

◆ m_listenInterval

uint16_t ns3::MgtReassocRequestHeader::m_listenInterval {0}
private

The documentation for this class was generated from the following files:
