ns3::RateErrorModel Class Reference

Determine which packets are errored corresponding to an underlying distribution, rate, and unit. More...

#include "error-model.h"

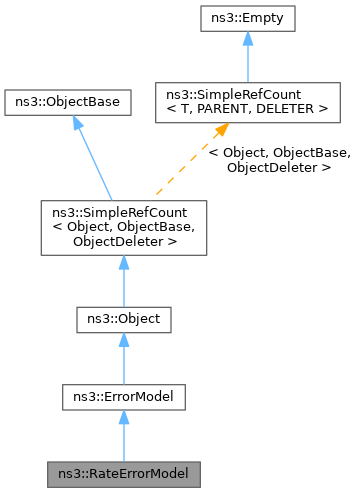

+ Inheritance diagram for ns3::RateErrorModel:

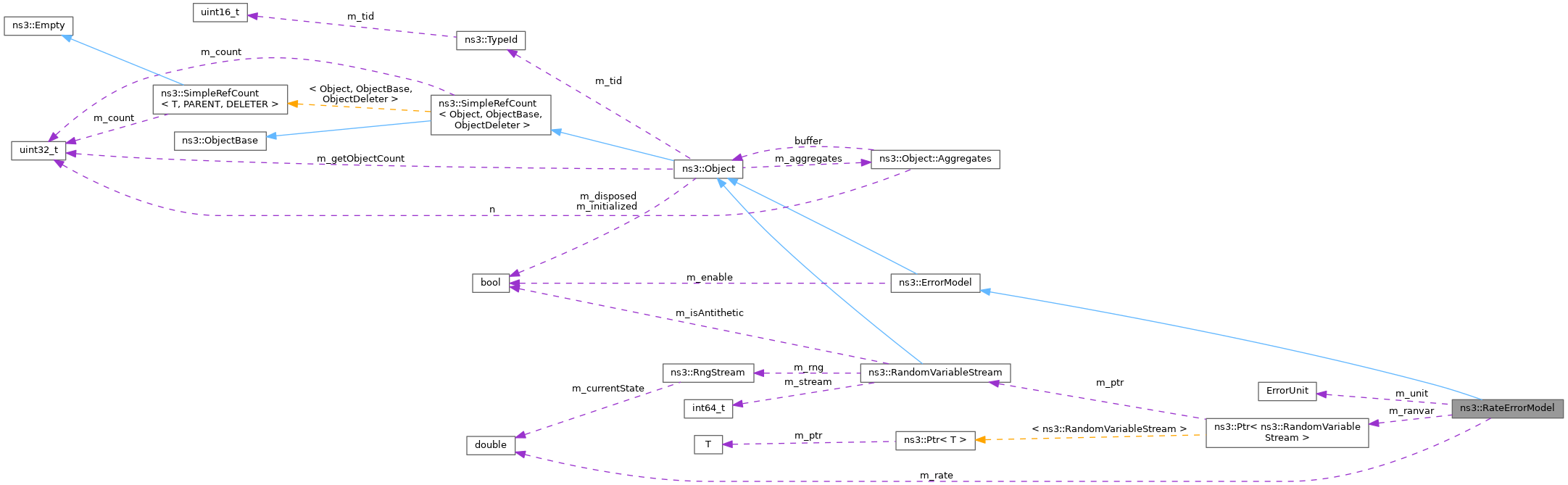

+ Collaboration diagram for ns3::RateErrorModel:

Public Types

enum  ErrorUnit { ERROR_UNIT_BIT , ERROR_UNIT_BYTE , ERROR_UNIT_PACKET }
 Error unit. More...


Public Member Functions

 RateErrorModel ()

 ~RateErrorModel () override

int64_t AssignStreams (int64_t stream)
 Assign a fixed random variable stream number to the random variables used by this model.

double GetRate () const

RateErrorModel::ErrorUnit GetUnit () const

void SetRandomVariable (Ptr< RandomVariableStream >)

void SetRate (double rate)

void SetUnit (ErrorUnit error_unit)

- Public Member Functions inherited from ns3::ErrorModel
 ErrorModel ()

 ~ErrorModel () override

void Disable ()
 Disable the error model.

void Enable ()
 Enable the error model.

bool IsCorrupt (Ptr< Packet > pkt)
 Note: Depending on the error model, this function may or may not alter the contents of the packet upon returning true.

bool IsEnabled () const

void Reset ()
 Reset any state associated with the error model.

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor.

 ~Object () override
 Destructor.

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together.

void Dispose ()
 Dispose of this Object.

AggregateIterator GetAggregateIterator () const
 Get an iterator to the Objects aggregated to this one.

TypeId GetInstanceTypeId () const override
 Get the most derived TypeId for this Object.

template<typename T >
Ptr< T > GetObject () const
 Get a pointer to the requested aggregated Object.

template<>
Ptr< ObjectGetObject () const
 Specialization of () for objects of type ns3::Object.

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId.

template<>
Ptr< ObjectGetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object.

void Initialize ()
 Invoke DoInitialize on all Objects aggregated to this one.

bool IsInitialized () const
 Check if the object has been initialized.

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor.

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor.

uint32_t GetReferenceCount () const
 Get the reference count of the object.

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator.

void Ref () const
 Increment the reference count.

void Unref () const
 Decrement the reference count.

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor.

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful.

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising errors.

virtual TypeId GetInstanceTypeId () const =0
 Get the most derived TypeId for this Object.

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful.

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors.

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context.

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context.

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context.

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context.


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::ErrorModel
static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId ()
 Register this type.

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId ()
 Get the type ID.


Private Member Functions

bool DoCorrupt (Ptr< Packet > p) override
 Corrupt a packet according to the specified model.

virtual bool DoCorruptBit (Ptr< Packet > p)
 Corrupt a packet (bit unit).

virtual bool DoCorruptByte (Ptr< Packet > p)
 Corrupt a packet (Byte unit).

virtual bool DoCorruptPkt (Ptr< Packet > p)
 Corrupt a packet (packet unit).

void DoReset () override
 Re-initialize any state.


Private Attributes

Ptr< RandomVariableStreamm_ranvar
 rng stream

double m_rate
 Error rate.

ErrorUnit m_unit
 Error rate unit.


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object.

virtual void DoDispose ()
 Destructor implementation.

virtual void DoInitialize ()
 Initialize() implementation.

virtual void NotifyNewAggregate ()
 Notify all Objects aggregated to this one of a new Object being aggregated.

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes.

virtual void NotifyConstructionCompleted ()
 Notifier called once the ObjectBase is fully constructed.


Detailed Description

Determine which packets are errored corresponding to an underlying distribution, rate, and unit.

This object is used to flag packets as being lost/errored or not. The two parameters that govern the behavior are the rate (or equivalently, the mean duration/spacing between errors), and the unit (which may be per-bit, per-byte, and per-packet). Users can optionally provide a RandomVariableStream object; the default is to use a Uniform(0,1) distribution.

Reset() on this model will do nothing

IsCorrupt() will not modify the packet data buffer

Config Paths

ns3::RateErrorModel is accessible through the following paths with Config::Set and Config::Connect:

  • "/NodeList/[i]/DeviceList/[i]/$ns3::SimpleNetDevice/ReceiveErrorModel/$ns3::RateErrorModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::PointToPointNetDevice/ReceiveErrorModel/$ns3::RateErrorModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/PostReceptionErrorModel/$ns3::RateErrorModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phys/[i]/PostReceptionErrorModel/$ns3::RateErrorModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::CsmaNetDevice/ReceiveErrorModel/$ns3::RateErrorModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::LrWpanNetDevice/Phy/PostReceptionErrorModel/$ns3::RateErrorModel"

Attributes

  • ErrorRate: The error rate.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0
    • Flags: constructwriteread
  • ErrorUnit: The error unit
    • Set with class: ns3::EnumValue
    • Underlying type: ERROR_UNIT_BIT|ERROR_UNIT_BYTE|ERROR_UNIT_PACKET
    • Initial value: ERROR_UNIT_BYTE
    • Flags: constructwriteread
  • RanVar: The decision variable attached to this error model.

Attributes defined in parent class ns3::ErrorModel

  • IsEnabled: Whether this ErrorModel is enabled or not.
    • Set with class: ns3::BooleanValue
    • Underlying type: bool
    • Initial value: true
    • Flags: constructwriteread

No TraceSources are defined for this type.
Size of this type is 56 bytes (on a 64-bit architecture).

Definition at line 183 of file error-model.h.

Member Enumeration Documentation

◆ ErrorUnit

Error unit.

The error model can be packet, Byte or bit based.

Enumerator
ERROR_UNIT_BIT
ERROR_UNIT_BYTE
ERROR_UNIT_PACKET

Definition at line 198 of file error-model.h.

Constructor & Destructor Documentation

◆ RateErrorModel()

ns3::RateErrorModel::RateErrorModel ( )

Definition at line 183 of file error-model.cc.

References NS_LOG_FUNCTION.

◆ ~RateErrorModel()

ns3::RateErrorModel::~RateErrorModel ( )
override

Definition at line 188 of file error-model.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ AssignStreams()

int64_t ns3::RateErrorModel::AssignStreams ( int64_t  stream)

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters
streamfirst stream index to use
Returns
the number of stream indices assigned by this model

Definition at line 229 of file error-model.cc.

References m_ranvar, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

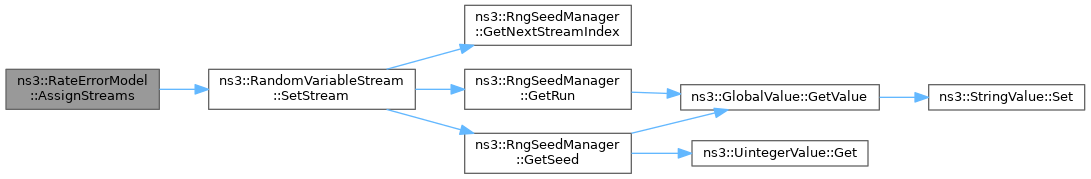

+ Here is the call graph for this function:

◆ DoCorrupt()

bool ns3::RateErrorModel::DoCorrupt ( Ptr< Packet p)
overrideprivatevirtual

Corrupt a packet according to the specified model.

Parameters
pthe packet to corrupt
Returns
true if the packet is corrupted

Implements ns3::ErrorModel.

Definition at line 237 of file error-model.cc.

References DoCorruptBit(), DoCorruptByte(), DoCorruptPkt(), ERROR_UNIT_BIT, ERROR_UNIT_BYTE, ERROR_UNIT_PACKET, ns3::ErrorModel::IsEnabled(), m_unit, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

◆ DoCorruptBit()

bool ns3::RateErrorModel::DoCorruptBit ( Ptr< Packet p)
privatevirtual

Corrupt a packet (bit unit).

Parameters
pthe packet to corrupt
Returns
true if the packet is corrupted

Definition at line 276 of file error-model.cc.

References ns3::RandomVariableStream::GetValue(), m_ranvar, m_rate, and NS_LOG_FUNCTION.

Referenced by DoCorrupt().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ DoCorruptByte()

bool ns3::RateErrorModel::DoCorruptByte ( Ptr< Packet p)
privatevirtual

Corrupt a packet (Byte unit).

Parameters
pthe packet to corrupt
Returns
true if the packet is corrupted

Definition at line 267 of file error-model.cc.

References ns3::RandomVariableStream::GetValue(), m_ranvar, m_rate, and NS_LOG_FUNCTION.

Referenced by DoCorrupt().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ DoCorruptPkt()

bool ns3::RateErrorModel::DoCorruptPkt ( Ptr< Packet p)
privatevirtual

Corrupt a packet (packet unit).

Parameters
pthe packet to corrupt
Returns
true if the packet is corrupted

Definition at line 260 of file error-model.cc.

References ns3::RandomVariableStream::GetValue(), m_ranvar, m_rate, and NS_LOG_FUNCTION.

Referenced by DoCorrupt().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ DoReset()

void ns3::RateErrorModel::DoReset ( )
overrideprivatevirtual

Re-initialize any state.

Implements ns3::ErrorModel.

Definition at line 285 of file error-model.cc.

References NS_LOG_FUNCTION.

◆ GetRate()

double ns3::RateErrorModel::GetRate ( ) const
Returns
the error rate being applied by the model

Definition at line 208 of file error-model.cc.

References m_rate, and NS_LOG_FUNCTION.

◆ GetTypeId()

TypeId ns3::RateErrorModel::GetTypeId ( )
static

Get the type ID.

Returns
the object TypeId

Definition at line 153 of file error-model.cc.

References ERROR_UNIT_BIT, ERROR_UNIT_BYTE, ERROR_UNIT_PACKET, m_ranvar, m_rate, m_unit, ns3::MakeDoubleAccessor(), ns3::MakeEnumAccessor(), ns3::MakeEnumChecker(), ns3::MakePointerAccessor(), and ns3::TypeId::SetParent().

+ Here is the call graph for this function:

◆ GetUnit()

RateErrorModel::ErrorUnit ns3::RateErrorModel::GetUnit ( ) const
Returns
the ErrorUnit being used by the underlying model

Definition at line 194 of file error-model.cc.

References m_unit, and NS_LOG_FUNCTION.

◆ SetRandomVariable()

void ns3::RateErrorModel::SetRandomVariable ( Ptr< RandomVariableStream ranvar)
Parameters
ranvarA random variable distribution to generate random variates

Definition at line 222 of file error-model.cc.

References m_ranvar, and NS_LOG_FUNCTION.

◆ SetRate()

void ns3::RateErrorModel::SetRate ( double  rate)
Parameters
ratethe error rate to be used by the model

Definition at line 215 of file error-model.cc.

References m_rate, and NS_LOG_FUNCTION.

Referenced by ThreeGppHttpObjectTestCase::ThreeGppHttpObjectTestCase().

+ Here is the caller graph for this function:

◆ SetUnit()

void ns3::RateErrorModel::SetUnit ( ErrorUnit  error_unit)
Parameters
error_unitthe ErrorUnit to be used by the underlying model

Definition at line 201 of file error-model.cc.

References m_unit, and NS_LOG_FUNCTION.

Referenced by ThreeGppHttpObjectTestCase::ThreeGppHttpObjectTestCase().

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_ranvar

Ptr<RandomVariableStream> ns3::RateErrorModel::m_ranvar
private

rng stream

Definition at line 263 of file error-model.h.

Referenced by AssignStreams(), DoCorruptBit(), DoCorruptByte(), DoCorruptPkt(), GetTypeId(), and SetRandomVariable().

◆ m_rate

double ns3::RateErrorModel::m_rate
private

Error rate.

Definition at line 261 of file error-model.h.

Referenced by DoCorruptBit(), DoCorruptByte(), DoCorruptPkt(), GetRate(), GetTypeId(), and SetRate().

◆ m_unit

ErrorUnit ns3::RateErrorModel::m_unit
private

Error rate unit.

Definition at line 260 of file error-model.h.

Referenced by DoCorrupt(), GetTypeId(), GetUnit(), and SetUnit().


The documentation for this class was generated from the following files:
