Interface to network animator. More...

#include "animation-interface.h"

Collaboration diagram for ns3::AnimationInterface:

Classes
class	AnimPacketInfo
	AnimPacketInfo class. More...

class	AnimXmlElement
	AnimXmlElement class. More...

struct	Ipv4RoutePathElement
	Ipv4RoutePathElement structure IPv4 route path element. More...

struct	Ipv4RouteTrackElement
	Ipv4RouteTrackElement structure IPv4 route track element. More...

struct	LinkPairCompare
	LinkPairCompare structure. More...

struct	LinkProperties
	LinkProperties structure link properties. More...

struct	NodeSize
	NodeSize structure node size. More...

struct	P2pLinkNodeIdPair
	P2pLinkNodeIdPair structure P2P link node id pair. More...

struct	Rgb
	RGB structure RGB structure. More...

Public Types
typedef void(*	AnimWriteCallback) (const char *str)
	typedef for WriteCallBack used for listening to AnimationInterface write messages

enum	CounterType { UINT32_COUNTER , DOUBLE_COUNTER }
	Counter Types. More...

Public Member Functions
	AnimationInterface (const std::string filename)
	Constructor.

	~AnimationInterface ()
	Destructor for the animator interface.

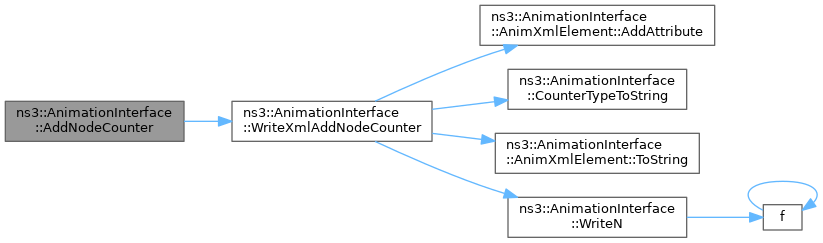

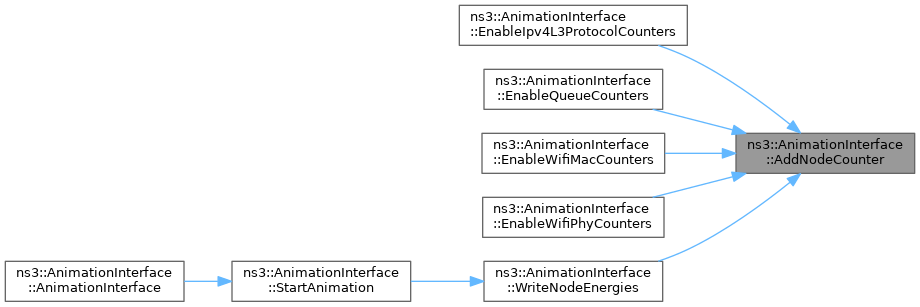

uint32_t	AddNodeCounter (std::string counterName, CounterType counterType)
	Setup a node counter.

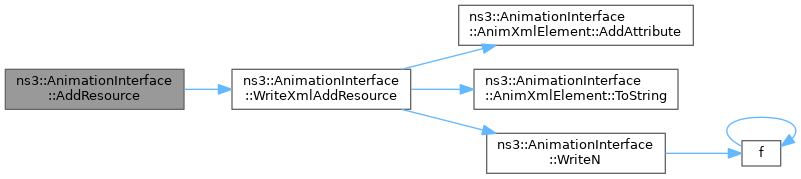

uint32_t	AddResource (std::string resourcePath)
	Add a resource such as the path to an image file.

AnimationInterface &	AddSourceDestination (uint32_t fromNodeId, std::string destinationIpv4Address)
	Helper function to print the routing path from a source node to destination IP.

void	EnableIpv4L3ProtocolCounters (Time startTime, Time stopTime, Time pollInterval=Seconds(1))
	Enable tracking of Ipv4 L3 Protocol Counters such as Tx, Rx, Drop.

AnimationInterface &	EnableIpv4RouteTracking (std::string fileName, Time startTime, Time stopTime, NodeContainer nc, Time pollInterval=Seconds(5))
	Enable tracking of the Ipv4 routing table for a set of Nodes.

AnimationInterface &	EnableIpv4RouteTracking (std::string fileName, Time startTime, Time stopTime, Time pollInterval=Seconds(5))
	Enable tracking of the Ipv4 routing table for all Nodes.

void	EnablePacketMetadata (bool enable=true)
	Enable Packet metadata.

void	EnableQueueCounters (Time startTime, Time stopTime, Time pollInterval=Seconds(1))
	Enable tracking of Queue Counters such as Enqueue, Dequeue, Queue Drops.

void	EnableWifiMacCounters (Time startTime, Time stopTime, Time pollInterval=Seconds(1))
	Enable tracking of Wifi Mac Counters such as Tx, TxDrop, Rx, RxDrop.

void	EnableWifiPhyCounters (Time startTime, Time stopTime, Time pollInterval=Seconds(1))
	Enable tracking of Wifi Phy Counters such as TxDrop, RxDrop.

double	GetNodeEnergyFraction (Ptr< const Node > node) const
	Get node's energy fraction (This used only for testing)

uint64_t	GetTracePktCount () const
	Get trace file packet count (This used only for testing)

bool	IsStarted () const
	Is AnimationInterface started.

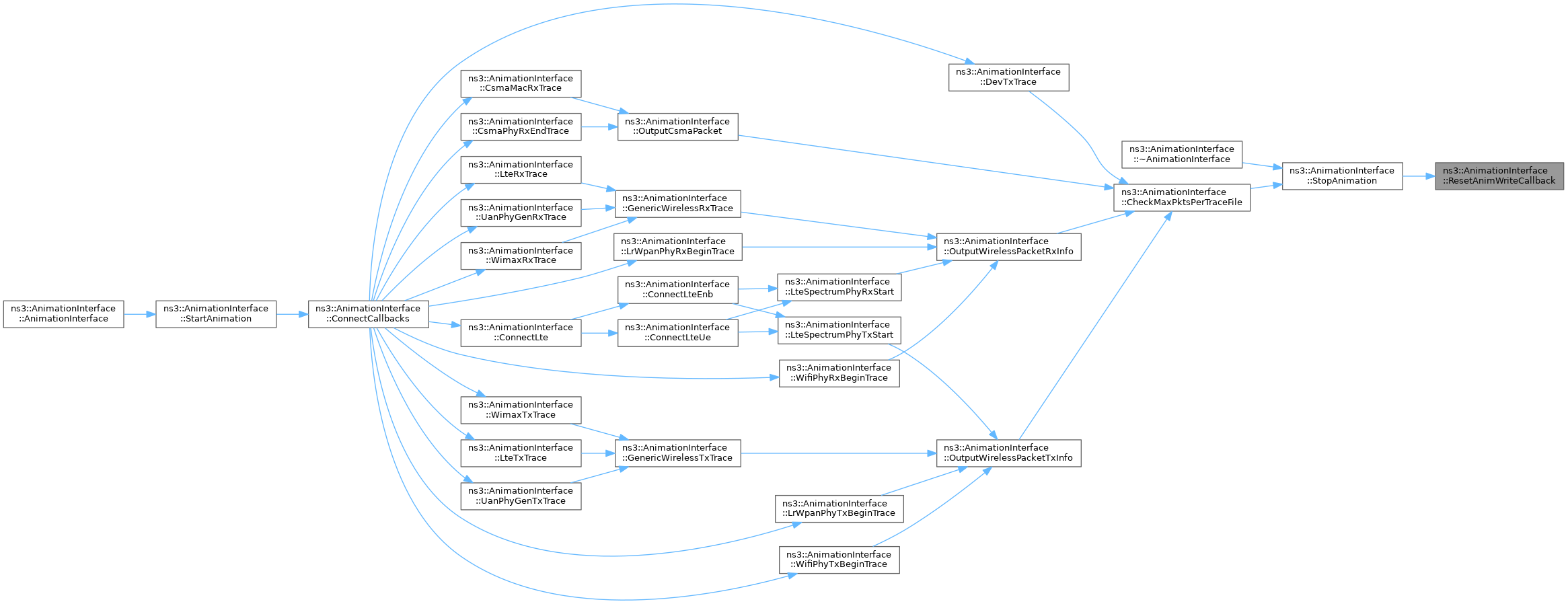

void	ResetAnimWriteCallback ()
	Reset the write callback function.

void	SetAnimWriteCallback (AnimWriteCallback cb)
	Set a callback function to listen to AnimationInterface write events.

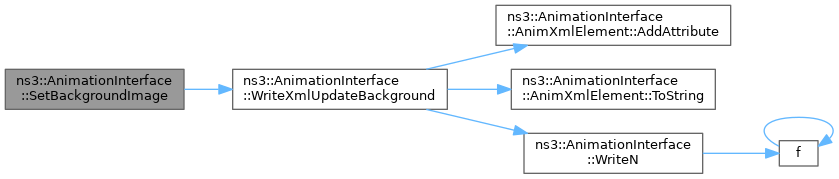

void	SetBackgroundImage (std::string fileName, double x, double y, double scaleX, double scaleY, double opacity)
	Helper function to set the background image.

void	SetMaxPktsPerTraceFile (uint64_t maxPktsPerFile)
	Set Max packets per trace file.

void	SetMobilityPollInterval (Time t)
	Set mobility poll interval:WARNING: setting a low interval can cause slowness.

void	SetStartTime (Time t)
	Specify the time at which capture should start.

void	SetStopTime (Time t)
	Specify the time at which capture should stop.

void	SkipPacketTracing ()
	Do not trace packets.

void	UpdateLinkDescription (Ptr< Node > fromNode, Ptr< Node > toNode, std::string linkDescription)
	Helper function to update the description for a link.

void	UpdateLinkDescription (uint32_t fromNode, uint32_t toNode, std::string linkDescription)
	Helper function to update the description for a link.

void	UpdateNodeColor (Ptr< Node > n, uint8_t r, uint8_t g, uint8_t b)
	Helper function to update the node color.

void	UpdateNodeColor (uint32_t nodeId, uint8_t r, uint8_t g, uint8_t b)
	Helper function to update the node color.

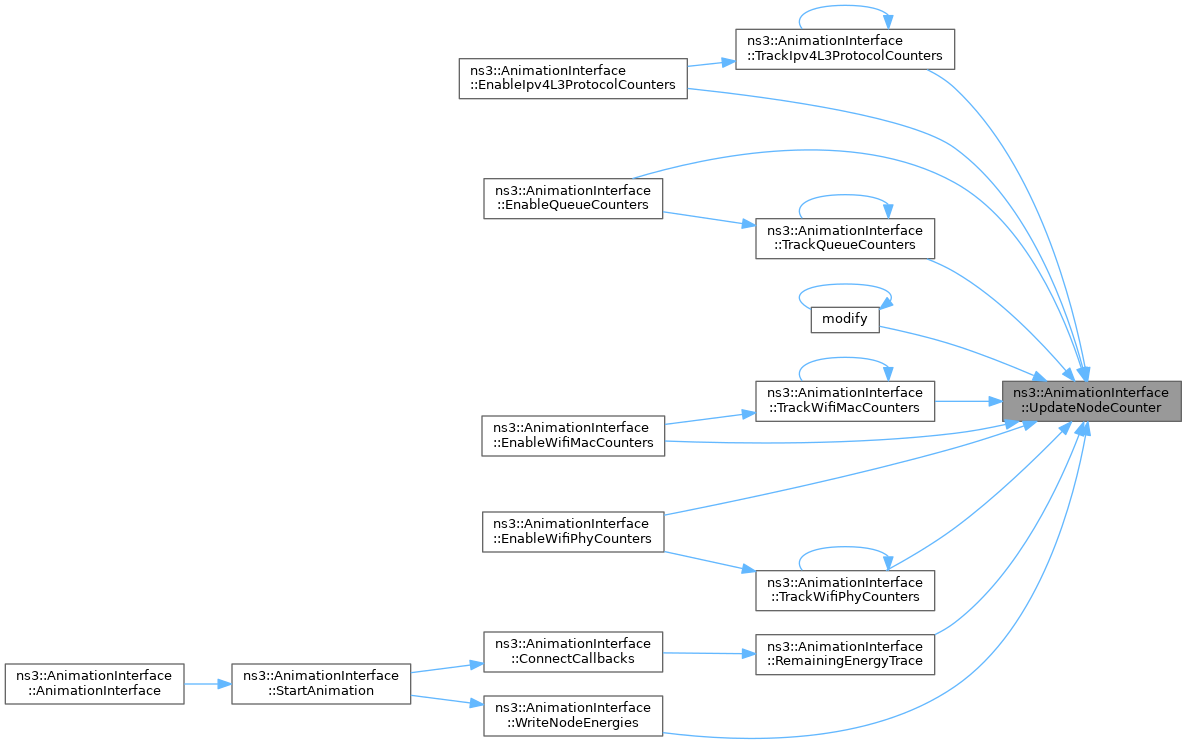

void	UpdateNodeCounter (uint32_t nodeCounterId, uint32_t nodeId, double counter)
	Helper function to update a node's counter referenced by the nodeCounterId.

void	UpdateNodeDescription (Ptr< Node > n, std::string descr)
	Helper function to update the description for a given node.

void	UpdateNodeDescription (uint32_t nodeId, std::string descr)
	Helper function to update the description for a given node.

void	UpdateNodeImage (uint32_t nodeId, uint32_t resourceId)
	Helper function to update the image of a node.

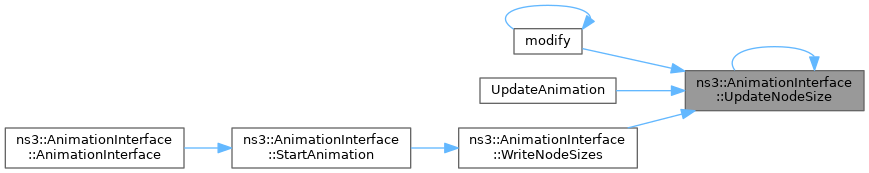

void	UpdateNodeSize (Ptr< Node > n, double width, double height)
	Helper function to update the size of a node.

void	UpdateNodeSize (uint32_t nodeId, double width, double height)
	Helper function to update the size of a node.

Static Public Member Functions
static bool	IsInitialized ()
	Check if AnimationInterface is initialized.

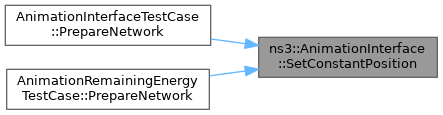

static void	SetConstantPosition (Ptr< Node > n, double x, double y, double z=0)
	Helper function to set Constant Position for a given node.

Private Types
typedef std::map< uint64_t, AnimPacketInfo >	AnimUidPacketInfoMap
	AnimUidPacketInfoMap typedef.

typedef std::map< uint32_t, double >	EnergyFractionMap
	EnergyFractionMap typedef.

typedef std::vector< Ipv4RoutePathElement >	Ipv4RoutePathElements
	Ipv4RoutePathElements typedef.

typedef std::map< P2pLinkNodeIdPair, LinkProperties, LinkPairCompare >	LinkPropertiesMap
	LinkPropertiesMap typedef.

typedef std::map< uint32_t, Rgb >	NodeColorsMap
	NodeColorsMap typedef.

typedef std::map< uint32_t, uint64_t >	NodeCounterMap64
	NodeCounterMap64 typedef.

typedef std::map< uint32_t, std::string >	NodeDescriptionsMap
	NodeDescriptionsMap typedef.

typedef std::multimap< uint32_t, std::string >	NodeIdIpv4Map
	NodeIdIpv4Map typedef.

typedef std::pair< uint32_t, std::string >	NodeIdIpv4Pair
	NodeIdIpv4Pair typedef.

typedef std::multimap< uint32_t, std::string >	NodeIdIpv6Map
	NodeIdIpv6Map typedef.

typedef std::pair< uint32_t, std::string >	NodeIdIpv6Pair
	NodeIdIpv6Pair typedef.

enum	ProtocolType { UAN , LTE , WIFI , WIMAX , CSMA , LRWPAN }
	ProtocolType enumeration. More...

Private Member Functions

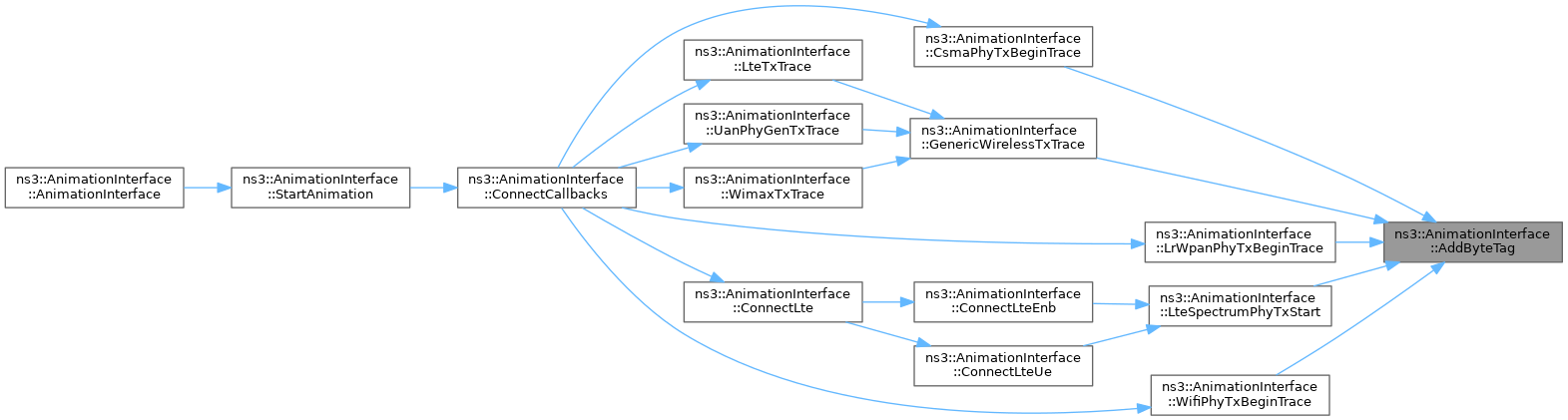

void	AddByteTag (uint64_t animUid, Ptr< const Packet > p)
	Add byte tag function.

void	AddPendingPacket (ProtocolType protocolType, uint64_t animUid, AnimPacketInfo pktInfo)
	Add pending packet function.

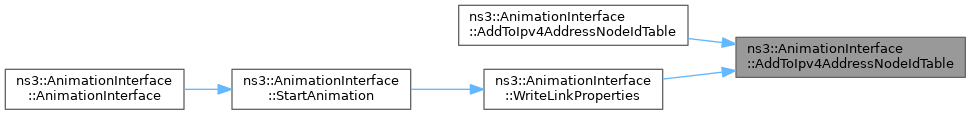

void	AddToIpv4AddressNodeIdTable (std::string ipv4Address, uint32_t nodeId)
	Add to IPv4 address node ID table function.

void	AddToIpv4AddressNodeIdTable (std::vector< std::string > ipv4Addresses, uint32_t nodeId)
	Add to IPv4 address node ID table function.

void	AddToIpv6AddressNodeIdTable (std::string ipv6Address, uint32_t nodeId)
	Add to IPv6 address node ID table function.

void	AddToIpv6AddressNodeIdTable (std::vector< std::string > ipv6Addresses, uint32_t nodeId)
	Add to IPv6 address node ID table function.

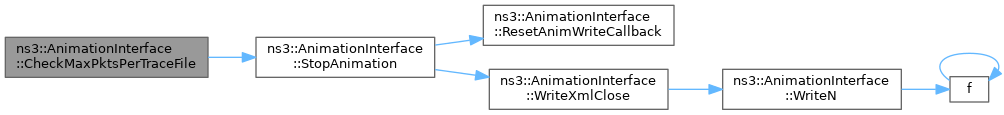

void	CheckMaxPktsPerTraceFile ()

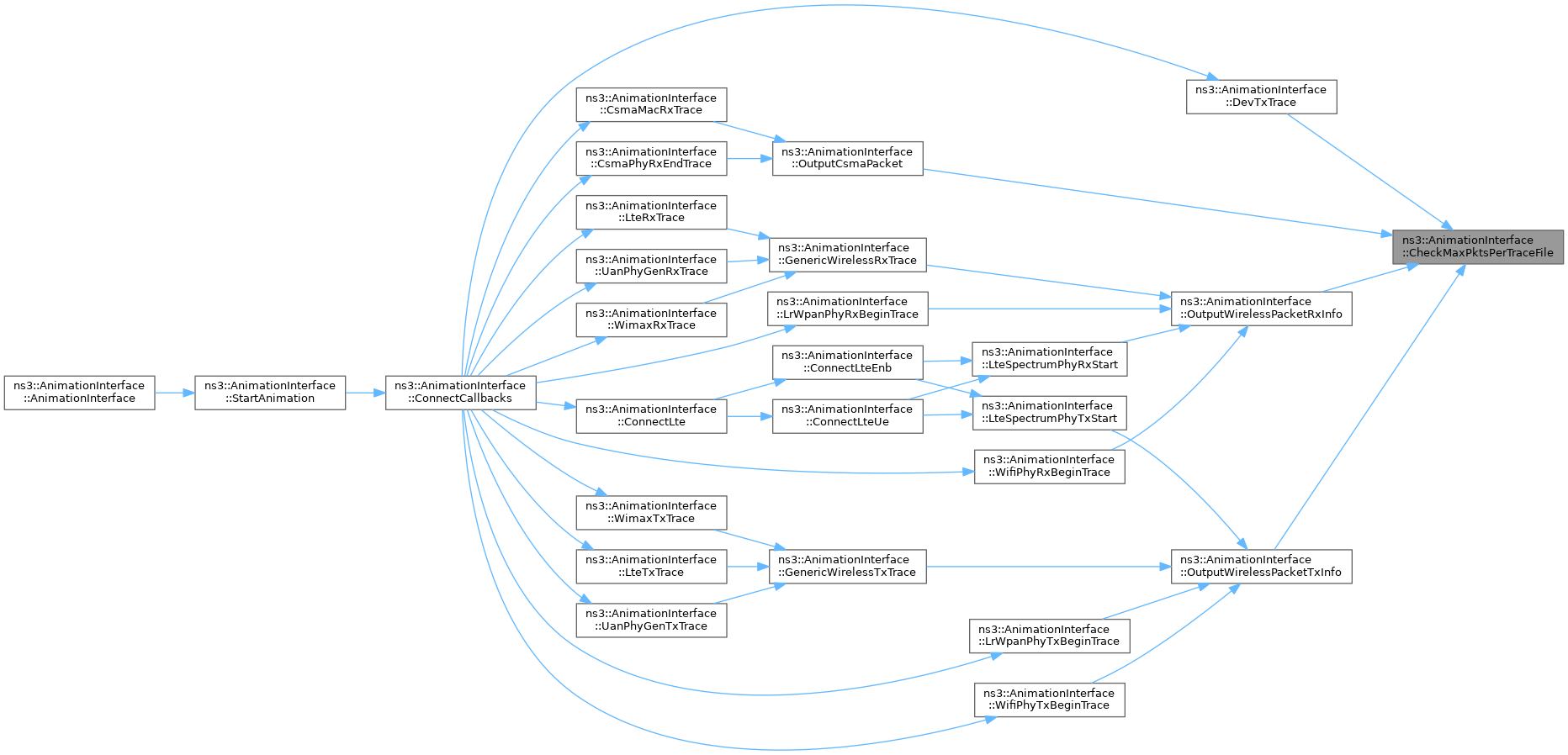

	Check maximum packets per trace file function.

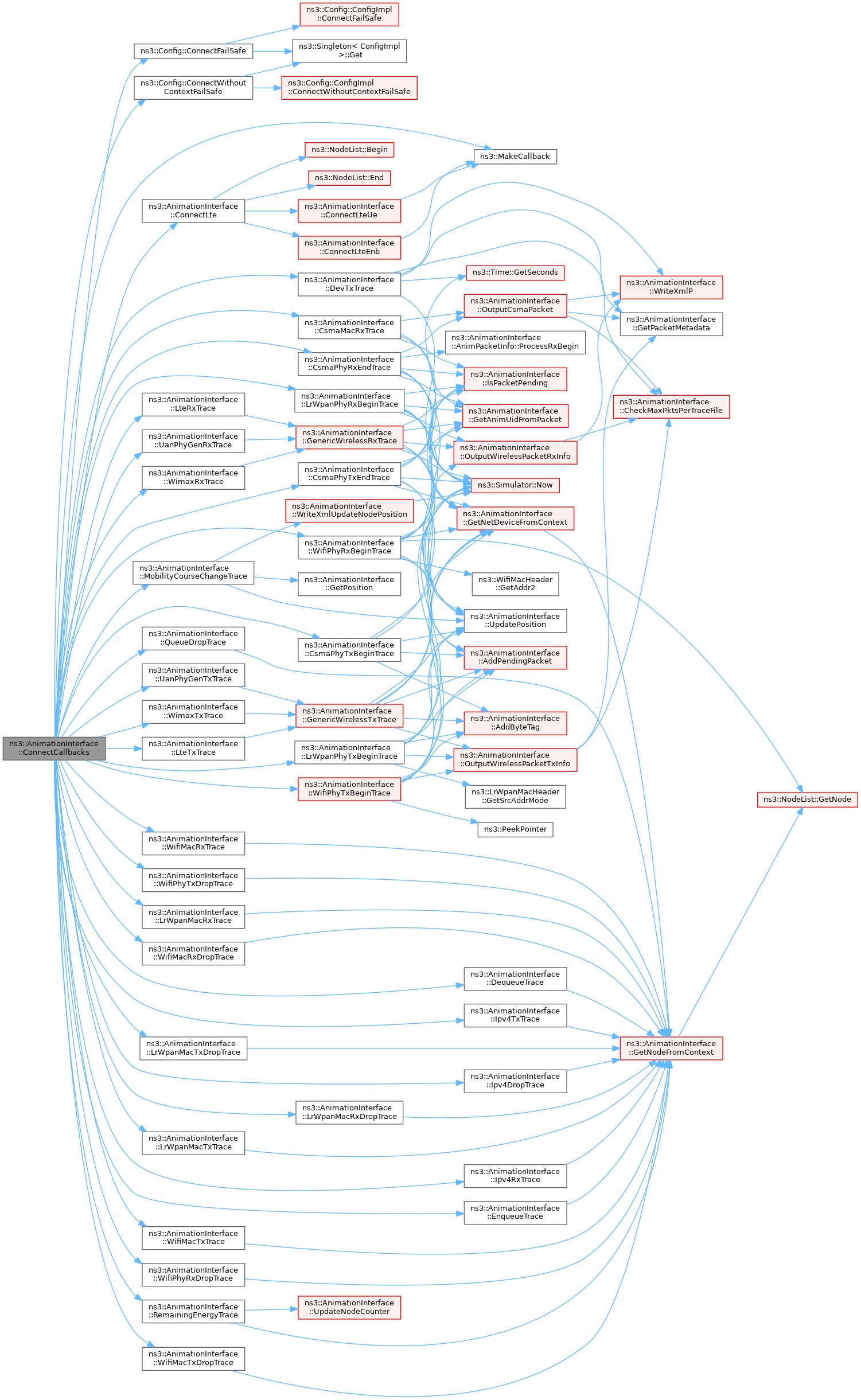

void	ConnectCallbacks ()
	Connect callbacks function.

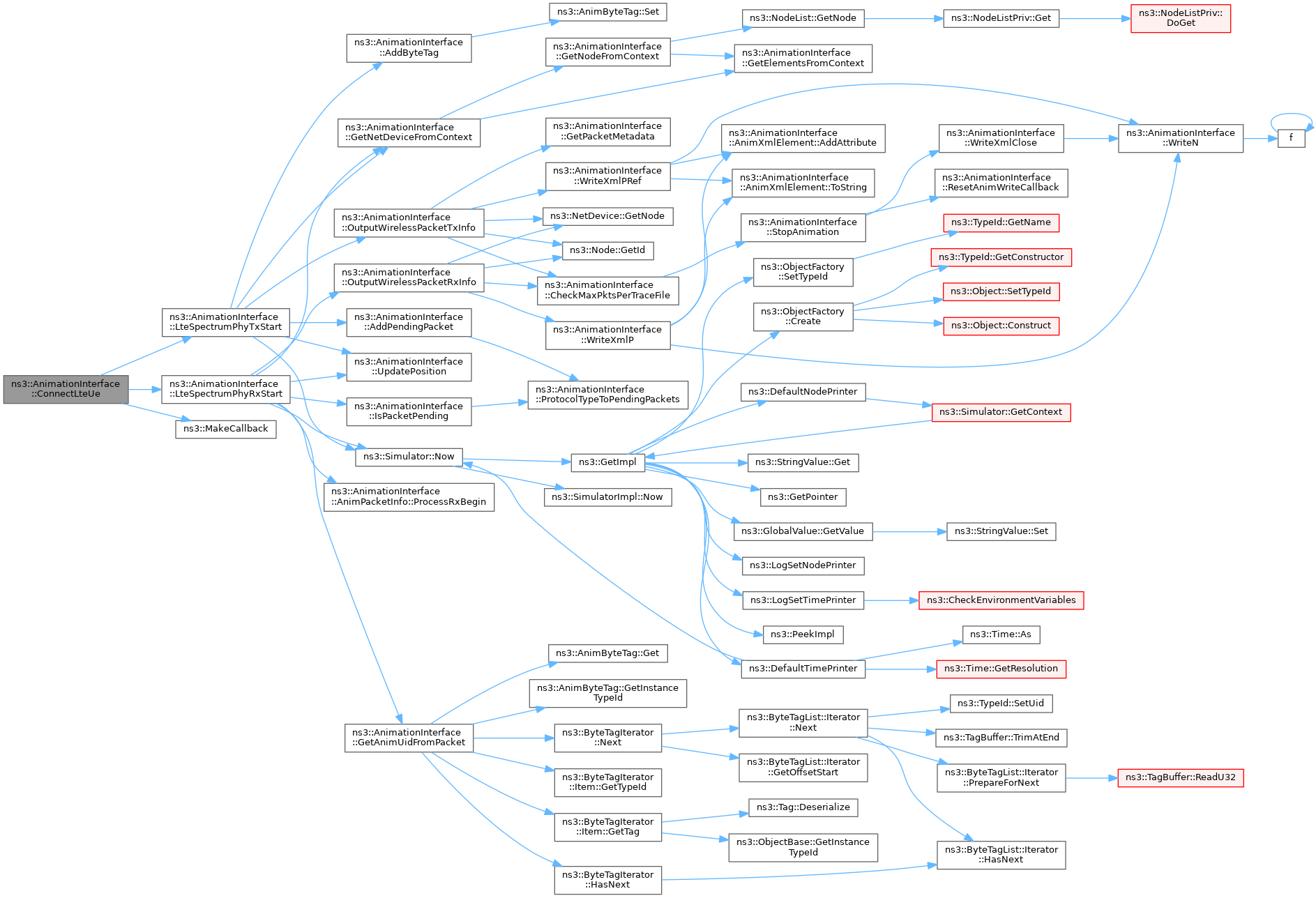

void	ConnectLte ()
	Connect LTE function.

void	ConnectLteEnb (Ptr< Node > n, Ptr< LteEnbNetDevice > nd, uint32_t devIndex)
	Connect LTE ENB function.

void	ConnectLteUe (Ptr< Node > n, Ptr< LteUeNetDevice > nd, uint32_t devIndex)
	Connect LTE ue function.

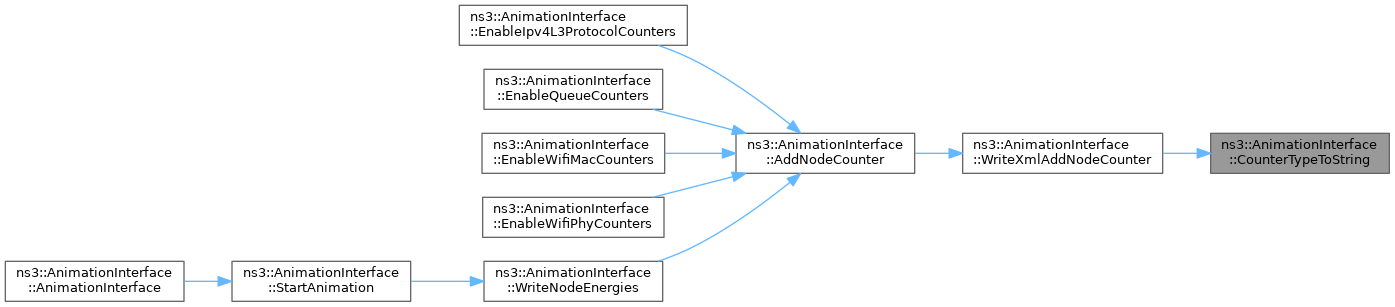

std::string	CounterTypeToString (CounterType counterType)
	Counter type to string function.

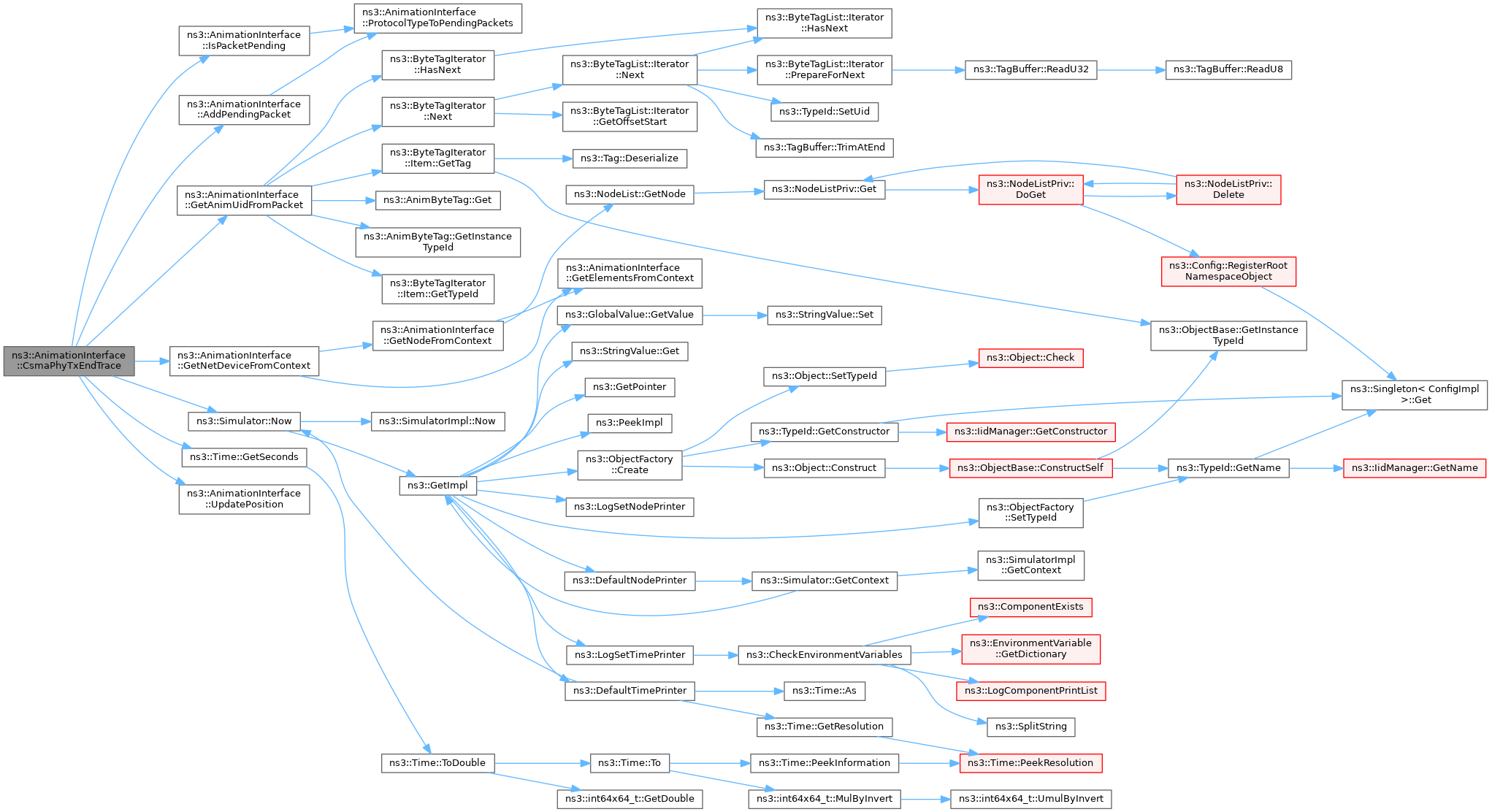

void	CsmaMacRxTrace (std::string context, Ptr< const Packet > p)
	CSMA MAC receive trace function.

void	CsmaPhyRxEndTrace (std::string context, Ptr< const Packet > p)
	CSMA Phy receive end trace function.

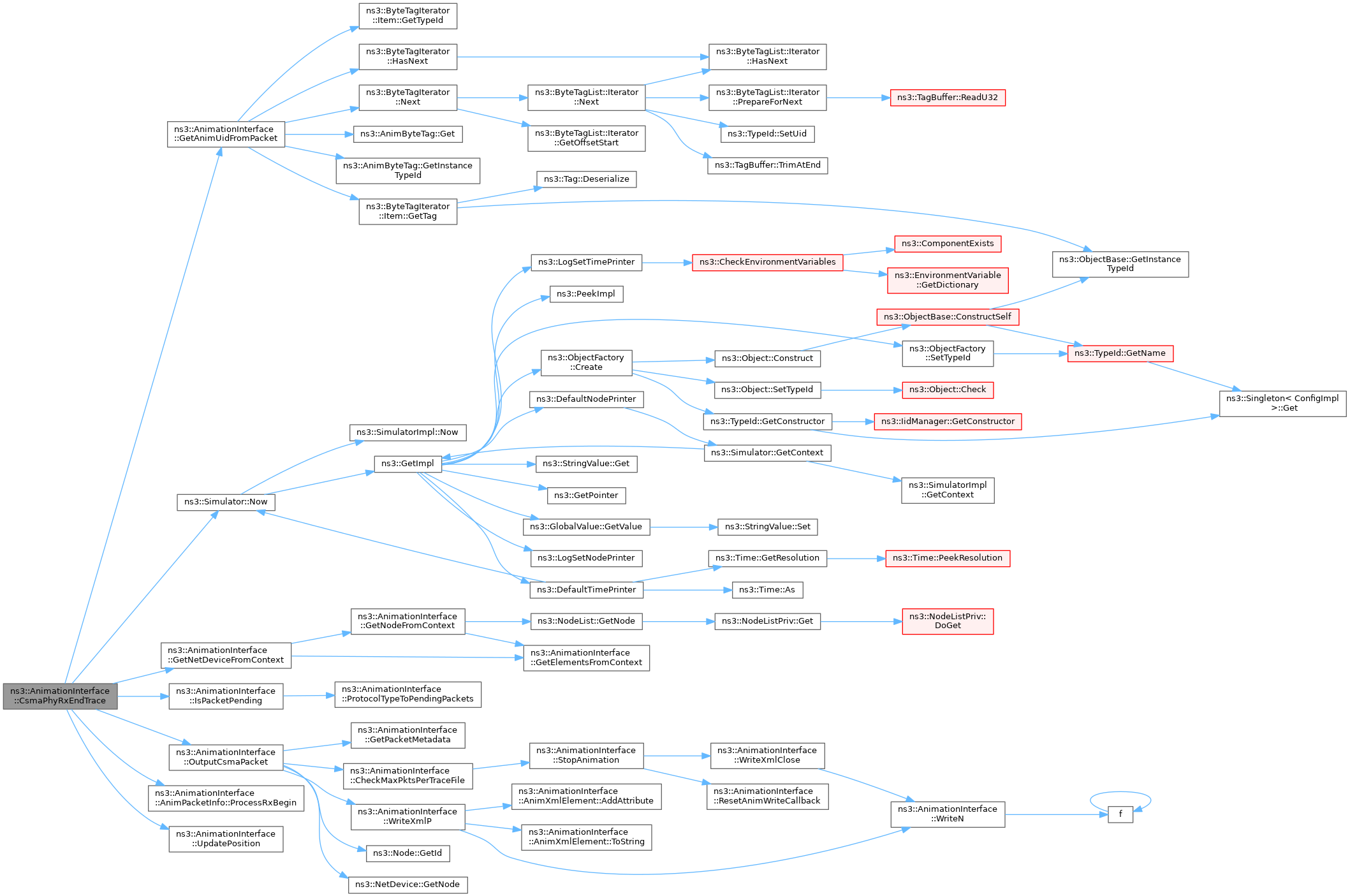

void	CsmaPhyTxBeginTrace (std::string context, Ptr< const Packet > p)
	CSMA Phy transmit begin trace function.

void	CsmaPhyTxEndTrace (std::string context, Ptr< const Packet > p)
	CSMA Phy transmit end trace function.

void	DequeueTrace (std::string context, Ptr< const Packet >)
	Dequeue trace function.

void	DevTxTrace (std::string context, Ptr< const Packet > p, Ptr< NetDevice > tx, Ptr< NetDevice > rx, Time txTime, Time rxTime)
	Device transmit trace function.

void	EnqueueTrace (std::string context, Ptr< const Packet >)
	Enqueue trace function.

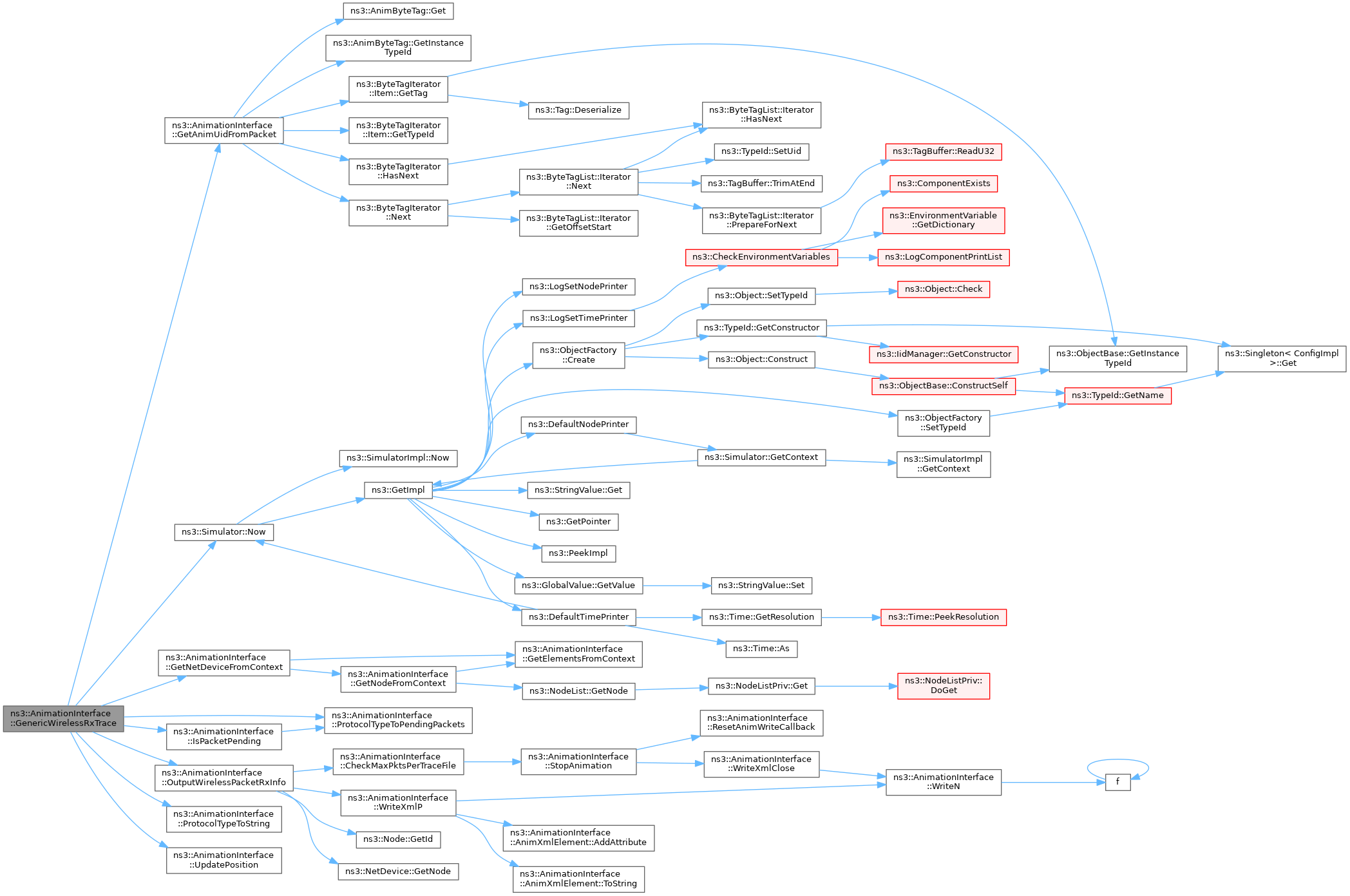

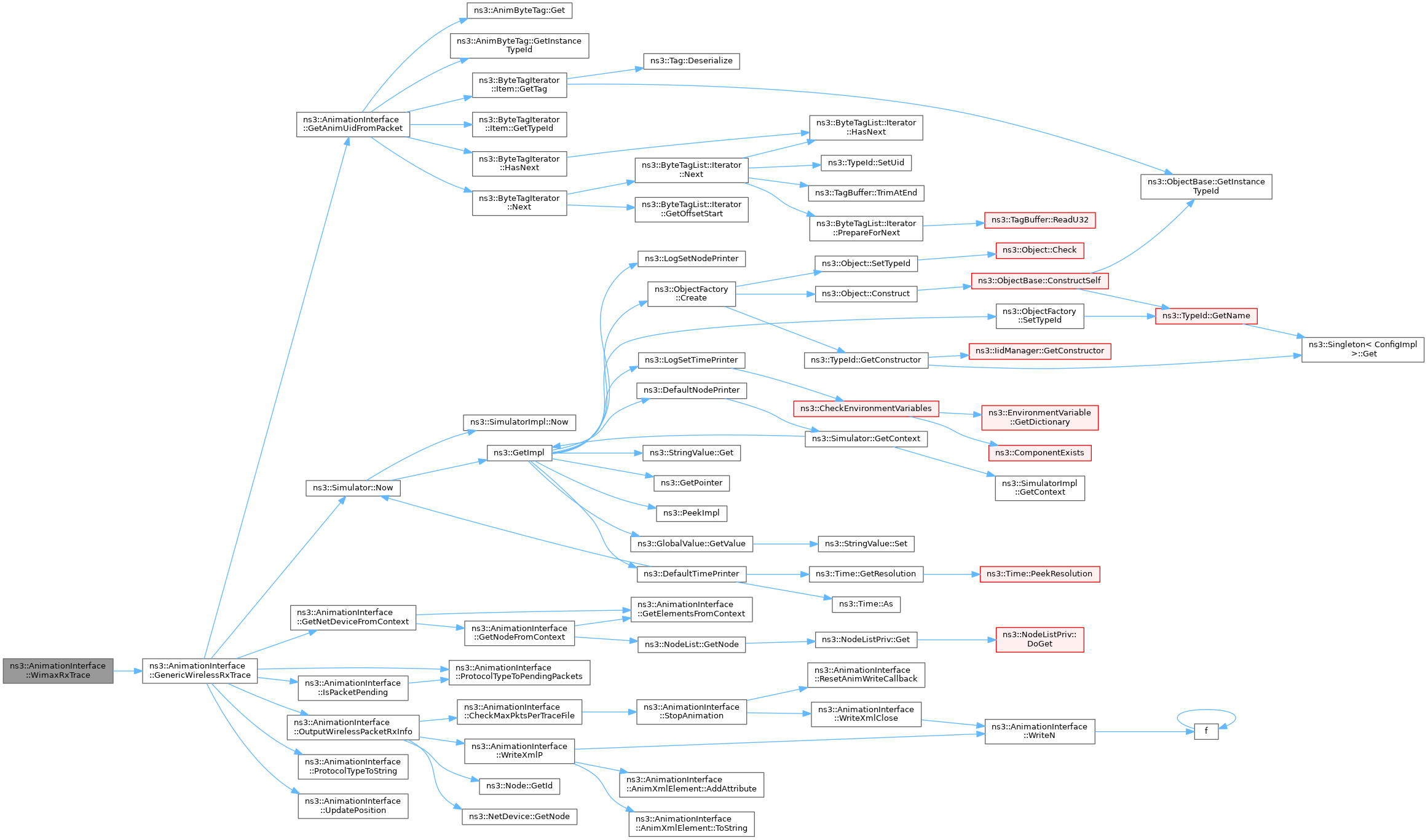

void	GenericWirelessRxTrace (std::string context, Ptr< const Packet > p, ProtocolType protocolType)
	Generic wireless receive trace function.

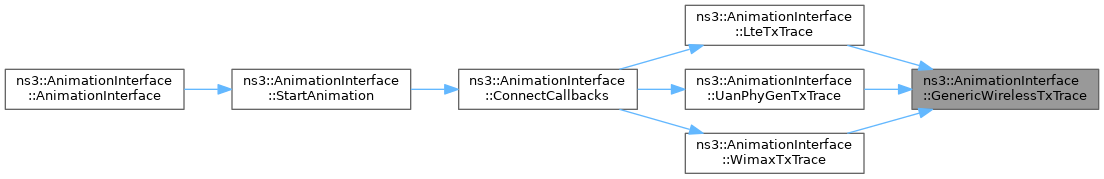

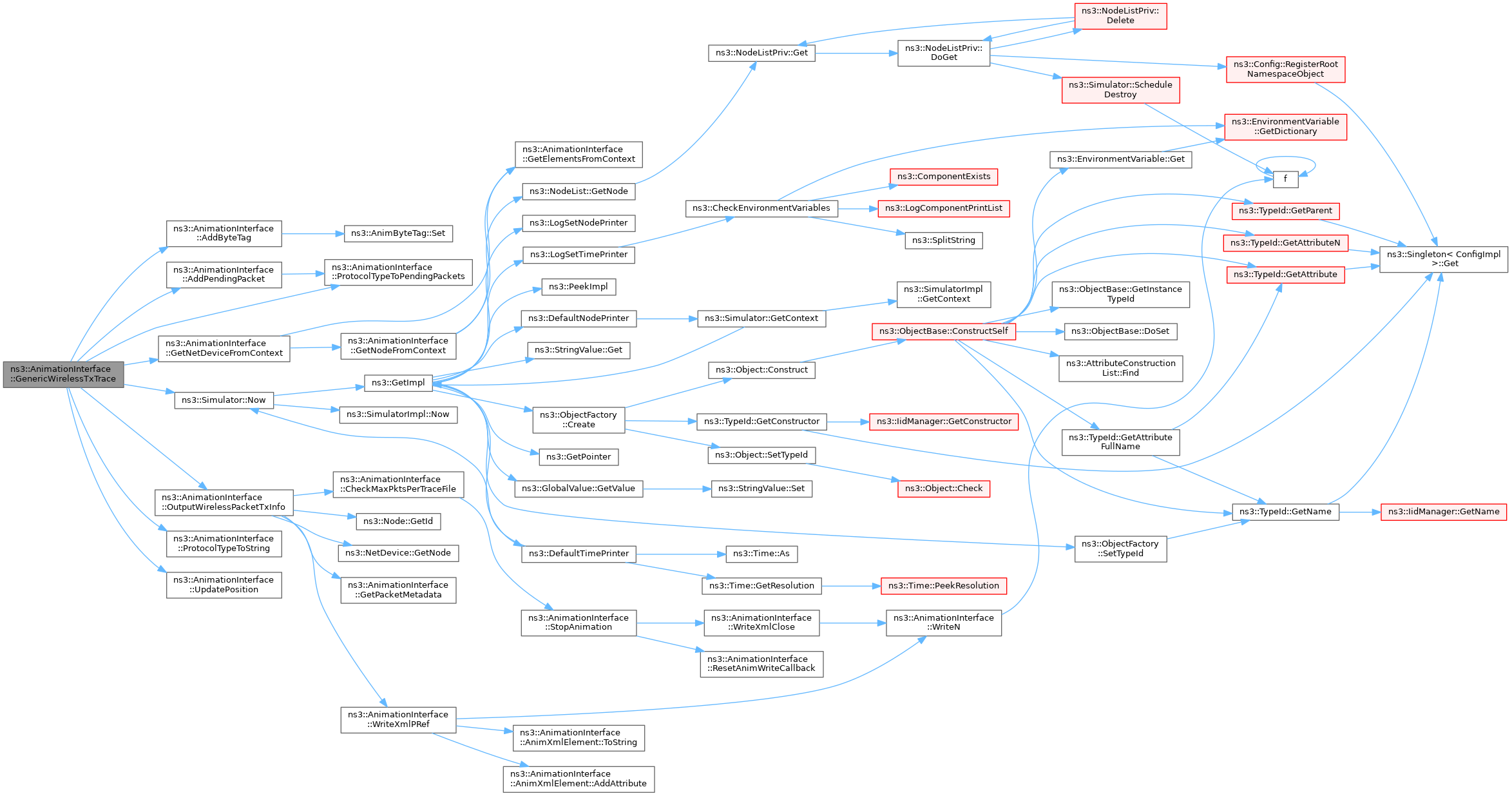

void	GenericWirelessTxTrace (std::string context, Ptr< const Packet > p, ProtocolType protocolType)
	Generic wireless transmit trace function.

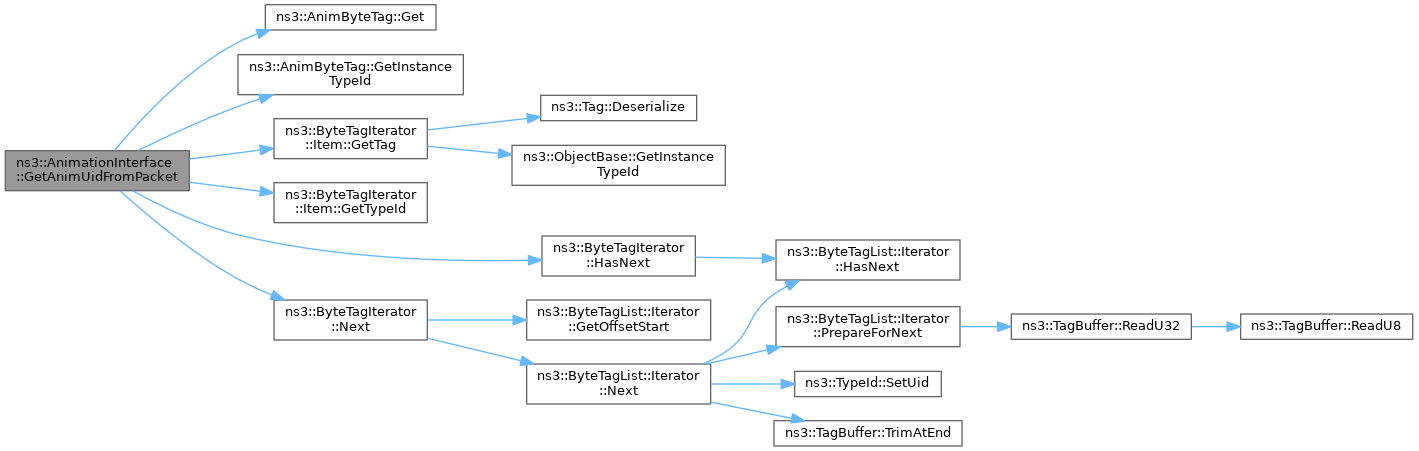

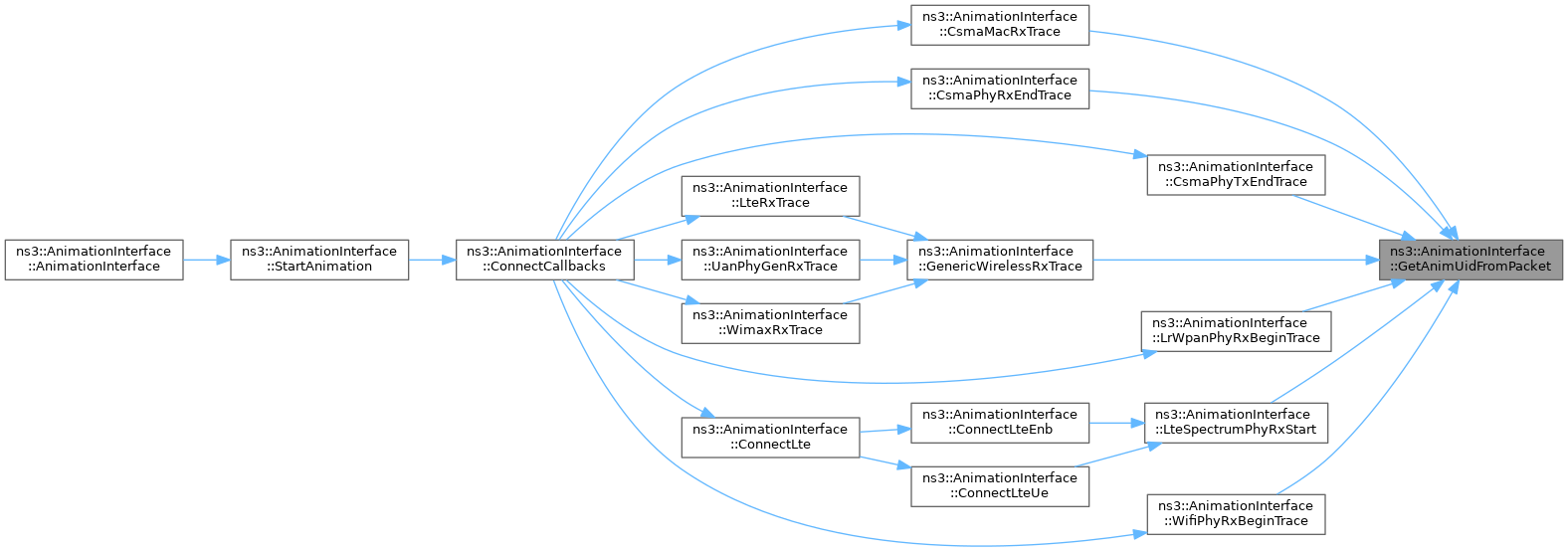

uint64_t	GetAnimUidFromPacket (Ptr< const Packet >)
	Get anim UID from packet function.

const std::vector< std::string >	GetElementsFromContext (const std::string &context) const
	Get elements from context.

std::string	GetIpv4Address (Ptr< NetDevice > nd)
	Get IPv4 address.

std::vector< std::string >	GetIpv4Addresses (Ptr< NetDevice > nd)
	Get IPv4 addresses.

std::string	GetIpv4RoutingTable (Ptr< Node > n)
	Get IPv4 routing table function.

std::string	GetIpv6Address (Ptr< NetDevice > nd)
	Get IPv6 address.

std::vector< std::string >	GetIpv6Addresses (Ptr< NetDevice > nd)
	Get IPv6 addresses.

std::string	GetMacAddress (Ptr< NetDevice > nd)
	Get MAC address function.

std::vector< Ptr< Node > >	GetMovedNodes ()
	Get moved nodes function.

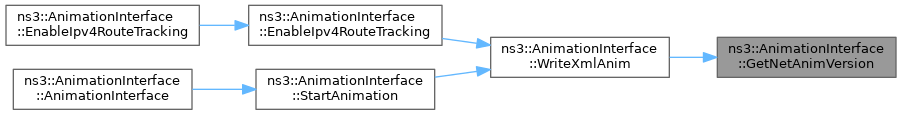

std::string	GetNetAnimVersion ()
	Get netanim version function.

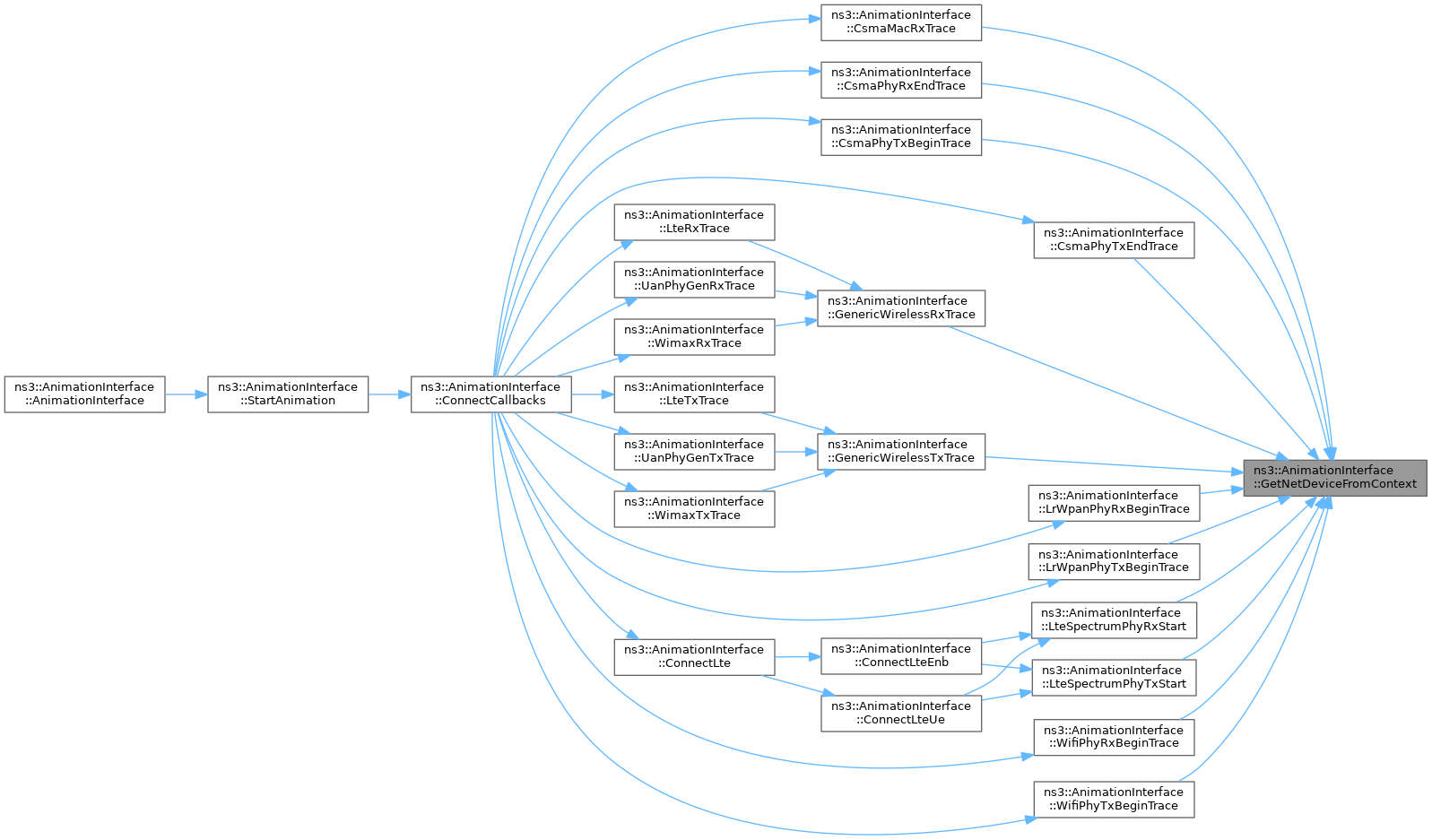

Ptr< NetDevice >	GetNetDeviceFromContext (std::string context)
	Get net device from context.

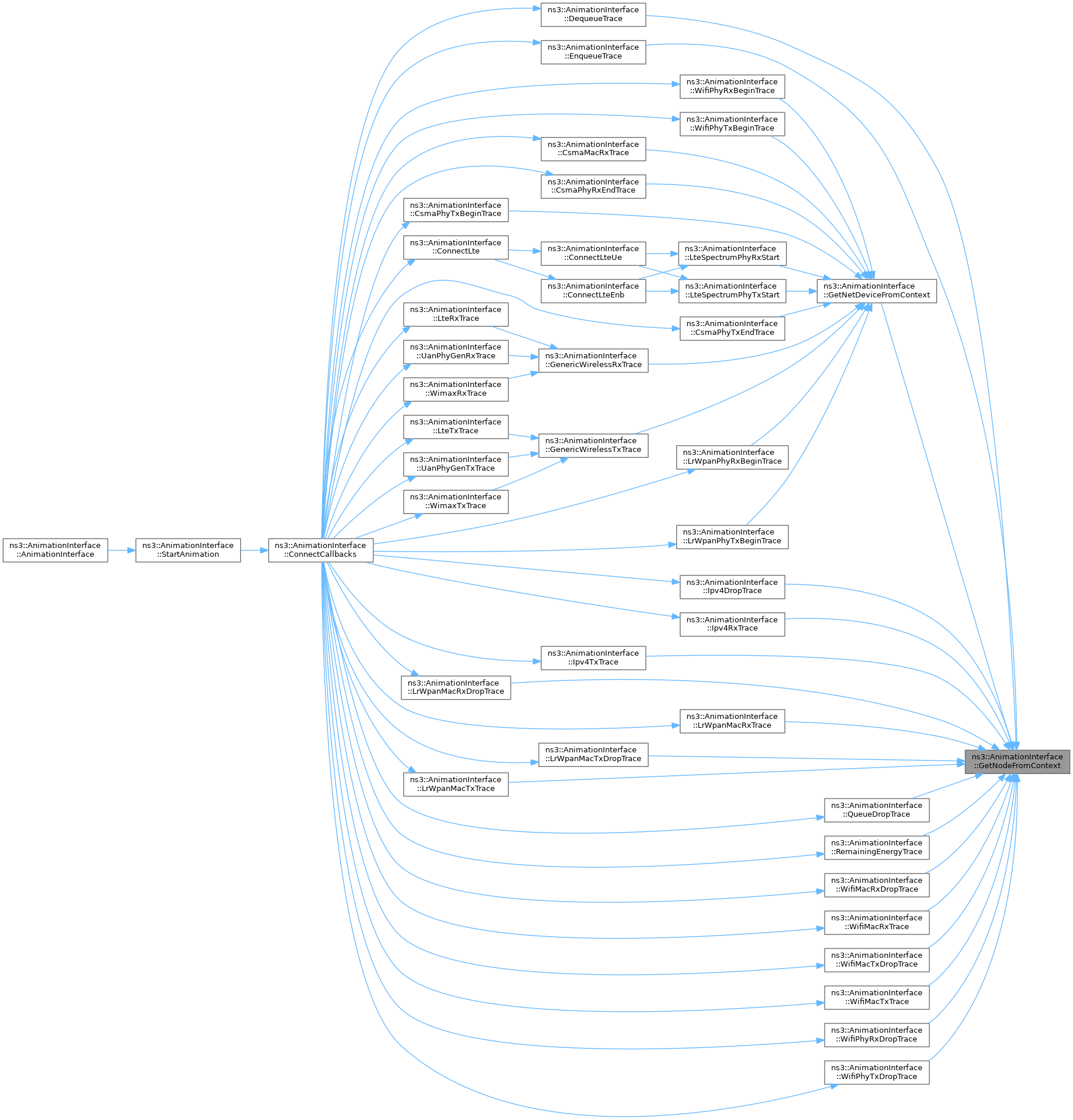

Ptr< Node >	GetNodeFromContext (const std::string &context) const
	Get node from context.

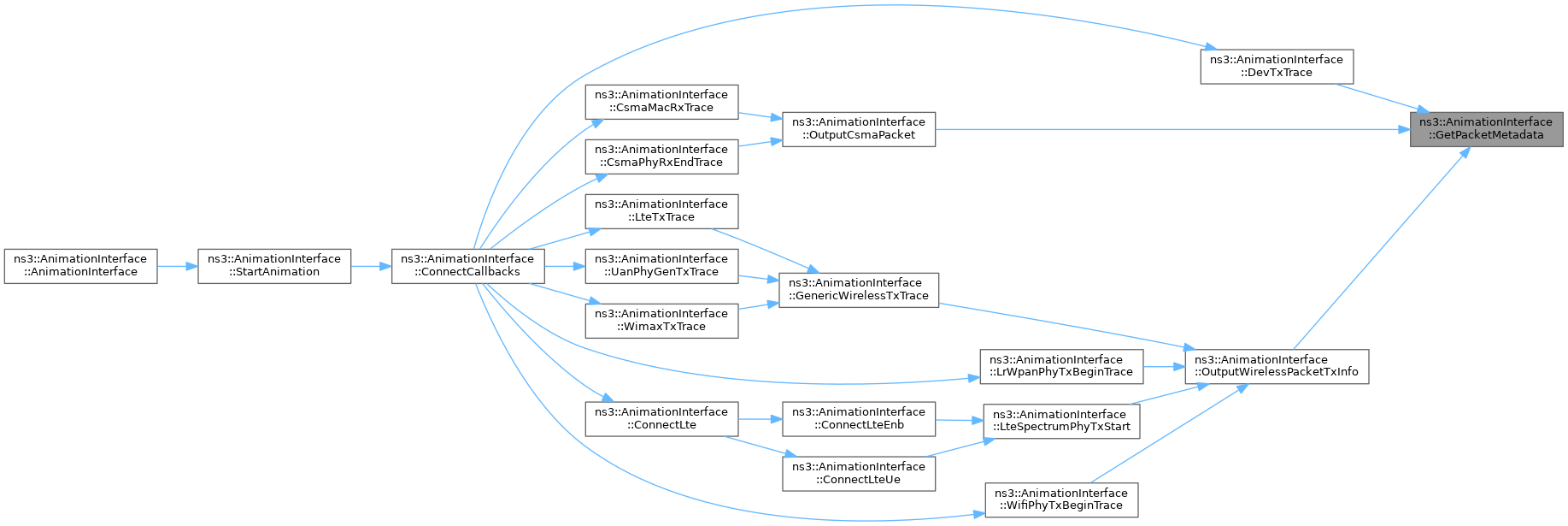

std::string	GetPacketMetadata (Ptr< const Packet > p)
	Get packet metadata function.

Vector	GetPosition (Ptr< Node > n)

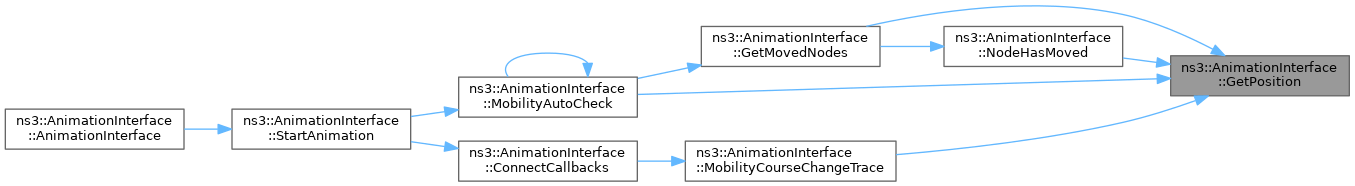

	Get position function.

void	Ipv4DropTrace (std::string context, const Ipv4Header &ipv4Header, Ptr< const Packet > p, Ipv4L3Protocol::DropReason dropReason, Ptr< Ipv4 > ipv4, uint32_t interfaceIndex)
	IPv4 drop trace function.

void	Ipv4RxTrace (std::string context, Ptr< const Packet > p, Ptr< Ipv4 > ipv4, uint32_t interfaceIndex)
	IPv4 receive trace function.

void	Ipv4TxTrace (std::string context, Ptr< const Packet > p, Ptr< Ipv4 > ipv4, uint32_t interfaceIndex)
	IPv4 transmit trace function.

bool	IsInTimeWindow ()
	Is in time window function.

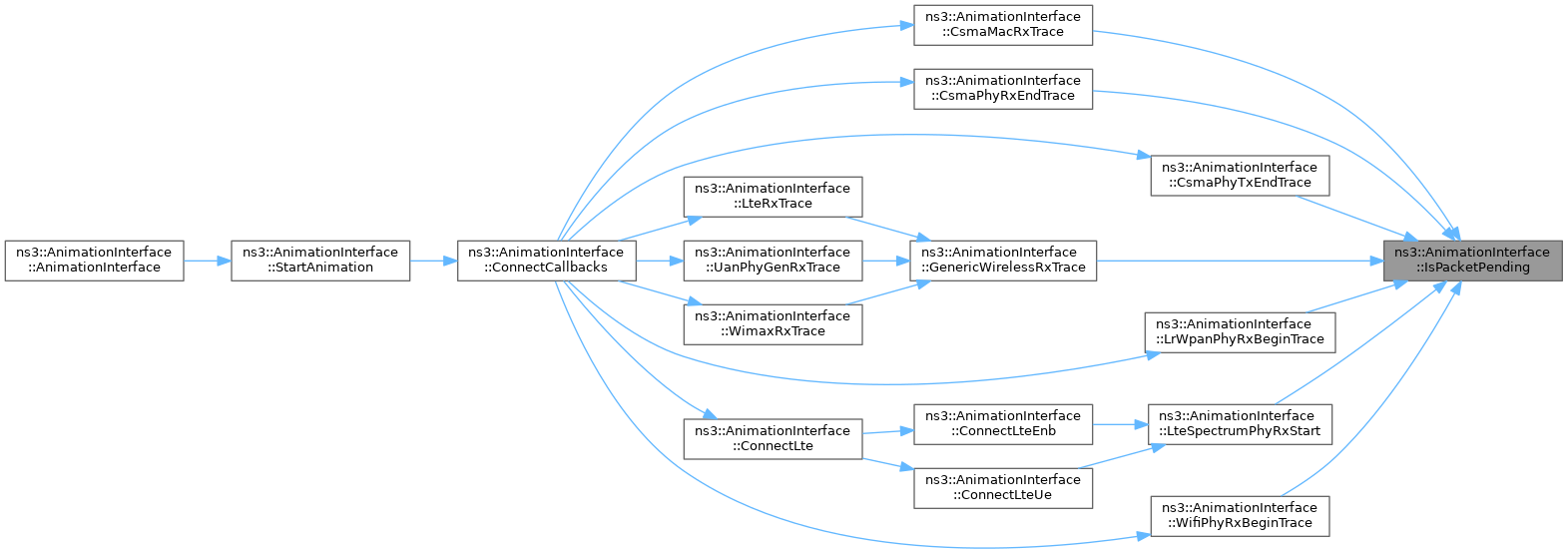

bool	IsPacketPending (uint64_t animUid, ProtocolType protocolType)
	Is packet pending function.

void	LrWpanMacRxDropTrace (std::string context, Ptr< const Packet > p)
	LR-WPAN MAC receive drop trace function.

void	LrWpanMacRxTrace (std::string context, Ptr< const Packet > p)
	LR-WPAN MAC receive trace function.

void	LrWpanMacTxDropTrace (std::string context, Ptr< const Packet > p)
	LR-WPAN MAC transmit drop trace function.

void	LrWpanMacTxTrace (std::string context, Ptr< const Packet > p)
	LR-WPAN MAC transmit trace function.

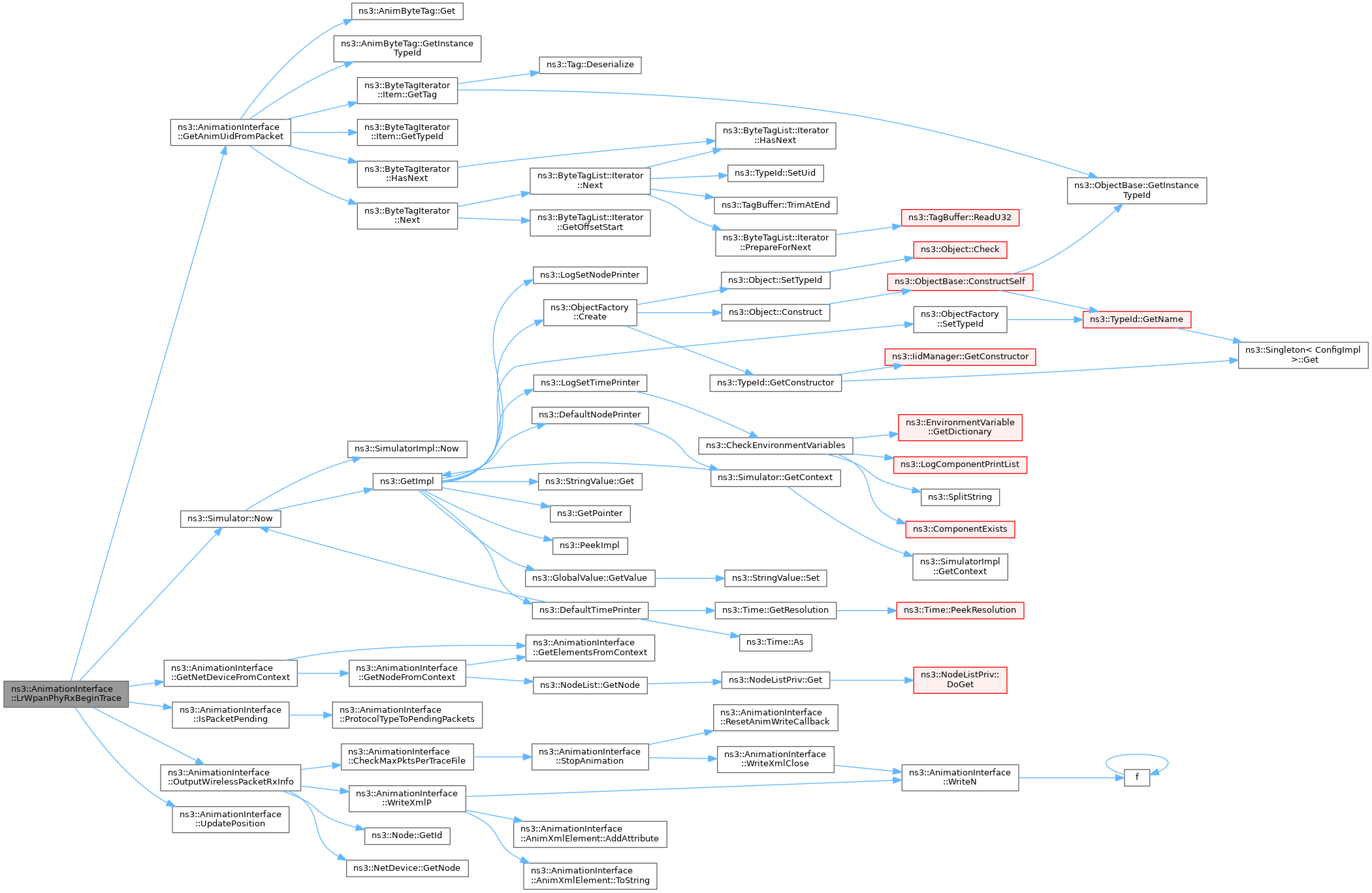

void	LrWpanPhyRxBeginTrace (std::string context, Ptr< const Packet > p)
	LR-WPAN Phy receive begin trace function.

void	LrWpanPhyTxBeginTrace (std::string context, Ptr< const Packet > p)
	LR-WPAN Phy receive begin trace function.

void	LteRxTrace (std::string context, Ptr< const Packet > p, const Mac48Address &m)
	LTE receive trace function.

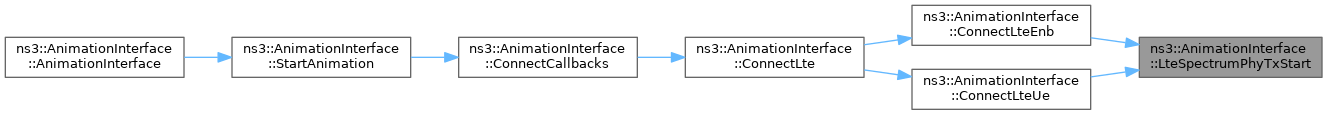

void	LteSpectrumPhyRxStart (std::string context, Ptr< const PacketBurst > pb)

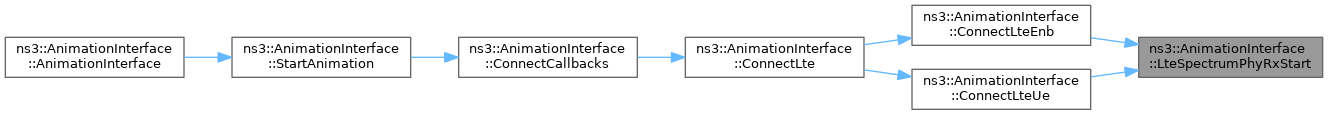

	LTE Spectrum Phy receive start function.

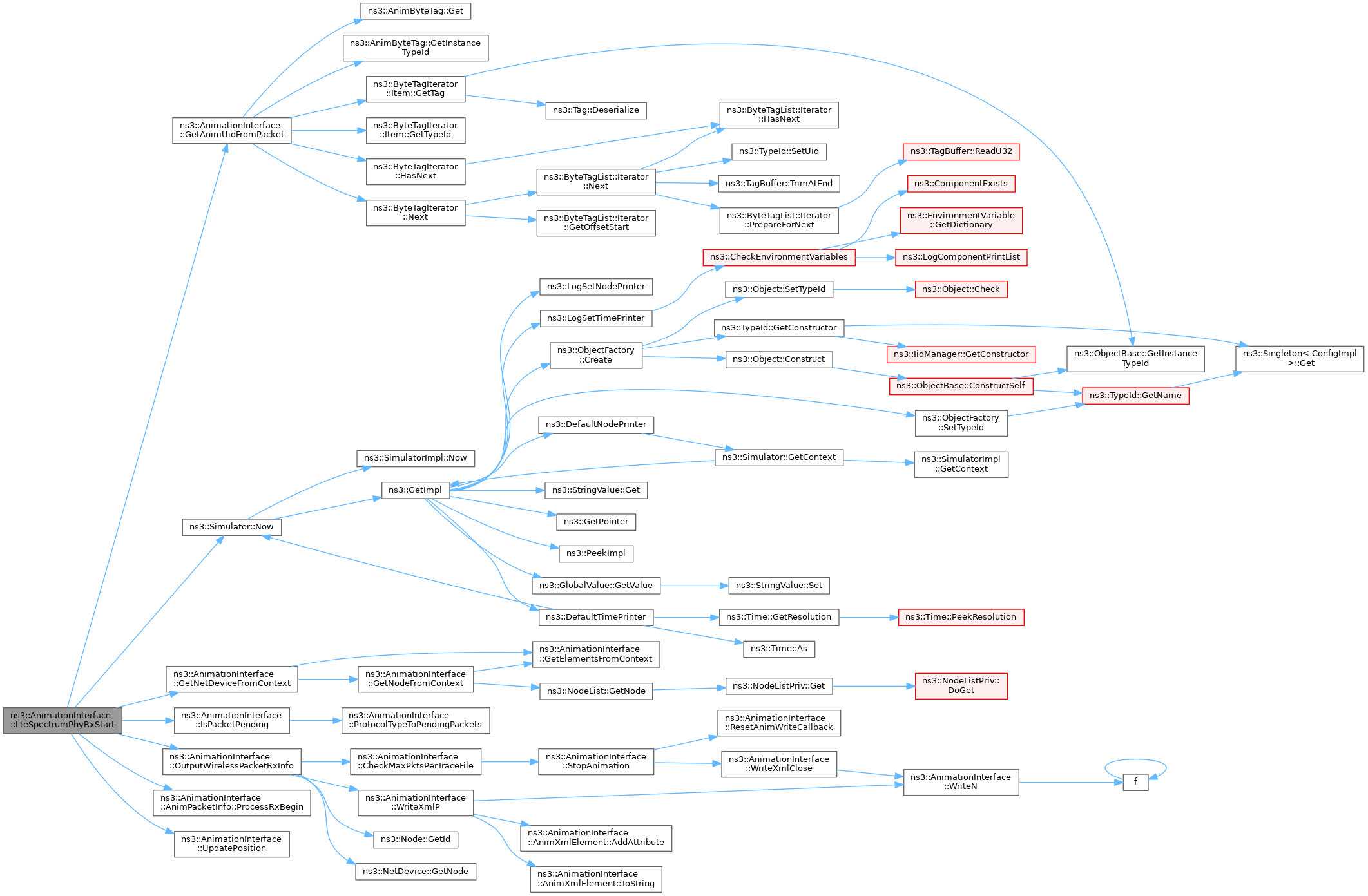

void	LteSpectrumPhyTxStart (std::string context, Ptr< const PacketBurst > pb)
	LTE Spectrum Phy transmit start function.

void	LteTxTrace (std::string context, Ptr< const Packet > p, const Mac48Address &m)
	LTE transmit trace function.

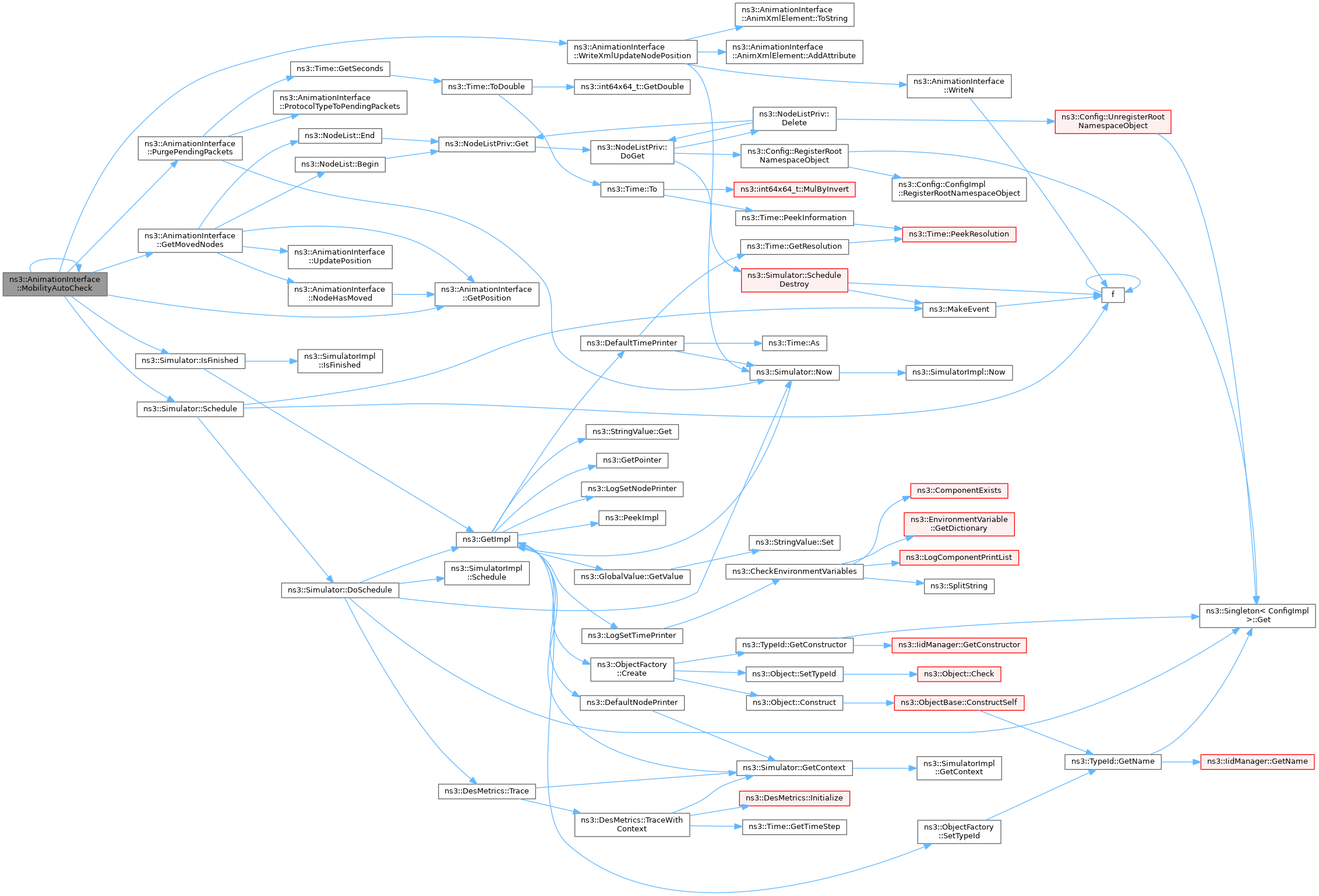

void	MobilityAutoCheck ()
	Mobility auto check function.

void	MobilityCourseChangeTrace (Ptr< const MobilityModel > mob)
	Mobility course change trace function.

bool	NodeHasMoved (Ptr< Node > n, Vector newLocation)
	Node has moved function.

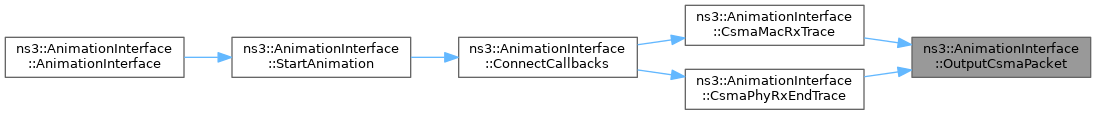

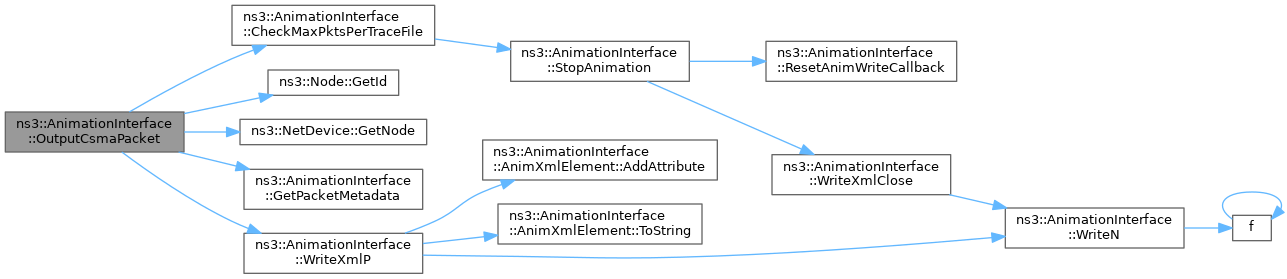

void	OutputCsmaPacket (Ptr< const Packet > p, AnimPacketInfo &pktInfo)
	Output CSMA packet function.

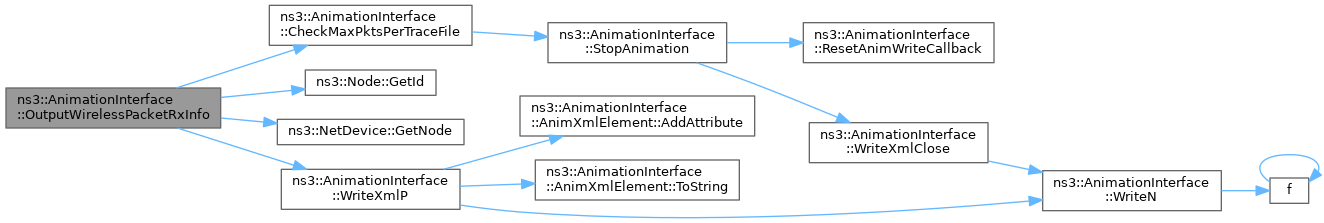

void	OutputWirelessPacketRxInfo (Ptr< const Packet > p, AnimPacketInfo &pktInfo, uint64_t animUid)
	Output wireless packet receive info.

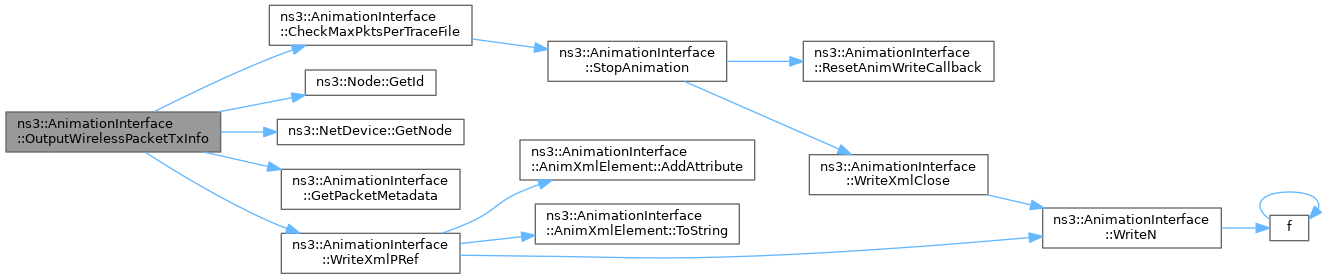

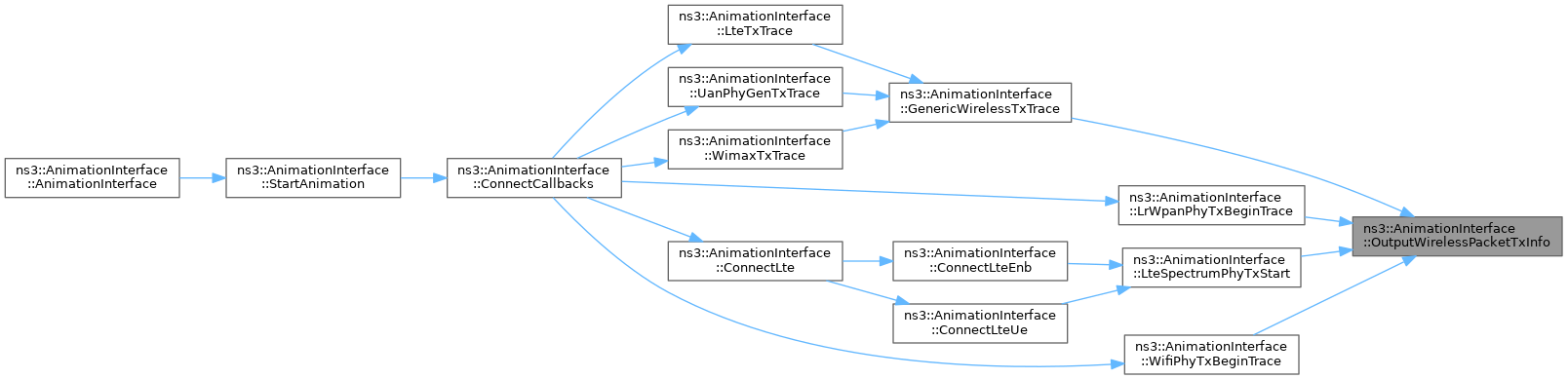

void	OutputWirelessPacketTxInfo (Ptr< const Packet > p, AnimPacketInfo &pktInfo, uint64_t animUid)
	Output wireless packet transmit info.

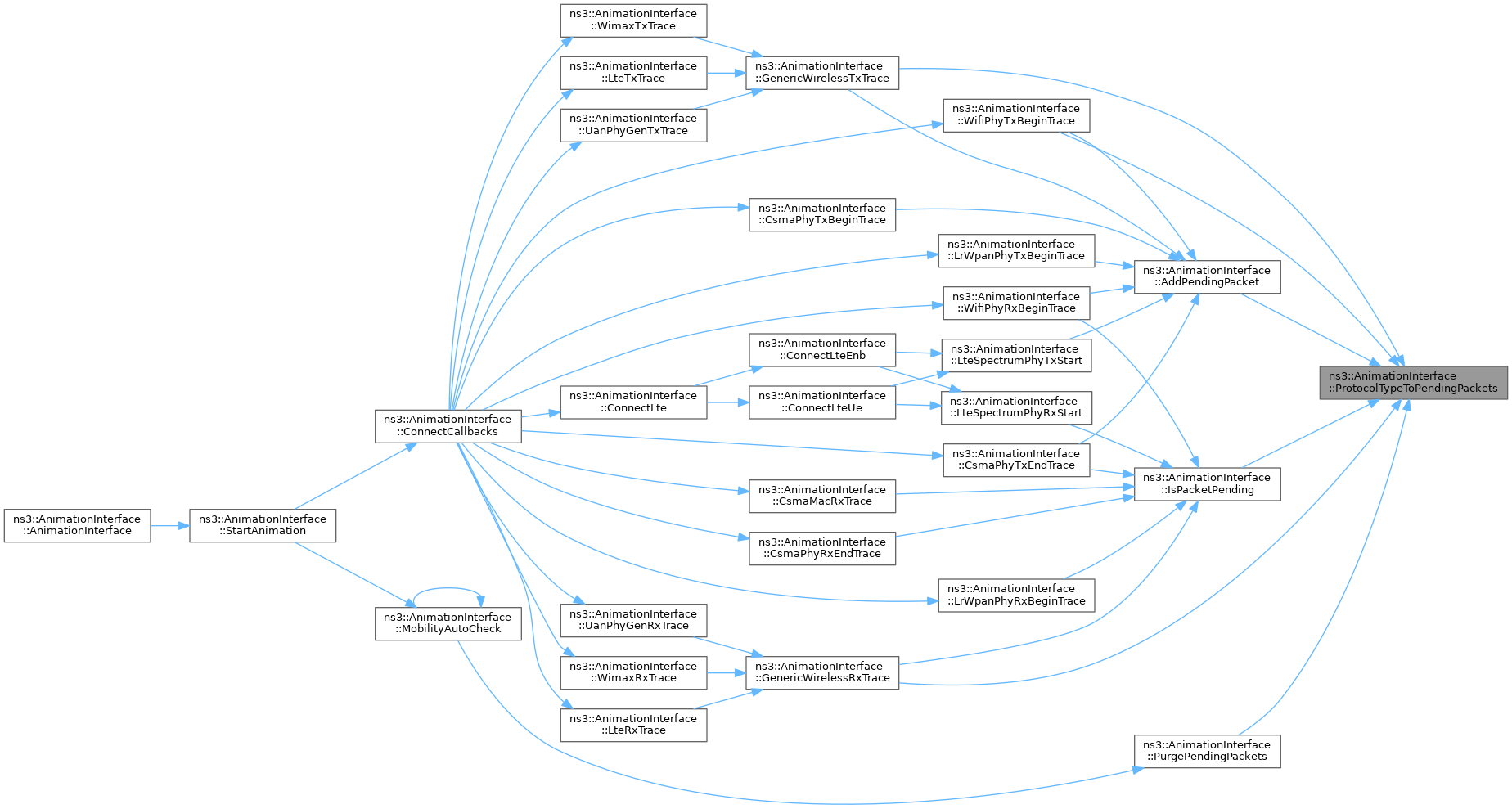

AnimUidPacketInfoMap *	ProtocolTypeToPendingPackets (ProtocolType protocolType)
	Protocol type to pending packets function.

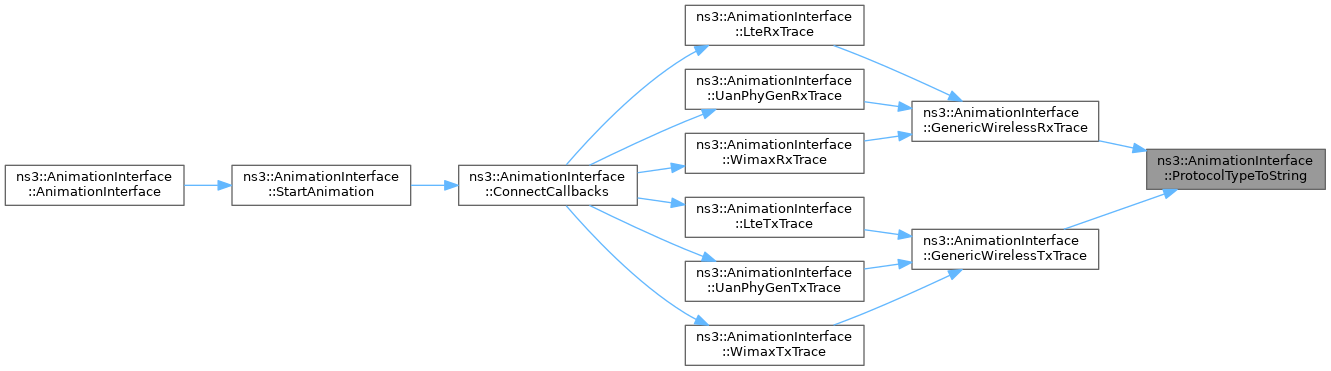

std::string	ProtocolTypeToString (ProtocolType protocolType)
	Protocol type to string function.

void	PurgePendingPackets (ProtocolType protocolType)
	Purge pending packets function.

void	QueueDropTrace (std::string context, Ptr< const Packet >)
	Queue trace function.

void	RecursiveIpv4RoutePathSearch (std::string from, std::string to, Ipv4RoutePathElements &rpElements)
	Recursive IPv4 route path search function.

void	RemainingEnergyTrace (std::string context, double previousEnergy, double currentEnergy)
	Remaining energy trace function.

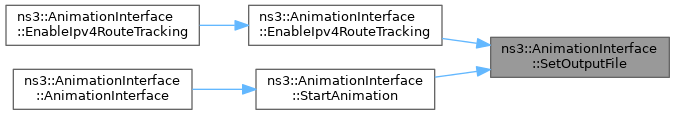

void	SetOutputFile (const std::string &fn, bool routing=false)
	Set output file function.

void	StartAnimation (bool restart=false)
	Start animation function.

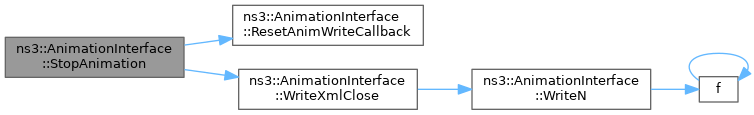

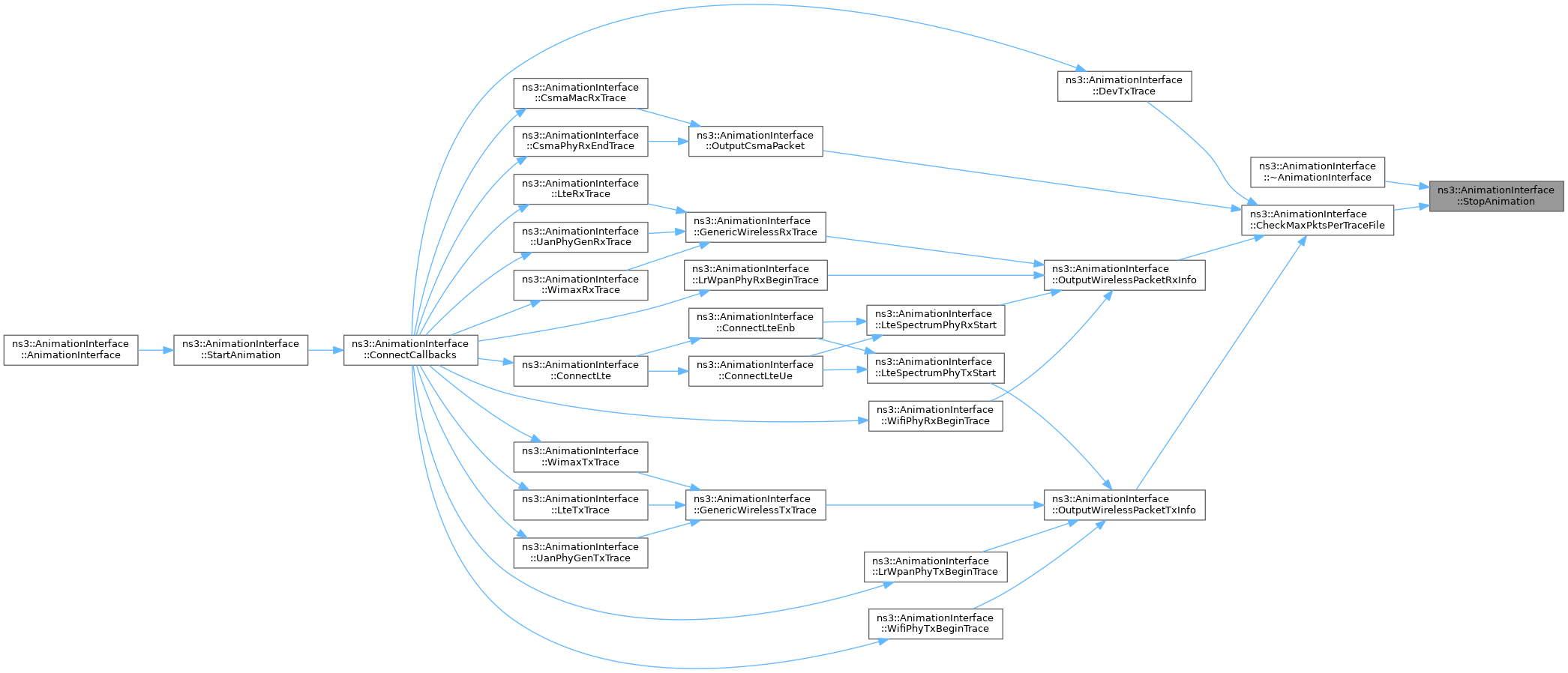

void	StopAnimation (bool onlyAnimation=false)
	Stop animation function.

void	TrackIpv4L3ProtocolCounters ()
	Track IPv4 L3 protocol counters function.

void	TrackIpv4Route ()
	Track IPv4 router function.

void	TrackIpv4RoutePaths ()
	Track IPv4 route paths function.

void	TrackQueueCounters ()
	Track queue counters function.

void	TrackWifiMacCounters ()
	Track wifi MAC counters function.

void	TrackWifiPhyCounters ()
	Track wifi phy counters function.

void	UanPhyGenRxTrace (std::string context, Ptr< const Packet >)
	UAN Phy gen receive trace function.

void	UanPhyGenTxTrace (std::string context, Ptr< const Packet >)
	UAN Phy gen transmit trace function.

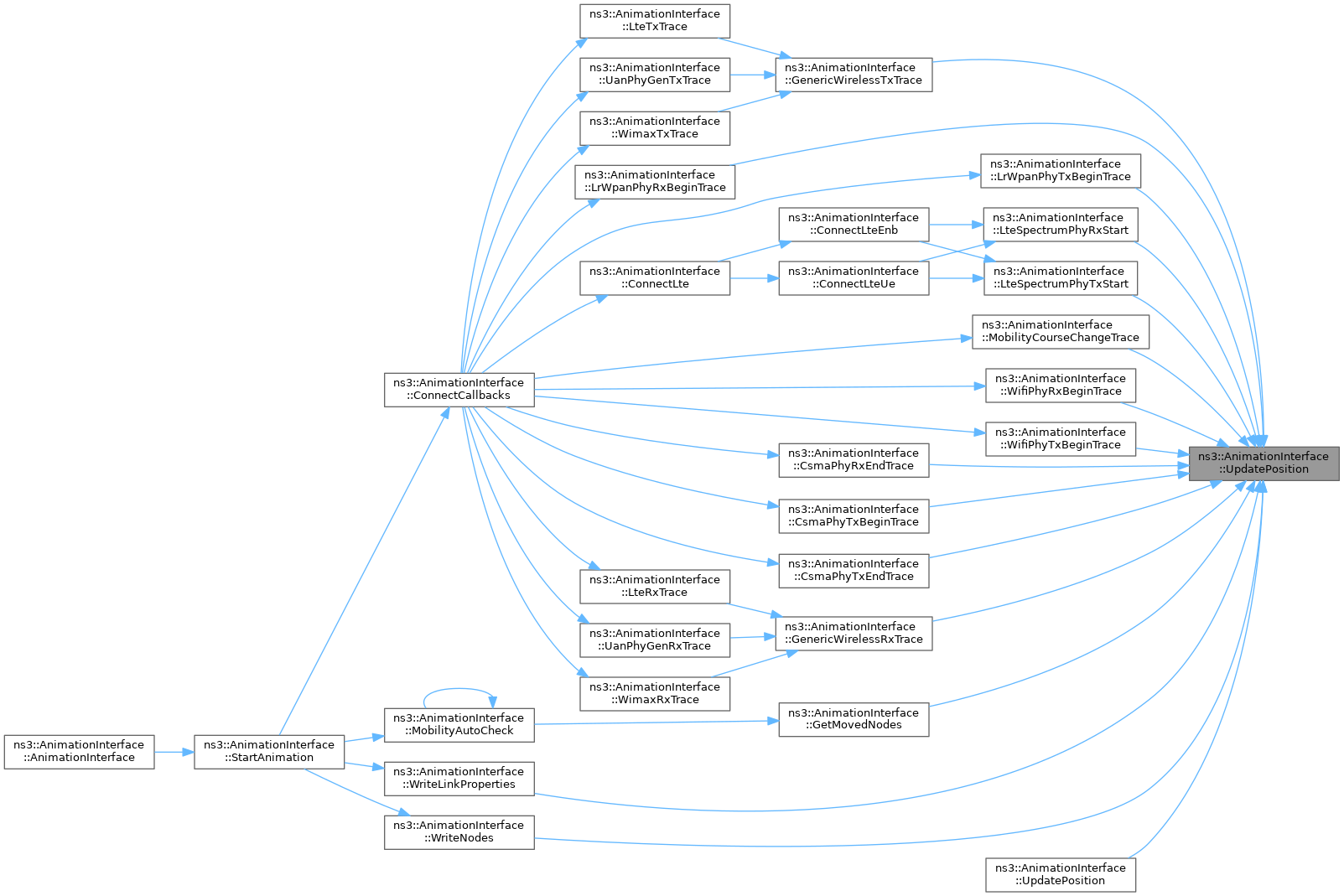

Vector	UpdatePosition (Ptr< NetDevice > ndev)
	Update position function.

Vector	UpdatePosition (Ptr< Node > n)
	Update position function.

Vector	UpdatePosition (Ptr< Node > n, Vector v)
	Update position function.

void	WifiMacRxDropTrace (std::string context, Ptr< const Packet > p)
	wifi MAC receive drop trace function

void	WifiMacRxTrace (std::string context, Ptr< const Packet > p)
	wifi MAC receive trace function

void	WifiMacTxDropTrace (std::string context, Ptr< const Packet > p)
	wifi MAC transmit drop trace function

void	WifiMacTxTrace (std::string context, Ptr< const Packet > p)
	wifi MAC transmit trace function

void	WifiPhyRxBeginTrace (std::string context, Ptr< const Packet > p, RxPowerWattPerChannelBand rxPowersW)
	wifi Phy receive begin trace function

void	WifiPhyRxDropTrace (std::string context, Ptr< const Packet > p, WifiPhyRxfailureReason reason)
	wifi Phy receive drop trace function

void	WifiPhyTxBeginTrace (std::string context, WifiConstPsduMap psduMap, WifiTxVector txVector, double txPowerW)
	wifi Phy transmit PSDU begin trace function

void	WifiPhyTxDropTrace (std::string context, Ptr< const Packet > p)
	wifi Phy transmit drop trace function

void	WimaxRxTrace (std::string context, Ptr< const Packet > p, const Mac48Address &m)
	WIMax receive trace function.

void	WimaxTxTrace (std::string context, Ptr< const Packet > p, const Mac48Address &m)
	WIMax transmit trace function.

void	WriteIpv4Addresses ()
	Write IPv4 Addresses function.

void	WriteIpv6Addresses ()
	Write IPv6 Addresses function.

void	WriteLinkProperties ()
	Write link properties function.

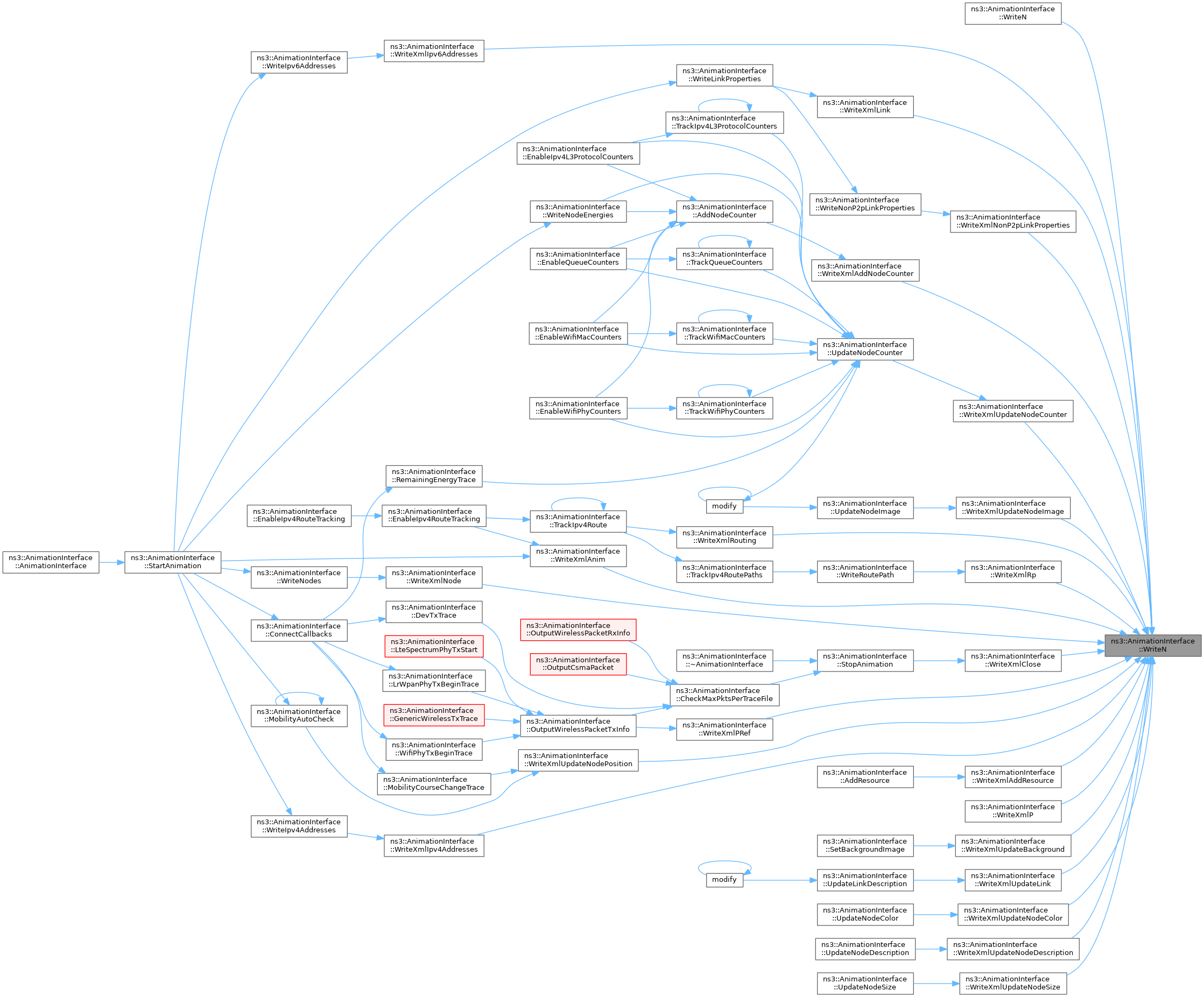

int	WriteN (const char data, uint32_t count, FILE f)
	WriteN function.

int	WriteN (const std::string &st, FILE *f)
	WriteN function.

void	WriteNodeColors ()
	Write node colors function.

void	WriteNodeEnergies ()
	Write node energies function.

void	WriteNodes ()
	Write nodes function.

void	WriteNodeSizes ()
	Write node sizes function.

void	WriteNodeUpdate (uint32_t nodeId)
	Write node update function.

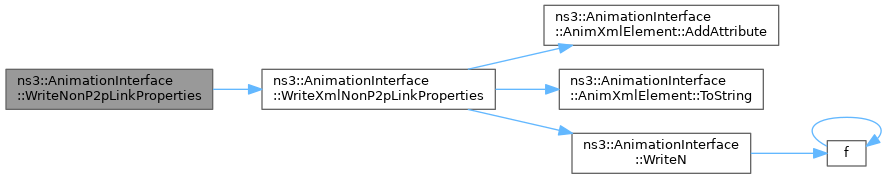

void	WriteNonP2pLinkProperties (uint32_t id, std::string ipv4Address, std::string channelType)
	Write non P2P link properties function.

void	WriteRoutePath (uint32_t nodeId, std::string destination, Ipv4RoutePathElements rpElements)
	Write route path function.

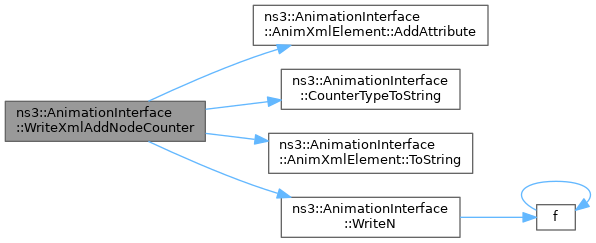

void	WriteXmlAddNodeCounter (uint32_t counterId, std::string counterName, CounterType counterType)
	Write XML add node counter function.

void	WriteXmlAddResource (uint32_t resourceId, std::string resourcePath)
	Write XML add resource function.

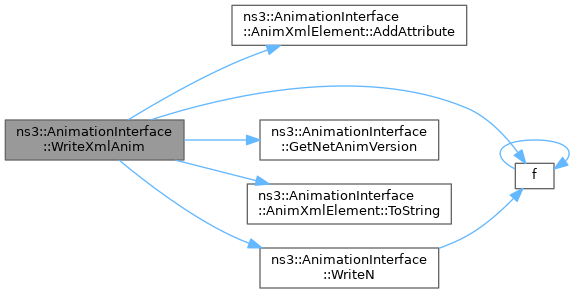

void	WriteXmlAnim (bool routing=false)
	Write XML anim function.

void	WriteXmlClose (std::string name, bool routing=false)
	Write XML close function.

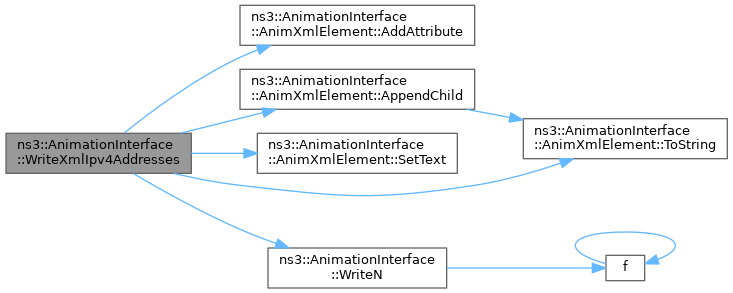

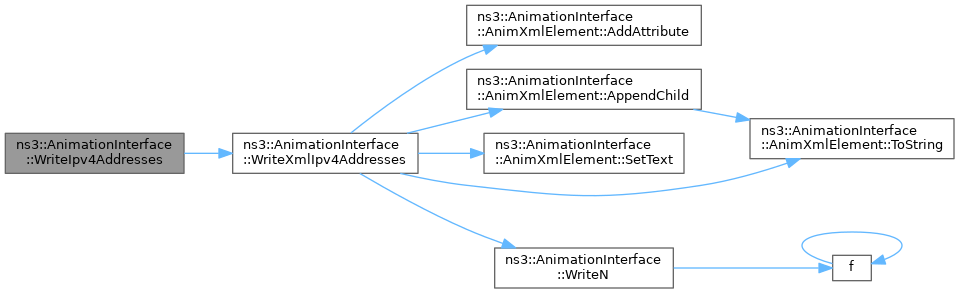

void	WriteXmlIpv4Addresses (uint32_t nodeId, std::vector< std::string > ipv4Addresses)
	Write XML Ipv4 addresses function.

void	WriteXmlIpv6Addresses (uint32_t nodeId, std::vector< std::string > ipv6Addresses)
	Write XML Ipv6 addresses function.

void	WriteXmlLink (uint32_t fromId, uint32_t toLp, uint32_t toId)
	Write XML link counter function.

void	WriteXmlNode (uint32_t id, uint32_t sysId, double locX, double locY)
	Write XML node function.

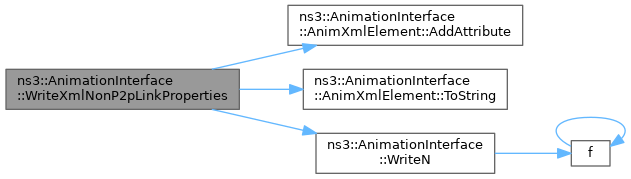

void	WriteXmlNonP2pLinkProperties (uint32_t id, std::string ipAddress, std::string channelType)
	Write XML non P2P link properties function.

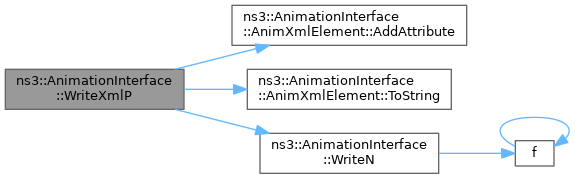

void	WriteXmlP (std::string pktType, uint32_t fId, double fbTx, double lbTx, uint32_t tId, double fbRx, double lbRx, std::string metaInfo="")
	Write XMLP function.

void	WriteXmlP (uint64_t animUid, std::string pktType, uint32_t fId, double fbTx, double lbTx)
	Write XMLP function.

void	WriteXmlPRef (uint64_t animUid, uint32_t fId, double fbTx, std::string metaInfo="")
	Write XMLP Ref function.

void	WriteXmlRouting (uint32_t id, std::string routingInfo)
	Write XML routing function.

void	WriteXmlRp (uint32_t nodeId, std::string destination, Ipv4RoutePathElements rpElements)
	Write XMLRP function.

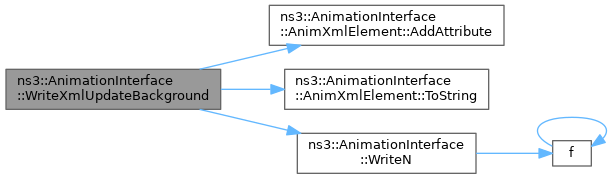

void	WriteXmlUpdateBackground (std::string fileName, double x, double y, double scaleX, double scaleY, double opacity)
	Write XML update background function.

void	WriteXmlUpdateLink (uint32_t fromId, uint32_t toId, std::string linkDescription)
	Write XML update link counter function.

void	WriteXmlUpdateNodeColor (uint32_t nodeId, uint8_t r, uint8_t g, uint8_t b)
	Write XML update node color function.

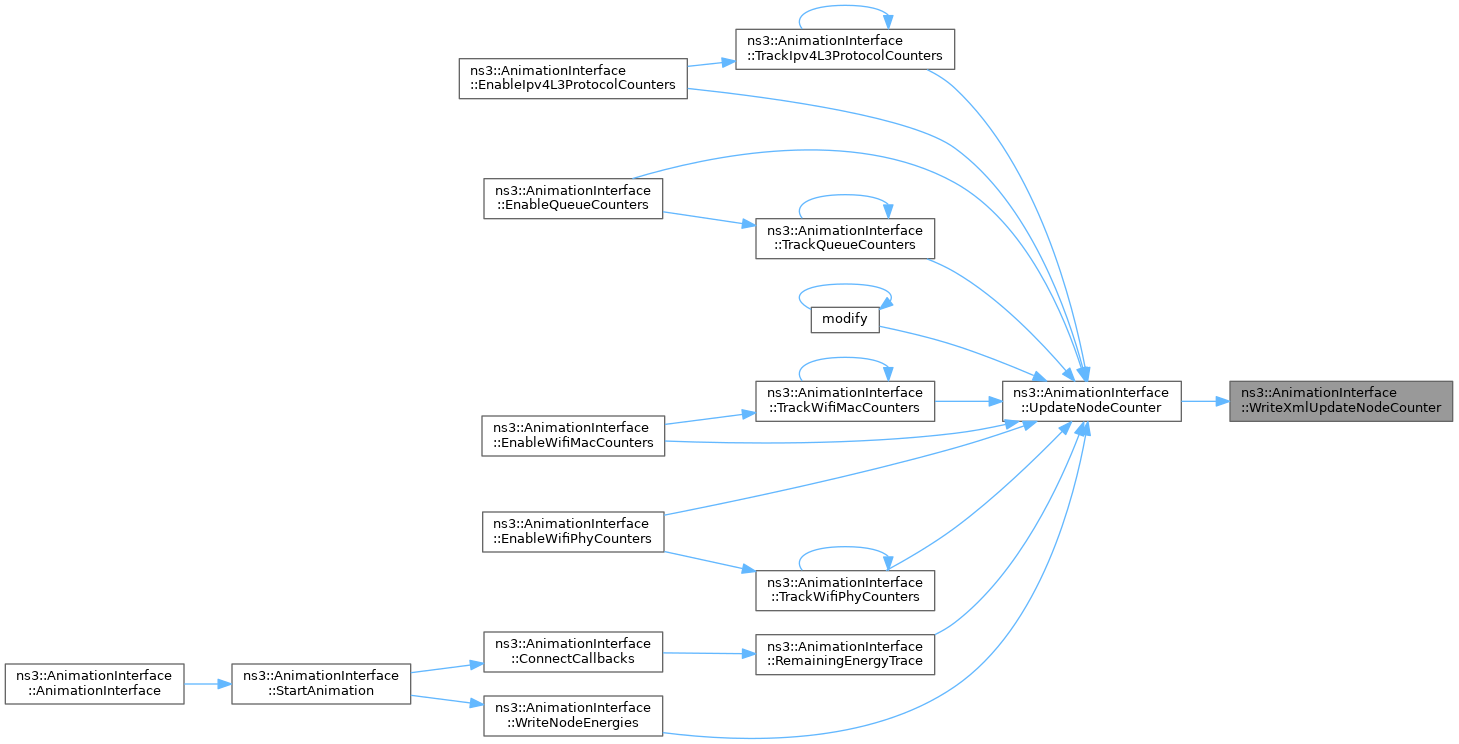

void	WriteXmlUpdateNodeCounter (uint32_t counterId, uint32_t nodeId, double value)
	Write XML update node counter function.

void	WriteXmlUpdateNodeDescription (uint32_t nodeId)
	Write XML update node description function.

void	WriteXmlUpdateNodeImage (uint32_t nodeId, uint32_t resourceId)
	Write XML update node image function.

void	WriteXmlUpdateNodePosition (uint32_t nodeId, double x, double y)
	Write XML update node position function.

void	WriteXmlUpdateNodeSize (uint32_t nodeId, double width, double height)
	Write XML update node size function.

Private Attributes
uint64_t	gAnimUid
	Packet unique identifier used by AnimationInterface.

uint64_t	m_currentPktCount
	current packet count

bool	m_enablePacketMetadata
	enable packet metadata

FILE *	m_f
	File handle for output (0 if none)

Time	m_ipv4L3ProtocolCountersPollInterval
	IPv4 L3 protocol counters poll interval.

Time	m_ipv4L3ProtocolCountersStopTime
	IPv4 L3 protocol counters stop time.

uint32_t	m_ipv4L3ProtocolDropCounterId
	IPv4 protocol drop counter ID.

uint32_t	m_ipv4L3ProtocolRxCounterId
	IPv4 L3 protocol receive counter ID.

uint32_t	m_ipv4L3ProtocolTxCounterId
	IPv4 L3 protocol transmit counter ID.

std::vector< Ipv4RouteTrackElement >	m_ipv4RouteTrackElements
	IPv route track elements.

std::map< std::string, uint32_t >	m_ipv4ToNodeIdMap
	IPv4 to node ID map.

std::map< std::string, uint32_t >	m_ipv6ToNodeIdMap
	IPv6 to node ID map.

LinkPropertiesMap	m_linkProperties
	link properties

std::map< std::string, uint32_t >	m_macToNodeIdMap
	MAC to node ID map.

uint64_t	m_maxPktsPerFile
	maximum packets per file

Time	m_mobilityPollInterval
	mobility poll interval

NodeColorsMap	m_nodeColors
	node colors

std::vector< std::string >	m_nodeCounters
	node counters

NodeDescriptionsMap	m_nodeDescriptions
	node description

EnergyFractionMap	m_nodeEnergyFraction
	node energy fraction

NodeIdIpv4Map	m_nodeIdIpv4Map
	node ID to IPv4 map

NodeIdIpv6Map	m_nodeIdIpv6Map
	node ID to IPv6 map

NodeCounterMap64	m_nodeIpv4Drop
	node IPv4 drop

NodeCounterMap64	m_nodeIpv4Rx
	node IPv4 receive

NodeCounterMap64	m_nodeIpv4Tx
	node IPv4 transmit

std::map< uint32_t, Vector >	m_nodeLocation
	node location

NodeCounterMap64	m_nodeLrWpanMacRx
	node LR-WPAN MAC receive

NodeCounterMap64	m_nodeLrWpanMacRxDrop
	node LR-WPAN MAC receive drop

NodeCounterMap64	m_nodeLrWpanMacTx
	node LR-WPAN MAC transmit

NodeCounterMap64	m_nodeLrWpanMacTxDrop
	node LR-WPAN MAC transmit drop

NodeCounterMap64	m_nodeQueueDequeue
	node queue dequeue

NodeCounterMap64	m_nodeQueueDrop
	node queue drop

NodeCounterMap64	m_nodeQueueEnqueue
	node queue enqueue

std::map< uint32_t, NodeSize >	m_nodeSizes
	node sizes

NodeCounterMap64	m_nodeWifiMacRx
	node wifi MAC receive

NodeCounterMap64	m_nodeWifiMacRxDrop
	node wifi MAC receive drop

NodeCounterMap64	m_nodeWifiMacTx
	node wifi MAC transmit

NodeCounterMap64	m_nodeWifiMacTxDrop
	node wifi MAC transmit drop

NodeCounterMap64	m_nodeWifiPhyRxDrop
	node wifi Phy receive drop

NodeCounterMap64	m_nodeWifiPhyTxDrop
	node wifi Phy transmit drop

std::string	m_originalFileName
	original file name

std::string	m_outputFileName
	output file name

AnimUidPacketInfoMap	m_pendingCsmaPackets
	pending CSMA packets

AnimUidPacketInfoMap	m_pendingLrWpanPackets
	pending LR-WPAN packets

AnimUidPacketInfoMap	m_pendingLtePackets
	pending LTE packets

AnimUidPacketInfoMap	m_pendingUanPackets
	pending UAN packets

AnimUidPacketInfoMap	m_pendingWifiPackets
	pending wifi packets

AnimUidPacketInfoMap	m_pendingWimaxPackets
	pending wimax packets

Time	m_queueCountersPollInterval
	queue counters poll interval

Time	m_queueCountersStopTime
	queue counters stop time

uint32_t	m_queueDequeueCounterId
	queue dequeue counter ID

uint32_t	m_queueDropCounterId
	queue drop counter ID

uint32_t	m_queueEnqueueCounterId
	queue enqueue counter ID

uint32_t	m_remainingEnergyCounterId
	remaining energy counter ID

std::vector< std::string >	m_resources
	resources

FILE *	m_routingF
	File handle for routing table output (0 if None);.

std::string	m_routingFileName
	routing file name

NodeContainer	m_routingNc
	routing node container

Time	m_routingPollInterval
	routing poll interval

Time	m_routingStopTime
	routing stop time

bool	m_started
	started

Time	m_startTime
	start time

Time	m_stopTime
	stop time

bool	m_trackPackets
	track packets

Time	m_wifiMacCountersPollInterval
	wifi MAC counters poll interval

Time	m_wifiMacCountersStopTime
	wifi MAC counters stop time

uint32_t	m_wifiMacRxCounterId
	wifi MAC receive counter ID

uint32_t	m_wifiMacRxDropCounterId
	wifi MAC receive drop counter ID

uint32_t	m_wifiMacTxCounterId
	wifi MAC transmit counter ID

uint32_t	m_wifiMacTxDropCounterId
	wifi MAC transmit drop counter ID

Time	m_wifiPhyCountersPollInterval
	wifi Phy counters poll interval

Time	m_wifiPhyCountersStopTime
	wifi Phy counters stop time

uint32_t	m_wifiPhyRxDropCounterId
	wifi Phy receive drop counter ID

uint32_t	m_wifiPhyTxDropCounterId
	wifi Phy transmit drop counter ID

AnimWriteCallback	m_writeCallback
	write callback

Static Private Attributes
static Rectangle *	userBoundary
	user boundary

Detailed Description

Interface to network animator.

Provides functions that facilitate communications with an external or internal network animator.

Definition at line 87 of file animation-interface.h.

Member Typedef Documentation

◆ AnimUidPacketInfoMap

typedef std::map<uint64_t, AnimPacketInfo> ns3::AnimationInterface::AnimUidPacketInfoMap

private

AnimUidPacketInfoMap typedef.

Definition at line 562 of file animation-interface.h.

◆ AnimWriteCallback

typedef void(* ns3::AnimationInterface::AnimWriteCallback) (const char *str)

typedef for WriteCallBack used for listening to AnimationInterface write messages

Definition at line 111 of file animation-interface.h.

◆ EnergyFractionMap

typedef std::map<uint32_t, double> ns3::AnimationInterface::EnergyFractionMap

private

EnergyFractionMap typedef.

Definition at line 563 of file animation-interface.h.

◆ Ipv4RoutePathElements

typedef std::vector<Ipv4RoutePathElement> ns3::AnimationInterface::Ipv4RoutePathElements

private

Ipv4RoutePathElements typedef.

Definition at line 565 of file animation-interface.h.

◆ LinkPropertiesMap

typedef std::map<P2pLinkNodeIdPair, LinkProperties, LinkPairCompare> ns3::AnimationInterface::LinkPropertiesMap

private

LinkPropertiesMap typedef.

Definition at line 558 of file animation-interface.h.

◆ NodeColorsMap

typedef std::map<uint32_t, Rgb> ns3::AnimationInterface::NodeColorsMap

private

NodeColorsMap typedef.

Definition at line 560 of file animation-interface.h.

◆ NodeCounterMap64

typedef std::map<uint32_t, uint64_t> ns3::AnimationInterface::NodeCounterMap64

private

NodeCounterMap64 typedef.

Definition at line 572 of file animation-interface.h.

◆ NodeDescriptionsMap

typedef std::map<uint32_t, std::string> ns3::AnimationInterface::NodeDescriptionsMap

private

NodeDescriptionsMap typedef.

Definition at line 559 of file animation-interface.h.

◆ NodeIdIpv4Map

typedef std::multimap<uint32_t, std::string> ns3::AnimationInterface::NodeIdIpv4Map

private

NodeIdIpv4Map typedef.

Definition at line 566 of file animation-interface.h.

◆ NodeIdIpv4Pair

typedef std::pair<uint32_t, std::string> ns3::AnimationInterface::NodeIdIpv4Pair

private

NodeIdIpv4Pair typedef.

Definition at line 568 of file animation-interface.h.

◆ NodeIdIpv6Map

typedef std::multimap<uint32_t, std::string> ns3::AnimationInterface::NodeIdIpv6Map

private

NodeIdIpv6Map typedef.

Definition at line 567 of file animation-interface.h.

◆ NodeIdIpv6Pair

typedef std::pair<uint32_t, std::string> ns3::AnimationInterface::NodeIdIpv6Pair

private

NodeIdIpv6Pair typedef.

Definition at line 569 of file animation-interface.h.

Member Enumeration Documentation

◆ CounterType

enum ns3::AnimationInterface::CounterType

Counter Types.

Enumerator
UINT32_COUNTER
DOUBLE_COUNTER

Definition at line 100 of file animation-interface.h.

◆ ProtocolType

enum ns3::AnimationInterface::ProtocolType

private

ProtocolType enumeration.

Enumerator
UAN
LTE
WIFI
WIMAX
CSMA
LRWPAN

Definition at line 540 of file animation-interface.h.

Constructor & Destructor Documentation

◆ AnimationInterface()

ns3::AnimationInterface::AnimationInterface ( const std::string filename )

Constructor.

Parameters

filename The Filename for the trace file used by the Animator

Definition at line 77 of file animation-interface.cc.

References ns3::initialized, and StartAnimation().

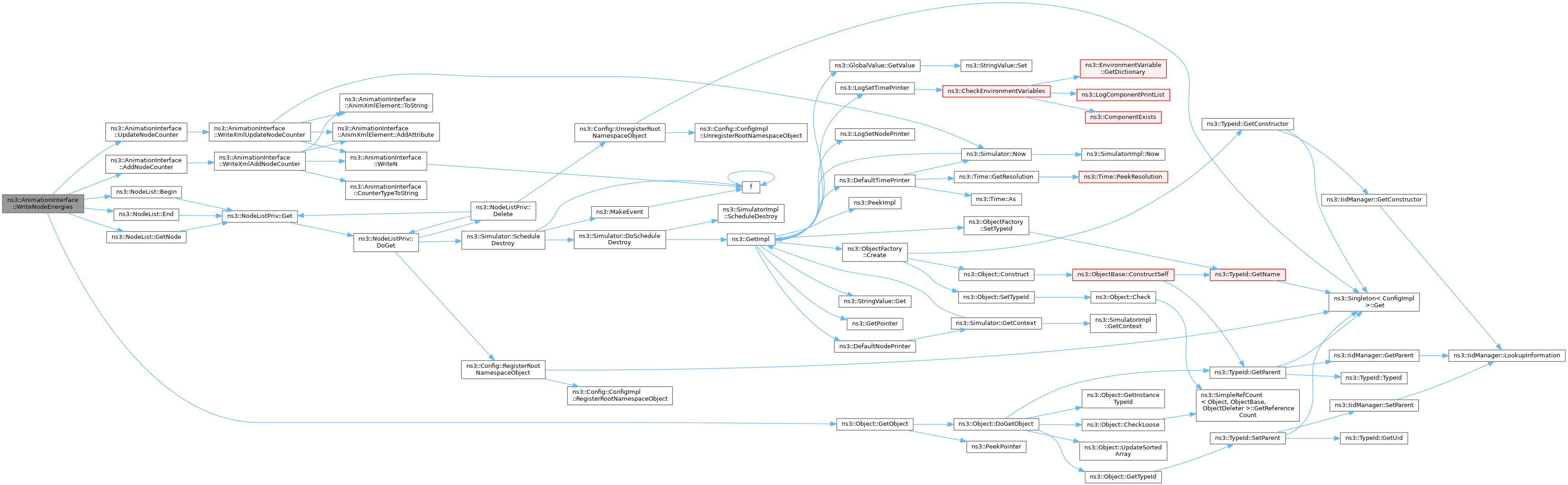

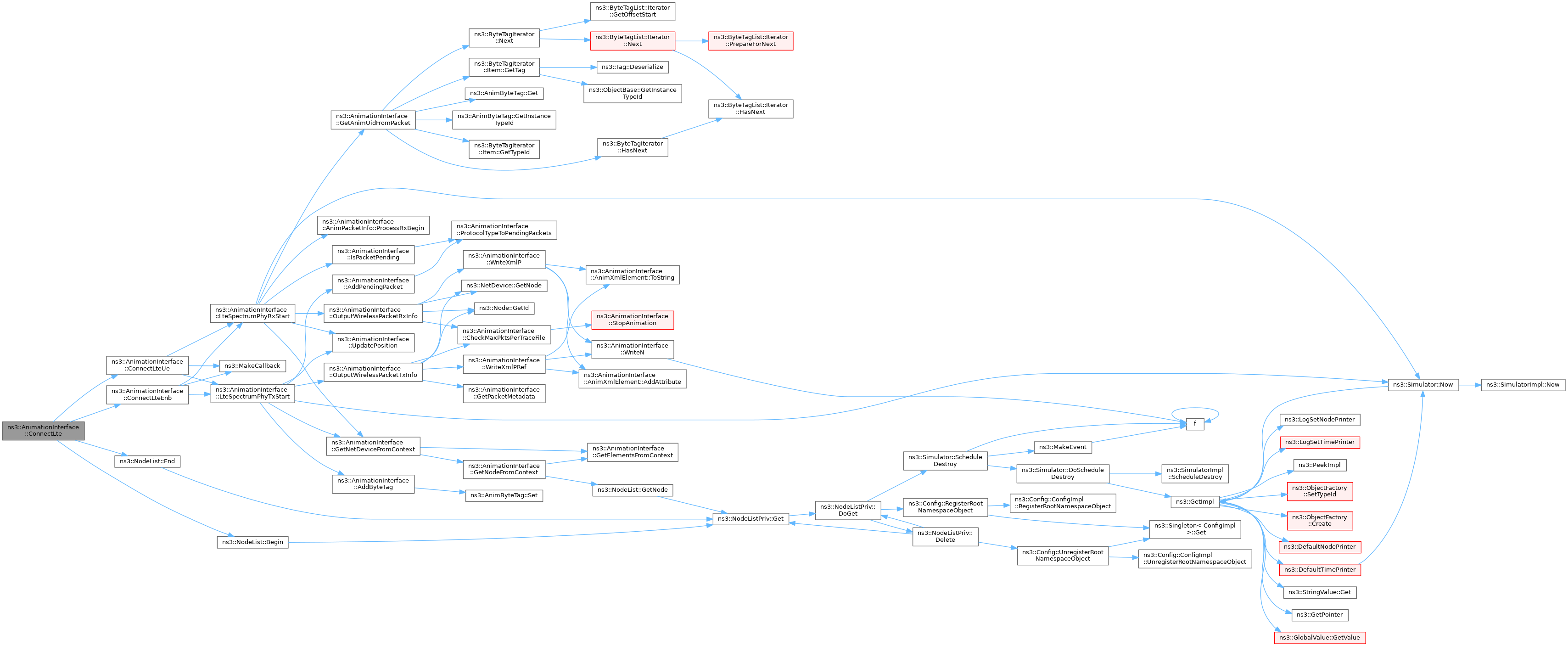

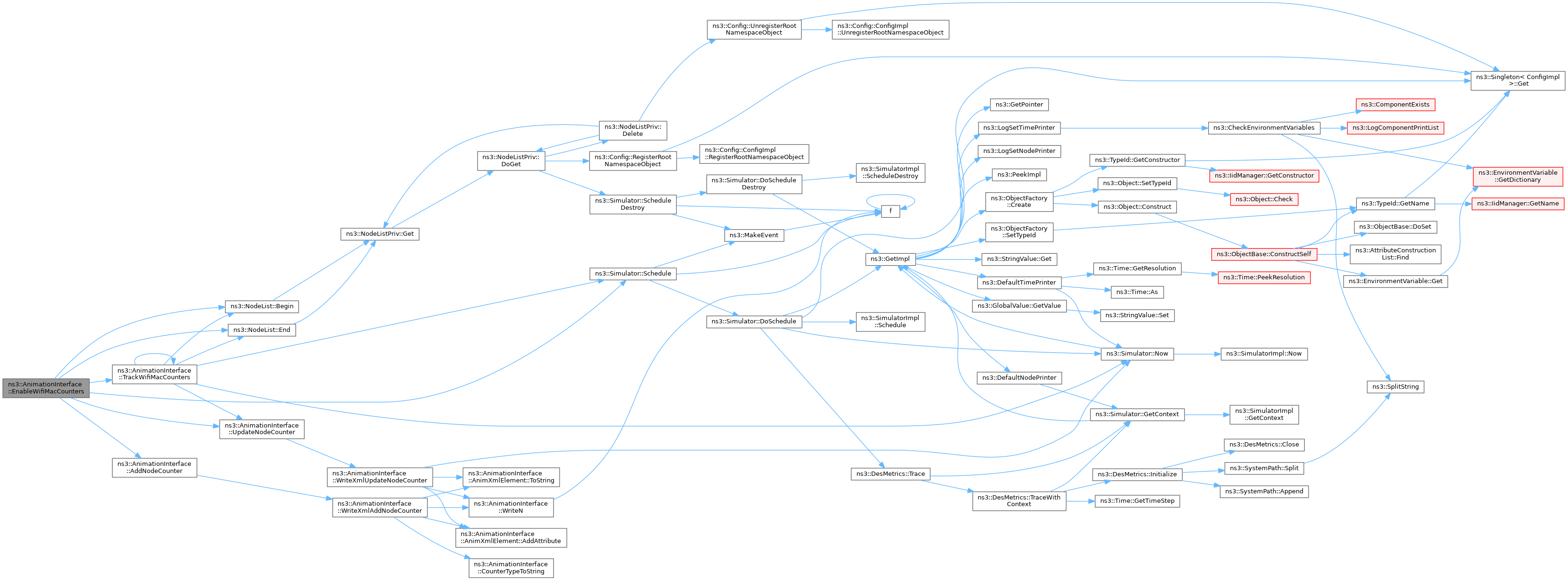

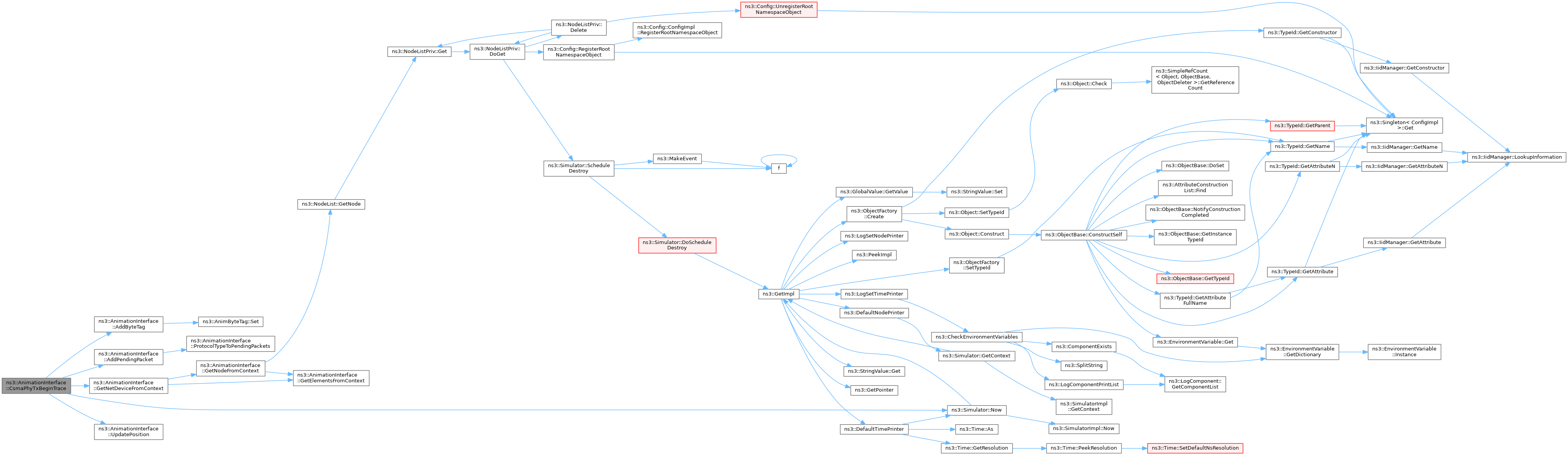

Here is the call graph for this function:

◆ ~AnimationInterface()

ns3::AnimationInterface::~AnimationInterface ( )

Destructor for the animator interface.

Definition at line 121 of file animation-interface.cc.

References StopAnimation().

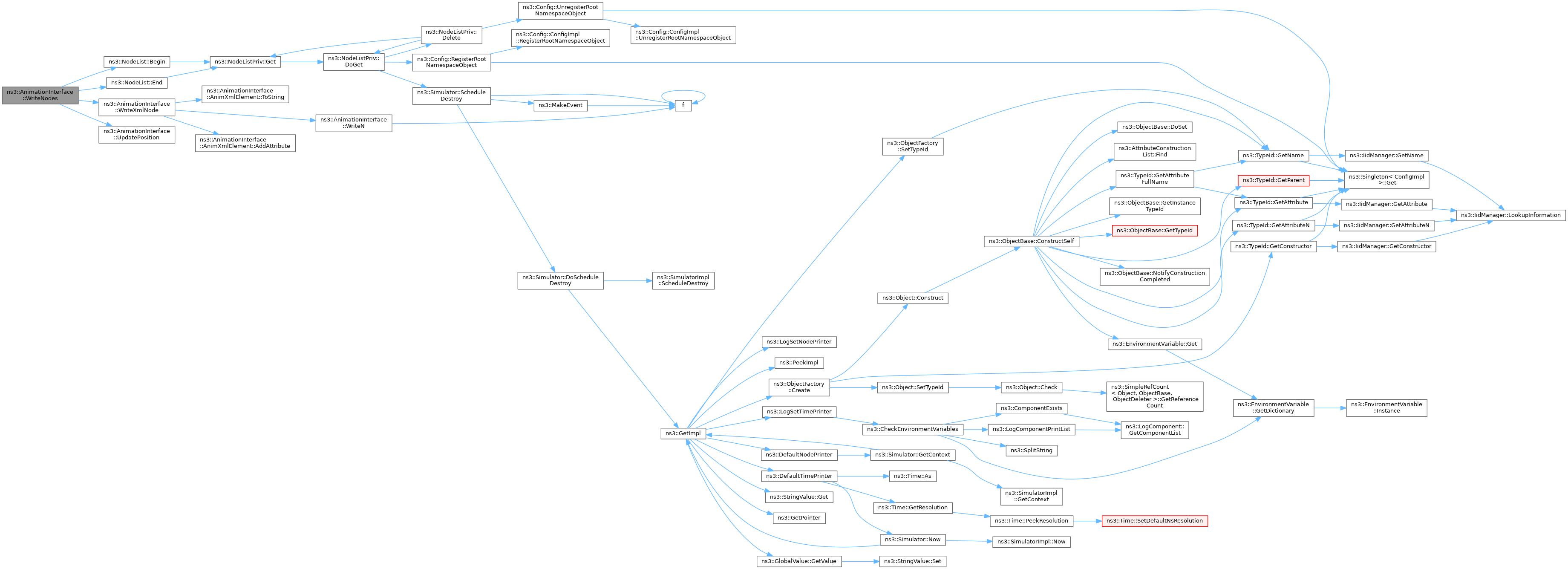

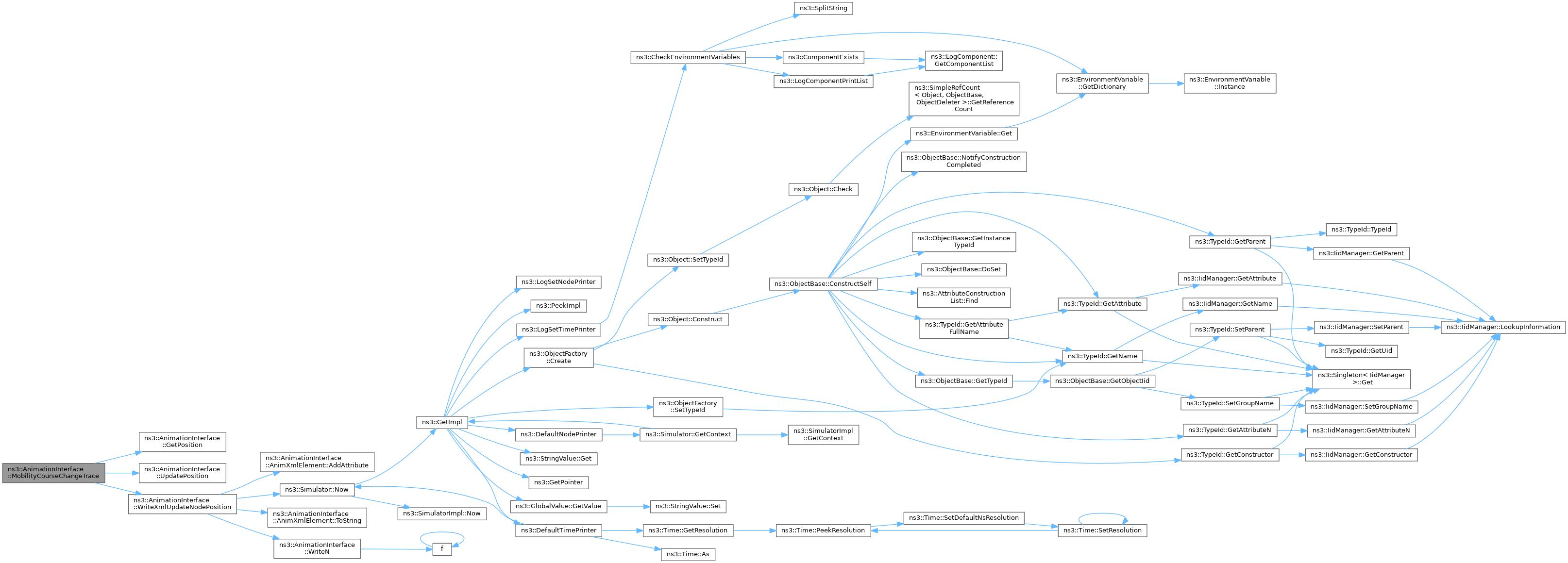

Here is the call graph for this function:

Member Function Documentation

◆ AddByteTag()

void ns3::AnimationInterface::AddByteTag	(	uint64_t	animUid,
		Ptr< const Packet >	p
	)

private

Add byte tag function.

Parameters

animUid	the UID
p	the packet

Definition at line 667 of file animation-interface.cc.

References ns3::AnimByteTag::Set().

Referenced by CsmaPhyTxBeginTrace(), GenericWirelessTxTrace(), LrWpanPhyTxBeginTrace(), LteSpectrumPhyTxStart(), and WifiPhyTxBeginTrace().

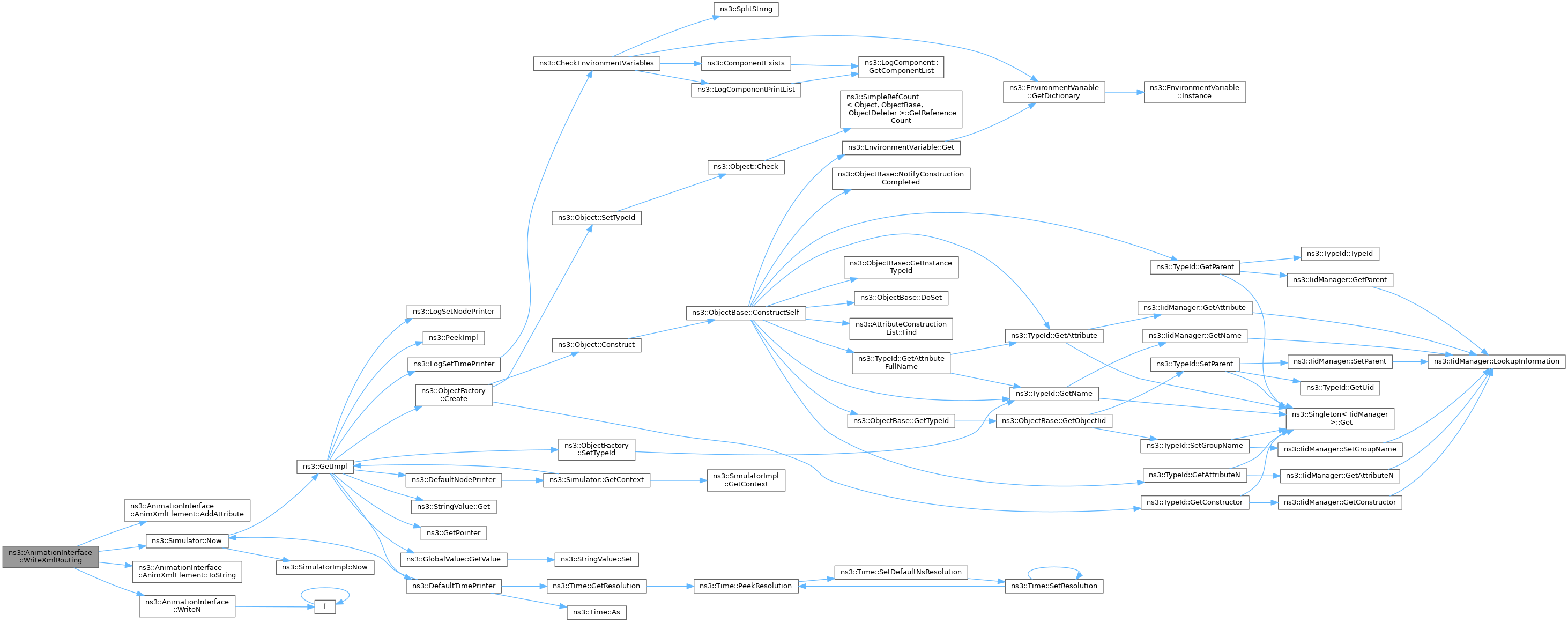

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AddNodeCounter()

uint32_t ns3::AnimationInterface::AddNodeCounter	(	std::string	counterName,
		CounterType	counterType
	)

Setup a node counter.

Parameters

counterName	A string to identify the counter
counterType	The type of the counter, such as uint32, double etc

Returns: The id of the counter to be used as a reference for future

Definition at line 268 of file animation-interface.cc.

References m_nodeCounters, and WriteXmlAddNodeCounter().

Referenced by EnableIpv4L3ProtocolCounters(), EnableQueueCounters(), EnableWifiMacCounters(), EnableWifiPhyCounters(), and WriteNodeEnergies().

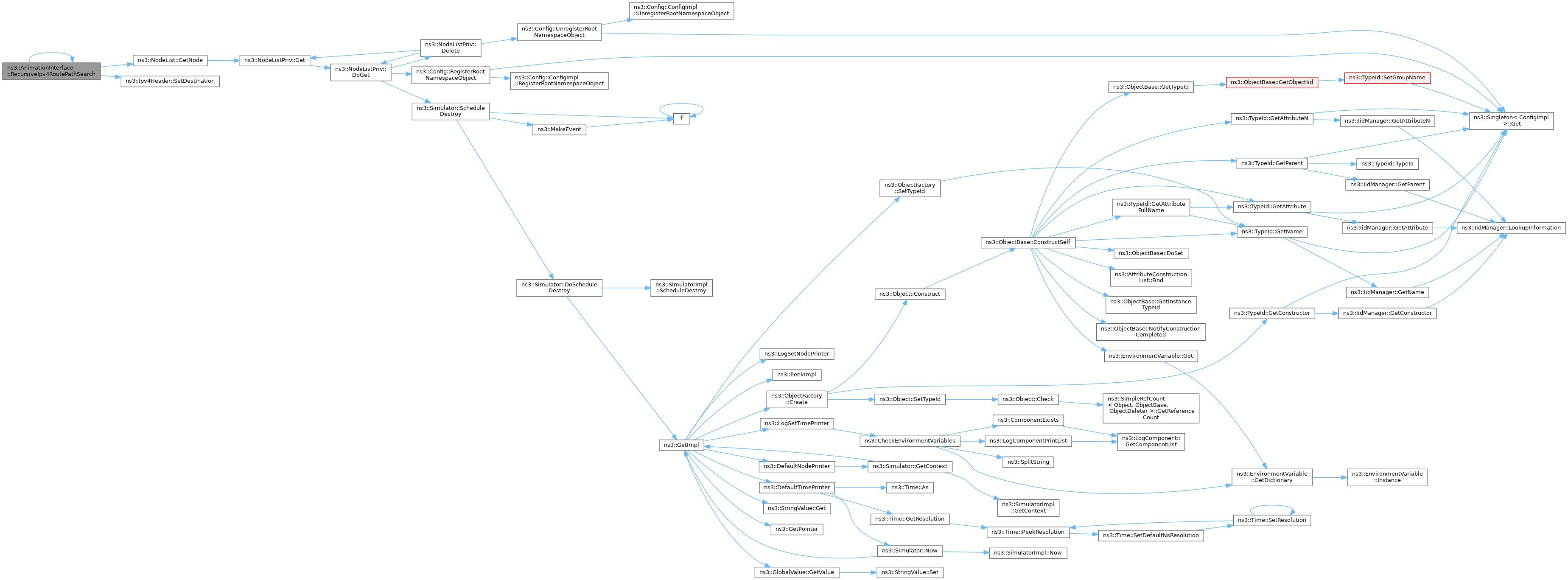

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AddPendingPacket()

void ns3::AnimationInterface::AddPendingPacket	(	ProtocolType	protocolType,
		uint64_t	animUid,
		AnimPacketInfo	pktInfo
	)

private

Add pending packet function.

Parameters

protocolType	the protocol type
animUid	the UID
pktInfo	the packet info

Definition at line 1302 of file animation-interface.cc.

References NS_ASSERT, and ProtocolTypeToPendingPackets().

Referenced by CsmaPhyTxBeginTrace(), CsmaPhyTxEndTrace(), GenericWirelessTxTrace(), LrWpanPhyTxBeginTrace(), LteSpectrumPhyTxStart(), WifiPhyRxBeginTrace(), and WifiPhyTxBeginTrace().

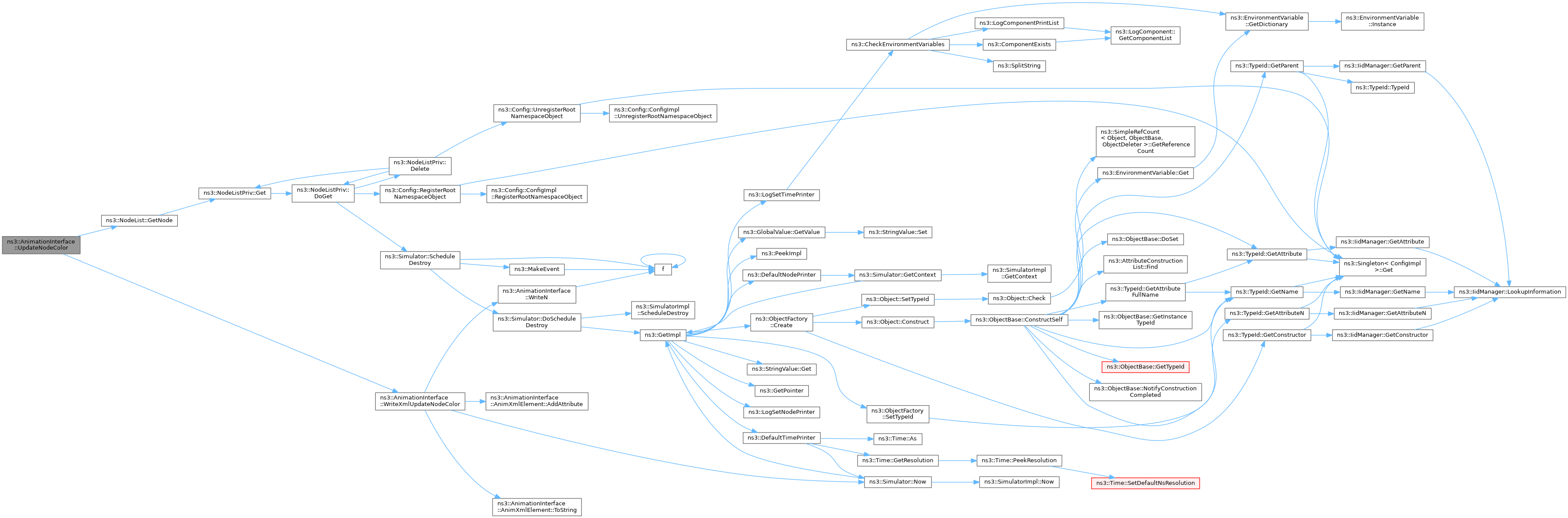

Here is the call graph for this function:

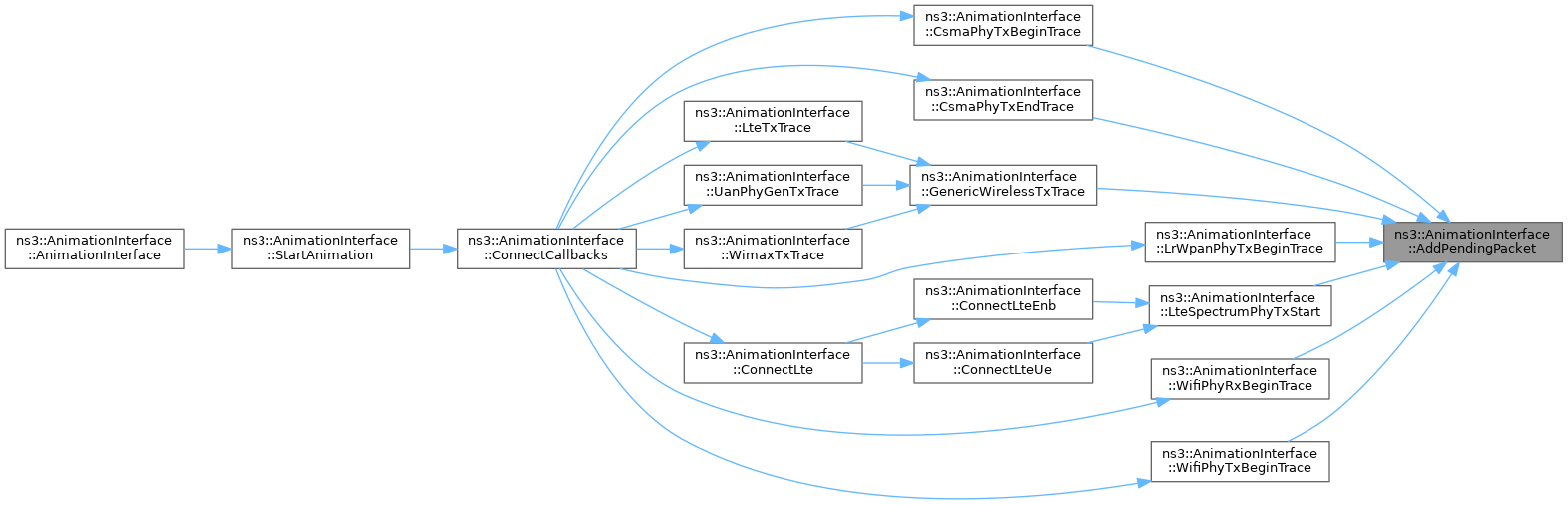

Here is the caller graph for this function:

◆ AddResource()

uint32_t ns3::AnimationInterface::AddResource ( std::string resourcePath )

Add a resource such as the path to an image file.

Parameters

resourcePath Absolute Path to an image/resource

Returns: a number identifying the resource

Definition at line 277 of file animation-interface.cc.

References m_resources, and WriteXmlAddResource().

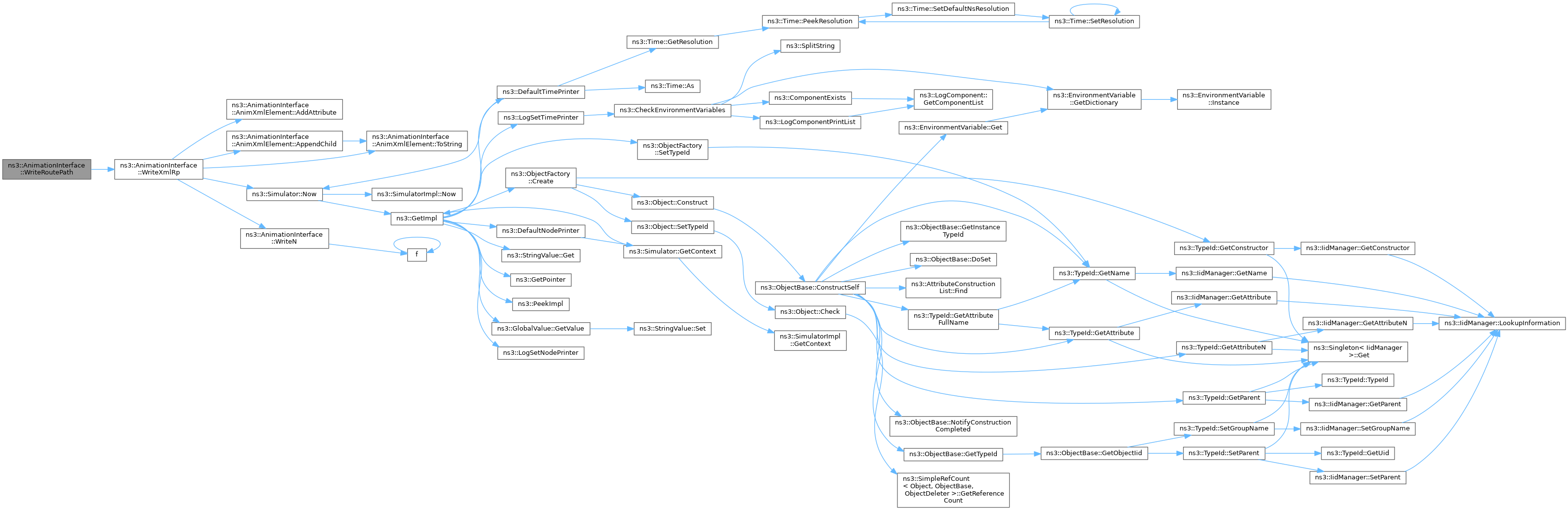

Here is the call graph for this function:

◆ AddSourceDestination()

AnimationInterface & ns3::AnimationInterface::AddSourceDestination	(	uint32_t	fromNodeId,
		std::string	destinationIpv4Address
	)

Helper function to print the routing path from a source node to destination IP.

Parameters

fromNodeId	The source node
destinationIpv4Address	The destination Ipv4 Address

Returns: reference to this AnimationInterface object

Definition at line 242 of file animation-interface.cc.

References m_ipv4RouteTrackElements.

◆ AddToIpv4AddressNodeIdTable() [1/2]

void ns3::AnimationInterface::AddToIpv4AddressNodeIdTable	(	std::string	ipv4Address,
		uint32_t	nodeId
	)

private

Add to IPv4 address node ID table function.

Parameters

ipv4Address	the IPv4 address
nodeId	the node ID

Definition at line 1496 of file animation-interface.cc.

References m_ipv4ToNodeIdMap, and m_nodeIdIpv4Map.

Referenced by AddToIpv4AddressNodeIdTable(), and WriteLinkProperties().

Here is the caller graph for this function:

◆ AddToIpv4AddressNodeIdTable() [2/2]

void ns3::AnimationInterface::AddToIpv4AddressNodeIdTable	(	std::vector< std::string >	ipv4Addresses,
		uint32_t	nodeId
	)

private

Add to IPv4 address node ID table function.

Parameters

ipv4Addresses	the list of IPv4 addresses
nodeId	the node ID

Definition at line 1503 of file animation-interface.cc.

References AddToIpv4AddressNodeIdTable().

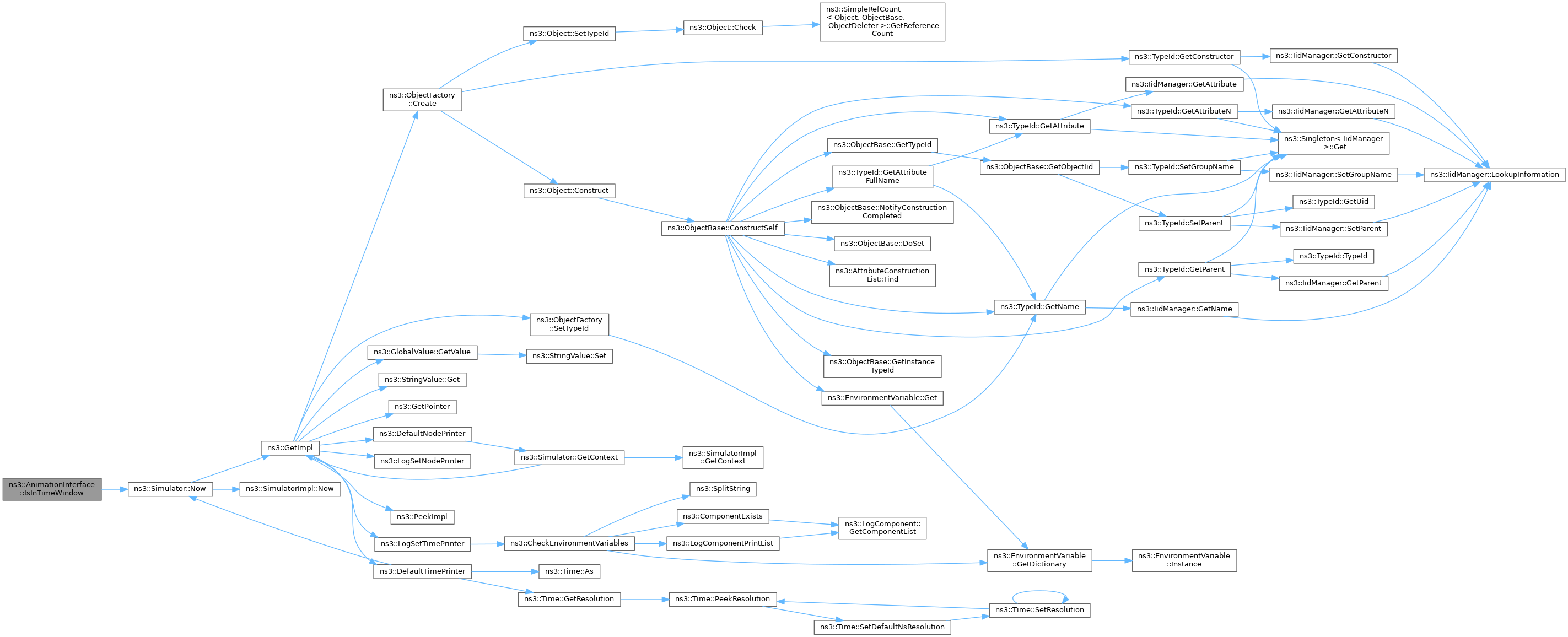

Here is the call graph for this function:

◆ AddToIpv6AddressNodeIdTable() [1/2]

void ns3::AnimationInterface::AddToIpv6AddressNodeIdTable	(	std::string	ipv6Address,
		uint32_t	nodeId
	)

private

Add to IPv6 address node ID table function.

Parameters

ipv6Address	the IPv6 address
nodeId	the node ID

Definition at line 1515 of file animation-interface.cc.

References m_ipv6ToNodeIdMap, and m_nodeIdIpv6Map.

Referenced by AddToIpv6AddressNodeIdTable(), and WriteLinkProperties().

Here is the caller graph for this function:

◆ AddToIpv6AddressNodeIdTable() [2/2]

void ns3::AnimationInterface::AddToIpv6AddressNodeIdTable	(	std::vector< std::string >	ipv6Addresses,
		uint32_t	nodeId
	)

private

Add to IPv6 address node ID table function.

Parameters

ipv6Addresses	the list of IPv6 addresses
nodeId	the node ID

Definition at line 1522 of file animation-interface.cc.

References AddToIpv6AddressNodeIdTable().

Here is the call graph for this function:

◆ CheckMaxPktsPerTraceFile()

void ns3::AnimationInterface::CheckMaxPktsPerTraceFile ( )

private

Check maximum packets per trace file function.

Definition at line 2122 of file animation-interface.cc.

References m_currentPktCount, m_maxPktsPerFile, NS_LOG_UNCOND, and StopAnimation().

Referenced by DevTxTrace(), OutputCsmaPacket(), OutputWirelessPacketRxInfo(), and OutputWirelessPacketTxInfo().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ConnectCallbacks()

void ns3::AnimationInterface::ConnectCallbacks ( )

private

Connect callbacks function.

Definition at line 1623 of file animation-interface.cc.

References ns3::Config::ConnectFailSafe(), ConnectLte(), ns3::Config::ConnectWithoutContextFailSafe(), CsmaMacRxTrace(), CsmaPhyRxEndTrace(), CsmaPhyTxBeginTrace(), CsmaPhyTxEndTrace(), DequeueTrace(), DevTxTrace(), EnqueueTrace(), Ipv4DropTrace(), Ipv4RxTrace(), Ipv4TxTrace(), LrWpanMacRxDropTrace(), LrWpanMacRxTrace(), LrWpanMacTxDropTrace(), LrWpanMacTxTrace(), LrWpanPhyRxBeginTrace(), LrWpanPhyTxBeginTrace(), LteRxTrace(), LteTxTrace(), ns3::MakeCallback(), MobilityCourseChangeTrace(), QueueDropTrace(), RemainingEnergyTrace(), UanPhyGenRxTrace(), UanPhyGenTxTrace(), WifiMacRxDropTrace(), WifiMacRxTrace(), WifiMacTxDropTrace(), WifiMacTxTrace(), WifiPhyRxBeginTrace(), WifiPhyRxDropTrace(), WifiPhyTxBeginTrace(), WifiPhyTxDropTrace(), WimaxRxTrace(), and WimaxTxTrace().

Referenced by StartAnimation().

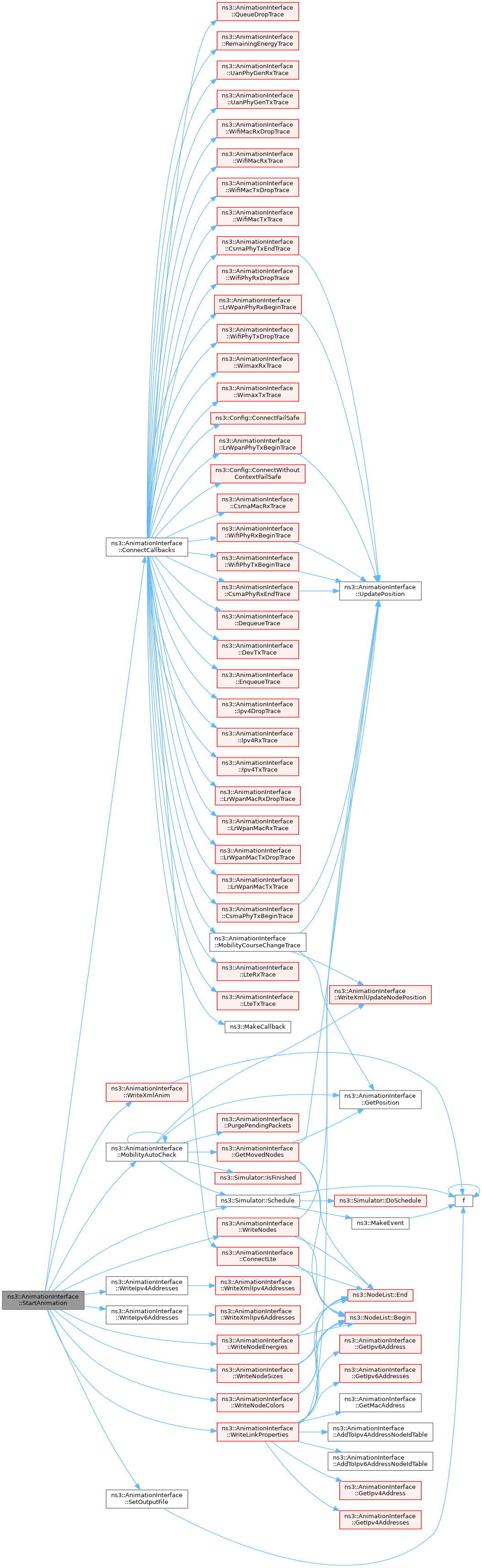

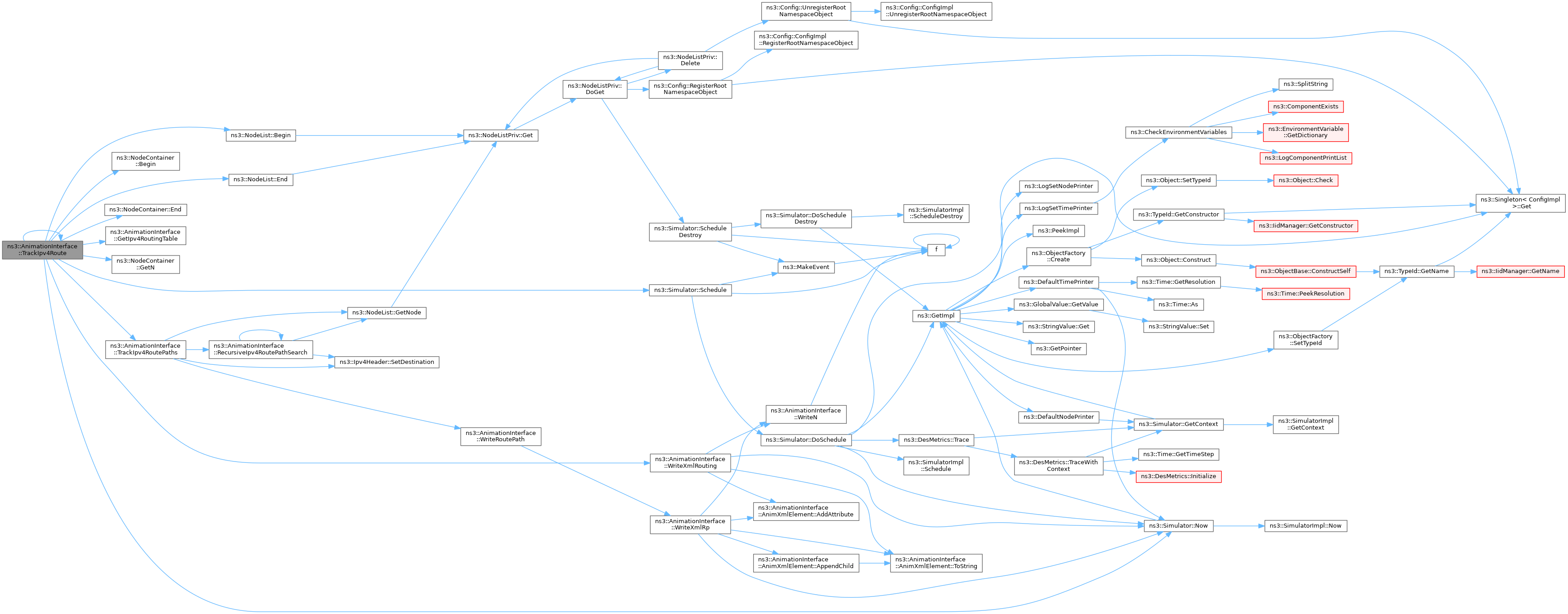

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ConnectLte()

void ns3::AnimationInterface::ConnectLte ( )

private

Connect LTE function.

Definition at line 1593 of file animation-interface.cc.

References ns3::NodeList::Begin(), ConnectLteEnb(), ConnectLteUe(), ns3::NodeList::End(), and NS_ASSERT.

Referenced by ConnectCallbacks().

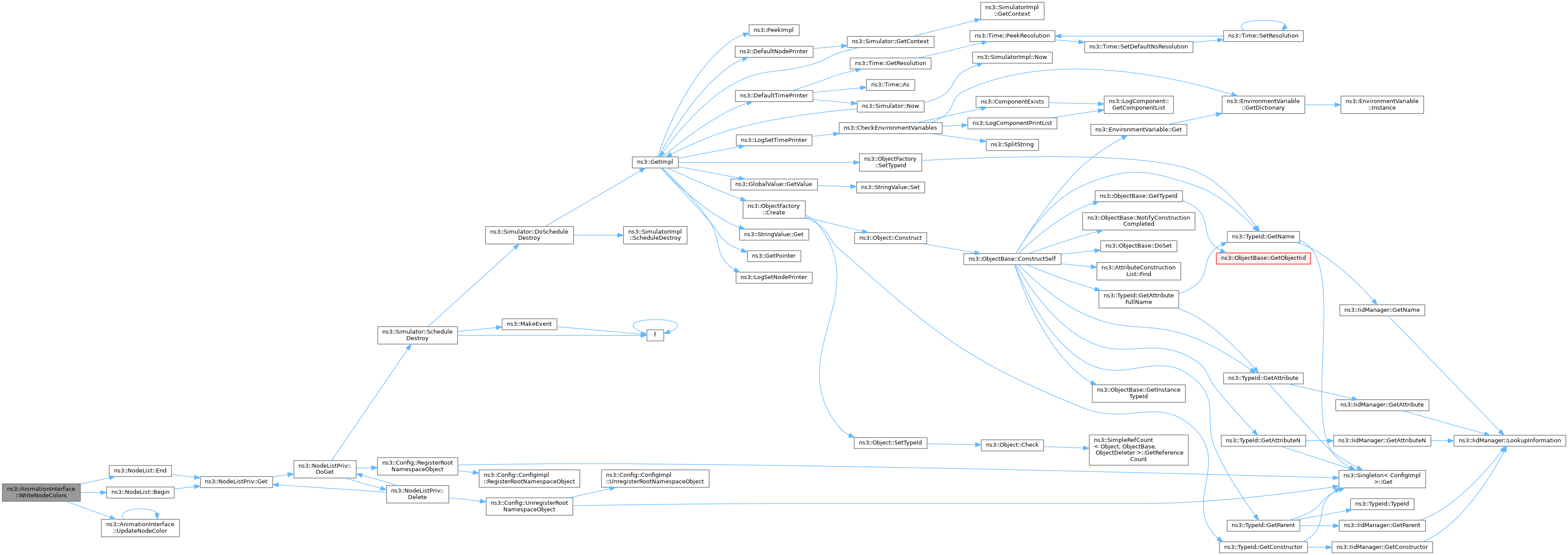

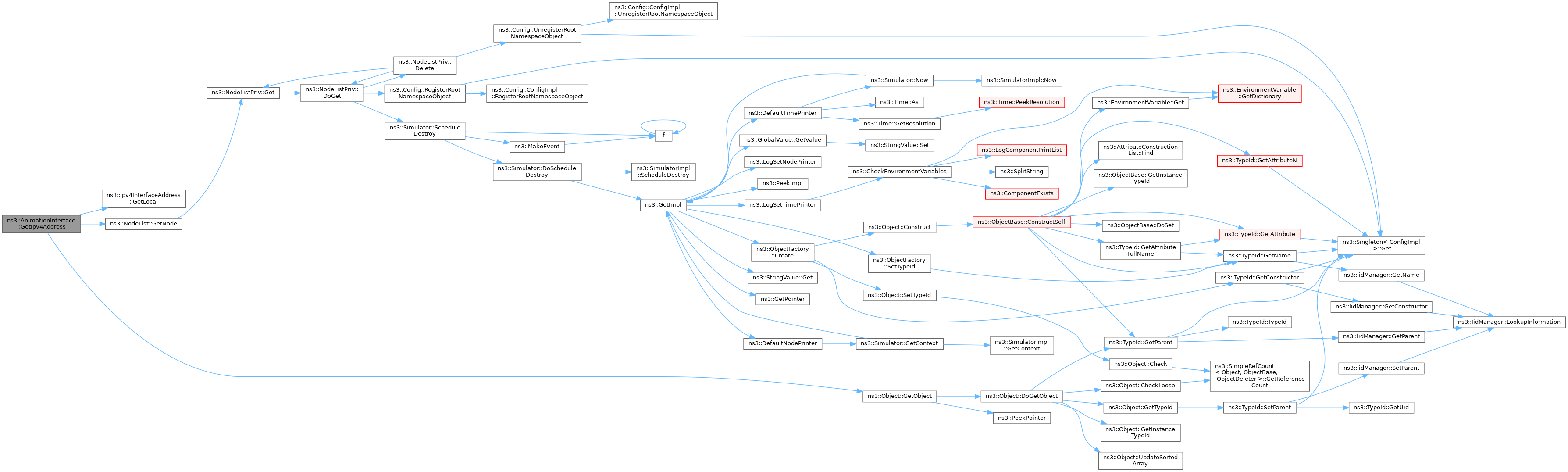

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ConnectLteEnb()

void ns3::AnimationInterface::ConnectLteEnb	(	Ptr< Node >	n,
		Ptr< LteEnbNetDevice >	nd,
		uint32_t	devIndex
	)

private

Connect LTE ENB function.

Parameters

n	the node
nd	the device
devIndex	the device index

Definition at line 1535 of file animation-interface.cc.

References LteSpectrumPhyRxStart(), LteSpectrumPhyTxStart(), and ns3::MakeCallback().

Referenced by ConnectLte().

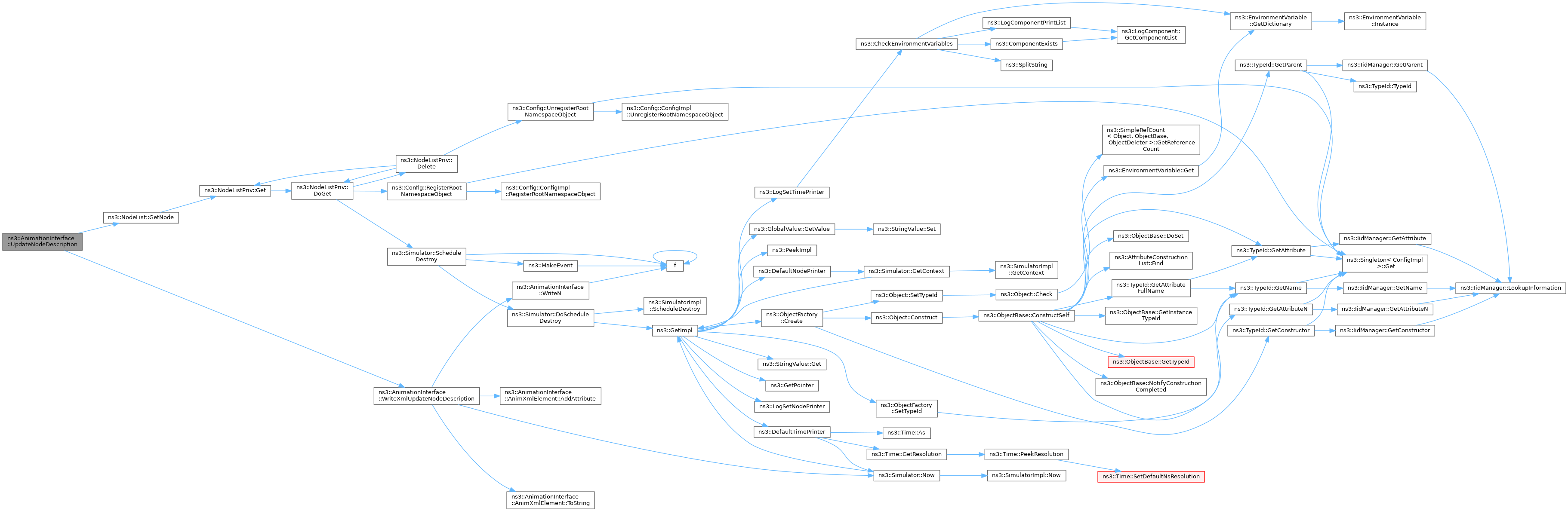

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ConnectLteUe()

void ns3::AnimationInterface::ConnectLteUe	(	Ptr< Node >	n,
		Ptr< LteUeNetDevice >	nd,
		uint32_t	devIndex
	)

private

Connect LTE ue function.

Parameters

n	the node
nd	the device
devIndex	the device index

Definition at line 1564 of file animation-interface.cc.

References LteSpectrumPhyRxStart(), LteSpectrumPhyTxStart(), and ns3::MakeCallback().

Referenced by ConnectLte().

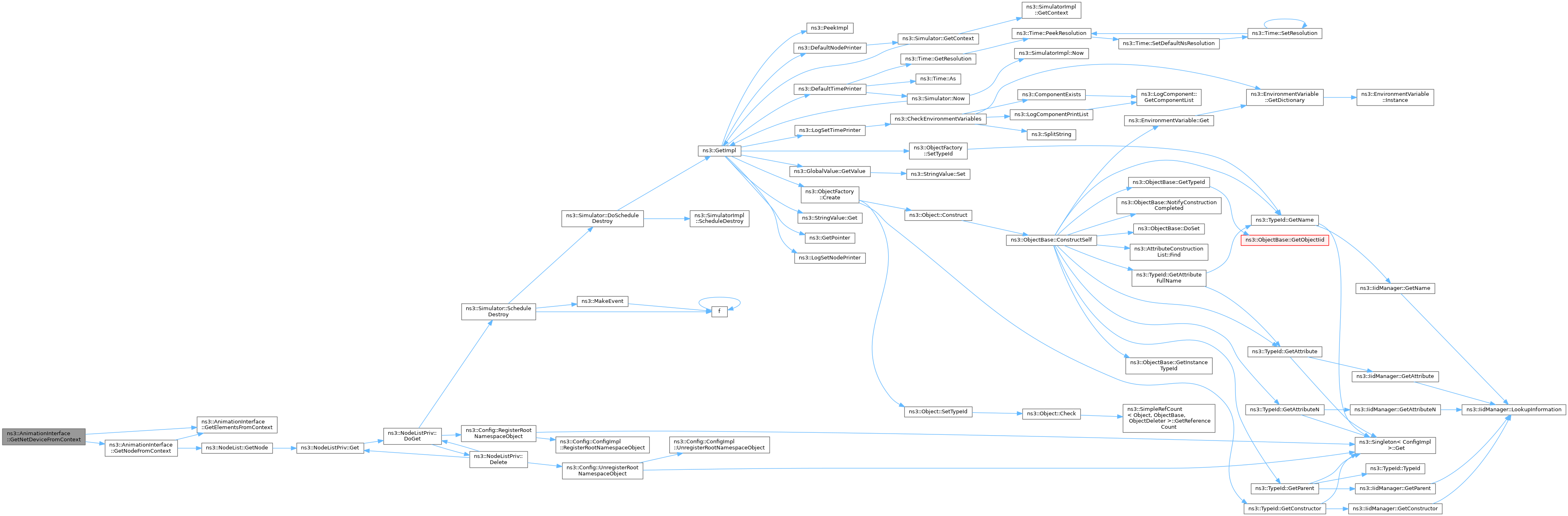

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CounterTypeToString()

std::string ns3::AnimationInterface::CounterTypeToString ( CounterType counterType )

private

Counter type to string function.

Parameters

counterType the counter type

Returns: the string

Definition at line 1416 of file animation-interface.cc.

References DOUBLE_COUNTER, and UINT32_COUNTER.

Referenced by WriteXmlAddNodeCounter().

Here is the caller graph for this function:

◆ CsmaMacRxTrace()

void ns3::AnimationInterface::CsmaMacRxTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

CSMA MAC receive trace function.

Parameters

context	the context
p	the packet

Todo:: NS_ASSERT (CsmaPacketIsPending (AnimUid) == true);

Definition at line 1234 of file animation-interface.cc.

References CHECK_STARTED_INTIMEWINDOW_TRACKPACKETS, CSMA, GetAnimUidFromPacket(), GetNetDeviceFromContext(), IsPacketPending(), m_pendingCsmaPackets, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_WARN, and OutputCsmaPacket().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CsmaPhyRxEndTrace()

void ns3::AnimationInterface::CsmaPhyRxEndTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

CSMA Phy receive end trace function.

Parameters

context	the context
p	the packet

Todo:: NS_ASSERT (CsmaPacketIsPending (AnimUid) == true);

Definition at line 1212 of file animation-interface.cc.

References CHECK_STARTED_INTIMEWINDOW_TRACKPACKETS, CSMA, GetAnimUidFromPacket(), GetNetDeviceFromContext(), IsPacketPending(), m_pendingCsmaPackets, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_WARN, OutputCsmaPacket(), ns3::AnimationInterface::AnimPacketInfo::ProcessRxBegin(), and UpdatePosition().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CsmaPhyTxBeginTrace()

void ns3::AnimationInterface::CsmaPhyTxBeginTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

CSMA Phy transmit begin trace function.

Parameters

context	the context
p	the packet

Definition at line 1173 of file animation-interface.cc.

References AddByteTag(), AddPendingPacket(), CHECK_STARTED_INTIMEWINDOW_TRACKPACKETS, CSMA, gAnimUid, GetNetDeviceFromContext(), ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_INFO, and UpdatePosition().

Referenced by ConnectCallbacks().

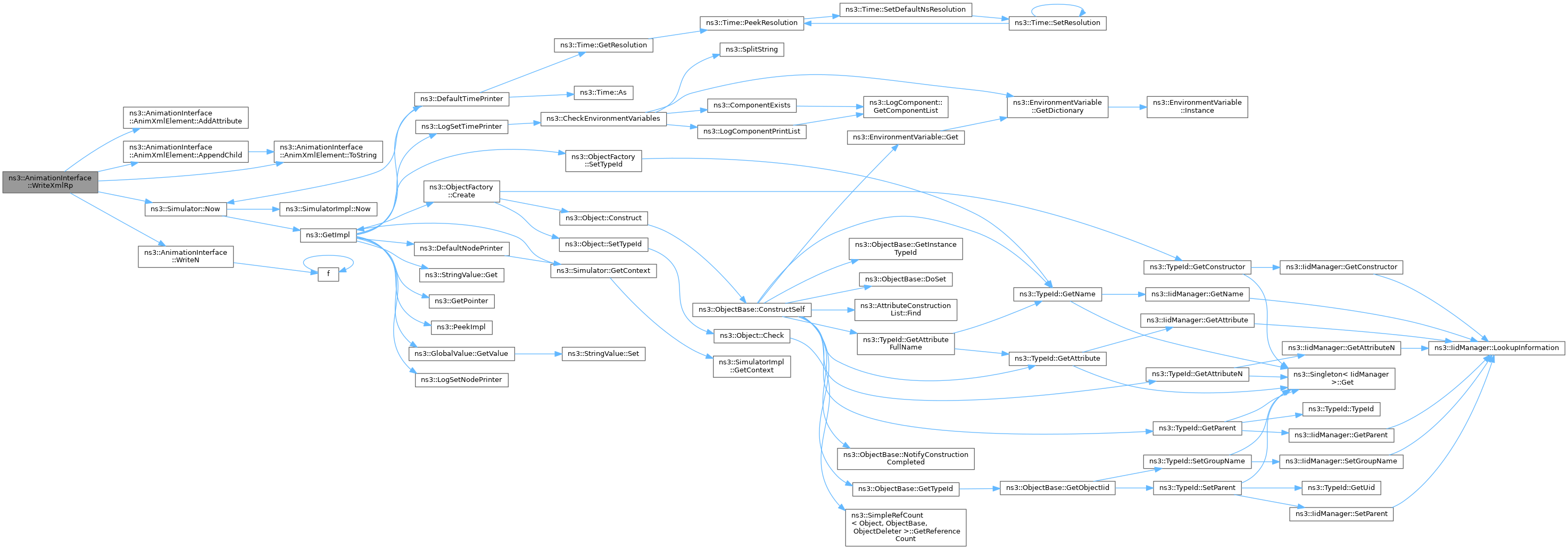

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CsmaPhyTxEndTrace()

void ns3::AnimationInterface::CsmaPhyTxEndTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

CSMA Phy transmit end trace function.

Parameters

context	the context
p	the packet

Todo:: NS_ASSERT (IsPacketPending (AnimUid) == true);

Definition at line 1189 of file animation-interface.cc.

References AddPendingPacket(), CHECK_STARTED_INTIMEWINDOW_TRACKPACKETS, CSMA, GetAnimUidFromPacket(), GetNetDeviceFromContext(), ns3::Time::GetSeconds(), IsPacketPending(), ns3::AnimationInterface::AnimPacketInfo::m_lbTx, m_pendingCsmaPackets, ns3::Simulator::Now(), NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_WARN, and UpdatePosition().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DequeueTrace()

void ns3::AnimationInterface::DequeueTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

Dequeue trace function.

Parameters

context	the context
p	the packet

Definition at line 809 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeQueueDequeue.

Referenced by ConnectCallbacks().

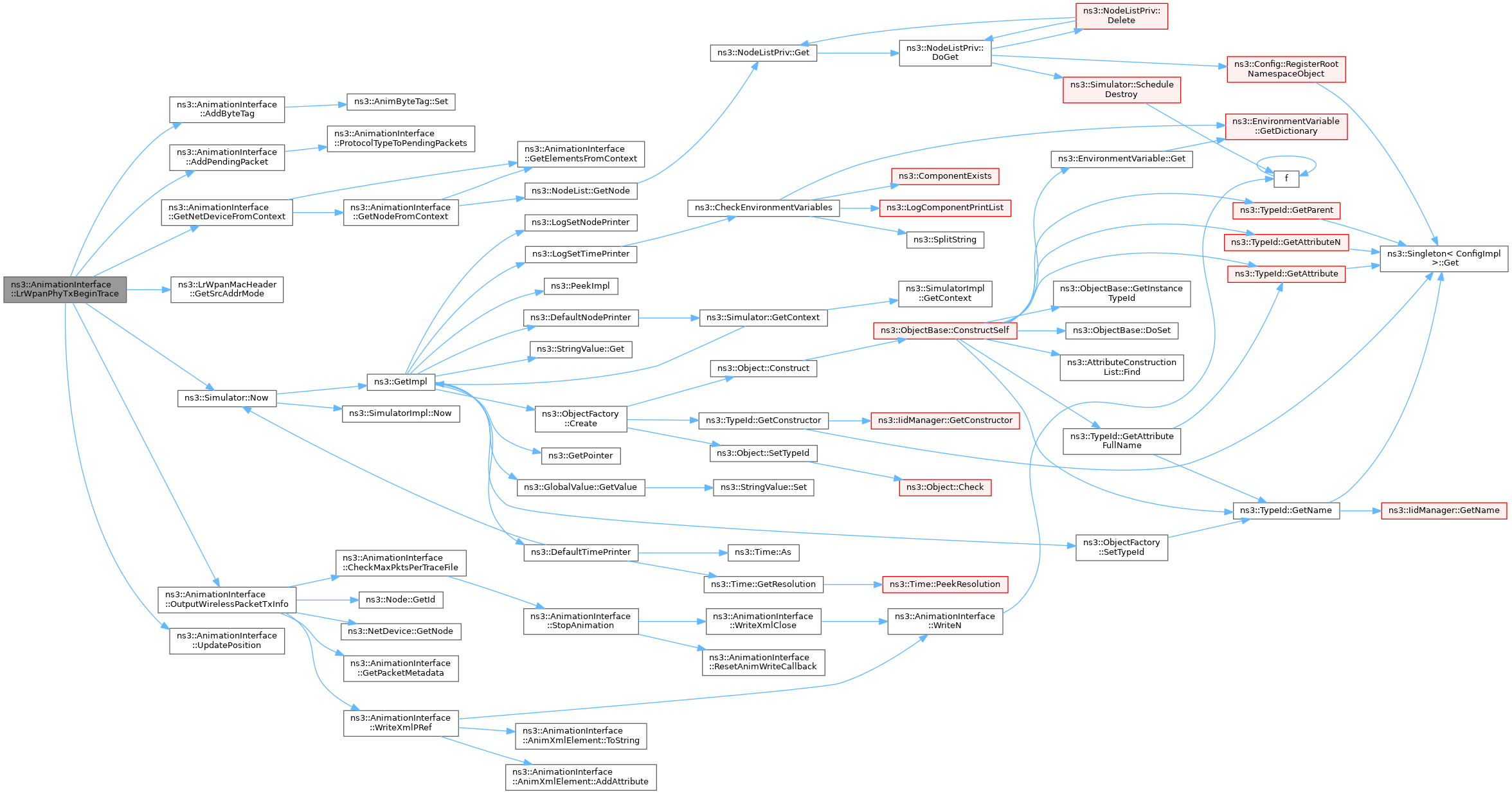

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DevTxTrace()

void ns3::AnimationInterface::DevTxTrace	(	std::string	context,
		Ptr< const Packet >	p,
		Ptr< NetDevice >	tx,
		Ptr< NetDevice >	rx,
		Time	txTime,
		Time	rxTime
	)

private

Device transmit trace function.

Parameters

context	the context
p	the packet
tx	the transmit device
rx	the receive device
txTime	the transmit time
rxTime	the receive time

Definition at line 823 of file animation-interface.cc.

References CHECK_STARTED_INTIMEWINDOW_TRACKPACKETS, CheckMaxPktsPerTraceFile(), GetPacketMetadata(), ns3::Time::GetSeconds(), m_enablePacketMetadata, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, and WriteXmlP().

Referenced by ConnectCallbacks().

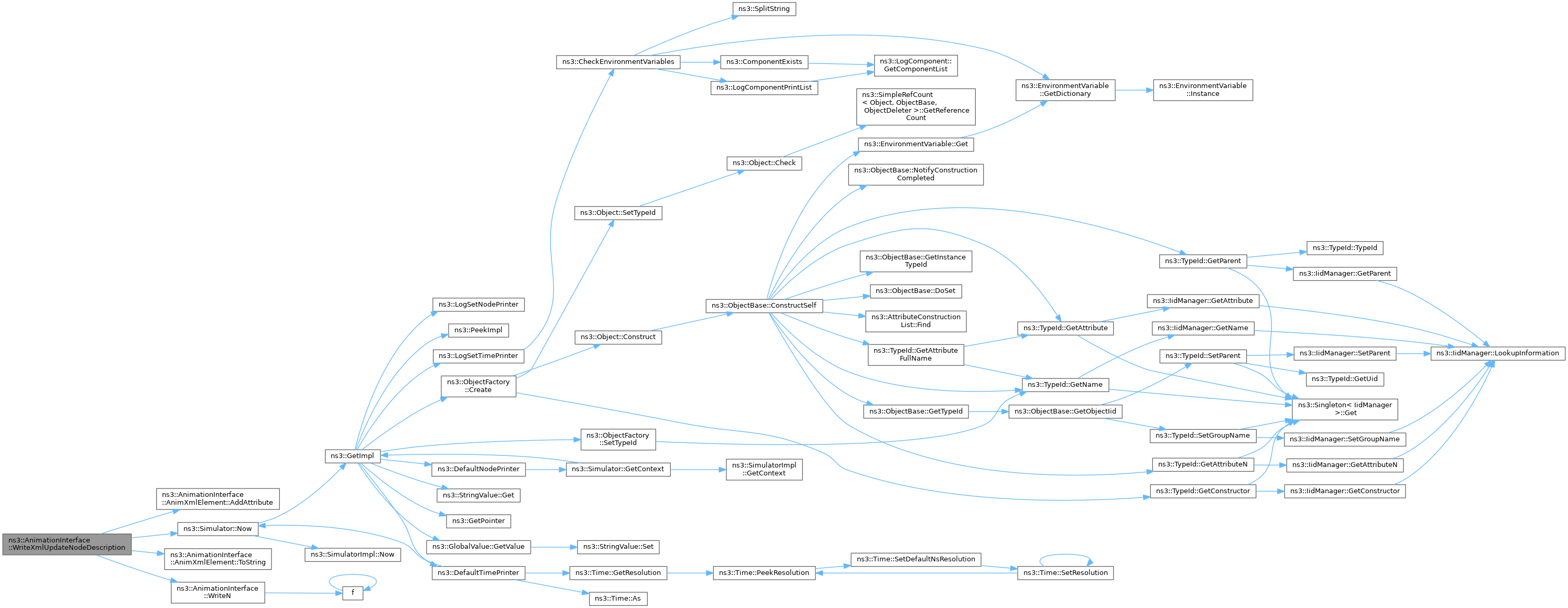

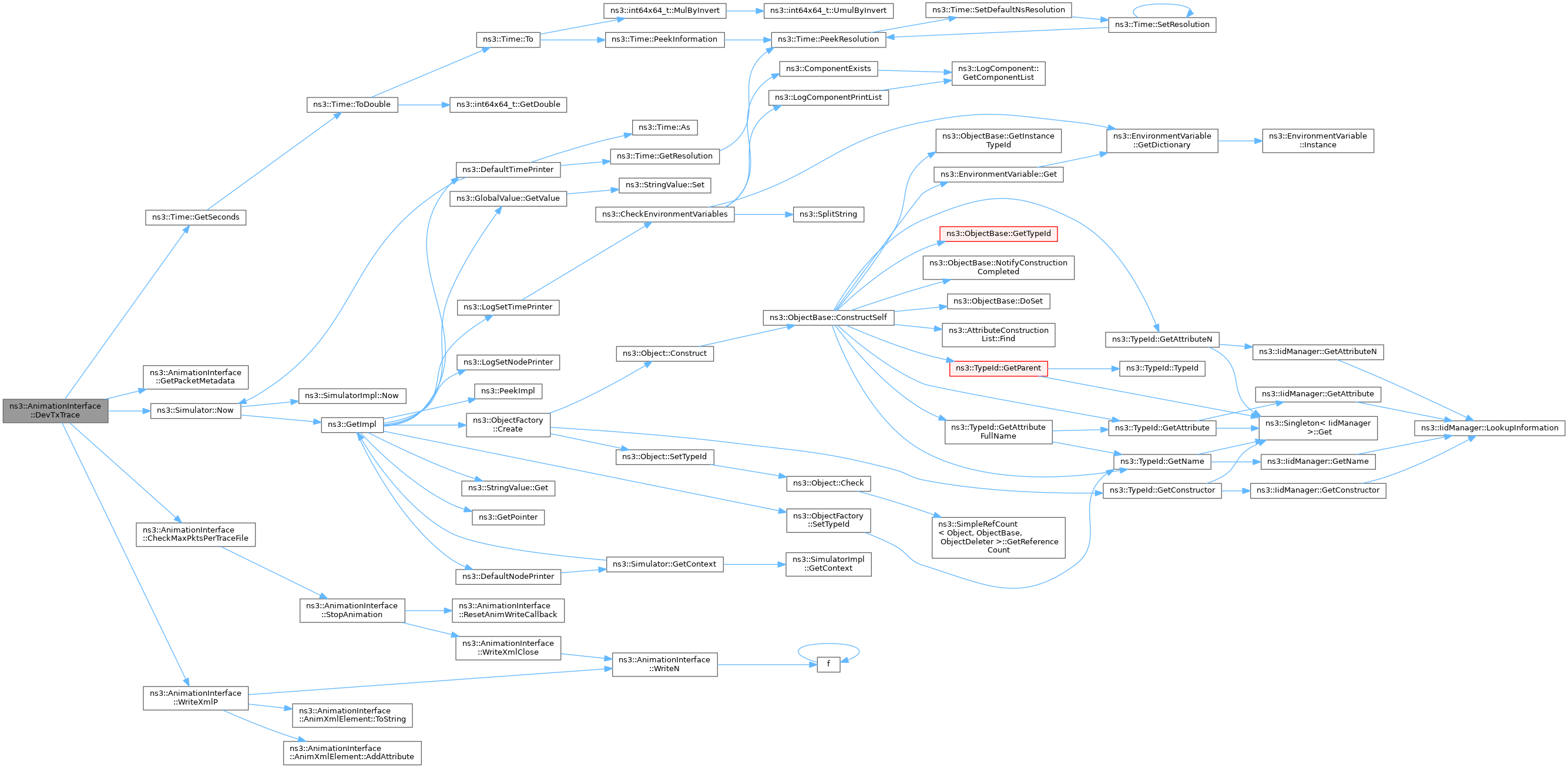

Here is the call graph for this function:

Here is the caller graph for this function:

◆ EnableIpv4L3ProtocolCounters()

void ns3::AnimationInterface::EnableIpv4L3ProtocolCounters	(	Time	startTime,
		Time	stopTime,
		Time	pollInterval = `Seconds(1)`
	)

Enable tracking of Ipv4 L3 Protocol Counters such as Tx, Rx, Drop.

Parameters

startTime	Start Time for capturing values
stopTime	Stop Time for capturing values
pollInterval	The periodic interval at which the counters are written to the trace file Default: 1s

Definition at line 196 of file animation-interface.cc.

References AddNodeCounter(), ns3::NodeList::Begin(), DOUBLE_COUNTER, ns3::NodeList::End(), m_ipv4L3ProtocolCountersPollInterval, m_ipv4L3ProtocolCountersStopTime, m_ipv4L3ProtocolDropCounterId, m_ipv4L3ProtocolRxCounterId, m_ipv4L3ProtocolTxCounterId, m_nodeIpv4Drop, m_nodeIpv4Rx, m_nodeIpv4Tx, ns3::Simulator::Schedule(), stopTime, TrackIpv4L3ProtocolCounters(), and UpdateNodeCounter().

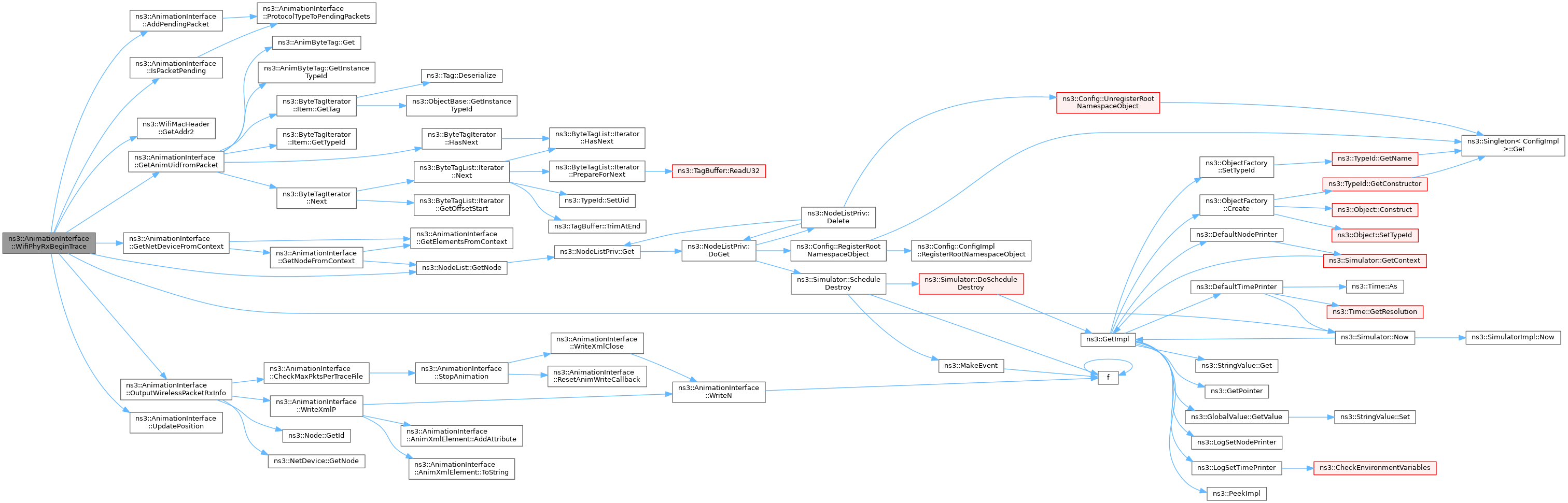

Here is the call graph for this function:

◆ EnableIpv4RouteTracking() [1/2]

AnimationInterface & ns3::AnimationInterface::EnableIpv4RouteTracking	(	std::string	fileName,
		Time	startTime,
		Time	stopTime,
		NodeContainer	nc,
		Time	pollInterval = `Seconds(5)`
	)

Enable tracking of the Ipv4 routing table for a set of Nodes.

Parameters

fileName	Trace file for storing routing table information
startTime	Start time for capture
stopTime	End time for capture
nc	A NodeContainer containing nodes for which Routing table has to be tracked
pollInterval	The periodic interval at which routing table information is polled Default: 5s

Returns: reference to this AnimationInterface object

Definition at line 231 of file animation-interface.cc.

References EnableIpv4RouteTracking(), m_routingNc, and stopTime.

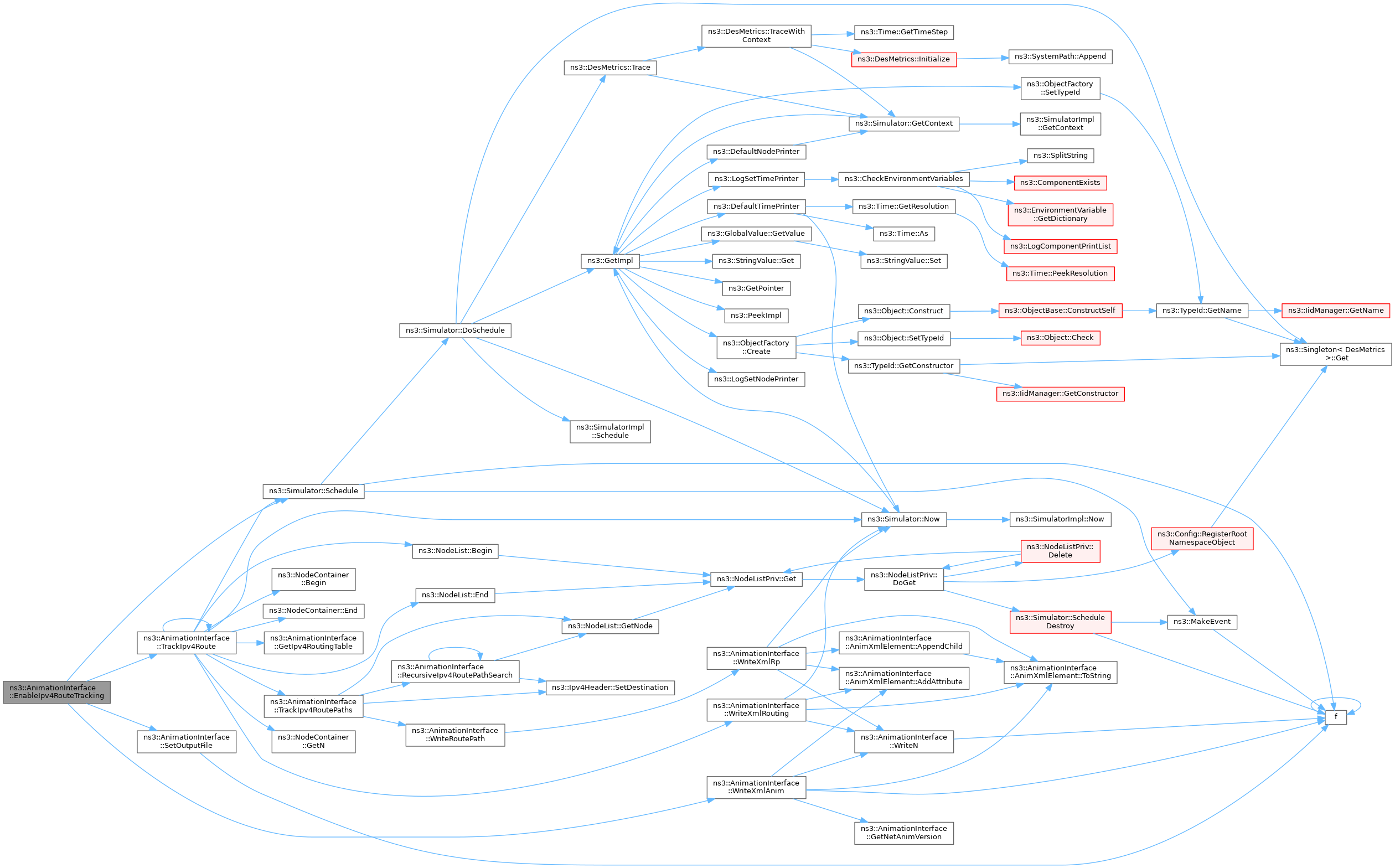

Here is the call graph for this function:

◆ EnableIpv4RouteTracking() [2/2]

AnimationInterface & ns3::AnimationInterface::EnableIpv4RouteTracking	(	std::string	fileName,
		Time	startTime,
		Time	stopTime,
		Time	pollInterval = `Seconds(5)`
	)

Enable tracking of the Ipv4 routing table for all Nodes.

Parameters

fileName	Trace file for storing routing table information
startTime	Start time for capture
stopTime	End time for capture
pollInterval	The periodic interval at which routing table information is polled Default: 5s

Returns: reference to this AnimationInterface object

Definition at line 217 of file animation-interface.cc.

References m_routingPollInterval, m_routingStopTime, ns3::Simulator::Schedule(), SetOutputFile(), stopTime, TrackIpv4Route(), and WriteXmlAnim().

Referenced by EnableIpv4RouteTracking().

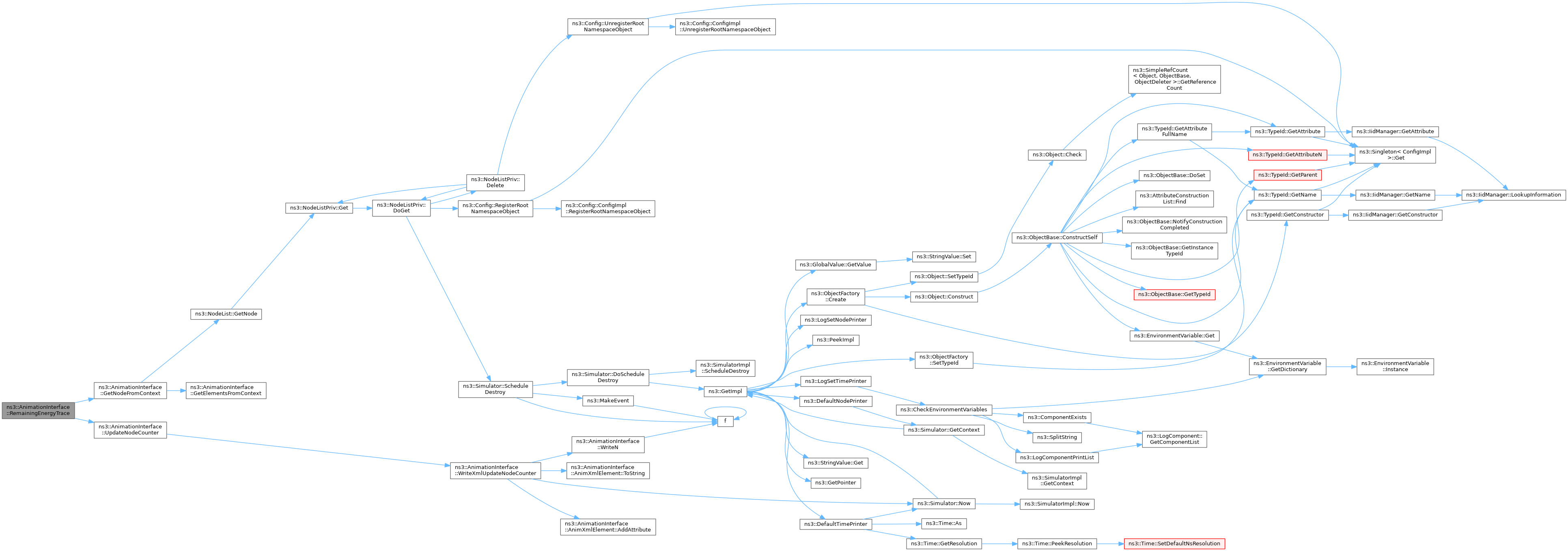

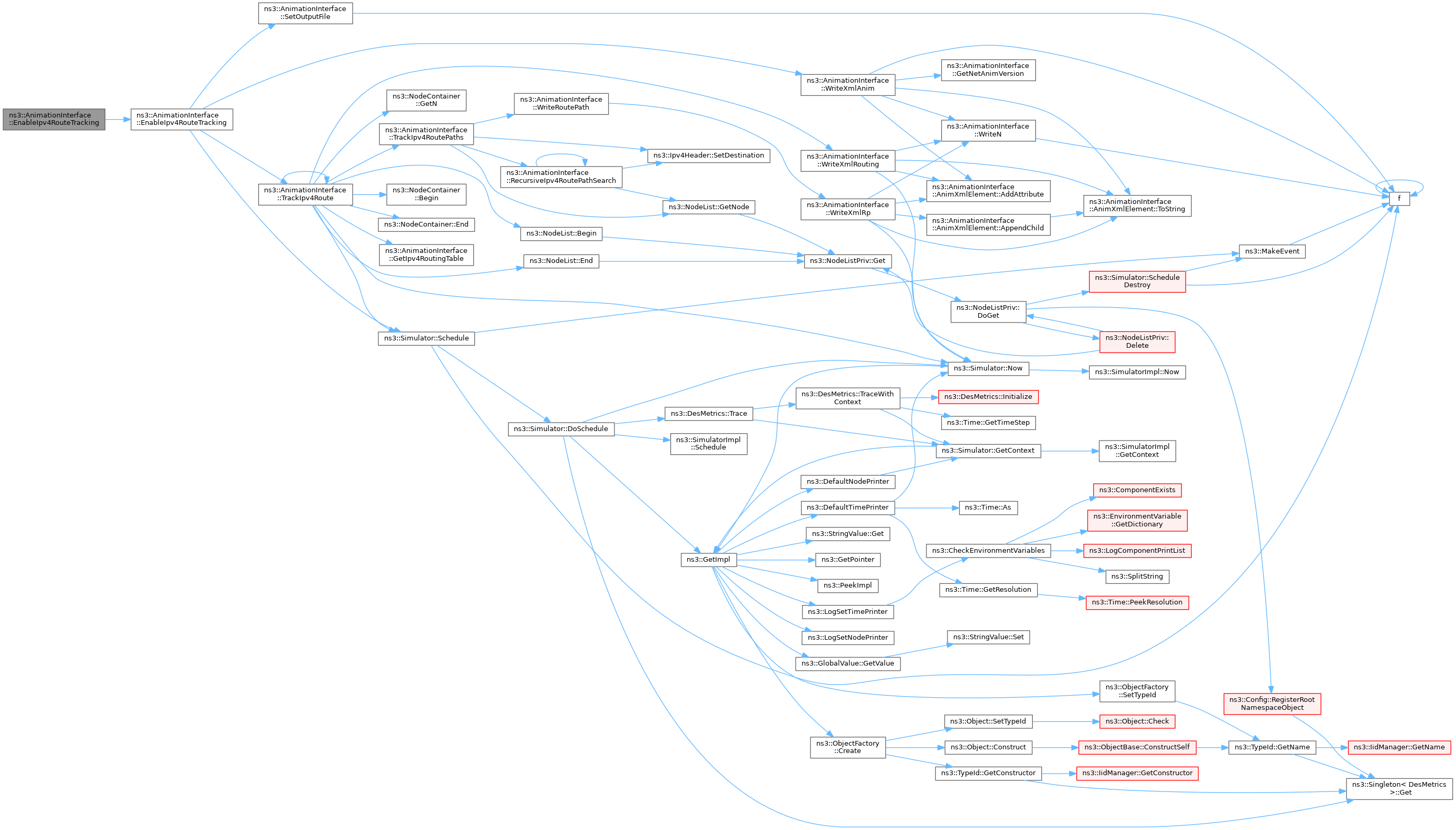

Here is the call graph for this function:

Here is the caller graph for this function:

◆ EnablePacketMetadata()

void ns3::AnimationInterface::EnablePacketMetadata ( bool enable = true )

Enable Packet metadata.

Parameters

enable if true enables writing the packet metadata to the XML trace file if false disables writing the packet metadata

Definition at line 286 of file animation-interface.cc.

References ns3::Packet::EnablePrinting(), and m_enablePacketMetadata.

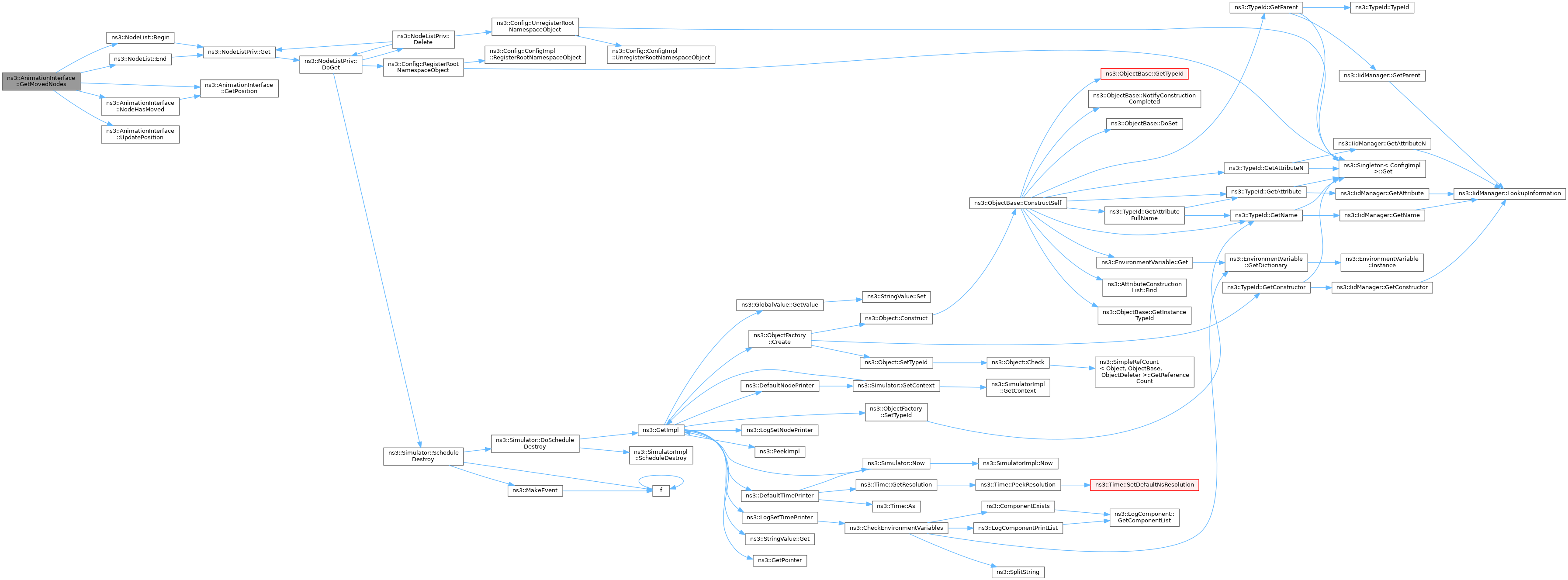

Here is the call graph for this function:

◆ EnableQueueCounters()

void ns3::AnimationInterface::EnableQueueCounters	(	Time	startTime,
		Time	stopTime,
		Time	pollInterval = `Seconds(1)`
	)

Enable tracking of Queue Counters such as Enqueue, Dequeue, Queue Drops.

Parameters

startTime	Start Time for capturing values
stopTime	Stop Time for capturing values
pollInterval	The periodic interval at which the counters are written to the trace file Default: 1s

Definition at line 175 of file animation-interface.cc.

References AddNodeCounter(), ns3::NodeList::Begin(), DOUBLE_COUNTER, ns3::NodeList::End(), m_nodeQueueDequeue, m_nodeQueueDrop, m_nodeQueueEnqueue, m_queueCountersPollInterval, m_queueCountersStopTime, m_queueDequeueCounterId, m_queueDropCounterId, m_queueEnqueueCounterId, ns3::Simulator::Schedule(), stopTime, TrackQueueCounters(), and UpdateNodeCounter().

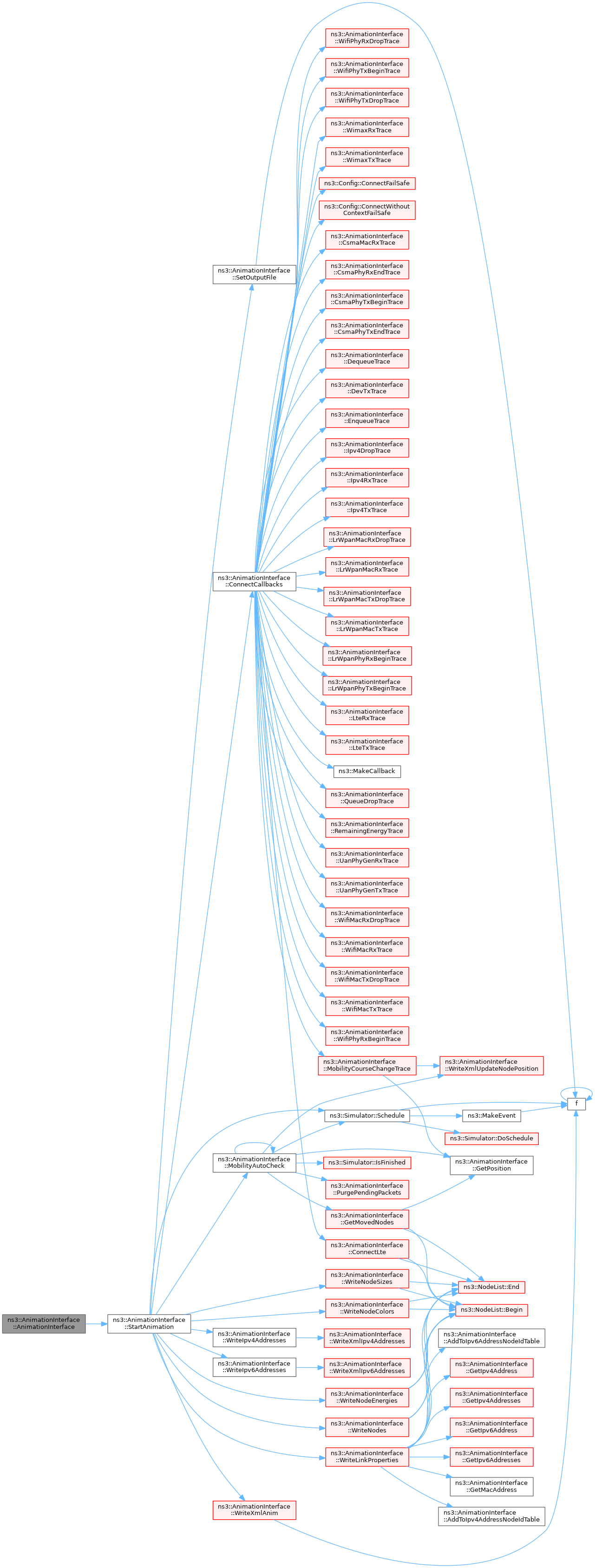

Here is the call graph for this function:

◆ EnableWifiMacCounters()

void ns3::AnimationInterface::EnableWifiMacCounters	(	Time	startTime,
		Time	stopTime,
		Time	pollInterval = `Seconds(1)`
	)

Enable tracking of Wifi Mac Counters such as Tx, TxDrop, Rx, RxDrop.

Parameters

startTime	Start Time for capturing values
stopTime	Stop Time for capturing values
pollInterval	The periodic interval at which the counters are written to the trace file Default: 1s

Definition at line 151 of file animation-interface.cc.

References AddNodeCounter(), ns3::NodeList::Begin(), DOUBLE_COUNTER, ns3::NodeList::End(), m_nodeWifiMacRx, m_nodeWifiMacRxDrop, m_nodeWifiMacTx, m_nodeWifiMacTxDrop, m_wifiMacCountersPollInterval, m_wifiMacCountersStopTime, m_wifiMacRxCounterId, m_wifiMacRxDropCounterId, m_wifiMacTxCounterId, m_wifiMacTxDropCounterId, ns3::Simulator::Schedule(), stopTime, TrackWifiMacCounters(), and UpdateNodeCounter().

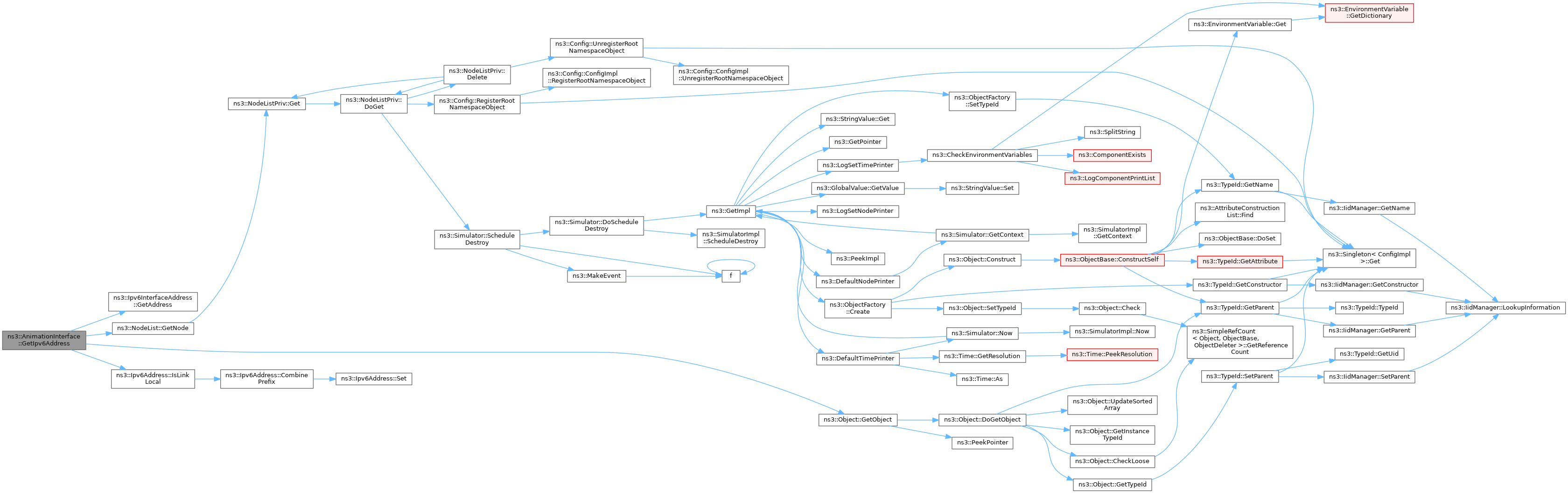

Here is the call graph for this function:

◆ EnableWifiPhyCounters()

void ns3::AnimationInterface::EnableWifiPhyCounters	(	Time	startTime,
		Time	stopTime,
		Time	pollInterval = `Seconds(1)`
	)

Enable tracking of Wifi Phy Counters such as TxDrop, RxDrop.

Parameters

startTime	Start Time for capturing values
stopTime	Stop Time for capturing values
pollInterval	The periodic interval at which the counters are written to the trace file Default: 1s

Definition at line 133 of file animation-interface.cc.

References AddNodeCounter(), ns3::NodeList::Begin(), DOUBLE_COUNTER, ns3::NodeList::End(), m_nodeWifiPhyRxDrop, m_nodeWifiPhyTxDrop, m_wifiPhyCountersPollInterval, m_wifiPhyCountersStopTime, m_wifiPhyRxDropCounterId, m_wifiPhyTxDropCounterId, ns3::Simulator::Schedule(), stopTime, TrackWifiPhyCounters(), and UpdateNodeCounter().

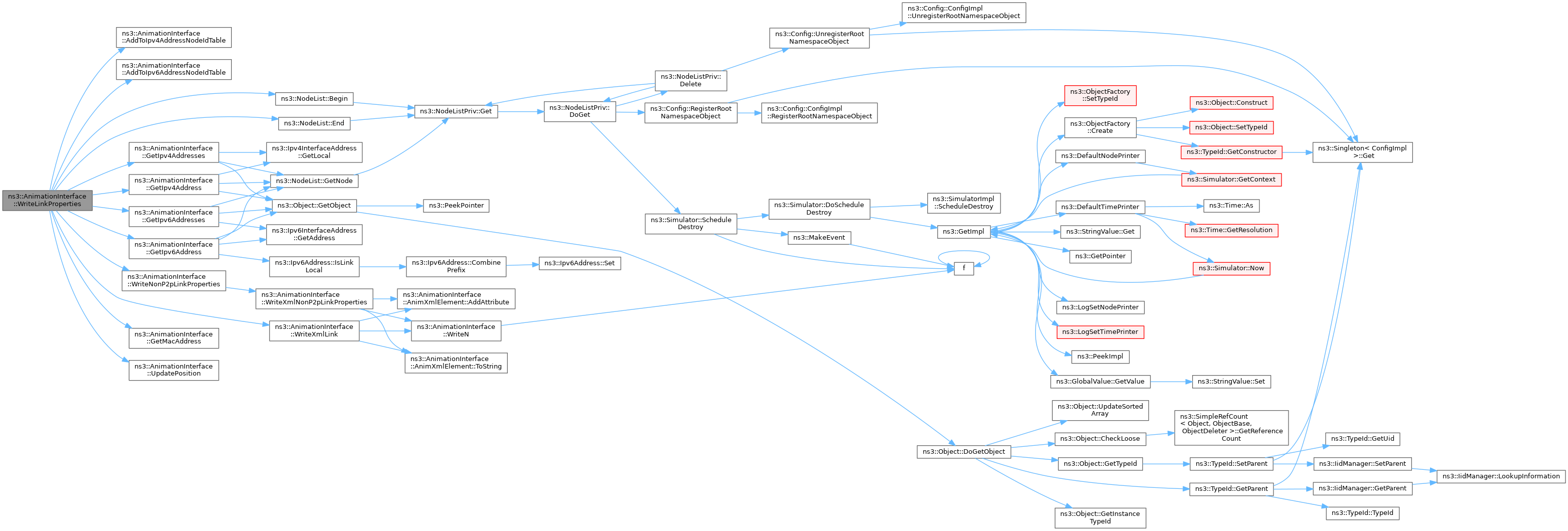

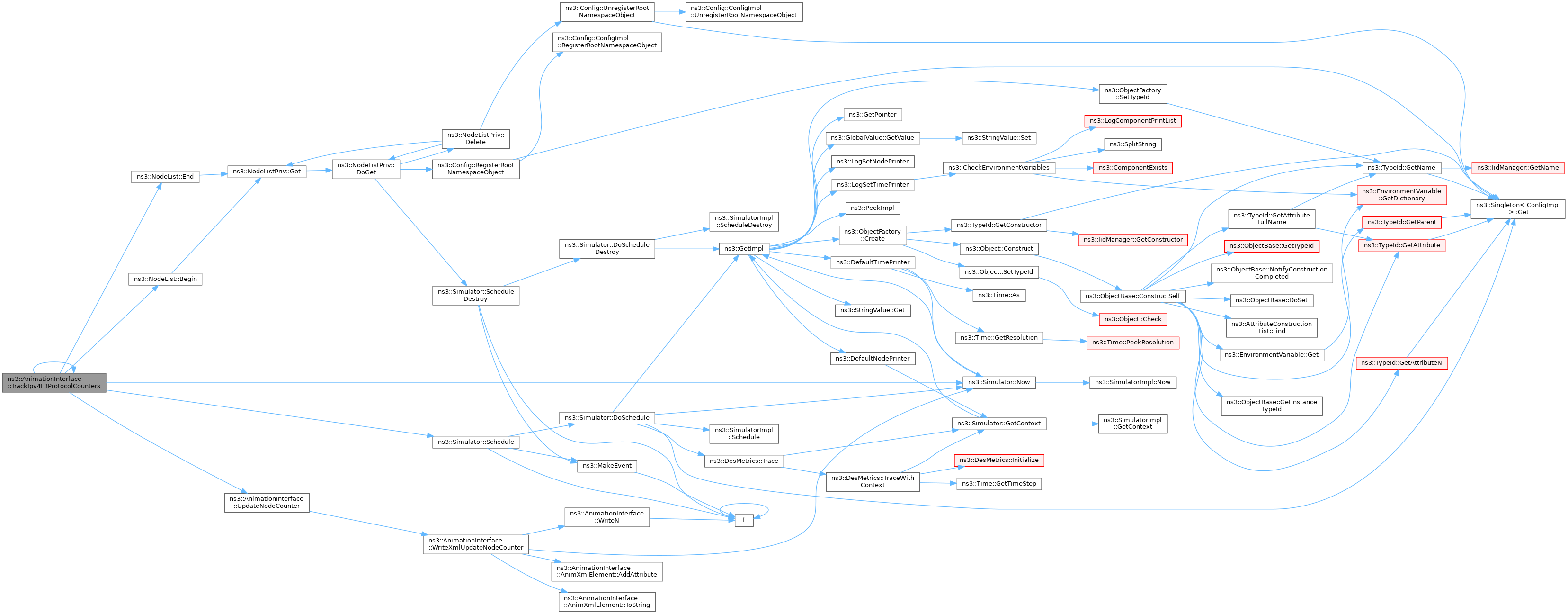

Here is the call graph for this function:

◆ EnqueueTrace()

void ns3::AnimationInterface::EnqueueTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

Enqueue trace function.

Parameters

context	the context
p	the packet

Definition at line 802 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeQueueEnqueue.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GenericWirelessRxTrace()

void ns3::AnimationInterface::GenericWirelessRxTrace	(	std::string	context,
		Ptr< const Packet >	p,
		ProtocolType	protocolType
	)

private

Generic wireless receive trace function.

Parameters

context	the context
p	the packet
protocolType	the protocol type

Definition at line 884 of file animation-interface.cc.

References CHECK_STARTED_INTIMEWINDOW_TRACKPACKETS, GetAnimUidFromPacket(), GetNetDeviceFromContext(), IsPacketPending(), ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_WARN, OutputWirelessPacketRxInfo(), ProtocolTypeToPendingPackets(), ProtocolTypeToString(), and UpdatePosition().

Referenced by LteRxTrace(), UanPhyGenRxTrace(), and WimaxRxTrace().

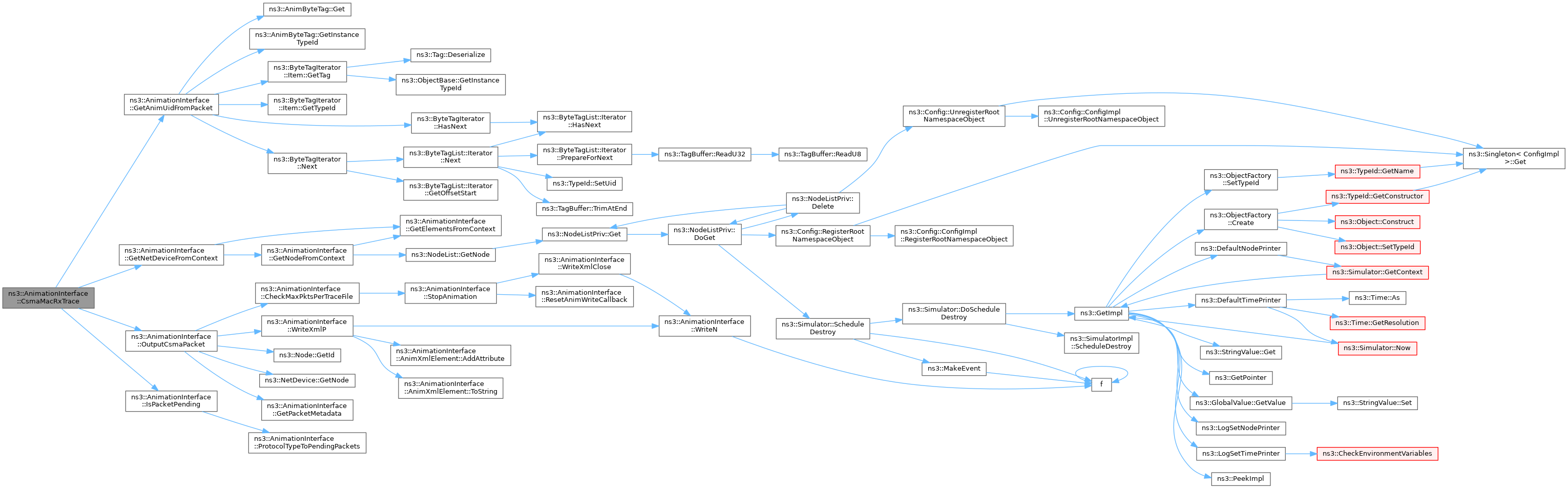

Here is the call graph for this function:

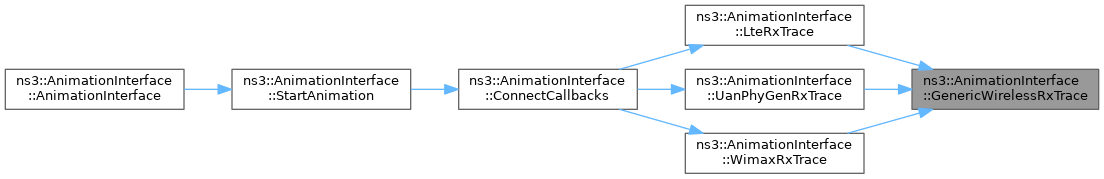

Here is the caller graph for this function:

◆ GenericWirelessTxTrace()

void ns3::AnimationInterface::GenericWirelessTxTrace	(	std::string	context,
		Ptr< const Packet >	p,
		ProtocolType	protocolType
	)

private

Generic wireless transmit trace function.

Parameters

context	the context
p	the packet
protocolType	the protocol type

Definition at line 851 of file animation-interface.cc.

References AddByteTag(), AddPendingPacket(), CHECK_STARTED_INTIMEWINDOW_TRACKPACKETS, gAnimUid, GetNetDeviceFromContext(), m_macToNodeIdMap, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_INFO, OutputWirelessPacketTxInfo(), ProtocolTypeToPendingPackets(), ProtocolTypeToString(), and UpdatePosition().

Referenced by LteTxTrace(), UanPhyGenTxTrace(), and WimaxTxTrace().

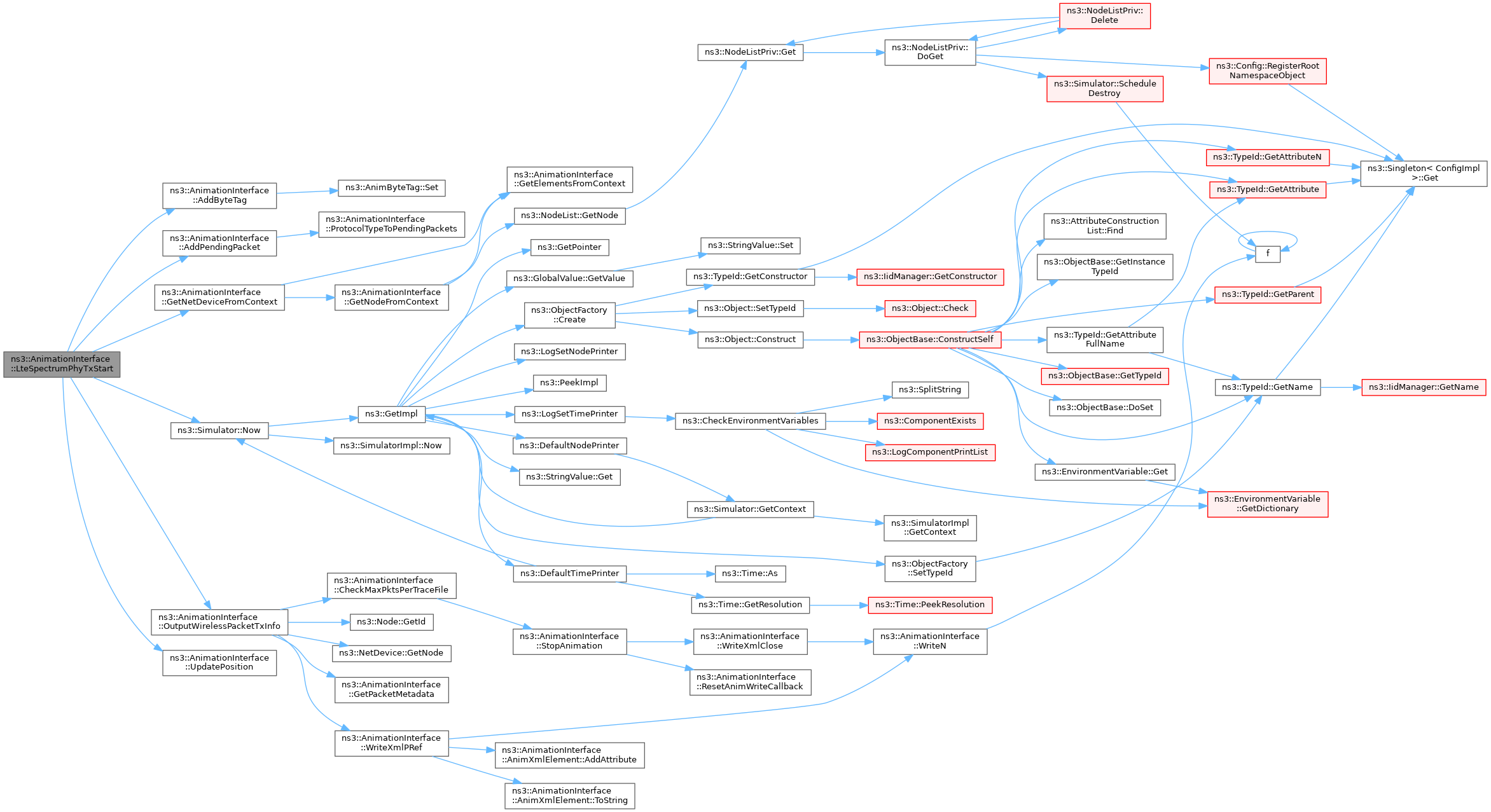

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetAnimUidFromPacket()

uint64_t ns3::AnimationInterface::GetAnimUidFromPacket ( Ptr< const Packet > p )

private

Get anim UID from packet function.

Parameters

p	the packet

Returns: the UID

Definition at line 641 of file animation-interface.cc.

References ns3::AnimByteTag::Get(), ns3::AnimByteTag::GetInstanceTypeId(), ns3::ByteTagIterator::Item::GetTag(), ns3::ByteTagIterator::Item::GetTypeId(), ns3::ByteTagIterator::HasNext(), and ns3::ByteTagIterator::Next().

Referenced by CsmaMacRxTrace(), CsmaPhyRxEndTrace(), CsmaPhyTxEndTrace(), GenericWirelessRxTrace(), LrWpanPhyRxBeginTrace(), LteSpectrumPhyRxStart(), and WifiPhyRxBeginTrace().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetElementsFromContext()

const std::vector< std::string > ns3::AnimationInterface::GetElementsFromContext ( const std::string & context ) const

private

Get elements from context.

Parameters

context the context string

Returns: the elements

Definition at line 598 of file animation-interface.cc.

Referenced by GetNetDeviceFromContext(), and GetNodeFromContext().

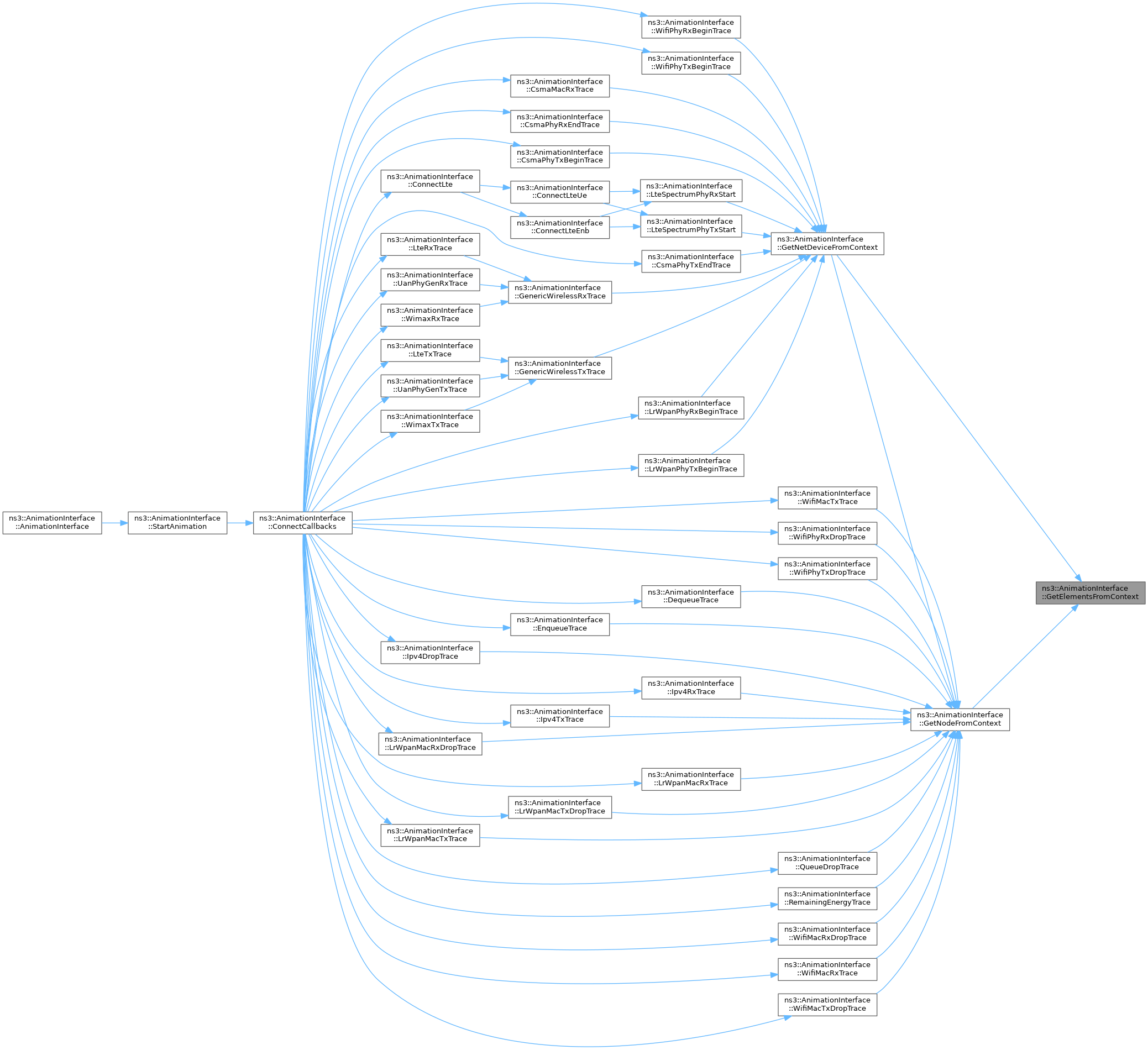

Here is the caller graph for this function:

◆ GetIpv4Address()

std::string ns3::AnimationInterface::GetIpv4Address ( Ptr< NetDevice > nd )

private

Get IPv4 address.

Parameters

nd	the device

Returns: the IPv4 address

Definition at line 1785 of file animation-interface.cc.

References ns3::Ipv4InterfaceAddress::GetLocal(), ns3::NodeList::GetNode(), ns3::Object::GetObject(), and NS_LOG_WARN.

Referenced by WriteLinkProperties().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetIpv4Addresses()

std::vector< std::string > ns3::AnimationInterface::GetIpv4Addresses ( Ptr< NetDevice > nd )

private

Get IPv4 addresses.

Parameters

nd	the device

Returns: the IPv4 address list

Definition at line 1842 of file animation-interface.cc.

References ns3::Ipv4InterfaceAddress::GetLocal(), ns3::NodeList::GetNode(), ns3::Object::GetObject(), and NS_LOG_WARN.

Referenced by WriteLinkProperties().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetIpv4RoutingTable()

std::string ns3::AnimationInterface::GetIpv4RoutingTable ( Ptr< Node > n )

private

Get IPv4 routing table function.

Parameters

n the node

Returns: the IPv4 routing table

Definition at line 2323 of file animation-interface.cc.

References NS_ASSERT, and NS_LOG_WARN.

Referenced by TrackIpv4Route().

Here is the caller graph for this function:

◆ GetIpv6Address()

std::string ns3::AnimationInterface::GetIpv6Address ( Ptr< NetDevice > nd )

private

Get IPv6 address.

Parameters

nd	the device

Returns: the IPv6 address

Definition at line 1806 of file animation-interface.cc.

References ns3::Ipv6InterfaceAddress::GetAddress(), ns3::NodeList::GetNode(), ns3::Object::GetObject(), ns3::Ipv6Address::IsLinkLocal(), and NS_LOG_WARN.

Referenced by WriteLinkProperties().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetIpv6Addresses()

std::vector< std::string > ns3::AnimationInterface::GetIpv6Addresses ( Ptr< NetDevice > nd )

private

Get IPv6 addresses.

Parameters

nd	the device

Returns: the IPv6 address list

Definition at line 1868 of file animation-interface.cc.

References ns3::Ipv6InterfaceAddress::GetAddress(), ns3::NodeList::GetNode(), ns3::Object::GetObject(), and NS_LOG_WARN.

Referenced by WriteLinkProperties().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetMacAddress()

std::string ns3::AnimationInterface::GetMacAddress ( Ptr< NetDevice > nd )

private

Get MAC address function.

Parameters

nd	the device

Returns: the MAC address

Definition at line 1776 of file animation-interface.cc.

Referenced by WriteLinkProperties().

Here is the caller graph for this function:

◆ GetMovedNodes()

std::vector< Ptr< Node > > ns3::AnimationInterface::GetMovedNodes ( )

private

Get moved nodes function.

Returns: the list of moved nodes

Definition at line 501 of file animation-interface.cc.

References ns3::NodeList::Begin(), ns3::NodeList::End(), GetPosition(), NodeHasMoved(), NS_ASSERT, and UpdatePosition().

Referenced by MobilityAutoCheck().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetNetAnimVersion()

std::string ns3::AnimationInterface::GetNetAnimVersion ( )

private

Get netanim version function.

Returns: the net anim version string

Definition at line 2135 of file animation-interface.cc.

References NETANIM_VERSION.

Referenced by WriteXmlAnim().

Here is the caller graph for this function:

◆ GetNetDeviceFromContext()

Ptr< NetDevice > ns3::AnimationInterface::GetNetDeviceFromContext ( std::string context )

private

Get net device from context.

Parameters

context the context string

Returns: the device

Definition at line 628 of file animation-interface.cc.

References GetElementsFromContext(), and GetNodeFromContext().

Referenced by CsmaMacRxTrace(), CsmaPhyRxEndTrace(), CsmaPhyTxBeginTrace(), CsmaPhyTxEndTrace(), GenericWirelessRxTrace(), GenericWirelessTxTrace(), LrWpanPhyRxBeginTrace(), LrWpanPhyTxBeginTrace(), LteSpectrumPhyRxStart(), LteSpectrumPhyTxStart(), WifiPhyRxBeginTrace(), and WifiPhyTxBeginTrace().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetNodeEnergyFraction()

double ns3::AnimationInterface::GetNodeEnergyFraction ( Ptr< const Node > node ) const

Get node's energy fraction (This used only for testing)

Parameters

node

Returns: current node's remaining energy (between [0, 1])

Definition at line 442 of file animation-interface.cc.

References m_nodeEnergyFraction, and NS_ASSERT.

Referenced by AnimationRemainingEnergyTestCase::CheckLogic().

Here is the caller graph for this function:

◆ GetNodeFromContext()

Ptr< Node > ns3::AnimationInterface::GetNodeFromContext ( const std::string & context ) const

private

Get node from context.

Parameters

context the context string

Returns: the node

Definition at line 615 of file animation-interface.cc.

References GetElementsFromContext(), ns3::NodeList::GetNode(), and NS_ASSERT.

Referenced by DequeueTrace(), EnqueueTrace(), GetNetDeviceFromContext(), Ipv4DropTrace(), Ipv4RxTrace(), Ipv4TxTrace(), LrWpanMacRxDropTrace(), LrWpanMacRxTrace(), LrWpanMacTxDropTrace(), LrWpanMacTxTrace(), QueueDropTrace(), RemainingEnergyTrace(), WifiMacRxDropTrace(), WifiMacRxTrace(), WifiMacTxDropTrace(), WifiMacTxTrace(), WifiPhyRxDropTrace(), and WifiPhyTxDropTrace().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetPacketMetadata()

std::string ns3::AnimationInterface::GetPacketMetadata ( Ptr< const Packet > p )

private

Get packet metadata function.

Parameters

p	the packet

Returns: the meta data

Definition at line 1436 of file animation-interface.cc.

Referenced by DevTxTrace(), OutputCsmaPacket(), and OutputWirelessPacketTxInfo().

Here is the caller graph for this function:

◆ GetPosition()

Vector ns3::AnimationInterface::GetPosition ( Ptr< Node > n )

private

Get position function.

Parameters

n the node

Returns: the position vector

Definition at line 1766 of file animation-interface.cc.

References m_nodeLocation, and NS_FATAL_ERROR.

Referenced by GetMovedNodes(), MobilityAutoCheck(), MobilityCourseChangeTrace(), and NodeHasMoved().

Here is the caller graph for this function:

◆ GetTracePktCount()

uint64_t ns3::AnimationInterface::GetTracePktCount ( ) const

Get trace file packet count (This used only for testing)

Returns: Number of packets recorded in the current trace file

Definition at line 1444 of file animation-interface.cc.

References m_currentPktCount.

Referenced by AnimationInterfaceTestCase::CheckLogic().

Here is the caller graph for this function:

◆ Ipv4DropTrace()

void ns3::AnimationInterface::Ipv4DropTrace	(	std::string	context,
		const Ipv4Header &	ipv4Header,
		Ptr< const Packet >	p,
		Ipv4L3Protocol::DropReason	dropReason,
		Ptr< Ipv4 >	ipv4,
		uint32_t	interfaceIndex
	)
