ns3::Gnuplot2dDataset::Data2d Struct Reference

Structure storing the data to for a 2D plot. More...

Inheritance diagram for ns3::Gnuplot2dDataset::Data2d:

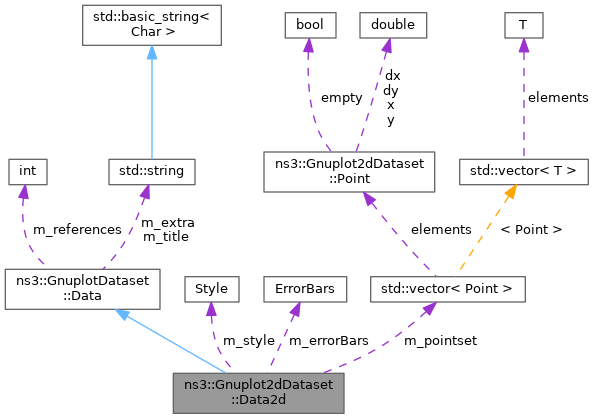

Collaboration diagram for ns3::Gnuplot2dDataset::Data2d:

Public Member Functions
	Data2d (const std::string &title)
	Initializes with the values from m_defaultStyle and m_defaultErrorBars.
std::string	GetCommand () const override
	Returns the plot type ("plot" or "splot").
bool	IsEmpty () const override
	Checks to see if this GnuplotDataset is empty.
void	PrintDataFile (std::ostream &os, bool generateOneOutputFile) const override
	Print the inline data file contents trailing the plot command.
void	PrintExpression (std::ostream &os, bool generateOneOutputFile, unsigned int dataFileDatasetIndex, std::string &dataFileName) const override
	Prints the plot description used as argument to (s)plot.
Public Member Functions inherited from ns3::GnuplotDataset::Data
	Data (const std::string &title)
	Initializes the reference counter to 1 and sets m_title and m_extra.
virtual	~Data ()
	Required.
virtual std::string	GetCommand () const =0
	Returns the plot type ("plot" or "splot").
virtual bool	IsEmpty () const =0
	Checks to see if this GnuplotDataset is empty.
virtual void	PrintDataFile (std::ostream &os, bool generateOneOutputFile) const =0
	Print the inline data file contents trailing the plot command.
virtual void	PrintExpression (std::ostream &os, bool generateOneOutputFile, unsigned int dataFileDatasetIndex, std::string &dataFileName) const =0
	Prints the plot description used as argument to (s)plot.

Public Attributes
ErrorBars	m_errorBars
	Whether errorbars should be used for this dataset.
PointSet	m_pointset
	The set of points in this data set.
Style	m_style
	The plotting style to use for this dataset.
Public Attributes inherited from ns3::GnuplotDataset::Data
std::string	m_extra
	Extra parameters for the plot.
unsigned int	m_references
	ref/unref counter for garbage collection
std::string	m_title
	Dataset title.

Detailed Description

Structure storing the data to for a 2D plot.

Definition at line 172 of file gnuplot.cc.

Constructor & Destructor Documentation

Data2d()

ns3::Gnuplot2dDataset::Data2d::Data2d

(

const std::string &

title

)

Initializes with the values from m_defaultStyle and m_defaultErrorBars.

Parameters

title

Dataset title

Definition at line 196 of file gnuplot.cc.

Member Function Documentation

GetCommand()

std::string ns3::Gnuplot2dDataset::Data2d::GetCommand ( ) const

overridevirtual

Returns the plot type ("plot" or "splot").

Returns

the plot type ("plot" or "splot").

Implements ns3::GnuplotDataset::Data.

Definition at line 204 of file gnuplot.cc.

IsEmpty()

bool ns3::Gnuplot2dDataset::Data2d::IsEmpty ( ) const

overridevirtual

Checks to see if this GnuplotDataset is empty.

Returns

indicates if this GnuplotDataset is empty.

Implements ns3::GnuplotDataset::Data.

Definition at line 335 of file gnuplot.cc.

PrintDataFile()

void ns3::Gnuplot2dDataset::Data2d::PrintDataFile ( std::ostream &  os, bool  generateOneOutputFile  ) const

overridevirtual

Print the inline data file contents trailing the plot command.

Empty for functions.

Parameters

os	Output stream
generateOneOutputFile	If true, generate only one output file.

Implements ns3::GnuplotDataset::Data.

Definition at line 294 of file gnuplot.cc.

References ns3::Gnuplot2dDataset::NONE, ns3::Gnuplot2dDataset::X, ns3::Gnuplot2dDataset::XY, and ns3::Gnuplot2dDataset::Y.

PrintExpression()

void ns3::Gnuplot2dDataset::Data2d::PrintExpression ( std::ostream &  os, bool  generateOneOutputFile, unsigned int  dataFileDatasetIndex, std::string &  dataFileName  ) const

overridevirtual

Prints the plot description used as argument to (s)plot.

Either the function expression or a datafile description. Should include m_title and m_extra in the output.

If more than one output file is being generated, i.e. separate data and control files, then the index for the current dataset and the name for the data file are also included.

Parameters

os	Output stream
generateOneOutputFile	If true, generate only one output file.
dataFileDatasetIndex	Dataset Index
dataFileName	Dataset file name

Implements ns3::GnuplotDataset::Data.

Definition at line 210 of file gnuplot.cc.

References ns3::Gnuplot2dDataset::DOTS, ns3::Gnuplot2dDataset::FSTEPS, ns3::Gnuplot2dDataset::HISTEPS, ns3::Gnuplot2dDataset::IMPULSES, ns3::Gnuplot2dDataset::LINES, ns3::Gnuplot2dDataset::LINES_POINTS, ns3::Gnuplot2dDataset::NONE, ns3::Gnuplot2dDataset::POINTS, ns3::Gnuplot2dDataset::STEPS, ns3::Gnuplot2dDataset::X, ns3::Gnuplot2dDataset::XY, and ns3::Gnuplot2dDataset::Y.

Member Data Documentation

m_errorBars

ErrorBars ns3::Gnuplot2dDataset::Data2d::m_errorBars

Whether errorbars should be used for this dataset.

Definition at line 177 of file gnuplot.cc.

m_pointset

PointSet ns3::Gnuplot2dDataset::Data2d::m_pointset

The set of points in this data set.

Definition at line 179 of file gnuplot.cc.

m_style

Style ns3::Gnuplot2dDataset::Data2d::m_style

The plotting style to use for this dataset.

Definition at line 176 of file gnuplot.cc.

---

The documentation for this struct was generated from the following file:

• src/stats/model/gnuplot.cc
