LenaDlCtrlPhyErrorModelTestCase Class Reference

Lena Dl Ctrl Phy Error Model Test Case. More...

#include "lte-test-phy-error-model.h"

Inheritance diagram for LenaDlCtrlPhyErrorModelTestCase:

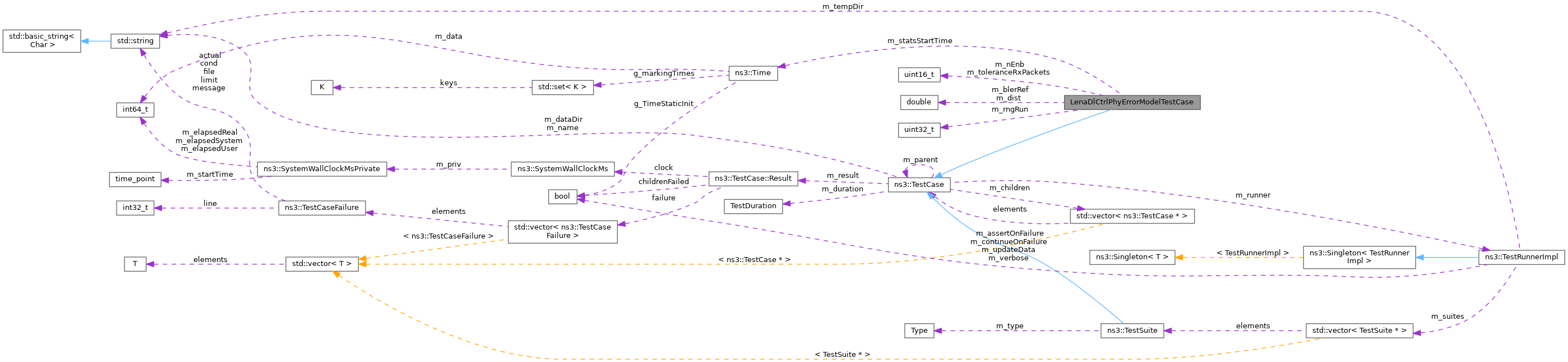

Collaboration diagram for LenaDlCtrlPhyErrorModelTestCase:

Public Member Functions
	LenaDlCtrlPhyErrorModelTestCase (uint16_t nEnb, uint16_t dist, double blerRef, uint16_t toleranceRxPackets, Time statsStartTime, uint32_t rngRun)
	Constructor.
	~LenaDlCtrlPhyErrorModelTestCase () override
Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete
virtual	~TestCase ()
	Destructor.
std::string	GetName () const
TestCase &	operator= (const TestCase &)=delete

Private Member Functions
void	DoRun () override
	Implementation to actually run this TestCase.

Static Private Member Functions
static std::string	BuildNameString (uint16_t nUser, uint16_t dist, uint32_t rngRun)
	Build name string.

Private Attributes
double	m_blerRef
	the expected BLER
double	m_dist
	the distance between nodes
uint16_t	m_nEnb
	the number of ENB nodes
uint32_t	m_rngRun
	the rng run number
Time	m_statsStartTime
	Extra time in the beginning of simulation to allow RRC connection establishment + SRS.
uint16_t	m_toleranceRxPackets
	receive packet tolerance loss

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor.
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite.
TestCase *	GetParent () const
	Get the parent of this TestCase.
bool	IsStatusFailure () const
	Check if any tests failed.
bool	IsStatusSuccess () const
	Check if all tests passed.
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found.
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase.
bool	MustAssertOnFailure () const
	Check if this run should assert on failure.
bool	MustContinueOnFailure () const
	Check if this run should continue on failure.
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory.
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory.

Detailed Description

Lena Dl Ctrl Phy Error Model Test Case.

Definition at line 83 of file lte-test-phy-error-model.h.

Constructor & Destructor Documentation

LenaDlCtrlPhyErrorModelTestCase()

LenaDlCtrlPhyErrorModelTestCase::LenaDlCtrlPhyErrorModelTestCase	(	uint16_t	nEnb,
		uint16_t	dist,
		double	blerRef,
		uint16_t	toleranceRxPackets,
		Time	statsStartTime,
		uint32_t	rngRun
	)

Constructor.

Parameters

nEnb	the number of ENB nodes
dist	the distance between nodes
blerRef	expected BLER
toleranceRxPackets	receive packet loss tolerance
statsStartTime	the start time for collecting statistics
rngRun	rng number

Definition at line 287 of file lte-test-phy-error-model.cc.

~LenaDlCtrlPhyErrorModelTestCase()

LenaDlCtrlPhyErrorModelTestCase::~LenaDlCtrlPhyErrorModelTestCase ( )

override

Definition at line 303 of file lte-test-phy-error-model.cc.

Member Function Documentation

BuildNameString()

std::string LenaDlCtrlPhyErrorModelTestCase::BuildNameString ( uint16_t  nUser, uint16_t  dist, uint32_t  rngRun  )

staticprivate

Build name string.

Parameters

nUser	the number of UE nodes
dist	the distance between nodes
rngRun	the rng run

Returns

the name string

Definition at line 280 of file lte-test-phy-error-model.cc.

DoRun()

void LenaDlCtrlPhyErrorModelTestCase::DoRun ( )

overrideprivatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 308 of file lte-test-phy-error-model.cc.

References ns3::NodeContainer::Create(), ns3::TestCase::CreateTempDirFilename(), ns3::Simulator::Destroy(), ns3::EpsBearer::GBR_CONV_VOICE, ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::Time::GetMilliSeconds(), ns3::Object::GetObject(), ns3::BuildingsHelper::Install(), m_blerRef, m_dist, m_nEnb, m_rngRun, m_statsStartTime, m_toleranceRxPackets, NS_LOG_INFO, NS_TEST_ASSERT_MSG_EQ_TOL, ns3::LteAmc::PiroEW2010, ns3::FfMacScheduler::PUSCH_UL_CQI, ns3::Simulator::Run(), ns3::Seconds(), ns3::Config::SetDefault(), ns3::Config::SetGlobal(), and ns3::Simulator::Stop().

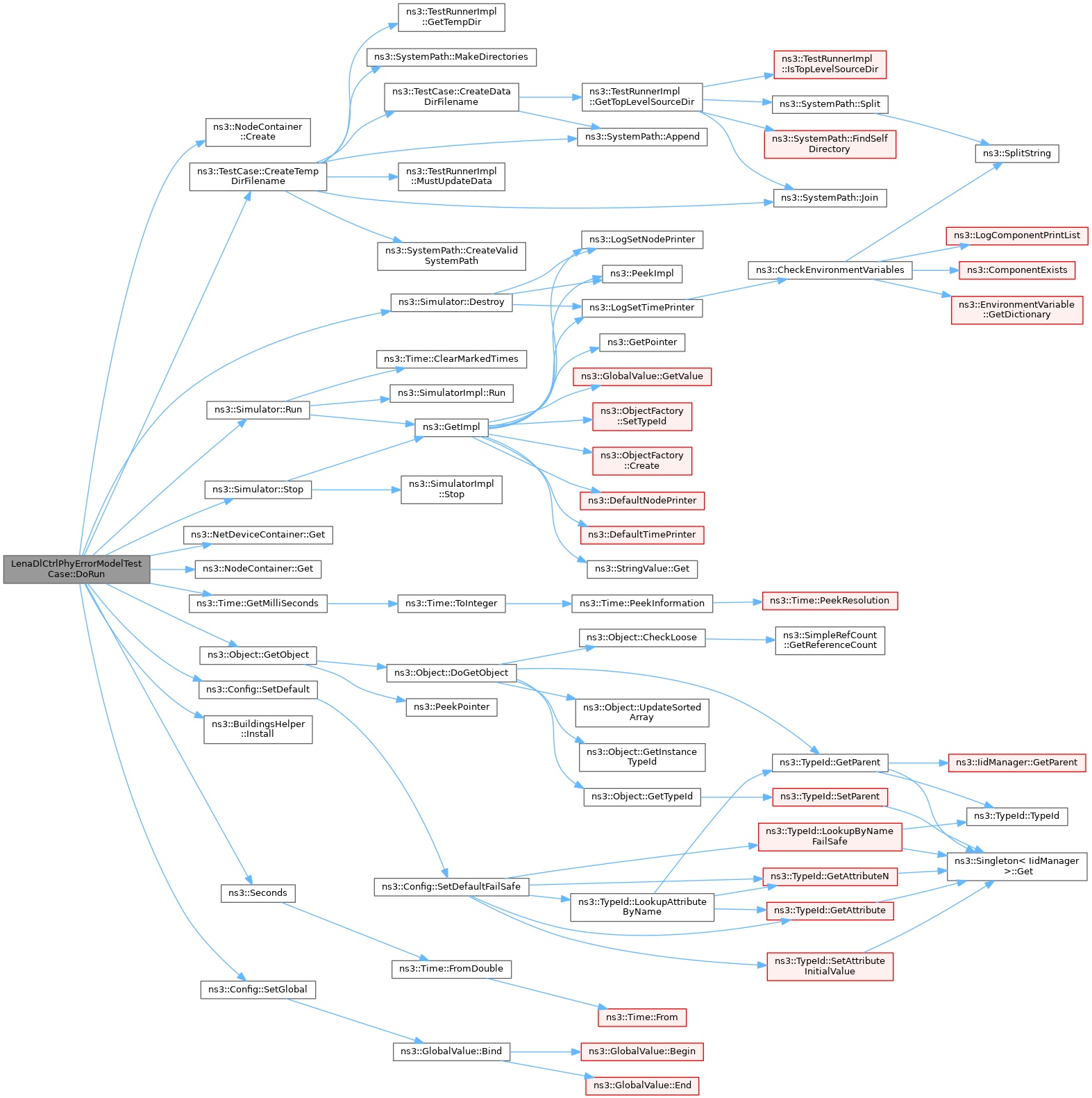

Here is the call graph for this function:

Member Data Documentation

m_blerRef

double LenaDlCtrlPhyErrorModelTestCase::m_blerRef

private

the expected BLER

Definition at line 116 of file lte-test-phy-error-model.h.

Referenced by DoRun().

m_dist

double LenaDlCtrlPhyErrorModelTestCase::m_dist

private

the distance between nodes

Definition at line 115 of file lte-test-phy-error-model.h.

Referenced by DoRun().

m_nEnb

uint16_t LenaDlCtrlPhyErrorModelTestCase::m_nEnb

private

the number of ENB nodes

Definition at line 114 of file lte-test-phy-error-model.h.

Referenced by DoRun().

m_rngRun

uint32_t LenaDlCtrlPhyErrorModelTestCase::m_rngRun

private

the rng run number

Definition at line 120 of file lte-test-phy-error-model.h.

Referenced by DoRun().

m_statsStartTime

Time LenaDlCtrlPhyErrorModelTestCase::m_statsStartTime

private

Extra time in the beginning of simulation to allow RRC connection establishment + SRS.

Definition at line 118 of file lte-test-phy-error-model.h.

Referenced by DoRun().

m_toleranceRxPackets

uint16_t LenaDlCtrlPhyErrorModelTestCase::m_toleranceRxPackets

private

receive packet tolerance loss

Definition at line 117 of file lte-test-phy-error-model.h.

Referenced by DoRun().

---

The documentation for this class was generated from the following files:

• src/lte/test/lte-test-phy-error-model.h
• src/lte/test/lte-test-phy-error-model.cc
