PHY entity for HR/DSSS (11b) More...

#include "dsss-phy.h"

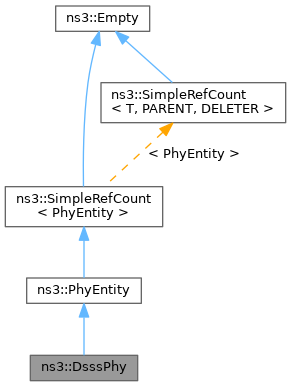

Inheritance diagram for ns3::DsssPhy:

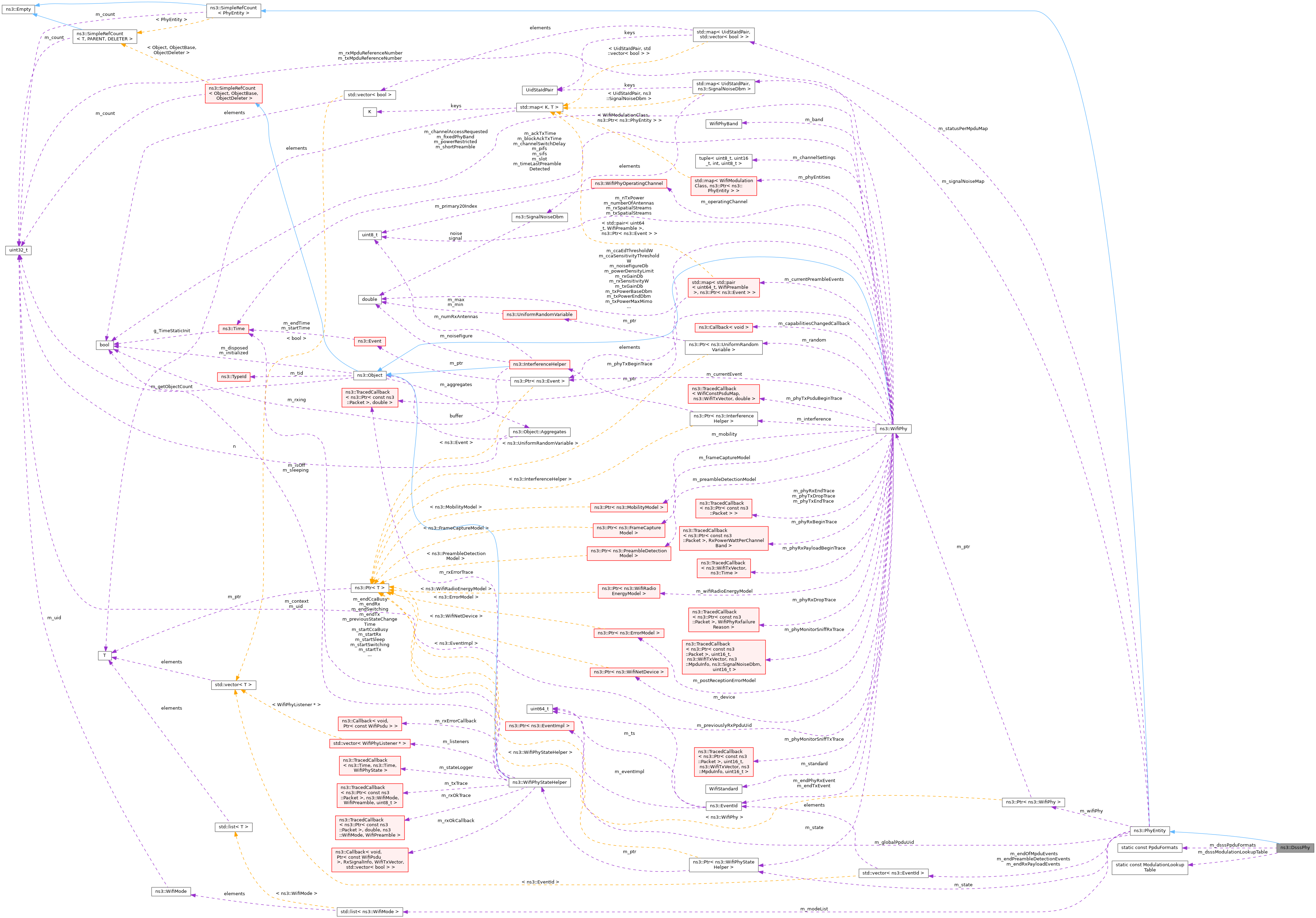

Collaboration diagram for ns3::DsssPhy:

Public Member Functions

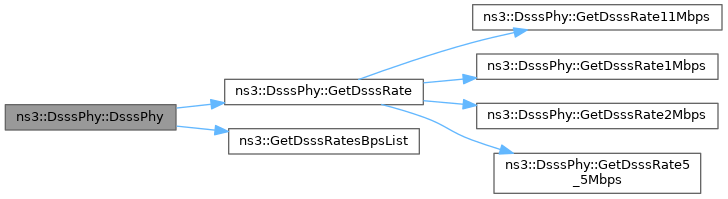

	DsssPhy ()
	Constructor for HR/DSSS PHY.

	~DsssPhy () override
	Destructor for HR/DSSS PHY.

Ptr< WifiPpdu >	BuildPpdu (const WifiConstPsduMap &psdus, const WifiTxVector &txVector, Time ppduDuration) override
	Build amendment-specific PPDU.

Time	GetDuration (WifiPpduField field, const WifiTxVector &txVector) const override
	Get the duration of the PPDU field (or group of fields) used by this entity for the given transmission parameters.

uint32_t	GetMaxPsduSize () const override
	Get the maximum PSDU size in bytes.

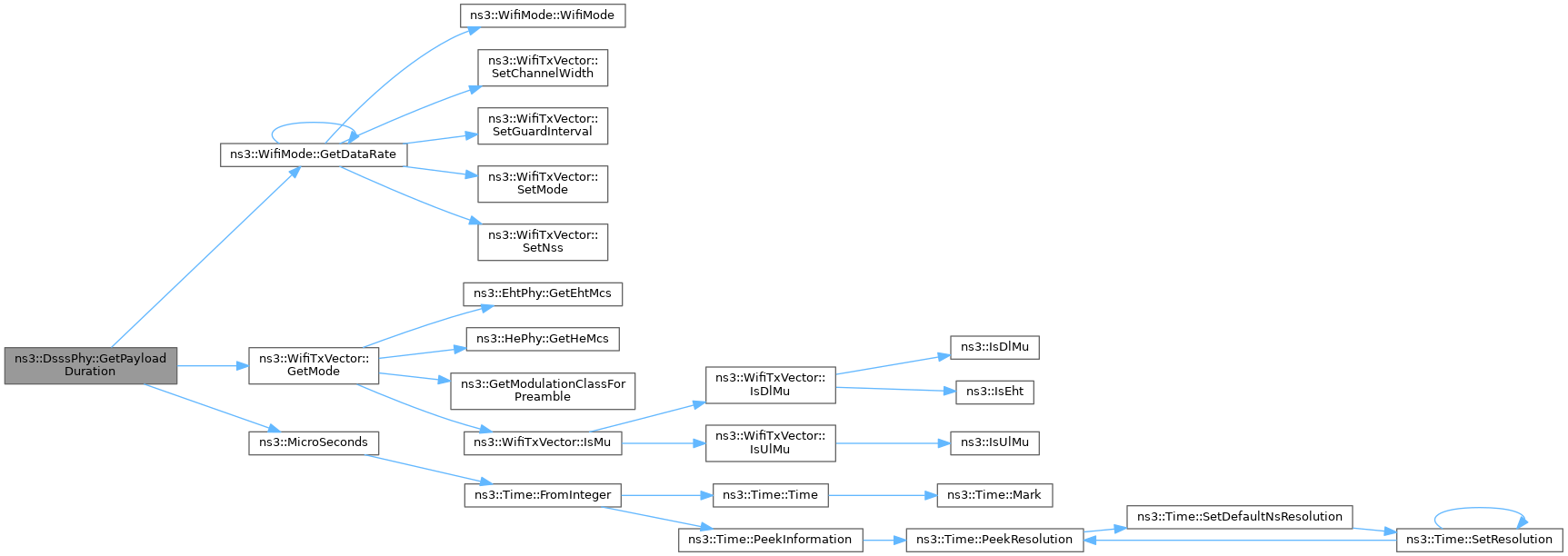

Time	GetPayloadDuration (uint32_t size, const WifiTxVector &txVector, WifiPhyBand band, MpduType mpdutype, bool incFlag, uint32_t &totalAmpduSize, double &totalAmpduNumSymbols, uint16_t staId) const override

const PpduFormats &	GetPpduFormats () const override
	Return the PPDU formats of the PHY.

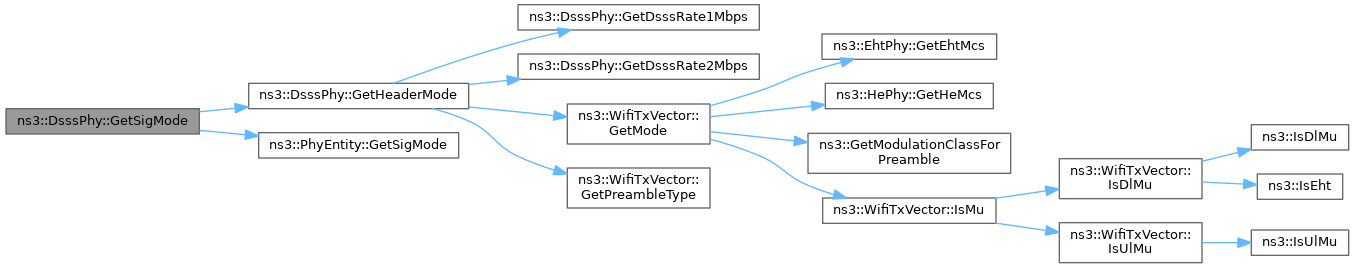

WifiMode	GetSigMode (WifiPpduField field, const WifiTxVector &txVector) const override
	Get the WifiMode for the SIG field specified by the PPDU field.

Public Member Functions inherited from ns3::PhyEntity
virtual	~PhyEntity ()
	Destructor for PHY entity.

std::list< WifiMode >::const_iterator	begin () const
	Return a const iterator to the first WifiMode.

virtual Ptr< WifiPpdu >	BuildPpdu (const WifiConstPsduMap &psdus, const WifiTxVector &txVector, Time ppduDuration)
	Build amendment-specific PPDU.

Time	CalculatePhyPreambleAndHeaderDuration (const WifiTxVector &txVector) const

virtual Time	CalculateTxDuration (WifiConstPsduMap psduMap, const WifiTxVector &txVector, WifiPhyBand band) const

virtual void	CancelAllEvents ()
	Cancel and clear all running events.

void	CancelRunningEndPreambleDetectionEvents (bool clear=false)
	Cancel and eventually clear all end preamble detection events.

virtual bool	CanStartRx (Ptr< const WifiPpdu > ppdu, uint16_t txChannelWidth) const
	Determine whether the PHY shall issue a PHY-RXSTART.indication primitive in response to a given PPDU.

std::list< WifiMode >::const_iterator	end () const
	Return a const iterator to past-the-last WifiMode.

void	EndReceiveField (WifiPpduField field, Ptr< Event > event)
	End receiving a given field.

void	EndReceivePayload (Ptr< Event > event)
	The last symbol of the PPDU has arrived.

virtual Ptr< const WifiPsdu >	GetAddressedPsduInPpdu (Ptr< const WifiPpdu > ppdu) const
	Get the PSDU addressed to that PHY in a PPDU (useful for MU PPDU).

virtual double	GetCcaThreshold (const Ptr< const WifiPpdu > ppdu, WifiChannelListType channelType) const
	Return the CCA threshold in dBm for a given channel type.

virtual Time	GetDuration (WifiPpduField field, const WifiTxVector &txVector) const
	Get the duration of the PPDU field (or group of fields) used by this entity for the given transmission parameters.

Time	GetDurationUpToField (WifiPpduField field, const WifiTxVector &txVector) const
	Get the duration of the PPDU up to (but excluding) the given field.

virtual Time	GetMaxDelayPpduSameUid (const WifiTxVector &txVector)
	Obtain the maximum time between two PPDUs with the same UID to consider they are identical and their power can be added construtively.

virtual uint32_t	GetMaxPsduSize () const =0
	Get the maximum PSDU size in bytes.

virtual WifiMode	GetMcs (uint8_t index) const
	Get the WifiMode corresponding to the given MCS index.

WifiPpduField	GetNextField (WifiPpduField currentField, WifiPreamble preamble) const
	Return the field following the provided one.

virtual uint8_t	GetNumModes () const

virtual Time	GetPayloadDuration (uint32_t size, const WifiTxVector &txVector, WifiPhyBand band, MpduType mpdutype, bool incFlag, uint32_t &totalAmpduSize, double &totalAmpduNumSymbols, uint16_t staId) const =0

PhyHeaderSections	GetPhyHeaderSections (const WifiTxVector &txVector, Time ppduStart) const
	Return a map of PHY header chunk information per PPDU field.

Time	GetRemainingDurationAfterField (Ptr< const WifiPpdu > ppdu, WifiPpduField field) const
	Get the remaining duration of the PPDU after the end of the given field.

virtual Ptr< const WifiPpdu >	GetRxPpduFromTxPpdu (Ptr< const WifiPpdu > ppdu)
	The WifiPpdu from the TX PHY is received by each RX PHY attached to the same channel.

virtual WifiMode	GetSigMode (WifiPpduField field, const WifiTxVector &txVector) const
	Get the WifiMode for the SIG field specified by the PPDU field.

virtual uint16_t	GetStaId (const Ptr< const WifiPpdu > ppdu) const
	Return the STA ID that has been assigned to the station this PHY belongs to.

virtual WifiConstPsduMap	GetWifiConstPsduMap (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector) const
	Get a WifiConstPsduMap from a PSDU and the TXVECTOR to use to send the PSDU.

virtual bool	HandlesMcsModes () const
	Check if the WifiModes handled by this PHY are MCSs.

virtual bool	IsMcsSupported (uint8_t index) const
	Check if the WifiMode corresponding to the given MCS index is supported.

virtual bool	IsModeSupported (WifiMode mode) const
	Check if the WifiMode is supported.

bool	NoEndPreambleDetectionEvents () const

virtual void	NotifyCcaBusy (const Ptr< const WifiPpdu > ppdu, Time duration, WifiChannelListType channelType)
	Notify PHY state helper to switch to CCA busy state,.

virtual uint64_t	ObtainNextUid (const WifiTxVector &txVector)
	Obtain the next UID for the PPDU to transmit.

void	ResetReceive (Ptr< Event > event)
	Reset PHY at the end of the PPDU under reception after it has failed the PHY header.

void	SetOwner (Ptr< WifiPhy > wifiPhy)
	Set the WifiPhy owning this PHY entity.

void	StartReceiveField (WifiPpduField field, Ptr< Event > event)
	Start receiving a given field.

virtual void	StartReceivePreamble (Ptr< const WifiPpdu > ppdu, RxPowerWattPerChannelBand &rxPowersW, Time rxDuration)
	Start receiving the PHY preamble of a PPDU (i.e.

virtual void	StartTx (Ptr< const WifiPpdu > ppdu)
	This function is called by SpectrumWifiPhy to send the PPDU while performing amendment-specific actions.

virtual void	SwitchMaybeToCcaBusy (const Ptr< const WifiPpdu > ppdu)
	Check if PHY state should move to CCA busy state based on current state of interference tracker.

void	Transmit (Time txDuration, Ptr< const WifiPpdu > ppdu, double txPowerDbm, Ptr< SpectrumValue > txPowerSpectrum, const std::string &type)
	This function prepares most of the WifiSpectrumSignalParameters parameters and invokes SpectrumWifiPhy's Transmit method.

Public Member Functions inherited from ns3::SimpleRefCount< PhyEntity >
	SimpleRefCount ()
	Default constructor.

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor.

uint32_t	GetReferenceCount () const
	Get the reference count of the object.

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator.

void	Ref () const
	Increment the reference count.

void	Unref () const
	Decrement the reference count.

Static Public Member Functions
static WifiCodeRate	GetCodeRate (const std::string &name)
	Return the WifiCodeRate from the DSSS or HR/DSSS mode's unique name using ModulationLookupTable.

static uint16_t	GetConstellationSize (const std::string &name)
	Return the constellation size from the DSSS or HR/DSSS mode's unique name using ModulationLookupTable.

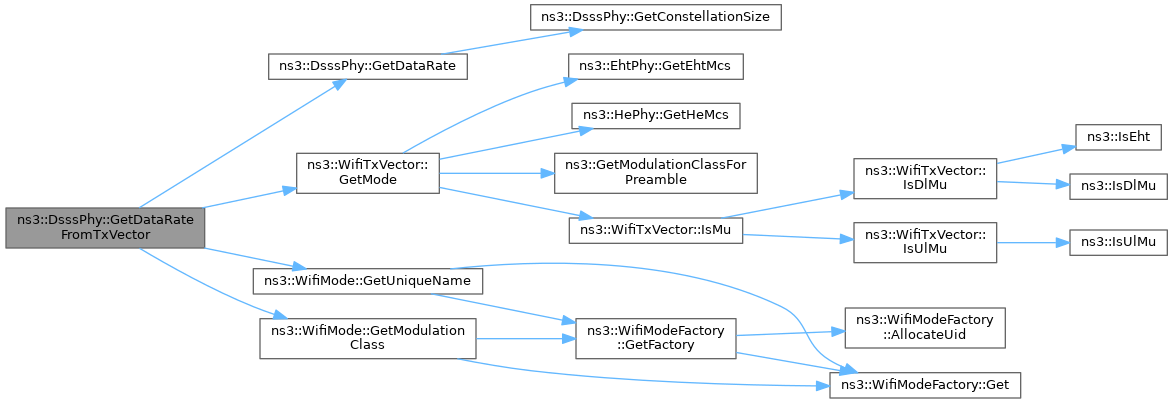

static uint64_t	GetDataRate (const std::string &name, WifiModulationClass modClass)
	Return the data rate from the DSSS or HR/DSSS mode's unique name and the supplied parameters.

static uint64_t	GetDataRateFromTxVector (const WifiTxVector &txVector, uint16_t staId)
	Return the data rate corresponding to the supplied TXVECTOR.

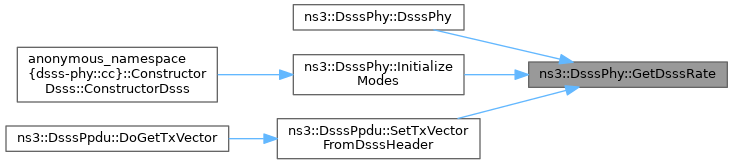

static WifiMode	GetDsssRate (uint64_t rate)
	Return a WifiMode for HR/DSSS corresponding to the provided rate.

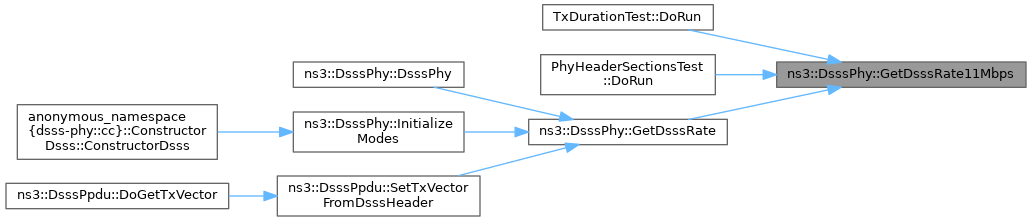

static WifiMode	GetDsssRate11Mbps ()
	Return a WifiMode for HR/DSSS at 11 Mbps.

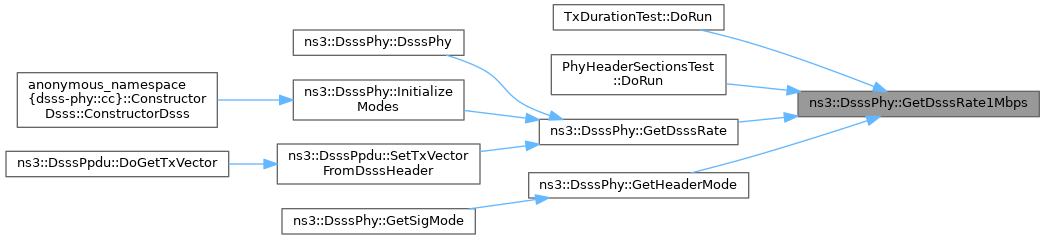

static WifiMode	GetDsssRate1Mbps ()
	Return a WifiMode for DSSS at 1 Mbps.

static WifiMode	GetDsssRate2Mbps ()
	Return a WifiMode for DSSS at 2 Mbps.

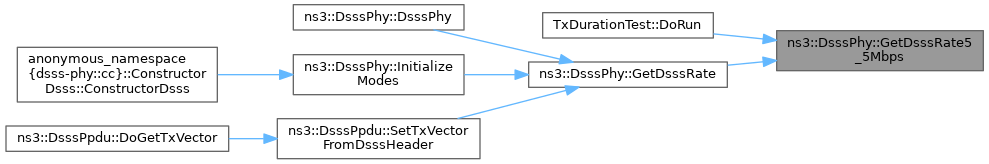

static WifiMode	GetDsssRate5_5Mbps ()
	Return a WifiMode for HR/DSSS at 5.5 Mbps.

static void	InitializeModes ()
	Initialize all HR/DSSS modes.

static bool	IsAllowed (const WifiTxVector &txVector)
	Check whether the combination in TXVECTOR is allowed.

Private Member Functions

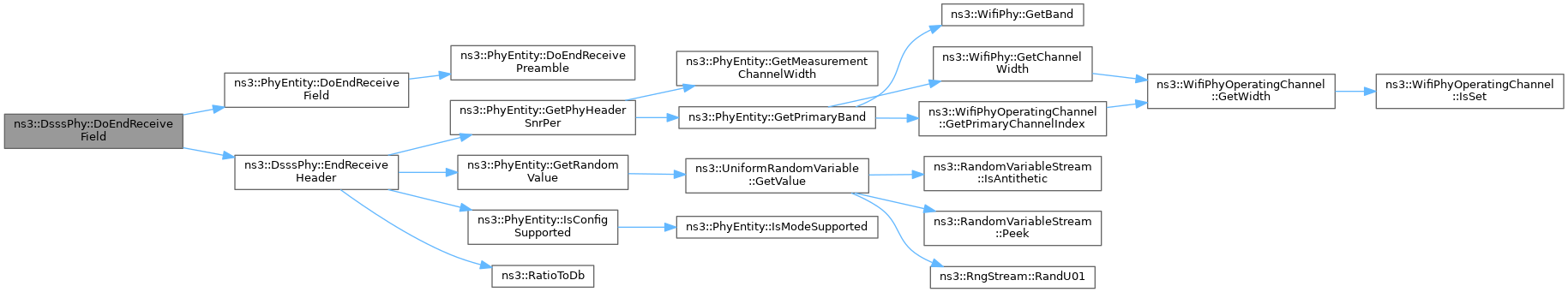

PhyFieldRxStatus	DoEndReceiveField (WifiPpduField field, Ptr< Event > event) override
	End receiving a given field, perform amendment-specific actions, and provide the status of the reception.

PhyFieldRxStatus	EndReceiveHeader (Ptr< Event > event)
	End receiving the header, perform DSSS-specific actions, and provide the status of the reception.

Time	GetHeaderDuration (const WifiTxVector &txVector) const

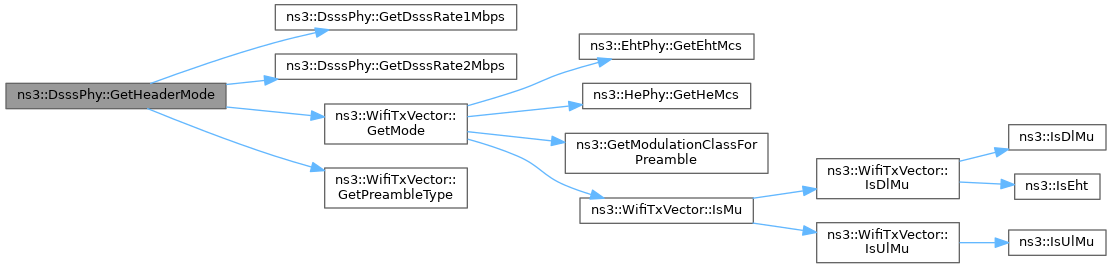

WifiMode	GetHeaderMode (const WifiTxVector &txVector) const

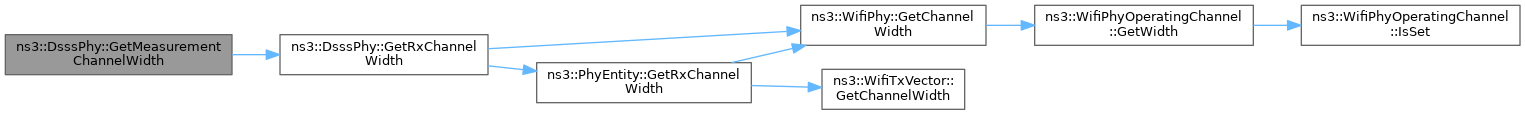

uint16_t	GetMeasurementChannelWidth (const Ptr< const WifiPpdu > ppdu) const override
	Return the channel width used to measure the RSSI.

Time	GetPreambleDuration (const WifiTxVector &txVector) const

uint16_t	GetRxChannelWidth (const WifiTxVector &txVector) const override
	Return the channel width used in the reception spectrum model.

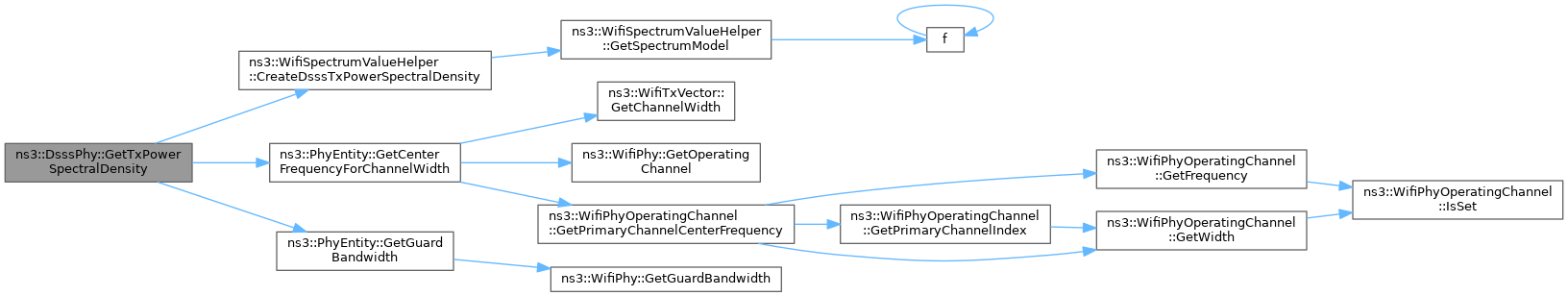

Ptr< SpectrumValue >	GetTxPowerSpectralDensity (double txPowerW, Ptr< const WifiPpdu > ppdu) const override

Static Private Member Functions
static WifiMode	CreateDsssMode (std::string uniqueName, WifiModulationClass modClass)
	Create a DSSS or HR/DSSS mode from a unique name, the unique name must already be contained inside ModulationLookupTable.

Static Private Attributes
static const ModulationLookupTable	m_dsssModulationLookupTable
	lookup table to retrieve code rate and constellation size corresponding to a unique name of modulation

static const PpduFormats	m_dsssPpduFormats
	DSSS and HR/DSSS PPDU formats.

Additional Inherited Members
Public Types inherited from ns3::PhyEntity
typedef std::pair< std::pair< Time, Time >, WifiMode >	PhyHeaderChunkInfo
	A pair containing information on the PHY header chunk, namely the start and stop times of the chunk and the WifiMode used.

typedef std::map< WifiPpduField, PhyHeaderChunkInfo >	PhyHeaderSections
	A map of PhyHeaderChunkInfo elements per PPDU field.

enum	PhyRxFailureAction { DROP = 0 , ABORT , IGNORE }
	Action to perform in case of RX failure. More...

Protected Types inherited from ns3::PhyEntity
using	CcaIndication = std::optional< std::pair< Time, WifiChannelListType > >
	CCA end time and its corresponding channel list type (can be std::nullopt if IDLE)

typedef std::pair< WifiCodeRate, uint16_t >	CodeRateConstellationSizePair
	A pair to hold modulation information: code rate and constellation size.

typedef std::map< std::string, CodeRateConstellationSizePair >	ModulationLookupTable
	A modulation lookup table using unique name of modulation as key.

typedef std::map< WifiPreamble, std::vector< WifiPpduField > >	PpduFormats
	A map of PPDU field elements per preamble type.

typedef std::pair< uint64_t, uint16_t >	UidStaIdPair
	A pair of a UID and STA_ID.

Protected Member Functions inherited from ns3::PhyEntity
void	AbortCurrentReception (WifiPhyRxfailureReason reason)
	Abort the current reception.

void	AddPreambleEvent (Ptr< Event > event)
	Add an entry to the map of current preamble events (stored in WifiPhy).

Ptr< Event >	CreateInterferenceEvent (Ptr< const WifiPpdu > ppdu, Time duration, RxPowerWattPerChannelBand &rxPower, bool isStartOfdmaRxing=false)
	Create an event using WifiPhy's InterferenceHelper class.

virtual void	DoAbortCurrentReception (WifiPhyRxfailureReason reason)
	Perform amendment-specific actions before aborting the current reception.

virtual PhyFieldRxStatus	DoEndReceiveField (WifiPpduField field, Ptr< Event > event)
	End receiving a given field, perform amendment-specific actions, and provide the status of the reception.

virtual void	DoEndReceivePayload (Ptr< const WifiPpdu > ppdu)
	Perform amendment-specific actions at the end of the reception of the payload.

virtual PhyFieldRxStatus	DoEndReceivePreamble (Ptr< Event > event)
	End receiving the preamble, perform amendment-specific actions, and provide the status of the reception.

virtual Ptr< Event >	DoGetEvent (Ptr< const WifiPpdu > ppdu, RxPowerWattPerChannelBand &rxPowersW)
	Get the event corresponding to the incoming PPDU.

virtual void	DoResetReceive (Ptr< Event > event)
	Perform amendment-specific actions before resetting PHY at the end of the PPDU under reception after it has failed the PHY header.

virtual bool	DoStartReceiveField (WifiPpduField field, Ptr< Event > event)
	Start receiving a given field, perform amendment-specific actions, and signify if it is supported.

virtual Time	DoStartReceivePayload (Ptr< Event > event)
	Start receiving the PSDU (i.e.

void	DropPreambleEvent (Ptr< const WifiPpdu > ppdu, WifiPhyRxfailureReason reason, Time endRx)
	Drop the PPDU and the corresponding preamble detection event, but keep CCA busy state after the completion of the currently processed event.

void	EndOfMpdu (Ptr< Event > event, Ptr< const WifiPsdu > psdu, size_t mpduIndex, Time relativeStart, Time mpduDuration)
	The last symbol of an MPDU in an A-MPDU has arrived.

void	EndPreambleDetectionPeriod (Ptr< Event > event)
	End the preamble detection period.

void	ErasePreambleEvent (Ptr< const WifiPpdu > ppdu, Time rxDuration)
	Erase the event corresponding to the PPDU from the list of preamble events, but consider it as noise after the completion of the current event.

virtual CcaIndication	GetCcaIndication (const Ptr< const WifiPpdu > ppdu)
	Get CCA end time and its corresponding channel list type when a new signal has been received by the PHY.

uint16_t	GetCenterFrequencyForChannelWidth (const WifiTxVector &txVector) const
	Get the center frequency of the channel corresponding the current TxVector rather than that of the supported channel width.

virtual std::pair< uint16_t, WifiSpectrumBandInfo >	GetChannelWidthAndBand (const WifiTxVector &txVector, uint16_t staId) const
	Get the channel width and band to use (will be overloaded by child classes).

Ptr< const Event >	GetCurrentEvent () const
	Get the pointer to the current event (stored in WifiPhy).

const std::map< std::pair< uint64_t, WifiPreamble >, Ptr< Event > > &	GetCurrentPreambleEvents () const
	Get the map of current preamble events (stored in WifiPhy).

Time	GetDelayUntilCcaEnd (double thresholdDbm, const WifiSpectrumBandInfo &band)
	Return the delay until CCA busy is ended for a given sensitivity threshold (in dBm) and a given band.

uint16_t	GetGuardBandwidth (uint16_t currentChannelWidth) const

virtual uint16_t	GetMeasurementChannelWidth (const Ptr< const WifiPpdu > ppdu) const =0
	Return the channel width used to measure the RSSI.

SnrPer	GetPhyHeaderSnrPer (WifiPpduField field, Ptr< Event > event) const
	Obtain the SNR and PER of the PPDU field from the WifiPhy's InterferenceHelper class.

virtual const PpduFormats &	GetPpduFormats () const =0
	Return the PPDU formats of the PHY.

WifiSpectrumBandInfo	GetPrimaryBand (uint16_t bandWidth) const
	If the operating channel width is a multiple of 20 MHz, return the info corresponding to the primary channel of the given bandwidth (which must be a multiple of 20 MHz and not exceed the operating channel width).

double	GetRandomValue () const
	Obtain a random value from the WifiPhy's generator.

std::pair< bool, SignalNoiseDbm >	GetReceptionStatus (Ptr< const WifiPsdu > psdu, Ptr< Event > event, uint16_t staId, Time relativeMpduStart, Time mpduDuration)
	Get the reception status for the provided MPDU and notify.

virtual uint16_t	GetRxChannelWidth (const WifiTxVector &txVector) const
	Return the channel width used in the reception spectrum model.

double	GetRxPowerWForPpdu (Ptr< Event > event) const
	Obtain the received power (W) for a given band.

WifiSpectrumBandInfo	GetSecondaryBand (uint16_t bandWidth) const
	If the channel bonding is used, return the info corresponding to the secondary channel of the given bandwidth (which must be a multiple of 20 MHz and not exceed the operating channel width).

std::tuple< double, double, double >	GetTxMaskRejectionParams () const

virtual Ptr< SpectrumValue >	GetTxPowerSpectralDensity (double txPowerW, Ptr< const WifiPpdu > ppdu) const =0

virtual bool	IsConfigSupported (Ptr< const WifiPpdu > ppdu) const
	Checks if the signaled configuration (excluding bandwidth) is supported by the PHY.

void	NotifyInterferenceRxEndAndClear (bool reset)
	Notify WifiPhy's InterferenceHelper of the end of the reception, clear maps and end of MPDU event, and eventually reset WifiPhy.

void	NotifyPayloadBegin (const WifiTxVector &txVector, const Time &payloadDuration)
	Fire the trace indicating that the PHY is starting to receive the payload of a PPDU.

virtual void	RxPayloadFailed (Ptr< const WifiPsdu > psdu, double snr, const WifiTxVector &txVector)
	Perform amendment-specific actions when the payload is unsuccessfuly received.

virtual void	RxPayloadSucceeded (Ptr< const WifiPsdu > psdu, RxSignalInfo rxSignalInfo, const WifiTxVector &txVector, uint16_t staId, const std::vector< bool > &statusPerMpdu)
	Perform amendment-specific actions when the payload is successfully received.

void	ScheduleEndOfMpdus (Ptr< Event > event)
	Schedule end of MPDUs events.

void	StartPreambleDetectionPeriod (Ptr< Event > event)
	Start the preamble detection period.

void	StartReceivePayload (Ptr< Event > event)
	Start receiving the PSDU (i.e.

void	UpdateInterferenceEvent (Ptr< Event > event, const RxPowerWattPerChannelBand &rxPower)
	Update an event in WifiPhy's InterferenceHelper class.

Protected Attributes inherited from ns3::PhyEntity
std::vector< EventId >	m_endOfMpduEvents
	the end of MPDU events (only used for A-MPDUs)

std::vector< EventId >	m_endPreambleDetectionEvents
	the end of preamble detection events

std::vector< EventId >	m_endRxPayloadEvents
	the end of receive events (only one unless UL MU reception)

std::list< WifiMode >	m_modeList
	the list of supported modes

std::map< UidStaIdPair, SignalNoiseDbm >	m_signalNoiseMap
	Map of the latest signal power and noise power in dBm (noise power includes the noise figure)

Ptr< WifiPhyStateHelper >	m_state
	Pointer to WifiPhyStateHelper of the WifiPhy (to make it reachable for child classes)

std::map< UidStaIdPair, std::vector< bool > >	m_statusPerMpduMap
	Map of the current reception status per MPDU that is filled in as long as MPDUs are being processed by the PHY in case of an A-MPDU.

Ptr< WifiPhy >	m_wifiPhy
	Pointer to the owning WifiPhy.

Static Protected Attributes inherited from ns3::PhyEntity
static uint64_t	m_globalPpduUid = 0
	Global counter of the PPDU UID.

Detailed Description

PHY entity for HR/DSSS (11b)

Refer to IEEE 802.11-2016, clause 16 (HR/DSSS). Note that DSSS rates (clause 15) are a subset of HR/DSSS rates.

Definition at line 46 of file dsss-phy.h.

Constructor & Destructor Documentation

◆ DsssPhy()

ns3::DsssPhy::DsssPhy ( )

Constructor for HR/DSSS PHY.

Definition at line 79 of file dsss-phy.cc.

References GetDsssRate(), ns3::GetDsssRatesBpsList(), ns3::PhyEntity::m_modeList, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Here is the call graph for this function:

◆ ~DsssPhy()

ns3::DsssPhy::~DsssPhy ( )

override

Destructor for HR/DSSS PHY.

Definition at line 90 of file dsss-phy.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ BuildPpdu()

Ptr< WifiPpdu > ns3::DsssPhy::BuildPpdu	(	const WifiConstPsduMap &	psdus,
		const WifiTxVector &	txVector,
		Time	ppduDuration
	)

overridevirtual

Build amendment-specific PPDU.

Parameters

psdus	the PHY payloads (PSDUs)
txVector	the TXVECTOR that was used for the PPDU
ppduDuration	the transmission duration of the PPDU

Returns: the amendment-specific WifiPpdu

Reimplemented from ns3::PhyEntity.

Definition at line 198 of file dsss-phy.cc.

References ns3::WifiPhy::GetOperatingChannel(), ns3::PhyEntity::m_wifiPhy, NS_LOG_FUNCTION, and ns3::PhyEntity::ObtainNextUid().

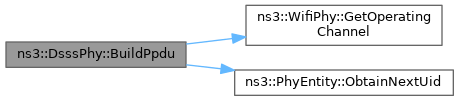

Here is the call graph for this function:

◆ CreateDsssMode()

WifiMode ns3::DsssPhy::CreateDsssMode	(	std::string	uniqueName,
		WifiModulationClass	modClass
	)

staticprivate

Create a DSSS or HR/DSSS mode from a unique name, the unique name must already be contained inside ModulationLookupTable.

This method binds all the callbacks used by WifiMode.

Parameters

uniqueName	the unique name of the WifiMode
modClass	the modulation class of the WifiMode, must be either WIFI_MOD_CLASS_DSSS or WIFI_MOD_CLASS_HR_DSSS

Returns: the DSSS or HR/DSSS WifiMode

Definition at line 325 of file dsss-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), GetCodeRate(), GetConstellationSize(), GetDataRateFromTxVector(), IsAllowed(), m_dsssModulationLookupTable, ns3::MakeBoundCallback(), ns3::MakeCallback(), NS_ASSERT_MSG, ns3::WIFI_MOD_CLASS_DSSS, and ns3::WIFI_MOD_CLASS_HR_DSSS.

Here is the call graph for this function:

◆ DoEndReceiveField()

PhyEntity::PhyFieldRxStatus ns3::DsssPhy::DoEndReceiveField	(	WifiPpduField	field,
		Ptr< Event >	event
	)

overrideprivatevirtual

End receiving a given field, perform amendment-specific actions, and provide the status of the reception.

Parameters

field	the ending PPDU field
event	the event holding incoming PPDU's information

Returns: status of the reception of the PPDU field

Reimplemented from ns3::PhyEntity.

Definition at line 209 of file dsss-phy.cc.

References ns3::PhyEntity::DoEndReceiveField(), EndReceiveHeader(), NS_LOG_FUNCTION, and ns3::WIFI_PPDU_FIELD_NON_HT_HEADER.

Here is the call graph for this function:

◆ EndReceiveHeader()

PhyEntity::PhyFieldRxStatus ns3::DsssPhy::EndReceiveHeader ( Ptr< Event > event )

private

End receiving the header, perform DSSS-specific actions, and provide the status of the reception.

Parameters

event the event holding incoming PPDU's information

Returns: status of the reception of the header

Definition at line 220 of file dsss-phy.cc.

References ns3::PhyEntity::ABORT, ns3::PhyEntity::PhyFieldRxStatus::actionIfFailure, ns3::PhyEntity::DROP, ns3::PhyEntity::GetPhyHeaderSnrPer(), ns3::PhyEntity::GetRandomValue(), ns3::PhyEntity::IsConfigSupported(), ns3::PhyEntity::PhyFieldRxStatus::isSuccess, ns3::L_SIG_FAILURE, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::PhyEntity::SnrPer::per, ns3::RatioToDb(), ns3::PhyEntity::PhyFieldRxStatus::reason, ns3::PhyEntity::SnrPer::snr, ns3::UNSUPPORTED_SETTINGS, and ns3::WIFI_PPDU_FIELD_NON_HT_HEADER.

Referenced by DoEndReceiveField().

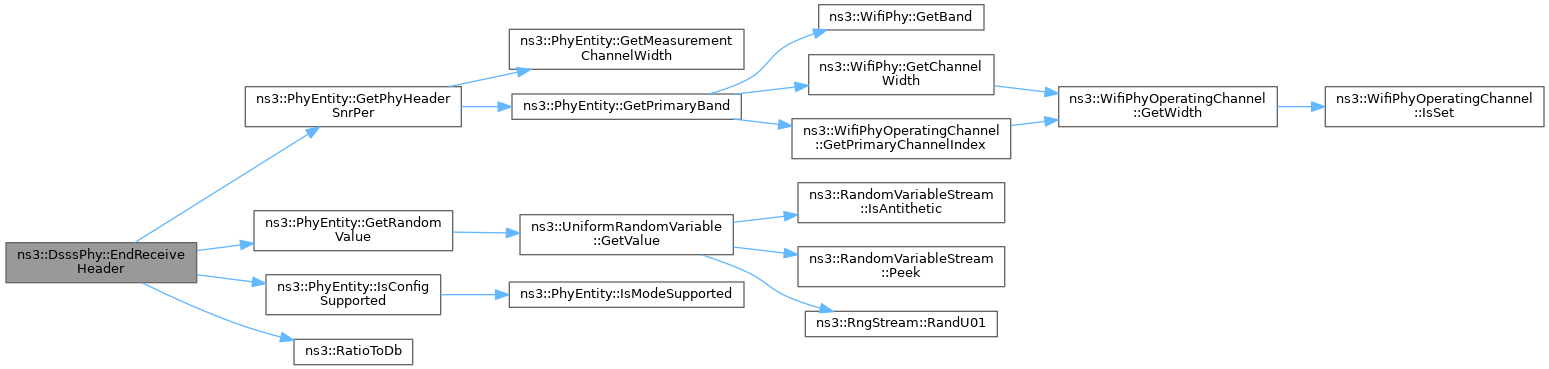

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetCodeRate()

WifiCodeRate ns3::DsssPhy::GetCodeRate ( const std::string & name )

static

Return the WifiCodeRate from the DSSS or HR/DSSS mode's unique name using ModulationLookupTable.

This is mainly used as a callback for WifiMode operation.

Parameters

name	the unique name of the DSSS or HR/DSSS mode

Returns: WifiCodeRate corresponding to the unique name

Definition at line 347 of file dsss-phy.cc.

References m_dsssModulationLookupTable.

Referenced by CreateDsssMode().

Here is the caller graph for this function:

◆ GetConstellationSize()

uint16_t ns3::DsssPhy::GetConstellationSize ( const std::string & name )

static

Return the constellation size from the DSSS or HR/DSSS mode's unique name using ModulationLookupTable.

This is mainly used as a callback for WifiMode operation.

Parameters

name	the unique name of the DSSS or HR/DSSS mode

Returns: constellation size corresponding to the unique name

Definition at line 353 of file dsss-phy.cc.

References m_dsssModulationLookupTable.

Referenced by CreateDsssMode(), and GetDataRate().

Here is the caller graph for this function:

◆ GetDataRate()

uint64_t ns3::DsssPhy::GetDataRate	(	const std::string &	name,
		WifiModulationClass	modClass
	)

static

Return the data rate from the DSSS or HR/DSSS mode's unique name and the supplied parameters.

This function is mainly used as a callback for WifiMode operation.

Parameters

name	the unique name of the DSSS or HR/DSSS mode
modClass	the modulation class, must be either WIFI_MOD_CLASS_DSSS or WIFI_MOD_CLASS_HR_DSSS

Returns: the data bit rate of this signal in bps.

Definition at line 366 of file dsss-phy.cc.

References GetConstellationSize(), NS_FATAL_ERROR, ns3::WIFI_MOD_CLASS_DSSS, and ns3::WIFI_MOD_CLASS_HR_DSSS.

Referenced by GetDataRateFromTxVector().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetDataRateFromTxVector()

uint64_t ns3::DsssPhy::GetDataRateFromTxVector	(	const WifiTxVector &	txVector,
		uint16_t	staId
	)

static

Return the data rate corresponding to the supplied TXVECTOR.

This function is mainly used as a callback for WifiMode operation.

Parameters

txVector	the TXVECTOR used for the transmission
staId	the station ID (only here to have a common signature for all callbacks)

Returns: the data bit rate in bps.

Definition at line 359 of file dsss-phy.cc.

References GetDataRate(), ns3::WifiTxVector::GetMode(), ns3::WifiMode::GetModulationClass(), and ns3::WifiMode::GetUniqueName().

Referenced by CreateDsssMode().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetDsssRate()

WifiMode ns3::DsssPhy::GetDsssRate ( uint64_t rate )

static

Return a WifiMode for HR/DSSS corresponding to the provided rate.

Parameters

rate	the rate in bps

Returns: a WifiMode for HR/DSSS

Definition at line 291 of file dsss-phy.cc.

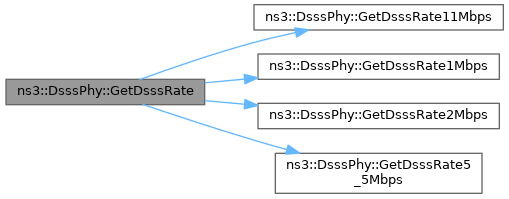

References GetDsssRate11Mbps(), GetDsssRate1Mbps(), GetDsssRate2Mbps(), GetDsssRate5_5Mbps(), and NS_ABORT_MSG.

Referenced by DsssPhy(), InitializeModes(), and ns3::DsssPpdu::SetTxVectorFromDsssHeader().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetDsssRate11Mbps()

static WifiMode ns3::DsssPhy::GetDsssRate11Mbps ( )

static

Return a WifiMode for HR/DSSS at 11 Mbps.

Returns: a WifiMode for HR/DSSS at 11 Mbps

Referenced by TxDurationTest::DoRun(), PhyHeaderSectionsTest::DoRun(), and GetDsssRate().

Here is the caller graph for this function:

◆ GetDsssRate1Mbps()

static WifiMode ns3::DsssPhy::GetDsssRate1Mbps ( )

static

Return a WifiMode for DSSS at 1 Mbps.

Returns: a WifiMode for DSSS at 1 Mbps

Referenced by TxDurationTest::DoRun(), PhyHeaderSectionsTest::DoRun(), GetDsssRate(), and GetHeaderMode().

Here is the caller graph for this function:

◆ GetDsssRate2Mbps()

static WifiMode ns3::DsssPhy::GetDsssRate2Mbps ( )

static

Return a WifiMode for DSSS at 2 Mbps.

Returns: a WifiMode for DSSS at 2 Mbps

Referenced by TxDurationTest::DoRun(), PhyHeaderSectionsTest::DoRun(), GetDsssRate(), and GetHeaderMode().

Here is the caller graph for this function:

◆ GetDsssRate5_5Mbps()

static WifiMode ns3::DsssPhy::GetDsssRate5_5Mbps ( )

static

Return a WifiMode for HR/DSSS at 5.5 Mbps.

Returns: a WifiMode for HR/DSSS at 5.5 Mbps

Referenced by TxDurationTest::DoRun(), and GetDsssRate().

Here is the caller graph for this function:

◆ GetDuration()

Time ns3::DsssPhy::GetDuration	(	WifiPpduField	field,
		const WifiTxVector &	txVector
	)		const

overridevirtual

Get the duration of the PPDU field (or group of fields) used by this entity for the given transmission parameters.

Parameters

field	the PPDU field (or group of fields)
txVector	the transmission parameters

Returns: the duration of the PPDU field

Reimplemented from ns3::PhyEntity.

Definition at line 133 of file dsss-phy.cc.

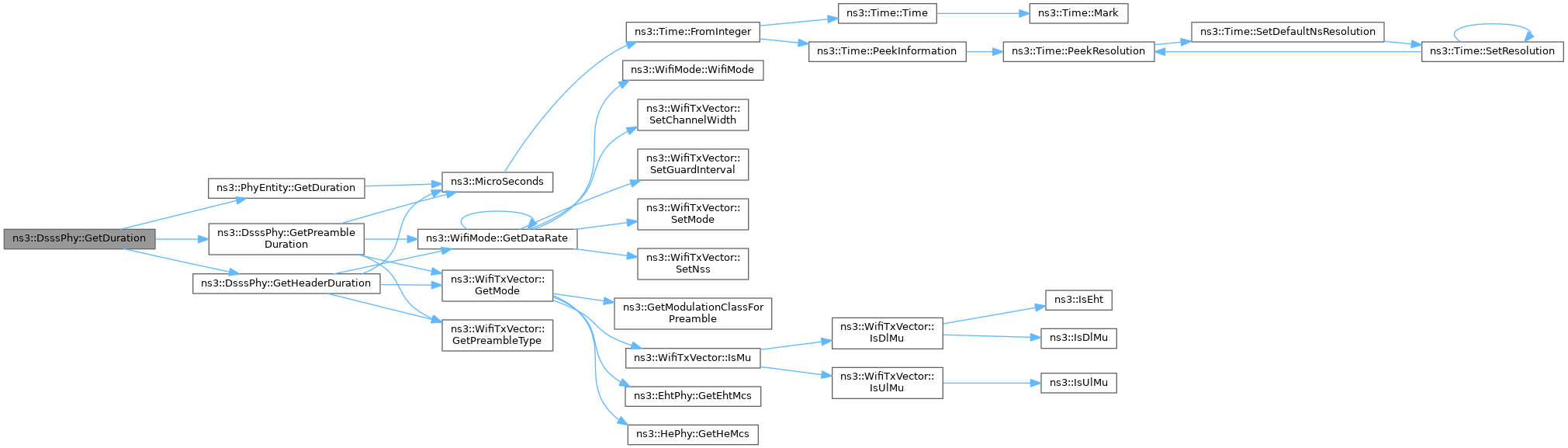

References ns3::PhyEntity::GetDuration(), GetHeaderDuration(), GetPreambleDuration(), ns3::WIFI_PPDU_FIELD_NON_HT_HEADER, and ns3::WIFI_PPDU_FIELD_PREAMBLE.

Here is the call graph for this function:

◆ GetHeaderDuration()

Time ns3::DsssPhy::GetHeaderDuration ( const WifiTxVector & txVector ) const

private

Parameters

txVector the transmission parameters

Returns: the duration of the PHY header field

Definition at line 167 of file dsss-phy.cc.

References ns3::WifiMode::GetDataRate(), ns3::WifiTxVector::GetMode(), ns3::WifiTxVector::GetPreambleType(), ns3::MicroSeconds(), and ns3::WIFI_PREAMBLE_SHORT.

Referenced by GetDuration().

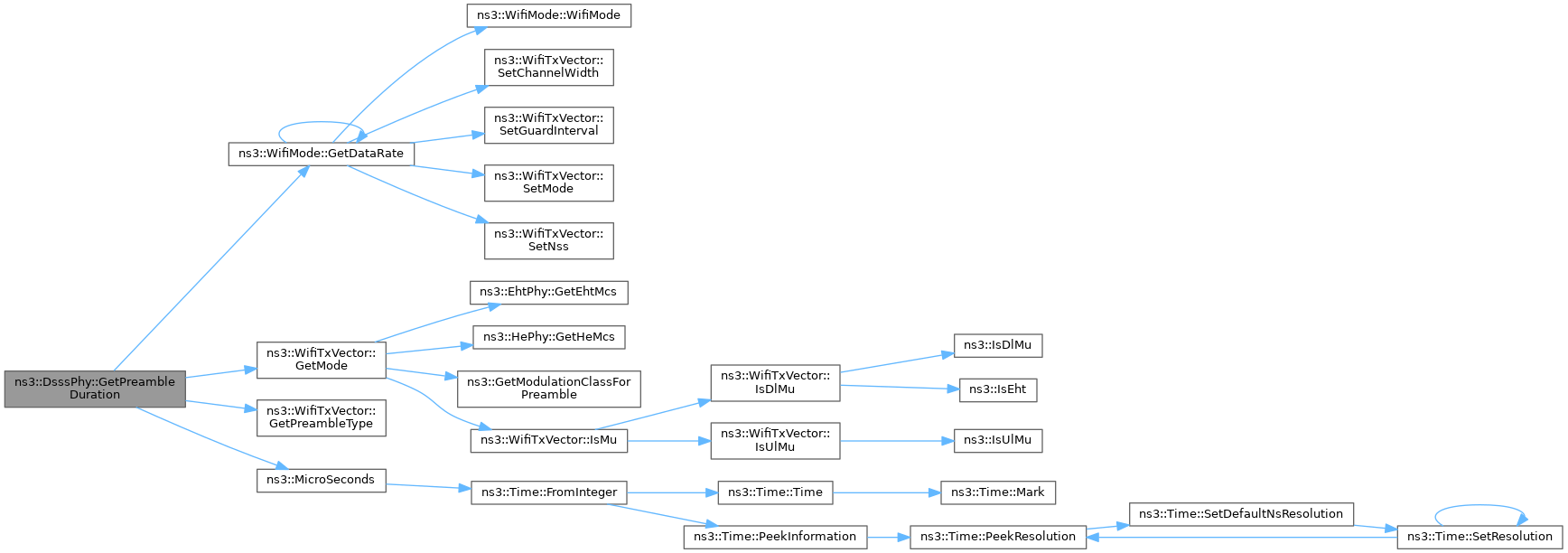

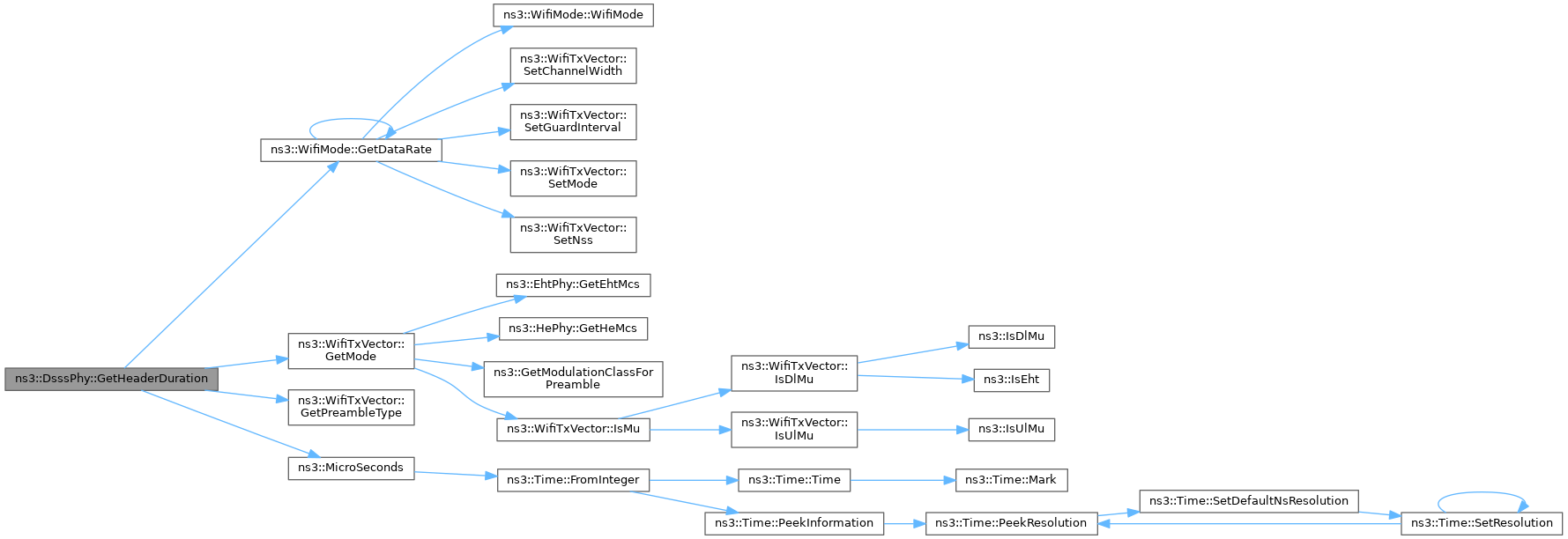

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetHeaderMode()

WifiMode ns3::DsssPhy::GetHeaderMode ( const WifiTxVector & txVector ) const

private

Parameters

txVector the transmission parameters

Returns: the WifiMode used for the PHY header field

Definition at line 110 of file dsss-phy.cc.

References GetDsssRate1Mbps(), GetDsssRate2Mbps(), ns3::WifiTxVector::GetMode(), ns3::WifiTxVector::GetPreambleType(), and ns3::WIFI_PREAMBLE_LONG.

Referenced by GetSigMode().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetMaxPsduSize()

uint32_t ns3::DsssPhy::GetMaxPsduSize ( ) const

overridevirtual

Get the maximum PSDU size in bytes.

Returns: the maximum PSDU size in bytes

Implements ns3::PhyEntity.

Definition at line 395 of file dsss-phy.cc.

◆ GetMeasurementChannelWidth()

uint16_t ns3::DsssPhy::GetMeasurementChannelWidth ( const Ptr< const WifiPpdu > ppdu ) const

overrideprivatevirtual

Return the channel width used to measure the RSSI.

Parameters

ppdu	the PPDU that is being received

Returns: the channel width (in MHz) used for RSSI measurement

Implements ns3::PhyEntity.

Definition at line 261 of file dsss-phy.cc.

References GetRxChannelWidth().

Here is the call graph for this function:

◆ GetPayloadDuration()

Time ns3::DsssPhy::GetPayloadDuration	(	uint32_t	size,
		const WifiTxVector &	txVector,
		WifiPhyBand	band,
		MpduType	mpdutype,
		bool	incFlag,
		uint32_t &	totalAmpduSize,
		double &	totalAmpduNumSymbols,
		uint16_t	staId
	)		const

overridevirtual

Parameters

size	the number of bytes in the packet to send
txVector	the TXVECTOR used for the transmission of this packet
band	the frequency band
mpdutype	the type of the MPDU as defined in WifiPhy::MpduType.
incFlag	this flag is used to indicate that the variables need to be update or not This function is called a couple of times for the same packet so variables should not be increased each time.
totalAmpduSize	the total size of the previously transmitted MPDUs for the concerned A-MPDU. If incFlag is set, this parameter will be updated.
totalAmpduNumSymbols	the number of symbols previously transmitted for the MPDUs in the concerned A-MPDU, used for the computation of the number of symbols needed for the last MPDU. If incFlag is set, this parameter will be updated.
staId	the STA-ID of the PSDU (only used for MU PPDUs)

Returns: the duration of the PSDU

Implements ns3::PhyEntity.

Definition at line 185 of file dsss-phy.cc.

References ns3::WifiMode::GetDataRate(), ns3::WifiTxVector::GetMode(), and ns3::MicroSeconds().

Here is the call graph for this function:

◆ GetPpduFormats()

const PhyEntity::PpduFormats & ns3::DsssPhy::GetPpduFormats ( ) const

overridevirtual

Return the PPDU formats of the PHY.

Returns: the PPDU formats of the PHY

Implements ns3::PhyEntity.

Definition at line 127 of file dsss-phy.cc.

References m_dsssPpduFormats.

◆ GetPreambleDuration()

Time ns3::DsssPhy::GetPreambleDuration ( const WifiTxVector & txVector ) const

private

Parameters

txVector the transmission parameters

Returns: the duration of the PHY preamble field

See also: WIFI_PPDU_FIELD_PREAMBLE

Definition at line 150 of file dsss-phy.cc.

References ns3::WifiMode::GetDataRate(), ns3::WifiTxVector::GetMode(), ns3::WifiTxVector::GetPreambleType(), ns3::MicroSeconds(), and ns3::WIFI_PREAMBLE_SHORT.

Referenced by GetDuration().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetRxChannelWidth()

uint16_t ns3::DsssPhy::GetRxChannelWidth ( const WifiTxVector & txVector ) const

overrideprivatevirtual

Return the channel width used in the reception spectrum model.

Parameters

txVector the TXVECTOR of the PPDU that is being received

Returns: the channel width (in MHz) used for RxSpectrumModel

Reimplemented from ns3::PhyEntity.

Definition at line 245 of file dsss-phy.cc.

References ns3::WifiPhy::GetChannelWidth(), ns3::PhyEntity::GetRxChannelWidth(), and ns3::PhyEntity::m_wifiPhy.

Referenced by GetMeasurementChannelWidth().

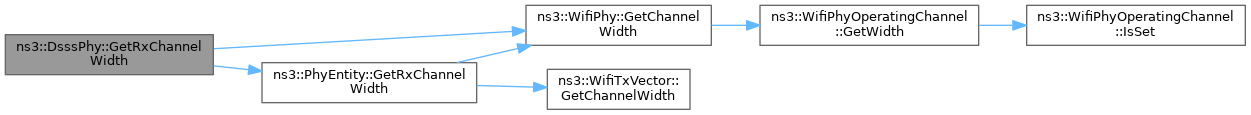

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetSigMode()

WifiMode ns3::DsssPhy::GetSigMode	(	WifiPpduField	field,
		const WifiTxVector &	txVector
	)		const

overridevirtual

Get the WifiMode for the SIG field specified by the PPDU field.

Parameters

field	the PPDU field
txVector	the transmission parameters

Returns: the WifiMode used for the SIG field

Reimplemented from ns3::PhyEntity.

Definition at line 96 of file dsss-phy.cc.

References GetHeaderMode(), ns3::PhyEntity::GetSigMode(), ns3::WIFI_PPDU_FIELD_NON_HT_HEADER, and ns3::WIFI_PPDU_FIELD_PREAMBLE.

Here is the call graph for this function:

◆ GetTxPowerSpectralDensity()

Ptr< SpectrumValue > ns3::DsssPhy::GetTxPowerSpectralDensity	(	double	txPowerW,
		Ptr< const WifiPpdu >	ppdu
	)		const

overrideprivatevirtual

Parameters

txPowerW	power in W to spread across the bands
ppdu	the PPDU that will be transmitted

Returns: Pointer to SpectrumValue

This is a helper function to create the right TX PSD corresponding to the amendment of this PHY.

Implements ns3::PhyEntity.

Definition at line 267 of file dsss-phy.cc.

References ns3::WifiSpectrumValueHelper::CreateDsssTxPowerSpectralDensity(), ns3::PhyEntity::GetCenterFrequencyForChannelWidth(), ns3::PhyEntity::GetGuardBandwidth(), NS_ABORT_MSG_IF, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ InitializeModes()

void ns3::DsssPhy::InitializeModes ( )

static

Initialize all HR/DSSS modes.

Definition at line 282 of file dsss-phy.cc.

References GetDsssRate(), and ns3::GetDsssRatesBpsList().

Referenced by anonymous_namespace{dsss-phy.cc}::ConstructorDsss::ConstructorDsss().

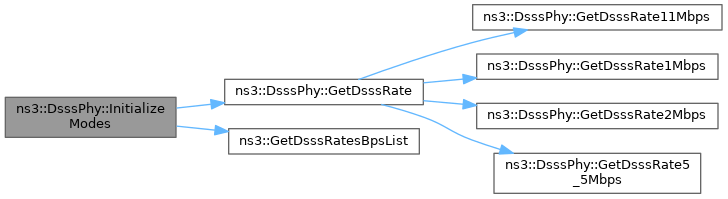

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsAllowed()

bool ns3::DsssPhy::IsAllowed ( const WifiTxVector & txVector )

static

Check whether the combination in TXVECTOR is allowed.

This function is used as a callback for WifiMode operation.

Parameters

txVector the TXVECTOR

Returns: true if this combination is allowed, false otherwise.

Definition at line 389 of file dsss-phy.cc.

Referenced by CreateDsssMode().

Here is the caller graph for this function:

Member Data Documentation

◆ m_dsssModulationLookupTable

const PhyEntity::ModulationLookupTable ns3::DsssPhy::m_dsssModulationLookupTable

staticprivate

Initial value:

{

  { "DsssRate1Mbps",   { WIFI_CODE_RATE_UNDEFINED, 2 } },
  { "DsssRate2Mbps",   { WIFI_CODE_RATE_UNDEFINED, 4 } },
  { "DsssRate5_5Mbps", { WIFI_CODE_RATE_UNDEFINED, 16 } },
  { "DsssRate11Mbps",  { WIFI_CODE_RATE_UNDEFINED, 256 } },
}

lookup table to retrieve code rate and constellation size corresponding to a unique name of modulation

Definition at line 211 of file dsss-phy.h.

Referenced by CreateDsssMode(), GetCodeRate(), and GetConstellationSize().

◆ m_dsssPpduFormats

const PhyEntity::PpduFormats ns3::DsssPhy::m_dsssPpduFormats

staticprivate

Initial value:

{
    { WIFI_PREAMBLE_LONG,  { WIFI_PPDU_FIELD_PREAMBLE,
                             WIFI_PPDU_FIELD_NON_HT_HEADER,
                             WIFI_PPDU_FIELD_DATA } },
    { WIFI_PREAMBLE_SHORT, { WIFI_PPDU_FIELD_PREAMBLE,
                             WIFI_PPDU_FIELD_NON_HT_HEADER,
                             WIFI_PPDU_FIELD_DATA } },
}

DSSS and HR/DSSS PPDU formats.

Definition at line 208 of file dsss-phy.h.

Referenced by GetPpduFormats().

The documentation for this class was generated from the following files:

src/wifi/model/non-ht/dsss-phy.h
src/wifi/model/non-ht/dsss-phy.cc

Public Member Functions

Static Public Member Functions

Private Member Functions

Static Private Member Functions

Static Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ DsssPhy()

◆ ~DsssPhy()

Member Function Documentation

◆ BuildPpdu()

◆ CreateDsssMode()

◆ DoEndReceiveField()

◆ EndReceiveHeader()

◆ GetCodeRate()

◆ GetConstellationSize()

◆ GetDataRate()

◆ GetDataRateFromTxVector()

◆ GetDsssRate()

◆ GetDsssRate11Mbps()

◆ GetDsssRate1Mbps()

◆ GetDsssRate2Mbps()

◆ GetDsssRate5_5Mbps()

◆ GetDuration()

◆ GetHeaderDuration()

◆ GetHeaderMode()

◆ GetMaxPsduSize()

◆ GetMeasurementChannelWidth()

◆ GetPayloadDuration()

◆ GetPpduFormats()

◆ GetPreambleDuration()

◆ GetRxChannelWidth()

◆ GetSigMode()

◆ GetTxPowerSpectralDensity()

◆ InitializeModes()

◆ IsAllowed()

Member Data Documentation

◆ m_dsssModulationLookupTable

◆ m_dsssPpduFormats
