This system test program creates different test cases with a single eNB and several UEs, all having the same Radio Bearer specification. More...
#include "lte-test-fdmt-ff-mac-scheduler.h"
Public Member Functions | |
LenaFdMtFfMacSchedulerTestCase (uint16_t nUser, double dist, double thrRefDl, double thrRefUl, bool errorModelEnabled) | |
Constructor. | |
~LenaFdMtFfMacSchedulerTestCase () override | |
Public Member Functions inherited from ns3::TestCase | |
TestCase (const TestCase &)=delete | |
virtual | ~TestCase () |
Destructor. | |
std::string | GetName () const |
TestCase & | operator= (const TestCase &)=delete |
Private Member Functions | |
void | DoRun () override |
Implementation to actually run this TestCase. | |
Static Private Member Functions | |
static std::string | BuildNameString (uint16_t nUser, double dist) |
Builds the test name string based on provided parameter values. | |
Private Attributes | |
double | m_dist |
distance between the nodes | |
bool | m_errorModelEnabled |
error model enabled? | |
uint16_t | m_nUser |
number of UE nodes | |
double | m_thrRefDl |
DL throughput reference. | |
double | m_thrRefUl |
UL throughput reference. | |
Additional Inherited Members | |
Public Types inherited from ns3::TestCase | |
enum | TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 } |
How long the test takes to execute. More... | |
Protected Member Functions inherited from ns3::TestCase | |
TestCase (std::string name) | |
Constructor. | |
void | AddTestCase (TestCase *testCase, TestDuration duration=QUICK) |
Add an individual child TestCase to this test suite. | |
TestCase * | GetParent () const |
Get the parent of this TestCase. | |
bool | IsStatusFailure () const |
Check if any tests failed. | |
bool | IsStatusSuccess () const |
Check if all tests passed. | |
void | SetDataDir (std::string directory) |
Set the data directory where reference trace files can be found. | |
void | ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line) |
Log the failure of this TestCase. | |
bool | MustAssertOnFailure () const |
Check if this run should assert on failure. | |
bool | MustContinueOnFailure () const |
Check if this run should continue on failure. | |
std::string | CreateDataDirFilename (std::string filename) |
Construct the full path to a file in the data directory. | |
std::string | CreateTempDirFilename (std::string filename) |
Construct the full path to a file in a temporary directory. | |
This system test program creates different test cases with a single eNB and several UEs, all having the same Radio Bearer specification.
In each test case, the UEs see the same SINR from the eNB; different test cases are implemented obtained by using different SINR values and different numbers of UEs. The test consists on checking that the obtained throughput performance is consistent with the definition of maximum throughput scheduling
Definition at line 41 of file lte-test-fdmt-ff-mac-scheduler.h.
LenaFdMtFfMacSchedulerTestCase::LenaFdMtFfMacSchedulerTestCase | ( | uint16_t | nUser, |
double | dist, | ||
double | thrRefDl, | ||
double | thrRefUl, | ||
bool | errorModelEnabled | ||
) |
Constructor.
nUser | number of UE nodes |
dist | distance between nodes |
thrRefDl | DL throughput reference |
thrRefUl | UL throughput reference |
errorModelEnabled | error model enabled? |
Definition at line 189 of file lte-test-fdmt-ff-mac-scheduler.cc.
|
override |
Definition at line 203 of file lte-test-fdmt-ff-mac-scheduler.cc.
|
staticprivate |
Builds the test name string based on provided parameter values.
nUser | number of UE nodes |
dist | distance between nodes |
Definition at line 182 of file lte-test-fdmt-ff-mac-scheduler.cc.
|
overrideprivatevirtual |
Implementation to actually run this TestCase.
Subclasses should override this method to conduct their tests.
Initialize Simulation Scenario: 1 eNB and m_nUser UEs
Check that the downlink assignment is done in a "frequency domain maximum throughput" manner
Check that the assignment is done in a "frequency domain maximum throughput" manner among users with maximum SINRs: without fading, current FD MT always assign all resources to one UE
Check that the uplink assignment is done in a "proportional fair" manner
Check that the assignment is done in a "proportional fair" manner among users with equal SINRs: the bandwidth should be distributed according to the ratio of the estimated throughput per TTI of each user; therefore equally partitioning the whole bandwidth achievable from a single users in a TTI
Implements ns3::TestCase.
Definition at line 208 of file lte-test-fdmt-ff-mac-scheduler.cc.

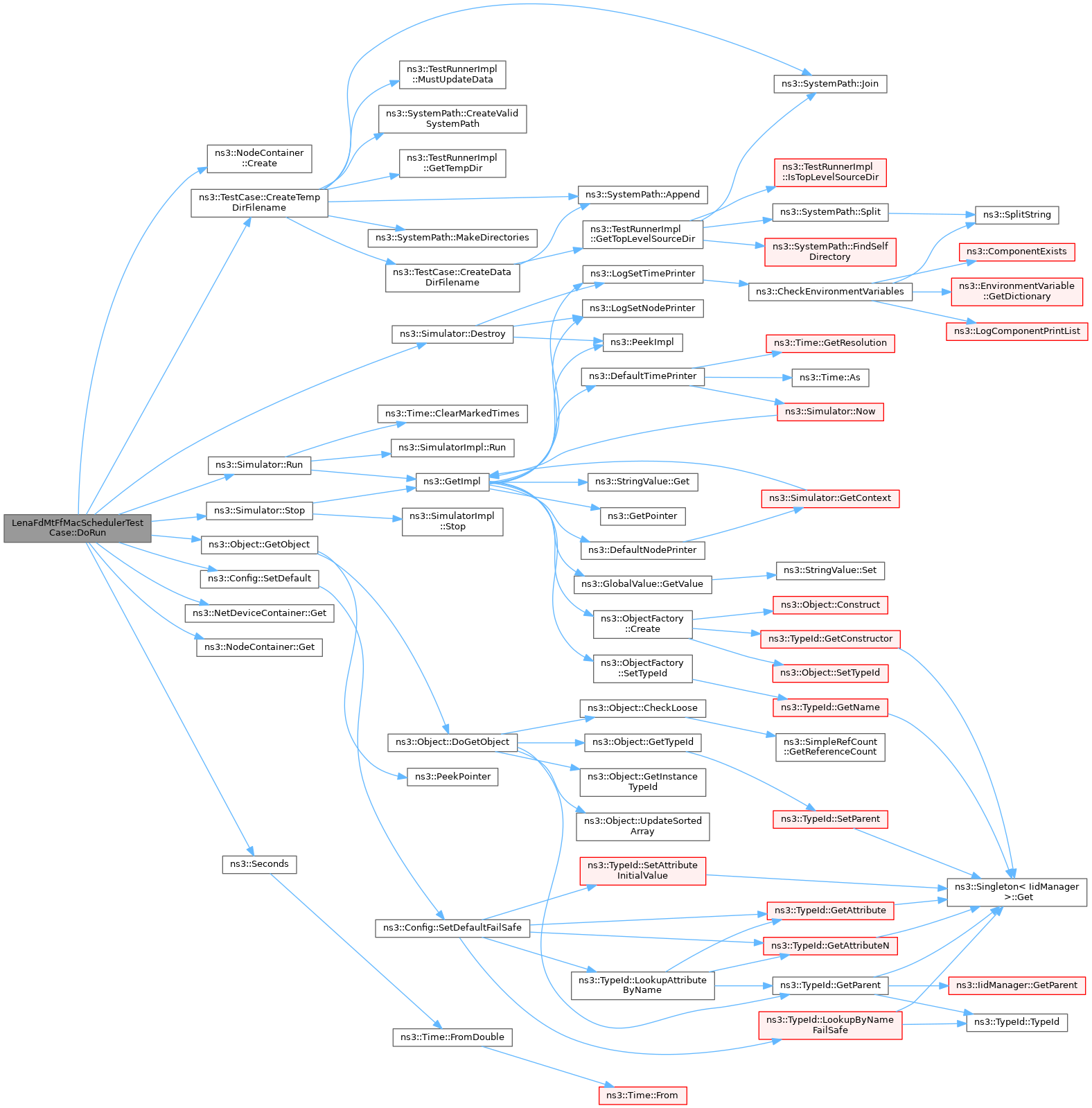

References ns3::NodeContainer::Create(), ns3::TestCase::CreateTempDirFilename(), ns3::Simulator::Destroy(), ns3::EpsBearer::GBR_CONV_VOICE, ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::Object::GetObject(), m_dist, m_errorModelEnabled, m_nUser, m_thrRefDl, m_thrRefUl, NS_LOG_FUNCTION, NS_LOG_INFO, NS_TEST_ASSERT_MSG_EQ_TOL, ns3::Simulator::Run(), ns3::Seconds(), ns3::Config::SetDefault(), ns3::FfMacScheduler::SRS_UL_CQI, and ns3::Simulator::Stop().
|
private |
distance between the nodes
Definition at line 71 of file lte-test-fdmt-ff-mac-scheduler.h.
Referenced by DoRun().
|
private |
error model enabled?
Definition at line 74 of file lte-test-fdmt-ff-mac-scheduler.h.
Referenced by DoRun().
|
private |
number of UE nodes
Definition at line 70 of file lte-test-fdmt-ff-mac-scheduler.h.
Referenced by DoRun().
|
private |
DL throughput reference.
Definition at line 72 of file lte-test-fdmt-ff-mac-scheduler.h.
Referenced by DoRun().
|
private |
UL throughput reference.
Definition at line 73 of file lte-test-fdmt-ff-mac-scheduler.h.
Referenced by DoRun().
