TidToLinkMappingElementTest Class Reference

Test TID-To-Link Mapping information element serialization and deserialization. More...

+ Inheritance diagram for TidToLinkMappingElementTest:
+ Collaboration diagram for TidToLinkMappingElementTest:

Public Member Functions

template<typename... Args>
 TidToLinkMappingElementTest (TidLinkMapDir direction, Args &&... args)
 Constructor.

 ~TidToLinkMappingElementTest () override=default

- Public Member Functions inherited from ns3::HeaderSerializationTestCase
template<typename T , typename... Args>
void TestHeaderSerialization (const T &hdr, Args &&... args)
 Serialize the given header in a buffer, then create a new header by deserializing from the buffer and serialize the new header into a new buffer.

- Public Member Functions inherited from ns3::TestCase
 TestCase (const TestCase &)=delete

virtual ~TestCase ()
 Destructor.

std::string GetName () const

TestCaseoperator= (const TestCase &)=delete


Private Member Functions

void DoRun () override
 Implementation to actually run this TestCase.

void SetLinkMapping ()
 Base case to stop the recursion performed by the templated version of this method.

template<typename... Args>
void SetLinkMapping (uint8_t tid, const std::list< uint8_t > &linkIds, Args &&... args)
 Set the given TID-Link mapping and recursively call itself to set the remaining pairs.


Private Attributes

TidToLinkMapping m_tidToLinkMapping
 TID-To-Link Mapping element.


Additional Inherited Members

- Public Types inherited from ns3::TestCase
enum  TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
 How long the test takes to execute. More...

- Protected Member Functions inherited from ns3::HeaderSerializationTestCase
 HeaderSerializationTestCase (std::string name)
 Constructor.

- Protected Member Functions inherited from ns3::TestCase
 TestCase (std::string name)
 Constructor.

void AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
 Add an individual child TestCase to this test suite.

TestCaseGetParent () const
 Get the parent of this TestCase.

bool IsStatusFailure () const
 Check if any tests failed.

bool IsStatusSuccess () const
 Check if all tests passed.

void SetDataDir (std::string directory)
 Set the data directory where reference trace files can be found.

void ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
 Log the failure of this TestCase.

bool MustAssertOnFailure () const
 Check if this run should assert on failure.

bool MustContinueOnFailure () const
 Check if this run should continue on failure.

std::string CreateDataDirFilename (std::string filename)
 Construct the full path to a file in the data directory.

std::string CreateTempDirFilename (std::string filename)
 Construct the full path to a file in a temporary directory.


Detailed Description

Test TID-To-Link Mapping information element serialization and deserialization.

Definition at line 1202 of file wifi-eht-info-elems-test.cc.

Constructor & Destructor Documentation

◆ TidToLinkMappingElementTest()

template<typename... Args>
TidToLinkMappingElementTest::TidToLinkMappingElementTest ( TidLinkMapDir  direction,
Args &&...  args
)

Constructor.

Template Parameters
Args[deduced] Template type parameter pack for the sequence of TID-Link mapping pairs
Parameters
directionThe direction for the TID-to-link mapping
argsA sequence of TID-Link mapping pairs

Definition at line 1242 of file wifi-eht-info-elems-test.cc.

References ns3::TidToLinkMapping::Control::defaultMapping, ns3::TidToLinkMapping::Control::direction, ns3::TidToLinkMapping::m_control, m_tidToLinkMapping, and SetLinkMapping().

+ Here is the call graph for this function:

◆ ~TidToLinkMappingElementTest()

TidToLinkMappingElementTest::~TidToLinkMappingElementTest ( )
overridedefault

Member Function Documentation

◆ DoRun()

void TidToLinkMappingElementTest::DoRun ( )
overrideprivatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 1263 of file wifi-eht-info-elems-test.cc.

References m_tidToLinkMapping, and ns3::HeaderSerializationTestCase::TestHeaderSerialization().

+ Here is the call graph for this function:

◆ SetLinkMapping() [1/2]

void TidToLinkMappingElementTest::SetLinkMapping ( )
inlineprivate

Base case to stop the recursion performed by the templated version of this method.

Definition at line 1232 of file wifi-eht-info-elems-test.cc.

Referenced by TidToLinkMappingElementTest(), and SetLinkMapping().

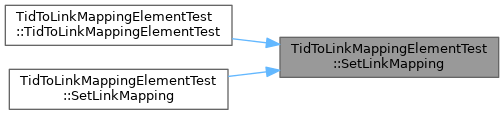

+ Here is the caller graph for this function:

◆ SetLinkMapping() [2/2]

template<typename... Args>
void TidToLinkMappingElementTest::SetLinkMapping ( uint8_t  tid,
const std::list< uint8_t > &  linkIds,
Args &&...  args
)
private

Set the given TID-Link mapping and recursively call itself to set the remaining pairs.

Template Parameters
Args[deduced] Template type parameter pack for the sequence of TID-Link mapping pairs
Parameters
tidthe TID
linkIdsthe IDs of the links on which the given TID is mapped
argsA sequence of TID-Link mapping pairs

Definition at line 1253 of file wifi-eht-info-elems-test.cc.

References ns3::TidToLinkMapping::Control::defaultMapping, ns3::TidToLinkMapping::m_control, m_tidToLinkMapping, SetLinkMapping(), and ns3::TidToLinkMapping::SetLinkMappingOfTid().

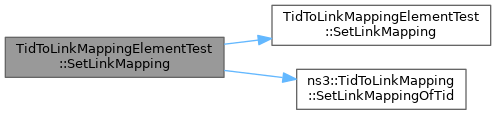

+ Here is the call graph for this function:

Member Data Documentation

◆ m_tidToLinkMapping

TidToLinkMapping TidToLinkMappingElementTest::m_tidToLinkMapping
private

TID-To-Link Mapping element.

Definition at line 1238 of file wifi-eht-info-elems-test.cc.

Referenced by TidToLinkMappingElementTest(), DoRun(), and SetLinkMapping().


The documentation for this class was generated from the following file:
