TID-to-Link Mapping Information Element. More...
#include "tid-to-link-mapping-element.h"

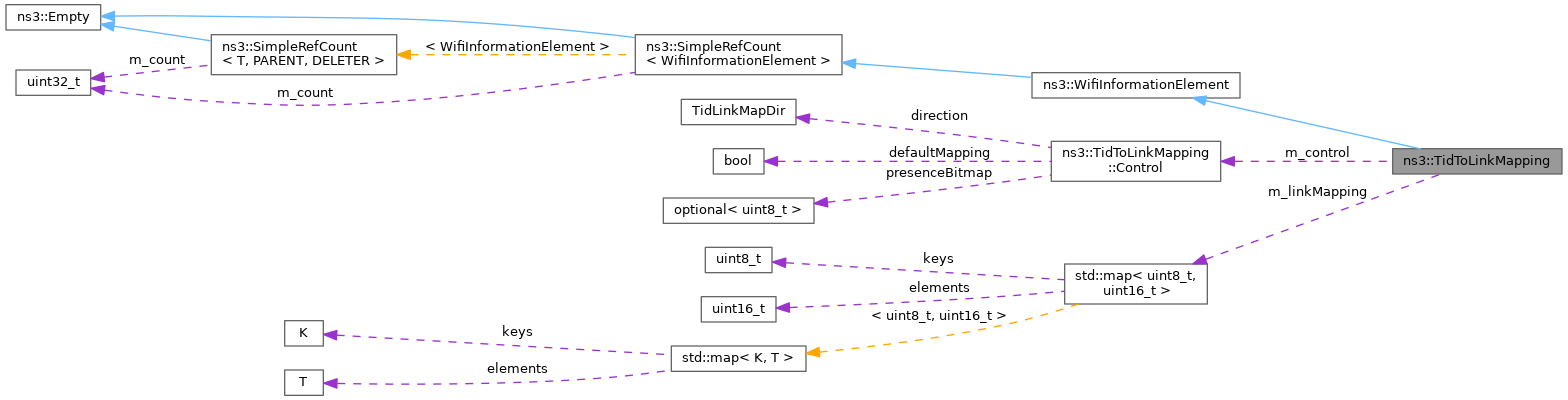

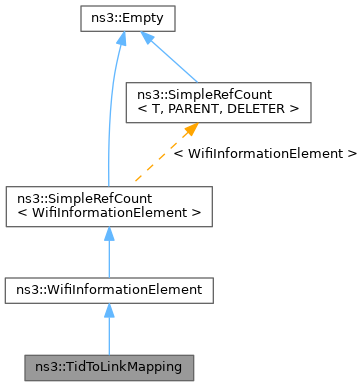

Inheritance diagram for ns3::TidToLinkMapping: Collaboration diagram for ns3::TidToLinkMapping:Classes | |
| struct | Control |
| TID-to-Link Mapping Control subfield IEEE 802.11be D2.0 Figure 9-1002an. More... | |
Public Member Functions | |
| WifiInformationElementId | ElementId () const override |
| Get the wifi information element ID. | |
| WifiInformationElementId | ElementIdExt () const override |
| Get the wifi information element ID extension. | |
| std::list< uint8_t > | GetLinkMappingOfTid (uint8_t tid) const |
| Get the Link Mapping field of the given TID. | |
| void | SetLinkMappingOfTid (uint8_t tid, std::list< uint8_t > linkIds) |
| Set the Link Mapping field of the given TID such that the given TID is mapped to the links associated with the given link IDs. | |
| Public Member Functions inherited from ns3::WifiInformationElement | |
| virtual | ~WifiInformationElement () |
| Buffer::Iterator | Deserialize (Buffer::Iterator i) |
| Deserialize entire IE (which may possibly be fragmented into multiple elements), which must be present. | |
| Buffer::Iterator | DeserializeIfPresent (Buffer::Iterator i) |
| Deserialize entire IE (which may possibly be fragmented into multiple elements) if it is present. | |
| virtual WifiInformationElementId | ElementId () const =0 |
| Get the wifi information element ID. | |
| virtual WifiInformationElementId | ElementIdExt () const |
| Get the wifi information element ID extension. | |
| uint16_t | GetSerializedSize () const |
| Get the size of the serialized IE including Element ID and length fields (for every element this IE is possibly fragmented into). | |
| virtual bool | operator== (const WifiInformationElement &a) const |
| Compare two IEs for equality by ID & Length, and then through memcmp of serialised version. | |
| virtual void | Print (std::ostream &os) const |
| Generate human-readable form of IE. | |
| Buffer::Iterator | Serialize (Buffer::Iterator i) const |
| Serialize entire IE including Element ID and length fields. | |
| Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement > | |
| SimpleRefCount () | |
| Default constructor. | |
| SimpleRefCount (const SimpleRefCount &o) | |
| Copy constructor. | |
| uint32_t | GetReferenceCount () const |
| Get the reference count of the object. | |
| SimpleRefCount & | operator= (const SimpleRefCount &o) |
| Assignment operator. | |
| void | Ref () const |
| Increment the reference count. | |
| void | Unref () const |
| Decrement the reference count. | |
Public Attributes | |
| TidToLinkMapping::Control | m_control |
| TID-to-link Mapping Control. | |
| std::map< uint8_t, uint16_t > | m_linkMapping |
| TID-indexed Link Mapping. | |
Private Member Functions | |
| uint16_t | DeserializeInformationField (Buffer::Iterator start, uint16_t length) override |
| Deserialize information (i.e., the body of the IE, not including the Element ID and length octets) | |
| uint16_t | GetInformationFieldSize () const override |
| Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets. | |
| void | SerializeInformationField (Buffer::Iterator start) const override |
| Serialize information (i.e., the body of the IE, not including the Element ID and length octets) | |
TID-to-Link Mapping Information Element.
This class serializes and deserializes the TID-to-Link Mapping element IEEE 802.11be D2.0 9.4.2.314
Definition at line 65 of file tid-to-link-mapping-element.h.
|
overrideprivatevirtual |
Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)
| start | an iterator which points to where the information should be written. |
| length | the expected number of bytes to read |
Implements ns3::WifiInformationElement.
Definition at line 157 of file tid-to-link-mapping-element.cc.
References ns3::TidToLinkMapping::Control::defaultMapping, ns3::TidToLinkMapping::Control::Deserialize(), m_control, m_linkMapping, NS_ABORT_MSG_IF, NS_ASSERT_MSG, and ns3::TidToLinkMapping::Control::presenceBitmap.
Here is the call graph for this function:
|
overridevirtual |
Get the wifi information element ID.
Implements ns3::WifiInformationElement.
Definition at line 73 of file tid-to-link-mapping-element.cc.
References IE_EXTENSION.
|
overridevirtual |
Get the wifi information element ID extension.
Reimplemented from ns3::WifiInformationElement.
Definition at line 79 of file tid-to-link-mapping-element.cc.
References IE_EXT_TID_TO_LINK_MAPPING_ELEMENT.
|
overrideprivatevirtual |
Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets.
This is the value that will appear in the second octet of the entire IE - the length field - if the IE is not fragmented)
Implements ns3::WifiInformationElement.
Definition at line 131 of file tid-to-link-mapping-element.cc.
References ns3::TidToLinkMapping::Control::defaultMapping, ns3::TidToLinkMapping::Control::GetSubfieldSize(), m_control, m_linkMapping, NS_ASSERT_MSG, ns3::WIFI_IE_ELEMENT_ID_EXT_SIZE, and ns3::WIFI_LINK_MAPPING_PER_TID_SIZE_B.
Here is the call graph for this function:| std::list< uint8_t > ns3::TidToLinkMapping::GetLinkMappingOfTid | ( | uint8_t | tid | ) | const |
Get the Link Mapping field of the given TID.
| tid | the given TID |
Definition at line 109 of file tid-to-link-mapping-element.cc.
References m_linkMapping.
|
overrideprivatevirtual |
Serialize information (i.e., the body of the IE, not including the Element ID and length octets)
| start | an iterator which points to where the information should be written. |
Implements ns3::WifiInformationElement.
Definition at line 143 of file tid-to-link-mapping-element.cc.
References ns3::TidToLinkMapping::Control::defaultMapping, m_control, m_linkMapping, NS_ASSERT_MSG, and ns3::TidToLinkMapping::Control::Serialize().
Here is the call graph for this function:| void ns3::TidToLinkMapping::SetLinkMappingOfTid | ( | uint8_t | tid, |
| std::list< uint8_t > | linkIds | ||
| ) |
Set the Link Mapping field of the given TID such that the given TID is mapped to the links associated with the given link IDs.
| tid | the given TID |
| linkIds | the IDs of the links which the given TID is mapped to |
Definition at line 85 of file tid-to-link-mapping-element.cc.
References ns3::TidToLinkMapping::Control::defaultMapping, m_control, m_linkMapping, NS_ABORT_MSG_IF, and ns3::TidToLinkMapping::Control::presenceBitmap.
Referenced by TidToLinkMappingElementTest::SetLinkMapping().
Here is the caller graph for this function:| TidToLinkMapping::Control ns3::TidToLinkMapping::m_control |
TID-to-link Mapping Control.
Definition at line 115 of file tid-to-link-mapping-element.h.
Referenced by TidToLinkMappingElementTest::TidToLinkMappingElementTest(), DeserializeInformationField(), GetInformationFieldSize(), SerializeInformationField(), TidToLinkMappingElementTest::SetLinkMapping(), and SetLinkMappingOfTid().
| std::map<uint8_t, uint16_t> ns3::TidToLinkMapping::m_linkMapping |
TID-indexed Link Mapping.
Definition at line 116 of file tid-to-link-mapping-element.h.
Referenced by DeserializeInformationField(), GetInformationFieldSize(), GetLinkMappingOfTid(), SerializeInformationField(), and SetLinkMappingOfTid().
