ns3::LenaDeactivateBearerTestCase Class Reference

Test case that for testing the deactivation of the bearer functionality. More...

#include "lte-test-deactivate-bearer.h"

+ Inheritance diagram for ns3::LenaDeactivateBearerTestCase:
+ Collaboration diagram for ns3::LenaDeactivateBearerTestCase:

Public Member Functions

 LenaDeactivateBearerTestCase (std::vector< uint16_t > dist, std::vector< uint32_t > estThrPssDl, std::vector< uint16_t > packetSize, uint16_t interval, bool errorModelEnabled, bool useIdealRrc)
 Constructor.

 ~LenaDeactivateBearerTestCase () override

- Public Member Functions inherited from ns3::TestCase
 TestCase (const TestCase &)=delete

virtual ~TestCase ()
 Destructor.

std::string GetName () const

TestCaseoperator= (const TestCase &)=delete


Private Member Functions

void DoRun () override
 Implementation to actually run this TestCase.


Static Private Member Functions

static std::string BuildNameString (uint16_t nUser, std::vector< uint16_t > dist)
 Build name string function.


Private Attributes

std::vector< uint16_t > m_dist
 distance between the nodes

bool m_errorModelEnabled
 error mode enabled?

std::vector< uint32_tm_estThrPssDl
 estimated threshold PSS DL

uint16_t m_interval
 interval time in ms

uint16_t m_nUser
 number of UE nodes

std::vector< uint16_t > m_packetSize
 packet size in bytes


Additional Inherited Members

- Public Types inherited from ns3::TestCase
enum  TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
 How long the test takes to execute. More...

- Protected Member Functions inherited from ns3::TestCase
 TestCase (std::string name)
 Constructor.

void AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
 Add an individual child TestCase to this test suite.

TestCaseGetParent () const
 Get the parent of this TestCase.

bool IsStatusFailure () const
 Check if any tests failed.

bool IsStatusSuccess () const
 Check if all tests passed.

void SetDataDir (std::string directory)
 Set the data directory where reference trace files can be found.

void ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
 Log the failure of this TestCase.

bool MustAssertOnFailure () const
 Check if this run should assert on failure.

bool MustContinueOnFailure () const
 Check if this run should continue on failure.

std::string CreateDataDirFilename (std::string filename)
 Construct the full path to a file in the data directory.

std::string CreateTempDirFilename (std::string filename)
 Construct the full path to a file in a temporary directory.


Detailed Description

Test case that for testing the deactivation of the bearer functionality.

The test consist in deactivating the bearer and checking if some traffic will appear afterwards on the given bearer. If some traffic is detected the test will fail. Firs the de-activation is performed by using Simulator::Schedule() method which will initiate bearer de-activation after deActivateTime that is specified as the test parameter. Additionally, test instantiate de-activation in sequence.

Definition at line 23 of file lte-test-deactivate-bearer.h.

Constructor & Destructor Documentation

◆ LenaDeactivateBearerTestCase()

ns3::LenaDeactivateBearerTestCase::LenaDeactivateBearerTestCase ( std::vector< uint16_t >  dist,
std::vector< uint32_t estThrPssDl,
std::vector< uint16_t >  packetSize,
uint16_t  interval,
bool  errorModelEnabled,
bool  useIdealRrc
)

Constructor.

Parameters
distdistance between the nodes
estThrPssDlestimated throughput PSS DL
packetSizepacket size in bytes
intervalinterval time in ms
errorModelEnabledwhether the error model is enabled
useIdealRrcwhether to use ideal RRC

Definition at line 119 of file lte-test-deactivate-bearer.cc.

◆ ~LenaDeactivateBearerTestCase()

ns3::LenaDeactivateBearerTestCase::~LenaDeactivateBearerTestCase ( )
override

Definition at line 135 of file lte-test-deactivate-bearer.cc.

Member Function Documentation

◆ BuildNameString()

std::string ns3::LenaDeactivateBearerTestCase::BuildNameString ( uint16_t  nUser,
std::vector< uint16_t >  dist
)
staticprivate

Build name string function.

Parameters
nUsernumber of UE nodes
distdistance between nodes
Returns
name string

Definition at line 107 of file lte-test-deactivate-bearer.cc.

◆ DoRun()

void ns3::LenaDeactivateBearerTestCase::DoRun ( )
overrideprivatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 140 of file lte-test-deactivate-bearer.cc.

References ns3::EpsBearer::arp, ns3::Ipv4AddressHelper::Assign(), ns3::NodeContainer::Create(), ns3::TestCase::CreateTempDirFilename(), ns3::LteHelper::DeActivateDedicatedEpsBearer(), ns3::EpcTft::Default(), ns3::Simulator::Destroy(), ns3::EpsBearer::GBR_CONV_VOICE, ns3::GbrQosInformation::gbrDl, ns3::GbrQosInformation::gbrUl, ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::Ipv4InterfaceContainer::GetAddress(), ns3::Ipv4Address::GetAny(), ns3::NodeContainer::GetN(), ns3::Object::GetObject(), ns3::RngSeedManager::GetRun(), ns3::RngSeedManager::GetSeed(), ns3::Ipv4StaticRoutingHelper::GetStaticRouting(), ns3::UdpClientHelper::Install(), ns3::PointToPointHelper::Install(), ns3::PacketSinkHelper::Install(), m_dist, m_errorModelEnabled, m_estThrPssDl, m_interval, m_nUser, m_packetSize, ns3::GbrQosInformation::mbrDl, ns3::GbrQosInformation::mbrUl, ns3::MilliSeconds(), NS_LOG_INFO, NS_TEST_ASSERT_MSG_EQ, NS_TEST_ASSERT_MSG_EQ_TOL, ns3::AllocationRetentionPriority::preemptionCapability, ns3::AllocationRetentionPriority::preemptionVulnerability, ns3::AllocationRetentionPriority::priorityLevel, ns3::Simulator::Run(), ns3::Simulator::Schedule(), ns3::Seconds(), ns3::UdpClientHelper::SetAttribute(), ns3::Ipv4AddressHelper::SetBase(), ns3::PointToPointHelper::SetChannelAttribute(), ns3::Config::SetDefault(), ns3::PointToPointHelper::SetDeviceAttribute(), ns3::RngSeedManager::SetRun(), ns3::RngSeedManager::SetSeed(), and ns3::Simulator::Stop().

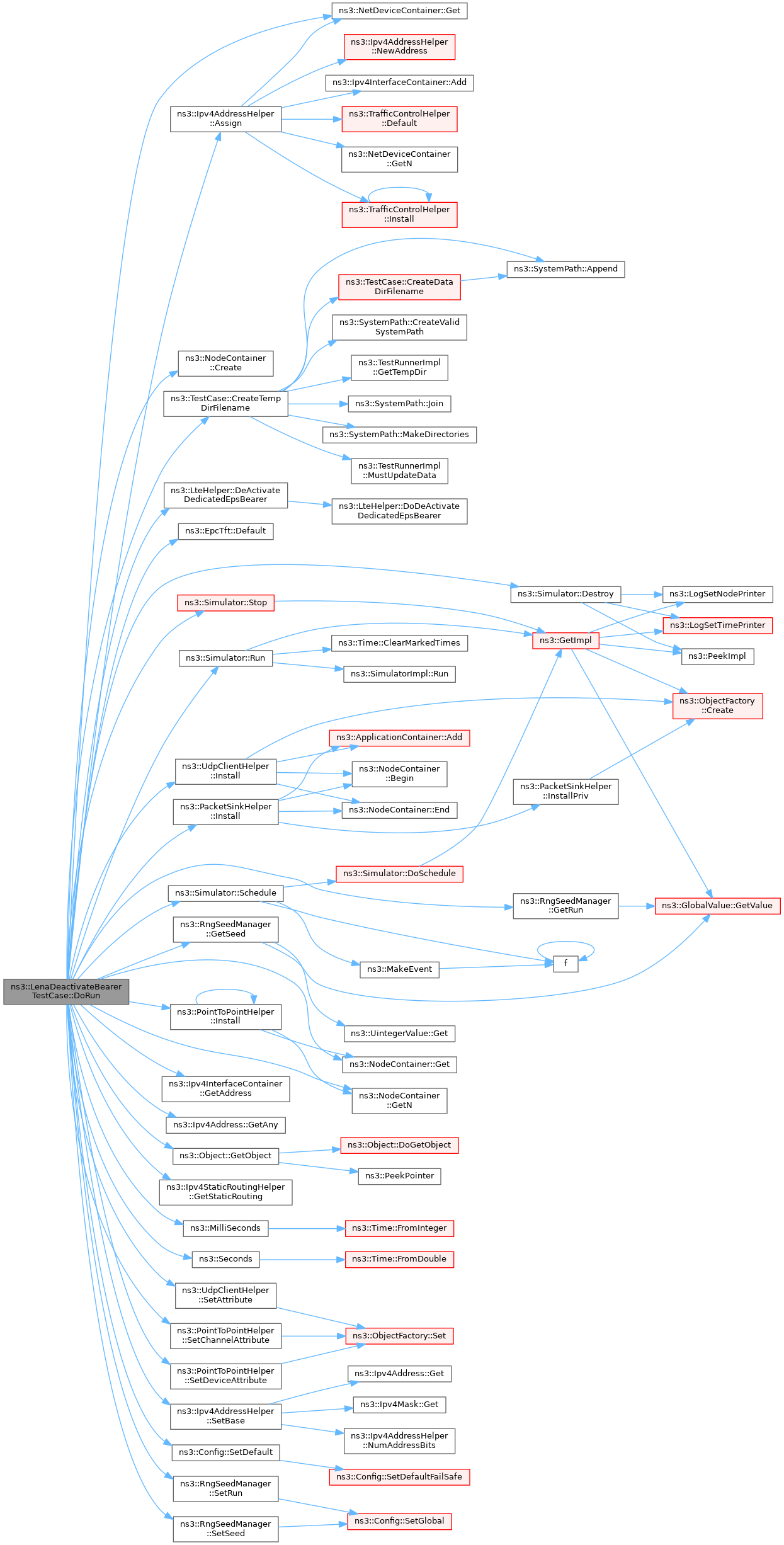

+ Here is the call graph for this function:

Member Data Documentation

◆ m_dist

std::vector<uint16_t> ns3::LenaDeactivateBearerTestCase::m_dist
private

distance between the nodes

Definition at line 55 of file lte-test-deactivate-bearer.h.

Referenced by DoRun().

◆ m_errorModelEnabled

bool ns3::LenaDeactivateBearerTestCase::m_errorModelEnabled
private

error mode enabled?

Definition at line 59 of file lte-test-deactivate-bearer.h.

Referenced by DoRun().

◆ m_estThrPssDl

std::vector<uint32_t> ns3::LenaDeactivateBearerTestCase::m_estThrPssDl
private

estimated threshold PSS DL

Definition at line 58 of file lte-test-deactivate-bearer.h.

Referenced by DoRun().

◆ m_interval

uint16_t ns3::LenaDeactivateBearerTestCase::m_interval
private

interval time in ms

Definition at line 57 of file lte-test-deactivate-bearer.h.

Referenced by DoRun().

◆ m_nUser

uint16_t ns3::LenaDeactivateBearerTestCase::m_nUser
private

number of UE nodes

Definition at line 54 of file lte-test-deactivate-bearer.h.

Referenced by DoRun().

◆ m_packetSize

std::vector<uint16_t> ns3::LenaDeactivateBearerTestCase::m_packetSize
private

packet size in bytes

Definition at line 56 of file lte-test-deactivate-bearer.h.

Referenced by DoRun().


The documentation for this class was generated from the following files:
