ns3::UniformDiscPositionAllocator Class Reference

Allocate the positions uniformly (with constant density) randomly within a disc. More...

#include "position-allocator.h"

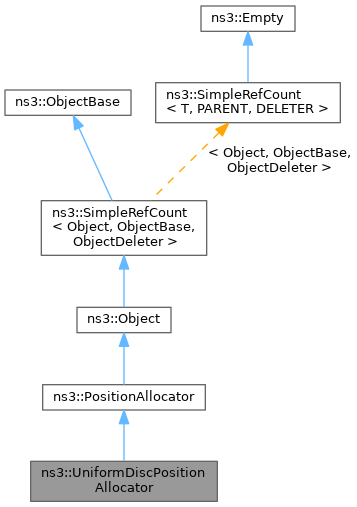

+ Inheritance diagram for ns3::UniformDiscPositionAllocator:

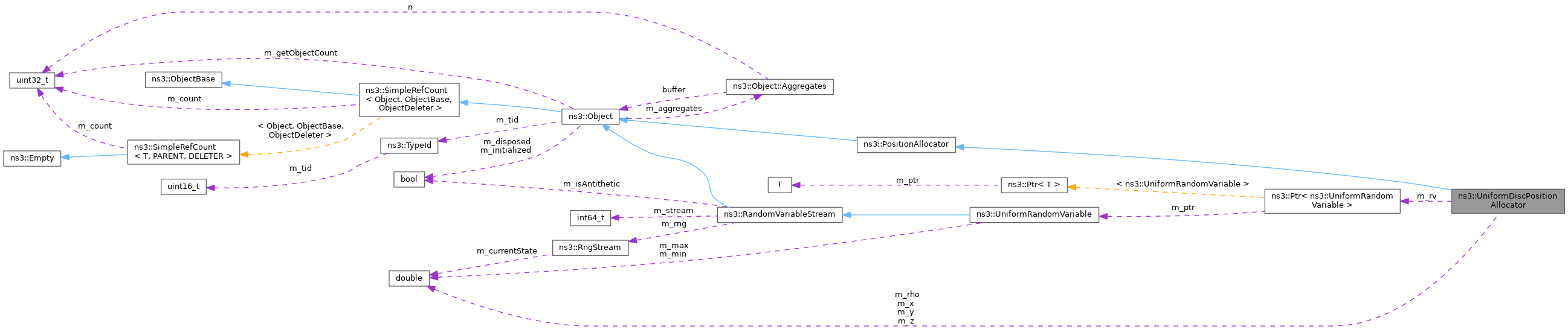

+ Collaboration diagram for ns3::UniformDiscPositionAllocator:

Public Member Functions

 UniformDiscPositionAllocator ()

 ~UniformDiscPositionAllocator () override

int64_t AssignStreams (int64_t stream) override
 Assign a fixed random variable stream number to the random variables used by this model.

Vector GetNext () const override

void SetRho (double rho)

void SetX (double x)

void SetY (double y)

void SetZ (double z)

- Public Member Functions inherited from ns3::PositionAllocator
 PositionAllocator ()

 ~PositionAllocator () override

virtual int64_t AssignStreams (int64_t stream)=0
 Assign a fixed random variable stream number to the random variables used by this model.

virtual Vector GetNext () const =0

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor.

 ~Object () override
 Destructor.

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together.

void Dispose ()
 Dispose of this Object.

AggregateIterator GetAggregateIterator () const
 Get an iterator to the Objects aggregated to this one.

TypeId GetInstanceTypeId () const override
 Get the most derived TypeId for this Object.

template<typename T >
Ptr< T > GetObject () const
 Get a pointer to the requested aggregated Object.

template<>
Ptr< ObjectGetObject () const
 Specialization of () for objects of type ns3::Object.

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId.

template<>
Ptr< ObjectGetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object.

void Initialize ()
 Invoke DoInitialize on all Objects aggregated to this one.

bool IsInitialized () const
 Check if the object has been initialized.

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor.

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor.

uint32_t GetReferenceCount () const
 Get the reference count of the object.

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator.

void Ref () const
 Increment the reference count.

void Unref () const
 Decrement the reference count.

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor.

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful.

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising errors.

virtual TypeId GetInstanceTypeId () const =0
 Get the most derived TypeId for this Object.

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful.

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors.

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context.

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context.

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context.

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context.


Static Public Member Functions

static TypeId GetTypeId ()
 Register this type with the TypeId system.

- Static Public Member Functions inherited from ns3::PositionAllocator
static TypeId GetTypeId ()
 Register this type with the TypeId system.

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId ()
 Register this type.

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId ()
 Get the type ID.


Private Attributes

double m_rho
 value of the radius of the disc

Ptr< UniformRandomVariablem_rv
 pointer to uniform random variable

double m_x
 x coordinate of center of disc

double m_y
 y coordinate of center of disc

double m_z
 z coordinate of the disc


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object.

virtual void DoDispose ()
 Destructor implementation.

virtual void DoInitialize ()
 Initialize() implementation.

virtual void NotifyNewAggregate ()
 Notify all Objects aggregated to this one of a new Object being aggregated.

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes.

virtual void NotifyConstructionCompleted ()
 Notifier called once the ObjectBase is fully constructed.


Detailed Description

Allocate the positions uniformly (with constant density) randomly within a disc.

UniformDiscPositionAllocator allocates the positions randomly within a disc $ D $ lying on the plane $ z$ and having center at coordinates $ (x,y,z) $ and radius $ \rho $. The random positions are chosen such that, for any subset $ S \subset D $, the expected value of the fraction of points which fall into $ S \subset D $ corresponds to $ \frac{|S|}{|D|}
$, i.e., to the ratio of the area of the subset to the area of the whole disc.

Note
using UniformDiscPositionAllocator is not equivalent to using a RandomDiscPositionAllocator with a uniformly-distributed radius, since doing that would results in a point distribution which is more dense towards the center of the disc.

Config Paths

ns3::UniformDiscPositionAllocator is accessible through the following paths with Config::Set and Config::Connect:

  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::UniformDiscPositionAllocator"

Attributes

  • X: The x coordinate of the center of the disc.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0
    • Flags: constructwriteread
  • Y: The y coordinate of the center of the disc.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0
    • Flags: constructwriteread
  • Z: The z coordinate of all the positions in the disc.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0
    • Flags: constructwriteread
  • rho: The radius of the disc
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0
    • Flags: constructwriteread

No TraceSources are defined for this type.
Size of this type is 72 bytes (on a 64-bit architecture).

Definition at line 376 of file position-allocator.h.

Constructor & Destructor Documentation

◆ UniformDiscPositionAllocator()

ns3::UniformDiscPositionAllocator::UniformDiscPositionAllocator ( )

Definition at line 578 of file position-allocator.cc.

References m_rv.

◆ ~UniformDiscPositionAllocator()

ns3::UniformDiscPositionAllocator::~UniformDiscPositionAllocator ( )
override

Definition at line 583 of file position-allocator.cc.

Member Function Documentation

◆ AssignStreams()

int64_t ns3::UniformDiscPositionAllocator::AssignStreams ( int64_t  stream)
overridevirtual

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

This method must be implement in subclasses.

Parameters
streamfirst stream index to use
Returns
the number of stream indices assigned by this model

Implements ns3::PositionAllocator.

Definition at line 629 of file position-allocator.cc.

References m_rv, and ns3::RandomVariableStream::SetStream().

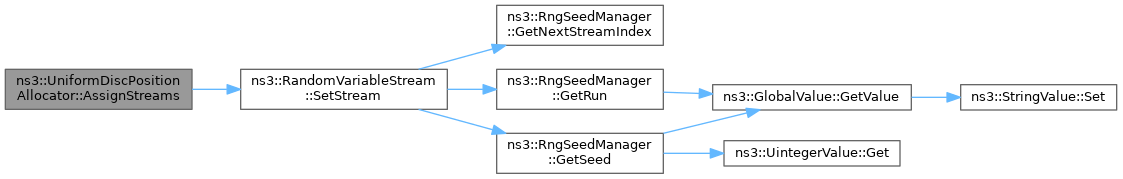

+ Here is the call graph for this function:

◆ GetNext()

Vector ns3::UniformDiscPositionAllocator::GetNext ( ) const
overridevirtual
Returns
the next chosen position.

This method must be implement in subclasses.

Implements ns3::PositionAllocator.

Definition at line 612 of file position-allocator.cc.

References ns3::UniformRandomVariable::GetValue(), m_rho, m_rv, m_x, m_y, m_z, and NS_LOG_DEBUG.

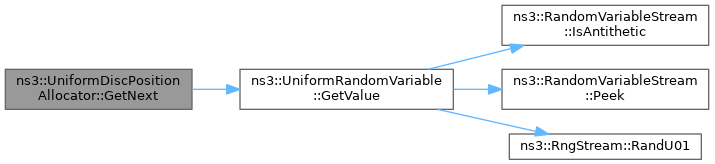

+ Here is the call graph for this function:

◆ GetTypeId()

TypeId ns3::UniformDiscPositionAllocator::GetTypeId ( )
static

Register this type with the TypeId system.

Returns
the object TypeId

Definition at line 549 of file position-allocator.cc.

References m_rho, m_x, m_y, m_z, ns3::MakeDoubleAccessor(), and ns3::TypeId::SetParent().

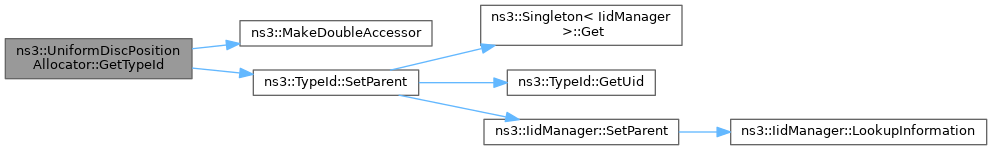

+ Here is the call graph for this function:

◆ SetRho()

void ns3::UniformDiscPositionAllocator::SetRho ( double  rho)
Parameters
rhothe value of the radius of the disc

Definition at line 588 of file position-allocator.cc.

References m_rho.

◆ SetX()

void ns3::UniformDiscPositionAllocator::SetX ( double  x)
Parameters
xthe X coordinate of the center of the disc

Definition at line 594 of file position-allocator.cc.

References m_x.

◆ SetY()

void ns3::UniformDiscPositionAllocator::SetY ( double  y)
Parameters
ythe Y coordinate of the center of the disc

Definition at line 600 of file position-allocator.cc.

References m_y.

◆ SetZ()

void ns3::UniformDiscPositionAllocator::SetZ ( double  z)
Parameters
zthe Z coordinate of all the positions allocated

Definition at line 606 of file position-allocator.cc.

References m_z.

Member Data Documentation

◆ m_rho

double ns3::UniformDiscPositionAllocator::m_rho
private

value of the radius of the disc

Definition at line 412 of file position-allocator.h.

Referenced by GetNext(), GetTypeId(), and SetRho().

◆ m_rv

Ptr<UniformRandomVariable> ns3::UniformDiscPositionAllocator::m_rv
private

pointer to uniform random variable

Definition at line 411 of file position-allocator.h.

Referenced by UniformDiscPositionAllocator(), AssignStreams(), and GetNext().

◆ m_x

double ns3::UniformDiscPositionAllocator::m_x
private

x coordinate of center of disc

Definition at line 413 of file position-allocator.h.

Referenced by GetNext(), GetTypeId(), and SetX().

◆ m_y

double ns3::UniformDiscPositionAllocator::m_y
private

y coordinate of center of disc

Definition at line 414 of file position-allocator.h.

Referenced by GetNext(), GetTypeId(), and SetY().

◆ m_z

double ns3::UniformDiscPositionAllocator::m_z
private

z coordinate of the disc

Definition at line 415 of file position-allocator.h.

Referenced by GetNext(), GetTypeId(), and SetZ().


The documentation for this class was generated from the following files:
