ns3::WifiRadioEnergyModelHelper Class Reference

Assign WifiRadioEnergyModel to wifi devices. More...

#include "wifi-radio-energy-model-helper.h"

+ Inheritance diagram for ns3::WifiRadioEnergyModelHelper:
+ Collaboration diagram for ns3::WifiRadioEnergyModelHelper:

Public Member Functions

 WifiRadioEnergyModelHelper ()
 Construct a helper which is used to add a radio energy model to a node.

 ~WifiRadioEnergyModelHelper () override
 Destroy a RadioEnergy Helper.

void Set (std::string name, const AttributeValue &v) override

void SetDepletionCallback (WifiRadioEnergyModel::WifiRadioEnergyDepletionCallback callback)

void SetRechargedCallback (WifiRadioEnergyModel::WifiRadioEnergyRechargedCallback callback)

template<typename... Ts>
void SetTxCurrentModel (std::string name, Ts &&... args)

- Public Member Functions inherited from ns3::DeviceEnergyModelHelper
virtual ~DeviceEnergyModelHelper ()

DeviceEnergyModelContainer Install (NetDeviceContainer deviceContainer, EnergySourceContainer sourceContainer) const

DeviceEnergyModelContainer Install (Ptr< NetDevice > device, Ptr< EnergySource > source) const

virtual void Set (std::string name, const AttributeValue &v)=0


Private Member Functions

Ptr< DeviceEnergyModelDoInstall (Ptr< NetDevice > device, Ptr< EnergySource > source) const override


Private Attributes

WifiRadioEnergyModel::WifiRadioEnergyDepletionCallback m_depletionCallback
 radio energy depletion callback

ObjectFactory m_radioEnergy
 radio energy

WifiRadioEnergyModel::WifiRadioEnergyRechargedCallback m_rechargedCallback
 radio energy recharged callback

ObjectFactory m_txCurrentModel
 transmit current model


Detailed Description

Assign WifiRadioEnergyModel to wifi devices.

This installer installs WifiRadioEnergyModel for only WifiNetDevice objects.

Definition at line 36 of file wifi-radio-energy-model-helper.h.

Constructor & Destructor Documentation

◆ WifiRadioEnergyModelHelper()

ns3::WifiRadioEnergyModelHelper::WifiRadioEnergyModelHelper ( )

Construct a helper which is used to add a radio energy model to a node.

Definition at line 29 of file wifi-radio-energy-model-helper.cc.

References m_depletionCallback, m_radioEnergy, m_rechargedCallback, ns3::Callback< R, UArgs >::Nullify(), and ns3::ObjectFactory::SetTypeId().

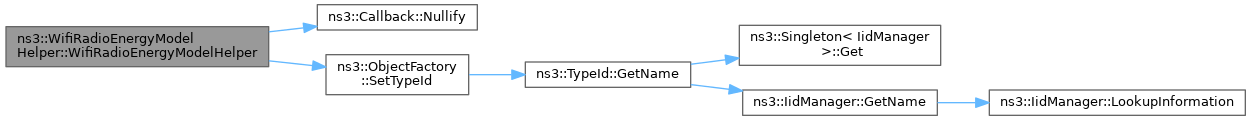

+ Here is the call graph for this function:

◆ ~WifiRadioEnergyModelHelper()

ns3::WifiRadioEnergyModelHelper::~WifiRadioEnergyModelHelper ( )
override

Destroy a RadioEnergy Helper.

Definition at line 36 of file wifi-radio-energy-model-helper.cc.

Member Function Documentation

◆ DoInstall()

Ptr< DeviceEnergyModel > ns3::WifiRadioEnergyModelHelper::DoInstall ( Ptr< NetDevice device,
Ptr< EnergySource source
) const
overrideprivatevirtual
Parameters
devicePointer to the NetDevice to install DeviceEnergyModel.
sourcePointer to EnergySource to install.
Returns
Ptr<DeviceEnergyModel>

Implements DeviceEnergyModel::Install.

Implements ns3::DeviceEnergyModelHelper.

Definition at line 65 of file wifi-radio-energy-model-helper.cc.

References ns3::ObjectFactory::Create(), ns3::Object::GetObject(), ns3::ObjectFactory::GetTypeId(), ns3::TypeId::GetUid(), ns3::Callback< R, UArgs >::IsNull(), m_depletionCallback, m_radioEnergy, m_rechargedCallback, m_txCurrentModel, ns3::MakeCallback(), NS_ASSERT, NS_FATAL_ERROR, ns3::WifiPhy::ResumeFromOff(), and ns3::WifiPhy::SetOffMode().

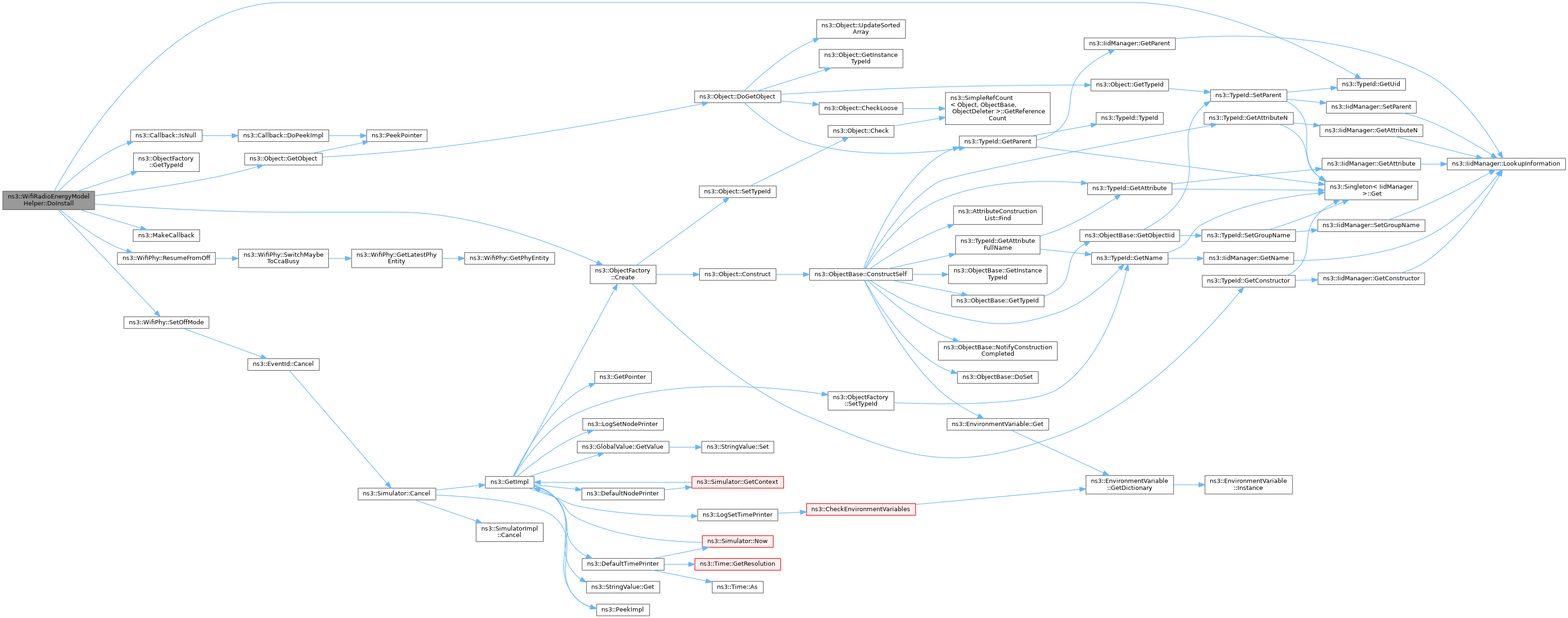

+ Here is the call graph for this function:

◆ Set()

void ns3::WifiRadioEnergyModelHelper::Set ( std::string  name,
const AttributeValue v
)
overridevirtual
Parameters
namethe name of the attribute to set
vthe value of the attribute

Sets an attribute of the underlying PHY object.

Implements ns3::DeviceEnergyModelHelper.

Definition at line 41 of file wifi-radio-energy-model-helper.cc.

References m_radioEnergy, and ns3::ObjectFactory::Set().

Referenced by BatteryLifetimeTest::ConstantLoadTest(), and BatteryLifetimeTest::VariableLoadTest().

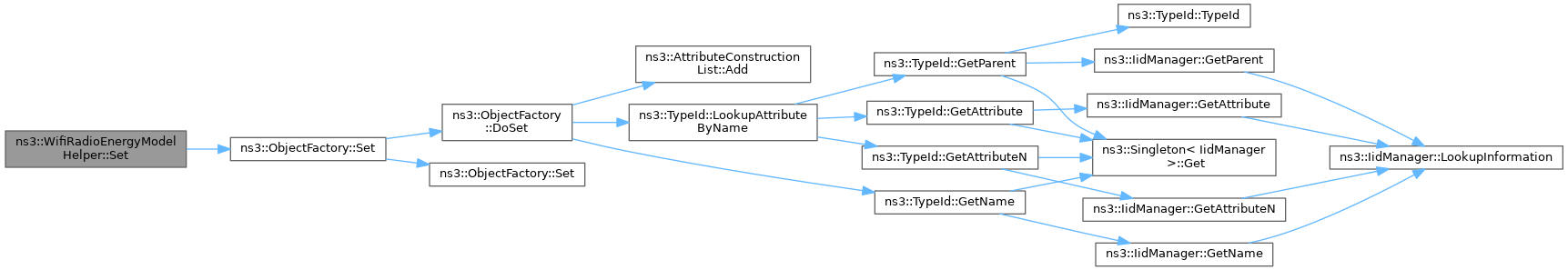

+ Here is the call graph for this function:

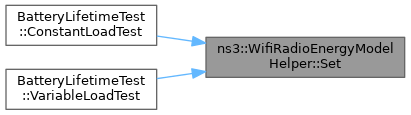

+ Here is the caller graph for this function:

◆ SetDepletionCallback()

void ns3::WifiRadioEnergyModelHelper::SetDepletionCallback ( WifiRadioEnergyModel::WifiRadioEnergyDepletionCallback  callback)
Parameters
callbackCallback function for energy depletion handling.

Sets the callback to be invoked when energy is depleted.

Definition at line 47 of file wifi-radio-energy-model-helper.cc.

References m_depletionCallback.

Referenced by BasicEnergyDepletionTest::DepletionTestCase().

+ Here is the caller graph for this function:

◆ SetRechargedCallback()

void ns3::WifiRadioEnergyModelHelper::SetRechargedCallback ( WifiRadioEnergyModel::WifiRadioEnergyRechargedCallback  callback)
Parameters
callbackCallback function for energy recharged handling.

Sets the callback to be invoked when energy is recharged.

Definition at line 54 of file wifi-radio-energy-model-helper.cc.

References m_rechargedCallback.

◆ SetTxCurrentModel()

template<typename... Ts>
void ns3::WifiRadioEnergyModelHelper::SetTxCurrentModel ( std::string  name,
Ts &&...  args
)
Template Parameters
Ts[deduced] Argument types
Parameters
namethe name of the model to set
[in]argsName and AttributeValue pairs to set.

Configure a Transmission Current model for this EnergySource.

Definition at line 107 of file wifi-radio-energy-model-helper.h.

References m_txCurrentModel.

Member Data Documentation

◆ m_depletionCallback

WifiRadioEnergyModel::WifiRadioEnergyDepletionCallback ns3::WifiRadioEnergyModelHelper::m_depletionCallback
private

radio energy depletion callback

Definition at line 95 of file wifi-radio-energy-model-helper.h.

Referenced by WifiRadioEnergyModelHelper(), DoInstall(), and SetDepletionCallback().

◆ m_radioEnergy

ObjectFactory ns3::WifiRadioEnergyModelHelper::m_radioEnergy
private

radio energy

Definition at line 93 of file wifi-radio-energy-model-helper.h.

Referenced by WifiRadioEnergyModelHelper(), DoInstall(), and Set().

◆ m_rechargedCallback

WifiRadioEnergyModel::WifiRadioEnergyRechargedCallback ns3::WifiRadioEnergyModelHelper::m_rechargedCallback
private

radio energy recharged callback

Definition at line 97 of file wifi-radio-energy-model-helper.h.

Referenced by WifiRadioEnergyModelHelper(), DoInstall(), and SetRechargedCallback().

◆ m_txCurrentModel

ObjectFactory ns3::WifiRadioEnergyModelHelper::m_txCurrentModel
private

transmit current model

Definition at line 98 of file wifi-radio-energy-model-helper.h.

Referenced by DoInstall(), and SetTxCurrentModel().


The documentation for this class was generated from the following files:
