Tag to calculate the per-PDU delay from eNb RLC to UE RLC. More...
#include "lte-rlc-tag.h"
Public Member Functions | |
RlcTag () | |
Create an empty RLC tag. | |
RlcTag (Time senderTimestamp) | |
Create an RLC tag with the given senderTimestamp. | |
void | Deserialize (TagBuffer i) override |
TypeId | GetInstanceTypeId () const override |
Get the most derived TypeId for this Object. | |
Time | GetSenderTimestamp () const |
Get the instant when the RLC delivers the PDU to the MAC SAP provider. | |
uint32_t | GetSerializedSize () const override |
void | Print (std::ostream &os) const override |
void | Serialize (TagBuffer i) const override |
void | SetSenderTimestamp (Time senderTimestamp) |
Set the sender timestamp. | |
virtual void | Deserialize (TagBuffer i)=0 |
virtual uint32_t | GetSerializedSize () const =0 |
virtual void | Print (std::ostream &os) const =0 |
virtual void | Serialize (TagBuffer i) const =0 |
Public Member Functions inherited from ns3::ObjectBase | |
virtual | ~ObjectBase () |
Virtual destructor. | |
void | GetAttribute (std::string name, AttributeValue &value) const |
Get the value of an attribute, raising fatal errors if unsuccessful. | |
bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
Get the value of an attribute without raising errors. | |
virtual TypeId | GetInstanceTypeId () const =0 |
Get the most derived TypeId for this Object. | |
void | SetAttribute (std::string name, const AttributeValue &value) |
Set a single attribute, raising fatal errors if unsuccessful. | |
bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
Set a single attribute without raising errors. | |
bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
Connect a TraceSource to a Callback with a context. | |
bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
Connect a TraceSource to a Callback without a context. | |
bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected with a context. | |
bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected without a context. | |
Static Public Member Functions | |
static TypeId | GetTypeId () |
Get the type ID. | |
Static Public Member Functions inherited from ns3::Tag | |
static TypeId | GetTypeId () |
Get the type ID. | |
Static Public Member Functions inherited from ns3::ObjectBase | |
static TypeId | GetTypeId () |
Get the type ID. | |
Private Attributes | |
Time | m_senderTimestamp |
sender timestamp | |
Additional Inherited Members | |
Protected Member Functions inherited from ns3::ObjectBase | |
void | ConstructSelf (const AttributeConstructionList &attributes) |
Complete construction of ObjectBase; invoked by derived classes. | |
virtual void | NotifyConstructionCompleted () |
Notifier called once the ObjectBase is fully constructed. | |
Related Functions inherited from ns3::ObjectBase | |
static TypeId | GetObjectIid () |
Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. | |

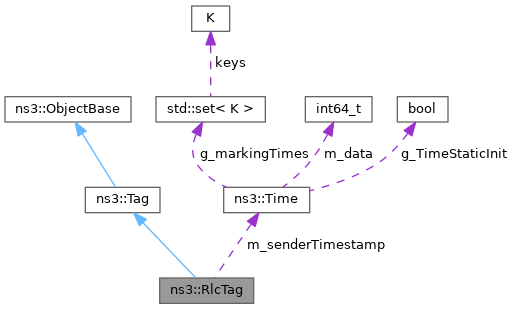

Tag to calculate the per-PDU delay from eNb RLC to UE RLC.
Introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 16 bytes (on a 64-bit architecture).
Definition at line 35 of file lte-rlc-tag.h.
ns3::RlcTag::RlcTag | ( | ) |
Create an empty RLC tag.
Definition at line 30 of file lte-rlc-tag.cc.
ns3::RlcTag::RlcTag | ( | Time | senderTimestamp | ) |
Create an RLC tag with the given senderTimestamp.
senderTimestamp | the time |
Definition at line 36 of file lte-rlc-tag.cc.
|
overridevirtual |
i | the buffer to read data from. |

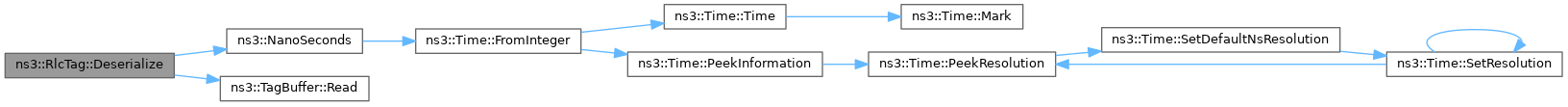

Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.
Implements ns3::Tag.
Definition at line 71 of file lte-rlc-tag.cc.
References m_senderTimestamp, ns3::NanoSeconds(), and ns3::TagBuffer::Read().
|
overridevirtual |

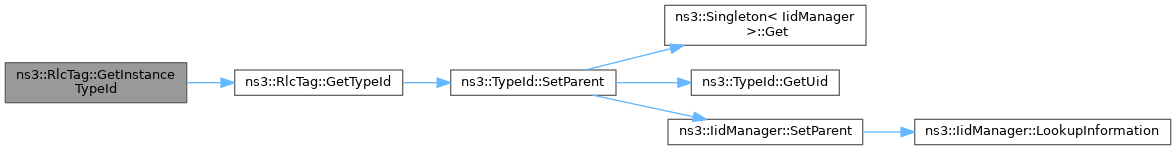

Get the most derived TypeId for this Object.
This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.
Implements ns3::ObjectBase.
Definition at line 52 of file lte-rlc-tag.cc.
References GetTypeId().
|
inline |

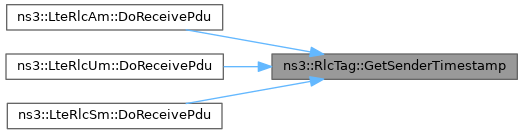

Get the instant when the RLC delivers the PDU to the MAC SAP provider.
Definition at line 64 of file lte-rlc-tag.h.
References m_senderTimestamp.
Referenced by ns3::LteRlcAm::DoReceivePdu(), ns3::LteRlcUm::DoReceivePdu(), and ns3::LteRlcSm::DoReceivePdu().
|
overridevirtual |
This method is typically invoked by Packet::AddPacketTag or Packet::AddByteTag just prior to calling Tag::Serialize.
Implements ns3::Tag.
Definition at line 58 of file lte-rlc-tag.cc.
|
static |

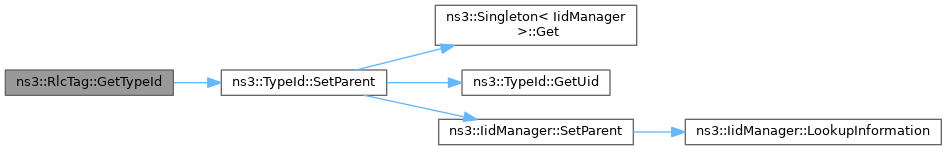

Get the type ID.
Definition at line 44 of file lte-rlc-tag.cc.
References ns3::TypeId::SetParent().
Referenced by GetInstanceTypeId().
|
overridevirtual |
os | the stream to print to |
This method is typically invoked from the Packet::PrintByteTags or Packet::PrintPacketTags methods.
Implements ns3::Tag.
Definition at line 79 of file lte-rlc-tag.cc.
References m_senderTimestamp.
|
overridevirtual |
i | the buffer to write data into. |

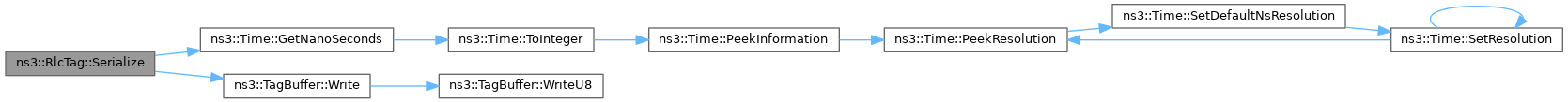

Write the content of the tag in the provided tag buffer. DO NOT attempt to write more bytes than you requested with Tag::GetSerializedSize.
Implements ns3::Tag.
Definition at line 64 of file lte-rlc-tag.cc.
References ns3::Time::GetNanoSeconds(), m_senderTimestamp, and ns3::TagBuffer::Write().
|
inline |
Set the sender timestamp.
senderTimestamp | time stamp of the instant when the RLC delivers the PDU to the MAC SAP provider |
Definition at line 74 of file lte-rlc-tag.h.
References m_senderTimestamp.
Referenced by ns3::LteRlcAm::DoNotifyTxOpportunity().
|
private |
sender timestamp
Definition at line 80 of file lte-rlc-tag.h.
Referenced by Deserialize(), GetSenderTimestamp(), Print(), Serialize(), and SetSenderTimestamp().
