ns3::Tag Class Reference

tag a set of bytes in a packet More...

#include "tag.h"

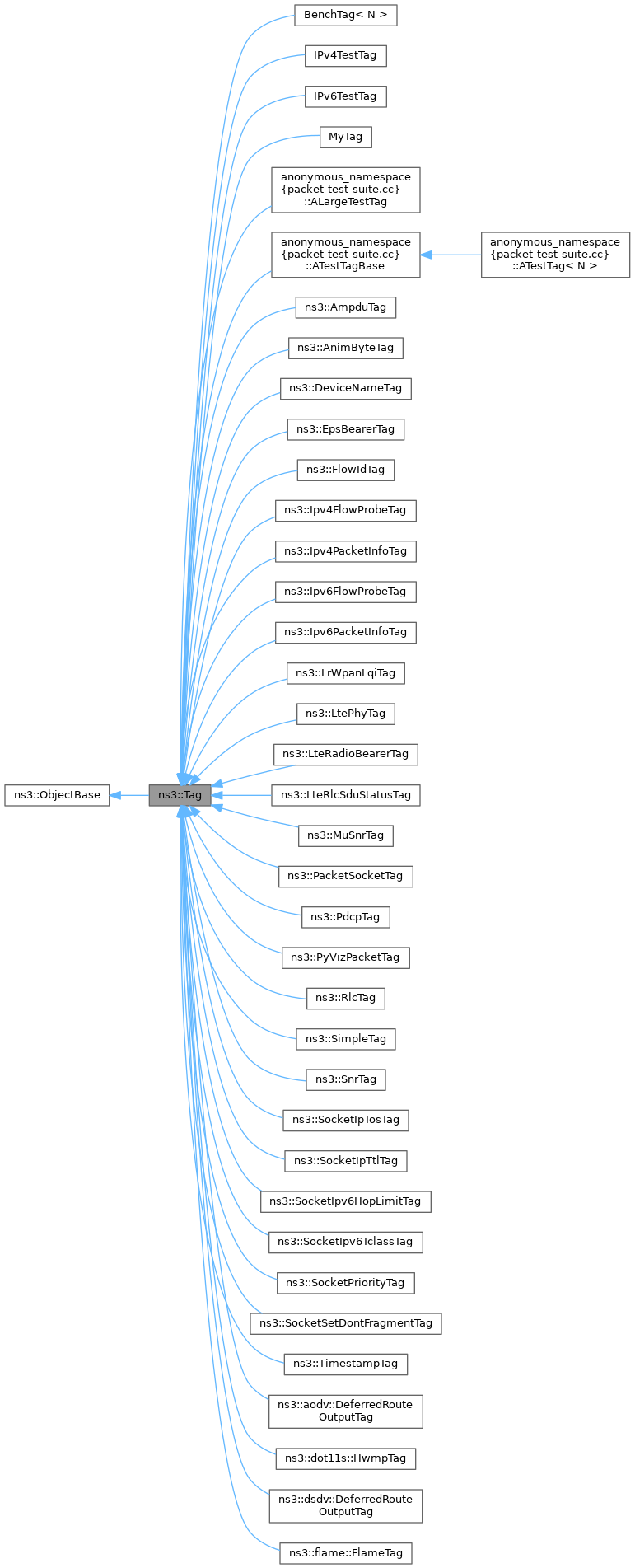

Inheritance diagram for ns3::Tag:

Collaboration diagram for ns3::Tag:

Public Member Functions
virtual void	Deserialize (TagBuffer i)=0
virtual uint32_t	GetSerializedSize () const =0
virtual void	Print (std::ostream &os) const =0
virtual void	Serialize (TagBuffer i) const =0
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor.
void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful.
bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors.
virtual TypeId	GetInstanceTypeId () const =0
	Get the most derived TypeId for this Object.
void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful.
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors.
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context.
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context.
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context.
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context.

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID.
Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID.

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes.
virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed.
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly.

Detailed Description

tag a set of bytes in a packet

Introspection did not find any typical Config paths.

New kinds of tags can be created by subclassing from this abstract base class.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 8 bytes (on a 64-bit architecture).

Definition at line 38 of file tag.h.

Member Function Documentation

Deserialize()

virtual void ns3::Tag::Deserialize ( TagBuffer  i )

pure virtual

Parameters

i	the buffer to read data from.

Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.

Implemented in ns3::Ipv4FlowProbeTag, ns3::Ipv6FlowProbeTag, anonymous_namespace{packet-test-suite.cc}::ATestTag< N >, anonymous_namespace{packet-test-suite.cc}::ALargeTestTag, ns3::FlowIdTag, ns3::PyVizPacketTag, BenchTag< N >, IPv4TestTag, IPv6TestTag, ns3::aodv::DeferredRouteOutputTag, ns3::dsdv::DeferredRouteOutputTag, ns3::Ipv4PacketInfoTag, ns3::Ipv6PacketInfoTag, ns3::LrWpanLqiTag, ns3::EpsBearerTag, ns3::PdcpTag, ns3::LtePhyTag, ns3::LteRadioBearerTag, ns3::LteRlcSduStatusTag, ns3::RlcTag, ns3::dot11s::HwmpTag, ns3::flame::FlameTag, ns3::AnimByteTag, MyTag, ns3::SocketIpTtlTag, ns3::SocketIpv6HopLimitTag, ns3::SocketSetDontFragmentTag, ns3::SocketIpTosTag, ns3::SocketPriorityTag, ns3::SocketIpv6TclassTag, ns3::PacketSocketTag, ns3::DeviceNameTag, ns3::SimpleTag, ns3::TimestampTag, ns3::AmpduTag, ns3::MuSnrTag, and ns3::SnrTag.

Referenced by ns3::ByteTagIterator::Item::GetTag(), ns3::PacketTagIterator::Item::GetTag(), ns3::PacketTagList::Peek(), and ns3::PacketTagList::RemoveWriter().

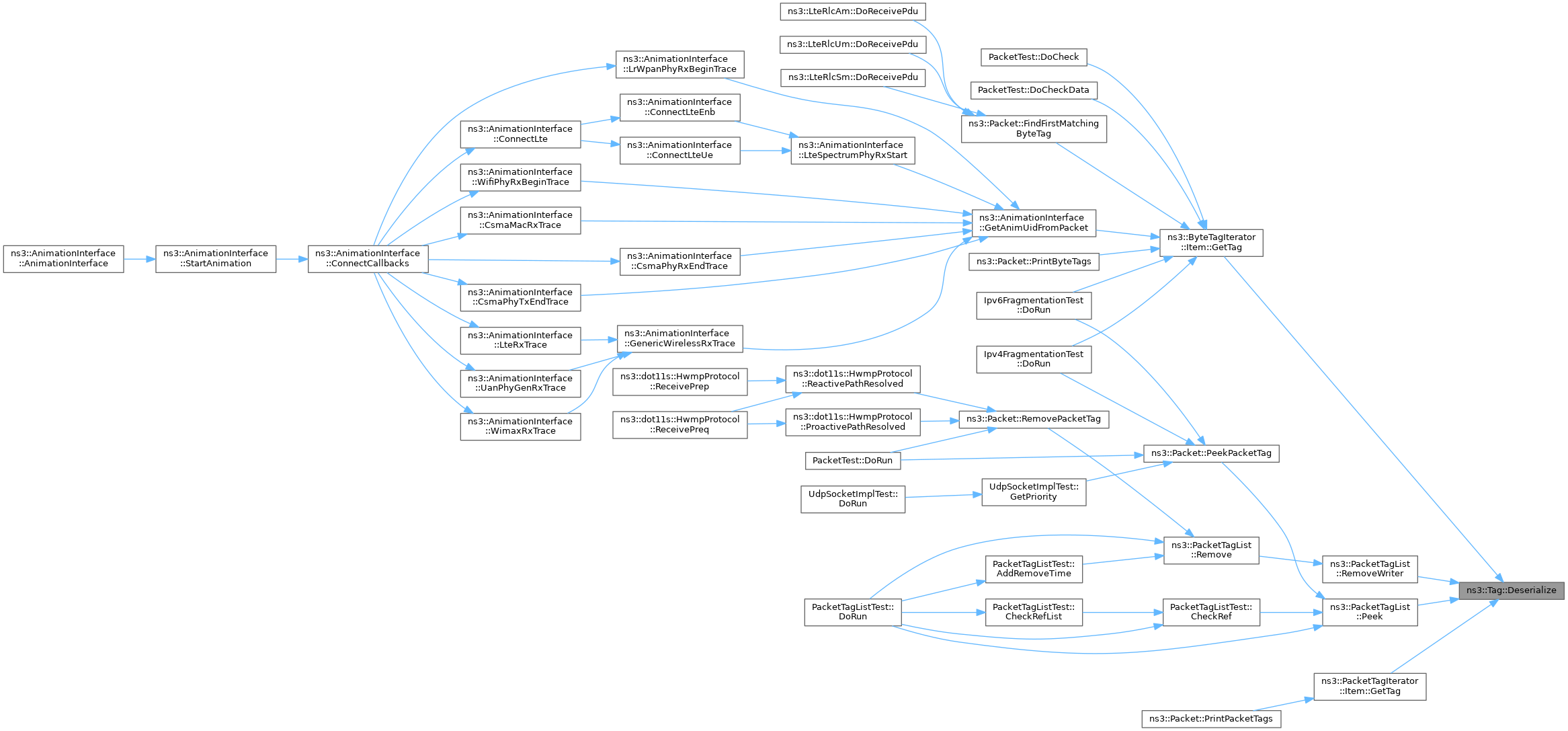

Here is the caller graph for this function:

GetSerializedSize()

virtual uint32_t ns3::Tag::GetSerializedSize ( ) const

pure virtual

Returns

the number of bytes required to serialize the data of the tag.

This method is typically invoked by Packet::AddPacketTag or Packet::AddByteTag just prior to calling Tag::Serialize.

Implemented in ns3::aodv::DeferredRouteOutputTag, ns3::dsdv::DeferredRouteOutputTag, ns3::Ipv4FlowProbeTag, ns3::Ipv6FlowProbeTag, ns3::Ipv4PacketInfoTag, ns3::Ipv6PacketInfoTag, IPv4TestTag, IPv6TestTag, ns3::LrWpanLqiTag, ns3::EpsBearerTag, ns3::PdcpTag, ns3::LtePhyTag, ns3::LteRadioBearerTag, ns3::LteRlcSduStatusTag, ns3::RlcTag, ns3::dot11s::HwmpTag, ns3::flame::FlameTag, ns3::AnimByteTag, MyTag, ns3::SocketIpTtlTag, ns3::SocketIpv6HopLimitTag, ns3::SocketSetDontFragmentTag, ns3::SocketIpTosTag, ns3::SocketPriorityTag, ns3::SocketIpv6TclassTag, anonymous_namespace{packet-test-suite.cc}::ATestTag< N >, anonymous_namespace{packet-test-suite.cc}::ALargeTestTag, ns3::FlowIdTag, ns3::PacketSocketTag, ns3::DeviceNameTag, ns3::SimpleTag, ns3::TimestampTag, ns3::PyVizPacketTag, ns3::AmpduTag, ns3::MuSnrTag, ns3::SnrTag, and BenchTag< N >.

Referenced by ns3::PacketTagList::Add(), ns3::Packet::AddByteTag(), ns3::Packet::AddPacketTag(), ns3::Packet::RemovePacketTag(), ns3::Packet::ReplacePacketTag(), and ns3::PacketTagList::ReplaceWriter().

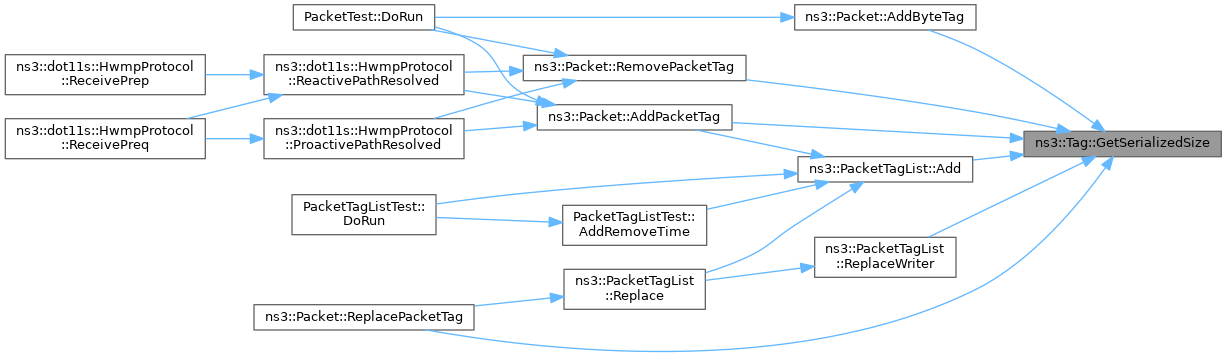

Here is the caller graph for this function:

GetTypeId()

TypeId ns3::Tag::GetTypeId ( )

static

Get the type ID.

Returns

the object TypeId

Definition at line 27 of file tag.cc.

References ns3::TypeId::SetParent().

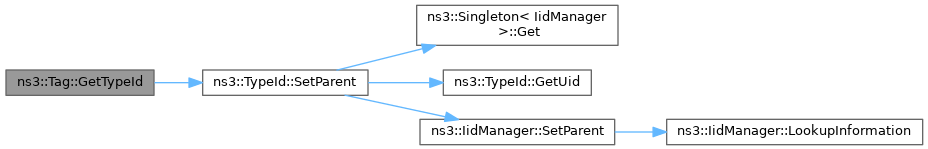

Here is the call graph for this function:

Print()

virtual void ns3::Tag::Print ( std::ostream &  os ) const

pure virtual

Parameters

os	the stream to print to

This method is typically invoked from the Packet::PrintByteTags or Packet::PrintPacketTags methods.

Implemented in ns3::aodv::DeferredRouteOutputTag, ns3::dsdv::DeferredRouteOutputTag, ns3::Ipv4FlowProbeTag, ns3::Ipv6FlowProbeTag, ns3::Ipv4PacketInfoTag, ns3::Ipv6PacketInfoTag, IPv4TestTag, IPv6TestTag, ns3::LrWpanLqiTag, ns3::EpsBearerTag, ns3::PdcpTag, ns3::LtePhyTag, ns3::LteRadioBearerTag, ns3::LteRlcSduStatusTag, ns3::RlcTag, ns3::dot11s::HwmpTag, ns3::flame::FlameTag, ns3::AnimByteTag, MyTag, ns3::SocketIpTtlTag, ns3::SocketIpv6HopLimitTag, ns3::SocketSetDontFragmentTag, ns3::SocketIpTosTag, ns3::SocketPriorityTag, ns3::SocketIpv6TclassTag, anonymous_namespace{packet-test-suite.cc}::ATestTag< N >, anonymous_namespace{packet-test-suite.cc}::ALargeTestTag, ns3::FlowIdTag, ns3::PacketSocketTag, ns3::DeviceNameTag, ns3::SimpleTag, ns3::TimestampTag, ns3::PyVizPacketTag, ns3::AmpduTag, ns3::MuSnrTag, ns3::SnrTag, and BenchTag< N >.

Referenced by ns3::Packet::PrintByteTags(), and ns3::Packet::PrintPacketTags().

Here is the caller graph for this function:

Serialize()

virtual void ns3::Tag::Serialize ( TagBuffer  i ) const

pure virtual

Parameters

i	the buffer to write data into.

Write the content of the tag in the provided tag buffer. DO NOT attempt to write more bytes than you requested with Tag::GetSerializedSize.

Implemented in ns3::Ipv4FlowProbeTag, ns3::Ipv6FlowProbeTag, anonymous_namespace{packet-test-suite.cc}::ATestTag< N >, anonymous_namespace{packet-test-suite.cc}::ALargeTestTag, ns3::FlowIdTag, ns3::PyVizPacketTag, BenchTag< N >, IPv4TestTag, IPv6TestTag, ns3::aodv::DeferredRouteOutputTag, ns3::dsdv::DeferredRouteOutputTag, ns3::Ipv4PacketInfoTag, ns3::Ipv6PacketInfoTag, ns3::LrWpanLqiTag, ns3::EpsBearerTag, ns3::PdcpTag, ns3::LtePhyTag, ns3::LteRadioBearerTag, ns3::LteRlcSduStatusTag, ns3::RlcTag, ns3::dot11s::HwmpTag, ns3::flame::FlameTag, ns3::AnimByteTag, MyTag, ns3::SocketIpTtlTag, ns3::SocketIpv6HopLimitTag, ns3::SocketSetDontFragmentTag, ns3::SocketIpTosTag, ns3::SocketPriorityTag, ns3::SocketIpv6TclassTag, ns3::PacketSocketTag, ns3::DeviceNameTag, ns3::SimpleTag, ns3::TimestampTag, ns3::AmpduTag, ns3::MuSnrTag, and ns3::SnrTag.

Referenced by ns3::PacketTagList::Add(), ns3::Packet::AddByteTag(), and ns3::PacketTagList::ReplaceWriter().

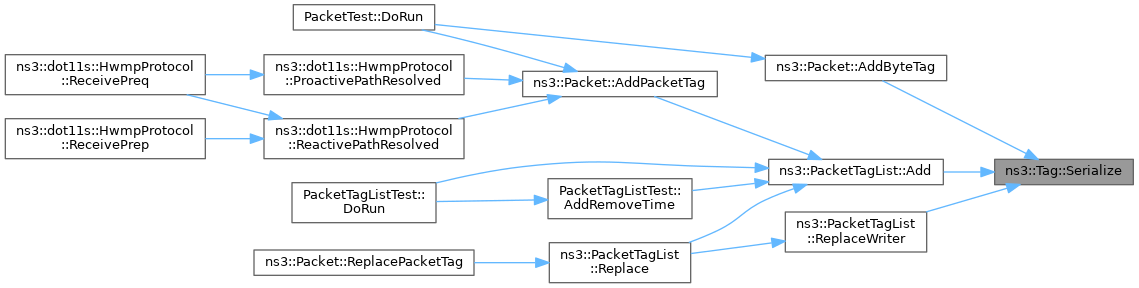

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/network/model/tag.h
• src/network/model/tag.cc
