Tag used by AODV implementation. More...
#include "introspected-doxygen.h"
Public Member Functions | |
DeferredRouteOutputTag (int32_t o=-1) | |
Constructor. | |
void | Deserialize (TagBuffer i) override |
TypeId | GetInstanceTypeId () const override |
Get the most derived TypeId for this Object. | |
int32_t | GetInterface () const |
Get the output interface. | |
uint32_t | GetSerializedSize () const override |
void | Print (std::ostream &os) const override |
void | Serialize (TagBuffer i) const override |
void | SetInterface (int32_t oif) |
Set the output interface. | |
virtual void | Deserialize (TagBuffer i)=0 |
virtual uint32_t | GetSerializedSize () const =0 |
virtual void | Print (std::ostream &os) const =0 |
virtual void | Serialize (TagBuffer i) const =0 |
![]() | |
virtual | ~ObjectBase () |
Virtual destructor. | |
void | GetAttribute (std::string name, AttributeValue &value) const |
Get the value of an attribute, raising fatal errors if unsuccessful. | |
bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
Get the value of an attribute without raising errors. | |
virtual TypeId | GetInstanceTypeId () const =0 |
Get the most derived TypeId for this Object. | |
void | SetAttribute (std::string name, const AttributeValue &value) |
Set a single attribute, raising fatal errors if unsuccessful. | |
bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
Set a single attribute without raising errors. | |
bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
Connect a TraceSource to a Callback with a context. | |
bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
Connect a TraceSource to a Callback without a context. | |
bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected with a context. | |
bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected without a context. | |
Static Public Member Functions | |
static TypeId | GetTypeId () |
Get the type ID. | |
![]() | |
static TypeId | GetTypeId () |
Get the type ID. | |
![]() | |
static TypeId | GetTypeId () |
Get the type ID. | |
Private Attributes | |
int32_t | m_oif |
Positive if output device is fixed in RouteOutput. | |
Additional Inherited Members | |
![]() | |
void | ConstructSelf (const AttributeConstructionList &attributes) |
Complete construction of ObjectBase; invoked by derived classes. | |
virtual void | NotifyConstructionCompleted () |
Notifier called once the ObjectBase is fully constructed. | |
![]() | |
static TypeId | GetObjectIid () |
Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. | |
Tag used by AODV implementation.
Introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 16 bytes (on a 64-bit architecture).
Definition at line 68 of file aodv-routing-protocol.cc.
|
inline |
Constructor.
o | the output interface |
Definition at line 75 of file aodv-routing-protocol.cc.
|
inlineoverridevirtual |
i | the buffer to read data from. |
Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.
Implements ns3::Tag.
Definition at line 127 of file aodv-routing-protocol.cc.
References m_oif, and ns3::TagBuffer::ReadU32().
|
inlineoverridevirtual |
Get the most derived TypeId for this Object.
This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.
Implements ns3::ObjectBase.
Definition at line 94 of file aodv-routing-protocol.cc.

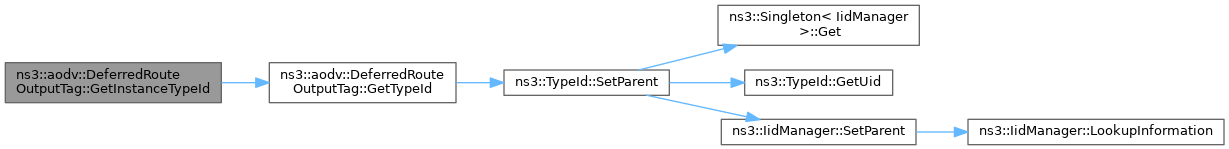

References GetTypeId().
|
inline |
Get the output interface.
Definition at line 103 of file aodv-routing-protocol.cc.
References m_oif.

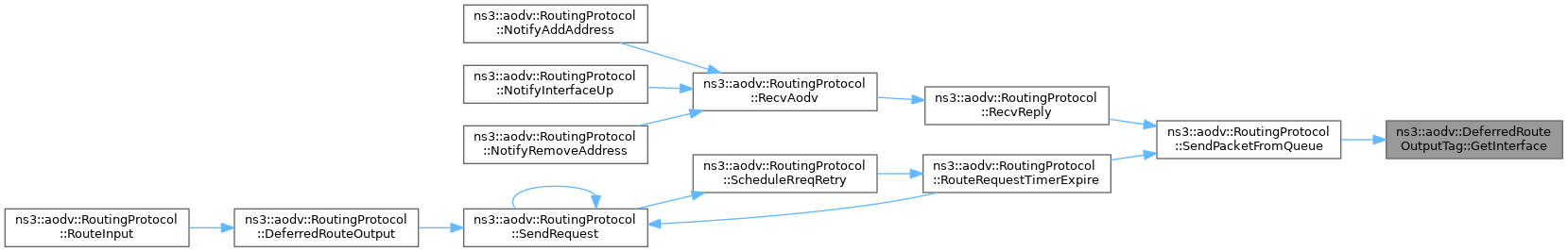

Referenced by ns3::aodv::RoutingProtocol::SendPacketFromQueue().
|
inlineoverridevirtual |
This method is typically invoked by Packet::AddPacketTag or Packet::AddByteTag just prior to calling Tag::Serialize.
Implements ns3::Tag.
Definition at line 117 of file aodv-routing-protocol.cc.
|
inlinestatic |
Get the type ID.
Definition at line 85 of file aodv-routing-protocol.cc.
References ns3::TypeId::SetParent().
Referenced by GetInstanceTypeId().
|
inlineoverridevirtual |
os | the stream to print to |
This method is typically invoked from the Packet::PrintByteTags or Packet::PrintPacketTags methods.
Implements ns3::Tag.
Definition at line 132 of file aodv-routing-protocol.cc.
References m_oif.
|
inlineoverridevirtual |
i | the buffer to write data into. |
Write the content of the tag in the provided tag buffer. DO NOT attempt to write more bytes than you requested with Tag::GetSerializedSize.
Implements ns3::Tag.
Definition at line 122 of file aodv-routing-protocol.cc.
References m_oif, and ns3::TagBuffer::WriteU32().
|
inline |
Set the output interface.
oif | the output interface |
Definition at line 112 of file aodv-routing-protocol.cc.
References m_oif.
|
private |
Positive if output device is fixed in RouteOutput.
Definition at line 139 of file aodv-routing-protocol.cc.
Referenced by Deserialize(), GetInterface(), Print(), Serialize(), and SetInterface().
