ns3::TcpOptionSack Class Reference

Defines the TCP option of kind 5 (selective acknowledgment option) as in RFC 2018 More...

#include "tcp-option-sack.h"

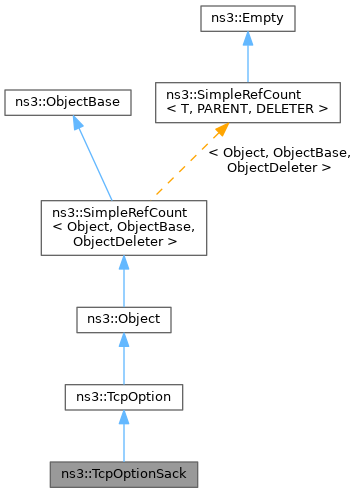

+ Inheritance diagram for ns3::TcpOptionSack:

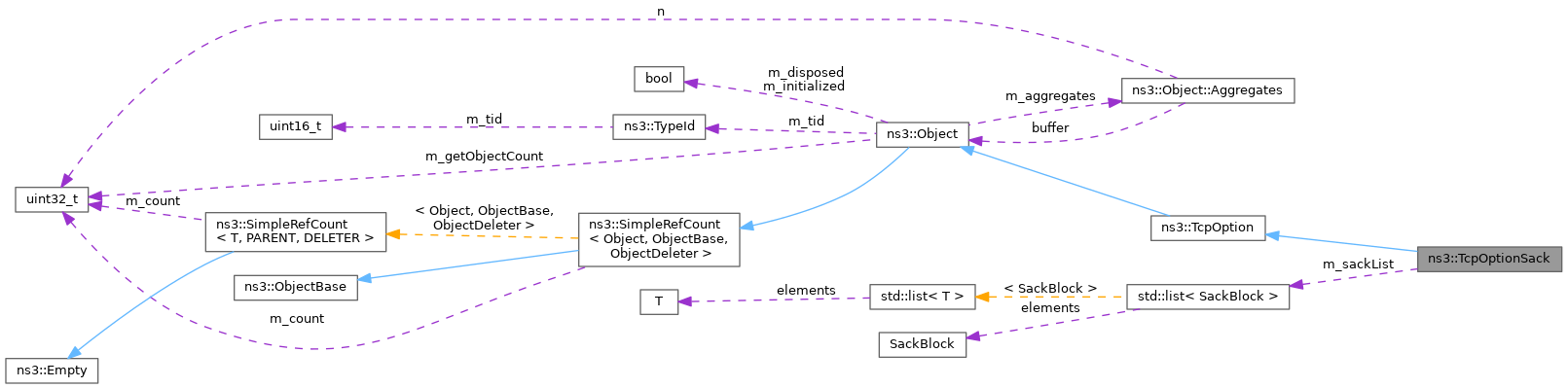

+ Collaboration diagram for ns3::TcpOptionSack:

Public Types

typedef std::pair< SequenceNumber32, SequenceNumber32SackBlock
 SACK block definition.

typedef std::list< SackBlockSackList
 SACK list definition.

- Public Types inherited from ns3::TcpOption
enum  Kind {
  END = 0 , NOP = 1 , MSS = 2 , WINSCALE = 3 ,
  SACKPERMITTED = 4 , SACK = 5 , TS = 8 , UNKNOWN = 255
}
 The option Kind, as defined in the respective RFCs. More...


Public Member Functions

 TcpOptionSack ()

 ~TcpOptionSack () override

void AddSackBlock (SackBlock s)
 Add a SACK block.

void ClearSackList ()
 Clear the SACK list.

uint32_t Deserialize (Buffer::Iterator start) override
 Deserialize the Option from a buffer iterator.

TypeId GetInstanceTypeId () const override
 Get the most derived TypeId for this Object.

uint8_t GetKind () const override
 Get the ‘kind’ (as in RFC 793) of this option.

uint32_t GetNumSackBlocks () const
 Count the total number of SACK blocks.

SackList GetSackList () const
 Get the SACK list.

uint32_t GetSerializedSize () const override
 Returns number of bytes required for Option serialization.

void Print (std::ostream &os) const override
 Print the Option contents.

void Serialize (Buffer::Iterator start) const override
 Serialize the Option to a buffer iterator.

- Public Member Functions inherited from ns3::TcpOption
 TcpOption ()

 ~TcpOption () override

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the Option from a buffer iterator.

TypeId GetInstanceTypeId () const override
 Get the most derived TypeId for this Object.

virtual uint8_t GetKind () const =0
 Get the ‘kind’ (as in RFC 793) of this option.

virtual uint32_t GetSerializedSize () const =0
 Returns number of bytes required for Option serialization.

virtual void Print (std::ostream &os) const =0
 Print the Option contents.

virtual void Serialize (Buffer::Iterator start) const =0
 Serialize the Option to a buffer iterator.

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor.

 ~Object () override
 Destructor.

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together.

void Dispose ()
 Dispose of this Object.

AggregateIterator GetAggregateIterator () const
 Get an iterator to the Objects aggregated to this one.

TypeId GetInstanceTypeId () const override
 Get the most derived TypeId for this Object.

template<typename T >
Ptr< T > GetObject () const
 Get a pointer to the requested aggregated Object.

template<>
Ptr< ObjectGetObject () const
 Specialization of () for objects of type ns3::Object.

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId.

template<>
Ptr< ObjectGetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object.

void Initialize ()
 Invoke DoInitialize on all Objects aggregated to this one.

bool IsInitialized () const
 Check if the object has been initialized.

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor.

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor.

uint32_t GetReferenceCount () const
 Get the reference count of the object.

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator.

void Ref () const
 Increment the reference count.

void Unref () const
 Decrement the reference count.

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor.

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful.

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising errors.

virtual TypeId GetInstanceTypeId () const =0
 Get the most derived TypeId for this Object.

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful.

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors.

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context.

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context.

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context.

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context.


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::TcpOption
static Ptr< TcpOptionCreateOption (uint8_t kind)
 Creates an option.

static TypeId GetTypeId ()
 Get the type ID.

static bool IsKindKnown (uint8_t kind)
 Check if the option is implemented.

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId ()
 Register this type.

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId ()
 Get the type ID.


Protected Attributes

SackList m_sackList
 the list of SACK blocks


Friends

std::ostream & operator<< (std::ostream &os, const TcpOptionSack &sackOption)
 Output operator.


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object.

virtual void DoDispose ()
 Destructor implementation.

virtual void DoInitialize ()
 Initialize() implementation.

virtual void NotifyNewAggregate ()
 Notify all Objects aggregated to this one of a new Object being aggregated.

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes.

virtual void NotifyConstructionCompleted ()
 Notifier called once the ObjectBase is fully constructed.


Detailed Description

Defines the TCP option of kind 5 (selective acknowledgment option) as in RFC 2018

Introspection did not find any typical Config paths.

TCP SACK Option is used by a receiver to report non-contiguous blocks of data that have been received and queued in the receiving buffer. Using the information conveyed in SACK option sender retransmits only the segments that have actually been lost, allowing the recovery of multiple packet losses per sending window.

Each SACK block is defined by two 32-bit unsigned integers specifying the left and the right edge of the block. It means that with the 40-byte TCP option limitation in addition to the presence of TCP Timestamp Option, the maximum number of SACK blocks that can be appended to each segment is 3.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 48 bytes (on a 64-bit architecture).

Definition at line 49 of file tcp-option-sack.h.

Member Typedef Documentation

◆ SackBlock

SACK block definition.

Definition at line 59 of file tcp-option-sack.h.

◆ SackList

SACK list definition.

Definition at line 60 of file tcp-option-sack.h.

Constructor & Destructor Documentation

◆ TcpOptionSack()

ns3::TcpOptionSack::TcpOptionSack ( )

Definition at line 36 of file tcp-option-sack.cc.

◆ ~TcpOptionSack()

ns3::TcpOptionSack::~TcpOptionSack ( )
override

Definition at line 41 of file tcp-option-sack.cc.

Member Function Documentation

◆ AddSackBlock()

void ns3::TcpOptionSack::AddSackBlock ( SackBlock  s)

Add a SACK block.

Parameters
sthe SACK block to be added

Definition at line 132 of file tcp-option-sack.cc.

References m_sackList, and NS_LOG_FUNCTION.

Referenced by Deserialize().

+ Here is the caller graph for this function:

◆ ClearSackList()

void ns3::TcpOptionSack::ClearSackList ( )

Clear the SACK list.

Definition at line 147 of file tcp-option-sack.cc.

References m_sackList.

◆ Deserialize()

uint32_t ns3::TcpOptionSack::Deserialize ( Buffer::Iterator  start)
overridevirtual

Deserialize the Option from a buffer iterator.

Parameters
startthe buffer iterator
Returns
the number of deserialized bytes

Implements ns3::TcpOption.

Definition at line 98 of file tcp-option-sack.cc.

References AddSackBlock(), GetKind(), GetSerializedSize(), m_sackList, NS_LOG_FUNCTION, NS_LOG_LOGIC, NS_LOG_WARN, ns3::Buffer::Iterator::ReadNtohU32(), and ns3::Buffer::Iterator::ReadU8().

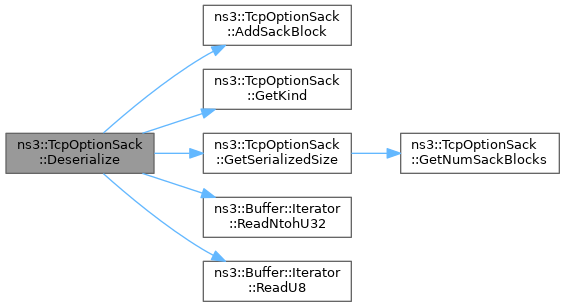

+ Here is the call graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::TcpOptionSack::GetInstanceTypeId ( ) const
overridevirtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Reimplemented from ns3::Object.

Definition at line 56 of file tcp-option-sack.cc.

References GetTypeId().

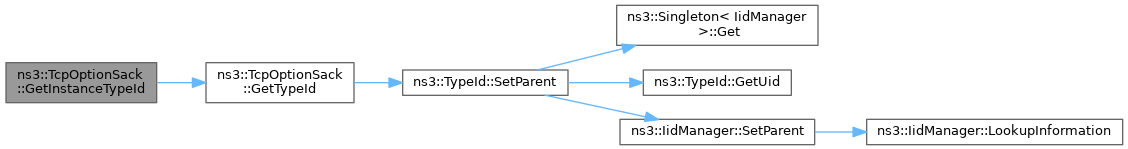

+ Here is the call graph for this function:

◆ GetKind()

uint8_t ns3::TcpOptionSack::GetKind ( ) const
overridevirtual

Get the ‘kind’ (as in RFC 793) of this option.

Returns
the Option Kind

Implements ns3::TcpOption.

Definition at line 126 of file tcp-option-sack.cc.

References ns3::TcpOption::SACK.

Referenced by Deserialize(), and Serialize().

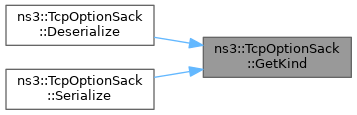

+ Here is the caller graph for this function:

◆ GetNumSackBlocks()

uint32_t ns3::TcpOptionSack::GetNumSackBlocks ( ) const

Count the total number of SACK blocks.

Returns
the total number of SACK blocks

Definition at line 139 of file tcp-option-sack.cc.

References m_sackList, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by GetSerializedSize(), Print(), and Serialize().

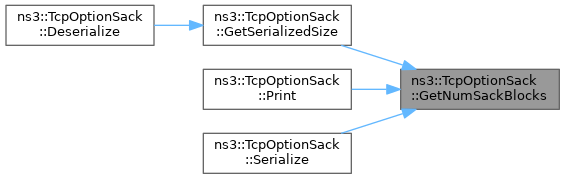

+ Here is the caller graph for this function:

◆ GetSackList()

TcpOptionSack::SackList ns3::TcpOptionSack::GetSackList ( ) const

Get the SACK list.

Returns
the SACK list

Definition at line 153 of file tcp-option-sack.cc.

References m_sackList, and NS_LOG_FUNCTION.

◆ GetSerializedSize()

uint32_t ns3::TcpOptionSack::GetSerializedSize ( ) const
overridevirtual

Returns number of bytes required for Option serialization.

Returns
number of bytes required for Option serialization

Implements ns3::TcpOption.

Definition at line 72 of file tcp-option-sack.cc.

References GetNumSackBlocks(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by Deserialize().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::TcpOptionSack::GetTypeId ( )
static

Get the type ID.

Returns
the object TypeId

Definition at line 46 of file tcp-option-sack.cc.

References ns3::TypeId::SetParent().

Referenced by ns3::TcpOption::CreateOption(), and GetInstanceTypeId().

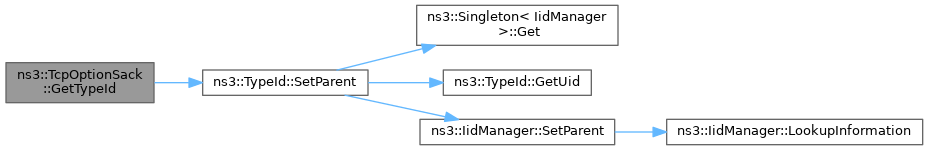

+ Here is the call graph for this function:

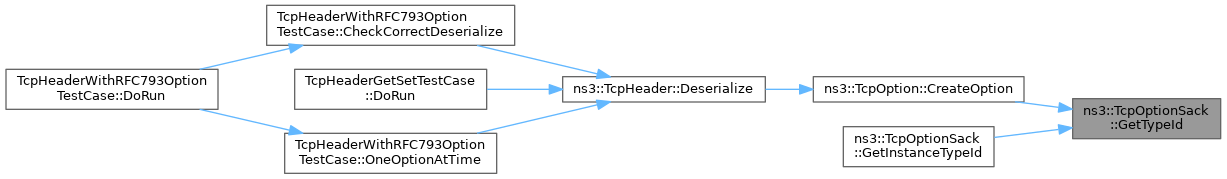

+ Here is the caller graph for this function:

◆ Print()

void ns3::TcpOptionSack::Print ( std::ostream &  os) const
overridevirtual

Print the Option contents.

Parameters
osthe output stream

Implements ns3::TcpOption.

Definition at line 62 of file tcp-option-sack.cc.

References GetNumSackBlocks(), and m_sackList.

+ Here is the call graph for this function:

◆ Serialize()

void ns3::TcpOptionSack::Serialize ( Buffer::Iterator  start) const
overridevirtual

Serialize the Option to a buffer iterator.

Parameters
startthe buffer iterator

Implements ns3::TcpOption.

Definition at line 80 of file tcp-option-sack.cc.

References GetKind(), GetNumSackBlocks(), ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::GetValue(), m_sackList, NS_LOG_FUNCTION, ns3::Buffer::Iterator::WriteHtonU32(), and ns3::Buffer::Iterator::WriteU8().

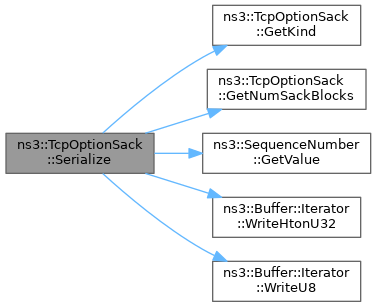

+ Here is the call graph for this function:

Friends And Related Function Documentation

◆ operator<<

std::ostream & operator<< ( std::ostream &  os,
const TcpOptionSack sackOption
)
friend

Output operator.

Parameters
osThe output stream.
sackOptionthe option to print.
Returns
The output stream.

Definition at line 159 of file tcp-option-sack.cc.

Member Data Documentation

◆ m_sackList

SackList ns3::TcpOptionSack::m_sackList
protected

the list of SACK blocks

Definition at line 98 of file tcp-option-sack.h.

Referenced by AddSackBlock(), ClearSackList(), Deserialize(), GetNumSackBlocks(), GetSackList(), Print(), and Serialize().


The documentation for this class was generated from the following files:
