LteEpcE2eDataTestCase Class Reference

Test that e2e packet flow is correct. More...

+ Inheritance diagram for LteEpcE2eDataTestCase:
+ Collaboration diagram for LteEpcE2eDataTestCase:

Public Member Functions

 LteEpcE2eDataTestCase (std::string name, std::vector< EnbTestData > v)
 Constructor.

 ~LteEpcE2eDataTestCase () override

- Public Member Functions inherited from ns3::TestCase
 TestCase (const TestCase &)=delete

virtual ~TestCase ()
 Destructor.

std::string GetName () const

TestCaseoperator= (const TestCase &)=delete


Private Member Functions

void DoRun () override
 Implementation to actually run this TestCase.


Private Attributes

std::vector< EnbTestDatam_enbTestData
 the ENB test data


Additional Inherited Members

- Public Types inherited from ns3::TestCase
enum  TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
 How long the test takes to execute. More...

- Protected Member Functions inherited from ns3::TestCase
 TestCase (std::string name)
 Constructor.

void AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
 Add an individual child TestCase to this test suite.

TestCaseGetParent () const
 Get the parent of this TestCase.

bool IsStatusFailure () const
 Check if any tests failed.

bool IsStatusSuccess () const
 Check if all tests passed.

void SetDataDir (std::string directory)
 Set the data directory where reference trace files can be found.

void ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
 Log the failure of this TestCase.

bool MustAssertOnFailure () const
 Check if this run should assert on failure.

bool MustContinueOnFailure () const
 Check if this run should continue on failure.

std::string CreateDataDirFilename (std::string filename)
 Construct the full path to a file in the data directory.

std::string CreateTempDirFilename (std::string filename)
 Construct the full path to a file in a temporary directory.


Detailed Description

Test that e2e packet flow is correct.

Compares the data send and the data received. Test uses mostly the PDCP stats to check the performance.

Definition at line 98 of file test-lte-epc-e2e-data.cc.

Constructor & Destructor Documentation

◆ LteEpcE2eDataTestCase()

LteEpcE2eDataTestCase::LteEpcE2eDataTestCase ( std::string  name,
std::vector< EnbTestData v
)

Constructor.

Parameters
namethe reference name
vthe ENB test data

Definition at line 115 of file test-lte-epc-e2e-data.cc.

References NS_LOG_FUNCTION.

◆ ~LteEpcE2eDataTestCase()

LteEpcE2eDataTestCase::~LteEpcE2eDataTestCase ( )
override

Definition at line 122 of file test-lte-epc-e2e-data.cc.

Member Function Documentation

◆ DoRun()

void LteEpcE2eDataTestCase::DoRun ( )
overrideprivatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 127 of file test-lte-epc-e2e-data.cc.

References ns3::Ipv4AddressHelper::Assign(), ns3::NetDeviceContainer::Begin(), ns3::NodeContainer::Create(), ns3::TestCase::CreateTempDirFilename(), ns3::Simulator::Destroy(), BearerTestData::dlClientApp, BearerTestData::dlServerApp, ns3::NetDeviceContainer::End(), ns3::ApplicationContainer::Get(), ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::Ipv4InterfaceContainer::GetAddress(), ns3::Ipv4Address::GetAny(), ns3::NodeContainer::GetN(), ns3::TestCase::GetName(), ns3::Object::GetObject(), ns3::Ipv4StaticRoutingHelper::GetStaticRouting(), ns3::PointToPointHelper::Install(), ns3::MobilityHelper::Install(), BearerTestData::interPacketInterval, ns3::EpcTft::PacketFilter::localPortEnd, ns3::EpcTft::PacketFilter::localPortStart, m_enbTestData, ns3::EpsBearer::NGBR_VOICE_VIDEO_GAMING, NS_ABORT_IF, NS_LOG_FUNCTION, NS_TEST_ASSERT_MSG_EQ, BearerTestData::numPkts, BearerTestData::pktSize, ns3::EpcTft::PacketFilter::remotePortEnd, ns3::EpcTft::PacketFilter::remotePortStart, ns3::Config::Reset(), ns3::Simulator::Run(), ns3::Seconds(), ns3::Config::Set(), ns3::Ipv4AddressHelper::SetBase(), ns3::PointToPointHelper::SetChannelAttribute(), ns3::Config::SetDefault(), ns3::PointToPointHelper::SetDeviceAttribute(), ns3::MobilityHelper::SetMobilityModel(), ns3::MobilityHelper::SetPositionAllocator(), ns3::ApplicationContainer::Start(), ns3::Simulator::Stop(), BearerTestData::ulClientApp, and BearerTestData::ulServerApp.

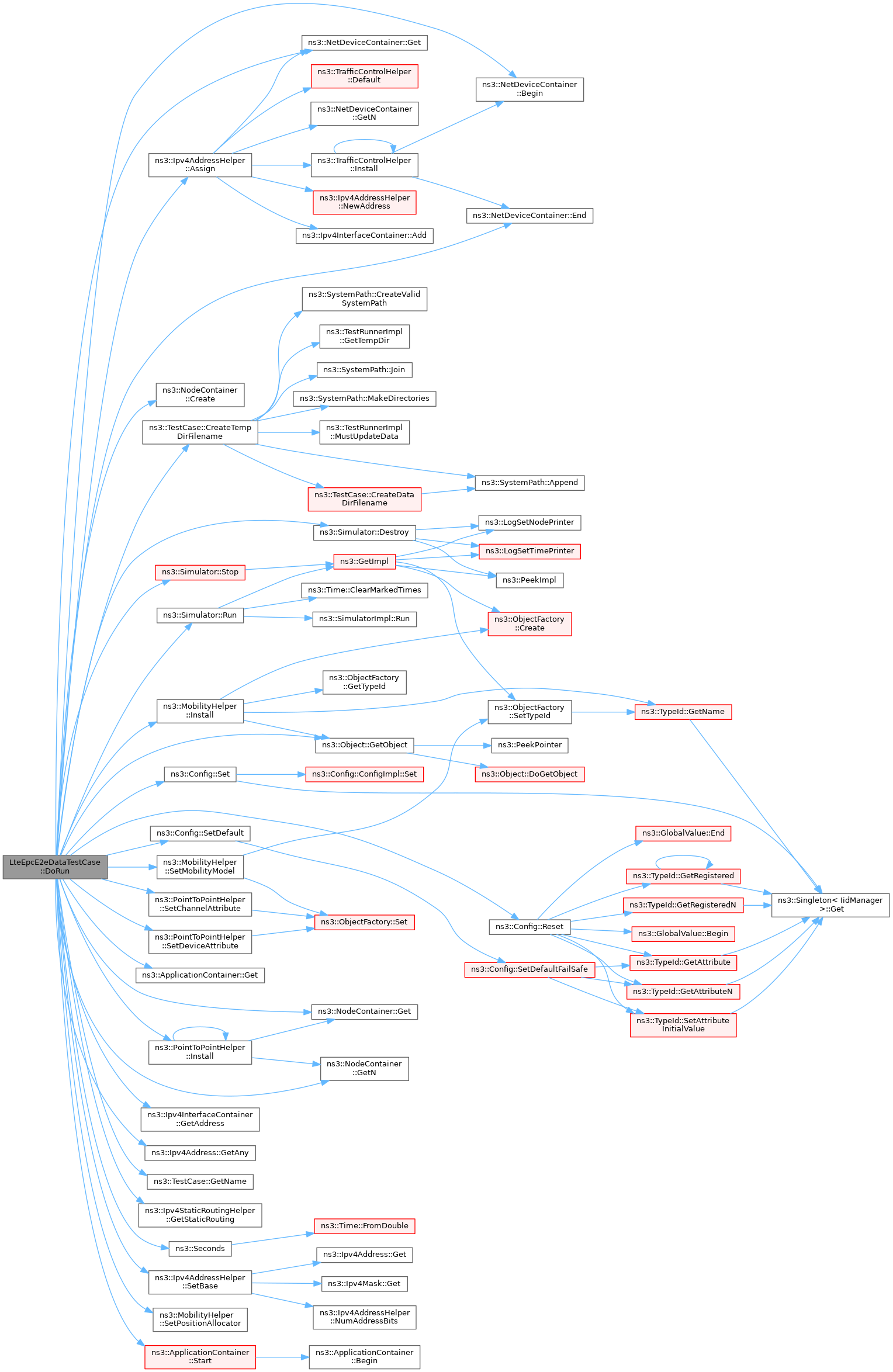

+ Here is the call graph for this function:

Member Data Documentation

◆ m_enbTestData

std::vector<EnbTestData> LteEpcE2eDataTestCase::m_enbTestData
private

the ENB test data

Definition at line 112 of file test-lte-epc-e2e-data.cc.

Referenced by DoRun().


The documentation for this class was generated from the following file:
