spectrum-aware propagation loss model that is compatible with PhasedArrayModel type of ns-3 antenna More...
#include "phased-array-spectrum-propagation-loss-model.h"
Public Member Functions | |
PhasedArraySpectrumPropagationLossModel () | |
~PhasedArraySpectrumPropagationLossModel () override | |
Ptr< SpectrumValue > | CalcRxPowerSpectralDensity (Ptr< const SpectrumSignalParameters > txPsd, Ptr< const MobilityModel > a, Ptr< const MobilityModel > b, Ptr< const PhasedArrayModel > aPhasedArrayModel, Ptr< const PhasedArrayModel > bPhasedArrayModel) const |
This method is to be called to calculate. | |
void | SetNext (Ptr< PhasedArraySpectrumPropagationLossModel > next) |
Used to chain various instances of PhasedArraySpectrumPropagationLossModel. | |
![]() | |
Object () | |
Constructor. | |
~Object () override | |
Destructor. | |
void | AggregateObject (Ptr< Object > other) |
Aggregate two Objects together. | |
void | Dispose () |
Dispose of this Object. | |
AggregateIterator | GetAggregateIterator () const |
Get an iterator to the Objects aggregated to this one. | |
TypeId | GetInstanceTypeId () const override |
Get the most derived TypeId for this Object. | |
template<typename T > | |
Ptr< T > | GetObject () const |
Get a pointer to the requested aggregated Object. | |
template<> | |
Ptr< Object > | GetObject () const |
Specialization of () for objects of type ns3::Object. | |
template<typename T > | |
Ptr< T > | GetObject (TypeId tid) const |
Get a pointer to the requested aggregated Object by TypeId. | |
template<> | |
Ptr< Object > | GetObject (TypeId tid) const |
Specialization of (TypeId tid) for objects of type ns3::Object. | |
void | Initialize () |
Invoke DoInitialize on all Objects aggregated to this one. | |
bool | IsInitialized () const |
Check if the object has been initialized. | |
![]() | |
SimpleRefCount () | |
Default constructor. | |
SimpleRefCount (const SimpleRefCount &o) | |
Copy constructor. | |
uint32_t | GetReferenceCount () const |
Get the reference count of the object. | |
SimpleRefCount & | operator= (const SimpleRefCount &o) |
Assignment operator. | |
void | Ref () const |
Increment the reference count. | |
void | Unref () const |
Decrement the reference count. | |
![]() | |
virtual | ~ObjectBase () |
Virtual destructor. | |
void | GetAttribute (std::string name, AttributeValue &value) const |
Get the value of an attribute, raising fatal errors if unsuccessful. | |
bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
Get the value of an attribute without raising errors. | |
virtual TypeId | GetInstanceTypeId () const =0 |
Get the most derived TypeId for this Object. | |
void | SetAttribute (std::string name, const AttributeValue &value) |
Set a single attribute, raising fatal errors if unsuccessful. | |
bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
Set a single attribute without raising errors. | |
bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
Connect a TraceSource to a Callback with a context. | |
bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
Connect a TraceSource to a Callback without a context. | |
bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected with a context. | |
bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected without a context. | |
Static Public Member Functions | |
static TypeId | GetTypeId () |
Get the type ID. | |
![]() | |
static TypeId | GetTypeId () |
Register this type. | |
![]() | |
static TypeId | GetTypeId () |
Get the type ID. | |
Protected Member Functions | |
void | DoDispose () override |
Destructor implementation. | |
![]() | |
Object (const Object &o) | |
Copy an Object. | |
virtual void | DoDispose () |
Destructor implementation. | |
virtual void | DoInitialize () |
Initialize() implementation. | |
virtual void | NotifyNewAggregate () |
Notify all Objects aggregated to this one of a new Object being aggregated. | |
![]() | |
void | ConstructSelf (const AttributeConstructionList &attributes) |
Complete construction of ObjectBase; invoked by derived classes. | |
virtual void | NotifyConstructionCompleted () |
Notifier called once the ObjectBase is fully constructed. | |
Private Member Functions | |
virtual Ptr< SpectrumValue > | DoCalcRxPowerSpectralDensity (Ptr< const SpectrumSignalParameters > params, Ptr< const MobilityModel > a, Ptr< const MobilityModel > b, Ptr< const PhasedArrayModel > aPhasedArrayModel, Ptr< const PhasedArrayModel > bPhasedArrayModel) const =0 |
Private Attributes | |
Ptr< PhasedArraySpectrumPropagationLossModel > | m_next |
PhasedArraySpectrumPropagationLossModel chained to this one. | |
Additional Inherited Members | |
![]() | |
static TypeId | GetObjectIid () |
Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. | |
spectrum-aware propagation loss model that is compatible with PhasedArrayModel type of ns-3 antenna
Introspection did not find any typical Config paths.
Interface for propagation loss models to be adopted when transmissions are modeled with a power spectral density by means of the SpectrumValue class, and when PhasedArrayModel type of atenna is being used for TX and RX.
No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 40 bytes (on a 64-bit architecture).
Definition at line 44 of file phased-array-spectrum-propagation-loss-model.h.
ns3::PhasedArraySpectrumPropagationLossModel::PhasedArraySpectrumPropagationLossModel | ( | ) |
Definition at line 32 of file phased-array-spectrum-propagation-loss-model.cc.
|
override |
Definition at line 37 of file phased-array-spectrum-propagation-loss-model.cc.
Ptr< SpectrumValue > ns3::PhasedArraySpectrumPropagationLossModel::CalcRxPowerSpectralDensity | ( | Ptr< const SpectrumSignalParameters > | txPsd, |
Ptr< const MobilityModel > | a, | ||
Ptr< const MobilityModel > | b, | ||
Ptr< const PhasedArrayModel > | aPhasedArrayModel, | ||
Ptr< const PhasedArrayModel > | bPhasedArrayModel | ||
) | const |
This method is to be called to calculate.
txPsd | the spectrum signal parameters. |
a | sender mobility |
b | receiver mobility |
aPhasedArrayModel | the instance of the phased antenna array of the sender |
bPhasedArrayModel | the instance of the phased antenna array of the receiver |
Definition at line 63 of file phased-array-spectrum-propagation-loss-model.cc.
References DoCalcRxPowerSpectralDensity(), and m_next.
Referenced by ComputeSnr().
|
privatepure virtual |
params | the spectrum signal parameters. |
a | sender mobility |
b | receiver mobility |
aPhasedArrayModel | the instance of the phased antenna array of the sender |
bPhasedArrayModel | the instance of the phased antenna array of the receiver |
Implemented in ns3::ThreeGppSpectrumPropagationLossModel, and ns3::TwoRaySpectrumPropagationLossModel.
Referenced by CalcRxPowerSpectralDensity().
|
overrideprotectedvirtual |
Destructor implementation.
This method is called by Dispose() or by the Object's destructor, whichever comes first.
Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.
It is safe to call GetObject() from within this method.
Reimplemented from ns3::Object.
Reimplemented in ns3::ThreeGppSpectrumPropagationLossModel, and ns3::TwoRaySpectrumPropagationLossModel.
Definition at line 42 of file phased-array-spectrum-propagation-loss-model.cc.
References m_next.
|

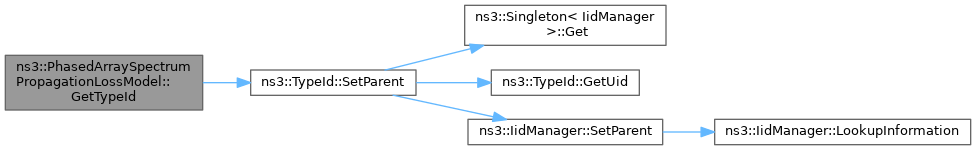

static |
Get the type ID.
Definition at line 48 of file phased-array-spectrum-propagation-loss-model.cc.
References ns3::TypeId::SetParent().
void ns3::PhasedArraySpectrumPropagationLossModel::SetNext | ( | Ptr< PhasedArraySpectrumPropagationLossModel > | next | ) |
Used to chain various instances of PhasedArraySpectrumPropagationLossModel.
next |
Definition at line 57 of file phased-array-spectrum-propagation-loss-model.cc.
References m_next.
|
private |
PhasedArraySpectrumPropagationLossModel chained to this one.
Definition at line 105 of file phased-array-spectrum-propagation-loss-model.h.
Referenced by CalcRxPowerSpectralDensity(), DoDispose(), and SetNext().
