#include "lte-ccm-rrc-sap.h"

Inheritance diagram for ns3::MemberLteCcmRrcSapUser< C >:

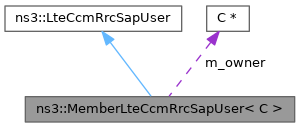

Collaboration diagram for ns3::MemberLteCcmRrcSapUser< C >:

Public Member Functions
	MemberLteCcmRrcSapUser (C *owner)
	Constructor.

void	AddLcs (std::vector< LteEnbRrcSapProvider::LogicalChannelConfig > lcConfig) override
	add a new Logical Channel (LC)

uint8_t	AddUeMeasReportConfigForComponentCarrier (LteRrcSap::ReportConfigEutra reportConfig) override
	Request a certain reporting configuration to be fulfilled by the UEs attached to the eNodeB entity.

Ptr< UeManager >	GetUeManager (uint16_t rnti) override
	Get UE manager by RNTI.

void	ReleaseLcs (uint16_t rnti, uint8_t lcid) override
	remove an existing LC

void	SetNumberOfComponentCarriers (uint16_t noOfComponentCarriers) override
	Set the number of component carriers.

void	TriggerComponentCarrier (uint16_t rnti, uint16_t targetCellId) override
	Instruct the eNodeB RRC entity to prepare a component carrier.

Public Member Functions inherited from ns3::LteCcmRrcSapUser
virtual	~LteCcmRrcSapUser ()

virtual void	AddLcs (std::vector< LteEnbRrcSapProvider::LogicalChannelConfig > lcConfig)=0
	add a new Logical Channel (LC)

virtual uint8_t	AddUeMeasReportConfigForComponentCarrier (LteRrcSap::ReportConfigEutra reportConfig)=0
	Request a certain reporting configuration to be fulfilled by the UEs attached to the eNodeB entity.

virtual Ptr< UeManager >	GetUeManager (uint16_t rnti)=0
	Get UE manager by RNTI.

virtual void	ReleaseLcs (uint16_t rnti, uint8_t lcid)=0
	remove an existing LC

virtual void	SetNumberOfComponentCarriers (uint16_t noOfComponentCarriers)=0
	Set the number of component carriers.

virtual void	TriggerComponentCarrier (uint16_t rnti, uint16_t targetCellId)=0
	Instruct the eNodeB RRC entity to prepare a component carrier.

Private Attributes
C *	m_owner
	the owner class

Detailed Description

template<class C>
class ns3::MemberLteCcmRrcSapUser< C >

MemberLteCcmRrcSapUser class.

Definition at line 324 of file lte-ccm-rrc-sap.h.

Constructor & Destructor Documentation

◆ MemberLteCcmRrcSapUser()

template<class C >

ns3::MemberLteCcmRrcSapUser< C >::MemberLteCcmRrcSapUser ( C * owner )

Constructor.

Parameters

owner the owner class

Definition at line 348 of file lte-ccm-rrc-sap.h.

Member Function Documentation

◆ AddLcs()

template<class C >

void ns3::MemberLteCcmRrcSapUser< C >::AddLcs ( std::vector< LteEnbRrcSapProvider::LogicalChannelConfig > lcConfig )

overridevirtual

add a new Logical Channel (LC)

Parameters

lcConfig is a single structure contains logical Channel Id, Logical Channel config and Component Carrier Id

Implements ns3::LteCcmRrcSapUser.

Definition at line 355 of file lte-ccm-rrc-sap.h.

References NS_FATAL_ERROR.

◆ AddUeMeasReportConfigForComponentCarrier()

template<class C >

uint8_t ns3::MemberLteCcmRrcSapUser< C >::AddUeMeasReportConfigForComponentCarrier ( LteRrcSap::ReportConfigEutra reportConfig )

overridevirtual

Request a certain reporting configuration to be fulfilled by the UEs attached to the eNodeB entity.

Parameters

reportConfig the UE measurement reporting configuration

Returns: the measurement identity associated with this newly added reporting configuration

The eNodeB RRC entity is expected to configure the same reporting configuration in each of the attached UEs. When later in the simulation a UE measurement report is received from a UE as a result of this configuration, the eNodeB RRC entity shall forward this report to the ComponentCarrier algorithm through the LteCcmRrcSapProvider::ReportUeMeas SAP function.

Note: This function is only valid before the simulation begins.

Implements ns3::LteCcmRrcSapUser.

Definition at line 371 of file lte-ccm-rrc-sap.h.

◆ GetUeManager()

template<class C >

Ptr< UeManager > ns3::MemberLteCcmRrcSapUser< C >::GetUeManager ( uint16_t rnti )

overridevirtual

Get UE manager by RNTI.

Parameters

rnti RNTI

Returns: UE manager

Implements ns3::LteCcmRrcSapUser.

Definition at line 386 of file lte-ccm-rrc-sap.h.

◆ ReleaseLcs()

template<class C >

void ns3::MemberLteCcmRrcSapUser< C >::ReleaseLcs	(	uint16_t	rnti,
		uint8_t	lcid
	)

overridevirtual

remove an existing LC

Parameters

rnti
lcid

Implements ns3::LteCcmRrcSapUser.

Definition at line 363 of file lte-ccm-rrc-sap.h.

References NS_FATAL_ERROR.

◆ SetNumberOfComponentCarriers()

template<class C >

void ns3::MemberLteCcmRrcSapUser< C >::SetNumberOfComponentCarriers ( uint16_t noOfComponentCarriers )

overridevirtual

Set the number of component carriers.

Parameters

noOfComponentCarriers The number of component carriers

Implements ns3::LteCcmRrcSapUser.

Definition at line 393 of file lte-ccm-rrc-sap.h.

◆ TriggerComponentCarrier()

template<class C >

void ns3::MemberLteCcmRrcSapUser< C >::TriggerComponentCarrier	(	uint16_t	rnti,
		uint16_t	targetCellId
	)

overridevirtual

Instruct the eNodeB RRC entity to prepare a component carrier.

Parameters

rnti	Radio Network Temporary Identity, an integer identifying the UE which shall perform the ComponentCarrier
targetCellId	the cell ID of the target eNodeB

This function is used by the ComponentCarrier manager when a decision on component carriers configurations.

The process to produce the decision is up to the implementation of ComponentCarrier algorithm. It is typically based on the reported UE measurements, which are received through the LteCcmRrcSapProvider::ReportUeMeas function.

Implements ns3::LteCcmRrcSapUser.

Definition at line 379 of file lte-ccm-rrc-sap.h.

References NS_FATAL_ERROR.
