ns3::PbbAddressBlock Class Referenceabstract

An Address Block and its associated Address TLV Blocks. More...

#include "packetbb.h"

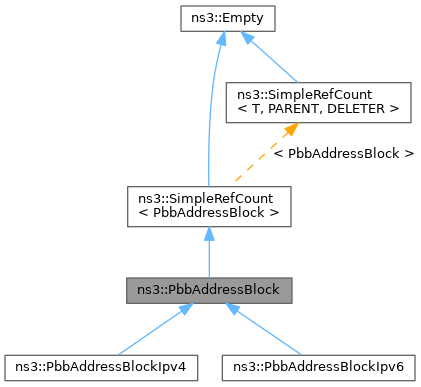

+ Inheritance diagram for ns3::PbbAddressBlock:

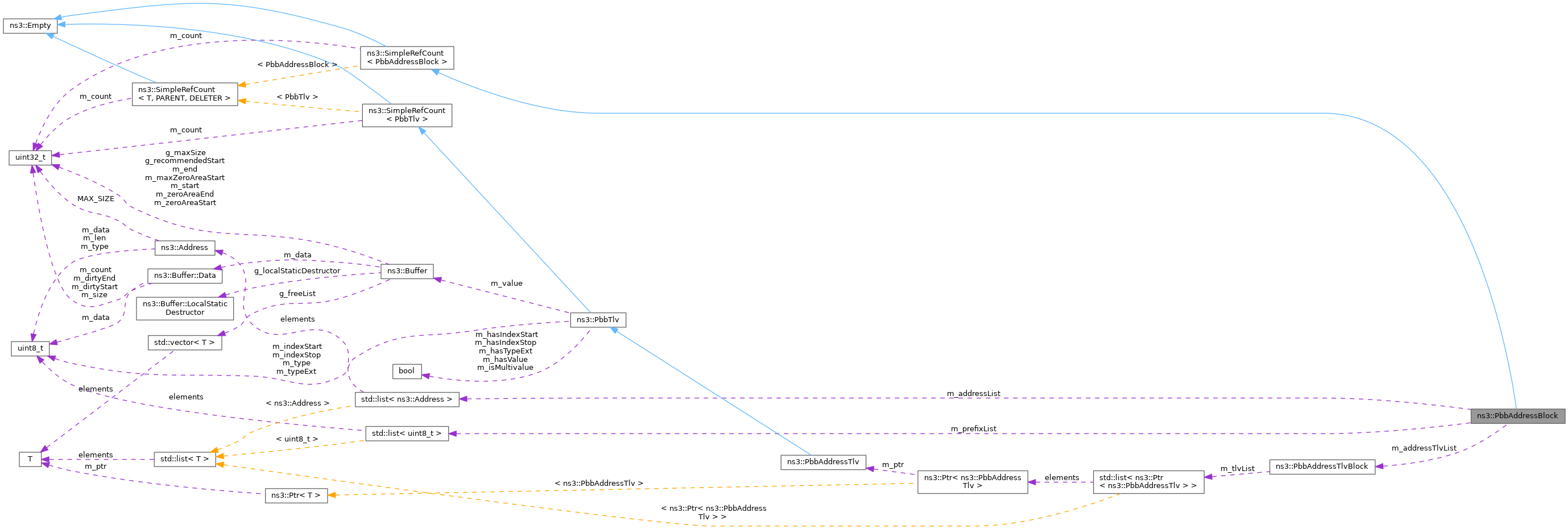

+ Collaboration diagram for ns3::PbbAddressBlock:

Public Types

typedef std::list< Address >::iterator AddressIterator
 Address iterator.

typedef std::list< Address >::const_iterator ConstAddressIterator
 Address const iterator.

typedef std::list< uint8_t >::const_iterator ConstPrefixIterator
 Prefix const iterator.

typedef PbbAddressTlvBlock::ConstIterator ConstTlvIterator
 tlvblock const iterator

typedef std::list< uint8_t >::iterator PrefixIterator
 Prefix iterator.

typedef PbbAddressTlvBlock::Iterator TlvIterator
 tlvblock iterator


Public Member Functions

 PbbAddressBlock ()

virtual ~PbbAddressBlock ()

Address AddressBack () const

AddressIterator AddressBegin ()

ConstAddressIterator AddressBegin () const

void AddressClear ()
 Removes all addresses from this block.

bool AddressEmpty () const

AddressIterator AddressEnd ()

ConstAddressIterator AddressEnd () const

AddressIterator AddressErase (AddressIterator first, AddressIterator last)
 Removes all addresses from [first, last) (includes first, not includes last).

AddressIterator AddressErase (AddressIterator position)
 Removes the address at the specified position.

Address AddressFront () const

AddressIterator AddressInsert (AddressIterator position, const Address value)
 Inserts an address at the specified position in this block.

void AddressPopBack ()
 Removes an address from the back of this block.

void AddressPopFront ()
 Removes an address from the front of this block.

void AddressPushBack (Address address)
 Appends an address to the back of this block.

void AddressPushFront (Address address)
 Prepends an address to the front of this block.

int AddressSize () const

void Deserialize (Buffer::Iterator &start)
 Deserializes an address block from the specified buffer.

uint32_t GetSerializedSize () const

bool operator!= (const PbbAddressBlock &other) const
 Inequality operator for PbbAddressBlock.

bool operator== (const PbbAddressBlock &other) const
 Equality operator for PbbAddressBlock.

uint8_t PrefixBack () const

PrefixIterator PrefixBegin ()

ConstPrefixIterator PrefixBegin () const

void PrefixClear ()
 Removes all prefixes from this block.

bool PrefixEmpty () const

PrefixIterator PrefixEnd ()

ConstPrefixIterator PrefixEnd () const

PrefixIterator PrefixErase (PrefixIterator first, PrefixIterator last)
 Removes all prefixes from [first, last) (includes first, not includes last).

PrefixIterator PrefixErase (PrefixIterator position)
 Removes the prefix at the specified position.

uint8_t PrefixFront () const

PrefixIterator PrefixInsert (PrefixIterator position, const uint8_t value)
 Inserts a prefix at the specified position in this block.

void PrefixPopBack ()
 Removes a prefix from the back of this block.

void PrefixPopFront ()
 Removes a prefix from the front of this block.

void PrefixPushBack (uint8_t prefix)
 Appends a prefix to the back of this block.

void PrefixPushFront (uint8_t prefix)
 Prepends a prefix to the front of this block.

int PrefixSize () const

void Print (std::ostream &os) const
 Pretty-prints the contents of this address block.

void Print (std::ostream &os, int level) const
 Pretty-prints the contents of this address block, with specified indentation.

void Serialize (Buffer::Iterator &start) const
 Serializes this address block into the specified buffer.

Ptr< PbbAddressTlvTlvBack ()

const Ptr< PbbAddressTlvTlvBack () const

TlvIterator TlvBegin ()

ConstTlvIterator TlvBegin () const

void TlvClear ()
 Removes all address TLVs from this block.

bool TlvEmpty () const

TlvIterator TlvEnd ()

ConstTlvIterator TlvEnd () const

TlvIterator TlvErase (TlvIterator first, TlvIterator last)
 Removes all address TLVs from [first, last) (includes first, not includes last).

TlvIterator TlvErase (TlvIterator position)
 Removes the address TLV at the specified position.

Ptr< PbbAddressTlvTlvFront ()

const Ptr< PbbAddressTlvTlvFront () const

TlvIterator TlvInsert (TlvIterator position, const Ptr< PbbTlv > value)
 Inserts an address TLV at the specified position in this block.

void TlvPopBack ()
 Removes an address TLV from the back of this message.

void TlvPopFront ()
 Removes an address TLV from the front of this message.

void TlvPushBack (Ptr< PbbAddressTlv > address)
 Appends an address TLV to the back of this message.

void TlvPushFront (Ptr< PbbAddressTlv > address)
 Prepends an address TLV to the front of this message.

int TlvSize () const

- Public Member Functions inherited from ns3::SimpleRefCount< PbbAddressBlock >
 SimpleRefCount ()
 Default constructor.

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor.

uint32_t GetReferenceCount () const
 Get the reference count of the object.

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator.

void Ref () const
 Increment the reference count.

void Unref () const
 Decrement the reference count.


Protected Member Functions

virtual Address DeserializeAddress (uint8_t *buffer) const =0
 Deserialize one address.

virtual uint8_t GetAddressLength () const =0
 Returns address length.

virtual void PrintAddress (std::ostream &os, ConstAddressIterator iter) const =0
 Print one or more addresses.

virtual void SerializeAddress (uint8_t *buffer, ConstAddressIterator iter) const =0
 Serialize one or more addresses.


Private Member Functions

void GetHeadTail (uint8_t *head, uint8_t &headlen, uint8_t *tail, uint8_t &taillen) const
 Get head and tail.

uint8_t GetPrefixFlags () const
 Get the prefix flags.

bool HasZeroTail (const uint8_t *tail, uint8_t taillen) const
 Check if the tail is empty.


Private Attributes

std::list< Addressm_addressList
 Addresses container.

PbbAddressTlvBlock m_addressTlvList
 PbbAddressTlv container.

std::list< uint8_t > m_prefixList
 Prefixes container.


Detailed Description

An Address Block and its associated Address TLV Blocks.

This is a pure virtual base class, when creating address blocks, you should instantiate either PbbAddressBlockIpv4 or PbbAddressBlockIpv6.

Definition at line 1183 of file packetbb.h.

Member Typedef Documentation

◆ AddressIterator

typedef std::list<Address>::iterator ns3::PbbAddressBlock::AddressIterator

Address iterator.

Definition at line 1187 of file packetbb.h.

◆ ConstAddressIterator

typedef std::list<Address>::const_iterator ns3::PbbAddressBlock::ConstAddressIterator

Address const iterator.

Definition at line 1189 of file packetbb.h.

◆ ConstPrefixIterator

typedef std::list<uint8_t>::const_iterator ns3::PbbAddressBlock::ConstPrefixIterator

Prefix const iterator.

Definition at line 1194 of file packetbb.h.

◆ ConstTlvIterator

tlvblock const iterator

Definition at line 1199 of file packetbb.h.

◆ PrefixIterator

typedef std::list<uint8_t>::iterator ns3::PbbAddressBlock::PrefixIterator

Prefix iterator.

Definition at line 1192 of file packetbb.h.

◆ TlvIterator

tlvblock iterator

Definition at line 1197 of file packetbb.h.

Constructor & Destructor Documentation

◆ PbbAddressBlock()

ns3::PbbAddressBlock::PbbAddressBlock ( )

Definition at line 1810 of file packetbb.cc.

References NS_LOG_FUNCTION.

◆ ~PbbAddressBlock()

ns3::PbbAddressBlock::~PbbAddressBlock ( )
virtual

Definition at line 1815 of file packetbb.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ AddressBack()

Address ns3::PbbAddressBlock::AddressBack ( ) const
Returns
the last address in this block.

Definition at line 1872 of file packetbb.cc.

References m_addressList, and NS_LOG_FUNCTION.

◆ AddressBegin() [1/2]

PbbAddressBlock::AddressIterator ns3::PbbAddressBlock::AddressBegin ( )
Returns
an iterator to the first address in this block.

Definition at line 1823 of file packetbb.cc.

References m_addressList, and NS_LOG_FUNCTION.

Referenced by GetHeadTail(), operator==(), Print(), and Serialize().

+ Here is the caller graph for this function:

◆ AddressBegin() [2/2]

PbbAddressBlock::ConstAddressIterator ns3::PbbAddressBlock::AddressBegin ( ) const
Returns
a const iterator to the first address in this block.

Definition at line 1830 of file packetbb.cc.

References m_addressList, and NS_LOG_FUNCTION.

◆ AddressClear()

void ns3::PbbAddressBlock::AddressClear ( )

Removes all addresses from this block.

Definition at line 1922 of file packetbb.cc.

References m_addressList, and NS_LOG_FUNCTION.

◆ AddressEmpty()

bool ns3::PbbAddressBlock::AddressEmpty ( ) const
Returns
true if there are no addresses in this block, false otherwise.

Definition at line 1858 of file packetbb.cc.

References m_addressList, and NS_LOG_FUNCTION.

◆ AddressEnd() [1/2]

PbbAddressBlock::AddressIterator ns3::PbbAddressBlock::AddressEnd ( )
Returns
an iterator to the last address in this block.

Definition at line 1837 of file packetbb.cc.

References m_addressList, and NS_LOG_FUNCTION.

Referenced by GetHeadTail(), operator==(), Print(), and Serialize().

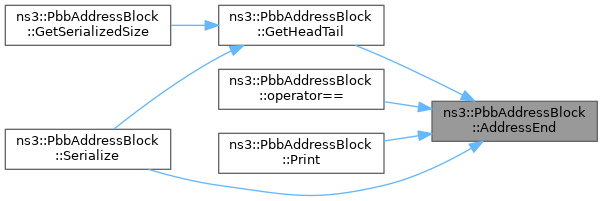

+ Here is the caller graph for this function:

◆ AddressEnd() [2/2]

PbbAddressBlock::ConstAddressIterator ns3::PbbAddressBlock::AddressEnd ( ) const
Returns
a const iterator to the last address in this block.

Definition at line 1844 of file packetbb.cc.

References m_addressList, and NS_LOG_FUNCTION.

◆ AddressErase() [1/2]

Removes all addresses from [first, last) (includes first, not includes last).

Parameters
firstan Iterator pointing to the first address to erase (inclusive).
lastan Iterator pointing to the element past the last address to erase.
Returns
an iterator pointing to the next address in the block.

Definition at line 1914 of file packetbb.cc.

References m_addressList, and NS_LOG_FUNCTION.

◆ AddressErase() [2/2]

PbbAddressBlock::AddressIterator ns3::PbbAddressBlock::AddressErase ( PbbAddressBlock::AddressIterator  position)

Removes the address at the specified position.

Parameters
positionan Iterator pointing to the address to erase.
Returns
an iterator pointing to the next address in the block.

Definition at line 1907 of file packetbb.cc.

References m_addressList, and NS_LOG_FUNCTION.

◆ AddressFront()

Address ns3::PbbAddressBlock::AddressFront ( ) const
Returns
the first address in this block.

Definition at line 1865 of file packetbb.cc.

References m_addressList, and NS_LOG_FUNCTION.

◆ AddressInsert()

AddressIterator ns3::PbbAddressBlock::AddressInsert ( AddressIterator  position,
const Address  value
)

Inserts an address at the specified position in this block.

Parameters
positionan Iterator pointing to the position in this block to insert the address.
valuethe address to insert.
Returns
An iterator pointing to the newly inserted address.

◆ AddressPopBack()

void ns3::PbbAddressBlock::AddressPopBack ( )

Removes an address from the back of this block.

Definition at line 1900 of file packetbb.cc.

References m_addressList, and NS_LOG_FUNCTION.

◆ AddressPopFront()

void ns3::PbbAddressBlock::AddressPopFront ( )

Removes an address from the front of this block.

Definition at line 1886 of file packetbb.cc.

References m_addressList, and NS_LOG_FUNCTION.

◆ AddressPushBack()

void ns3::PbbAddressBlock::AddressPushBack ( Address  address)

Appends an address to the back of this block.

Parameters
addressthe address to append.

Definition at line 1893 of file packetbb.cc.

References m_addressList, and NS_LOG_FUNCTION.

Referenced by Deserialize().

+ Here is the caller graph for this function:

◆ AddressPushFront()

void ns3::PbbAddressBlock::AddressPushFront ( Address  address)

Prepends an address to the front of this block.

Parameters
addressthe address to prepend.

Definition at line 1879 of file packetbb.cc.

References m_addressList, and NS_LOG_FUNCTION.

◆ AddressSize()

int ns3::PbbAddressBlock::AddressSize ( ) const
Returns
the number of addresses in this block.

Definition at line 1851 of file packetbb.cc.

References m_addressList, and NS_LOG_FUNCTION.

Referenced by GetSerializedSize(), operator==(), and Serialize().

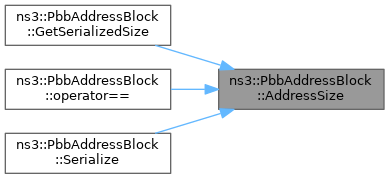

+ Here is the caller graph for this function:

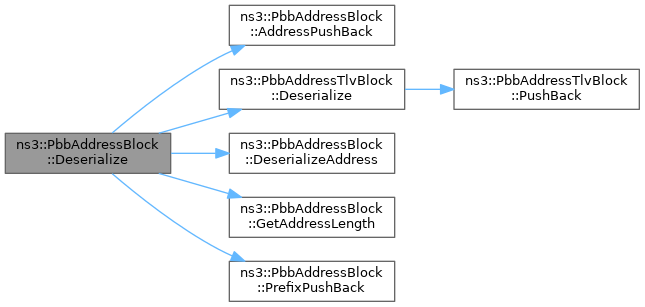

◆ Deserialize()

void ns3::PbbAddressBlock::Deserialize ( Buffer::Iterator start)

Deserializes an address block from the specified buffer.

Parameters
starta reference to the point in a buffer to begin deserializing.

Users should not need to call this. Blocks will be deserialized by their containing packet.

Definition at line 2294 of file packetbb.cc.

References AddressPushBack(), AHAS_FULL_TAIL, AHAS_HEAD, AHAS_MULTI_PRE_LEN, AHAS_SINGLE_PRE_LEN, AHAS_ZERO_TAIL, ns3::PbbAddressTlvBlock::Deserialize(), DeserializeAddress(), GetAddressLength(), m_addressTlvList, NS_LOG_FUNCTION, and PrefixPushBack().

+ Here is the call graph for this function:

◆ DeserializeAddress()

virtual Address ns3::PbbAddressBlock::DeserializeAddress ( uint8_t *  buffer) const
protectedpure virtual

Deserialize one address.

Parameters
bufferthe buffer to deserialize from
Returns
the address

Implemented in ns3::PbbAddressBlockIpv4, and ns3::PbbAddressBlockIpv6.

Referenced by Deserialize().

+ Here is the caller graph for this function:

◆ GetAddressLength()

virtual uint8_t ns3::PbbAddressBlock::GetAddressLength ( ) const
protectedpure virtual

Returns address length.

Returns
Address length

Implemented in ns3::PbbAddressBlockIpv4, and ns3::PbbAddressBlockIpv6.

Referenced by Deserialize(), GetHeadTail(), GetSerializedSize(), and Serialize().

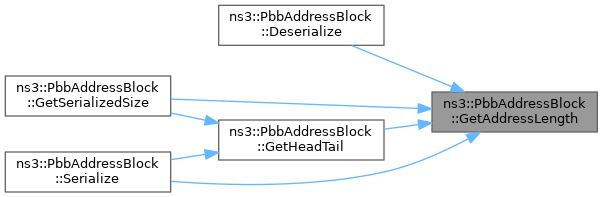

+ Here is the caller graph for this function:

◆ GetHeadTail()

void ns3::PbbAddressBlock::GetHeadTail ( uint8_t *  head,
uint8_t &  headlen,
uint8_t *  tail,
uint8_t &  taillen
) const
private

Get head and tail.

Parameters
headthe head
headlenthe head length
tailthe tail
taillenthe tail length

Definition at line 2447 of file packetbb.cc.

References AddressBegin(), AddressEnd(), GetAddressLength(), NS_LOG_FUNCTION, and SerializeAddress().

Referenced by GetSerializedSize(), and Serialize().

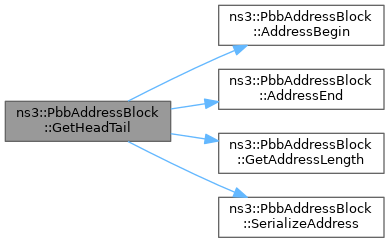

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetPrefixFlags()

uint8_t ns3::PbbAddressBlock::GetPrefixFlags ( ) const
private

Get the prefix flags.

Returns
the prefix flags

Definition at line 2429 of file packetbb.cc.

References AHAS_MULTI_PRE_LEN, AHAS_SINGLE_PRE_LEN, NS_LOG_FUNCTION, and PrefixSize().

Referenced by Serialize().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

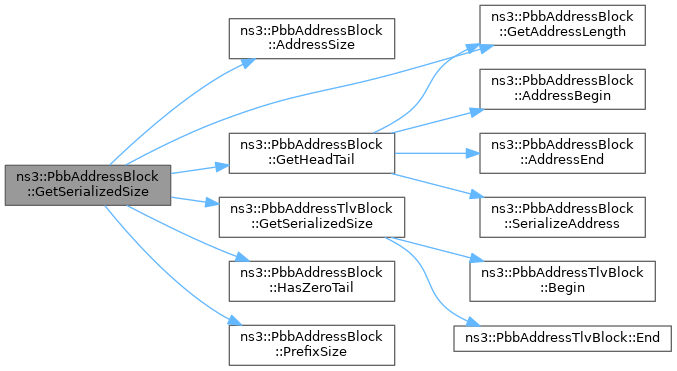

◆ GetSerializedSize()

uint32_t ns3::PbbAddressBlock::GetSerializedSize ( ) const
Returns
The size (in bytes) needed to serialize this address block.

Definition at line 2165 of file packetbb.cc.

References AddressSize(), GetAddressLength(), GetHeadTail(), ns3::PbbAddressTlvBlock::GetSerializedSize(), HasZeroTail(), m_addressTlvList, NS_LOG_FUNCTION, and PrefixSize().

+ Here is the call graph for this function:

◆ HasZeroTail()

bool ns3::PbbAddressBlock::HasZeroTail ( const uint8_t *  tail,
uint8_t  taillen
) const
private

Check if the tail is empty.

Parameters
tailthe tail
taillenthe tail length
Returns
true if the tail is empty

Definition at line 2509 of file packetbb.cc.

References NS_LOG_FUNCTION.

Referenced by GetSerializedSize(), and Serialize().

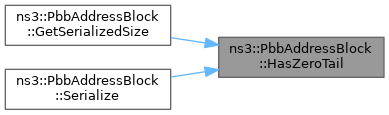

+ Here is the caller graph for this function:

◆ operator!=()

bool ns3::PbbAddressBlock::operator!= ( const PbbAddressBlock other) const

Inequality operator for PbbAddressBlock.

Parameters
otherPbbAddressBlock to compare to this one
Returns
true if PbbAddressBlock are not equal

Definition at line 2423 of file packetbb.cc.

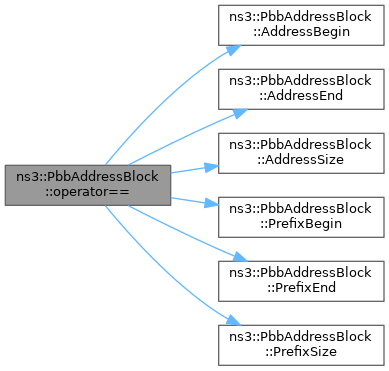

◆ operator==()

bool ns3::PbbAddressBlock::operator== ( const PbbAddressBlock other) const

Equality operator for PbbAddressBlock.

Parameters
otherPbbAddressBlock to compare to this one
Returns
true if PbbMessages are equal

Definition at line 2383 of file packetbb.cc.

References AddressBegin(), AddressEnd(), AddressSize(), m_addressTlvList, PrefixBegin(), PrefixEnd(), and PrefixSize().

+ Here is the call graph for this function:

◆ PrefixBack()

uint8_t ns3::PbbAddressBlock::PrefixBack ( ) const
Returns
the last prefix in this block.

Definition at line 1980 of file packetbb.cc.

References m_prefixList, and NS_LOG_FUNCTION.

◆ PrefixBegin() [1/2]

PbbAddressBlock::PrefixIterator ns3::PbbAddressBlock::PrefixBegin ( )
Returns
an iterator to the first prefix in this block.

Definition at line 1931 of file packetbb.cc.

References m_prefixList, and NS_LOG_FUNCTION.

Referenced by operator==(), Print(), and Serialize().

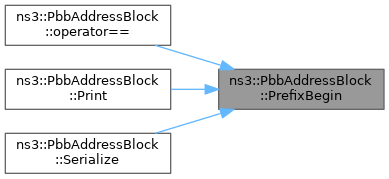

+ Here is the caller graph for this function:

◆ PrefixBegin() [2/2]

PbbAddressBlock::ConstPrefixIterator ns3::PbbAddressBlock::PrefixBegin ( ) const
Returns
a const iterator to the first prefix in this block.

Definition at line 1938 of file packetbb.cc.

References m_prefixList, and NS_LOG_FUNCTION.

◆ PrefixClear()

void ns3::PbbAddressBlock::PrefixClear ( )

Removes all prefixes from this block.

Definition at line 2037 of file packetbb.cc.

References m_prefixList, and NS_LOG_FUNCTION.

◆ PrefixEmpty()

bool ns3::PbbAddressBlock::PrefixEmpty ( ) const
Returns
true if there are no prefixes in this block, false otherwise.

Definition at line 1966 of file packetbb.cc.

References m_prefixList, and NS_LOG_FUNCTION.

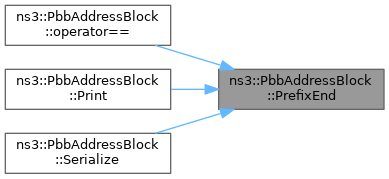

◆ PrefixEnd() [1/2]

PbbAddressBlock::PrefixIterator ns3::PbbAddressBlock::PrefixEnd ( )
Returns
an iterator to the last prefix in this block.

Definition at line 1945 of file packetbb.cc.

References m_prefixList, and NS_LOG_FUNCTION.

Referenced by operator==(), Print(), and Serialize().

+ Here is the caller graph for this function:

◆ PrefixEnd() [2/2]

PbbAddressBlock::ConstPrefixIterator ns3::PbbAddressBlock::PrefixEnd ( ) const
Returns
a const iterator to the last prefix in this block.

Definition at line 1952 of file packetbb.cc.

References m_prefixList, and NS_LOG_FUNCTION.

◆ PrefixErase() [1/2]

Removes all prefixes from [first, last) (includes first, not includes last).

Parameters
firstan Iterator pointing to the first prefix to erase (inclusive).
lastan Iterator pointing to the element past the last prefix to erase.
Returns
an iterator pointing to the next prefix in the block.

Definition at line 2029 of file packetbb.cc.

References m_prefixList, and NS_LOG_FUNCTION.

◆ PrefixErase() [2/2]

PbbAddressBlock::PrefixIterator ns3::PbbAddressBlock::PrefixErase ( PbbAddressBlock::PrefixIterator  position)

Removes the prefix at the specified position.

Parameters
positionan Iterator pointing to the prefix to erase.
Returns
an iterator pointing to the next prefix in the block.

Definition at line 2022 of file packetbb.cc.

References m_prefixList, and NS_LOG_FUNCTION.

◆ PrefixFront()

uint8_t ns3::PbbAddressBlock::PrefixFront ( ) const
Returns
the first prefix in this block.

Definition at line 1973 of file packetbb.cc.

References m_prefixList, and NS_LOG_FUNCTION.

Referenced by Serialize().

+ Here is the caller graph for this function:

◆ PrefixInsert()

PbbAddressBlock::PrefixIterator ns3::PbbAddressBlock::PrefixInsert ( PbbAddressBlock::PrefixIterator  position,
const uint8_t  value
)

Inserts a prefix at the specified position in this block.

Parameters
positionan Iterator pointing to the position in this block to insert the prefix.
valuethe prefix to insert.
Returns
An iterator pointing to the newly inserted prefix.

Definition at line 2015 of file packetbb.cc.

References m_prefixList, and NS_LOG_FUNCTION.

◆ PrefixPopBack()

void ns3::PbbAddressBlock::PrefixPopBack ( )

Removes a prefix from the back of this block.

Definition at line 2008 of file packetbb.cc.

References m_prefixList, and NS_LOG_FUNCTION.

◆ PrefixPopFront()

void ns3::PbbAddressBlock::PrefixPopFront ( )

Removes a prefix from the front of this block.

Definition at line 1994 of file packetbb.cc.

References m_prefixList, and NS_LOG_FUNCTION.

◆ PrefixPushBack()

void ns3::PbbAddressBlock::PrefixPushBack ( uint8_t  prefix)

Appends a prefix to the back of this block.

Parameters
prefixthe prefix to append.

Definition at line 2001 of file packetbb.cc.

References m_prefixList, and NS_LOG_FUNCTION.

Referenced by Deserialize().

+ Here is the caller graph for this function:

◆ PrefixPushFront()

void ns3::PbbAddressBlock::PrefixPushFront ( uint8_t  prefix)

Prepends a prefix to the front of this block.

Parameters
prefixthe prefix to prepend.

Definition at line 1987 of file packetbb.cc.

References m_prefixList, and NS_LOG_FUNCTION.

◆ PrefixSize()

int ns3::PbbAddressBlock::PrefixSize ( ) const
Returns
the number of prefixes in this block.

Definition at line 1959 of file packetbb.cc.

References m_prefixList, and NS_LOG_FUNCTION.

Referenced by GetPrefixFlags(), GetSerializedSize(), operator==(), and Serialize().

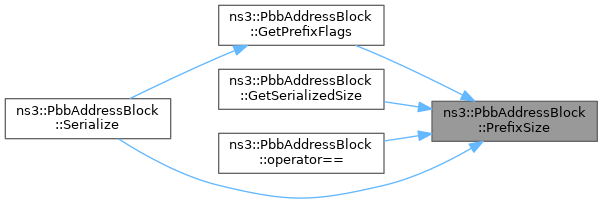

+ Here is the caller graph for this function:

◆ Print() [1/2]

void ns3::PbbAddressBlock::Print ( std::ostream &  os) const

Pretty-prints the contents of this address block.

Parameters
osa stream object to print to.

Definition at line 2348 of file packetbb.cc.

References NS_LOG_FUNCTION, and Print().

Referenced by Print().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Print() [2/2]

void ns3::PbbAddressBlock::Print ( std::ostream &  os,
int  level
) const

Pretty-prints the contents of this address block, with specified indentation.

Parameters
osa stream object to print to.
levellevel of indentation.

This probably never needs to be called by users. This is used when recursively printing sub-objects.

Definition at line 2355 of file packetbb.cc.

References AddressBegin(), AddressEnd(), m_addressTlvList, NS_LOG_FUNCTION, PrefixBegin(), PrefixEnd(), ns3::PbbAddressTlvBlock::Print(), and PrintAddress().

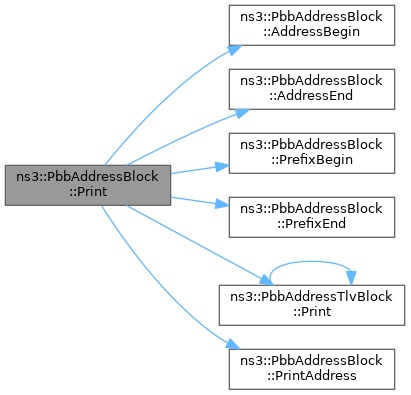

+ Here is the call graph for this function:

◆ PrintAddress()

virtual void ns3::PbbAddressBlock::PrintAddress ( std::ostream &  os,
ConstAddressIterator  iter
) const
protectedpure virtual

Print one or more addresses.

Parameters
osthe output stream
iterthe iterator to the addresses

Implemented in ns3::PbbAddressBlockIpv4, and ns3::PbbAddressBlockIpv6.

Referenced by Print().

+ Here is the caller graph for this function:

◆ Serialize()

void ns3::PbbAddressBlock::Serialize ( Buffer::Iterator start) const

Serializes this address block into the specified buffer.

Parameters
starta reference to the point in a buffer to begin serializing.

Users should not need to call this. Blocks will be deserialized by their containing packet.

Definition at line 2213 of file packetbb.cc.

References AddressBegin(), AddressEnd(), AddressSize(), AHAS_FULL_TAIL, AHAS_HEAD, AHAS_SINGLE_PRE_LEN, AHAS_ZERO_TAIL, GetAddressLength(), GetHeadTail(), GetPrefixFlags(), HasZeroTail(), m_addressTlvList, NS_LOG_FUNCTION, PrefixBegin(), PrefixEnd(), PrefixFront(), PrefixSize(), ns3::PbbAddressTlvBlock::Serialize(), SerializeAddress(), and ns3::Buffer::Iterator::WriteU8().

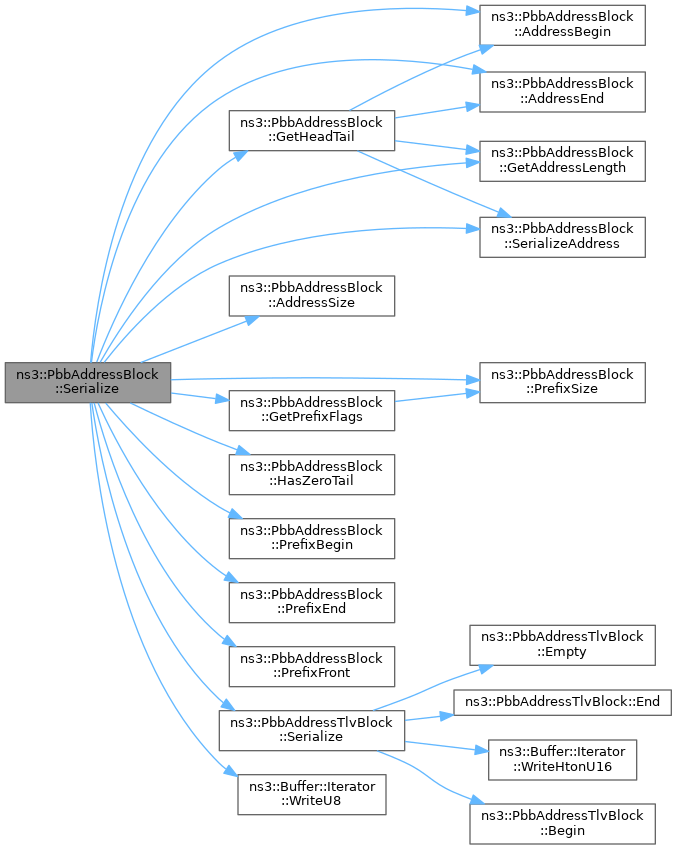

+ Here is the call graph for this function:

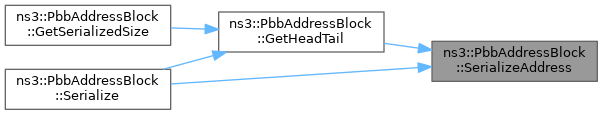

◆ SerializeAddress()

virtual void ns3::PbbAddressBlock::SerializeAddress ( uint8_t *  buffer,
ConstAddressIterator  iter
) const
protectedpure virtual

Serialize one or more addresses.

Parameters
bufferthe buffer to serialize to
iterthe iterator to the addresses

Implemented in ns3::PbbAddressBlockIpv4, and ns3::PbbAddressBlockIpv6.

Referenced by GetHeadTail(), and Serialize().

+ Here is the caller graph for this function:

◆ TlvBack() [1/2]

Ptr< PbbAddressTlv > ns3::PbbAddressBlock::TlvBack ( )
Returns
a smart pointer to the last address TLV in this message.

Definition at line 2102 of file packetbb.cc.

References ns3::PbbAddressTlvBlock::Back(), m_addressTlvList, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

◆ TlvBack() [2/2]

const Ptr< PbbAddressTlv > ns3::PbbAddressBlock::TlvBack ( ) const
Returns
a const smart pointer to the last address TLV in this message.

Definition at line 2109 of file packetbb.cc.

References ns3::PbbAddressTlvBlock::Back(), m_addressTlvList, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

◆ TlvBegin() [1/2]

PbbAddressBlock::TlvIterator ns3::PbbAddressBlock::TlvBegin ( )
Returns
an iterator to the first address TLV in this block.

Definition at line 2046 of file packetbb.cc.

References ns3::PbbAddressTlvBlock::Begin(), m_addressTlvList, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

◆ TlvBegin() [2/2]

PbbAddressBlock::ConstTlvIterator ns3::PbbAddressBlock::TlvBegin ( ) const
Returns
a const iterator to the first address TLV in this block.

Definition at line 2053 of file packetbb.cc.

References ns3::PbbAddressTlvBlock::Begin(), m_addressTlvList, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

◆ TlvClear()

void ns3::PbbAddressBlock::TlvClear ( )

Removes all address TLVs from this block.

Definition at line 2158 of file packetbb.cc.

References ns3::PbbAddressTlvBlock::Clear(), m_addressTlvList, and NS_LOG_FUNCTION.

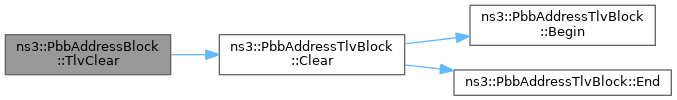

+ Here is the call graph for this function:

◆ TlvEmpty()

bool ns3::PbbAddressBlock::TlvEmpty ( ) const
Returns
true if there are no address TLVs in this block, false otherwise.

Definition at line 2081 of file packetbb.cc.

References ns3::PbbAddressTlvBlock::Empty(), m_addressTlvList, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

◆ TlvEnd() [1/2]

PbbAddressBlock::TlvIterator ns3::PbbAddressBlock::TlvEnd ( )
Returns
an iterator to the last address TLV in this block.

Definition at line 2060 of file packetbb.cc.

References ns3::PbbAddressTlvBlock::End(), m_addressTlvList, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

◆ TlvEnd() [2/2]

PbbAddressBlock::ConstTlvIterator ns3::PbbAddressBlock::TlvEnd ( ) const
Returns
a const iterator to the last address TLV in this block.

Definition at line 2067 of file packetbb.cc.

References ns3::PbbAddressTlvBlock::End(), m_addressTlvList, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

◆ TlvErase() [1/2]

PbbAddressBlock::TlvIterator ns3::PbbAddressBlock::TlvErase ( PbbAddressBlock::TlvIterator  first,
PbbAddressBlock::TlvIterator  last
)

Removes all address TLVs from [first, last) (includes first, not includes last).

Parameters
firstan Iterator pointing to the first address TLV to erase (inclusive).
lastan Iterator pointing to the element past the last address TLV to erase.
Returns
an iterator pointing to the next address TLV in the message.

Definition at line 2151 of file packetbb.cc.

References ns3::PbbAddressTlvBlock::Erase(), m_addressTlvList, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

◆ TlvErase() [2/2]

PbbAddressBlock::TlvIterator ns3::PbbAddressBlock::TlvErase ( PbbAddressBlock::TlvIterator  position)

Removes the address TLV at the specified position.

Parameters
positionan Iterator pointing to the address TLV to erase.
Returns
an iterator pointing to the next address TLV in the block.

Definition at line 2144 of file packetbb.cc.

References ns3::PbbAddressTlvBlock::Erase(), m_addressTlvList, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

◆ TlvFront() [1/2]

Ptr< PbbAddressTlv > ns3::PbbAddressBlock::TlvFront ( )
Returns
a smart pointer to the first address TLV in this block.

Definition at line 2088 of file packetbb.cc.

References ns3::PbbAddressTlvBlock::Front(), m_addressTlvList, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

◆ TlvFront() [2/2]

const Ptr< PbbAddressTlv > ns3::PbbAddressBlock::TlvFront ( ) const
Returns
a const smart pointer to the first address TLV in this message.

Definition at line 2095 of file packetbb.cc.

References ns3::PbbAddressTlvBlock::Front(), m_addressTlvList, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

◆ TlvInsert()

TlvIterator ns3::PbbAddressBlock::TlvInsert ( TlvIterator  position,
const Ptr< PbbTlv value
)

Inserts an address TLV at the specified position in this block.

Parameters
positionan Iterator pointing to the position in this block to insert the address TLV.
valuethe prefix to insert.
Returns
An iterator pointing to the newly inserted address TLV.

◆ TlvPopBack()

void ns3::PbbAddressBlock::TlvPopBack ( )

Removes an address TLV from the back of this message.

Definition at line 2137 of file packetbb.cc.

References m_addressTlvList, NS_LOG_FUNCTION, and ns3::PbbAddressTlvBlock::PopBack().

+ Here is the call graph for this function:

◆ TlvPopFront()

void ns3::PbbAddressBlock::TlvPopFront ( )

Removes an address TLV from the front of this message.

Definition at line 2123 of file packetbb.cc.

References m_addressTlvList, NS_LOG_FUNCTION, and ns3::PbbAddressTlvBlock::PopFront().

+ Here is the call graph for this function:

◆ TlvPushBack()

void ns3::PbbAddressBlock::TlvPushBack ( Ptr< PbbAddressTlv address)

Appends an address TLV to the back of this message.

Parameters
addressa smart pointer to the address TLV to append.

Definition at line 2130 of file packetbb.cc.

References m_addressTlvList, NS_LOG_FUNCTION, and ns3::PbbAddressTlvBlock::PushBack().

+ Here is the call graph for this function:

◆ TlvPushFront()

void ns3::PbbAddressBlock::TlvPushFront ( Ptr< PbbAddressTlv address)

Prepends an address TLV to the front of this message.

Parameters
addressa smart pointer to the address TLV to prepend.

Definition at line 2116 of file packetbb.cc.

References m_addressTlvList, NS_LOG_FUNCTION, and ns3::PbbAddressTlvBlock::PushFront().

+ Here is the call graph for this function:

◆ TlvSize()

int ns3::PbbAddressBlock::TlvSize ( ) const
Returns
the number of address TLVs in this block.

Definition at line 2074 of file packetbb.cc.

References m_addressTlvList, NS_LOG_FUNCTION, and ns3::PbbAddressTlvBlock::Size().

+ Here is the call graph for this function:

Member Data Documentation

◆ m_addressList

std::list<Address> ns3::PbbAddressBlock::m_addressList
private

◆ m_addressTlvList

◆ m_prefixList

std::list<uint8_t> ns3::PbbAddressBlock::m_prefixList
private

The documentation for this class was generated from the following files:
