ns3::OnOffHelper Class Reference

A helper to make it easier to instantiate an ns3::OnOffApplication on a set of nodes. More...

#include "on-off-helper.h"

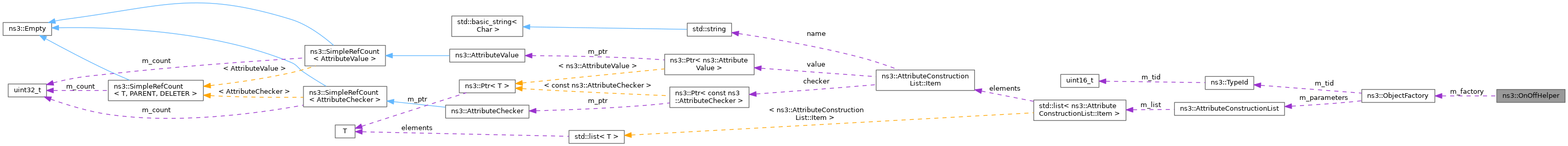

Collaboration diagram for ns3::OnOffHelper:

Public Member Functions
	OnOffHelper (std::string protocol, Address address)
	Create an OnOffHelper to make it easier to work with OnOffApplications.
int64_t	AssignStreams (NodeContainer c, int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model.
ApplicationContainer	Install (NodeContainer c) const
	Install an ns3::OnOffApplication on each node of the input container configured with all the attributes set with SetAttribute.
ApplicationContainer	Install (Ptr< Node > node) const
	Install an ns3::OnOffApplication on the node configured with all the attributes set with SetAttribute.
ApplicationContainer	Install (std::string nodeName) const
	Install an ns3::OnOffApplication on the node configured with all the attributes set with SetAttribute.
void	SetAttribute (std::string name, const AttributeValue &value)
	Helper function used to set the underlying application attributes.
void	SetConstantRate (DataRate dataRate, uint32_t packetSize=512)
	Helper function to set a constant rate source.

Private Member Functions
Ptr< Application >	InstallPriv (Ptr< Node > node) const
	Install an ns3::OnOffApplication on the node configured with all the attributes set with SetAttribute.

Private Attributes
ObjectFactory	m_factory
	Object factory.

Detailed Description

A helper to make it easier to instantiate an ns3::OnOffApplication on a set of nodes.

Definition at line 43 of file on-off-helper.h.

Constructor & Destructor Documentation

OnOffHelper()

ns3::OnOffHelper::OnOffHelper	(	std::string	protocol,
		Address	address
	)

Create an OnOffHelper to make it easier to work with OnOffApplications.

Parameters

protocol	the name of the protocol to use to send traffic by the applications. This string identifies the socket factory type used to create sockets for the applications. A typical value would be ns3::UdpSocketFactory.
address	the address of the remote node to send traffic to.

Definition at line 33 of file on-off-helper.cc.

References m_factory, ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

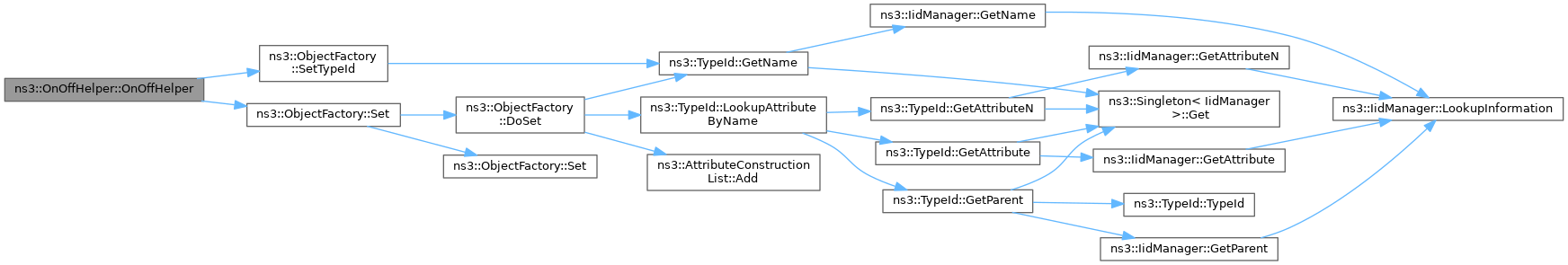

Here is the call graph for this function:

Member Function Documentation

AssignStreams()

int64_t ns3::OnOffHelper::AssignStreams	(	NodeContainer	c,
		int64_t	stream
	)

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned. The Install() method should have previously been called by the user.

Parameters

stream	first stream index to use
c	NodeContainer of the set of nodes for which the OnOffApplication should be modified to use a fixed stream

Returns

the number of stream indices assigned by this helper

Definition at line 81 of file on-off-helper.cc.

References ns3::NodeContainer::Begin(), and ns3::NodeContainer::End().

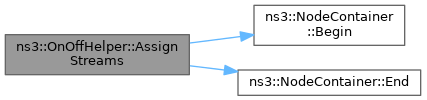

Here is the call graph for this function:

Install() [1/3]

ApplicationContainer ns3::OnOffHelper::Install

(

NodeContainer

c

)

const

Install an ns3::OnOffApplication on each node of the input container configured with all the attributes set with SetAttribute.

Parameters

c	NodeContainer of the set of nodes on which an OnOffApplication will be installed.

Returns

Container of Ptr to the applications installed.

Definition at line 60 of file on-off-helper.cc.

References ns3::ApplicationContainer::Add(), ns3::NodeContainer::Begin(), ns3::NodeContainer::End(), and InstallPriv().

Referenced by BuildAppsTest(), CreateOnOffFlow(), BriteTopologyFunctionTestCase::DoRun(), experiment(), DsdvManetExample::InstallApplications(), and RoutingExperiment::Run().

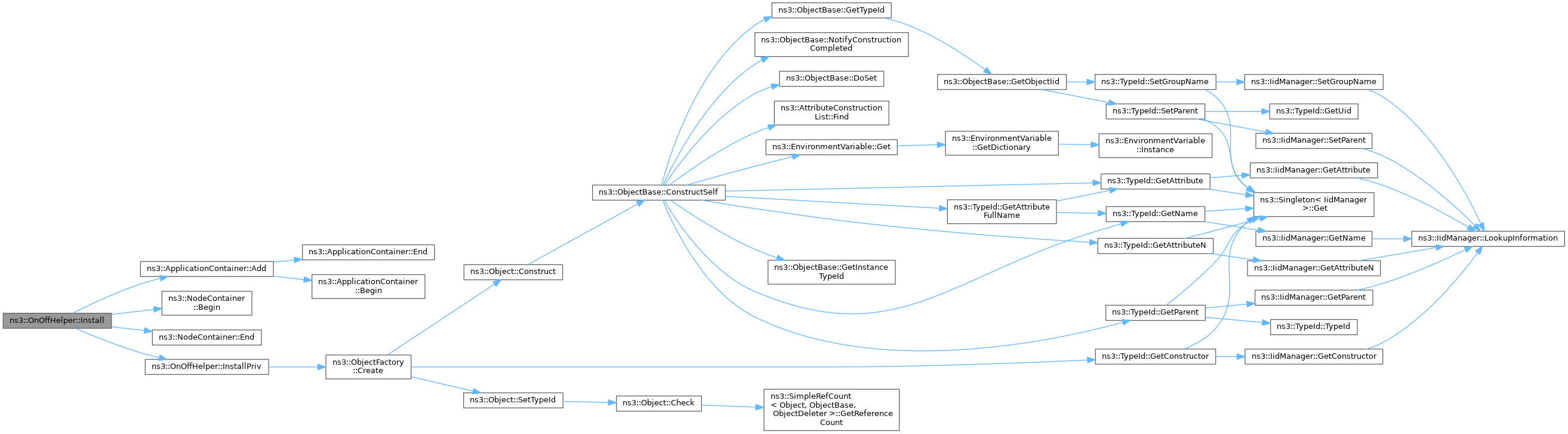

Here is the call graph for this function:

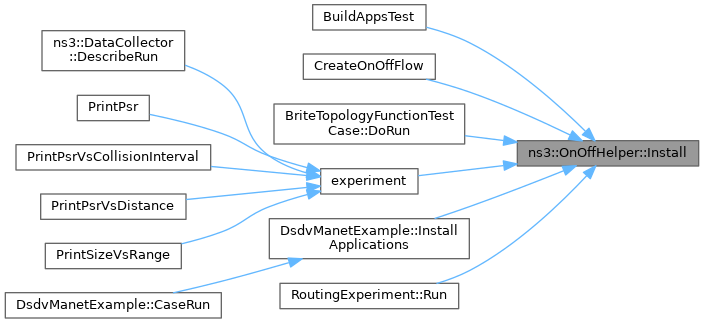

Here is the caller graph for this function:

Install() [2/3]

ApplicationContainer ns3::OnOffHelper::Install

(

Ptr< Node >

node

)

const

Install an ns3::OnOffApplication on the node configured with all the attributes set with SetAttribute.

Parameters

node	The node on which an OnOffApplication will be installed.

Returns

Container of Ptr to the applications installed.

Definition at line 47 of file on-off-helper.cc.

References InstallPriv().

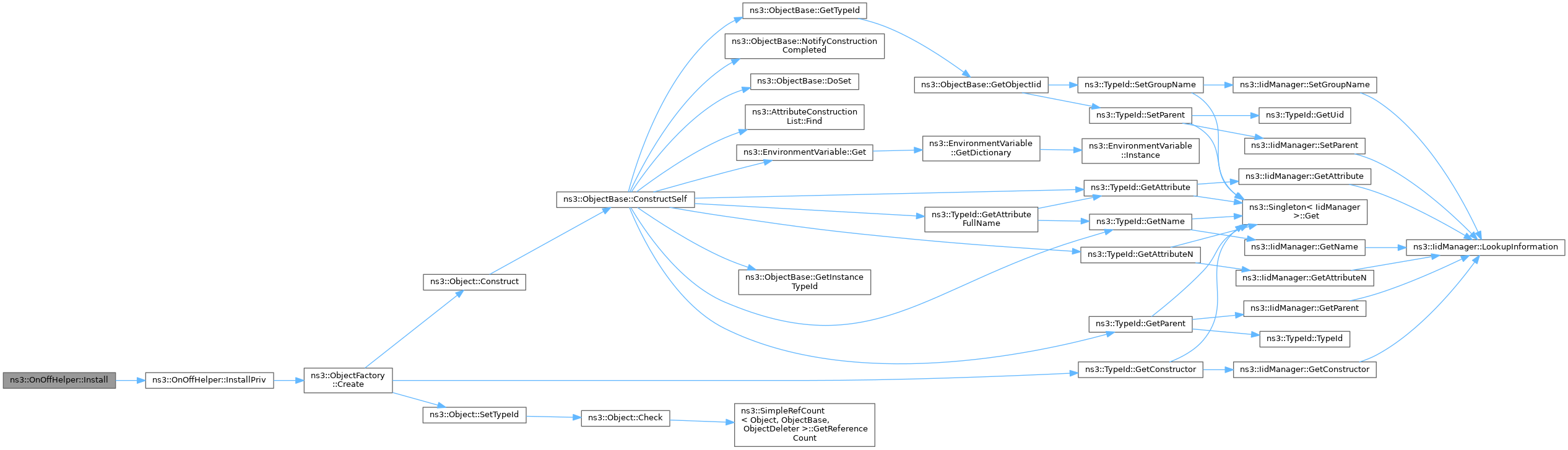

Here is the call graph for this function:

Install() [3/3]

ApplicationContainer ns3::OnOffHelper::Install

(

std::string

nodeName

)

const

Install an ns3::OnOffApplication on the node configured with all the attributes set with SetAttribute.

Parameters

nodeName

The node on which an OnOffApplication will be installed.

Returns

Container of Ptr to the applications installed.

Definition at line 53 of file on-off-helper.cc.

References InstallPriv().

Here is the call graph for this function:

InstallPriv()

Ptr< Application > ns3::OnOffHelper::InstallPriv ( Ptr< Node >  node ) const

private

Install an ns3::OnOffApplication on the node configured with all the attributes set with SetAttribute.

Parameters

node	The node on which an OnOffApplication will be installed.

Returns

Ptr to the application installed.

Definition at line 72 of file on-off-helper.cc.

References ns3::ObjectFactory::Create(), and m_factory.

Referenced by Install().

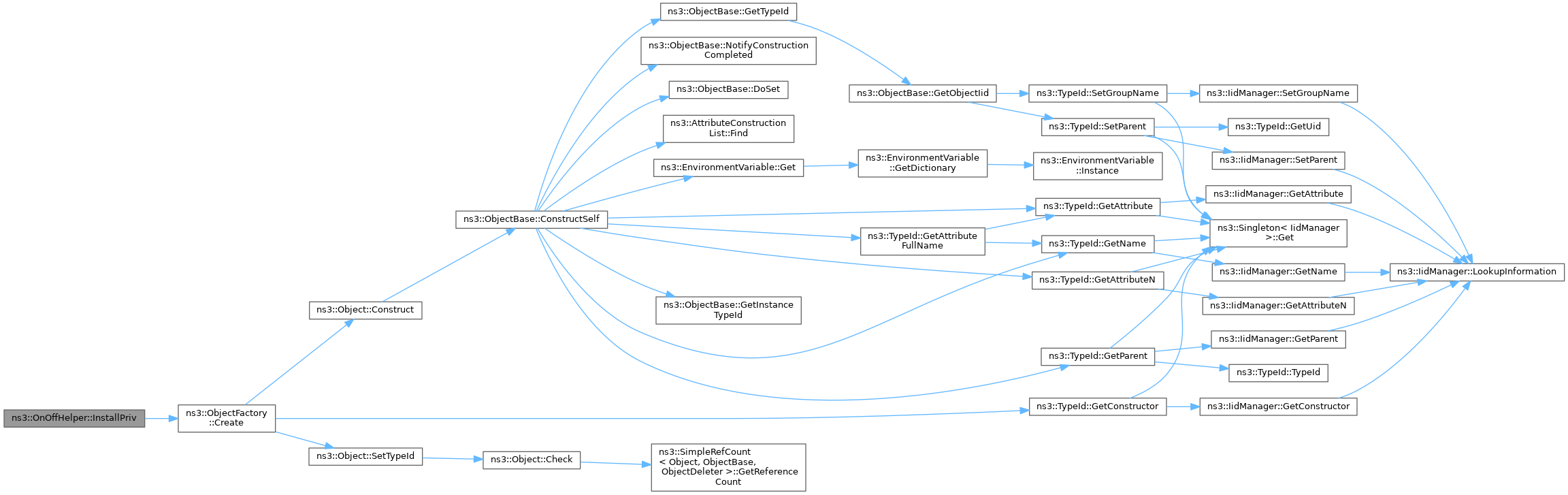

Here is the call graph for this function:

Here is the caller graph for this function:

SetAttribute()

void ns3::OnOffHelper::SetAttribute	(	std::string	name,
		const AttributeValue &	value
	)

Helper function used to set the underlying application attributes.

Parameters

name	the name of the application attribute to set
value	the value of the application attribute to set

Definition at line 41 of file on-off-helper.cc.

References m_factory, and ns3::ObjectFactory::Set().

Referenced by BuildAppsTest(), CreateOnOffFlow(), BriteTopologyFunctionTestCase::DoRun(), experiment(), DsdvManetExample::InstallApplications(), and RoutingExperiment::Run().

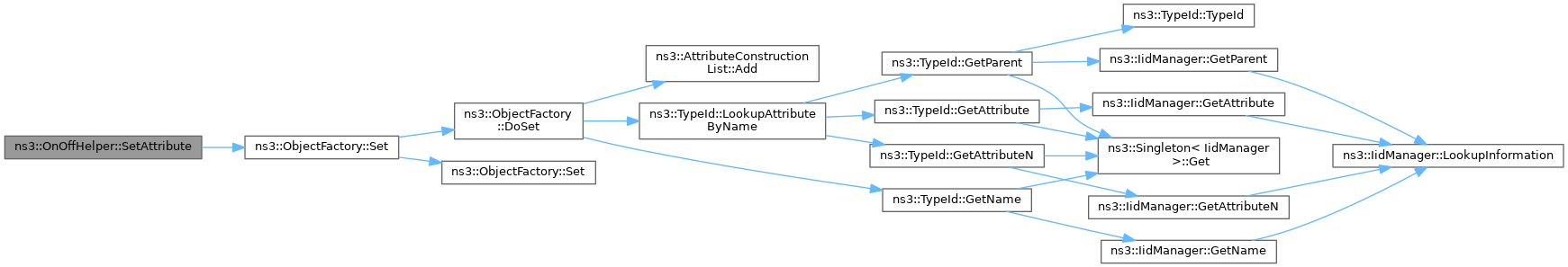

Here is the call graph for this function:

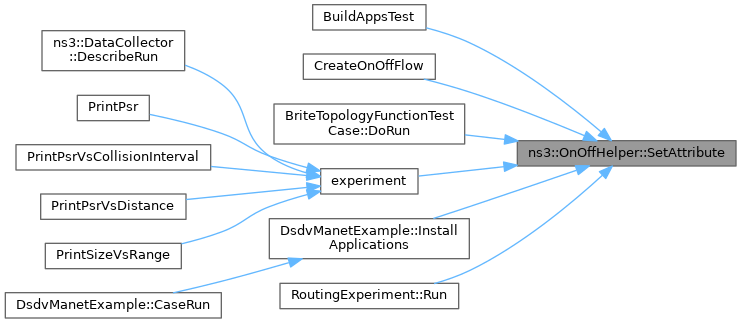

Here is the caller graph for this function:

SetConstantRate()

void ns3::OnOffHelper::SetConstantRate	(	DataRate	dataRate,
		uint32_t	packetSize = 512
	)

Helper function to set a constant rate source.

Equivalent to setting the attributes OnTime to constant 1000 seconds, OffTime to constant 0 seconds, and the DataRate and PacketSize set accordingly

Parameters

dataRate	DataRate object for the sending rate
packetSize	size in bytes of the packet payloads generated

Definition at line 101 of file on-off-helper.cc.

References m_factory, packetSize, and ns3::ObjectFactory::Set().

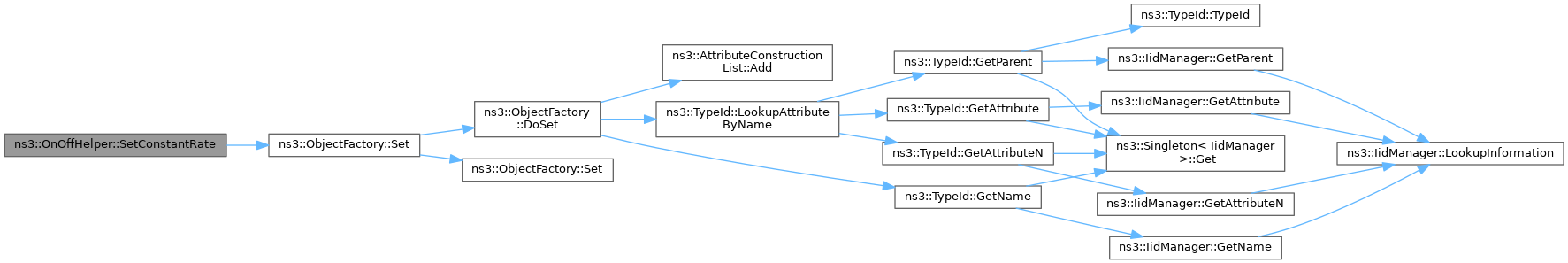

Here is the call graph for this function:

Member Data Documentation

m_factory

ObjectFactory ns3::OnOffHelper::m_factory

private

Object factory.

Definition at line 127 of file on-off-helper.h.

Referenced by OnOffHelper(), InstallPriv(), SetAttribute(), and SetConstantRate().

---

The documentation for this class was generated from the following files:

• src/applications/helper/on-off-helper.h
• src/applications/helper/on-off-helper.cc
