A WifiPhy listener class for notifying the WifiRadioEnergyModel of Wifi radio state change. More...

#include "wifi-radio-energy-model.h"

Inheritance diagram for ns3::WifiRadioEnergyModelPhyListener:

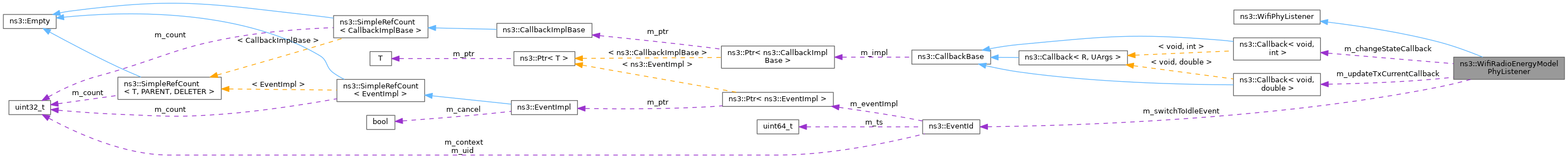

Collaboration diagram for ns3::WifiRadioEnergyModelPhyListener:

Public Types
typedef Callback< void, double >	UpdateTxCurrentCallback
	Callback type for updating the transmit current based on the nominal TX power.

Public Member Functions
	WifiRadioEnergyModelPhyListener ()

	~WifiRadioEnergyModelPhyListener () override

void	NotifyCcaBusyStart (Time duration, WifiChannelListType channelType, const std::vector< Time > &per20MhzDurations) override

void	NotifyOff () override
	Notify listeners that we went to switch off.

void	NotifyOn () override
	Notify listeners that we went to switch on.

void	NotifyRxEndError () override
	We have received the last bit of a packet for which NotifyRxStart was invoked first and, the packet has not been successfully received.

void	NotifyRxEndOk () override
	We have received the last bit of a packet for which NotifyRxStart was invoked first and, the packet has been successfully received.

void	NotifyRxStart (Time duration) override

void	NotifySleep () override
	Notify listeners that we went to sleep.

void	NotifySwitchingStart (Time duration) override

void	NotifyTxStart (Time duration, double txPowerDbm) override

void	NotifyWakeup () override
	Notify listeners that we woke up.

void	SetChangeStateCallback (DeviceEnergyModel::ChangeStateCallback callback)
	Sets the change state callback.

void	SetUpdateTxCurrentCallback (UpdateTxCurrentCallback callback)
	Sets the update TX current callback.

Public Member Functions inherited from ns3::WifiPhyListener
virtual	~WifiPhyListener ()

virtual void	NotifyCcaBusyStart (Time duration, WifiChannelListType channelType, const std::vector< Time > &per20MhzDurations)=0

virtual void	NotifyOff ()=0
	Notify listeners that we went to switch off.

virtual void	NotifyOn ()=0
	Notify listeners that we went to switch on.

virtual void	NotifyRxEndError ()=0
	We have received the last bit of a packet for which NotifyRxStart was invoked first and, the packet has not been successfully received.

virtual void	NotifyRxEndOk ()=0
	We have received the last bit of a packet for which NotifyRxStart was invoked first and, the packet has been successfully received.

virtual void	NotifyRxStart (Time duration)=0

virtual void	NotifySleep ()=0
	Notify listeners that we went to sleep.

virtual void	NotifySwitchingStart (Time duration)=0

virtual void	NotifyTxStart (Time duration, double txPowerDbm)=0

virtual void	NotifyWakeup ()=0
	Notify listeners that we woke up.

Private Member Functions

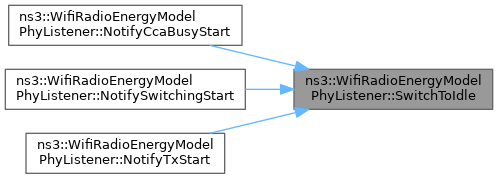

void	SwitchToIdle ()
	A helper function that makes scheduling m_changeStateCallback possible.

Private Attributes
DeviceEnergyModel::ChangeStateCallback	m_changeStateCallback
	Change state callback used to notify the WifiRadioEnergyModel of a state change.

EventId	m_switchToIdleEvent
	switch to idle event

UpdateTxCurrentCallback	m_updateTxCurrentCallback
	Callback used to update the TX current stored in WifiRadioEnergyModel based on the nominal TX power used to transmit the current frame.

Detailed Description

A WifiPhy listener class for notifying the WifiRadioEnergyModel of Wifi radio state change.

Definition at line 43 of file wifi-radio-energy-model.h.

Member Typedef Documentation

◆ UpdateTxCurrentCallback

typedef Callback<void, double> ns3::WifiRadioEnergyModelPhyListener::UpdateTxCurrentCallback

Callback type for updating the transmit current based on the nominal TX power.

Definition at line 49 of file wifi-radio-energy-model.h.

Constructor & Destructor Documentation

◆ WifiRadioEnergyModelPhyListener()

ns3::WifiRadioEnergyModelPhyListener::WifiRadioEnergyModelPhyListener ( )

Definition at line 474 of file wifi-radio-energy-model.cc.

References m_changeStateCallback, m_updateTxCurrentCallback, NS_LOG_FUNCTION, and ns3::Callback< R, UArgs >::Nullify().

Here is the call graph for this function:

◆ ~WifiRadioEnergyModelPhyListener()

ns3::WifiRadioEnergyModelPhyListener::~WifiRadioEnergyModelPhyListener ( )

override

Definition at line 481 of file wifi-radio-energy-model.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ NotifyCcaBusyStart()

void ns3::WifiRadioEnergyModelPhyListener::NotifyCcaBusyStart	(	Time	duration,
		WifiChannelListType	channelType,
		const std::vector< Time > &	per20MhzDurations
	)

overridevirtual

Parameters

duration	the expected busy duration.
channelType	the channel type for which the CCA busy state is reported.
per20MhzDurations	vector that indicates for how long each 20 MHz subchannel (corresponding to the index of the element in the vector) is busy and where a zero duration indicates that the subchannel is idle. The vector is non-empty if the PHY supports 802.11ax or later and if the operational channel width is larger than 20 MHz.

This method does not really report a real state change as opposed to the other methods in this class. It merely reports that, unless the medium is reported busy through NotifyTxStart or NotifyRxStart/End, it will be busy as defined by the currently selected CCA mode.

Typical client code which wants to have a clear picture of the CCA state will need to keep track of the time at which the last NotifyCcaBusyStart method is called and what duration it reported.

Implements ns3::WifiPhyListener.

Definition at line 558 of file wifi-radio-energy-model.cc.

References ns3::EventId::Cancel(), ns3::Callback< R, UArgs >::IsNull(), m_changeStateCallback, m_switchToIdleEvent, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), and SwitchToIdle().

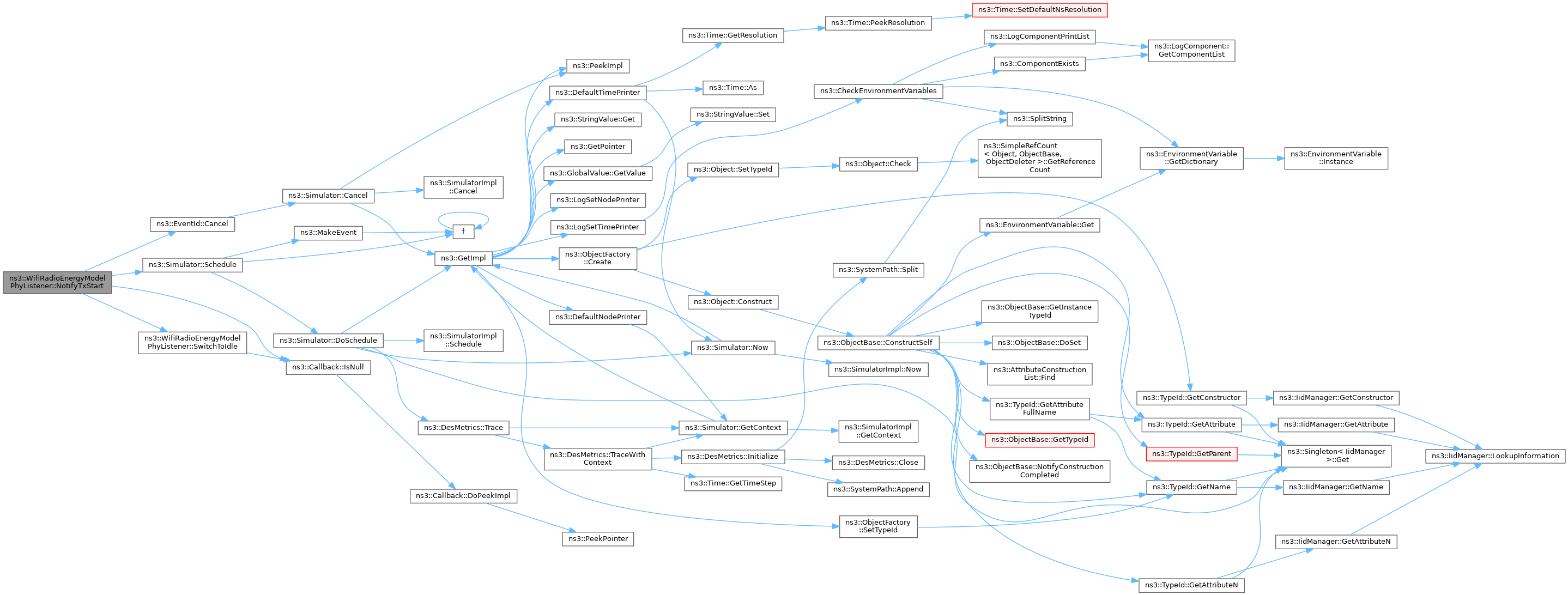

Here is the call graph for this function:

◆ NotifyOff()

void ns3::WifiRadioEnergyModelPhyListener::NotifyOff ( )

overridevirtual

Notify listeners that we went to switch off.

Implements ns3::WifiPhyListener.

Definition at line 613 of file wifi-radio-energy-model.cc.

References ns3::EventId::Cancel(), ns3::Callback< R, UArgs >::IsNull(), m_changeStateCallback, m_switchToIdleEvent, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

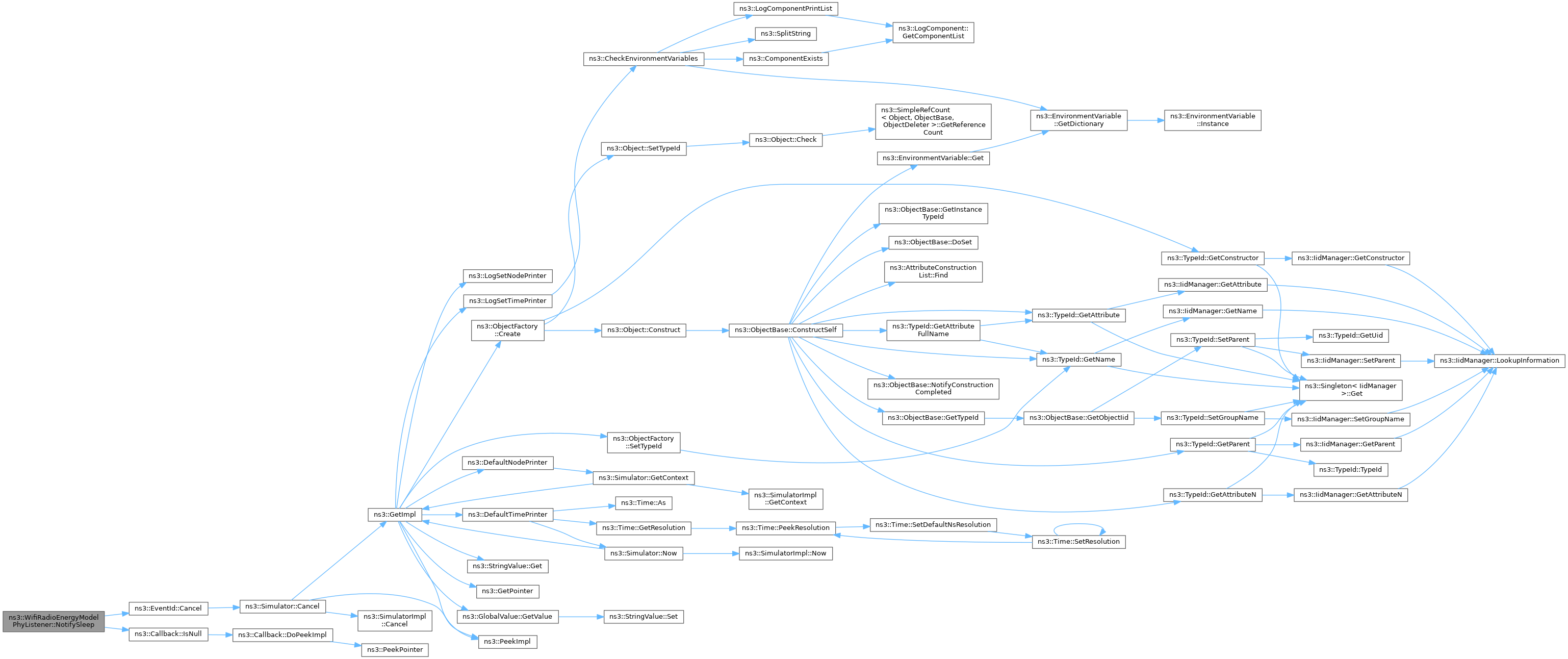

Here is the call graph for this function:

◆ NotifyOn()

void ns3::WifiRadioEnergyModelPhyListener::NotifyOn ( )

overridevirtual

Notify listeners that we went to switch on.

Implements ns3::WifiPhyListener.

Definition at line 625 of file wifi-radio-energy-model.cc.

References ns3::Callback< R, UArgs >::IsNull(), m_changeStateCallback, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ NotifyRxEndError()

void ns3::WifiRadioEnergyModelPhyListener::NotifyRxEndError ( )

overridevirtual

We have received the last bit of a packet for which NotifyRxStart was invoked first and, the packet has not been successfully received.

Implements ns3::WifiPhyListener.

Definition at line 527 of file wifi-radio-energy-model.cc.

References ns3::Callback< R, UArgs >::IsNull(), m_changeStateCallback, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ NotifyRxEndOk()

void ns3::WifiRadioEnergyModelPhyListener::NotifyRxEndOk ( )

overridevirtual

We have received the last bit of a packet for which NotifyRxStart was invoked first and, the packet has been successfully received.

Implements ns3::WifiPhyListener.

Definition at line 516 of file wifi-radio-energy-model.cc.

References ns3::Callback< R, UArgs >::IsNull(), m_changeStateCallback, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ NotifyRxStart()

void ns3::WifiRadioEnergyModelPhyListener::NotifyRxStart ( Time duration )

overridevirtual

Parameters

duration the expected duration of the packet reception.

We have received the first bit of a packet. We decided that we could synchronize on this packet. It does not mean we will be able to successfully receive completely the whole packet. It means that we will report a BUSY status until one of the following happens:

NotifyRxEndOk
NotifyRxEndError
NotifyTxStart

Implements ns3::WifiPhyListener.

Definition at line 504 of file wifi-radio-energy-model.cc.

References ns3::EventId::Cancel(), ns3::Callback< R, UArgs >::IsNull(), m_changeStateCallback, m_switchToIdleEvent, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ NotifySleep()

void ns3::WifiRadioEnergyModelPhyListener::NotifySleep ( )

overridevirtual

Notify listeners that we went to sleep.

Implements ns3::WifiPhyListener.

Definition at line 590 of file wifi-radio-energy-model.cc.

References ns3::EventId::Cancel(), ns3::Callback< R, UArgs >::IsNull(), m_changeStateCallback, m_switchToIdleEvent, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ NotifySwitchingStart()

void ns3::WifiRadioEnergyModelPhyListener::NotifySwitchingStart ( Time duration )

overridevirtual

Parameters

duration the expected channel switching duration.

We do not send any event to notify the end of channel switching. Listeners should assume that the channel implicitly reverts to the idle or busy states.

Implements ns3::WifiPhyListener.

Definition at line 575 of file wifi-radio-energy-model.cc.

References ns3::EventId::Cancel(), ns3::Callback< R, UArgs >::IsNull(), m_changeStateCallback, m_switchToIdleEvent, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), and SwitchToIdle().

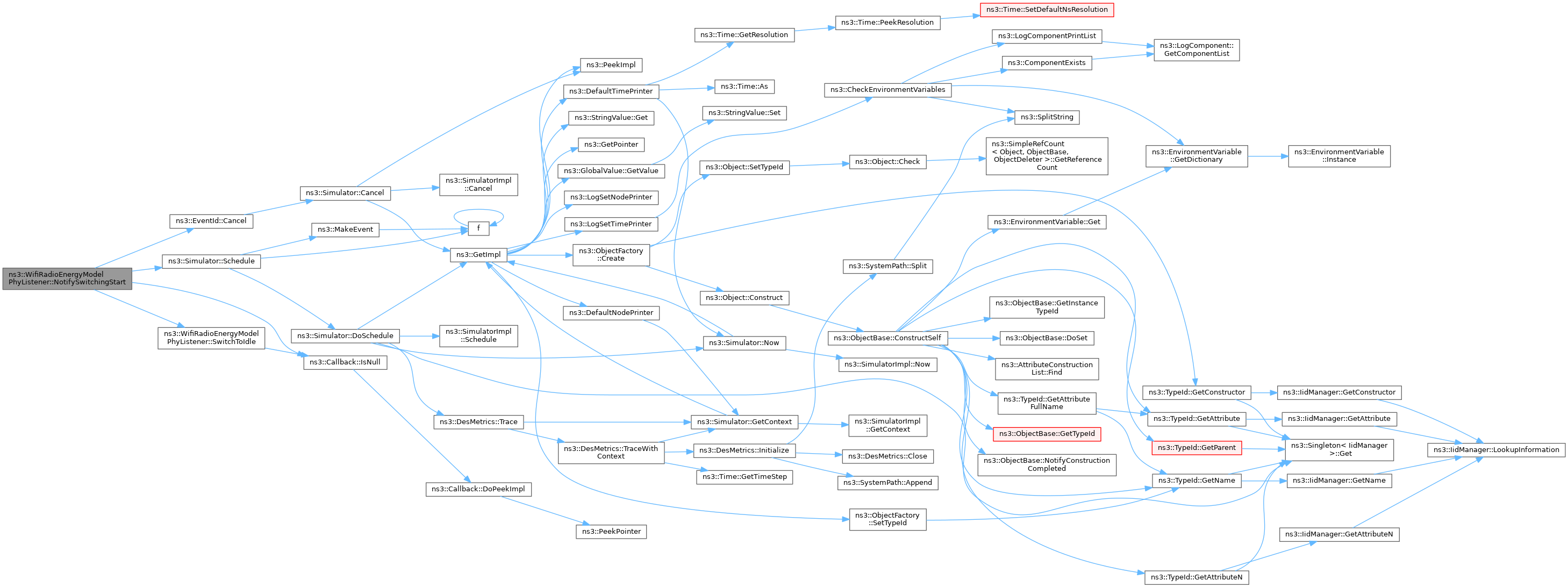

Here is the call graph for this function:

◆ NotifyTxStart()

void ns3::WifiRadioEnergyModelPhyListener::NotifyTxStart	(	Time	duration,
		double	txPowerDbm
	)

overridevirtual

Parameters

duration	the expected transmission duration.
txPowerDbm	the nominal TX power in dBm

We are about to send the first bit of the packet. We do not send any event to notify the end of transmission. Listeners should assume that the channel implicitly reverts to the idle state unless they have received a CCA busy report.

Implements ns3::WifiPhyListener.

Definition at line 538 of file wifi-radio-energy-model.cc.

References ns3::EventId::Cancel(), ns3::Callback< R, UArgs >::IsNull(), m_changeStateCallback, m_switchToIdleEvent, m_updateTxCurrentCallback, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), and SwitchToIdle().

Here is the call graph for this function:
