Test case for the ThreeGppSpectrumPropagationLossModelTest class. More...

Inheritance diagram for ThreeGppSpectrumPropagationLossModelTest:

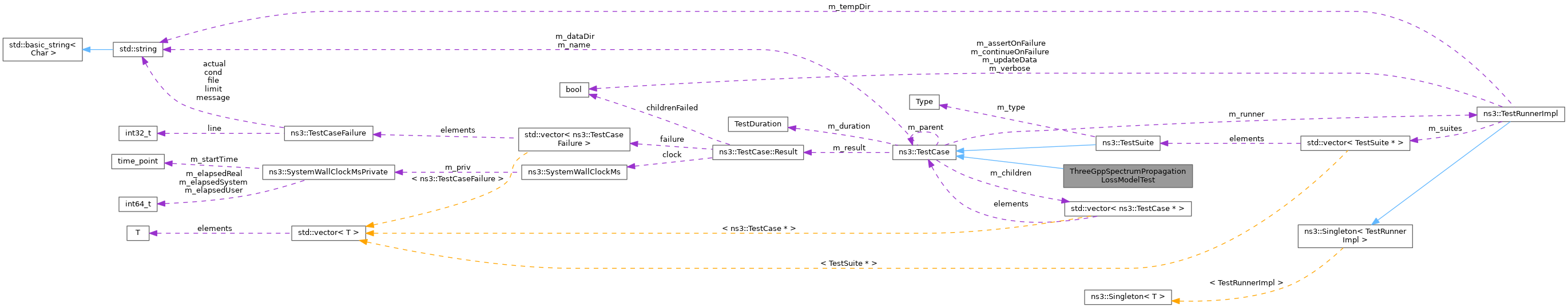

Collaboration diagram for ThreeGppSpectrumPropagationLossModelTest:

Public Member Functions
	ThreeGppSpectrumPropagationLossModelTest ()
	Constructor.

	~ThreeGppSpectrumPropagationLossModelTest () override
	Destructor.

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor.

std::string	GetName () const

TestCase &	operator= (const TestCase &)=delete

Private Member Functions
void	CheckLongTermUpdate (const CheckLongTermUpdateParams &params)
	Test of the long term component is correctly updated when the channel matrix is recomputed.

void	DoBeamforming (Ptr< NetDevice > thisDevice, Ptr< PhasedArrayModel > thisAntenna, Ptr< NetDevice > otherDevice, Ptr< PhasedArrayModel > otherAntenna)
	Points the beam of thisDevice towards otherDevice.

void	DoRun () override
	Build the test scenario.

Static Private Member Functions
static bool	ArePsdEqual (Ptr< SpectrumValue > first, Ptr< SpectrumValue > second)
	Checks if two PSDs are equal.

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor.

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite.

TestCase *	GetParent () const
	Get the parent of this TestCase.

bool	IsStatusFailure () const
	Check if any tests failed.

bool	IsStatusSuccess () const
	Check if all tests passed.

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found.

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase.

bool	MustAssertOnFailure () const
	Check if this run should assert on failure.

bool	MustContinueOnFailure () const
	Check if this run should continue on failure.

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory.

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory.

Detailed Description

Test case for the ThreeGppSpectrumPropagationLossModelTest class.

1) checks if the long term components for the direct and the reverse link are the same 2) checks if the long term component is updated when changing the beamforming vectors 3) checks if the long term is updated when changing the channel matrix

Definition at line 465 of file three-gpp-channel-test-suite.cc.

Constructor & Destructor Documentation

◆ ThreeGppSpectrumPropagationLossModelTest()

ThreeGppSpectrumPropagationLossModelTest::ThreeGppSpectrumPropagationLossModelTest ( )

Constructor.

Definition at line 513 of file three-gpp-channel-test-suite.cc.

◆ ~ThreeGppSpectrumPropagationLossModelTest()

ThreeGppSpectrumPropagationLossModelTest::~ThreeGppSpectrumPropagationLossModelTest ( )

override

Destructor.

Definition at line 518 of file three-gpp-channel-test-suite.cc.

Member Function Documentation

◆ ArePsdEqual()

bool ThreeGppSpectrumPropagationLossModelTest::ArePsdEqual	(	Ptr< SpectrumValue >	first,
		Ptr< SpectrumValue >	second
	)

staticprivate

Checks if two PSDs are equal.

Parameters

first	the first PSD
second	the second PSD

Returns: true if first and second are equal, false otherwise

Definition at line 540 of file three-gpp-channel-test-suite.cc.

Referenced by CheckLongTermUpdate(), and DoRun().

Here is the caller graph for this function:

◆ CheckLongTermUpdate()

void ThreeGppSpectrumPropagationLossModelTest::CheckLongTermUpdate ( const CheckLongTermUpdateParams & params )

private

Test of the long term component is correctly updated when the channel matrix is recomputed.

Parameters

params a structure that contains the set of parameters needed by CheckLongTermUpdate in order to perform calculations

Definition at line 556 of file three-gpp-channel-test-suite.cc.

References ArePsdEqual(), and NS_TEST_ASSERT_MSG_EQ.

Referenced by DoRun().

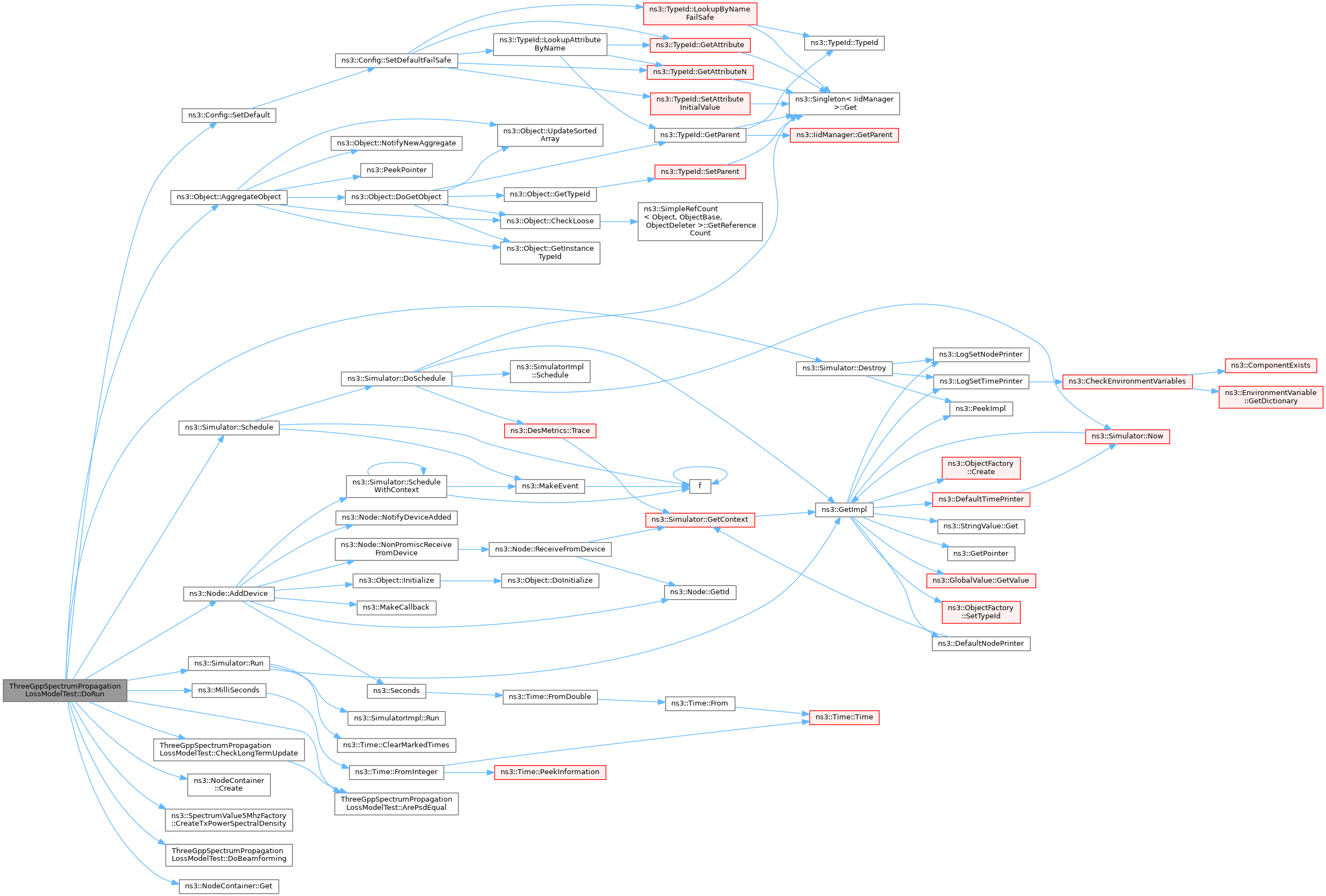

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoBeamforming()

void ThreeGppSpectrumPropagationLossModelTest::DoBeamforming	(	Ptr< NetDevice >	thisDevice,
		Ptr< PhasedArrayModel >	thisAntenna,
		Ptr< NetDevice >	otherDevice,
		Ptr< PhasedArrayModel >	otherAntenna
	)

private

Points the beam of thisDevice towards otherDevice.

Parameters

thisDevice	the device to configure
thisAntenna	the antenna object associated to thisDevice
otherDevice	the device to communicate with
otherAntenna	the antenna object associated to otherDevice

Definition at line 523 of file three-gpp-channel-test-suite.cc.

Referenced by DoRun().

Here is the caller graph for this function:
