ns3::MlmeAssociateResponseParams Struct Reference

MLME-ASSOCIATE.response params. More...

#include "lr-wpan-mac.h"

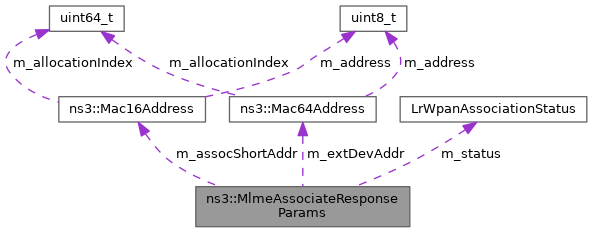

+ Collaboration diagram for ns3::MlmeAssociateResponseParams:

Public Attributes

Mac16Address m_assocShortAddr
 The short address allocated by the coordinator on successful assoc.

Mac64Address m_extDevAddr
 The extended address of the device requesting association.

LrWpanAssociationStatus m_status {DISASSOCIATED}
 The status of the association attempt (As defined on Table 83 IEEE 802.15.4-2006)


Detailed Description

MLME-ASSOCIATE.response params.

See 802.15.4-2011 6.2.2.3.

Definition at line 460 of file lr-wpan-mac.h.

Member Data Documentation

◆ m_assocShortAddr

Mac16Address ns3::MlmeAssociateResponseParams::m_assocShortAddr

The short address allocated by the coordinator on successful assoc.

FF:FF = Unsuccessful

Definition at line 463 of file lr-wpan-mac.h.

Referenced by AssociateIndication().

◆ m_extDevAddr

Mac64Address ns3::MlmeAssociateResponseParams::m_extDevAddr

The extended address of the device requesting association.

Definition at line 462 of file lr-wpan-mac.h.

Referenced by AssociateIndication().

◆ m_status

LrWpanAssociationStatus ns3::MlmeAssociateResponseParams::m_status {DISASSOCIATED}

The status of the association attempt (As defined on Table 83 IEEE 802.15.4-2006)

Definition at line 465 of file lr-wpan-mac.h.

Referenced by AssociateIndication().


The documentation for this struct was generated from the following file:
