This class implements service flows as described by the IEEE-802.16 standard. More...

#include "service-flow.h"

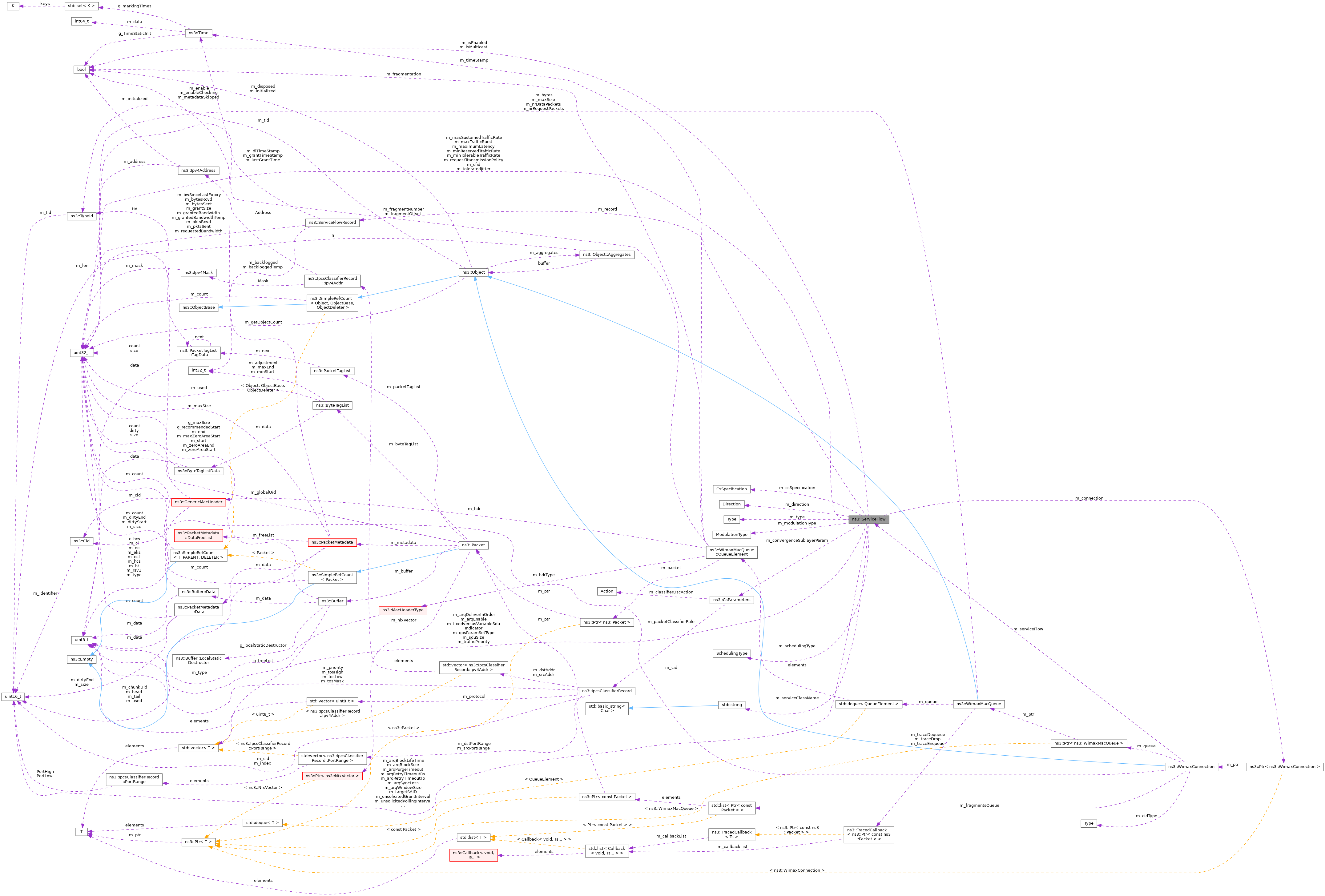

Collaboration diagram for ns3::ServiceFlow:

Public Types
enum	CsSpecification { ATM = 99 , IPV4 = 100 , IPV6 = 101 , ETHERNET = 102 , VLAN = 103 , IPV4_OVER_ETHERNET = 104 , IPV6_OVER_ETHERNET = 105 , IPV4_OVER_VLAN = 106 , IPV6_OVER_VLAN = 107 }
	section 11.13.19.2 CS parameter encoding rules, page 707 More...

enum	Direction { SF_DIRECTION_DOWN , SF_DIRECTION_UP }
	Direction enumeration. More...

enum	ModulationType { MODULATION_TYPE_BPSK_12 , MODULATION_TYPE_QPSK_12 , MODULATION_TYPE_QPSK_34 , MODULATION_TYPE_QAM16_12 , MODULATION_TYPE_QAM16_34 , MODULATION_TYPE_QAM64_23 , MODULATION_TYPE_QAM64_34 }
	Modulation type enumeration, Table 356 and 362. More...

enum	SchedulingType { SF_TYPE_NONE = 0 , SF_TYPE_UNDEF = 1 , SF_TYPE_BE = 2 , SF_TYPE_NRTPS = 3 , SF_TYPE_RTPS = 4 , SF_TYPE_UGS = 6 , SF_TYPE_ALL = 255 }
	section 11.13.11 Service flow scheduling type, page 701 More...

enum	Type { SF_TYPE_PROVISIONED , SF_TYPE_ADMITTED , SF_TYPE_ACTIVE }
	Type enumeration. More...

Public Member Functions
	ServiceFlow ()
	Default constructor.

	ServiceFlow (const ServiceFlow &sf)
	Constructor.

	ServiceFlow (Direction direction)
	Constructor.

	ServiceFlow (Tlv tlv)
	creates a service flow from a TLV

	ServiceFlow (uint32_t sfid, Direction direction, Ptr< WimaxConnection > connection)
	Constructor.

	~ServiceFlow ()
	Destructor.

bool	CheckClassifierMatch (Ipv4Address srcAddress, Ipv4Address dstAddress, uint16_t srcPort, uint16_t dstPort, uint8_t proto) const
	check classifier match.

void	CleanUpQueue ()
	Shall be called only by BS.

void	CopyParametersFrom (ServiceFlow sf)
	Copy parameters from another service flow.

uint16_t	GetArqBlockLifeTime () const
	Get ARQ block lifetime.

uint16_t	GetArqBlockSize () const
	Get ARQ block size.

uint8_t	GetArqDeliverInOrder () const
	Get ARQ deliver in order.

uint8_t	GetArqEnable () const
	Get ARQ enable.

uint16_t	GetArqPurgeTimeout () const
	Get ARQ purge timeout.

uint16_t	GetArqRetryTimeoutRx () const
	Get ARQ retry timeout receive.

uint16_t	GetArqRetryTimeoutTx () const
	Get ARQ retry timeout transmit.

uint16_t	GetArqSyncLoss () const
	Get ARQ sync loss.

uint16_t	GetArqWindowSize () const
	Get ARQ retry timeout transmit.

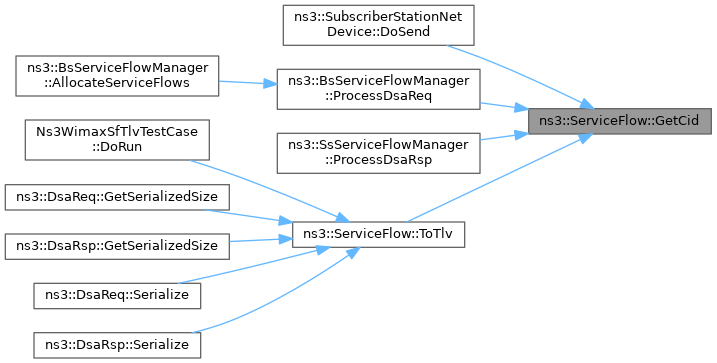

uint16_t	GetCid () const
	Get CID.

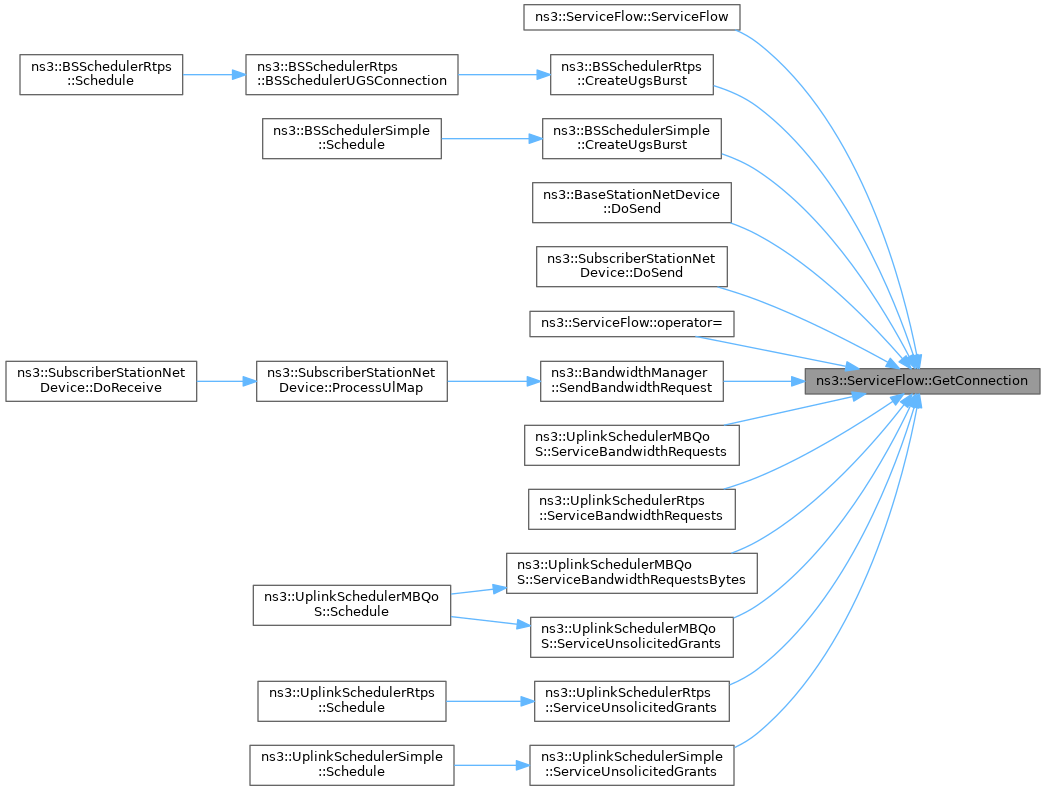

Ptr< WimaxConnection >	GetConnection () const
	Can return a null connection is this service flow has not been associated yet to a connection.

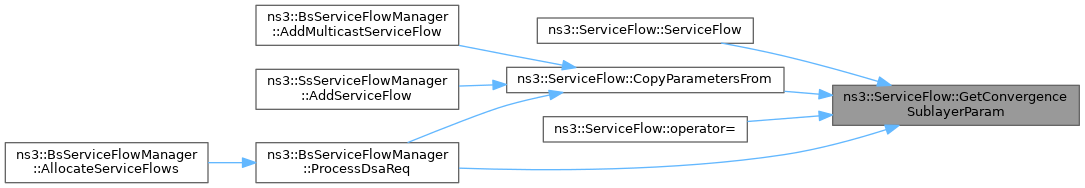

CsParameters	GetConvergenceSublayerParam () const
	Get convergence sublayer.

CsSpecification	GetCsSpecification () const
	Get CS specification.

Direction	GetDirection () const
	Get direction.

uint8_t	GetFixedversusVariableSduIndicator () const
	Get fixed versus variable SDU indicator.

bool	GetIsEnabled () const
	Get is enabled flag.

bool	GetIsMulticast () const
	Get is multicast.

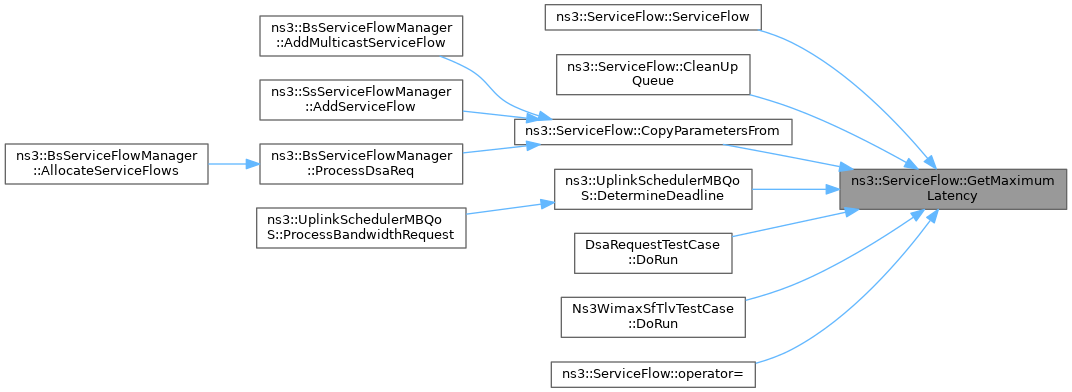

uint32_t	GetMaximumLatency () const
	Get maximum latency.

uint32_t	GetMaxSustainedTrafficRate () const
	Get max sustained traffic rate.

uint32_t	GetMaxTrafficBurst () const
	Get max traffic burst.

uint32_t	GetMinReservedTrafficRate () const
	Get minimum reserved traffic rate.

uint32_t	GetMinTolerableTrafficRate () const
	Get minimum tolerable traffic rate.

WimaxPhy::ModulationType	GetModulation () const
	Get modulation.

uint8_t	GetQosParamSetType () const
	Get QOS parameter set type.

Ptr< WimaxMacQueue >	GetQueue () const
	Get pointer to queue.

ServiceFlowRecord *	GetRecord () const
	Get service flow record.

uint32_t	GetRequestTransmissionPolicy () const
	Get request transmission policy.

ServiceFlow::SchedulingType	GetSchedulingType () const
	Get scheduling type.

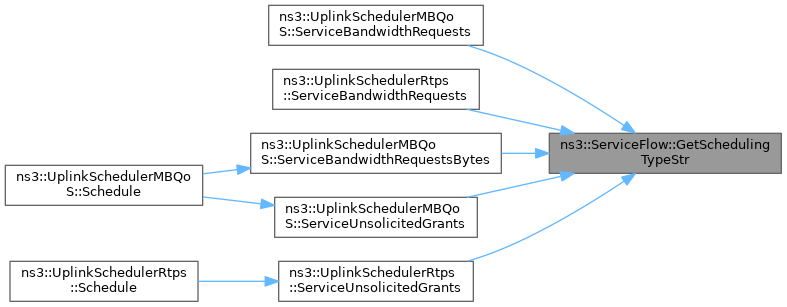

char *	GetSchedulingTypeStr () const
	Get scheduling type string.

uint8_t	GetSduSize () const
	Get SDU size.

std::string	GetServiceClassName () const
	Get service class name.

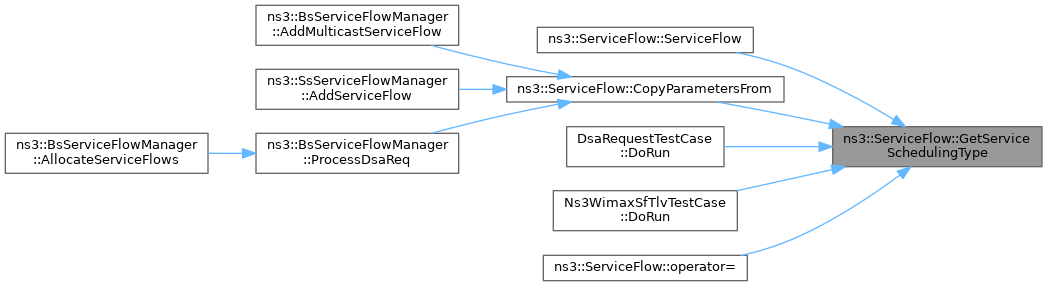

ServiceFlow::SchedulingType	GetServiceSchedulingType () const
	Get service scheduling type.

uint32_t	GetSfid () const
	Get SFID.

uint16_t	GetTargetSAID () const
	Get target SAID.

uint32_t	GetToleratedJitter () const
	Get tolerated jitter.

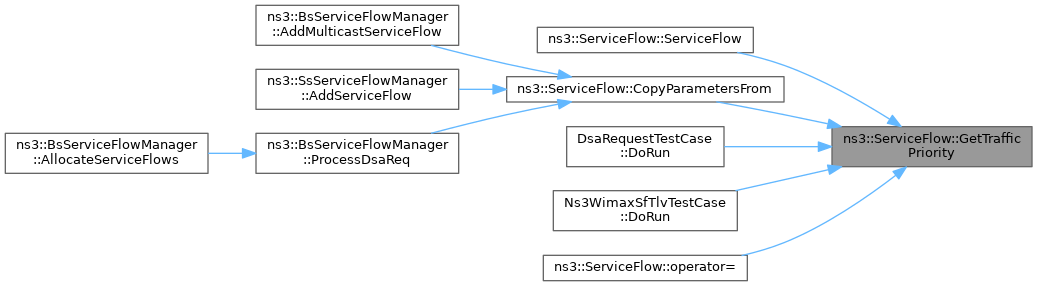

uint8_t	GetTrafficPriority () const
	Get traffic priority.

Type	GetType () const
	Get type of service flow.

uint16_t	GetUnsolicitedGrantInterval () const
	Get unsolicited grant interval.

uint16_t	GetUnsolicitedPollingInterval () const
	Get unsolicited polling interval.

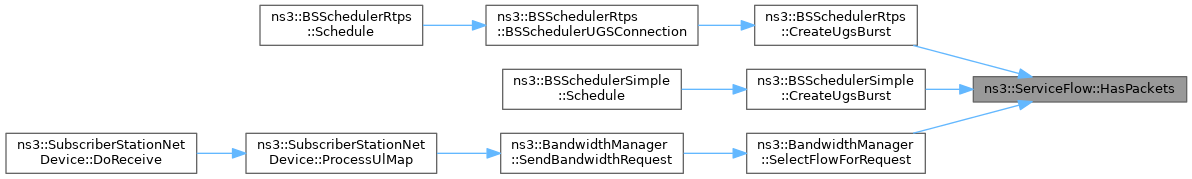

bool	HasPackets () const
	Check if packets are present.

bool	HasPackets (MacHeaderType::HeaderType packetType) const
	Check if packets of particular type are present.

void	InitValues ()
	Initialize values.

ServiceFlow &	operator= (const ServiceFlow &o)
	assignment operator

void	PrintQoSParameters () const
	Print QoS parameters.

void	SetArqBlockLifeTime (uint16_t lifeTime)
	Set ARQ block lifetime.

void	SetArqBlockSize (uint16_t size)
	Set ARQ block size.

void	SetArqDeliverInOrder (uint8_t inOrder)
	Set ARQ deliver in order.

void	SetArqEnable (uint8_t arqEnable)
	Set ARQ enable.

void	SetArqPurgeTimeout (uint16_t timeout)
	Set ARQ purge timeout.

void	SetArqRetryTimeoutRx (uint16_t timeout)
	Set ARQ retry timeout receive.

void	SetArqRetryTimeoutTx (uint16_t timeout)
	Set ARQ retry timeout transmit.

void	SetArqSyncLoss (uint16_t syncLoss)
	Set ARQ sync loss.

void	SetArqWindowSize (uint16_t arqWindowSize)
	Set ARQ retry timeout transmit.

void	SetConnection (Ptr< WimaxConnection > connection)
	Set connection.

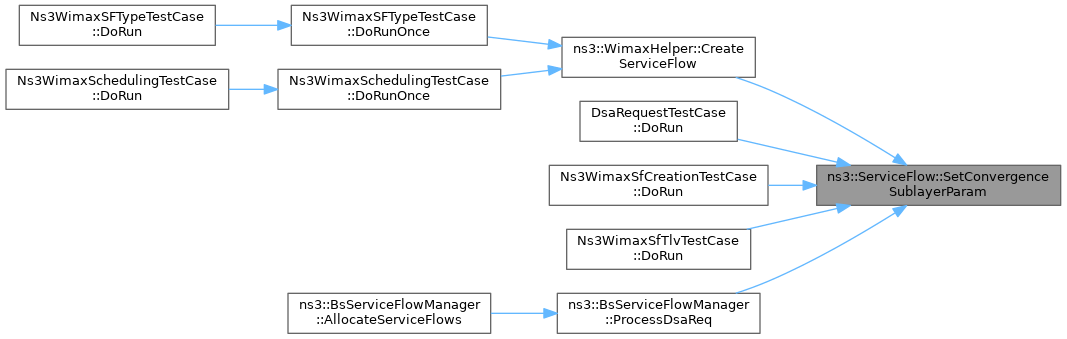

void	SetConvergenceSublayerParam (CsParameters csparam)
	Set convergence sublayer parameters.

void	SetCsSpecification (CsSpecification spec)
	Set CS specification.

void	SetDirection (Direction direction)
	Set direction.

void	SetFixedversusVariableSduIndicator (uint8_t sduIndicator)
	Set fixed versus variable SDU indicator.

void	SetIsEnabled (bool isEnabled)
	Set is enabled flag.

void	SetIsMulticast (bool isMulticast)
	Set is multicast.

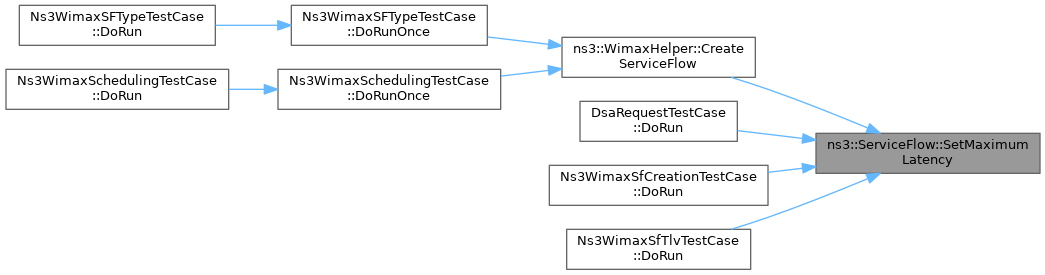

void	SetMaximumLatency (uint32_t MaximumLatency)
	Set maximum latency.

void	SetMaxSustainedTrafficRate (uint32_t maxSustainedRate)
	Set max sustained traffic rate.

void	SetMaxTrafficBurst (uint32_t maxTrafficBurst)
	Set maximum traffic burst.

void	SetMinReservedTrafficRate (uint32_t minResvRate)
	Set minimum reserved traffic rate.

void	SetMinTolerableTrafficRate (uint32_t minJitter)
	Set minimum tolerable traffic rate.

void	SetModulation (WimaxPhy::ModulationType modulationType)
	Set modulation.

void	SetQosParamSetType (uint8_t type)
	Set QOS parameter set type.

void	SetRecord (ServiceFlowRecord *record)
	Set service flow record.

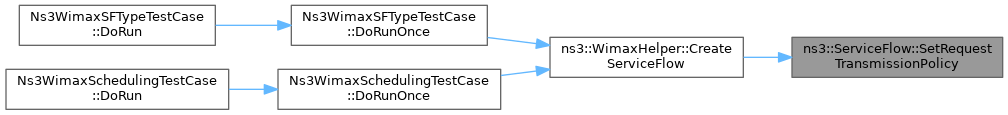

void	SetRequestTransmissionPolicy (uint32_t policy)
	Set request transmission policy.

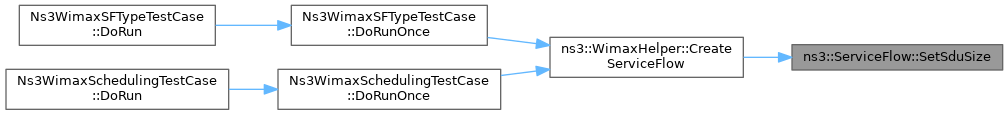

void	SetSduSize (uint8_t sduSize)
	Set SDU size.

void	SetServiceClassName (std::string name)
	Set service class name.

void	SetServiceSchedulingType (ServiceFlow::SchedulingType schedType)
	Set service scheduling type.

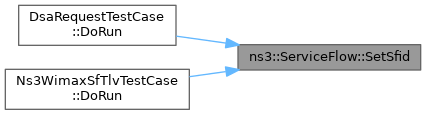

void	SetSfid (uint32_t sfid)
	Set SFID.

void	SetTargetSAID (uint16_t targetSaid)
	Set target SAID.

void	SetToleratedJitter (uint32_t jitter)
	Set tolerated jitter.

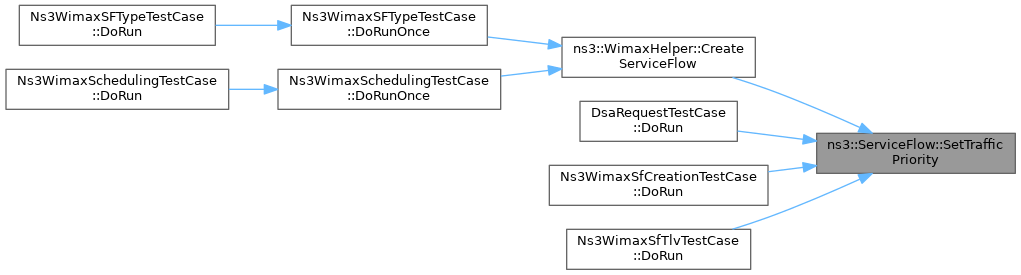

void	SetTrafficPriority (uint8_t priority)
	Set traffic priority.

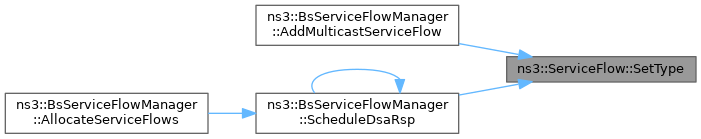

void	SetType (Type type)
	Set type of service flow.

void	SetUnsolicitedGrantInterval (uint16_t unsolicitedGrantInterval)
	Set unsolicited grant interval.

void	SetUnsolicitedPollingInterval (uint16_t unsolicitedPollingInterval)
	Set unsolicited polling interval.

Tlv	ToTlv () const
	creates a TLV from this service flow

Private Attributes
uint16_t	m_arqBlockLifeTime
	ARQ block life time.

uint16_t	m_arqBlockSize
	ARQ block size.

uint8_t	m_arqDeliverInOrder
	ARQ deliver in order.

uint8_t	m_arqEnable
	ARQ enable.

uint16_t	m_arqPurgeTimeout
	ARQ purge timeout.

uint16_t	m_arqRetryTimeoutRx
	ARQ retry timeout receive.

uint16_t	m_arqRetryTimeoutTx
	ARQ retry timeout transmit.

uint16_t	m_arqSyncLoss
	ARQ sync loss.

uint16_t	m_arqWindowSize
	ARQ window size.

Ptr< WimaxConnection >	m_connection
	connection

CsParameters	m_convergenceSublayerParam
	convergence sublayer parameters

CsSpecification	m_csSpecification
	CS specification.

Direction	m_direction
	direction

uint8_t	m_fixedversusVariableSduIndicator
	fixed versus variable SDI indicator

bool	m_isEnabled
	is enabled?

bool	m_isMulticast
	is multicast?

uint32_t	m_maximumLatency
	maximum latency

uint32_t	m_maxSustainedTrafficRate
	maximum sustained traffic rate

uint32_t	m_maxTrafficBurst
	maximum traffic burst

uint32_t	m_minReservedTrafficRate
	minimum reserved traffic rate

uint32_t	m_minTolerableTrafficRate
	minimum tolerable traffic rate

WimaxPhy::ModulationType	m_modulationType
	modulation type

uint8_t	m_qosParamSetType
	QOS parameter type.

ServiceFlowRecord *	m_record
	service flow record

uint32_t	m_requestTransmissionPolicy
	request transmission policy

ServiceFlow::SchedulingType	m_schedulingType
	scheduling type

uint8_t	m_sduSize
	SDU size.

std::string	m_serviceClassName
	service class name

uint32_t	m_sfid
	SFID.

uint16_t	m_targetSAID
	target SAID

uint32_t	m_toleratedJitter
	tolerated jitter

uint8_t	m_trafficPriority
	traffic priority

Type	m_type
	type

uint16_t	m_unsolicitedGrantInterval
	unsolicited grant interval

uint16_t	m_unsolicitedPollingInterval
	unsolicited polling interval

Detailed Description

This class implements service flows as described by the IEEE-802.16 standard.

Definition at line 42 of file service-flow.h.

Member Enumeration Documentation

◆ CsSpecification

enum ns3::ServiceFlow::CsSpecification

section 11.13.19.2 CS parameter encoding rules, page 707

Enumerator
ATM
IPV4
IPV6
ETHERNET
VLAN
IPV4_OVER_ETHERNET
IPV6_OVER_ETHERNET
IPV4_OVER_VLAN
IPV6_OVER_VLAN

Definition at line 73 of file service-flow.h.

◆ Direction

enum ns3::ServiceFlow::Direction

Direction enumeration.

Enumerator
SF_DIRECTION_DOWN
SF_DIRECTION_UP

Definition at line 46 of file service-flow.h.

◆ ModulationType

enum ns3::ServiceFlow::ModulationType

Modulation type enumeration, Table 356 and 362.

Enumerator
MODULATION_TYPE_BPSK_12
MODULATION_TYPE_QPSK_12
MODULATION_TYPE_QPSK_34
MODULATION_TYPE_QAM16_12
MODULATION_TYPE_QAM16_34
MODULATION_TYPE_QAM64_23
MODULATION_TYPE_QAM64_34

Definition at line 87 of file service-flow.h.

◆ SchedulingType

enum ns3::ServiceFlow::SchedulingType

section 11.13.11 Service flow scheduling type, page 701

Enumerator
SF_TYPE_NONE
SF_TYPE_UNDEF
SF_TYPE_BE
SF_TYPE_NRTPS
SF_TYPE_RTPS
SF_TYPE_UGS
SF_TYPE_ALL

Definition at line 61 of file service-flow.h.

◆ Type

enum ns3::ServiceFlow::Type

Type enumeration.

Enumerator
SF_TYPE_PROVISIONED
SF_TYPE_ADMITTED
SF_TYPE_ACTIVE

Definition at line 53 of file service-flow.h.

Constructor & Destructor Documentation

◆ ServiceFlow() [1/5]

ns3::ServiceFlow::ServiceFlow ( Tlv tlv )

creates a service flow from a TLV

Parameters

tlv	the tlv from which the service flow will be created

Definition at line 72 of file service-flow.cc.

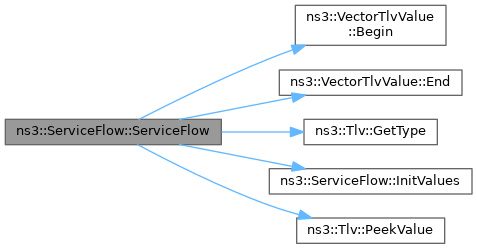

Here is the call graph for this function:

◆ ServiceFlow() [2/5]

ns3::ServiceFlow::ServiceFlow ( )

Default constructor.

Definition at line 45 of file service-flow.cc.

References InitValues(), m_isMulticast, m_modulationType, and ns3::WimaxPhy::MODULATION_TYPE_QPSK_12.

Here is the call graph for this function:

◆ ServiceFlow() [3/5]

ns3::ServiceFlow::ServiceFlow ( Direction direction )

Constructor.

Parameters

direction the direction

Definition at line 32 of file service-flow.cc.

References InitValues(), m_connection, m_direction, m_isEnabled, m_isMulticast, m_modulationType, m_record, m_sfid, m_type, ns3::WimaxPhy::MODULATION_TYPE_QPSK_12, and SF_TYPE_PROVISIONED.

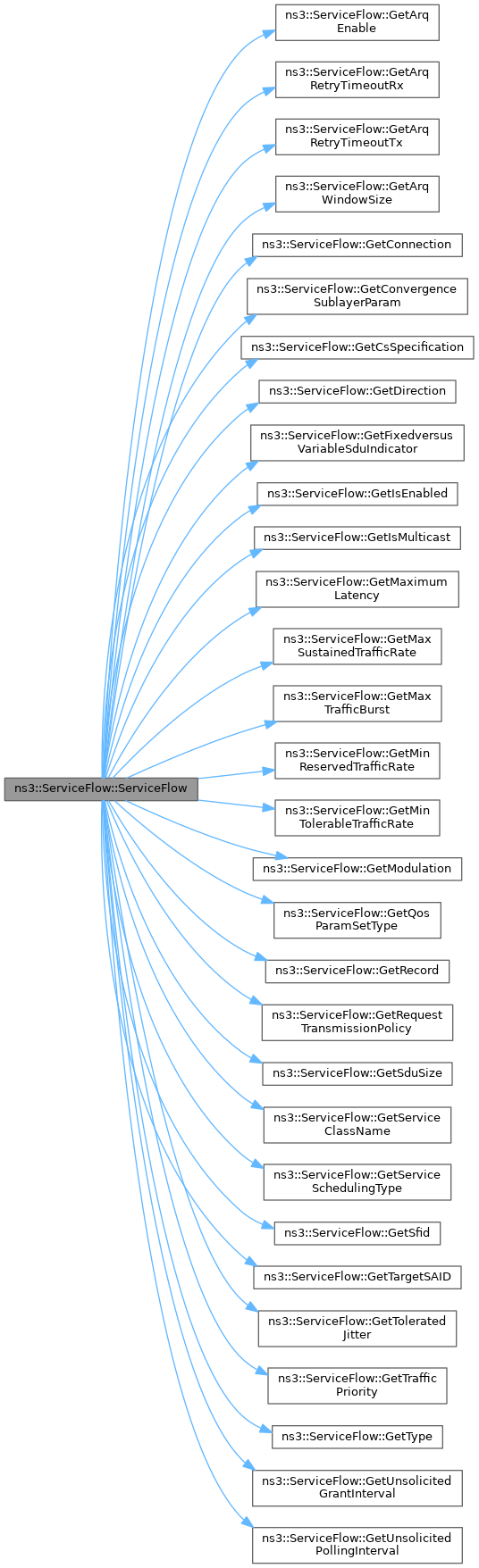

Here is the call graph for this function:

◆ ServiceFlow() [4/5]

ns3::ServiceFlow::ServiceFlow ( const ServiceFlow & sf )

Constructor.

Parameters

sf	service flow

Definition at line 745 of file service-flow.cc.

References GetArqEnable(), GetArqRetryTimeoutRx(), GetArqRetryTimeoutTx(), GetArqWindowSize(), GetConnection(), GetConvergenceSublayerParam(), GetCsSpecification(), GetDirection(), GetFixedversusVariableSduIndicator(), GetIsEnabled(), GetIsMulticast(), GetMaximumLatency(), GetMaxSustainedTrafficRate(), GetMaxTrafficBurst(), GetMinReservedTrafficRate(), GetMinTolerableTrafficRate(), GetModulation(), GetQosParamSetType(), GetRecord(), GetRequestTransmissionPolicy(), GetSduSize(), GetServiceClassName(), GetServiceSchedulingType(), GetSfid(), GetTargetSAID(), GetToleratedJitter(), GetTrafficPriority(), GetType(), GetUnsolicitedGrantInterval(), GetUnsolicitedPollingInterval(), m_arqEnable, m_arqRetryTimeoutRx, m_arqRetryTimeoutTx, m_arqWindowSize, m_connection, m_convergenceSublayerParam, m_csSpecification, m_direction, m_fixedversusVariableSduIndicator, m_isEnabled, m_isMulticast, m_maximumLatency, m_maxSustainedTrafficRate, m_maxTrafficBurst, m_minReservedTrafficRate, m_minTolerableTrafficRate, m_modulationType, m_qosParamSetType, m_record, m_requestTransmissionPolicy, m_schedulingType, m_sduSize, m_serviceClassName, m_sfid, m_targetSAID, m_toleratedJitter, m_trafficPriority, m_type, m_unsolicitedGrantInterval, and m_unsolicitedPollingInterval.

Here is the call graph for this function:

◆ ServiceFlow() [5/5]

ns3::ServiceFlow::ServiceFlow	(	uint32_t	sfid,
		Direction	direction,
		Ptr< WimaxConnection >	connection
	)

Constructor.

Parameters

sfid	the SFID
direction	the direction
connection	the connection object

Definition at line 58 of file service-flow.cc.

References InitValues(), m_connection, m_direction, m_isEnabled, m_isMulticast, m_modulationType, m_record, m_sfid, m_type, ns3::WimaxPhy::MODULATION_TYPE_QPSK_12, and SF_TYPE_PROVISIONED.

Here is the call graph for this function:

◆ ~ServiceFlow()

ns3::ServiceFlow::~ServiceFlow ( )

Destructor.

Definition at line 168 of file service-flow.cc.

References m_connection, and m_record.

Member Function Documentation

◆ CheckClassifierMatch()

bool ns3::ServiceFlow::CheckClassifierMatch	(	Ipv4Address	srcAddress,
		Ipv4Address	dstAddress,
		uint16_t	srcPort,
		uint16_t	dstPort,
		uint8_t	proto
	)		const

check classifier match.

Parameters

srcAddress	the source ip address
dstAddress	the destination ip address
srcPort	the source port
dstPort	the destination port
proto	the layer 4 protocol

Returns: true if the passed parameters match the classifier of the service flow, false otherwise

Definition at line 887 of file service-flow.cc.

References ns3::IpcsClassifierRecord::CheckMatch(), ns3::CsParameters::GetPacketClassifierRule(), and m_convergenceSublayerParam.

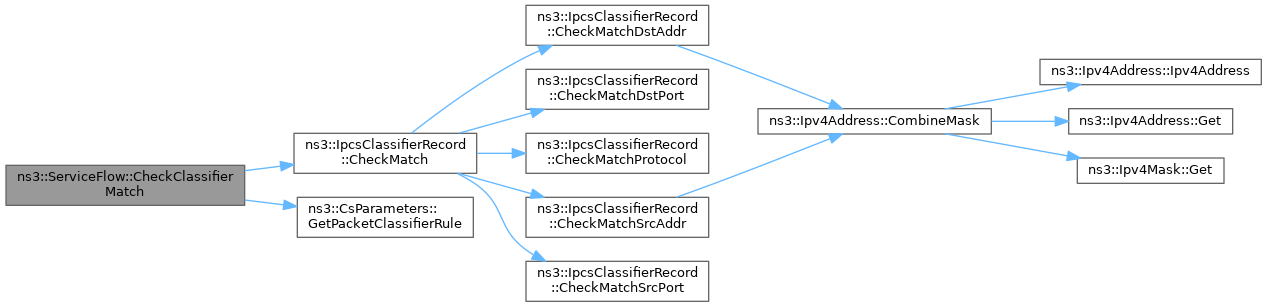

Here is the call graph for this function:

◆ CleanUpQueue()

void ns3::ServiceFlow::CleanUpQueue ( )

Shall be called only by BS.

Definition at line 276 of file service-flow.cc.

References GetMaximumLatency(), m_connection, ns3::MilliSeconds(), and ns3::Simulator::Now().

Here is the call graph for this function:

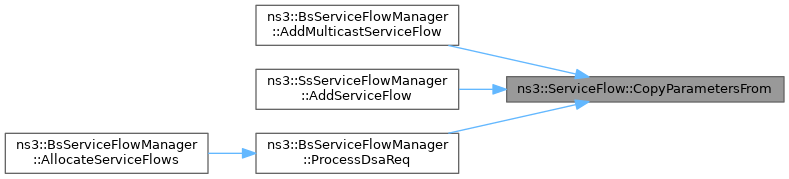

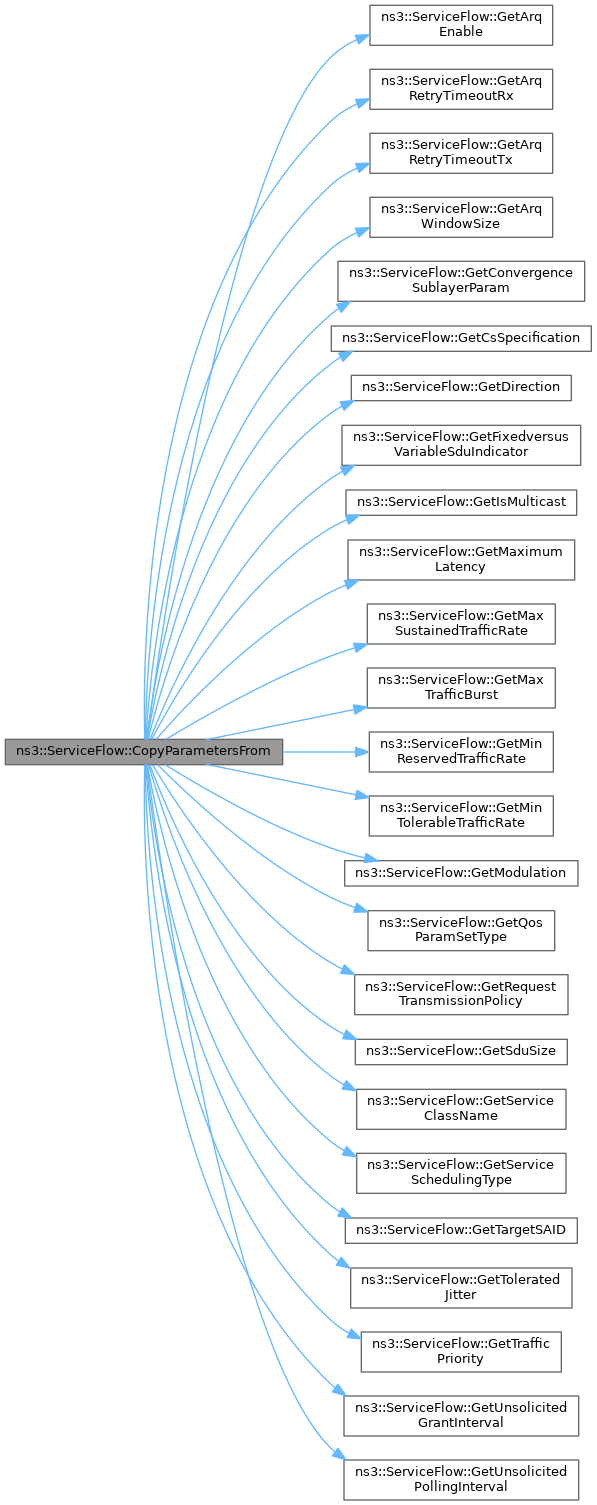

◆ CopyParametersFrom()

void ns3::ServiceFlow::CopyParametersFrom ( ServiceFlow sf )

Copy parameters from another service flow.

Parameters

sf	the service flow

Definition at line 716 of file service-flow.cc.

References GetArqEnable(), GetArqRetryTimeoutRx(), GetArqRetryTimeoutTx(), GetArqWindowSize(), GetConvergenceSublayerParam(), GetCsSpecification(), GetDirection(), GetFixedversusVariableSduIndicator(), GetIsMulticast(), GetMaximumLatency(), GetMaxSustainedTrafficRate(), GetMaxTrafficBurst(), GetMinReservedTrafficRate(), GetMinTolerableTrafficRate(), GetModulation(), GetQosParamSetType(), GetRequestTransmissionPolicy(), GetSduSize(), GetServiceClassName(), GetServiceSchedulingType(), GetTargetSAID(), GetToleratedJitter(), GetTrafficPriority(), GetUnsolicitedGrantInterval(), GetUnsolicitedPollingInterval(), m_arqEnable, m_arqRetryTimeoutRx, m_arqRetryTimeoutTx, m_arqWindowSize, m_convergenceSublayerParam, m_csSpecification, m_direction, m_fixedversusVariableSduIndicator, m_isMulticast, m_maximumLatency, m_maxSustainedTrafficRate, m_maxTrafficBurst, m_minReservedTrafficRate, m_minTolerableTrafficRate, m_modulationType, m_qosParamSetType, m_requestTransmissionPolicy, m_schedulingType, m_sduSize, m_serviceClassName, m_targetSAID, m_toleratedJitter, m_trafficPriority, m_unsolicitedGrantInterval, and m_unsolicitedPollingInterval.

Referenced by ns3::BsServiceFlowManager::AddMulticastServiceFlow(), ns3::SsServiceFlowManager::AddServiceFlow(), and ns3::BsServiceFlowManager::ProcessDsaReq().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetArqBlockLifeTime()

uint16_t ns3::ServiceFlow::GetArqBlockLifeTime ( ) const

Get ARQ block lifetime.

Returns: the ARQ block lifetime

Definition at line 432 of file service-flow.cc.

References m_arqBlockLifeTime.

◆ GetArqBlockSize()

uint16_t ns3::ServiceFlow::GetArqBlockSize ( ) const

Get ARQ block size.

Returns: the ARQ block size

Definition at line 456 of file service-flow.cc.

References m_arqBlockSize.

◆ GetArqDeliverInOrder()

uint8_t ns3::ServiceFlow::GetArqDeliverInOrder ( ) const

Get ARQ deliver in order.

Returns: the ARQ deliver in order

Definition at line 444 of file service-flow.cc.

References m_arqDeliverInOrder.

◆ GetArqEnable()

uint8_t ns3::ServiceFlow::GetArqEnable ( ) const

Get ARQ enable.

Returns: the ARQ enable

Definition at line 408 of file service-flow.cc.

References m_arqEnable.

Referenced by ServiceFlow(), CopyParametersFrom(), and operator=().

Here is the caller graph for this function:

◆ GetArqPurgeTimeout()

uint16_t ns3::ServiceFlow::GetArqPurgeTimeout ( ) const

Get ARQ purge timeout.

Returns: the ARQ purge timeout value

Definition at line 450 of file service-flow.cc.

References m_arqPurgeTimeout.

◆ GetArqRetryTimeoutRx()

uint16_t ns3::ServiceFlow::GetArqRetryTimeoutRx ( ) const

Get ARQ retry timeout receive.

Returns: the ARQ retry timeout receive

Definition at line 426 of file service-flow.cc.

References m_arqRetryTimeoutRx.

Referenced by ServiceFlow(), CopyParametersFrom(), and operator=().

Here is the caller graph for this function:

◆ GetArqRetryTimeoutTx()

uint16_t ns3::ServiceFlow::GetArqRetryTimeoutTx ( ) const

Get ARQ retry timeout transmit.

Returns: the ARQ retry timeout transmit

Definition at line 420 of file service-flow.cc.

References m_arqRetryTimeoutTx.

Referenced by ServiceFlow(), CopyParametersFrom(), and operator=().

Here is the caller graph for this function:

◆ GetArqSyncLoss()

uint16_t ns3::ServiceFlow::GetArqSyncLoss ( ) const

Get ARQ sync loss.

Returns: the ARQ sync loss value

Definition at line 438 of file service-flow.cc.

References m_arqSyncLoss.

◆ GetArqWindowSize()

uint16_t ns3::ServiceFlow::GetArqWindowSize ( ) const

Get ARQ retry timeout transmit.

Returns: the ARQ retry timeout

Definition at line 414 of file service-flow.cc.

References m_arqWindowSize.

Referenced by ServiceFlow(), CopyParametersFrom(), and operator=().

Here is the caller graph for this function:

◆ GetCid()

uint16_t ns3::ServiceFlow::GetCid ( ) const

Get CID.

Returns: the CID

Definition at line 314 of file service-flow.cc.

References m_connection.

Referenced by ns3::SubscriberStationNetDevice::DoSend(), ns3::BsServiceFlowManager::ProcessDsaReq(), ns3::SsServiceFlowManager::ProcessDsaRsp(), and ToTlv().

Here is the caller graph for this function:

◆ GetConnection()

Ptr< WimaxConnection > ns3::ServiceFlow::GetConnection ( ) const

Can return a null connection is this service flow has not been associated yet to a connection.

Returns: pointer to the WimaxConnection

Definition at line 210 of file service-flow.cc.

References m_connection.

Referenced by ServiceFlow(), ns3::BSSchedulerRtps::CreateUgsBurst(), ns3::BSSchedulerSimple::CreateUgsBurst(), ns3::BaseStationNetDevice::DoSend(), ns3::SubscriberStationNetDevice::DoSend(), operator=(), ns3::BandwidthManager::SendBandwidthRequest(), ns3::UplinkSchedulerMBQoS::ServiceBandwidthRequests(), ns3::UplinkSchedulerRtps::ServiceBandwidthRequests(), ns3::UplinkSchedulerMBQoS::ServiceBandwidthRequestsBytes(), ns3::UplinkSchedulerMBQoS::ServiceUnsolicitedGrants(), ns3::UplinkSchedulerRtps::ServiceUnsolicitedGrants(), and ns3::UplinkSchedulerSimple::ServiceUnsolicitedGrants().

Here is the caller graph for this function:

◆ GetConvergenceSublayerParam()

CsParameters ns3::ServiceFlow::GetConvergenceSublayerParam ( ) const

Get convergence sublayer.

Returns: the convergence sublayer

Definition at line 468 of file service-flow.cc.

References m_convergenceSublayerParam.

Referenced by ServiceFlow(), CopyParametersFrom(), operator=(), and ns3::BsServiceFlowManager::ProcessDsaReq().

Here is the caller graph for this function:

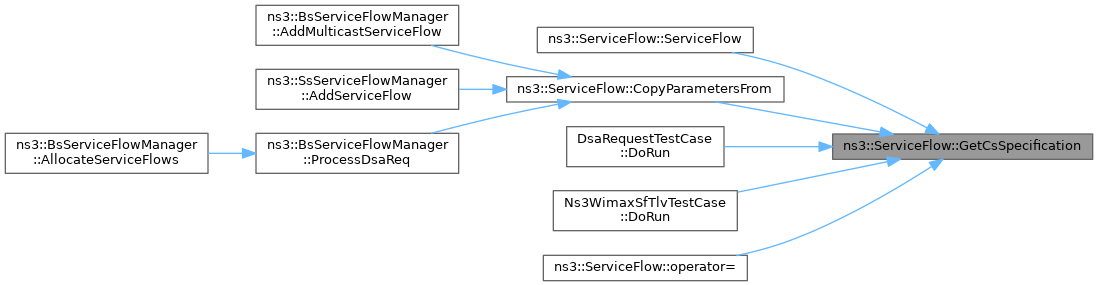

◆ GetCsSpecification()

ServiceFlow::CsSpecification ns3::ServiceFlow::GetCsSpecification ( ) const

Get CS specification.

Returns: the CS specification

Definition at line 462 of file service-flow.cc.

References m_csSpecification.

Referenced by ServiceFlow(), CopyParametersFrom(), DsaRequestTestCase::DoRun(), Ns3WimaxSfTlvTestCase::DoRun(), and operator=().

Here is the caller graph for this function:

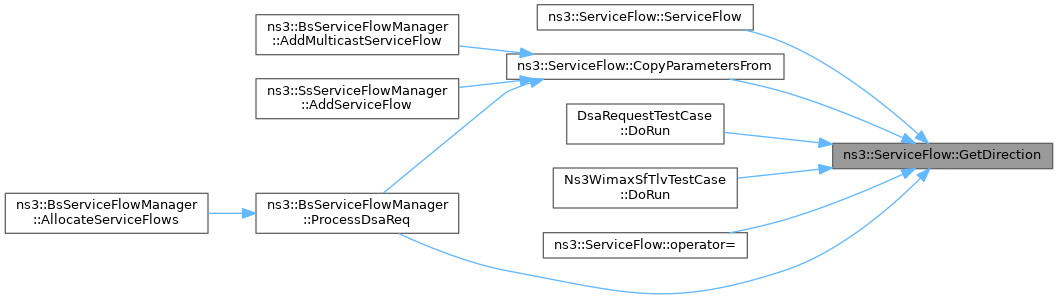

◆ GetDirection()

ServiceFlow::Direction ns3::ServiceFlow::GetDirection ( ) const

Get direction.

Returns: the direction

Definition at line 185 of file service-flow.cc.

References m_direction.

Referenced by ServiceFlow(), CopyParametersFrom(), DsaRequestTestCase::DoRun(), Ns3WimaxSfTlvTestCase::DoRun(), operator=(), and ns3::BsServiceFlowManager::ProcessDsaReq().

Here is the caller graph for this function:

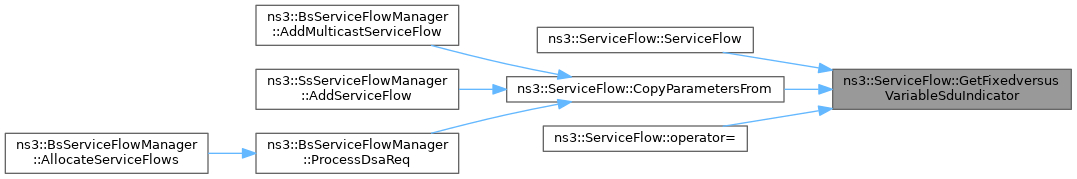

◆ GetFixedversusVariableSduIndicator()

uint8_t ns3::ServiceFlow::GetFixedversusVariableSduIndicator ( ) const

Get fixed versus variable SDU indicator.

Returns: the fixed vs variable SDU indicator

Definition at line 390 of file service-flow.cc.

References m_fixedversusVariableSduIndicator.

Referenced by ServiceFlow(), CopyParametersFrom(), and operator=().

Here is the caller graph for this function:

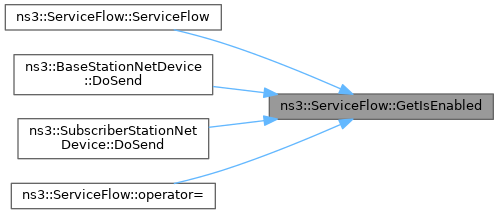

◆ GetIsEnabled()

bool ns3::ServiceFlow::GetIsEnabled ( ) const

Get is enabled flag.

Returns: is enabled

Definition at line 222 of file service-flow.cc.

References m_isEnabled.

Referenced by ServiceFlow(), ns3::BaseStationNetDevice::DoSend(), ns3::SubscriberStationNetDevice::DoSend(), and operator=().

Here is the caller graph for this function:

◆ GetIsMulticast()

bool ns3::ServiceFlow::GetIsMulticast ( ) const

Get is multicast.

Returns: the is multicast flag

Definition at line 486 of file service-flow.cc.

References m_isMulticast.

Referenced by ServiceFlow(), CopyParametersFrom(), operator=(), ns3::UplinkSchedulerMBQoS::SetupServiceFlow(), ns3::UplinkSchedulerRtps::SetupServiceFlow(), and ns3::UplinkSchedulerSimple::SetupServiceFlow().

Here is the caller graph for this function:

◆ GetMaximumLatency()

uint32_t ns3::ServiceFlow::GetMaximumLatency ( ) const

Get maximum latency.

Returns: the maximum latency

Definition at line 384 of file service-flow.cc.

References m_maximumLatency.

Referenced by ServiceFlow(), CleanUpQueue(), CopyParametersFrom(), ns3::UplinkSchedulerMBQoS::DetermineDeadline(), DsaRequestTestCase::DoRun(), Ns3WimaxSfTlvTestCase::DoRun(), and operator=().

Here is the caller graph for this function:

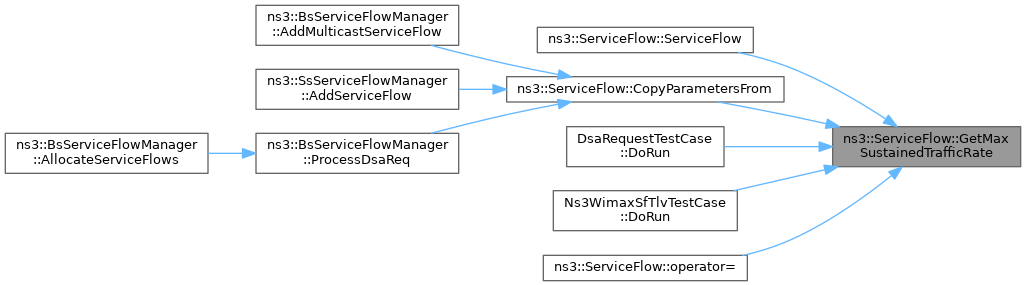

◆ GetMaxSustainedTrafficRate()

uint32_t ns3::ServiceFlow::GetMaxSustainedTrafficRate ( ) const

Get max sustained traffic rate.

Returns: the maximum sustained traffic rate

Definition at line 342 of file service-flow.cc.

References m_maxSustainedTrafficRate.

Referenced by ServiceFlow(), CopyParametersFrom(), DsaRequestTestCase::DoRun(), Ns3WimaxSfTlvTestCase::DoRun(), and operator=().

Here is the caller graph for this function:

◆ GetMaxTrafficBurst()

uint32_t ns3::ServiceFlow::GetMaxTrafficBurst ( ) const

Get max traffic burst.

Returns: the maximum traffic burst

Definition at line 348 of file service-flow.cc.

References m_maxTrafficBurst.

Referenced by ServiceFlow(), CopyParametersFrom(), DsaRequestTestCase::DoRun(), Ns3WimaxSfTlvTestCase::DoRun(), and operator=().

Here is the caller graph for this function:

◆ GetMinReservedTrafficRate()

uint32_t ns3::ServiceFlow::GetMinReservedTrafficRate ( ) const

Get minimum reserved traffic rate.

Returns: the minimum reserved traffic rate

Definition at line 354 of file service-flow.cc.

References m_minReservedTrafficRate.

Referenced by ServiceFlow(), ns3::UplinkSchedulerMBQoS::CheckMinimumBandwidth(), CopyParametersFrom(), DsaRequestTestCase::DoRun(), Ns3WimaxSfTlvTestCase::DoRun(), operator=(), ns3::UplinkSchedulerMBQoS::SetupServiceFlow(), ns3::UplinkSchedulerRtps::SetupServiceFlow(), ns3::UplinkSchedulerSimple::SetupServiceFlow(), and ns3::UplinkSchedulerMBQoS::UplinkSchedWindowTimer().

Here is the caller graph for this function:

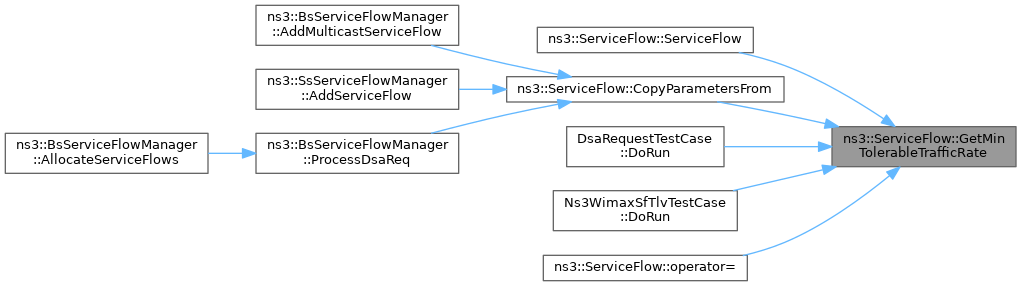

◆ GetMinTolerableTrafficRate()

uint32_t ns3::ServiceFlow::GetMinTolerableTrafficRate ( ) const

Get minimum tolerable traffic rate.

Returns: the minimum tolerable traffic rate

Definition at line 360 of file service-flow.cc.

References m_minTolerableTrafficRate.

Referenced by ServiceFlow(), CopyParametersFrom(), DsaRequestTestCase::DoRun(), Ns3WimaxSfTlvTestCase::DoRun(), and operator=().

Here is the caller graph for this function:

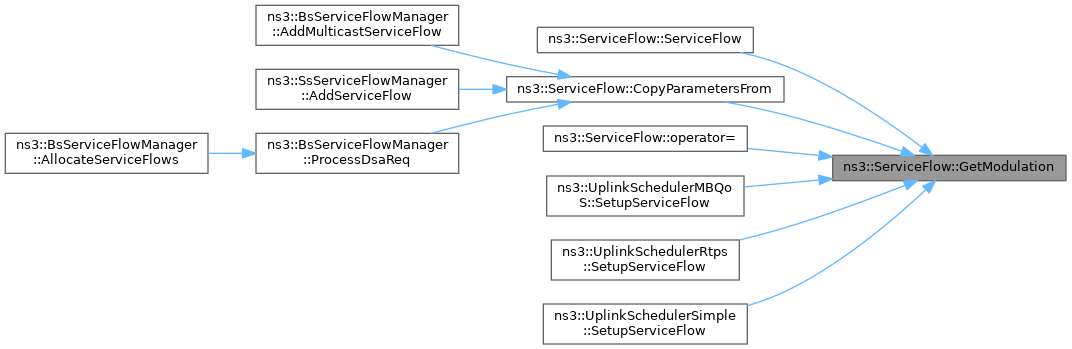

◆ GetModulation()

WimaxPhy::ModulationType ns3::ServiceFlow::GetModulation ( ) const

Get modulation.

Returns: the modulation

Definition at line 492 of file service-flow.cc.

References m_modulationType.

Referenced by ServiceFlow(), CopyParametersFrom(), operator=(), ns3::UplinkSchedulerMBQoS::SetupServiceFlow(), ns3::UplinkSchedulerRtps::SetupServiceFlow(), and ns3::UplinkSchedulerSimple::SetupServiceFlow().

Here is the caller graph for this function:

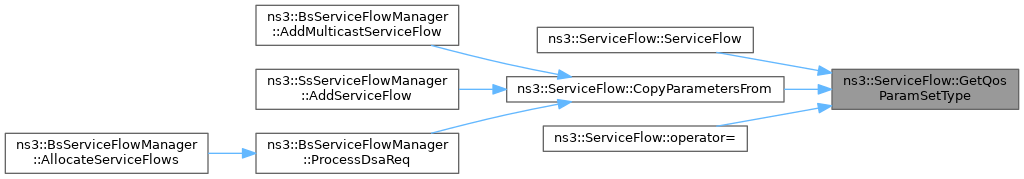

◆ GetQosParamSetType()

uint8_t ns3::ServiceFlow::GetQosParamSetType ( ) const

Get QOS parameter set type.

Returns: the QOS parameter set type

Definition at line 330 of file service-flow.cc.

References m_qosParamSetType.

Referenced by ServiceFlow(), CopyParametersFrom(), and operator=().

Here is the caller graph for this function:

◆ GetQueue()

Ptr< WimaxMacQueue > ns3::ServiceFlow::GetQueue ( ) const

Get pointer to queue.

Returns: pointer to the wimax mac queue

Definition at line 240 of file service-flow.cc.

References m_connection.

Referenced by ns3::BandwidthManager::SelectFlowForRequest().

Here is the caller graph for this function:

◆ GetRecord()

ServiceFlowRecord * ns3::ServiceFlow::GetRecord ( ) const

Get service flow record.

Returns: pointer to the service flow record

Definition at line 234 of file service-flow.cc.

References m_record.

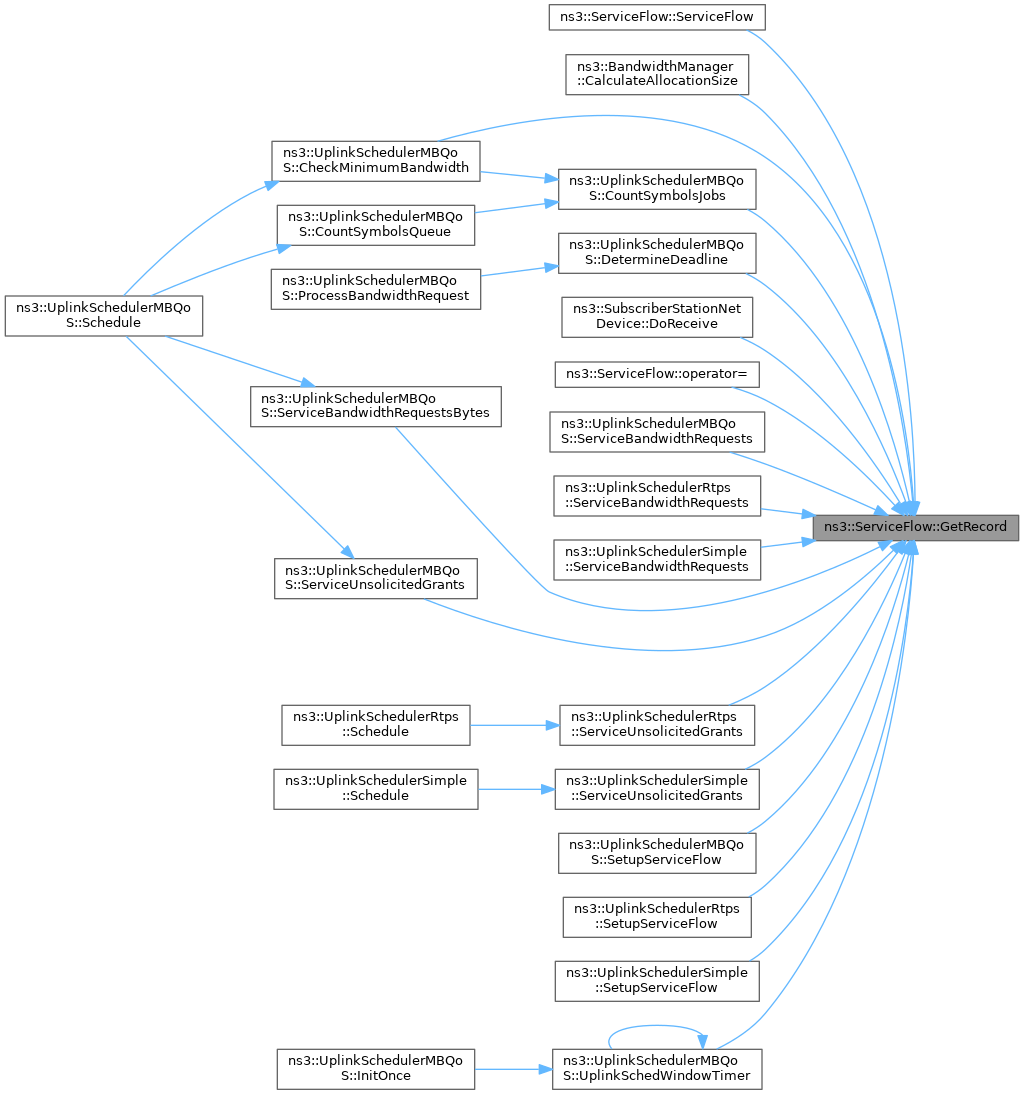

Here is the caller graph for this function:

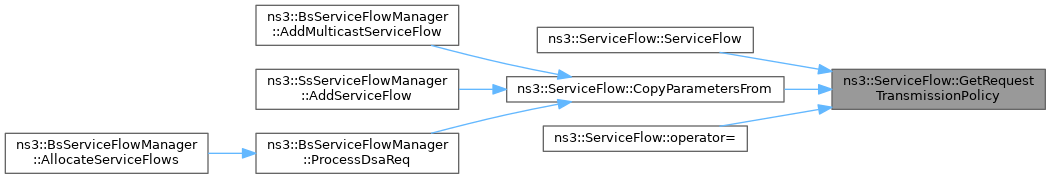

◆ GetRequestTransmissionPolicy()

uint32_t ns3::ServiceFlow::GetRequestTransmissionPolicy ( ) const

Get request transmission policy.

Returns: the request transmission policy

Definition at line 372 of file service-flow.cc.

References m_requestTransmissionPolicy.

Referenced by ServiceFlow(), CopyParametersFrom(), and operator=().

Here is the caller graph for this function:

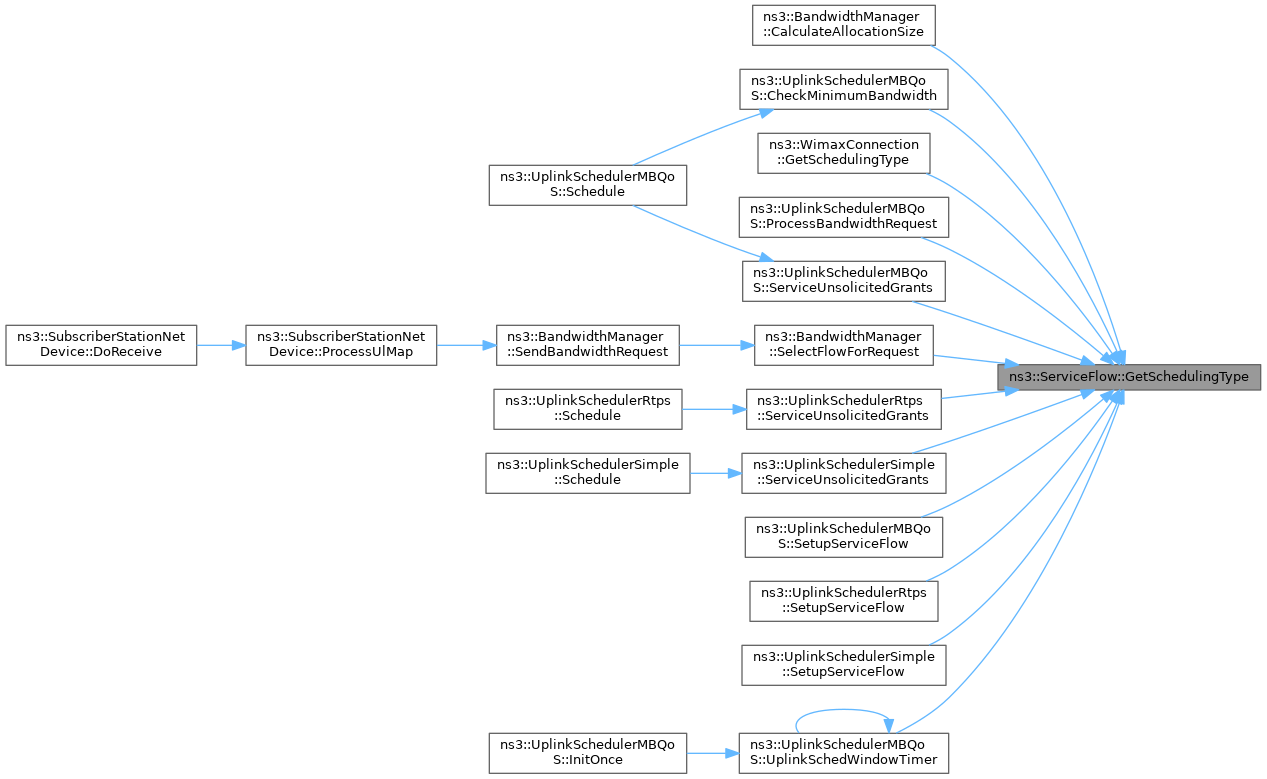

◆ GetSchedulingType()

ServiceFlow::SchedulingType ns3::ServiceFlow::GetSchedulingType ( ) const

Get scheduling type.

Returns: the scheduling type

Definition at line 250 of file service-flow.cc.

References m_schedulingType.

Here is the caller graph for this function:

◆ GetSchedulingTypeStr()

char * ns3::ServiceFlow::GetSchedulingTypeStr ( ) const

Get scheduling type string.

Returns: the name of the scheduling type

Definition at line 824 of file service-flow.cc.

References m_schedulingType, NS_FATAL_ERROR, SF_TYPE_BE, SF_TYPE_NRTPS, SF_TYPE_RTPS, and SF_TYPE_UGS.

Referenced by ns3::UplinkSchedulerMBQoS::ServiceBandwidthRequests(), ns3::UplinkSchedulerRtps::ServiceBandwidthRequests(), ns3::UplinkSchedulerMBQoS::ServiceBandwidthRequestsBytes(), ns3::UplinkSchedulerMBQoS::ServiceUnsolicitedGrants(), and ns3::UplinkSchedulerRtps::ServiceUnsolicitedGrants().

Here is the caller graph for this function:

◆ GetSduSize()

uint8_t ns3::ServiceFlow::GetSduSize ( ) const

Get SDU size.

Returns: the SDU size

Definition at line 396 of file service-flow.cc.

References m_sduSize.

Referenced by ServiceFlow(), ns3::UplinkSchedulerMBQoS::CheckMinimumBandwidth(), CopyParametersFrom(), ns3::UplinkSchedulerMBQoS::CountSymbolsJobs(), operator=(), ns3::UplinkSchedulerMBQoS::ServiceBandwidthRequests(), ns3::UplinkSchedulerRtps::ServiceBandwidthRequests(), ns3::UplinkSchedulerSimple::ServiceBandwidthRequests(), ns3::UplinkSchedulerRtps::SetupServiceFlow(), and ns3::UplinkSchedulerSimple::SetupServiceFlow().

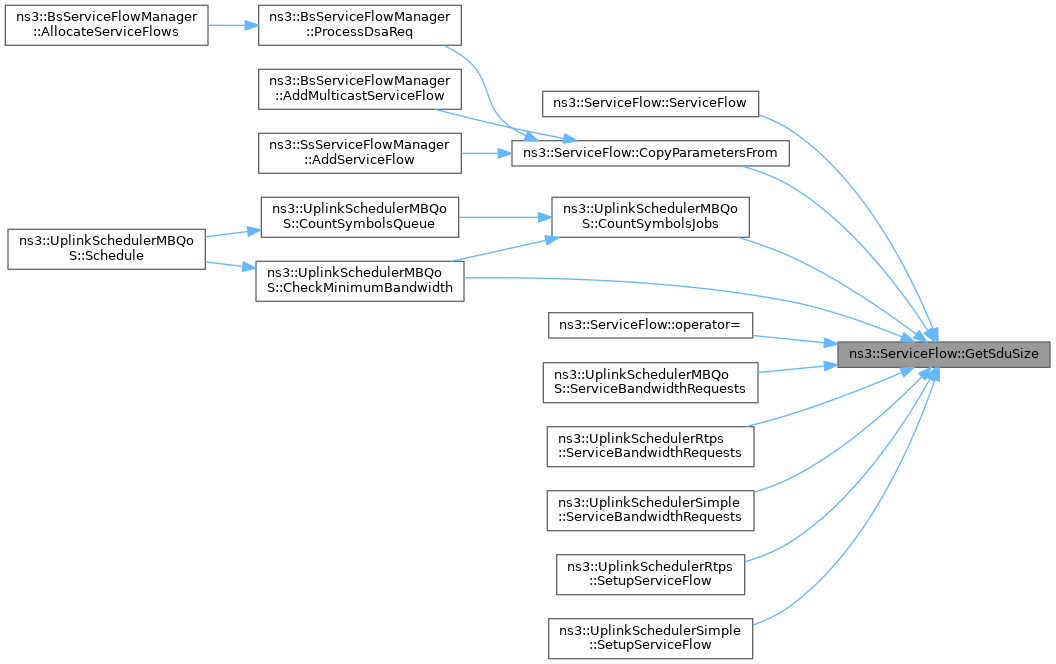

Here is the caller graph for this function:

◆ GetServiceClassName()

std::string ns3::ServiceFlow::GetServiceClassName ( ) const

Get service class name.

Returns: the service class name

Definition at line 324 of file service-flow.cc.

References m_serviceClassName.

Referenced by ServiceFlow(), CopyParametersFrom(), and operator=().

Here is the caller graph for this function:

◆ GetServiceSchedulingType()

ServiceFlow::SchedulingType ns3::ServiceFlow::GetServiceSchedulingType ( ) const

Get service scheduling type.

Returns: the scheduling type

Definition at line 366 of file service-flow.cc.

References m_schedulingType.

Referenced by ServiceFlow(), CopyParametersFrom(), DsaRequestTestCase::DoRun(), Ns3WimaxSfTlvTestCase::DoRun(), and operator=().

Here is the caller graph for this function:

◆ GetSfid()

uint32_t ns3::ServiceFlow::GetSfid ( ) const

Get SFID.

Returns: the SFID

Definition at line 308 of file service-flow.cc.

References m_sfid.

Referenced by ServiceFlow(), DsaRequestTestCase::DoRun(), Ns3WimaxSfTlvTestCase::DoRun(), ns3::SubscriberStationNetDevice::DoSend(), operator=(), ns3::BsServiceFlowManager::ProcessDsaReq(), ns3::UplinkSchedulerMBQoS::ServiceBandwidthRequests(), ns3::UplinkSchedulerRtps::ServiceBandwidthRequests(), ns3::UplinkSchedulerMBQoS::ServiceBandwidthRequestsBytes(), ns3::UplinkSchedulerMBQoS::ServiceUnsolicitedGrants(), ns3::UplinkSchedulerRtps::ServiceUnsolicitedGrants(), and ns3::UplinkSchedulerSimple::ServiceUnsolicitedGrants().

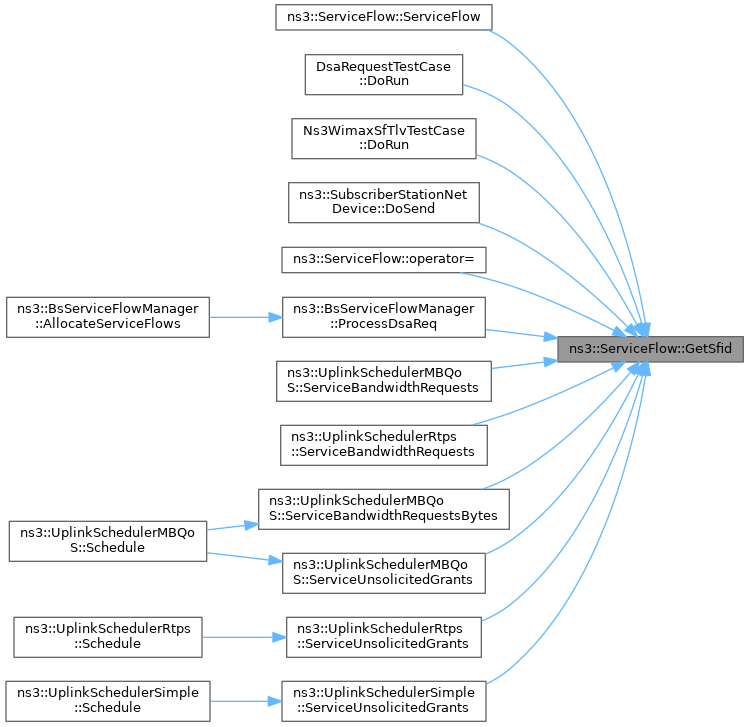

Here is the caller graph for this function:

◆ GetTargetSAID()

uint16_t ns3::ServiceFlow::GetTargetSAID ( ) const

Get target SAID.

Returns: the target SAID

Definition at line 402 of file service-flow.cc.

References m_targetSAID.

Referenced by ServiceFlow(), CopyParametersFrom(), and operator=().

Here is the caller graph for this function:

◆ GetToleratedJitter()

uint32_t ns3::ServiceFlow::GetToleratedJitter ( ) const

Get tolerated jitter.

Returns: the tolerated jitter

Definition at line 378 of file service-flow.cc.

References m_toleratedJitter.

Referenced by ServiceFlow(), CopyParametersFrom(), operator=(), ns3::UplinkSchedulerMBQoS::SetupServiceFlow(), ns3::UplinkSchedulerRtps::SetupServiceFlow(), and ns3::UplinkSchedulerSimple::SetupServiceFlow().

Here is the caller graph for this function:

◆ GetTrafficPriority()

uint8_t ns3::ServiceFlow::GetTrafficPriority ( ) const

Get traffic priority.

Returns: the traffic priority

Definition at line 336 of file service-flow.cc.

References m_trafficPriority.

Referenced by ServiceFlow(), CopyParametersFrom(), DsaRequestTestCase::DoRun(), Ns3WimaxSfTlvTestCase::DoRun(), and operator=().

Here is the caller graph for this function:

◆ GetType()

ServiceFlow::Type ns3::ServiceFlow::GetType ( ) const

Get type of service flow.

Returns: the type

Definition at line 197 of file service-flow.cc.

References m_type.

Referenced by ServiceFlow(), and operator=().

Here is the caller graph for this function:

◆ GetUnsolicitedGrantInterval()

uint16_t ns3::ServiceFlow::GetUnsolicitedGrantInterval ( ) const

Get unsolicited grant interval.

Returns: the unsolicited grant interval

Definition at line 474 of file service-flow.cc.

References m_unsolicitedGrantInterval.

Referenced by ServiceFlow(), ns3::BandwidthManager::CalculateAllocationSize(), CopyParametersFrom(), and operator=().

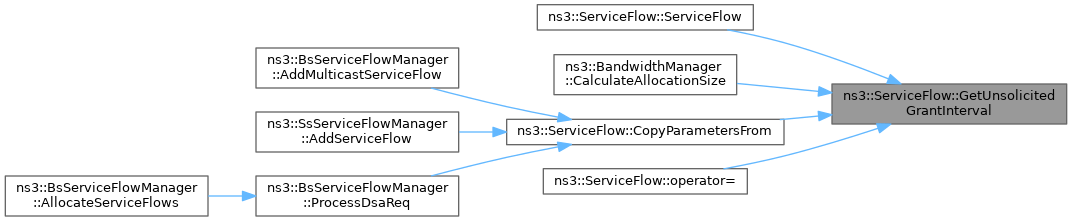

Here is the caller graph for this function:

◆ GetUnsolicitedPollingInterval()

uint16_t ns3::ServiceFlow::GetUnsolicitedPollingInterval ( ) const

Get unsolicited polling interval.

Returns: the unsolicited polling interval

Definition at line 480 of file service-flow.cc.

References m_unsolicitedPollingInterval.

Referenced by ServiceFlow(), ns3::BandwidthManager::CalculateAllocationSize(), CopyParametersFrom(), ns3::UplinkSchedulerMBQoS::CountSymbolsJobs(), and operator=().

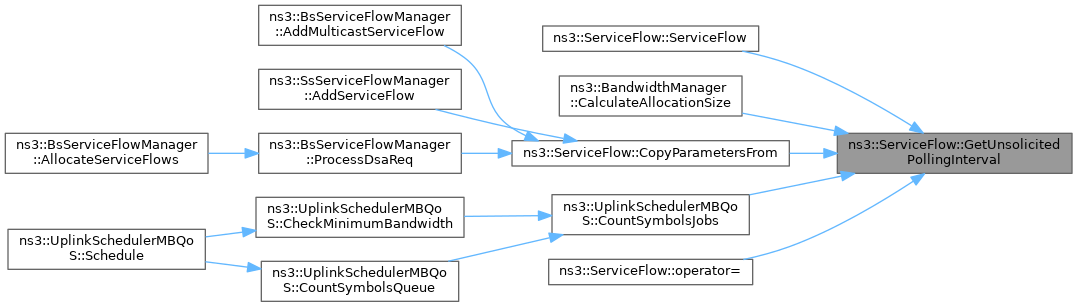

Here is the caller graph for this function:

◆ HasPackets() [1/2]

bool ns3::ServiceFlow::HasPackets ( ) const

Check if packets are present.

Returns: true if there are packets

Definition at line 256 of file service-flow.cc.

References m_connection.

Referenced by ns3::BSSchedulerRtps::CreateUgsBurst(), ns3::BSSchedulerSimple::CreateUgsBurst(), and ns3::BandwidthManager::SelectFlowForRequest().

Here is the caller graph for this function:

◆ HasPackets() [2/2]

bool ns3::ServiceFlow::HasPackets ( MacHeaderType::HeaderType packetType ) const

Check if packets of particular type are present.

Parameters

packetType the packet type to select

Returns: true if there are packets of the packet type

Definition at line 266 of file service-flow.cc.

References m_connection.

◆ InitValues()

void ns3::ServiceFlow::InitValues ( )

Initialize values.

Definition at line 680 of file service-flow.cc.

References IPV4, m_arqBlockLifeTime, m_arqBlockSize, m_arqDeliverInOrder, m_arqEnable, m_arqPurgeTimeout, m_arqRetryTimeoutRx, m_arqRetryTimeoutTx, m_arqSyncLoss, m_arqWindowSize, m_csSpecification, m_direction, m_fixedversusVariableSduIndicator, m_isMulticast, m_maximumLatency, m_maxSustainedTrafficRate, m_maxTrafficBurst, m_minReservedTrafficRate, m_minTolerableTrafficRate, m_modulationType, m_qosParamSetType, m_requestTransmissionPolicy, m_schedulingType, m_sduSize, m_serviceClassName, m_sfid, m_targetSAID, m_toleratedJitter, m_trafficPriority, m_type, m_unsolicitedGrantInterval, m_unsolicitedPollingInterval, ns3::WimaxPhy::MODULATION_TYPE_QPSK_12, SF_DIRECTION_DOWN, SF_TYPE_ACTIVE, and SF_TYPE_NONE.

Referenced by ServiceFlow().

Here is the caller graph for this function:

◆ operator=()

ServiceFlow & ns3::ServiceFlow::operator= ( const ServiceFlow & o )

assignment operator

Parameters

o	the service flow to assign

Returns: the service flow

Definition at line 781 of file service-flow.cc.

References GetArqEnable(), GetArqRetryTimeoutRx(), GetArqRetryTimeoutTx(), GetArqWindowSize(), GetConnection(), GetConvergenceSublayerParam(), GetCsSpecification(), GetDirection(), GetFixedversusVariableSduIndicator(), GetIsEnabled(), GetIsMulticast(), GetMaximumLatency(), GetMaxSustainedTrafficRate(), GetMaxTrafficBurst(), GetMinReservedTrafficRate(), GetMinTolerableTrafficRate(), GetModulation(), GetQosParamSetType(), GetRecord(), GetRequestTransmissionPolicy(), GetSduSize(), GetServiceClassName(), GetServiceSchedulingType(), GetSfid(), GetTargetSAID(), GetToleratedJitter(), GetTrafficPriority(), GetType(), GetUnsolicitedGrantInterval(), GetUnsolicitedPollingInterval(), m_arqEnable, m_arqRetryTimeoutRx, m_arqRetryTimeoutTx, m_arqWindowSize, m_connection, m_convergenceSublayerParam, m_csSpecification, m_direction, m_fixedversusVariableSduIndicator, m_isEnabled, m_isMulticast, m_maximumLatency, m_maxSustainedTrafficRate, m_maxTrafficBurst, m_minReservedTrafficRate, m_minTolerableTrafficRate, m_modulationType, m_qosParamSetType, m_record, m_requestTransmissionPolicy, m_schedulingType, m_sduSize, m_serviceClassName, m_sfid, m_targetSAID, m_toleratedJitter, m_trafficPriority, m_type, m_unsolicitedGrantInterval, and m_unsolicitedPollingInterval.

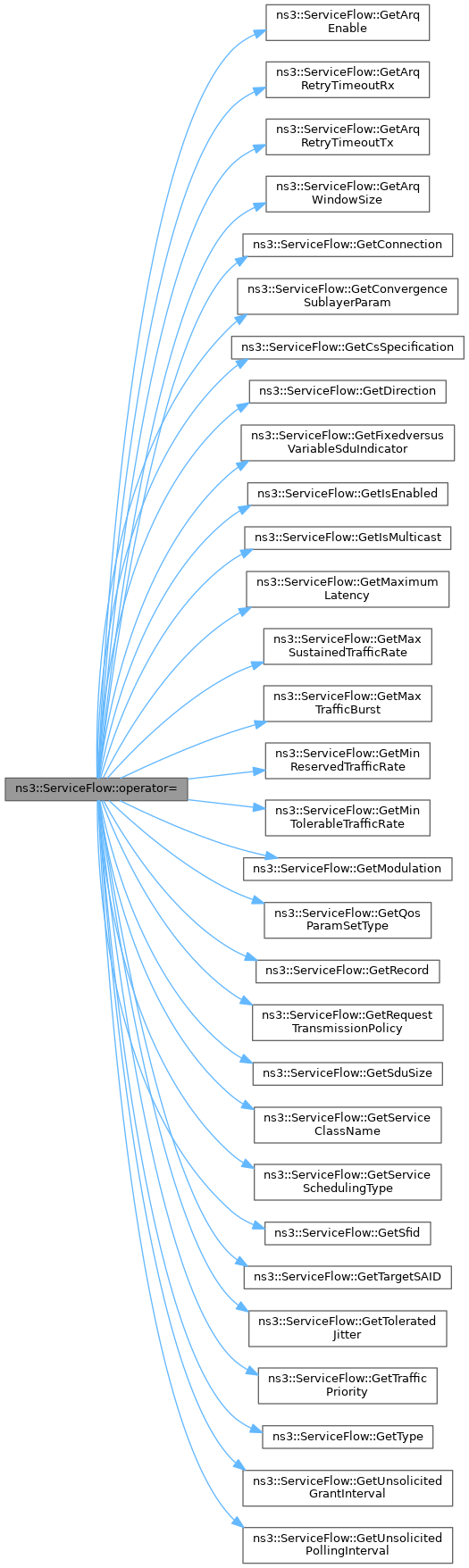

Here is the call graph for this function:

◆ PrintQoSParameters()

void ns3::ServiceFlow::PrintQoSParameters ( ) const

Print QoS parameters.

Definition at line 301 of file service-flow.cc.

◆ SetArqBlockLifeTime()

void ns3::ServiceFlow::SetArqBlockLifeTime ( uint16_t lifeTime )

Set ARQ block lifetime.

Parameters

lifeTime the ARQ block life time

Definition at line 614 of file service-flow.cc.

References m_arqBlockLifeTime.

◆ SetArqBlockSize()

void ns3::ServiceFlow::SetArqBlockSize ( uint16_t size )

Set ARQ block size.

Parameters

size the size

Definition at line 638 of file service-flow.cc.

References m_arqBlockSize.

◆ SetArqDeliverInOrder()

void ns3::ServiceFlow::SetArqDeliverInOrder ( uint8_t inOrder )

Set ARQ deliver in order.

Parameters

inOrder the deliver in order setting

Definition at line 626 of file service-flow.cc.

References m_arqDeliverInOrder.

◆ SetArqEnable()

void ns3::ServiceFlow::SetArqEnable ( uint8_t arqEnable )

Set ARQ enable.

Parameters

arqEnable the ARQ enable setting

Definition at line 590 of file service-flow.cc.

References m_arqEnable.

◆ SetArqPurgeTimeout()

void ns3::ServiceFlow::SetArqPurgeTimeout ( uint16_t timeout )

Set ARQ purge timeout.

Parameters

timeout the timeout value

Definition at line 632 of file service-flow.cc.

References m_arqPurgeTimeout, and timeout.

◆ SetArqRetryTimeoutRx()

void ns3::ServiceFlow::SetArqRetryTimeoutRx ( uint16_t timeout )

Set ARQ retry timeout receive.

Parameters

timeout the timeout

Definition at line 608 of file service-flow.cc.

References m_arqRetryTimeoutRx, and timeout.

◆ SetArqRetryTimeoutTx()

void ns3::ServiceFlow::SetArqRetryTimeoutTx ( uint16_t timeout )

Set ARQ retry timeout transmit.

Parameters

timeout the ARQ retry timeout transmit

Definition at line 602 of file service-flow.cc.

References m_arqRetryTimeoutTx, and timeout.

◆ SetArqSyncLoss()

void ns3::ServiceFlow::SetArqSyncLoss ( uint16_t syncLoss )

Set ARQ sync loss.

Parameters

syncLoss the ARQ sync loss

Definition at line 620 of file service-flow.cc.

References m_arqSyncLoss.

◆ SetArqWindowSize()

void ns3::ServiceFlow::SetArqWindowSize ( uint16_t arqWindowSize )

Set ARQ retry timeout transmit.

Parameters

arqWindowSize the ARQ retry timeout transmit

Definition at line 596 of file service-flow.cc.

References m_arqWindowSize.

◆ SetConnection()

void ns3::ServiceFlow::SetConnection ( Ptr< WimaxConnection > connection )

Set connection.

Parameters

connection the connection

Definition at line 203 of file service-flow.cc.

References m_connection.

Referenced by ns3::BsServiceFlowManager::AddMulticastServiceFlow(), and ns3::SsServiceFlowManager::ProcessDsaRsp().

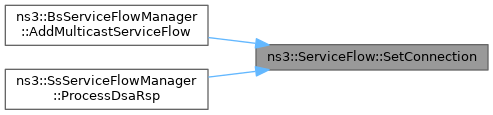

Here is the caller graph for this function:

◆ SetConvergenceSublayerParam()

void ns3::ServiceFlow::SetConvergenceSublayerParam ( CsParameters csparam )

Set convergence sublayer parameters.

Parameters

csparam the convergence sublayer parameters

Definition at line 650 of file service-flow.cc.

References m_convergenceSublayerParam.

Referenced by ns3::WimaxHelper::CreateServiceFlow(), DsaRequestTestCase::DoRun(), Ns3WimaxSfCreationTestCase::DoRun(), Ns3WimaxSfTlvTestCase::DoRun(), and ns3::BsServiceFlowManager::ProcessDsaReq().

Here is the caller graph for this function:

◆ SetCsSpecification()

void ns3::ServiceFlow::SetCsSpecification ( ServiceFlow::CsSpecification spec )

Set CS specification.

Parameters

spec	the CS specification

Definition at line 644 of file service-flow.cc.

References m_csSpecification.

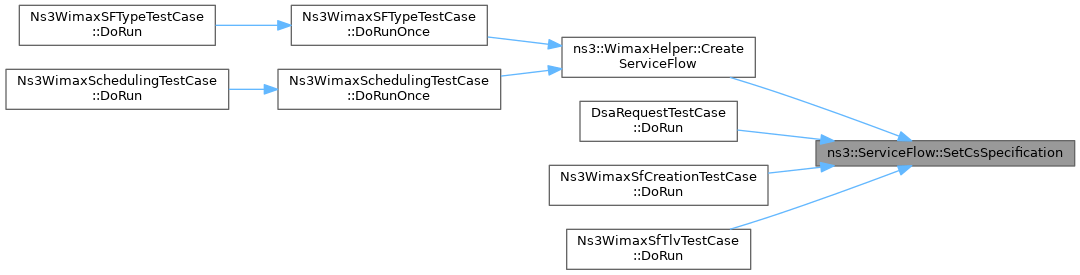

Referenced by ns3::WimaxHelper::CreateServiceFlow(), DsaRequestTestCase::DoRun(), Ns3WimaxSfCreationTestCase::DoRun(), and Ns3WimaxSfTlvTestCase::DoRun().

Here is the caller graph for this function:

◆ SetDirection()

void ns3::ServiceFlow::SetDirection ( Direction direction )

Set direction.

Parameters

direction the direction value

Definition at line 179 of file service-flow.cc.

References m_direction.

◆ SetFixedversusVariableSduIndicator()

void ns3::ServiceFlow::SetFixedversusVariableSduIndicator ( uint8_t sduIndicator )

Set fixed versus variable SDU indicator.

Parameters

sduIndicator fixed vs variable SDU indicator

Definition at line 572 of file service-flow.cc.

References m_fixedversusVariableSduIndicator.

◆ SetIsEnabled()

void ns3::ServiceFlow::SetIsEnabled ( bool isEnabled )

Set is enabled flag.

Parameters

isEnabled is enabled flag

Definition at line 216 of file service-flow.cc.

References m_isEnabled.

Referenced by ns3::BsServiceFlowManager::AddMulticastServiceFlow(), ns3::SsServiceFlowManager::ProcessDsaRsp(), and ns3::BsServiceFlowManager::ScheduleDsaRsp().

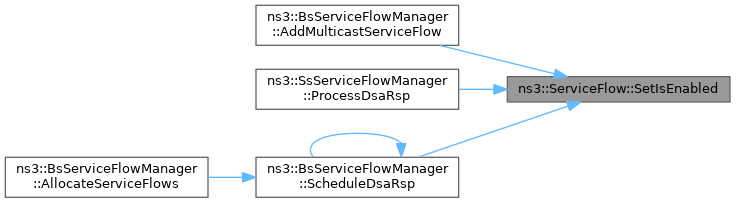

Here is the caller graph for this function:

◆ SetIsMulticast()

void ns3::ServiceFlow::SetIsMulticast ( bool isMulticast )

Set is multicast.

Parameters

isMulticast the is multicast flag

Definition at line 668 of file service-flow.cc.

References m_isMulticast.

Referenced by ns3::BsServiceFlowManager::AddMulticastServiceFlow().

Here is the caller graph for this function:

◆ SetMaximumLatency()

void ns3::ServiceFlow::SetMaximumLatency ( uint32_t MaximumLatency )

Set maximum latency.

Parameters

MaximumLatency the maximum latency

Definition at line 566 of file service-flow.cc.

References m_maximumLatency.

Referenced by ns3::WimaxHelper::CreateServiceFlow(), DsaRequestTestCase::DoRun(), Ns3WimaxSfCreationTestCase::DoRun(), and Ns3WimaxSfTlvTestCase::DoRun().

Here is the caller graph for this function:

◆ SetMaxSustainedTrafficRate()

void ns3::ServiceFlow::SetMaxSustainedTrafficRate ( uint32_t maxSustainedRate )

Set max sustained traffic rate.

Parameters

maxSustainedRate the maximum sustained traffic rate

Definition at line 524 of file service-flow.cc.

References m_maxSustainedTrafficRate.

Referenced by ns3::WimaxHelper::CreateServiceFlow(), DsaRequestTestCase::DoRun(), Ns3WimaxSfCreationTestCase::DoRun(), and Ns3WimaxSfTlvTestCase::DoRun().

Here is the caller graph for this function:

◆ SetMaxTrafficBurst()

void ns3::ServiceFlow::SetMaxTrafficBurst ( uint32_t maxTrafficBurst )

Set maximum traffic burst.

Parameters

maxTrafficBurst the maximum traffic burst

Definition at line 530 of file service-flow.cc.

References m_maxTrafficBurst.

Referenced by ns3::WimaxHelper::CreateServiceFlow(), DsaRequestTestCase::DoRun(), Ns3WimaxSfCreationTestCase::DoRun(), and Ns3WimaxSfTlvTestCase::DoRun().

Here is the caller graph for this function:

◆ SetMinReservedTrafficRate()

void ns3::ServiceFlow::SetMinReservedTrafficRate ( uint32_t minResvRate )

Set minimum reserved traffic rate.

Parameters

minResvRate the minimum reserved traffic rate

Definition at line 536 of file service-flow.cc.

References m_minReservedTrafficRate.

Referenced by ns3::WimaxHelper::CreateServiceFlow(), DsaRequestTestCase::DoRun(), Ns3WimaxSfCreationTestCase::DoRun(), and Ns3WimaxSfTlvTestCase::DoRun().

Here is the caller graph for this function:

◆ SetMinTolerableTrafficRate()

void ns3::ServiceFlow::SetMinTolerableTrafficRate ( uint32_t minJitter )

Set minimum tolerable traffic rate.

Parameters

minJitter the minimum tolerable traffic rate

Definition at line 542 of file service-flow.cc.

References m_minTolerableTrafficRate.

Referenced by ns3::WimaxHelper::CreateServiceFlow(), DsaRequestTestCase::DoRun(), Ns3WimaxSfCreationTestCase::DoRun(), and Ns3WimaxSfTlvTestCase::DoRun().

Here is the caller graph for this function:

◆ SetModulation()

void ns3::ServiceFlow::SetModulation ( WimaxPhy::ModulationType modulationType )

Set modulation.

Parameters

modulationType the modulation type

Definition at line 674 of file service-flow.cc.

References m_modulationType.

Referenced by ns3::BsServiceFlowManager::AddMulticastServiceFlow().

Here is the caller graph for this function:

◆ SetQosParamSetType()

void ns3::ServiceFlow::SetQosParamSetType ( uint8_t type )

Set QOS parameter set type.

Parameters

type	the QOS parameter set type

Definition at line 512 of file service-flow.cc.

References m_qosParamSetType.

◆ SetRecord()

void ns3::ServiceFlow::SetRecord ( ServiceFlowRecord * record )

Set service flow record.

Parameters

record pointer to the service flow record

Definition at line 228 of file service-flow.cc.

References m_record.

◆ SetRequestTransmissionPolicy()

void ns3::ServiceFlow::SetRequestTransmissionPolicy ( uint32_t policy )

Set request transmission policy.

Parameters

policy the request transmission policy

Definition at line 554 of file service-flow.cc.

References m_requestTransmissionPolicy.

Referenced by ns3::WimaxHelper::CreateServiceFlow().

Here is the caller graph for this function:

◆ SetSduSize()

void ns3::ServiceFlow::SetSduSize ( uint8_t sduSize )

Set SDU size.

Parameters

sduSize the SDU size

Definition at line 578 of file service-flow.cc.

References m_sduSize.

Referenced by ns3::WimaxHelper::CreateServiceFlow().

Here is the caller graph for this function:

◆ SetServiceClassName()

void ns3::ServiceFlow::SetServiceClassName ( std::string name )

Set service class name.

Parameters

name	the service class name

Definition at line 506 of file service-flow.cc.

References m_serviceClassName.

◆ SetServiceSchedulingType()

void ns3::ServiceFlow::SetServiceSchedulingType ( ServiceFlow::SchedulingType schedType )

Set service scheduling type.

Parameters

schedType the service scheduling type

Definition at line 548 of file service-flow.cc.

References m_schedulingType.

Referenced by ns3::WimaxHelper::CreateServiceFlow(), DsaRequestTestCase::DoRun(), Ns3WimaxSfCreationTestCase::DoRun(), and Ns3WimaxSfTlvTestCase::DoRun().

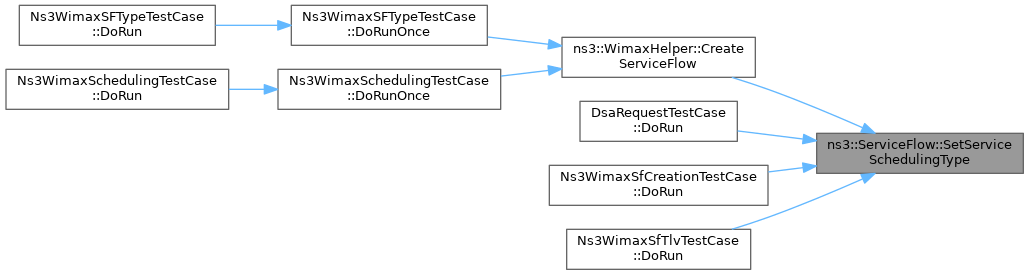

Here is the caller graph for this function:

◆ SetSfid()

void ns3::ServiceFlow::SetSfid ( uint32_t sfid )

Set SFID.

Parameters

sfid the SFID

Definition at line 500 of file service-flow.cc.

References m_sfid.

Referenced by DsaRequestTestCase::DoRun(), and Ns3WimaxSfTlvTestCase::DoRun().

Here is the caller graph for this function:

◆ SetTargetSAID()

void ns3::ServiceFlow::SetTargetSAID ( uint16_t targetSaid )

Set target SAID.

Parameters

targetSaid the target SAID value

Definition at line 584 of file service-flow.cc.

References m_targetSAID.

◆ SetToleratedJitter()

void ns3::ServiceFlow::SetToleratedJitter ( uint32_t jitter )

Set tolerated jitter.

Parameters

jitter the tolerated jitter

Definition at line 560 of file service-flow.cc.

References m_toleratedJitter.

Referenced by ns3::WimaxHelper::CreateServiceFlow().

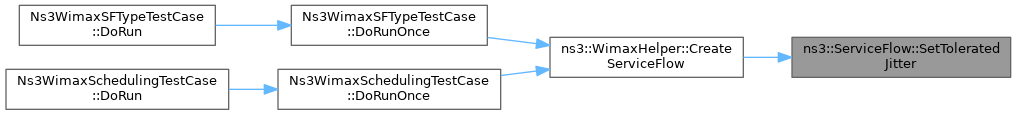

Here is the caller graph for this function:

◆ SetTrafficPriority()

void ns3::ServiceFlow::SetTrafficPriority ( uint8_t priority )

Set traffic priority.

Parameters

priority the traffic priority

Definition at line 518 of file service-flow.cc.

References m_trafficPriority.

Referenced by ns3::WimaxHelper::CreateServiceFlow(), DsaRequestTestCase::DoRun(), Ns3WimaxSfCreationTestCase::DoRun(), and Ns3WimaxSfTlvTestCase::DoRun().

Here is the caller graph for this function:

◆ SetType()

void ns3::ServiceFlow::SetType ( Type type )

Set type of service flow.

Parameters

type	the type value

Definition at line 191 of file service-flow.cc.

References m_type.

Referenced by ns3::BsServiceFlowManager::AddMulticastServiceFlow(), and ns3::BsServiceFlowManager::ScheduleDsaRsp().

Here is the caller graph for this function:

◆ SetUnsolicitedGrantInterval()

void ns3::ServiceFlow::SetUnsolicitedGrantInterval ( uint16_t unsolicitedGrantInterval )

Set unsolicited grant interval.

Parameters

unsolicitedGrantInterval the unsolicited grant interval

Definition at line 656 of file service-flow.cc.

References m_unsolicitedGrantInterval.

Referenced by ns3::WimaxHelper::CreateServiceFlow(), ns3::BsServiceFlowManager::ProcessDsaReq(), ns3::SsServiceFlowManager::ProcessDsaRsp(), ns3::UplinkSchedulerMBQoS::SetupServiceFlow(), ns3::UplinkSchedulerRtps::SetupServiceFlow(), and ns3::UplinkSchedulerSimple::SetupServiceFlow().

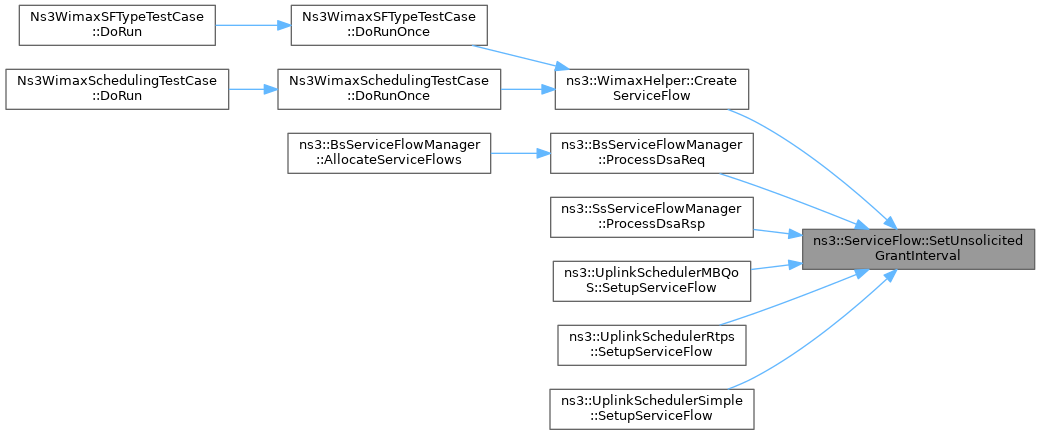

Here is the caller graph for this function:

◆ SetUnsolicitedPollingInterval()

void ns3::ServiceFlow::SetUnsolicitedPollingInterval ( uint16_t unsolicitedPollingInterval )

Set unsolicited polling interval.

Parameters

unsolicitedPollingInterval the unsolicited polling interval

Definition at line 662 of file service-flow.cc.

References m_unsolicitedPollingInterval.

Referenced by ns3::BsServiceFlowManager::ProcessDsaReq(), ns3::SsServiceFlowManager::ProcessDsaRsp(), ns3::UplinkSchedulerMBQoS::SetupServiceFlow(), ns3::UplinkSchedulerRtps::SetupServiceFlow(), and ns3::UplinkSchedulerSimple::SetupServiceFlow().

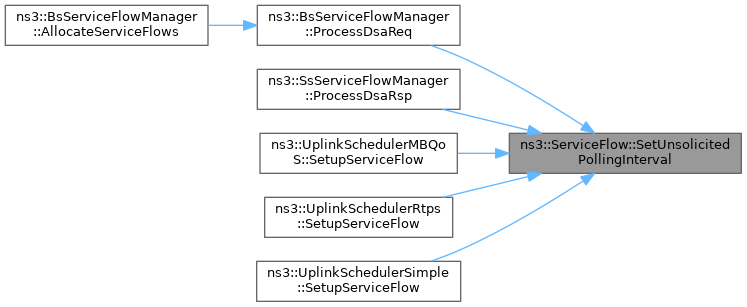

Here is the caller graph for this function:

◆ ToTlv()

Tlv ns3::ServiceFlow::ToTlv ( ) const

creates a TLV from this service flow

Returns: the created tlv

Definition at line 843 of file service-flow.cc.

Referenced by Ns3WimaxSfTlvTestCase::DoRun(), ns3::DsaReq::GetSerializedSize(), ns3::DsaRsp::GetSerializedSize(), ns3::DsaReq::Serialize(), and ns3::DsaRsp::Serialize().

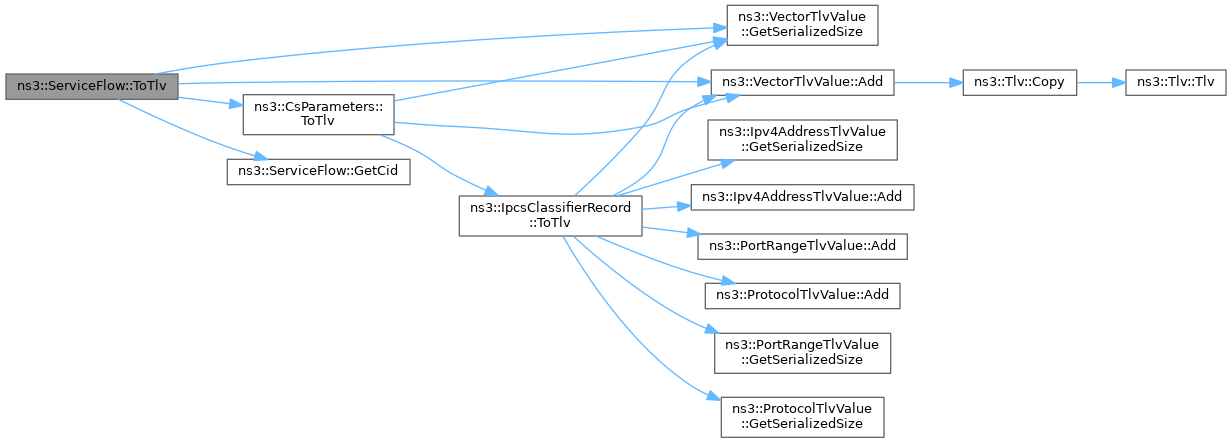

Here is the call graph for this function:

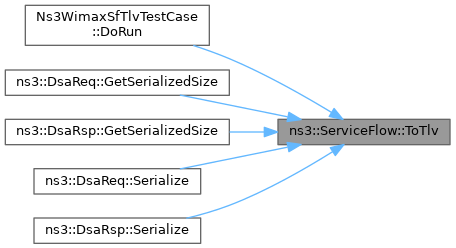

Here is the caller graph for this function:

Member Data Documentation

◆ m_arqBlockLifeTime

uint16_t ns3::ServiceFlow::m_arqBlockLifeTime

private

ARQ block life time.

Definition at line 589 of file service-flow.h.

Referenced by GetArqBlockLifeTime(), InitValues(), and SetArqBlockLifeTime().

◆ m_arqBlockSize

uint16_t ns3::ServiceFlow::m_arqBlockSize

private

ARQ block size.

Definition at line 593 of file service-flow.h.

Referenced by GetArqBlockSize(), InitValues(), and SetArqBlockSize().

◆ m_arqDeliverInOrder

uint8_t ns3::ServiceFlow::m_arqDeliverInOrder

private

ARQ deliver in order.

Definition at line 591 of file service-flow.h.

Referenced by GetArqDeliverInOrder(), InitValues(), and SetArqDeliverInOrder().

◆ m_arqEnable

uint8_t ns3::ServiceFlow::m_arqEnable

private

ARQ enable.

Definition at line 585 of file service-flow.h.

Referenced by ServiceFlow(), CopyParametersFrom(), GetArqEnable(), InitValues(), operator=(), and SetArqEnable().

◆ m_arqPurgeTimeout

uint16_t ns3::ServiceFlow::m_arqPurgeTimeout

private

ARQ purge timeout.

Definition at line 592 of file service-flow.h.

Referenced by GetArqPurgeTimeout(), InitValues(), and SetArqPurgeTimeout().

◆ m_arqRetryTimeoutRx

uint16_t ns3::ServiceFlow::m_arqRetryTimeoutRx

private

ARQ retry timeout receive.

Definition at line 588 of file service-flow.h.

Referenced by ServiceFlow(), CopyParametersFrom(), GetArqRetryTimeoutRx(), InitValues(), operator=(), and SetArqRetryTimeoutRx().

◆ m_arqRetryTimeoutTx

uint16_t ns3::ServiceFlow::m_arqRetryTimeoutTx

private

ARQ retry timeout transmit.

Definition at line 587 of file service-flow.h.

Referenced by ServiceFlow(), CopyParametersFrom(), GetArqRetryTimeoutTx(), InitValues(), operator=(), and SetArqRetryTimeoutTx().

◆ m_arqSyncLoss

uint16_t ns3::ServiceFlow::m_arqSyncLoss

private

ARQ sync loss.

Definition at line 590 of file service-flow.h.

Referenced by GetArqSyncLoss(), InitValues(), and SetArqSyncLoss().

◆ m_arqWindowSize

uint16_t ns3::ServiceFlow::m_arqWindowSize

private

ARQ window size.

Definition at line 586 of file service-flow.h.

Referenced by ServiceFlow(), CopyParametersFrom(), GetArqWindowSize(), InitValues(), operator=(), and SetArqWindowSize().

◆ m_connection

Ptr<WimaxConnection> ns3::ServiceFlow::m_connection

private

connection

Definition at line 600 of file service-flow.h.

Referenced by ServiceFlow(), ~ServiceFlow(), CleanUpQueue(), GetCid(), GetConnection(), GetQueue(), HasPackets(), operator=(), and SetConnection().

◆ m_convergenceSublayerParam

CsParameters ns3::ServiceFlow::m_convergenceSublayerParam

private

convergence sublayer parameters

Definition at line 595 of file service-flow.h.

Referenced by ServiceFlow(), CheckClassifierMatch(), CopyParametersFrom(), GetConvergenceSublayerParam(), operator=(), SetConvergenceSublayerParam(), and ToTlv().

◆ m_csSpecification

CsSpecification ns3::ServiceFlow::m_csSpecification

private

CS specification.

Definition at line 594 of file service-flow.h.

Referenced by ServiceFlow(), CopyParametersFrom(), GetCsSpecification(), InitValues(), operator=(), SetCsSpecification(), and ToTlv().

◆ m_direction

Direction ns3::ServiceFlow::m_direction

private

direction

Definition at line 598 of file service-flow.h.

Referenced by ServiceFlow(), CopyParametersFrom(), GetDirection(), InitValues(), operator=(), SetDirection(), and ToTlv().

◆ m_fixedversusVariableSduIndicator

uint8_t ns3::ServiceFlow::m_fixedversusVariableSduIndicator

private

fixed versus variable SDI indicator

Definition at line 582 of file service-flow.h.

Referenced by ServiceFlow(), CopyParametersFrom(), GetFixedversusVariableSduIndicator(), InitValues(), operator=(), SetFixedversusVariableSduIndicator(), and ToTlv().

◆ m_isEnabled

bool ns3::ServiceFlow::m_isEnabled

private

is enabled?

Definition at line 601 of file service-flow.h.

Referenced by ServiceFlow(), GetIsEnabled(), operator=(), and SetIsEnabled().

◆ m_isMulticast

bool ns3::ServiceFlow::m_isMulticast

private

is multicast?

Definition at line 602 of file service-flow.h.

Referenced by ServiceFlow(), CopyParametersFrom(), GetIsMulticast(), InitValues(), operator=(), and SetIsMulticast().

◆ m_maximumLatency

uint32_t ns3::ServiceFlow::m_maximumLatency

private

maximum latency

Definition at line 581 of file service-flow.h.

Referenced by ServiceFlow(), CopyParametersFrom(), GetMaximumLatency(), InitValues(), operator=(), SetMaximumLatency(), and ToTlv().

◆ m_maxSustainedTrafficRate

uint32_t ns3::ServiceFlow::m_maxSustainedTrafficRate

private

maximum sustained traffic rate

Definition at line 574 of file service-flow.h.

Referenced by ServiceFlow(), CopyParametersFrom(), GetMaxSustainedTrafficRate(), InitValues(), operator=(), SetMaxSustainedTrafficRate(), and ToTlv().

◆ m_maxTrafficBurst

uint32_t ns3::ServiceFlow::m_maxTrafficBurst

private

maximum traffic burst

Definition at line 575 of file service-flow.h.

Referenced by ServiceFlow(), CopyParametersFrom(), GetMaxTrafficBurst(), InitValues(), operator=(), SetMaxTrafficBurst(), and ToTlv().

◆ m_minReservedTrafficRate

uint32_t ns3::ServiceFlow::m_minReservedTrafficRate

private

minimum reserved traffic rate

Definition at line 576 of file service-flow.h.

Referenced by ServiceFlow(), CopyParametersFrom(), GetMinReservedTrafficRate(), InitValues(), operator=(), SetMinReservedTrafficRate(), and ToTlv().

◆ m_minTolerableTrafficRate

uint32_t ns3::ServiceFlow::m_minTolerableTrafficRate

private

minimum tolerable traffic rate

Definition at line 577 of file service-flow.h.

Referenced by ServiceFlow(), CopyParametersFrom(), GetMinTolerableTrafficRate(), InitValues(), operator=(), SetMinTolerableTrafficRate(), and ToTlv().

◆ m_modulationType

WimaxPhy::ModulationType ns3::ServiceFlow::m_modulationType

private

modulation type

Definition at line 603 of file service-flow.h.

Referenced by ServiceFlow(), CopyParametersFrom(), GetModulation(), InitValues(), operator=(), and SetModulation().

◆ m_qosParamSetType

uint8_t ns3::ServiceFlow::m_qosParamSetType

private

QOS parameter type.

Definition at line 572 of file service-flow.h.

Referenced by ServiceFlow(), CopyParametersFrom(), GetQosParamSetType(), InitValues(), operator=(), SetQosParamSetType(), and ToTlv().

◆ m_record

ServiceFlowRecord* ns3::ServiceFlow::m_record

private

service flow record

Definition at line 605 of file service-flow.h.

Referenced by ServiceFlow(), ~ServiceFlow(), GetRecord(), operator=(), and SetRecord().

◆ m_requestTransmissionPolicy

uint32_t ns3::ServiceFlow::m_requestTransmissionPolicy

private

request transmission policy

Definition at line 579 of file service-flow.h.

Referenced by ServiceFlow(), CopyParametersFrom(), GetRequestTransmissionPolicy(), InitValues(), operator=(), SetRequestTransmissionPolicy(), and ToTlv().

◆ m_schedulingType

ServiceFlow::SchedulingType ns3::ServiceFlow::m_schedulingType

private

scheduling type

Definition at line 578 of file service-flow.h.

Referenced by ServiceFlow(), CopyParametersFrom(), GetSchedulingType(), GetSchedulingTypeStr(), GetServiceSchedulingType(), InitValues(), operator=(), SetServiceSchedulingType(), and ToTlv().

◆ m_sduSize

uint8_t ns3::ServiceFlow::m_sduSize

private

SDU size.

Definition at line 583 of file service-flow.h.

Referenced by ServiceFlow(), CopyParametersFrom(), GetSduSize(), InitValues(), operator=(), SetSduSize(), and ToTlv().

◆ m_serviceClassName

std::string ns3::ServiceFlow::m_serviceClassName

private

service class name

Definition at line 571 of file service-flow.h.

Referenced by ServiceFlow(), CopyParametersFrom(), GetServiceClassName(), InitValues(), operator=(), and SetServiceClassName().

◆ m_sfid

uint32_t ns3::ServiceFlow::m_sfid

private

SFID.

Definition at line 570 of file service-flow.h.

Referenced by ServiceFlow(), GetSfid(), InitValues(), operator=(), SetSfid(), and ToTlv().

◆ m_targetSAID

uint16_t ns3::ServiceFlow::m_targetSAID

private

target SAID

Definition at line 584 of file service-flow.h.

Referenced by ServiceFlow(), CopyParametersFrom(), GetTargetSAID(), InitValues(), operator=(), SetTargetSAID(), and ToTlv().

◆ m_toleratedJitter

uint32_t ns3::ServiceFlow::m_toleratedJitter

private

tolerated jitter

Definition at line 580 of file service-flow.h.

Referenced by ServiceFlow(), CopyParametersFrom(), GetToleratedJitter(), InitValues(), operator=(), SetToleratedJitter(), and ToTlv().

◆ m_trafficPriority

uint8_t ns3::ServiceFlow::m_trafficPriority

private

traffic priority

Definition at line 573 of file service-flow.h.

Referenced by ServiceFlow(), CopyParametersFrom(), GetTrafficPriority(), InitValues(), operator=(), SetTrafficPriority(), and ToTlv().

◆ m_type

Type ns3::ServiceFlow::m_type

private

type

Definition at line 599 of file service-flow.h.

Referenced by ServiceFlow(), GetType(), InitValues(), operator=(), and SetType().

◆ m_unsolicitedGrantInterval

uint16_t ns3::ServiceFlow::m_unsolicitedGrantInterval

private

unsolicited grant interval

Definition at line 596 of file service-flow.h.

Referenced by ServiceFlow(), CopyParametersFrom(), GetUnsolicitedGrantInterval(), InitValues(), operator=(), and SetUnsolicitedGrantInterval().

◆ m_unsolicitedPollingInterval

uint16_t ns3::ServiceFlow::m_unsolicitedPollingInterval

private

unsolicited polling interval

Definition at line 597 of file service-flow.h.

Referenced by ServiceFlow(), CopyParametersFrom(), GetUnsolicitedPollingInterval(), InitValues(), operator=(), and SetUnsolicitedPollingInterval().

The documentation for this class was generated from the following files:

src/wimax/model/service-flow.h
src/wimax/model/service-flow.cc

Public Types

Public Member Functions

Private Attributes

Detailed Description

Member Enumeration Documentation

◆ CsSpecification

◆ Direction

◆ ModulationType

◆ SchedulingType

◆ Type

Constructor & Destructor Documentation

◆ ServiceFlow() [1/5]

◆ ServiceFlow() [2/5]

◆ ServiceFlow() [3/5]

◆ ServiceFlow() [4/5]

◆ ServiceFlow() [5/5]

◆ ~ServiceFlow()

Member Function Documentation

◆ CheckClassifierMatch()

◆ CleanUpQueue()

◆ CopyParametersFrom()

◆ GetArqBlockLifeTime()

◆ GetArqBlockSize()

◆ GetArqDeliverInOrder()

◆ GetArqEnable()

◆ GetArqPurgeTimeout()

◆ GetArqRetryTimeoutRx()

◆ GetArqRetryTimeoutTx()

◆ GetArqSyncLoss()

◆ GetArqWindowSize()

◆ GetCid()

◆ GetConnection()

◆ GetConvergenceSublayerParam()

◆ GetCsSpecification()

◆ GetDirection()

◆ GetFixedversusVariableSduIndicator()

◆ GetIsEnabled()

◆ GetIsMulticast()

◆ GetMaximumLatency()

◆ GetMaxSustainedTrafficRate()

◆ GetMaxTrafficBurst()

◆ GetMinReservedTrafficRate()

◆ GetMinTolerableTrafficRate()

◆ GetModulation()

◆ GetQosParamSetType()

◆ GetQueue()

◆ GetRecord()

◆ GetRequestTransmissionPolicy()

◆ GetSchedulingType()

◆ GetSchedulingTypeStr()

◆ GetSduSize()

◆ GetServiceClassName()

◆ GetServiceSchedulingType()

◆ GetSfid()

◆ GetTargetSAID()

◆ GetToleratedJitter()

◆ GetTrafficPriority()

◆ GetType()

◆ GetUnsolicitedGrantInterval()

◆ GetUnsolicitedPollingInterval()

◆ HasPackets() [1/2]

◆ HasPackets() [2/2]

◆ InitValues()

◆ operator=()

◆ PrintQoSParameters()

◆ SetArqBlockLifeTime()

◆ SetArqBlockSize()

◆ SetArqDeliverInOrder()

◆ SetArqEnable()

◆ SetArqPurgeTimeout()

◆ SetArqRetryTimeoutRx()

◆ SetArqRetryTimeoutTx()

◆ SetArqSyncLoss()

◆ SetArqWindowSize()

◆ SetConnection()

◆ SetConvergenceSublayerParam()

◆ SetCsSpecification()

◆ SetDirection()

◆ SetFixedversusVariableSduIndicator()

◆ SetIsEnabled()
