ns3::MacHeaderType Class Reference

This class Represents the HT (Header Type) field of generic MAC and bandwidth request headers. More...

#include "wimax-mac-header.h"

+ Inheritance diagram for ns3::MacHeaderType:
+ Collaboration diagram for ns3::MacHeaderType:

Public Types

enum  HeaderType { HEADER_TYPE_GENERIC , HEADER_TYPE_BANDWIDTH }
 Header type enumeration. More...


Public Member Functions

 MacHeaderType ()
 Constructor.

 MacHeaderType (uint8_t type)
 Constructor.

 ~MacHeaderType () override

uint32_t Deserialize (Buffer::Iterator start) override

TypeId GetInstanceTypeId () const override
 Get the most derived TypeId for this Object.

std::string GetName () const
 Get name field.

uint32_t GetSerializedSize () const override

uint8_t GetType () const
 Get type field.

void Print (std::ostream &os) const override

void Serialize (Buffer::Iterator start) const override

void SetType (uint8_t type)
 Set type field.

- Public Member Functions inherited from ns3::Header
 ~Header () override

uint32_t Deserialize (Buffer::Iterator start) override=0

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator.

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator.

virtual uint32_t GetSerializedSize () const =0

void Print (std::ostream &os) const override=0

virtual void Serialize (Buffer::Iterator start) const =0

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator.

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator.

virtual void Print (std::ostream &os) const =0
 Print the object contents.

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor.

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful.

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising errors.

virtual TypeId GetInstanceTypeId () const =0
 Get the most derived TypeId for this Object.

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful.

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors.

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context.

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context.

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context.

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context.


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId ()
 Get the type ID.


Private Attributes

uint8_t m_type
 MAC header type.


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes.

virtual void NotifyConstructionCompleted ()
 Notifier called once the ObjectBase is fully constructed.


Detailed Description

This class Represents the HT (Header Type) field of generic MAC and bandwidth request headers.

Introspection did not find any typical Config paths.

See also
GenericMacHeader
BandwidthRequestHeader


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 16 bytes (on a 64-bit architecture).

Definition at line 37 of file wimax-mac-header.h.

Member Enumeration Documentation

◆ HeaderType

Header type enumeration.

Enumerator
HEADER_TYPE_GENERIC
HEADER_TYPE_BANDWIDTH

Definition at line 41 of file wimax-mac-header.h.

Constructor & Destructor Documentation

◆ MacHeaderType() [1/2]

ns3::MacHeaderType::MacHeaderType ( )

Constructor.

Definition at line 31 of file wimax-mac-header.cc.

◆ MacHeaderType() [2/2]

ns3::MacHeaderType::MacHeaderType ( uint8_t  type)

Constructor.

Parameters
typeMAC header type

Definition at line 36 of file wimax-mac-header.cc.

◆ ~MacHeaderType()

ns3::MacHeaderType::~MacHeaderType ( )
override

Definition at line 41 of file wimax-mac-header.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::MacHeaderType::Deserialize ( Buffer::Iterator  start)
overridevirtual
Parameters
startan iterator which points to where the header should read from.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 97 of file wimax-mac-header.cc.

◆ GetInstanceTypeId()

TypeId ns3::MacHeaderType::GetInstanceTypeId ( ) const
overridevirtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 74 of file wimax-mac-header.cc.

References GetTypeId().

+ Here is the call graph for this function:

◆ GetName()

std::string ns3::MacHeaderType::GetName ( ) const

Get name field.

Returns
the name

Definition at line 58 of file wimax-mac-header.cc.

◆ GetSerializedSize()

uint32_t ns3::MacHeaderType::GetSerializedSize ( ) const
overridevirtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 86 of file wimax-mac-header.cc.

Referenced by ns3::WimaxMacQueue::Dequeue(), and ns3::WimaxMacQueue::GetFirstPacketHdrSize().

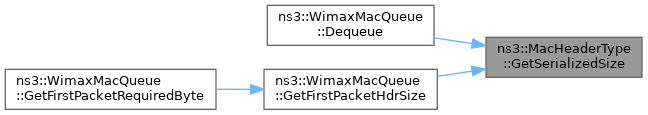

+ Here is the caller graph for this function:

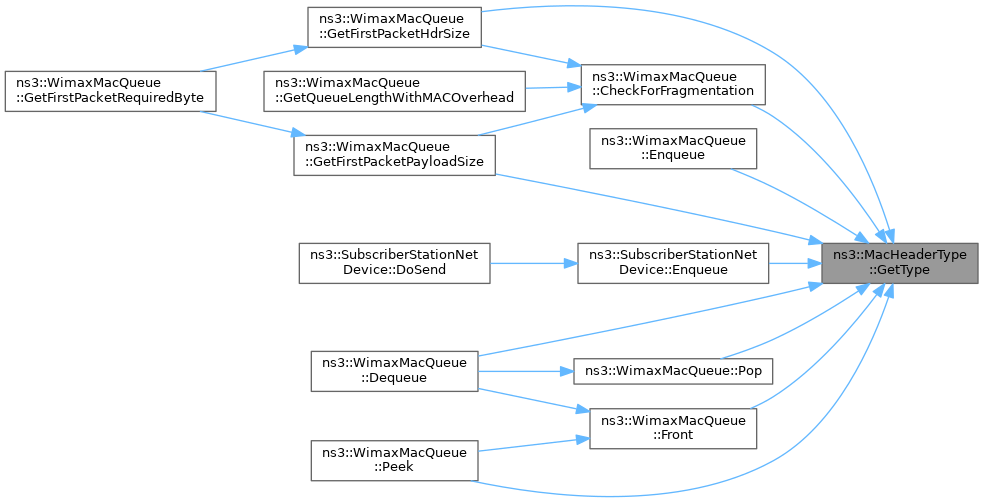

◆ GetType()

◆ GetTypeId()

TypeId ns3::MacHeaderType::GetTypeId ( )
static

Get the type ID.

Returns
the object TypeId

Definition at line 64 of file wimax-mac-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

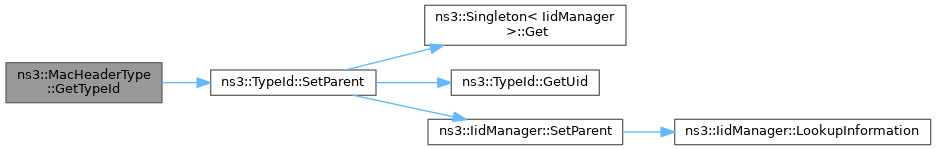

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Print()

void ns3::MacHeaderType::Print ( std::ostream &  os) const
overridevirtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 80 of file wimax-mac-header.cc.

References m_type.

◆ Serialize()

void ns3::MacHeaderType::Serialize ( Buffer::Iterator  start) const
overridevirtual
Parameters
startan iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 92 of file wimax-mac-header.cc.

◆ SetType()

void ns3::MacHeaderType::SetType ( uint8_t  type)

Set type field.

Parameters
typethe type

Definition at line 46 of file wimax-mac-header.cc.

References m_type.

Member Data Documentation

◆ m_type

uint8_t ns3::MacHeaderType::m_type
private

MAC header type.

Definition at line 86 of file wimax-mac-header.h.

Referenced by GetType(), Print(), and SetType().


The documentation for this class was generated from the following files:
