ns3::BandwidthRequestHeader Class Reference

This class implements the bandwidth-request mac Header as described by IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems 6.3.2.1.2 Bandwidth request header, page 38. More...

#include "wimax-mac-header.h"

+ Inheritance diagram for ns3::BandwidthRequestHeader:

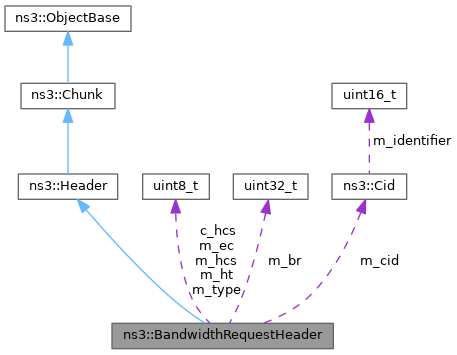

+ Collaboration diagram for ns3::BandwidthRequestHeader:

Public Types

enum  HeaderType { HEADER_TYPE_INCREMENTAL , HEADER_TYPE_AGGREGATE }
 Header type enumeration. More...


Public Member Functions

 BandwidthRequestHeader ()

 ~BandwidthRequestHeader () override

bool check_hcs () const
 Check HCS.

uint32_t Deserialize (Buffer::Iterator start) override

uint32_t GetBr () const
 Get BR field.

Cid GetCid () const
 Get CID field.

uint8_t GetEc () const
 Get EC field.

uint8_t GetHcs () const
 Get HCS field.

uint8_t GetHt () const
 Get HT field.

TypeId GetInstanceTypeId () const override
 Get the most derived TypeId for this Object.

std::string GetName () const
 Get name field.

uint32_t GetSerializedSize () const override

uint8_t GetType () const
 Get type field.

void Print (std::ostream &os) const override

void Serialize (Buffer::Iterator start) const override

void SetBr (uint32_t br)
 Set BR field.

void SetCid (Cid cid)
 Set CID field.

void SetEc (uint8_t ec)
 Set EC field.

void SetHcs (uint8_t hcs)
 Set HCS field.

void SetHt (uint8_t ht)
 Set HT field.

void SetType (uint8_t type)
 Set type field.

- Public Member Functions inherited from ns3::Header
 ~Header () override

uint32_t Deserialize (Buffer::Iterator start) override=0

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator.

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator.

virtual uint32_t GetSerializedSize () const =0

void Print (std::ostream &os) const override=0

virtual void Serialize (Buffer::Iterator start) const =0

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator.

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator.

virtual void Print (std::ostream &os) const =0
 Print the object contents.

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor.

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful.

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising errors.

virtual TypeId GetInstanceTypeId () const =0
 Get the most derived TypeId for this Object.

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful.

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors.

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context.

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context.

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context.

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context.


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId ()
 Get the type ID.


Private Attributes

uint8_t c_hcs
 calculated header check sequence; this is used to check if the received header is correct or not

uint32_t m_br
 Bandwidth Request.

Cid m_cid
 Connection identifier.

uint8_t m_ec
 Encryption Control.

uint8_t m_hcs
 Header Check Sequence.

uint8_t m_ht
 Header type.

uint8_t m_type
 type


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes.

virtual void NotifyConstructionCompleted ()
 Notifier called once the ObjectBase is fully constructed.


Detailed Description

This class implements the bandwidth-request mac Header as described by IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems 6.3.2.1.2 Bandwidth request header, page 38.

Introspection did not find any typical Config paths.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 24 bytes (on a 64-bit architecture).

Definition at line 259 of file wimax-mac-header.h.

Member Enumeration Documentation

◆ HeaderType

Header type enumeration.

Enumerator
HEADER_TYPE_INCREMENTAL
HEADER_TYPE_AGGREGATE

Definition at line 263 of file wimax-mac-header.h.

Constructor & Destructor Documentation

◆ BandwidthRequestHeader()

ns3::BandwidthRequestHeader::BandwidthRequestHeader ( )

Definition at line 335 of file wimax-mac-header.cc.

◆ ~BandwidthRequestHeader()

ns3::BandwidthRequestHeader::~BandwidthRequestHeader ( )
override

Definition at line 345 of file wimax-mac-header.cc.

Member Function Documentation

◆ check_hcs()

bool ns3::BandwidthRequestHeader::check_hcs ( ) const

Check HCS.

Returns
true if HCS is validated

Definition at line 528 of file wimax-mac-header.cc.

References c_hcs, and m_hcs.

Referenced by ns3::BaseStationNetDevice::DoReceive().

+ Here is the caller graph for this function:

◆ Deserialize()

uint32_t ns3::BandwidthRequestHeader::Deserialize ( Buffer::Iterator  start)
overridevirtual
Parameters
startan iterator which points to where the header should read from.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 492 of file wimax-mac-header.cc.

References c_hcs, ns3::CRC8Calculate(), ns3::Buffer::Iterator::GetDistanceFrom(), m_br, m_cid, m_ec, m_hcs, m_ht, m_type, and ns3::Buffer::Iterator::ReadU8().

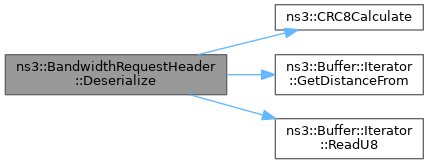

+ Here is the call graph for this function:

◆ GetBr()

uint32_t ns3::BandwidthRequestHeader::GetBr ( ) const

Get BR field.

Returns
the BR

Definition at line 404 of file wimax-mac-header.cc.

References m_br.

Referenced by ns3::BandwidthManager::ProcessBandwidthRequest(), and ns3::UplinkSchedulerMBQoS::ProcessBandwidthRequest().

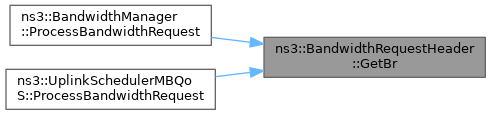

+ Here is the caller graph for this function:

◆ GetCid()

Cid ns3::BandwidthRequestHeader::GetCid ( ) const

Get CID field.

Returns
the CID

Definition at line 410 of file wimax-mac-header.cc.

References m_cid.

Referenced by ns3::BaseStationNetDevice::DoReceive(), ns3::BandwidthManager::ProcessBandwidthRequest(), and ns3::UplinkSchedulerMBQoS::ProcessBandwidthRequest().

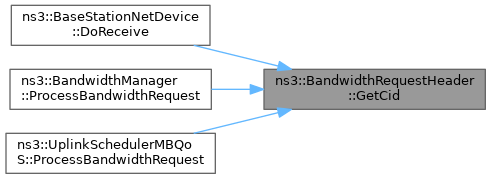

+ Here is the caller graph for this function:

◆ GetEc()

uint8_t ns3::BandwidthRequestHeader::GetEc ( ) const

Get EC field.

Returns
the EC

Definition at line 392 of file wimax-mac-header.cc.

References m_ec.

◆ GetHcs()

uint8_t ns3::BandwidthRequestHeader::GetHcs ( ) const

Get HCS field.

Returns
the HCS

Definition at line 416 of file wimax-mac-header.cc.

References m_hcs.

◆ GetHt()

uint8_t ns3::BandwidthRequestHeader::GetHt ( ) const

Get HT field.

Returns
the HT

Definition at line 386 of file wimax-mac-header.cc.

References m_ht.

Referenced by ns3::BaseStationNetDevice::DoReceive().

+ Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::BandwidthRequestHeader::GetInstanceTypeId ( ) const
overridevirtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 438 of file wimax-mac-header.cc.

References GetTypeId().

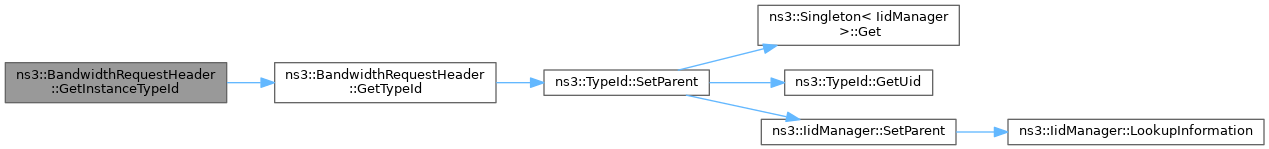

+ Here is the call graph for this function:

◆ GetName()

std::string ns3::BandwidthRequestHeader::GetName ( ) const

Get name field.

Returns
the name

Definition at line 422 of file wimax-mac-header.cc.

◆ GetSerializedSize()

uint32_t ns3::BandwidthRequestHeader::GetSerializedSize ( ) const
overridevirtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 453 of file wimax-mac-header.cc.

◆ GetType()

uint8_t ns3::BandwidthRequestHeader::GetType ( ) const

Get type field.

Returns
the type

Definition at line 398 of file wimax-mac-header.cc.

References m_type.

Referenced by ns3::BandwidthManager::ProcessBandwidthRequest().

+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::BandwidthRequestHeader::GetTypeId ( )
static

Get the type ID.

Returns
the object TypeId

Definition at line 428 of file wimax-mac-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

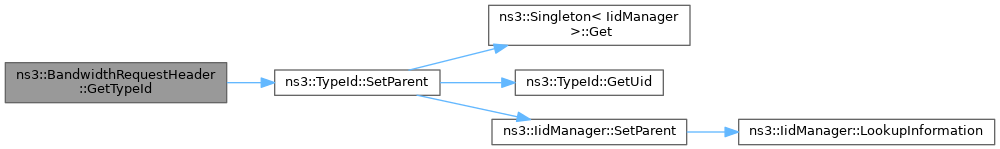

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Print()

void ns3::BandwidthRequestHeader::Print ( std::ostream &  os) const
overridevirtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 444 of file wimax-mac-header.cc.

References ns3::Cid::GetIdentifier(), m_br, m_cid, m_ec, m_hcs, and m_type.

+ Here is the call graph for this function:

◆ Serialize()

void ns3::BandwidthRequestHeader::Serialize ( Buffer::Iterator  start) const
overridevirtual
Parameters
startan iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 462 of file wimax-mac-header.cc.

References ns3::CRC8Calculate(), ns3::Cid::GetIdentifier(), m_br, m_cid, m_ec, m_ht, m_type, and ns3::Buffer::Iterator::WriteU8().

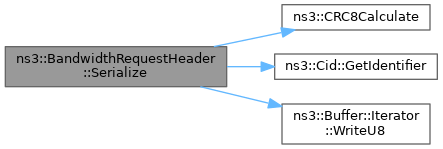

+ Here is the call graph for this function:

◆ SetBr()

void ns3::BandwidthRequestHeader::SetBr ( uint32_t  br)

Set BR field.

Parameters
brthe BR

Definition at line 368 of file wimax-mac-header.cc.

References m_br.

Referenced by ns3::BandwidthManager::SendBandwidthRequest().

+ Here is the caller graph for this function:

◆ SetCid()

void ns3::BandwidthRequestHeader::SetCid ( Cid  cid)

Set CID field.

Parameters
cidthe CID

Definition at line 374 of file wimax-mac-header.cc.

References m_cid.

Referenced by ns3::BandwidthManager::SendBandwidthRequest().

+ Here is the caller graph for this function:

◆ SetEc()

void ns3::BandwidthRequestHeader::SetEc ( uint8_t  ec)

Set EC field.

Parameters
ecthe EC

Definition at line 356 of file wimax-mac-header.cc.

References m_ec.

◆ SetHcs()

void ns3::BandwidthRequestHeader::SetHcs ( uint8_t  hcs)

Set HCS field.

Parameters
hcsthe HCS

Definition at line 380 of file wimax-mac-header.cc.

References m_hcs.

◆ SetHt()

void ns3::BandwidthRequestHeader::SetHt ( uint8_t  ht)

Set HT field.

Parameters
htthe HT

Definition at line 350 of file wimax-mac-header.cc.

References m_ht.

◆ SetType()

void ns3::BandwidthRequestHeader::SetType ( uint8_t  type)

Set type field.

Parameters
typethe type

Definition at line 362 of file wimax-mac-header.cc.

References m_type.

Referenced by ns3::BandwidthManager::SendBandwidthRequest().

+ Here is the caller graph for this function:

Member Data Documentation

◆ c_hcs

uint8_t ns3::BandwidthRequestHeader::c_hcs
private

calculated header check sequence; this is used to check if the received header is correct or not

Definition at line 362 of file wimax-mac-header.h.

Referenced by check_hcs(), and Deserialize().

◆ m_br

uint32_t ns3::BandwidthRequestHeader::m_br
private

Bandwidth Request.

Definition at line 359 of file wimax-mac-header.h.

Referenced by Deserialize(), GetBr(), Print(), Serialize(), and SetBr().

◆ m_cid

Cid ns3::BandwidthRequestHeader::m_cid
private

Connection identifier.

Definition at line 360 of file wimax-mac-header.h.

Referenced by Deserialize(), GetCid(), Print(), Serialize(), and SetCid().

◆ m_ec

uint8_t ns3::BandwidthRequestHeader::m_ec
private

Encryption Control.

Definition at line 357 of file wimax-mac-header.h.

Referenced by Deserialize(), GetEc(), Print(), Serialize(), and SetEc().

◆ m_hcs

uint8_t ns3::BandwidthRequestHeader::m_hcs
private

Header Check Sequence.

Definition at line 361 of file wimax-mac-header.h.

Referenced by check_hcs(), Deserialize(), GetHcs(), Print(), and SetHcs().

◆ m_ht

uint8_t ns3::BandwidthRequestHeader::m_ht
private

Header type.

Definition at line 356 of file wimax-mac-header.h.

Referenced by Deserialize(), GetHt(), Serialize(), and SetHt().

◆ m_type

uint8_t ns3::BandwidthRequestHeader::m_type
private

type

Definition at line 358 of file wimax-mac-header.h.

Referenced by Deserialize(), GetType(), Print(), Serialize(), and SetType().


The documentation for this class was generated from the following files:
