ns3::Header Class Referenceabstract

Protocol header serialization and deserialization. More...

#include "header.h"

Inherits ns3::Chunk.

Inherited by ns3::SimpleRefCount< PbbPacket, Header >, BenchHeader< N >, MyHeader, anonymous_namespace{packet-metadata-test.cc}::HistoryHeaderBase, anonymous_namespace{packet-test-suite.cc}::ATestHeaderBase, ns3::AlohaNoackMacHeader, ns3::AmpduSubframeHeader, ns3::AmsduSubframeHeader, ns3::ArpHeader, ns3::Asn1Header, ns3::BandwidthRequestHeader, ns3::BeaconPayloadHeader, ns3::CommandPayloadHeader, ns3::CtrlBAckRequestHeader, ns3::CtrlBAckResponseHeader, ns3::CtrlTriggerHeader, ns3::Dcd, ns3::DhcpHeader, ns3::DlMap, ns3::DsaAck, ns3::DsaReq, ns3::DsaRsp, ns3::EpcX2HandoverCancelHeader, ns3::EpcX2HandoverPreparationFailureHeader, ns3::EpcX2HandoverRequestAckHeader, ns3::EpcX2HandoverRequestHeader, ns3::EpcX2Header, ns3::EpcX2LoadInformationHeader, ns3::EpcX2ResourceStatusUpdateHeader, ns3::EpcX2SnStatusTransferHeader, ns3::EpcX2UeContextReleaseHeader, ns3::EthernetHeader, ns3::FragmentationSubheader, ns3::GenericMacHeader, ns3::GrantManagementSubheader, ns3::GtpcHeader, ns3::GtpuHeader, ns3::Icmpv4DestinationUnreachable, ns3::Icmpv4Echo, ns3::Icmpv4Header, ns3::Icmpv4TimeExceeded, ns3::Icmpv6Header, ns3::Icmpv6OptionHeader, ns3::IdealHandoverCommandHeader, ns3::IdealHandoverPreparationInfoHeader, ns3::Ipv4Header, ns3::Ipv6ExtensionHeader, ns3::Ipv6Header, ns3::Ipv6OptionHeader, ns3::LlcSnapHeader, ns3::LrWpanMacHeader, ns3::LtePdcpHeader, ns3::LteRlcAmHeader, ns3::LteRlcHeader, ns3::MacHeaderType, ns3::ManagementMessageType, ns3::MeshInformationElementVector, ns3::MgtAddBaRequestHeader, ns3::MgtAddBaResponseHeader, ns3::MgtDelBaHeader, ns3::MgtEmlOperatingModeNotification, ns3::OfdmDownlinkFramePrefix, ns3::PppHeader, ns3::RadiotapHeader, ns3::RipHeader, ns3::RipNgHeader, ns3::RipNgRte, ns3::RipRte, ns3::RngReq, ns3::RngRsp, ns3::SeqTsEchoHeader, ns3::SeqTsHeader, ns3::SixLowPanBc0, ns3::SixLowPanFrag1, ns3::SixLowPanFragN, ns3::SixLowPanHc1, ns3::SixLowPanIphc, ns3::SixLowPanIpv6, ns3::SixLowPanMesh, ns3::SixLowPanNhcExtension, ns3::SixLowPanUdpNhcExtension, ns3::SllHeader, ns3::TcpHeader, ns3::ThreeGppHttpHeader, ns3::Tlv, ns3::UanHeaderCommon, ns3::UanHeaderRcAck, ns3::UanHeaderRcCts, ns3::UanHeaderRcCtsGlobal, ns3::UanHeaderRcData, ns3::UanHeaderRcRts, ns3::Ucd, ns3::UdpHeader, ns3::UlMap, ns3::WifiActionHeader, ns3::WifiMacHeader, ns3::WifiMgtHeader< Derived, std::tuple< Elems... > >, ns3::WimaxMacToMacHeader, ns3::aodv::RerrHeader, ns3::aodv::RrepAckHeader, ns3::aodv::RrepHeader, ns3::aodv::RreqHeader, ns3::aodv::TypeHeader, ns3::dot11s::MeshHeader, ns3::dot11s::PeerLinkCloseStart, ns3::dot11s::PeerLinkConfirmStart, ns3::dot11s::PeerLinkOpenStart, ns3::dsdv::DsdvHeader, ns3::dsr::DsrFsHeader, ns3::dsr::DsrOptionHeader, ns3::flame::FlameHeader, ns3::olsr::MessageHeader, and ns3::olsr::PacketHeader.

+ Collaboration diagram for ns3::Header:

Public Member Functions

 ~Header () override

uint32_t Deserialize (Buffer::Iterator start) override=0

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator.

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator.

virtual uint32_t GetSerializedSize () const =0

void Print (std::ostream &os) const override=0

virtual void Serialize (Buffer::Iterator start) const =0

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator.

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator.

virtual void Print (std::ostream &os) const =0
 Print the object contents.

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor.

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful.

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising errors.

virtual TypeId GetInstanceTypeId () const =0
 Get the most derived TypeId for this Object.

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful.

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors.

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context.

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context.

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context.

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context.


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId ()
 Get the type ID.


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes.

virtual void NotifyConstructionCompleted ()
 Notifier called once the ObjectBase is fully constructed.


Detailed Description

Protocol header serialization and deserialization.

Introspection did not find any typical Config paths.

Every Protocol header which needs to be inserted or removed from a Packet instance must derive from this base class and implement the pure virtual methods defined here.

Sample code which shows how to create a new type of Header, and how to use it, is shown in the sample file samples/main-packet-header.cc


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 8 bytes (on a 64-bit architecture).

Definition at line 43 of file header.h.

Constructor & Destructor Documentation

◆ ~Header()

ns3::Header::~Header ( )
override

Definition at line 31 of file header.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ Deserialize() [1/3]

uint32_t ns3::Header::Deserialize ( Buffer::Iterator  start)
overridepure virtual
Parameters
startan iterator which points to where the header should read from.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Chunk.

Implemented in ns3::RrcUlDcchMessage, ns3::RrcDlDcchMessage, ns3::RrcUlCcchMessage, ns3::RrcDlCcchMessage, ns3::RrcConnectionRequestHeader, ns3::RrcConnectionSetupHeader, ns3::RrcConnectionSetupCompleteHeader, ns3::RrcConnectionReconfigurationCompleteHeader, ns3::RrcConnectionReconfigurationHeader, ns3::HandoverPreparationInfoHeader, ns3::RrcConnectionReestablishmentRequestHeader, ns3::RrcConnectionReestablishmentHeader, ns3::RrcConnectionReestablishmentCompleteHeader, ns3::RrcConnectionReestablishmentRejectHeader, ns3::RrcConnectionReleaseHeader, ns3::RrcConnectionRejectHeader, ns3::MeasurementReportHeader, ns3::Asn1Header, ns3::RrcAsn1Header, anonymous_namespace{packet-test-suite.cc}::ATestHeader< N >, ns3::WifiMgtHeader< Derived, std::tuple< Elems... > >, ns3::aodv::TypeHeader, ns3::aodv::RreqHeader, ns3::aodv::RrepHeader, ns3::aodv::RrepAckHeader, ns3::aodv::RerrHeader, ns3::SeqTsEchoHeader, ns3::SeqTsHeader, ns3::SeqTsSizeHeader, ns3::ThreeGppHttpHeader, ns3::dsdv::DsdvHeader, ns3::dsr::DsrFsHeader, ns3::dsr::DsrRoutingHeader, ns3::dsr::DsrOptionHeader, ns3::dsr::DsrOptionPad1Header, ns3::dsr::DsrOptionPadnHeader, ns3::dsr::DsrOptionRreqHeader, ns3::dsr::DsrOptionRrepHeader, ns3::dsr::DsrOptionSRHeader, ns3::dsr::DsrOptionRerrHeader, ns3::dsr::DsrOptionRerrUnreachHeader, ns3::dsr::DsrOptionRerrUnsupportedHeader, ns3::dsr::DsrOptionAckReqHeader, ns3::dsr::DsrOptionAckHeader, ns3::DhcpHeader, ns3::ArpHeader, ns3::Icmpv4Header, ns3::Icmpv4Echo, ns3::Icmpv4DestinationUnreachable, ns3::Icmpv4TimeExceeded, ns3::Icmpv6Header, ns3::Icmpv6OptionHeader, ns3::Icmpv6NS, ns3::Icmpv6NA, ns3::Icmpv6RA, ns3::Icmpv6RS, ns3::Icmpv6Redirection, ns3::Icmpv6Echo, ns3::Icmpv6DestinationUnreachable, ns3::Icmpv6TooBig, ns3::Icmpv6TimeExceeded, ns3::Icmpv6ParameterError, ns3::Icmpv6OptionMtu, ns3::Icmpv6OptionPrefixInformation, ns3::Icmpv6OptionLinkLayerAddress, ns3::Icmpv6OptionRedirected, ns3::Ipv4Header, ns3::Ipv6ExtensionHeader, ns3::Ipv6ExtensionHopByHopHeader, ns3::Ipv6ExtensionDestinationHeader, ns3::Ipv6ExtensionFragmentHeader, ns3::Ipv6ExtensionRoutingHeader, ns3::Ipv6ExtensionLooseRoutingHeader, ns3::Ipv6ExtensionESPHeader, ns3::Ipv6ExtensionAHHeader, ns3::Ipv6Header, ns3::Ipv6OptionHeader, ns3::Ipv6OptionPad1Header, ns3::Ipv6OptionPadnHeader, ns3::Ipv6OptionJumbogramHeader, ns3::Ipv6OptionRouterAlertHeader, ns3::RipRte, ns3::RipHeader, ns3::RipNgRte, ns3::RipNgHeader, ns3::TcpHeader, ns3::UdpHeader, ns3::LrWpanMacHeader, ns3::BeaconPayloadHeader, ns3::CommandPayloadHeader, ns3::GtpcHeader, ns3::GtpcCreateSessionRequestMessage, ns3::GtpcCreateSessionResponseMessage, ns3::GtpcModifyBearerRequestMessage, ns3::GtpcModifyBearerResponseMessage, ns3::GtpcDeleteBearerCommandMessage, ns3::GtpcDeleteBearerRequestMessage, ns3::GtpcDeleteBearerResponseMessage, ns3::GtpuHeader, ns3::EpcX2Header, ns3::EpcX2HandoverRequestHeader, ns3::EpcX2HandoverRequestAckHeader, ns3::EpcX2HandoverPreparationFailureHeader, ns3::EpcX2SnStatusTransferHeader, ns3::EpcX2UeContextReleaseHeader, ns3::EpcX2LoadInformationHeader, ns3::EpcX2ResourceStatusUpdateHeader, ns3::EpcX2HandoverCancelHeader, ns3::LtePdcpHeader, ns3::LteRlcAmHeader, ns3::LteRlcHeader, ns3::IdealHandoverPreparationInfoHeader, ns3::IdealHandoverCommandHeader, ns3::dot11s::MeshHeader, ns3::dot11s::PeerLinkOpenStart, ns3::dot11s::PeerLinkCloseStart, ns3::dot11s::PeerLinkConfirmStart, ns3::flame::FlameHeader, ns3::MeshInformationElementVector, MyHeader, anonymous_namespace{packet-metadata-test.cc}::HistoryHeader< N >, ns3::EthernetHeader, ns3::LlcSnapHeader, ns3::PbbPacket, ns3::RadiotapHeader, ns3::SllHeader, ns3::olsr::PacketHeader, ns3::olsr::MessageHeader, ns3::PppHeader, ns3::SixLowPanHc1, ns3::SixLowPanFrag1, ns3::SixLowPanFragN, ns3::SixLowPanIpv6, ns3::SixLowPanIphc, ns3::SixLowPanNhcExtension, ns3::SixLowPanUdpNhcExtension, ns3::SixLowPanBc0, ns3::SixLowPanMesh, ns3::AlohaNoackMacHeader, ns3::UanHeaderCommon, ns3::UanHeaderRcData, ns3::UanHeaderRcRts, ns3::UanHeaderRcCtsGlobal, ns3::UanHeaderRcCts, ns3::UanHeaderRcAck, ns3::AmpduSubframeHeader, ns3::AmsduSubframeHeader, ns3::CtrlBAckRequestHeader, ns3::CtrlBAckResponseHeader, ns3::CtrlTriggerHeader, ns3::WifiActionHeader, ns3::MgtAddBaRequestHeader, ns3::MgtAddBaResponseHeader, ns3::MgtDelBaHeader, ns3::MgtEmlOperatingModeNotification, ns3::WifiMacHeader, ns3::Dcd, ns3::DlMap, ns3::ManagementMessageType, ns3::RngRsp, ns3::DsaReq, ns3::DsaRsp, ns3::DsaAck, ns3::RngReq, ns3::OfdmDownlinkFramePrefix, ns3::Ucd, ns3::UlMap, ns3::MacHeaderType, ns3::GenericMacHeader, ns3::BandwidthRequestHeader, ns3::GrantManagementSubheader, ns3::FragmentationSubheader, ns3::WimaxMacToMacHeader, ns3::Tlv, and BenchHeader< N >.

Referenced by PacketMetadataTest::CheckHistory(), ns3::Packet::PeekHeader(), and ns3::Packet::RemoveHeader().

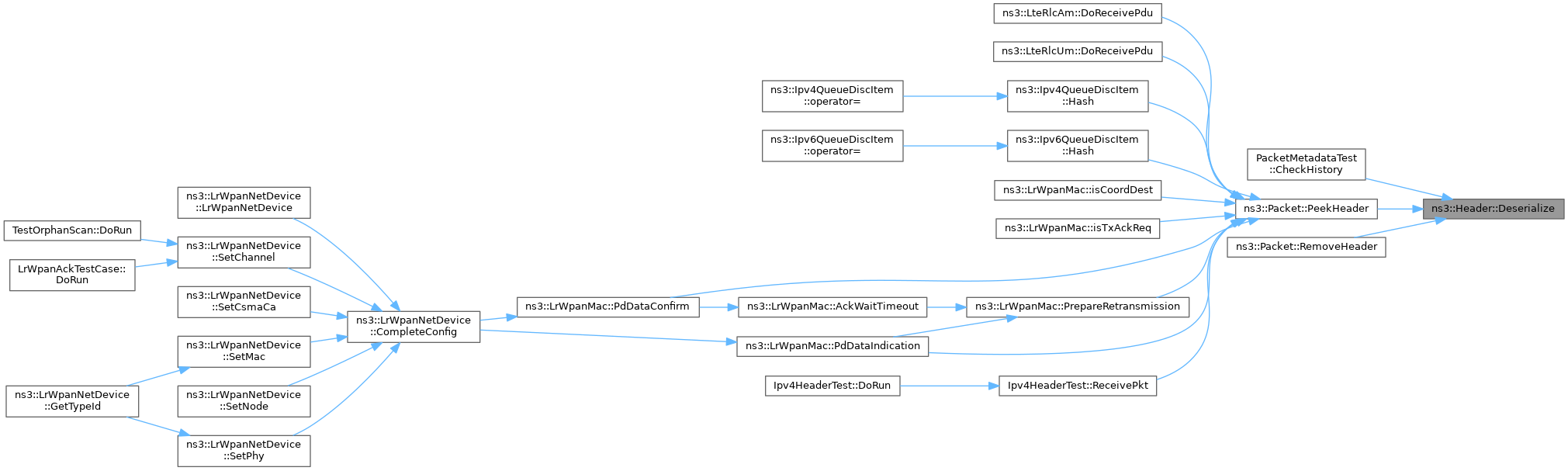

+ Here is the caller graph for this function:

◆ Deserialize() [2/3]

virtual uint32_t ns3::Chunk::Deserialize ( Buffer::Iterator  start)
virtual

Deserialize the object from a buffer iterator.

This version of Deserialize can be used when the Chunk has a fixed size. It should not be called for variable-sized Chunk derived types (but must be implemented, for historical reasons).

Parameters
startthe buffer iterator
Returns
the number of deserialized bytes

Implements ns3::Chunk.

◆ Deserialize() [3/3]

uint32_t ns3::Chunk::Deserialize ( Buffer::Iterator  start,
Buffer::Iterator  end
)
virtual

Deserialize the object from a buffer iterator.

This version of Deserialize must be used when the Chunk has a variable size, because the bounds of the Chunk may not be known at the point of deserialization (e.g. a sequence of TLV fields).

The size of the chunk should be start.GetDistanceFrom (end);

Parameters
startthe starting point
endthe ending point
Returns
the number of deserialized bytes

Reimplemented from ns3::Chunk.

Definition at line 69 of file chunk.cc.

◆ GetSerializedSize()

virtual uint32_t ns3::Header::GetSerializedSize ( ) const
pure virtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implemented in ns3::WifiMgtHeader< Derived, std::tuple< Elems... > >, ns3::aodv::TypeHeader, ns3::aodv::RreqHeader, ns3::aodv::RrepHeader, ns3::aodv::RrepAckHeader, ns3::aodv::RerrHeader, ns3::SeqTsEchoHeader, ns3::SeqTsHeader, ns3::SeqTsSizeHeader, ns3::ThreeGppHttpHeader, ns3::dsdv::DsdvHeader, ns3::dsr::DsrFsHeader, ns3::dsr::DsrRoutingHeader, ns3::dsr::DsrOptionHeader, ns3::dsr::DsrOptionPad1Header, ns3::dsr::DsrOptionPadnHeader, ns3::dsr::DsrOptionRreqHeader, ns3::dsr::DsrOptionRrepHeader, ns3::dsr::DsrOptionSRHeader, ns3::dsr::DsrOptionRerrHeader, ns3::dsr::DsrOptionRerrUnreachHeader, ns3::dsr::DsrOptionRerrUnsupportedHeader, ns3::dsr::DsrOptionAckReqHeader, ns3::dsr::DsrOptionAckHeader, ns3::DhcpHeader, ns3::ArpHeader, ns3::Icmpv4Header, ns3::Icmpv4Echo, ns3::Icmpv4DestinationUnreachable, ns3::Icmpv4TimeExceeded, ns3::Icmpv6Header, ns3::Icmpv6OptionHeader, ns3::Icmpv6NS, ns3::Icmpv6NA, ns3::Icmpv6RA, ns3::Icmpv6RS, ns3::Icmpv6Redirection, ns3::Icmpv6Echo, ns3::Icmpv6DestinationUnreachable, ns3::Icmpv6TooBig, ns3::Icmpv6TimeExceeded, ns3::Icmpv6ParameterError, ns3::Icmpv6OptionMtu, ns3::Icmpv6OptionPrefixInformation, ns3::Icmpv6OptionLinkLayerAddress, ns3::Icmpv6OptionRedirected, ns3::Ipv4Header, ns3::Ipv6ExtensionHeader, ns3::Ipv6ExtensionHopByHopHeader, ns3::Ipv6ExtensionDestinationHeader, ns3::Ipv6ExtensionFragmentHeader, ns3::Ipv6ExtensionRoutingHeader, ns3::Ipv6ExtensionLooseRoutingHeader, ns3::Ipv6ExtensionESPHeader, ns3::Ipv6ExtensionAHHeader, ns3::Ipv6Header, ns3::Ipv6OptionHeader, ns3::Ipv6OptionPad1Header, ns3::Ipv6OptionPadnHeader, ns3::Ipv6OptionJumbogramHeader, ns3::Ipv6OptionRouterAlertHeader, ns3::RipRte, ns3::RipHeader, ns3::RipNgRte, ns3::RipNgHeader, ns3::TcpHeader, ns3::UdpHeader, OptionWithoutAlignmentHeader, OptionWithAlignmentHeader, ns3::LrWpanMacHeader, ns3::BeaconPayloadHeader, ns3::CommandPayloadHeader, ns3::GtpcHeader, ns3::GtpcCreateSessionRequestMessage, ns3::GtpcCreateSessionResponseMessage, ns3::GtpcModifyBearerRequestMessage, ns3::GtpcModifyBearerResponseMessage, ns3::GtpcDeleteBearerCommandMessage, ns3::GtpcDeleteBearerRequestMessage, ns3::GtpcDeleteBearerResponseMessage, ns3::GtpuHeader, ns3::EpcX2Header, ns3::EpcX2HandoverRequestHeader, ns3::EpcX2HandoverRequestAckHeader, ns3::EpcX2HandoverPreparationFailureHeader, ns3::EpcX2SnStatusTransferHeader, ns3::EpcX2UeContextReleaseHeader, ns3::EpcX2LoadInformationHeader, ns3::EpcX2ResourceStatusUpdateHeader, ns3::EpcX2HandoverCancelHeader, ns3::Asn1Header, ns3::LtePdcpHeader, ns3::LteRlcAmHeader, ns3::LteRlcHeader, ns3::IdealHandoverPreparationInfoHeader, ns3::IdealHandoverCommandHeader, ns3::dot11s::MeshHeader, ns3::dot11s::PeerLinkOpenStart, ns3::dot11s::PeerLinkCloseStart, ns3::dot11s::PeerLinkConfirmStart, ns3::flame::FlameHeader, ns3::MeshInformationElementVector, MyHeader, anonymous_namespace{packet-metadata-test.cc}::HistoryHeader< N >, anonymous_namespace{packet-test-suite.cc}::ATestHeader< N >, ns3::EthernetHeader, ns3::LlcSnapHeader, ns3::PbbPacket, ns3::RadiotapHeader, ns3::SllHeader, ns3::olsr::PacketHeader, ns3::olsr::MessageHeader, ns3::PppHeader, ns3::SixLowPanHc1, ns3::SixLowPanFrag1, ns3::SixLowPanFragN, ns3::SixLowPanIpv6, ns3::SixLowPanIphc, ns3::SixLowPanNhcExtension, ns3::SixLowPanUdpNhcExtension, ns3::SixLowPanBc0, ns3::SixLowPanMesh, ns3::AlohaNoackMacHeader, ns3::UanHeaderCommon, ns3::UanHeaderRcData, ns3::UanHeaderRcRts, ns3::UanHeaderRcCtsGlobal, ns3::UanHeaderRcCts, ns3::UanHeaderRcAck, ns3::AmpduSubframeHeader, ns3::AmsduSubframeHeader, ns3::CtrlBAckRequestHeader, ns3::CtrlBAckResponseHeader, ns3::CtrlTriggerHeader, ns3::WifiActionHeader, ns3::MgtAddBaRequestHeader, ns3::MgtAddBaResponseHeader, ns3::MgtDelBaHeader, ns3::MgtEmlOperatingModeNotification, ns3::WifiMacHeader, ns3::Dcd, ns3::DlMap, ns3::ManagementMessageType, ns3::RngRsp, ns3::DsaReq, ns3::DsaRsp, ns3::DsaAck, ns3::RngReq, ns3::OfdmDownlinkFramePrefix, ns3::Ucd, ns3::UlMap, ns3::MacHeaderType, ns3::GenericMacHeader, ns3::BandwidthRequestHeader, ns3::GrantManagementSubheader, ns3::FragmentationSubheader, ns3::WimaxMacToMacHeader, ns3::Tlv, and BenchHeader< N >.

Referenced by ns3::Packet::AddHeader(), and ns3::PcapFile::Write().

+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::Header::GetTypeId ( )
static

Get the type ID.

Returns
the object TypeId

Definition at line 37 of file header.cc.

References ns3::TypeId::SetParent().

Referenced by ns3::PacketMetadata::ItemIterator::Next().

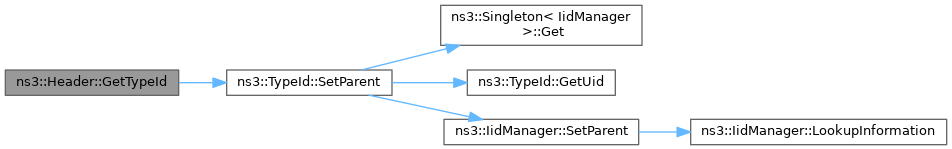

+ Here is the call graph for this function:

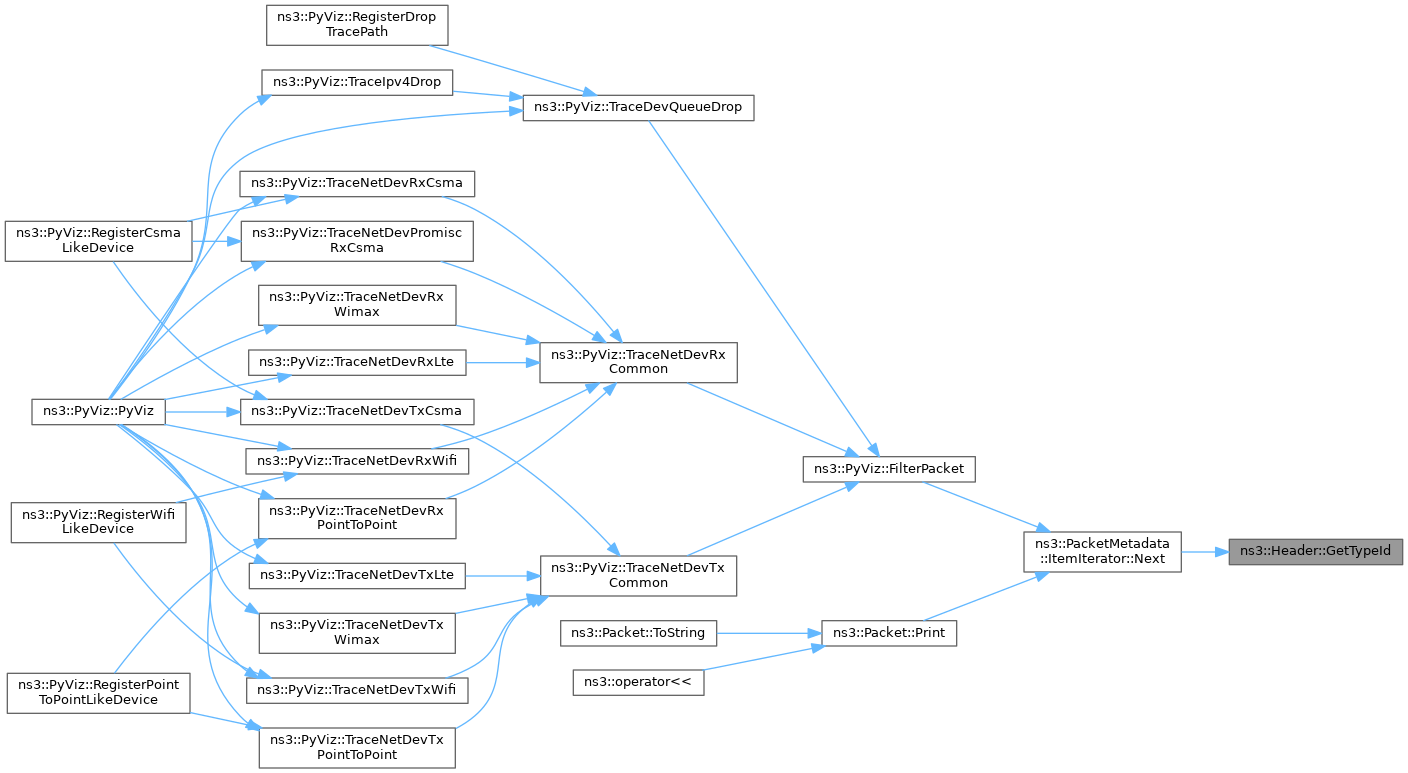

+ Here is the caller graph for this function:

◆ Print()

void ns3::Header::Print ( std::ostream &  os) const
overridepure virtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Chunk.

Implemented in ns3::WifiMgtHeader< Derived, std::tuple< Elems... > >, ns3::aodv::TypeHeader, ns3::aodv::RreqHeader, ns3::aodv::RrepHeader, ns3::aodv::RrepAckHeader, ns3::aodv::RerrHeader, ns3::SeqTsEchoHeader, ns3::SeqTsHeader, ns3::SeqTsSizeHeader, ns3::ThreeGppHttpHeader, ns3::dsdv::DsdvHeader, ns3::dsr::DsrFsHeader, ns3::dsr::DsrRoutingHeader, ns3::dsr::DsrOptionHeader, ns3::dsr::DsrOptionPad1Header, ns3::dsr::DsrOptionPadnHeader, ns3::dsr::DsrOptionRreqHeader, ns3::dsr::DsrOptionRrepHeader, ns3::dsr::DsrOptionSRHeader, ns3::dsr::DsrOptionRerrHeader, ns3::dsr::DsrOptionRerrUnreachHeader, ns3::dsr::DsrOptionRerrUnsupportedHeader, ns3::dsr::DsrOptionAckReqHeader, ns3::dsr::DsrOptionAckHeader, ns3::DhcpHeader, ns3::ArpHeader, ns3::Icmpv4Header, ns3::Icmpv4Echo, ns3::Icmpv4DestinationUnreachable, ns3::Icmpv4TimeExceeded, ns3::Icmpv6Header, ns3::Icmpv6OptionHeader, ns3::Icmpv6NS, ns3::Icmpv6NA, ns3::Icmpv6RA, ns3::Icmpv6RS, ns3::Icmpv6Redirection, ns3::Icmpv6Echo, ns3::Icmpv6DestinationUnreachable, ns3::Icmpv6TooBig, ns3::Icmpv6TimeExceeded, ns3::Icmpv6ParameterError, ns3::Icmpv6OptionMtu, ns3::Icmpv6OptionPrefixInformation, ns3::Icmpv6OptionLinkLayerAddress, ns3::Icmpv6OptionRedirected, ns3::Ipv4Header, ns3::Ipv6ExtensionHeader, ns3::Ipv6ExtensionHopByHopHeader, ns3::Ipv6ExtensionDestinationHeader, ns3::Ipv6ExtensionFragmentHeader, ns3::Ipv6ExtensionRoutingHeader, ns3::Ipv6ExtensionLooseRoutingHeader, ns3::Ipv6ExtensionESPHeader, ns3::Ipv6ExtensionAHHeader, ns3::Ipv6Header, ns3::Ipv6OptionHeader, ns3::Ipv6OptionPad1Header, ns3::Ipv6OptionPadnHeader, ns3::Ipv6OptionJumbogramHeader, ns3::Ipv6OptionRouterAlertHeader, ns3::RipRte, ns3::RipHeader, ns3::RipNgRte, ns3::RipNgHeader, ns3::TcpHeader, ns3::UdpHeader, ns3::LrWpanMacHeader, ns3::BeaconPayloadHeader, ns3::CommandPayloadHeader, ns3::GtpcHeader, ns3::GtpcCreateSessionRequestMessage, ns3::GtpcCreateSessionResponseMessage, ns3::GtpcModifyBearerRequestMessage, ns3::GtpcModifyBearerResponseMessage, ns3::GtpcDeleteBearerCommandMessage, ns3::GtpcDeleteBearerRequestMessage, ns3::GtpcDeleteBearerResponseMessage, ns3::GtpuHeader, ns3::EpcX2Header, ns3::EpcX2HandoverRequestHeader, ns3::EpcX2HandoverRequestAckHeader, ns3::EpcX2HandoverPreparationFailureHeader, ns3::EpcX2SnStatusTransferHeader, ns3::EpcX2UeContextReleaseHeader, ns3::EpcX2LoadInformationHeader, ns3::EpcX2ResourceStatusUpdateHeader, ns3::EpcX2HandoverCancelHeader, ns3::LtePdcpHeader, ns3::LteRlcAmHeader, ns3::LteRlcHeader, ns3::RrcAsn1Header, ns3::RrcUlDcchMessage, ns3::RrcDlDcchMessage, ns3::RrcUlCcchMessage, ns3::RrcDlCcchMessage, ns3::RrcConnectionRequestHeader, ns3::RrcConnectionSetupHeader, ns3::RrcConnectionSetupCompleteHeader, ns3::RrcConnectionReconfigurationCompleteHeader, ns3::RrcConnectionReconfigurationHeader, ns3::HandoverPreparationInfoHeader, ns3::RrcConnectionReestablishmentRequestHeader, ns3::RrcConnectionReestablishmentHeader, ns3::RrcConnectionReestablishmentCompleteHeader, ns3::RrcConnectionReestablishmentRejectHeader, ns3::RrcConnectionReleaseHeader, ns3::RrcConnectionRejectHeader, ns3::MeasurementReportHeader, ns3::IdealHandoverPreparationInfoHeader, ns3::IdealHandoverCommandHeader, ns3::dot11s::MeshHeader, ns3::dot11s::PeerLinkOpenStart, ns3::dot11s::PeerLinkCloseStart, ns3::dot11s::PeerLinkConfirmStart, ns3::flame::FlameHeader, ns3::MeshInformationElementVector, MyHeader, anonymous_namespace{packet-metadata-test.cc}::HistoryHeader< N >, anonymous_namespace{packet-test-suite.cc}::ATestHeader< N >, ns3::EthernetHeader, ns3::LlcSnapHeader, ns3::PbbPacket, ns3::RadiotapHeader, ns3::SllHeader, ns3::olsr::PacketHeader, ns3::olsr::MessageHeader, ns3::PppHeader, ns3::SixLowPanHc1, ns3::SixLowPanFrag1, ns3::SixLowPanFragN, ns3::SixLowPanIpv6, ns3::SixLowPanIphc, ns3::SixLowPanNhcExtension, ns3::SixLowPanUdpNhcExtension, ns3::SixLowPanBc0, ns3::SixLowPanMesh, ns3::AlohaNoackMacHeader, ns3::UanHeaderCommon, ns3::UanHeaderRcData, ns3::UanHeaderRcRts, ns3::UanHeaderRcCtsGlobal, ns3::UanHeaderRcCts, ns3::UanHeaderRcAck, ns3::AmpduSubframeHeader, ns3::AmsduSubframeHeader, ns3::CtrlBAckRequestHeader, ns3::CtrlBAckResponseHeader, ns3::CtrlTriggerHeader, ns3::WifiActionHeader, ns3::MgtAddBaRequestHeader, ns3::MgtAddBaResponseHeader, ns3::MgtDelBaHeader, ns3::MgtEmlOperatingModeNotification, ns3::WifiMacHeader, ns3::Dcd, ns3::DlMap, ns3::ManagementMessageType, ns3::RngRsp, ns3::DsaReq, ns3::DsaRsp, ns3::DsaAck, ns3::RngReq, ns3::OfdmDownlinkFramePrefix, ns3::Ucd, ns3::UlMap, ns3::MacHeaderType, ns3::GenericMacHeader, ns3::BandwidthRequestHeader, ns3::GrantManagementSubheader, ns3::FragmentationSubheader, ns3::WimaxMacToMacHeader, ns3::Tlv, BenchHeader< N >, and ns3::Asn1Header.

Referenced by ns3::operator<<().

+ Here is the caller graph for this function:

◆ Serialize()

virtual void ns3::Header::Serialize ( Buffer::Iterator  start) const
pure virtual
Parameters
startan iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implemented in ns3::Asn1Header, ns3::aodv::RerrHeader, anonymous_namespace{packet-test-suite.cc}::ATestHeader< N >, ns3::WifiMgtHeader< Derived, std::tuple< Elems... > >, ns3::aodv::TypeHeader, ns3::aodv::RreqHeader, ns3::aodv::RrepHeader, ns3::aodv::RrepAckHeader, ns3::SeqTsEchoHeader, ns3::SeqTsHeader, ns3::SeqTsSizeHeader, ns3::ThreeGppHttpHeader, ns3::dsdv::DsdvHeader, ns3::dsr::DsrFsHeader, ns3::dsr::DsrRoutingHeader, ns3::dsr::DsrOptionHeader, ns3::dsr::DsrOptionPad1Header, ns3::dsr::DsrOptionPadnHeader, ns3::dsr::DsrOptionRreqHeader, ns3::dsr::DsrOptionRrepHeader, ns3::dsr::DsrOptionSRHeader, ns3::dsr::DsrOptionRerrHeader, ns3::dsr::DsrOptionRerrUnreachHeader, ns3::dsr::DsrOptionRerrUnsupportedHeader, ns3::dsr::DsrOptionAckReqHeader, ns3::dsr::DsrOptionAckHeader, ns3::DhcpHeader, ns3::ArpHeader, ns3::Icmpv4Header, ns3::Icmpv4Echo, ns3::Icmpv4DestinationUnreachable, ns3::Icmpv4TimeExceeded, ns3::Icmpv6Header, ns3::Icmpv6OptionHeader, ns3::Icmpv6NS, ns3::Icmpv6NA, ns3::Icmpv6RA, ns3::Icmpv6RS, ns3::Icmpv6Redirection, ns3::Icmpv6Echo, ns3::Icmpv6DestinationUnreachable, ns3::Icmpv6TooBig, ns3::Icmpv6TimeExceeded, ns3::Icmpv6ParameterError, ns3::Icmpv6OptionMtu, ns3::Icmpv6OptionPrefixInformation, ns3::Icmpv6OptionLinkLayerAddress, ns3::Icmpv6OptionRedirected, ns3::Ipv4Header, ns3::Ipv6ExtensionHeader, ns3::Ipv6ExtensionHopByHopHeader, ns3::Ipv6ExtensionDestinationHeader, ns3::Ipv6ExtensionFragmentHeader, ns3::Ipv6ExtensionRoutingHeader, ns3::Ipv6ExtensionLooseRoutingHeader, ns3::Ipv6ExtensionESPHeader, ns3::Ipv6ExtensionAHHeader, ns3::Ipv6Header, ns3::Ipv6OptionHeader, ns3::Ipv6OptionPad1Header, ns3::Ipv6OptionPadnHeader, ns3::Ipv6OptionJumbogramHeader, ns3::Ipv6OptionRouterAlertHeader, ns3::RipRte, ns3::RipHeader, ns3::RipNgRte, ns3::RipNgHeader, ns3::TcpHeader, ns3::UdpHeader, OptionWithoutAlignmentHeader, OptionWithAlignmentHeader, ns3::LrWpanMacHeader, ns3::BeaconPayloadHeader, ns3::CommandPayloadHeader, ns3::GtpcHeader, ns3::GtpcCreateSessionRequestMessage, ns3::GtpcCreateSessionResponseMessage, ns3::GtpcModifyBearerRequestMessage, ns3::GtpcModifyBearerResponseMessage, ns3::GtpcDeleteBearerCommandMessage, ns3::GtpcDeleteBearerRequestMessage, ns3::GtpcDeleteBearerResponseMessage, ns3::GtpuHeader, ns3::EpcX2Header, ns3::EpcX2HandoverRequestHeader, ns3::EpcX2HandoverRequestAckHeader, ns3::EpcX2HandoverPreparationFailureHeader, ns3::EpcX2SnStatusTransferHeader, ns3::EpcX2UeContextReleaseHeader, ns3::EpcX2LoadInformationHeader, ns3::EpcX2ResourceStatusUpdateHeader, ns3::EpcX2HandoverCancelHeader, ns3::LtePdcpHeader, ns3::LteRlcAmHeader, ns3::LteRlcHeader, ns3::IdealHandoverPreparationInfoHeader, ns3::IdealHandoverCommandHeader, ns3::dot11s::MeshHeader, ns3::dot11s::PeerLinkOpenStart, ns3::dot11s::PeerLinkCloseStart, ns3::dot11s::PeerLinkConfirmStart, ns3::flame::FlameHeader, ns3::MeshInformationElementVector, MyHeader, anonymous_namespace{packet-metadata-test.cc}::HistoryHeader< N >, ns3::EthernetHeader, ns3::LlcSnapHeader, ns3::PbbPacket, ns3::RadiotapHeader, ns3::SllHeader, ns3::olsr::PacketHeader, ns3::olsr::MessageHeader, ns3::PppHeader, ns3::SixLowPanHc1, ns3::SixLowPanFrag1, ns3::SixLowPanFragN, ns3::SixLowPanIpv6, ns3::SixLowPanIphc, ns3::SixLowPanNhcExtension, ns3::SixLowPanUdpNhcExtension, ns3::SixLowPanBc0, ns3::SixLowPanMesh, ns3::AlohaNoackMacHeader, ns3::UanHeaderCommon, ns3::UanHeaderRcData, ns3::UanHeaderRcRts, ns3::UanHeaderRcCtsGlobal, ns3::UanHeaderRcCts, ns3::UanHeaderRcAck, ns3::AmpduSubframeHeader, ns3::AmsduSubframeHeader, ns3::CtrlBAckRequestHeader, ns3::CtrlBAckResponseHeader, ns3::CtrlTriggerHeader, ns3::WifiActionHeader, ns3::MgtAddBaRequestHeader, ns3::MgtAddBaResponseHeader, ns3::MgtDelBaHeader, ns3::MgtEmlOperatingModeNotification, ns3::WifiMacHeader, ns3::Dcd, ns3::DlMap, ns3::ManagementMessageType, ns3::RngRsp, ns3::DsaReq, ns3::DsaRsp, ns3::DsaAck, ns3::RngReq, ns3::OfdmDownlinkFramePrefix, ns3::Ucd, ns3::UlMap, ns3::MacHeaderType, ns3::GenericMacHeader, ns3::BandwidthRequestHeader, ns3::GrantManagementSubheader, ns3::FragmentationSubheader, ns3::WimaxMacToMacHeader, ns3::Tlv, and BenchHeader< N >.

Referenced by ns3::Packet::AddHeader(), and ns3::PcapFile::Write().

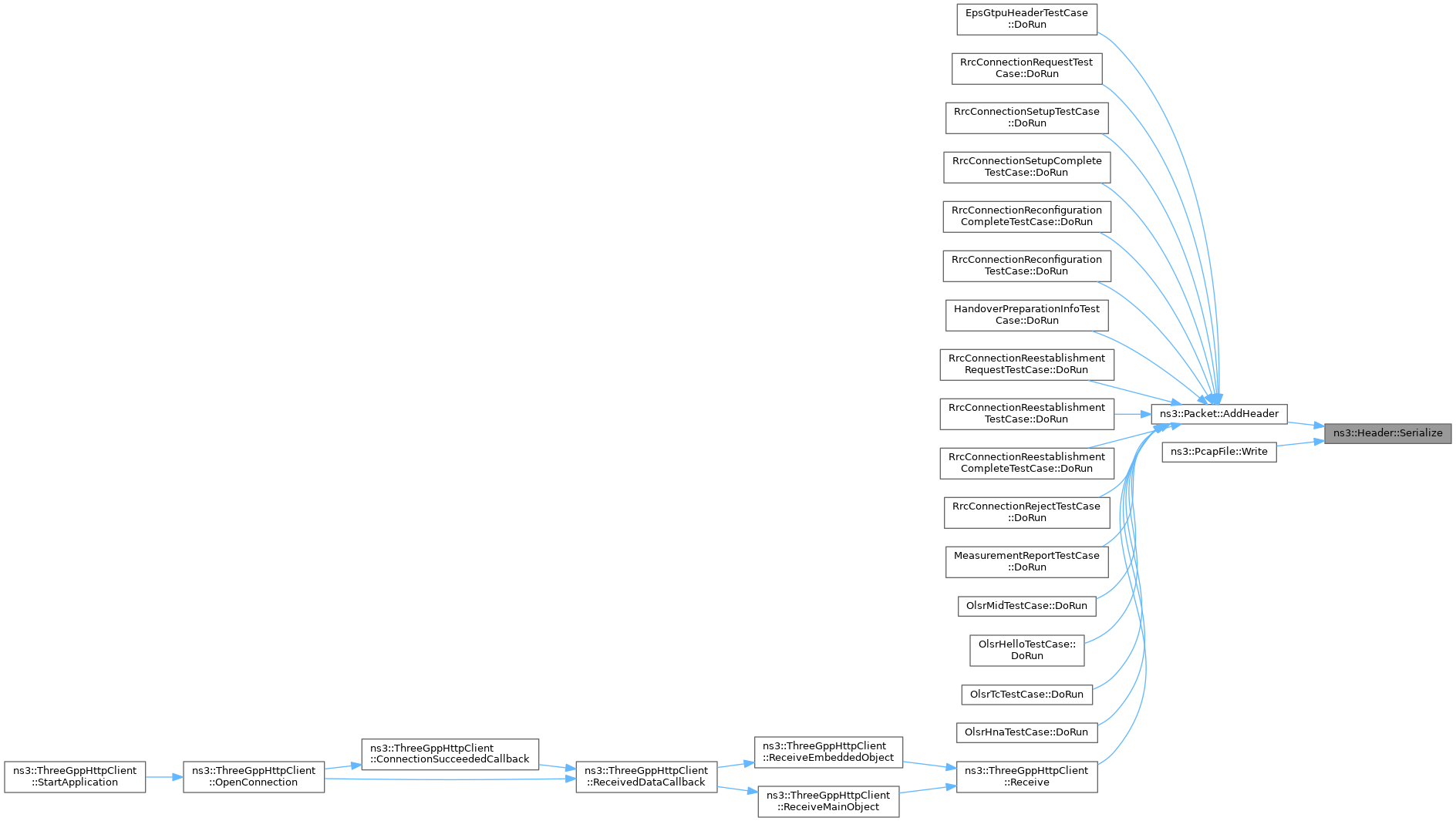

+ Here is the caller graph for this function:

The documentation for this class was generated from the following files:
