GTP-C Modify Bearer Request Message. More...

#include "epc-gtpc-header.h"

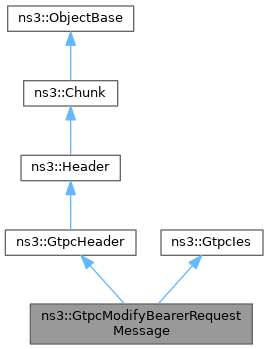

Inheritance diagram for ns3::GtpcModifyBearerRequestMessage:

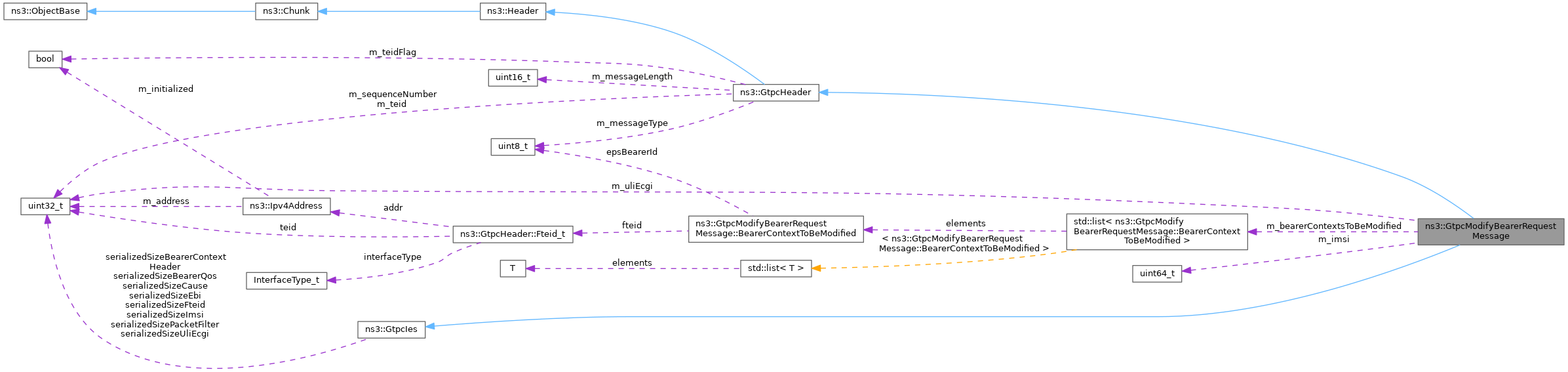

Collaboration diagram for ns3::GtpcModifyBearerRequestMessage:

Classes
struct	BearerContextToBeModified
	Bearer Context structure. More...

Public Member Functions
	GtpcModifyBearerRequestMessage ()

	~GtpcModifyBearerRequestMessage () override

uint32_t	Deserialize (Buffer::Iterator start) override

std::list< BearerContextToBeModified >	GetBearerContextsToBeModified () const
	Get the Bearer Contexts.

uint64_t	GetImsi () const
	Get the IMSI.

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object.

uint32_t	GetMessageSize () const override
	Get the message size.

uint32_t	GetSerializedSize () const override

uint32_t	GetUliEcgi () const
	Get the UliEcgi.

void	Print (std::ostream &os) const override

void	Serialize (Buffer::Iterator start) const override

void	SetBearerContextsToBeModified (std::list< BearerContextToBeModified > bearerContexts)
	Set the Bearer Contexts.

void	SetImsi (uint64_t imsi)
	Set the IMSI.

void	SetUliEcgi (uint32_t uliEcgi)
	Set the UliEcgi.

Public Member Functions inherited from ns3::GtpcHeader
	GtpcHeader ()

	~GtpcHeader () override

void	ComputeMessageLength ()
	Compute the message length according to the message type.

uint32_t	Deserialize (Buffer::Iterator start) override

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object.

uint16_t	GetMessageLength () const
	Get message length.

virtual uint32_t	GetMessageSize () const
	Get the message size.

uint8_t	GetMessageType () const
	Get message type.

uint32_t	GetSequenceNumber () const
	Get sequence number.

uint32_t	GetSerializedSize () const override

uint32_t	GetTeid () const
	Get TEID.

void	Print (std::ostream &os) const override

void	Serialize (Buffer::Iterator start) const override

void	SetIesLength (uint16_t iesLength)
	Set IEs length.

void	SetMessageLength (uint16_t messageLength)
	Set message length.

void	SetMessageType (uint8_t messageType)
	Set message type.

void	SetSequenceNumber (uint32_t sequenceNumber)
	Set sequence number.

void	SetTeid (uint32_t teid)
	Set TEID.

Public Member Functions inherited from ns3::Header
	~Header () override

uint32_t	Deserialize (Buffer::Iterator start) override=0

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator.

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator.

virtual uint32_t	GetSerializedSize () const =0

void	Print (std::ostream &os) const override=0

virtual void	Serialize (Buffer::Iterator start) const =0

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator.

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator.

virtual void	Print (std::ostream &os) const =0
	Print the object contents.

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor.

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful.

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors.

virtual TypeId	GetInstanceTypeId () const =0
	Get the most derived TypeId for this Object.

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful.

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors.

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context.

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context.

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context.

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context.

Public Member Functions inherited from ns3::GtpcIes
uint32_t	DeserializeBearerContextHeader (Buffer::Iterator &i, uint16_t &length) const
	Deserialize the Bearer Context Header.

uint32_t	DeserializeBearerQos (Buffer::Iterator &i, EpsBearer &bearerQos)
	Deserialize the eps Bearer QoS.

uint32_t	DeserializeBearerTft (Buffer::Iterator &i, Ptr< EpcTft > epcTft) const
	Deserialize the Bearer TFT.

uint32_t	DeserializeCause (Buffer::Iterator &i, Cause_t &cause) const
	Deserialize the Cause.

uint32_t	DeserializeEbi (Buffer::Iterator &i, uint8_t &epsBearerId) const
	Deserialize the eps Bearer Id.

uint32_t	DeserializeFteid (Buffer::Iterator &i, GtpcHeader::Fteid_t &fteid) const
	Deserialize the Fteid.

uint32_t	DeserializeImsi (Buffer::Iterator &i, uint64_t &imsi) const
	Deserialize the IMSI.

uint32_t	DeserializeUliEcgi (Buffer::Iterator &i, uint32_t &uliEcgi) const
	Deserialize the UliEcgi.

uint32_t	GetSerializedSizeBearerTft (std::list< EpcTft::PacketFilter > packetFilters) const

uint64_t	ReadNtohU40 (Buffer::Iterator &i)

void	SerializeBearerContextHeader (Buffer::Iterator &i, uint16_t length) const
	Serialize the Bearer Context Header.

void	SerializeBearerQos (Buffer::Iterator &i, EpsBearer bearerQos) const
	Serialize the eps Bearer QoS.

void	SerializeBearerTft (Buffer::Iterator &i, std::list< EpcTft::PacketFilter > packetFilters) const
	Serialize the Bearer TFT.

void	SerializeCause (Buffer::Iterator &i, Cause_t cause) const
	Serialize the Cause.

void	SerializeEbi (Buffer::Iterator &i, uint8_t epsBearerId) const
	Serialize the eps Bearer Id.

void	SerializeFteid (Buffer::Iterator &i, GtpcHeader::Fteid_t fteid) const
	Serialize the Fteid_t.

void	SerializeImsi (Buffer::Iterator &i, uint64_t imsi) const
	Serialize the IMSI.

void	SerializeUliEcgi (Buffer::Iterator &i, uint32_t uliEcgi) const
	Serialize the UliEcgi.

void	WriteHtonU40 (Buffer::Iterator &i, uint64_t data) const

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::GtpcHeader
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID.

Private Attributes
std::list< BearerContextToBeModified >	m_bearerContextsToBeModified
	Bearer Context list.

uint64_t	m_imsi
	IMSI.

uint32_t	m_uliEcgi
	UliEcgi.

Additional Inherited Members
Public Types inherited from ns3::GtpcHeader
enum	InterfaceType_t { S1U_ENB_GTPU = 0 , S5_SGW_GTPU = 4 , S5_PGW_GTPU = 5 , S5_SGW_GTPC = 6 , S5_PGW_GTPC = 7 , S11_MME_GTPC = 10 }
	Interface Type enumeration. More...

enum	MessageType_t { Reserved = 0 , CreateSessionRequest = 32 , CreateSessionResponse = 33 , ModifyBearerRequest = 34 , ModifyBearerResponse = 35 , DeleteSessionRequest = 36 , DeleteSessionResponse = 37 , DeleteBearerCommand = 66 , DeleteBearerRequest = 99 , DeleteBearerResponse = 100 }
	Message Type enumeration. More...

Public Types inherited from ns3::GtpcIes
enum	Cause_t { RESERVED = 0 , REQUEST_ACCEPTED = 16 }
	Cause. More...

Public Attributes inherited from ns3::GtpcIes
const uint32_t	serializedSizeBearerContextHeader = 4
	Fteid serialized size.

const uint32_t	serializedSizeBearerQos = 26
	Bearer QoS serialized size.

const uint32_t	serializedSizeCause = 6
	Cause serialized size.

const uint32_t	serializedSizeEbi = 5
	EBI serialized size.

const uint32_t	serializedSizeFteid = 13
	Fteid serialized size.

const uint32_t	serializedSizeImsi = 12
	IMSI serialized size.

const uint32_t	serializedSizePacketFilter
	Packet filter serialized size.

const uint32_t	serializedSizeUliEcgi = 12
	UliEcgi serialized size.

Protected Member Functions inherited from ns3::GtpcHeader
uint32_t	PreDeserialize (Buffer::Iterator &i)
	Deserialize the GTP-C header in the GTP-C messages.

void	PreSerialize (Buffer::Iterator &i) const
	Serialize the GTP-C header in the GTP-C messages.

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes.

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed.

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly.

Detailed Description

GTP-C Modify Bearer Request Message.

Definition at line 516 of file epc-gtpc-header.h.

Constructor & Destructor Documentation

◆ GtpcModifyBearerRequestMessage()

ns3::GtpcModifyBearerRequestMessage::GtpcModifyBearerRequestMessage ( )

Definition at line 803 of file epc-gtpc-header.cc.

References m_imsi, m_uliEcgi, ns3::GtpcHeader::ModifyBearerRequest, ns3::GtpcHeader::SetMessageType(), and ns3::GtpcHeader::SetSequenceNumber().

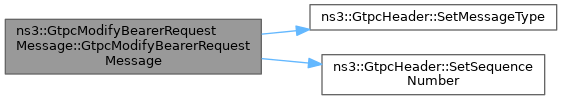

Here is the call graph for this function:

◆ ~GtpcModifyBearerRequestMessage()

ns3::GtpcModifyBearerRequestMessage::~GtpcModifyBearerRequestMessage ( )

override

Definition at line 811 of file epc-gtpc-header.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::GtpcModifyBearerRequestMessage::Deserialize ( Buffer::Iterator start )

overridevirtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Reimplemented from ns3::GtpcHeader.

Definition at line 856 of file epc-gtpc-header.cc.

References ns3::GtpcIes::DeserializeBearerContextHeader(), ns3::GtpcIes::DeserializeEbi(), ns3::GtpcIes::DeserializeFteid(), ns3::GtpcIes::DeserializeImsi(), ns3::GtpcIes::DeserializeUliEcgi(), ns3::GtpcModifyBearerRequestMessage::BearerContextToBeModified::epsBearerId, ns3::GtpcModifyBearerRequestMessage::BearerContextToBeModified::fteid, ns3::Buffer::Iterator::GetRemainingSize(), GetSerializedSize(), m_bearerContextsToBeModified, m_imsi, m_uliEcgi, and ns3::GtpcHeader::PreDeserialize().

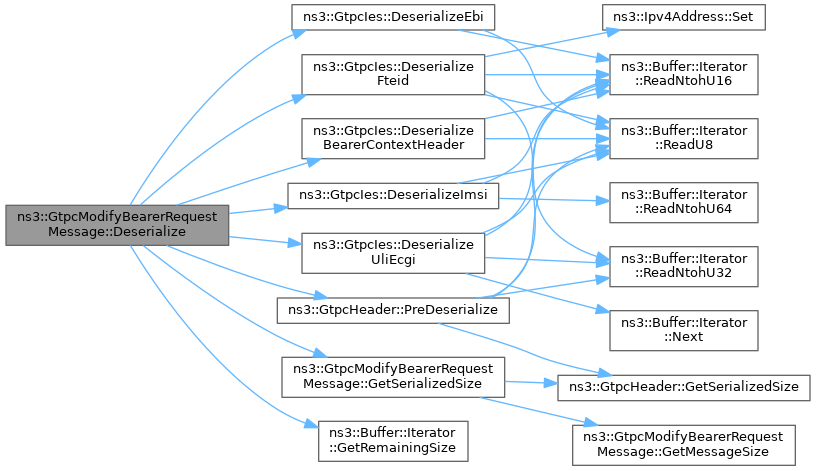

Here is the call graph for this function:

◆ GetBearerContextsToBeModified()

std::list< GtpcModifyBearerRequestMessage::BearerContextToBeModified > ns3::GtpcModifyBearerRequestMessage::GetBearerContextsToBeModified ( ) const

Get the Bearer Contexts.

Returns: the Bearer Context list

Definition at line 911 of file epc-gtpc-header.cc.

References m_bearerContextsToBeModified.

Referenced by ns3::EpcPgwApplication::DoRecvModifyBearerRequest(), and ns3::EpcSgwApplication::DoRecvModifyBearerRequest().

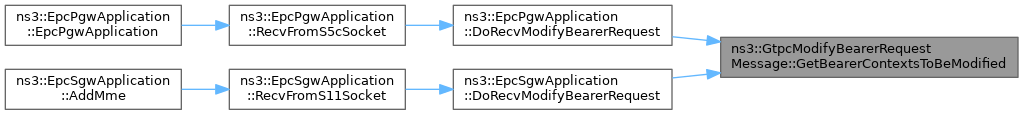

Here is the caller graph for this function:

◆ GetImsi()

uint64_t ns3::GtpcModifyBearerRequestMessage::GetImsi ( ) const

Get the IMSI.

Returns: IMSI

Definition at line 887 of file epc-gtpc-header.cc.

References m_imsi.

Referenced by ns3::EpcPgwApplication::DoRecvModifyBearerRequest(), and ns3::EpcSgwApplication::DoRecvModifyBearerRequest().

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::GtpcModifyBearerRequestMessage::GetInstanceTypeId ( ) const

overridevirtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Reimplemented from ns3::GtpcHeader.

Definition at line 816 of file epc-gtpc-header.cc.

References GetTypeId().

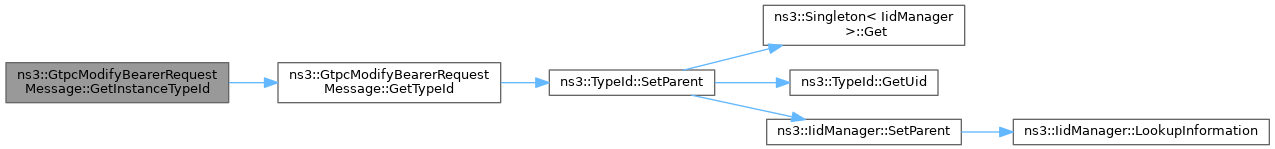

Here is the call graph for this function:

◆ GetMessageSize()

uint32_t ns3::GtpcModifyBearerRequestMessage::GetMessageSize ( ) const

overridevirtual

Get the message size.

Subclasses are supposed to have a message size greater than zero.

Returns: the message size

Reimplemented from ns3::GtpcHeader.

Definition at line 822 of file epc-gtpc-header.cc.

References m_bearerContextsToBeModified, ns3::GtpcIes::serializedSizeBearerContextHeader, ns3::GtpcIes::serializedSizeEbi, ns3::GtpcIes::serializedSizeFteid, ns3::GtpcIes::serializedSizeImsi, and ns3::GtpcIes::serializedSizeUliEcgi.

Referenced by GetSerializedSize().

Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::GtpcModifyBearerRequestMessage::GetSerializedSize ( ) const

overridevirtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Reimplemented from ns3::GtpcHeader.

Definition at line 832 of file epc-gtpc-header.cc.

References GetMessageSize(), and ns3::GtpcHeader::GetSerializedSize().

Referenced by Deserialize().

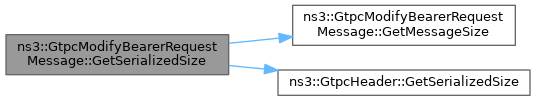

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::GtpcModifyBearerRequestMessage::GetTypeId ( )

static

Get the type ID.

Returns: the object TypeId

Definition at line 794 of file epc-gtpc-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

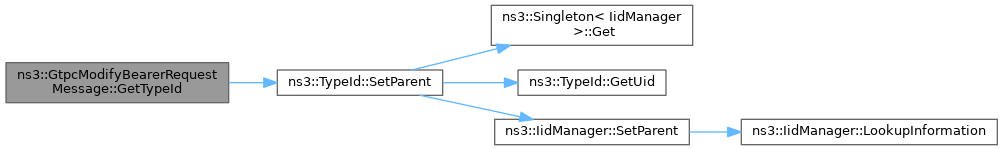

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetUliEcgi()

uint32_t ns3::GtpcModifyBearerRequestMessage::GetUliEcgi ( ) const

Get the UliEcgi.

Returns: UliEcgi

Definition at line 899 of file epc-gtpc-header.cc.

References m_uliEcgi.

Referenced by ns3::EpcPgwApplication::DoRecvModifyBearerRequest(), and ns3::EpcSgwApplication::DoRecvModifyBearerRequest().

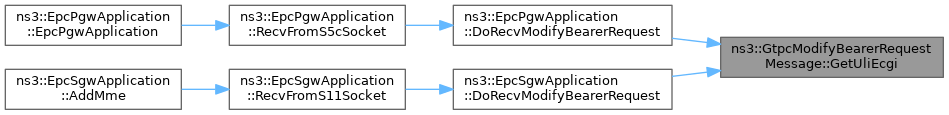

Here is the caller graph for this function:

◆ Print()

void ns3::GtpcModifyBearerRequestMessage::Print ( std::ostream & os ) const

overridevirtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Reimplemented from ns3::GtpcHeader.

Definition at line 881 of file epc-gtpc-header.cc.

References m_imsi, and m_uliEcgi.

◆ Serialize()

void ns3::GtpcModifyBearerRequestMessage::Serialize ( Buffer::Iterator start ) const

overridevirtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Reimplemented from ns3::GtpcHeader.

Definition at line 838 of file epc-gtpc-header.cc.

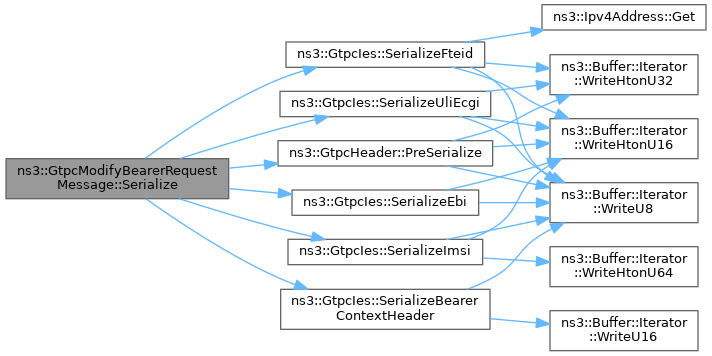

References m_bearerContextsToBeModified, m_imsi, m_uliEcgi, ns3::GtpcHeader::PreSerialize(), ns3::GtpcIes::SerializeBearerContextHeader(), ns3::GtpcIes::serializedSizeEbi, ns3::GtpcIes::serializedSizeFteid, ns3::GtpcIes::SerializeEbi(), ns3::GtpcIes::SerializeFteid(), ns3::GtpcIes::SerializeImsi(), and ns3::GtpcIes::SerializeUliEcgi().
