Represent the Mac Header with the Frame Control and Sequence Number fields. More...

#include "lr-wpan-mac-header.h"

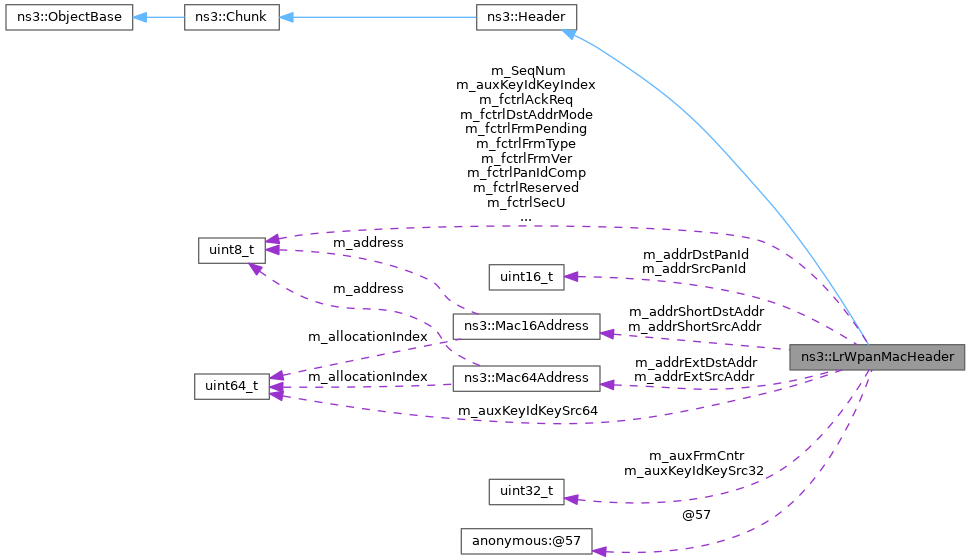

Inheritance diagram for ns3::LrWpanMacHeader:

Collaboration diagram for ns3::LrWpanMacHeader:

Public Types
enum	AddrModeType { NOADDR = 0 , RESADDR = 1 , SHORTADDR = 2 , EXTADDR = 3 }
	The addressing mode types, see IEEE 802.15.4-2006, Table 80. More...

enum	KeyIdModeType { IMPLICIT = 0 , NOKEYSOURCE = 1 , SHORTKEYSOURCE = 2 , LONGKEYSOURCE = 3 }
	The addressing mode types, see IEEE 802.15.4-2006, Table 80. More...

enum	LrWpanMacType { LRWPAN_MAC_BEACON = 0 , LRWPAN_MAC_DATA = 1 , LRWPAN_MAC_ACKNOWLEDGMENT = 2 , LRWPAN_MAC_COMMAND = 3 , LRWPAN_MAC_RESERVED }
	The possible MAC types, see IEEE 802.15.4-2006, Table 79. More...

Public Member Functions
	LrWpanMacHeader ()

	LrWpanMacHeader (LrWpanMacType wpanMacType, uint8_t seqNum)
	Constructor.

	~LrWpanMacHeader () override

uint32_t	Deserialize (Buffer::Iterator start) override

uint8_t	GetDstAddrMode () const
	Get the Dest.

uint16_t	GetDstPanId () const
	Get the Destination PAN ID.

Mac64Address	GetExtDstAddr () const
	Get the Destination Extended address.

Mac64Address	GetExtSrcAddr () const
	Get the Source Extended address.

uint16_t	GetFrameControl () const
	Get the Frame control field.

uint8_t	GetFrameVer () const
	Get the Frame Version of Frame control field.

uint32_t	GetFrmCounter () const
	Get the Auxiliary Security Header - Frame Counter Octets.

uint8_t	GetFrmCtrlRes () const
	Get the Reserved bits of Frame control field.

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object.

uint8_t	GetKeyIdIndex () const
	Get the Auxiliary Security Header - Key Identifier - Key Index.

uint8_t	GetKeyIdMode () const
	Get the Auxiliary Security Header - Security Control - Key Identifier Mode bits.

uint32_t	GetKeyIdSrc32 () const
	Get the Auxiliary Security Header - Key Identifier - Key Source (2 Octets)

uint64_t	GetKeyIdSrc64 () const
	Get the Auxiliary Security Header - Key Identifier - Key Source (4 Octets)

uint8_t	GetSecControl () const
	Get the Auxiliary Security Header - Security Control Octet.

uint8_t	GetSecCtrlReserved () const
	Get the Auxiliary Security Header - Security Control - Reserved bits.

uint8_t	GetSecLevel () const
	Get the Auxiliary Security Header - Security Control - Security Level bits.

uint8_t	GetSeqNum () const
	Get the frame Sequence number.

uint32_t	GetSerializedSize () const override

Mac16Address	GetShortDstAddr () const
	Get the Destination Short address.

Mac16Address	GetShortSrcAddr () const
	Get the Source Short address.

uint8_t	GetSrcAddrMode () const
	Get the Source Addressing Mode of Frame control field.

uint16_t	GetSrcPanId () const
	Get the Source PAN ID.

LrWpanMacType	GetType () const
	Get the header type.

bool	IsAcknowledgment () const
	Returns true if the header is an ack.

bool	IsAckReq () const
	Check if Ack.

bool	IsBeacon () const
	Returns true if the header is a beacon.

bool	IsCommand () const
	Returns true if the header is a command.

bool	IsData () const
	Returns true if the header is a data.

bool	IsFrmPend () const
	Check if Frame Pending bit of Frame Control is enabled.

bool	IsPanIdComp () const
	Check if PAN ID Compression bit of Frame Control is enabled.

bool	IsSecEnable () const
	Check if Security Enabled bit of Frame Control is enabled.

void	Print (std::ostream &os) const override

void	Serialize (Buffer::Iterator start) const override

void	SetAckReq ()
	Set the Frame Control field "Ack. Request" bit to true.

void	SetDstAddrFields (uint16_t panId, Mac16Address addr)
	Set Destination address fields.

void	SetDstAddrFields (uint16_t panId, Mac64Address addr)
	Set Destination address fields.

void	SetDstAddrMode (uint8_t addrMode)
	Set the Destination address mode.

void	SetFrameControl (uint16_t frameControl)
	Set the whole Frame Control field.

void	SetFrameVer (uint8_t ver)
	Set the Frame version.

void	SetFrmCounter (uint32_t frmCntr)
	Set the auxiliary security header "Frame Counter" octet.

void	SetFrmCtrlRes (uint8_t res)
	Set the Frame Control field "Reserved" bits.

void	SetFrmPend ()
	Set the Frame Control field "Frame Pending" bit to true.

void	SetKeyId (uint32_t keySrc, uint8_t keyIndex)
	Set the Key Index and originator.

void	SetKeyId (uint64_t keySrc, uint8_t keyIndex)
	Set the Key Index and originator.

void	SetKeyId (uint8_t keyIndex)
	Set the Key Index.

void	SetKeyIdMode (uint8_t keyIdMode)
	Set the Security Control field "Key Identifier Mode" bits (2 bits)

void	SetNoAckReq ()
	Set the Frame Control field "Ack. Request" bit to false.

void	SetNoFrmPend ()
	Set the Frame Control field "Frame Pending" bit to false.

void	SetNoPanIdComp ()
	Set the Frame Control field "PAN ID Compression" bit to false.

void	SetPanIdComp ()
	Set the Frame Control field "PAN ID Compression" bit to true.

void	SetSecControl (uint8_t secLevel)
	Set the auxiliary security header "Security Control" octet.

void	SetSecCtrlReserved (uint8_t res)
	Set the Security Control field "Reserved" bits (3 bits)

void	SetSecDisable ()
	Set the Frame Control field "Security Enabled" bit to false.

void	SetSecEnable ()
	Set the Frame Control field "Security Enabled" bit to true.

void	SetSecLevel (uint8_t secLevel)
	Set the Security Control field "Security Level" bits (3 bits)

void	SetSeqNum (uint8_t seqNum)
	Set the Sequence number.

void	SetSrcAddrFields (uint16_t panId, Mac16Address addr)
	Set Source address fields.

void	SetSrcAddrFields (uint16_t panId, Mac64Address addr)
	Set Source address fields.

void	SetSrcAddrMode (uint8_t addrMode)
	Set the Source address mode.

void	SetType (LrWpanMacType wpanMacType)
	Set the Frame Control field "Frame Type" bits.

Public Member Functions inherited from ns3::Header
	~Header () override

uint32_t	Deserialize (Buffer::Iterator start) override=0

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator.

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator.

virtual uint32_t	GetSerializedSize () const =0

void	Print (std::ostream &os) const override=0

virtual void	Serialize (Buffer::Iterator start) const =0

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator.

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator.

virtual void	Print (std::ostream &os) const =0
	Print the object contents.

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor.

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful.

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors.

virtual TypeId	GetInstanceTypeId () const =0
	Get the most derived TypeId for this Object.

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful.

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors.

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context.

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context.

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context.

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context.

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID.

Private Attributes
union {
uint32_t m_auxKeyIdKeySrc32
	Auxiliary security header - Key Source (4 Octets) More...

uint64_t m_auxKeyIdKeySrc64
	Auxiliary security header - Key Source (8 Octets) More...

};
	Auxiliary security header.

uint16_t	m_addrDstPanId
	Dst PAN id (0 or 2 Octets)

Mac64Address	m_addrExtDstAddr
	Dst Ext addr (0 or 8 Octets)

Mac64Address	m_addrExtSrcAddr
	Src Ext addr (0 or 8 Octets)

Mac16Address	m_addrShortDstAddr
	Dst Short addr (0 or 2 Octets)

Mac16Address	m_addrShortSrcAddr
	Src Short addr (0 or 2 Octets)

uint16_t	m_addrSrcPanId
	Src PAN id (0 or 2 Octets)

uint32_t	m_auxFrmCntr
	Auxiliary security header - Frame Counter (4 Octets)

uint8_t	m_auxKeyIdKeyIndex
	Auxiliary security header - Key Index (1 Octet)

uint8_t	m_fctrlAckReq
	Frame Control field Bit 5.

uint8_t	m_fctrlDstAddrMode
	Frame Control field Bit 10-11 = 0 - No DstAddr, 2 - ShtDstAddr, 3 - ExtDstAddr.

uint8_t	m_fctrlFrmPending
	Frame Control field Bit 4.

uint8_t	m_fctrlFrmType
	Frame Control field Bit 0-2 = 0 - Beacon, 1 - Data, 2 - Ack, 3 - Command.

uint8_t	m_fctrlFrmVer
	Frame Control field Bit 12-13.

uint8_t	m_fctrlPanIdComp
	Frame Control field Bit 6 = 0 - no compression, 1 - using only DstPanId for both Src and DstPanId.

uint8_t	m_fctrlReserved
	Frame Control field Bit 7-9.

uint8_t	m_fctrlSecU
	Frame Control field Bit 3 = 0 - no AuxSecHdr , 1 - security enabled AuxSecHdr present.

uint8_t	m_fctrlSrcAddrMode
	Frame Control field Bit 14-15 = 0 - No SrcAddr, 2 - ShtSrcAddr, 3 - ExtSrcAddr.

uint8_t	m_secctrlKeyIdMode
	Auxiliary security header - Security Control field - Bit 3-4 will indicate size of Key Id.

uint8_t	m_secctrlReserved
	Auxiliary security header - Security Control field - Bit 5-7.

uint8_t	m_secctrlSecLevel
	Auxiliary security header - Security Control field - Bit 0-2.

uint8_t	m_SeqNum
	Sequence Number (1 Octet)

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes.

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed.

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly.

Detailed Description

Represent the Mac Header with the Frame Control and Sequence Number fields.

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 72 bytes (on a 64-bit architecture).

Definition at line 51 of file lr-wpan-mac-header.h.

Member Enumeration Documentation

◆ AddrModeType

enum ns3::LrWpanMacHeader::AddrModeType

The addressing mode types, see IEEE 802.15.4-2006, Table 80.

Enumerator
NOADDR
RESADDR
SHORTADDR
EXTADDR

Definition at line 69 of file lr-wpan-mac-header.h.

◆ KeyIdModeType

enum ns3::LrWpanMacHeader::KeyIdModeType

The addressing mode types, see IEEE 802.15.4-2006, Table 80.

Enumerator
IMPLICIT
NOKEYSOURCE
SHORTKEYSOURCE
LONGKEYSOURCE

Definition at line 80 of file lr-wpan-mac-header.h.

◆ LrWpanMacType

enum ns3::LrWpanMacHeader::LrWpanMacType

The possible MAC types, see IEEE 802.15.4-2006, Table 79.

Enumerator
LRWPAN_MAC_BEACON	LRWPAN_MAC_BEACON.
LRWPAN_MAC_DATA	LRWPAN_MAC_DATA.
LRWPAN_MAC_ACKNOWLEDGMENT	LRWPAN_MAC_ACKNOWLEDGMENT.
LRWPAN_MAC_COMMAND	LRWPAN_MAC_COMMAND.
LRWPAN_MAC_RESERVED	LRWPAN_MAC_RESERVED.

Definition at line 57 of file lr-wpan-mac-header.h.

Constructor & Destructor Documentation

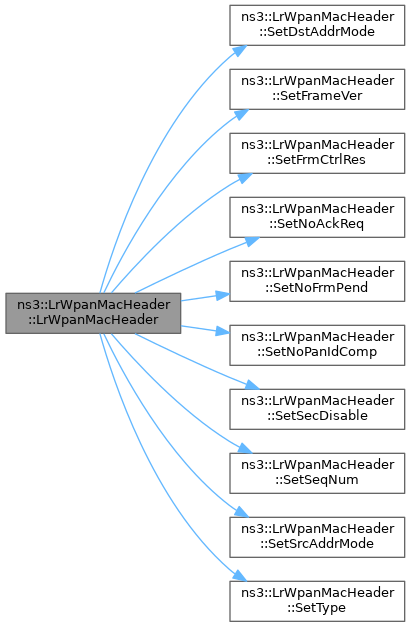

◆ LrWpanMacHeader() [1/2]

ns3::LrWpanMacHeader::LrWpanMacHeader ( )

Definition at line 30 of file lr-wpan-mac-header.cc.

References LRWPAN_MAC_DATA, NOADDR, SetDstAddrMode(), SetFrameVer(), SetFrmCtrlRes(), SetNoAckReq(), SetNoFrmPend(), SetNoPanIdComp(), SetSecDisable(), SetSrcAddrMode(), and SetType().

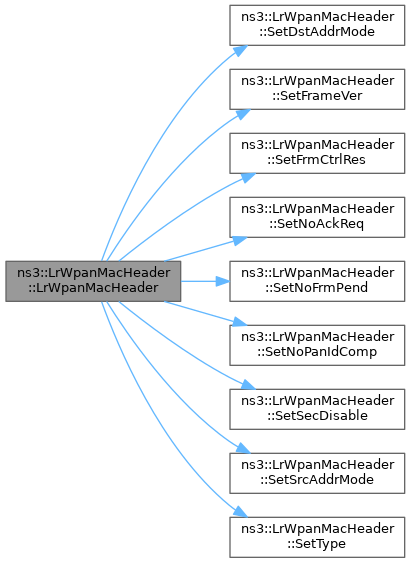

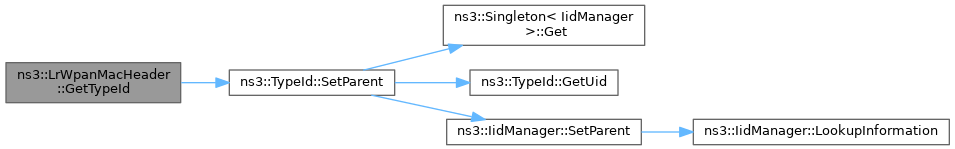

Here is the call graph for this function:

◆ LrWpanMacHeader() [2/2]

ns3::LrWpanMacHeader::LrWpanMacHeader	(	LrWpanMacType	wpanMacType,
		uint8_t	seqNum
	)

Constructor.

Parameters

wpanMacType	the header MAC type
seqNum	the sequence number

Internal:: Data, ACK, Control MAC Header must have frame control and sequence number. Beacon MAC Header must have frame control, sequence number, source PAN Id, source address.

Definition at line 43 of file lr-wpan-mac-header.cc.

References NOADDR, SetDstAddrMode(), SetFrameVer(), SetFrmCtrlRes(), SetNoAckReq(), SetNoFrmPend(), SetNoPanIdComp(), SetSecDisable(), SetSeqNum(), SetSrcAddrMode(), and SetType().

Here is the call graph for this function:

◆ ~LrWpanMacHeader()

ns3::LrWpanMacHeader::~LrWpanMacHeader ( )

override

Definition at line 57 of file lr-wpan-mac-header.cc.

Member Function Documentation

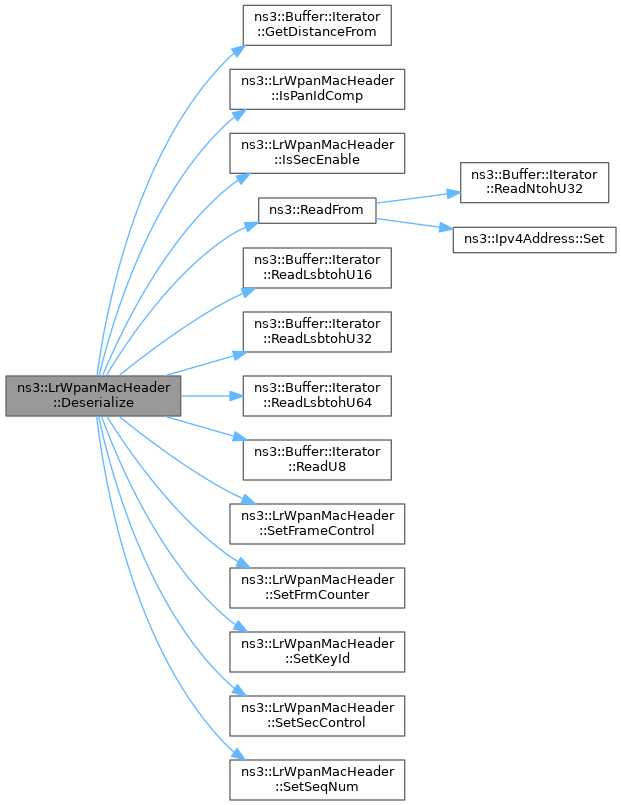

◆ Deserialize()

uint32_t ns3::LrWpanMacHeader::Deserialize ( Buffer::Iterator start )

overridevirtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 671 of file lr-wpan-mac-header.cc.

References EXTADDR, ns3::Buffer::Iterator::GetDistanceFrom(), IMPLICIT, IsPanIdComp(), IsSecEnable(), LONGKEYSOURCE, m_addrDstPanId, m_addrExtDstAddr, m_addrExtSrcAddr, m_addrShortDstAddr, m_addrShortSrcAddr, m_addrSrcPanId, m_fctrlDstAddrMode, m_fctrlSrcAddrMode, m_secctrlKeyIdMode, NOADDR, NOKEYSOURCE, ns3::ReadFrom(), ns3::Buffer::Iterator::ReadLsbtohU16(), ns3::Buffer::Iterator::ReadLsbtohU32(), ns3::Buffer::Iterator::ReadLsbtohU64(), ns3::Buffer::Iterator::ReadU8(), SetFrameControl(), SetFrmCounter(), SetKeyId(), SetSecControl(), SetSeqNum(), SHORTADDR, and SHORTKEYSOURCE.

Here is the call graph for this function:

◆ GetDstAddrMode()

uint8_t ns3::LrWpanMacHeader::GetDstAddrMode ( ) const

Get the Dest.

Addressing Mode of Frame control field

Returns: the Dest. Addressing Mode bits

Definition at line 127 of file lr-wpan-mac-header.cc.

References m_fctrlDstAddrMode.

Referenced by ns3::LrWpanMac::EnqueueInd(), ns3::LrWpanMac::McpsDataRequest(), ns3::LrWpanMac::PdDataConfirm(), ns3::LrWpanMac::PdDataIndication(), and ns3::LrWpanMac::RemovePendTxQElement().

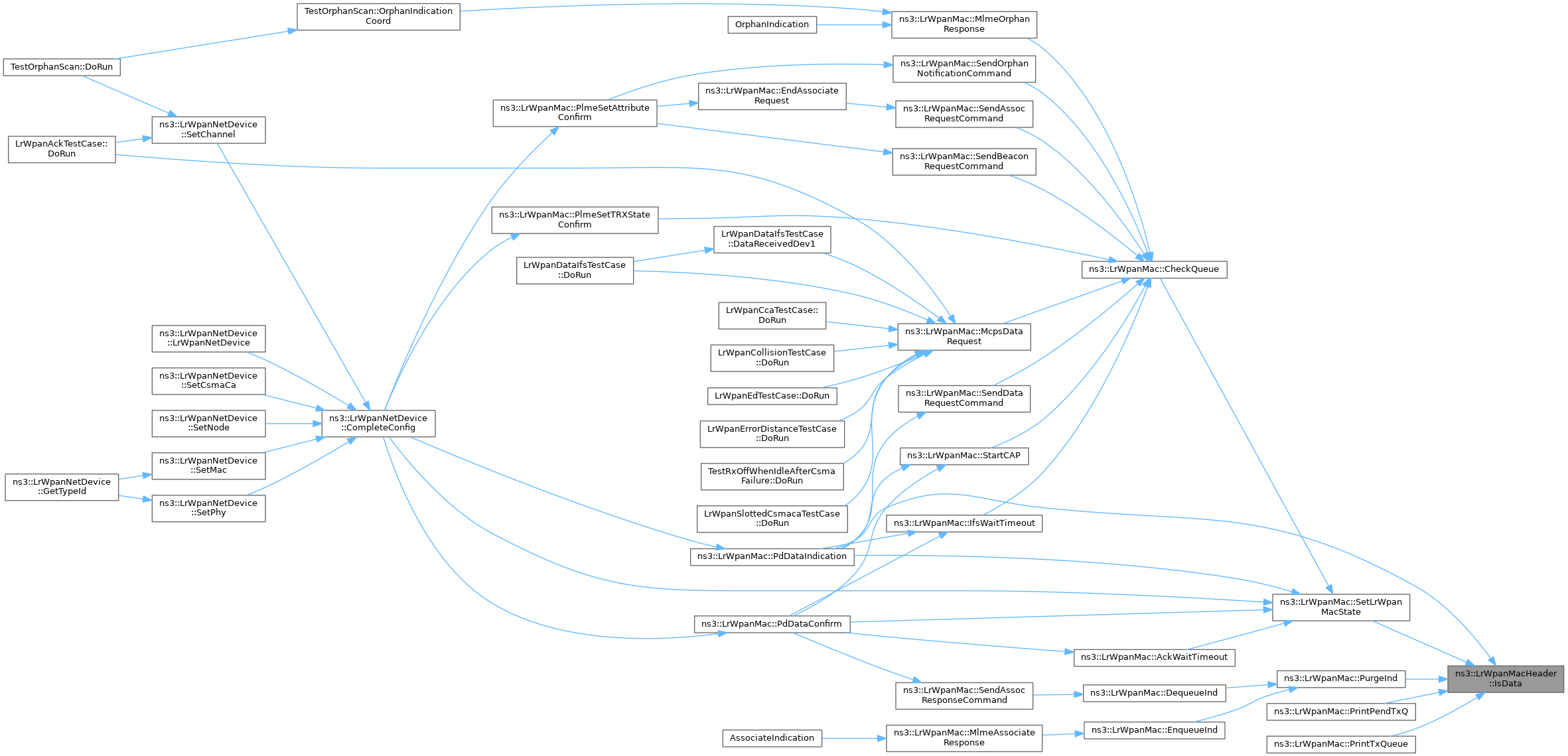

Here is the caller graph for this function:

◆ GetDstPanId()

uint16_t ns3::LrWpanMacHeader::GetDstPanId ( ) const

Get the Destination PAN ID.

Returns: the Destination PAN ID

Definition at line 151 of file lr-wpan-mac-header.cc.

References m_addrDstPanId.

Referenced by ns3::LrWpanMac::McpsDataRequest(), ns3::LrWpanMac::PdDataIndication(), ns3::LrWpanMac::PrintTxQueue(), and Serialize().

Here is the caller graph for this function:

◆ GetExtDstAddr()

Mac64Address ns3::LrWpanMacHeader::GetExtDstAddr ( ) const

Get the Destination Extended address.

Returns: the Destination Extended address

Definition at line 163 of file lr-wpan-mac-header.cc.

References m_addrExtDstAddr.

Referenced by ns3::LrWpanMac::EnqueueInd(), ns3::LrWpanMac::isCoordDest(), ns3::LrWpanMac::PdDataConfirm(), ns3::LrWpanMac::PdDataIndication(), ns3::LrWpanMac::PrepareRetransmission(), ns3::LrWpanMac::PrintTxQueue(), ns3::LrWpanMac::PurgeInd(), ns3::LrWpanMac::RemovePendTxQElement(), and ns3::LrWpanMac::SetLrWpanMacState().

Here is the caller graph for this function:

◆ GetExtSrcAddr()

Mac64Address ns3::LrWpanMacHeader::GetExtSrcAddr ( ) const

Get the Source Extended address.

Returns: the Source Extended address

Definition at line 181 of file lr-wpan-mac-header.cc.

References m_addrExtSrcAddr.

Referenced by ns3::LrWpanMac::EnqueueInd(), ns3::LrWpanMac::PdDataConfirm(), ns3::LrWpanMac::PdDataIndication(), ns3::LrWpanMac::PrepareRetransmission(), ns3::LrWpanMac::PurgeInd(), ns3::LrWpanMac::SendAssocResponseCommand(), and ns3::LrWpanMac::SetLrWpanMacState().

Here is the caller graph for this function:

◆ GetFrameControl()

uint16_t ns3::LrWpanMacHeader::GetFrameControl ( ) const

Get the Frame control field.

Returns: the Frame control field

Definition at line 80 of file lr-wpan-mac-header.cc.

References m_fctrlAckReq, m_fctrlDstAddrMode, m_fctrlFrmPending, m_fctrlFrmType, m_fctrlFrmVer, m_fctrlPanIdComp, m_fctrlReserved, m_fctrlSecU, and m_fctrlSrcAddrMode.

Referenced by Serialize().

Here is the caller graph for this function:

◆ GetFrameVer()

uint8_t ns3::LrWpanMacHeader::GetFrameVer ( ) const

Get the Frame Version of Frame control field.

Returns: the Frame Version bits

Definition at line 133 of file lr-wpan-mac-header.cc.

References m_fctrlFrmVer.

Referenced by ns3::LrWpanMac::PdDataIndication().

Here is the caller graph for this function:

◆ GetFrmCounter()

uint32_t ns3::LrWpanMacHeader::GetFrmCounter ( ) const

Get the Auxiliary Security Header - Frame Counter Octets.

Returns: the Auxiliary Security Header - Frame Counter Octets

Definition at line 199 of file lr-wpan-mac-header.cc.

References m_auxFrmCntr.

Referenced by Serialize().

Here is the caller graph for this function:

◆ GetFrmCtrlRes()

uint8_t ns3::LrWpanMacHeader::GetFrmCtrlRes ( ) const

Get the Reserved bits of Frame control field.

Returns: the Reserved bits

Definition at line 121 of file lr-wpan-mac-header.cc.

References m_fctrlReserved.

◆ GetInstanceTypeId()

TypeId ns3::LrWpanMacHeader::GetInstanceTypeId ( ) const

overridevirtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 453 of file lr-wpan-mac-header.cc.

References GetTypeId().

Here is the call graph for this function:

◆ GetKeyIdIndex()

uint8_t ns3::LrWpanMacHeader::GetKeyIdIndex ( ) const

Get the Auxiliary Security Header - Key Identifier - Key Index.

Returns: the Auxiliary Security Header - Key Identifier - Key Index

Definition at line 235 of file lr-wpan-mac-header.cc.

References m_auxKeyIdKeyIndex.

Referenced by Serialize().

Here is the caller graph for this function:

◆ GetKeyIdMode()

uint8_t ns3::LrWpanMacHeader::GetKeyIdMode ( ) const

Get the Auxiliary Security Header - Security Control - Key Identifier Mode bits.

Returns: the Auxiliary Security Header - Security Control - Key Identifier Mode bits

Definition at line 211 of file lr-wpan-mac-header.cc.

References m_secctrlKeyIdMode.

◆ GetKeyIdSrc32()

uint32_t ns3::LrWpanMacHeader::GetKeyIdSrc32 ( ) const

Get the Auxiliary Security Header - Key Identifier - Key Source (2 Octets)

Returns: the Auxiliary Security Header - Key Identifier - Key Source (2 Octets)

Definition at line 223 of file lr-wpan-mac-header.cc.

References m_auxKeyIdKeySrc32.

Referenced by Serialize().

Here is the caller graph for this function:

◆ GetKeyIdSrc64()

uint64_t ns3::LrWpanMacHeader::GetKeyIdSrc64 ( ) const

Get the Auxiliary Security Header - Key Identifier - Key Source (4 Octets)

Returns: the Auxiliary Security Header - Key Identifier - Key Source (4 Octets)

Definition at line 229 of file lr-wpan-mac-header.cc.

References m_auxKeyIdKeySrc64.

Referenced by Serialize().

Here is the caller graph for this function:

◆ GetSecControl()

uint8_t ns3::LrWpanMacHeader::GetSecControl ( ) const

Get the Auxiliary Security Header - Security Control Octet.

Returns: the Auxiliary Security Header - Security Control Octet

Definition at line 187 of file lr-wpan-mac-header.cc.

References m_secctrlKeyIdMode, m_secctrlReserved, and m_secctrlSecLevel.

Referenced by Serialize().

Here is the caller graph for this function:

◆ GetSecCtrlReserved()

uint8_t ns3::LrWpanMacHeader::GetSecCtrlReserved ( ) const

Get the Auxiliary Security Header - Security Control - Reserved bits.

Returns: the Auxiliary Security Header - Security Control - Reserved bits

Definition at line 217 of file lr-wpan-mac-header.cc.

References m_secctrlReserved.

◆ GetSecLevel()

uint8_t ns3::LrWpanMacHeader::GetSecLevel ( ) const

Get the Auxiliary Security Header - Security Control - Security Level bits.

Returns: the Auxiliary Security Header - Security Control - Security Level bits

Definition at line 205 of file lr-wpan-mac-header.cc.

References m_secctrlSecLevel.

◆ GetSeqNum()

uint8_t ns3::LrWpanMacHeader::GetSeqNum ( ) const

Get the frame Sequence number.

Returns: the sequence number

Definition at line 145 of file lr-wpan-mac-header.cc.

References m_SeqNum.

Referenced by ns3::LrWpanMac::EnqueueInd(), ns3::LrWpanMac::PdDataIndication(), ns3::LrWpanMac::PrintTxQueue(), ns3::LrWpanMac::RemovePendTxQElement(), and Serialize().

Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::LrWpanMacHeader::GetSerializedSize ( ) const

overridevirtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 526 of file lr-wpan-mac-header.cc.

References EXTADDR, IMPLICIT, IsPanIdComp(), IsSecEnable(), LONGKEYSOURCE, m_fctrlDstAddrMode, m_fctrlSrcAddrMode, m_secctrlKeyIdMode, NOADDR, NOKEYSOURCE, SHORTADDR, and SHORTKEYSOURCE.

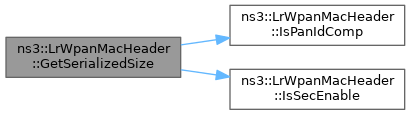

Here is the call graph for this function:

◆ GetShortDstAddr()

Mac16Address ns3::LrWpanMacHeader::GetShortDstAddr ( ) const

Get the Destination Short address.

Returns: the Destination Short address

Definition at line 157 of file lr-wpan-mac-header.cc.

References m_addrShortDstAddr.

Referenced by LrWpanDataIfsTestCase::DataReceivedDev0(), LrWpanDataIfsTestCase::DataReceivedDev1(), ns3::LrWpanMac::EnqueueInd(), ns3::LrWpanMac::isCoordDest(), ns3::LrWpanMac::McpsDataRequest(), ns3::LrWpanMac::PdDataConfirm(), ns3::LrWpanMac::PdDataIndication(), ns3::LrWpanMac::PrintTxQueue(), ns3::LrWpanMac::RemoveFirstTxQElement(), and ns3::LrWpanMac::RemovePendTxQElement().

Here is the caller graph for this function:

◆ GetShortSrcAddr()

Mac16Address ns3::LrWpanMacHeader::GetShortSrcAddr ( ) const

Get the Source Short address.

Returns: the Source Short address

Definition at line 175 of file lr-wpan-mac-header.cc.

References m_addrShortSrcAddr.

Referenced by ns3::LrWpanMac::PdDataConfirm(), and ns3::LrWpanMac::PdDataIndication().

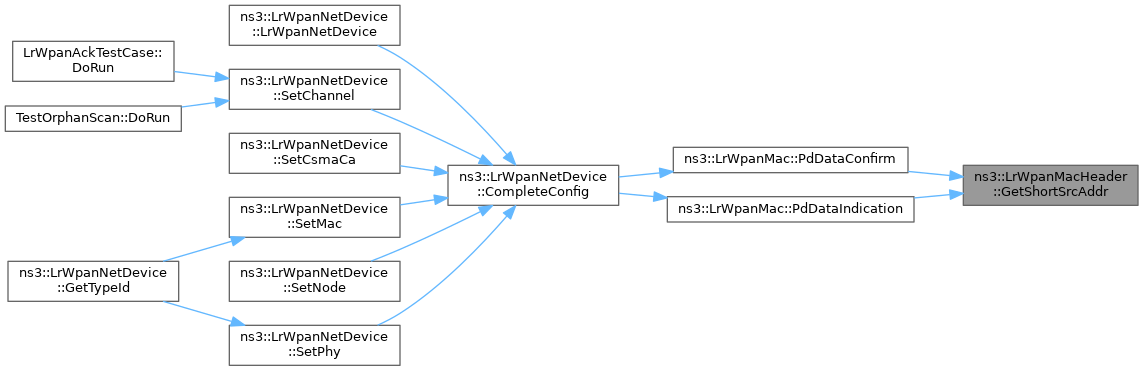

Here is the caller graph for this function:

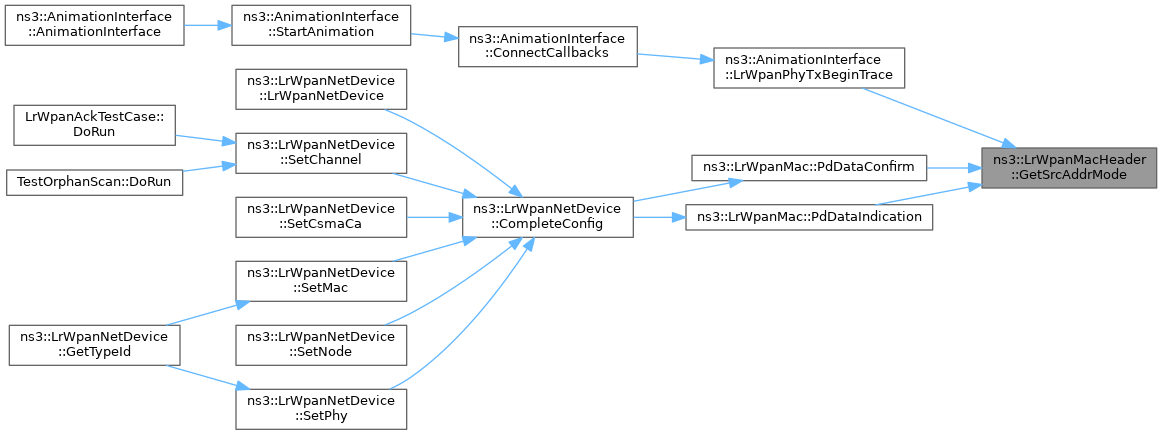

◆ GetSrcAddrMode()

uint8_t ns3::LrWpanMacHeader::GetSrcAddrMode ( ) const

Get the Source Addressing Mode of Frame control field.

Returns: the Source Addressing Mode bits

Definition at line 139 of file lr-wpan-mac-header.cc.

References m_fctrlSrcAddrMode.

Referenced by ns3::AnimationInterface::LrWpanPhyTxBeginTrace(), ns3::LrWpanMac::PdDataConfirm(), and ns3::LrWpanMac::PdDataIndication().

Here is the caller graph for this function:

◆ GetSrcPanId()

uint16_t ns3::LrWpanMacHeader::GetSrcPanId ( ) const

Get the Source PAN ID.

Returns: the Source PAN ID

Definition at line 169 of file lr-wpan-mac-header.cc.

References m_addrSrcPanId.

Referenced by ns3::LrWpanMac::McpsDataRequest(), ns3::LrWpanMac::PdDataConfirm(), ns3::LrWpanMac::PdDataIndication(), and Serialize().

Here is the caller graph for this function:

◆ GetType()

LrWpanMacHeader::LrWpanMacType ns3::LrWpanMacHeader::GetType ( ) const

Get the header type.

Returns: the header type

Definition at line 62 of file lr-wpan-mac-header.cc.

References LRWPAN_MAC_ACKNOWLEDGMENT, LRWPAN_MAC_BEACON, LRWPAN_MAC_COMMAND, LRWPAN_MAC_DATA, LRWPAN_MAC_RESERVED, and m_fctrlFrmType.

Referenced by ns3::LrWpanMac::PdDataIndication().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::LrWpanMacHeader::GetTypeId ( )

static

Get the type ID.

Returns: the object TypeId

Definition at line 443 of file lr-wpan-mac-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

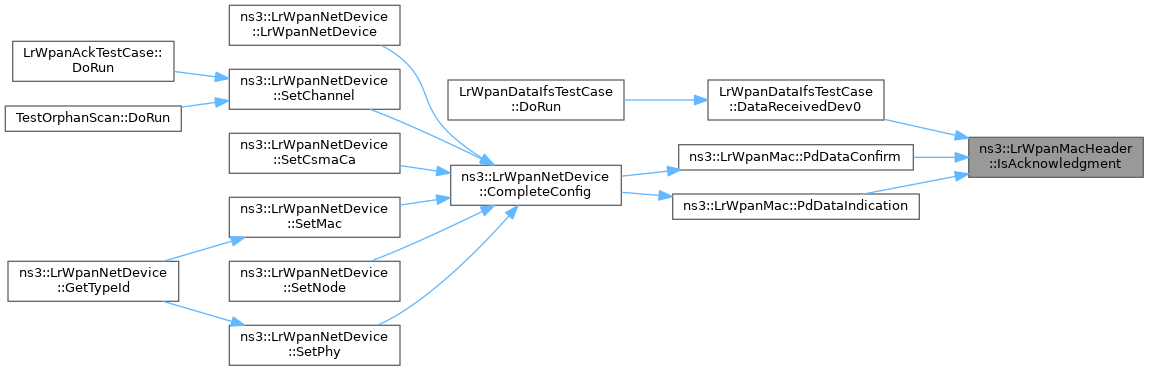

◆ IsAcknowledgment()

bool ns3::LrWpanMacHeader::IsAcknowledgment ( ) const

Returns true if the header is an ack.

Returns: true if the header is an ack

Definition at line 253 of file lr-wpan-mac-header.cc.

References LRWPAN_MAC_ACKNOWLEDGMENT, and m_fctrlFrmType.

Referenced by LrWpanDataIfsTestCase::DataReceivedDev0(), ns3::LrWpanMac::PdDataConfirm(), and ns3::LrWpanMac::PdDataIndication().

Here is the caller graph for this function:

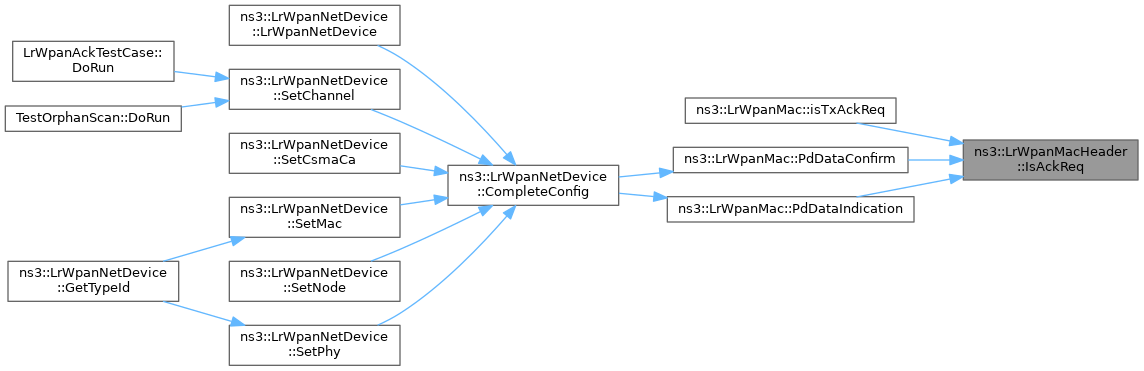

◆ IsAckReq()

bool ns3::LrWpanMacHeader::IsAckReq ( ) const

Check if Ack.

Request bit of Frame Control is enabled

Returns: true if Ack. Request bit is enabled

Definition at line 109 of file lr-wpan-mac-header.cc.

References m_fctrlAckReq.

Referenced by ns3::LrWpanMac::isTxAckReq(), ns3::LrWpanMac::PdDataConfirm(), and ns3::LrWpanMac::PdDataIndication().

Here is the caller graph for this function:

◆ IsBeacon()

bool ns3::LrWpanMacHeader::IsBeacon ( ) const

Returns true if the header is a beacon.

Returns: true if the header is a beacon

Definition at line 241 of file lr-wpan-mac-header.cc.

References LRWPAN_MAC_BEACON, and m_fctrlFrmType.

Referenced by ns3::LrWpanMac::PdDataConfirm(), and ns3::LrWpanMac::PdDataIndication().

Here is the caller graph for this function:

◆ IsCommand()

bool ns3::LrWpanMacHeader::IsCommand ( ) const

Returns true if the header is a command.

Returns: true if the header is a command

Definition at line 259 of file lr-wpan-mac-header.cc.

References LRWPAN_MAC_COMMAND, and m_fctrlFrmType.

Referenced by ns3::LrWpanMac::PdDataConfirm(), ns3::LrWpanMac::PdDataIndication(), ns3::LrWpanMac::PrepareRetransmission(), ns3::LrWpanMac::PrintPendTxQ(), ns3::LrWpanMac::PrintTxQueue(), ns3::LrWpanMac::PurgeInd(), and ns3::LrWpanMac::SetLrWpanMacState().

Here is the caller graph for this function:

◆ IsData()

bool ns3::LrWpanMacHeader::IsData ( ) const

Returns true if the header is a data.

Returns: true if the header is a data

Definition at line 247 of file lr-wpan-mac-header.cc.

References LRWPAN_MAC_DATA, and m_fctrlFrmType.

Referenced by ns3::LrWpanMac::PdDataIndication(), ns3::LrWpanMac::PrintPendTxQ(), ns3::LrWpanMac::PrintTxQueue(), ns3::LrWpanMac::PurgeInd(), and ns3::LrWpanMac::SetLrWpanMacState().

Here is the caller graph for this function:

◆ IsFrmPend()

bool ns3::LrWpanMacHeader::IsFrmPend ( ) const

Check if Frame Pending bit of Frame Control is enabled.

Returns: true if Frame Pending bit is enabled

Definition at line 103 of file lr-wpan-mac-header.cc.

References m_fctrlFrmPending.

◆ IsPanIdComp()

bool ns3::LrWpanMacHeader::IsPanIdComp ( ) const

Check if PAN ID Compression bit of Frame Control is enabled.

Returns: true if PAN ID Compression bit is enabled

Definition at line 115 of file lr-wpan-mac-header.cc.

References m_fctrlPanIdComp.

Referenced by Deserialize(), GetSerializedSize(), and Serialize().

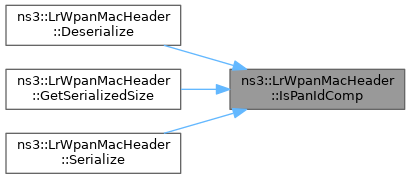

Here is the caller graph for this function:

◆ IsSecEnable()

bool ns3::LrWpanMacHeader::IsSecEnable ( ) const

Check if Security Enabled bit of Frame Control is enabled.

Returns: true if Security Enabled bit is enabled

Definition at line 97 of file lr-wpan-mac-header.cc.

References m_fctrlSecU.

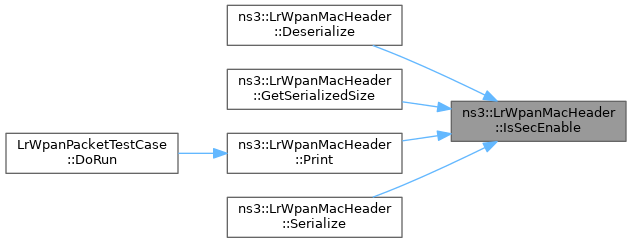

Referenced by Deserialize(), GetSerializedSize(), Print(), and Serialize().

Here is the caller graph for this function:

◆ Print()

void ns3::LrWpanMacHeader::Print ( std::ostream & os ) const

overridevirtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 459 of file lr-wpan-mac-header.cc.

References EXTADDR, IMPLICIT, IsSecEnable(), LONGKEYSOURCE, m_addrDstPanId, m_addrExtDstAddr, m_addrShortDstAddr, m_addrShortSrcAddr, m_addrSrcPanId, m_auxFrmCntr, m_auxKeyIdKeyIndex, m_auxKeyIdKeySrc32, m_auxKeyIdKeySrc64, m_fctrlAckReq, m_fctrlDstAddrMode, m_fctrlFrmPending, m_fctrlFrmType, m_fctrlFrmVer, m_fctrlPanIdComp, m_fctrlSecU, m_fctrlSrcAddrMode, m_secctrlKeyIdMode, m_secctrlSecLevel, m_SeqNum, NOADDR, NOKEYSOURCE, SHORTADDR, and SHORTKEYSOURCE.

Referenced by LrWpanPacketTestCase::DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Serialize()

void ns3::LrWpanMacHeader::Serialize ( Buffer::Iterator start ) const

overridevirtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 604 of file lr-wpan-mac-header.cc.

References EXTADDR, GetDstPanId(), GetFrameControl(), GetFrmCounter(), GetKeyIdIndex(), GetKeyIdSrc32(), GetKeyIdSrc64(), GetSecControl(), GetSeqNum(), GetSrcPanId(), IMPLICIT, IsPanIdComp(), IsSecEnable(), LONGKEYSOURCE, m_addrExtDstAddr, m_addrExtSrcAddr, m_addrShortDstAddr, m_addrShortSrcAddr, m_fctrlDstAddrMode, m_fctrlSrcAddrMode, m_secctrlKeyIdMode, NOADDR, NOKEYSOURCE, SHORTADDR, SHORTKEYSOURCE, ns3::Buffer::Iterator::WriteHtolsbU16(), ns3::Buffer::Iterator::WriteHtolsbU32(), ns3::Buffer::Iterator::WriteHtolsbU64(), ns3::WriteTo(), and ns3::Buffer::Iterator::WriteU8().

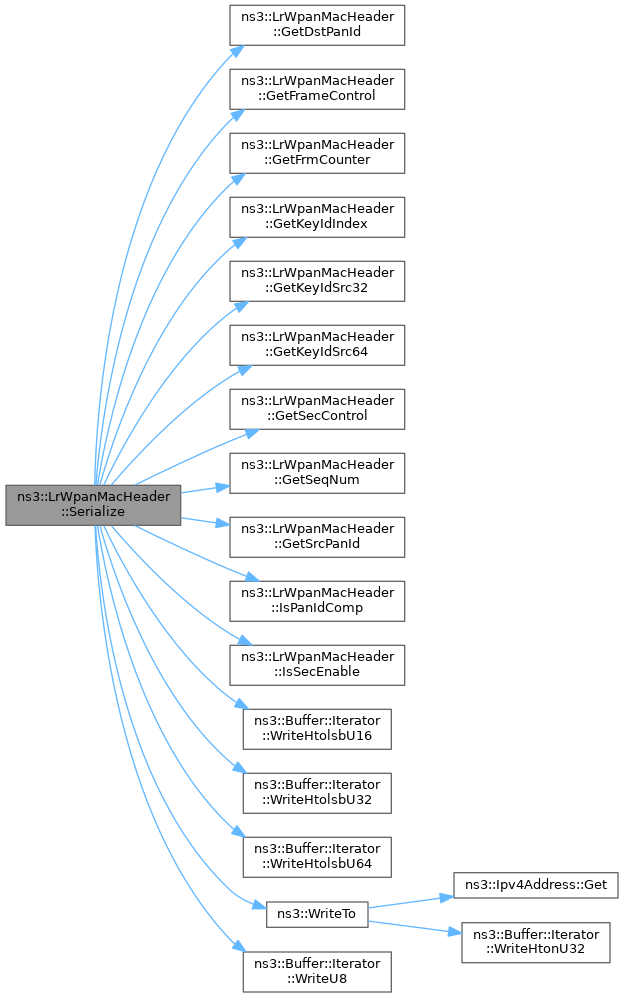

Here is the call graph for this function:

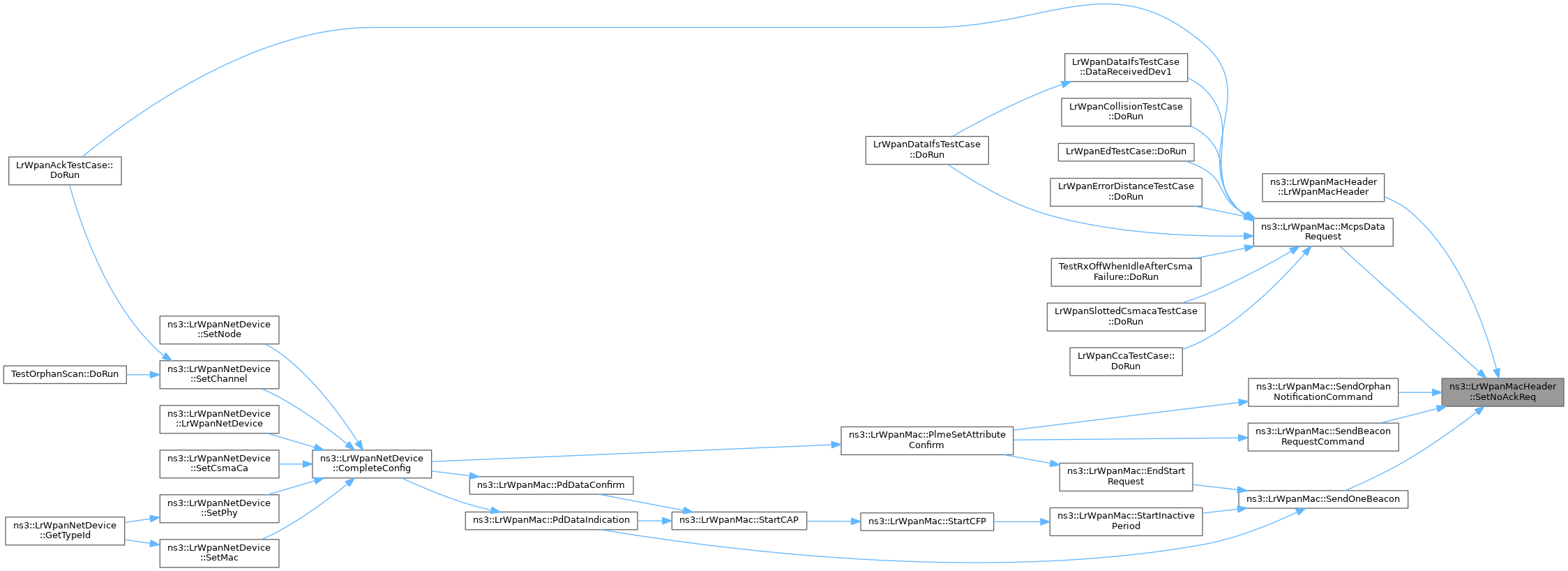

◆ SetAckReq()

void ns3::LrWpanMacHeader::SetAckReq ( )

Set the Frame Control field "Ack. Request" bit to true.

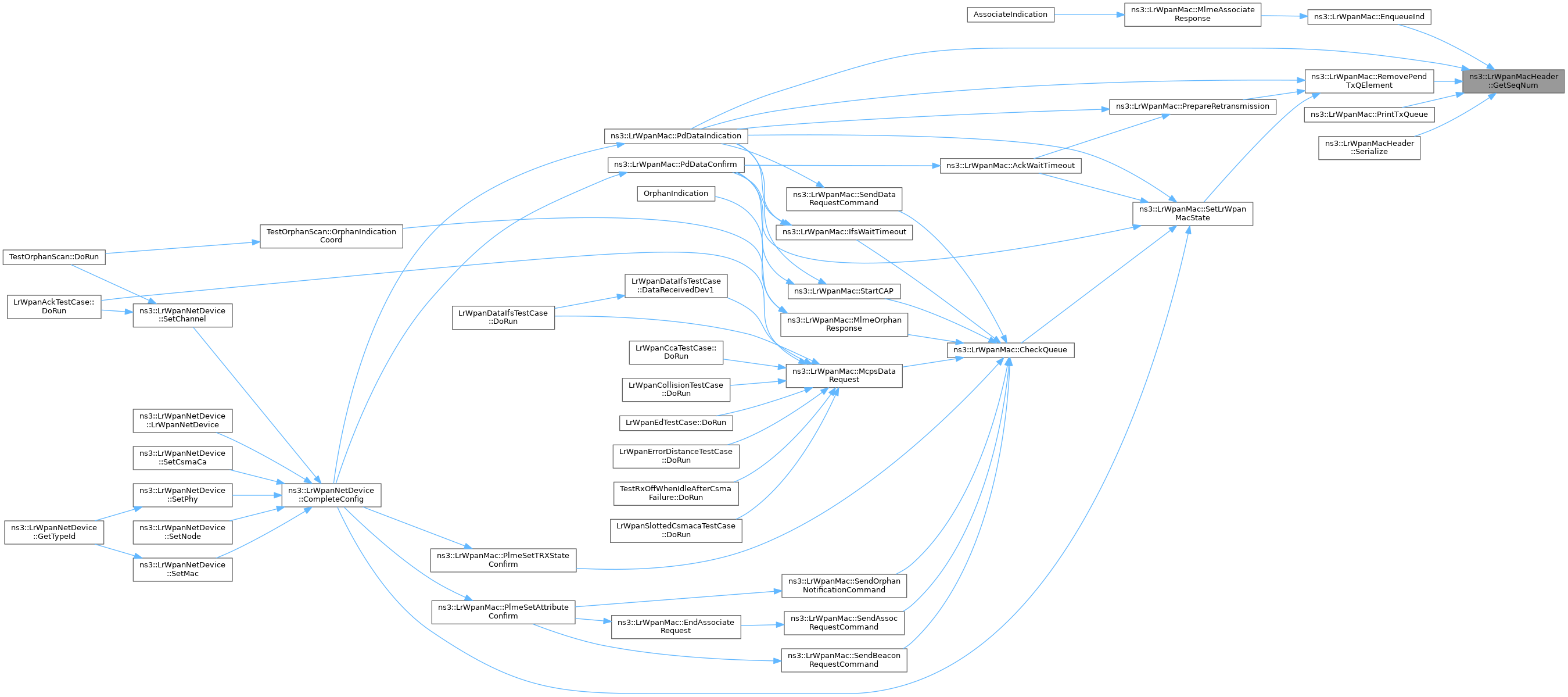

Definition at line 309 of file lr-wpan-mac-header.cc.

References m_fctrlAckReq.

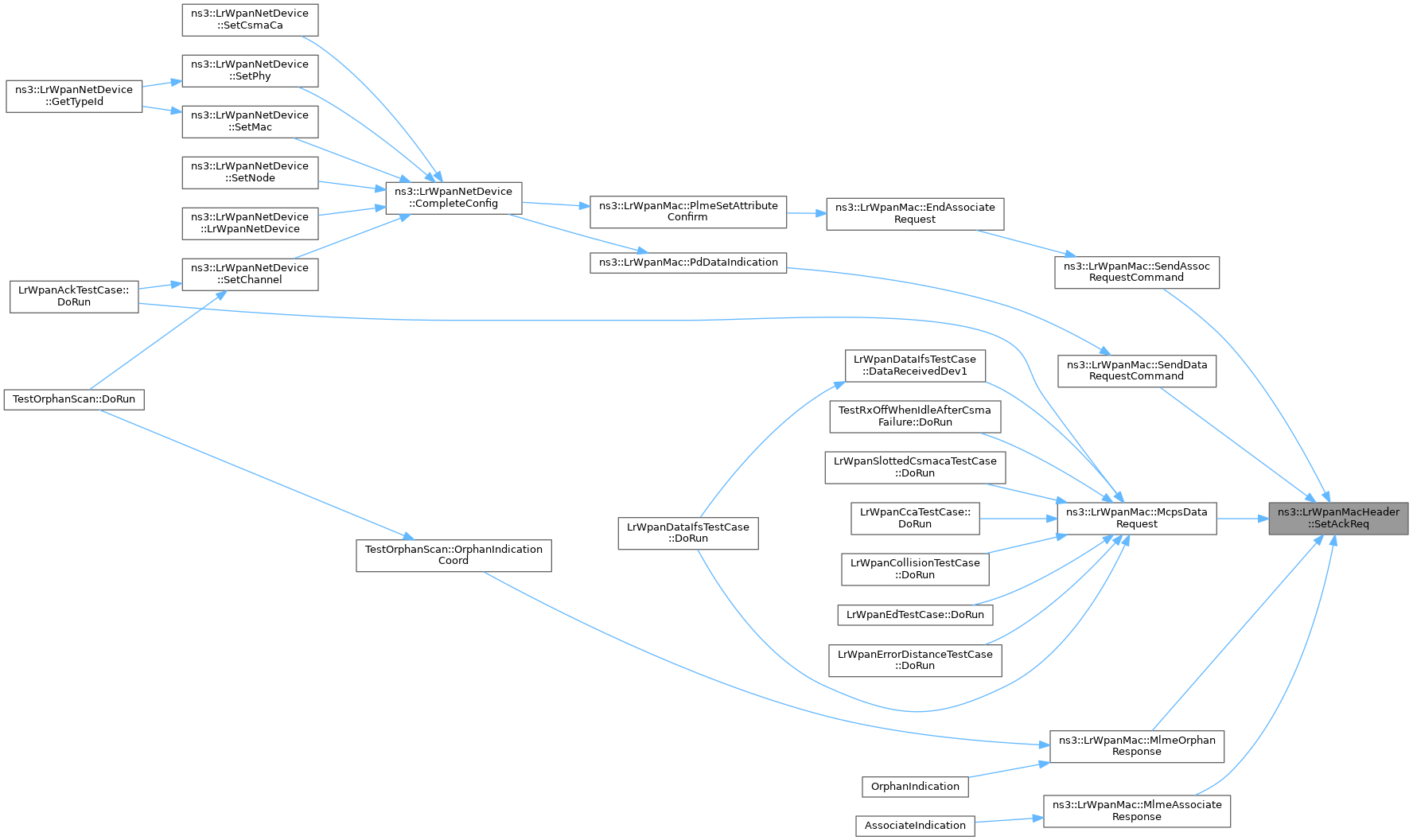

Referenced by ns3::LrWpanMac::McpsDataRequest(), ns3::LrWpanMac::MlmeAssociateResponse(), ns3::LrWpanMac::MlmeOrphanResponse(), ns3::LrWpanMac::SendAssocRequestCommand(), and ns3::LrWpanMac::SendDataRequestCommand().

Here is the caller graph for this function:

◆ SetDstAddrFields() [1/2]

void ns3::LrWpanMacHeader::SetDstAddrFields	(	uint16_t	panId,
		Mac16Address	addr
	)

Set Destination address fields.

Parameters

panId	destination PAN ID
addr	destination address (16 bit)

Definition at line 377 of file lr-wpan-mac-header.cc.

References m_addrDstPanId, and m_addrShortDstAddr.

Referenced by ns3::LrWpanMac::McpsDataRequest(), ns3::LrWpanMac::MlmeAssociateResponse(), ns3::LrWpanMac::MlmeOrphanResponse(), ns3::LrWpanMac::SendAssocRequestCommand(), ns3::LrWpanMac::SendBeaconRequestCommand(), ns3::LrWpanMac::SendDataRequestCommand(), ns3::LrWpanMac::SendOneBeacon(), and ns3::LrWpanMac::SendOrphanNotificationCommand().

Here is the caller graph for this function:

◆ SetDstAddrFields() [2/2]

void ns3::LrWpanMacHeader::SetDstAddrFields	(	uint16_t	panId,
		Mac64Address	addr
	)

Set Destination address fields.

Parameters

panId	destination PAN ID
addr	destination address (64 bit)

Definition at line 384 of file lr-wpan-mac-header.cc.

References m_addrDstPanId, and m_addrExtDstAddr.

◆ SetDstAddrMode()

void ns3::LrWpanMacHeader::SetDstAddrMode ( uint8_t addrMode )

Set the Destination address mode.

Parameters

addrMode Destination address mode

Definition at line 339 of file lr-wpan-mac-header.cc.

References m_fctrlDstAddrMode.

Referenced by LrWpanMacHeader(), LrWpanPacketTestCase::DoRun(), ns3::LrWpanMac::McpsDataRequest(), ns3::LrWpanMac::MlmeAssociateResponse(), ns3::LrWpanMac::MlmeOrphanResponse(), ns3::LrWpanMac::SendAssocRequestCommand(), ns3::LrWpanMac::SendBeaconRequestCommand(), ns3::LrWpanMac::SendDataRequestCommand(), ns3::LrWpanMac::SendOneBeacon(), and ns3::LrWpanMac::SendOrphanNotificationCommand().

Here is the caller graph for this function:

◆ SetFrameControl()

void ns3::LrWpanMacHeader::SetFrameControl ( uint16_t frameControl )

Set the whole Frame Control field.

Parameters

frameControl the Frame Control field

Definition at line 271 of file lr-wpan-mac-header.cc.

References m_fctrlAckReq, m_fctrlDstAddrMode, m_fctrlFrmPending, m_fctrlFrmType, m_fctrlFrmVer, m_fctrlPanIdComp, m_fctrlReserved, m_fctrlSecU, and m_fctrlSrcAddrMode.

Referenced by Deserialize().

Here is the caller graph for this function:

◆ SetFrameVer()

void ns3::LrWpanMacHeader::SetFrameVer ( uint8_t ver )

Set the Frame version.

Parameters

ver	frame version

Definition at line 345 of file lr-wpan-mac-header.cc.

References m_fctrlFrmVer.

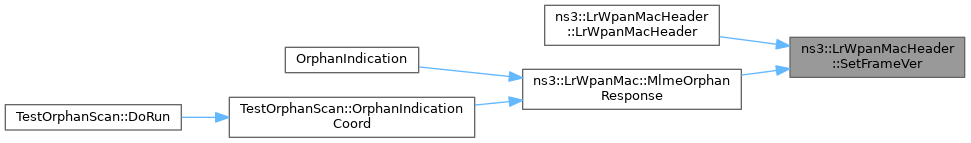

Referenced by LrWpanMacHeader(), and ns3::LrWpanMac::MlmeOrphanResponse().

Here is the caller graph for this function:

◆ SetFrmCounter()

void ns3::LrWpanMacHeader::SetFrmCounter ( uint32_t frmCntr )

Set the auxiliary security header "Frame Counter" octet.

Parameters

frmCntr the "Frame Counter" octet

Definition at line 399 of file lr-wpan-mac-header.cc.

References m_auxFrmCntr.

Referenced by Deserialize().

Here is the caller graph for this function:

◆ SetFrmCtrlRes()

void ns3::LrWpanMacHeader::SetFrmCtrlRes ( uint8_t res )

Set the Frame Control field "Reserved" bits.

Parameters

res	reserved bits

Definition at line 333 of file lr-wpan-mac-header.cc.

References m_fctrlReserved.

Referenced by LrWpanMacHeader().

Here is the caller graph for this function:

◆ SetFrmPend()

void ns3::LrWpanMacHeader::SetFrmPend ( )

Set the Frame Control field "Frame Pending" bit to true.

Definition at line 297 of file lr-wpan-mac-header.cc.

References m_fctrlFrmPending.

◆ SetKeyId() [1/3]

void ns3::LrWpanMacHeader::SetKeyId	(	uint32_t	keySrc,
		uint8_t	keyIndex
	)

Set the Key Index and originator.

Parameters

keySrc	the originator of a group key
keyIndex	the Key index

Definition at line 429 of file lr-wpan-mac-header.cc.

References m_auxKeyIdKeyIndex, and m_auxKeyIdKeySrc32.

◆ SetKeyId() [2/3]

void ns3::LrWpanMacHeader::SetKeyId	(	uint64_t	keySrc,
		uint8_t	keyIndex
	)

Set the Key Index and originator.

Parameters

keySrc	the originator of a group key
keyIndex	the Key index

Definition at line 436 of file lr-wpan-mac-header.cc.

References m_auxKeyIdKeyIndex, and m_auxKeyIdKeySrc64.

◆ SetKeyId() [3/3]

void ns3::LrWpanMacHeader::SetKeyId ( uint8_t keyIndex )

Set the Key Index.

Parameters

keyIndex the Key index

Definition at line 423 of file lr-wpan-mac-header.cc.

References m_auxKeyIdKeyIndex.

Referenced by Deserialize().

Here is the caller graph for this function:

◆ SetKeyIdMode()

void ns3::LrWpanMacHeader::SetKeyIdMode ( uint8_t keyIdMode )

Set the Security Control field "Key Identifier Mode" bits (2 bits)

Parameters

keyIdMode the "Key Identifier Mode" bits

Definition at line 411 of file lr-wpan-mac-header.cc.

References m_secctrlKeyIdMode.

◆ SetNoAckReq()

void ns3::LrWpanMacHeader::SetNoAckReq ( )

Set the Frame Control field "Ack. Request" bit to false.

Definition at line 315 of file lr-wpan-mac-header.cc.

References m_fctrlAckReq.

Referenced by LrWpanMacHeader(), ns3::LrWpanMac::McpsDataRequest(), ns3::LrWpanMac::SendBeaconRequestCommand(), ns3::LrWpanMac::SendOneBeacon(), and ns3::LrWpanMac::SendOrphanNotificationCommand().

Here is the caller graph for this function:

◆ SetNoFrmPend()

void ns3::LrWpanMacHeader::SetNoFrmPend ( )

Set the Frame Control field "Frame Pending" bit to false.

Definition at line 303 of file lr-wpan-mac-header.cc.

References m_fctrlFrmPending.

Referenced by LrWpanMacHeader().

Here is the caller graph for this function:

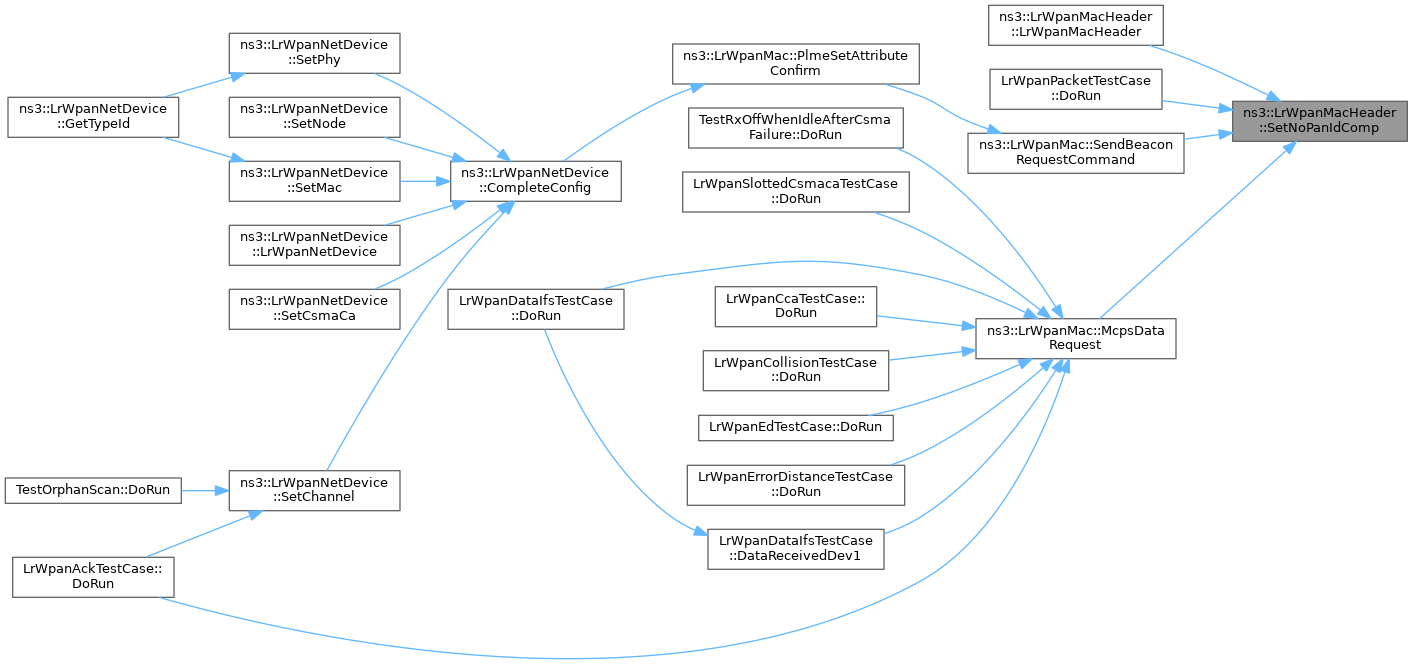

◆ SetNoPanIdComp()

void ns3::LrWpanMacHeader::SetNoPanIdComp ( )

Set the Frame Control field "PAN ID Compression" bit to false.

Definition at line 327 of file lr-wpan-mac-header.cc.

References m_fctrlPanIdComp.

Referenced by LrWpanMacHeader(), LrWpanPacketTestCase::DoRun(), ns3::LrWpanMac::McpsDataRequest(), and ns3::LrWpanMac::SendBeaconRequestCommand().

Here is the caller graph for this function:

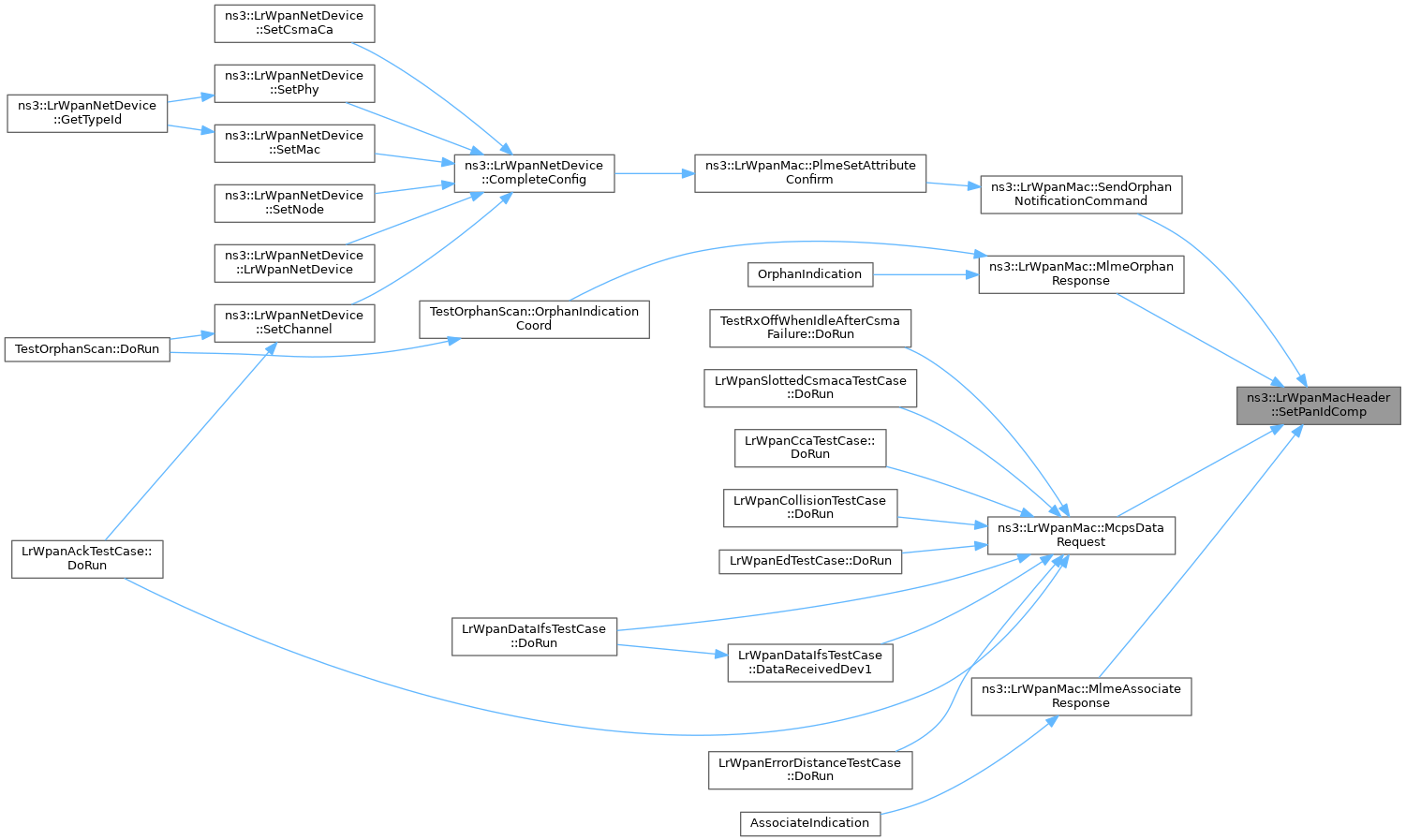

◆ SetPanIdComp()

void ns3::LrWpanMacHeader::SetPanIdComp ( )

Set the Frame Control field "PAN ID Compression" bit to true.

Definition at line 321 of file lr-wpan-mac-header.cc.

References m_fctrlPanIdComp.

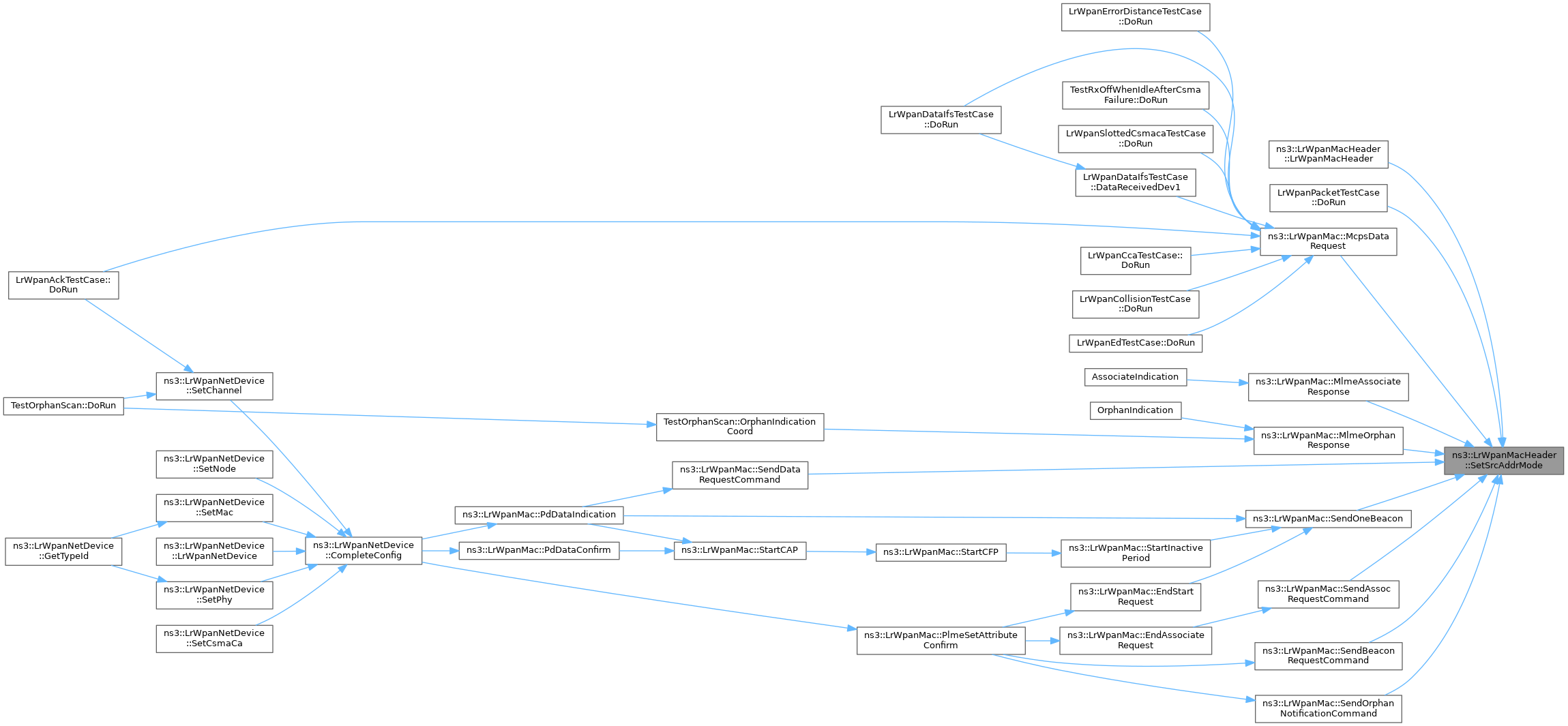

Referenced by ns3::LrWpanMac::McpsDataRequest(), ns3::LrWpanMac::MlmeAssociateResponse(), ns3::LrWpanMac::MlmeOrphanResponse(), and ns3::LrWpanMac::SendOrphanNotificationCommand().

Here is the caller graph for this function:

◆ SetSecControl()

void ns3::LrWpanMacHeader::SetSecControl ( uint8_t secLevel )

Set the auxiliary security header "Security Control" octet.

Parameters

secLevel the "Security Control" octet

Definition at line 391 of file lr-wpan-mac-header.cc.

References m_secctrlKeyIdMode, m_secctrlReserved, and m_secctrlSecLevel.

Referenced by Deserialize().

Here is the caller graph for this function:

◆ SetSecCtrlReserved()

void ns3::LrWpanMacHeader::SetSecCtrlReserved ( uint8_t res )

Set the Security Control field "Reserved" bits (3 bits)

Parameters

res	the "Reserved" bits

Definition at line 417 of file lr-wpan-mac-header.cc.

References m_secctrlReserved.

◆ SetSecDisable()

void ns3::LrWpanMacHeader::SetSecDisable ( )

Set the Frame Control field "Security Enabled" bit to false.

Definition at line 291 of file lr-wpan-mac-header.cc.

References m_fctrlSecU.

Referenced by LrWpanMacHeader(), LrWpanPacketTestCase::DoRun(), ns3::LrWpanMac::McpsDataRequest(), ns3::LrWpanMac::MlmeAssociateResponse(), ns3::LrWpanMac::MlmeOrphanResponse(), ns3::LrWpanMac::SendAssocRequestCommand(), ns3::LrWpanMac::SendBeaconRequestCommand(), ns3::LrWpanMac::SendDataRequestCommand(), ns3::LrWpanMac::SendOneBeacon(), and ns3::LrWpanMac::SendOrphanNotificationCommand().

Here is the caller graph for this function:

◆ SetSecEnable()

void ns3::LrWpanMacHeader::SetSecEnable ( )

Set the Frame Control field "Security Enabled" bit to true.

Definition at line 285 of file lr-wpan-mac-header.cc.

References m_fctrlSecU.

◆ SetSecLevel()

void ns3::LrWpanMacHeader::SetSecLevel ( uint8_t secLevel )

Set the Security Control field "Security Level" bits (3 bits)

Parameters

secLevel the "Security Level" bits

Definition at line 405 of file lr-wpan-mac-header.cc.

References m_secctrlSecLevel.

◆ SetSeqNum()

void ns3::LrWpanMacHeader::SetSeqNum ( uint8_t seqNum )

Set the Sequence number.

Parameters

seqNum sequence number

Definition at line 357 of file lr-wpan-mac-header.cc.

References m_SeqNum.

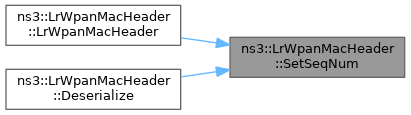

Referenced by LrWpanMacHeader(), and Deserialize().

Here is the caller graph for this function:

◆ SetSrcAddrFields() [1/2]

void ns3::LrWpanMacHeader::SetSrcAddrFields	(	uint16_t	panId,
		Mac16Address	addr
	)

Set Source address fields.

Parameters

panId	source PAN ID
addr	source address (16 bit)

Definition at line 363 of file lr-wpan-mac-header.cc.

References m_addrShortSrcAddr, and m_addrSrcPanId.

Referenced by LrWpanPacketTestCase::DoRun(), ns3::LrWpanMac::McpsDataRequest(), ns3::LrWpanMac::MlmeAssociateResponse(), ns3::LrWpanMac::MlmeOrphanResponse(), ns3::LrWpanMac::SendAssocRequestCommand(), ns3::LrWpanMac::SendDataRequestCommand(), ns3::LrWpanMac::SendOneBeacon(), and ns3::LrWpanMac::SendOrphanNotificationCommand().

Here is the caller graph for this function:

◆ SetSrcAddrFields() [2/2]

void ns3::LrWpanMacHeader::SetSrcAddrFields	(	uint16_t	panId,
		Mac64Address	addr
	)

Set Source address fields.

Parameters

panId	source PAN ID
addr	source address (64 bit)

Definition at line 370 of file lr-wpan-mac-header.cc.

References m_addrExtSrcAddr, and m_addrSrcPanId.

◆ SetSrcAddrMode()

void ns3::LrWpanMacHeader::SetSrcAddrMode ( uint8_t addrMode )

Set the Source address mode.

Parameters

addrMode Source address mode

Definition at line 351 of file lr-wpan-mac-header.cc.

References m_fctrlSrcAddrMode.

Referenced by LrWpanMacHeader(), LrWpanPacketTestCase::DoRun(), ns3::LrWpanMac::McpsDataRequest(), ns3::LrWpanMac::MlmeAssociateResponse(), ns3::LrWpanMac::MlmeOrphanResponse(), ns3::LrWpanMac::SendAssocRequestCommand(), ns3::LrWpanMac::SendBeaconRequestCommand(), ns3::LrWpanMac::SendDataRequestCommand(), ns3::LrWpanMac::SendOneBeacon(), and ns3::LrWpanMac::SendOrphanNotificationCommand().

Here is the caller graph for this function:

◆ SetType()

void ns3::LrWpanMacHeader::SetType ( LrWpanMacType wpanMacType )

Set the Frame Control field "Frame Type" bits.

Parameters

wpanMacType the frame type

Definition at line 265 of file lr-wpan-mac-header.cc.

References m_fctrlFrmType.

Referenced by LrWpanMacHeader().

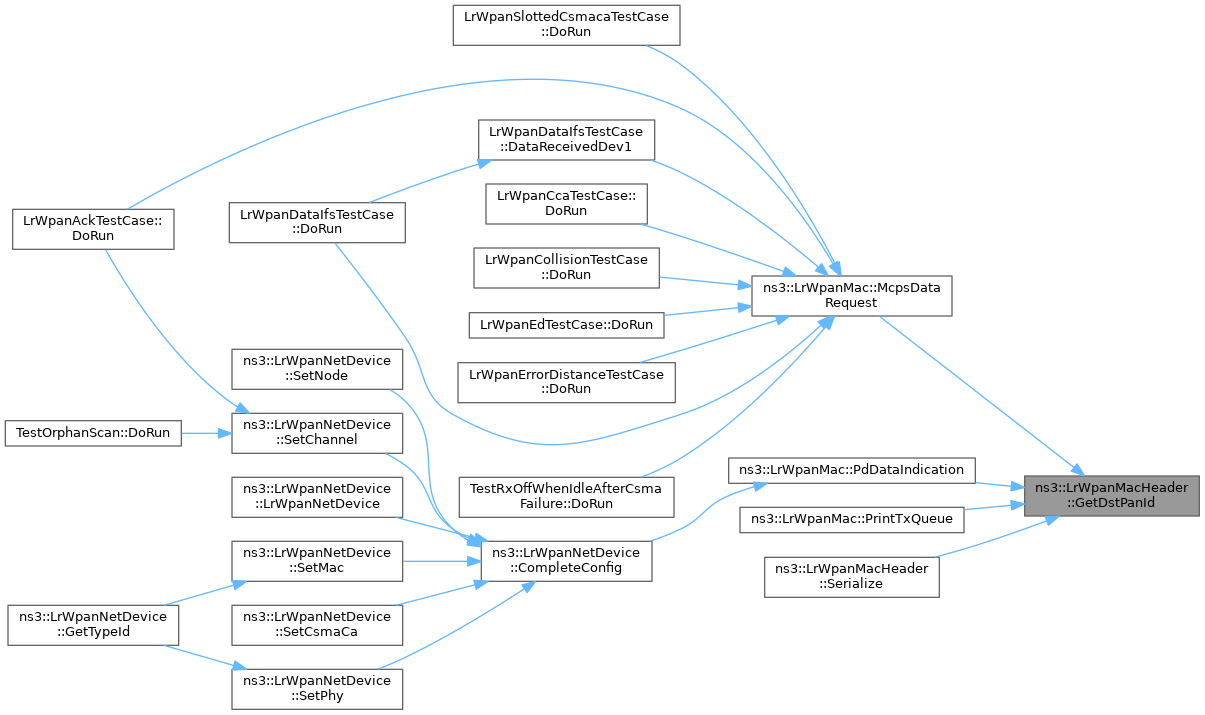

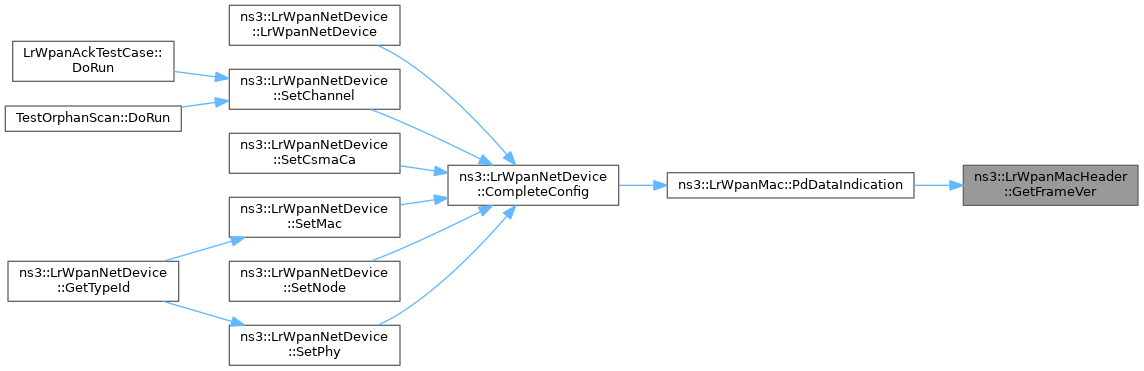

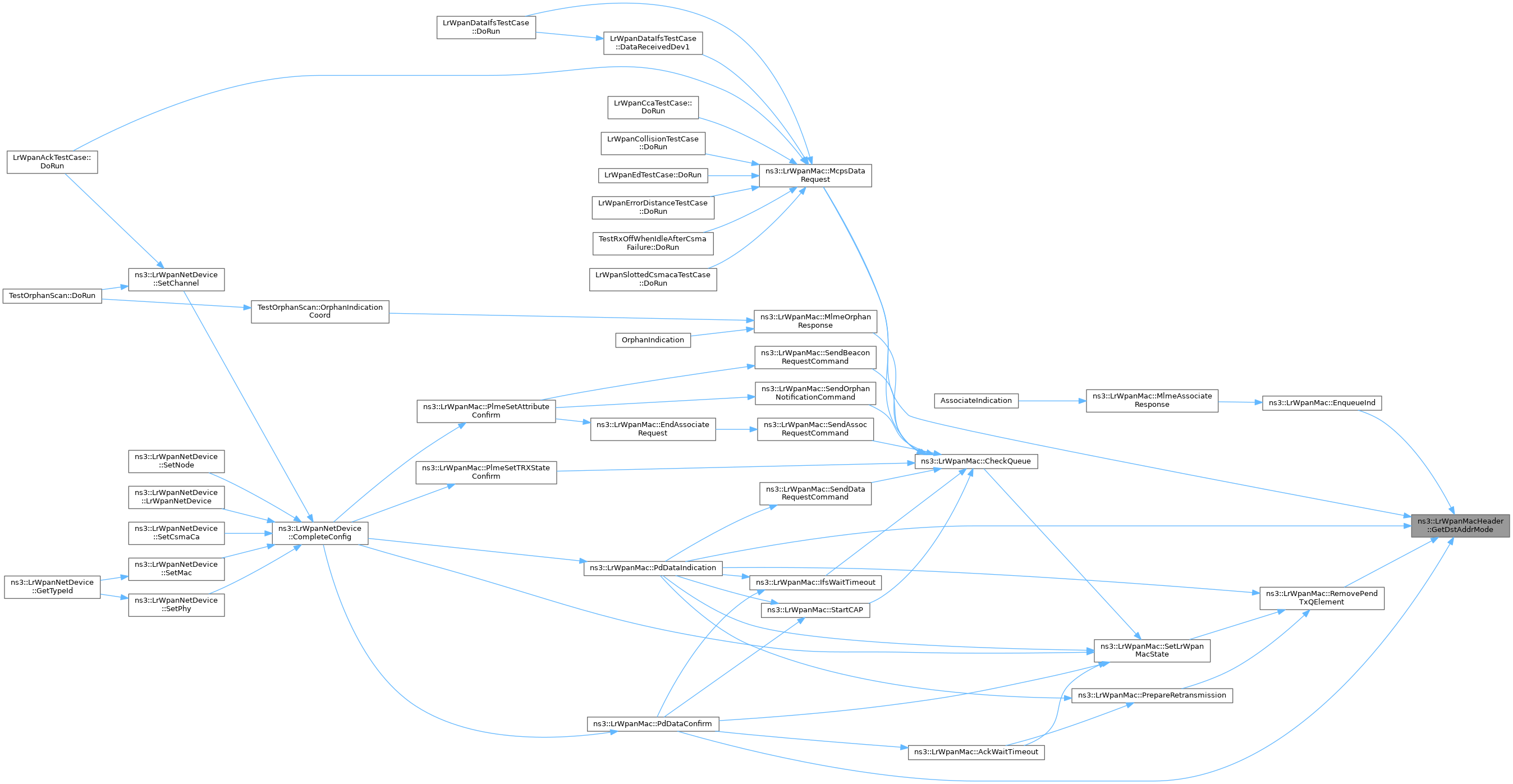

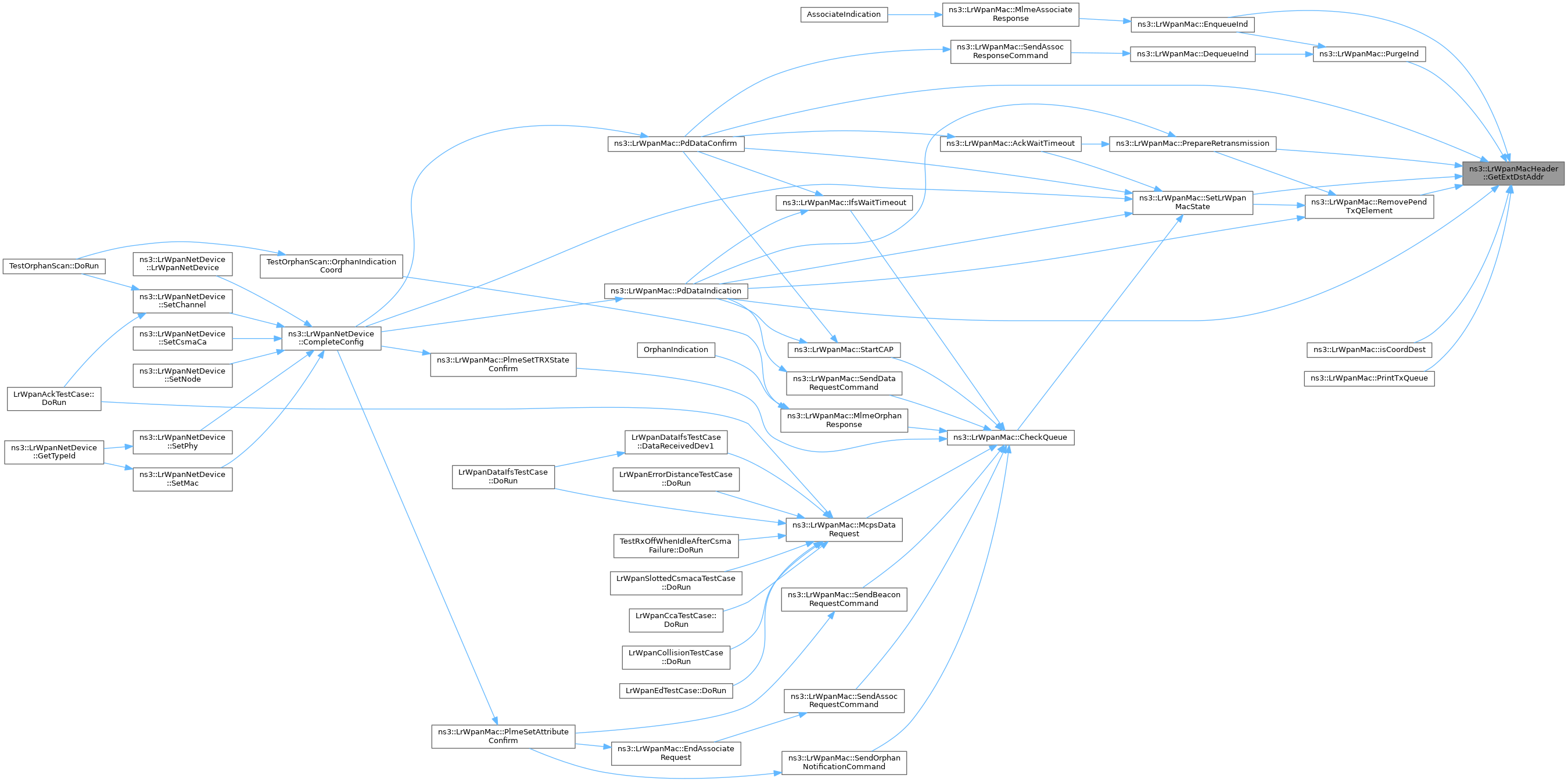

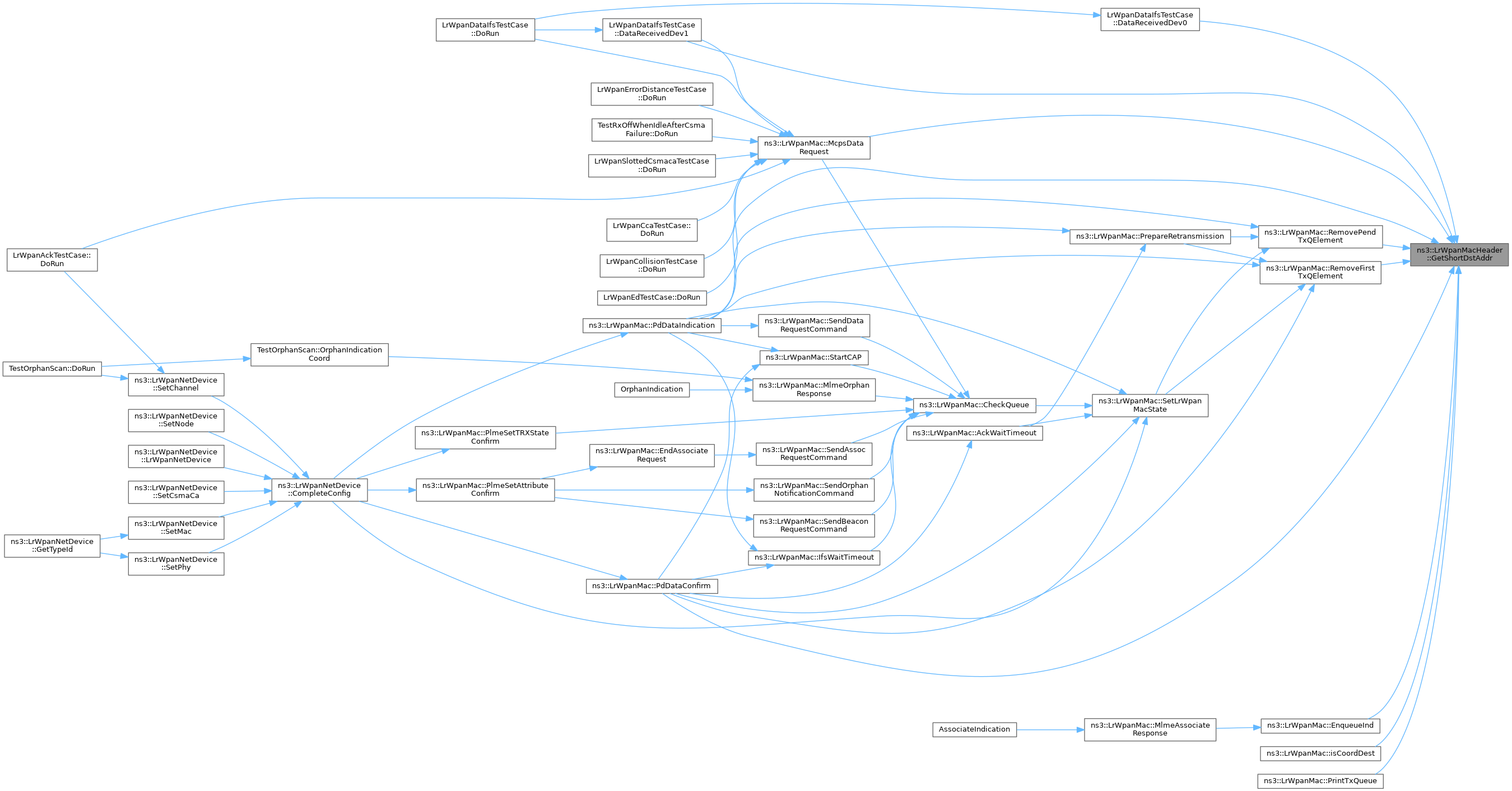

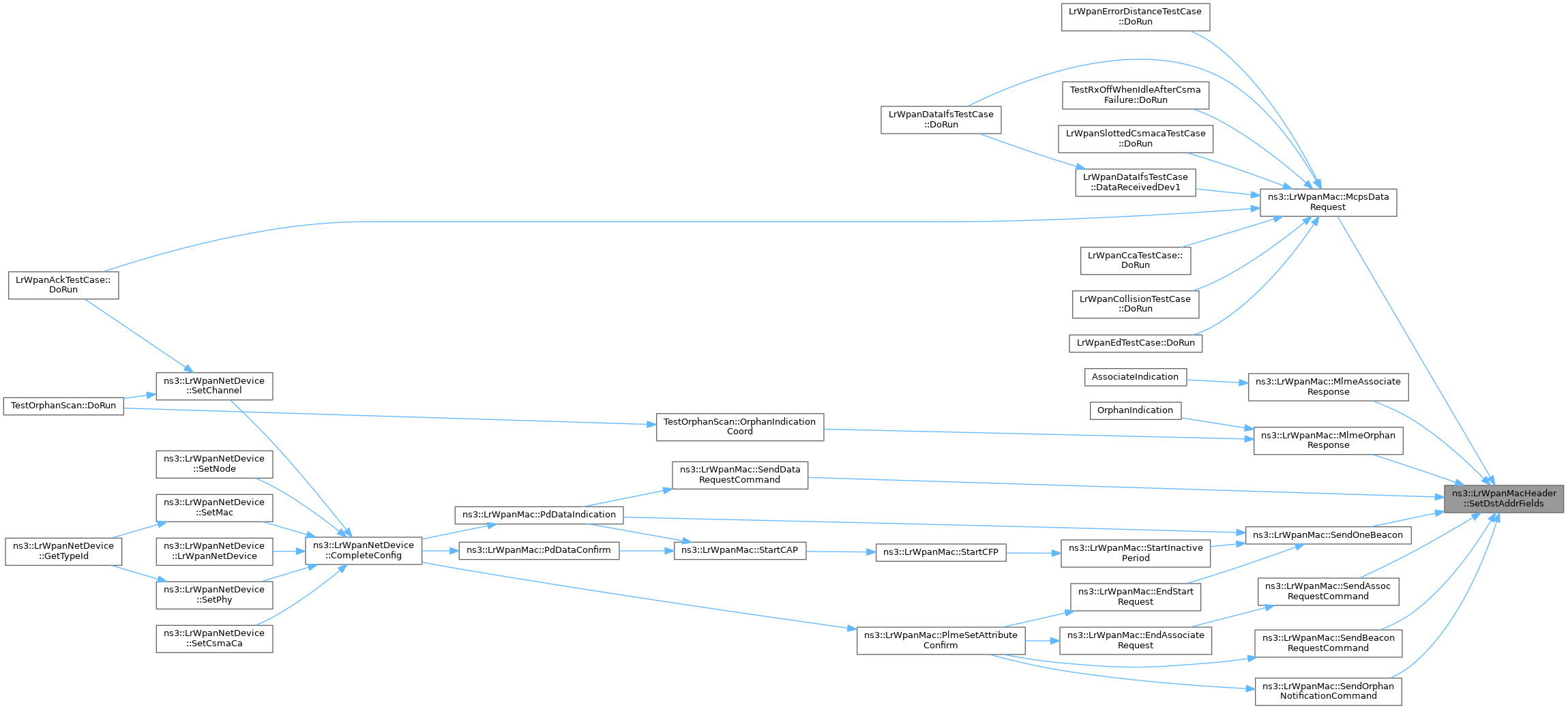

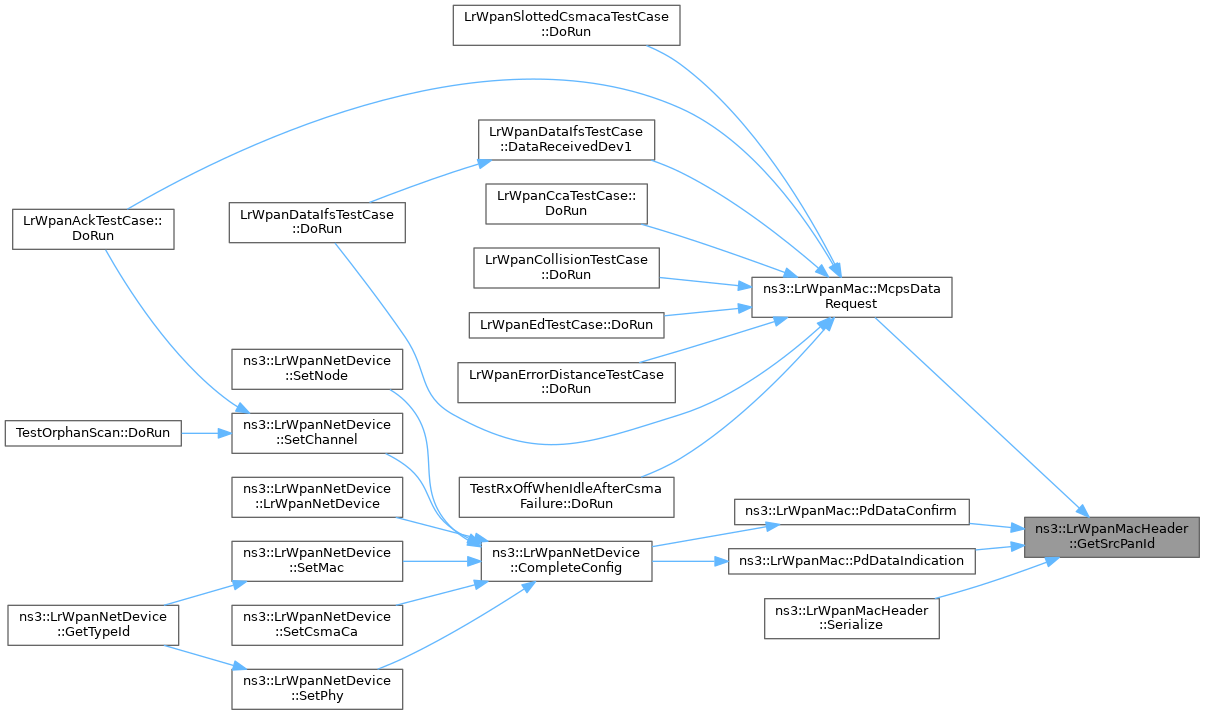

Here is the caller graph for this function:

Member Data Documentation

◆

union { ... } ns3::LrWpanMacHeader::@57

Auxiliary security header.

◆ m_addrDstPanId

uint16_t ns3::LrWpanMacHeader::m_addrDstPanId

private

Dst PAN id (0 or 2 Octets)

Definition at line 420 of file lr-wpan-mac-header.h.

Referenced by Deserialize(), GetDstPanId(), Print(), and SetDstAddrFields().

◆ m_addrExtDstAddr

Mac64Address ns3::LrWpanMacHeader::m_addrExtDstAddr

private

Dst Ext addr (0 or 8 Octets)

Definition at line 422 of file lr-wpan-mac-header.h.

Referenced by Deserialize(), GetExtDstAddr(), Print(), Serialize(), and SetDstAddrFields().

◆ m_addrExtSrcAddr

Mac64Address ns3::LrWpanMacHeader::m_addrExtSrcAddr

private

Src Ext addr (0 or 8 Octets)

Definition at line 425 of file lr-wpan-mac-header.h.

Referenced by Deserialize(), GetExtSrcAddr(), Serialize(), and SetSrcAddrFields().

◆ m_addrShortDstAddr

Mac16Address ns3::LrWpanMacHeader::m_addrShortDstAddr

private

Dst Short addr (0 or 2 Octets)

Definition at line 421 of file lr-wpan-mac-header.h.

Referenced by Deserialize(), GetShortDstAddr(), Print(), Serialize(), and SetDstAddrFields().

◆ m_addrShortSrcAddr

Mac16Address ns3::LrWpanMacHeader::m_addrShortSrcAddr

private

Src Short addr (0 or 2 Octets)

Definition at line 424 of file lr-wpan-mac-header.h.

Referenced by Deserialize(), GetShortSrcAddr(), Print(), Serialize(), and SetSrcAddrFields().

◆ m_addrSrcPanId

uint16_t ns3::LrWpanMacHeader::m_addrSrcPanId

private

Src PAN id (0 or 2 Octets)

Definition at line 423 of file lr-wpan-mac-header.h.

Referenced by Deserialize(), GetSrcPanId(), Print(), and SetSrcAddrFields().

◆ m_auxFrmCntr

uint32_t ns3::LrWpanMacHeader::m_auxFrmCntr

private

Auxiliary security header - Frame Counter (4 Octets)

Definition at line 429 of file lr-wpan-mac-header.h.

Referenced by GetFrmCounter(), Print(), and SetFrmCounter().

◆ m_auxKeyIdKeyIndex

uint8_t ns3::LrWpanMacHeader::m_auxKeyIdKeyIndex

private

Auxiliary security header - Key Index (1 Octet)

Definition at line 448 of file lr-wpan-mac-header.h.

Referenced by GetKeyIdIndex(), Print(), and SetKeyId().

◆ m_auxKeyIdKeySrc32

uint32_t ns3::LrWpanMacHeader::m_auxKeyIdKeySrc32

Auxiliary security header - Key Source (4 Octets)

Definition at line 444 of file lr-wpan-mac-header.h.

Referenced by GetKeyIdSrc32(), Print(), and SetKeyId().

◆ m_auxKeyIdKeySrc64

uint64_t ns3::LrWpanMacHeader::m_auxKeyIdKeySrc64

Auxiliary security header - Key Source (8 Octets)

Definition at line 445 of file lr-wpan-mac-header.h.

Referenced by GetKeyIdSrc64(), Print(), and SetKeyId().

◆ m_fctrlAckReq

uint8_t ns3::LrWpanMacHeader::m_fctrlAckReq

private

Frame Control field Bit 5.

Definition at line 406 of file lr-wpan-mac-header.h.

Referenced by GetFrameControl(), IsAckReq(), Print(), SetAckReq(), SetFrameControl(), and SetNoAckReq().

◆ m_fctrlDstAddrMode

uint8_t ns3::LrWpanMacHeader::m_fctrlDstAddrMode

private

Frame Control field Bit 10-11 = 0 - No DstAddr, 2 - ShtDstAddr, 3 - ExtDstAddr.

Definition at line 410 of file lr-wpan-mac-header.h.

Referenced by Deserialize(), GetDstAddrMode(), GetFrameControl(), GetSerializedSize(), Print(), Serialize(), SetDstAddrMode(), and SetFrameControl().

◆ m_fctrlFrmPending

uint8_t ns3::LrWpanMacHeader::m_fctrlFrmPending

private

Frame Control field Bit 4.

Definition at line 405 of file lr-wpan-mac-header.h.

Referenced by GetFrameControl(), IsFrmPend(), Print(), SetFrameControl(), SetFrmPend(), and SetNoFrmPend().

◆ m_fctrlFrmType

uint8_t ns3::LrWpanMacHeader::m_fctrlFrmType

private

Frame Control field Bit 0-2 = 0 - Beacon, 1 - Data, 2 - Ack, 3 - Command.

Definition at line 401 of file lr-wpan-mac-header.h.

Referenced by GetFrameControl(), GetType(), IsAcknowledgment(), IsBeacon(), IsCommand(), IsData(), Print(), SetFrameControl(), and SetType().

◆ m_fctrlFrmVer

uint8_t ns3::LrWpanMacHeader::m_fctrlFrmVer

private

Frame Control field Bit 12-13.

Definition at line 412 of file lr-wpan-mac-header.h.

Referenced by GetFrameControl(), GetFrameVer(), Print(), SetFrameControl(), and SetFrameVer().

◆ m_fctrlPanIdComp

uint8_t ns3::LrWpanMacHeader::m_fctrlPanIdComp

private

Frame Control field Bit 6 = 0 - no compression, 1 - using only DstPanId for both Src and DstPanId.

Definition at line 407 of file lr-wpan-mac-header.h.

Referenced by GetFrameControl(), IsPanIdComp(), Print(), SetFrameControl(), SetNoPanIdComp(), and SetPanIdComp().

◆ m_fctrlReserved

uint8_t ns3::LrWpanMacHeader::m_fctrlReserved

private

Frame Control field Bit 7-9.

Definition at line 409 of file lr-wpan-mac-header.h.

Referenced by GetFrameControl(), GetFrmCtrlRes(), SetFrameControl(), and SetFrmCtrlRes().

◆ m_fctrlSecU

uint8_t ns3::LrWpanMacHeader::m_fctrlSecU

private

Frame Control field Bit 3 = 0 - no AuxSecHdr , 1 - security enabled AuxSecHdr present.

Definition at line 403 of file lr-wpan-mac-header.h.

Referenced by GetFrameControl(), IsSecEnable(), Print(), SetFrameControl(), SetSecDisable(), and SetSecEnable().

◆ m_fctrlSrcAddrMode

uint8_t ns3::LrWpanMacHeader::m_fctrlSrcAddrMode

private

Frame Control field Bit 14-15 = 0 - No SrcAddr, 2 - ShtSrcAddr, 3 - ExtSrcAddr.

Definition at line 413 of file lr-wpan-mac-header.h.

Referenced by Deserialize(), GetFrameControl(), GetSerializedSize(), GetSrcAddrMode(), Print(), Serialize(), SetFrameControl(), and SetSrcAddrMode().

◆ m_secctrlKeyIdMode

uint8_t ns3::LrWpanMacHeader::m_secctrlKeyIdMode

private

Auxiliary security header - Security Control field - Bit 3-4 will indicate size of Key Id.

Definition at line 433 of file lr-wpan-mac-header.h.

Referenced by Deserialize(), GetKeyIdMode(), GetSecControl(), GetSerializedSize(), Print(), Serialize(), SetKeyIdMode(), and SetSecControl().

◆ m_secctrlReserved

uint8_t ns3::LrWpanMacHeader::m_secctrlReserved

private

Auxiliary security header - Security Control field - Bit 5-7.

Definition at line 441 of file lr-wpan-mac-header.h.

Referenced by GetSecControl(), GetSecCtrlReserved(), SetSecControl(), and SetSecCtrlReserved().

◆ m_secctrlSecLevel

uint8_t ns3::LrWpanMacHeader::m_secctrlSecLevel

private

Auxiliary security header - Security Control field - Bit 0-2.

Definition at line 432 of file lr-wpan-mac-header.h.

Referenced by GetSecControl(), GetSecLevel(), Print(), SetSecControl(), and SetSecLevel().

◆ m_SeqNum

uint8_t ns3::LrWpanMacHeader::m_SeqNum

private

Sequence Number (1 Octet)

Definition at line 417 of file lr-wpan-mac-header.h.

Referenced by GetSeqNum(), Print(), and SetSeqNum().

The documentation for this class was generated from the following files:

src/lr-wpan/model/lr-wpan-mac-header.h
src/lr-wpan/model/lr-wpan-mac-header.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ AddrModeType

◆ KeyIdModeType

◆ LrWpanMacType

Constructor & Destructor Documentation

◆ LrWpanMacHeader() [1/2]

◆ LrWpanMacHeader() [2/2]

◆ ~LrWpanMacHeader()

Member Function Documentation

◆ Deserialize()

◆ GetDstAddrMode()

◆ GetDstPanId()

◆ GetExtDstAddr()

◆ GetExtSrcAddr()

◆ GetFrameControl()

◆ GetFrameVer()

◆ GetFrmCounter()

◆ GetFrmCtrlRes()

◆ GetInstanceTypeId()

◆ GetKeyIdIndex()

◆ GetKeyIdMode()

◆ GetKeyIdSrc32()

◆ GetKeyIdSrc64()

◆ GetSecControl()

◆ GetSecCtrlReserved()

◆ GetSecLevel()

◆ GetSeqNum()

◆ GetSerializedSize()

◆ GetShortDstAddr()

◆ GetShortSrcAddr()

◆ GetSrcAddrMode()

◆ GetSrcPanId()

◆ GetType()

◆ GetTypeId()

◆ IsAcknowledgment()

◆ IsAckReq()

◆ IsBeacon()

◆ IsCommand()

◆ IsData()

◆ IsFrmPend()

◆ IsPanIdComp()

◆ IsSecEnable()

◆ Print()

◆ Serialize()

◆ SetAckReq()

◆ SetDstAddrFields() [1/2]

◆ SetDstAddrFields() [2/2]

◆ SetDstAddrMode()

◆ SetFrameControl()

◆ SetFrameVer()

◆ SetFrmCounter()

◆ SetFrmCtrlRes()

◆ SetFrmPend()

◆ SetKeyId() [1/3]

◆ SetKeyId() [2/3]

◆ SetKeyId() [3/3]

◆ SetKeyIdMode()

◆ SetNoAckReq()

◆ SetNoFrmPend()

◆ SetNoPanIdComp()

◆ SetPanIdComp()

◆ SetSecControl()

◆ SetSecCtrlReserved()

◆ SetSecDisable()

◆ SetSecEnable()

◆ SetSecLevel()

◆ SetSeqNum()

◆ SetSrcAddrFields() [1/2]

◆ SetSrcAddrFields() [2/2]

◆ SetSrcAddrMode()

◆ SetType()

Member Data Documentation

◆

◆ m_addrDstPanId
